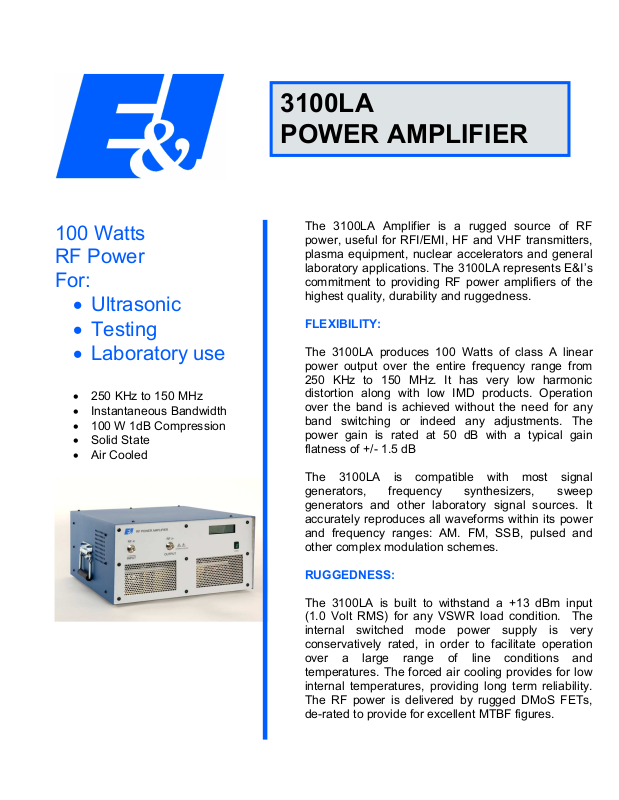

Page 1
100 Watts
RF Power
For:
• Ultrasonic
• Testing
• Laboratory use
• 250 KHz to 150 MHz
• Instantaneous Bandwidth
• 100 W 1dB Compression
• Solid State
• Air Cooled
3100LA
POWER AMPLIFIER
The 3100LA Amplifier is a rugged source of RF
power, useful for RFI/EMI, HF and VHF transmitters,
plasma equipment, nuclear accelerators and general
laboratory applications. The 3100LA represents E&I’s
commitment to providing RF power amplifiers of the
highest quality, durability and ruggedness.
FLEXIBILITY:
The 3100LA produces 100 Watts of class A linear
power output over the entire frequency range from
250 KHz to 150 MHz. It has very low harmonic
distortion along with low IMD products. Operation
over the band is achieved without the need for any
band switching or indeed any adjustments. The
power gain is rated at 50 dB with a typical gain
flatness of +/- 1.5 dB
The 3100LA is compatible with most signal
generators, frequency synthesizers, sweep
generators and other laboratory signal sources. It
accurately reproduces all waveforms within its power
and frequency ranges: AM. FM, SSB, pulsed and
other complex modulation schemes.
RUGGEDNESS:
The 3100LA is built to withstand a +13 dBm input
(1.0 Volt RMS) for any VSWR load condition. The
internal switched mode power supply is very
conservatively rated, in order to facilitate operation
over a large range of line conditions and
temperatures. The forced air cooling provides for low
internal temperatures, providing long term reliability.
The RF power is delivered by rugged DMoS FETs,
de-rated to provide for excellent MTBF figures.
Page 2
3100LA
POWER AMPLIFIER
Class of Operation
Class A
Frequency Range
250 KHz to 150 MHz
Rated Power Output
100 Watts (P1dB)
Saturated Power Output
250 KHz to 150 MHz > 125 W
1 MHz to 100 MHz > 150 W
Gain
50 dB (nominal)
Gain Flatness
+/- 1.5 dB
Input Power for rated Pout
1 mW
Input Impedance / VSWR
50Ω / 1.5:1 maximum
Output Impedance / VSWR
50Ω / 1.25:1 maximum
Protection
Input: Unit will withstand input signal of
+13 dBm without damage (1.0 V rms)
max. and infinite load VSWR.
Front Panel Meter
Front panel indicates forward and
reflected power.
Third Order Intercept Point
IP3 ~ 59 dBm
AC Input
85 – 264 VAC 47-63 Hz
Temperature Range
0 – 40 C
Cooling
Forced air.
Weight
35 lbs (16 Kg)
Dimensions
8.75 x 16.5 x 18.1 (H x W x D)
Harmonic Level
< -25dBc
Ruggedness
oo:1 VSWR
Stability
Unconditional into any passive load.
150 Lucius Gordon Drive.
Rochester. NY 14586
Tel: (585) 214 0598
Fax: (585) 214 0580
www.ElectronicsAndInnovation.com
