EnGenius Technologies EOC5611P User Manual

Wireless Outdoor

Client Bridge / Access Point

EOC5611P

User Manual

Version : 1.0

Table of Contents

1 PRODUCT OVERVIEW ........................................................................................................................................................... 3

1.1 F

EATURE

......................................................................................................................................................................... 3

1.2 B

ENEFITS

........................................................................................................................................................................ 5

1.3 P

ACKAGE CONTENTS

1.4 S

YSTEM REQUIREMENT

1.5 H

ARDWARE OVERVIEW

2 EOC5611P MULTI-FUNCTION INSTRUCTION GUIDE ............................................................................................................. 8

2.1 A

CCESS POINT

2.2 A

CCESS POINT WITH

2.3 C

LIENT BRIDGE

2.4 WDS B

2.5 C

3 COMPUTER SETTINGS ........................................................................................................................................................ 11

3.1 A

3.2 L

RIDGE

LIENT ROUTER

SSIGN A STATIC

OGGING METHOD

......................................................................................................................................................... 6

..................................................................................................................................................... 6

................................................................................................................................................................. 8

WDS F

UNCTION

................................................................................................................................................................ 9

.................................................................................................................................................................. 9

............................................................................................................................................................. 10

IP ......................................................................................................................................................... 11

......................................................................................................................................................... 12

.................................................................................................................................. 8

4 WIRELESS SETTINGS ........................................................................................................................................................... 13

4.1 S

WITCHING OPERATION MODE (SYSTEM → SYSTEM PROPERTIES

4.2 W

IRELESS SETTINGS

4.2.1 Access Point Mode

4.2.2 Client Bridge Mode

4.2.3 WDS Bridge Mode

4.2.4 Client Router Mode

4.3 W

IRELESS SECURITY SETTINGS

4.3.1 WEP................................................................................................................................................................. 20

4.3.2 WPA-PSK ......................................................................................................................................................... 21

4.3.3 WPA2-PSK ....................................................................................................................................................... 21

4.3.4 WPA-PSK Mixed ............................................................................................................................................... 22

4.3.5 WPA ................................................................................................................................................................ 23

4.3.6 WPA2 .............................................................................................................................................................. 24

4.3.7 WPA Mixed ...................................................................................................................................................... 25

4.3.8 Radius Accounting ........................................................................................................................................... 26

....................................................................................................................................................... 14

→

Wireless Network ...................................................................................................... 14

→

Wireless Network ..................................................................................................... 16

→

Wireless Network ...................................................................................................... 17

→

Wireless Network ..................................................................................................... 19

.......................................................................................................................................... 20

) ......................................................................................... 13

4.4 W

IRELESS → WIRELESS ADVANCED SETTINGS

4.5 W

IRELESS → WIRELESS

4.6 W

IRELESS →

5 LAN SETTINGS ..................................................................................................................................................................... 30

WDS L

MAC F

ILTER

INK SETTINGS

.................................................................................................................................. 29

................................................................................................................... 26

............................................................................................................................... 28

5.1

SYSTEM → IP SETTINGS

5.2 S

YSTEM → SPANNING TREE SETTINGS

................................................................................................................................................ 30

.............................................................................................................................. 31

6 ROUTER SETTINGS .............................................................................................................................................................. 32

6.1 R

OUTER →

6.1.1 WAN Settings

6.1.2 WAN Settings

6.1.3 WAN Settings

6.1.4 WAN Settings

6.2 R

OUTER →

6.3 R

OUTER →

6.4 R

OUTER → PORT FORWARDING

7 INFORMATION STATUS ....................................................................................................................................................... 44

7.1 S

TATUS → MAIN

7.2 S

TATUS → WIRELESS CLIENT LIST

7.3 S

TATUS → SYSTEM LOG

7.4 S

TATUS →

7.5 S

TATUS → CONNECTION STATUS

7.6 S

TATUS →

WAN S

ETTINGS

.......................................................................................................................................... 32

→

Static IP ............................................................................................................................. 32

→

DHCP (Dynamic IP) ............................................................................................................ 35

→

PPPoE (Point-to-Point Protocol over Ethernet) .................................................................. 37

→

PPTP (Point-to-Point Tunneling Protocol) .......................................................................... 39

LAN S

ETTINGS

............................................................................................................................................ 41

VPN P

ASS THROUGH

......................................................................................................................................................... 44

................................................................................................................................................. 47

WDS L

INK STATUS

DHCP C

LIENT TABLE

.................................................................................................................................... 42

..................................................................................................................................... 43

.................................................................................................................................... 46

........................................................................................................................................ 48

..................................................................................................................................... 49

...................................................................................................................................... 50

8 MANAGEMENT SETTINGS .................................................................................................................................................. 51

8.1 M

ANAGEMENT → ADMINISTRATION

8.2 M

ANAGEMENT → MANAGEMENT

8.3 M

ANAGEMENT →

8.4 M

ANAGEMENT → BACKUP/RESTORE SETTINGS

8.5 M

ANAGEMENT → FIRMWARE UPGRADE

8.6 M

ANAGEMENT → TIME SETTINGS

8.7 M

ANAGEMENT → LOG

8.8 M

ANAGEMENT → DIAGNOSTICS

9 NETWORK CONFIGURATION EXAMPLE .............................................................................................................................. 60

9.1 A

CCESS POINT

9.2 C

LIENT BRIDGE MODE

9.3 WDS B

9.4 C

10 VLAN CONFIGURATION GUIDE ......................................................................................................................................... 64

RIDGE MODE

LIENT ROUTER

SNMP S

................................................................................................................................................. 58

............................................................................................................................................................... 60

.................................................................................................................................................... 61

...................................................................................................................................................... 61

............................................................................................................................................................. 62

............................................................................................................................... 51

VLAN ......................................................................................................................... 53

ETTINGS

............................................................................................................................... 54

................................................................................................................. 55

.......................................................................................................................... 56

.................................................................................................................................. 57

..................................................................................................................................... 59

APPENDIX A – FCC INTERFERENCE STATEMENT .................................................................................................................... 68

1 Product Overview

Thank you for using EOC5611P. It is a powerful, enhanced, enterprise scale product with 4+1

multi-functions Access Point, Access Point with WDS function, Client Bridge, WDS Bridge,and Client

Router.

EOC5611P is easily to install almost anywhere with Power over Ethernet for quick outdoor installation.

External N-type antenna provides better wireless signal quality and the antenna is upgradeable.

EOC5611P uses 5G band and 2.4G wireless signal to avoid interference of most digital signal such as

mobile phone.

EOC5611P can manage power level control, Narrow bandwidth selection, Traffic shaping and

Real-time RSSI indicator. EOC5611P is fully support of security encryption including WI-Fi Protected

Access (WPA-PSK/WPA2-PSK), 64/128/152-bit WEP Encryption and IEEE 802.1x with RADIUS

Accounting.

Auction: The internal antenna is only available for 5G band wireless network.

1.1 Feature

The following list describes the design of the EOC5611P made possible through the power and

flexibility of wireless LANs:

a) Difficult-to-wire environments

There are many situations where wires cannot be laid easily. Historic buildings, older

buildings, open areas and across busy streets make the installation of LANs either

impossible or very expensive.

b) Temporary workgroups

Consider situations in parks, athletic arenas, exhibition centers, disaster-recovery,

temporary offices and construction sites where one wants a temporary WLAN established

and removed.

c) The ability to access real-time information

Doctors/nurses, point-of-sale employees, and warehouse workers can access real-time

information while dealing with patients, serving customers and processing information.

Frequently changed environments

Show rooms, meeting rooms, retail stores, and manufacturing sites where frequently

rearrange the workplace.

Advantage

26 dBm

Compliant

support (N

Type)

+1 Multi

Function

Users can use different mode in various environment

Wireless Connectivity

Selection

(CB mode)

the adapter provided in the pac

kage.

mode

manager

802.1x support

AP mode

mode)

Management

e) Wireless extensions to Ethernet networks

Network managers in dynamic environments can minimize the overhead caused by moves,

extensions to networks, and other changes with wireless LANs.

f) Wired LAN backup

Network managers implement wireless LANs to provide backup for mission-critical

applications running on wired networks.

g) Training/Educational facilities

Training sites at corporations and students at universities use wireless connectivity to ease

access to information, information exchanges, and learning.

High Output Power up to

IEEE 802.11a/b/g

Detachable antenna

Point-to-point, Point-to-multipoint

Channel Bandwidth

Support RSSI Indicator

Power-over-Ethernet

Support Multi-SSID function (4 SSID) in AP

Extended excellent Range and Coverage

Fully Interoperable with IEEE 802.11a/b/g compliant devices

Collocate with any antenna for user’s environment

Let users transfer data between two buildings or multiple buildings

Using different bandwidth to reach varied distance

Users can select the best signal to connect with AP easily

Flexible Access Point locations and cost savings. EOC5611P must uses

Allow clients to access different networks through a single access point and assign different policies and functions for each SSID by

WPA2/WPA/ WEP/ IEEE

MAC address filtering in

Fully support all types of security types.

Ensures secure network connection

PPPoE/PPTP function support (AP Router/CR

SNMP Remote Configuration

Easy to access internet via ISP service authentication

Help administrators to remotely configure or manage the Access Point easily.

QoS (WMM) support Enhance user performance and density

1.2 Benefits

Access Point Mode Use this feature to setup the access point’s configuration information.

It has support adjusting transmit power and channel. Client can access

the network with different regulatory settings and automatically

change to the local regulations.

Client Bridge Mode Use this feature to connect to an Access Point and enjoy the great

speed of surfing internet.

WDS Bridge Mode Use this feature to link multiple APs in a network. All clients associated

with any APs can communicate each other like an ad-hoc mode.

Client Router Mode This feature functions completely opposite but similarly with AP

Router Mode. Client Router connected to an AP wirelessly and

transmits internet connection protocol through AP to access the

internet.

Multiple SSIDs EOC5611P supports up to 4 SSIDs on your access point. The following

options can be set to each SS to each SSID:

- SSID for public or private network

- Authentication is fully supported

- VLAN identifier

- Radius accounting identifier

- Profile isolation for infrastructure network

VLAN Specify a VLAN number for each SSID to separate the services among

clients.

QoS Use this feature to limit the incoming or outgoing throughput.

Wi-Fi Protect Access Wi-Fi Protect Access is a standard-based interoperable security

enhancement that increases the level of data protection and access

control for existing and future wireless LAN system. It is compatible

with IEEE 802.11i standard WPA leverages TKIP and 802.1X for

authenticated key management.

1.3 Package Contents

Open the package carefully, and make sure that none of the items listed below are missing. Do not

discard the packing materials, in case of return; the unit must be shipped in its original package.

 1* Wireless Outdoor Access Point / Client Bridge (EOC5611P)  1* 24V/1A Power Adapter  1* Ethernet Cable  1* QIG  1* CD (User Manual)  2* 5dBi 5GHz Dipole Antennas

Auction: Using other Power Adapter than the one included with EOC5611P may cause damage of the

device.

1.4 System Requirement

The following conditions are the minimum system requirement.

 A computer with an Ethernet interface and operating under Windows XP, Vista, 7 or Linux.  Internet Browser that supports HTTP and JavaScript.

1.5 Hardware Overview

Hardware Specification

MCU/RF Atheros AR2313+AR5112

Memory 32MB SDRAM

Flash 8MB

Physical Interface 1 x 10/100 Fast Ethernet RJ-45

1 x Reset Button

1 x Antenna Switch ( Internal and External Switch )

2 x SMA Connector ( One is for 2.4GHz and another is for 5GHz )

LED indicators Power/ Status

LAN (10/100Mbps)

WLAN (Wireless is up)

3 x Link Quality (Client Bridge mode)

• Green: Good Quality

• Yellow: Marginally Acceptable Quality

• Red: Bad Quality

Power Requirements Active Ethernet (Power over Ethernet) Proprietary PoE design

Power Adapter 24V / 1A DC

Regulation Certifications FCC Part 15C/15B/15E, EN301 893, EN 300 328, EN 301 489-1/-17, EN60950,

IC Certification

2 EOC5611P Multi-Function Instruction Guide

2.1 Access Point

In the Access Point Mode with WDS Function, EOC5611P function likes a central connection for any

stations or clients that support IEEE 802.11a/b/g network. Stations and Client must configure the

same SSID and Security Password to associate within the range. EOC5611P supports 4 different SSIDs

to separate different clients at the same time.

2.2 Access Point with WDS Function

EOC5611P also supports WDS function in Access Point Mode without losing AP’s capabilities.

Configure others Access Point’s Wireless MAC Address in both Access Point devices to enlarge the

wireless area by enabling WDS Link Settings. WDS function can support up to 8 different AP’s MAC

addresses.

Auction: Not every Access Point device has support WDS in Access Point Mode. It is recommended

using EOC5611P if you would like to use this service.

2.3 Client Bridge

In the Client Bridge Mode, the EOC5611P function likes a wireless dongle. Connected to an Access

Point wirelessly and surf internet whenever you want. Using Site Survey to scan all the Access Point

within the range and configure its SSID and Security Password to associate with it. Connect you

station to the LAN port of the EOC5611P via Ethernet.

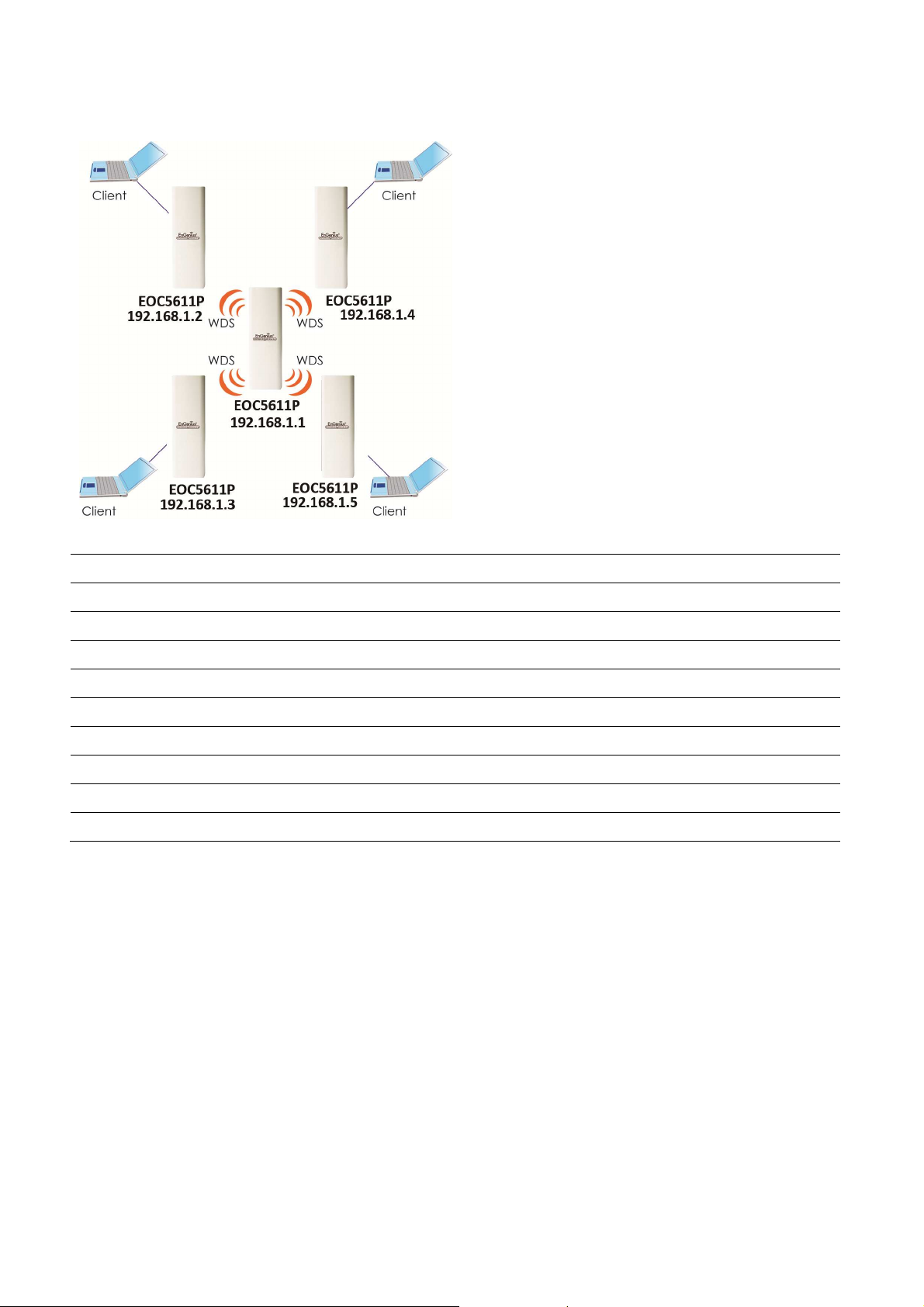

2.4 WDS Bridge

In the WDS Bridge Mode, the EOC5611P can wirelessly connect different LANs by just simply

configure each other’s MAC Address and Security Settings. This mode is used when two wired LANs

locate in small distance and want to communicate each other. The best solution is using EOC5611P

wirelessly connect two wired LANs. WDS Bridge Mode can establish 16 WDS links. The connection

diagram is like a Star.

Auction: WDS Bridge Mode is not function like Access Point. APs linked by WDS are using the same

frequency channel, more APs connected together may lower throughput. Please be aware to avoid

loop connection, otherwise you may enable Spanning Tree Function.

2.5 Client Router

In the Client Router Mode, the EOC5611P has DHCP Server build inside that allows many LANs

automatically generate an IP address to share the same Internet. Connect an AP/WISP Wirelessly and

connect to LANs via wired. Client Router Mode is act completely opposite to the AP Router Mode.

3 Computer Settings

3.1 Assign a Static IP

In order to configure EOC5611P, please follow the instruction below:

1. In the Control Panel, double click Network

Connections and then double click on the connection of

your Network Interface Card (NIC). You will then see the

following screen.

2. Select Internet Protocol (TCP/IP) and then click on the

Properties button. This will allow you to configure the

TCP/IP settings of your PC/Notebook

3. Select Use the following IP address radio button and

then enter the IP address and subnet mask. Ensure that

the IP address and subnet mask are on the same subnet

as the device.

4. Click on the OK button to close this window, and then

close LAN properties window.

Auction: IP Address entered in the TCP/IP Properties needs to be at the same subnet of the

EOC5611P IP Address. For example: EOC5611P’s default IP Address is 192.168.1.1 so the IP Address in

the TCP/IP settings could be 192.168.1.10.

3.2 Logging Method

After complete the IP settings from last section, you can now access the web-based configuration

menu.

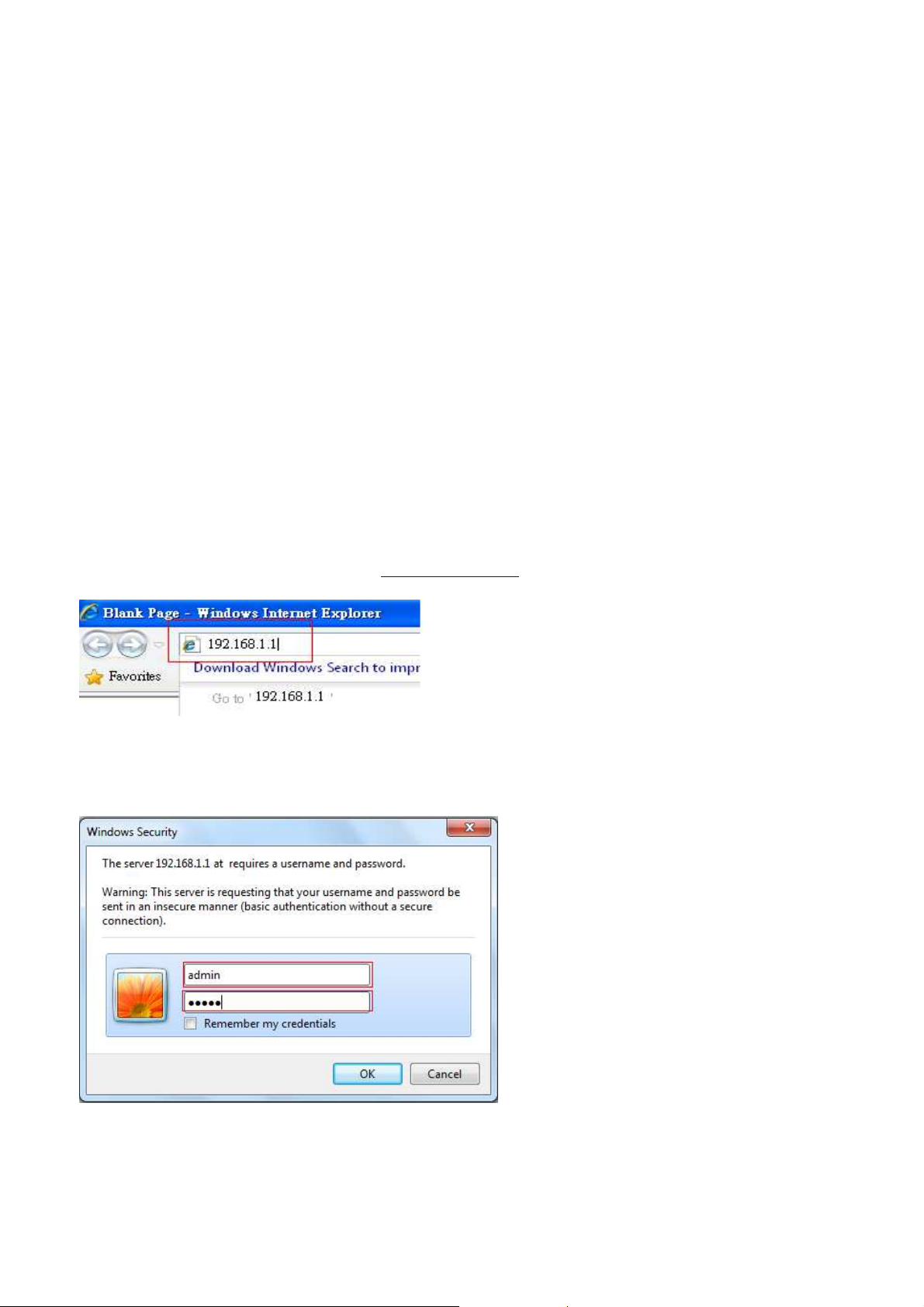

1. Open web browser

2. Enter IP 192.168.1.1 into you address filter.

Auction: If you have changed the EOC5611P LAN IP address, make sure you enter the correct IP

Address.

3. After connected to the EOC5611P successfully, browser will pop out a Windows Security window.

Please enter the correct Username and Password.

4. The default Username and Password are both admin.

Auction: If you have changed the Username and Password, please enter your own Username and

Password.

4 Wireless Settings

4.1 Switching Operation Mode (System → System Properties)

The EOC5611P supports 4 different operation modes: Access Point, Client Bridge, WDS Bridge, and

Client Router.

Click System Properties under System Section to begin.

Device Name: Specify a name for the device, but it is not the broadcast SSID. It will be shown in

SNMP management.

Country/Region: Select a Country/Region to conform local regulation.

Operation Mode: Select an operation mode via Radio Button.

Click Apply to save the changes.

Note: If you would like to use Access Point with WDS Function mode, please select Access Point

Mode and then enable WDS Link Settings function.

4.2 Wireless Settings

4.2.1 Access Point Mode → Wireless Network

Wireless Mode

Channel / Frequency

Auto

AP Detection

Current Profile

Profile Isolation

EOC5611P supports 802.11a/b/g wireless band.

The channel availability is based on the country’s regulation.

Place a Check to enable Auto channel selection.

AP Detection can help to select a best channel by scan nearby area.

Configure up to four different SSIDs, it can help to divide group of clients to access

the network. Press Edit to configure the profile and place a Check to enable extra

SSID.

Restricted Client to communicate with different VID by Selecting the Radio button.

Auction: When you select 802.11a (5GHz) as your wireless mode, only the wireless client which

supports 5GHz network can associate with. Please make sure your wireless client supports 5GHz

wireless network.

Note: Enable Profile Isolation will cause wireless clients cannot communicate each other. For more

details please refer to the “VLAN Management Configuration Guide.

SSID

VLAN ID

Suppressed SSID

Station Separation

Wireless Security

Save / Cancel

Specify the SSID for current profile.

Specify the VLAN tag for current profile.

Place a Check to hide the SSID. Client will not be able to see the broadcast SSID in

Site Survey.

Select the Radio Button to allow / deny client to communicate each other.

Please refer to the Wireless Security section.

Press Save to save the changes or Cancel to return previous settings.

Note: When you enable Profile Isolation, all the packets transmit through wireless network will carry

VLAN ID.

4.2.2 Client Bridge Mode → Wireless Network

Wireless Mode

SSID

Site Survey

Prefer BSSID

WDS Client

Apply / Cancel

EOC5611P supports 802.11a/b/g wireless band.

Specify the SSID if known. SSID text box will be automatically fill in when select an AP

in the Site Survey.

Using Site Survey to scan nearby APs and then select the AP to establish the

connection.

Specify the MAC address if known. Prefer BSSID text box will be automatically fill in

when select an AP in the Site Survey.

Place a Radio button to Enable / Disable WDS Client.

Press Apply to apply the changes or Cancel to return previous settings.

Profile

Wireless Security

Refresh

After Site Survey, webpage will display all nearby area’s Access Point. Click the BSSID

if you would like to connect with it.

Please refer to the Wireless Security section.

Press Refresh to scan again.

Auction: If the Access Point is suppressed its owned SSID, SSID section will be blank, the SSID must be

filled in manually.

4.2.3 WDS Bridge Mode → Wireless Network

Wireless Mode

Channel / Frequency

Apply / Cancel

EOC5611P supports 802.11a/b/g wireless band.

The channel availability is based on the country’s regulation.

Press Apply to apply the changes or Cancel to return previous settings.

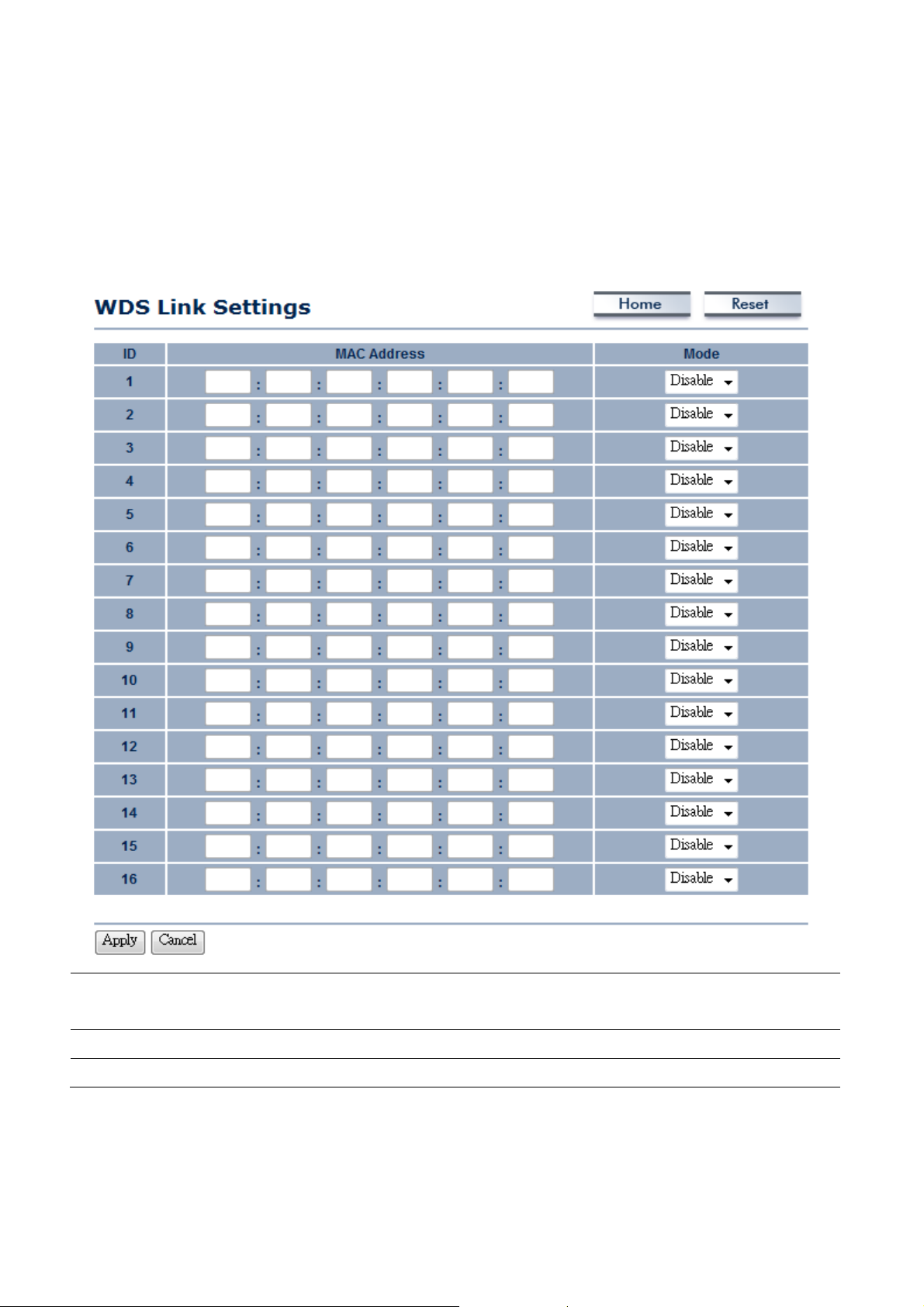

MAC Address

Mode

Apply / Cancel

Enter the Access Point’s MAC address that you would like to extend the wireless area

into the MAC address filter.

Select Disable or Enable from the drop down list.

Press Apply to apply the changes or Cancel to return previous settings.

Auction: The Access Point that you would like to extend the wireless area must enter your Access

Point’s MAC address. Not all Access Point supports this feature. More WDS bridges connected

together may cause lower performance.

4.2.4 Client Router Mode → Wireless Network

Wireless Mode

SSID

Site Survey

Prefer BSSID

WDS Client

Apply / Cancel

EOC5611P supports 802.11a/b/g wireless band.

Specify the SSID if known. SSID text box will be automatically fill in when select an AP

in the Site Survey.

Using Site Survey to scan nearby APs and then select the AP to establish the

connection.

Specify the MAC address if known. Prefer BSSID text box will be automatically fill in

when select an AP in the Site Survey.

Place a Radio button to Enable / Disable WDS Client.

Press Apply to apply the changes or Cancel to return previous settings.

Profile

Wireless Security

Refresh

After Site Survey, webpage will display all nearby area’s Access Point. Click the BSSID

if you would like to connect with it.

Please refer to the Wireless Security section.

Press Refresh to scan again.

Auction: If the Access Point is suppressed its owned SSID, SSID section will be blank, the SSID must be

filled in manually.

4.3 Wireless Security Settings

Wireless Security Settings section will guide you to the entire Security modes configuration: WEP,

WPA-PSK, WPA2-PSK, WPA-PSK Mixed, WPA, WPA2, and WPA Mixed.

We strongly recommend that uses WPA2-PSK as your security settings.

4.3.1 WEP

Security Mode

Auth Type

Input Type

Key Length

Default Key

Key1

Key2

Key3

Key4

Select WEP from the drop down list to begin the configuration.

Select Auth Type in Open System or Shared.

Select Input Type in Hex or ASCII.

Select Key Length in 64/128/152 bit password length.

Select the default index key for wireless security.

Specify password for security key index No.1.

Specify password for security key index No.2.

Specify password for security key index No.3.

Specify password for security key index No.4.

+ 48 hidden pages

EnGenius Technologies EOC5611P User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
