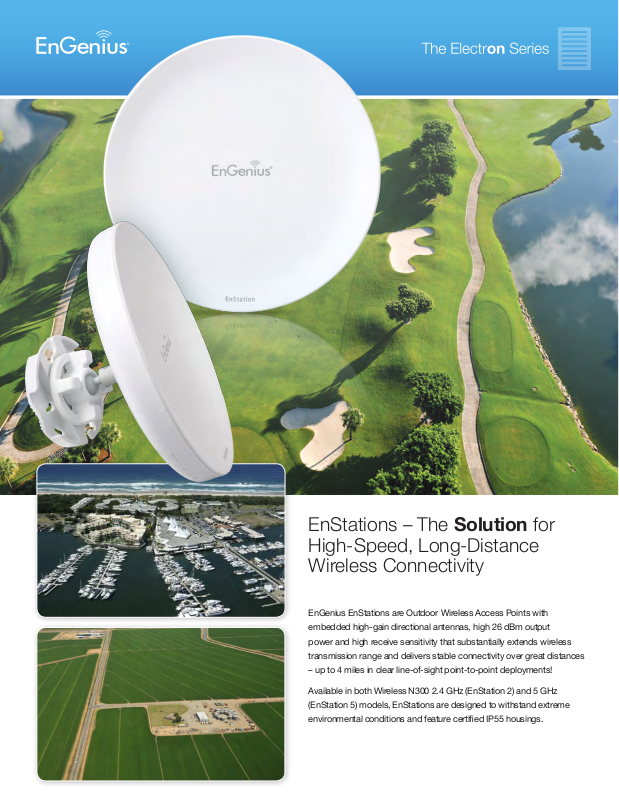

EnStations – The Solution for
High-Speed, Long-Distance
Wireless Connectivity
EnGenius EnStations are Outdoor Wireless Access Points with
embedded high-gain directional antennas, high 26 dBm output
power and high receive sensitivity that substantially extends wireless
transmission range and delivers stable connectivity over great distances
– up to 4 miles in clear line-of-sight point-to-point deployments!
Available in both Wireless N300 2.4 GHz (EnStation 2) and 5 GHz
(EnStation 5) models, EnStations are designed to withstand extreme
environmental conditions and feature certied IP55 housings.
EnStations are deal for deploying for these venues:
College
Campuses
Corporate
Campuses
Shopping
Malls
Resort
Properties
Parks and
Campgrounds
Going The Distance.
EnGenius EnStations are specically designed and engineered to extend
networks over great distances and to transfer data at stable, robust wireless
speeds in point-to-point deployments in large campus venues, over extensive
acreage in industrial, farming or ranching properties, in large indoor structures
like arenas, shopping malls, warehouses, convention centers or other
challenging environments.
Military
Bases
Warehouse
Operations
Stadiums
& Arenas
Medical
Centers
Luxury Homes
and Estates
0.5 mile
1.8 miles
3 miles
up to 90 Mbps
up to 60 Mbps
up to 30 Mbps
2
WISP Scenarios
EnStations because they are high-performance, competitively priced wireless products that
can be used in Client Bridge mode and pointed to a Wireless Internet Service Provider’s base
station making them ideal CPE that can generate recurring revenue for Internet providers. The
compact form factor of EnStation units also make them acceptable to many homeowners
asscociation because they are barely noticeable and unobtrusive additions to a community’s
architectural standards.
Interoperability with other EnGenius Access Points
EnGenius offers a number of high-powered, long range Access Point models that can serve the
role of a WISP base station or group of base stations for a single community that an EnStation
CPE unit can point to and fulll all the homeowner’s needs for broadband connectivity, HDTV,
telephony and other WISP-provided services.
ENH1750EXT
(sold separately)
3
Monitor & Upgrade EnStations from the Convenience of Your Desk
With EnGenius’ EZ Controller™ Management Software, units that have already been deployed on rooftops or other difcult
to access locations and other EnGenius APs or Client Bridges in the network can be recongured to a different operational
mode or upgraded remotely without having to manually reconnect to them or re-install them onsite.
Better Voice & Video Streaming
EnStations also employ Advanced QoS (Quality of Service)
to prioritize bandwidth-intensive applications like video
streaming or bandwidth sensitive applications like VoIP
(Voice over IP) telephone calls for optimal connectivity
whether over wired or wireless connections. In addition,
each EnStation is capable of supporting up to 50+ client
devices, providing a ofoading solution for public access
and other high density network environments.
Additional Operating Modes
EnStations support three (3) different operating modes
for extending the wireless signal of a network: Access
Point, Client Bridge, and WDS Bridge mode. This
exibility makes EnStation5 a versatile solution for
creating a high-speed, stable and highly secure outdoor
wireless link between buildings, connecting surveillance
cameras, or connecting outdoor digital sign to an ofce
network. Greater X can be achieved however when the
device is paired with another EnStaion2 or EnStation5
for Point to Point applications, focusing their narrow
bandwidth to cover large distances where Ethernet
cabling is impractical.
More secure network congurations
EnStations include industry standard wireless encryption
such as Wi-Fi Protected Access (WPA-PSK/WPA2-PSK).
MAC Address Filtering is also included allowing network
administrators to allow or deny network access to clients
devices (computers, tablet PCs, NAS, smartphones, etc.)
according to their MAC addresses.
4
360° 3D-ARRAY
ROTATION
Extreme Distance Even In Extreme Weather
EnStations are easy to install in virtually any location and its internal electronics have
been mounted in an IP55-rated enclosure, one of the highest waterproof and dustproof
ratings available, designed to withstand extremely harsh environmental conditions
including severe and prolonged exposure to sunlight, extreme cold, frost, snow, rainfall,
hail and humidity.
WALL / POLE
MOUNTING BRACKET
UV RESISTANT COVER
SEALING NUT
LED INDICATORS
(POWER, WIRELESS AND LAN STATUS)
PORT COVER
Position It For Maximum Connectivity
Can be mounted to a variety of surfaces or to poles with three-axis positioning especially
useful in aligning to a matching EnStation unit in a point-to-point deployment scenario.
5
Can Be Installed Virtually Anywhere
EnStations include a proprietary PoE (Power-over-Ethernet) injector with Power Adapter for installations via
Ethernet cable from a switch for mountings where power outlets may not be readily available like rooftops, rafters,
near ceiling in large indoor venues like shopping malls, convention centers or warehouses. Also includes a mast
mount kit with binding strap.
LAN
DC IN
EnStation Wireless Surveillance Scenario
EnStations feature an additional Fast Ethernet (10/100) port that IP Surveillance
Cameras can utilize in order to send video data back through the network.
PoE
Additional Ethernet cable shown here
connected to one of the Switch’s ports.
6
13 dBi
19 dBi
Antenna Specications
EnStation2
Antenna Specications (Internal Antenna)
2.4 GHz (P1) 2.4 GHz (P2)
Antenna Gain 13 dBi 13 dBi
Polarization Linear Linear
Azimuth Beam-Width 67° 61°
Elevation Beam-Width 33° 35°
VSWR 1:2.0 1:2.0
Dimension 175 x 175 x 5.5mm
P1: E-PLANE
P1: H-PLANE
P2: E-PLANE
EnStation5
Antenna Specications (Internal Antenna)
5 GHz (P1) 5 GHz (P2)
Antenna Gain 19 dBi 19 dBi
Polarization Linear Linear
Azimuth Beam-Width 30° 18°
Elevation Beam-Width 18° 30°
VSWR 1:2.0 1:2.0
Dimension 175 x 175 x 5.5mm
P2: H-PLANE
P1: E-PLANE
P1: H-PLANE
P2: E-PLANE
P2: H-PLANE
7
Compare
EnStation
EnStation 2 EnStation 5
Standards
Frequency
Data Rates Up to 300 Mbps Up to 300 Mbps
Radio Chains/Streams
RF Output Power
Ingress Protection Rating
Fast Ethernet (10/100 Mbps)
Secondary Gigabit port
Integrated Antennas
802.11b/g/n 802.11a/n
2.4 GHz 5 GHz
2 x 2 2 x 2
26 dBm 26 dBm
55 55
13 dBi 19 dBi
Common Key Features
Features
•
Auto Channel Selection
•
Guest Network
•
WEP, WPA-PSK, WPA2-PSK, WPA-PSK
Mixed, WPA-Enterprise, WPA2- Enterprise,
WPA-Mixed Enterprise
Visit and
Like us
on
•
4 SSIDs
•
VLAN Pass-through
•
QoS
•
IPv6
•
SSID to VLAN Mapping
•
CLI
•
Client Trafc Status
•
WiFi Scheduler
•
RADIUS Accounting
•
Multicast Support
•
SNMP v1/v2c/v3
•
MAC Address Filter
EnGenius Technologies | 1580 Scenic Ave. Costa Mesa, CA 92626
Features and specications subject to change without notice. Trademarks and registered trademarks are the property of their respective owners. User capacity performance results may vary based on topology
conguration, structural and architectural elements, environmental factors, type of data trac, RF capabilities of client devices, distance, RF interference in the operating environment and other factors.
For United States of America: Copyright © 2014 EnGenius Technologies, Inc. All rights reserved.
Version 1.0 - 10/02/14
