ENH710EXT
version 1.0
Dual Band Long Range Wireless N600 Outdoor Access Point
2
IMPORTANT
To install this Access Point please refer to the
Quick Installation Guide
included in the product packaging.
3
Table of Contents
Chapter 1 Product Overview. ..................................... 4
Key Features/Introduction. ........................................... 5
System Requirements. .................................................. 6
Package Contents. ......................................................... 7
Technical Specifications.. ..................................................... 8
Physical Interface. ........................................................ 10
Chapter 2 Before You Begin. ...................................... 11
Computer Settings. ...................................................... 12
Hardware Installation. ................................................. 15
Mounting the ENH710EXT. ...................................... 16
Chapter 3 Configuring Your Access Point. .................. 20
Default Settings./Web Configuration..
........................ 21
Chapter 4 Building a Wireless Network. .................... 22
Access Point Mode. ..................................................... 23
Client Bridge Mode. ..................................................... 24
WDS AP Mode. ................................................................. 25
WDS Bridge Mode. ............................................................ 26
WDS Station Mode. ........................................................... 27
Chapter 5 Status. ..................................................... 28
Main Status. ................................................................. 29
Connection. .................................................................. 31
Chapter 6 Network ................................................... 33
Basic IP Settings. ....................................................... 34
Spanning Tree Protocol Setting. .................................. 35
Chapter 7 2.4 GHz/5 GHz Wireless. ................................ 36
WirelessSettings. .......................................................... 37
2.4 GHz/5 GHz Wireless Network. ..................................... 38
2.4GHz/5 GHz SSID Profile.. ............................................. 40
Wireless Security. ........................................................ 41
Wireless MAC Filtering. ............................................... 42
Wireless Advanced. .................................................... 43
WPS Mixed-Enterprise: AP/WDS AP Mode. ..................... 44
WDS Link Settings. ...................................................... 45
Client Bridge Settings. ................................................ 46
Guest Network Settings. ............................................. 47
Chapter 8 Management ............................................. 48
Management VLAN Settings. ...................................... 49
Advanced Settings. .................................................... 50
CLI Settings/Email Alert. .............................................. 51
Time Zone. ................................................................... 53
Auto Reboot Settings. ................................................. 54
Wi-Fi Scheduler. ................................................................. 55
Tools. ......................................................................... 56
Account/Firmware.
.......................................................... 58
Backup/Restore ........................................................... 59
Log. ............................................................................ 61
Logout/Reset. ............................................................ 62
Appendix. ................................................................ 63
FCC Interference Statement. ...................................... 64
CE Interference Statement. ........................................ 65
IC Interference Statement. ............................................... 68
Professional Installation Instruction. .......................... 69
Instructions d’installation professionnelle. ................ 70
Detachable Antenna Usage. ....................................... 71
4
Chapter 1
Product Overview
5
Introduction
Key Features
• Up to 27 dBm transmit power enabling long range connectivity
• Supports IEEE802.11a/b/g/n wireless standards with up to 300
Mbps data rate on each band.
• Two detachable 5 dBi 2.4 GHz Omni-directional antennas
• Two detachable 7 dBi 5 GHz Omni-directional antennas
• Can be used with included power adapter or via PoE with PoE
802.3at - capable switches or injectors
• Band Steering shifts dual band clients to 5 GHz for better
throughput performance
• Secured Guest Network option available
Introduction
The ENH710EXT is a high-powered, long-range 2x2 Dual-
Band Wireless 802.11a/b/g/n Outdoor Access Point with
speeds up to 450 Mbps on both its high-powered 2.4
GHz and 5 GHz radios. It can be configured as an: Access
Point, Client Bridge or WDS (AP, Station & Bridge). The
ENH710EXT is designed to operate in a variety of outdoor
environments. Its high-powered, long-range characteristics
make it a cost effective alternative to ordinary Access
Points that don’t have the range and reach to connect to
a growing number of wireless users who wish to connect
to a business network. The ENH710EXT supports the 2.4
GHz frequency band under 802.11 b/g/n mode while at the
same time providing the 5 GHz band for communicating to
and from other 5 GHz capable computers, tablets or smart
phones or transferring files. Several ENH710EXTs can be
deployed in a campus setting using the 5 GHz band as
Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions,
distance between devices, radio interference in the operating environment, and mix of devices in the network. Features and specifications subject to change without
notice. Trademarks and registered trademarks are the property of their respective owners. For United States of America: Copyright © 2014 EnGenius Technologies, Inc. All
6
rights reserved.
7
a backhaul to provide multiple 2.4 GHz wireless cells for
computers or mobile devices in common outdoor areas.
The ENH710EXT is easy to install in virtually any location
with its included PoE (Power over Ethernet) injector for
quick outdoor installation. The ENH710EXT enables
network administrators to control its transmit power and
features settings for selecting narrow bandwidth and
traffic shaping. The ENH710EXT also supports wireless
encryption including Wi-Fi Protected Access (WPA-PSK/
WPA2-PSK) Encryption and IEEE 802.1X with RADIUS.)
System Requirements
The following are the Minimum System Requirements in
order to configure the device.
• Computer with an Ethernet interface or wireless network capability
• Windows OS (XP, Vista, 7, 8), Mac OS, or Linux-based operating systems
• Web-Browsing Application (i.e.: Internet Explorer, Firefox, Safari, or
another similar browser application)
8
Package Contents
The ENH710EXT package contains the following items:*
• ENH710EXT Access Point
• 2 detachable 5 dBi 2.4 GHz Omni-directional Antenna
• 2 detachable 7 dBi 5 GHz Omni-directional Antenna
• Power Adapter
• PoE Injector (EPE-48GR)
• Grounding Cable
• Pole Mount Bracket
• Wall Mount Base
• Mounting Screw Set
• Quick Installation Guide
*(all items must be in package to issue a refund):
9
Technical Specifications
Standard:
IEEE802.11a/n on 5 GHz
IEEE802.11b/g/n on 2.4 GHz
IEEE802.3at
Antenna
4 External N-type Antennas
2 x detachable 5dBi 2.4GHz Omni-directional Antennas
2 x detachable 7dBi 5GHz Omni-directional Antennas
Physical Interface
2 x 10/100/1000 Gigabit Ethernet Port with PoE support
LAN1 Port supports IEEE802.3at PoE Input
LED Indicator
Power
LAN 1
LAN 2
2.4 GHz
5 GHz
Power Requirements
External Power Adapter, DC IN, 48V/0.5A
IEEE802.3at support
Operation Modes
Access Point
Client Bridge
WDS
WDS Detail
WDS AP
WDS Bridge
WDS Station
Optimal Performance
Distance Control (Ack Timeout)
Multicast Supported
Band Steering
Fast Roaming
Auto Channel Selection
BSSID Support
Easily Management
VLAN Tag / VLAN Pass-through
Guest Network
QoS: Complaint with IEEE 802.11e /WMM
RADIUS Accounting
Wireless STA (Client) connection list
Traffic Shaping (Per SSID, Per user)
Intuitive Tools
SNMP v1/v2c/v3 support
MIB I/II, Private MIB
Save Configuration as Default
CLI Support
WiFi-Scheduler/Auto Reboot
E-
mail Alert
1
Reinforcement Security
WEP Encryption-64/128/152 bit
WPA/WPA2 Enterprise (WPA-EAP using TKIP or AES)
Hide SSID in beacons
MAC address filtering up to 32 MACs per SSID
Https Support
SSH
QoS (Quality of Service)
Complaint with IEEE 802.11e standard
Physical/Environment Conditions
Operating:
Temperature: -4 °F to 158 °F (-20 °C to 70 °C)
Humidity (non-condensing): 90% or less
Storage:
Temperature: -22 °F to 176 °F (-30 °C to 80 °C)
Humidity (non-condensing): 90% or less
10
Physical Interface
Dimensions and Weights
Length: 280.48mm (11.22”)
Width: 217.65mm (8.58”)
Depth: 55.50mm (2.1”)
Weight: 1.88Kg (4.17 lbs)
1 2.4 GHz Antennas:
Detachable 5 dBi 2.4 GHz Omni-directional
2 5 GHz Antennas:
Detachable 7 dBi 5 GHz Omni-directional
3 LAN Port 1 (802.3at PoE Input)
: Ethernet port for RJ-45 cable.
4
LAN Port 2:
Ethernet port for RJ-45 cable.
2 1 3
4
1
2
11
Chapter 2
Before You Begin
12
Computer Settings
Windows XP/Windows 7/Windows 8
In order to use the ENH710EXT, you must first configure the
TCP/IPv4 connection of your Windows OS computer system.

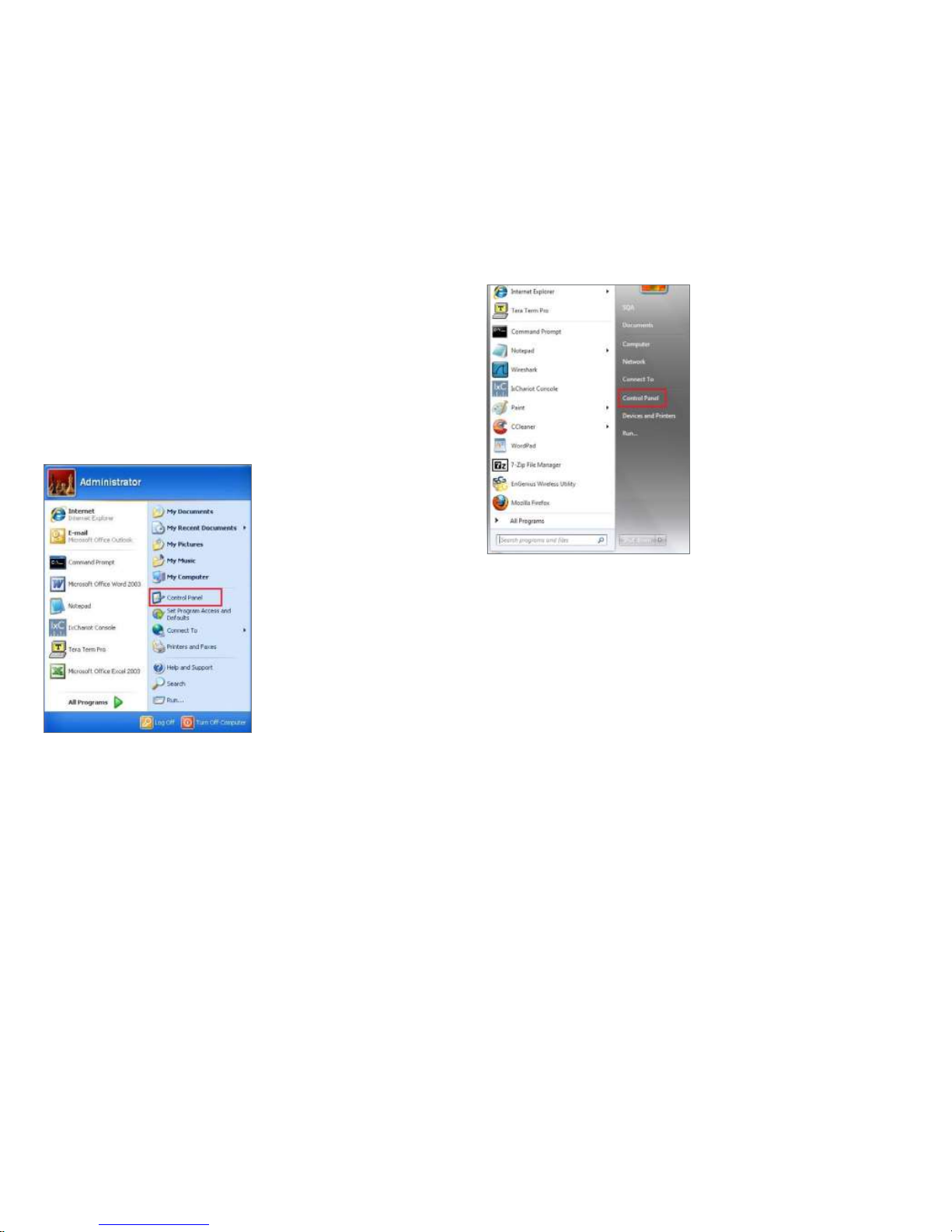

1a.
Click the
Start
button and open the
Control Panel
Windows XP Windows 7
13
1b
. Move your mouse to the lower right hot corner to
display the Charms Bar and select the
Control Panel
in
Windows 8 OS.
2a.
In
Windows XP,
click
Network Connections.
2b.
In
Windows 7/Windows 8
, click
View Network Status
and Tasks
in the
Network and Internet
section, then
select
Change adapter settings.
14
3.
Rightclickon
LocalAreaConnection
andselect
Properties.
4.
Select
Internet Protocol Version 4 (TCP/IPv4)
and then
select
Properties.
5.
Select
Use the following IP address
and enter an IP
address that is different from the ENH710EXTand Subnet
mask, then click OK.
Note:
Ensure that the IP address and Subnet mask are
on the same subnet as the device.
For example: ENH710EXT IP address: 192.168.1.1
PCIPaddress:192.168.1.2–192.168.1.255
PC Subnet mask: 255.255.255.0
15
Apple Mac OS X
1.
Go to
System Preferences
(Which can be opened in the
Applications folder or selecting it in the Apple Menu).
2.
Select
Network
in the
Internet & Network
section.
3.
Highlight
Ethernet.
4.
In
Configure IPv4
, select
Manually.
5.
Enter an IP address that is different from the ENH710EXT
and Subnet mask then press
OK.
Note:
Ensure that the IP address and Subnet mask are
on the same subnet as the device.
For example: ENH710EXT IP address: 192.168.1.1
PCIPaddress:192.168.1.2–192.168.1.255
PC Subnet mask: 255.255.255.0
6.
Click
Apply
when done.
16
Hardware Installation
1.
Connect one end of the Ethernet cable into the main
LAN port (PoE) of the Access Point and the other end to
the AP Ethernet port on the PoE injector.
2.
Connect the
Power Adapter
to the
DC-IN
port of the
PoE injector and plug the other end in to an electrical
outlet.
3.
Connect the second Ethernet cable into the
LAN port
of
the PoE injector and the other end to the Ethernet port
on the computer.
4. Screw on the provided antennas to the device. Once
both connections are secure, verify the following:
a) Ensure that the
POWER
light is on (it will be green).
b) Ensure that the 2.4 GHz/5 GHz WLAN light is on (it will
be green for both 5 GHz and 2.4 GHz).
c) Ensure that the LAN (Computer/ENH710EXT
Connection) light is on (it will be green).
d) Once all three lights are on, proceed to set up the
Access Point using the computer.
This diagram depicts the hardware configuration.
PC
Note: The Access Point supports both IEEE 802.3at PoE
(Power over Ethernet) or the included power injector.
You may use either one as the power source.
Do NOT
use both at the same time.
PoE
Injector/
Ethern
Powe
r
17
Mounting the ENH710EXT
Using the provided hardware, the ENH710EXT can be attached to a wall or a pole.
1.
Wall Mount Kit:
260x180x7
(mm)
(10.2" x 7.09" x 0.28")
2.
Pole Mount Kit 140x112x33 (mm)
(5.51" x 4.41" x 1.30")
3.
Pipe 63.5 (D) x 12.7 (mm)
(2.5"(D) x 0.5")
4.
Tool 20(D) x 6 (mm)
(0.79"(D) x 0.24")
5.
Screws: 6.5(D) x 9.95 (mm)
(0.26"(D) x 0.39")
18
3
4
To attach the ENH710EXT to a wall using wall
mounting kit.
1.
Mark the four locations of the mounting holes on the
flat mounting surface.
2. Drill a 37 mm deep 8 mm hole in the markings and
hammer the bolts into the openings.
3. Place the lock and flat washers on the four hex cap screws
and drive the screws to attach the bracket to the back of
the Access Point.
4. Tighten the flat washers to secure the bracket to the
mounting surface.
1.
2.
To attach the ENH710EXT to a pole using the
provided pole mounting kit:
1. Place the lock and flat washers on the four hex cap screws
and drive the screws to attach the bracket to the back of
the Access Point.
2.
Drive the four round head screws to attach the Pole
Mount Bracket to the bracket.
3.
Thread the open end of the Pole Strap through the two
tabs on the Pole Mount Bracket .
4.
Lock and tighten the Pole Strap to secure the Pole Mount
Bracket to the pole.
Note:
See diagram below for vertical and horizonal
placements.
vertical placement
1
horizontal placement
18
2
4
3
19
To install the ground cable on the ENH710EXT
1.
Use the attached screws to pass the ground cable as
shown in the figure below.
2.
Assemble the ground cable on the device.
1.8m (5.9”)
Length:
29
Chapter 3
Configuring Your
Access Point
21
Configuring Your Access Point
This section will show you how to configure the device
using the web-based configuration interface.
Default Settings
Please use your Ethernet port or wireless network adapter
to connect the Access Point.
IP Address
192.168.1.1
Username / Password
admin / admin
Web Configuration
1.
Open a web browser (Internet Explorer/Firefox/Safari/
Chrome) and enter the IP Address
http://192.168.1.1
Note:
If you have changed the default LAN IP Address of
the Access Point, ensure you enter the correct IP Address.
2.
The default username and password are
admin.
Once you have entered the correct username and
password, click the
Login
button to open the web-base
configuration page.
3.
If successful, you will be logged in and see the
ENH710EXT User Interface.
Loading...
