EnerPlex Jumpr Slate 5K User guide

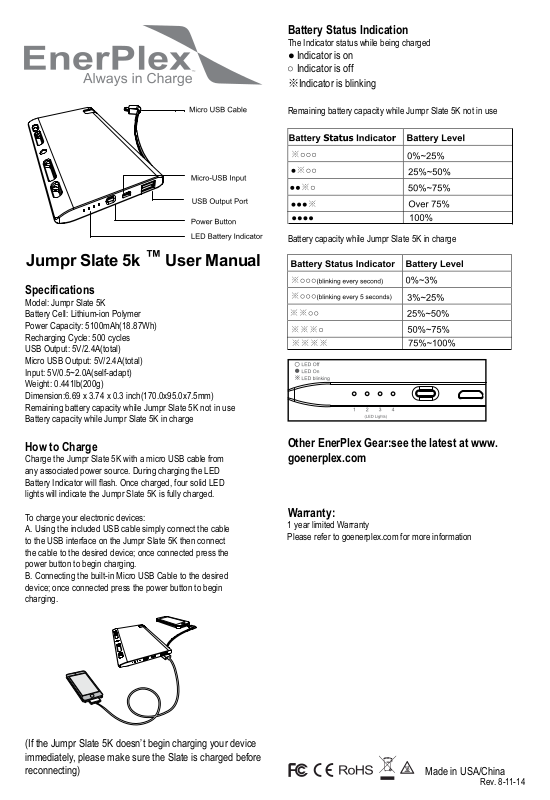

Jumpr Slate 5k ™ User Manual

Specications

Model: Jumpr Slate 5K
Battery Cell: Lithium-ion Polymer
Power Capacity: 5100mAh(18.87Wh)
Recharging Cycle: 500 cycles
USB Output: 5V/2.4A(total)
Micro USB Output: 5V/2.4A(total)
Input: 5V/0.5~2.0A(self-adapt)
Weight: 0.441lb(200g)
Dimension:6.69 x 3.74 x 0.3 inch(170.0x95.0x7.5mm)
Remaining battery capacity while Jumpr Slate 5K not in use
Battery capacity while Jumpr Slate 5K in charge

Battery Status Indication

The Indicator status while being charged

● Indicator is on
○ Indicator is off

※Indicator is blinking

Remaining battery capacity while Jumpr Slate 5K not in use

Battery capacity while Jumpr Slate 5K in charge

How to Charge

Charge the Jumpr Slate 5K with a micro USB cable from
any associated power source. During charging the LED

Battery Indicator will ash. Once charged, four solid LED

lights will indicate the Jumpr Slate 5K is fully charged.

To charge your electronic devices:
A. Using the included USB cable simply connect the cable
to the USB interface on the Jumpr Slate 5K then connect
the cable to the desired device; once connected press the
power button to begin charging.
B. Connecting the built-in Micro USB Cable to the desired
device; once connected press the power button to begin
charging.

(If the Jumpr Slate 5K doesn’t begin charging your device

immediately, please make sure the Slate is charged before

reconnecting)

Other EnerPlex Gear:see the latest at www.
goenerplex.com

Warranty:

1 year limited Warranty
Please refer to goenerplex.com for more information

Made in USA/China

Rev. 8-11-14
