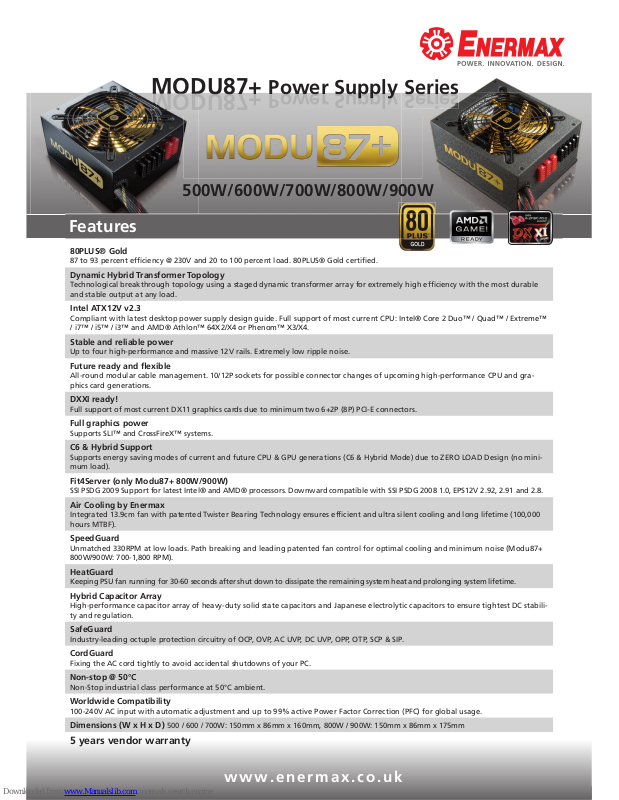

MODU87+ Power Supply Series

Serie

MODU87+ Power Supply Series

www.enermax.co.uk

OD

80PLUS® Gold

87 to 93 percent efficiency @ 230V and 20 to 100 percent load. 80PLUS® Gold certified.

Dynamic Hybrid Transformer Topology

Technological breakthrough topology using a staged dynamic transformer array for extremely high efficiency with the most durable
and stable output at any load.

Intel ATX12V v2.3

Compliant with latest desktop power supply design guide. Full support of most current CPU: Intel® Core 2 Duo™ / Quad™ / Extreme™
/ i7™ / i5™ / i3™ and AMD® Athlon™ 64X2/X4 or Phenom™ X3/X4.

Stable and reliable power

Up to four high-performance and massive 12V rails. Extremely low ripple noise.

Future ready and flexible

All-round modular cable management. 10/12P sockets for possible connector changes of upcoming high-performance CPU and gra­phics card generations.

DXXI ready!

Full support of most current DX11 graphics cards due to minimum two 6+2P (8P) PCI-E connectors.

Full graphics power

Supports SLI™ and CrossFireX™ systems.

C6 & Hybrid Support

Supports energy saving modes of current and future CPU & GPU generations (C6 & Hybrid Mode) due to ZERO LOAD Design (no mini­mum load).

Fit4Server (only Modu87+ 800W/900W)

SSI PSDG 2009 Support for latest Intel® and AMD® processors. Downward compatible with SSI PSDG 2008 1.0, EPS12V 2.92, 2.91 and 2.8.

Air Cooling by Enermax

Integrated 13.9cm fan with patented Twister Bearing Technology ensures efficient and ultra silent cooling and long lifetime (100,000
hours MTBF).

SpeedGuard

Unmatched 330RPM at low loads. Path breaking and leading patented fan control for optimal cooling and minimum noise (Modu87+
800W/900W: 700-1,800 RPM).

HeatGuard

Keeping PSU fan running for 30-60 seconds after shut down to dissipate the remaining system heat and prolonging system lifetime.

Hybrid Capacitor Array

High-performance capacitor array of heavy-duty solid state capacitors and Japanese electrolytic capacitors to ensure tightest DC stabili­ty and regulation.

SafeGuard

Industry-leading octuple protection circuitry of OCP, OVP, AC UVP, DC UVP, OPP, OTP, SCP & SIP.

CordGuard

Fixing the AC cord tightly to avoid accidental shutdowns of your PC.

Non-stop @ 50°C

Non-Stop industrial class performance at 50°C ambient.

Worldwide Compatibility

100-240V AC input with automatic adjustment and up to 99% active Power Factor Correction (PFC) for global usage.

Dimensions (W x H x D) 500 / 600 / 700W: 150mm x 86mm x 160mm, 800W / 900W: 150mm x 86mm x 175mm

5 years vendor warranty

Features

500W/600W/700W/800W/900W

外框線

Cables & Connectors

www.enermax.co.uk

EMG500

AWT

EMG600

AWT

EMG700

AWT

EMG800

EWT

EMG900

EWT

AC Input Rating

Input Voltage

100-240VAC, 50-60Hz, Active PFC

Input Current

6.5–3A 8–3.5A 9–4A 10–4.5A 11.5–5A

DC Output Rating

+3.3V

20A

100W

24A

120W

24A

120W

24A

120W

24A

120W

+5V

20A 24A 24A 24A 24A

+12V1

25A

492W

(41A)

25A

600W

(50A)

25A

696W

(58A)

30A

792W

(66A)

30A

900W

(75A)

+12V2

25A 25A 25A 30A 30A

+12V3

25A 25A 25A 30A 30A

+12V4

- - - - - - 30A 30A

-12V

0.5A 6W 0.5A 6W 0.5A 6W 0.5A 6W 0.5A 6W

+5Vsb

3A 15W 3A 15W 3A 15W 3A 15W 3A 15W

Total Power

500W 600W 700W 800W 900W

Peak Power

550W 660W 770W 880W 990W

Modular
cable management

Specifications

500W 600W 700W 800W 900W

ATX12V 24 Pin

1x 55cm 1x 55cm 1x 55cm 1x 55cm 1x 55cm

CPU 4+4 Pin

1x 60cm 1x 60cm – 1x 60cm 1x 60cm

CPU 8 Pin

– – – 1x 60cm 1x 60cm

CPU 4+4 Pin
& 8 Pin

&

– –

1x

60 / 60cm

– –

2x PCI-E 2.0

&

– – –

1x

45 / 45cm

1x

45 / 45cm

EMC014-G

2x PCI-E 2.0
6+2 Pin

1x

55 / 55cm

2x

55 / 55cm

2x

55 / 55cm

2x

50 / 50cm

2x

50 / 50cm

EMC019-G

4x SATA

1x

45 / 60 / 75 / 90cm1x45 / 60 / 75 / 90cm1x45 / 60 / 75 / 90cm2x45 / 60 / 75 / 90cm2x45 / 60 / 75 / 90cm

EMC020-G

4x 4 Pin Molex +
FDD

1x

45 / 60 /

75 / 90 / 105cm

1x

45 / 60 /

75 / 90 / 105cm

1x

45 / 60 /

75 / 90 / 105cm

1x

45 / 60 /

75 / 90 / 105cm

1x

45 / 60 /

75 / 90 / 105cm

EMC021-G

2x SATA + 2x
4 Pin Molex

1x

45 / 60 / 75 / 90cm2x45 / 60 / 75 / 90cm2x45 / 60 / 75 / 90cm2x45 / 60 / 75 / 90cm2x45 / 60 / 75 / 90cm

MODULAR NATIVE

DYNAMIC HYBRID TRANSFORMER TOPOLOGY

DYNAMIC RESONANT TRANSFORMER ARRAY DYNAMIC VOLTAGE BOOSTING TRANSFORMING DYNAMIC FREQUENCIES TRANSFORMING

Enermax implemented a so-called Dynamic
Resonant Transformer Array. It is based on
the high-efficient resonant topology which is
used for example in LCD monitors. The most
noticeable modification on PCB is an additio­nal resonant choke.

Initially, the capacitors are charged with
alternating current (AC) from the wall socket.
They ensure the continuous AC supply of the
transformers according to the DC consump­tion of the PC system. Up to now, capacitors
have been charged statically, so that too
much power got lost at low loads. The capa­citors of Modu87+/Pro87+ series are charged
with dynamic voltages – according to the
required system power. That way, Enermax is
able to increase the efficiency significantly.

Transformers step the alternating current up
or down. During this operation a part of the
input power gets lost. Enermax managed to
optimize the AC-to-DC conversion by the use
of dynamic frequencies. The transformers
work with a wider frequency range according
to the variable power consumption of system
components. That way, Enermax is able to
reduce energy losses during AC-to-DC conver­sion radically.

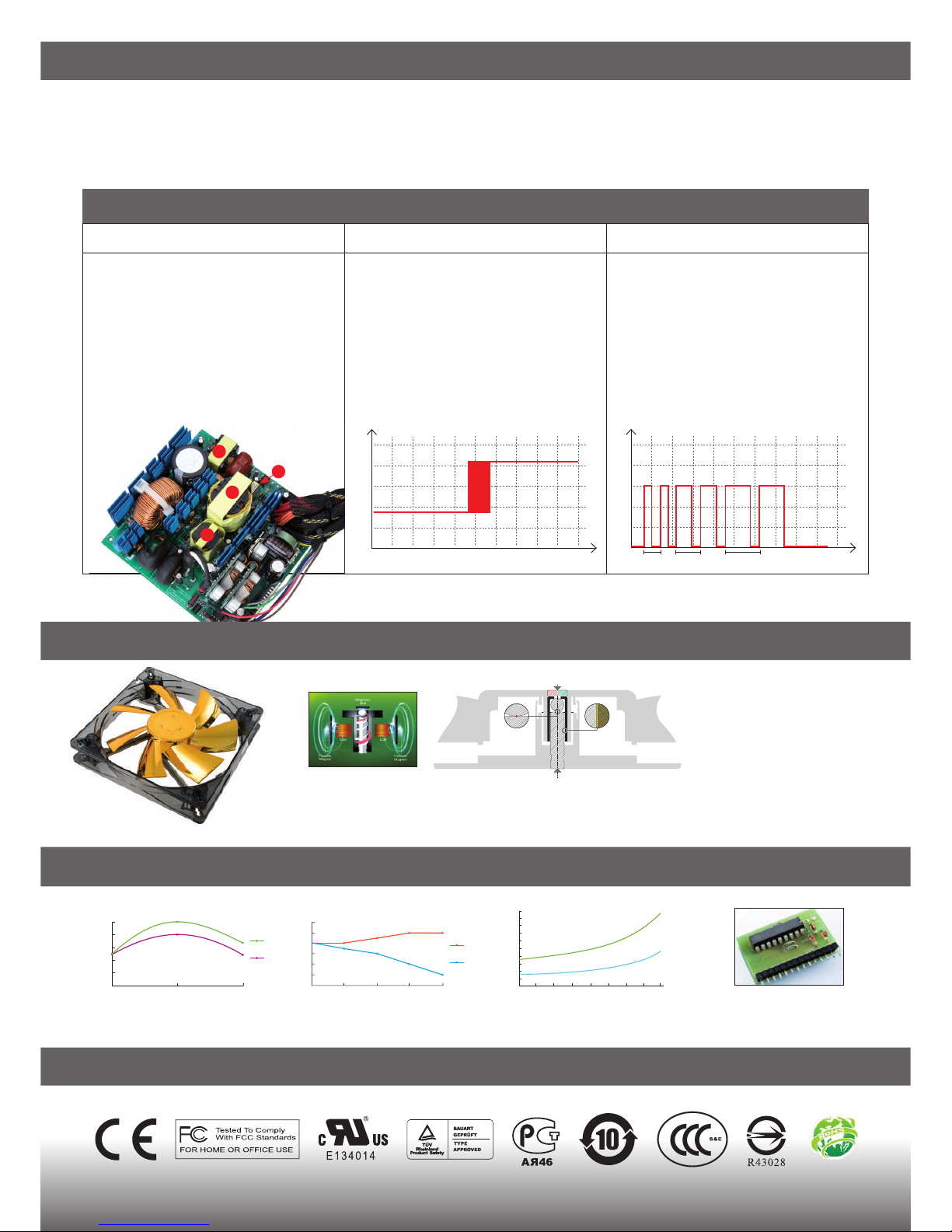

Dynamic Hybrid Transformer Topology (DHT)

All current options for further improvement of the PSU DC stage have been exhausted. For this reason, PSU manufacturers focus on the
development of more efficient AC technologies. With the so-called “Dynamic Hybrid Transformer Topology” Enermax made the
breakthrough: It is based on three pathbreaking innovations:

400

300

% 10 20 30 40 50 60 70 80 90

Load

VAC

24

0

120KHz 100KHz 60KHz

Time

Volt

B

A

C

B

Rotor with integrated magnet

For a frictionless and smooth motion

A

Minimal contact area

For an effective noise reduction

C

Self-lubricating bearing sleeve

Abrasion protection for a longer lifetime

Twister Bearing Technology (patented)

Persistent low noise level. Longer life: up to 100.000 hours MTBF

www.enermax.co.uk

Certifications & Standards

80PLUS

®

GOLD

Up to 93% efficiency at 230V

SpeedGuard SafeGuardHeatGuard

PSU Loading

20% 50%

100%

PSU Eciency

%

91

89

87

85

230VAC

115VAC

Seconds

0 30 4515

60

°C

36

35

34

33

32

31

Without
HeatGuard

With
HeatGuard

System Temperature

32

33

34

34.5

35

35.5

36 36

PSU Loading

FAN RPM (±10%)

0

25% 50% 75% 100%

400

800

1200

1600

2000

900

330

Others

MODU87+

PRO87+

Leading technology for highest PSU effici­ency.

Unmatched 330RPM at low loads

(Modu87+ 800W / 900W: 700-1.800RPM).

Keeping PSU fan running for 30-60

seconds after shut down to dissipa-

te the remaining system heat.

Industry-leading octuple protec-

tion circuitry of OCP, OVP, AC UVP,

DC UVP, OPP, OTP, SCP & SIP.

A RESONANT CHOKE
B MAIN TRANSFORMER

C DRIVER TRANSFORMER
D STANDBY TRANSFORMER

A

D

B

C

Twister Bearing Technology
