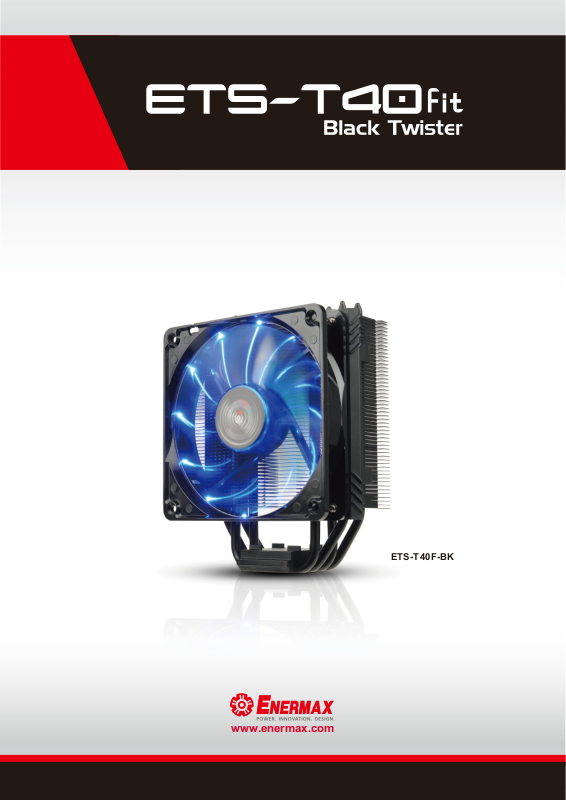

Page 1
www.enermax.com
ETS-T40F-BK
Page 2
•Support 200W TDP
•100% RAM compatibility
®
•Intel
Skylake (LGA 1151) support
CPU cooler
ETS-T40F-BK
Features
Compact side flow air cooler with fully RAM compatibility of all kinds
○
Outstanding cooling performance : Thermal resistance 0.117°C/W
○
- VGF (Vortex Generator Flow), to increase air convection in-between the fins
- VEF (Vacuum Effect Flow), to optimize airflow inside the cooler
- HDT (Heat-pipe Direct Touch), to improve thermal conductivity
Unique TCC (Thermal Conductive Coating) on heatsink, to create better velocity of thermal transferring
○
and to prevent oxidation
4 x Ø6mm high performance heat pipes to improve heat conductivity
○
Patented circular type LED fan for utmost and eye-catching light effects
○
Dual fan installation option
○
High thermal conductivity grease to ensure the best thermal conduction between CPU and the heat sink
○
Easy and solid Installation :
○
- All-in-one back-plate design offers universal AMD & Intel desktop CPU compatibility
- Durable metal mounting plate
”1-Clip” fan bracket design for user-friendly installation
○
Page 3
Close-up for features
Patented VGF/VEF
HDT design “1-Clip” fan bracket
design
Twister Bearing technology Dimension
●
MTBF≧160,000 hrs
●
Low noise profile
●
Detachable fan blades
Specifications
Patented circular
LED fan
100% RAM compatibility
unit : mm
Compatible Socket
Heat Sink Dimension (mm)
Weight
Heat Pipe
Material
Thermal Grease
Fan Dimension (mm)
Speed
Air Flow
Air Pressure
Fan
Rated Voltage
Bearing Type
MTBF
Noise
Connector
ETS-T40F-BKETS-T40F-BKModelModel
®
Intel
LGA775/1150/1151/1155/1156/1366/2011/2011-3
®
AMD
AM2/AM2+/AM3/AM3+/FM1/FM2/FM2+
126(L) x 40(W) x 161.7(H)
460g
4 x Ø6 mm
Copper Heat Pipes / Aluminum Fins
®
Dow Corning
TC5121
120 x 120 x 25 mm
800-1800 RPM
33.26 ~ 75.98 CFM
0.97 ~ 2.28 mmH
O
2
12V
Twister Bearing
160,000 hours
16 ~ 26dBA
4 pin PWM connector
www.enermax.com
©
2015 ENERMAX TECHNOLOGY CORPORATION. Al l rights reserved. Specifications are subject to change without notice. Content of delivery might differ
in different areas or from illustrations. Some trademarks may be claimed as the property of others.
Jul. 2015
