Page 1

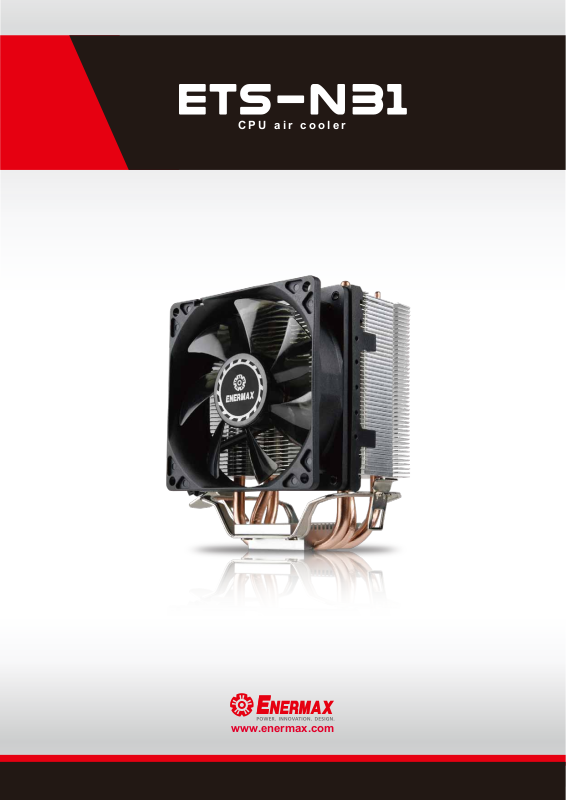

C P U a i r c o o l e r
www.enermax.com
Page 2
C P U a i r c o o l e r
Superb compatibility with chassis
and RAM modules
Effective cooling solution
130W TDP cooling capacity
ENERMAX ETS-N31 is an effective cooling solution
for entry-level systems. With its compact-size design,
ETS-N31 provides superb compatibility with chassis
and RAM modules. The heat sink incorporates with
patented VGF (Vortex Generator Flow), VEF (Vacuum
Effect), and HDT (Heat pipe Direct Touch) design to
ensure rapid heat dissipation and remove hot spots on
CPU swiftly. ETS-N31, an ultra-compact CPU cooler,
is perfect to small chassis.
Features
Maximum compatibility
Compact size structure gives users greater flexibility
in selecting chassis
125mm
Patented VGF (Vortex Generator
Flow) to increase air convection
around the heat pipes
OthersETS-N31
Page 3
Unique air path creating high VEF (Vacuum Effect) to optimize the airflow
ETS-N31 - No air leaks from sides
HDT (Heat-pipe Direct Touch) technology
ensures rapid thermal conduction and
eliminates CPU hot spots quickly
Others - Cooling air leaks from sides
Asymmetric heat pipe design allows extra
space for perfect RAM compatibility
Tool-free mounting system ensures
an effortless and easy installation
AMD Intel
“1-clip” fan bracket design for
user-friendly installation
Page 4
Dimensions
unit:mm
82.534
125
27
119
95
92
125
92
95
50
77.5
12.9
Specifications
Model Name
Compatible Socket
Overall Weight
Heat Pipe
Material
Fan
35
Dimension
Speed
Air Flow
Static Pressure
29.5
35
ETS-N31-02ETS-N31-02
®
Intel
LGA 775/1150/1151/1155/1156/1366,
®
AMD
AM4/AM3/AM3+/AM2/AM2+/FM1/FM2/FM2+
385 g
3 x Ø6 mm
Copper Heat Pipes/Aluminum Fins
92 x 92 x 25 mm
800 ~ 2000 RPM
13.12 ~ 32.8 CFM
22.29 ~ 55.72 m
0.86 ~2.15 mmH
3
/h
2
O
Max. Noise
Connector
LED
Barcode
Box Dimension
Gross Weight / unit
Carton Dimension
Qty / Carton
Gross Weight / Carton
24.5 dBA
4 pin PWM connector
N/A
Shipping Information
EAN: 4713157722768
UPC: 816163008988
120 x 115 x 136 mm
485 g
495 x 475 x 306 mm
32
16.4 kg
www.enermax.com
©
2017 ENERMAX TECHNOLOGY CORPORATION. All rights reserved. Specifications are subject to change without notice. Content of delivery might differ
in different areas or fro m illustrations. Some trademarks m ay be claimed as the property of o thers.
Jan. 2017
