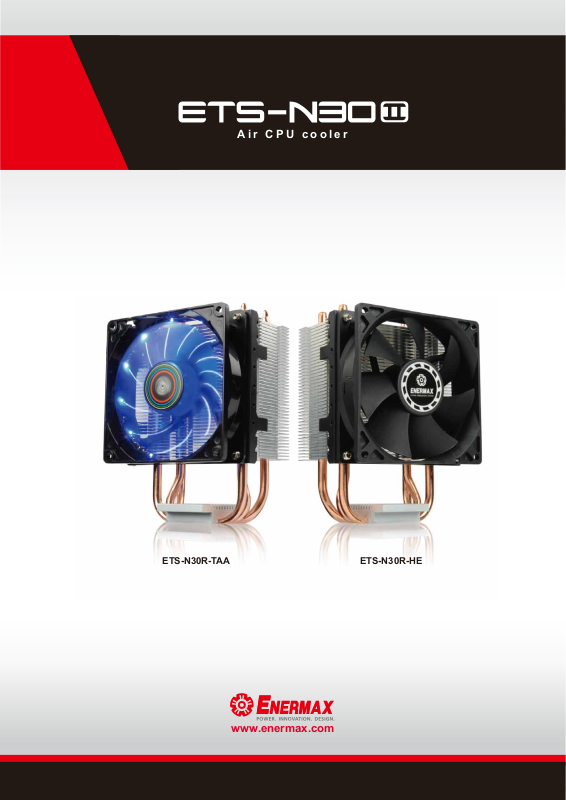

Page 1
A i r C P U c o o l e r
ETS-N30R-TAA ETS-N30R-HE
www.enermax.com
Page 2
ETS-N30R-TAA ETS-N30R-HE
Features
150W
TDP
A i r C P U c o o l e r
9cm fan compact air CPU cooler
150W TDP supported
Perfect RAM compatibility
ENERMAX ETS-N30II is a compact 9cm fan side flow
air CPU cooler created for small systems. The asymmetric heat pipes construction ensures perfect RAM
compatibility. The heat sink incorporates with patented
VGF (Vortex Generator Flow), VEF (Vacuum Effect
Flow) structure, and HDT (Heat pipe Direct Touch) to
ensure rapid heat absorption from CPU.
Patented VGF (Vortex Generator
flow) to increase air convection
around the heat pipe
Unique air path creating high VEF (Vacuum Effect) to optimize the airflow
Asymmetric heat pipe design to ensure
perfect RAM compatibility
OthersETS-N30II
ETS-N30II - VEF inhales more air
Others - Cooling air leaks from sides
Page 3
HDT (Heat-pipe direct touch) technology to
ensure rapid thermal conduction and eliminate
CPU hot spots
“1-clip” fan bracket design for user-friendly
installation
Dow Corning® TC-5121 thermal grease
ensures the perfect thermal conduction
Fan RPM reduction adaptor lower the noise
by 25% (ETS-N30R-HE only)
Patented circular type LED fan with 12 diodes
for utmost and eye-catching light effects
(ETS-N30R-TAA only)
Page 4
All-in-one back-plate design offers
universal AMD & Intel desktop CPU
compatibility
Dimensions
unit:mm
Specifications
Model Name
Compatible Socket
Dimension
Heat Pipe
Material
Thermal Grease
Fan
90.737.8
137.2
13 35 29.4
Dimension
Speed
Air Flow
Static Pressure
Rated Voltage
Noise Level
Connector
LED
For AMD
95
92
129.5
37.5
35
ETS-N30R-HEETS-N30R-HE ETS-N30R-TAAETS-N30R-TAA
®
Intel
AMD
800~2800 RPM
600~1800 RPM
(w/ fan adaptor)
15.9~55.4 CFM ; 27~94.1 m
9.3~30.8 CFM ; 15.9~52.3 m
(w/ fan adaptor)
0.36~4.37 mmH
0.18~1.7 mmH
(w/ fan adaptor)
16~28 dBA
12~20 dBA
(w/ fan adaptor)
N/A 12 x Blue LED
For Intel
95
92
137.2
92
LGA 775/1150/1151/1155/1156/1366/2011/2011-3,
®
AM2/AM2+/AM3/AM3+/FM1/FM2/FM2+
95(L) × 77.5(W) × 137.2(H) mm
3 x Ø6 mm
Copper Heat Pipes / Aluminum Fins
®
Dow Corning
TC-5121
92 × 92 × 25 mm
800~2800 RPM
3
/h
3
/h
2
O
2
O
14.5~50.8 CFM
24.6~86.3 m
0.32~3.86 mmH
12V
16~27 dBA
4 pin PWM
50
77.5
3
/h
2
O
Barcode
Box Dimension
Gross Weight / unit
Carton Dimension
Gross Weight / Carton
www.enermax.com
©
in different areas or fro m illustrations. Some trademarks m ay be claimed as the property of o thers.
Logistic Information
EAN: 4713157722119
UPC: 816163008445
142 x 96 x 169 mm
630g
592 x 307 x 373 mm
EAN: 4713157722126
UPC: 816163008452
142 x 96 x 169 mm
630g
592 x 307 x 373 mm
19.2kg ( 24 units per carton)
2015 ENERMAX TECHNOLOGY CORPORATION. All rights reserved. Specifications are subject to change without notice. Content of delivery might differ
Nov. 2015
