Page 1

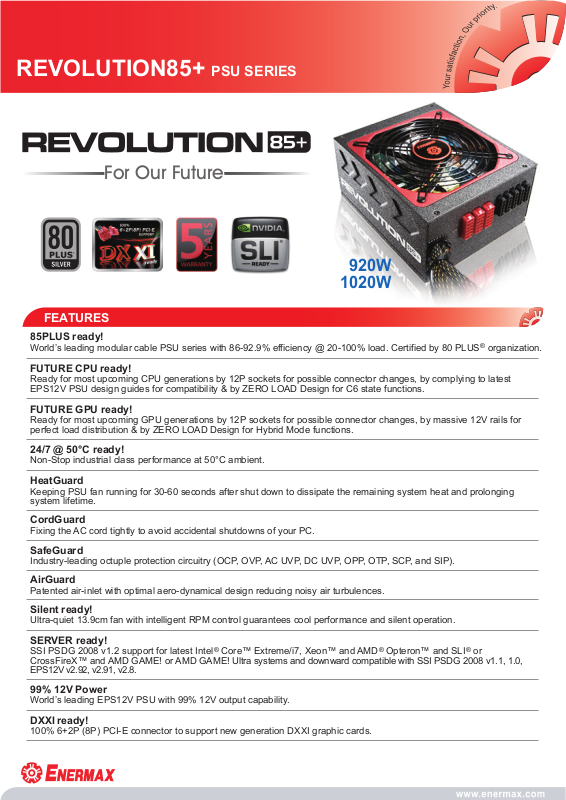

REVOLUTION85+ PSU SERIES
For Our Future.For Our Future
FEATURES
920W
1020W
85PLUS ready!
World’s leading modular cable PSU series with 86-92.9% efficiency @ 20-100% load. Certified by 80 PLUS organization.
FUTURE CPU ready!
Ready for most upcoming CPU generations by 12P sockets for possible connector changes, by complying to latest
EPS12V PSU design guides for compatibility & by ZERO LOAD Design for C6 state functions.
FUTURE GPU ready!
Ready for most upcoming GPU generations by 12P sockets for possible connector changes, by massive 12V rails for
perfect load distribution & by ZERO LOAD Design for Hybrid Mode functions.
24/7 @ 50°C ready!
Non-Stop industrial class performance at 50°C ambient.
HeatGuard
Keeping PSU fan running for 30-60 seconds after shut down to dissipate the remaining system heat and prolonging
system lifetime.
CordGuard
Fixing the AC cord tightly to avoid accidental shutdowns of your PC.
SafeGuard
Industry-leading octuple protection circuitry (OCP, OVP, AC UVP, DC UVP, OPP, OTP, SCP, and SIP).
AirGuard
Patented air-inlet with optimal aero-dynamical design reducing noisy air turbulences.
Silent ready!
Ultra-quiet 13.9cm fan with intelligent RPM control guarantees cool performance and silent operation.
®
SERVER ready!
SSI PSDG 2008 v1.2 support for latest Intel Core™ Extreme/i7, Xeon™ and AMD Opteron™ and SLI or
CrossFireX™ and AMD GAME! or AMD GAME! Ultra systems and downward compatible with SSI PSDG 2008 v1.1, 1.0,
EPS12V v2.92, v2.91, v2.8.
99% 12V Power
World’s leading EPS12V PSU with 99% 12V output capability.
DXXI ready!
100% 6+2P (8P) PCI-E connector to support new generation DXXI graphic cards.
® ® ®
Page 2
85PLUS ready!
Energy Consumption Comparison
600W, 24/7 LOAD@230VAC
REVOLUTION85+
1020W
PSU
other ~82%
other ~80%
*1 Estimation based on 24/7 heavy-duty server system.
*2 Electricity fare might vary by countries and regional providers.
*3 CO
2 comparison is based on 1kWh = 0.62kg CO2. Figures might vary by countries.
*1
Efficiency
92.0%
82.0%
80.0%
AC draw
(W)
652
732
750
kWh draw
94
93
92
92
91
89.5
90
Efficiency %
89
88
87
86
85
85
84
20% 40% 60% 80% 100%
92.9
90
88
Annually wasted *2
Annual
5713
6410
6570
kWh
wasted
697
857
$ 0.1505/kWh
California
-
$ 104.9
-
$ 129
89
86
85
PSU load
€ 0.22/kWh
Hamburg
-
€ 153.3
€ 188.5
230VAC
115VAC
80 PLUS Silver
requirement
CO
2/kg *3
-
432
531.3
ENERMAX REVOLUTION85+ series provide tight
DC regulation to support C6 mode and Hybrid
graphic power saving mode thanks to its
ZERO LOAD (0W) Design.
1-130W
C6 state CPU
1-300W
Hybrid mode GPU
ZERO LOAD
3.3V
5V
12V1
12V2
12V3
•
0A
•
•
-12V
5Vsb
For C6 state and Hybrid
mode support
12P socket design for possibly upcoming
10P & 12P connector generations.
AirGuard
Patented air-inlet with optimal aero-dynamical design reducing noisy air turbulences.
Future ready!C6 & Hybrid mode ready!
with AirGuard without AirGuard
<
<
<
<
<
FAN
<
Noisy turbulence
Page 3

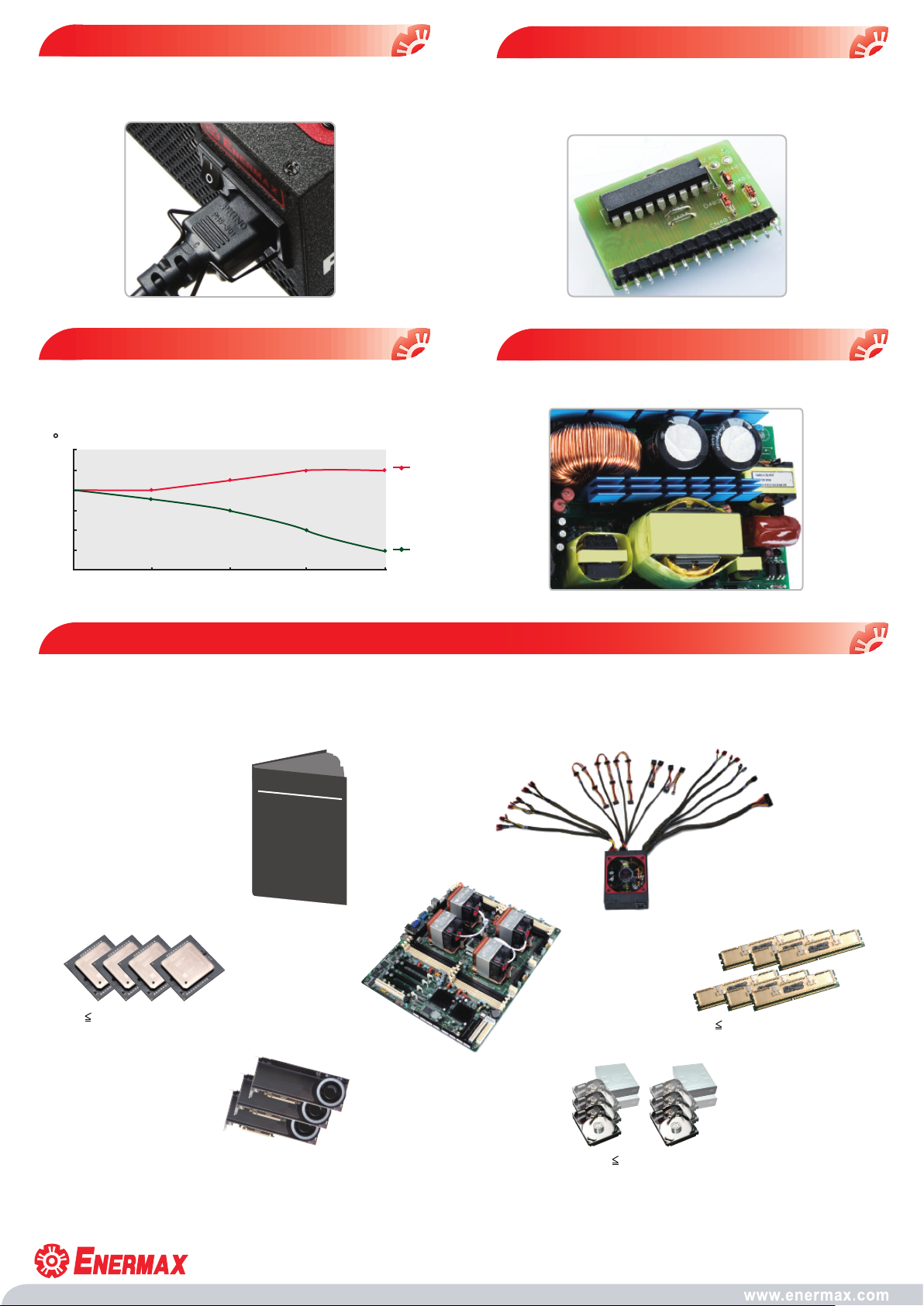

CordGuard
SafeGuard
Fixing the AC cord tightly to avoid accidental shutdowns
of your PC.
HeatGuard
After shut-down, HeatGuard will keep PSU fan running
for 30-60 seconds to dissipate the remaining system
heat and prolonging lifetime.
C
47
46
45
44
43
42
System Temperature
41
0 15 30 45 60
45
44.5
Time after system shut down
45.5
44
46
43
46
42
Without
HeatGuard
With
HeatGuard
sec.
Industry-leading octuple protection circuitry of OCP,
OVP, AC UVP, DC UVP, OPP, OTP, SIP, and SCP
protects your system.
99% 12V Power
Maximum CPU, GPU & RAID support.
SERVER ready!
Ready for most upcoming CPU and GPU generations by 12P sockets for possible connector changes, by
complying PSDG 2008 v1.2 support for latest Intel Core™ Extreme/i7, Xeon™ and AMD Opteron™ and
®
SLI or CrossFireX™ and AMD GAME! or AMD GAME! Ultra systems and downward compatible with SSI
PSDG 2008 v1.1, v1.0, EPS12V v2.92, v2.91, v2.8.
SSI
SSI 2008 v1.2
Power Supply
Design Guideline
Server System
Infrastructure
Specification
For best compatibility
4 Multi-Core CPU
Workstation / Server mainboard
® ®
18 RAM modules
Multiple graphic cards
20 Drives
*1 Max. CPU/GPU support may need additional modular cables.
*2 Actual maximum support may vary by available connectors per model and by power consumption of connected components and is limited to
DC output specifications.
Page 4

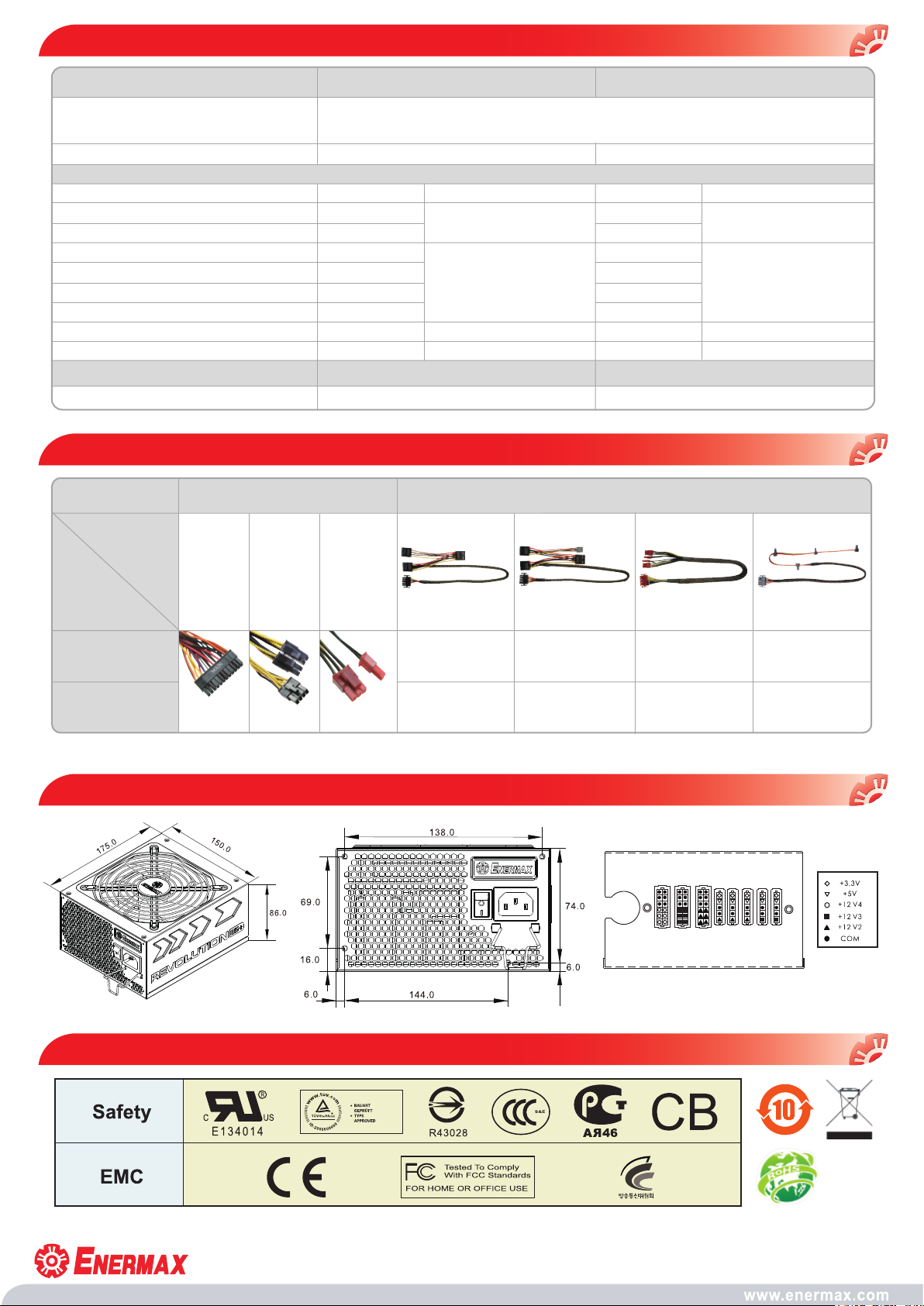

SPECIFICATIONS
Mo del
AC I n p u t v o l ta g e
AC I n p u t c u rr e n t
+3. 3 V
+5V
+12V 1
+12V 2
+12V 3
+12V 4
-12V 0-0.5 A 6W 0-0.5A 6W
+5Vs b 0-3 A 15W 0- 3A 15W
T o t a l P o we r
P e a k P o w e r
CABLES & CONNECTORS
Cables
ERV920EW T-00 ERV1020EWT-00
(Maximum range: 100-264VAC, 47-63Hz)
10 - 5A 11 - 5.5 A
115-240VAC, 50-60Hz
DC Output
Rated Combi ned Rat ed Combi ned
0-24A 0-24A
0-24A 0-24A
0-35A 0-35A
0-35A 0-35A
0-35A 0-35A
0-35A 0-35A
9 2 0 W
1 0 1 0 W
120W 120W
91 2W
(7 6A)
10 20W
(85A)
1 0 2 0 W
112 0 W
Modular CablesNative Cables
EMC012 EMC013 EMC014 EMC017
Mainboard CPU 12V 6+2P PCI-E
Models
3 x 4P Molex
ERV920EWT-00
ERV1020EWT-00
24P
*Supplied modular cables might differ by countries or regional packages.
8P & 4+4P X2
DIMENSIONS
x 1
x 1
3 x 4P Molex
+ FDD
x 1
x 1
Dual 6+2P(8P)
PCI-E
x 2
x 2
4 x SATA
x 3
x 3
CERTIFICATIONS & STANDARDS
© 2010 ENERMAX Technology Corporation. All rights reserved. Specifications are subject to change without prior notice. Actual products and accessories may
differ from illustrations. Omissions and printing errors excepted. Content of delivery might differ in different countries or areas. Some trademarks may be claimed
as the property of others.
80 PLUS is a brand and program run by Ecos Consulting. The 80 PLUS logos are the trademarks of Ecos Consulting. All rights reserved.
NVIDIA, SLI are registered trademarks or trademarks of NVIDIA Corporation.
ERV920/1020, AUG-2010, V3.0
