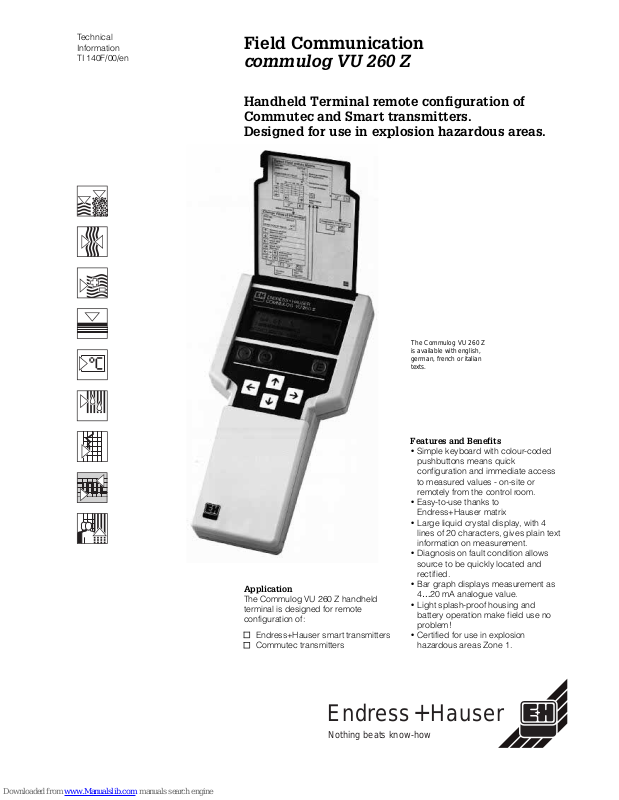

Page 1
Technical
Information
TI 140F/00/en
Application
The Commulog VU 260 Z handheld
terminal is designed for remote
configuration of:
Endress+Hauser smart transmitters
Commutec transmitters
Features and Benefits
• Simple keyboard with colour-coded
pushbuttons means quick
configuration and immediate access
to measured values - on-site or
remotely from the control room.
• Easy-to-use thanks to
Endress+Hauser matrix
• Large liquid crystal display, with 4
lines of 20 characters, gives plain text
information on measurement.
• Diagnosis on fault condition allows
source to be quickly located and
rectified.
• Bar graph displays measurement as
4…20 mA analogue value.
• Light splash-proof housing and
battery operation make field use no
problem!
• Certified for use in explosion
hazardous areas Zone 1.
Field Communication
commulog VU 260 Z
Handheld Terminal remote configuration of
Commutec and Smart transmitters.
Designed for use in explosion hazardous areas.
The Commulog VU 260 Z
is available with english,
german, french or italian
texts.
Hauser
+
Endress
Nothing beats know-how
Page 2
Configuration
Commutec transmitters are configured
or interrogated on-line by simply
plugging the Commulog VU 260 Z into
the two sockets provided. Immediately
to hand in plain text are:
• measured values,
• transmitter configuration,
• diagnostics on fault condition.
If a ZA 67x computer interface is in use
the transmitter must first be switched to
Commulog mode. After reconfiguration,
dialogue is resumed with the new
parameters.
Endress+Hauser - Matrix
Process data are viewed by selecting
the appropriate field in a parameter
matrix. The same matrix is used no
matter whether parameters are keyed
in, read in by the Commulog or read in
via the ZA 670/ZA 672 computer
interface.
• The principle measured value is
always located in field 00.
Commutec Transmitters
The Commulog VU 260 Z is compatible
with existing Commutec transmitters
Level measurement:
Silometer FMB 671 Z...677 Z,
Silometer FMC 671 Z...677 Z,
Nivosonic FMU 671 Z...678 Z.
Pressure measurement
Commutec PMX 671 Z...677 Z.
Temperature measurement
Omnigrad TMT 2371…2377.
Others in preparation.
• Each row in the matrix is allocated to a
specific function, e.g. calibration,
4…20 mA signal, limit values etc..
• The same matrix structure is used for
all transmitters, so that the user,
having configured one, can quickly
program others of a different type.
Commulog VU 260 Z
communicates directly
with Commutec
transmitters without
interrupting measurement
Commutec
Transmitters
Matrix selection keys - press to move about matrix and,
in entry mode, to enter parameters
Entry key - press to call or quit
entry mode
Escape key - press to move to
field V0H0 (00 display)
Diagnostics key - press to display
plain text error message when icon
Process parameters
are stored in matrix
fields characteristed by
• a vertical (V) and
• horiz ontal (H) position
They are entered and
displayed by means of
the matrix selection
and function keys.
Page 3
Smart Transmitters
Configuration
For smart transmitters the Commulog is
simply connected into the 4...20 mA
analogue circuit.
• A minimum load of 150 Ω must always
be present on the line.
• The maximum load is 650 Ω.
For the Deltabar differential pressure
transmitter:
• There is no need to pressurize during
configuration.
• 4…20 mA signals can be simulated
for the adjustment of instrumentation.
• The differential pressure can be read
from matrix field V0H0 (Display 00).
Field Use
The Commulog VU 260 Z can also be
connected directly to the smart
transmitter:
• A rugged, splash-proof housing
means it can be used outdoors.
• It is suitable for use in explosion
hazardous areas Zone 1.
Smart Transmitters
The following are smart transmitters:
Deltabar PMD 130, FMD 130, 530, 533
Prosonic FMU 86...
Micropilot FMR 130.
150
Ω
Deltabar
Deltabar analogue
display
VU 260 Z
Power
supply
Other
instru ments
Alternative
VU 260 Z
connecton
Zone 1
4…20 mA signal line
Non-Ex
Deltabar
Deltabar
Display
Other
instruments
VU 260 Z
Power
supply
150
Ω
4…20 mA signal line

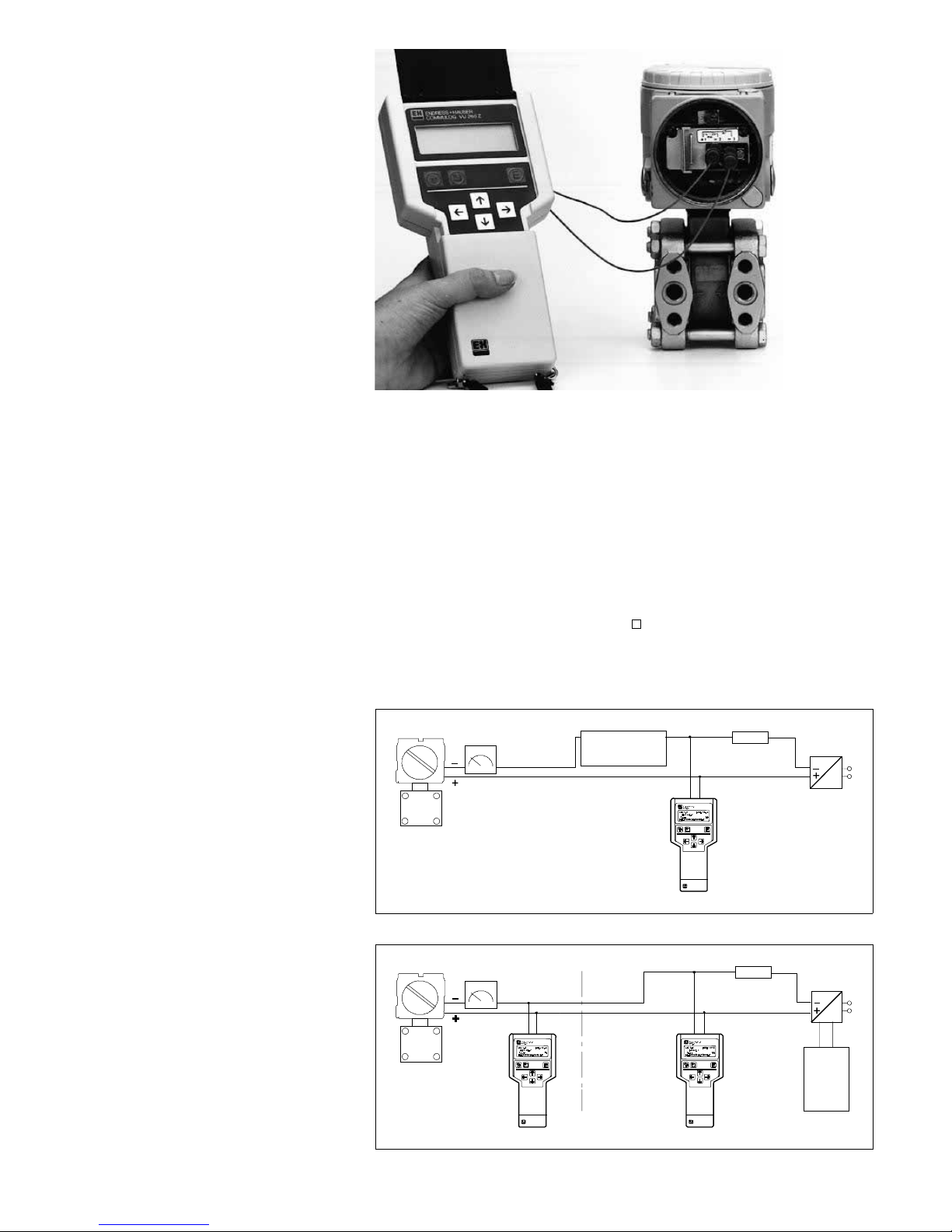

Smart transmitters, e.g.
Deltabar can be
configured and
interrogated in the field
Connection diagram for
standard applications.
The Commulog
VU 260 Z can be
plugged into any part
of the circuit
Connection diagram for
explosion hazardous
area
Page 4
Technical Data
Housing
• Overall dimensions:
115 mm x 225 mm x 44 mm,
grip 72 mm wide.
• Material: Plastic (Noryl
®
).
• Protection to DIN 40 050:
IP 54 (splash-proof).
• Humidity to DIN 40 040: Class J W E
(-15 °C, +50 °C, ≤ 75% rel. humidity).
• Weight: approx. 0.6 kg with batteries.
• Operating temperature: 0...+50 °C.
• Storage temperature: -20...+70 °C.
Electrical Connection
• Plug connection sockets:
2 x 2 mm dia, 2 x 4 mm dia
For Smart Transmitters:
• For Ex-applications connect to
electrically isolated 4...20 mA circuit
only, see illustrations.
• Impedence for communication R
load
:
min. 150 Ω, max. 650 Ω, whereby
R
load
= R
Line
+ R
instruments,
C
load
max.100 nF.
• Residual ripple of power supply:
≤ 0.2V
pp
Silometer, Nivosonic, Commutec
System Information SI 012/00/e
Omnigrad TMT 2371...2377
Technical Information TI 022/02/ei
Power supply
• Batteries: 5x 1.5 V dry cells.
• Battery save: switch-off selectable
1..10 minutes after last use.
• Battery life: up to 30 hours continuous
use with alkaline batteries.
Communications
• Display: alphanumeric 4 line LCD,
20 characters per line, character
height 4.75 mm.
• Language: English, German, Italian,
French to order.
• Baud rate: automatically selected at
2.4 kBaud for smart transmitters,
19.2 kBaud for Commutec transmitters.
Accessories
Supplied: 5 dry cells, 1 carrying
strap, 2 connecting cables with
2 mm dia./ 4 mm dia. plugs.
Certificates
• EEx ib [ia] IIC T4, Zone 1
• Factory Mutual: Class I. II, III; Div. 1, 2;
Group A-G.
Deltabar PMD 130,
Deltabar FMD 130, 530, 533
Technical Information TI 111/00/e,
TI 112/00/e, TI 137/00/e, TI 150/00/e
TI 140F/00/en/06.93
Printed in Germany/Rü
Supplementary
Documentation
Product Structure
Commulog VU 260 Z
Certificate:
A EEx ib [ia] IIC T4, Zone 1
F Factory Mutual: Class I, II, IIl; Div. 1, 2; Group A - G
Language:
DGerman
E English
F French
I Italian
product designation
VU 260 Z
08.93/MT M
Endress+Hauser
GmbH+ Co.
Instruments International
P.O . B ox 22 22
D-79574 Weil am Rhein
Germany
Tel. (076 21) 9 75-02
Tx 773 926
Fax (076 21) 9 75345
Hauser
+
Endress
Nothing beats know-how
