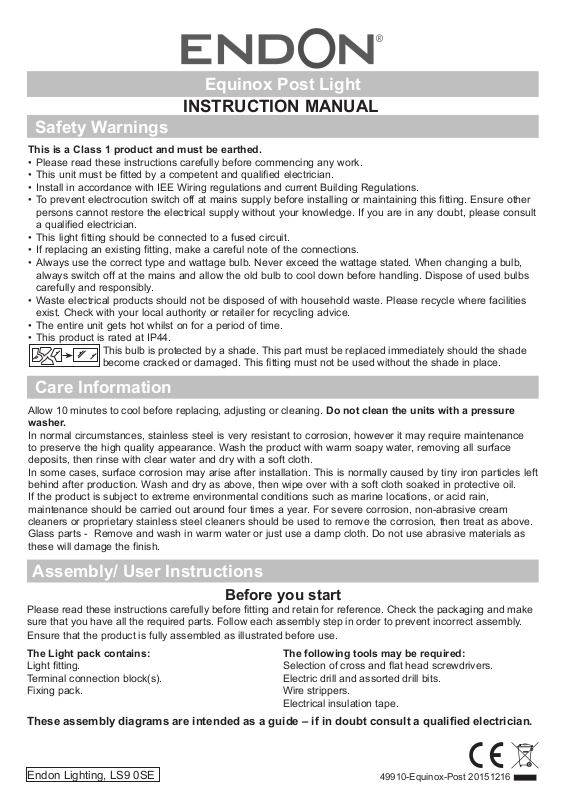

Equinox Post Light
INSTRUCTION MANUAL
Safety Warnings
This is a Class 1 product and must be earthed.
• Please read these instructions carefully before commencing any work.
• This unit must be fitted by a competent and qualified electrician.
• Install in accordance with IEE Wiring regulations and current Building Regulations.
• To prevent electrocution switch off at mains supply before installing or maintaining this fitting. Ensure other
persons cannot restore the electrical supply without your knowledge. If you are in any doubt, please consult
a qualified electrician.
• This light fitting should be connected to a fused circuit.
• If replacing an existing fitting, make a careful note of the connections.
• Always use the correct type and wattage bulb. Never exceed the wattage stated. When changing a bulb,
always switch off at the mains and allow the old bulb to cool down before handling. Dispose of used bulbs
carefully and responsibly.
• Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your local authority or retailer for recycling advice.
• The entire unit gets hot whilst on for a period of time.
• This product is rated at IP44.
This bulb is protected by a shade. This part must be replaced immediately should the shade
become cracked or damaged. This tting must not be used without the shade in place.
Care Information
Allow 10 minutes to cool before replacing, adjusting or cleaning. Do not clean the units with a pressure
washer.
In normal circumstances, stainless steel is very resistant to corrosion, however it may require maintenance
to preserve the high quality appearance. Wash the product with warm soapy water, removing all surface
deposits, then rinse with clear water and dry with a soft cloth.
In some cases, surface corrosion may arise after installation. This is normally caused by tiny iron particles left
behind after production. Wash and dry as above, then wipe over with a soft cloth soaked in protective oil.
If the product is subject to extreme environmental conditions such as marine locations, or acid rain,
maintenance should be carried out around four times a year. For severe corrosion, non-abrasive cream
cleaners or proprietary stainless steel cleaners should be used to remove the corrosion, then treat as above.
Glass parts - Remove and wash in warm water or just use a damp cloth. Do not use abrasive materials as
these will damage the finish.
Assembly/ User Instructions
Before you start
Please read these instructions carefully before tting and retain for reference. Check the packaging and make
sure that you have all the required parts. Follow each assembly step in order to prevent incorrect assembly.
Ensure that the product is fully assembled as illustrated before use.
The Light pack contains:
Light tting.
Terminal connection block(s).
Fixing pack.
The following tools may be required:
Selection of cross and at head screwdrivers.
Electric drill and assorted drill bits.
Wire strippers.
Electrical insulation tape.
These assembly diagrams are intended as a guide – if in doubt consult a qualied electrician.
Endon Lighting, LS9 0SE
49910-Equinox-Post 20151216
Assembly/ User Instructions Continued
Layout
• Plan the desired layout of this fitting carefully, ensuring the cables will reach the distance between the
junction box and the light fitting
• Avoid locating any cables in positions that would cause a hazard. Position cables and junction boxes (not
supplied) away from areas where they may be at risk from being cut, trapped or damaged
• Cables in walls must be protected using suitable conduit or plastic trunking.
• We recommend that you use H05RN-F specification cable (not supplied) which is an outdoor grade,
rubber sheathed cable. The mains supply cable must have a minimum cross sectional area of 1.0mm²
• These fitting must be mounted on either a concrete surface or a paving slab that has been concreted in
position.
Installation
• Existing fittings must be completely removed before installation of a new
product. Before removing the existing fitting, carefully note the position
of each set of wires.
• Using the base plate as a template, mark the fixing holes onto the
mounting surface.
• Drill holes to the necessary size and depth - taking care not to damage
any concealed pipes or wiring below the mounting surface.
• This product comes complete with screw and rawl plugs (A & B) which
are suitable for use on most surfaces, however alternative fixings may be
required.
• Push the rawl plugs into the mounting holes.
A
C
B
Wiring
• Having correctly identified the wiring from your existing light fitting,
pull the wire through the hole and connect to the connection block
inside the product in the following way:
• Pull terminal block (C) from inside of tube.
• Unscrew the 4 screws which attach the black box to the spacing strip.
Open the black box and pull out the terminal block.
• Connect Live input wire to brown wire on product (or terminal on
terminal block marked ‘L’).
• Connect Neutral input wire to blue wire on product (or terminal on
terminal block marked ‘N’).
• Connect Input Earth wire (Green/yellow) to Earth wire on fitting,
• Check that you have correctly identified the supply wires, the
connections are tight and that no loose strands have been left out of
the connection block.
• Push terminal block back into the black box. Re-attach the black box
to the mounting bracket.
Commissioning
• Push the terminal block up into of the tube.
• Stand the product in place inline over the mounting holes and use a suitably sized screwdriver to tighten
them so that they hold the fitting securely to the mounting surface.
• To fit the bulb, unscrew the shade, insert the bulb, then screw the shade back in place.
• Replace fuse or circuit breaker and switch on. Your light is now ready for use.
Endon Lighting, LS9 0SE
49910-Equinox-Post 20151216
