Commisioning
• When wiring is completed, fit bulbs and re-attach
shade.

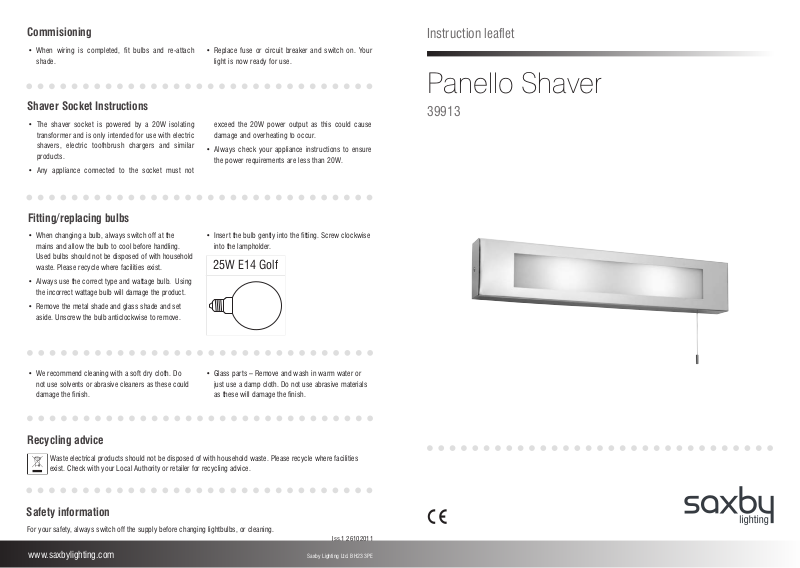

Instruction leaflet
• Replace fuse or circuit breaker and switch on. Your
light is now ready for use.
Panello Shaver
Shaver Socket Instructions
• The shaver socket is powered by a 20W isolating
transformer and is only intended for use with electric
shavers, electric toothbrush chargers and similar
products.
• Any appliance connected to the socket must not
Fitting/replacing bulbs
• When changing a bulb, always switch off at the
mains and allow the bulb to cool before handling.
Used bulbs should not be disposed of with household
waste. Please recycle where facilities exist.
• Always use the correct type and wattage bulb. Using
the incorrect wattage bulb will damage the product.
• Remove the metal shade and glass shade and set
aside. Unscrew the bulb anticlockwise to remove.
• We recommend cleaning with a soft dry cloth. Do
not use solvents or abrasive cleaners as these could
damage the finish.
39913
exceed the 20W power output as this could cause
damage and overheating to occur.
• Always check your appliance instructions to ensure
the power requirements are less than 20W.
• Insert the bulb gently into the fitting. Screw clockwise
into the lampholder.
25W E14 Golf
• Glass parts – Remove and wash in warm water or
just use a damp cloth. Do not use abrasive materials
as these will damage the finish.
Recycling advice
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or retailer for recycling advice.
Safety information
For your safety, always switch off the supply before changing lightbulbs, or cleaning.
www.saxbylighting.com
Iss.1 26102011
Saxby Lighting Ltd. BH23 3PE
Thank you for purchasing this light fitting. Please read the instructions carefully before use to ensure safe and
SUPPLY LIGHT FITTING
satisfactory operation of this product. Please retain these instructions for future reference.
Warning
This is a Class 1 product and must be earthed
Always use the correct type and wattage bulb.
Please read these instructions carefully before
commencing any work.
This unit must be fitted by a competent and qualified
electrician.
Exceeding the bulb wattage will damage the product.
When changing a bulb, always switch off at the mains
and allow the old bulb to cool down before handling.
Dispose of used bulbs carefully and responsibly.
2.25m
ZONE
1
0.6m
OUTSIDE ZONES
ZONE
2
Ceiling
0.6m
This product no has special
protection against the ingress of
moisture.
This product is suitable for use in
outside Zones of a bathroom. See
diagram.
If this unit is being fitted in a room
containing a bath or shower, a 30mA
RCD must be used - in accordance
with IEE regulations.
Install in accordance with IEE Wiring regulations and
current Building Regulations.
To prevent electrocution switch off at mains supply
before installing or maintaining this fitting. Ensure
other persons cannot restore the electrical supply
without your knowledge.
This light fitting should be connected to a fused circuit.
If replacing an existing fitting, make a careful note of
the connections.
Specification
Voltage: 240V 50Hz a.c.
Lamp: 2 x 25W E14 Golf
IP rating: 20
Layout
• Plan the desired layout of this fitting carefully,
ensuring the cables will reach the distance between
the junction box and the light fitting.
• Avoid locating any cables in positions that would
cause a hazard. Position cables and junction boxes
(not supplied) away from areas where they may be
at risk from being cut, trapped or damaged.
This product is not suitable for dimming.
Waste electrical products should not be disposed of
with household waste. Please recycle where facilities
exist. Check with your local authority or retailer for
recycling advice.
• Cables in walls must be protected using suitable
conduit or plastic trunking.
• The mains supply cable must have a minimum
cross sectional area of 1.0mm².
• This product must be mounted out of arms reach.
• This product no has special protection against the
ingress of moisture.
Installation
Existing fittings must be completely removed before
installation of a new product. Before removing the
existing fitting, carefully note the position of each set
of wires.
• Remove metal and glass shades and set aside.
• Hold the back plate in place and mark the position of
the holes. Ensure that the product is level.
Wiring
Having correctly identified the wiring from your existing
light fitting, pull the wire through the hole and connect to
NEUTRAL
EARTH (GREEN/YELLOW)
SWITCHED LIVE
Check that...
• You have correctly identified the wires
• The connections are tight
• Ensure the wall is capable of holding the weight of the
product. Take care to avoid damaging any concealed
wiring and pipes. The correct fixings should be used
for brick, cavity walls or plasterboard.
• Pierce grommet and pass the supply cable through
the hole in the wall back.
• Fix the product into position.
the connection block inside the product in the following
way:
BLUE (N)
GREEN/YELLOW
BROWN (L)
• No loose strands have been left out of the connection
block.
