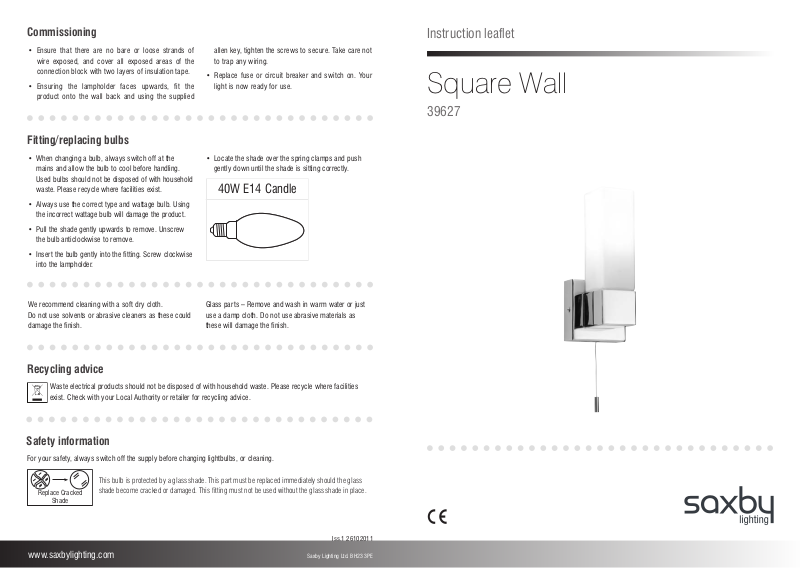

Commissioning
• Ensure that there are no bare or loose strands of
wire exposed, and cover all exposed areas of the
connection block with two layers of insulation tape.
• Ensuring the lampholder faces upwards, fit the
product onto the wall back and using the supplied
Fitting/replacing bulbs
allen key, tighten the screws to secure. Take care not
to trap any wiring.
• Replace fuse or circuit breaker and switch on. Your
light is now ready for use.
Instruction leaflet
Square Wall
39627
• When changing a bulb, always switch off at the
mains and allow the bulb to cool before handling.
Used bulbs should not be disposed of with household
waste. Please recycle where facilities exist.
• Always use the correct type and wattage bulb. Using
the incorrect wattage bulb will damage the product.
• Pull the shade gently upwards to remove. Unscrew
the bulb anticlockwise to remove.
• Insert the bulb gently into the fitting. Screw clockwise
into the lampholder.
We recommend cleaning with a soft dry cloth.
Do not use solvents or abrasive cleaners as these could
damage the finish.
• Locate the shade over the spring clamps and push
gently down until the shade is sitting correctly.
40W E14 Candle
Glass parts – Remove and wash in warm water or just
use a damp cloth. Do not use abrasive materials as
these will damage the finish.
Recycling advice
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or retailer for recycling advice.
Safety information
For your safety, always switch off the supply before changing lightbulbs, or cleaning.
This bulb is protected by a glass shade. This part must be replaced immediately should the glass
Replace Cracked
Shade
www.saxbylighting.com
shade become cracked or damaged. This fitting must not be used without the glass shade in place.
Iss.1 26102011
Saxby Lighting Ltd. BH23 3PE
Thank you for purchasing this light fitting. Please read the instructions carefully before use to ensure safe and
SUPPLY LIGHT FITTING
satisfactory operation of this product. Please retain these instructions for future reference.
Warning
This light fitting is Class 1 and must be connected to
an Earth circuit
If replacing an existing fitting, make a careful note of
the connections.
2.25m
ZONE
1
0.6m
Ceiling
OUTSIDE ZONES
0.6m
This product is suitable for use in Zone
2 and outside Zones of a bathroom.
See diagram.
If this unit is being fitted in a room
containing a bath or shower, a 30mA
RCD must be used - in accordance
with IEE regulations.
Please read these instructions carefully before
commencing any work.
This unit must be fitted by a competent and qualified
electrician.
Install in accordance with IEE Wiring regulations and
current Building Regulations.
To prevent electrocution switch off at mains supply
before installing or maintaining this fitting. Ensure
other persons cannot restore the electrical supply
without your knowledge.
This light fitting should be connected to a fused circuit.
Specification
Voltage: 240V 50Hz a.c.
Lamp: 1 x 40W E14 Candle
IP rating: 44
Always use the correct type and wattage bulb. Never
exceed the wattage stated.
When changing a bulb, always switch off at the mains
and allow the old bulb to cool down before handling.
Dispose of used bulbs carefully and responsibly.
This product is suitable for dimming when used in
conjunction with a dimmable lamp. Please ensure
verification of dimming abilities with the lamp
manufacture prior to use.
Waste electrical products should not be disposed of
with household waste. Please recycle where facilities
exist. Check with your local authority or retailer for
recycling advice.
ZONE
2
Installation
Existing fittings must be completely removed before
installation of a new product. Before removing the
existing fitting, carefully note the position of each set
of wires.
• Undo the side screws using the supplied allen key
and remove the wall bracket.
Wiring
Having correctly identified the wiring from your existing
light fitting and connect to the connection block inside
• Hold the wall bracket in place and mark the position
of the holes. Ensure that the product is level.
• Ensure the wall is capable of holding the weight of the
product. Take care to avoid damaging any concealed
wiring and pipes. The correct fixings should be used
for brick, cavity walls or plasterboard.
• Fix the wall bracket into position.
the product in the following way:
Layout
• Plan the desired layout of this fitting carefully,
ensuring the cables will reach the distance between
the junction box and the light fitting
• Avoid locating any cables in positions that would
cause a hazard. Position cables and junction boxes
(not supplied) away from areas where they may be
at risk from being cut, trapped or damaged
• Cables in walls must be protected using suitable
conduit or plastic trunking.
• The mains supply cable must have a minimum cross
sectional area of 1.0mm²
• This product must only be fitted with the lampholder
facing upwards.
• This product has special protection against the
ingress of moisture and is IP44 rated.
• Please ensure that this light is mounted out of the
reach of children.
NEUTRAL
EARTH (GREEN/YELLOW)
SWITCHED LIVE
Check that...
• You have correctly identified the wires
• The connections are tight
BLUE (N)
GREEN/YELLOW
BROWN (L)
• No loose strands have been left out of the connection
block.
