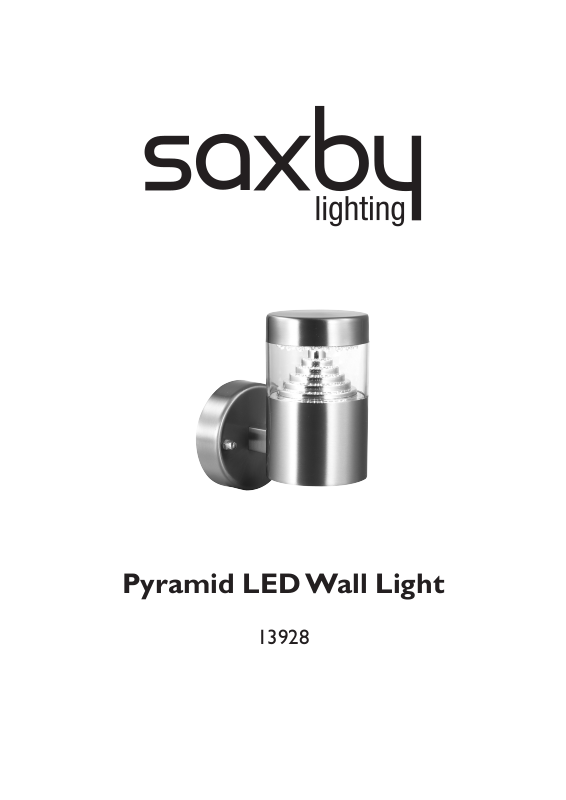

Pyramid LED Wall Light
13928
Thank you for purchasing this light fitting.
Please read the instructions carefully before use to ensure safe and satisfactory operation of this product.
Please retain these instructions for future reference.
Warning
This is a Class 1 product and must be earthed.
Please read these instructions carefully before commencing any work.
This unit must be fitted by a competent and qualified electrician.
Install in accordance with IEE Wiring regulations and current Building Regulations.
To prevent electrocution switch off at mains supply before installing or maintaining this fitting. Ensure other persons
cannot restore the electrical supply without your knowledge. If you are in any doubt, please consult a qualified
electrician.
This light fitting should be connected to a circuit with a 30mA RCD fitted.
If replacing an existing fitting, make a careful note of the connections.
This system contains non-replaceable parts and cannot be serviced. If damage occurs the part should be scrapped.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your local authority or retailer for recycling advice.
This product is not suitable for dimming.
This product is rated at IP44.
This product is not suitable for location in or near a marine or sea environment.
The entire unit gets hot whilst on for a period of time.
Specification
Voltage: 240V 50Hz a.c.
Lamp: 3.6W 30 LED’s
IP rating: 44
76.0mm dia
145.0mm
130.0mm
Layout
• Plan the desired layout of this fitting carefully, ensuring the cables will reach the distance between the junction
box and the light fitting.
• Avoid locating any cables in positions that would cause a hazard. Position cables and outdoor rated junction
boxes (not supplied) away from areas where they may be at risk from being cut, trapped or damaged.
• We recommend that you use H05RN-F specification cable (not supplied) which is an outdoor grade, rubber
sheathed cable. The mains supply cable must have a minimum cross sectional area of 1.0mm²
• Cables must be protected using suitable conduit or plastic trunking.
Installation
Existing fittings must be completely removed before
installation of a new product. Before removing the existing
fitting, carefully note the position of each set of wires.
1. Remove mounting box (A) from the product by
removing dome nuts (C) and washers (D). Pull
terminal block off of retaining pegs. Carefully pierce
a small hole in the rubber gasket in the centre of the
mounting box to allow the cable to pass through.
2. Thread the cable through the hole, ensuring the drain
hole is at the base of the mounting box.
3. Fix the mounting box to the wall using the screws and
plugs supplied (B). Ensure the wall is capable of holding
the weight of the product. Take care to avoid damaging
any concealed wiring and pipes. The correct fixings
should be used for brick or cavity walls.
4. Wire as detailed below.
A
B
C
D
Gasket
Front view of
mounting box
Drain hole
Wiring
Having correctly identified the wiring from your existing light fitting, pull the wire through the hole and connect to
the connection block inside the product in the following way:
SUPPLY
NEUTRAL
EARTH (GREEN/YELLOW)
SWITCHED LIVE
LIGHT FITTING
BLUE (N)
GREEN/YELLOW
BROWN (L)
Check That
You have correctly identified the wires.
The connections are tight.
No loose strands have been left out of the connection block.
Commissioning
5. Fit the product back on to the mounting box and refit washers (D) and dome nuts (C), tighten dome nuts to
secure.
6. Replace fuse or circuit breaker and switch on. Your light is now ready for use.
Fitting / Replacing Bulbs
This system contains non-replaceable parts and cannot be serviced. If damage occurs the part should be scrapped.
Care and Cleaning
Do not use solvents or abrasive cleaners as these could damage the finish.
In normal circumstances, stainless steel is very resistant to corrosion. It does however require maintenance to
preserve the high quality appearance. Wash the product with warm soapy water, removing all surface deposits. Rinse
with clear water and with a soft cloth, wipe dry.
In some cases, surface corrosion may arise after installation. This is normally caused by tiny iron particles left behind
after the brushing process when finishing.
Wash and dry as detailed above. Then with a soft cloth soaked with a protective oil, wipe all over.
However if the product is subject to extreme environmental conditions such as marine locations, industrial
pollution and acid rain these maintenance procedures should be carried out around four times a year. For severe
corrosion, non-abrasive cream cleaners or proprietary stainless steel cleaners should be used to remove the
corrosion. Wash and dry as detailed above. Then with a soft cloth soaked with a protective oil, wipe all over.
Do not clean the units with a pressure washer.
Recycling Advice
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
Safety Information
For your safety, always switch off the supply before changing lightbulbs, or cleaning.
This system contains non-replaceable parts and cannot be serviced. If damage occurs the part should be scrapped.
Replace Cracked
Shade
Saxby Lighting Ltd. BH23 3PE
The shade must be replaced immediately should the shade become cracked or damaged. This
tting must not be used without the shade in place.
Iss.1 07122010
