Emtac Technology D1599, D1599 User Manual

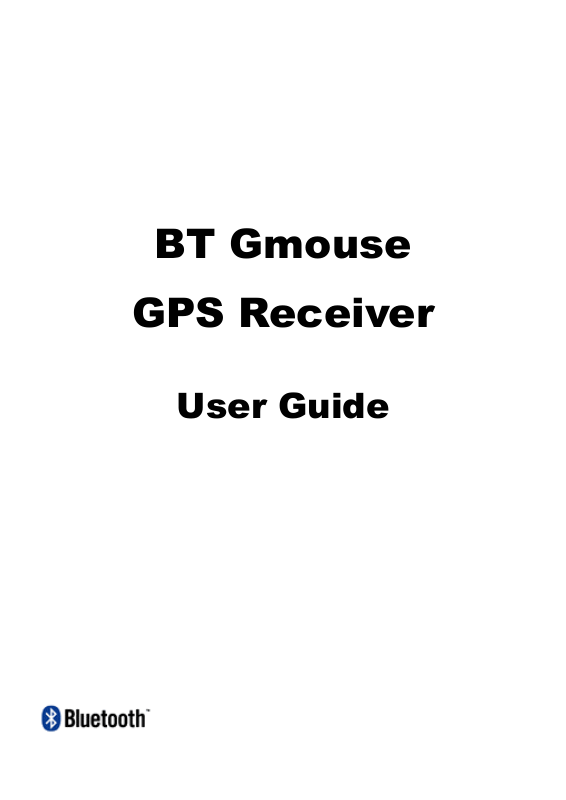

BT Gmouse
GPS Receiver
User Guide
Copyright © EMTAC Technology Corp. 2004. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this
document in any form without the prior written permission of EMTAC is prohibited.
The Bluetooth trademarks are owned by Bluetooth SIG, Inc. USA and licensed to
EMTAC Technology Corp.
Other products and company names mentioned herein may be trademarks or
tradenames of their respective owners.
EMTAC reserves the right to make changes and improvements to any of the
products described in this document without prior notice.
Under no circumstances shall EMTAC be responsible for any loss of data or income
or any special, incidental, consequential, or indirect damages howsoever caused.

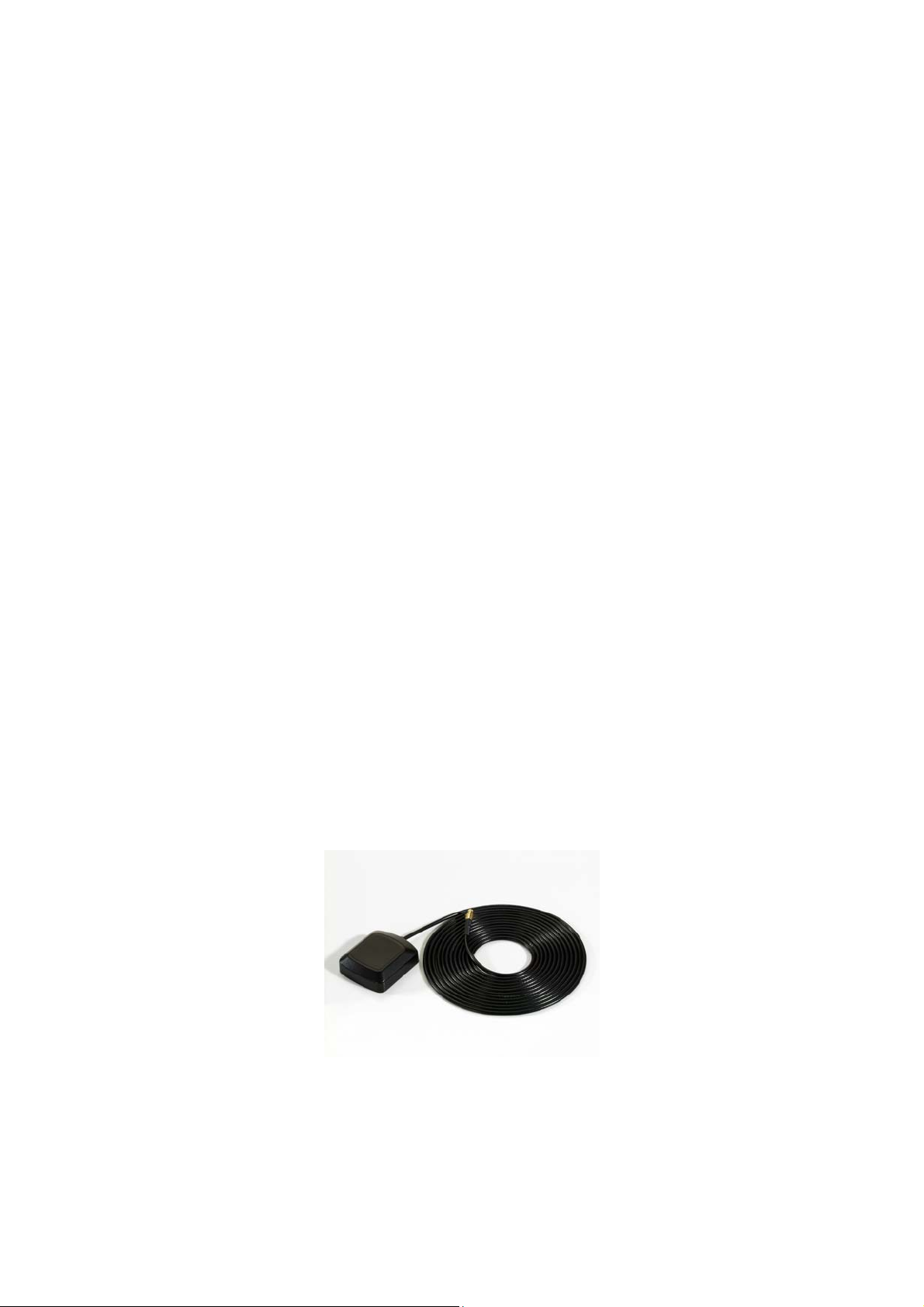

*The external active antenna is an optional accessory which not included in the standard package.
**External antenna port is an optional specification.
2
Warnings
Care and Caution
The Global Positioning System (GPS) is operated by the United States Government
which is solely responsible for the accuracy and continued operation of the system.
Accuracy of position fixes (longitude, latitude and altitude) can be affected by
alterations made to the GPS satellites by the U.S. Government. Accuracy is subject
to change in accordance with the U.S. Department of Defense civil GPS user policy
and Federal Radionavigation Plan. Positional accuracy and time to fix time can also
be affected by poor view of caused by obstructions such as
tall buildings,
heavy foliage,
large cliffs and other obstructions
where GPS satellite signals are blocked and poor satellites geometry conditions
result.
Judgment
BT Gmouse receiver is an excellent navigation and location awareness assist tool,
but does not substitute the needs of careful steering and good judgment. Never
only rely on one single tool or apparatus for positioning and navigation.
Accessories
The accessory supplied with the BT Gmouse receiver is specifically designed for BT
Gmouse. Use of other accessory may severely degrade performance or even
damage the receiver, and will void the warranty. Make sure using the charger by
EMTAC. DO NOT USE OTHER CHARGER. Do not try to open or break the receiver.
There is no service accessory part inside the receiver. Open the receiver will void
the warranty.
Software
Follow the operation guidance as stated and described in the user guide of the GPS
application software.
The software supplied in and with the BT Gmouse receiver is solely for personal
usage. Making copies only for personal use, but may not copy, modify, reverse
engineer or transfer the software unless expressively provided by written
agreement. The software is the property of EMTAC and/or its supplier and is
protected by international treaty provisions.
3
Safety
The BT Gmouse uses four AAA-size batteries. Leaving the BT Gmouse in hot
or cold conditions, such as in a closed car in summer or winter conditions,
will reduce the capacity and lifetime of the battery used. Always try to
keep the BT Gmouse between +15°C (+59°F) and +25°C (+77°F). A BT
Gmouse with a hot or cold battery may temporarily not work, even when
the battery is new or fully charged.
The performance of Ni-MH AAA 1.2V Battery or 4 X AAA 1.5V Battery is
particularly limited in temperatures below 0°C (+32°F).
Batteries must be recycled or disposed of properly. Batteries must not be
disposed of in municipal waste.
DO NOT DISPOSE OF THE BT Gmouse RECEIVER IN A FIRE!
4
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS.
To assure product safety, the battery maker requests following statements in
the instruction manual/User Guide of the equipment.
Danger
If the alkaline solution of the battery touches the eyes, injury such as loss of
eyesight may caused. Do not rub the eyes, but flush the eyes amply with
abundant clean water such as city water and then receive medical treatment
without delay.
Failure to carefully observe the following procedures and precautions can result
in leakage of battery fluid (electrolyte), heat generation, bursting, fire and
serious personal injury!
Never dispose of Ni-MH batteries in a fire or heat them.
Do not connect the (+) positive and (-) negative terminals of Ni-MH batteries
together with electrically conductive materials, including lead wires. Do not
transport or store batteries with their uncovered terminals or connected with a
metal necklace or other electrically conductive material. When carrying or
storing batteries,use a special case.
Never disassemble battery. Doing so may cause an internal or external short
circuit or result in exposed material of battery reacting chemically with the air.
It may also cause heat generation, bursting and fire. Also, this is dangerous as
it may cause splashing of alkaline fluid.
Never modify or reconstruct batteries. Protective devices to prevent danger are
built into batteries(single cell or packed cells).
If these are damaged, excessive current flow may cause loss of control during
charging or discharging of the battery, leakage of battery fluid, heat generation,
bursting and fire.
Never solder lead wires directly on to batteries.
The (+) positive and (-) negative terminals of batteries are predetermined. Do
not force the terminals to connect to the charger or the equipment, check if the
(+) and (-) terminals are incorrectly positioned.
The gas release vent which release internal gas is located in the (+)positive
terminal of the battery. For this reason, never deform this section or cover or
obstruct its gas release structure.
5
batteries contain a strong colorless alkaline solution (electrolyte). The alkaline
solution is extremely corrosive and will cause skin damage. If any fluid from a
battery comes in contact with user’s eyes, they should immediately flush their
eyes and wash them thoroughly with clean water from the tap or another
source and consult a doctor urgently. The strong alkaline solution can damage
eyes and lead to permanent loss of eyesight.
When batteries are to be incorporated in equipment or housed
within a case, avoid air-tight structures, as this may lead to the
equipment or the case being damaged or may be harmful to users.
Warning
Keep batteries out of reach of babies and little children. If by any chance, the
batteries are swallowed, consult the doctor without delay.
Do not incinerate, heat, disassemble or remodel the batteries. The insulator
and the vent for gas excape and so on will be damaged, and the batteries may
leak, heat or explode.
If the alkaline solution of the battery is licked, rinse out the mouth and consult
the doctor without delay.
If the alkaline solution of the batteries adheres to skin or clothes, skin injury
may be caused. Wash liquid away immediately with abundant clean water such
as city water.
Do not connect (+) (-)of the batteries with wire and do not carry or keep
metallic necklace, hairpin, etc. together with batteries. The batteries may be
short-circuited, causing over-current any they may leak, heat or explode.
Do not mix and use “different types or brands of batteries” nor “used and new
batteries” together. The difference of characteristics may cause leakage, heat
or explosion.
These batteries are not designed to recharge. If recharged, the insulator or
the inside structure may be damaged, and the batteries may leak, heat or
explode.
Remove promptly the used batteries from the apparatus. If the used batteries
are left in the apparatus, connected for long, gas will be formed in the batteries,
which may cause battery leakage, heat or explosion and may cause damage of
apparatus.
When not using the apparatus for a long period, remove the batteries from the
apparatus. Gas formed in the batteries may cause battery leakage or may
damage the apparatus.
6
Do not apply water, seawater or other oxidizing reagents to batteries, as this
can cause rust and heat generation. If a battery becomes rusted, the gas
release vent may no longer operate, and can result in bursting.
Do not over0charge batteries by exceeding the predetermined charging period
specified by the battery charger’s instructions or indicator. If batteries are not
fully charged after the battery charger’s predetermined charging period has
elapsed, stop the charging process. Prolonged charging may cause leakage of
battery fluid, heat generation, and bursting. Be sure to handle recharged
batteries carefully as they may be not.
batteries contain a strong colorless alkaline solution (electrolyte). If the skin or
clothing comes in contact with fluid from a battery, thoroughly wash the area
immediately with clean water from the tap or another source. Battery fluid can
irritate the skin.
Do not connect more than 21 batteries in series, as this may cause electrical
shocks, leakage of battery fluid and heat generation.
Do not remove the outer tube from a battery or damage it. Doing so will expose
the battery to the risk of a short circuit, and may cause leakage of battery fluid,
heat generation, bursting and fire.
If batteries leak fluid, change color, change shape, or change in any other way,
do not use them, otherwise they may cause heat generation, bursting and fire.
Keep batteries and the equipment using them out of the reach of babies and
small children, in order to avoid accidental swallowing of the batteries. In the
event the batteries are swallowed, consult a doctor immediately.
When the operating time of a battery becomes much shorter than its initial
operating time even after recharged, it should be replaced to a new battery as
its battery life has ended.
7
Caution
Do not strike or drop batteries.
Store batteries out of reach of babies and little children. When charging or
using a battery, do not let babies or little children remove the battery from the
charger or the equipment being used.
Be sure to charge batteries within a temperature range of 0 to 40°C (degrees
Celsius)
Be sure to use the recommended charging method for batteries, read the
battery charger’s instruction manual carefully.
Do not use or store battery at high temperature, such as in strong direct
sunlight, in cars during hot weather, or directly in front of a heater. This may
cause leakage of battery fluid. It could also impair performance and shorten
operating life of batteries.
Be sure to turn off the equipment after use of batteries, otherwise may result in
leakage of battery fluid.
After removed from equipment, store batteries in a dry place and within the
recommended storage temperature range. This will help pressive the batteries’
performance and durability and minimize the possibility of leakage of battery
fluid or corrosion.(recommends the storage temperature range from -20 to
30°C for a longer service life).
To use batteries for the first time after purchase or having not used them for a
long period of time, be sure to charge them.
After long term storage, there is a possibility that the battery could not be fully
charged. In order to fully charge it, please charge and discharge the battery for
a few times.
Do not use old and new batteries mixed together, or batteries at different
charge levels. Do not use the battery mixed together with a dry cell or other
batteries of different capacity, type, or brand name. This may cause leakage of
battery fluid and heat generation.
Do not peel off or damage the outer label of the batteries. The batteries may
be short-circuited, they may leak, heat or explode.
Do not expose batteries to strong impact by dropping or throwing the batteries.
The batteries may leak, heat or explode.
Do not deform the batteries. The insulator and the vent for gas escape, etc.
may be damaged and the batteries may leak, heat or explode.
When using the batteries in complete airtight apparatus, follow the indications
of the operating instructions of the apparatus.
Do not solder anything directly to the batteries. The insulator and the vent for
gas escape, etc. may be damaged by heat and the batteries may leak, heat or
explode.
8
Do not use nor keep batteries at places exposed to strong direct sunlight or in
cars under burning sun, etc. The batteries may leak, heat or explode.
At the storage or disposal of the batteries, insulate the terminal parts with tape
or the like. If the batteries are mixed with other batteries or metallic objects,
the batteries may be short-circuited, and may leak, heat or explode.
Keep the batteries away from water. The batteries may heat
The specification or the performance of the batteries may be sometimes not
appropriate, depending on applications or apparatus; use correctly the
appropriate batteries in accordance with the operating instructions and notices
of the apparatus.
At the storage of batteries, avoid direct sunlight, high temperature and high
humidity places. Leakage may happen. Beside, the performance and the life of
the batteries may decrease.
These batteries are allowed to be disposed as general incombustible refuse.
However if rules for battery disposal exist, such as regulations of local
government, dispose of the batteries in accordance with the rules.
Do not forget to turn off the switch of the apparatus.
To keep the batteries taken out from packages, or to stock the batteries by
families, pay attention to avoid contact between batteries and to keep out of
short-circuit.
If the battery terminals become dirty, clean them with a soft dry cloth prior to
use. Dirt on the terminals can result in poor contact with the equipment, loss of
power, or inability to charge.
Notice
In order to help you fulfilling any warranty obligations, read comprehensively the
“Warnings”, “Disclaimer and Limitation of Liability”, “Basic Guidelines”, “Care and
Maintenance”, and the whole User Guide.
9
Disclaimer and Limitation of Liability
EMTAC Technology Corp. and its subsidiaries assume no responsibility for any
damage or loss resulting from the use of this product, software and user guide.
EMTAC and its subsidiaries assume no responsibility for any loss or claims by third
parties which may arise through the use of the software. EMTAC and its subsidiaries
assume no responsibility for any damage or loss caused by deletion of data as a
result of malfunction, dead battery, or repairs. Under no circumstances shall EMTAC
and its subsidiaries are responsible for any loss of data or income or any special,
incidental, consequential or indirect damages howsoever caused.
The contents of this User Guide are provided “as it”. Except as required by
applicable laws, no warranties of any kind, either express or implied, including, but
not limited to, the implied warranties of merchantability and fitness for a particular
purpose, are made in relation to the accuracy, reliability or contents of this user
guide. EMTAC reserves the right to revise this user guide or withdraw it at any time
without prior notice. EMTAC reserves the right to make changes and improvements
to any of the products described in this user guide.
10
Table of contents
Basic Guidelines 12
Getting Start 14
Introduction 14
Prepare to use your BT Gmouse 15
GPS signal reception 15
Using optional external active antenna 17
CAUTION AND WARNING 17
General Information 18
General Features 18
Antennae Façade 20
Power Switch 21
External Antenna Port 21
LED indicators 21
Power Jack 22
External active antenna (optional) 22
Operation Guide 23
Step 1 To install the GPS/MAP application software 24
Step 2 To pair/connect the BT Gmouse with the host 25
Step 3 To operate the GPS/MAP application software 27
Step 4 To connect with the external active antenna (optional) 28
Indication of BT Gmouse operation 29
Use the Charger of the BT Gmouse 30
Troubleshooting 31
Care and Maintenance 32
Glossary 33
11
Basic Guidelines
SAFETY
Read the User Guide and these basic guidelines comprehensively. Breaching the
regulations and rules may be dangerous or illegal. Road safety is the first priority;
do not use or operate the BT Gmouse receiver while driving. Keep the BT Gmouse
receiver away from high temperatures and fire. Additional detailed information is
given in this user guide.(see more details in “Warning” section)
PROPER HANDLING
Operating the GPS receiver requires a clear and unobstructed view of sky with the
antenna facade pointing upward to the sky. Do not bend BT Gmouse receiver while
connected to charger, bending will damage the connector, resulting in damage to
the BT Gmouse or the charger’s plug.
FIRST TIME OPERATION
A longer than normal time-to-first-fix of position may result the first time you use
the BT Gmouse. Follow this user guide and consult the instructions of the host
platform and GPS application software.
INTERFERENCE
GPS receivers may receive interference near cellular base-station and when in close
proximity to mobile phone antennas. This interference may affect positioning and
time-to-fix performance.
CONNECTOR and JACK
The BT Gmouse has one external antenna (port) connector, and one DC power jack.
Caution and care must be exercised when handling these parts. Bending or
breaking these parts will severely degrade positioning performance and damage the
receiver. This will void your warranty.
ACCESSORIES*
Use only manufacturer approved accessories with the BT Gmouse. No service part
inside the BT Gmouse receiver.
12
Loading...
