Emtac Technology A2588 Users Manual

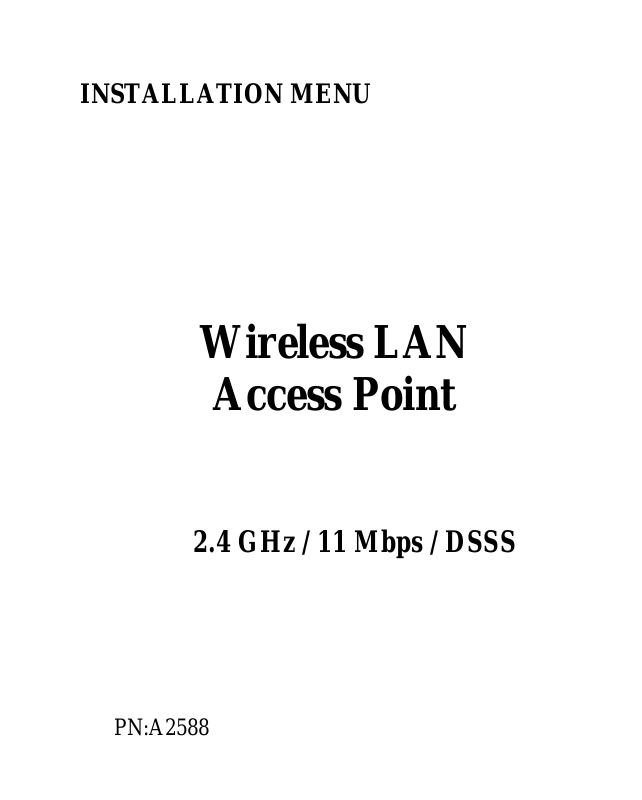

INSTALLATION MENU

Wireless LAN

Access Point

2.4 GHz / 11 Mbps / DSSS

PN:A2588

0

FCC INFORMATION

The Federal Communication Commission Radio Frequency

Interference Statement includes the following paragraph:

This equipment has been tested and found to comply with the
limits for a Class B digital Device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction,
may cause harmful interference to radio communication. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of following measures:

n Reorient or relocate the receiving antenna.
n Increase the separation between the equipment and receiver.
n Connect the equipment into and outlet on a circuit different

from that to which the receiver is connected.

n Consult the dealer or an experienced radio/TV technician for

help.

1

This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause
undesired operation.

Radiation Exposure:
This equipment complies with FCC RF radiation exposure limits
set forth for an uncontrolled environment. This equipment should
be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.

The user should not modify or change this equipment.
Modification could void authority to use this equipment.

2

Notice

The information in this document is subject to change in order to
improve reliability, design, or function without prior notice and
does not represent a commitment.

No part of this document may be reproduced or transmitted in any
form or by any means.

Trademark Acknowledgments

PRISM 2 is registered trademark of Intersil, Inc.
Microsoft Windows are registered trademarks of Microsoft Corp.
IBM and Thinkpad are a registered trademark s of International
Business Machines Corp.

All other product names or trademarks are property of their
respective owners. Product and cooperate names mentio n in this

publication are used for identification purpose only.

3

Package Contents

The package should contain following items:

1. The EMTAC A2588 11Mbps WLAN Access Point.

2. Driver disc.

3. This menu.

4. USB cord

5. Power Adapter

External Interface

1. USB Cord

2. Ethernet Cord

4

Software Installation Guide

You should have an Access Point driver disk from our agent, it
includes 2 major programs, one is “DFU” using USB port, and the
other is “AP Configuration” using Ethernet port.

For DFU

1. Run the “Setup.exe” in the folder of DFU of the driver disk.
Follow the guideline on the screen, and select the directory
where the application will be installed, it will deploy all files
that needed at that. At the end, windows will show a message
that installation is completed.

2. Power on the Access point.

3. After Access Point had powered on, then plug USB cord into
both port of host PC and AP.

4. You can run the program of “DFU”, which you can find in
“start” à”program” à”Atmel Utilities” à”DFU”. When the
DFU is working correctly, it will tell you what both version of
the Access Point firmware and this utility.
