DAC6e
USER MANUAL
Ver si on 1. 6
DAC6e 6-channel D/A Converter
The EMM Labs 6-channel D/A converter is a 4th generation design to meet
the highest standards in consumer audio applications. It offers conversion
from digital audio of various different formats to analog. For best audio
performance the DAC6e should be operated in Master Clock mode.
Features
• 6-channel conversions:
• from PCM (44.1kHz, 48kHz, 88.2kHz, 96kHz) to analog
• from DSD to analog
• Supported input formats:
• AES/EBU (3 connectors) for PCM
• ST Fiber optic for DSD
• Master and Slave Clock Operation
• Power supply
• power factor corrected
• auto ranging 85V - 240V, 50/60Hz
• power consumption: 60W
• Analog outputs
• balanced on XLR
• unbalanced on RCA
• Analog output impedances
•100Ω balanced, 50Ω unbalanced
Note: XLR analog outputs are balanced with pin 2 hot, pin 3 cold and pin 1 GND.
Function Switches
Power
The main power switch is on the back of the unit. The chrome power button
on the front is a momentary switch that toggles the operation between power
on and power save modes every time the user pushes it.
2
DAC6 e
meitnerdesign
3000
DAC6 e
MADE IN CANADA
emmLabs
SERIAL
MODEL
IN
OPTICAL DATA
85 - 260 V
50 / 60 HZ
150 W MAX
PCM INPUTS
NORM
PHASE
DSD
FORMAT
44.1INT
1 FS
SAMPLE CLOCK
Labs
INV
PCM
48
2 FS
LOCKPOWER ERROR
EXT
OUT
IN
WORD CLOCK
OUT
1/2 3/4 5/6
PUSH PUSH PUSH
2
3
4
65
UNBAL
BAL
ANALOG OUTPUTS
emm
3
Clock Section
INT / EXT: Selects internal or external clock source. LOCK LED is lit
Sample Rate Section
1FS / 2FS: Selects the sample rate for PCM data. FS is the base
44.1 / 48: Selects the base frequency (only 44.1kHz is allowed for
Format Section
DSD / PCM: Selects digital audio input format.
when D/A converter is locked to external clock. When in
INT, the DAC6e generates the master clock signal
(master clock mode) for the audio source. Connect either
the BNC or optical clock output from the DAC6 to your
audio souce.
When in EXT (slave clock mode) no additional
connection from the DAC6e to the audio source is
required.
frequency (see selector switch for base).
DSD inputs)
Phase Section
NORM / INV: Selects normal or inverted phase.
Error Indicator Is lit for illegal switch positions
Basic Operation
Conversion from PCM on AES/EBU to Analog
POWER ERROR
SAMPLE CLOCK
INT
LOCK
EXT
1FS
2FS
FORMAT PHASE
44.1
48
DSD
PCM
NORM
INV

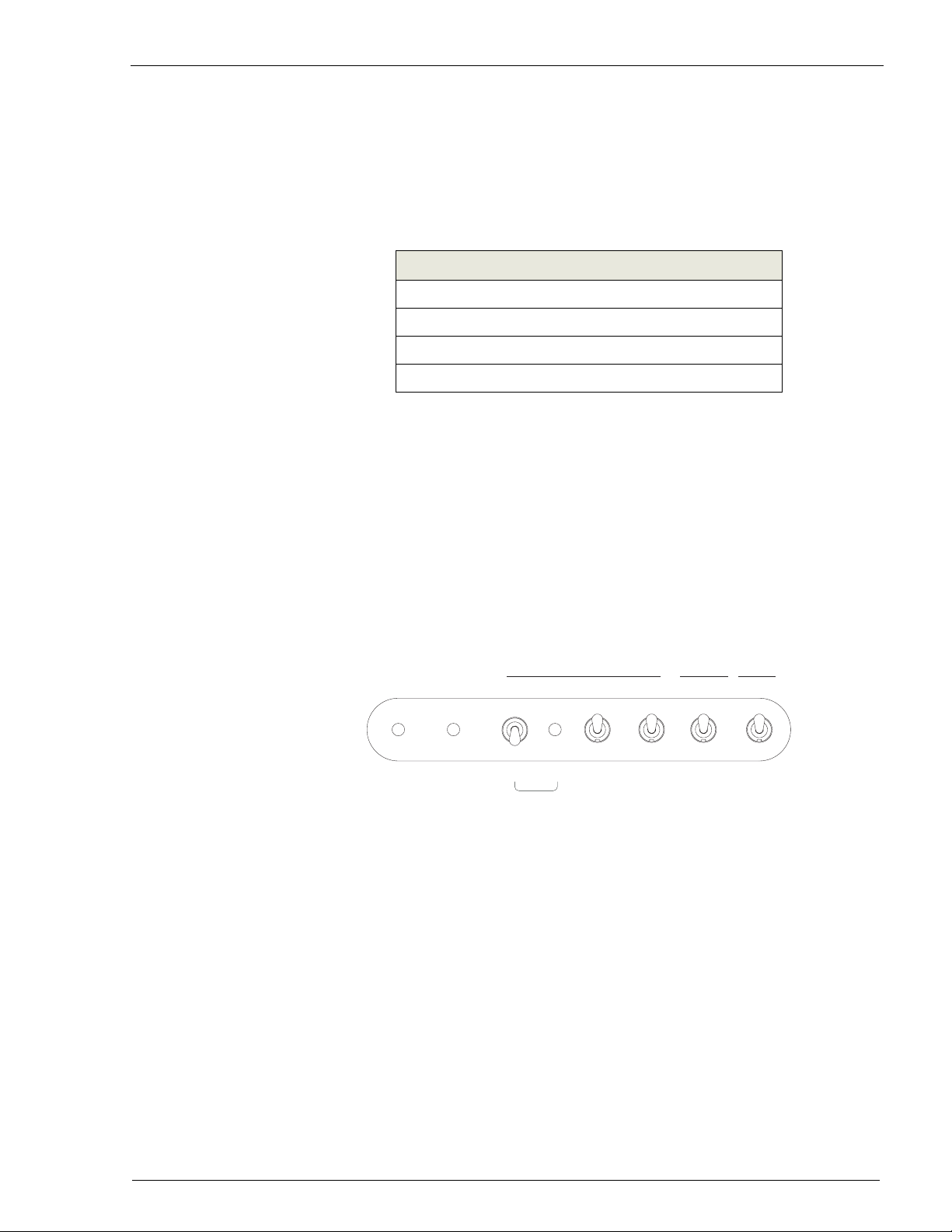

Additional selections for 44.1 / 48 / 88.2 / 96kHz sample rate can be made
with the sample rate switches.
4
Up to 3 AES/EBU cables can be connected to the DAC6e. The 4 possible
audio frequencies can be selected according to Table 1:
In the case of 2FS operation (88.2kHz or 96kHz) the clock rate of the trans-
Table 1: Selection of Audio Sample Rates
Sample Rate Switch Switch
44.1kHz 1FS 44.1kHz
48kHz 1FS 48kHz
88.2kHz 2FS 44.1kHz
96kHz 2FS 48kHz
mission on the cable is double. Master / Slave clock operations can be
selected with the INT / EXT switch (see below for more detail). In Slave
operation there has to be at least an AES/EBU cable connected to channels
1/2 as this connection provides the clock for the DAC6e.
Conversion from DSD on Optical to Analog
POWER ERROR
The optical interface format requires 2 cables: 1 for clock and 1 for audio
data. They both need to be connected regardless of what clock mode is
selected (master or slave). This mode requires the selection of 44.1kHz
base frequency. Master / Slave clock operations can be selected with the
INT / EXT switch (see below for more detail) and the 1FS / 2FS switch is
ignored.
SAMPLE CLOCK
INT
LOCK
EXT
1FS
2FS
FORMAT PHASE
44.1
48
DSD
PCM
NORM
INV
5
Master and Slave Clock Operation
In Master mode (switch set to INT) the DAC6e provides the clock to the
audio source. A cable needs to be connected from either the BNC Clock
output or Optical Clock output from the DAC6e to the clock input of your
audio source. This mode provides the best audio performance as the clock
jitter is minimzed.
In Slave mode (switch set to EXT) the DAC6e locks to the clock as provided
by the selected audio source (DSD or PCM).
Channel assignment when using EMM OptiLink to connect a CDSD to the DAC6e
The CDSD can play back up to 6 channels from SA-CD when combined with
the DAC6e converter. In this case the analog output channels of the DAC6e
have the following channel assignment:
Channel 1: Left front
Channel 2: Right front
Channel 3: Center front
Channel 4: Low Frequency Subwoofer
Channel 5: Left rear surround
Specifications
Output Line Levels (with 0dBfs signal on AES/EBU input)
Channel 6: Right rear surround
XLR balanced: +17.35dBu / +15.13dBv / 5.71V
RCA unbalanced: +12.89dBu / +10.67dBv / 3.42V
6
Warranty
EMM Labs warrants the DAC6e product against defects in material and
workmanship under normal use and service for a period of time specified by
the product’s serial number from the date of first delivery to the owner. The
warranty time period is 5 years limited to the original owner.
EMM Labs will pay for return shipping charges back to the owner when the
product is sent to EMM Labs within first 90 days after purchase. Otherwise,
owner will be responsible for all shipping charges to and from EMM Labs.
For all warranty claims, a copy of the original invoice must accompany the
product.
Opening the product or modifying it in any way by the owner, including but
not limited to cryogenic treatment, will void any warranty.
Please contact EMM Labs (support@emmlabs.com) for RMA number and
shipping instructions before shipping any product to EMM Labs.
EMM Labs products are sold worldwide through authorized dealers with
restricted territories. If any EMM Labs product is purchased from non-authorized dealers or from a dealer selling outside his / her territory all warranties
will be void.
7
