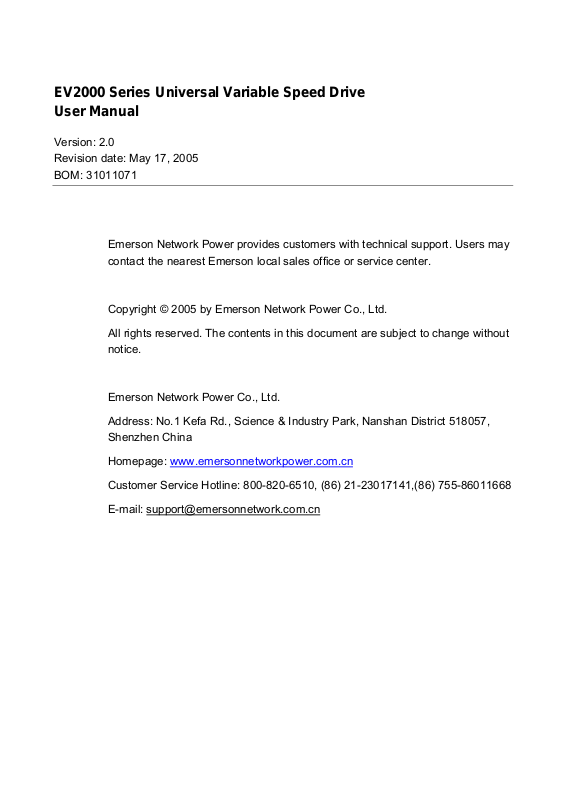

Emerson Network Power EV2000 User Manual

EV2000 Series Universal Variable Speed Drive User Manual

Version: 2.0 Revision date: May 17, 2005 BOM: 31011071

Emerson Network Power provides customers with technical support. Users may contact the nearest Emerson local sales office or service center.

Emerson Network Power Co., Ltd.

Address: No.1 Kefa Rd., Science & Industry Park, Nanshan District 518057, Shenzhen China

Homepage: www.emersonnetworkpower.com.cn

Customer Service Hotline: 800-820-6510, (86) 21-23017141,(86) 755-86011668

E-mail: support@emersonnetwork.com.cn

Contents

Preface................................................................................................................................................................................ 1

Unpacking Inspection................................................................................................................................................... 1

Model designation rules ............................................................................................................................................... 1

Chapter 1 Safety...............................................................................................................................................................2

1.1 Safety .................................................................................................................................................................. 2

1.2 Notes for Installations .......................................................................................................................................... 2

1.3 Notes for Using EV2000 ...................................................................................................................................... 2

1.3.1 About Motor and Load .................................................................................................................................. 2

1.3.2 About Variable Speed Drive.......................................................................................................................... 3

1.4 Disposing Unwanted Drive ..................................................................................................................................4

Chapter 2 Product Introduction......................................................................................................................................... 5

2.1 Specifications ......................................................................................................................................................5

2.2 Product Series ..................................................................................................................................................... 7

2.2.1 Ratings.......................................................................................................................................................... 7

2.2.2 Parts of Variable Speed Drive....................................................................................................................... 8

2.2.3 Outline and Gross Weight............................................................................................................................. 8

2.3 Optional Parts.................................................................................................................................................... 12

2.3.1 LCD Operational Panel ............................................................................................................................... 12

2.3.2 Braking Kits................................................................................................................................................. 12

2.3.3 Communication Parts.................................................................................................................................. 14

Chapter 3 Installation and Wiring.................................................................................................................................... 15

3.1 Installation Environment .................................................................................................................................... 15

3.2 Removing and Mounting of Parts ......................................................................................................................15

3.2.1 Removing and Installation of Operation Panel ............................................................................................ 15

3.2.2 Removing and Mounting of Cover............................................................................................................... 16

3.3 Wire Connections of Drive................................................................................................................................. 17

3.3.1 Wire Connections of Main Terminals .......................................................................................................... 17

3.3.2 Wiring of Control Circuit .............................................................................................................................. 22

3.4 Installation Methods Compliant With EMC Requirements ................................................................................. 31

3.4.1 Noise Suppressing...................................................................................................................................... 31

3.4.2 Field Wire Connections............................................................................................................................... 32

3.4.3 Earthing ...................................................................................................................................................... 33

3.4.4 Installation Requirements of Relay, Contactor and Electro-magnetic Braking Kit ....................................... 34

3.4.5 Leakage Current ......................................................................................................................................... 34

3.4.6 Correct EMC Installation ............................................................................................................................. 34

3.4.7 Application of Power Line Filter................................................................................................................... 35

3.4.8 EMI of The Drive ......................................................................................................................................... 36

Chapter 4 Operation Instructions.................................................................................................................................... 37

4.1 Notice ................................................................................................................................................................ 37

4.1.1 The Drive’s Control Modes.......................................................................................................................... 37

4.1.2 Reference Selector ..................................................................................................................................... 37

4.1.3 Operating Status ......................................................................................................................................... 37

4.1.4 Operating Modes ........................................................................................................................................ 37

4.2 Operating Instructions ....................................................................................................................................... 38

4.2.1 Using Operation Panel................................................................................................................................ 38

4.2.2 Function of Keys ......................................................................................................................................... 39

4.2.3 Function Descriptions of LED and Indicators .............................................................................................. 39

4.2.4 Display of the Drive..................................................................................................................................... 40

4.2.5 Panel Operation .......................................................................................................................................... 40

4.3 Start-up.............................................................................................................................................................. 41

4.3.1 Checking before Start-up ............................................................................................................................ 41

4.3.2 Start up the Drive for the First Time ............................................................................................................ 42

Chapter 5 Parameter Introductions................................................................................................................................. 43

5.1 Basic Operating Parameters(Group F0) ............................................................................................................... 43

5.2 Parameters of Reference Frequency (Group F1) .............................................................................................. 46

5.3 Starting and Braking Parameters (Group F2) .................................................................................................... 47

5.4 Auxiliary Operating Parameters (Group F3) ......................................................................................................49

5.5 PLC Operating Parameters(Group F4)................................................................................................................... 52

5.6 Close-loop Control Parameters(Group F5)................................................................................................................. 55

5.7 Traverse Operating Parameters (Group F6)...................................................................................................... 58

5.8 Function of Terminals(Group F7)....................................................................................................................... 60

5.9 Display (Group F8) ............................................................................................................................................ 69

5.10 Enhanced Functions(Group F9) ......................................................................................................................70

5.11 Reserved (Group FA) ...................................................................................................................................... 76

5.12 Communication Parameters (Group FF)................................................................................................................ 76

5.13 Motor Parameters (Group FH)......................................................................................................................... 77

5.14 Protective Function (Group FL) .......................................................................................................................78

5.15 Drive Parameters (Group Fn) .......................................................................................................................... 81

5.16 Protection of Parameters (FP) ......................................................................................................................... 81

Chapter 6 Troubleshooting ............................................................................................................................................. 83

Chapter 7 Maintenance ..................................................................................................................................................88

7.1 Daily Maintenance............................................................................................................................................. 88

7.2 Periodical Maintenance ..................................................................................................................................... 88

7.3 Replacing Wearing Parts................................................................................................................................... 89

7.4 Storage.............................................................................................................................................................. 89

7.5 Warranty............................................................................................................................................................ 89

Appendix 1 Parameters .................................................................................................................................................. 90

Appendix 2 Accessories ............................................................................................................................................... 108

Appendix 3 Communication Protocol............................................................................................................................ 111

1 Networking Mode................................................................................................................................................ 111

2 Interfaces............................................................................................................................................................ 111

3 Communication Modes....................................................................................................................................... 111

4 Protocol Format.................................................................................................................................................. 112

5 Explanations of Format....................................................................................................................................... 112

5.1 Head of Frame................................................................................................................................................ 112

5.2 Address of Slave ............................................................................................................................................113

5.3 Response of Slave to Master’s Command ..................................................................................................... 113

5.4 Index Section.................................................................................................................................................. 114

5.5 Checksum ...................................................................................................................................................... 114

5.6 Frame Tail ......................................................................................................................................................114

Thank you for using EV2000 series Variable Speed Drive made by Emerson Network Power Co., Ltd..

EV2000 satisfies the high performance requirements by using a unique control method to achieve high torque, high accuracy and wide speed-adjusting range. Its anti-tripping function and capabilities of adapting to severe power network, temperature, humidity and dusty environment exceed those of similar product made by other companies, which improves the product’s reliability noticeably;

EV2000 has integrated the general requirements, customized requirements and industrial requirements perfectly. It is a innovative product with practical PI, simple PLC, flexible input and output terminals, pulse signal input, saving parameters at stop or power outage, master/slave reference control, traverse operation, fixed length control. It provides OEM customers with high integrated, reliable, cost-effective solution;

EV2000 can satisfy the customers’ requirements on low noise and EMI by using optimized PWM technology and EMC design.

This manual provides information on installation, wiring, parameter setting, trouble-shooting, and daily maintenance. To ensure the correct installation and operation of the drive, please read this manual carefully before starting the drive and keep it in a safe place.

Unpacking Inspection

Upon unpacking, please check for:

Any damage occurred during transportation;

Check whether the rated values on the nameplate of the drive are in accordance with your order.

Our product is manufactured and packed at factory with great care. If there is any error, please contact us or distributors.

The user manual is subject to change without notifying the customers due to the continuous process of product improvements.

Preface

Model designation rules

220V 2 380V 4

Input volt Code

3-phase

The nameplate is located on the right hand side of the heatsink. The contents are shown in Fig.A-2. A barcode on the plastic cover also contains the information of the drive, as shown in Fig.A-3.

EV2000 -4 T 0055 G / 0075 P

Drive series

Code

Volt

Fig. A-1 Explanations of Drive Models

MODEL： POWER INPUT OUTPUT

S/N：

EV2000-4T0055G/0075P

5.5kW/7.5kW

：

3PH AC 380V-440V 15.5/20.5A 50Hz/60Hz

：

8.5/11KVA 13/17A 0-650Hz 0-440V

：

Emerson Network Power Co., Ltd.

Fig. A-2 Nameplate Description

Preface 1

Drive type

Code

Fixed torque

Fan & pump

Motor power

Code

0055 5.5 0075 7.5 0110 11 0150 15 0185 18.5 0220 22 0300 30 0370 37 0450 45 0550 55 0750 75 0900 90 1100 110 1320 132 1600 160 2000 200 2200 220 2800 280

model motor power

barcode

Barcode

Fig. A-3 Locations of Nameplate and Barcode

EV2000 Series Universal Variable Speed Drive User Manual

Nameplate

2 Chapter 1 Safety

Chapter 1 Safety

1.1 Safety

Danger

Attention

1.2 Notes for Installations

·Please install the drive on fire-retardant material.

·Keep the drive away from combustible materials

·Keep the drive away from explosive gas

·Only qualified personnel shall wire the drive

·Never wire the drive unless the input AC supply is

totally disconnected

·The drive must be properly earthed to reduce

electrical accident

·Install the cover before switching on the drive, to

reduce the danger of electric shock and explosion.

·For drives that have been stored for longer than 2

years, increase its input voltage gradually before supplying full rated input voltage to it, in order to avoid electric shock and explosion

·Don't touch the live control terminals with bare

hands

·Don’t operate the drive with wet hands

·Perform the maintenance job after confirming that

the charging LED is off or the DC Bus voltage is below 36V.

·Only trained professionals can change the

components, it is prohibited to leave wires or metal parts inside the drive so as to avoid the risk of fire.

·Parameter settings of the control board that has

been changed must be revised, otherwise accidents may occur.

·The bare portions of the power cables must be bound

with insulation tapes.

Operations without following instructions can cause personal injury or death. Operations without following instructions can cause personal injury or damage to product or other equipment.

Danger

Attention

·Don’t carry the drive by its cover. The cover cannot

support the weight of the drive and may drop.

·Please install the drive on a strong support, failing

which the drive may fall off.

·Don’t install the drive in places where water pipes

may leak onto it.

·Don't allow screws, washers and other metal foreign

matters to fall inside the drive, otherwise there is a danger of fire or damage;

·Don't operate the drive if parts are not complete,

otherwise there is a danger of a fire or human injury;

·Don't install the drive under direct sunshine,

otherwise it may be damaged;

·Don’t short circuit P1/PB and terminal (-), otherwise

there is a danger of fire or the drive may be damaged.

·Cable lugs must be connected to main terminals

firmly

· Don’s apply supply voltage (AC 220V or higher) to

control terminals except terminals TA, TB and TC.

1.3 Notes for Using EV2000

Pay attention to the following issues when using EV2000 drive.

1.3.1 About Motor and Load

Compared to the power frequency operation

EV2000 series drives are voltage type variable speed drive. The output voltage is in PWM wave with some harmonics. Therefore, temperature rise, noise and vibration of motor are higher.

Low Speed Rotating with Constant Torque

Driving a common motor at low speed for a long time, the drive’s life will be reduced due to the deteriorating heat dissipation effect, so a special variable frequency motor is needed if long time operation with constant torque is required.

Motor’s over-temperature protecting threshold

The drive can protect the motor from over-temperature. If the ratings of the driven motor are not in compliance

EV2000 Series Universal Variable Speed Drive User Manual

Chapter 1 Safety 3

with the drive, be sure to adjust the protective threshold to ensure the motor is properly protected.

Operate above 50Hz

When running the motor above 50Hz, there will be increase in vibration and noise. The rate at which the torque is available from the motor is inversely proportional to its increase in running speed. Ensure that the motor can still provide sufficient torque to the load.

Lubrication of mechanical devices

Over time, the lubricants in mechanical devices, such as gear box, geared motor, etc. when running at low speed, will deteriorate. Frequent maintenance is recommended.

Braking Torque

Braking torque is developed in the machine when the drive is hoisting a load down. The drive will trip when it cannot cope with dissipating the regenerative energy of the load. Therefore, a braking unit with proper parameters setting in the drive is required.

The mechanical resonance point of load

The drive system may encounter mechanical resonance with the load when operating within certain band of output frequency. Skip frequencies have been set to avoid it.

The drive should be started and stopped via its control terminals. It is prohibited to start and stop the drive directly through input line contactors, which may damage the drive with frequent operations.

Insulation of Motors

Before using the drive, the insulation of the motors must be checked, especially, if it is used for the first time or if it has been stored for a long time. This is to reduce the risk of the Drive from being damaged by the poor insulation of the motor. Wiring diagram is shown in Fig. 1-1. Please use 500V insulation tester to measure the insulating resistance. It should not be less than 5MΩ.

Motor

Mega-Ohm-Meter

Earthing conductor

Fig. 1-1 Checking the insulation of motor

1.3.2 About Variable Speed Drive

Varistors or Capacitors Used to Improve the Power Factor

Don't connect any varistor or capacitor to the output terminals of the drive, because the drive's output voltage waveform is pulse wave, otherwise tripping or damaging of components may occur; in addition, don't install circuit breaker or contactor at the output side of the drive as shown in Fig.1-2.

EV2000

Fig. 1-2 Capacitors are prohiBited to be used.

Circuit breakers connected to the output of the drive

If circuit breaker or contactor needs to be connected between the drive and the motor, be sure to operate these circuit breakers or contactor when the drive has no output, to avoid damaging of the drive.

Using outside the range of rated voltage

The drive is not suitable to be used out of the specified range of operation voltage. If needed, please use suitable voltage regulation device.

Change from 3-phase to 2-phase

It is not recommended to change the drive from 3-phase input to 2-phase input. If it is necessary to use on two phases, the phase-loss protection function of the drive should be disabled. The Drive must be derated for this operation. For motors at which power is above 30kW, if it is changed into 2-phase input, then the input phases must be at phase R and phase T, or else the drive will not work.

After the 3-phase input is changed into 2-phase input, bus-voltage and current ripple may increase, which not only influences the life of electrolytic capacitor but it also deteriorates the performance of the drive. The drive’s operating current should be derated and should not exceed 67% of rated value.

Protection against lightning strike

There are transient surge suppressors inside the Drive which protects it against lighting strike.

EV2000 Series Universal Variable Speed Drive User Manual

4 Chapter 1 Safety

Derating due to Altitude

Derating must be considered when the drive is installed at high altitude, greater than 1000m. This is because the cooling effect of Drive is deteriorated due to the thin air, as shown in Fig.1-3 that indicates the relationship between the elevation and rated current of the Drive.

Iout 100%

90%

80%

1000

400030002000

m）

（

Fig. 1-3 Derating Drive's output current with altitude

1.4 Disposing Unwanted Drive

When disposing the Drive, pay attention to the following factors:

The capacitors may explode when they are burnt.

Poisonous gas may be generated when the plastic parts like front covers are burnt.

Disposing method: Please dispose the Drive as industrial waste.

EV2000 Series Universal Variable Speed Drive User Manual

2.1 Specifications

Item Description

Chapter 2 Product Introduction 5

Chapter 2 Product Introduction

Table 2-1 General specifications

Input

Output

Main control functions

Rated voltage & frequency Three-phase,380V~440V; 50Hz/60Hz

Permissible fluctuation range

Rated voltage 380V

Frequency 0Hz~650Hz

Over load ability

Modulation mode

Speed range

Starting torque

Steady accuracy of speed

Accuracy of frequency

Setting frequency resolution

Torque boost

V/F curve

Acc/Dec curve

DC injection braking

Jog

Multi-step speed running

Voltage:320V~460V;Voltage unbalance rate:<3%; Frequency:±5%

Type G: 150% rated current for 1 minute, 200% rated current for 0.5 second; Type P: 110% rated current for 1 minute, 150% rated current for 1 second

Flux vector PWM modulation

1:100

180% rated torque at 0.50Hz

≤±0.5% rated synchronous speed

Digital setting: highest frequency×±0.01%;analog setting: highest frequency×±0.2%

Digital setting:0.01Hz;analog setting: highest frequency×0.1%

Auto torque boost, Manual torque boost0.1%~30.0%

4 modes: 1 V/F curve mode set by user and 3 kinds of torque-derating modes (2.0 order, 1.7 order, and 1.2 order)

3 modes: linear Acc/Dec, S ramp Acc/Dec and auto Acc/Dec; Acc/Dec time(maximum: 60 hours) and unit(second or minute) are settable.

Initial frequency of DC injection braking process: 0.20~60.00Hz, braking time: 0.0～30.0s braking current: Type G: 0.0～100.0％ Type P: 0.0～80.0％

Range of jog frequency:0.20Hz~50.00Hz; Acc/Dec time of Jog operation:

0.1~60.0s, Interval of Jog operation is also settable.

Multi-step speed running can be realized by internal PLC or control terminal

Internal PI Be able to form simple control system easily

Auto-energy saving operation

Auto voltage regulation(AVR)

Auto current limiting

Auto adjusting of carrier frequency

EV2000 Series Universal Variable Speed Drive User Manual

V/F curve is optimized automatically according to the load condition to realize energy-saving operation.

When source voltage changes, the modulation rate can be adjusted automatically, so that the output voltage is unchanged.

Operating current is limited automatically to avoid frequent tripping of the drive.

Optional function. The carrier frequency can be adjusted automatically according to the load condition.

6 Chapter 2 Product Introduction

Item Description

Traverse operation

Fixed-length control

Droop control Customized function

Tone adjusting

Non-stop operation upon power

failure

Bundling function

Methods of inputting operating

commands

Methods of setting up

Operating function

frequency

Auxiliary frequency reference

Pulse output terminal

Analog output terminals

LED display

Operation panel

LCD display

Parameter copy

Keys locking up and function

selection

Protection function

Optional parts

Application environment

Elevation Lower than 1000m

Environment

Ambient temperature

Humidity

Vibration

Storage temperature

Structure

Protection level

Cooling

Mount modes

Efficiency

Traverse operating function with adjustable central frequency

The drive stops when preset fixed length is reached

Used in the application that several drives drive one motor.

Adjust the tone of the operating motor

Uninterrupted operation can be realized by controlling the bus voltage when power failure occurs.

Control mode and reference selector (for example panel input or analog VCI input) can be selected together at one time

Commands can be input by terminals and serial ports.

Digital setting; Analog voltage/current setup; pulse frequency setup; set via serial port and different setting modes are selectable

Realize flexible fine tuning of auxiliary frequency.

0~50kHz pulse signal output. Signals like frequency setting and output frequency can be output.

2 analog outputs of 0/4~20mA and 0/2~10V(selectable). Be able to output signals like reference frequency and output frequency.

Be able to display about 20 kinds of parameters such as frequency setting, output frequency, output voltage and current, etc.

Optional, Chinese/English display

Fast parameter copy can be realized by using LCD panel.

Be able to lock part or all the keys. Be able to define the functions of part of the keys to avoid wrong operation.

Phase failure protection, Over current protection; Over voltage protection; Under voltage protection; Over heat protection; overload protection

LCD operation panel, braking kit, remote mounted keypad, remote control cable and field bus adapter

In-door, free from direct sunlight, dust, corrosive gas, combustible gas, oil mist, steam, water drop or salt

-10℃~+40℃(ambient temperature is within 40℃~50℃, deration is required)

Less than 95%RH, without condensation

Less than 5.9m/s

(0.6g)

-40℃~+70℃

IP20

Fan cooling

Mounted on the wall or inside cabinet

For 45kW or below: ≥93%, 55kW or above: ≥95%

EV2000 Series Universal Variable Speed Drive User Manual

Chapter 2 Product Introduction 7

2.2 Product Series

2.2.1 Ratings

Table 2-2 Variable Speed Drive series(55P or below)

Drive model (55P or below)

(G: constant torque, P: Fan & pump)

EV2000-4T0055G/0075P 8.5/11 15.5/20.5 13/17 5.5/7.5

EV2000-4T0075G/0110P 11/17 20.5/26 17/25 7.5/11

EV2000-4T0110G/0150P 17/21 26/35 25/32 11/15

EV2000-4T0150G/0185P 21/24 35/38.5 32/37 15/18.5

EV2000-4T0185G1/0220P1 24/30 38.5/46.5 37/45 18.5/22

EV2000-4T0220G1/0300P1 30/40 46.5/62 45/60 22/30

EV2000-4T0300G1/0370P1 40/50 62/76 60/75 30/37

EV2000-4T0370G1/0450P1 50/60 76/92 75/90 37/45

EV2000-4T0450G1/0550P1 60/72 92/113 90/110 45/55

Drive model (55G or above)

Constant torque Fan & pump

EV2000-4T0550G

EV2000-4T0750G EV2000-4T0750P 100 157 152 75

EV2000-4T0900G EV2000-4T0900P 116 180 176 90

EV2000-4T1100G EV2000-4T1100P 138 214 210 110

EV2000-4T1320G EV2000-4T1320P 167 256 253 132

EV2000-4T1600G EV2000-4T1600P 200 307 304 160

EV2000-4T2000G EV2000-4T2000P 250 385 380 200

EV2000-4T2200G EV2000-4T2200P 280 430 426 220

－

EV2000-4T2800P 342 525 520 280

－

Rated capacity

(kVA)

Table 2-3 Variable Speed Drive series(55G or above)

Rated

capacity

(kVA)

72 113 110 55

Rated input current

(A)

Rated input current

(A)

Rated output current

(A)

Motor power

(kW)

Motor power

(kW)

 Notes:

1. Models in shady area are under development.

2. Please contact the manufacturer for models of EV2000-4T2800G and EV2000-4T3150P.

EV2000 Series Universal Variable Speed Drive User Manual

8 Chapter 2 Product Introduction

2.2.2 Parts of Variable Speed Drive

Port for operation panel

Multi-function terminal

Control board

Control terminal

Charge indicator

Cover's mounting hole

Cover

Compartment for operation panel

Barcode

Mounting hole

2.2.3 Outline and Gross Weight

1. Outline

Power terminal

shielding board

Inlet holes for signal cables

Power

terminal

Outlet holes for AC output holes

Ventilation holes

Fig. 2-1 Parts of drive

Nameplate

Fig. a EV2000-4T0055G/0075P~ Fig. b EV2000-4T0185G1/0220P1～

EV2000-4T0150G/0185P EV2000-4T0220G1/0300P1

EV2000 Series Universal Variable Speed Drive User Manual

Chapter 2 Product Introduction 9

Fig. c EV2000-4T0300G1/0370P1～ Fig. d EV2000-4T0550G~ Fig. e EV2000-4T01100G~

EV2000-4T0450G1/0550P1 EV2000-4T01100P EV2000-4T2800P

Fig. 2-2 Outline of EV2000

EV2000 Series Universal Variable Speed Drive User Manual

10 Chapter 2 Product Introduction

2. Mechanical parameters

Table 2-4 Mechanical parameters 1

EV2000-4T0055G/0075P～EV2000-4T0450G1/0550P1、EV2000-4T0550G、EV2000-4T0750G、EV2000-4T0750P、

EV2000-4T0900P、EV2000-4T0900G、EV2000-4T1100P

Drive model (55P or below)

(G: constant torque, P: Fan & pump)

EV2000-4T0055G/0075P

EV2000-4T0075G/0110P

EV2000-4T0110G/0150P

EV2000-4T0150G/0185P

EV2000-4T0185G1/0220P1 18.5/22 13

EV2000-4T0220G1/0300P1 22/30

EV2000-4T0300G1/0370P1 30/37

EV2000-4T0370G1/0450P1 37/45

Motor

(kW) A (mm)B (mm)H (mm)W(mm)D (mm)

5.5/7.5

7.5/11

11/15

15/18.5

186 285 300 200 202 6.8 Fig. a 7.5

236 365 380 250 209 6.8 Fig. a 12

180 421 435 275 209 7 Fig. b

250 600 624 375 262 9 Fig. b 35

Diameter of

mounting hole(mm)

Fig.

Number

Gross

weight(kg)

EV2000-4T0450G1/0550P1 45/55 38

EV2000-4T0550G _

EV2000-4T0750G EV2000-4T0750P

EV2000-4T0900G EV2000-4T0900P

EV2000-4T1100P

55 300 747 770 468 301 10 Fig. d 50

75 300 747 770 468 301 10 Fig. d 50

90 300 747 770 468 301 10 Fig. d 90

110 300 747 770 468 301 10 Fig. d 90

Table 2-5 Mechanical parameters 1

EV2000-4T1100G~EV2000-4T2200G. EV2000-4T2200P. EV2000-4T2800P

Drive model

Constant torque Fan & pump

Motor

(kW) A (mm)B (mm)H (mm)W(mm)D (mm)

Diameter of

mounting holes

(mm)

Fig.

Number

Gross

weight (kg)

EV2000-4T1100G - 110 370 855 880 530 370 14 100

EV2000-4T1320G EV2000-4T1320P 132 370 855 880 530 370 14 100

EV2000-4T1600G EV2000-4T1600P 160 370 855 880 530 370 14 100

- EV2000-4T2000P 200 370 855 880 530 370 14 100

Fig. e

EV2000-4T2000G - 200 520 975 1000 680 370 14 140

EV2000-4T2200G EV2000-4T2200P 220 520 975 1000 680 370 14 140

- EV2000-4T2800P 280 520 975 1000 680 370 14

140

 Notes:

1. Models in Table 2-5 are under developing.

2. For 75kWG drive or above, DC reactor is included in its standard configuration. The weight of DC reactor in the above table is not included in the gross weight. Outline and dimensions of DC reactor are shown below.

EV2000 Series Universal Variable Speed Drive User Manual

Chapter 2 Product Introduction 11

Diameter of terminal

Enlarged view of terminal

Mounting hole

Fig. 2-3 Dimensions of DC reactor

Table 2-6 Mechanical Parameters of DC Reactor

Applicable

drive (kW)

75G

Model of DC

reactor

Recommended

size of copper

（mm2）

A B C D E F G H I J

TDL-4DI01-0900 60 190 160 125 161 120 80 10 250 280 25

Size(mm)

Diameter

of terminal

90G/90P

110G/110P TDL-4DI01-1100 100 190 160 125 161 120 80

132G/132P TDL-4DI01-1320 150 200 170 135 171

160G/160P TDL-4DI01-1600 150 210 180

200G/200P 200

220G/220P

TDL-4DI01-2200

280P TDL-4DI01-2800 325

250

220 190

135 171

145 181 160 95

120

130 85 12 280 320 30

150 90

10 10

12 315

280

250

260

280

315 340 40

340 40

12 12 12

 Notes:

1. Columns B and C in Table 2-6 are the sizes of mounting holes of DC reactor.

2. DC reactor should be installed at the bottom of the cabinet if it is to be installed inside a cabinet. The clearance between reactor and the drive should be at least 35cm, and the reactor should be as far away from the air inlet port of the drive as possible.

Gross

weight

(kg)

EV2000 Series Universal Variable Speed Drive User Manual

12 Chapter 2 Product Introduction

3. Optional panel and mounting box

a) Operation panel b) Mounting box (Model: EVF-KB02)

Fig. 2-4 Operation panel and mounting box

2.3 Optional Parts

All the optional parts are given below, make additional orders if needed.

2.3.1 LCD Operational Panel

Model:TDP-LCD03

Language: Chinese/English optional

LCD operation panel can perform fast parameter copy.

Interface: As shown in Fig. 2-5, the interface is divided into main display area, operation instruction area and explanations for operation instructions.

Main display area: Display the status, parameters.

Operation display area: Display the next operation, if there are several operations for selection, the operation contents will be displayed in this area one by one.

Explanations for operations: Display the explanations for the “operation display area”

Freq. Set Mode

E/D

Parameter

FREQ SET

Main display area

Operation display are

Main display area

2.3.2 Braking Kits

1. Braking kit

4C01 0150

Code

220V 2 380V 4 660V 6

Braking unit

Braking kit

Code

Volt

220V 2 380V 4 660V 6

TDB

Fig. 2-6 Model of braking kit

2. Braking resistor

0400

Code

0400 2 0200 4 0100 6

Braking Kit

Braking resistor

Code

Power

1.5kW 0015

3.0kW 0030

5.0kW 0050

TDB

R01

0015

Fig. 2-7 Explanations of Model of braking resistor

Motor power

Resistor

E/D

DATA SET

Operation display are

Fig. 2-5 LCD display interface

EV2000 Series Universal Variable Speed Drive User Manual

Chapter 2 Product Introduction 13

3. Configurations

Table 2-7 Specifications of braking kit and resistor

Rated motor

power(kW)

Model of braking

resistor

Ratio of working time of

braking kit to drive’s total

working time (%)

Braking

torque (%)

Maximum

continuous

operating time(s)

Model of braking

kit

5.5 - 10 100 10 Built-in

7.5 - 10 100 10 Built-in

11 TDB-R01-0015-0400 10 100 10 TDB-4C01-0150

15 TDB-R01-0015-0400 10 100 10 TDB-4C01-0150

18.5 TDB-R01-0015-0400 10 100 10 TDB-4C01-0150

22 TDB-R01-0030-0200 10 100 10 TDB-4C01-0300

30 TDB-R01-0030-0200 10 100 10 TDB-4C01-0300

37 TDB-R01-0030-0200 10 100 10 TDB-4C01-0300

45 TDB-R01-0050-0100 10 100 10 TDB-4C01-0550

55 TDB-R01-0050-0100 10 100 10 TDB-4C01-0550

75 TDB-R01-0050-0100 10 100 10 TDB-4C01-0550

 Notes

1. There is a braking kit inside the 7.5kW drive or below. An external braking resistor is needed to be connected if dynamic braking is required and the recommended resistor is 1000W/100Ω.

2. The 90kW drive or above should use several braking kits connected in parallel (TDB-4C01-0550).

4. Outline and installation sizes

Fig. 2-8 Installation dimensions of braking kit

Table 2-8 Installation dimensions of braking kit(unit: mm)

Model of braking

kit

A B C D E

Gross

weight

TDB-4C01-0150 254 143 144 240 100 3 kg

TDB-4C01-0300 254 143 144 240 100 3 kg

TDB-4C01-0550 254 130 170 240 126 4 kg

EV2000 Series Universal Variable Speed Drive User Manual

Fig. 2-9 Installation dimensions of braking resistor

Table 2-9 Installation dimensions of braking resistor

(unit: mm)

Model of braking

resistor

A B C D E F

Gross

weight

TDB-4R01-0015-0400 475 228 127 447 177 460 3 kg

TDB-4R01-0030-0200 500 350 128 480 298 490 6 kg

TDB-4R01-0050-0100 540 520 170 520 470 530 8 kg

5. Functions and wiring

A. Wire connections braking resistor and braking kit

14 Chapter 2 Product Introduction

EV2000

(-)

(+)

TB TC

braking unit braking resistor

TH1 TH2

Fig. 2-10 Connecting the braking kit to the Drive

TA-TB and TA-TC are contacts of relay used for outputting fault indicating signal, and TH1 and TH2 are contacts of temperature relay (relay used for outputting over-heat indicating signal).

B. Main functions of braking kit

Activation voltage for braking is adjustable;

Protection against excessive duty-cycle of braking resistor;

Overheat protection of heatsink;

Alarm indication for power module’s fault;

Fault indication and indication for fault relay output;

The braking resistor will be disconnected automatically if it is over-heated and the relay will output alarming signal.

The cables connected between the braking kit and the drive, and those between the braking kit and braking resistor should be less than 5m. If longer than 5m, twisted-pair cable should be used and the maximum length is 10m.

2.3.3 Communication Parts

1. Communication cables

A. Cables of operation panel

Model: TDC-CB0015(1.5m)

TDC-CB0030(3.0m)

The cables are used to connect the panel to the drive.

B. Communication cables of remote mounted keypad

Two models: FRC21W1(3.0m) FRC21W2(30m)

The cables are used to connect the remote mounted keypad to the drive.

2. Remote mounted keypad

Model: TDO-RC02

It uses the same structure with operation panel of the drive. It is easily to be installed and secured and convenient for hand-held operation. Its display is similar to the operation panel.

RS485 communication mode is used between the drive and the remote mounted keypad. A 4-core cable is used to connect the drive and the keypad, and the maximum distance can be 1000m. Master/slave communication mode is used. The keypad is the master and the drive is the slave. Cable terminals can be secured by common screws, which makes it convenient for maintenance. One remote mounted keypad can control several drives by connecting the communication cables of 485+ and 485- of each drive to form a RS485 network.

Functions:

1) Be able to control the start, stop, jog operation, fault reset of slave drives and change the frequency settings and operation direction.

2) Identify the type of slave machine automatically. Be able to monitor the operating frequency, frequency setting, output voltage and current, analog close-loop feedback, analog close-loop setting and external counting value automatically.

3. Fieldbus adapter

Model: TDS-PA01

Be able to connect ENYDRIVE drive to PROFIBUS network via the TDS-PA01 fieldbus adapter. In the PROFIBUS network system, the drive operates as a slave.

Functions:

1) To send control commands to drive (such as: start, stop and jog);

2) To send speed or frequency reference signal to the drive;

3) To read operating status information and actual values from the drive;

4) To reset the drive when fault occurs in it.

4. DrvWindows host monitoring software

Version: DrvWindows V1.2

Used in the control network formed by TD1000, TD2000 and TD2100 series drive via RS485 bus. It can monitor the operating status of the drive connected to the bus and realize the central management of the drive. The software’s friendly interfaces make the operation convenient. This software now support EV2000 drive.

Functions:

Polling of slave drives, frequency setting, operating and stopping, changing and querying the settings of parameter.

5. Keypad Holder

Model: EVF-KB02

EV2000 Series Universal Variable Speed Drive User Manual

Chapter 3 Installation and Wiring 15

Chapter 3 Installation and Wiring

3.1 Installation Environment

Please mount the drive vertically inside a well-ventilated location.

When selecting mounting environment, the following issues should be taken into account:

Ambient temperature should be within the range of

-10℃~40℃. If the temperature is higher than 40 ℃, the

drive should be derated and forced ventilation is required;

Humidity should be lower than 95% non-condensing

Mount in the location where vibration is less than

5.9m/s

(0.6G);

Mount in the location free of direct sunlight, dust, metal powder, corrosive gas or combustible gas.

If there are any special requirements for installation, please contact us for clarifications.

The requirements on mounting space and clearance are shown in Fig. 3-1 and Fig. 3-2.

When two Variable Speed Drives are mounted one on top the other, an air flow diverting plate should be fixed in between as shown in Fig. 3-3.

air expulsion by fan

15cm or

above

35cm or above

15cm or

above

35cm or above

Fig. 3-2 Installation clearance(55kW or above)

Drive

air expulsion by fan

10cm or above

5cm or

above

10cm or above

Fig. 3-1 Installation clearance (45kW or below)

5cm or

above

Drive

Fig. 3-3 Installation of several drives

3.2 Removing and Mounting of Parts

3.2.1 Removing and Installation of Operation Panel

1. Disassembly

Put your middle finger into the hole on the top of operation panel, press down the snapper and pull the panel outward as shown in. Figure 3-4.

2. Installation

Place the bottom edge of the operation panel at the hooks of the mounting groove and press down the

EV2000 Series Universal Variable Speed Drive User Manual

16 Chapter 3 Installation and Wiring

snapper with your middle finger. Then press the panel inward to snap it in position as shown in Figure 3-4.

②Insert the top clamp into the slot at the top of the

drive;

③Mount the screws at the bottom part of the cover;

④Install the operation panel

Fig. 3-5 Removing and installation of plastic cover

 Note:

Pull out or insert the plastic cover gently, otherwise the mounting clamp may be damaged.

Fig. 3-4 Removing and Mounting of Operation Panel

Where: 1&2: holding clamp 3:panel

3.2.2 Removing and Mounting of Cover

EV2000 series have two kinds of cover, plastic or metallic one. Follow the steps below to remove and mount the cover.

1. Removing and mounting of plastic covers

1) Removing:

① Remove the operation panel

② Remove two screws at bottom

③ Lift the bottom of cover up to 5~10 degrees, move it

upward at least 10mm until the clamp are out of the slot on the cabinet, then remove the front panel.

2) Mounting of plastic cover:

①Tilt the cover 5~10 degree;

2. Procedures of removing and mounting the metal

cover

1) Procedures of removing the metal cover:

①Remove the operational panel;

②Remove all the screws on the cover;

③Take out the cover horizontally.

2) Procedures of installing the metal cover:

①Mount the cover on the frame by screws;

②Install the operation panel.

Fig. 3-6 Removing and mounting metal cover

EV2000 Series Universal Variable Speed Drive User Manual

Chapter 3 Installation and Wiring 17

3.3 Wire Connections of Drive

Danger

·Wiring can only be done after the drive’s AC

power is disconnected, all the LEDs on the operation panel are off and waiting for at least 5 minutes. Then, you can remove the panel.

·Wiring job can only be done after confirming the

charge indicator on the right bottom has extinguished and the voltage between main circuit power terminals + and - is below DC36V.

·Wire connections can only be done by trained and

authorized personnel.

·Check the wiring carefully before connecting

emergency stopping or safety circuits.

·Check the drive’s voltage level before supplying

power to it, otherwise human injuries or equipment damage may happen.

Attention

·Check whether the Variable Speed Drive’s rated

input voltage is in compliant with the AC supply voltage before using.

·Dielectric strength test of the drive has been done

in factory, so you need not do it again.

·Refer to chapter 2 on connected braking resistor

or braking kit.

·It is prohibited to connect the AC supply cables to

the drive’s terminals U, V and W.

·Grounding cables should be copper cables with

section area bigger than 3.5mm grounding resistance should be less than 10Ω.

·There is leakage current inside the drive. The total

leakage current is greater than 3.5mA, depending on the usage conditions. To ensure safety, both the drive and the motor should be grounded, and a leakage current protector (RCD) should be installed. It is recommended to choose B type RCD and set the leakage current at 300mA.

·The drive should be connected to the AC supply

via a circuit breaker or fuse to provide input over-current protection or convenience for disconnecting the AC supply to maintain the drive.

Wire the drive according to Fig. 3-7 during commissioning :

, and the

3-phase AC

supply

3.3.1 Wire Connections of Main Terminals

1. Connection between drive and optional parts

R S T N

PE U V W

Fig. 3-8 Wire connection between the drive and optional parts

1). Isolation switch should be connected between the AC supply and the drive to ensure the safety of the maintenance engineer.

2). Circuit breaker (QF) or fuse should be connected between the AC supply and the drive to isolate the fault of other equipment. Refer to Table 3-1 for the selection of circuit breaker.

3) When a contactor is used for controlling the AC supply, don’t use it to switch on or off the Variable Speed Drive.

R S T

EV2000

Fig. 3-7 Wiring

EV2000

VRF

VCI

CCI

GND

Isolator switch

Circuit breaker or fuse

AC input reactor

Contactor

Input EMI filter

DC reactor

Braking unit

Braking resistor

Output EMI filter

AC output reactor

FWD

REV

COM

U V

. . .

EV2000 Series Universal Variable Speed Drive User Manual

18 Chapter 3 Installation and Wiring

Table 3-1 Recommended capacity of circuit breaker and

the cross sectional area of copper cable

Model

EV2000-4T

Input switch Circuit

breaker

QF(A)

Main circuit

(mm2)

Input

Output

cable

Control circuit

(mm2)

Control

terminal

0055G/0075P 32 4 4 1

0075G/0110P 40 6 6 1

0110G/0150P 63 6 6 1

0150G/0185P 63 6 6 1

0185G/0220P 100 10 10 1

0220G/0300P 100 16 16 1

0300G/0370P 125 25 25 1

0370G/0450P 160 25 25 1

0450G/0550P 200 35 35 1

0550G 200 35 35 1

0750G 0750P 250 70 70 1

0900G 0900P 315 70 70 1

1100G 1100P 400 95 95 1

1320G 1320P 400 150 150 1

1600G 1600P 630 185 185 1

2000G 2000P 630 240 240 1

2200G 2200P 800

2800P 1000

150×2 150×2

185×2 185×2

 Note:

1, Parameters in the table are recommended values. 2, The input protection fuses of inverters EV2000-4T0185G1/ 0220P1 and EV2000-4T0220G1/ 0300P1 are respectively the RT16 Series 63A and 80A products of Xi'an Fusegear Manufacture Company.

4). DC reactor

DC reactor is required for the drive whose power is greater than EV2000-4T0750G, for the drive whose power is lower than EV2000-4T0750P, it is optional.

Under following conditions, a DC reactor should be used to reduce the impact of AC supply to the drive and to protect the drive and suppress the high-order harmonics.

(1) If a capacitor tank used for reactive power compensation or a SCR load shares the same AC supply with the drive, the harmonics caused by the SCR load or the capacitor tank when it is switched on or off may damage the drive’s input rectifying circuit;

(2) When the unbalance rate of 3-phase AC supply of the drive is greater than 3%;

(3) If the input power factor of the drive is required to be greater than 0.93;

(4) When a large capacity transformer is connected to the drive, the input current of the drive may damage the rectifying circuit. Generally, if the input AC supply capacity of the drive is above 550KVA, or if the input AC supply capacity is 10 times that of the drive, a DC reactor is required to connect to the drive.

(5) Input AC Line Reactor

A line reactor should be used if the distortion of power network is severe or the input current harmonic level is high even after a DC reactor has been connected to the drive. It can also be used to improve the AC input power factor of the drive.

6) Output AC Line Reactor

When the cables from the drive to motor are longer than 80m, multi-stranded cables and an AC line reactor should be used to suppress the high frequency harmonics. Thus, the motor insulation is protected against heat due to harmonics, leakage current is reduced and the drive will not trip frequently.

(7) Input EMI filter

An EMI filter can be used to suppress the high frequency noise generated by the drive’s power cables.

(8) Output EMI filter

An EMI filter can be used to suppress the drive’s output noise and leakage current of cables.

(9) Safety ground

Since there is leakage current inside the drive, to ensue

safety, both the drive and the motor should be grounded, the grounding resistance should be less than 10Ω. The ground wire should be as short as possible. Please refer to the section of the earth wire in Table 3-2.

Table 3-2 Section of Ground Wire

Cable Section (mm2)

S≤16

16＜S≤35

35＜S

Min. section of ground

wire Sp（mm2）

S/2

Note that the data in the above table apply when the conductor connected with the ground wire are made of the same metal, otherwise, please calculate the equivalent section based on the conductivity.

 Notes:

1. EV2000 drive can meet the requirements of IEC 61800-3 after EMI filter is installed.

2. Installation of input and output EMI filters must be as close to the drive as possible. Refer to Section 3.4 of Chapter 3 for EMC installation instructions.

3. Refer to Section 2.3 of Chapter 2 and Appendix 2 for the technical parameters of optional parts.

EV2000 Series Universal Variable Speed Drive User Manual

2. Wire Connections of Drive for Basic Operation

Models: EV2000-4T0055G/0075P. EV2000-4T0075G/0110P

DCL DC reactor

(connect optional parts

3-phase 380V 50/60Hz

R S

externally)

Breaker

(+)

Braking resistor

(connect optional parts externally)

(-)

Chapter 3 Installation and Wiring 19

U V W

Forward/stop

Reverse/stop

Multi-function input 1

Multi-function input 2 Multi-function input 3 Multi-function input 4

Multi-function input 5

Multi-function input 6

Multi-function input 7

Multi-function input 8

Speed command

0~10V

0～10V/0～20mA

EV2000

. .

Aux.

Power

supply

0/4～20mA

P24

PLC

FWD

REV

X3 X4

COM

VRF

VCI

CCI

GND

CN10

Fig. 3-9 Basic wiring 1

0～10V

RS232

RS485

. . .

CN16

CN17

CN14

P24

COM

X7 X8

GND

AO1

AO2

P24

COM

CME

COM

485+

485-

TXD RXD

GND

Output 1

Output 2

TB TC

DC current meter

0/4-20mA current

signal

Output 0-24V pulse

signal Frequency meter

Bi-direction open collector output

Common terminal

Programmable relay output

RS485 communication port

RS232

communication

port

 Notes:

1. Terminal CCI can be input voltage or current signal by switching the jumper CN10 on control board;

2. The auxiliary power supply comes from the bus (+) and bus (-);

3. Built-in braking kit is installed and a braking resistor is required to be connected between (+) and PB;

4. In the above figure, “O” is the terminal in main circuit, and “⊙” is the control terminal;

5. Refer to section 3.3.2 for the using of control terminals.

EV2000 Series Universal Variable Speed Drive User Manual

20 Chapter 3 Installation and Wiring

Applicable models: EV2000-4T0110G/0150P~EV2000-4T2800P

3-phase 380V 50/60Hz

Multi-function input1

Multi-function input2

Multi-function input3

Multi-function input4

Multi-function input5

Multi-function input6

Multi-function input7

Multi-function input8

R S T

Forward/stop

Reverse/stop

Speed command

0～10V

0～10V/0～20mA

DCL DC reactor

(connect externally,optional parts for 75kW or below)

Breaker

R S T

P24

PLC

FWD

REV

X1 X2

COM

VRF

VCI

CCI

. .

GND

CN10

Fig. 3-10 Basic wiring 2

Braking resistor or braking unit

(+)

0/4～20mA

(-)

Aux.

Power

supply

0/4～20mA

0～10V

EV2000

RS232 RS485

. . .

CN16

CN17

CN14

COM

CME

COM

P24

X7 X8

GND

AO1

AO2

P24

COM

485+

485TXD

RXD GND

(Connect optional parts

externally)

V W PE

Output 1

Output 2

TA TB

DC current

meter

0/4-20mA current

signal

Output 0-24V pulse

signal

Frequency meter

Bi-direction open collector output

Common terminal

Programmable relay output

RS485 communication port

RS232 communication port

 Notes:

1. Terminal CCI can be input voltage or current signal by switching the jumper CN10 on control board;

2. The auxiliary power supply’s AC supply comes from R0 and T0 which are shorted with R and T of 3-phase input. If you want to use an external AC supply, the shorting bars between R and R0, T and T0 have to be removed before connecting the external AC supply via R0 and T0. Otherwise, short-circuit will occur.

3. It is prohibited to connect to the control power supply without disconnecting the short-circuit bar, so as to avoid short-circuit accident;

4. If external braking parts are needed, then braking kit and braking resistors should be included; Pay attention to the polarity of the braking kit when wiring;

5. In the above figure, “O” is the terminal in main circuit, and “⊙” is the control terminal;

6. Refer to section 3.3.2 for the using of control terminals.

EV2000 Series Universal Variable Speed Drive User Manual

Applicable models: EV2000-4T0185G1/0220P1～EV2000-4T0450G1/0550P1

braking unit and braking resistor (external, optional)

(-)

3-phase

380V

50/60Hz

DCL DC reactor (external, optional)

buffer resistor

(built-in)

breaker

Transistor

(+)

Chapter 3 Installation and Wiring 21

U V

W PE

Foward/Stop

Reverse/Stop

MS input 1

MS input 2

MS input 3

MS input 4

MS input 5

MS input 6

MS input 7

MS input 8

Speed instruction

0～10

0～10V/0

～20mA

P24

PLC

FWD

REV

COM

VRF

VCI

CCI

GND

R0 T0

. .

CN10

Auxiliary power supply

0/4-20mA

0-10V

0/4-20mA

0-10V

EV2000

RS232

RS485

Fig. 3-11 Basic Wiring 3

. .

CN16

. .

CN17

. .

CN14

P24

COM

GND

AO1

AO2

P24

COM

CME

COM

485+

485-

TXD

RXD

GND

output 1

output 2

DC current meter

0/4-20mA current signal

frequency meter (open collector output)

0-24V pulse output signal

2-way open collector output

common terminal

Programmable relay output

Standard RS485 port

Standard RS232 port

 Notes:

1. Terminal CCI can be input voltage or current signal by switching the jumper CN10 on control board;

2. The auxiliary power supply of EV2000-4T0185G1/0220P1～EV2000-4T0220G1/0300P1 is from bus (＋) and (－)。

3. The auxiliary power supply of EV2000-4T0300G1/0370P1～EV2000-4T0450G1/0550P1 is from R and T. If you want to use an external AC supply, the jumper on CN4 should be connected to CN3 first, and then connect it to R0 and T0.

4. If external braking kit, the braking unit and braking resistors should be included; Pay attention to the polarity of the braking kit when wiring;

5. In the above figure, “O” is the terminal in main circuit, and “⊙” is the control terminal;

6. Refer to section 3.3.2 for the usage of control terminals.

EV2000 Series Universal Variable Speed Drive User Manual

22 Chapter 3 Installation and Wiring

3. Input/Output Terminals in Main Circuit

1) Applicable models:

EV2000-4T0055G/0075P~EV2000-4T0150G/0185P

R S T P1 (+) PB (-) U V W PE

POWER SUPPLY MOTOR

Table 3-3 Terminals of main circuit

Terminals Function

R, S, T 3-phase 380V AC supply input terminals

Reserved terminals for DC reactor,

P1, (+)

connected with copper bar before delivery.

(+), PB Reserved terminals for braking resistor

(-) Output terminal for DC Minus Bus

U, V, W 3-phase AC output terminals

PE Earth terminal

 Notes:

Terminals PB of EV2000-4T0110G/0150P and EV2000-4T0150G/0185P are suspended.

2) Applicable models:

EV2000-4T0185G/0220P~EV2000-4T0450G/0550P

RS T

POW ER SU PPLY

(+)

UVW

(-)

MOTOR

Table 3-4 Terminals of main circuit

Terminals Function

R. S. T

3-phase 380V AC supply input terminals

Positive pole of the rectifying bridge

Reserved terminals for DC reactor,

P1, (+)

connected by copper bar before delivery

(-)

U. V. W

Output terminal for DC Minus Bus

3-phase AC output terminals

Earth terminal

3) Applicable models:

EV2000-4T0550G. EV2000-4T0750P

：

(-) (+) P1 R S T

POWER SUPPLY

Table 3-5 Terminals of main circuit

Terminal Function

R, S, T

P1, (+)

(-)

U, V, W

3-phase 380V AC supply input terminals

Reserved terminals for DC reactor

Output terminal for DC Minus Bus

3-phase AC output terminals

Earth terminal

4) Applicable models:

EV2000-4T0750G~EV2000-4T2200G

EV2000-4T0900P~EV2000-4T2800P

Top：

Bottom：

U V W P1 (+) (-) PE

MOTOR

R S T

POWER SUPPLY

Table 3-6 Terminals of main circuit

Terminals Function

R. S. T

3-phase 380V AC supply input terminals

P1. (+) Reserved terminals for DC reactor

(-)

U. V. W 3-phase AC output terminals

Output terminal for DC Minus Bus

PE Earth terminal

3.3.2 Wiring of Control Circuit

1. Terminals and jumpers of control board

Locations of terminals CN5, CN6 and CN7 and jumpers CN10, CN14, CN16 and CN17 are shown in Fig. 3-.

Terminal functions are given in Table 3-6. Refer to table 3-7 for the functions and settings of jumpers. Wire the terminals and set the jumpers correctly before using the Drive. It is recommended to use cables bigger than

1mm

to connect to the terminals.

Bottom：

U V W PE

MOTOR

EV2000 Series Universal Variable Speed Drive User Manual

Chapter 3 Installation and Wiring 23

CN1 CN2

CN7

CN3

CN4

CN6

CN5

DSP

CN16

CN17

CN14

CN10

CN9

mA V mA V

232 485

I V

Fig. 3-12 Locations of jumpers on the control board

Table 3-7 Functions of terminals provided to users

SN Function

CN5

Analog input and output terminal, RS232 and RSRS485 communication port

CN6 Digital input/output terminal

CN7 Relay output terminal

Table 3-8 Functions of jumpers provided to users

SN Function and settings

Used for selecting CCI current/voltage

CN10

input I: 0/4~20mA current signal, V: 0~10V voltage signal

Used for selecting communication

CN14

ports (RS232 or RS485) RS232: Select RS232 port, RS485: Select RSRS485 port

Used for selecting the output signal (current or voltage) of analog output

CN16

terminal AO1; 0/4~20mA: AO1 output current signal; 0~10V: A01 output voltage signal

Used for selecting the output signal (current or voltage) of analog output

CN17

terminal AO2; 0/4~20mA: AO2 output current signal; 0~10V: AO2 output voltage signal

Factory settings

0~10V

RS485

0~10V

Fig. 3-13 Control board

EV2000 Series Universal Variable Speed Drive User Manual

24 Chapter 3 Installation and Wiring

2. Wire connections of terminals on control board

1) Terminal CN5 on control board

Arrangements of terminals of CN5:

VRF VCI CCI GND AO1 AO2 GND TXD RXD 485+ 485- PE

Functions of terminals of CN5 are given in Table 3-.

Table 3-9 Functions of the terminals

Category Terminals Name Function Specification

Analog input

RS485+ RS485 +

RS485 communication

Communication

RS485-

TXD

RXD

VCI

port

RS232 communication port

Analog input VCI

RS485 -

Transmitting pin (Reference ground: GND)

Receiving pin (reference ground: GND)

Be able to accept analog voltage input (Reference ground: GND)

RS232/RS485 can be selected by jumper CN14, RS485 mode is the default mode.

Standard RS-485 communication port, please use twisted-pair cable or shielded cable.

Standard RS232 communication port, 3-wire connection (only use TXD, RXD and GND). Maximum distance: 15m

Input voltage range:0~10V (input resistance:100kΩ)

Resolution: 1/2000

Input voltage range:0~10V(input

Analog input

CCI

Analog input CCI

Be able to accept analog voltage/current input. Jumper CN10 can select voltage or current input mode, Voltage input mode is the default mode.(reference ground: GND)

resistance:100kΩ)

Input current range:0~20mA (input resistance:500Ω)

Resolution: 1/2000

Be able to output analog voltage/current (total 12 kinds of signals). Jumper CN16 can

AO1 Analog output 1

select voltage or current input mode, Voltage

input mode is the default mode. Refer to Analog output

F7.26 for details. (reference ground: GND)

Be able to output analog voltage/current

Output current range: 0/4~20mA Output voltage range:0/2~10V

(total 12 kinds of signals). Jumper CN17 can

AO2 Analog output 2

select voltage or current input mode, Voltage

input mode is the default mode. Refer to

F7.27 for details.(reference ground: GND)

+10V power supply

GND of +10V power supply

Provide +10V power supply Maximum output current is 50mA

Reference ground of analog signal and 10V

power supply

Isolated with COM and CME

Power supply

VRF

GND

Terminal used for the earthing the shielding

Shielding layer

GND of shielding layer

layer. The shielding layers of analog signal

cable, RS485 communication cable and

motor cable can be connected to the

Connected to PE inside the drive.

terminal.

1. Wiring analog input terminal

①VCI can accept analog voltage signal input and wiring is shown below:

EV2000 Series Universal Variable Speed Drive User Manual

●

VRF(+10V)

Chapter 3 Installation and Wiring 25

10V

0～+

Nearer shielding wire's end is connected to PE

●

VCI

GND

EV2000

●

Fig. 3-14 Wiring terminal VCI

②

CCI can accept analog signal input and the jumper can be used to select voltage input (0~10V) and current input

(0/4~20mA). The wiring is shown below:

CCI current

●

···

CCI voltage

···

CN10

0～+10V

20mA

or 0/4～

Nearer shielding wire's end that is connected to the PE

●

VRF(+10V)

●

CCI

●

GND

EV2000

Fig. 3-15 Wiring CCI

2. Wiring connections analog output terminal

If the analog output terminals AO1 and AO2 are connected to analog meters, then various kinds of physical values can be indicated. The jumper can select current output (0/4~20mA) and voltage output(0/2~10V). The wiring is shown in Fig.3-16..

Analog current output

0/4-20mA

0-10V

···

Anlog voltage output

0/4-20mA

0-10V

···

AO1：CN16；AO2：

CN17

EV2000

AO1

AO2

GND

Analog meter

●

Fig. 3-16 Wiring analog output terminal



Notes:

(1) When using analog input, a common mode inductor can be installed between VCI and GND or CCI and GND. (2) Analog input and output signals are easily disturbed by noise, so shielded cables must be used to transmit these signals and the cable length should be as short as possible.

3. Wiring of Serial Communication Port

Wire connections of serial communication port.

EV2000 drive provides two kinds of serial ports: RS232 and RS485 which can be selected by Jumper CN14.

Wire as following figures show, and a “single-master single slave” system or a “single-master multi-slaves” system can be formed. The drives in the network can be monitored and controlled remotely and automatically in real time by using a PC or PLC controller. Thus more complicated operation control can be realized (e.g. Unlimited multi-step PLC operation).

①

The drive connects to the host via its RS232 port:

EV2000 Series Universal Variable Speed Drive User Manual

26 Chapter 3 Installation and Wiring

EV2000

RS232 port

Function Terminal

Transmit TXD

Receive RXD

GND GND

The kilobit of FF.00 is set to 0

RS232

RS485

···

CN14

Shielded cable

Fig. 3-17 RS232-RS232 communication cables

②

Connection between the drive’s RS485 port and the host PC:

EV2000

RS485 port

RS232 RS485

···

CN14

Function Terminal

－

＋

485

RS485

－＋

RS485/RS232 converter

Function Terminal

5V power

Transmit TXD Receive RXD

Ground GND

Terminal Function

－

RS485

＋

485

Fig. 3-18 RS485-(RS485/RS232)-RS232 communication cable

●

＋

－

＋

Control PC RS232

Signal Pin

PE Enclosure

RXD 2

TXD 3

GND 5

DTR 4

●

DSR 6

CD 1

●

RTS 7

CTS 8

Shielded cable

（

DB9

RI 9

Control PC RS232

●

）

（

DB9

Signal Pin

PE Enclosure

RXD 2 TXD 3 GND 5 DTR 4 DSR 6

RI 9

CD 1 RTS 7 CTS 8

）

③

Connect the drive to the host PC via a MODEM:

Signal Pin

●

TXD

RXD

GND

●

DTR 4

DSR

RTS

CTS

MODEM

Enclosure

2 5

PSTN

Telephone network

MODEM

RS232

（PC or PLC

EV2000

RS232 port

Func

Transmit

Receive

Ground

The kilobit of FF.00 is set to 1

Te rm i na l

···

CN14

TXD

RXD

GND

RS232

RS485

Fig. 3-19 Wiring of RS232-(MODEM-PSTN-MODEM)-RS232 communication

④

The drive’s RS485 port connects to PROFIBUS via the TDS-PA01(field bus made by ENPC):

）

EV2000 Series Universal Variable Speed Drive User Manual

Chapter 3 Installation and Wiring 27

EV2000

RS485 port

Func

signal－Func

signal+ Func

EV2000

TD3000

Terminal

···

CN14

RS485－ RS485＋

RS232

RS485

Twisted

cable

TDS-PA01 fieldbus

Func

RS485－

RS485＋

TDS-PA01

Terminal

Connect to PROFIBUS

Be able to connect 1-32 RS485

Fig. 3-20 Wire connections of RS485-(TDS-PA01)-PROFIBUS communication

If several drives are connected in the network via RS485, the disturbance to the communication system increases, so the wiring is especially important, you can connect the cables according to the figure below:

Fig. 3-21 Communication between PLC and the drive (the drive and motor are grounded well)

If the communication is still abnormal, then the following actions can be taken:

①

Feed a separate AC supply to the PLC(or host PC) and isolate the AC supply;

②

If RS485/RS232 conversion module is used, then the module should be powered by a separate power supply;

③

Mount magnetic core to the communication cable, reduce the carrier frequency if the field conditions permit.

2). Description of control terminals CN6 and CN7

Layout of CN6:

P24 Y1 Y2 CME COM DO P24 PLC X1 X2 X3 X4 COM X5 X6 FWD REV COM X7 X8 PE

Layout of CN7:

TA TB TC

EV2000 Series Universal Variable Speed Drive User Manual

28 Chapter 3 Installation and Wiring

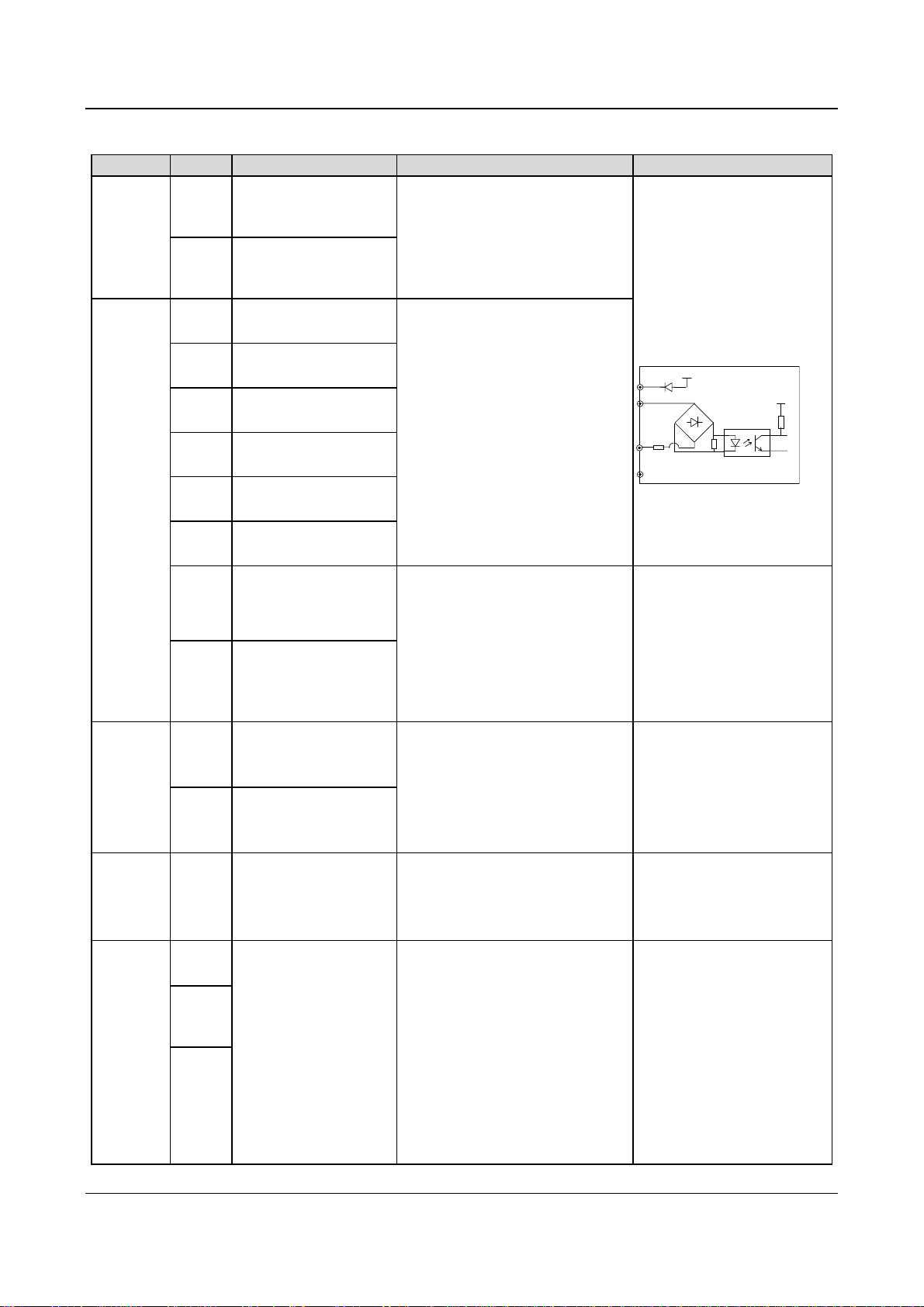

Table 3-10 Functions of terminals of CN6 and CN7

Category Terminal Name Functions Specifications

Terminal for inputting run

Operation control terminals

Multi-

function

input

terminal

FWD

REV

forward operation command

Terminal for inputting run reverse operation command

Multi -function input

terminal 1

Multi -function input

terminal 2

Multi -function input

terminal 3

Multi -function input

terminal 4

Multi -function input

terminal 5

Multi -function input

terminal 6

Multi -function input

terminal 7

Multi -function input

terminal 8

See the explanations of F7 parameters for the commands of run forward and run reverse (common terminal: PLC)

See section 5.8 Chapter 8 for the

programmable multi-function digital

input terminal

(Common terminal: PLC)

Terminals X7 and X8 can be used as

common multi-function terminals

(same with X1~X6), they can also be

used as high speed pulse input port.

See section 5.8 Chapter 8 for details.

(Common terminal: PLC)

Optical-isolator input

input resistance: R

Maximum input frequency:200Hz Input voltage range: 9~30V

+24V

P24

PLC

Xi、FWD、REV

COM

Equivalent circuit of optical-

isolator input is shown above.

input resistance: R

Max input frequency: 100kHz

(single phase)/50kHz (dual

phase)

Input voltage range: 15~30V

Optical-isolator output

Operating voltage range:9~30V

Max output current: 50mA

Refer to the explanations of

F7.10~F7.11 for the using

methods.

Output frequency range:

dependent on F7.32, and the

Max frequency is 50kHz

TA-TB: normally closed,

TA-TC: normally open

Multi-functi

on output

terminal

Multi-functi

on output

terminal

Open collector output

terminal 1

Open collector output

terminal 2

Open collector pulse

output terminal

Multi-function digital output terminal

can be defined. See section 5.8

Chapter 5 for details. (Common

terminal: CME)

Multi-function pulse signal output

terminal can be defined. See section

5.8 Chapter 5 for details. (Reference

ground: COM)

Capacity of contacts:

Relay’s

output

terminals

Output terminals of relay

Multi-function relay output terminal

can be defined. See section 5.8

Chapter 5 for details.

AC250V/2A(COS

AC250V/1A(COS

=0.4),DC30V/1A

Refer to the explanations of

F7.12 for the using methods.

Overvolt class of the input volt

at relay output terminal: II.

＝2kΩ

=1)

+5V

EV2000 Series Universal Variable Speed Drive User Manual

Chapter 3 Installation and Wiring 29

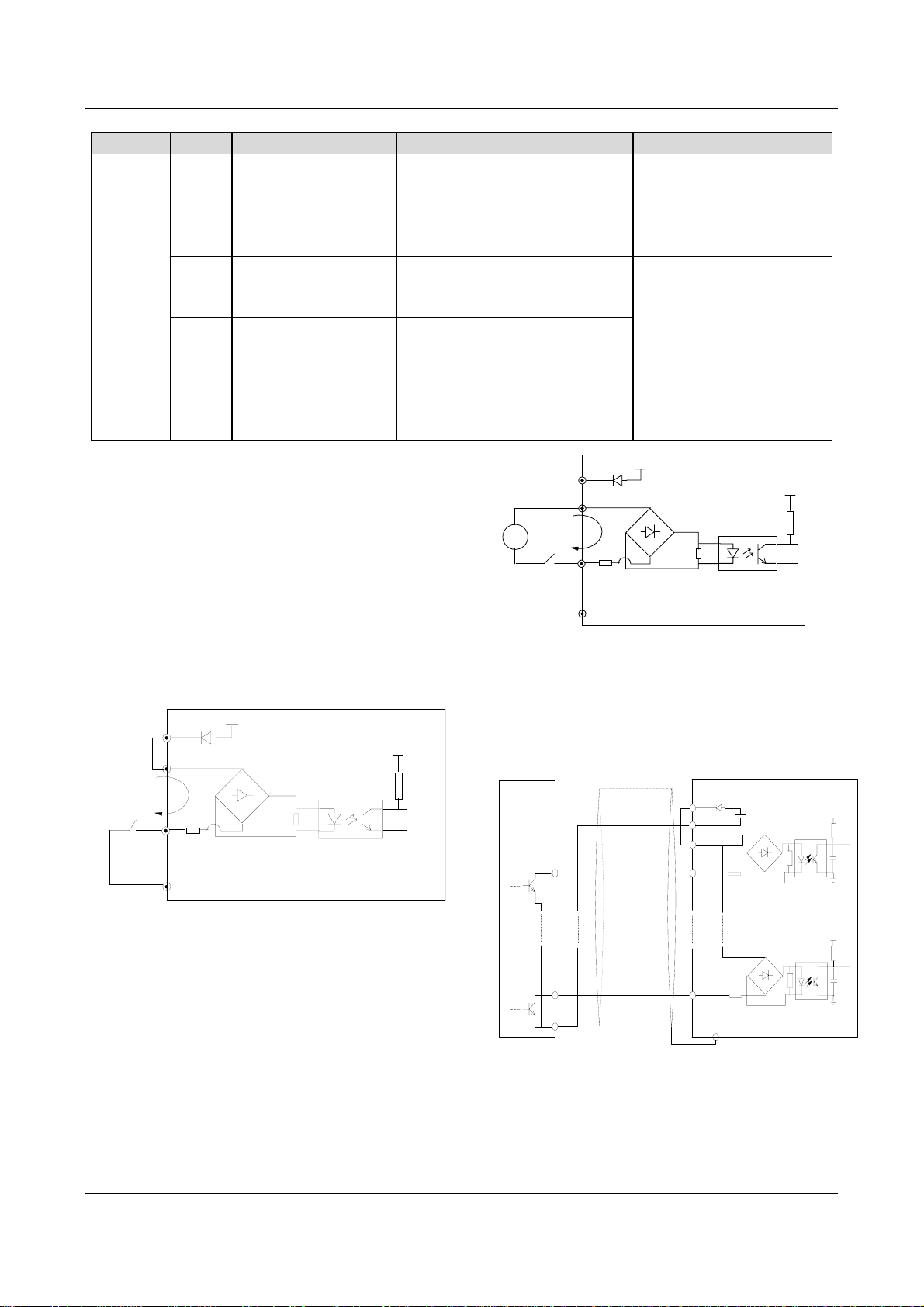

Category Terminal Name Functions Specifications

Power supply

P24 +24V power supply

Common terminal of

PLC

multi-function input terminal

COM

CME

Common terminal of +24V power supply

Common terminal of Y1 and Y2 output

Provide +24V power supply for external equipment.

Common terminal of multi-function input terminal (short circuit with P24)

Total 3 common terminals, which are used in conjunction with other terminals.

Common terminal of multi-function Y1 and Y2 output (Short circuit with COM by

Maximum output current: 200mA

Common terminal of X1~X8., FWD and REV. PLC is isolated with P24.

COM is isolated with CME and GND.

manufacturer)

Shielding PE Shielded GND

Grounding terminal connected to shielding layer

1) Wire connections multi-function input terminals, terminals FWD and REV:

EV2000 multi-function input terminal uses a full-bridge rectifying circuit as shown in Fig. 3-. PLC is the common terminal of terminals X1~X8, FWD and REV. The current flows through terminal PLC can be pulling current, and also the feeding current. Wire connections X1~X8, FWD and REV is flexible and the typical wiring is shown below:

A) Method 1 of connections (Dry contacts)

①

If internal 24V power supply is used, the wiring is

shown in Figure 3-22.

+24V

P24

+5V

EV2000

power source

PLC

X1、X2

、

FWD

COM

. . . X8

REV

P24

power

X1、X2 . . . X8 FWD、

Fig. 3-23 Using an external supply

B). Method 2 of connections

①

Drive’s internal +24V power supply is used and the

external controller uses NPN transistors whose common emitters are connected, as shown in Figure 3-24.

External controller

●

Connected to PE inside the drive

+24V

PLC

REV

COM

P24

●

COM

●

PLC

●

FWD

●

EV2000

24V DC

●

Fig. 3-22 Using internal 24V power supply

+5V

②

If an external power supply is used, then use the Wire

connections shown in Fig. 3-23. (be sure to disconnect the cable between P24 and PLC)

EV2000 Series Universal Variable Speed Drive User Manual

●

COM

●

shielded cable's end near the drive should be connected to the PE

Fig. 3-24 Method 2 of connections(a)

●

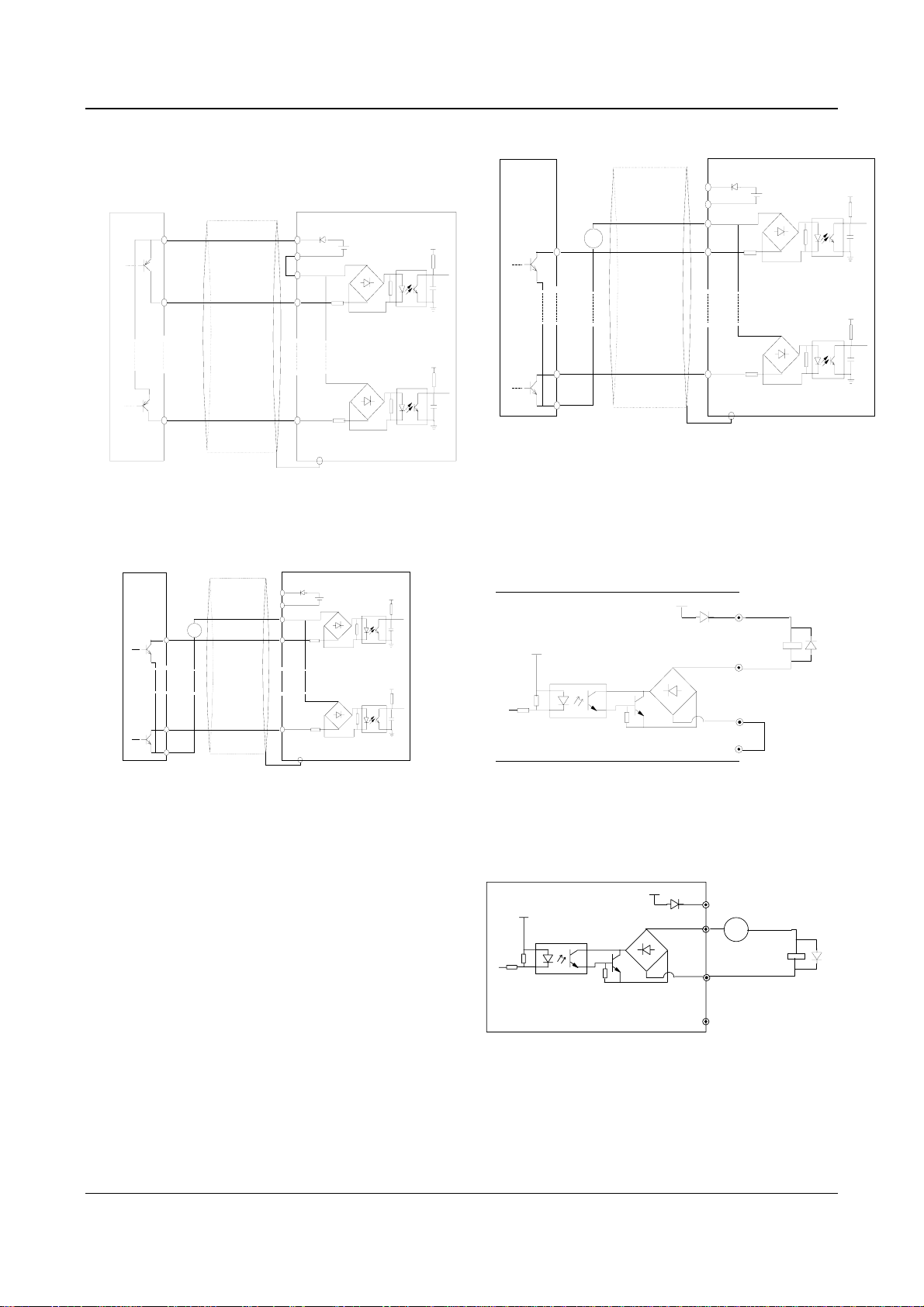

30 Chapter 3 Installation and Wiring

②

Drive’s internal +24V power supply is used and the

external controller uses PNP transistors whose common emitters are connected, as shown in Figure 3-25

External controller

COM

●

PLC

●

P24

COM

FWD

●

EV2000

24V DC

External controller

9~30V

●

EV2000

P24

●

COM

●

PLC

●

FWD

●

24V DC

●

● ●

shielded cable's end near the drive should be connected to the PE

Fig. 3-25 Method 2 of connections(b)

③

Use external power supply:

External controller

9~30V

●

● ●

●

ground the shield near the drive

Fig. 3-26 Method 2 of connections(c)

④

Use external power supply:

● ●

●

shielded cable's end near the drive

●

should be connected to the PE

Fig. 3-27 Method 2 of connections (d)

2) Wire connections of multi-function output terminal

①

Multi-function output terminals Y1 and Y2 can use the

EV2000

P24

●

24V DC

COM

●

PLC

●

FWD

●

24V power supply inside the drive and the wiring mode is shown in Figure 3-28..

+5V

+24V

P2 4

Y1,Y2

Relay

CME

●

EV2000

Fig. 3-28 Wire connections 1 of multi-function output terminal

②

Multi-function output terminals Y1 and Y2 can also

COM

use the 9~30V power supply outside the drive and the wiring mode is shown in Fig.3-29.

+5V

EV2000

Fig. 3-29 Wire connections 2 of multi-function output terminal

③

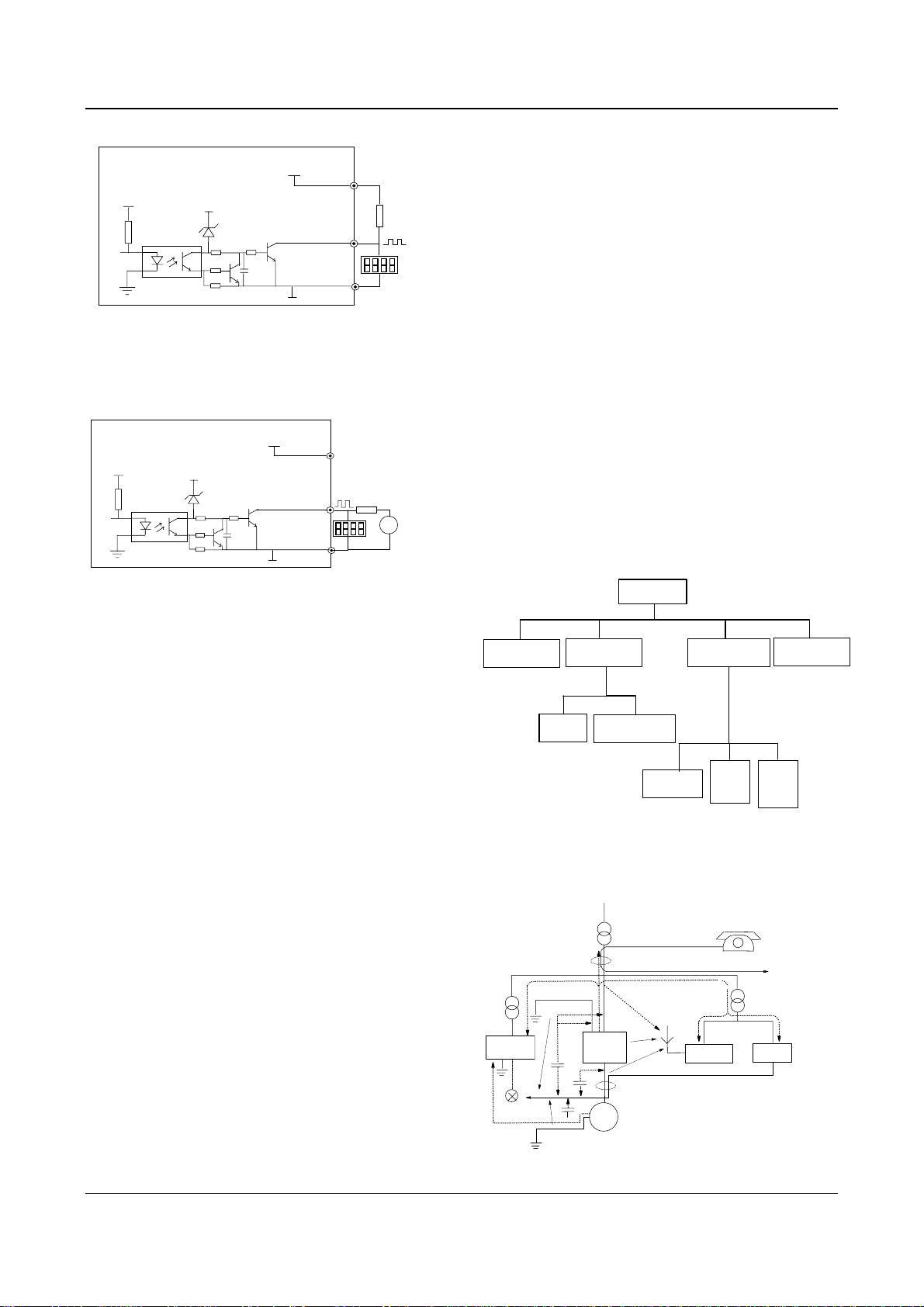

Pulse output terminal DO can use the 24V power

supply inside the drive and the wiring is shown in Fig.3-30.

EV2000 Series Universal Variable Speed Drive User Manual

+24V

P24

Y1,Y2

CME

COM

+ -

DC 9

Relay

30V

～

+5V

EV2000

+24V

P24

COM

4.7K

Digital frequency

meter

Fig. 3-30 Wiring 1 of output terminal DO

④

Pulse output terminal DO can also use the external

9~30V power supply and the wiring is shown in Fig.3-31.

+24V

P24

COM

Digital frequency meter

4.7K

9～30V

+5V

EV2000

+24V

Fig. 3-31 Wiring 2 of output terminal DO

Chapter 3 Installation and Wiring 31

3.4 Installation Methods Compliant With

EMC Requirements

The drive inevitably generates noise due to its high switching frequency, so relevant EMC problems must be solved so as to reduce the drive’s disturbance to external equipment. This chapter deals with the installation methods compliant with EMC requirements from the aspects of noise suppression, field wiring, grounding, leakage current and the using of power filter. This chapter can be used as a reference for field installation.

3.4.1 Noise Suppressing

The noise generated by the drive may disturb the equipment nearby. The degree of disturbance is dependent on the drive system, immunity of the equipment, wiring, installation clearance and earthing methods.

1. Noise categories

Noise

3) Wiring relay output terminals TA, TB and TC.

If the drive drives an inductive load (such as relay or contactor), then a surge suppressing circuit should be added, such as RC snub circuit (pay attention that the leakage current must be smaller than the holding current of the controlled relay or contactor) and varistor or a free-wheeling diode (used in the DC electric-magnetic circuit and pay attention to the polarity during installation). Snubbing components should be as close to the coils of relay or contactor as possible.



Notes:

1. Don’t short circuit terminals P24 and COM, otherwise the control board may be damaged.

2. Please use multi-core shielded cable or multi-stranded cable(above 1mm) to connect the control terminals.

3. When using a shielded cable, the shielded layer’s end that is nearer to the drive should be connected to PE.

4. The control cables should be as far away(at least 20cm) from the main circuits and high voltage cables as possible (including power supply cables, motor cables, relay cables and cables of contactor). The cables should be vertical to each other to reduce the disturbance to minimum.

5. The resistors R in Fig. 3-27 and Fig.3-28 should be removed for 24V input relays, and the resistance of R should be selected according the parameters of relay for non-24V relay.

ESD induction Noise

...

Route

①

Earthing noise

...

Route

②

Conduction noise

Transmission noise of power cables

Route

...

③

Fig. 3-32 Noise categories

2. Noise propagation paths

⑧

③

⑦

Motor

⑥

④

Sensor's

power supply

Sensor

②

⑤

①

④

Fig. 3-33 Noise transmission paths

Radiation noise of motor

...

Route

④

⑤

Ttransmission noise in space

Radiation noise of power cables

...

Route

⑤

Phone

③

Electro-magnetic induction noise

Route ,

Radiation noise of power cables

...

Route

⑥

...

⑦⑧

EV2000 Series Universal Variable Speed Drive User Manual

32 Chapter 3 Installation and Wiring

3. Basic methods of suppressing the noise

Table 3-11 Basic methods of suppressing the noise

Noise

emission

Actions to reduce the noise

paths

When the external equipment forms a loop with the drive, the equipment may

②

suffer nuisance tripping due to the drive’s earth leakage current. The problem can be solved if the equipment is not grounded. If the external equipment shares the same AC supply with the drive, the drive’s noise may be transmitted along its input power supply cables, which may cause nuisance tripping to other external

③

equipment. Take the following actions to solve this problem: Install noise filter at the input side of the drive, and use an isolation transformer or line filter to prevent the noise from disturbing the external equipment. If the signal cables of measuring meters, radio equipment and sensors are installed in a cabinet together with the drive, these equipment cables will be easily disturbed. Take the actions below to solve the problem: (1)The equipment and the signal cables should be as far away as possible from the drive. The signal cables should be shielded and the shielding layer should be grounded. The signal cables should be placed inside a metal tube and should be located as far away as possible from the input/output cables of the drive. If the signal cables must cross over the power

④⑤⑥

cables, they should be placed at right angle to one another. (2) Install radio noise filter and linear noise filter (ferrite common-mode choke) at the input and output of the drive to suppress the emission noise of power lines. (3) Motor cables should be placed in a tube thicker than 2mm or buried in a cement conduit. Power cables should be placed inside a metal tube and be grounded by shielding layer (Motor cable should be a 4-core cable, where one core should be connected to the PE of the drive and another should be connected to the motor’s enclosure).

Noise

emission

Actions to reduce the noise

paths

Don’t route the signal cables in parallel with the power cables or bundle these cables together because the induced electro-magnetic noise and induced ESD noise may disturb the signal cables. Other equipment should also be located as far away as possible from the drive. The signal cables should be placed

①⑦⑧

inside a metal tube and should be placed as far away as possible from the input/output cables of the drive. The signal cables and power cables should be shielded cables. EMC interference will be further reduced if they could be placed inside metal tubes. The clearance between the metal tubes should be at least 20cm.

3.4.2 Field Wire Connections

Control cables, input power cables and motor cables should be installed separately, and enough clearance should be left among the cables, especially when the cables are laid in parallel and the cable length is big. If the signal cables must go through the power cables, they should be vertical to each other.

The motor cables should be derated if they are too long or their cross sectional area (CSA) is too big. The drive’s cables should be the cables with specified CSA (See Table 3-1) because the capacitance of the cable to ground is in proportional to the cable’s CSA. If the cable with big CSA is used, its current should be reduced.

Shielded/armoured cable: High frequency low impedance shielded cable should be used. For example: Copper net, aluminum net or iron net.

EV2000 Series Universal Variable Speed Drive User Manual

Chapter 3 Installation and Wiring 33

Motor cable

>30cm

>20cm

>50cm

Power cable

Signal/Control cable

Power source or motor cable

Signal/Control cable

Fig. 3-34 Wire connections

Generally, the control cables should be shielded cables and the shielding metal net must be connected to the metal enclosure of the drive by cable clamps.

Shared earthing pole (good)

Drive

Fig. 3-38 Earthing diagram 2

Shared earthing cable(not good)

Drive

Fig. 3-39 Earthing diagram 3

Other equipment

enclosure

Fig. 3-35 Correct shielding method of shielding layer

enclosure

Fig. 3-36 Incorrect earthing method of shielding layer

3.4.3 Earthing

Independent earthing poles (best)

Drive

Other equipment

Fig. 3-37 Earthing diagram 1

（

Drive

）

Other equipment

Fig. 3-40 Earthing diagram 4

Besides, pay attention to the following points:

In order to reduce the earthing resistance, flat cable should be used because the high frequency impedance of flat cable is smaller than that of round cable with the same CSA.

For 4-core motor cable, the end of one cable should be connected to the PE of the drive, and the other end should be connected to the motor’s enclosure. If the motor and the drive each has its own earthing pole, then the earthing effect is better.

If the earthing poles of different equipment in one system are connected together, then the leakage current will be a noise source that may disturb the whole system. Therefore, the drive’s earthing pole should be separated with the earthing pole of other equipment such as audio equipment, sensors and PC, etc.

In order to reduce the high frequency impedance, the bolts used for fixing the equipment can be used as the

EV2000 Series Universal Variable Speed Drive User Manual

34 Chapter 3 Installation and Wiring

high frequency terminal. The paints on the bolt should be cleaned.

The earthing cable should be as short as possible, that is, the earthing point should be as close to the drive as possible.

Earthing cables should be as far away from the I/O cables of the equipment that is sensitive to noise, and also should be as short as possible.

3.4.4 Installation Requirements of Relay, Contactor and

Electro-magnetic Braking Kit

The devices such as relay, contactor and electro-magnetic braking kit, which may generate great noises, should be installed outside of the drive cabinet and should be installed with surge suppressors.

Varistor

220VAC

Diode

Inverter

+24VDC

RC-Filter

220VAC

Fig. 3-41 Relay, contactor and electro-magnetic braking kit

3.4.5 Leakage Current

and relays falsely activated. The higher the drive’s carrier wave frequency, the bigger the leakage current, also, the longer the motor cable, the greater the leakage current,

Suppressing methods:

Reduce the carrier wave frequency, but the motor noise may be louder;

Motor cables should be as short as possible;

The drive and other equipment should use leakage current circuit breaker designed for protecting the product against high-order harmonics/surge leakage current;

Leakage current between lines

The line leakage current flowing through the distribution capacitors of the drive out side may cause the thermal relay falsely activated, especially for the drive whose power is lower than 7.5kW. When the cable is longer than 50m, the ratio of leakage current to motor rated current may be increased that can cause the wrong action of external thermal relay very easily.

Suppressing methods:

Reduce the carrier wave frequency, but the motor noise may become louder;

Install reactor at the output side of the drive.

In order to protect the motor reliably, it is recommended to use a temperature sensor to detect the motor’s temperature, and use the drive’s over-load protection device(electronic thermal relay) instead of an external thermal relay.

Leakage current may flow through the drive’s input and output capacitors and the motor’s capacitor. The leakage current value is dependent on the distributed capacitance and carrier wave frequency. The leakage current includes ground leakage current and the leakage current between lines.

Distributed

AC supply

Drive

capacitor between lines

Distributed capacitor between cable and earth

Motor

Capacitor

between motor and earth

Fig. 3-42 Flowing path of leakage current

Ground leakage current

The ground leakage current can not only flow into the drive system, but also other equipment via earthing cables. It may cause the leakage current circuit breaker

EV2000 Series Universal Variable Speed Drive User Manual

3.4.6 Correct EMC Installation

Divide the installation space into different areas

In driving system, the drive, control equipment and sensors are installed in the same cabinet, the noise should be suppressed at the main connecting points with the RFI filter and input reactor installed in cabinet to satisfy the EMC requirements.

The most effective but expensive measure to reduce the interference is to isolate the noise source and the noise receiver, which should be considered in mechanical/system design phase. In driving system, the noise source can be drive, brake unit and contactor. Noise receiver can be automation equipment, coder and sensor.

The mechanical/system is divided into different EMC area according to its electrical characteristics. The recommended installation positions are shown in the following figure:

Chapter 3 Installation and Wiring 35

Mains

Area Ⅰ

Control

equipment

（Such as: PC）

Area Ⅱ

Sensor（such as:

temperature, position,

pressure）

Electric cabinet

Input filter

Area Ⅲ

Inverter

Linear noise

Area Ⅴ

Input reactor

filter

Area Ⅳ

Earthing separation

board

Motor cables

Detecting signal cable

Motor

Manufacturing mechanics

Mechanical

Area Ⅵ

system

Fig. 3-43 Recommendation of Installation space

Attention:

Area Ⅰshould be used to install transformers of

control power supply, control system and sensor.

Area Ⅱ should be used for interfaces of signal and

control cables, correct immunity level is required.

Area Ⅲ should be used to install noise sources such

as input reactor, the drive, brake unit and contactor.

Area Ⅳ should be used to install output noise filter

and the wires of filter.

Area Ⅴ should be used to install power source and

cable connecting parts of RFI filter.

Area Ⅵ should be used to install motor and motor

cables.

Areas should be isolated in space, so that

electro-magnetic decoupling effect can be achieved.

The minimum distance between areas should be 20cm.

Earthing bars should be used for decoupling among

areas, the cables from different area should be placed in different tubes.

The filter should be installed at the interfaces between

different areas if necessary.

Bus cable(such as RS485) and signal cable must be

shielded

Electrical installation of the drive

10kV

Isolation

transformer

Power

source cable

of meters

PLC or

Metal

meters

cabinet

Control c able

>20cm

Power source cable of inverter

Power

transformer

Filter

Circuit breaker

AC input reactor

Invert er

>50cm

>30cm

Motor cable

AC Output

reactor

Fig. 3-44 Installation of the drive

Motor cable should be earthed at the drive side, if

possible, the motor and drive should be earthed separately;

Motor cable and control cable should be shielded or

armored. The shield must be earthed and avoid entangling at cable end to improve high frequency noise immunity.

Assure good conductivity among plates, screw and

metal case of the drive; use tooth-shape washer and conductive installation plate;

Generally, if there are some sensitive equipment, it is more cost-effective to install the power filter at sensitive equipment side.

3.4.7 Application of Power Line Filter

Power source filter should be used in the equipment that may generate strong EMI or the equipment that is sensitive to the external EMI. The power source filter should be a two-way low pass filter through which only 50Hz current can flow and high frequency current should be rejected.

Function of power line filter

Metal cabinet

Motor

The power line filter ensures the equipment can satisfy the conducting emission and conducting sensitivity in EMC standard. It can also suppress the radiation of the equipment.

EV2000 Series Universal Variable Speed Drive User Manual

36 Chapter 3 Installation and Wiring

It can prevent the EMI generated by equipment from entering the power cable, and prevent the EMI generated by power cable from entering equipment.

Common mistakes in using power cable filter

1. Too long power cable

The filter inside the cabinet should be located near to the input power source. The length of the power cables should be as short as possible.

2. The input and output cables of the AC supply filter are too close

The distance between input and output cables of the filter should be as far apart as possible, otherwise the high frequency noise may be coupled between the cables and bypass the filter. Thus, the filter will become ineffective.

3. Bad earthing of filter

The filter’s enclosure must be earthed properly to the metal case of the drive. In order to be earthed well, make use of a special earthing terminal on the filter’s enclosure. If you use one cable to connect the filter to the case, the earthing is useless for high frequency interference. When the frequency is high, so is the impedance of cable, hence there is little bypass effect.

The filter should be mounted on the enclosure of equipment. Ensure to clear away the insulation paint between the filter case and the enclosure for good earthing contact.

3.4.8 EMI of The Drive

The drive’s operating theory decides that its EMI is unavoidable.

The drive is usually installed in a metal cabinet, the instruments outside the metal cabinet is disturbed by the drive lightly. The cables are the main EMI source, if you connect the cables according to the manual, the EMI can be suppressed effectively.

If you install the drive and other control equipment in one cabinet, the area rule must be observed. Pay attention to the isolation between different area, cable layout and shielding..

EV2000 Series Universal Variable Speed Drive User Manual

Chapter 4 Operation Instructions

4.1 Notice

In the follow-up sections, you may encounter the terms describing the control, running and status of drive many times. Please read this section carefully. It will help you to understand and use the functions to be discussed correctly.

4.1.1 The Drive’s Control Modes

It defines the physical channels by which drive receives operating commands like START, STOP, FWD, REV, JOG and others.

Panel control: The drive is controlled by RUN, STOP and JOG keys on the operation panel;

Terminal control: The drive is controlled by terminals FWD, REV and COM (2-wire mode), or by terminal Xi (3-wire mode);

Host control: The operations such as START and STOP can be controlled by host PC.

The control modes can be selected by parameter F0.03, PANEL/REMOTE key and ENTER/DATA key on the operation panel and multi-function input terminal (No.27, 28 and 29 can be selected by F7.00~F7.07).



Warning:

The user must ensure that the control mode selected is suitable for the application. Wrong selection of control mode may cause damage to equipment or human injury!

Chapter 4 Operation Instructions 37

setting methods, which involves the concept of main and auxiliary reference frequency.

Main reference frequency: set by F0.00, multi-speed (MS) or close loop control.

The main reference frequency is decided by the priority of running mode. The priority level is Jog>close loop>PLC>MS (multi-speed)>common running, e.g. if the drive is running in MS mode, the primary reference frequency is MS frequency.

Auxiliary reference frequency: set by F9.01~F9.04.

Preset frequency: the sum of main and auxiliary frequency multiply a factor, which is set in F9.05 and F9.06. Please refer to F9.05, F9.06 and Fig. 5-59 in chapter 5.

4.1.3 Operating Status

There are 3 operating status: stopping, motor parameters auto-tuning, and operating.

Stopping status: After the drive is switched on and initialized, if no operating command is accepted or the stopping command is executed, then the drive enters stopping status.

Operating status: The drive enters operating status after it receives the operating command.

Motor parameters auto-tuning status: If there is an operating command after FH.09 is set to 1 or 2, the drive then enters motor parameters auto-tuning status, and then enters stopping status after auto-tuning process is over.

4.1.2 Reference Selector

In common operating modes, EV2000 has 6 possible ways to input reference frequency, the reference frequency can be input by:

▲

and ▼ keys on the panel;

Terminals UP/DN;

Serial port;

Analog VCI;

Analog CCI;

Pulse terminal (PULSE)

How to set Frequency

The output frequency is decided after calculating the values from one or more of the above 6 frequency

EV2000 Series Universal Variable Speed Drive User Manual

4.1.4 Operating Modes

EV2000 has 5 kinds of operating modes which can be sequenced according to the priority: Jog>Close loop operation>PLC operation>Multi-step speed operation>Simple operation, as shown in Fig. 4-1.

Jog:

When the drive is in stopping status, it will operate according to Jog frequency after it receives the Jog operation command(or after the JOG key is pressed). See explanations of F3.13~F3.16 for details.

Close-loop operation:

If the close-loop operating function is enabled(F5.00=1), the drive will select the close-loop operation mode, that is, it will perform PI regulation according to the reference and feedback values (See explanations of Parameter

38 Chapter 4 Operation Instructions

F5). Close-loop operating function can be disabled by a multi-function terminal (No.20 function), and the drive will select an operating mode with a low priority.

PLC operation:

If PLC function is enabled (ones place of F4.00 is set to a non-zero value), the drive will select PLC operating mode and will operate in the pre-defined operating mode (see explanation of parameter F4). The PLC function can be disabled by a multi-function terminal (No. 21 function), and the drive will select an operating mode of lower priority.

Start up

Stop

High priority

Jog

Run command active

Close-loop setting active (F5.00>0)?

PLC setting active?

Multi-step (MS) speed operation:

Select MS frequency 1~7(F3.23~F3.29,F7.00~F7.07) to start MS speed operation by the ON/OFF combinations of the multi-function terminals (No.1, 2, and 3), if none of the terminals are “OFF”..

Simple operation:

Simple operation is actually the open-loop operation mode.

EV2000 operating status is shown in Fig. 4-1:

Terminal for disabling

close-loop operation

enabled?

Jog operation

Close loop

operation

Preset freq.enabled

Low priority

Terminal for disabling

PLC enabled?

PLC operation

Run at preset

frequence

Common operation

Fig. 4-1 Operating status of EV2000

Five operating modes provide 5 basic frequency sources. Except the Jog operating frequency, other 4 kinds of frequency sources can be superposed by the auxiliary frequency to tune the final output frequency. In PLC, MS and common mode, the reference frequency can be used as traverse frequency.

4.2 Operating Instructions

4.2.1 Using Operation Panel

The operation panel is used to setup the drive and display parameters. There are two types of operation panels, one with LED display and the other, LCD display. The LED display is the standard operation panel. The LCD operation panel is an optional accessory. It can display in English and Chinese characters, with description for the displayed data. The outlines, dimensions and operating methods of these two types of operation panels are the same, as shown in Fig.4-2.

EV2000 Series Universal Variable Speed Drive User Manual

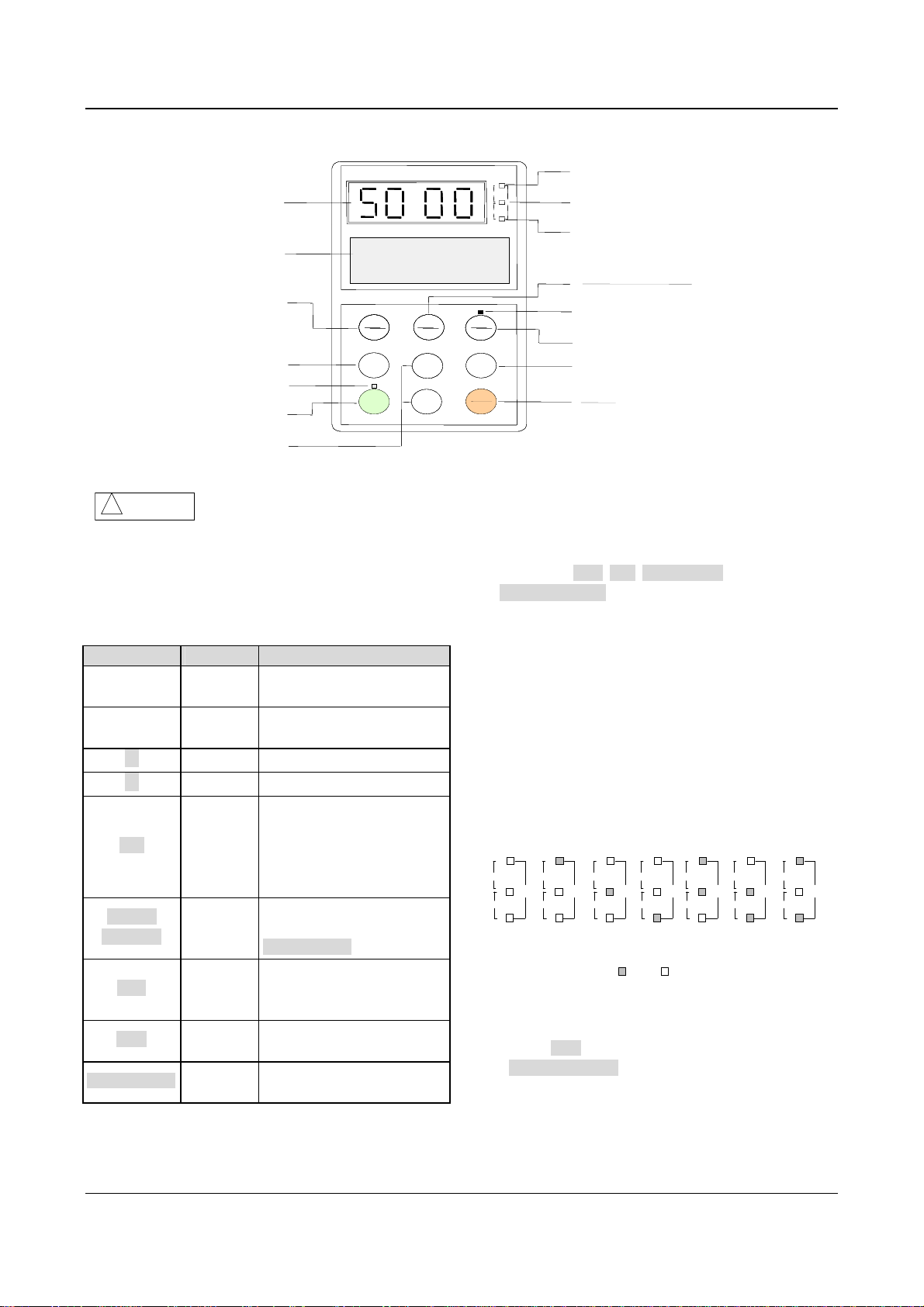

Chapter 4 Operation Instructions 39

PARAMETER

4-bit LED

LCD display

Freq. before compensation

补偿前频率

普通运行正

RUN FWD

Program

ENTER

▲

ESC

▲

ENTER DATA

DATA

Move

Running Indicator

RUN

RUNRUN

RUN

Run

RUN

Increase/Decrease

Fig. 4-2 Illustration of operation panel

Attention

Operation panel of EV2000 is not compatible with the panel of other Emerson variable speed drives.

4.2.2 Function of Keys

There are 9 keys on the operation panel of the drive and the functions of each key is shown in Table 4-1.

Table 4-1 Function of operation panel

Key Name Function

MENU/ESC

ENTER/DATA

▲

▼

Program/ exit

Function/ data

Increase

Decrease

Enter or exit programming status

Enter lower level menu or confirm data

Increase data or parameter

Decrease data or parameter

In editing status, pressing this key select the Bit to be

Shift

modified. In other status, this key is used to scroll through the parameters.

PANEL/

REMOTE

Control mode selection

When a control mode is selected, press ENTER/DATA to enter

In panel control mode, press

JOG Jog key

this key to start Jog operation.

RUN Run key

STOP/RESET Stop/reset

In panel control mode, press this key to run the drive.

Press this key to stop or reset the drive.

▲

UNIT

r/min

m/s

Frequency unit:Hz

Rotating speed:r/min

Current unit:A

Line speed:m/s

Voltage unit:V

Enter

Data input

PANEL

REMOTE

Control mode indicator

Control mode selecting key

Jog

Stop Reset

▲

JOG

STOP

RESET



Notes:

Functions of RUN, JOG, STOP/RESET and PANEL/REMOTE are also limited by F9.07.

4.2.3 Function Descriptions of LED and Indicators

The operation panel consists of a 4-digit seven segments display, 3 LED indicators that indicate unit and 2 status indicators as shown in Fig. 4-3. The seven segments can display the status parameters, parameters and fault codes of the drive. These 3 unit indicators have 7 different combinations and each combination corresponds to one type of unit. The relationship between the combination of the indicators and the unit is shown in Fig. 4-3:

m/s

r/min

No unit

UNIT

r/min

m/s

UNIT

r/min

m/s

r/min

m/s

UNIT

r/min

m/s

r/min

Off

UNIT

r/min

m/s

Fig. 4-3 Unit represented by combination of the indicators

Two status indicators: Operating status indicator is above the RUN key. The control mode indicator is above the PANEL/REMOTE key, and the functions of these indicators are shown in Table 4-2.

UNIT

r/min

m/s

EV2000 Series Universal Variable Speed Drive User Manual

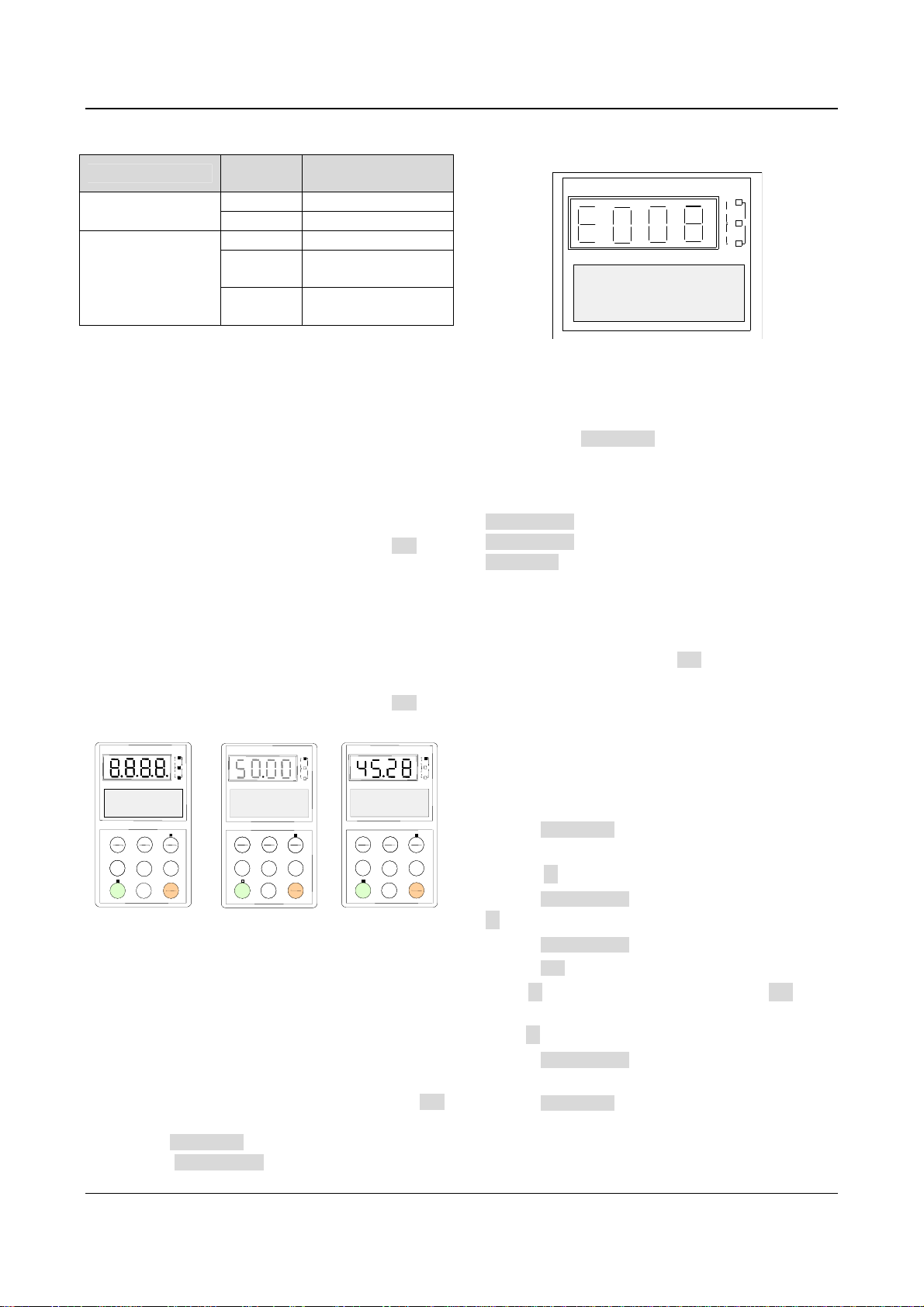

40 Chapter 4 Operation Instructions

Table 4-2 Functions of status indicators

Indicator

Display

status

Current status of the

drive

Off Stopping status Operating status

indicator

On Operating status On Panel control status

Control mode indicator

Off

Flash

Terminal control status Serial port control status

4.2.4 Display of the Drive

EV2000 operation panel can display the parameters in stopping, operating, editing and alarming state.

1. Parameters displayed in stopping status

When the drive stops operation, the panel will display the status parameters in stopping status, as shown in Fig. 4-4b. The unit indicator on the top right of the panel indicates the unit of the parameter.

Other parameters can be displayed by pressing XX key (see F8.03).

2. Parameters displayed in operating status

When the drive receives operating command, it starts running and its panel will display the status parameters in operating status, as shown in Fig.c of Fig. 4-4. The unit indicator at right indicates the unit of the parameter.

Other parameters can be displayed by pressing XX key (see F8.01 and F8.02).

PARAMETER

EV2000

ENYDRIVE

ESC

RUN

Fig. a

Initialize at power on, all LED turns on

UNIT

r/min

m/s

ENTER

PANEL

REMOTE

DATA

JOG

▲

STOP

RESET

RESET RESET

PARAMETER

Preset frequency

MENUMENU

ESC

RUN

Fig. b Stopping state, Stopping information is displayed ; RUN indicator turns off

Stop

UNIT

r/min

m/s

ENTER

PANEL

PANELPANEL

REMOTE

DATA

JOG

▲

STOP

RESET

RESET RESET

PARAMETER

Freq.

Common run

ESC

RUN

Running state, running information is displayed; RUN indicator turns on

precompensation

Forward

PANEL

ENTER

REMOTE

DATA

JOG

▲

STOP

RESET

RESET RESET

Fig. c

Fig. 4-4 Displayed during initialization, STOP, operation

3. Alarm information

When the drive detects a fault signal, the panel will display the fault code. The code will flash to catch your attention as shown in Fig. 4-5;

Reference frequency can be viewed by pressing the XX key in stopping status. Fault information can be queried by pressing MENU/ESC key. The drive can be reset by pressing the STOP/RESET key, or sending the reset

commands via the control terminal X2 or serial port. The fault code will not disappear until the fault is cleared.

PARAMETER

UNIT

r/min

m/s

Input Phase Failure

Pls Check

Fig. 4-5 Alarm displaying status

4. Parameter configuration

When the drive is in stopping, operating or alarming state, pressing MENU/ESC can enter configuring status,. Configuring status can be displayed in 3-level menu,

they are: parameter group

value. You can enter the sub-menus by pressing ENTER/DATA. In parameter value menu, press ENTER/DATA to save the settings, and press MENU/ESC to exit the menu.

4.2.5 Panel Operation

1. Viewing Parameters

To view the parameters, press XX key. The parameters that can be displayed are different depending on the operation state (STOP, operating) and the settings of F8.01~F8.03)

UNIT

r/min

m/s

2. Parameter Setup

Let’s look at an example of how to set parameters. Suppose you want to change the setting of F3.13 from

5.00Hz to 6.50Hz.

1. Press MENU/ESC key to enter programming state, the LED displays F0.

2. Press ▲ key until “F3” is displayed.

3. Press ENTER/DATA key, you will see F3.00. Press

▲

key until “F3.13” is displayed.

4. Press ENTER/DATA key, you will see “05.00”.

5. Press XXkey, to move the cursor to the digit “5”.

Press ▲ key once, to change it to “6”. Press XXkey, to

move the cursor to the next digit (from left to right) and

press ▲ key until the figure “5” appear.

6. Press ENTER/DATA key to save the modification and you will see the next parameter F3.14.

7. Press MENU/ESC key to exit the programming state.

→

pparameter→parameter

EV2000 Series Universal Variable Speed Drive User Manual

Chapter 4 Operation Instructions 41

Save

ENTER

DATA

F3.14

50.00

enter menu level 1

06.50

Not save

MENU ESC

F3.13

MENU ESC

05.00

MENU ESC

ENTER

DATA

enter menu level 3

ESC

F3.13

ENTER

DATA

enter menu level 2

50.00

F3.00

Fig. 4-7 Setting the parameters

In menu level 3, the settings of the parameter cannot be changed if none digit of the parameter is flashing. The possible reasons are:

1) The settings of this parameter cannot be changed, such as the actual detected parameters or recorded parameters;

2) The settings of this parameter cannot be changed when the drive is operating, and can only be changed when the drive stops;

3) The parameters are protected, that is, if FP.01 is set to 1 or 2, the settings of all the parameters cannot be changed to avoid wrong operation. If you really want to change the settings, first set FP.01 to 0.

3. Fine Tuning reference frequency

Example: changing the reference frequency from

50.00Hz to 48.00Hz.

Just press ▼ key directly regardless of the current

display, the present frequency setting will appear and decrease 0.01Hz. Holding the key will speed up the

decrease. Press ▲ key to increase the frequency by

0.01Hz.

4. Changing the control mode:

Set F9.07 to “x1x” or “x2x”, and control mode is allowed changing. If F9.07 is set to “x1x”, the control mode can be changed at STOP state; if set at “x2x”, the control modes can be changed in both operation and STOP state.

PANEL/REMOTE key can be used to select the control mode both in operating status and stopping status.

Press this key and you can switch among panel control mode, terminal control mode and serial port mode. When panel control mode is selected, the LED beside the PANEL/REMOTE will turn on; when terminal control mode is selected, the LED will turn off; when serial port control mode is selected, the LED will blink.

5. Starting and Stopping the drive

Under panel control mode, press RUN key to start the drive and press STOP/RESET key to stop it. To switch the control mode, please refer to the above paragraph.

6. Jog

When the drive is in STOP state, press JOG key and hold it, the panel will display start frequency and then the frequency will ramp to 5Hz. Keep pressing the key, the drive will jog at 5Hz.

7. Setting user’s password

Enter menu level 3 and set FP.00 at a 4-digit figure as

your password. See the panel operation in Figure 4-7.

8. How to lock the panel:

First set the hundred’s place of F9.07 at a non-zero figure, and then press MENU/ESC and ENTER/DATA at the same time.

50.00

0 0 20

0120

MENU ESC

ENTER DATA

0020

F9.08

ENTER

DATA

MENU ESC

50.00

F9.07

F9 -

ENTER DATA

F9.00

50.00

MENU ESC

Fig. 4-8 Locking panel

9. How to unlock the panel

At stopping or operating state, press ENTER/DATA key,

and then press ▼ three times. Note that the operation

will not change the value of F9.07.



Note:

Even if the hundred’s place of F9.07 is not set to zero (panel locking function is enabled), the panel is in unlocking status every time the drive is powered on.

4.3 Start-up

4.3.1 Checking before Start-up

Please wire the drive according to Section 3.3, and refer to Fig. 3-7.

EV2000 Series Universal Variable Speed Drive User Manual

42 Chapter 4 Operation Instructions

4.3.2 Start up the Drive for the First Time

After checking the wiring and AC supply, switch on the circuit breaker of the drive to supply AC power to it. The drive’s panel will display “8.8.8.8.” at first, and then the contactor closes. If the LED displays the frequency settings, the initialization of the drive is completed.

If the LED on the PANEL/REMOTE is on, the drive is in panel control mode.

Procedures of first-time start-up:

Start

Wiring according to section 3.3

Connection is

correct?

Input volt is

correct?

Switch on

Within 1s

Display 8.8.8.8.？

Within

Contactor closes?

Within

2 ~ 5s

Display freq.

Start-up

succeed

setting?

Start-up fails

Switch off

Check

Fig. 4-8 Procedures of starting the drive for the first-time

EV2000 Series Universal Variable Speed Drive User Manual

Chapter 5 Parameter Introductions



Notes:

The values in “【】” are the factory settings.

B C D

Chapter 5 Parameter Introductions 43

0: Save preset freq. at power off 1: Not save preset freq. at power off

5.1 Basic Operating Parameters(Group F0)

F0.00 Reference frequency selector

Range:0~5 【0

0:digital setting 1

To set the reference frequency via ▲ and ▼ keys on

the panel.

Initial frequency is the value of F0.02 and it can be

adjusted via ▲ and ▼ keys on the panel.

1: digital setting 2

To set the reference frequency via terminal UP/DN

Initial frequency is the value of F0.02 and it can be adjusted via terminal UP/DN.

2: digital setting 3

To set the reference frequency via serial port

Initial frequency is the value of F0.02 and it can be adjusted via serial port.

3:VCI analog input (VCI-GND)

The reference frequency is set by analog voltage input via terminal VCI and the input voltage range is DC 0~10V.

4:CCI analog input(CCI-GND)

The reference frequency is set by analog voltage or current input via terminal CCI and the input range is DC 0~10V(if jumper CN10 is placed at "V” side) or DC0~20mA(if jumper CN10 is placed at "I” side).

5: Pulse input (PULSE)

Set the reference frequency by pulse input via pulse terminal (can only be input via terminal X7 or X8, see the definitions of F7.06~F7.07). Input pulse signal: voltage range: 15~30V; frequency range:0~50.0kHz.



Note:

Frequency calculating methods of Modes 3, 4 and 5 are decided by F1.00~F1.11, please refer to section 5.2.

F0.01 Digital frequency control

Range: 00~11 【00】

Only valid when F0.00=0, 1 or 2.

】

0: Hold the stopping freq.

1: Stopping freq. recover to F0.02

Reserved

Fig. 5-1 LED setting

Where,

A: thousand’s place B: Hundred’s place

C: Ten’s place D: Unit’s place

Unit’s place of LED:

0 (frequency setting can be saved at power off): When the drive is switched off or under voltage fault occurs, the setting of F0.02 will be refreshed to the present frequency value.

1 (frequency setting can not be saved at power off): When the drive is switched off or under voltage fault occurs, the setting of F0.02 will not be changed.

Ten’s place of LED:

0 (Maintaining the frequency setting in stopping process): When the drive is stopping, the frequency setting is the final frequency value.

1 (frequency setting is refreshed to the setting of F0.02): When the drive is stopping, the frequency setting will be refreshed to the setting of F0.02 automatically.

F0.02 Set the operating frequency in digital mode

Range: Lower limit of frequency ~upper limit of

frequency【50.00Hz】

When the reference frequency is set in digital

mode(F0.00

＝

0, 1, 2), this setting of F0.02 is the drive’s

initial frequency value.

F0.03 Methods of inputting operating commands

Range: 0. 1. 2 【0】

EV2000 has 3 control modes (Methods of inputting operating commands)

0: Panel control: Input operating commands via panel

Start and stop the drive by pressing RUN, STOP and JOG on the panel.

1: Terminal control: Input operating commands via terminals

EV2000 Series Universal Variable Speed Drive User Manual

44 Chapter 5 Parameter Introductions

Use terminals FWD, REV, JOGF and JOGR to start and stop the drive.

2: Serial port control: Input commands via serial port

Use serial port to start and stop the drive.



Notes

Please be careful that during operating, the control modes can be changed through F0.03 or external terminals or PANEL/REMOTE key.

F0.04 Set running direction

Range: 0, 1 【0】

This function is active in panel control mode and serial port control mode, and inactive in terminal control mode.

0: Forward

1: Reverse

F0.05 Max output frequency

F0.06 Basic operating frequency

F0.07 Max output voltage

Range: Max{50.00,F0.12 upper limit of frequency}~650.00Hz

【

50.00Hz】

Range:1.00~650.00Hz 【50.00Hz

Range:1~480V 【drive’s rating

values】

Max output frequency is the highest permissible output frequency of the drive, as shown in Fig. 5-2 as f

max

;

Basic operating frequency is the Min frequency when the drive outputs the max voltage, as shown in Fig. 5-2 as f

Max output voltage is the drive’s output voltage when the drive outputs basic operating frequency, as shown in Fig. 5-2 as V

max

Output

voltage

max

1: Type P (fan & pump load)

EV2000 series drive of 45kW or below uses the type G and type P integrated mode. The power of motor matched with the drive type G is lower than that of type P. Please refer to Table 2-2 for details.

The factory setting of the drive is set to type G.

For example: EV2000-4T0055G/0075P drive’s factory setting is 5.5kW type G drive. If the drive needs to be changed to 7.5kW type P drive, then:

①

set this parameter to 1

②

set group FH parameters again



Note:

Follow the same procedures if the drive needs to be changed from type P to type G.

F0.09 Torque boost

In order to compensate the torque drop at low frequency,

】

the drive can boost the voltage so as to boost the torque. If F0.09 is set to 0, auto torque boost is enabled and if F0.09 is set non-zero, manual torque boost is enabled, as shown in Fig. 5-3.

Fig. 5-3 Torque boost(shadow area is the boosted

Range:0~30.0

Output voltage

max

: Manual torque boost Vmax: Max output voltage

: Cut-off freq. for torque boost

: Basic operating freq.

％【0.0％】

value)

Output

freq.

Output

frequency

fbf

max

Fig. 5-2 Characteristic parameters

The f

and fL are defined by F0.12 and F0.13 as upper

limit of frequency and lower limit of frequency respectively.



Note:

Please set fmax, fb and Vmax according to motor parameters, otherwise the equipment may be damaged.

F0.08 Drive type selection

Range:0. 1【0】

0: Type G (load with constant torque)

EV2000 Series Universal Variable Speed Drive User Manual



Note:

1. Wrong parameter setting can cause overheat or over-current protection of the motor.

2. Refer to F0.21 for definition of fz.

，

3. When the drive drives a synchronous motor

torque boost function is recommended to be used and V/F curve should be adjusted according to the motor parameters.

F0.10 Acc time 1

F0.11 Dec time 1

Range:0.1~3600s(min)【6.0s/20.0s

】

Output frequency

max

Time

Fig. 5-4 Acc/Dec time definition

Acc time is the time taken for the motor to accelerate from 0Hz to the maximum frequency (as set in F0.04), see t

in Fig. 5-4.

Dec time is the time taken for the motor to decelerate from maximum frequency (F0.05) to 0Hz, see t

in Fig.

5-4.

EV2000 series drive has defined 4 kinds of Acc/Dec time. Here only Acc/Dec time 1 is defined, and Acc/Dec time 2~4 will be defined in F3.17~F3.22, please refer to section 5.4.



Note:

1. Unit(second/minute) of Acc/Dec time 1~4 is dependent on the setting of F9.09, and the default unit is second.

2. For the drive of 30kW or above, the factory setting of Acc/Dec time is 20.0s.

F0.12 upper limit of frequency

F0.13 lower limit of frequency

Range: Lower limit of frequency

~Max output frequency【50.00Hz

Range:0~upper limit of frequency

【

0.00Hz】

F0.12 and F0.13 define the upper and lower limit of frequencies respectively, as shown in Fig. 5-2 as f



Notes:

and

Actual output frequency is possible to exceed ±2.5Hz in the bus-voltage control process.

F0.14 V/F curve setting

F0.15 V/F frequency value F3

F0.16 V/F voltage value V3

F0.17 V/F frequency value F2

F0.18 V/F voltage value V2

F0.19 V/F frequency value F1

Range: 0~3【0】

Range: F0.17~F0.06

【

0.00Hz】

Range: F0.18~100.0%

【

0.0%】

Range: F0.19~F0.15

【

0.00Hz】

Range: F0.20~F0.16

【

0.0%】

Range: 0~F0.17

【

0.00Hz】

Chapter 5 Parameter Introductions 45

F0.20 V/F voltage value V1

Range:0~F0.18【0.0%

】

This group of parameters define the V/F setting modes of EV2000 so as to satisfy the requirements of different loads. 3 preset curves and one user-defined curve can be selected according to the setting of F0.14.

If F0.14 is set to 1, a 2-order curve is selected, as shown in Fig. 5-5 as curve 1;

If F0.14 is set to 2, a 1.7-order curve is selected, as shown in Fig. 5-5 as curve 2;

If F0.14 is set to 3, a 1.2-order curve is selected, as shown in Fig. 5-5 as curve 3;

The above curves are suitable for the variable-torque loads such as fan & pumps. You can select the curves according to the actual load so as to achieve best energy-saving effects.

Output voltage (V)

max

Output f requency (Hz)

】

max

: Max output voltage (F0.0 7)

: Basic operating frequency(F0.06)

Fig. 5-5 Torque-reducing curve

If F0.14 is set to 0, you can define V/F curve via F0.15~F0.20, as shown in Fig. 5-6. The V/F curve can be defined by connecting 3 points of (V1,F1), (V2,F2) and (V3, F3), to adapt to special load characteristics.

Default V/F curve set by factory is a direct line as show in Fig. 5-5 as curve 0.

Voltage (%)

100%

V1~V3: Voltage of sections 1~3 F1~F3: Freq of sections 1~3 Fb: Basic operating freq. of F0.06

Freq Hz

Fig. 5-6 V/F curve defined by user

EV2000 Series Universal Variable Speed Drive User Manual

46 Chapter 5 Parameter Introductions

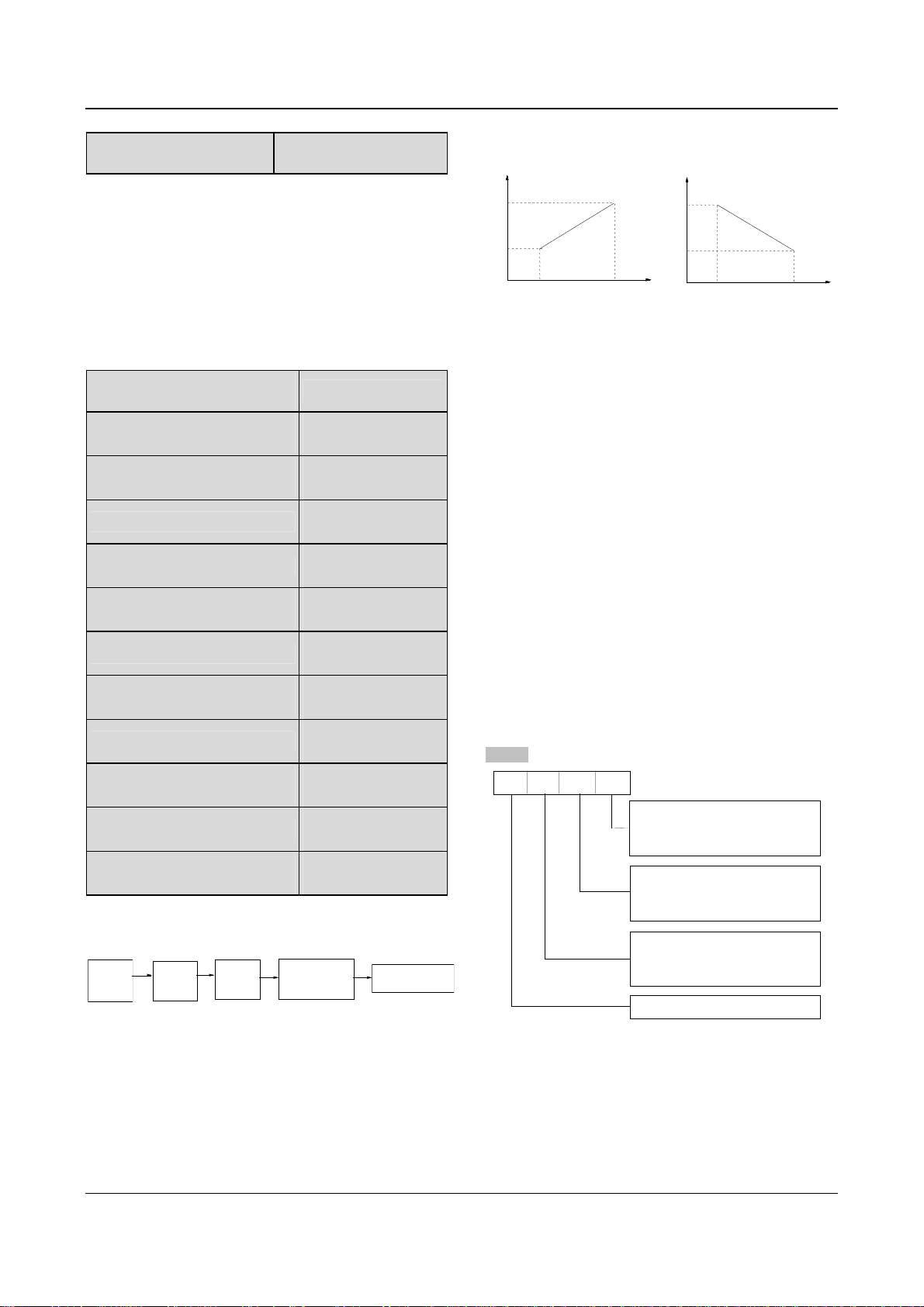

F0.21 Cut-off point used for manual torque boost

Range:0~50%【10.0%

】

F0.21 defines the ratio of the cut-off frequency used for manual torque boost to the basic operating frequency(defined by F0.06), as shown in Fig. 5-3 as fz. This cut-off frequency adapts to any V/F curve defined by F0.14.

5.2 Parameters of Reference Frequency

(Group F1)

F1.00 Reference frequency curve selection

F1.01 Gain of reference frequency selector

F1.02 Reference constant of filter

F1.03 Max input pulse frequency

F1.04 Min reference of curve 1

F1.05 Frequency corresponding to the Min reference of curve 1

F1.06 Max reference of curve 1

F1.07 Frequency corresponding to the Max reference of curve 1

F1.08 Min reference of curve 2

F1.09 Frequency corresponding to the Min reference of curve 2

F1.10 Max reference of curve 2

F1.11 Frequency corresponding to the Max reference of curve 2

When VCI or CCI or pulse input(PULSE) is selected, the relationship between reference and the preset frequency is given below:

Ref.

selection

F0.00

Filter F1.02

Amplify

F1.01

Fig. 5-7 Relationship between reference and the preset

frequency

Reference frequency signal is filtered and amplified, and then its relationship with the preset frequency is determined by Curve 1 or 2. Curve 1 is defined by F1.04~F1.07, and curve 2 is defined by F1.08~F1.11.

Range:000~111【000

Range:0.00~9.99

【

1.00】

Range:0.01~50.00s

【

0.50s】

Range:0.1~50.0kHz

【

10.0kHz】

Range:0.0%~100.0%

【

0.0%】

Range:0.0~650.0Hz

【

0.00Hz】

Range:0.0%~100.0%

【

100.0%】

Range:0.0~650.0Hz

【

50.00Hz】

Range:0.0%~100.0%

【

0.0%】

Range:0.0~650.0Hz

【

0.00Hz】

Range:0.0%~100.0%

【

100.0%】

Range:0.0~650.0Hz

【

50.00Hz】

Set Freq. curve

or select F1.00

Preset frequency

】

Positive and negative characteristics are shown in Fig. 5-8.

Reference freq.

max

min

(1) Positive

pulse terminal input

min

: Freq.corresponding

to Min reference

max

: Min. reference

Reference freq.

max

min

P A

min

(2)

Reference of analog signal

of VCI or CCI

max

: Max. reference

max

: Freq.corresponding

to Max reference

Negative

Fig. 5-8 Output frequency curve

Analog input value(A) is a percentage without unit, and 100% corresponds to 10V or 20mA. Pulse frequency(P) is also a percentage without unit, and 100% corresponds to the Max pulse frequency defined by F1.03.

F1.02 defines the time constant of the filter used by the reference selector. The input signal is filtered and the bigger the time constant, the higher the immunity level, but the response time is prolonged with the increase of the time constant. That is, the smaller the time constant, the shorter the response time, but the lower the immunity level.

F1.00 is used to select the output frequency curve when VCI, CCI or PULSE input is selected, as shown in Fig.5-9.

C D

VCI frequency curve selection

0 : Curve 1 0 : Curve 2

CCI frequency curve selection

0 : Curve 1 0 : Curve 2

PULSE frequency curve selection

0 : Curve 1

0 : Curve 2

Reserved

Fig. 5-9 Frequency curve selection

Where,

A: thousand’s place B: Hundred’s place

C: Ten’s place D: Unit’s place

For example, the requirements are:

max

EV2000 Series Universal Variable Speed Drive User Manual

Chapter 5 Parameter Introductions 47

①

Use the pulse signal input via terminal to set the

reference frequency;

②

Range of input signal frequency:1kHz~20kHz;

③

1kHz input signal corresponds to 50Hz reference

frequency, and 20kHz input signal corresponds to 5Hz reference frequency;

According to the above requirements, the parameter settings are:

①

F0.00=5, select pulse input to set the reference

frequency;

②

F7.06=45, input pulse signal via terminal X7;

③

F1.00=100, select curve 2;

④

F1.03=20.0kHz, set the Max input pulse frequency to

20kHz;

⑤

F1.08=1÷20×100%=5.0%, the minimum reference of

curve 1 is actually the percentage of 1kHz to 20kHz(F1.03);

⑥

F1.09=50.00Hz, set the frequency that corresponds to

the Min reference (1kHz pulse signal);

⑦

F1.10=20÷20×100%=100.0%, the Max reference of

curve 2 is actually the percentage of 20kHz to 20kHz(F1.03);

⑧

F1.11=5.00Hz, set the frequency that corresponds to

the Max reference (20kHz pulse signal);

Output

frequency

F1.09=50

F1.11=5

Pulse signal

F1.08=5

F0.00=5, F1.00=100, F1.03=20, F7.06=45

F1.10=100

input

Fig. 5-10 Pulse signal input

Brake first(refer to F2.03 and F2.04), and then start in mode 0.

2. Start on the fly

Search and catch the motor’s running direction and speed, start the rotating motor smoothly without impact, as shown in Fig. 5-11.

AC supply

Motor speed

Drive's

output freq.

Drive's running

direction

Forward

OFF

Run reverse without load

Reverse

Detect motor's speed and direction

Fig. 5-11 Start on the fly



Notes:

1. Starting mode 1 is suitable for starting the motor that is running forward or reverse with small inertia load when the drive stops. For the motor with big inertial load, it is recommended to use starting mode 2;

2. The starting performance of starting mode 2 is dependent on the motor’s parameters. Please set the parameter group FH correctly.

3. Starting mode 0 is recommended when the drive drives a synchronous motor.

F2.01 Starting frequency

F2.02 Holding time of starting frequency

Range:0.20~60.00Hz

【

0.50Hz】

Range:0.0~10.0s【0.0s

Starting frequency is the initial frequency when the drive starts, as shown in Fig. 5-12 as f

; Holding time of

starting frequency is the time during which the drive operates at the starting frequency, as shown in Fig. 5-12 as t

Frequency

】

5.3 Starting and Braking Parameters

(Group F2)

F2.00 Starting mode

0: Start from the starting frequency

Start at the preset starting frequency (F2.01) within the holding time of starting frequency (F2.02).

1:Brake first and then start

Range:0. 1. 2【0】

EV2000 Series Universal Variable Speed Drive User Manual

max

Time

Fig. 5-12 Starting frequency and starting time

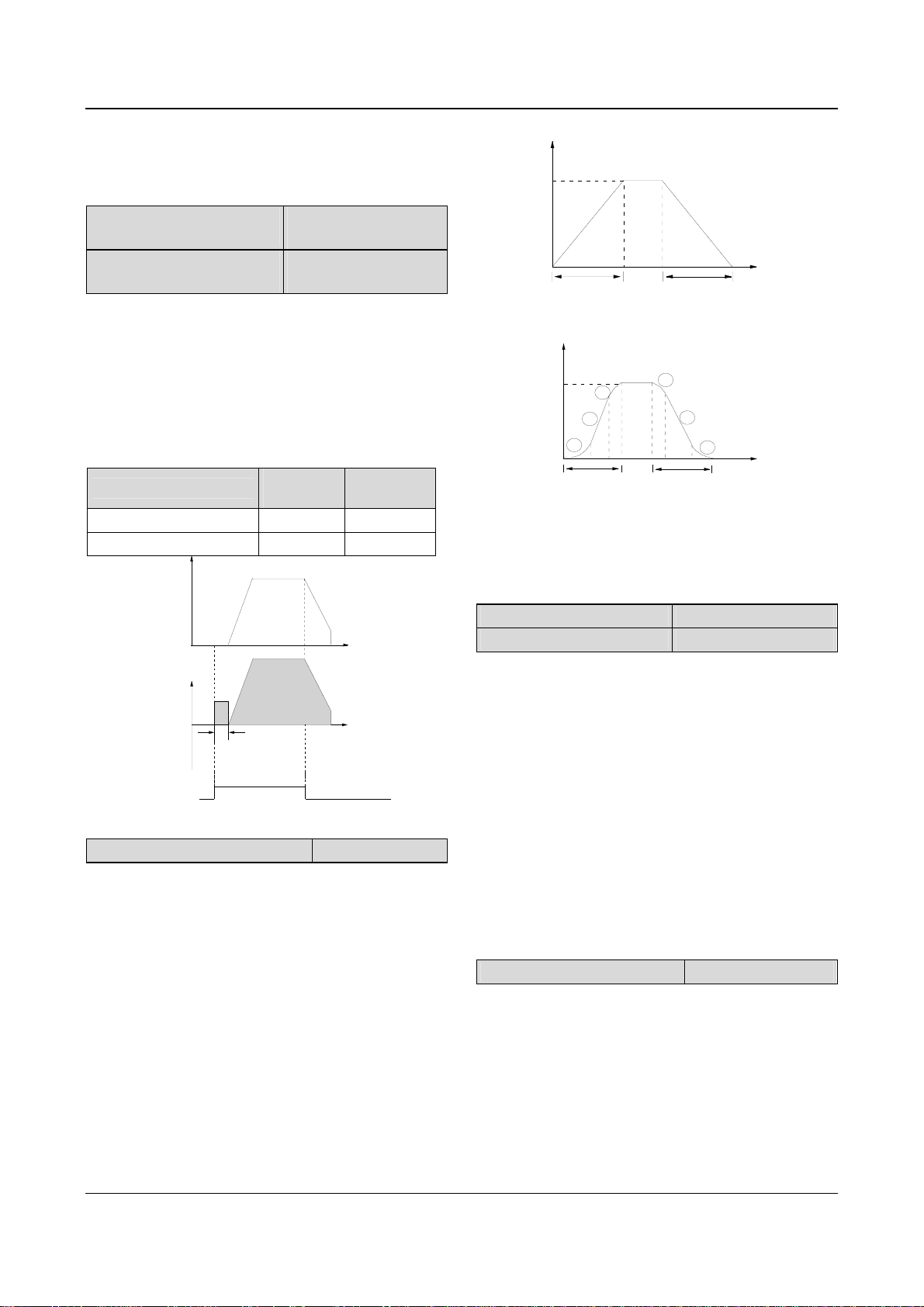

48 Chapter 5 Parameter Introductions



Notes:

Starting frequency is not restricted by the lower limit of frequency.

F2.03 DC injection braking current at start

F2.04 DC injection braking time at start

Range: dependent on

drive’s model【0.0%】

Range: dependent on

drive’s model【0.0s】

F2.03 and F2.04 are only active when F2.00 is set to 1 (starting mode 1 is selected), as shown in Fig. 5-13.

The range of DC injection braking current and time are dependent on the drive’s model, see Table 5-1.

DC injection braking current at start is a percentage value of drive’s rated current. There is no DC injection braking when the braking time is 0.0s.

Table 5-1 DC injection braking function

Model

G型 0

P型 0

Output

frequency

Braking

Output

energy

voltage

（effective

value）

Running

command

The range of current

injection

braking time

～

100.0％ 0.0～30.0s

～

80.0％ 0.0～30.0s

The range of time

Time

Fig. 5-13 Starting mode 1

F2.05 Acc/Dec mode

Range:0. 1. 2【0

0: Linear Acc/Dec mode

Output frequency increases or decreases according to a constant rate, as shown in Fig. 5-14.

1: S ramp Acc/Dec

Output frequency increases or decreases according to a S-shape curve, as shown in Fig. 5-15.

2: Acc/Dec mode with current limiting function

The drive can maintain its output current below the current limiting threshold (see FL.07) automatically and complete the Acc or Dec process according to the load condition.

】

Frequency

max

Time

Fig. 5-14 Linear Acc/Dec

Frequency

max

Time

Fig. 5-15 S-ramp Acc/Dec



Note:

In auto Acc/Dec mode, settings of F0.10, F0.11 and F3.17~F3.22 are invalid.

F2.06 Starting time of S ramp

F2.07 Rising time of S ramp

Range:10~50%【20.0%

Range:10~80%【60.0%

F2.06 and F2.07 are only active when the Acc/Dec mode is S-ramp Acc/Dec mode(F2.05=1), and

F2.06+F2.07

≤

90%.

Starting process of S-shape curve is shown in Fig. 5-15

as “

①

” , where the change rate of output frequency

increases from 0;

Rising process of S-shape curve is shown in Fig. 5-15

as “

②

”, where the output frequency’s changing rate is

constant;

Ending process of S-shape curve is shown in Fig. 5-15

③

”, where the changing rate of output frequency

as “

decreases to 0;

S-ramp Acc/Dec mode is suitable for the conveying load such as elevator and conveying belt.

F2.08 Stopping mode

Range:0. 1. 2【0】

0: Dec-to-stop

After receiving the stopping command, the drive reduces its output frequency according to the Dec time, and stops when the frequency decreases to 0.

1: Coast-to-stop

After receiving the stopping command, the drive stops outputting power immediately and the motor stops under the effects of mechanical inertia.

】

EV2000 Series Universal Variable Speed Drive User Manual

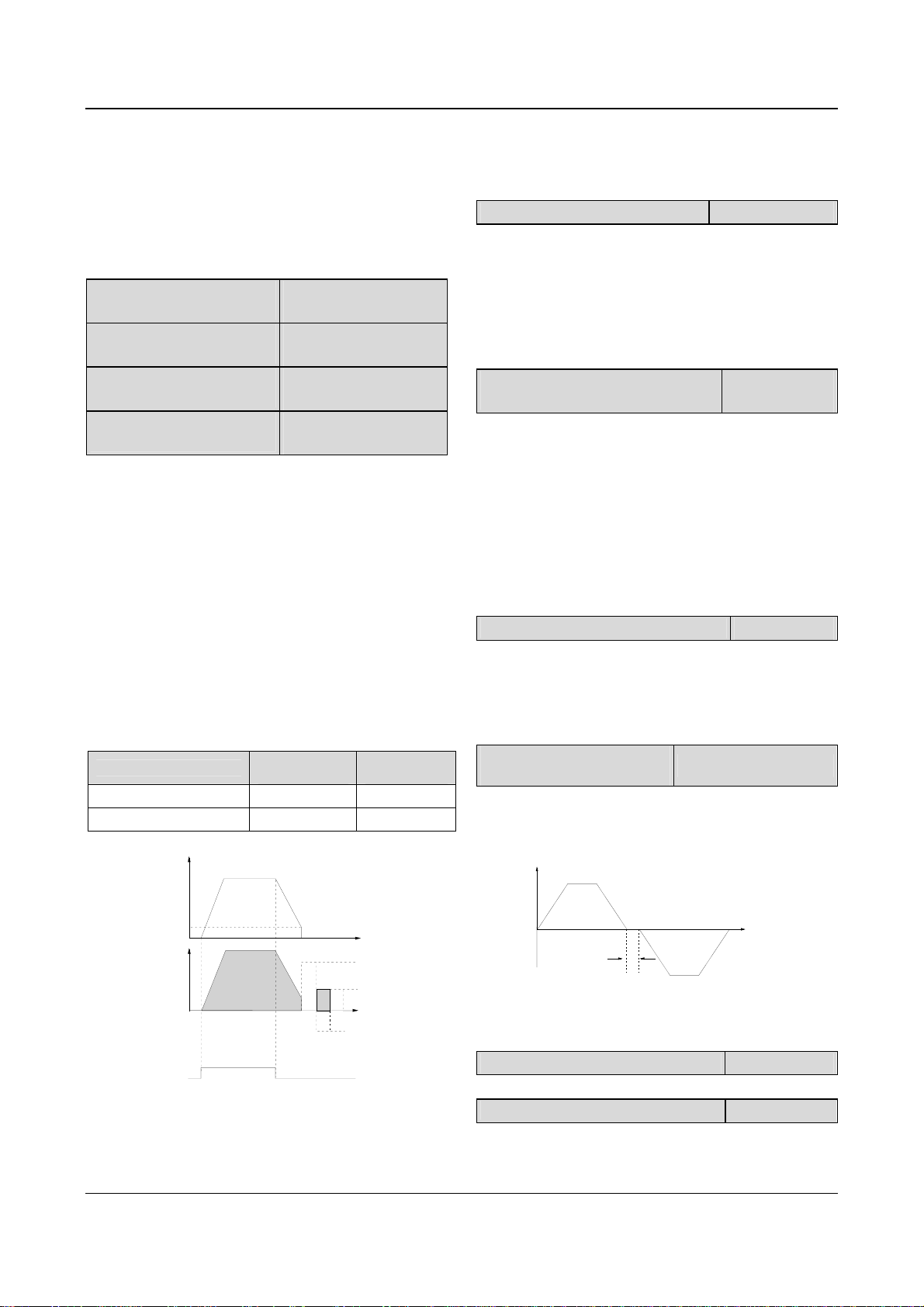

Chapter 5 Parameter Introductions 49

2: Dec-to-stop+DC injection braking

After receiving the STOP command, the drive reduces its output frequency according to the Dec time and starts DC injection braking when its output frequency reaches the initial frequency of braking process.

Refer to the introductions of F2.09~F2.12 for the functions of DC injection braking.

F2.09 DC injection braking initial frequency at stop

F2.10 DC injection braking waiting time at stop

F2.11 DC injection braking current at stop

F2.12 DC injection braking time at stop

Range:0.00~60.00Hz

【

0.00Hz】

Range:0.00~10.00s

【

0.00s】

Range: dependent on

drive’s model【0.0%】

Range: dependent on

drive’s model【0.0s】

DC injection braking waiting time at stop: The duration from the time when operating frequency reaches the DC injection braking initial frequency(F2.09) to the time when the DC injection braking is applied.

The drive has no output during the waiting time. By setting waiting time, the current overshoot in the initial stage of braking can be reduced when the drive drives a high power motor.

The range of DC injection braking current and time are dependent on drive’s model, see Table 5-2.

DC injection braking current at stop is a percentage of drive’s rated current. There is no DC injection braking when the braking time is 0.0s.

Table 5-2 DC injection braking function

Model

G型 0

P型 0

Braking

current at stop

～

100.0％ 0.0～30.0s

～

80.0％ 0.0～30.0s

Braking time

at stop

Output Freq.



Note:

DC injection braking current at stop(F2.11) is a percentage value of drive’s rated current.

F2.13 Dynamic braking

Range:0,1【0】

0: Dynamic braking is disabled

1: Dynamic braking is enabled



Note:

This parameter must be set correctly according to the actual conditions, otherwise the control performance may be affected.

F2.14 Ratio of working time of braking kit to drive’s total working time

Range:0.0~

100.0%【2.0%

This function is effective for the drive with built-in braking resistor.



Note:

Resistance and power of the braking resistor must be taken into consideration when setting this parameters.

5.4 Auxiliary Operating Parameters (Group F3)

F3.00 Anti-reverse running function

0: disabled

1: enabled



Note:

This function is effective in all control modes.

F3.01 Delay time of run reverse/forward

Range:0~3600s【0.0s

The delay time is the transition time at zero frequency when the drive switching its running direction as shown in Fig. 5-17 as t

Output frequency

Range:0. 1【0

】

Waiting time

Braking

Energy

Braking time

Output

volt

（RMS value

Operating

command

Initial Freq.of braking

）

Fig. 5-16 Dec-to-stop + DC injection braking

EV2000 Series Universal Variable Speed Drive User Manual

Time

Fig. 5-17 Delay time from reverse running to forward

running or from forward running to reverse running

F3.02~F3.04 Reserved

Reserved.

F3.05 auto energy-saving function

Range:0. 1【0

】

0:disabled

1: enabled

50 Chapter 5 Parameter Introductions

When the motor operates without load or with light load, the drive can adjust its output voltage by detecting the load current to achieve the energy-saving effects.



Note:

This function is especially useful for the fan & pump loads.

F3.06 AVR function

Range:0. 1. 2【2

0:disabled

1: enabled all the time

2: disabled in Dec process

AVR means automatic voltage regulation.

The function can regulate the output voltage and make it constant. Therefore, generally AVR function should be enabled, especially when the input voltage is higher than the rated voltage.

In Dec-to-stop process, if AVR function is disabled, the Dec time is short but the operating current is big. If AVR function is enabled all the time, the motor decelerates steadily, the operating current is small but the Dec time is prolonged.

F3.07 Gain of slip compensation

F3.08 Limit of slip compensation

F3.09 Compensation time constant

Range:0.0~300.0%【100.0%

Range:0.0~250.0%【200.0%

Range:0.1~25.0s【2.0s】

The motor’s slip changes with the load torque, which results in the variance of motor speed. The drive’s output frequency can be adjusted automatically through slip compensation according to the load torque. Therefore the change of speed due to the load change is reduced as shown in Fig. 5-18.

Slip

】

Range of slip compensation: limit of slip

compensation(F3.08)



Note:

rated slip(FH.08)

The value of automatically compensated slip is dependent on the motor’s rated slip, therefore the motor’s rated slip must be set correctly (FH.08).

F3.10 Carrier wave frequency

Range:0.7~15.0kHz【depend on

drive model】

Positive slip compensation

-100%

100%

Negative slip compensation

Motor's

load

Fig. 5-18 Auto slip compensation

Motoring status: Increase the gain of slip compensation gradually when the actual speed is lower than the reference speed (F3.07).

Regenerating status: Increase the gain of slip compensation gradually when the actual speed is higher than the reference speed (F3.07).

EV2000 Series Universal Variable Speed Drive User Manual

Chapter 5 Parameter Introductions 51

Table 5-3 Drive’s type and carrier wave frequency (CWF)

CWF Type

Type G:5.5kW~45kW Type P:7.5kW~55kW

Type G:55kW~90kW Type P:75kW~110kW

Type G:110kW~220kW Type P:132kW~280kW

Highest (kHz)

Lowest (kHz)

Factory setting (kHz)

15 3 8

10 1 3

6 0.7 2

Table 5-4 CWF characteristics

CWF Decrease Increase

Motor’s noise

Leakage current

Disturbance



Notes:

↑

↓

↑

In order to achieve better control performances, the ratio of carrier frequency to the maximum operating frequency of the drive should not be less than 36.

F3.11 Auto adjusting of CWF

Range:0. 1【1】

0: disabled

1: enabled

When this function is enabled, the drive can adjust the CWF automatically according to the internal temperature of the drive. At this time, the drive’s actual Max CWF is restricted by F3.10.

F3.12 Motor tone adjustment

Range:0~10【0】

F3.12 can be used to adjust the motor’s tone, and is only effective for the CWF below 6kHz.

If this parameter is set to 0, the function is disabled.

F3.13 Jog operating frequency

F3.14 Interval of Jog operation

F3.15 Acc time of Jog operation

F3.16 Dec time of Jog operation

Range:0.10~50.00Hz

【

5.00Hz】

Range:0.0~100.0s【0.0s

Range:0.1~60.0s

【

6.0s/20.0s】

Range:0.1~60.0s

【

6.0s/20.0s】

F3.13~F3.16 define the relevant parameters of Jog operation.

As shown in Fig. 5-19, t and Dec time respectively. t is the interval of Jog operation(F3.14); f

and t3 are the actual Acc time

is the Jog operating time; t4

is the Jog

operating frequency(F3.13).

Actual Acc time t formula, so does the actual Dec time t

can be determined by the following

of jog operation.



F3.17 Acc time 2

F3.18 Dec time 2

F3.19 Acc time 3

F3.20 Dec time 3

F3.21 Acc time 4

F3.22 Dec time 4

】



F3.23 Preset frequency 1

F3.24 Preset frequency 2

F3.13×F3.15

Frequency

t1=

Jog command Jog command

F0.05

Time

Fig. 5-19 Jog operating parameters

Interval of Jog operation (F3.14) is the interval from the time when the last Jog operation command is ended to the time when the next Jog operation command is executed.

The jog command sent during the interval will not be executed. If this command exists until the end of the interval, it will be executed.

Note:

1. In Jog operation process, the drive starts according to starting mode 0 and stops according to stopping mode 0. The unit of Acc/Dec time is second.

2. Jog operation can be controlled by panel, terminals and serial port.

Range: 0.1~3600s(min) 【6.0s/20.0s

Three kinds of Acc/Dec time can be defined, and the drive’s Acc/Dec time 1~4 can be selected by different combinations of control terminals, refer to the introductions of F7.00~F7.07 for the definitions of terminals used to select Acc/Dec time.

Note:

1. Acc/Dec time 1 is defined in F0.10 and F0.11.

2. For the drive of 30kW or above, its factory setting of Acc/Dec time is 20.0s.

Range: Lower limit of frequency

~upper limit of frequency【 5.00Hz

Range: Lower limit of frequency

~upper limit of frequency【10.00Hz

】

EV2000 Series Universal Variable Speed Drive User Manual

52 Chapter 5 Parameter Introductions

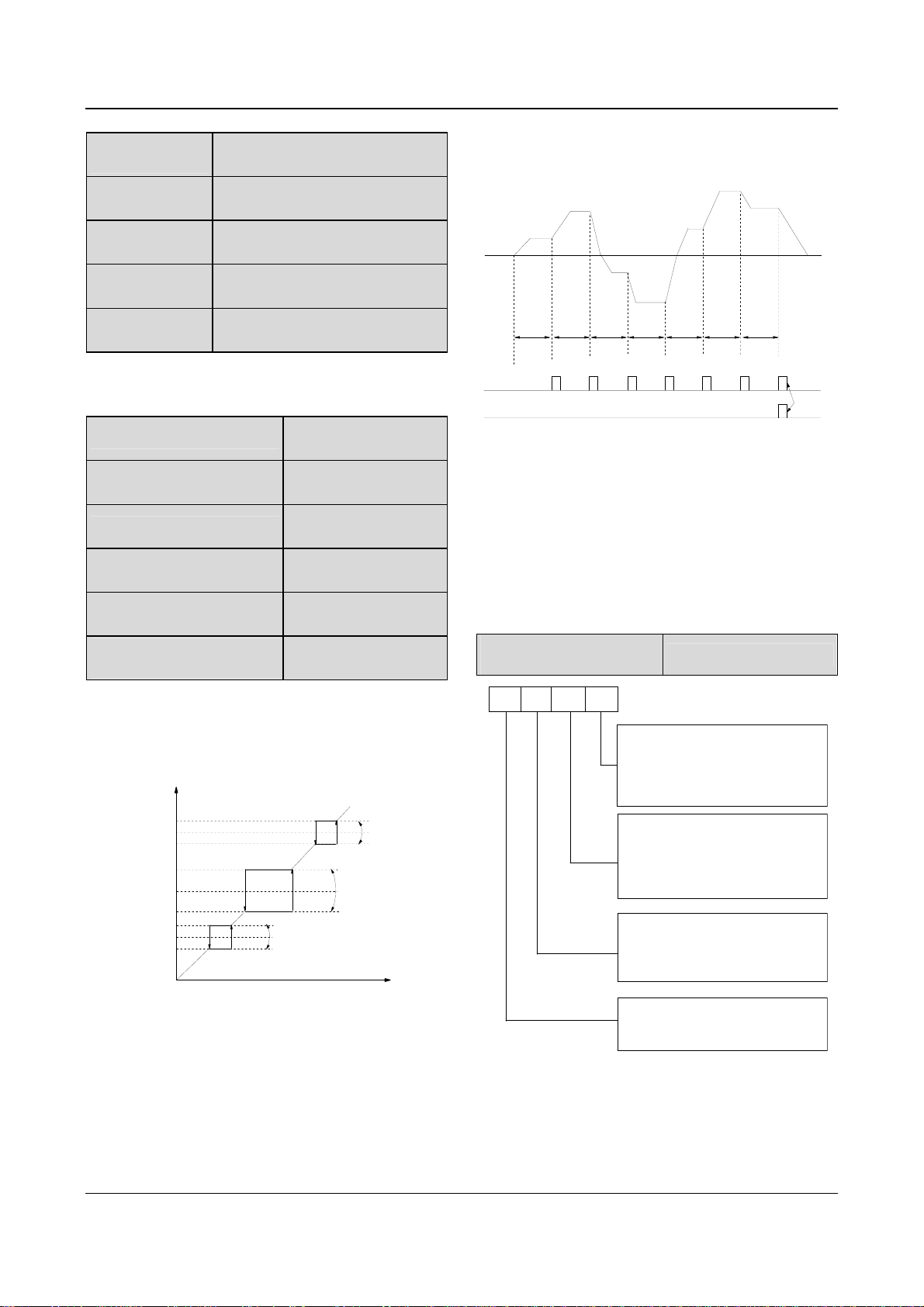

F3.25 Preset frequency 3

F3.26 Preset frequency 4

F3.27 Preset frequency 5

F3.28 Preset frequency 6

F3.29 Preset frequency 7

Range: Lower limit of frequency

~upper limit of frequency【20.00Hz

Range: Lower limit of frequency

~upper limit of frequency【30.00Hz

Range: Lower limit of frequency

~upper limit of frequency【40.00Hz

Range: Lower limit of frequency

~upper limit of frequency【45.00Hz

Range: Lower limit of frequency

~upper limit of frequency【50.00Hz

These frequencies will be used in simple PLC operation and multi-step speed operation, refer to the introductions of F7.00~F7.07 and group F4 parameters.

F3.30 Skip frequency 1

F3.31 Range of skip frequency 1

F3.32 Skip frequency 2

F3.33 Range of skip frequency 2

F3.34 Skip frequency 3

F3.35 Range of skip frequency 3

Range:0.00~650.00Hz

【

0.00Hz】

Range:0.00~30.00Hz

【

0.00Hz】

Range:0.00~650.00Hz

【

0.00Hz】

Range:0.00~30.00Hz

【

0.00Hz】

Range:0.00~650.00Hz

【

0.00Hz】

Range:0.00~30.00Hz

【

0.00Hz】

F3.30~F3.35 define the output frequency that will cause resonant with the load, which should be avoided. Therefore, the drive will skip the above frequency as shown in Fig. 5-2020. Up to 3 skip frequencies can be set.

Adjusted preset frequency

Skip

Skip range 2

Skip

range

Preset frequency

frequency 3

Skip frequency 2

Skip frequency 1

Skip range 1

Fig. 5-20 Skip frequency and skip range

5.5 PLC Operating Parameters(Group F4)

Simple PLC function can enable the drive change its operating frequency and directions automatically according to the operating time to satisfy the manufacturing requirements. Before, this function is

realized by PLC, now the drive itself can realize such

】

function, as shown in Fig. 5-21.

Simple PLC operation

Indicating signal for complating one stage of PLC operation

Indicating signal for completing a cycle of PLC operation

T2T3T4T5T

500ms

Fig. 5-21 Simple PLC operation

In Fig. 5-21, a time in different stages. f

and d1~d7 are the Acc time and Dec

1~a7

and T1~T7 will be defined in

1~f7

the following parameters.

Bi-direction open-collector output terminals Y1 and Y2 or the relay that output the 500ms pulse can indicate the completion of PLC operation, refer to the introductions of F7.10~F7.12.

F4.00 Simple PLC operation mode

B C D

Range: 0000~1123【0000

PLC operating mode selection 0: No action 1: Hold final value after 1-cylce running

3: stop after single cycle

4: continuous operation

PLC restarting mode selec tion: 0: Restart f rom 1st stag e

1: Continue to run at the freq uency in the stafe when the drive stopes

2: Continue to run at the freq uency when the

drive p auses

Save PLC operating par ameters upon p ower outage:

0: No save 1: Save the frequency and running stage upon

power outa ge

Unit of running time: 0: Second

1: Minute

】

Fig. 5-22 Simple PLC operation mode

Where,

A: thousand’s place B: Hundred’s place

C: Ten’s place D: Unit’s place

EV2000 Series Universal Variable Speed Drive User Manual

Unit’s place: PLC operation mode

0:disabled

PLC operation mode is disabled.

1: Stop after single cycle

As shown in Fig. 5-23, the drive stops automatically after one cycle of operation and will start when receiving RUN command again.

RUN command

T1T2T3T4T5T6T

Fig. 5-23 Stopping mode after single cycle of PLC

2: Maintain the final value after single cycle of operation

As shown in Fig. 5-24, the drive will maintain the operating frequency and direction of last stage after completing one cycle of operation.

RUN

command

T1T2T3T4T5T6T

Fig. 5-24 Maintaining the frequency after single cycle

3 (continuous operation): See Fig. 5-25, the drive will start next cycle of operation automatically after completing one cycle of operation until receiving STOP command.

Chapter 5 Parameter Introductions 53

PLC operation

T2T3T4T6T5T

First cycle

T1T2T3T4T6T5T

Second cycle

7T1

...

RUN command

STOP command

Fig. 5-25 Continuous operation of PLC

Tens’ place: Restart after PLC operation pause

0: Operate from first section

If the drive stops during PLC operation due to receiving STOP command, fault or power failure, it will run from the first stage after restarting.

1: Continue from the stage where the drive stops

When the drive stops during PLC operation due to receiving STOP command or fault, it will record the operating time and will continue from the stage where the drive stops after restart at the frequency defined for this stage, as shown in Fig. 5-26.

Stopping signal

Stage 1

Operating

time of

stage 2

Remnant time of stage 2

: Acc time of stage 2

: Dec time of stage 2

: Freq. of stage 2

...

Time

Output freq.Hz

...

: Acc time of stage 1

: Acc time of stage 3

: Freq. of stage 1

: Freq. of stage 3

Fig. 5-26 PLC start mode 1

2: Continue to operate at the frequency when the drive stops

When the drive stops during PLC operation due to receiving STOP command or fault, it will record the operating time and the current frequency. It will continue running at the recorded frequency from the stage where it just stops upon restart, as shown in Fig. 5-27.



Note:

The difference between mode 1 and mode 2 is that in mode 2, the drive can record the operating frequency when the

EV2000 Series Universal Variable Speed Drive User Manual

54 Chapter 5 Parameter Introductions

drive stops and will run at the recorded frequency after restart.

Stopping signal

Output freq. Hz

...

Stage 1

: Acc time of stage 1

: Acc time of stage 3

: Freq. of stage 1

: Freq. of stage 3

Operating

time of

stage 2

Remnant time of

stage 2

: Acc time of stage 2 : Dec time of stage 2 : Freq. of stage 2

...

Time

Fig. 5-27 PLC starting mode 2

Hundred’s place: Store the PLC status after power failure

0: Not save

The drive does not save the PLC operating status after power failure and start operating in first stage after restart.

1: Save

Memorize the operating parameters of PLC operation after power failure, including the operating stage, operating frequency, and operating time. The drive will continue to operate in the mode defined by the ten’s place.

Thousand’s place: time unit

0: Second

1: Minute

This unit is only valid for defining the PLC operating time. The unit of Acc/Dec time in PLC operation is determined by F9.09.



Note:

1. The stage is ineffective if the time of this stage of PLC operation is set to 0.

2. You can use terminals to pause and disable PLC operation, and clear the memorized parameters. See the introductions to group F7 parameters.

F4.01 Stage 1 setting

F4.02 Time of stage 1

F4.03 Stage 2 setting

F4.04 Time of stage 2

F4.05 Stage 3 setting

F4.06 Time of stage 3

F4.07 Stage 4 setting

F4.08 Time of stage 4

F4.09 Stage 5 setting

Range: 000~323【000】

Range: 0~6500s(min)【20.0s

Range: 000~323【000】

Range: 0~6500s(min)【20.0s

Range: 000~323【000】

Range: 0~6500s(min)【20.0s

Range: 000~323【000】

Range: 0~6500s(min)【20.0s

Range: 000~323【000】

】

F4.10 Time of stage 5

F4.11 Stage 6 setting

F4.12 Time of stage 6

F4.13 Stage 7 setting

F4.14 Time of stage 7

F4.01, F4.03, F4.05, F4.07, F4.09, F4.11 and F4.13 are used to configure the operating frequency, direction and Acc/Dec time of each PLC operating stage. These functions are all selected by digits, as shown in Fig. 5-28. The 7 stages of PLC can correspond to MS or close loop running.

A B

Where,

A: thousand’s place B: Hundred’s place

C: Ten’s place D: Unit’s place

Units’ place for setting stage i:

0: Select preset frequency i, for example: F4.01 sets the parameter of stage 1, so the reference frequency is preset frequency 1 set by F3.23. Please refer to F3.23~F3.29 for definitions of preset frequencies.

1: The frequency is determined by parameter F0.00

2: Preset close-loop reference i, for example: F4.03 sets the parameter of stage 2, so the reference frequency is close-loop frequency 2 set by F5.21. Please refer to F5.20~F5.26 for definitions of preset close-loop reference.

3: Determined by Parameter F5.01

PLC can realize close-loop operation in a certain stage. Close-loop reference selectors can be preset close-loop reference i or determined by parameter F5.01; and the feedback is determined by F5.02. When the reference selector is determined by parameter F5.01, the terminals

Range: 0~6500s(min)【20.0s

Range: 000~323【000】

Range: 0~6500s(min)【20.0s

Range: 000~323【000】

Range: 0~6500s(min)【20.0s

Frequency setting

0: Preset frequency i

1: Determined by F0.00

2: Preset close-loop reference i

3: Determined by F5.01

Running direction selection

0: Forward

1: Reverse

2: Determined by operating command

Acc/Dec time selection 0: Acc/Dec 1 1: Acc/Dec 2 2: Acc/Dec 3

3: Acc/Dec 4

Reserved

Fig. 5-28 Settings of PLC stage I(i=1~7)

】

EV2000 Series Universal Variable Speed Drive User Manual

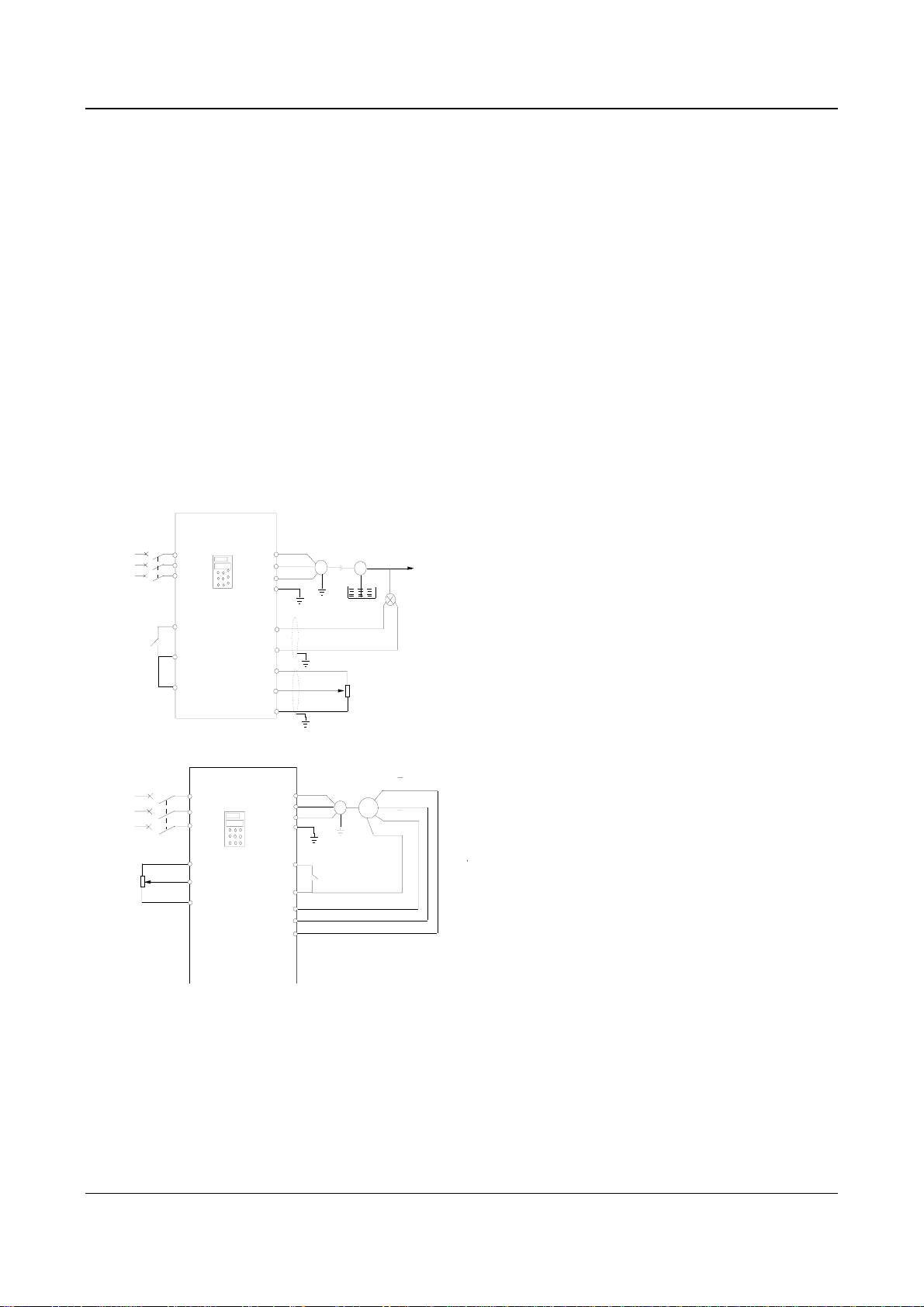

Chapter 5 Parameter Introductions 55

can be selected via preset close-loop reference. See F7.00~F7.07 and F5.20~F5.26 for details.



Note:

When the PLC operating direction is determined by operating commands, the direction of the motor can be controlled by external terminals. For example: to run forward by closing FWD-COM terminal, and run reverse by closing REV-COM. If no command is given, the drive will run in the direction of last stage.

5.6 Close-loop Control Parameters(Group F5)

There are two kinds of close loop control: analog close-loop control (feedback value is analog value) and pulse close-loop control (feedback value is pulse). Fig. 5-29 and 5-30 show the typical wiring of analog close-loop control and pulse close-loop control respectively.

R S

FWD

COM

GND

VRF

VCI

GND

EV2000

W PE

P24

CCI

VRF

VCI

GND

U V

FWD

COM

P24

Output

1-3K

PG supply

PG GND

A/A

B/B

Water-

level

sensor

U V

3-phase

380V

Fig. 5-29 Analog feedback control system with internal PI

QF 3-phase

380V

1-3K

Fig. 5-30 Wiring of speed close-loop with PG

As shown in Fig. 5-29, pressure reference (voltage signal) is input via terminal VCI, while the feedback pressure value is input into terminal CCI in the form of 0(4)~20mA current signal. The reference signal and feedback signal are detected by the analog channel. The start and stop of the drive can be controlled by terminal FWD.

The above system can also use a TG (speed measuring generator) in close speed-loop control

Close speed-loop using PG:

A close speed-loop control system uses external control terminals X

and X8, and pulse generator(PG).

As shown in Fig. 5-30, reference of speed close-loop can be input by a potentiometer in the form of voltage signal via terminal VCI, while the feedback value of the close loop is input by PG in pulse mode via terminals X7 and X8. The start and stop of the drive can be controlled by terminal FWD.

In Fig. 5-30:

A and B are PG’s dual phase quadrature output;

P24 is connected to the power source of PG;

Speed reference is the voltage signal of 0~10V. The voltage signal is in direct proportion to synchronous speed n and f

that corresponds to 0~Max frequency (F0.05),

is Max frequency (F0.05), and P is the number

max

of poles of motor(FH.00).

=120×f

Refer to F7.00~F7.07 for the functions of input terminals X7 and X8.



Note:

max

1. The reference can also be input via panel or serial port;

2. Dual-phase input is good for improving the speed measurement accuracy, while the wiring of single-phase input circuit is simple;

3. Dual-phase pulse can only be input in quadrature mode;

4. If using the drive’s terminal P24 to supply the power to PG, then the Max load current of optical PG must be less than 100mA.

Operating principles of internal PI of EV2000 is shown in the Fig. 5-301.

Analog feedback control system:

An analog feedback control system uses a water-level sensor as the feedback sensor of the internal PI.

EV2000 Series Universal Variable Speed Drive User Manual

56 Chapter 5 Parameter Introductions

Reference

regulation

(F5.08 and F5.10)

Error limit

(F5.15)

Regulation

(F5.16)

Feedback

regulation

(F5.09 F5.11)

(F5.12)

∑

(F5.13)

Output

Feedback

Fig. 5-31 PI block diagram

In the above Fig., KP: proportional gain; Ki: integral gain In Fig. 5-31, refer to F5.01~F5.15 for the definitions of close-loop reference, feedback, error limit and proportional and Integral parameters.

There are two features of internal PI of EV2000:

The relationship between reference and feedback can be defined by F5.08~F5.11.

For example: In Fig. 5-29, if the reference is analog signal of 0~10V, the controlled value is 0~1MP, and the signal of water-level sensor is 4~20mA, then the relationship between reference and feedback is shown in Fig. 5-32.

Feedback

20mA

4mA

10V

Reference

Fig. 5-32 Reference and feedback

The reference value is a 0~10V signal (10V corresponds to 100%); and the feedback value is 4Ma~20mA (20mA corresponds to 100%).

In Fig 5-31, “reference regulation” and “feedback regulation” mean that the reference value and feedback value are converted from current or voltage value to percentage values, so that feedback value can be added to or subtracted from the reference value.

Close-loop reference is selected via F5.16 to satisfy different application requirements.

If the motor’s speed is required to increases with the reference speed, this kind of control characteristic is called positive characteristic. If the motor speed is required to decrease when the reference value increases, this control characteristic is called negative characteristic.

Please refer to Fig. 5-33 and F5.16.

Speed

Positive

Negative

Close loop

reference

Fig. 5-33 Close-loop control characteristic

After the control type is determined, follow the procedures below to set close loop parameters.

Determine the close-loop reference and feedback channel (F5.01 and F5.02);

The relationship between close-loop reference and feedback value (F5.08~F5.11) should be defined for close-loop control;

For speed close-loop, the close-loop speed reference and the number of revolutions of PG (F5.06~F5.07) need to be determined;

Determine the close-loop regulation characteristic, i.e. whether the motor speed increase with the reference. Please see F5.16.

Set up the integral regulation function and close-loop frequency presetting function (F5.17~F5.19);

Adjust the close-loop filtering time, sampling cycle, error limit and gain(F5.12~F5.15).

F5.00 Close-loop control function

Range:0. 1【0

0: disabled

1: enabled

F5.01 Reference selector

Range:0. 1. 2【1

】

0: digital input

Take the value of F5.05 (when the setting is analog

＝

close-loop, F5.02

0~5);

Take the value of F5.06 (when the setting is pulse

＝

close-loop, F5.02

6).

1: VCI analog voltage input(0~10V)

2: CCI analog input

】

EV2000 Series Universal Variable Speed Drive User Manual

Chapter 5 Parameter Introductions 57

Analog input range:0~10V(Jumper CN10 is placed at side V), or 0~20mA(Jumper CN10 is placed at side I).



Note:

Use pulse feedback to control the speed. If the reference is analog signal, then 0~10V (4~20mA) reference corresponds

＝

to synchronous speed n

0 (n0

120fmax/P).

F5.02 Feedback selector

Range:0~6【1】

0: VCI 0~10V analog voltage input

1: CCI analog input

2: VCI + CCI

3: VCI-CCI

4: Min {VCI,CCI}

5: Max {VCI,CCI}

Settings of jumper CCI are the same with the above. When current input is selected, the signal will be converted into voltage signal by the formula:

Voltage value = current value (mA)/2;

6: pulse input

Both single-phase PG feedback and dual-phase PG feedback can be used. Refer to the definitions of multi-function input terminal X7 and X8 (functions of F7.06~F7.07).

F5.03 Reference filter

F5.04 Feedback filter

Range:0.01~50.00s【0.50s

Both the reference signal and feedback signal carry noise. These signals can be filtered by setting the time constant of filter (F5.03 and F5.04). The bigger the time constant, the better the immunity capability, but the response becomes slow. The smaller the time constant, the faster the response, but the immunity capability becomes weak.

F5.05 Digital setting of reference

Range:0.00~10.00V【0.00

When analog feedback is used (F5.02=0~5), this function can realize digital setting of reference via panel or serial port.

F5.06 Close-loop speed reference

Range:0~39000rpm【0 rpm

If PG pulse feedback is used (F5.02=6), the speed reference can be set by panel or serial port

F5.07 Number of pulses per revolution of PG

Range:1~9999【1024

The setting of F5.07 is determined by the parameters of PG.

F5.08 Min reference

Range:0.0%~ F5.10

【

0.0%】

】

F5.09 Feedback value corresponding to the Min reference

F5.10 Max reference

F5.11 Feedback value corresponding to the Max reference

F5.08~F5.11 define the relationship between the close-loop reference and feedback value. The setting is the ratio (percentage value) of input and feedback value to reference (10V or 20mA).

Min reference corresponding to feedback value

Max reference corresponding to feedback value

Fig. 5-34 Relationship between feedback and reference

F5.12 Proportional gain K

F5.13 Integral gain Ki

F5.14 Sampling cycle T

The bigger the proportional gain of KP, the faster the response, but oscillation may easily occur.

】

If only proportional gain K error cannot be eliminated completely. To eliminate the error, please use the integral gain Ki to form a PI control system. The bigger the Ki, the faster the response, but oscillation may easily occur if Ki is too big.

The sampling cycle T refers to the sampling cycle of feedback value. The PI regulator calculates once in each sampling cycle. The bigger the sampling cycle the slower the response.

F5.15 Error limit

Range:0.0~ 100.0%

【

20.0%

】

Range:F5.08~ 100.0%

【

100.0%

】

Range:0.0~ 100.0%

【

Max reference corresponding to feedback value

Min reference

100.0%

】

Max reference

(1) positive regulation of feedback

Min

reference

Max

reference

(2) negative regulation of feedback

Range:0.000~9.999【0.050

Range:0.000~9.999【0050

Range:0.01~50.00s【0.50s

is used in regulation, the

Range:0.0~20%【2.0%

】

EV2000 Series Universal Variable Speed Drive User Manual

58 Chapter 5 Parameter Introductions

It defines the max. deviation of the output from the reference, as shown in Fig. 5-35. PI regulator stops operation when the feedback value is within this range. Setting this parameter correctly is helpful to improve the system output accuracy and stability.

Feedback

Ref

Output

Freq

value

Error limit

time

Fig. 5-35 Error limit

F5.16 Close-loop regulation characteristic

Range:0. 1【0

】

0: Positive

Set F5.16 to 0 if the motor speed is required to be increased with the increase of the reference.

1: Negative

Set F5.16 to 1 if the motor speed is required to decrease with the increase of the reference.

F5.17 Integral regulation selection

Range:0. 1【0】

0: Stop integral regulation when the frequency reaches the upper and lower limits

1: Continue the integral regulation when the frequency reaches the upper and lower limits

It is recommended to disable the integral regulation for the system that requires fast response.

F5.18 Preset close-loop frequency

F5.19 Holding time of preset close-loop frequency

Range:0.00~650.00Hz

【

0.00Hz】

Range:0.0~3600s【0.00s

This function can make the close-loop regulation enter stable status quickly.

When the close-loop function is enabled, the frequency will ramp up to the preset close-loop frequency (F5.18)

】

within the Acc time, and then the drive will start close-loop operation after operating at the preset frequency for certain time(defined by F5.19).

Output freq.

Preset freq.

Holding time of

preset freq.

t (time)

Fig. 5-36 Preset frequency of close-loop operation



Note:

You can disable the function by set both F5.18 and F5.19 to

F5.20 Preset close-loop reference 1

F5.21 Preset close-loop reference 2

F5.22 Preset close-loop reference 3

F5.23 Preset close-loop reference 4

F5.24 Preset close-loop reference 5

F5.25 Preset close-loop reference 6

F5.26 Preset close-loop reference 7

Range:0.0~10.00V【0.00V

Among the close-loop reference selectors, besides the 3 selectors defined by F5.01, the voltage value defined by F5.20~F5.26 can also be used as the close-loop reference.

Voltage of preset close-loop reference 1~7 can be selected by terminals, refer to introductions to F7.00~F7.07 for details. These functions can also be used in conjunction with PLC operating functions, see introductions to group F4 parameters for details.

The priority preset close-loop reference control is higher than the reference selectors defined by F5.01.

】

5.7 Traverse Operating Parameters (Group F6)

Traverse operation is widely used in textile and chemical fiber industry. The typical application is shown in Fig. 5-37.

Traverse operation process: First, the drive accelerates to the preset frequency of traverse operation (F6.02) within the Acc time and then waits for certain time (F6.03). The drive transits to the central frequency within Acc/Dec time, and at

EV2000 Series Universal Variable Speed Drive User Manual

Chapter 5 Parameter Introductions 59

last the drive traverse according to the preset traverse amplitude (F6.04), jitter frequency(F6.05), traverse cycle(F6.06) and rising time of traverse operation (F6.07) until it receives a stopping command and stops within Dec time.

Operating

Upper limit of freq. F

Central Freq. Fset

Lower limit of freq. F

Preset freq.

freq. (Hz)

+ Aw

- Aw

Traverse operation amplitude Aw=Fset*F6.04

Jitter freq.=AW*F6.05

Run command

stop command

Accelerat e according

to Acc time

Waiting time

F6.03

Rising

time=F6.06*F6.07

Traverse

operating

cycle

Decelerate

according to Dec time

Fig. 5-37 Traverse operation

The central frequency is actually the preset frequency of simple operation (except PLC, traverse operation, jog), multi-step speed operation or PLC operations;

Traverse operating function is disabled automatically in Jog operation or close-loop operation process.

If PLC operation and traverse operation start at the same time, the traverse operation is disabled when the drive transits from one PLC operating stage to another stage. The drive will accelerate to the preset frequency of PLC operation and then start traverse operation. The drive will decelerate to stop within the Dec time set in PLC operating stage.

F6.00 Traverse function selection

F6.00 decides whether the traverse operating function is enabled

0: disabled

1: enabled

F6.01 Traverse operating mode

Range:0~1【0】

Range:0000~1111

【

0000】

Start mode:

1: Auto start

2: Manual start mode

Traverse operating amplitude control 1: Variable amplitude 2: Fixed amplit ude

F6.01 is used to set the traverse operating mode and the meanings of LED display are shown in Fig. 5-38.

Restart mode

1: Restart at the freq. and direction

memorized before stopping

2: Restart

Fig. 5-38 Traverse operating mode

Where,

A: thousand’s place B: Hundred’s place

C: Ten’s place D: Unit’s place

Unit’s place: start mode

0: auto mode

EV2000 Series Universal Variable Speed Drive User Manual

Save parameters upon power outage 1: Save

2: Not save

60 Chapter 5 Parameter Introductions

The drive will first operate at preset frequency of traverse operation (F6.02) for certain time (F6.03), and then enter traverse mode automatically.

1: Manual mode

If the multi-function terminal (Xi is set to No.33 function) is enabled, the drive will enter traverse mode. If the terminal is disabled, the drive will end traverse operation and operate at the pre-traverse frequency (F6.02).

Ten’s place: traverse operating amplitude

0: variable amplitude

Traverse operating amplitude AW changes with the central frequency and the change rate is defined by F6.04.

1: Fixed amplitude

Traverse operating amplitude AW is determined by Max frequency and F6.04.

Hundred’s place: start mode of traverse operation

0: The drive starts and runs at the frequency and direction before it stops

1: Restart

Thousand’s place: saving the traverse operating

parameters upon power outage

The traverse operating parameters can be saved when power outage occurs. The function is effective when the hundred’s place is set at 0.

0: save

1: not save



Note:

Terminal Xi (No. 34 function) can be used to reset the traverse operating status.

F6.02 Pre-traverse frequency

F6.03 Holding time of Pre-traverse frequency

F6.02 is used to define the drive’s operating frequency before entering traverse mode.

If auto-start mode is selected, F6.03 is used to define the time when the drive operates at pre-traverse frequency. If manual start mode is selected, F6.03 is disabled.

Refer to Fig. 5-37.

F6.04 Traverse amplitude

variable amplitude: AW = central frequency × F6.04

Fixed amplitude: AW = Max operating frequency F0.05×F6.04

Range: 0.00Hz~650.0Hz

【

0.00Hz】

Range:0.0~3600.0s

【

0.0s】

Range:0.0~50.0%【0.0%



Note:

The traverse operating frequency is restricted by the upper and lower limit of frequency. Traverse operation will be abnormal if the frequency is set incorrectly.

F6.05 Jitter frequency

As shown in Fig. 5-37, there is no jitter frequency if F6.05 is set to 0.

F6.06 Traverse operating cycle

F6.06 defines a complete cycle of traverse operation including rising and falling processes.



Note:

Range:0.0~50.0%(ratio to

amplitude)【0.0%】

Range:0.1~999.9s【10.0s

In traverse mode, do not select auto Acc/Dec operating mode, otherwise the traverse operating cycle will be abnormal.

F6.07 Rising time of triangle wave

Rising time of traverse operation＝F6.06×F6.07.

Falling time of traverse operation

The unit is second. Refer to Fig. 5-37.



Note:

Range:0~100.0%【50.0%

＝

You can select traverse mode and S curve at the same, thus the traverse operation is much more smoother.

5.8 Function of Terminals(Group F7)

F7.00 Multi-function terminal X1

F7.01 Multi-function terminal X2

F7.02 Multi-function terminal X3

F7.03 Multi-function terminal X4

F7.04 Multi-function terminal X5

F7.05 Multi-function terminal X6

F7.06 Multi-function terminal X7

F7.07 Multi-function terminal X8

The functions of multi-function input terminal X1~X8 are extensive. You can select functions of X1~X8 according to your application by setting F7.00~F7.07. Refer to Table 5-5.

Table 5-5 Multi-function selection

Setting Functions

】

0 No function

1 Preset frequency 1

2 Preset frequency 2

3 Preset frequency 3

4 Acc/Dec time 1

】

F6.06×(1-F6.07)

Range:0~43【0】

Range:0~47【0】

Range:0~48【0】

EV2000 Series Universal Variable Speed Drive User Manual

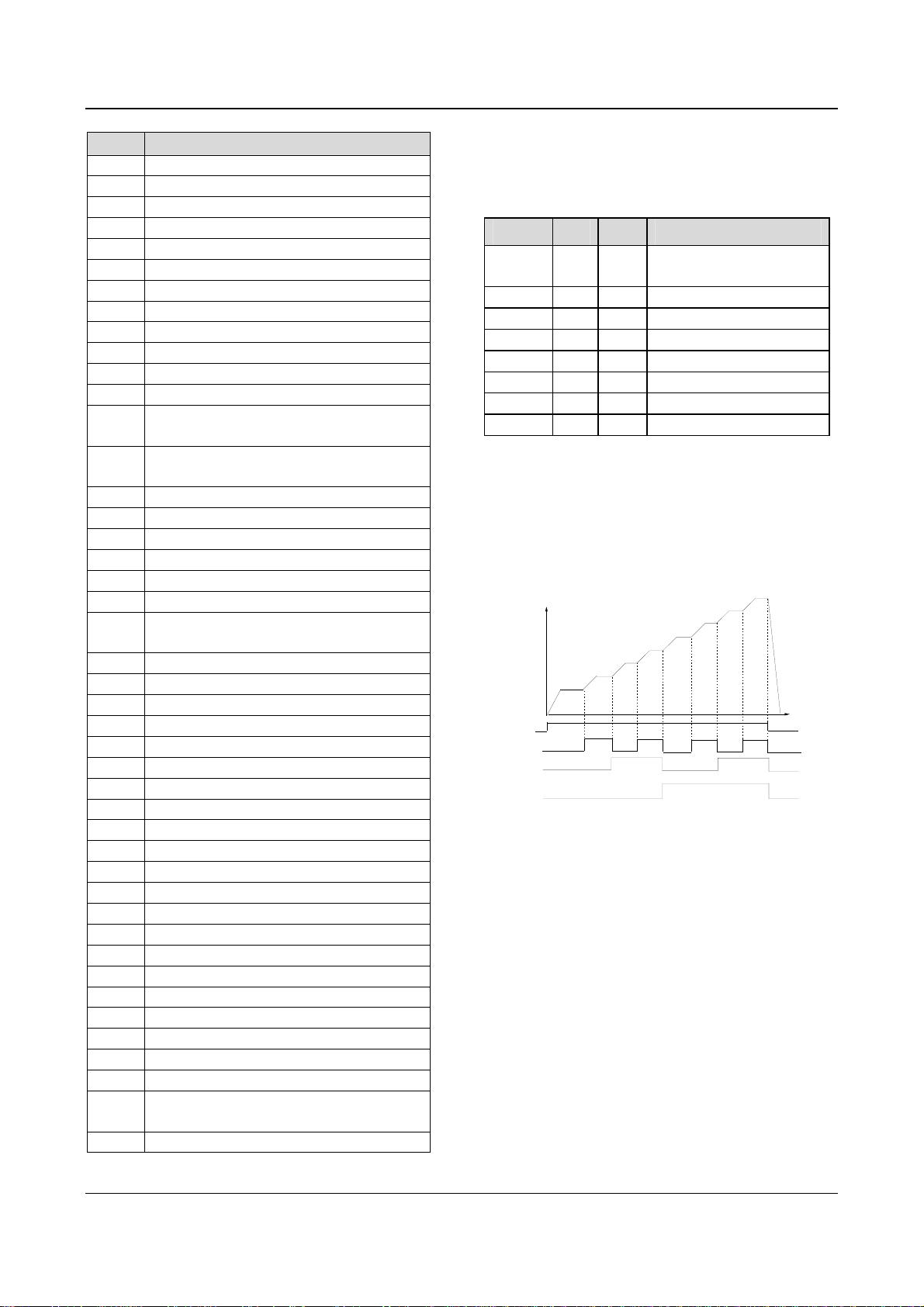

Chapter 5 Parameter Introductions 61

Setting Functions

5 Acc/Dec time 2

6 External fault signal normally-open input

7 External fault signal normally-close input

8 RESET signal

9 Forward jog operation

10 External terminals for reverse jog operation

11 Coast-to-stop(FRS)

12 Frequency ramp up (UP)

13 Frequency ramp down(DN)

14 Pause the PLC operation

15 Acc/Dec prohiBit

16 3-wire operation control

External interrupt signal normally-open

input

External interrupt signal normally-close

input

19 DC injection braking command (DB)

20 Close-loop disabled

21 PLC disabled

22 Frequency selector 1

23 Frequency selector 2

24 Frequency selector 3

Frequency reference is input via terminal

CCI forcibly

26 Reserved

27 Terminal control mode is forcibly enabled

28 Control mode selector 1

29 Control mode selector 2

30 Preset close-loop reference 1

31 Preset close-loop reference 2

32 Preset close-loop reference 3

33 Start traverse operation

34 Reset the traverse operating status

35 External stop command

36 Reserved

37 Drive operation prohiBiting

38 Reserved

39 Length clearing

40 Auxiliary reference frequency clearing

41 Reset PLC stopping status

42 Counter’s zero-clearing signal input

43 Counter’s trig signal input

44 Input the signal of length

45 Pulse input

46 Single-phase speed measuring input

Speed measuring input SM1(only set for

X7)

48 Speed measuring input SM2(only for X8)

Introductions to functions listed in Table 5-5:

1~3: setting speed reference

Up to 8 speed references can be set through different ON/OFF combinations of terminals K

, K2 and K1.

Table 5-6 On/Off combinations of terminals

K3 K2 K1 Frequency setting

OFF OFF OFF

Common operating frequency

OFF OFF ON Preset frequency 1

OFF ON OFF Preset frequency 2

OFF ON ON Preset frequency 3

ON OFF OFF Preset frequency 4

ON OFF ON Preset frequency 5

ON ON OFF Preset frequency 6

ON ON ON Preset frequency 7

The frequency references will be used in MS speed operation and simple PLC operation. Take MS speed operation for example:

Definitions of terminals X1, X2 and X3:

After setting F7.00 to 1, F7.01 to 2 and F7.03 to 3, terminals X1, X2 and X3 can be used in MS speed operation, as shown in Fig. 5-39.

speed7

speed6

Time

Speed command

Output freq.

Common operating freq.

speed5

speed4

speed3

speed2

speed1

Fig. 5-39 Multi-step speed operation

In Fig. 5-40, terminal control is selected. The operating direction can be controlled by K

and K5. Common

operating frequency and preset frequency 1~7 can be selected through different On/Off combinations of K

and K

, K2

EV2000 Series Universal Variable Speed Drive User Manual

62 Chapter 5 Parameter Introductions

EV2000

3-phase

supply

COM

FWD

REW

COM

W PE

. .

Fig. 5-40 Wiring for multi-speed operation

4~5: selecting Acc/Dec time

Table 5-7 Acc/Dec time selection

Terminal 2 Terminal 1

Acc/Dec time

selection

OFF OFF Acc time 1/Dec time 1

OFF ON Acc time 2/Dec time 2

ON OFF Acc time 3/Dec time 3

ON ON Acc time 4/Dec time 4

Through the On/Off combinations of terminals, Acc/Dec time 1~4 can be selected.

6~7: inputting external fault signal (normally-open/close input)

If the setting is 6~7, the fault signal of external equipment can be input via the terminal, which is convenient for the drive to monitor the external equipment. Once the drive receives the fault signal, it will display “E015”. The fault signal has two inputting modes: normally-open and normally-close input.

EV2000

COM

Fig. 5-41 Normally-open/close input

As shown in Fig. 5-41, X

is normally-close command. KM is the relay for

is normally-open contact and

inputting external fault signal.

8: inputting external reset signal

If the setting is 8, the drive can be reset via this terminal when the drive has a fault. The function of this terminal is the same with that of RESET on the panel.

9~10: inputting jog operation signal (JOGF/JOGR)

If the setting is 9~10, this terminal can enable jog operation. JOGF is for inputting forward jog command and JOGR is for reverse jog command. Jog frequency, interval and Acc/Dec time of jog operation are defined in F3.13~F3.16.

11: Coast-to-stop

If the setting is 11, the function of the terminal is the same with that defined by F2.08. It is convenient for remote control.

12~13: Frequency ramp UP/DN

If the setting is 12~13, the terminal can be used to increase or decrease frequency. Its function is the same with c and d keys on the panel, which enables remote control. This terminal is enabled when F0.00=1 or F9.01=2. Increase or decrease rate is determined by F7.09.

14: pausing PLC operation:

If the setting is 14, the terminal is used to pause the PLC operation and the drive operates at zero frequency when the terminal is enabled. There is no timing of PLC operation. If the terminal is disabled, the drive will start on the fly and continue the PLC operation. Refer F4.00~F4.14 to how to use this terminal.

15: Acc/Dec prohibiting command

If the setting is 15, the terminal can make the motor operate at present speed without being influenced by external signal (except stopping command).



Note:

This terminal is disabled in normal Dec-to-stop process.

16: 3-wire operation control.

Refer to F7.08, operation mode 2 and 3 (3-wire operation mode 1 and 2).

17~18: inputting external stopping signal (Normally-open/close input)

During operating, the drive stops its output and operates at zero frequency when it receives external STOP signal. Once the signal is removed, the drive will start on the fly and resume normal operation.

There are two inputting modes of external stopping signal: normally-open and normally-close input. As shown in Fig. 5-41, X

is normally-open contact and X6

is normally-close contact.

EV2000 Series Universal Variable Speed Drive User Manual

Chapter 5 Parameter Introductions 63



Note:

Different with No. 6~7 functions, the external stopping signal will not trigger alarm and the drive can resume normal operation after the signal is removed.

19: DC injection braking signal

If the setting is 19, the terminal can be used to perform DC injection braking to the motor that is running so as to realize the emergent stop and accurate location of the motor. Initial braking frequency, braking delay time and braking current are defined by F2.09~F2.11. Braking time is the greater value between F2.12 and the effective continuous time defined by this control terminal.

20: disabling close-loop function

If the setting is 20, the terminal can be used to realize the flexible switching between close-loop operation and low level operating mode (refer to section 4.1.4 for details).



Note:

The switching between operation modes is enabled only in close-loop operation (F5.00=1).

When the drive is switched to low level operating mode, its start/stop, operating direction, ACC/Dec time should be compliant with corresponding operating modes.

21: disabling PLC

If the setting is 21, the terminal is used to realize the flexible switching between PLC operation and low level operating mode (refer to section 4.1.4 for details).



Note:

The switching between operation modes can be enabled only in PLC operation (unit’s place of F4.00 is not 0).

When the drive is switched to low level operating mode, its start/stop, operating direction, ACC/Dec time should be compliant with corresponding operating modes accordingly.

22~24: Terminals 1~3 for reference frequency selector.

Different ON/OFF combinations of terminals 1, 2 and 3 can select different reference frequency selectors as shown in Table 5-8. The drive will act to the command from the terminal or F0.00, whichever comes late.

Table 5-8 Frequency selector

Terminal 3 Terminal 2 Terminal 1 Freq. selector

OFF OFF OFF

Hold the setting

OFF OFF ON Digital setting 1

OFF ON OFF Digital setting 2

OFF ON ON Digital setting 3

ON OFF OFF VCI analog input

Terminal 3 Terminal 2 Terminal 1 Freq. selector

ON OFF ON CCI analog input

ON ON OFF

ON ON ON

PULSE terminal input

25:Frequency reference is input via terminal CCI forcibly

If the setting is 25, the frequency reference will be input via terminal CCI forcibly. The frequency selector will be changed to the previous one if this terminal function is disabled.

26:Reserved

27: Terminal control mode is forcibly enabled

When this terminal function is enabled, the operating command is input through this terminal forcibly, and the drive will be controlled in previous control mode if FWD/REV terminal function is disabled.

28~29: On/Off combinations of terminals 1 and 2 for different control modes selection

Table 5-9 Control modes

Terminal 2 Terminal 1 Control modes OFF OFF Hold the control mode

OFF ON Panel control mode

ON OFF Terminal control mode

ON ON Serial port control mode

The control modes in Table 5-9 can be selected by the different On/Off combinations of terminals 1 and 2.

30~32: Selecting preset close-loop reference frequencies via On/Off combinations of terminals 1~3.

Table 5-10 Preset close-loop reference selection

Terminal 3 Terminal 2 Terminal 1

OFF OFF OFF

OFF OFF ON

OFF ON OFF

OF ON ON

ON OFF OFF

ON OFF ON

ON ON OFF

ON ON ON

Preset close-loop

reference selection

Close-loop reference is decided by F5.01

Preset close-loop reference 1

Preset close-loop reference 2

Preset close-loop reference 3

Preset close-loop reference 4

Preset close-loop reference 5

Preset close-loop reference 6

Preset close-loop reference 7

EV2000 Series Universal Variable Speed Drive User Manual

64 Chapter 5 Parameter Introductions

The preset close-loop references in Table 5-10 can be selected by the different On/Off combinations of terminals 1~3.

33: Start traverse operation

When the traverse operation is set to “manual start”, the traverse function can be enabled if this terminal is enabled, see Group F6 parameters for details.

34: Reset the traverse operating status

If traverse operation is enabled, switching on this terminal can clear the memorized information about traverse operation no matter the drive is in auto start or manual start mode. Traverse operation restarts after this terminal is disconnected. See group F6 parameters.

35: external stopping command

This stopping command is active in all control modes. When terminal 35 is enabled, the drive will stop in the mode defined in F2.08.

36: Reserved

37: disabling the drive’s operation

If terminal 37 is enabled, the drive that is operating will coast to stop and is prohibited to restart. This function is mainly used in application with requirements of safety protection.

38: Reserved

39: Clear the length information

When terminal 39 is enabled, the setting (length) of F9.15 will be cleared to zero.

40: Clear the setting of auxiliary reference frequency

This function is only active for auxiliary reference frequency (F9.01=1, 2 and 3). When terminal 40 is enabled, the auxiliary frequency is cleared to zero and the reference is determined by main reference frequency.

41: Reset the stopping status of PLC operation

In stopping status of PLC operation, the memorized PLC operating information (operating stage, operating time, operating frequency, etc.) will be cleared when this terminal is enabled. See Group F4 parameters.

42: clearing the counter to zero

When the setting is 42, this terminal is used to clear the counter to zero in conjunction with terminal 43.

43: inputting triggering signal to counter

When the setting is 43, this terminal is used to input pulse signal to the internal counter of the drive. The highest pulse frequency is 200Hz. The present counting value can be saved at power off. See F7.33 and F7.34 for details.

44: inputting counting value of length

Only multi-function input terminals X7 and X8 can be used for this function. The terminal is used in fixed-length control and calculating the length via pulses. See F9.14~F9.19 for details.

45: inputting pulse signal

Only multi-function input terminals X7 and X8 can be used as this function. The terminal is used to input pulse signal as frequency reference. See Group F1 parameters for the relationship between input pulse frequency and the reference frequency.

46: Single-phase speed measuring input

Only multi-function input terminals X7 and X8 can be used as this function. See section 3.3.2. The speed

control accuracy is

0.1%. Single-phase speed

feedback control can be realized by using this terminal and PG.

47: Speed measuring input SM1

48: Speed measuring input SM2

Only multi-function input terminals X7 and X8 can be used as this function. See section 3.3.2. The speed

control accuracy is

0.1%. Dual-phase speed feedback

control can be realized by using this terminal and PG.



Note:

When the drive is performing motor auto-tuning, No. 44~47 functions of X7 are disabled automatically.

F7.08 FWD/REV operating modes setup

Range:0~3【0

This parameter defines four operating modes controlled by external terminals.

0: 2-wire operating mode 1

EV2000

K2K

Running command

Stop

Run reverse

Run forward

Stop

P24

PLC

FWD

REV

COM

Fig. 5-42 2-wire operating mode 1

1: 2-wire operating mode 2

EV2000

K2K

Running command

Run forward

Run reverse

Stop

P24

PLC

FWD

REV

COM

Fig. 5-43 2-wire operating mode 2

】

EV2000 Series Universal Variable Speed Drive User Manual

Chapter 5 Parameter Introductions 65

2: 3-wire operating mode 1

P24

SB2

SB1

SB3

PLC

FWD

REV

. .

COM

EV2000

Fig. 5-44 3-wire operating mode 1

Where:

SB1: Stop button

SB2: Run forward button

SB3: Run reverse button

Terminal Xi is the multi-function input terminal of X1~X8. At this time, the function of this terminal should be defined as No.16 function of “3-wire operation”.

3: 3-wire operation mode 2

P24

PLC

FWD

REV

COM

EV2000

Running direction

Forward

Reverse

SB2

SB1

Fig. 5-45 3-wire operating mode 2

Where:

SB1: Stop button

SB2: Run button

Terminal Xi is the multi-function input terminal of X1~X8. At this time, the function of this terminal should be defined as No.16 function of “3-wire operation”.



Note:

In terminal control mode, for 2-wire operating mode 1 and 2, although the terminal is enabled, the drive will not run forward or reverse when the drive stops due to the STOP command from terminal function 11 or 35 (see F7.00~F7.07), PLC stop after single cycle, stop due to the arrival of fixed length, pressing STOP key. If you need to start the drive again, enable FWD/REV again. However, when the drive stops due to a fault, it will start immediately if the terminal FWD/REV is enabled and the fault is cleared.

F7.09 UP/DN rate

Range:0.01~99.99Hz/s【1.00Hz/s

F7.09 is used to define the change rate of reference frequency that is changed by terminal UP/DN.

】

F7.10 Bi-direction open-collector output terminal Y1

F7.11 Bi-direction open-collector output terminal Y2

F7.12 Output functions of relay

Range:0~19【0

Range:0~19【1

Range:0~19【16

】

Refer to section 3.3.2 for the output characteristics of Y1 and Y2 that are bi-direction open-collector output terminal and the relay’s output terminal. Table 5-11 shows the functions of the above 3 terminals. One function can be selected repeatedly.

Table 5-11 Functions of output terminals Setting Function

0 Drive running signal (RUN)

1 Frequency arriving signal (FAR)

2 Frequency detection threshold (FDT1)

3 Frequency detection threshold (FDT2)

4 Overload signal (OL)

5 Low voltage lock-up signal (LU)

6 External stopping command (EXT)

7 High limit of frequency (FHL)

8 Lower limit of frequency (FLL)

9 Zero-speed running

10 Completion of simple PLC operation

11 PLC cycle completion indication

12 preset counting value arriving

13 specified counting value arriving

14 preset length arriving indication

15 drive ready (RDY)

16 Drive fails

17 Extended function 1 of host

Upper and lower limits of traverse operating frequency

19 Preset operating time out

In Table 5-11:

0: Drive running signal (RUN)

When the drive is in operating status, there will be running indication signal output by this terminal.

1: Frequency arriving signal (FAR)

See F7.13.

2: Frequency detection threshold (FDT1)

See F7.14~F7.15.

3: Frequency detection threshold (FDT2)

See F7.16~F7.17.

4: Overload signal (OL)

The terminal outputs the indicating signal if the drive’s output current is higher than the value defined by FL.05 and the overload time is longer than the time defined by

EV2000 Series Universal Variable Speed Drive User Manual

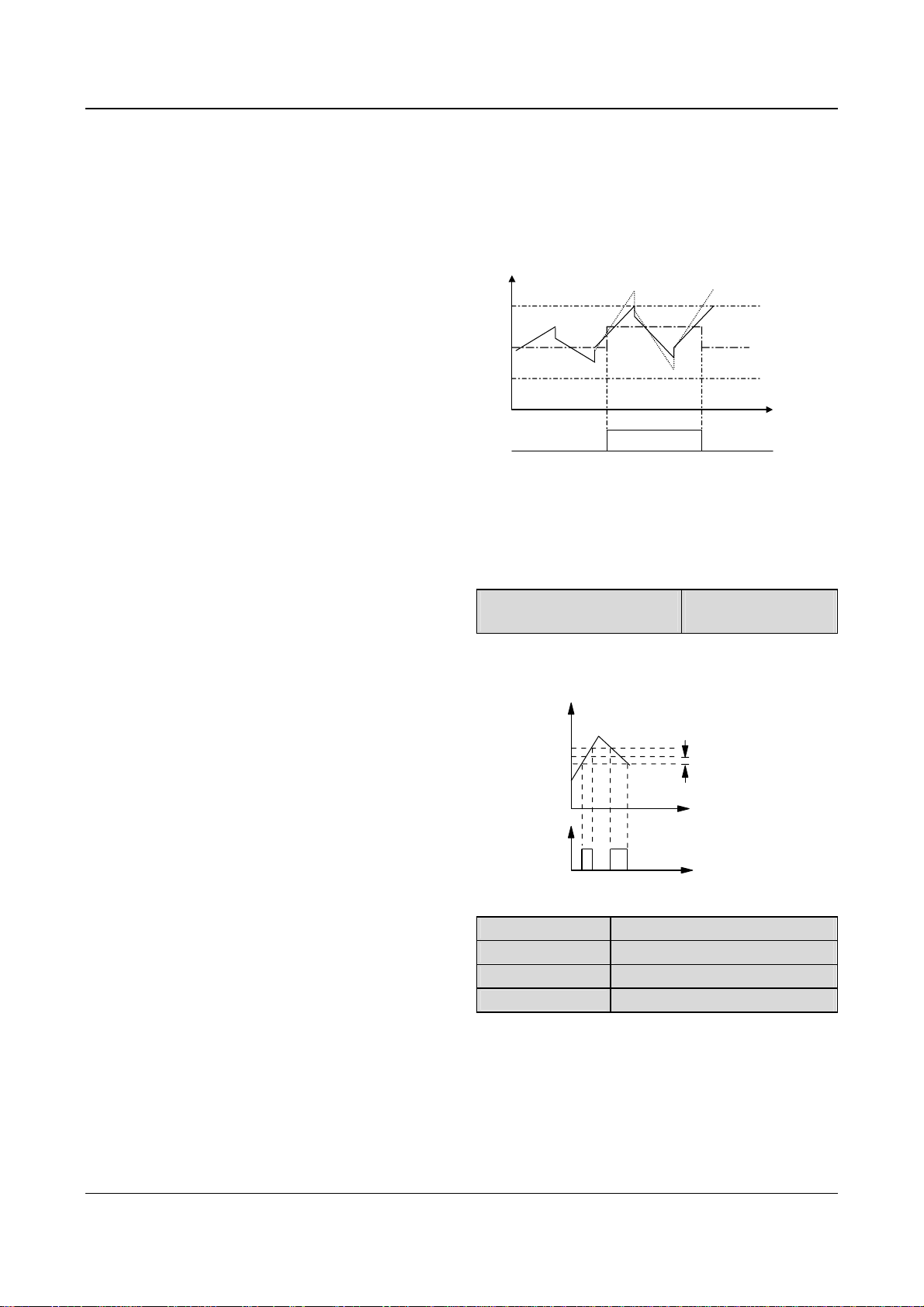

66 Chapter 5 Parameter Introductions

FL.06. This function is usually used in overload pre-alarm. See Fig. 5-74.

5: Low voltage lock-up signal (LU)

The terminal outputs the indicating signal if the DC bus voltage is lower than the low voltage limit, and the LED displays “P.oFF”.

6: External stopping command (EXT)

The terminal outputs the indicating signal if the drive outputs tripping signal caused by external fault (E015).

7: High limit of frequency (FHL)

The terminal outputs the indicating signal if the preset frequency is higher than upper limit of frequency and the operating frequency reaches the upper limit of frequency.

8: Lower limit of frequency (FLL)

The terminal outputs the indicating signal if the preset frequency is higher than lower limit of frequency and the operating frequency reaches the lower limit of frequency.

9: Zero-speed running

The terminal outputs the indicating signal if the drive’s output frequency is 0 and the drive is in operating status.

10: Completion of simple PLC operation stages

The terminal outputs the indicating signal (pulse signal, 500ms width) if the present stage of PLC operation is finished.

11: PLC cycle completion indication

The terminal outputs the indicating signal (signal pulse, 500ms width) if one cycle of PLC operation is finished.

12: preset counting value arriving

13: reference length arriving indication

Refer to F7.33~F7.34 for terminals 12 and 13.

14: preset length arrival indication

The terminal outputs the indicating signal if the actual length defined by F9.15 is longer than the length defined by F9.14. Function of terminal X1~X8 should be set to No.44 function.

15: drive ready (RDY)

If RDY signal is output, it means the drive has no fault, its DC bus voltage is normal and it can receive starting command.

16: Drive fails

The terminal outputs the indicating signal if the drive has faults.

17: extended function 1 of host

The output signal of terminal Y1, Y2 or TC is directly controlled by a serial port. Refer to the communicating protocol of EV2000.

18: Upper and lower limits of traverse operating frequency

If traverse operating function is selected, an indicating signal will be output if the traverse operating frequency calculated by central frequency is higher than upper limit of frequency (F0.12) or lower than the lower limit of frequency (F0.13), as shown in Fig. 5-46.

Upper limit o

raverse

Lower limit of freq.

upper and lower limit

Y1:

of traverse operation

f freq

operation

Before limiting amplitude

After limiting amplitude

Central freq.

Fig. 5-46 Traverse operating amplitude control

19: preset operating time out

The terminal outputs the indicating signal if the drive’s total operating time (Fn.01) reaches preset operating time (Fn.00).

F7.13 Frequency arriving signal (FAR)

Range:0.00~650.00Hz

【

2.50Hz】

As shown in Fig. 5-47, if the drive’s output frequency is within the detecting range of preset frequency, a pulse signal will be output.

Output

Preset

freq.

1/2 detecting range

Time

Fig. 5-47 Frequency arriving signal

F7.14 FDT1 level

F7.15 FDT1 lag

F7.16 FDT2 level

F7.17 FDT2 lag

Range: 0.00~650.00Hz【50.00Hz

Range: 0.00~650.00Hz【1.00Hz

Range: 0.00~650.00Hz【25.00Hz

Range: 0.00~650.00Hz【1.00Hz

】

F7.14~F7.15 is a complement to the No.2 function in Table 5-11. F7.16~F7.17 is a complement to the No.3 function in Table 5-11. Their functions are the same. Take F7.14~F7.15 for example: when the drive’s output frequency reaches a certain preset frequency (FDT1 level), it outputs an indicating signal until its output frequency drops below a certain frequency of FDT1 level (FDT1 level-FDT1 lag), as shown in Fig. 5-48.

】

EV2000 Series Universal Variable Speed Drive User Manual

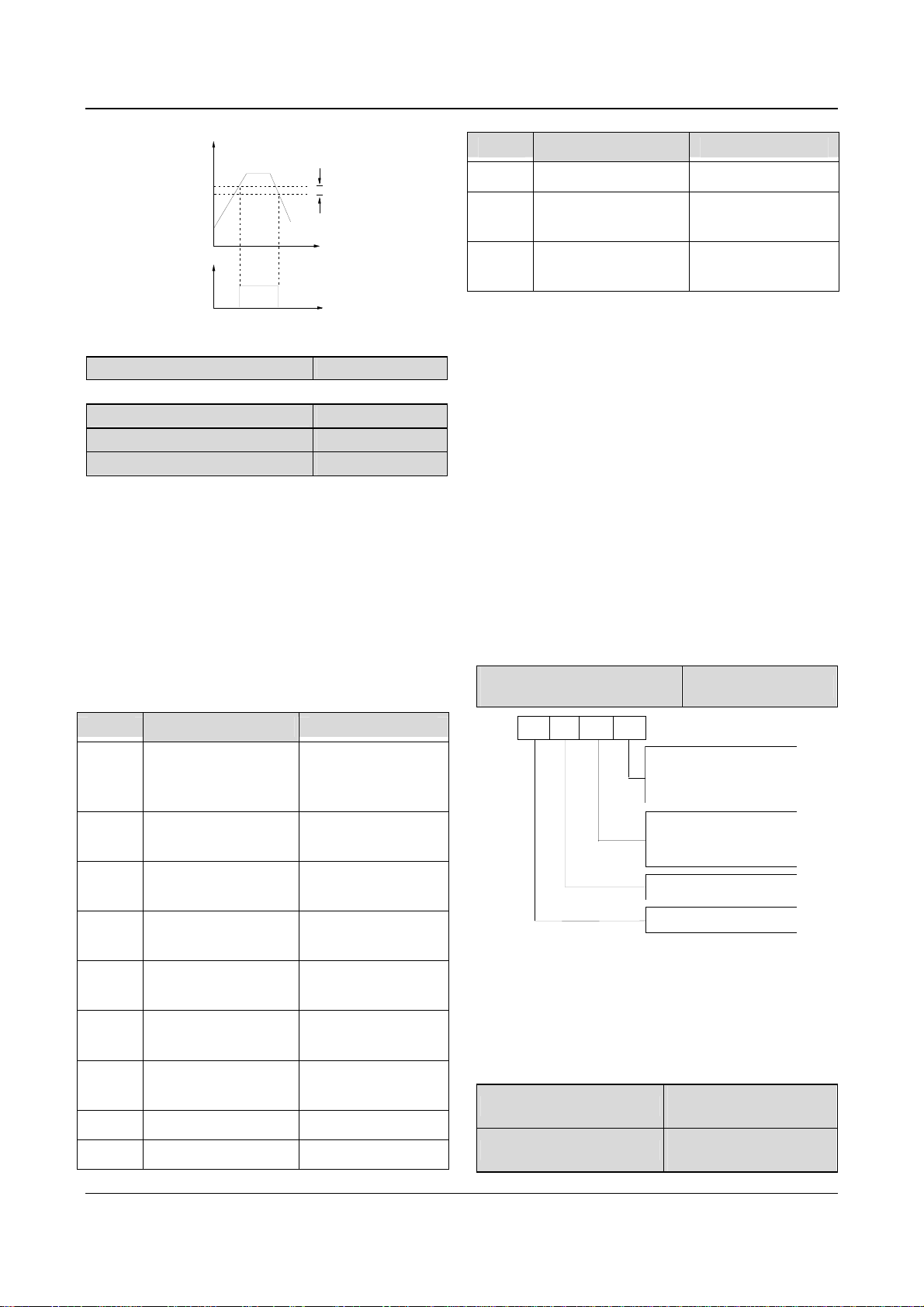

Chapter 5 Parameter Introductions 67

Output frequency

FDT1 level

FDT1 lag

Time

Fig. 5-48 FDT level

F7.18~F7.25 Reserved

F7.26 Functions of terminal AO1

F7.27 Functions of terminal AO2

F7.28 Functions of terminal DO

Range:0~11【0】

Range:0~11【3】

Range:0~11【0】

AO1 and AO2 are analog output terminals, and DO is pulse output terminals.

Refer to section 3.3.2 for the output characteristics of AO1 and AO2, their analog output ranges are defined by F7.29.

Pulse frequency range of DO: 0~Max output pulse frequency (defined by F7.32).

The relationship between the displaying range and the output values of AO1, AO2 and DO are given in Table 5-12.

Table 5-12 Displaying range of output terminals

Setting Functions Range

Output frequency

before slip compensation

0~Max output frequency

Setting Functions Range

9 CCI 0~10V/0~20mA

10 Output power

Extended function of

host 2

0~2 times of rated power

0~65535

If the extended function 2 of host 2 is enabled, the output signal of terminal Y1, Y2 or TC is directly controlled by a serial port. “65535” corresponds to the Max output of 10V(or 20mA). Refer to the communication protocol of EV2000 for details.

For example:

AO1 outputs 4~20mA, which indicates bus voltage 0~800V.

The settings:

①

F7.26=7, output bus voltage;

②

F7.29=01, output of terminal AO1 is 4~20mA;

③

F7.30=100%, output gain is 100%;

④

AO1 jumper of CN16 short circuited at 0/4-20mA side.



Note:

If terminal X8 selects functions of 44~46, DO is disabled automatically

F7.29 Analog output range selection

C D

Range:00~11【00】

AO1 output range

0: 0~10V or 0~20mA

1: 2~10V or 4~20mA

Output frequency after

slip compensation

2 Preset frequency

3 Output current

4 Output current

5 Output torque

6 Output voltage

0~Max output frequency

0~2 times of drive’s rated current

0~2 times of motor’s rated current

0~2 times of motor’s rated torque

0~1.2 times of drive’s rated voltage

7 Bus voltage 0~800V

8 VCI 0~10V

EV2000 Series Universal Variable Speed Drive User Manual

AO2 output range

0: 0~10Vor0~20mA 1: 2~10Vor4~20mA

Reserved

Fig. 5-49 analog output offset settings

Where,

A: thousand’s place B: Hundred’s place

C: Ten’s place D: Unit’s place

F7.29 is used to select analog output ranges of AO1 and AO2.

F7.30 Output gain of AO1

F7.31 Output gain of AO2

Range:0.0~200.0%

【

100.0%】

Range:0.0~200.0%

【

100.0%】

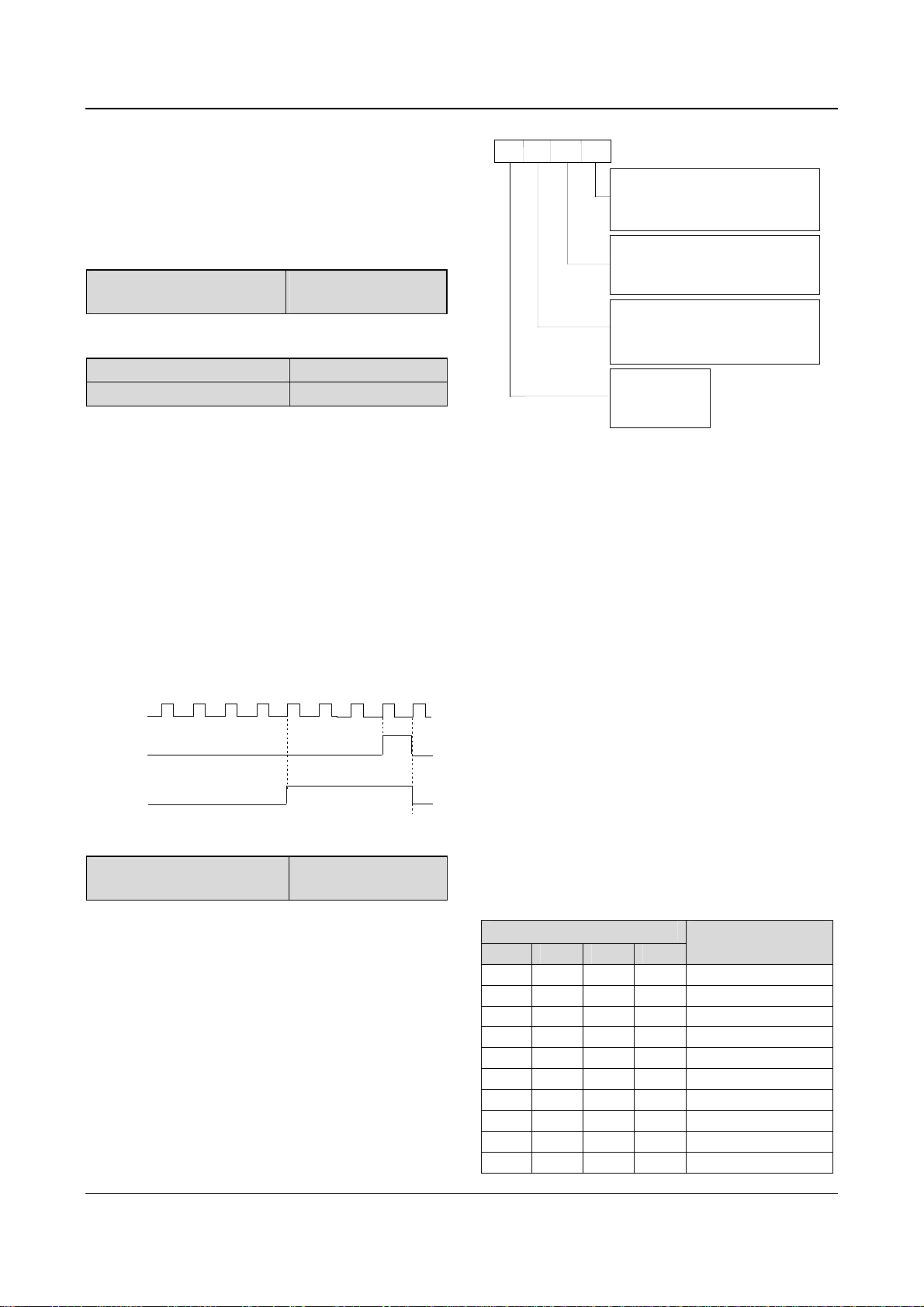

68 Chapter 5 Parameter Introductions

As to the analog output of AO1 and AO2, you can adjust the output gain to change the measuring range or calibrate the meter.



Note:

Changing the settings of F7.30 and F7.31 will influence the analog output.

F7.32 Maximum output frequency of DO

Range:0~50.0kHz

【

10.0KHz】

F7.32 defines the permissible maximum frequency of DO, refer to F7.28.

F7.33 Preset counting value

F7.34 Specified counting value

Range: F7.34~9999【0

Range: 0~F7.33【0】

F7.33 and F7.34 are complements for No. 12 and 13 functions in Table-5-11.

It defines after Xi receives the number of pulse F7.33, the relay or Yi (bi-direction open-collector output terminal) will give a signal.

For example: as shown in Fig. 5-50, when the eighth pulse signal is received by terminal Xi, Y1 outputs an indicating signal. At this time F7.33=8.

When Xi receives the number of pulse F7.34, Yi will give a signal which will last until F7.33 arrives.

As shown in Fig. 5-50, when Xi receives the 5th pulse, Y2 outputs an indication signal. It lasts until X1 receives the 8th pulse. In this case, F7.34=5, F7.33=8. F7.34 is invalid if it is bigger than F7.33.

1234567 89

input

Fig. 5-50 Preset and specified pulse number

F7.35 Terminal’s positive and negative logic

Range:000~FFFH

【

000H】

BIT0 : positive/negative logic of BIT1 : positive/negative logic of BIT2 : positive/negative logic of X3 BIT3 : positive/negative logic of X4

BIT0 : positive/negative logic of X5 BIT1 : positive/negative logic of

: positive/negative logic of X7

BIT2

positive/negative logic of

BIT3:

: positive/negative logic of

BIT0

: positive/negative logic of

BIT1

: positive/negative logic of

BIT2

: positive/negative logic of

BIT3

BIT0: reserved BIT1: reserved BIT2: reserved BIT3: reserved

X1 X2

FWD

REV

Y1 Y2

】

B C

Fig. 5-51 terminal’s positive and negative logic

Where,

A: Thousand’s place B: Hundred’s place

C: Ten’s place D: Unit’s place

F7.35 defines the terminal’s positive and negative logic

Positive logic: Terminal Xi is enabled if it is connected to the common terminal;

Negative logic: Terminal Xi is disabled if it is connected to the common terminal;

If the bit is set at 0, it means positive logic; if set at 1, it means negative logic.

For example:

If X1~X8 are required to be positive logic, terminals FWD and REV are required to be negative logic, terminal Y1 is positive logic and terminal Y2 is negative logic, then the settings:

Logic status of X4~X1 is 0000, and the hex value is 0; Logic status of X8~X5 is 0000, and the hex value is 0,; Logic status of Y2, Y1, REV and FWD is 1011, and the hex value is B, so F7.35 should be set at “0B00”. Refer to Table 5-13.

Table 5-13 Conversion of binary code and hex value

Binary settings

Bit3 Bit2 Bit1 Bit0

Hex value

(Displaying of LED)

0 0 0 0 0

0 0 0 1 1

0 0 1 0 2

0 0 1 1 3

0 1 0 0 4

0 1 0 1 5

0 1 1 0 6

0 1 1 1 7

1 0 0 0 8

1 0 0 1 9

EV2000 Series Universal Variable Speed Drive User Manual

Chapter 5 Parameter Introductions 69

Binary settings

Bit3 Bit2 Bit1 Bit0

Hex value

(Displaying of LED)

1 0 1 0 A

1 0 1 1 B

1 1 0 0 C

1 1 0 1 D

1 1 1 0 E

1 1 1 1 F



Note:

Factory setting of all the terminals is positive logic.

5.9 Display (Group F8)

F8.00 Language selection

0:Chinese

1:English

F8.00 is effective for the panel with LCD screen.

F8.01 Displayed parameter group 1 during operation

BIT0: output freq. Hz BIT1: output freq. Hz BIT2: preset freq. BIT3: output current A

BIT0 : running speed BIT1: preset speed rpm BIT2: running line speed m/s

BIT3: preset line speed m/s

Range:0~1【0】

Range:000~3FFH

【

3FFH】

(before compensation)

(after compensation)

rpm

F8.02 Displayed parameter group 2 during operation

C D

Range:000~3FFH

【

000H】

BIT0: output volt V BIT1: DC bus volt BIT2: VCI V BIT3: CCI V

BIT0: closeloop feedback BIT1: closeloop reference% BIT2: external counting value

BIT3: terminal status

: actual length

BIT0 BIT1: preset length BIT2: reserved BIT3: reserved

BIT0: reserved BIT1: reserved BIT2: reserved BIT3: reserved

Fig. 5-53 Operating parameter 2 displayed by LED

Where,

A: thousand’s place B: Hundred’s place

C: Ten’s place D: Unit’s place

The terminal information includes status of terminal X1~X8, bi-direction open-collector output terminals Y1 and Y2, and relay output terminal TC. The status of terminals are indicated by the “On” or “Off’ of LED. If the LED turns on, that means the terminal is enabled, and the terminal is disabled if the LED turns off, as shown in Fig.5-54:

BIT0: output power BIT1: output torque BIT2: reserved BIT3: reserved

BIT0: reserved BIT1: reserved BIT2: reserved BIT3: reserved

Fig. 5-52 LED displayed parameter group 1 in operation

Where,

A: thousand’s place B: Hundred’s place

C: Ten’s place D: Unit’s place

F8.01 and F8.02 define the parameters that can be displayed by LED in operating status.

If Bit is 0, the parameter will not be displayed;

If Bit is 1, the parameter will be displayed.

For example, Unit place of LED (Bit0) is to display the “output frequency before compensation”, if Bit0=0, the parameter will not be displayed, if Bit0=1, the parameter will be displayed.

See F7.35 for the relationship between the values of each Bit and the displayed value of LED.

Fig. 5-54 Terminal status

In Fig.5-54, the LEDs display that terminals X1, X2, X4, X5 and X8 are enabled, terminals X3, X6 and X7 are disabled, terminals Y1 and TC are enabled and terminal Y2 is disabled. The central four LEDs always illuminate for the convenience of observation.



Note:

When the rotating speed and line speed are displayed, these values can be revised by pressing ▲ and ▼ directly (no need to switch to frequency displaying status). When F8.01 and F8.02 are all set to 0, the frequency before compensation will be displayed.

EV2000 Series Universal Variable Speed Drive User Manual

70 Chapter 5 Parameter Introductions

Press XX key to scroll through the parameters set in F8.02 during operation.

F8.03 Parameters displayed at STOP state

C D

Range:0000~3FFFH

【

1FFH】

BIT0 : preset frequency Hz BIT1: external counting value BIT2: running rotating speed rpm BIT3: preset rotating speed rpm

BIT0 : running line speed m/s BIT1: preset line speed m/s BIT2: VCI V BIT3: CCI V

BIT0: closeloop reference % BIT1: closeloop setting BIT2: actual length BIT3: preset length

BIT0 : terminal status BIT1: bus voltage BIT2: reserved BIT3: reserved

Fig. 5-55 Stopping parameters displayed by LED

Where,

A: thousand’s place B: Hundred’s place

C: Ten’s place D: Unit’s place

F8.03 defines the parameters that can be displayed by LED in stopping process.

If Bit is 0, the parameter will not be displayed, and if Bit is 1, the parameter will be displayed.

For example, Bit0 decides whether to display the “preset frequency”, if Bit0=0, the parameter will not be displayed, if Bit0=1, the parameter will be displayed.

When setting this parameter, see Table 5-13 for conversion of binary code and HEX value.



Note:

When the rotating speed and line speed are displayed, these values can be revised by pressing ▲ and ▼ directly (no need to change to frequency displaying status). When the setting of F8.03 is 0, the preset frequency will be displayed. Press XX key to scroll through the parameters set by F8.03 when the drive stops.

F8.04 Rotating Speed display coefficient

Range:0.1~999.9%

【

100.0%】

F8.04 is used to correct the error of displayed rotating speed and it has no influence on actual speed.

F8.05 Line speed display coefficient

Range:0.1~999.9%

【

1.0%】

F8.05 is used to correct the error of displayed line speed and it has no influence on actual speed.

F8.06 Close-loop parameter display coefficient

Range:0.1~999.9%

【

100.0%】

F8.06 is used to correct error between actual physical value (pressure or flow) and reference or feedback values (voltage or current). It has no influence on close-loop PI regulation.

5.10 Enhanced Functions(Group F9)

F9.00 Control mode bundled with frequency selector

F9.00 can bundle 3 control modes with 6 reference frequency selectors, that is, if a control mode is selected, then a frequency selector (such as panel input, analog VCI input) will be selected automatically.

Reference selector in panel control mode

0: No bundling

1: Digital setting1 (

2: Digital setting 2 ( terminal

3: Digital setting 3 (serial port )

4: VCI analog input 5: CCI analog input 6: Pulse terminal input

Reference selector in terminal control mode 0～6 : same with above

Reference selector in serial port control mode

0～6 : same with above

Reserved

Fig. 5-56 Control mode is bundled to frequency selector

Where,

A: thousand’s place B: Hundred’s place

C: Ten’s place D: Unit’s place

The reference frequency selector is defined by F0.00, see section 5.1 for details.

Different control modes can be bundled to one reference frequency selector.

There are 3 methods to select control modes:

Method 1: change F0.03 “Control modes selector”;

Method 2: use PANEL/REMOTE or ENTER/DATA;

Method 3: use the terminals that can select control modes (Functions of terminals X1~X8 should be set to No. 28 and 29 functions.)

For example:

In order to realize remote and local control, it requires that:

①

Control modes selection: The control modes can be

selected by terminal remotely or by PANEL/REMOTE locally;

Range:000~666

【

000】

)

and

▲

▼

UP/DN

)

EV2000 Series Universal Variable Speed Drive User Manual

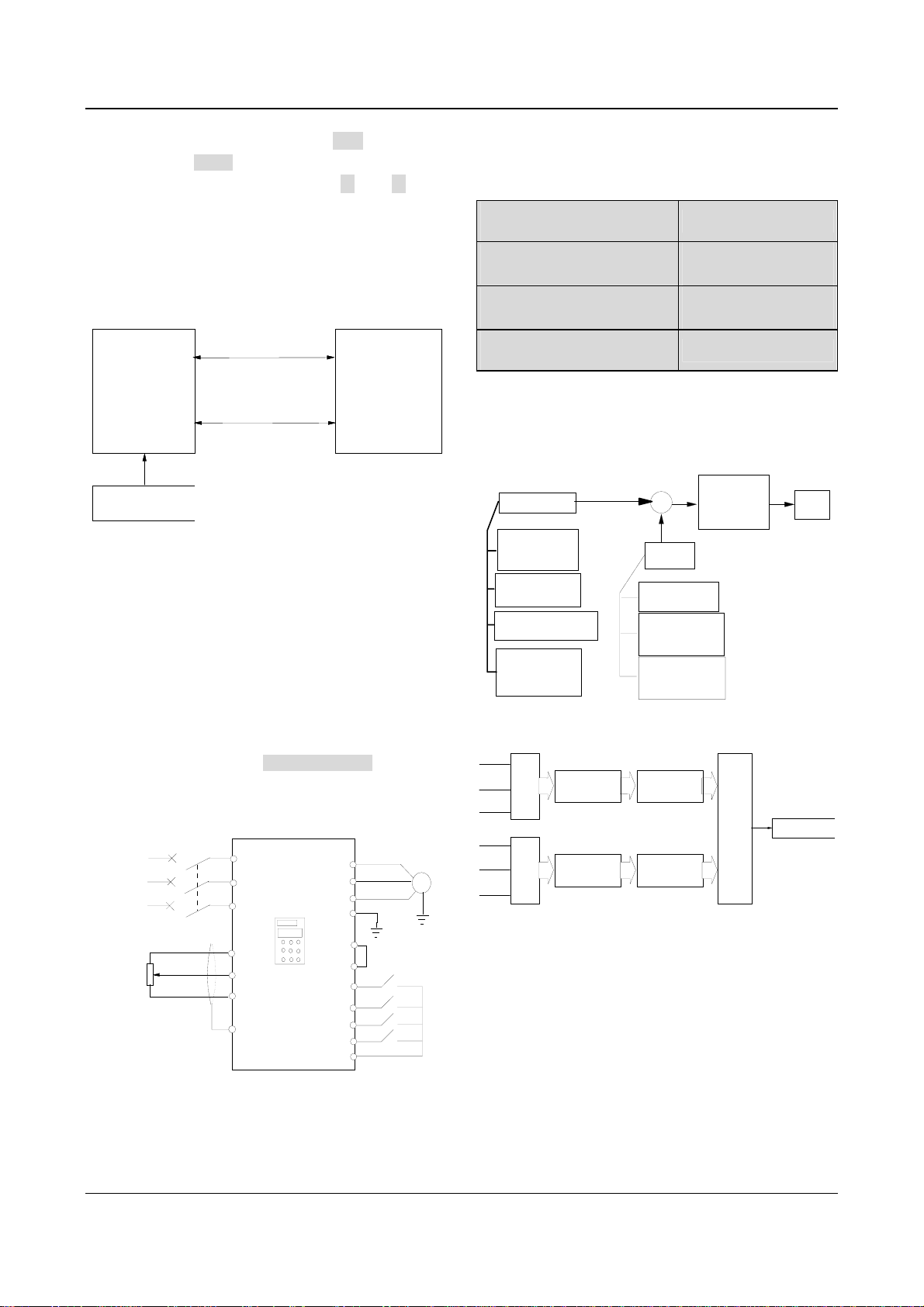

②

If panel control mode is used, press RUN to run the

drive and press STOP to stop the drive. The preset

frequency can be adjusted by pressing ▲ and ▼.

③

If terminal control mode is used, connect FWD

terminal to run forward and connect REV terminal to run reverse. The preset frequency is adjusted via VCI.

④

Terminal control mode is enabled after the drive is

switched on.

Remote

mode

VCI input

Multi-function input Terminal Xi

PANEL/REMOTE

ENTER/DATA

Local

Panel control

Digital setting

mode 1

modeTerminal control

Power on

Fig. 5-57 Remote and local control

Set the parameters below to realize remote and local control:

Set F0.03=1 to select terminal control mode and remote control is enabled after the drive is switched on;

Set F7.00=28, F7.01=29, to select multi-function input terminal X1 and X2 to input operating commands;

Set F7.08=1, to select 2-wire control mode 2. The drive run forward when FWD is enabled, and run reverse when REV is enabled;

Set F9.07 to 020 to enable PANEL/REMOTE;

If F9.00=041, then terminal control mode is bundled to VCI analog reference, and the panel control mode is bundled to digital reference setting 1.

3-phase

supply

4.7k

. .

EV2000

VRF

VCI

GND

P24

PLC

FWD

REV

X1 X2

COM

W PE

. .

Fig. 5-58 Wiring of remote and local control

Chapter 5 Parameter Introductions 71



Note:

The parameter is default 000, that is, the frequency selector is not bundled with control mode.

F9.01 Auxiliary reference frequency selector

F9.02 Auxiliary analog reference frequency coefficient

F9.03 Initial auxiliary digital reference frequency

F9.04 Auxiliary digital reference frequency control

Range: 0~12【0】

Range: 0.00~9.99

【

1.00】

Range: 0.00~650.0Hz

【

0.00Hz】

Range: 000~111【000

The preset frequency of EV2000 drive is the result out of the operation on the main reference frequency and auxiliary reference frequency. F9.01~F9.04 define the auxiliary reference frequency selector. Fig. 5-59 shows the process of operation.

Coefficient

Main ref. freq.

Common operating freq. (F0.00=0~5)

Preset freq. (F3.23~F3.29)

PLC operating freq. (F4.00~F4.14)

Close-loop operating freq.

(F5.00~F5.26)

F3 F4

Auxiliary ref. freq.

No auxiliary freq.(F9.01=0)

Digital setting of auxiliary freq.(F9.01=1~3)

Analog setting of auxiliary ref. freq.(F9.01=4~12)

adjustment

(F9.05, F9.06)

Fig. 5-59 Preset frequency

Pre-processing

▲▼

UPDN

Serial port

Pre-processing

VCI

CCI

PULSE

Digital

Analog

Initial value and sign

of aux. ref.

F9.03 and F9.04

Gain processing

F9.02

Setting F9.04

Setting of F1.00

Setting

F9.01

Fig. 5-60 Auxiliary reference frequency selector

Auxiliary reference frequency is controlled by F9.01~F9.04. F9.01 defines the auxiliary reference frequency selector.

Preset freq.

Aux. ref. freq.

】

EV2000 Series Universal Variable Speed Drive User Manual

72 Chapter 5 Parameter Introductions

Table 5-14 Auxiliary reference frequency selector

SN Reference selector Features

No auxiliary reference

frequency

Digital setting 1, set the

reference by ▲ and ▼

Digital setting 2, set the

reference by UP/DN

Digital setting 3, set the

reference serial port

Zero

Reference is set by F9.03, the changed frequency will be saved in F9.03 upon power outage.

4 VCI analog input

5 CCI analog input

6 PULSE terminal input

7 - VCI analog input

8 - CCI analog input

Determined by actual input analog value, see F1.00 for frequency curves

9 - PULSE terminal input

10 VCI-5

11 CCI-5

12 PULSE-0.5×F1.03

Determined by actual input analog value, see F1.00 for frequency curves

If digital setting 3 is selected, and the frequency reference is input via the serial port, then the auxiliary frequency can be changed by setting F9.03 through the host.

When selecting VCI-5 or CCI-5 to input auxiliary reference frequency, the 5V analog input should be used as a central point, from 0 to 5V, the reference

，

frequency drops with the increase of voltage

while from

5 to 10V, the frequency increases with voltage. For example, as shown in Fig. 5-61:

reference frequency increases with pulse frequency. For

example, as shown in Fig. 5-62:

Auxiliary frequency

0.5 fmax

F1.03

Pulse

-0.5 fmax

Pmid

Pmid——1/2 *Max input pulse frequency (F1.03) fmax——frequency corresponds to Max analog value (F1.07 or F1.11)

Fig. 5-62 PULSE-0.5×F1.03 as auxiliary ref. setting

method

F9.02: Coefficient of analog auxiliary reference

Only valid when F9.01=4~12. First, use F9.02 to calculate the gain and then calculate the auxiliary reference frequency by the frequency curve defined by F1.00.

F9.03: initial value of digital reference frequency

Only valid when F9.01=1~3. F9.03 defines the initial values of digital reference frequency when F9.01=1~3.

F9.04: digital auxiliary reference frequency control

Only valid when F9.01=1~3, as shown in Fig.5-63.

A B

Save 0: Save ref. Freq. upon power outage 1: Not save ref. F

outage

req. upon power

Fig. 5-61 VCI-5/CCI-5 as auxiliary ref. setting method

When using PULSE-0.5×F1.03 to determine auxiliary

reference frequency, one half of F1.03 (Max input pulse

frequency) is the central point. Within 0~0.5×F1.03 pulse

frequency, the reference frequency decreases with the

increase of pulse frequency; within 0.5×F1.03~F1.03, the

EV2000 Series Universal Variable Speed Drive User Manual

Stopping freq. 0: Hold ref. Freq. at stop 1: Clear ref. Freq. at stop

Sign of auxi. ref. Freq. 0: +, main ref+ auxi. ref. Freq. 1: -, main ref

Reserved

auxi. ref. Freq.

Fig. 5-63 Digital auxiliary reference frequency control

Where,

A: thousand’s place B: Hundred’s place

C: Ten’s place D: Unit’s place

Unit’s place: parameter-saving function at power off

0: Save the auxiliary reference frequency at power off

The auxiliary frequency will be stored in F9.03 at power off. The sign of auxiliary reference frequency is saved in F9.04.

1: not save the auxiliary frequency at power off

Chapter 5 Parameter Introductions 73

Ten’s place: Holding of auxiliary frequency at power-off

0: Hold the auxiliary reference frequency after stop

1: Clear the preset frequency after stopping

Clear the auxiliary reference frequency after the drive stops.

Hundred’s place: Sign of reference frequency

0: Plus

The sum of main reference frequency and auxiliary reference frequency is the preset frequency.

1: Minus

The result of subtracting auxiliary reference frequency from the main reference frequency is the preset frequency.



Note:

When the inputting mode of auxiliary reference frequency, such as input via panel, terminal or serial port is the same with that of main reference frequency, the auxiliary frequency is invalid.

F9.05 Frequency adjustment

F9.06 Adjustment coefficient of preset frequency

Range:0~2【0】

Range:0.0%~200.0%

【

100.0%】

F9.05 and F9.06 define the adjustment of preset frequency as shown in Fig. 5-59.

0: Disabled

No adjustment is done to the main frequency, F4=F3

1: adjust based on max. output frequency

Preset frequency (F4)=F3+F0.05×(F9.06-100%)

2: adjust based on the main reference frequency

Preset frequency (F4)=F3+F3×(F9.06-100%) =F3×F9.06.

F9.07 Function of keys

Range: 000~422【000

F9.07 defines the functions of PANEL/REMOTE and STOP/RESET key, and the locking up function of panel.

】

B C

STOP/RESET 0: Active in panel control mode 1: Active in all control modes

2: Active in panel control mode,

drive displays E015 if used in other control modes

PANEL/REMOTE

0: Inactive

1: Active in stopping status

2: Active in running and stopping

status

Panel lock-up 0: No lock up 1: Lock up 2: Lock all the keys except STOP

3: Lock up all the keys except 4: Lock up except RUN and STOP

Reserved

Fig. 5-64 Functions of keys and panel locking up function

Where,

A: thousand’s place B: Hundred’s place

C: Ten’s place D: Unit’s place

Unit’s place: Function of STOP/RESET

This Bit defines in which modes the key is valid for stopping the drive

0: Enabled only in panel control mode

1: Enabled in panel control mode, terminal and serial control modes. The drive stops in the defined manner when this key is pressed.

2: Enabled in panel control mode, terminal and serial control modes.

In panel control mode, the drive stops in defined manner when this key is pressed. But, in terminal and serial control modes, the drive will alarms and display fault code of E015 and coasts to stop.

The STOP/RESET key is valid for all control modes when resetting a fault.

Ten’s place: Function of PANEL/REMOTE

0: PANEL/REMOTE is disabled.

1: PANEL/REMOTE is enabled only in stopping state, not operating state.

2: PANEL/REMOTE can be used to select the control mode both in operating status and stopping status.

Press the key to switch the control mode, and the LED will indicate the mode accordingly. When panel/control mode is selected, the LED turns on; when terminal

EV2000 Series Universal Variable Speed Drive User Manual

74 Chapter 5 Parameter Introductions

control mode is selected, the LED turns off; when serial port control mode is selected, the LED flashes.



Note:

After selecting a control mode by using PANEL/REMOTE, be sure to press ENTER/DATA key to confirm within 3 seconds.

Hundred’s place: Locking panel

0: not lock any key on the panel.

1: Locking up function is enabled and all keys on the panel are locked up.

2: Except STOP/RESET, other keys are locked up.

3: Except XX, other keys are locked up.

4: Except RUN and STOP, all other keys are locked up.

After setting the parameter, you have to do certain operation on the keypad to lock the panel. Please refer to Figure 4-8.

F9.08 Fan control mode

Range:0. 1【0】

0: Auto stopping mode

The fan runs all the time when the drive is operating. After the drive stops, its internal temperature detecting program will be activated to stop the fan or let the fan continue to run according to the IGBT’s temperature.

1: The fan operates continuously.

The fan operates continuously after the drive is switched on.

F9.09 Unit of Acc/Dec time

Range: 0. 1【0】

F9.09 decides the unit of Acc/Dec time.

0: Second

1: Minute

This function is active for all the Acc or Dec process except Jogging process.

Up to 60 hours’ Acc/Dec time can be set, suitable for the application with a requirement of long Acc/Dec time.



Note

It is recommended to select “second” as the unit.

F9.10 Droop control

Range:0.00~10.00Hz【0.00Hz

】

When several drives drive one load, the function can make the drives share the load equally. An example is shown in Fig. 5-65, 5 drives drive one conveying belt of 5 motors.

Load

Belt

Motor

Drives

2 3 4 5

Fig. 5-65 Droop control

When the load of one drive is heavier, this drive will reduce its output frequency to shed part of the load according to the settings of F9.10. You can increase the setting gradually when testing. The relationship between the load and the output frequency is shown in Fig. 5-66:

Droop control

No droop control

Speed

Rated torque

Torque

Synchronuous speed

Fig. 5-66 Droop control

F9.11 Overshoot enabling

Range:0. 1【1】

When the AC supply voltage is lower than 85% of rated load for a long time or the drive has driven a heavy load for a long time, the drive can increase its output voltage by increasing the utilization rate of DC bus voltage. F9.11 decides whether to enable the overshoot function.

0: disabled

1: enabled



Note:

When overshoot function is enabled, output current harmonics will increase.

F9.12 Threshold of zero-frequency operation

F9.13 Hysteresis of zero-frequency operation

Range: 0.00~650.00Hz

【

0.00Hz】

Range: 0.00~650.00Hz

【

0.00Hz】

F9.12 and F9.13 are used to set the zero-frequency operation hysteresis.

Take CCI current reference for example, see Fig.5-67:

Starting process

After the running command is sent out, the motor will start and accelerate to the frequency corresponding to

EV2000 Series Universal Variable Speed Drive User Manual

Chapter 5 Parameter Introductions 75

the CCI input current until CCI input current reaches or exceeds the preset value of Ib, or the preset frequency reaches fb.

Stopping process:

The drive will not stop immediately when the CCI input current is reduced to Ib. It will stop its output when the CCI input current drops to Ia and the corresponding frequency is fa.

“fa” is the zero-frequency operation threshold defined by F9.12. “fb-fa” is the hysteresis of zero-frequency operation defined by F9.13.

This function can enable the drive to enter dormant state so as to save energy, besides, the drive will not start at the threshold of zero-frequency operation if the hysteresis is set properly.

CCI current input

Imax

Ib Ic

Imin

Fmin

Actual frequency setting

Fmax

primary frequency setting

Calculated length

pulses per revolution

＝

Number of pulses÷number of

perimeter of shaft

The calculated length can be corrected through F9.16 (times of length) and F9.17(correction coefficient of length, and the corrected length is the actual length.

＝

Actual length

calculated length×F9.16÷correcting

coefficient of length

When actual length(F9.15)

≥

preset length(F9.14), the

drive will send out a STOP command to stop the drive. When the drive restarts, it needs to clear or modify the actual length (F9.15), otherwise the drive will not start.



Note:

The actual length (terminal Xi is defined as No.39 function) can be cleared by multi-function input terminal. The actual length can be calculated only after this terminal is disconnected. Actual length (setting of F9.15) will be saved after power off automatically. Function of stopping at fixed length is disabled if F9.14 is set to 0, but the calculated length is still effective.

An example of stopping the motor at fixed length:

fa fc fb

fa: Zero frequency threshold fb: fa+ zero freq. hysteresis fc: Freq. corresponding to Ic(CCI input)

Primary frequency setting

Fig. 5-67 Hysteresis of zero-frequency operation

F9.14 Preset length

F9.15 Actual length

F9.16 Rate of length

F9.17 Correction coefficient of length

F9.18 Perimeter of shaft

F9.19 Number of pulses per revolution

Range:0.000~65.535km

【

0.000km】

Range:0.000~65.535km

【

0.000km】

Range:0.001~30.000【1.000

Range:0.001~1.000【1.000

Range:0.01~100.00cm

【

10.00cm】

Range: 1~9999【1】

】

This group of parameters are used for fixed length control.

The drive inputs counting pulses via terminals (X7 or X8, defined as function 44), and calculate length according to the number of pulses per revolution (F9.19) and perimeter of shaft (F9.18).

】

Fig. 5-68 Fixed length control application

In Fig. 5-68, a drive drives a motor that rotates a spindle via a conveyor belt. Speed measuring device measures the line speed of the spindle and send the speed signal to the drive in the form of pulses. The drive will count the pulses and calculate the actual length. If the actual length is longer than the preset length, the drive will stop the motor automatically. The operator can remove the spindle and close the terminal that is defined as function 39 to clear the length, and then restart and produce the next spindle.



Note:

Functions of stopping the motor at a fixed length are only valid for the drive of 45kW or below.

F9.20 Trip-free operation

Range:0. 1【0】

EV2000 Series Universal Variable Speed Drive User Manual

76 Chapter 5 Parameter Introductions

F9.21 Frequency decrease rate at voltage compensation

Range:0.00~99.99Hz/s

【

10.00Hz/s】

Trip-free operating function enables the drive to perform low-voltage compensation when the voltage drops or instantaneous under-voltage occurs. The drive can continue to operate without tripping by reducing its output frequency and feedback energy via motor.

If F9.20 is set to 0, this function is disabled.

If F9.20 is set to 1, this function is enabled and low-voltage compensation is activated.

If F9.21 (frequency decrease rate at voltage compensation) is set too big, the feedback energy of motor will be too large and over-voltage protection might be activated; If F9.21 is set too small, the feedback energy of motor will be too small to achieve voltage compensation effect. So, please set F9.21 according to load inertia and the actual load.



Note:

This function is active only for the drive of 22kW or below.

F9.22 Restart after power failure

F9.23 Delay time for restart after power failure

Range:0. 1【0】

Range:0.0~10.0s

【

0.5s】

F9.22 and F9.23 decide whether the drive starts automatically and the delay time for restart when the drive is switched off and then switched on in different control modes.

If F9.22 is set to 0, the drive will not run automatically after restarted.

If F9.22 is set to 1, when the drive is powered on after power failure, it will wait certain time defined by F9.23 and then start automatically depending on the current control mode and the drive’s status before power failure. See Table 5-15.

Table 5-15 Restarting conditions

Control modes

Serial

3-wire modes

port

1 and 2

2-wire modes

1 and 2

Setting

F9.22



Note:

Status before

Panel

power

off

Without control command With

Stop 0 0 0 0 0

Run

0 0 0 0 0

Stop 0 0 0 0 1

Run

1 1 1 0 1

Table 5-15 shows the drive’s action under different conditions. “0” means the drive enter ready status and “1” means the drive start operation automatically.

When using the panel or serial port or 3-wire modes 1 and 2 to start or stop the drive, the command signal is in pulse mode and there is no operating command when the drive is switched on. If there is a stopping command, the drive will stop first. When the function of restart after power failure is enabled, the drive will start on the fly after power on if it is not switched off totally (that is, the motor still runs and drive’s LED displays “P.OFF”). It will start in the starting mode defined in F2.00 after power on if it is switched off totally (LED turns off). For 2-wire mode 2, there is control command after power-on.

5.11 Reserved (Group FA)

FA.00~FA.11 Reserved

5.12 Communication Parameters (Group FF)

FF.00 Communication configuration

A B C

Fig. 5-69 Communication parameters

Where,

A: thousand’s place B: Hundred’s place

C: Ten’s place D: Unit’s place

FF.00 is used to set the parameters of serial communication.

Virtual terminal is used by the host PC to send commands. Each Bit of the data represents one terminal. Bit0~12 represent the status of virtual terminal X1~X8,

Range:0000~1127H

【

0005】

Baud rate

Data format

0: 1-8-1 format, no parity 1: 1-8-1 format, even parity 2: 1-8-1format, odd parity

Virtual input terminal

0: Disabled 1: Enabled

Wiring mode:

0: Cable 1: MODEM（RS232

: 0: 300bps 1: 600bps 2: 1200bps 3: 2400bps 4: 4800bps 5: 9600bps 6: 19200bps 7: 38400bps

RS232/485

（

）

EV2000 Series Universal Variable Speed Drive User Manual

Chapter 5 Parameter Introductions 77

FWD, REV, YI, Y2 and TC respectively. Please refer to Table A-8 of Appendix 3. The actual terminal is disabled if the virtual terminal is enabled. The virtual terminal is equivalent to the actual terminal.

The setting of thousand’s Bit does not affect the communication process. If FF.00 is set to MODEM (RS232) mode, the MODEM will be initialized via the RS232 port each time when the drive is switched on, so that the MODEM can answer the call automatically after it receives 3 ringing signals. See section 3.3.2 in chapter for the wiring of remote control circuit formed by dialed circuits.

FF.01 Local address

In serial communication, FF.01 is used to identify the drive’s address.

Note: “127” is the broadcast address. When the address is set to broadcast address, the drive can receive and execute the command sent by control PC, but will not answer the PC.

FF.02 Time threshold for judging communication status

If the drive has not detected the communication signal from the serial port for certain time, it will judge that communication failure occurs. The time threshold is defined by FF.02.

If FF.02 is set to 0, the drive will not detect the communication signal of serial port and this function is disabled.

FF.03 Host PC response delay

It refers to the time from drive receiving the host PC command to returning response frame to it.

Range:0~127【1】

Range:0~1000.0s

【

0.0s】

Range:0~1000ms【5ms

5.13 Motor Parameters (Group FH)

FH.00 Number of polarities of motor

FH.01 Rated power

FH.02 Rated current

FH.00, FH.01 and FH.02 are used to set the motor’s parameters.

In order to ensure the control performance, please set FH.00~FH.02 with reference to the values on the motor’s nameplate.

Range: 2~14【4】

Range:0.4~999.9kW【dependent

on drive’s model】

Range:0.1~999.9A 【dependent

on drive’s model】

】



Note:

The motor’s power should match that of the drive. Generally the motor’s power is allowed to be lower than that of the drive by 20% or bigger by 10%, otherwise the control performance cannot be ensured.

FH.03 Current without load I0

FH.04 Resistance of stator %R1

FH.05 Leakage inductance %Xl

FH.06 Resistance of rotor %R2

FH.07 Exciting inductance %Xm

See Fig. 5-70 for the above parameters.

Fig. 5-70 Motor’s equivalent circuit

In Fig. 5-70, R resistance, stator’s leakage inductance, rotor’s resistance, rotor’s leakage inductance, exciting inductance and current without load respectively. The setting of FH.05 is the sum of stator’s leakage inductance and rotor’s inductance.

The settings of FH.04 ~FH.07 are all percentage values calculated by the formula below:

, X1l, R2, X2l, Xm and I0 represent stator’s

% ×

R: Stator’s resistance or rotor’s resistance that is converted to the rotor’s side;

V: Rated voltage;

I: Motor’s rated current

Formula used for calculating inducatance (leakage inductance or exciting inductance):

% ×

X: sum of rotor’s leakage inductance and stator’s leakage inductance (converted to stator’s side)or the exciting inductance based on base frequency;

Range:0.1~999.9A【dependent

on drive’s model】

Range:0.0~50.00%【dependent

on drive’s model】

Range:0.0~50.00%【dependent

on drive’s model】

Range:0.0~50.00%【dependent

on drive’s model】

Range:0.0~2000.0%【dependent

on drive’s model】

()

⋅

()

%100

⋅

%100

1-S

EV2000 Series Universal Variable Speed Drive User Manual

78 Chapter 5 Parameter Introductions

V: Rated voltage;

I: Motor’s rated current

If motor’s parameters are available, please set FH.04 ~FH.07 to the values calculated according to the above formula.

If the drive performs auto-tuning of motor’s parameters, the results will be written to FH.03~FH.07 automatically.

After motor power (FH.01) is changed, the drive will change FH.02~FH.07 accordingly.

FH.08 Rated slip frequency

Range: 0.00~20.00Hz

【

0.00Hz】

Motor’s rated slip frequency can be calculated by the motor’s rated speed (nameplate value):

Rated slip frequency = motor’s rated frequency (e.g.

basic frequency F0.06)

speed-motor’s rated speed)

(motor’s synchronous

motor’s synchronous

speed

Where: motor’s synchronous speed = motor’s rated

frequency

120÷number of motor’s poles (FH.00)

After setting the slip frequency, the slip compensation will be enabled by F3.07~F3.09.

FH.09 Auto-tuning

Range:0~2【0】

The function can enable auto tuning of motor’s parameters and write the results in the related parameters automatically.

0: Auto-tuning is disabled

1: Stationary auto-tuning (Start auto-tuning to a standstill motor)

Values on the motor’s nameplate must be input correctly before starting auto-tuning.

When starting auto-tuning to a standstill motor, the stator’s resistance (%R1), rotor’s resistance (%R2) and the leakage inductance (%X1) will be detected and written into FH.04, FH.05 and FH.06 automatically.

2: Rotating auto-tuning

When starting a rotating auto-tuning, the motor is in standstill status at first, and the stator’s resistance (%R1), rotor’s resistance (%R2) and the leakage inductance (%X1) will be detected, and then the motor

will start rotating, exciting inductance (%Xm and I

will be detected. All the above parameters will be saved in FH.04, FH.05, FH.06, FH.07 and FH.03 automatically.

After auto-tuning, FH.09 will be set to 0 automatically. Auto-tuning procedures:

1. Set the “F0.06 basic operating frequency” and “F0.07 Max output voltage” correctly according to the motor’s feature;

2. Set the FH.00, FH.01 and FH.02 correctly;

3. If FH.09 is set to 2, Acc time (F0.10) and Dec time (F0.11) should be set correctly.

4. Remove the load from the motor and check the safety;

5. Set FH.09 to 1 or 2, press ENTER/DATA, and then press RUN to start auto-tuning;

6. When the operating LED turns off, that means the auto-tuning is over.



Note:

When setting FH.09 to 2, Acc/Dec time can be increased if over-current or over-voltage fault occurs in the auto-tuning process; When setting FH.09 to 2, the motor’s load must be removed first before starting rotating auto-tuning; The motor must be in standstill status before starting the auto-tuning, otherwise the auto-tuning cannot be executed normally; In some applications, for example, the motor cannot break away from the load or if you have no special requirement on motor’s control performance, you can select stationary auto-tuning. You can also give up the auto-tuning. At this time, please input the values on the motor’s nameplate correctly (FH.00~FH.02). If the auto-tuning cannot be applied and the correct motor’s parameters are available, the user should input the values on the motor’s nameplate correctly (FH.00~FH.02), and then input the calculated values (FH.03~FH.07). Be sure to set the parameters correctly. If auto-tuning is not successful, the drive will alarm and display fault code E024.

FH.10 Motor’s stabilization factor

Range:0~255【dependent

on drive’s model】

FH.10 is used to suppress the oscillation caused by the drive and the motor. If the drive’s output current changes frequently at constant load, you can reduce the oscillation by adjusting the parameter.

For the drive of 55kW or below, FH.10 is set at 10, and “20” for the drive of 55kW or above.

FH.11~FH.21 Reserved

Reserved

5.14 Protective Function (Group FL)

FL.00 Motor overload protection mode selection

0: Disabled

The overload protection is disabled. Be careful to use this function because the drive will not protect the motor when overload occurs;

Range:0. 1. 2【1】

EV2000 Series Universal Variable Speed Drive User Manual

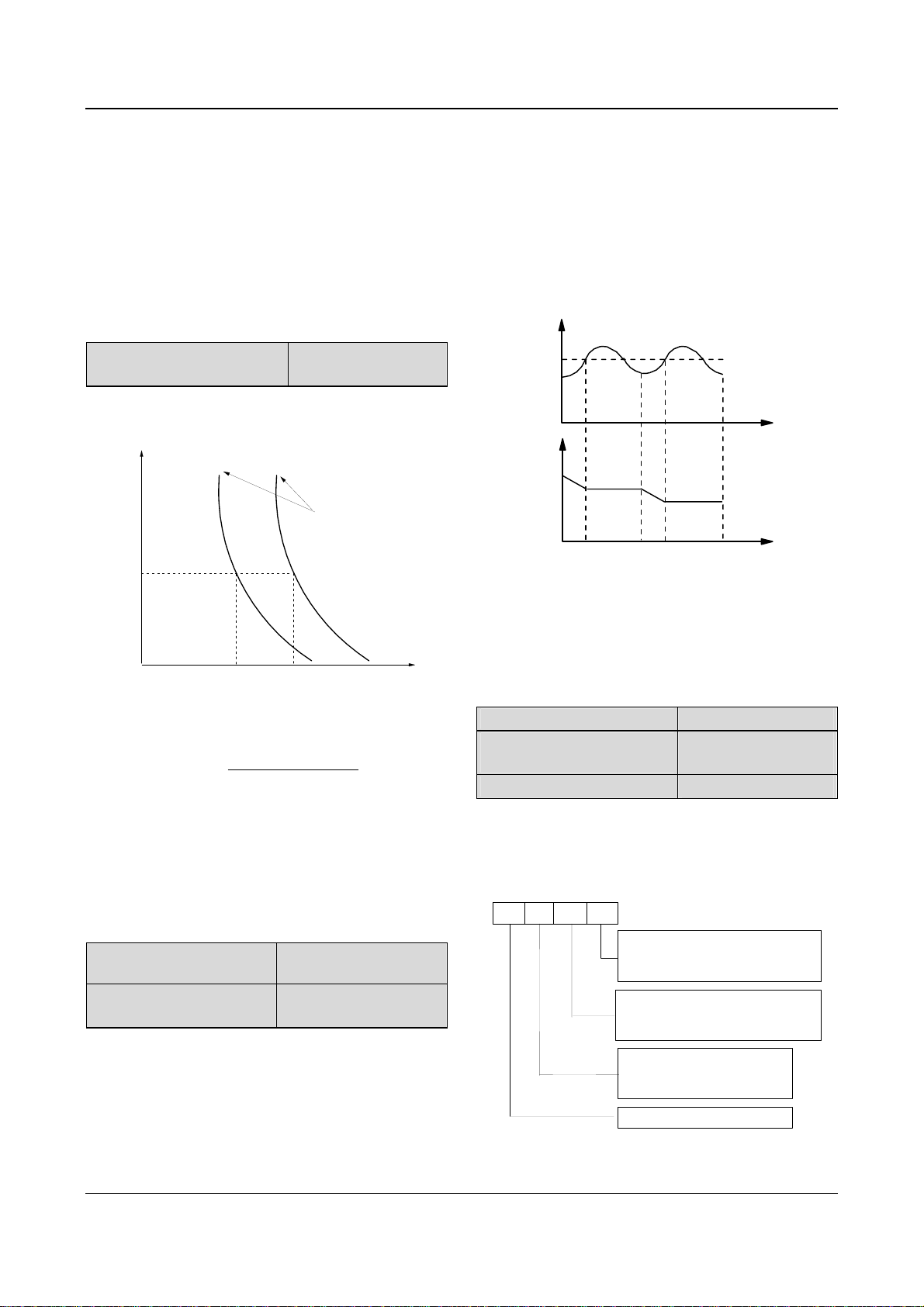

Chapter 5 Parameter Introductions 79

1:Common mode (with low speed compensation)

Since the cooling effects of common motor deteriorates at low speed (below 30Hz), the motor’s overheat protecting threshold should be lowered, which is called low speed compensation.

2: Variable frequency motor (without low speed compensation)

The cooling effects of variable frequency motor is not affected by the motor’s speed, so low speed compensation is not necessary.

FL.01 Motor’s overload protection coefficient

Range:20.0~110.0%

【

100.0%】

In order to apply effective overload protection to different kinds of motors, the Max output current of the drive should be adjusted as shown in Fig. 5-71.

Time

1min

80%

100%

Motor overload protective coefficient

drive's DC bus. If no measures taken, the drive will trip due to over voltage.

During the deceleration, the drive detects the bus voltage and compares it with the over voltage point at stall defined by FL.03. If the bus voltage exceeds the stall overvoltage point, the drive will stop reducing its output frequency. When the bus voltage become lower than the point, the deceleration continues, as shown in Fig. 5-72.

Overvolt point at stall

Time

Output freq.

Time

Fig. 5-72 Over-voltage at stall

160%

200%

Current

Fig. 5-71 Motor’s overload protection coefficient

Use the following coefficient to calculate the coefficient:

Motor overload

protection coefficient

motor rated current

inverter's rated output current

100

Generally, the Max load current is the motor’s rated current.



Note:

If the motor’s rated current does not match that of the drive, motor’s overload protection can be realized by setting FL.00~FL.01.

FL.02 Protection of Over-voltage at stall

FL.03 Over-voltage point at stall

Range:0. 1【1】

Range:120~150%

【

140.0%】

0: Disabled

1: Enabled

During deceleration, the motor’s decelerate rate may be lower than that of drive’s output frequency due to the load inertia. At this time, the motor will feed the energy back to the drive, resulting in the voltage rise on the



Note:

The drive will alarm and display E015 when it is in the status of over-voltage at stall for more than 1 minute. If the stall point is set too low, you can prolong the Acc and Dec time properly.

FL.04 Overload detection

FL.05 Overload pre-alarm detection threshold

FL.06 Overload detection time

Range:000~111【000

Range:20~150%

【

130.0%】

Range:0.0~60.0s【5.0s

】

EV2000 has protection over drive and motor overload. See Table 2-1 for drive overload protection, and FL.00 and FL.01 for motor overload protection. FL.04~FL.06 can monitor the overload condition before overload protection happens.

A B C D

Overload alarm detection

0: Detect all the time

1: Detect in constant speed status

Overload protection

0: No alarm and continue operation 1: Alarm and stop operation

Overload detection threshold

0: % of motor's rated current 1: % of drive's rated current

Reserved

Fig. 5-73 Settings of FL.04

EV2000 Series Universal Variable Speed Drive User Manual

80 Chapter 5 Parameter Introductions

Where,

A: thousand’s place B: Hundred’s place

C: Ten’s place D: Unit’s place

Unit’s place: overload pre-alarm

0: overload pre-alarm function is active all the time when the drive is operating

1: overload pre-alarm function is active all the time when the motor is operating at constant speed

Ten’s place: Actions selection for overload pre-alarm

0:The drive does not alarm and continue to run when detecting active overload signal

1: The drive alarms and stops when detecting active overload signal

Hundred’s place: overload threshold selection

0: ratio of load current to motor’s rated current (display fault code of E014)

1: ratio of load current to drive’s rated current (display fault code E013)

FL.05 defines the current threshold for overload pre-alarm protection. The setting range is a percentage value of rated current, please refer to FL.04.

FL.06 defines the time during which the drive current exceeds FL.05. If the status remains after this period of time, the drive will output pre-alarm signal.

Output current

Detect threshold

Action

Detect time

Enabled

Time

Fig. 5-74 Overload pre-alarm function



Note:

1. Overload pre-alarm detection threshold should be lower than the overload protection threshold;

2. During the overload detection time, if the drive’s current is smaller than FL.05, the drive will time again for FL.06 and will not alarm.

Range:20.0~200.0%

FL.07 Auto current limiting threshold

FL.08 Frequency decrease rate when current limiting

FL.09 Auto current limiting selection

【

depending on drive

type】

Range:0.00~99.99Hz/s

【

10.00Hz/s】

Range:0~1【1】

Auto current limiting function is used to limit the load current smaller than the value defined by FL.07 in real time. Therefore the drive will not trip due to surge over-current. This function is especially useful for the applications with big load inertia or big change of load.

FL.07 defines the threshold of auto current limiting. It is a percentage of the drive’s rated current. It is default 150% for G type and 110% for P type.

FL.08 defines the decrease rate of output frequency when the drive is in auto current limiting status.

If FL.08 is set too small, overload fault may occur. If it is set too big, the frequency will change too sharply and therefore, the drive may be in generating status for long time, which may result in overvoltage protection.

Auto current limiting function is always active in Acc or Dec process. Whether the function is active in constant speed operating process is decided by FL.09.

＝

FL.09

0, Auto current limiting function is disabled in

constant speed operating process;

FL.09

＝

1, Auto current limiting function is enabled in

constant speed operating process;

In auto current limiting process, the drive’s output frequency may change; therefore, it is recommended not to enable the function when the drive’s output frequency is required stable.

When the auto current limiting function is enabled, if FL.07 is set too low, the output overload capacity will be impaired.

FL.10 Auto reset times

FL.11 Reset interval

Range:0~10【0】

Range:2.0~20.0s【5.0s

Auto reset function can reset the fault in preset times

and interval. When FL.10 is set to 0, it means “auto

reset” is disabled and the protective device will be

activated in case of fault.



Note:

The IGBT protection (E010) and external equipment fault (E015) cannot be reset automatically. During the reset interval, the drive stops output and operates at zero frequency. It will restart on the fly after reset. Be careful in using auto-reset function, other w ise human injury or material loss may occur.

FL.12 Protective action 1

FL.13 Protective action 2

Range: 000~111【000

Range: 0000~3211【0000

Under some abnormal conditions, the drive can be set to

ignore them and continue to operate without alarm or

taking protective action through FL.12 and FL.13.

】

EV2000 Series Universal Variable Speed Drive User Manual

Chapter 5 Parameter Introductions 81

FL.12 defines the protective actions when communication fault, contactor fault or EEPROM fault occurs.

Action for communication fault 0: Alarm and c oast to stop 1: No alarm, cont inue operation

2: No alarm, stop in stopping mode (only in serial port control mode) 3: No alarm, stop in stopping

( all control modes)

Action for contactor fault 0: Alarm and coast to stop 1: No alarm, continue operation

Action for EEPROM fault 0: Alarm and coast to stop 1: No alarm, continue operation

Reserved

mode

Fig. 5-75 Protective action 1

Where,

A: thousand’s place B: Hundred’s place

C: Ten’s place D: Unit’s place

FL.13 defines the protective actions when the drive is in under-voltage status, auto reset interval and fault lock-up status.

A B C

Indication for under volt fault 0: No indication

1: Indicate the fault

Indication for auto reset fault

0: No indication

1: Indicate the fault

Fault lock -up 0: Disable 1: Enable (no fault indic ation) 2: Enable (indicate the fault)

Phase- failure protection 0: Input&output phase failure protect 1: No input phase failure protect 2: No output phase failure protect 3: No input&output phase failure

protect

Fig. 5-76 Protective action 2

Where,

A: Thousand’s place B: Hundred’s place

C: Ten’s place D: Unit’s place

Attention

Please set FL.12 and FL.13 carefully, otherwise human injury or equipment damage may occur.

FL.14 Type of third latest fault

FL.15 Type of second latest fault

FL.16 Type of latest fault

FL.17 DC Bus Voltage at last fault

FL.18 Output current at last fault

Range:0~24【0】

Range:0~999V【0V】

Range:0~999.9A【0.0A

FL.19 Frequency at last fault

Range:0.00~650.00Hz

【

0.00Hz】

EV2000 has 24 types of protective alarms and it can memorize the types of 3 latest faults (FL.14~FL.16), and the voltage, current and frequency (FL.17~FL.19) of latest fault.

See chapter 7 for the detailed descriptions of alarms.

5.15 Drive Parameters (Group Fn)

Fn.00 Preset operating time

Fn.01 Total operating time

Fn.02 Temperature of heatsink 1

Fn.03 Temperature of heatsink 2

When the total operating time reaches the preset operating time (Fn.00), the drive can output an indicating signal. See F7.10~F7.12 for details.

Fn.01 records the actual operating time from first use of the drive to the present.

Temperature of heatsink 1 is the temperature of IGBT modules. Different IGBT modules have different over-temperature threshold.

Temperature of heatsink 2 is the temperature of rectifier. The drive of 45kW or below does not detect this temperature.

Temperature display range: 0~100

Range:0~65.535k hours【0

Range: 0~100℃【0】

℃

; accuracy: 5%

5.16 Protection of Parameters (FP)

FP.00 User’s password

User’s password can prevent unauthorized persons from checking and modifying the functional parameters.

Set FP.00 to 0000 if the user’s password is unnecessary.

If the user’s password is necessary, input a 4-digit none-zero figure, press ENTER/DATA to confirm. If not pressing any key within 5 minutes, the password will become effective.

Changing the password:

Press MENU/ESC, input the primary password, select

FP.00 (at this time FP.00

and press ENTER/DATA to confirm. The password will become effective if not pressing any key within 5 minutes.

】



Note:

Range: 0000~9999【0000

＝

0000), input new password

】

EV2000 Series Universal Variable Speed Drive User Manual

82 Chapter 5 Parameter Introductions

Please memorize the password.

FP.01 Parameter write-in protection

Range:0~2【1

FP.01 is used to protect the parameter settings:

0: All parameters are allowed modifying;

1: only F0.02 and FP.01 can be modified;

2: only FP.01 can be modified.



Note:

The factory setting of FP.01 is 1. If you want to modify parameters, FP.01 must be set to 0. After the modification, set the parameter back to 1 or 2

FP.02 Parameter initialization

Range:0~2【0】

0: No operation

1: Clear memory

When FP.02 is set to 1, the fault records of FL.14~FL.19 will be cleared.

2: Restore to factory settings

If FP.02 is set to 2, the parameters before FL.12 (except F0.08 and FH.00) are restored to factory settings.

FP.02 will be changed to 0 automatically after clearing the memory or restoring to factory settings.

】



Note:

For the drive of 45kWG or below, when FP.02 is set to 2, the motor parameters will be set matched with the drive’s type G or P (defined in F0.08).

FP.03 Parameter copy

Range:0~3【0】

FP.03 is only valid for LCD panel.

0: No action

1: parameters upload

2: parameters download

3: parameters download (except the parameters related to drive type)



Note:

1. For LCD panel, you must upload parameters to the panel’s memory first, otherwise, there will be no data in the memory. Once the data are uploaded, they will exist permanently.

2. Before downloading the parameters to the drive, the drive will check the version and integrity of the parameters stored in the panel. The operation cannot proceed if no data in the memory, incompleteness of the parameters, or the parameter set is incompliant with the version of the drive (e.g. number of parameters).

3. After the download, the parameters in the panel are still available for copying to other drives.

FP.04 Reserved

EV2000 Series Universal Variable Speed Drive User Manual

Chapter 6 Troubleshooting 83

Chapter 6 Troubleshooting

Table 6-1 listed the possible faults of EV2000. Once a fault occurs, you may check it against the table and record detailed phenomena before seeking service from your supplier.

Table 6-1 Faults and actions

Fault

Fault categories Possible reasons of fault Actions

code

Too short Acc time Prolong the Acc time

Check and adjust V/F curve, adjust

Over-current

E001

E002

E003

E004

E005

E006

E007

E008 Input phase loss Any of phase R, S and T cannot be detected

E009

during acceleration

Over-current during deceleration

Over-current in constant speed operation

Over voltage during acceleration

Over voltage during deceleration

Over voltage in constant-speed operating process

Drive’s control power supply over voltage

Output phase failure

V/F curve is not suitable.

The rotating motor restarts right after stop.

Low AC supply voltage

Drive power is too small

Too short Dec time

The load generates energy or the load inertial is too big

Too low drive’s power Select the drive with bigger power

Sudden change of load Reduce the change of the load

Too short Acc/Dec time Prolong Acc/Dec time

Abnormal load Check the load

Low AC supply voltage Check the AC supply voltage

Insufficient drive’s power Select the drive with bigger power

Abnormal AC supply voltage Check the AC supply voltage

Too short Acc/Dec time Prolong the Acc time

The rotating motor re-start after the drive stops instantly.

Too short Dec time (with reference to generated energy)

The load generates energy or the load inertial is too big

Abnormal AC supply voltage

Too short Acc/Dec time

Abnormal change of input voltage

Too big load inertia Use suitable dynamic braking kit

Abnormal AC supply voltage

Any of Phase U, V and W cannot be detected

torque boost or set the motor parameters correctly to ensure the normal auto torque boost.

Set F2.00 to “start on fly” function

Check the drive’s input AC supply

Select a high power drive

Prolong the Dec time

Connect suitable braking kit

Set F2.00 to “start on fly” function

Prolong the Dec time

Use suitable dynamic braking kit

Check the AC supply voltage

Prolong the Acc/Dec time

Install input reactor

Check the AC supply voltage or seek service

Check the wiring and installation Check the AC supply voltage

Check the drive’s output wiring Check the cable and the motor

EV2000 Series Universal Variable Speed Drive User Manual

84 Chapter 6 Troubleshooting

Fault

Fault categories Possible reasons of fault Actions

code

Instantaneous over-current Refer to E001~E003

Short-circuit among 3-phase output or line-to-ground short circuit

Vent is obstructed or fan does not work

Over-temperature

E010

Protections of IGBT act

Wires or connectors of control board are loose

Current waveform distorted due to output phase loss

Auxiliary power supply is damaged or IGBT driving voltage is too low

Short-circuit of IGBT bridge

Control board is abnormal Seek service

Over-temperature Lower the ambient temperature

E011

IGBT module’s heatsink overheat

Vent obstructed Clean the vent

Fan does not work Replace the fan

IGBT module is abnormal Seek service

Ambient over-temperature Lower the ambient temperature

Obstruction of ventilation channel Clear the ventilation channel

Fan does not work Replace the fan

E012

Rectifier’s heatsink overheat

Too short Acc/Dec time

DC injection braking current is too big

E013 Drive overload

Improper V/F curve

The rotating motor restart after the drive stops instantly.

Low AC supply voltage

Too heavy load

Improper V/F curve

Low AC supply voltage Check the AC supply voltage

E014 Motor over-load

Common motor has operated with heavy load at low speed for a long time.

Improper motor’s overload protection threshold Modify the motor’s overload protection

Load changes fast Check the load

STOP is pressed in non-panel control mode

STOP pressed when the drive is in stall status

The drive will report E015 fault if it is in stall status for 1 minute

E015

Emergent stop or external equipment fails

Terminal used for stopping the drive in emergent status is closed

E016

EEPROM R/W fault

R/W fault of control parameters

Rewiring

Clean the vent or replace the fan

Lower the ambient temperature

Check and rewiring

Check the wiring

Seek service

Prolong the Acc/Dec time

Reduce the DC injection braking current or prolong the braking time

Adjust V/F curve or torque boost value

Set the starting mode (F2.00) to “start of fly”

Check the AC supply voltage

Select the drive with bigger power

Set V/F curve and torque boost value correctly

Use a special motor if the motor is required to operate for a long time.

threshold.

Check the definition of STOP function in F9.07 and the operating mode

Check the definition of STOP function in F9.07

Set FL.02 and FL.03 properly

Disconnect the terminal if the external fault is cleared

Press STOP/RESET to reset Seek service

EV2000 Series Universal Variable Speed Drive User Manual

Fault

Fault categories Possible reasons of fault Actions

code

Set the baud rate correctly

Press STOP/RESET to reset, seek service

Modify FF.02, FF.03 and FL.12

E017

RS232/RS485 communication failure

Wrong baud rate setting

Serial port communication error

Improper settings of alarm parameters

Host PC does not work Check the host PC; Check the wiring

Low AC supply voltage Check the AC supply voltage

Replace the contactor in main circuit and seek service

Replace the soft start resistor and seek service

Seek service

Check the wiring of R, S, T.

E018

Contactor not closed

Contactor damaged

Soft start resistor is damaged

Control circuit is damaged

Input phase loss

Wires or connectors of control board are loose Check and re-wire

E019

Current detection circuit has fault

Auxiliary power supply is damaged Seek service

Hall sensor is damaged Seek service

Amplifying circuit is abnormal Seek service

Press STOP/RESET to reset or install power filter at the input side of the drive.

Press STOP/RESET to reset Seek service

E020

System disturbance

Severe disturbance

R/W fault of DSP in main control board

E021 Reserved Reserved Reserved

E022 Reserved Reserved Reserved

Update the panel’s parameters and

E023

Parameter copy error

Panel’s parameters are not complete or the version of the parameters are not the same with that of main control board

version again. First set FP.03 to 1 to upload the parameters and then set FP.03 to 2 or 3 to download the parameters.

Panel’s EEPROM is damaged Seek service

E024 Auto-tuning fails

Improper settings of parameters on the nameplate

Set the parameters correctly according to the nameplate

Overtime of auto-tuning Check the motor’s wiring

Chapter 6 Troubleshooting 85

EV2000 Series Universal Variable Speed Drive User Manual

86 Chapter 6 Troubleshooting

Phenomena Conditions

No response of operation panel

Part of the keys or all the keys are disabled

Table 6-2 Abnormal phenomena and handling methods

Possible reasons of fault Actions

In stopping status, first press ENTER/DATA and hold on, then press

▼

Panel is locked up

3 times continuously to unlock the

panel

Power-on the drive after it shuts down completely

Panel’s cables are not well connected. Check the wiring

Panel’s keys are damaged Replace operation panel or seek service

Settings of parameters cannot be changed

Operating status cannot be changed

Part of parameters cannot be changed.

MENU/ESC is disabled

Parameter not allowed changing during operation

FP.01 is set to 1 or 2 Set FP.01 to 0

Parameter is actually detected, not allowed changing

Panel is locked up See “No response of operation panel”

Parameter not displayed when pressing MENU/ESC.

User’s password is required

Instead, “0.0.0.0.” is displayed

Fault alarm occurs Find the fault reason and reset the drive

Single cycle of PLC operation is completed

The drive stops and its “RUN” LED is off, while there is no “STOP” command

Function of stopping at fixed length is enabled

Communication between host or remote mounted keypad and the drive fails

AC supply is interrupted Check the AC supply condition

Change the parameter at STOP state

Do not try to modify these kind of parameters, they are marked with “*” in the parameter table in chapter 8.

Input correct user’s password

Seek service

Check the parameter settings of PLC

Clear the information of actual length or set F9.14 (setting length) to 0

Check the communication circuits and the settings of FF.02, FF.03 and FL.12

The drive stops during operating process

Motor stops when there is no stopping command, while the drive’s “RUN” LED illuminates and operates at zero frequency

Control mode is changed

Check the setting of relevant parameters

Logic of control terminal changes Check the settings of F7.35

Auto-reset upon a fault Check the setting of auto-reset

PLC operation stops

Stopping command is input from external terminal

Check the terminal used for inputting signal of stopping PLC operation

Check the setting of this external terminal

Stops at zero-frequency Check the settings of F9.12 and F9.13

Preset frequency is 0 Check the frequency setting

Skip frequency is set incorrectly Check the setting of skip frequency

EV2000 Series Universal Variable Speed Drive User Manual

Chapter 6 Troubleshooting 87

Phenomena Conditions

Motor stops without

The drive stops during operating process.

stopping command, while the drive’s “RUN” LED illuminates and operates at zero frequency

The drive does not

The drive does not work

work and its “RUN” LED is off when the “RUN” key is pressed.

Possible reasons of fault Actions

Positive logic: close loop feedback value >reference Negative logic: close loop feedback

Check the close-loop reference and feedback

value <reference

F9.05 is set to 0 Check the settings of F9.05 and F9.06

Low-voltage compensation is applied when the drive restarts after power failure, besides, the AC supply voltage is

Check the settings of restart after power

failure and the AC supply voltage too low

Terminal used for coasting to stop is enabled

The terminal used to prohibit the running of the drive is enabled.

Terminal used for stopping the drive is enabled

The drive stops at fixed length

Check the terminal used for coasting to

stop

Check the terminal

Check the terminal used for stopping the

drive

Check the function of stopping at fixed

length and the actual length

In 3-wire control mode, the terminal used to control the 3-wire operation is

Set and close the terminal not closed.

Fault alarm occurs Clear the fault

“POWEROFF” is reported when the drive begin to run immediately after power-on.

Transistor or contactor disconnected and overload

Virtual terminal of host is set incorrectly

Positive and negative logic of input terminal are not set correctly

Since the transistor or contactor is disconnected, the bus voltage drops at heavier load, therefore, the drive displays POWEROFF, not E018 message.

Disable the function of this terminal or set it properly via the host or change the settings of F7.35

Check the settings of F7.35

Run the drive until the transistor or contactor is connected.

EV2000 Series Universal Variable Speed Drive User Manual

88 Chapter 7 Maintenance

Chapter 7 Maintenance

Many factors such as ambient temperature, humidity, dust, vibration, internal component aging, wear and tear will give

rise to the occurrence of potential faults. Therefore, it is necessary to conduct routine maintenance to the drives.



Notes:

As safety precautions, before carrying out check and maintenance of the drive, please ensure that : The drive has been switched off; The charging LED lamp inside the drive is off. Use a volt-meter to test the voltage between terminals (+) and (-) and the voltage should be below 36V.

7.1 Daily Maintenance

The drive must be operated in the environment specified in the Section 2.1. Besides, some unexpected accidents may

occur during operation. You should maintain the drive conditions according to the table below, record the operation data,

and find out problem in the early stage.

Table 7-1 Daily checking items

Items

Operating environment

Drive

Motor

Operating status parameters

Temperature and humidity

Dust and water dripping Visual inspection No water dripping

Gas

Vibration and heating Touch the case

Noise

Heating Touch by hand No overheat

Noise

Output current Current meter Within rated range

Output voltage Volt-meter Within rated range

Internal temperature

Items Cycle Checking methods

7.2 Periodical Maintenance

Customer should check the drive every 3 months or 6

months according to the actual environment.



Notes:

1. Only trained personnel can dismantle the drive to replace or repair components;

2. Don't leave metal parts like screws or pads inside the drive; otherwise the equipment may be damaged.

General Inspection:

1. Check whether the screws of control terminals are

loose. If so, tighten them with a screwdriver;

2. Check whether the main circuit terminals are properly

connected; whether the mains cables are over heated;

Instructions

Any time

Criterion

-10

℃

Thermometer and hygrometer

Visual inspection No strange smell

Listen No abnormal sound

Listen Low and regular noise

Thermometer

3. Check whether the power cables and control cables are damaged, check especially for any wear on the cable tube;

4. Check whether the insulating tapes around the cable lugs are stripped;

5. Clean the dust on PCBs and air ducts with a vacuum cleaner;

6. For drives that have been stored for a long time, it must be powered on every 2 years. When supplying AC power to the drive, use a voltage regulator to raise the input voltage to rated input voltage gradually. The drive should be powered for 5 hours without load.

7. Before performing insulation tests, all main circuit input/output terminals should be short-circuited with conductors. Then proceed insulation test to the ground. Insulation test of single main circuit terminal to ground is

~+40℃,

derating at 40

Stable vibration and proper temperature

Temperature rise is smaller

than 35

℃

~50℃

EV2000 Series Universal Variable Speed Drive User Manual

Chapter 7 Maintenance 89

forbidden; otherwise the drive might be damaged.

Please use a 500V Mega-Ohm-Meter.

EV2000

VRF

VCI

GND

P1 (+) (-)

FWD

COM

P24

V W

. .

Fig. 7-1 Insulation test of drive

8. Before the insulation test of the motor, disconnect the

motor from the drive to avoid damaging it.

EV2000

FWD

COM

P24

. .

(+) (-)

VRF

VCI

GND

Fig. 7-2 Insulation test of motor



Notes:

Dielectric strength test of the drive has already been conducted in the factory. Do not do the test again, otherwise, the internal components might be damaged.

7.3 Replacing Wearing Parts

The components that are easily damaged are: cooling

fan and electrolytic capacitors of filters. Their lifetime

depends largely on their application environment and

preservation. Normally, lifetime is:

Components Life

Fan 3~40,000 hours

Electrolyte capacitor 4~50,000 hours

You can decide the time when the components should

be replaced according to their service time.

Cooling fan

Possible cause of damages: wear of the bearing, aging

of the fan vanes.

Criteria:

After the drive is switched off, check if abnormal conditions such as crack exists on fan vanes and other parts. When the drive is switched on, check if drive running is normal, and check if there is any abnormal vibration.

2. Electrolytic capacitors

Possible cause of damages: high ambient temperature, aging of electrolyte and large pulse current induced by rapid changing loads.

Criteria: Check if frequent over-current or over-voltage failures occur during drive start-up with load. Check if there is any leakage of liquids. Check if the safety valve protrudes. Measure static capacitance and insulation resistance.

7.4 Storage

The following points must be followed for the temporary and long-term storage of drive:

1. Store in locations free of high temperature, humidity, dust, metal powder, and with good ventilation.

2. Long-term storage will cause the deterioration of electrolytic capacitors. Therefore, the drive must be switched on for a test within 2 years at least for 5 hours. The input voltage must be boosted gradually by the voltage regulator to the rated value.

7.5 Warranty

Emerson Network Power will offer warranty service in the case of the following situations:

1.The warranty clause is only confined to the drive;

2. Emerson Network Power will take the responsibility of 18 months defects liability period for any faults or damages under the normal operation conditions. After 18 months, maintenance will be charged;

3. Even within 18 months, maintenance would be charged under the following conditions:

4.Damages incurred to the drive due to incorrect operation, which are not in compliance with “User Manual”;

②

Damages incurred to the drive due to fire, flood,

abnormal voltage and so on;

③

Damages incurred to the drive due to the improper

use of drive functions;

5. Service fee will be charged according to the actual costs. If there are any maintenance contracts, the contract prevail.

EV2000 Series Universal Variable Speed Drive User Manual

90 Appendix 1 Parameters

Appendix 1 Parameters

EV2000 series drive’s parameters are organized in

groups. Each group has several parameters that are

identified by “Group No.+ Function Code. For example,

“F5.08” belongs to group 5 and its function code is 8.

For the convenience of setting, parameter group number

corresponds to the first level menu, parameter

sub-group corresponds to the second level menu and

parameter value corresponds to the third level menu.

The parameter descriptions are listed in the tables

below.

Note:

1. The “modification” column in the parameter table

means whether the parameter can be modified.

“O” denotes the parameters can be modified during

operation or at STOP state;

” denotes the parameters cannot be modified during

“

operating;

“*” denotes the parameters are actually detected and

cannot be revised;

“-” denotes the parameters are defaulted by factory and

cannot be modified ;

When you try to modify some parameters, the system

will check their modification property automatically to

avoid mis-modification.

Parameter settings are expressed in decimal (DEC) and

hexadecimal (HEX). If the parameter is expressed in

hexadecimal, the bits are independent to each other.

The value of the bits can be 0~F.

In the tables, “LCD display” is available only for the drive

with LCD keypad

“Factory settings” means the default value of the

parameter. When the parameters are initialized, they will

resume to the factory settings. But the actual detected or

recorded parameters cannot be initialized;

The parameters can be protected against unauthorized

modifications by password. After the user’s password is

set up (FP.00 is not set to zero), you are required to

input password when you press MENU/ESC to enter

menu. For the parameters exclusive for factory use, you

cannot change them.

After the password is set, if no keypad operation within 5

minutes, the modification of parameters will be protected

by password. You can modify the password at any time.

The last input password is valid.

The user’s password can be disabled by setting FP.00 to 0.

The above rules should be observed when changing the password or setting the parameters via the serial port.

Attention

It is defaulted that no parameters except F0.02 are allowed changing. If you need change them, please first set FP.01(parameter write-in protection) from 1 to 0.

EV2000 Series Universal Variable Speed Drive User Manual

Appendix 1 Parameters 91

Table A-1 Parameters

Group F0: Basic Operating Parameters

Para.

F0.00

F0.01

F0.02

F0.03

F0.04 Running direction setup

F0.05

F0.06

F0.07 Max output voltage

F0.08 Type selection MODEL SELE

F0.09 Torque boost

F0.10 Acc time 1 ACC TIME1

F0.11 Dec time 1 DEC TIME1

F0.12 Upper limit of frequency

F0.13 Lower limit of frequency

F0.14 V/F curve setting

F0.15 V/F frequency value F3 V/F FREQ3 F0.17~F0.06 0.01Hz 0.00Hz

F0.16 V/F voltage value V3 V/F VOLT3 F0.18~100.0% 0.1% 0.0%

F0.17 V/F frequency value F2 V/F FREQ2 F0.19~F0.15 0.01Hz 0.00Hz

F0.18 V/F voltage value V2 V/F VOLT2 F0.20~F0.16 0.1% 0.0%

F0.19 V/F frequency value F1 V/F FREQ1 0.00~F0.17 0.01Hz 0.00Hz

F0.20 V/F voltage value V1 V/F VOLT1 0~F0.18 0.1% 0.0%

Name LCD Display Setting range Unit Factory setting Modif.

0:Digital input 1:set the reference via ▲ and ▼ keys

on panel

Reference frequency selector

Digital frequency control

Set operating frequency in digital mode

Methods of inputting operating commands

Maximum output frequency

Basic operation frequency

FREQ SET MODE

DIGITAL FREQ CTR

RUN FREQ SET

RUN COMMAND SELE

RUN DIRECTION

MAX OUTPUT FREQ

BASE RUN FREQ

MAX OUTPUT VOLT

TORQ BOOST

UPPER FREQ LIMIT

LOWER FREQ LIMIT

V/F CURVE MODE

1:Digital input 2:set the reference via terminal UP/DN 2:Digital input 3:set the reference via serial port 3:Set the reference via VCI 4:Set the reference via CCI 5:Set the reference via PULSE terminal

Unit’s place of LED: 0:Frequency value can be saved at power off 1:Frequency value can not be saved at power off Ten’s place of LED: 0:Stopping frequency holding 1:Stopping frequency recovery F0.02 Note :Only for F0.00=0,1,2

F0.13~F0.12 (Only for F0.00=0. 1. 2)

0:Input via panel:(LED turns on); 1:Input via terminal:(LED off); 2:Inpuy via serial port:(LED flashes)

0:Run forward 1:Run reverse 1 0

Max{50.00,upper limit of frequency F0.12}~650.0Hz 0.01Hz 50.00Hz

1.00~650.0Hz 0.01Hz 50.00Hz

1~480V 1V

0:Type G(suitable for load with constant torque) 1:Type P(suitable for load of pumps and fans) Note:Valid for the drive of 45kW or below or the type G/P integrated drive

0.0:(auto)

0.1%~30.0%

0.1~3600 Note: Default unit is second; Unit of Acc/Dec time is defined by F9.09

Lower limit of frequency F0.13~Maximum frequency F0.05

0.00~upper limit of frequency F0.12 0.01Hz 0.00Hz

0: User-defined V/F curve(decided by F0.15~F0.20) 1: Torque-stepdown characteristic curve 1 (2.0 order) 2: Torque-stepdown characteristic curve 2 (1.7 order) 3: Torque-stepdown characteristic curve 3 (1.2 order)

1 0

1 00

0.01Hz 50.00Hz

1 0

Drive’s rated value

1 0

0.1% 0.0%

5.5kW~ 22kWG:

0.1 30kW~ 280kWP:

0.01Hz 50.00Hz

1 0

6.0s

20.0s

○

EV2000 Series Universal Variable Speed Drive User Manual

92 Appendix 1 Parameters

Group F0: Basic Operating Parameters

Para.

F0.21

Name LCD Display Setting range Unit Factory setting Modif.

Cut-off point of manual torque boost

BOOST RANGE

0.0~50.0% ( ratio of cut-off frequency to setting of F0.06 )

0.1% 10.0%

Group F1: Reference frequency parameters

Para. Name LCD Display Setting range Unit

Units place of LED:VCI frequency curve selection

F1.00

F1.01

F1.02

F1.03

F1.04

F1.05

F1.06 Max reference 1 MAX REF1

F1.07

F1.08 Min reference 2 MIN REF2

F1.09

F1.10 Max reference 2 MAX REF2

F1.11

Selection of frequency reference curve

Gain of reference selector

Reference time constant of filter

Maximum input pulse frequency

Minimum reference of curve 1

Frequency corresponding to Min. reference 1

Frequency corresponding to Max reference 1

Frequency corresponding to Min reference 2

Frequency corresponding to Max reference2

REF CURVE SELE

REF CHAN GAIN 0.00~9.99 0.01 1.00

FILTER CONST 0.01~50.00s 0.01s 0.50s

MAX INPUT PULSE 0.1~50.0k 0.1k 10.0k

MIN REF1

REF1 LOW FREQ 0.00~F0.05 1 0.00Hz

REF1 HIGH FREQ 0.00~F0.05 1 50.00Hz

REF2 LOW FREQ 0.00~F0.05 1 0.00Hz

REF2 HIGH FREQ 0.00~F0.05 1 50.00Hz

0:Curve 1 1:Curve 2 Ten’s place of LED:CCI frequency curve selection 0:Curve 1 1:Curve 2 Hundred’s place of LED: Pulse frequency curve selection 0:Curve 1 1:Curve 2

0.0%~F1.06 (Ratio between Min reference 1 and base value of 10V/20mA/F1.03)

F1.04~100.0% (Ratio between Max reference 1 and base value of 10V/20mA/F1.03)

0.0%~F1.10 (Ratio between Min reference 2 and base value of 10V/20mA/F1.03)

F1.08~100.0% (Ratio between Max reference and base value of 10V/20mA/F1.03)

Factory

setting

1 000

0.1% 0.0%

0.1% 100.0%

0.1% 0.0%

0.1% 100.0%

○

Modif.

○



Note:

In order to be simple, all the analog value is expressed by voltage value. The formula that converts the current(mA) into voltage(V) is: Voltage(V) =Current (mA)/2.

Group F2: Starting and Braking Parameters

Para. Name LCD Display Setting range Unit

0:start at start frequency 1:brake first, then start at start frequency 2:Start on the fly(including direction judgement), start at

F2.00 Start mode START MODE

start frequency when speed is zero Note: Starting process includes switching on the drive for the first time, recover of AC supply after power failure, reset upon external fault and coast-to-stop

F2.01 Start frequency START FREQ 0.20~60.00Hz 0.01Hz 0.50Hz

Start frequency holding

F2.02

time

DC injection braking

F2.03

current at start

HOLD TIME 0.0~10.0s 0.1s 0.0s

BRAK CURR AT START

Depending on the type of the drive

P type: 0.0～80.0% of drive’s rated current

G type: 0.0～100.0% of drive’s rated current

0.1% 0.0%

EV2000 Series Universal Variable Speed Drive User Manual

Factory

setting

1 0

Modif.

○

Appendix 1 Parameters 93

Group F2: Starting and Braking Parameters

Para. Name LCD Display Setting range Unit

DC injection braking

F2.04

time at start

Accelerating/deceleratin

F2.05

g mode selection

F2.06 Start section of S curve

BRAK TIME

ACC/DEC MODE

S CURVE START SEC

F2.07 Rising time of S curve S CURVE UP

0.0 (disabled), 0.1～30.0s

0:Linear Accelerating / decelerating mode 1:S curve 2:Auto Accelerating/decelerating

10.0%~50.0%(Acc/Dec time)

F2.06+F2.07≤90%

10.0%~80.0%(Acc/Dec time)

F2.06+F2.07≤90%

0.1s 0.0s

0.1% 20.0%

0.1% 60.0%

Factory

setting

1 0

0: Dec to stop

F2.08 Stopping Mode STOP MODE

1: Coast to stop

1 0

2: Dec to stop plus DC injection braking

DC injection braking

F2.09

initial frequency at stop

DC injection braking

F2.10

waiting time at stop

DC injection braking

F2.11

current at stop

DC injection braking

F2.12

time at stop

F2.13 Dynamic braking BRAK UNIT SELE

Ratio of working time of

F2.14

braking kit to drive’s total working time

INI BRAK FREQ 0.00~60.00Hz 0.01Hz 0.00Hz

BRAK WAIT TIME 0.00~10.00s 0.01s 0.00s

BRAK CURR AT STOP

BRAK TIME AT STOP

UTILITY OF BRAK UNIT

Depending on the type of the drive

P type: 0.0～80.0% of drive’s rated current

G type: 0.0～100.0% of drive’s rated current

0.0 (disabled), 0.1～30.0s

0: Dynamic braking is not used 1: Dynamic braking is used

0.0~100.0% Note: valid for the built-in braking kit of 5.5/7.5kW drive and dynamic braking should be applied in Dec process

0.1% 0.0%

0.1s 0.0s

1 0

0.1% 2.0%

Group F3: Auxiliary parameters

Para. Name

F3.00 Run reverse disabled RUN REV DISABLE 0:Run reverse enabled 1:Run reverse disabled 1 0

Run reverse/forward dead

F3.01

time

F3.02 Reserved RESERVED - - 0 *

F3.03 Reserved RESERVED - - 0 *

F3.04 Reserved RESERVED - - 0 *

Auto energy saving

F3.05

operation

F3.06 AVR function AVR FUNC

F3.07 Gain of Slip compensation

F3.08 Slip compensation limit

F3.09 Compensation time

Carrier frequency

F3.10

adjustment

Carrier frequency

F3.11

auto-tuning

LCD Display Setting range Unit

FWD/REV DEAD TIME 0~3600s 0.1s 0.0s

ENERGY-SAVING OPR 0:disabled 1:enabled 1 0

0: disabled 1:enabled 2: disabled in decelerating process

SLIP COMPENSATION GAIN

SLIP COMPENSATION LIMIT

COMPENSATION TIME CONST

CARRIER FREQ

CARRIER FREQ REGULATION SELE

0.0%~300.0% 0.1% 100.0%

0.0%~250.0% 0.1% 200.0%

0.1~25.0s 0.1s 2.0s

Type G: 5.5kW～45kW Type P: 7.5kW～55kW: 15k～3k Type G: 55kW～90kW Type P: 75kW～110kW: 10k～1k Type G: 110kW～220kW Type P: 132kW～280kW: 6k～0.7k

0:disabled 1:Enabled

0.1kHz

Factory

setting

1 2

8.0kHz

3.0kHz

2.0kHz

1 1

Modif.

○

Modif.

○

EV2000 Series Universal Variable Speed Drive User Manual

94 Appendix 1 Parameters

Group F3: Auxiliary parameters

0.1

Factory

setting

5.5kW~ 22kWG:

30kW~

280kWP:

20.0s

50.00Hz

Para. Name

F3.12 Motor tone adjustment MOTOR TUNING 0~10 1 0

F3.13 Jog frequency JOG OPR FREQ 0.10~50.00Hz 0.01Hz 5.00Hz

F3.14 Jog interval JOG INTERVAL TIME 0.0~100.0s 0.1s 0.0s

F3.15 Acc time of Jog operation JOG ACC TIME

F3.16 Dec time of Jog operation JOG DEC TIME

F3.17 Acc time 2 ACC TIME2

F3.18 Dec time 2 DEC TIME2

F3.19 Acc time 3 ACC TIME3

F3.20 Dec time 3 DEC TIME3

F3.21 Acc time 4 ACC TIME4

F3.22 Dec time 4 DEC TIME4

F3.23 Preset frequency 1 MULTIBAND FREQ 1 5.00Hz

F3.24 Preset frequency 2 MULTIBAND FREQ 2 10.00Hz

F3.25 Preset frequency 3 MULTIBAND FREQ 3 20.00Hz

F3.26 Preset frequency 4 MULTIBAND FREQ 4 30.00Hz

F3.27 Preset frequency 5 MULTIBAND FREQ 5 40.00Hz

F3.28 Preset frequency 6 MULTIBAND FREQ 6 45.00Hz

F3.29 Preset frequency 7 MULTIBAND FREQ 7

F3.30 Skip frequency 1 SKIP FREQ1 0.00~650.0Hz 0.01Hz 0.00Hz

F3.31 Range of skip frequency 1 SKIP FREQ BAND1 0.00~30.00Hz 0.01Hz 0.00Hz

F3.32 Skip frequency 2 SKIP FREQ2 0.00~650.0Hz 0.01Hz 0.00Hz

F3.33 Range of skip frequency 2 SKIP FREQ BAND2 0.00~30.00Hz 0.01Hz 0.00Hz

F3.34 Skip frequency 3 SKIP FREQ3 0.00~650.0Hz 0.01Hz 0.00Hz

F3.35 Range of skip frequency 3 SKIP FREQ BAND3 0.00~30.00Hz 0.01Hz 0.00Hz

LCD Display Setting range Unit

0.1~60.0s 0.1

0.1~3600 Note: Default unit is second; unit of Acc/Dec time is decided by F9.09

F0.13 (Lower limit of frequency) ~F0.12(upper limit of frequency) 0.01Hz

Modif.

○

6.0s

○

Group F4: Operating Parameters

Para Name LCD Display Setting range Unit

Unit’s place of LED: PLC operation mode 0:disabled 1:Stop after operating for 1 cycle 2: Holding at the final value after single cycle of operation 3:Operate continuously

PLC operation

F4.00

mode selection

F4.01 Phase 1 setup

PLC OPR MODE

STAGE 1 SET

Ten’s place of LED: Restarting mode after stopping 0:Run again from phase 1 1:Continue to run from the stopping phase 2:Operate at the time and frequency when the drive stops or fault occurs Hundred’s place of LED: Save at power off 0:Not saving 1:Save the time and frequency at power off Thousand’s place of LED: selecting the unit of time 0:second 1:Minute Unit’s place of LED: Frequency setting 0:Pre-set frequency 1(F3.23) 1:Decided by F0.00 parameter 2:Close loop reference 1(F5.20) 3:Decided by F5.01 parameter Ten’s place of LED: Running direction selection 0:Run forward 1:Run reverse 2:Decided by operating instructions Hundred’s place of LED:Acc/Dec time selection 0:Acc/Dec time 1 1:Acc/Dec time 2 2:Acc/Dec time 3 3:Acc/Dec time 4

Factory

setting

Modif.

1 0000

1 000

○

EV2000 Series Universal Variable Speed Drive User Manual

Appendix 1 Parameters 95

Group F4: Operating Parameters

Para Name LCD Display Setting range Unit

Operating time

F4.02

in Phase 1

F4.03 Phase 2 setup

Operating time

F4.04

in Phase 2

F4.05 Phase 3 setup

Operating time

F4.06

in Phase 3

F4.07 Phase 4 setup

Operating time

F4.08

in Phase 4

F4.09 Phase 5 setup

Operating time

F4.10

in Phase 5

F4.11 Phase 6 setup

Operating time

F4.12

in Phase 6

STAGE 1 TIME

STAGE 2 SET

STAGE 2 TIME

STAGE 3 SET

STAGE 3 TIME

STAGE 4 SET

STAGE 4 TIME

STAGE 5 SET

STAGE 5 TIME

STAGE 6 SET

STAGE 6 TIME

0.0 ~ 6500 0.1 20.0

Unit’s place of LED: Frequency setting 0:Pre-set frequency 2(F3.24) 1:Decided by F0.00 parameter 2:Close loop reference 2(F5.21) 3:Decided by F5.01 parameter Ten’s place of LED: Running direction selection 0:Run forward 1:Run reverse 2:Decided by operating instructions Hundred’s place of LED: Acc/Dec time selection 0:Acc/Dec time 1 1:Acc/Dec time 2 2:Acc/Dec time 3 3:Acc/Dec time 4

0.0 ~ 6500 0.1 20.0

Unit’s place of LED: Frequency setting 0:Pre-set frequency 3(F3.25) 1:Decided by F0.00 parameter 2:Close loop reference 3(F5.22) 3:Decided by F5.01 parameter Ten’s place of LED: Running direction selection 0:Run forward 1:Run reverse 2:Decided by operating instructions Hundred’s place of LED: Acc/Dec time selection 0:Acc/Dec time 1 1:Acc/Dec time 2 2:Acc/Dec time 3 3:Acc/Dec time 4

0.0 ~ 6500 0.1 20.0

Unit’s place of LED: Frequency setting 0:Pre-set frequency 4(F3.26) 1:Decided by F0.00 parameter 2:Close loop reference 4(F5.23) 3:Decided by F5.01 parameter Ten’s place of LED: Running direction selection 0:Run forward 1:Run reverse 2:Decided by operating instructions Hundred’s place of LED: Acc/Dec time selection 0:Acc/Dec time 1 1:Acc/Dec time 2 2:Acc/Dec time 3 3:Acc/Dec time 4

0.0 ~ 6500 0.1 20.0

Unit’s place of LED: Frequency setting 0:Pre-set frequency 5(F3.27) 1:Decided by F0.00 parameter 2:Close loop reference 5(F5.24) 3:Decided by F5.01 parameter Ten’s place of LED: Running direction selection 0:Run forward 1:Run reverse 2:Decided by operating instructions Hundred’s place of LED: Acc/Dec time selection 0:Acc/Dec time 1 1:Acc/Dec time 2 2:Acc/Dec time 3 3:Acc/Dec time 4

0.0 ~ 6500 0.1 20.0

Unit’s place of LED: Frequency setting 0:Pre-set frequency 6(F3.28) 1:Decided by F0.00 parameter 2:Close loop reference 6(F5.25) 3:Decided by F5.01 parameter Ten’s place of LED: Running direction selection 0:Run forward 1:Run reverse 2:Decided by operating instructions Hundred’s place of LED: Acc/Dec time selection 0:Acc/Dec time 1 1:Acc/Dec time 2 2:Acc/Dec time 3 3:Acc/Dec time 4

0.0 ~ 6500 0.1 20.0

Factory

setting

1 000

Modif.

○

EV2000 Series Universal Variable Speed Drive User Manual

96 Appendix 1 Parameters

Group F4: Operating Parameters

Para Name LCD Display Setting range Unit

Unit’s place of LED: Frequency setting 0:Pre-set frequency 7(F3.29) 1:Decided by F0.00 parameter 2:Close loop reference 7(F5.26) 3:Decided by F5.01 parameter

F4.13 Phase 7 setup

Operating time

F4.14

in Phase 7

STAGE 7 SET

STAGE 7 TIME

Ten’s place of LED: Running direction selection 0:Run forward 1:Run reverse 2:Decided by operating instructions Hundred’s place of LED: Acc/Dec time selection 0:Acc/Dec time 1 1:Acc/Dec time 2 2:Acc/Dec time 3 3:Acc/Dec time 4

0.0 ~ 6500 0.1 20.0

Factory

setting

1 000

Group F5: Close-loop control parameters

Para. Name LCD Display Setting range Unit

Close-loop function

F5.00

selection

Reference channel

F5.01

selection

Feedback channel

F5.02

selection

Filter of reference

F5.03

channel

Filter of feedback

F5.04

channel

Set reference in digital

F5.05

mode

Speed reference set in

F5.06

close loop

F5.07 PG setting PULSE NUMBER SELE 1~9999 1 1024

F5.08 Min reference MIN REF

Feedback value

F5.09

corresponding to the Min reference

F5.10 Max reference MAX REF

Feedback value

F5.11

corresponding to the Max reference

F5.12 Proportional gain KP PROPORTION GAIN 0.000~9.999 0.001 0.050

F5.13 Integral gain Ki INTEGRATION GAIN 0.000~9.999 0.001 0.050

F5.14 Sampling cycle SAMPLE CYCLE 0.01~50.00s 0.01s 0.50s

F5.15 Limits of deviation ERROR LIMIT 0.0~20.0%(corresponding to close loop reference) 0.1% 2.0%

Close loop adjustment

F5.16

characteristic

Integral adjustment

F5.17

selection

CLOSELOOP FUNC SELE

REF CHAN SELE

FEEDBACK CHAN SELE

REF FILTER CONST 0.01~50.00s 0.01s 0.50s

FEEDBACK FILTER CONST

DIGITAL REF 0.00V~10.00V 0.01 0.00

CLOSELOOP REF 0~39000rpm 1 0

MIN FEEDBACK

MAX FEEDBACK

CLOSELOOP FEATURE

INTEGRATION SELE

0:disabled 1:enabled

0:Digital input; (F5.02=6, F5.06, others, F5.05) 1:VCI; 2: CCI; Note: For speed-loop, analog reference of 10V corresponds to the maximum frequency defined by F0.05

0:VCI (0~10V) 1:CCI (analog input) 2:VCI+CCI 3:VCI-CCI 4:Min{VCI,CCI} 5:Max{VCI,CCI} 6:Pulse; (PG close loop signal/dual loop is decided by terminal)

0.01~50.00s 0.01s 0.50s

0.0%~(F5.10) (Ratio of Min reference to base value of 10V/20mA)

0.0~100.0% (Ratio of Min reference to base value of 10V/20mA)

(F5.08)~100.0% (Ratio of Max reference to base value of 10V/20mA)

0.0~100% (Ratio of Max reference to base value of 10V/20mA)

0:Forward 1:Reverse Note: reference has no connection with speed

0:Stop the Integral adjustment when the frequency reaches the upper limit or lower limit. 1:Continue the Integral adjustment when the frequency reaches the upper limit or lower limit.

0.1% 0.0

0.1% 20.0%

0.1% 100.0%

Factory

setting

1 0

1 1

1 0

Modif.

○

Modif.

○

EV2000 Series Universal Variable Speed Drive User Manual

Emerson Network Power EV2000 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
