475 Field Communicator
Getting Started
2
Introduction |
3 |
WARNING
Explosions could result in serious injury or death:
Use in an explosive environment must be in accordance with the appropriate local, national, and international standards, codes, and practices. Please review the Reference Information and Product Certifications sections of the 475 Field Communicator User’s Manual for any restrictions associated with safe use.
Electrical shock can result in serious injury or death.
IMPORTANT NOTICE
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
©2015 Emerson Process Management. All rights reserved.
HART is a registered trademark of the HART Communication Foundation. FOUNDATION is a trademark of the Fieldbus Foundation.
IrDA is a registered trademark of the Infrared Data Association. Bluetooth is a registered trademark of the Bluetooth SIG, Inc.
The Emerson logo is a trademark and service mark of Emerson Electric Co. All other marks are the property of their respective owners.
INTRODUCTION
The 475 Field Communicator Getting Started Guide provides basic guidelines, precautions, and setup information for the 475 Field Communicator. It does not provide in-depth instructions for configuration, diagnostics, maintenance, service, troubleshooting, or Intrinsically Safe (IS) installations. Refer to the 475 Field Communicator User’s Manual on the Resource CD or DVD or www.fieldcommunicator.com for more instructions.
The 475 Field Communicator supports HART and FOUNDATION fieldbus devices, letting you configure or troubleshoot in the field. Electronic Device Description Language (EDDL) technology enables the 475 Field Communicator to communicate with a variety of devices independent of device manufacturer.
4 |
475 Field Communicator overview |
475 FIELD COMMUNICATOR OVERVIEW
The portable 475 Field Communicator includes a color LCD touch screen, a Lithium Ion battery (Power Module), a SH3 processor, memory components, System Card, and integral communication and measurement circuitry.
When using the 475 Field Communicator to communicate with devices, follow all standards and procedures applicable to the location. Failure to comply may result in equipment damage and/or personal injury. Understand and comply with the sections in this manual.
Working in a hazardous area
A 475 Field Communicator that meets the Intrinsic Safety requirements (IS-approved) can be used in Zone 0 (FM), Zone 1, or Zone 2, for Group IIC, and Class I, Division 1 and Division 2, Groups A, B, C, and D locations.
An IS-approved 475 Field Communicator may be connected to loops or segments that are attached to equipment located in Zone 0, Zone 1, Zone 2, for Group IIC; Zone 20, Zone 21, Zone 22, and Class I, Division 1 and Division 2, Groups A, B, C, and D locations.
IS-approved 475 Field Communicators have an additional label on the back of the communicator that lists the approvals.
CAUTION

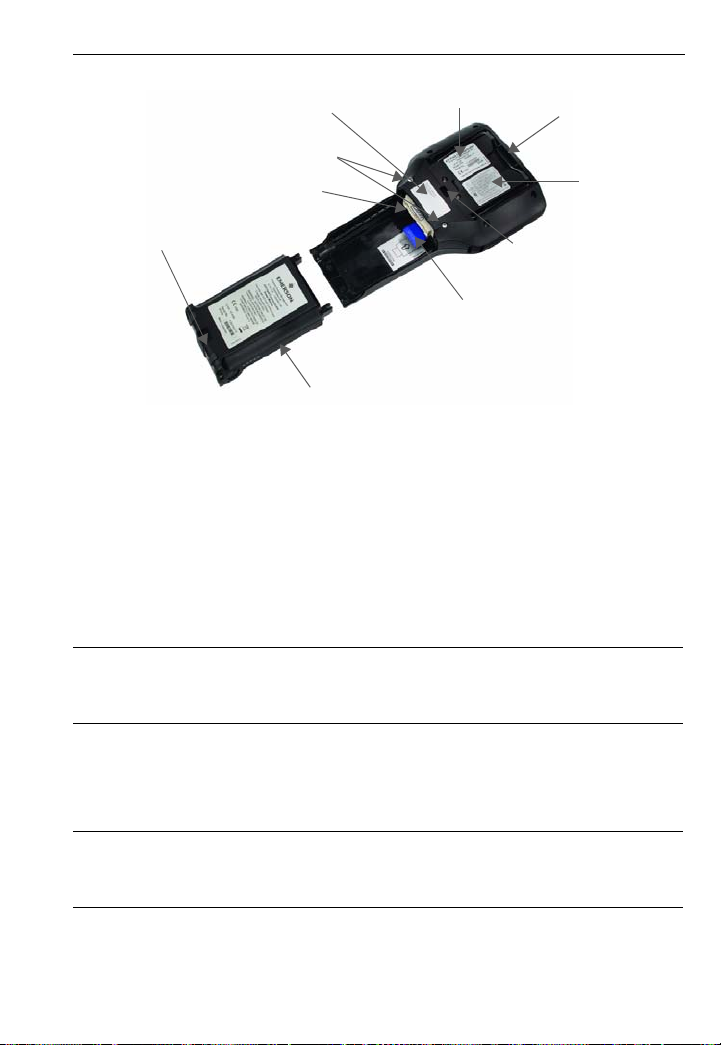

You can install or remove the Li-Ion battery in a hazardous area environment. You cannot charge the battery in this environment because the power supply/charger (00375-0003-0005) is not IS-approved.
Using the touch screen and keypad
The touch screen and keypad let you select menu items and enter text. Use the provided stylus or the up and down arrow keys on the keypad to select a menu item. See Figure 1 for the location of the stylus. Double-tap the selected item on the screen, tap an icon, or press the right arrow key on the keypad to open a menu item.
CAUTION
Contact the touch screen using blunt items only, preferably the stylus included with the 475 Field Communicator. Sharp instruments, such as screwdrivers, can damage the touch screen and void the warranty. Repairing the touch screen requires replacement of the entire display assembly, which is possible only at an authorized service center.
475 Field Communicator overview |
5 |
||
Figure 1. 475 Field Communicator with the Protective Rubber Boot |
|||
IrDA® interface (top) Strap attachment |
HART and FOUNDATION |
||
|
(top) |
fieldbus communication |
|
|
|||
|
|
|
terminals (top) |
|
|
|
|
|
|
|
|
|
|
|
|
Touch screen |
|
|
|
|
|
|
|
||||||
display |
|
|
|
|
Bluetooth® light |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|||
Power key and |
|
|
Backlight key |
||||||||||
light |
|
|
|
|
|||||||||
Strap attachment |
|
|
|
Strap |
|||||||||
(side) |
|
|
|
|
|
attachment |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
(side) |
Navigation keys |
|
|
|
|
|
|
|
|
Enter key |
||||
|
|
|
|||||||||||
(four arrow keys) |
|
|
|
|
|||||||||
Tab key |
|
|
|
|
|
|
|
|
|
Function key |
|||
|
|
|
|
|
|
|
|
|
and light |
||||
|
|
|
|
|
|
|
|
|
(for multiple-key |
||||
Li-Ion battery |
|
|
|
|
|
|
|
|
|
||||
(back) and |
|
|
|
combination |
|||||||||
System Card |
|
|
|
functionality) |
|||||||||
(internal) |
|
|
|
|
|
||||||||
Stylus (in the
strap)
Lights illuminated by
pressing the Charge Indicator button (side)
Charge
Indicator button (side)
Alphanumeric keypad
Green power supply/charger connector on the battery (side)
Strap attachment (side) Strap attachment (side)
