EMERSON TS2750 Diagram

COLOR TELEVISION

TS2750

CONTENTS

Safety Precautions………………………………………………………………………..……
Alignment instruction. ………………………………….…………………………….…….
Debugging instruction …………………………………………….………………………….

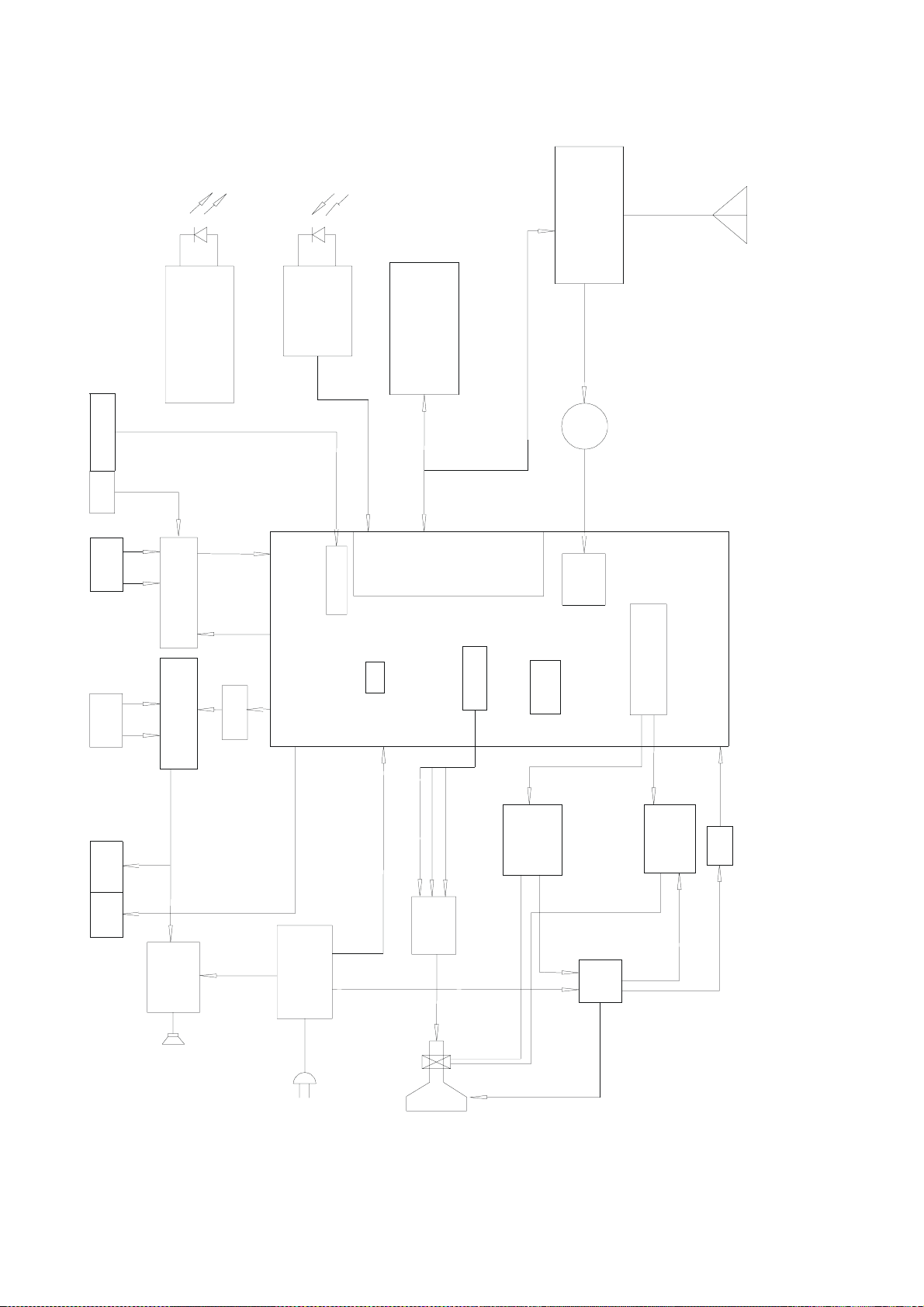

Block diagram ……………………………..…..…..…..…..…..…….………….……………

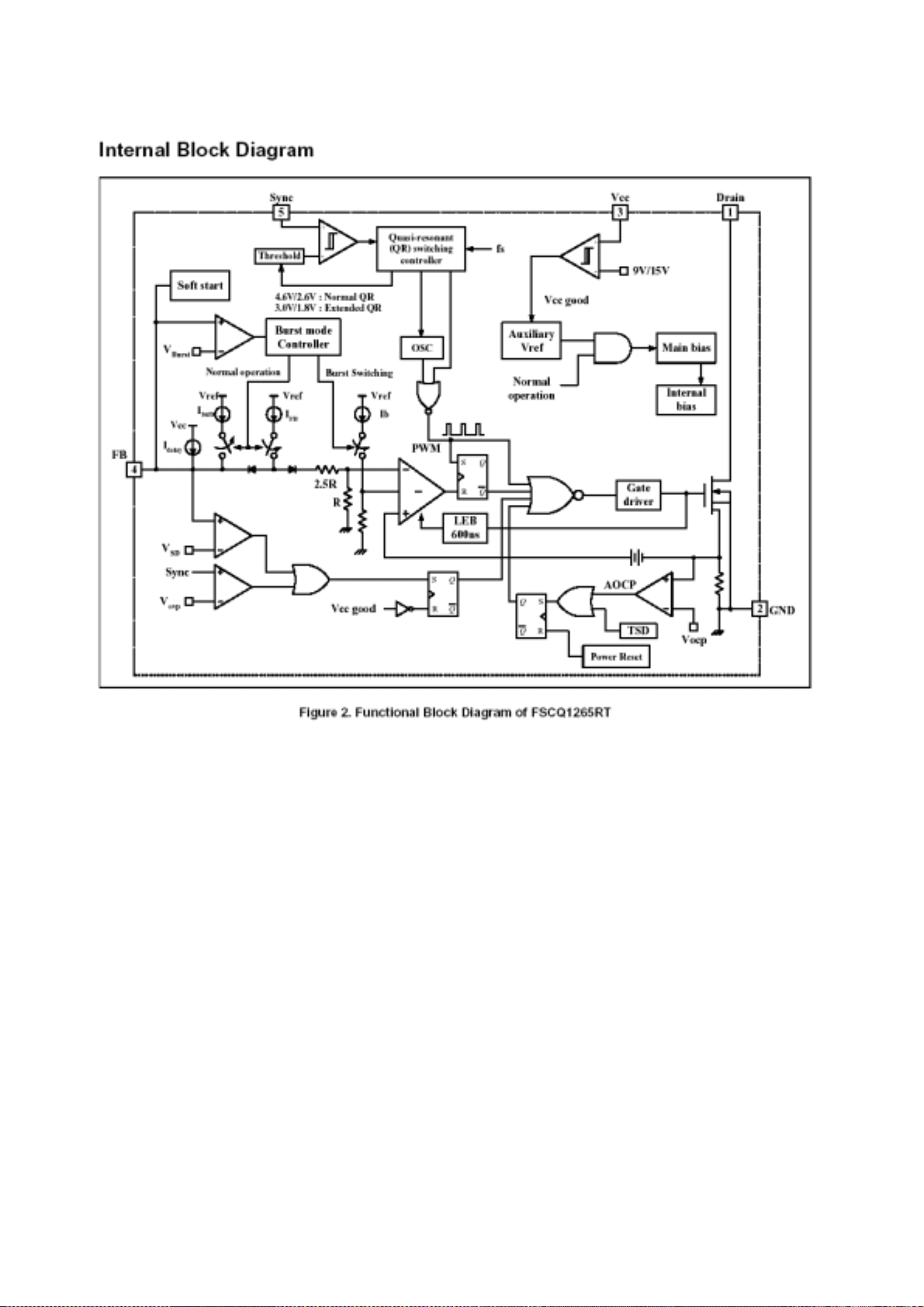

IC Block diagram……………………..……………………….………………………………

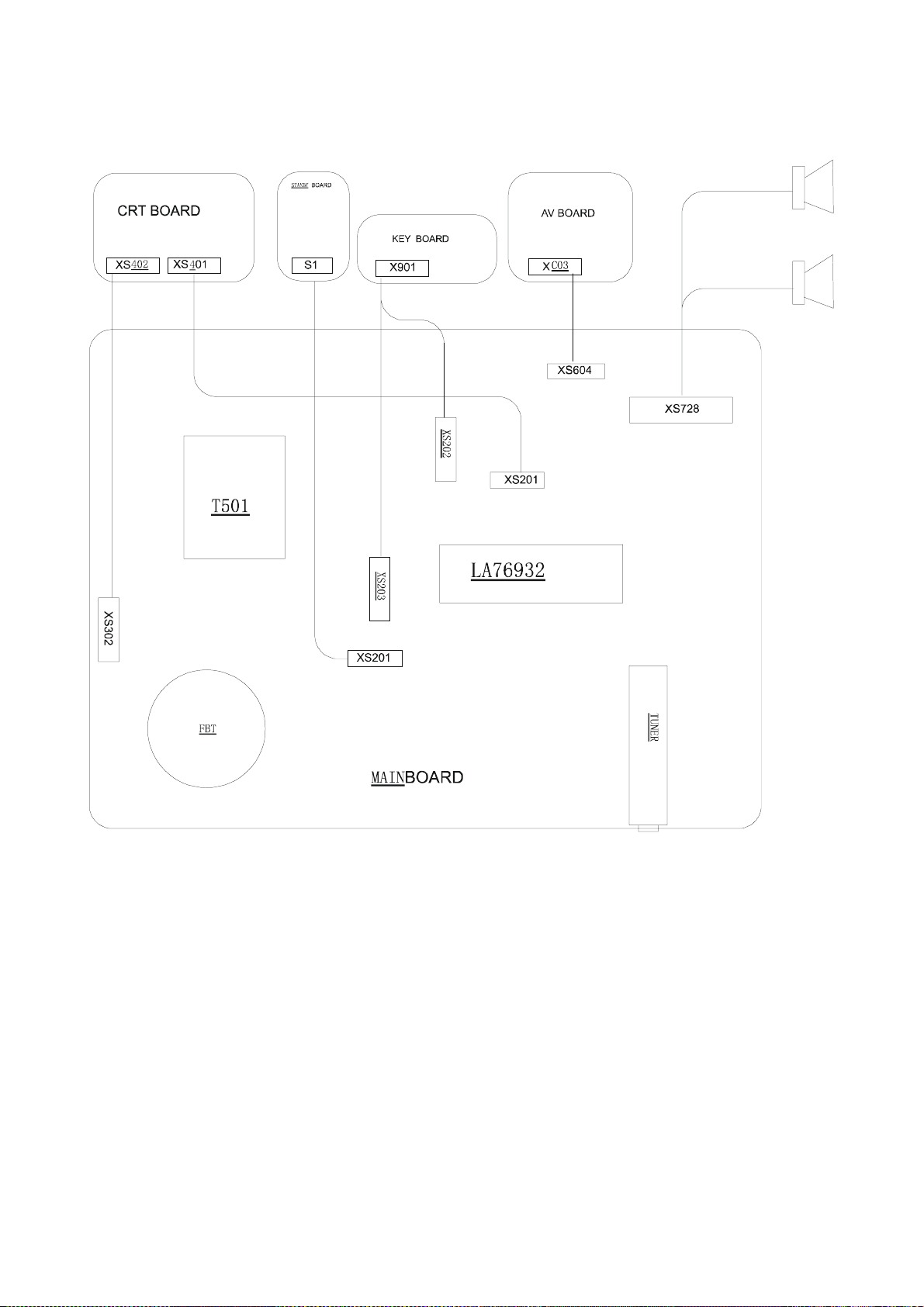

Wiring diagram……………………………………………………………………………..…

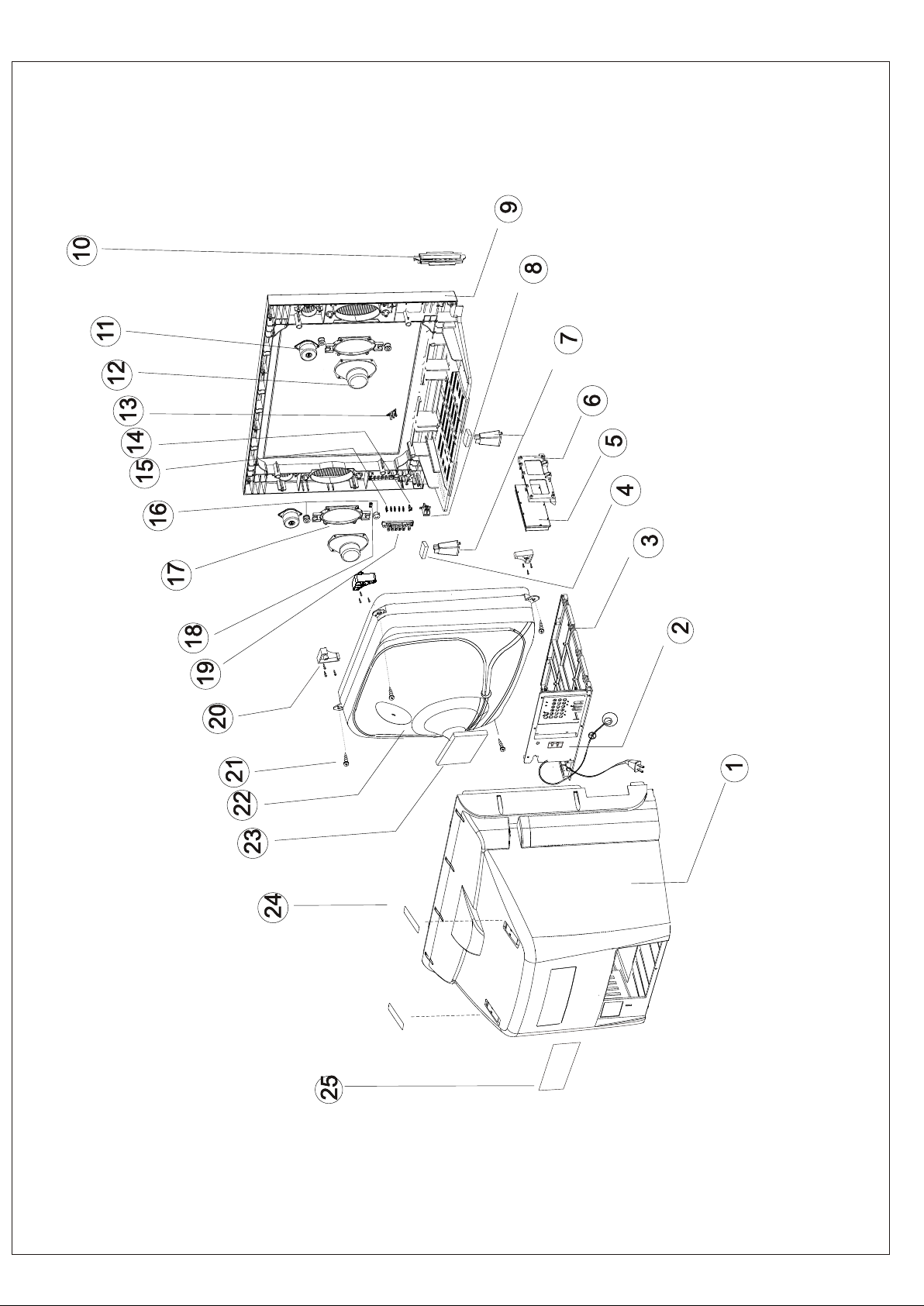

Exploded view………..…..…..…..…..…..…..…..…..…..…..…..…..…..…..…..…..…..…...

Part list ………………………………………………………..……………............................

Schematic diagram …………………………………………………………………….……..

1
2
3
9
10
14
15
17
27

Note:This service manual is only for professional service personnel’s reference. Before

1. SAFETY I NSTRUCTION AND GENERAL INSTRUCTION

1.1 X-RAY RADIATION PRECAUTION

1） Excessive high voltage can produce potentially hazardous X-RAY RADIATION. To avoid such

2） Each time a receiver requires servicing, the high voltage should be checked following the HIGH

3） The primary source of X-RAY RADIATION in this TV receiver is the picture tube. For continuous

servicing the unit, please read the following items carefully.

Before servicing and aligning this equipment, please read the following “X-RAY RADIATION
PRECAUTION” , “SAFETY PRECAUTION” and “PRODUCT SAFETY NOTICE”.

hazards, the high voltage must not be above the specified limit. The normal value of the high voltage

of this receiver is below 31.5kV at 1.6A beam current, the high voltage must not, under any

circumstances, exceed 33kV.

VOLTAGE CHECK procedure in this manual. It is recommended the reading of the high voltage be

recorded as a part of service record. It is important to use an accurate and reliable high voltage

meter.

X-RAY RADIATION protection, the replacement tube must be exactly the same type tube as

specified in the parts list.

4） Some parts in this receiver have special safety-related characteristics for X-RAY RADIATION

protection. For continuous safety, parts replacement should be undertaken only after referring to the

PRODUCT SAFETY NOTICE below.

1.2 SAFETY PRECAUTION WARNING:

Service should not be attempted by anyone unfamiliar with the necessary precaution on this receiver.

The following are the necessary precautions to be observed before servicing this chassis.

1) Since the power supply circuit of this receiver is directly connected to the AC power line, an isolation

transformer should be used during any dynamic service to avoid possible shock hazard.

2) Always discharge the picture tube anode to the CRT conductive coating before handling the picture

tube. The picture tube is highly evacuated and if broken, glass fragments will be violently expelled.

Use shatter proof goggles and keep picture tube away from the unprotected body while handling.

3) When replacing a chassis in the cabinet, always be certain that all the protective devices are put

back in place, such as: non-metallic control knobs, insulating covers, shields, isolation

resistor-capacitor network etc.

4) When replacing parts or circuit boards, disconnect the power cord.

5) When replacing a high wattage resistor (oxiode metal film resistor) on the circuit board, keep the

resistor 10mm (1/2in) away from circuit board.

6) Connection wires must be kept away from components with high voltage or high temperature.

7) If any fuse in this TV receiver is blown, replace it with the FUSE specified in the chassis parts list.

1.3 PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the chassis have special safety-related characteristics. These

1

characteristics are often passed unnoticed by a visual inspection and the X-RAY RADIATION protection

afforded by them cannot necessarily be obtained by using replacement components rated for higher

wattage, etc. Replacement parts which have these special safety characteristics are identified in this

manual and its supplement electrical components having such features are shaded on the schematic

diagram and the parts list.
Before replacing any of these components, read the parts list in this manual carefully. The use of

substitute replacement parts which do not have the same characteristics as specified in the parts list

may create shock, fire, X-RAY RADIATION or other hazards.

2 Alignment items and procedur e

The alignment flow chart (see below figure).

EEPROM copy

B+ check

Focus adjust and aging

High-handed

Field breadth
and field line

White balance and sub-bright

RF AGC adjust

Audio check

VG2 adjust

H-field and center

field and field breadth

Filament voltage

X-ray protect

Picture and audio

Sub-brightness

White balance

OSD center position

Color pure and assemble

Foucs fine adjust

AV (S.DVD)

The button check

Leave factory state setup

Remote control check

check

Assemble check

Safety check

3 TEST EQUIPMENT

3.1 AUDIO VOLTAMETER

2

3.2 OSCILLOGRAPH

3.3 HIGH-VOLTAMETER

3.4 DIGITAL MULTIMETER

3.5 AC ATTACK PULL TEST EQUIPMENT

3.6 SCAN frequency signal generator BT-3

4 Debugging instruction

4.1 enter into the factory debugging m enu

use to the remote control(RC-A23),follow to the blow model enter into the factory:

DISPLAY → MUTE → MUTE → MUTE → enter into the factory

press “sleep” button for pages upward, press “return” button for pages downward, press “CH+/-” to

select alignment items and “VOL+/-” to adjust volume, press “MUTE” to exit.

If the remote sensor designed for alignment is unavailable, press the following buttons to enter by

using user remote sensor

4.2 B+ voltage adj ustment

Check B+ voltage ( negative pole of VD509) by using DC voltmeter DC 200V of 135V±2.

4.3 AGC adjustment

Measure the voltage of RF AGC by connecting digital DC voltmeter with TP3, receive weak signal

(40dBu) and the static AGC voltage of TP1 AGC should be V1=4V±0.2V; the receive antenna signal

(60dBu), adjust the value of P6 RF. AGC of factory menu and the start-control voltage of TP1 AGC

should be V2=3.5V±0.2.if V2>3.5V, then the voltage is -1 or -2,if V2<3.5V, then the voltage is+1 or+2. the

antenna input 100dBu signal, after the picture should not be appeared no-sync , distortion and moire;

input 35-40dBu weak signal ,it should not be appeared distortion and no-sync and sound abnormity

electrophoresis of it.

4.4 White balance and screen-grid voltage adjustment

After enter P5 of factory menu, use remote sensor directly to adjust white balance by pressing the

following digital buttons:

“1”=R.BIAS(+) “2”=G.BIAS(+) “3”=B.BIAS(+)

“4”=R.BIAS(-) “5”=G.BIAS(-) “6”=B.BIAS(-)

press “p-p” button to select picture mode custom→T1→T2→bright→soft→nature→user→custom will

be display on the screen.

The T1 mode has the maximum value of brightness and contrast with all the other items minum. Value of

all the analog are minimum while in T2 mode.

Before adjustment you should set the following items: SUB-BRIGHT=50, R.B=100, G.B=100, B.B=100,

R.D=100, G.D=15, B.D=100

press “P-P” button to select T2 picture mode, press CH+/- to select LINE, press vol+ to let the field

scanning fail to oscillate, adjust the screen-grid potentiometer on FBT clockwise to let horizontal bright

line just appear on the screen; let the value of G.B unchanged, adjust R-B and B-B to let the horizontal

bright line appear white. If the green horizontal line don’t appear firstly, fine-turn the screen-grid voltage,

green and blue just appear. After adjustment press VOL- to obtain normal field scanning mode.

4.5 Receive signal (A7), enter P6 of factory menu, adjustment SUB-BRIGHT to let picture on the screen

micro-bright.

4.6 receive white balance adjustment signal

enter P5 of factory menu, press PP to select T1 picture mode, let the value of G.D unchange, adjust R.D

and B.D to let the white part of the picture appear “white”.

3

4.7 Use white balancer to rectify the white balance under following conditions

color temperature:12000K+8MPCD x =0.270± 0.008 Y=0.283±0.008; dark space: 4.5nit, bright space:

60nit

Note:1. While the colour saturation changed from maximum to minimum, if the dark balance appears

changeable,adjust RY.TV and BY.TV (P12) to let it coincide with white balance.

2. If the dark balance appears changeable while connected with DVD, adjust BY.YUV and RY.YUV

(P12) to let it conincide with white balance.

4.8 line-filed scanning amplitude and linearity and center adjustment and raster correct adjstment.

4.9 receive signal (A28), press the PP button the picture model, set standard adjustment the P1 of

V.SIZE and V.SHIFT and H..PAHSE and V.LINE and VSC, let the P2 coincide with request.

4.10 receive signal (G43), press the PP button the picture model, set standard adjustment the P3 of

V.SIZE and V.SHIFT and H..PAHSE and V.LINE and VSC, let the P4 coincide with request.

4.1 1 Hi gh voltage and filament voltage check

Connect a high-voltage meter between anode cap of picture tube and the ground, measure the filament

voltage using rms voltmeter, set the picture mode to “standard”, the high-voltage: 29KV±1.5KV,filament

voltage: 6.3±0.1Vrms.

4.12 x -ray protection check

Receive local TV signal, set the picture mode to “standard”, shorten the circuit and measure the

value of TP1-TP2, restart the TV 30 seconds after turn off the power source and it should return to

normal.

4.13 AV function check

according to the owner’s manual require, connect to the AV equipment and the AV interface:

VIDEO IN: 1 Vp-p 75OHM AUDIO IN: (-8±3)dBm>47 kOHM

S interface Y IN: 1 Vp-p 75OHM C IN: 0.3 Vp-p 75OHM

DVD Y IN: 1 Vp-p 75OHM Cr IN: 0.7 Vp-p 75OHM

Cb IN: 0.7 Vp-p 75OHM

4.14 AV parts check

incept to standard the TV signal:

a） AV and crossfire and allophone and shake ;
b） The user control function ana picture model
c） The remote control function check;
d） Color pure and converge check.

4.15 leave factory state setup

Picture model (PP) STENDARD

language All the country language

Color system AUTO

C.CAPTION C1

CCD ON MUTE OFF

RECEPTION AIR

AFT ON

MTS AUTO

PASSWORD CLEAR

volume 30

4

4.16 the factory menu adjustment model pre-set

OSD item Pre-set model

P1-60

V SIZE 60HZ field amplitude 63 4.9

V SHIFT 60HZ field center 0 4.9

H-PHASE 60HZ H-center 15 4.9

V LINE 60HZ V-line 15 4.9

V SC 60HZ field S-correct 23 4.9

V COMP field amplitude compensate 7 fixed

L.BLK Left blanking 7 fixed

R.BLK Right blanking 0 fixed

P2-EW-60

COR.SW margin correct 1 Fixed

H.SIZE.COMP High voltage compensate 7 fixed

TILT 60HZ echelon correct 44

DC 60HZ H-amplitude 32

AMP 60HZ pincushion correct 25
COR.TOP 60HZ Top margin correct 4
COR.BOT 60HZ bottom margin correct 3

V SIZE 50HZ field amplitude 75 4.10

V SHIFT 50HZ field center 0 4.10

H-PHASE 50HZ H-center 10 4.10

V LINE 50HZ V-line 16 4.10

V SC 50HZ field S-correct 20 4.10

P4 EW-50

TITL 50HZ echelon correct 49

DC 50HZ H-amplitude 35

AMP 50HZ pincushion correct 41
COR.TOP 50HZ Top margin correct 6
COR.BOT 50HZ bottom margin correct 10

LINE Level bright line 0 0=normal 1= Level bright line

RB Red cut off 100 4.4

GB Green cut off 100 4.4

BB Blue cut off 100 4.4
RD Red driver 100 4.4
GD Green driver 15 4.4

BD Blue driver 100 4.4

RF AGC RF AGC 30 4.3

SUB-BRI Sub-brightness 60 4.4

SUB-CNT Sub-contrast 31 fixed

Receive signal A12, adjust the linearity scanning and

geometric distortion and over-scanning coincide with it

P3-50

Receive signal G35, adjust the linearity scanning and

geometric distortion and over-scanning coincide with it

P5

P6

5

SUB-COL Sub-colour 3 fixed

SUB-SHP Sub-definition 0 fixed

SUB-TINT Sub-tint 28 fixed

P7

VOL.FIL Volume control ADC filter 0 fixed

OSD.COT OSD contrast 5 fixed

OSD.HPOS OSD center 10 fixed

AFT

VIF SW IF3=45.75MHZ 3 fixed

SIF SW Sound IF0=4.5MHZ 0 fixed

VIDEO LEVEL VIDEO LEVEL 2 fixed

A2 .SW 0 fixed

GY ANGLE G-Y demodulation angle 0 fixed

V.R TM Filed scan strting time 0 fixed

R/B ANG R-Y/B-Y demodulation angle 8 Fixed

R/B BAL

C TRAP Color trap filter 6 fixed

H FREQ H-frequency 16 fixed

C.BPF TEST

P9

OVER.MOD.SW

OVER.MOD.LVL

BLK.STR

BLK.GAIN Dark level expand gain 2 Fixed,0=MIN 2=MAX

Y.APF Selection color trap filter 1 0=trap filter,1= direct pass(YcbCr&Y/C)

PRE.ADJ Pre-shoot 3 fixed, 0=narrow 3=width

OVER ADJ overshoot 3 Fixed,a 0=narrow 3=width

C.VCO.ADJ

BRT.ABL.DEF Brightness ABL 0 fixed,0=ABL ON 1=ABL OFF

MID.STP.DEF ABL start control point 0 fixed

BRT.ABL.THR ABL threshold 7 fixed

WPL.OPE White peak limit 2 fixed

V BLK.SW Field blanking switch 0 fixed ,0=nomarl;1=width model

Line AFC loop gain and sync

gate switch

R-Y/B-Ydemodulation

balance

Color band filter center

frequency

Selection over-modulation

function

Adjustment over-modulation

working point

Dark level expand starting

control point

Color VCO frequency

adjustment

0

P8

8 fixed

0 fixed

0 Fixed,0=nothing 1=have

0 fixed

2 Fixed,0=40IRE 2=60IRE 3-OFF

4 fixed,0－4－7=-120KHZ-0-90KHZ

P10

fixed

6

FBP BLK SW Horizontal blanking switch 1 fixed,0=inside produce;1=FBP and inside logic “and”

DC REST DC recover rate 1 fixed,0=100% 1=107%

CD.MODE

CORE GAIN Noise reduction 2 fixed,0=OFF 1=MIN 3=MAX

γ.GAMA r-correct 0 fixed,0=OFF

RGB TEMP.SW

A.MONI SW Selection pin5 output 1 fixed，1=SAO

SVO OR FSC Selection pin5 output 0 fixed,0=VIDEO 1=FSC(color sub-carrier wave)

CROSS B/W Selection test signal 0 fixed,0=TV

CRAY.MODE Test signal 0 fixed,0=white(75%)1=grey(15%)

BY TV Blue chromatism DC level 8 4.4 adjustment dark white balance(TV/AV model)

RY TV Red chromatism DC level 8 4.4 adjustment dark white balance(TV/AV model)

BY YUV

RY YUV

S.TRAP.TEST Sound trap filter adjustment 6 fixed

LOW.BRI Min-brightness 28 fixed

LOW.CONT Min-contrast 30 fixed

COL.KILL Achromatic level 7 fixed,0=-30dB 3=-40dB

VCO.FREQ VCO frequency 32 fixed

VM.GAIM VM gain adjustment 0 fixed

VM.DELAY ADJ VM relay time adjustment 0 fixed

VCO TEST VCO adjustment 0 fixed

VPOS-50

VPOS-60

Y GAIN 0 fixed

Y TH 0 fixed

B OFFSET 0 fixed

B WIDTH 0 fixed

C OFFSET 0 fixed

C WIDTH 0 fixed

CAN.V CHIP V-CHIP 0/1 1=CAN.V-CHIP

Field frequency division

model

RGB DC output

temperature speciality

DVD input Blue chromatism

DC level

DVD input Red chromatism

DC level

50HZ field center voltage

adjustment

60HZ field center voltage

adjustment

0 fixed,0=auto

P11

1 fixed

P12

8 4.4 adjustment dark white balance (DVD input)

8 4.4 adjustment dark white balance(DVD input)

P13

15

15

P14

OPTION

fixed

fixed

7

AV AV selec t i o n 3 AV input select(3=AV1/AV2/S/DVD)

MTS MTS IC selection 1/0 0=nothing,1=72700 2=AN5832

V.OFF.MOTE Turn off model 1 0=discharge,1=close

PWR.MEM Turn on model 0/2 0=standby,1=auto turn on,2=memory

1115 select LV1115 0 fixed,0=nothing;1=have

BLCK GROND

N/PN

VOL.OFFSET 0

GAIN 3

PWM LOGIC 0

AVL MODE 2

AVL DET LEVEL 0

AVL SLOPE 0

PWM.VOL Volume control of PWM set 1 fixed

1-CHIP.VOL Volume control of mono 0 fixed

VOL 1 1% volume control speciality 20 fixed

VOL 25 25%volume control speciality 60 fixed

VOL 50 50%volume control speciality 90 fixed

VOL 75 75%volume control speciality 100 fixed

ALC ALC 1 fixed ,1=ALC ON

VOL

SAP LEVEL SAP level 1 fixed

SIF.M/BB.M SIF and baseband model 0 fixed,0=SIF MODE 1=BB MODE

AGC 1 fixed

No signal background

selection

South America and North

America selection

Baseband model ,input level

adjustment

1 0=nothing 1/3=blue background;2=black background

1/0 0=south america;1=north america

1115(the unit no use)

PWM SET

72700

0 The unit no use

5832

Note:above “/” are the adjustment data for north america, below it are for south america.

8

BLOCK DIAGRAM

A

A

/

A

IR TX

M3428M1-D48GP

T101

TUNER

RF

IR RX

MEMORY

N202

M24C08

IF

Y Cr C b

REM

S IN

VIDEO

IN

V SWITCH

4053

A SWI TCH

AUDIO

IN

AUDIO

OUT

4053

VIN

Y Cr Cb

TV OUT

SIF

A OU T

MTS

V OUT

I2C BUS LINE

CPU

CHROMA

H VCC

G

B

R

2SC2539

V302

SAWF

PIF

DEFLECTION

VIDEO

HOUT

L
78041

N301

LA76932

5V-1

VOUT

N503

VIDEO

OUT

POWER

N501

CQ12656RT

UDIOAMPAN7522

14V

C 120V

110 V

110V

DRIVE

CRT

CRT

T301

FBT

EHV

28V

9

MAIN IC

LA76930 BLOCK DIAGRAM

10

Function introduction to pin

pin function Reference

voltage

(V)

1 SIF output 2.28 64 PIF input1 2.86

2 PIF AGC 2.61 63 PIF input 2 2.86

3 SIF input 3.11 62 IF GND 0

4 FM filter 2.64 61 RF AGC output 4.55

5 FM filter/sound output 2.25 60 Video output 2.30

6 Sound output 2.24 59 AFT filter 2.50

7 SIF APC filter 2.24 58 APC filter 2.60

8 IF VCC(5V) 4.92 57 Black level detection

9 Expanded sound input 2.25 56 Internal video input and

10 ABL 3.21 55 Video, colour and

11 RGB VCC(8V/18Ma) 8.00 54 Expanded video input

12 R ouput 2.65 53 Colour APC filter 3.40

13 G ouput 2.65 52 Selection video output

14 B ouput 2.67 51 Cr input 2.50

15 AKB (undo) 2.31 50 4.43 MHZ crystal 2.73

16 Field sawtooth filter to

capacitance

17 Field output 2.34 48 Fast blank-out input 0

18 VCO Reference voltage 1.65 47 R input 1.89

19 H/BUS VCC(5V/27mA) 6.81 46 G input 1.90

20 H/APC filter 2.54 45 B input 1.90

21 H-output 0.28 44 Retrace impulse input 1.20

22 Video,colour and

deflexion ground

23 x -ray protection, low

2.16 49 Cb input 2.50

0 43 CCD VCC 4.50

5.00 42 CPU GND 0

level availability

24 S input detection, high

3.50 41 PLL 3.50

Level availability

25 DVD detection, high

6.50 40 reset 4.00

Level availability

26 IR control input 4.90 39 Button input 0.32

27 AV1/AV2 H=AV1

0 38 TV/AV H=TV L=AV 0

L=AV2

pin function Reference

2.50

filter

2.70

S-C input

4.90

deflexion power VCC

2.50

and Y input

2.40

and FSC output

voltage

(V)

11

28 POWER H=OFF

0 37 BL 5.00

L=ON

29 Turn voltage PWM

1.73 36 BH 5.00

output

30 Mute, high

0 35 VDD 5.00

Level availability

31 I2C DATA 5.00 34 x T2 4.50

32 I2C CLOCK 5.00 33 x T1 2.70

AN7522

Pins function

pin function pin function

1
2
3
4
5
6

power

CH1+ output

GND

CH1- output

Stand-by

CH1 input

7
8

9
10
11
12

GND input

CH2 input

volume

CH1+ output

GND (CH2 output)

CH1+ output

12

FSCQ1265RT

13

WIRING DIAGRAM

14

EXPLODED VIEW

15

TS2750

NO. DESCRIPTION PART#

1 BACK CABINET 780-10908-040
2 REAR PANEL 808-1M650-040
3 MAIN BOARD FRAME 863-6A127U000H
4 WASHER 868-10107-00
5
6
7 CRT SUPPORT 868-20175-00

POWER SWITCH/STANDBY

8

BUTTON BOARD

9 FRONT CABINET 611-E50Y3J0H1C
10 SIDE AV BOARD 667-TS2950-29
11
12 SPEAKER ST613-04 384-32108-50
13 TOUCH BUTTON 877-60595-00
14 BUTTON CAP 877-60531-00
15 BUTTON CAP (PLATING) 877-60530-01
16 WASHER 868-20217-00
17 SPEADER BRACKET 870-20693-00
18 LED COLUMN 700-60149-00
19 BUTTON 877-50409-00

360-30028-00/667-TS32351-05

20 CRT FIXER 615-10079/10080-00
21 COMPONENT NUT 648-30001-00
22 CRT 335-2942Q-00U
23 CRT BOARD 667-TSE30-02
24 RIGHT/LEFT COVER BOARD 808-10570/10571-40
25 LABEL 880-10205-895

PART# DESCRIPTION LOCA.NO.

100-TS27500-10 TS2750J
100-TS27500-01 TS2750

477-12904-00U DEGAUSS COIL DX-29!

615-10079-00 CRT FIXER ASS'Y
615-10080-00 CRT FIXER ASS'Y
648-30001-00 COMPOSE NUTS SJ2843-87M6
700-60149-00 LED COLUMN
742-30005-09 LINE TIE
742-30006-09 GRADING TIE
742-30032-00 TIE
742-30032-00 TIE
742-30038-00 TIE
742-30043-00 LINE TIE
742-30043-00 LINE TIE
807-20065-00 BACK CABINET PRESS BLOCK
808-10570-40 COVER BOARD ( LEFT )( MOLD GREY )
808-10571-40 COVER BOARD ( RIGHT )( MOLD GREY )
808-70239-00 EVA GLUE 150X50X1
851-23016-11 SCREW SJ2824 ST3X16C-DZn
851-23016-11 SCREW SJ2824 ST3X16C-DZn
851-24016-11 SCREW SJ2824 ST4X16C-DZn
851-24016-11 SCREW SJ2824 ST4X16C-DZn
851-24016-14 SCREW SJ2824 ST4X16C-Y
851-24016-14 SCREW SJ2824 ST4X16C-Y
851-24016-14 SCREW SJ2824 ST4X16C-Y
851-24016-14 SCREW SJ2824 ST4X16C-Y
851-24016-14 SCREW SJ2824 ST4X16C-Y
851-24016-14 SCREW SJ2824 ST4X16C-Y
851-24020-14 SCREW SJ2824 ST4X20C-Y
851-24020-14 SCREW SJ2824 ST4X20C-Y
851-24025-11 SCREW SJ2824 ST4X25C-D.Zn
851-24025-11 SCREW SJ2824 ST4X25C-D.Zn
851-53012-11 SCREW SJ2825 ST3X12C-D.Zn
851-53012-11 SCREW SJ2825 ST3X12C-D.Zn
851-53012-31 SCREW SJ2825ST3X12FT-DZn

851-53012-31 SCREW SJ2825ST3X12FT-DZn
855-A0024-00 SCREW M4X18
855-A0024-00 SCREW M4X18

857-10004-00 COTTON FLANNEL

857-10004-00 COTTON FLANNEL

857-10004-00 COTTON FLANNEL

857-10004-00 COTTON FLANNEL

PART LIST

17

862-20028-00

868-10107-00 CUSHION

868-10107-00 CUSHION

868-20007-00 SLEEVE

868-20109-00 WASHER

868-20175-00 SUPPORT CUSHION

868-20175-00 SUPPORT CUSHION

868-20271-00 RUBBER WASHER

868-20271-00 RUBBER WASHER

868-20553-00 CABINET BOTTOM CUSHION

868-20465-00A CUSHION

881-60085 BLANK WARNING LABEL
887-20044-01 POWER CORD COVER
893-10600-11 NUT GB6170-86-M6 D.Zn
893-10600-11 NUT GB6170-86-M6 D.Zn
655-63101-09 (6-PINS) LEAD WITH HOUSING

100-U29F0-01FD U,V,29F6 BOARD

335-2942Q-00U *CRT 73SX707Y22-DC01-A !

780-10908-040 BACK CABINET ( MOLD GREY )

863-80767-00A POLY FOAM (TOP )( small )

863-80768-00 POLY FOAM (BOTTOM )( small )
886-31150-00 CARTON BOX ( BLANK small )
887-21114-P0 PE/PEARL COTTONPALSTIC BAG 1300X1250

611-E50Y3J0H1C FRONT CABINET ASS'Y (HIPS V0 SILVER WHITE 03

770-40151-40 IMITATEUL1672 22# 400mm BLACK
741-10001-02 WIRE FIXED BLADE
741-10001-02 WIRE FIXED BLADE
887-21135-00 CLASPER PALSTIC BAG 230X330X0.1
123-30001-04 TWIST WIRE
838-10401-00 BRAIDED WIARE SPRING

POWER CORD 卡

881-64006-00 BAR CODE LABEL (69020712750)

880-10205-895 BACK PLATE (TS2750J,JENSEN)

880-10414-01

881-63030-00A POWER SYMBOL LABEL (JENSEN)

886-31150-15 CARTON BOX (TS2750J,JENSEN)

335-2942Q-60 CRT NA MAGNETIC FIELD !

604-TS27506-00 OWNER'S MANUAL(JENSEN USA/ MTS)

881-80666-00 REGISTER CARD (JENSEN AMERICA )
881-80669-00 SERVICE CARD (27-32 CRT)
488-10012-00
887-20047-01 ASSY PALSTIC BAG

667-TSE30-02 CRT PCB ASS'Y
459-2147H-90 CERAMIC CAPACITOR CC1-12-SL-63V-471J C401

FRONT LOGO (JENSEN, SILVERY 高光冷 GREY 10

BATTERY 7＃( made in china

459-2147H-90 CERAMIC CAPACITOR CC1-12-SL-63V-471J C402

459-2147H-90 CERAMIC CAPACITOR CC1-12-SL-63V-471J C403
467-1C130-H0 CARBON RESISTOR 1/6W-300Ω-J R404
467-1C130-H0 CARBON RESISTOR 1/6W-300Ω-J R405
467-1C130-H0 CARBON RESISTOR 1/6W-300Ω-J R406

343-26880-20 TRANSISTOR 2SC2688L V401
343-26880-20 TRANSISTOR 2SC2688L V402
343-26880-20 TRANSISTOR 2SC2688L V403

364-58210-00 CRT SOCKET GZS10-2-102G ! X403
467-1C224-H0 CARBON RESISTOR 1/6W-2.4K-J R407
467-1C224-H0 CARBON RESISTOR 1/6W-2.4K-J R408
467-1C224-H0 CARBON RESISTOR 1/6W-2.4K-J R409

655-41201-240 (４-PINS) LEAD WITH HOUSING X302

459-8222K-00 CERAMIC CAPACITOR DE1005B222K2K C407

464-6D722-M0 ELECTROLYTIC CAPACITOR CD110-16V-220uF-M C411

464-65610-M0 ELECTROLYTIC CAPACITOR CD288-250V-10uF-M C409
655-51201-170 (5-PINS) LEAD WITH HOUSING X401
467-1C110-H0 CARBON RESISTOR 1/6W-100Ω-J R401
467-1C110-H0 CARBON RESISTOR 1/6W-100Ω-J R402
467-1C110-H0 CARBON RESISTOR 1/6W-100Ω-J R403

998 JUMPER WIRE L401

782-TS2735-0200 CRT PCB

467-2G315-H0 METAL RESISTOR 2W-15kΩ-JL R419
467-2G315-H0 METAL RESISTOR 2W-15kΩ-JL R420
467-2G315-H0 METAL RESISTOR 2W-15kΩ-JL R421

467-8E227-H0A SOLID RESISTOR 1/2W-2.7KΩ-J ! R413
467-8E227-H0A SOLID RESISTOR 1/2W-2.7KΩ-J ! R414
467-8E227-H0A SOLID RESISTOR 1/2W-2.7KΩ-J ! R415

471-2068K-10 PEAKING COIL LGA0410-68uH-K L402

998 JUMPER WIRE R410
998 JUMPER WIRE R411
998 JUMPER WIRE R412
998 JUMPER WIRE J401
998 JUMPER WIRE J402
998 JUMPER WIRE R424
998 JUMPER WIRE J404
998 JUMPER WIRE R426

301-ATS2030-26C

615-20498-00 SPEAK ASS'Y

384-32108-50 SPEAKER YDT813
655-41201-317 (4-PINS) LEAD WITH HOUSING

741-10001-02 WIRE FIXED BLADE

851-53008-31 SCREW SJ2825 ST3X8FT D.Zn

870-20693-00 SPEAK BRACKET

RC-A26-0C遥控发射器JENSEN

868-20217-00 WASHER

667-TSX50-01 MAIN PCB ASS'Y

667-TSX50-01\ MAIN PCB ASS'Y (MANUAL INSERTION )

782-L20Y19-010A MAIN PCB

667-LPY15-01U* MAIN PCB ASS'Y (SMD )

353-15010-50 SMD ICAP1501-50K5 N703

455-22210-H0 SMD RESISTOR RC11-1/8W-1K-J R716
364-T3001-00 SMD 30-PINSFF-A1255-WRS X704
455-12000-H0 SMD RESISTOR FTR0603000XR R732
455-12000-H0 SMD RESISTOR FTR0603000XR R733
455-12000-H0 SMD RESISTOR FTR0603000XR R739

477-40272-00 SMD SLF12575T-151M1R5 L702

455-12075-H0 SMD RESISTOR FTR0603750JR R359

464-6F710-M02 ELECTROLYTIC CAPACITOR CD110-35V-100uF-M C710

467-4FA15-H0 FUSIBLE RESISTOR 1W-1.5Ω-JL R308

477-00054-00 LINERITY COIL HL1835H-X06 L302

667-TSX35-01\ MAIN PCB ASS'Y (MANUAL INSERTION )

329-33204-00 CRYSTAL 32.768K G201

329-54401-00 CRYSTAL JA18 4.433619MHZ G202

340-00079-00 DIODE FR103 VD304

340-00079-00 DIODE FR103 VD305

340-00079-00 DIODE FR103 VD306

340-00079-00 DIODE FR103 VD504

340-00079-00 DIODE FR103 VD505

340-00079-00 DIODE FR103 VD507

340-00163-00 DIODE RGP10G VD318

340-00256-00 DIODE BYT56M VD509

340-00297-00 DIODE ERD07-15 VD317

340-80019-00 RECTIFIER T3SB60 VD501

998 JUMPER WIRE X301

352-04310-00 IC LM431A (M) N504

340-52840-0G ZENER DIODE RD30E-B3 N101

352-78090-40 IC TA78M09P (D) N201

352-06210-70U IC TLP621-GB(UL) (O)! N502

352-11150-00 *IC LA1115 N703

352-24080-50 IC M24C08BN6 N202

352-40520-60 IC TC4052BP (M) N702

352-40530-00 IC TC4053BP (M) N601

352-76932-30 IC LA76932N-7N56P7-E

364-32101-00 2-PINS CONNECTORS TJC3-02A X202

364-32108-00 2-PINS CONNECTORS TJC1-2A XS502

364-33101-00 3-PINS CONNECTORS TJC3-03A XS203

775-10054-00 SOLDERING BLADE A1

775-10054-00 SOLDERING BLADE A2

998 JUMPER WIRE L303

998 JUMPER WIRE V702(BC)
364-34101-00 4-PINS CONNECTORS TJC3-04A XS202
364-34101-00 4-PINS CONNECTORS TJC3-04A XS604(2,5
364-34101-00 4-PINS CONNECTORS TJC3-04A X728
364-36102-00 6-PINS CONNECTORS TJC2-6A XS301
364-77511-00 FUSE HOLDER FU501
364-77511-00 FUSE HOLDER

457-12003-90U RELAY JQX-115F-012-1H1 ! RL01

458-07009-00 SAW FILTER M1859M Z201

459-B147M-20 CERAMIC CAPACITOR ECK-DNS471MBX ! C524
459-B147M-20 CERAMIC CAPACITOR ECK-DNS471MBX ! C525
459-B222M-20 CERAMIC CAPACITOR ECK-DNS222MEX ! C523

459-6147K-00 CERAMIC CAPACITOR DE0705B471K1k C514
459-6210K-00 CERAMIC CAPACITOR DE0705B102K1K C508
459-6210K-00 CERAMIC CAPACITOR DE0705B102K1K C503
459-6210K-00 CERAMIC CAPACITOR DE0705B102K1K C504
459-6210K-00 CERAMIC CAPACITOR DE0705B102K1K C505
459-6210K-00 CERAMIC CAPACITOR DE0705B102K1K C506

352-78050-00 IC KA7805 (M) N503

464-04747-M0R ELECTROLYTIC CAPACITOR 200USP470MA35 C507
462-2B410-M0V POLYESTER CAPACITOR 250VAC-0.1uF-M ! C501
462-2B410-M0V POLYESTER CAPACITOR 250VAC-0.1uF-M ! C502

462-53318-H0 POLYESTER CAPACITOR CBB13-200V-0.018uF-J C350
462-83356-H0 POLYESTER CAPACITOR CBB21-200V-0.056uF-J C304

464-6D822-M0 ELECTROLYTIC CAPACITOR CD110-16V-2200uF-M C721

464-6E822-M0 ELECTROLYTIC CAPACITOR CD110-25V-2200uF-M C329
464-6F747-M0 ELECTROLYTIC CAPACITOR CD110-35V-470uF-M C335
464-6F810-M0 ELECTROLYTIC CAPACITOR CD110-35V-1000uF-M C317
464-62547-M0 ELECTROLYTIC CAPACITOR CD288-160V-4.7uF-M C340
464-62633-M0 ELECTROLYTIC CAPACITOR CD288-160V-33uF-M C301
464-62710-M0 ELECTROLYTIC CAPACITOR CD288-160V-100uF-M C517
464-65633-M0 ELECTROLYTIC CAPACITOR CD288-250V-33uF-M C303

467-2D247-F0 METAL RESISTOR 1/4W-4.7K-F R511
467-2E001-H0 METAL RESISTOR 1/2W-1Ω-JL R321
467-2E133-H0 METAL RESISTOR 1/2W-330Ω-JL R317
467-2F001-H0 METAL RESISTOR 1W-1Ω-JL R345

467-2F210-H0 METAL RESISTOR 1W-1KΩ-JL R315
467-2G012-H0 METAL RESISTOR 2W-12Ω-JL R520
467-2G312-H0 METAL RESISTOR 2W-12kΩ-JL R116
467-2G312-H0 METAL RESISTOR 2W-12kΩ-JL R301

467-2H239-H0D METAL RESISTOR 3W-3.9kΩ-JL R332

467-4FB33-H0 FUSIBLE RESISTOR 1W-0.33Ω-JL R306
467-4FB33-H0 FUSIBLE RESISTOR 1W-0.33Ω-JL R308

467-4F001-H0 FUSIBLE RESISTOR 1W-1Ω-JL R307

467-4F010-H0 FUSIBLE RESISTOR 1W-10Ω-JL R304
467-2FB82-H0 METAL RESISTOR 1W-0.82Ω-JL R324

467-8E422-H0 SOLID RESISTOR 1/2W-220KΩ-JL ! R504

467-8E522-H0A SOLID RESISTOR 1/2W-2.2M-J ! R501
467-8E582-H0A SOLID RESISTOR 1/2W-8.2MΩ-J ! R509

469-10023-00 THERMISTOR 96708 (9Ω) RT501
469-40004-00 THERMISTOR 5D2-14LC ! R502

471-2056H-60 PEAKING COIL LGA0307-56uH-J L601

472-10001-00 HORIZONTAL DRIVE TRANSFORMER XR0961 T302
477-00089-00 LINERITY COIL LX044C L302
477-20005-00 POWER FILTER LF21061 ! L502
477-20031-00 POWER FILTER LCL-21 ! L501
477-40031-00 FIXED COIL LG750 L301
477-40111-00 FIXED COIL LH133 L307

569-18101-00U FUSE 51S 5A/125V ! FU501

477-40031-00 FIXED COIL LG750 L503
775-60044-00 SOCKET PIN RT-01T-1.3B TP1
775-60044-00 SOCKET PIN RT-01T-1.3B TP2
775-60137-00 HOLLOW PILLAR φ2.36×14B R332
775-60137-00 HOLLOW PILLAR φ2.36×14B VD509
775-60137-00 HOLLOW PILLAR φ2.36×14B VD318

775-60137-00 HOLLOW PILLAR φ2.36×14B
464-6D747-M0 ELECTROLYTIC CAPACITOR CD110-16V-470uF-M C240
470-00376-00U *SWITCHING TRANSFORMERSD4929A ! T501

467-4FB33-H0 FUSIBLE RESISTOR 1W-0.33Ω-JL R531
467-1C075-H0 CARBON RESISTOR 1/6W-75Ω-J R610
467-1C247-H0 CARBON RESISTOR 1/6W-4.7K-J R202

468-33207-00 POTENTIOMETER EVND8A-20K VR501

998 JUMPER WIRE J31
364-91202-00 S-VIDEO TERMINAL CKX5-2K-2 XS602
364-99217-00 AV JACK AV16-09-507 XS601
851-53010-31 SCREW SJ2825 ST3X10FT-D.Zn
851-53010-31 SCREW SJ2825 ST3X10FT-D.Zn
851-23010-14 SCREW SJ2824 ST3X10C-Y
851-23010-14 SCREW SJ2824 ST3X10C-Y
851-24014-31 SCREW SJ2824 ST4X14C-D.Zn
851-24014-31 SCREW SJ2824 ST4X14C-D.Zn

870-20690-U00A FBT BRACKET (HIPS V0)

472-27148-00 FBT BSC29-3988N A ! T301
590-40707-00 TUNER 115-B-8035AZ TUNER
681-40003-00 OK LABEL
742-30005-09 LINE TIE
851-53016-31 SCREW ST2825 ST3X16FT-D.Zn
851-24014-31 SCREW SJ2824 ST4X14C-D.Zn
851-53012-31 SCREW SJ2825ST3X12FT-DZn

863-60122-U00H MAIN BOARD FRAME (HIPS V0)

870-20357-00 WIRE FIXED HOLDER
881-60074-00 HIGH VOLTAGE WARNING LABEL

462-00333-H0 POLYESTER CAPACITOR CL11-100V-0.033uF-J

343-20090-80 TRANSISTOR ST2009DHI V302
343-52480-30 TRANSISTOR 2SC5248E V306
352-75220-00 IC AN7522N (M) N701
352-78041-00 IC LA78041 (M) N301
352-78050-00 IC KA7805 (M) N505

462-83439-H0 POLYESTER CAPACITOR CBB21-200V-0.39uF-J C339
462-88272-H0 POLYESTER CAPACITOR CBB81-1600V-7200PF-J C311
462-88272-H0 POLYESTER CAPACITOR CBB81-1600V-7200PF-J C310

352-12650-90 IC FSCQ1265RT N501

706-T3003-01 HEAT SINK N701
706-T5004-01 HEAT SINK V302
706-T7501-01 HEAT SINK N301

706-20173-00 HEAT SINK N505
706-20231-00 HEAT SINK V306
706-46006-01 HEAT SINK N501
851-13008-56 SCREW P(+) T3X8S-R N701
851-13008-56 SCREW P(+) T3X8S-R
852-13008-81 SCREW P(+) M3X8-D.Zn N505
852-13008-81 SCREW P(+) M3X8-D.Zn V306
893-10300-11 NUT GB6170-86-M3-D.Zn N505
893-10300-11 NUT GB6170-86-M3-D.Zn V306
894-40030-11 WASHER GB859-87,3-DZn N505
894-40030-11 WASHER GB859-87,3-DZn V306
851-13008-56 SCREW P(+) T3X8S-R N301
851-13008-56 SCREW P(+) T3X8S-R N501
851-13008-56 SCREW P(+) T3X8S-R V302

808-10521-020 BLACK PLATE ( MOLD BLACK )

808-60748-02 INTERFACE SPACE PLATE (SILK-SCREEN )

998 JUMPER WIRE N703

998 JUMPER WIRE
364-35101-00 5-PINS CONNECTORS TJC3-05A XS604(2,6

467-2FA51-H0 METAL RESISTOR 1W-5.1Ω-JL R321

998 JUMPER WIRE L501

998 JUMPER WIRE

472-2710H-00U FBT BSC29-3718 ! T301

491-752J0-02 POWER CORD UL !

863-6A127U000H MAIN FRAME (HIPS V0)

364-99208-00 AV JACK AV901-5 XS601

462-88282-H0 POLYESTER CAPACITOR CBB81-1600V-8200PF-J C310
462-88282-H0 POLYESTER CAPACITOR CBB81-1600V-8200PF-J C311

352-81770-00 IC TDA8177 (M) N301

808-1M650-040 BLACK PLATE

808-60897-02 INTERFACE SPACE PLATE (SILK-SCREEN )

667-TSX50-01* MAIN PCB ASS'Y (AUTOMATIC INSERTION )

467-2D347-F03 METAL RESISTOR 1/4W-47K-F R513

667-TSX35-01* MAIN PCB ASS'Y (AUTOMATIC INSERTION )

782-L20Y19-010A MAIN PCB

667-LPY15-01U* MAIN PCB ASS'Y (SMD )

353-15010-50 SMD ICAP1501-50K5 N703

455-22210-H0 SMD RESISTOR RC11-1/8W-1K-J R716
364-T3001-00 SMD 30-PINSFF-A1255-WRS X704
455-12000-H0 SMD RESISTOR FTR0603000XR R732
455-12000-H0 SMD RESISTOR FTR0603000XR R733
455-12000-H0 SMD RESISTOR FTR0603000XR R739

477-40272-00

455-12075-H0 SMD RESISTOR FTR0603750JR R359

464-6F710-M02 ELECTROLYTIC CAPACITOR CD110-35V-100uF-M C710

467-4FA15-H0 FUSIBLE RESISTOR 1W-1.5Ω-JL R308

477-00054-00 LINERITY COIL HL1835H-X06 L302

667-TSX35-01\ MAIN PCB ASS'Y (MANUAL INSERTION )

998 JUMPER WIRE N703

998 JUMPER WIRE
364-35101-00 5-PINS CONNECTORS TJC3-05A XS604(2,6

467-2FA51-H0 METAL RESISTOR 1W-5.1Ω-JL R321

998 JUMPER WIRE L501

998 JUMPER WIRE

472-2710H-00U FBT BSC29-3718 ! T301

491-752J0-02 POWER CORD UL !

863-6A127U000H MAIN FRAME (HIPS V0)

364-99208-00 AV JACK AV901-5 XS601

462-88282-H0 POLYESTER CAPACITOR CBB81-1600V-8200PF-J C310
462-88282-H0 POLYESTER CAPACITOR CBB81-1600V-8200PF-J C311

352-81770-00 IC TDA8177 (M) N301

808-1M650-040 BLACK PLATE

808-60897-02 INTERFACE SPACE PLATE (SILK-SCREEN )

SMD 固定感SLF12575T-151M1R5

L702

459-2039H-102 CERAMIC CAPACITOR CC45-CH1H390JYR C203

998 JUMPER WIRE J211

998 JUMPER WIRE J717

459-2233K-002 CERAMIC CAPACITOR CT1-08-2B4-63V-332K C333

667-TS2950-05 KEY BOARD ASS'Y

467-1C210-H0 CARBON RESISTOR 1/6W-1K-J R902
467-1C222-H0 CARBON RESISTOR 1/6W-2.2K-J R903

467-1C233-H0 CARBON RESISTOR 1/6W-3.3K-J R904
467-1C247-H0 CARBON RESISTOR 1/6W-4.7K-J R905
467-1C282-H0 CARBON RESISTOR 1/6W-8.2K-J R906
467-1C312-H0 CARBON RESISTOR 1/6W-12K-J R909
467-1C420-H0 CARBON RESISTOR 1/6W-200K-J R907

360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B S901
360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B S902
360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B S903
360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B S904
360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B S905
360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B S906
352-03810-80 *IC AT138B-T12 RC901
340-10097-60 LED HFB90101M VD902

655-31201-108 (3-PINS) LEAD WITH HOUSING X902

655-41201-245 (４-PINS) LEAD WITH HOUSING X901

467-1C147-H0 CARBON RESISTOR 1/6W-470Ω-J R910

782-TS2950-0500 BUTTON PCB

851-23012-31 SCREW SJ2824 ST3X12FT-D.Zn
877-50409-00 KEY
877-60530-01 BUTTON COVER (PLATE )
877-60531-00 BUTTON COVER

467-1C110-H0 CARBON RESISTOR 1/6W-100Ω-J R901

464-6D647-M0 ELECTROLYTIC CAPACITOR CD110-16V-47uF-M C901

667-TS2950-29 SIDE AV BOARD ASS'Y

782-Q2751-290A SIDE AV PCB

364-93202-00 AV JACK AV306-2

655-6E302-58 (6-PINS) LEAD WITH HOUSING XAA3

998 JUMPER WIRE LAA1

998 JUMPER WIRE LAA2

998 JUMPER WIRE JAA1

870-2D839-042 SIDE AV BRACKET ( MOLD GREY SILK-SCREEN

851-23012-11 SCREW SJ2824 ST3X12C-DZn
868-10089-00 CUSHION

667-TS32351-05 Stand By KEY BOARD ASS'Y

360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B

655-21201-67 (２-PINS) LEAD WITH HOUSING

782-13Y90-050A BUTTON PCB

1
2
3
4
5
6

7

C323

VD306

S5295G

VD305

FR103

VD304

C312

(1500)

1110987654321

N701

10

C734

C722

10n

1u/16V

C735

10n

R401

C401

100

100p

12

R CRT

R407

4K7

R410

C402

R402

100p

13

100

G CRT

R408

4K7

C403

14

100p

B CRT

R409

4K7

R410

1K2

R CRT
G CRT

C407

10u 16V

R412

B CRT

12K

C408

0.01

R319

VD309

22K

HZ5B3

R320

22K

C328

0.1

680p

R309

10

1

R308

1 1/2W

R307

1W 3.6

C315

680p

1

R306

FR103

1W 2.4

R304

R301

10 1W

9K1 2W

1

C339

1W

400V 0.39

VD313

S5295G

1

VD301

S5295J

C303

C302

33u 250V

220p

XS604

GVGRL

C606

10u/16A

21

R615

4.7K

R730

10K

R731

10K

C732

10u/16V

VIN

9V

R231

560

R230

R229

24K

24K

L202

22uH

C235

C243

50V 1u

C232

C233

R247

2M2

0.01

10V 470u

C231

680K

0.047

53

54

55

565758

C APC

V IN/Y IN

V/C/D VCC

V IN/S-C IN

ABL

RGB VCC

R OUT

A IN

10

11121314151617

R206

10K

RGB

R208

51

C211

C212

C210

0.01

22u 16V

10V 100u

R207

390K

R522

3K9

1

N503

7805

2

680

C519

1000u 25V

C518

103p

R512

C527

10n

2K

R513

200K 1/4W

2

N504

R511

TL431

4K7 1/4W

PIN6

C604

10u/16v

43521

6

R744

100K

16

15

1Y1141Y2

VCC

TC4052

N702

2Y222Y012Z32Y342Y15E6VEE7GND

R733

100K

L-OUT

C234

10V4700u

V202

A1015

C229

0.47

18p

C228

G202

0.1

C230

0.1

*

R232

100

505152

CR

CB

4.43M

V OUT/FSC

LA76932

*

AKB

V RAMPOSC

G OUT

B OUT

C214

0.47

R210

4K7

C246

15n

C215

0.47u

5V-2
5V-1

V507

C1815

R515

R616

4.7K

A_Lout

13

12

1Z

R-OUT

R244

F B IN

V OUT

1/4W 5K1

R213

R514

10K

5K6

R743

100K

AV/TV

10

1Y3111Y0

R737

100K

C226

47pF

1K8

46

474849

R IN

G IN

N201

LA76932

VCO IREF

H VCC

18

192021

C216

0.015

68K

R242

C218

R211

10V 100u

220

C522

R523

*

10K

V506

C1815

R524

5K6

R528

5K6

5V-2

R227

VD201

HZ5C2

AV1/AV2

S19S0

8

GND

20K

C225

10V 100u

44

45

B IN

FBP INH OUT

H AFC

C217

1u

R212

3K

C241

0.01

R343

R701

C717

C719

C715

C716

1M

4.7uF

1uF/16V

0.1uF

0.068

24

21

22

C718

1uF

DET OUT

GND1Rch-in2R-DC13ST-14LPFC5R-TC16R-BC7R-BC8R_DC29R-VROUT10VREF11VCC

20

23

ST-2

HPFC

Lch-in

C703

C704

5600pF

2700pF

1u /25V

4.7u/50V

C701

C702

KEY

AV1/AV2(A)

FBP

C223

R228

R223

C224

100

0.01

R224

100

C222

0.033

CCD VCC

CPU GND

P00 X-RAY

GND
2223242526

R241

50V 2.2

1M

15K

C245

C227
R225

47K

414243

PLL

PO1/INT1

S-DET

R215

4K7

R214

4K7

R220

4K7

1u

RESET

PO2 DVD-DET

C244

0.01

383940

KEY

TV/AV

PO7/AN7

PO3/INT3

P14 AV1/AV2

REM

27

R245

10K

0.1

R221

10k

AV1/AV2

PO5/AN5

PO6/AN6

P15 POW
2829303132

SDA1

R216

4K7

DVD

S-DET

REM

R217

4K7

R243

10K

POWER

ON

OFF

1

N505

7805

C530

330u/16V

R344

68K

68K

C520

330u/16V

2

VD302

5V2

R352

*

ABL

LV1115N703

GND

KEY1

L204

68uH

PO4/AN4

POWER KEY

P17

VOL

SCL1

R219

100

N202

24C08

R520

1W

15 1W

C714

2700p

18

L-TC119L-TC1

C705

0.1u

C220

15p

R222

390K

353637

VDD

P16 PWM3

IC BUS CON

CON

R218

100

X-RAY

C314

100u/16V

R351

1K

C713

0.1uF

C706

0.1u

34

XT2

P12/SDA1

SDA1

8VCC
7

TEST

6

SCL
SDA GND

V305

C1815

SCL1

SDA1

C711

C712

4.7uF

0.1uF

R712

R711

220

220

14

16

15

13

VD703

IN4148

*

1

CLK

L-BC17L-BC

C728

0.1u

DATA

L-DC2

L-VROUT

C709

4.7uf

4.7u

C720

R708

1K

R709

V701

10K

A1015

9V

12

C710

1000u/35V

VIN

S-C

AV/TV

AV1/AV2(A)

TVO

C221

15p

G201

*

33

XT1

1

VD704

IN4148

VCC1OUT1(+)2GND3OUT1(-)4STB5GND7IN28VOL9OUT2(-)

10K

C721

R716

2200u/16V

R707

C708

R715

560K

16V 220u

10K

1K

R710

R706

VD702

10K

1

4.7u/16V

1N4148

10K

C707

R703

N601

TC4053

9v

1

16

2

15

C602

3

14

1u/16V

4

13

5

12

6

11

7

10

89

C608

100k

R617
R618

100k

R613

R
G
B

6K8

N301

P13/SCK1

SCL1

C240

0.01

1

A0

2

A1

3

A2

45

9V

V301

TP9

TP6

6

2SC2383

R349

100

R348

3K

R350

1K

1

470u 16V C321

C322

R329

C309

100u/16V

10K

C306

C305

390p

820

341

C307

R302

160V 4u7

2K7

3W

R332

3K3 3W

V304

A562

R347

2.7K

140V

C335

35V 100u

R330

5K6

V303

C1815Y

*

R314

1/2W 56

N201

7809

2

R322

1.5K

VD303

18V

C308

T302

XR0961

2

R346

3.3K

1

1N4148

VD315

INV IN1VCC2PUMP3GND4OUTPUT5OUT VCC6NON IN

1

VD308

IN4002

C333

1000

R327

12K

TP1

TP2

TP2

TP2

VD307

HZ7C2

R313

4K7

R312

C325

4K3

100u 16V

12

12V

1000u 16V

27V

V302

C2539

7

R303

2n2

33

VD317

ERD07-15

L307

R345

LH133
1
1W

C340

V306

10u/160V

C5248

AN7522

IN1

6

C723

1u/16V

9V

10K

R714

10u/16V

10uf/16V

3k

C733

C736

R717

10K

R713

C605

5V-2

16V 10u

R612

100K

75

R620

10u 16V

R614

XS201

XS401

15K

1
2

5C1

3

VD202

5C1

4

VD203

5

VD204

HZ5C1

6

*

LA78041

C327

10u 16V

C332

C331

100U 35V

R321

R325

10p

10K

1 1/2W

R326

R328

C329

330

33K

2200u 25V

1W

C330

R324

4u7 25V

0.68 1W

TP1

TP1

R311

C324

8K2

10u 50V

C318

C319

C320

680p

10n

470u 16V

1

C317

C316

1000u 35V

27V

10n

C311

8n2

C310

8n2

1

C350

22n/400V

*

1

VD318

ERC20M-04

C338

250V 4u7

D

L601

56uH

*

C101

4u7 50V

C601

3

R601

0.01uF

82

4

C609

0.01

T101

AGCBMSCL

BM

1

3

R101

C105

100K

100u

XS602

C113

R104

4

R611

75

113
2

10

5

9

6

8

7

4

0.01

100

SCL1 SDA1

XS601

2

7

10

6

9
8

SDA

BM

5

6

R103

100

L102

68uH

IN OUT

CbYCr

14

13

12

14

11

13

7119

8

10

12

VT

C102

0.22

R603

R602

75

75

R105

IF1

5K6

R108

560

R110

100

C106

0.01

R106

1K2

V101

C2717

5

S-DET

15

16

R6071KR608
C610

100u/16V

LRV

191817

20

1K

R610

75

C611

10u 16V

V703

C1815

R7501KR751

1k

DVD

9V

V704

C1815

R

LV

1

3

9

2

4

R604

R606

4.7K

4.7K

C613

C612

10u/16V

10u/16V

R107

L101

150

56uH

9V

C107

0.01

C108

0.01

R109

27

S-C

TVO

C239

V203

50V 1u

A1015

Z201

*

C201

10pF

R507

10

VD505

IN4148

VD502

IN4148

R239

R235

680

3215

R240

0.01

4

C237

63

64

IF GND

RF AGC

PIF IN 1

PIF IN 2

SIF IN

SIF OUT

PIF AGC

FM FIL

1

234

C205

0.022

C204

1u

C202

C203

0.022

39pF

R201

39K

L201

15uH

T501

SD4929A

9

20

*

*

8

19

7

18

*

6

*
17
15

3

*
2

*
13

N502

1

4

3

2

*

R509

8M2

C523

2n2 400V~

R236

10K

0.1u

R237

47K

R238

47K

C247

C236

560

0.47

606162

59

V OUT

AFT FIL

A OUT

FM/A OUT
56789

C207

0.01

R204

10K

C206

0.022

C209

100u

A_OUT

FM_OUT

C515

680

1

VD507

FR103

C521

470u 16V

1W

1W

R531

C514

1n 1KV

1

VD509

TBY56J

C517

R510

3K9

R508

VD511

R525

220

HZ7A2

C242

560

50V 1u

R246

180K

1K

R234

C238

50V 2.2u

R233

APC FIL

B L D FIL

SIF APC FIL

IF VCC

R205

C208

2K2

1500

L203

68uH

5V-2

V501

1015

R521

10K

C513

1

VD508

FR103

R527

100K

100u 160V

3 1

1K

V505

C1815

R526

5K6

5K6

R516

R517

R518

10K

C505

XS202

*

XS203

*

X201

10K

C528

10u/16V

VD501

VD501

4

4n7

X202

*

PIN4

4
3
2
1

2

1

4
3
2
1

C506

4n7

N101

upc574

5V-1

1

2

3

CON
SCL
SDA

C504

4n7

N501

12345

C508

1000 1KV

2W

R116

12K 2W

C112

4u7 50V

REM

KEY1

KEY

R504

1/2W 110K

1 2

R503

C507

1/2W 110K

150uF 400V

1 2

VD504

FR103

VD510

1
1

R506

680

1

C511

3300

C531

10uf/50V

C510

R505

0.022
330

HZ12B2

FSCQ1265RT

VD503

C509

HZ5B1

47u 50V

C512

0.047

R

9

FSC

R-OUT

8

R-OUT

L-OUT

7

L-OUT

6

GND

C

B

XS502

XS502

A

5

SCL

9V

4

SDA

3

9V

2

GND

FM-OUT

1

SIF

MTS

C902

XS902

33u

KEY

VOL-

VOL+

CH-

CH+

MENU

AV/TV

POWER

RL01

3
2
1 5

NPN2

PTC

C526

0.1

1

XS501

1

2

SW901

3

R902

PIN3

1K

SW902

R903

2K2

SW903

R904

3K3

R905

SW904

4K7

R906

SW905

8K2

SW906

R907

12K

R908

SW907

33K

R909

150K

RT501

C524

470pF 250V~

L501

1

2

1 2 3 4 5 6 7 8 9 10 11 12

3

2

4

t

2

R501

FU501

T4A 250V~

12V

V503

C1815

GND

C503

4n7

C502

0.1

213

R502

R502

C525

470pF 250V~

341

C501

0.1

2.2M

C741

C742

100p

100p

GND

OUT2(+)

11

12

V401

2SC2688

VD401

IN4148

1

C401

390p

R404

390

330

V402

2SC2688

VD402

IN4148

1

C402

390p

R405

R411

330

390

CRT R

V403

R403

2SC2688

100

VD403

IN4148

1

C403

R406

390p

R412

390

330

V404

C1815

R411

1K8

XS403

CRT

R419

R318

1K5

3.3 1W

241

3

XS402

PIN4

10

XS301

6

C326

100n

5

1 2

R317

R315

R316

1W 1K

1W 1K

330 1/2W

3

1W

1W

1

L302 L303

*

T301

*

10

9

4

7

6

1

3

2

L301

L2

R305

C304

*

C301

33u 250V

5n6 400V

200V

Title

Number RevisionSize

A1

Date: 13-Jan-2005 Sheet of
File: E:\PROTEL\LHL.Ddb Drawn By:

12

C743

C744

100p

100p

1

R+

2

R-

3

L+

4

L-

X728

D

2W

R419

15K

R413

2.7K

R420

15K

2W

R414

2.7K

R421

15K

2W

R415

2.7K

CRT G

CRT B

C

C409

250V 10u

6

2

G

3

CRT G

5

R

CRT R

B

CRT B

*

8

HV

7

4

C410

1n 2KV

B

HV

*

FOCUS

SCREEN

A

XS302

4
3
2
1

*
