Emerson Rosemount WPG, Rosemount SPG Quick Start Manual

Quick Start Guide

00825-0100-4145, Rev BA

February 2018

Rosemount™ Smart Pressure Gauge

February 2018

2

Quick Start Guide

Required equipment

NOTICE

This guide provides basic guidelines for Rosemount Smart Pressure Gauges. It does not provide instructions
for configuration, diagnostics, maintenance, service, troubleshooting or intrinsically safe (I.S.) installations.
Refer to the Rosemount Smart Pressure Gauge

Reference Manual for more instruction. The manual and this

guide are also available electronically on

Emerson.com\Rosemount.

Shipping considerations

The device is shipped with the battery installed.
Each device contains one “D” size primary lithium-thionyl chloride battery. Primary lithium batteries are

regulated in transportation by the U.S. Department of Transportation, and are also covered by IATA
(International Air Transport Association), ICAO (International Civil Aviation Organization), and ARD
(European Ground Transportation of Dangerous Goods). It is the responsibility of the shipper to ensure
compliance with these or any other local requirements. Consult current regulations and requirements before
shipping.

Explosions could result in death or serious injury.

 Installation of device in an explosive environment must be in accordance with appropriate local, national

and international standards, codes, and practices.

 Ensure device is installed in accordance with intrinsically safe or non-incendive field practices.

Electrical shock can result in death or serious injury.

 Care must be taken during transportation of device to prevent electrostatic charge build-up.
 Device must be installed to ensure a minimum antenna separation distance of 8 in. (20 cm) from all

persons.

Process leaks could result in death or serious injury.

Handle the device carefully.

Failure to follow safe installation guidelines could result in death or serious injury.

Only qualified personnel should install the equipment.

Anti-seize paste or PTFE tape
(for NPT threaded connection)

Standard tools, e.g. screwdriver,
wrench, pliers

Contents

What’s in the box . . . . . . . . . . . . . . . . . . . . . . . . . 3

Optional: Power/device check . . . . . . . . . . . . . 4

Optional: Normal range indication option . . . 4

Installation Procedure . . . . . . . . . . . . . . . . . . . . . 5

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . 7

Product Certifications . . . . . . . . . . . . . . . . . . . . . 8

Quick Start Guide

3

February 2018

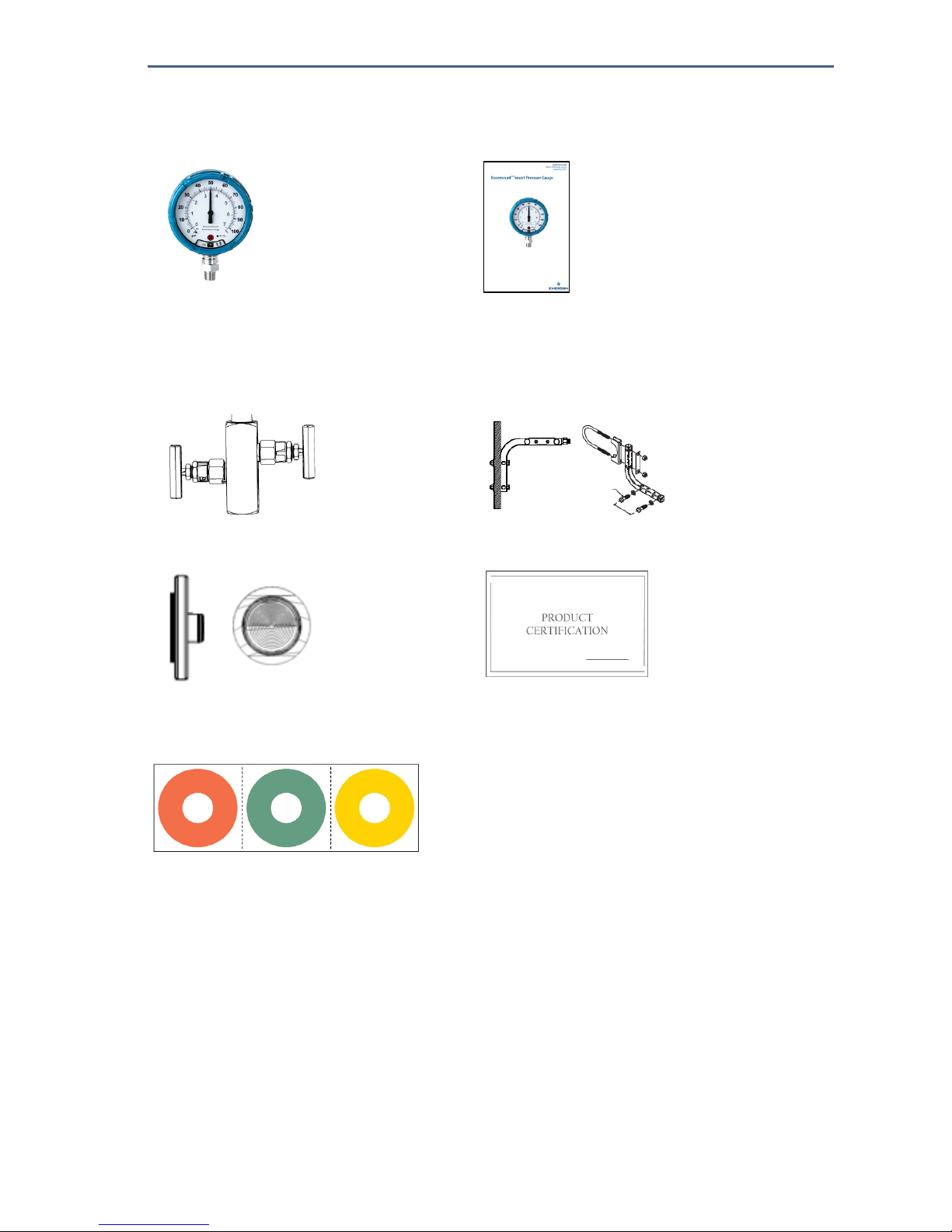

What’s in the box

The following options are also available and will ship with the Rosemount Smart Pressure
Gauge if ordered.

Smart Pressure Gauge Quick Start Guide

Rosemount 306 Integral Manifold (model code S5) B4 bracket (model code B4)

Rosemount 1199 Seal (model code S1)

Product Certification (model codes below)
Q4: Calibration Cert
QG: Calibration Cert and GOST Verification Cert
QP: Calibration Cert and Tamper Evident Seal
Q8: Material Traceability cert per EN 102043.1
Q15: Cert of Compliance to NACE MR0175/ISO 15156 for

wetted materials

Q25: Cert of Compliance to NACE MR00103 for wetted

materials

Normal range Indication (model code LK)

February 2018

4

Quick Start Guide

1.0 Optional: Power/device check

The device is designed to be installation-ready. To check device battery prior
to installation, perform the following:

1. Perform “Turn on device” on page 6.

2. Slide the ON/OFF switch to the OFF position until ready for use.

2.0 Optional: Normal range indication option

Note

The stickers are intended to be installed on the dial only and should not be applied on
the inside or outside of the housing cover.
Stickers should be applied in an environment where the ambient temperature is above
50 °F (10 °C).

1. Modify each of the stickers to desired size.

2. Remove housing cover.

3. Slide ON/OFF switch to the OFF position and wait for LED to stop flashing.

4. Gently move the needle in the clockwise direction until it is pointing at the
Red X.

Note

Use caution as the electronics assembly is connected to the needle.

5. Remove any debris on the dial, so it does not become trapped under the
sticker.

6. Peel back the white paper backing of the sticker.

7. Slowly lower the sticker onto the surface of the dial in the desired location
and rub it in place firmly. Repeat steps 6 and 7 until desired indication
locations are set.

Note

Moving the sticker after initial contact is not recommended as this decreases the
amount of adhesive on the back of the sticker.

8. Slide ON/OFF switch to the ON position.

9. Replace housing cover.

Quick Start Guide

5

February 2018

3.0 Installation Procedure

Step 1: Seal and protect threads

Step 2: Mount device

Note

Use wrench on flats, not on housing.

Mounting orientation

The low side pressure port (atmospheric reference) is located in the neck of the
device behind the housing. The vent path is between the housing and sensor
(see Figure 1).

Figure 1. Low Side Pressure Port

A. Low side pressure port (atmospheric reference)

Keep the vent path free of any obstruction, including but not limited to paint, dust, and lubrication by
mounting the device so the process can drain away.

OR

A

February 2018

6

Quick Start Guide

Step 3: Turn on device

Check to ensure the device and battery are working properly.

1. Twist the cover counterclockwise to remove it.

2. Slide the OFF/ON switch to the ON position to initiate the power sequence.

Note

During the power sequence, the dial tests full range of motion and LED flashes amber.

3. Once the power sequence ends, verify the LED flashes green.

Note

The LED may display several colors; see Figure 1 in “Troubleshooting” on page 7 for
device statuses.

Step 4: Connect to device

Field Communicator

1. Turn on the Field Communicator.

2. From the Main menu, select the HART symbol.

AMS Configurator

1. Start AMS Configurator.

2. From the View menu, select Device Connection View.

3. Double click the device under the HART modem.

A. Field Communicator B. HART® Modem C. AMS Configurator

123

645

8709

A

B

C

Quick Start Guide

7

February 2018

Step 5: Eliminate mounting effects

Devices are factory-calibrated. Once installed, it is recommended to perform
this step to eliminate potential error caused by mounting position or static
pressure. Instructions for using a Field Communicator are listed below.

Note

See the Rosemount Smart Pressure Gauge Reference Manual for the following:

 Using AMS Configurator
 Sensor trim function on absolute gauge

1. Vent the device.

2. Connect the Field Communicator.

3. From the HOME screen, enter the HART Fast Key sequence.

4. Follow the commands to perform the procedure.

4.0 Troubleshooting

This section provides information for basic troubleshooting. See the Reference

Manual for advanced troubleshooting.

Device status

The flashing LED indicates device status using the colors descibed in Table 1.

Table 1. Status Descriptions

Pressure measurement

If the mounting effects have not been eliminated after completing Step 5,
perform this alternative procedure for verifying the pressure value.

1. From the HOME screen, eter the HART Fast Key sequence.

2. Follow the commands to perform the procedure.

Device dashboard Fast Keys

2, 1, 1

LED color Device status

Green Functioning properly

Amber Battery is low, battery replacement recommended

Red

Battery replacement required

OR

Device is malfunctioning

No

color

No power, verify ON/OFF switch is in “on” position

Device dashboard Fast Keys

2, 2, 1, 1, 1

February 2018

8

Quick Start Guide

5.0 Product Certifications

Rev: 2.0

5.1 European Directive Information

A copy of the EU Declaration of Conformity can be found at the end of the
Quick Start Guide. The most recent revision of the EU Declaration of
Conformity can be found at

www.Emerson.com/Rosemount.

5.2 Ordinary Location Certification from CSA

The product has been examined and tested to determine that the design
meets the basic electrical, mechanical, and fire protection requirements by
CSA, a nationally recognized test laboratory (NRTL) as accredited by the
Federal Occupational Safety and Health Administration (OSHA).

5.3 Installing in North America

The US National Electrical Code (NEC) and the Canadian Electrical Code (CEC)
permit the use of Division marked equipment in Zones and Zone marked
equipment in Divisions.The markings must be suitable for the area
classification, gas, and temperature class. This information is clearly defined
in the respective codes.

5.4 USA

I5 U.S.A. Intrinsically Safe (IS)

Certificate: [CSA] 70047656
Standards: FM 3600 – 2011, FM 3610 – 2010, UL Standard 50 – Eleventh Edition,

UL 61010-1 – 3rd Edition, ANSI/ISA-60079-0 (12.00.01) – 2013,
ANSI/ISA-60079-11 (12.02.01) – 2013, ANSI/IEC 60529 – 2004

Markings: IS CL I, DIV 1, GP A, B, C, D T4;

Class 1, Zone 0, AEx ia IIC T4 Ga;
T4 (–40 °C  Ta  +70 °C)
when installed per Rosemount drawing 00G45-1020;
Type 4X; IP66/67;

Special Conditions for Safe Use (X):

1. Do not replace battery when explosive atmosphere is present.

2. Use only 00G45-9000-0001 batteries.

3. The surface resistivity of the housing is greater than 1G . To avoid electrostatic

charge build-up, it must not be rubbed or cleaned with solvents or a dry cloth.

4. Substitution of components may impair intrinsic safety.

5.5 Canada

I6 Canada Intrinsically Safe (IS)

Certificate: [CSA] 70047656
Standards: CAN/CSA C22.2 No. 0-10, CAN/CSA C22.2 No. 94-M1991 (R2011),

CAN/CSA-60079-0-11, CAN/CSA-60079-11-14, CSA Std C22.2 No.
60529-05, CAN/CSA-C22.2 No. 61010-1-12



Quick Start Guide

9

February 2018

Markings: Intrinsically Safe for Class I, Division 1, Groups A, B, C, D T4;

Ex ia IIC T4 Ga
T4 (–50 °C  Ta  +70 °C)
when installed per Rosemount drawing 00G45-1020;
Type 4X; IP66/67;

Special Conditions for Safe Use (X):

1. Do not replace battery when explosive atmosphere is present.

Ne pas remplacer les accumulateurs si une atmosphère explosive peut être
présente.

2. Use only 00G45-9000-0001 batteries.

Utiliser uniquement des accumulateurs 00G45-9000-0001.

3. The surface resistivity of the housing is greater than 1G . To avoid electrostatic

charge build-up, it must not be rubbed or cleaned with solvents or a dry cloth.
La résistivité de surface du boÎtier est supérieure à un gigaohm. Pour éviter
l’accumulation de charge électrostatique, ne pas frotter ou nettoyer avec des
produits solvants ou un chiffon sec.

4. Substitution of components may impair intrinsic safety.

La substitution de composants peut compromettre la sécurité intrinsèque.

5.6 Europe

I1 ATEX Intrinsic Safety

Certificate: Baseefa16ATEX0005X
Standards: EN 60079-0: 2012 + A11: 2013, EN 60079-11: 2012
Markings: II 1 G Ex ia IIC T4 Ga, T4 (–40 °C  Ta  +70 °C)

IP66/67;

Special Conditions for Safe Use (X):

1. The plastic enclosure may constitute a potential electrostatic ignition risk and must

not be rubbed or cleaned with a dry cloth.

2. The measured capacitance between the equipment enclosure and metallic inline

sensor module is 4.7pF. This must be considered only when the SPG is integrated
into a system where the process connection is not grounded.

3. Do not change the battery when an explosive atmosphere is present.

4. Only replace battery with Rosemount Part No. 00G45-9000-0001.

5.7 International

I7 IECEx Intrinsic Safety

Certificate: IECEx BAS 16.0012X
Standards: IEC 60079-0: 2011, IEC 60079-11: 2011
Markings: Ex ia IIC T4 Ga, T4 (–40 °C  Ta  +70 °C)

IP66/67;

Special Conditions for Safe Use (X):

1. The plastic enclosure may constitute a potential electrostatic ignition risk and must

not be rubbed or cleaned with a dry cloth.

2. The measured capacitance between the equipment enclosure and metallic inline

sensor module is 4.7pF. This must be considered only when the SPG is integrated
into a system where the process connection is not grounded.

3. Do not change the battery when an explosive atmosphere is present.

4. Only replace battery with Rosemount Part No. 00G45-9000-0001.



February 2018

10

Quick Start Guide

Figure 2. Declaration of Conformity

EU Declaration of Conformity

No: RMD 1108 Rev. D

Page 1 of 3

We,

Rosemount Inc.
8200 Market Boulevard
Chanhassen, MN 55317-9685
USA

declare under our sole responsibility that the product,

Models WPG & SPG:

Wireless Pressure Gauge & Smart Pressure Gauge

manufactured by,

Rosemount Inc.
8200 Market Boulevard
Chanhassen, MN 55317-9685
USA

to which this declaration relates, is in conformity with the provisions of the European
Community Directives, including the latest amendments, as shown in the attached schedule.

Assumption of conformity is based on the application of the harmonized standards and, when
applicable or required, a European Community notified body certification, as shown in the
attached schedule.

(signature)

Vice President of Global Quality

(function name - printed)

Chris LaPoint

(name - printed)

28-Aug-2017

(date of issue)

EU Declaration of Conformity

No: RMD 1108 Rev. D

Page 2 of 3

EMC Directive (2014/30/EU)

Models WPG & SPG

Harmonized Standards:

EN 61326-1: 2013

Radio Equipment Directive (RED) (2014/53/EU)

Model WPG (Wireless Pressure Gauge only)

Harmonized Standards:

EN 300 328 V2.1.1
EN 301 489-1 V2.2.0
EN 301 489-17: V3.2.0
EN 61010-1: 2010
EN 62479: 2010

ATEX Directive (2014/34/EU)

Models WPG & SPG

Baseefa16ATEX0005X - Intrinsic Safety Certificate

Equipment Group II Category 1 G

Ex ia IIC T4 Ga, T4(-&7D&

Harmonized Standards:

EN 60079-0: 2012 + A11: 2013
EN 60079-11: 2012

Quick Start Guide

11

February 2018

February 2018

12

Quick Start Guide

EU Declaration of Conformity

No: RMD 1108 Rev. D

Page 3 of 3

ATEX Notified Bodies

Baseefa [Notified Body Number: 1180]

Rockhead Business Park
Staden Lane
Buxton, Derbyshire
SK17 9RZ United Kingdom

ATEX Notified Body for Quality Assurance

Baseefa [Notified Body Number: 1180]

Rockhead Business Park
Staden Lane
Buxton, Derbyshire
SK17 9RZ United Kingdom

Quick Start Guide

13

February 2018



ᴹ

China RoHS

㇑

㇑᧗⢙䍘䎵䗷ᴰབྷ⎃ᓖ䲀٬Ⲵ䜘Ԧරࡇ㺘

Rosemount S PG

List of

Rosemount SPG

Parts with China RoHS Concentration above MCVs

䜘

䜘Ԧ〠

Part Name

ᴹ

ᴹᇣ⢙䍘䍘

/ Hazardous Substances 



䫵䫵



Lead

(Pb)

⊎⊎



Mercury

(Hg)

䭹䭹



Cadmium

(Cd)

ޝޝԧ䬜䬜



Hexavalent

Chromium

(Cr +6)

ཊཊⓤ㚄㚄㤟



Polybrominated

biphenyls

(PBB)

ཊཊⓤ㚄

㚄㤟䟊

Polybrominated

diphenyl ethers

(PBDE)

⭥ᆀ㓴Ԧ

Electronics

Assembly

XO O O O O

༣փ㓴Ԧ

Housing

Assembly

OO O O O O

Րᝏಘ㓴Ԧ

Sensor

Assembly

XO O O O O

⭥⊐㓴Ԧ

Battery

Assembly

XO O O O O

ᵜ㺘Ṭ㌫׍ᦞ

SJ/T11364

Ⲵ㿴ᇊ㘼ࡦ֌

This table is proposed in accordance with the provision of SJ/T11364.

O:

᜿Ѫ䈕䜘ԦⲴᡰᴹ൷䍘ᶀᯉѝ䈕ᴹᇣ⢙䍘Ⲵ䟿൷վҾ

GB/T 26572

ᡰ㿴ᇊⲴ䲀䟿㾱≲

O: Indicate that said hazardous substance in all of the homogeneous materials for this part is below the limit requirement of
GB/T 26572.

X:

᜿Ѫ൘䈕䜘Ԧᡰ֯⭘Ⲵᡰᴹ൷䍘ᶀᯉ䟼ˈ㠣ቁᴹа㊫൷䍘ᶀᯉѝ䈕ᴹᇣ⢙䍘Ⲵ䟿儈Ҿ

GB/T 26572

ᡰ㿴ᇊⲴ䲀䟿㾱≲

X: Indicate that said hazardous substance contained in at least one of the homogeneous materials used for this part is above
the limit requirement of GB/T 26572.

Global Headquarters

Emerson Automation Solutions

6021 Innovation Blvd.
Shakopee, MN 55379, USA

[phone] or [phone]
[phone]
[e-mail]

North America Regional Office

Emerson Automation Solutions

8200 Market Blvd.
Chanhassen, MN 55317, USA

[phone] or [phone]
[phone]
[e-mail]

Latin America Regional Office

Emerson Automation Solutions

1300 Concord Terrace, Suite 400
Sunrise, FL 33323, USA

[phone]
[phone]
[e-mail]

Linkedin.com/company/Emerson-Automation-Solutions

Twitter.com/Rosemount_News

Facebook.com/Rosemount

Youtube.com/user/RosemountMeasurement

Google.com/+RosemountMeasurement

Emerson Terms and Conditions of Sale are available upon request
The Emerson logo is a trademark and service mark of Emerson
Electric Co. Rosemount is a mark of one of the Emerson family of
companies. All other marks are the property of their respective
owners.
© 2018 Emerson. All rights reserved.

Europe Regional Office

Emerson Automation Solutions

Neuhofstrasse 19a P.O. Box 1046
CH 6340 Baar
Switzerland

[phone]
[phone]
[e-mail]

Asia Pacific Regional Office

Emerson Automation Solutions

1 Pandan Crescent
Singapore 128461

[phone]
[phone]

[e-mail]

Middle East and Africa Regional Office

Emerson Automation Solutions

Emerson FZE P.O. Box 17033
Jebel Ali Free Zone - South 2
Dubai, United Arab Emirates

[phone]
[phone]

[e-mail]

Quick Start Guide

00825-0100-4145, Rev BA

February 2018

*00825-0100-4145*
