Page 1
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount 5900S
Radar Level Gauge
www.rosemount-tg.com
Page 2
Page 3
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount 5900S
Rosemount 5900S
Radar Level Gauge
NOTICE
Read this manual before working with the product. For personal and system safety, and for
optimum product performance, make sure you thoroughly understand the contents before
installing, using, or maintaining this product.
For equipment service or support needs, contact your local Emerson Process
Management/Rosemount Tank Gauging representative.
Spare Parts
Any substitution of non-recognized spare parts may jeopardize safety. Repair, e.g.
substitution of components etc, may also jeopardize safety and is under no circumstances
allowed.
Rosemount Tank Radar AB will not take any responsibility for faults, accidents, etc caused
by non-recognized spare parts or any repair which is not made by
Rosemount Tank Radar AB.
Specific ETSI Requirements (Europe)
The Rosemount 5900S is required to be installed at a permanent fixed position at a closed
(not open) metallic tank or reinforced concrete tank, or similar enclosure structure made of
comparable attenuating material. Flanges and attachments of the Rosemount 5900S
equipment shall provide the necessary microwave sealing by design.
Manholes or connection flanges at the tank shall be closed to ensure a low-level leakage of
the signal into the air outside the tank.
Installation and maintenance of the Rosemount 5900S equipment shall be performed by
professionally trained individuals only.
Specific FCC Requirements (USA)
Rosemount 5900S generates and uses radio frequency energy. If it is not installed and used
properly, that is, in strict accordance with the manufacturer´s instructions, it may violate
FCC regulations on radio frequency emission.
Rosemount TankRadar 5900S has been FCC certified under test conditions which assume
a metallic tank.
Specific IC Requirements (Canada)
Radio approvals for this device apply for installation in complete enclosed container to
prevent unwanted RF emission. In open air application site license is required. Installation
shall be done by trained installers, in compliance with the manufacturer's instructions.
The use of this device is on a "no-interference, no-protection" basis. That is, the user shall
accept operations of high-powered radar in the same frequency band which may interfere
with or damage this device. Devices found to interfere with primary licensing operations will
be required to be removed at the user's expense.
Low Emission of Microwave Radiation
The microwave radiation emitted by a Rosemount 5900S radar level gauge is very low
compared to limits given by the Rec. 1999/519/EC (much less than 0.1 mW). No additional
safety measures are needed.
www.rosemount-tg.com
Page 4
The products described in this document are NOT designed for nuclear-qualified
applications.
Using non-nuclear qualified products in applications that require nuclear-qualified hardware
or products may cause inaccurate readings.
For information on Rosemount nuclear-qualified products, contact your local Rosemount
Sales Representative.

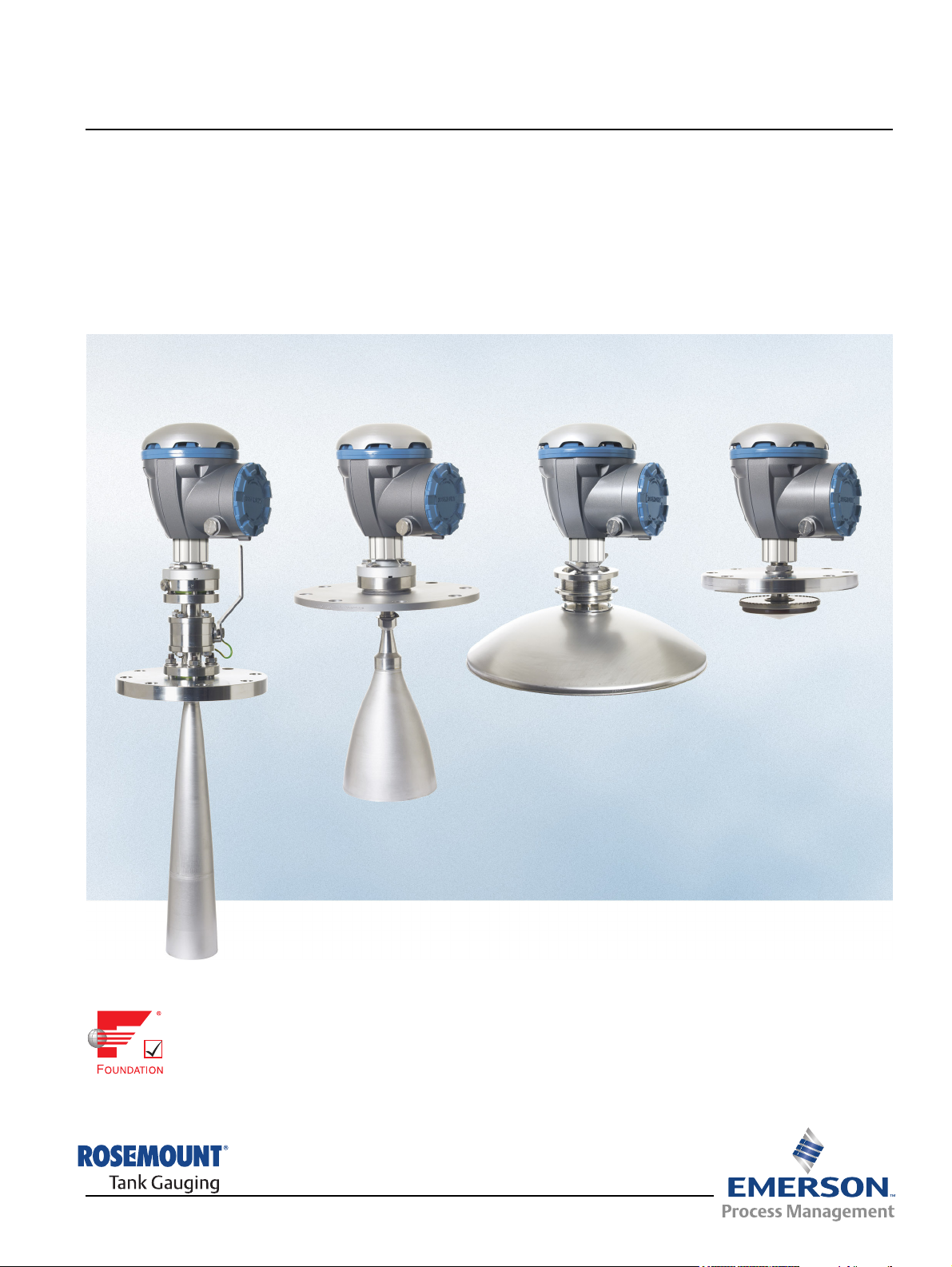

Cover Photo: 5900_coverphoto.tif
Page 5
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount 5900S Series
Table of Contents
SECTION 1
Introduction
SECTION 2
Overview
SECTION 3
Installation
1.1 Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
1.2 Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
1.3 Manual Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
1.4 Technical Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
1.5 Service Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
1.6 Product Recycling/ Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
1.7 Packing Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
1.7.1 Reuse and Recycling . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
1.7.2 Energy recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
2.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

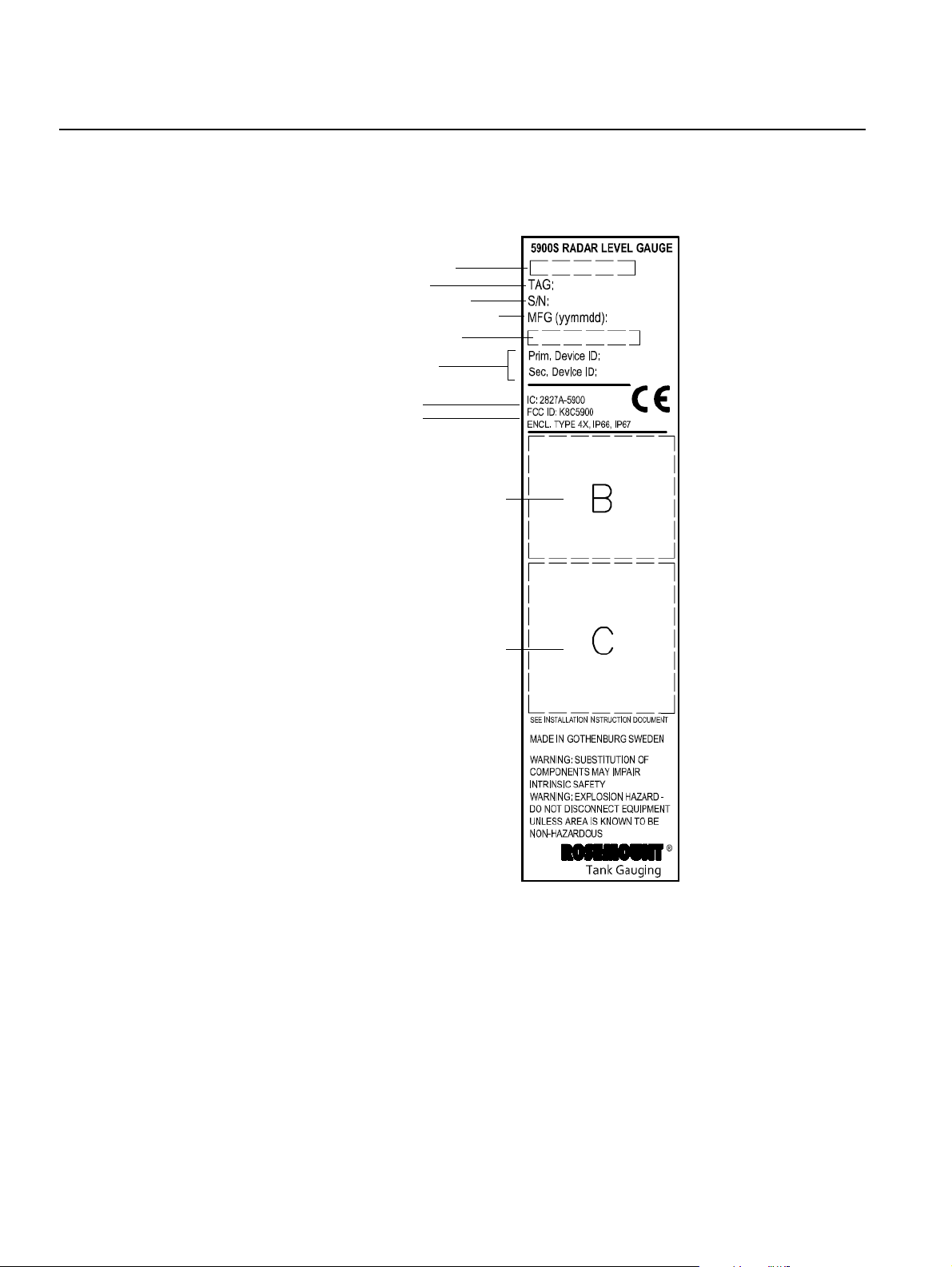

2.2 Main Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

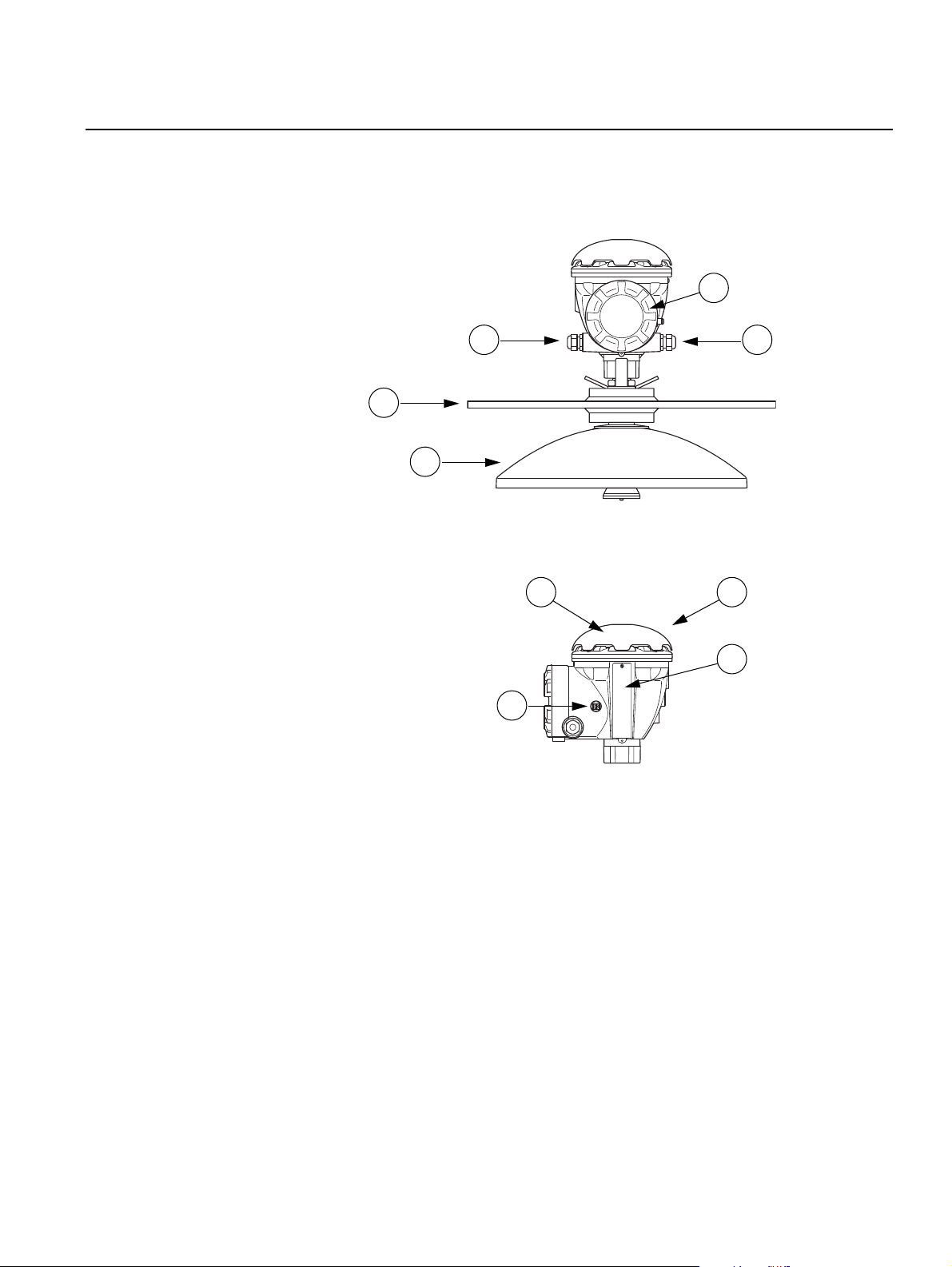

2.3 Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

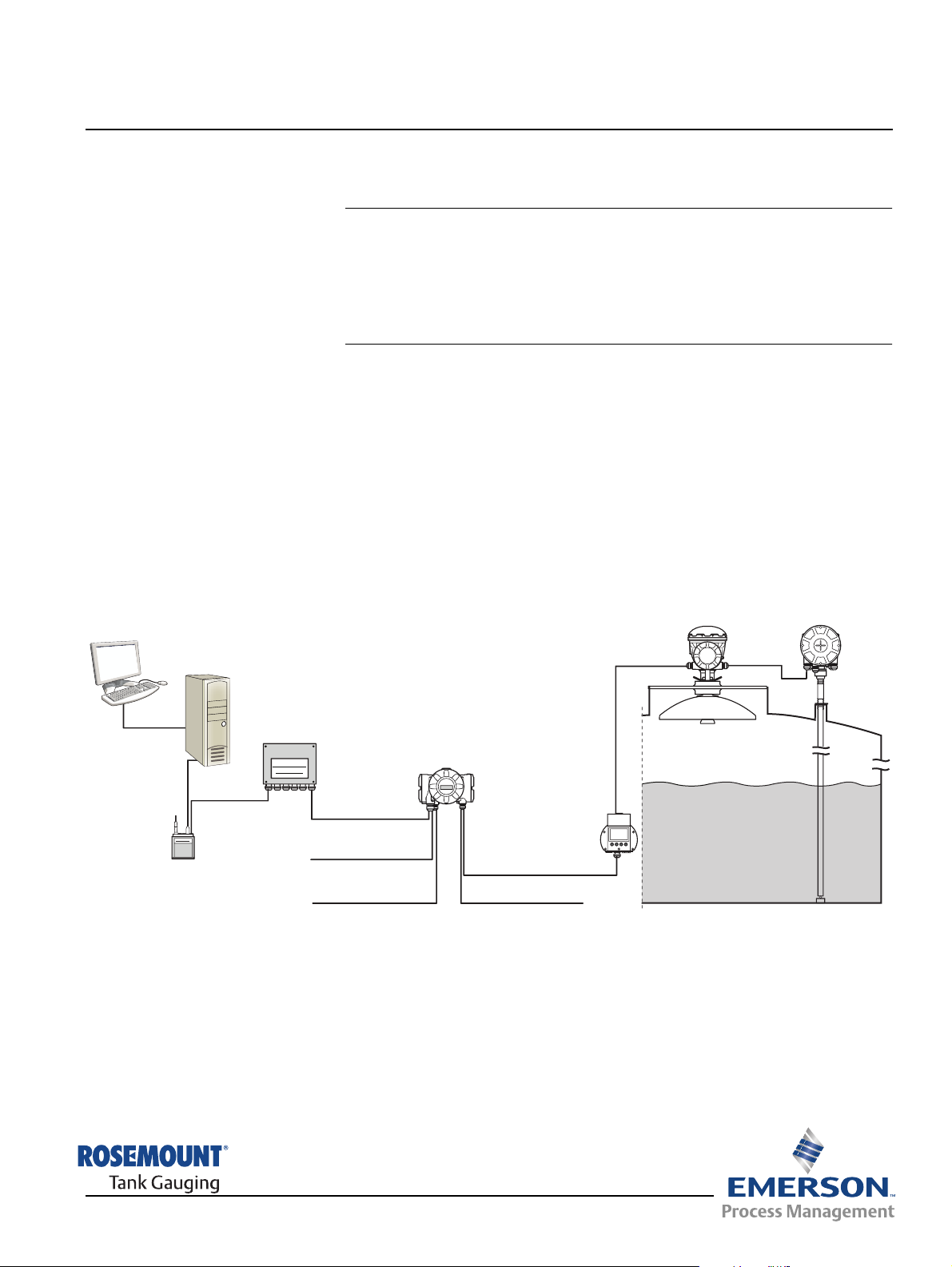

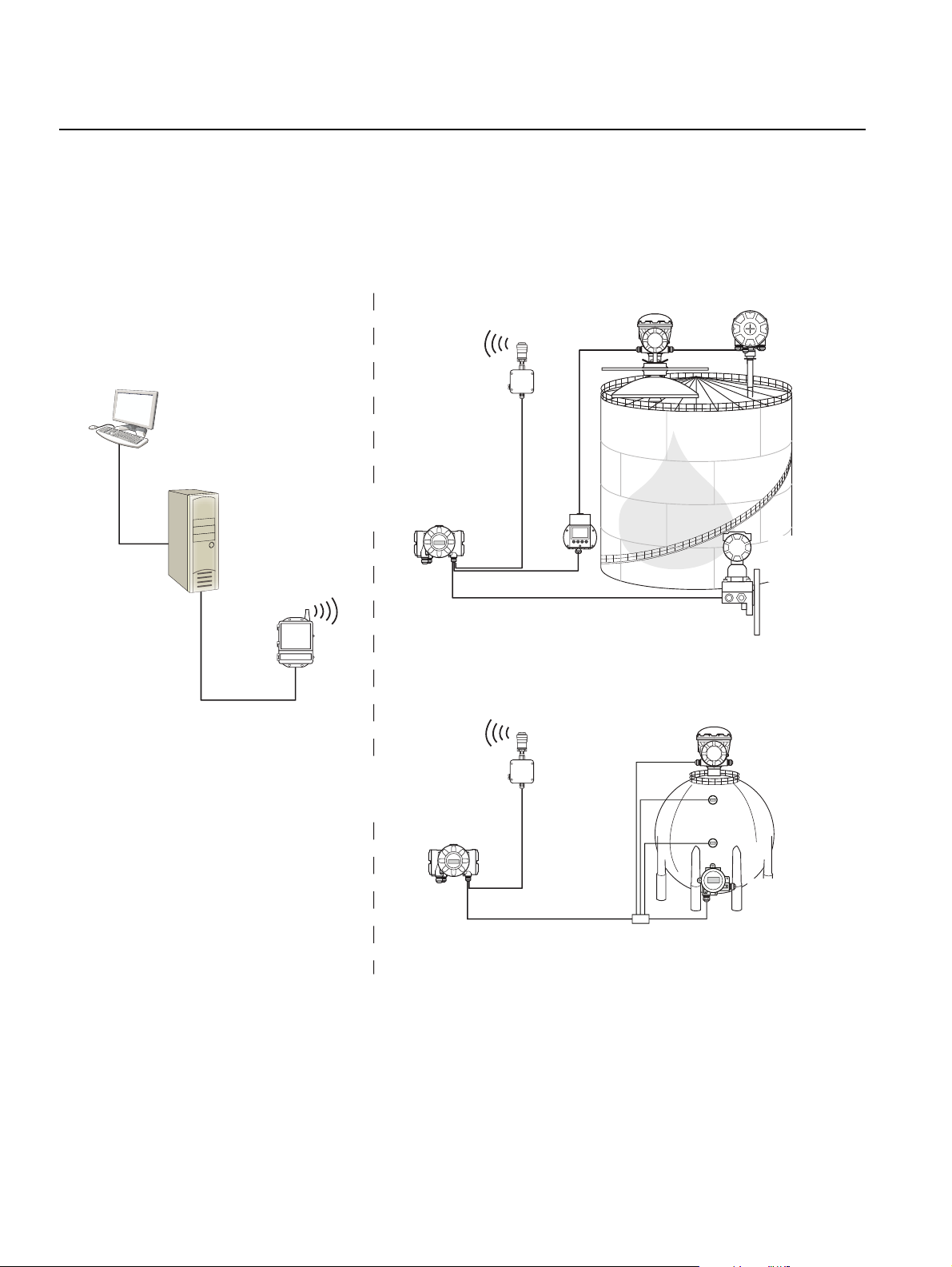

2.4 System Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

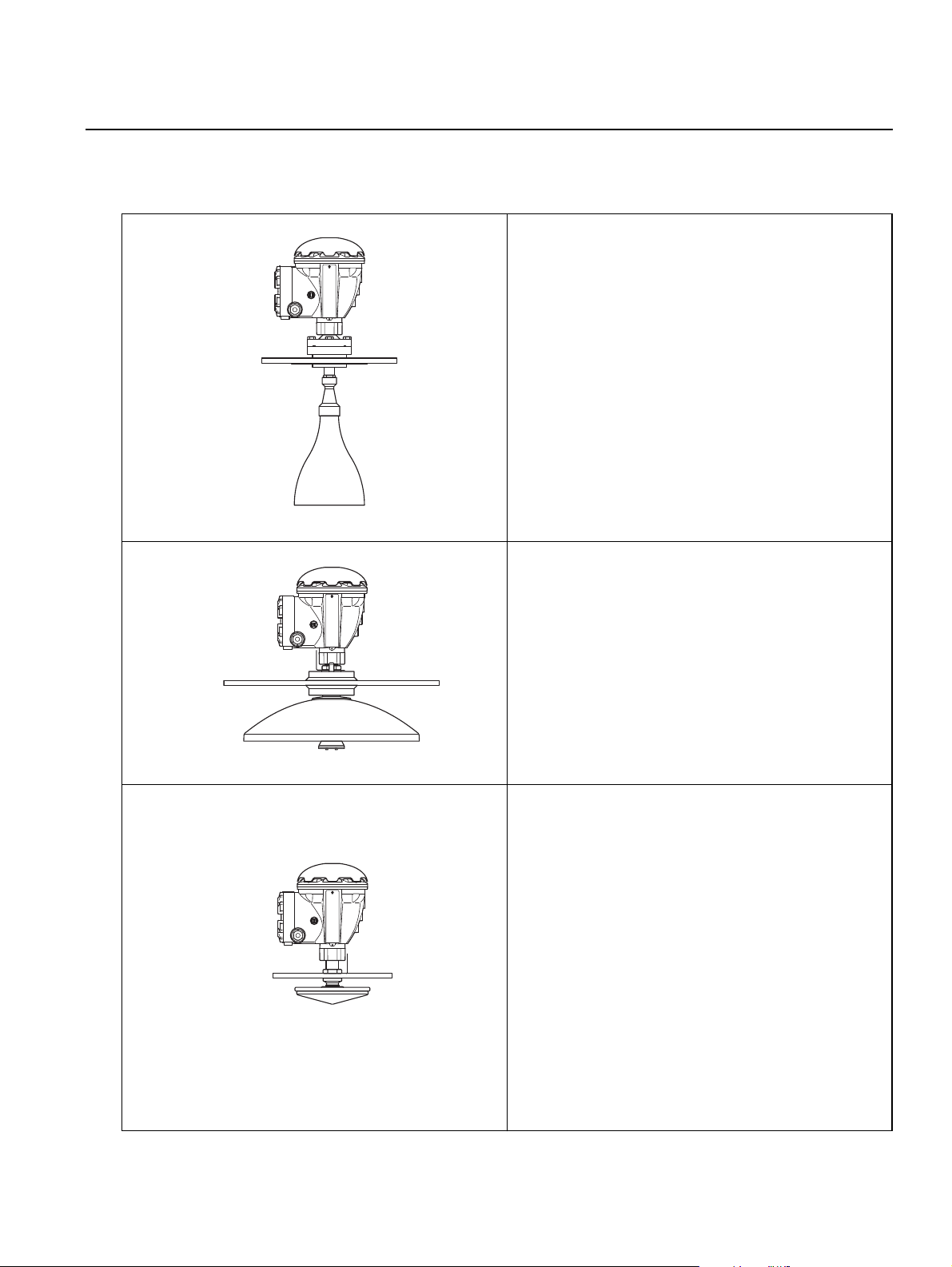

2.5 Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
2.6 Installation Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
3.1 Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

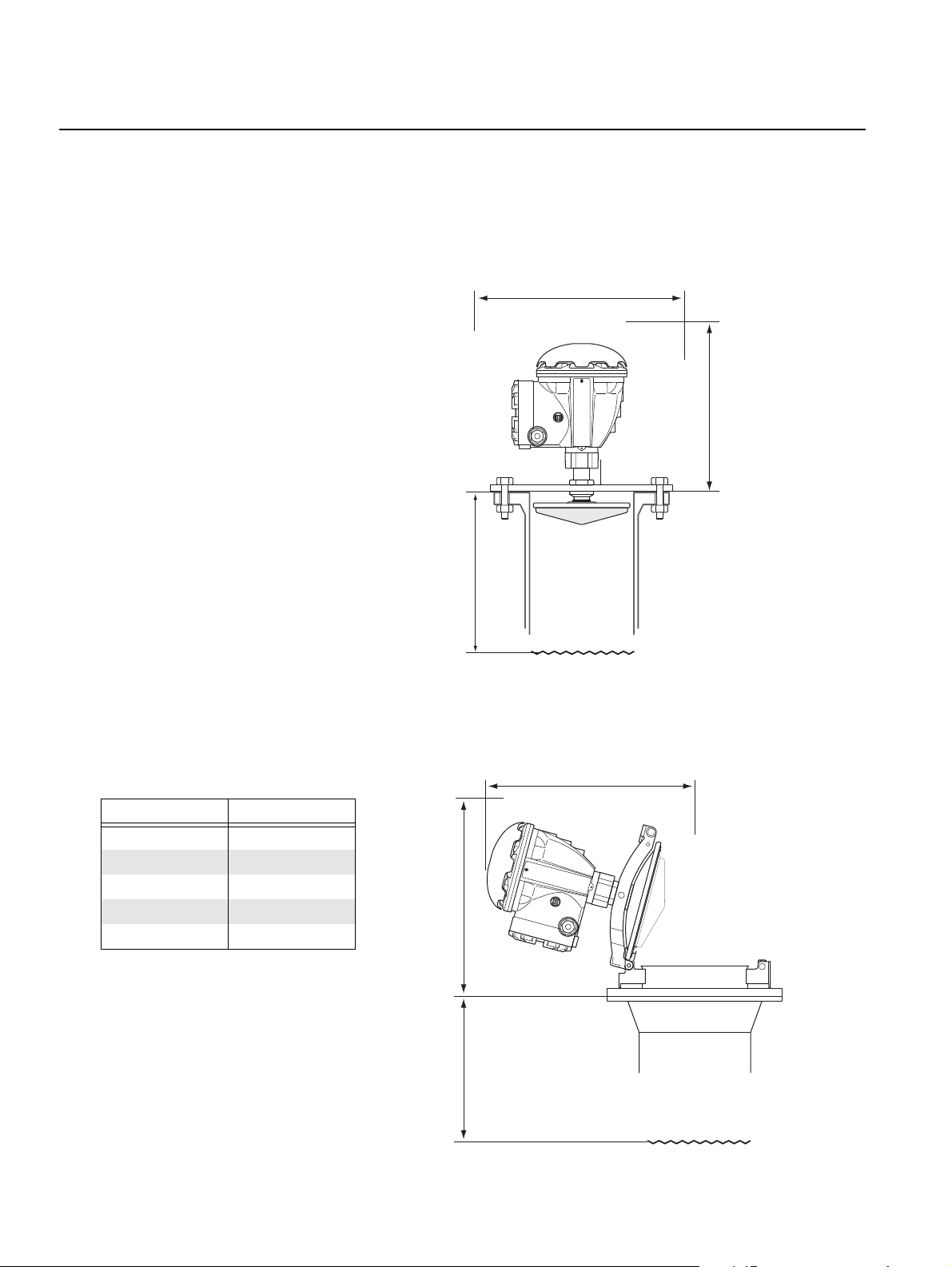

3.2 Installation Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

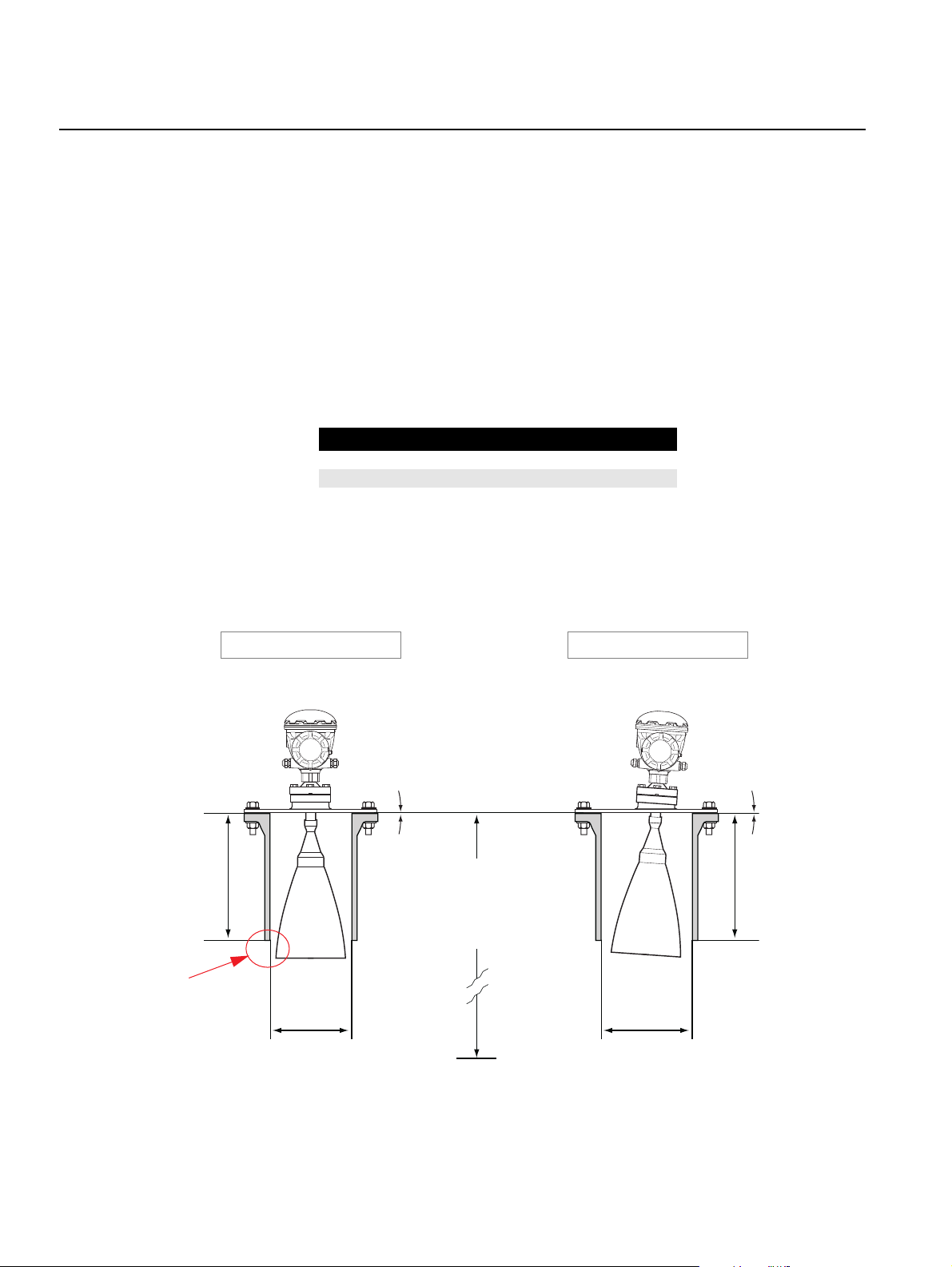

3.2.1 Horn Antenna Requirements . . . . . . . . . . . . . . . . . . . 3-4
3.2.2 Parabolic Antenna Requirements. . . . . . . . . . . . . . . . 3-6

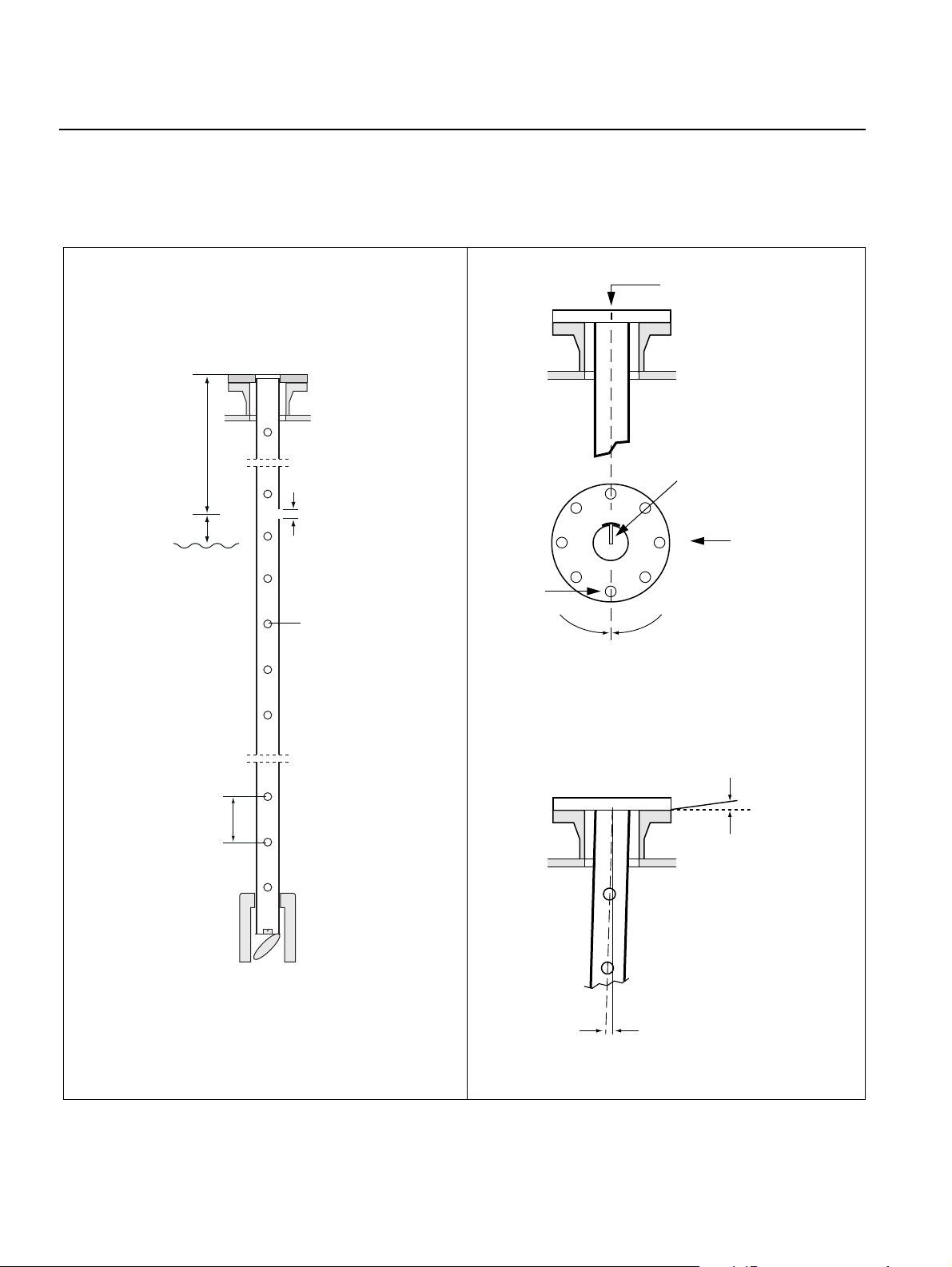

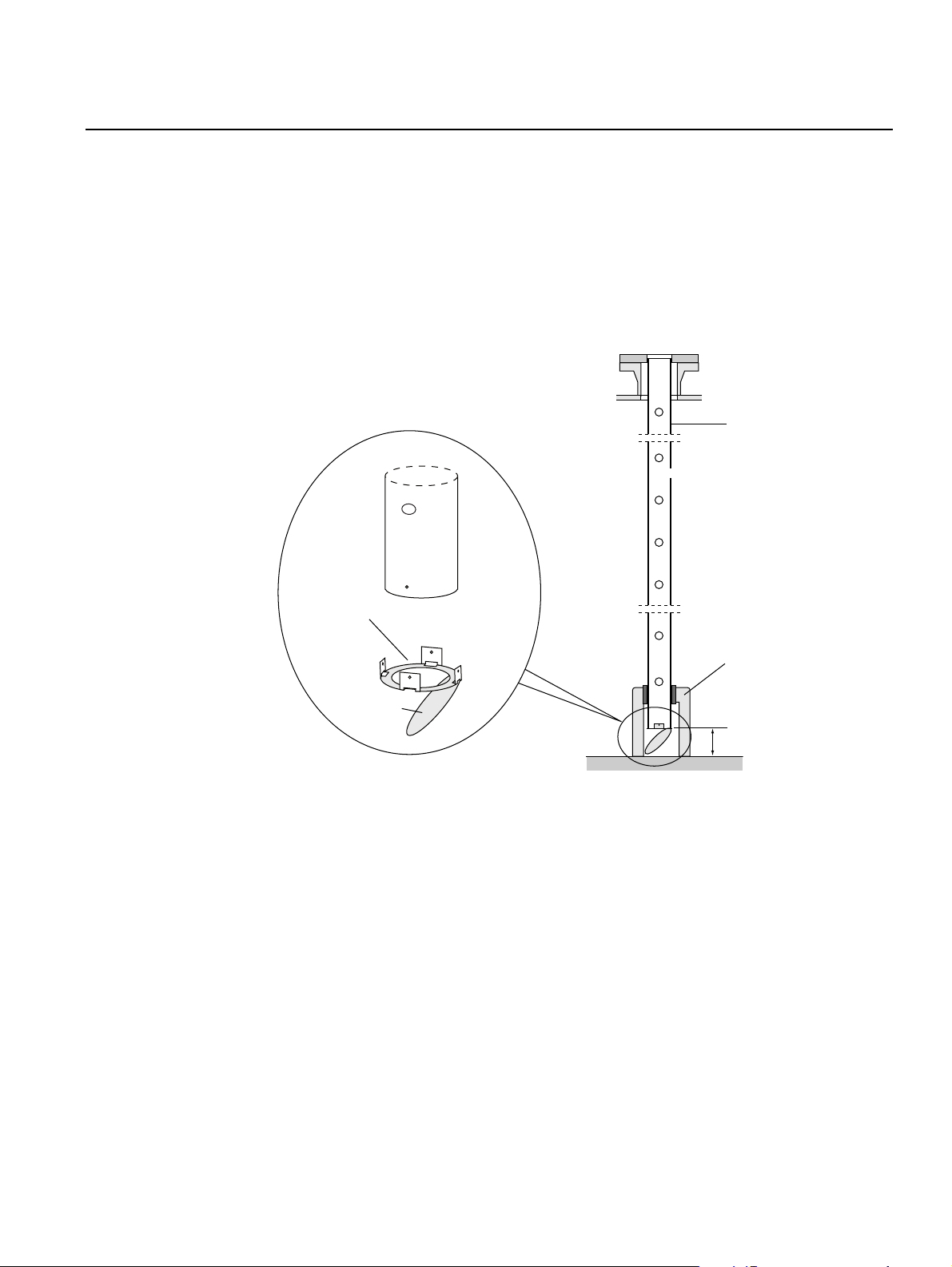

3.2.3 Still-pipe Antenna Requirements . . . . . . . . . . . . . . . 3-10
3.2.4 LPG/LNG Antenna Requirements . . . . . . . . . . . . . . 3-13
3.3 Mechanical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19
3.3.1 Horn Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19

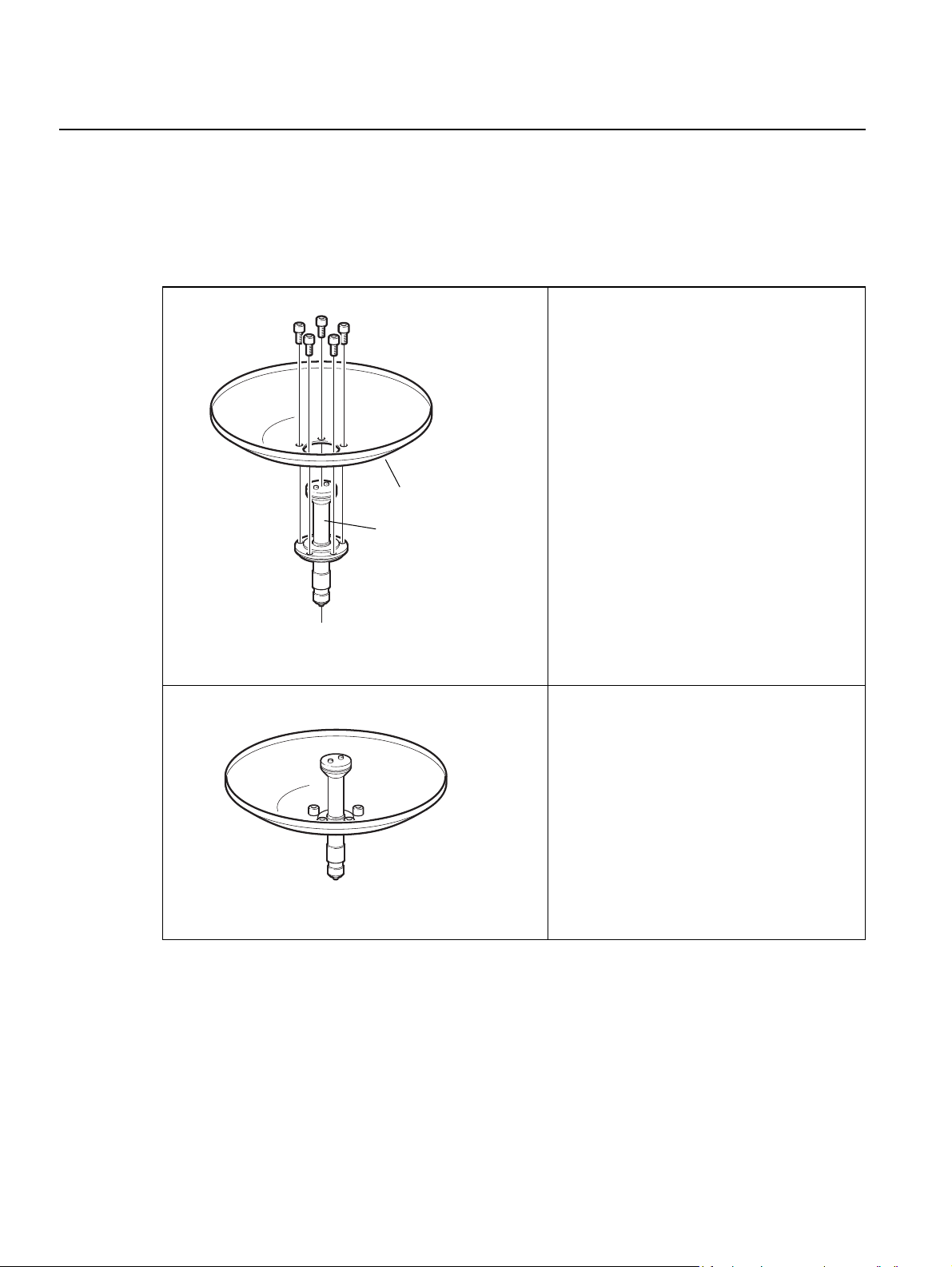

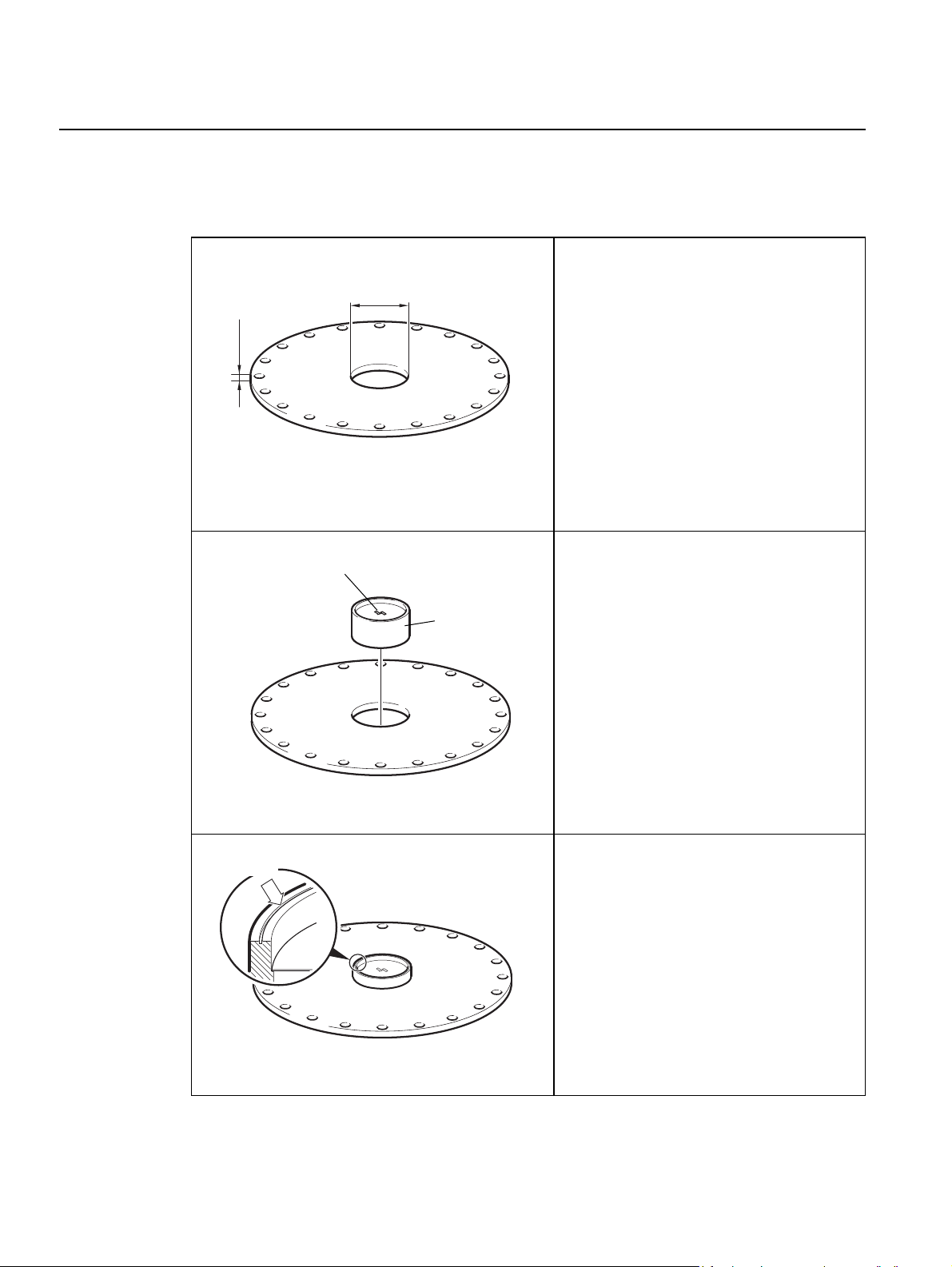

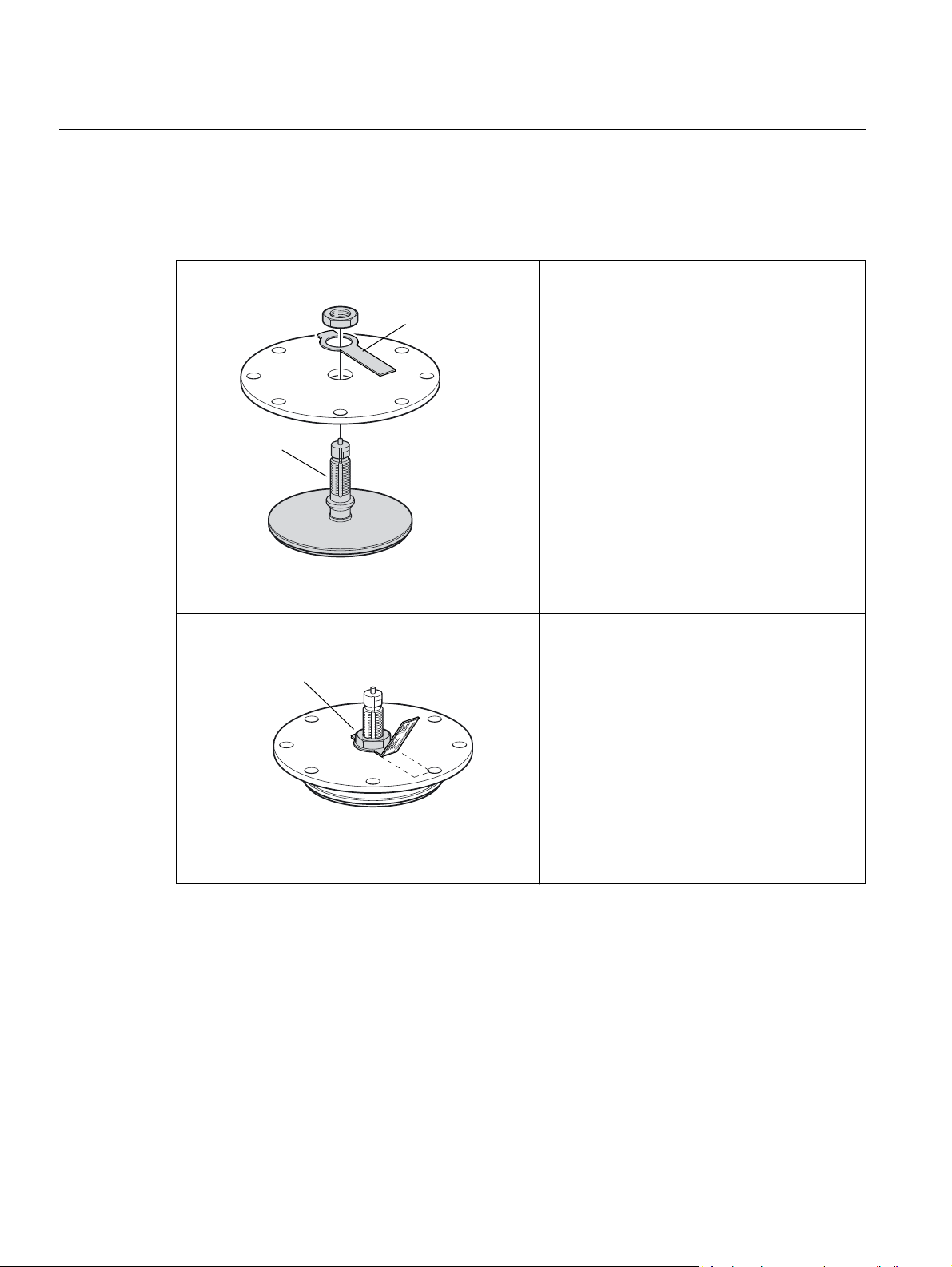

3.3.2 Parabolic Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21

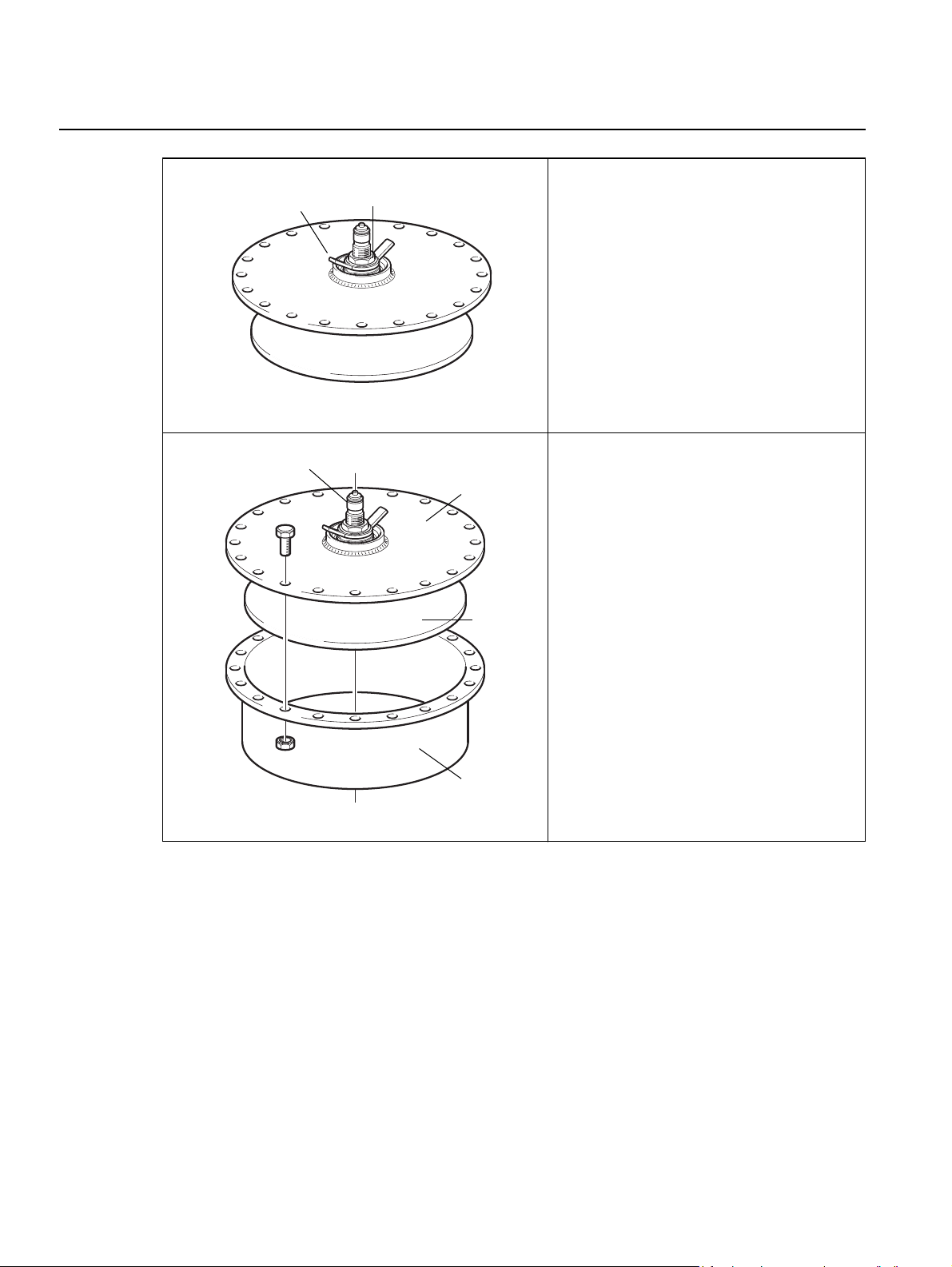

3.3.3 Array Antenna - Fix version . . . . . . . . . . . . . . . . . . . 3-30

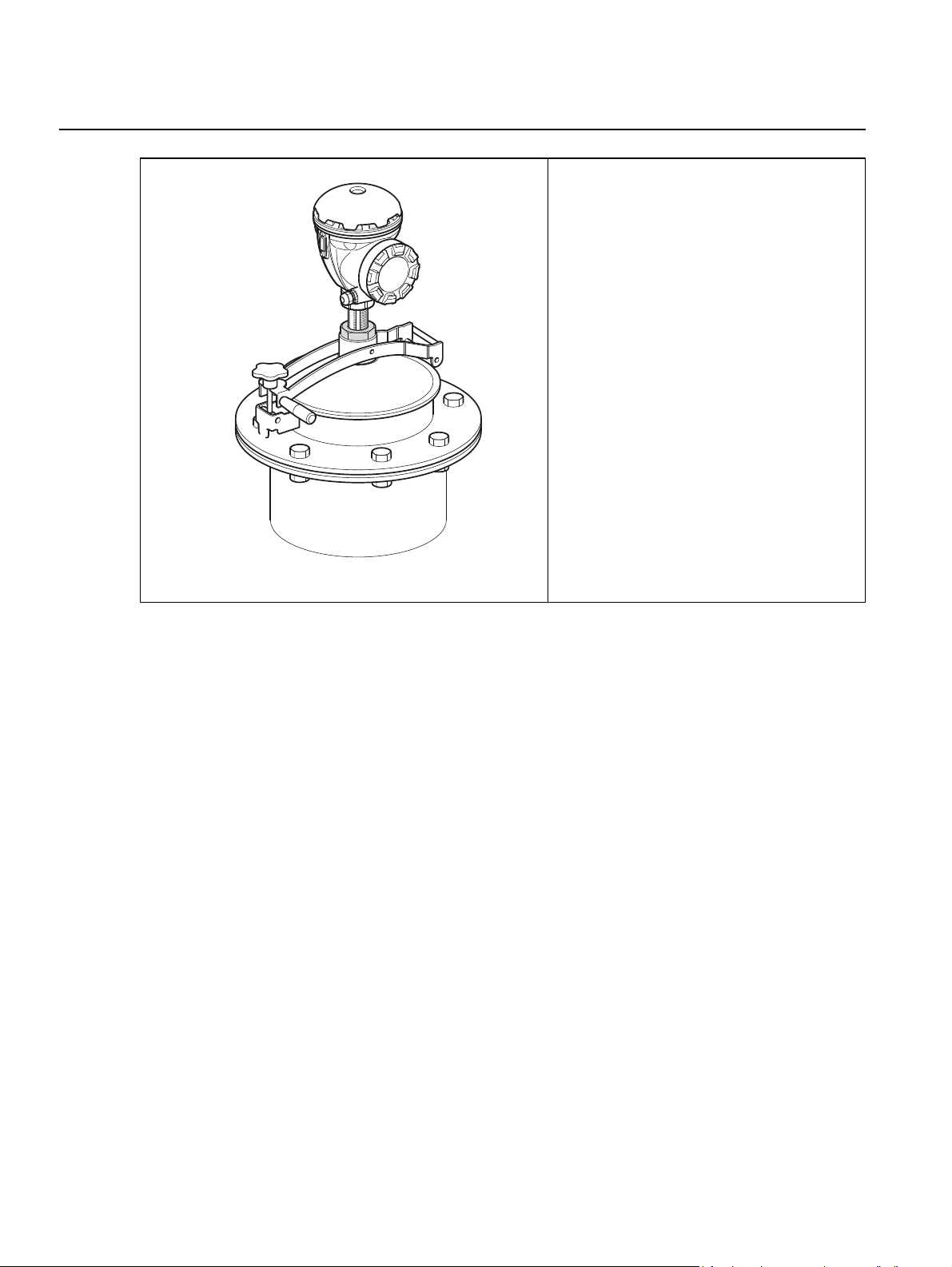

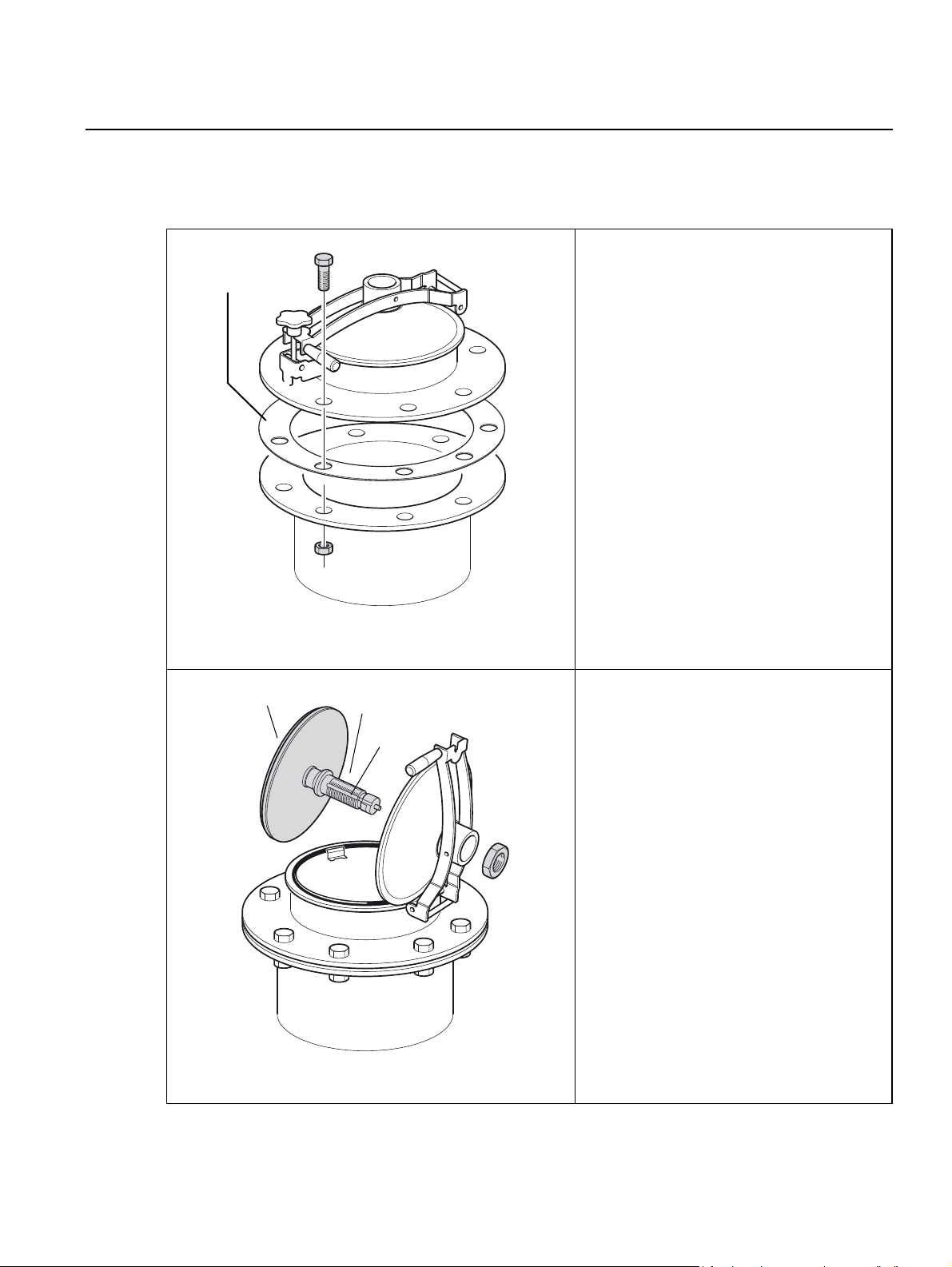

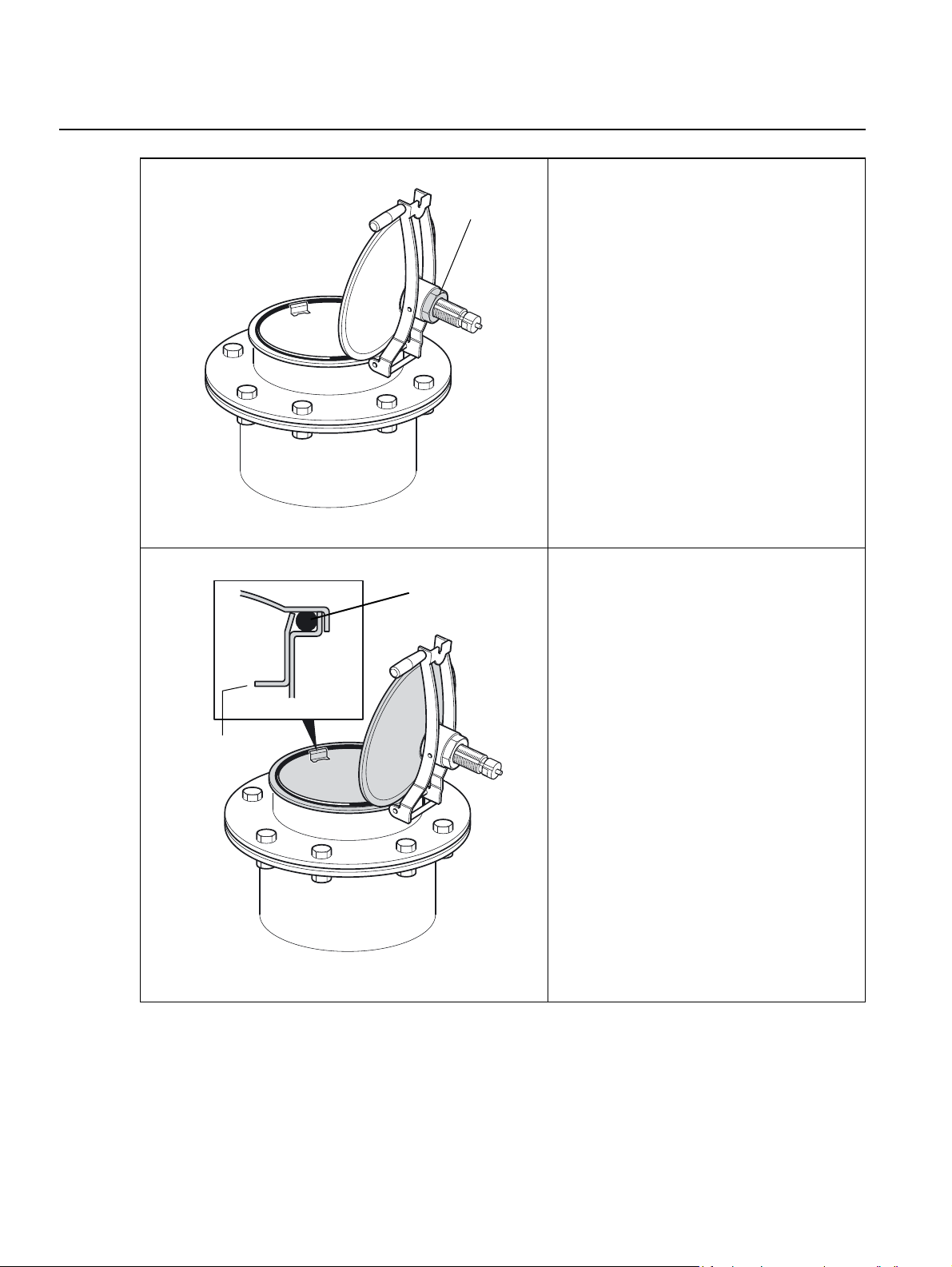

3.3.4 Array Antenna - Hinged Hatch . . . . . . . . . . . . . . . . . 3-33

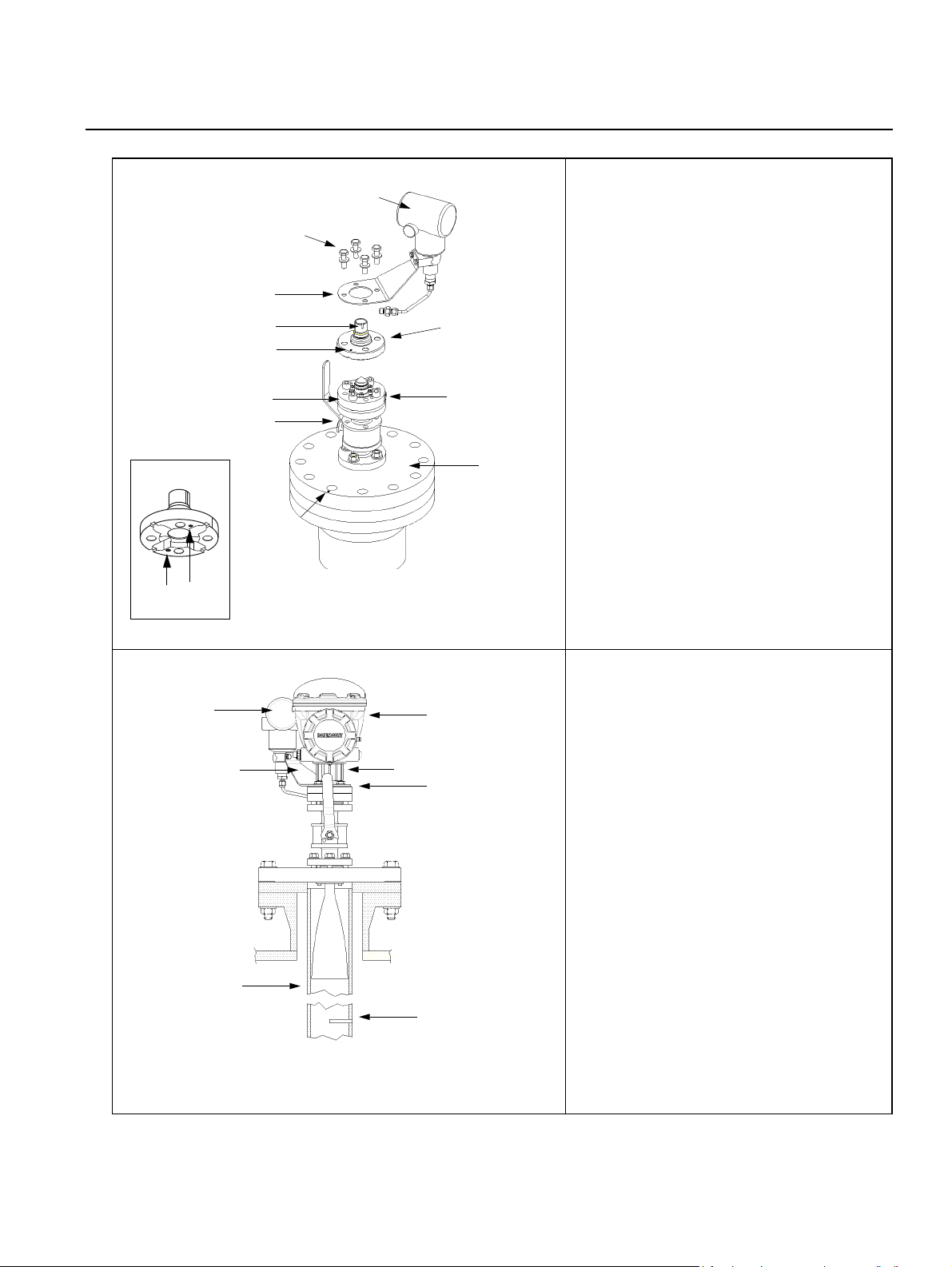

3.3.5 LPG/LNG Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . 3-37
3.4 Electrical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-41
3.4.1 Cable/conduit entries . . . . . . . . . . . . . . . . . . . . . . . . 3-41
3.4.2 Grounding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-41
3.4.3 Cable Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-42
3.4.4 Hazardous Areas . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-42
3.4.5 Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . 3-42
3.4.6 Power Budget. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-42
3.4.7 The Raptor Tankbus. . . . . . . . . . . . . . . . . . . . . . . . . 3-43

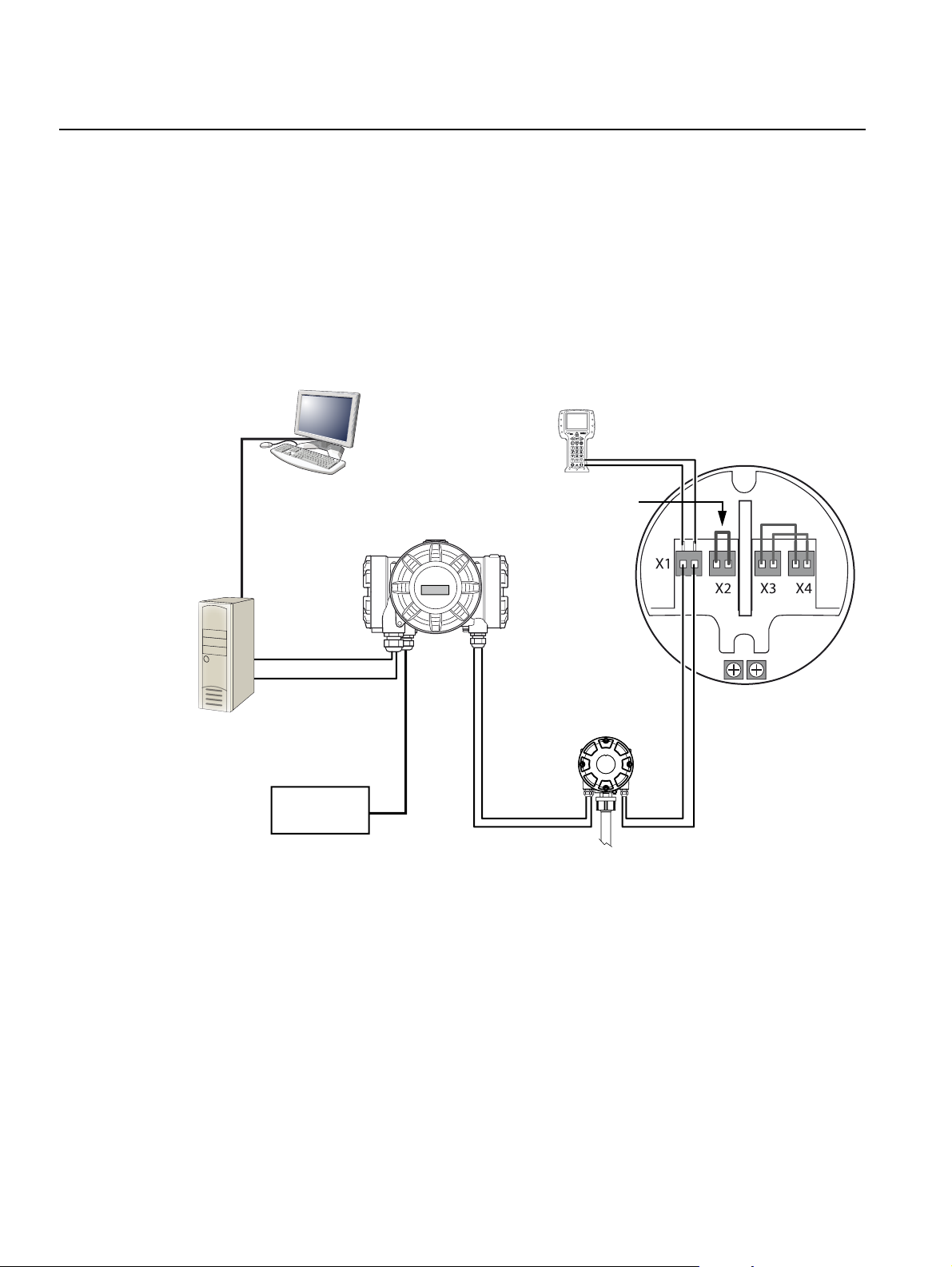

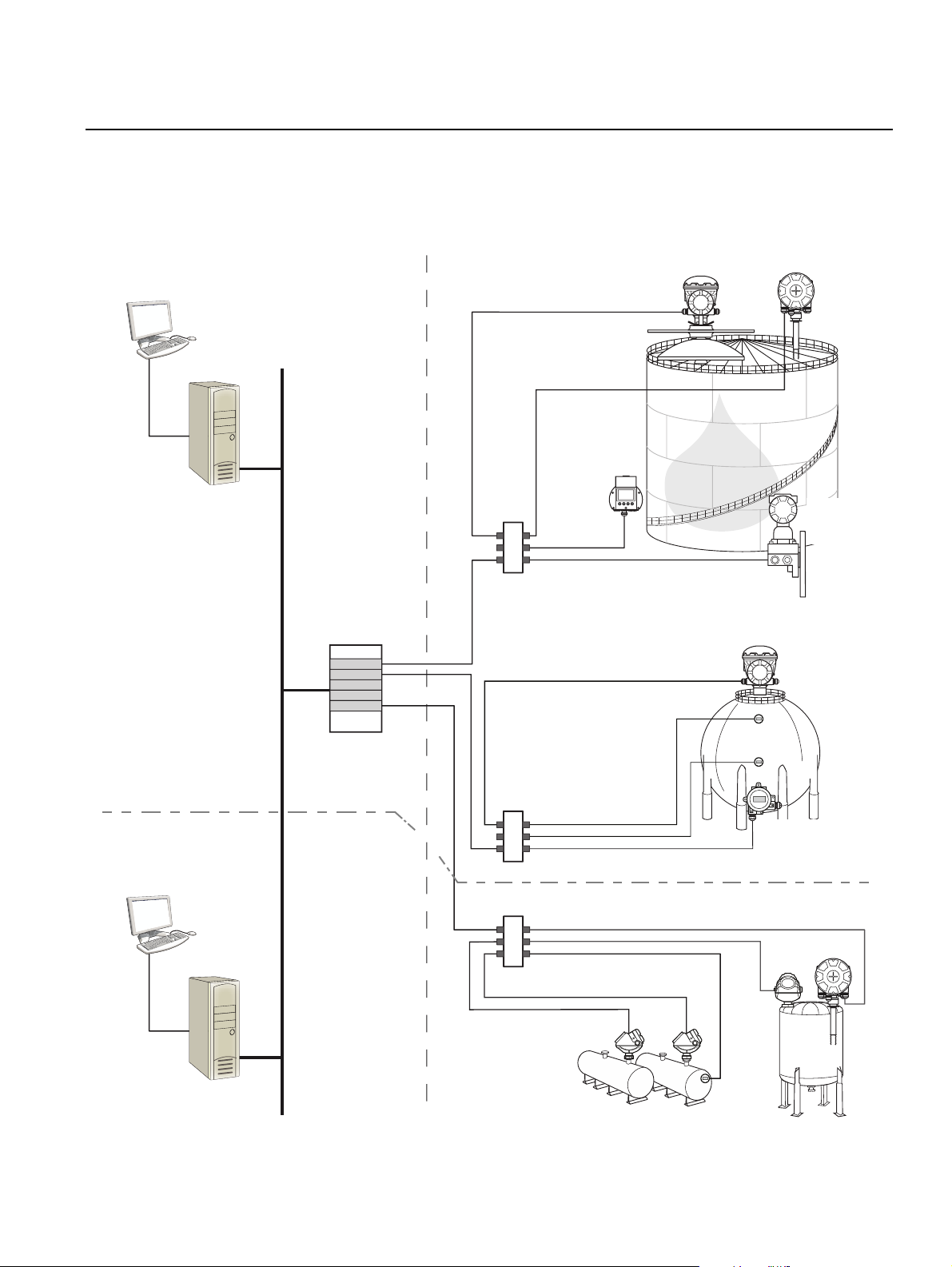

3.4.8 Typical installation . . . . . . . . . . . . . . . . . . . . . . . . . . 3-44
3.4.9 5900S in FOUNDATION fieldbus system. . . . . . . . . . . 3-45
3.4.10 Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-46

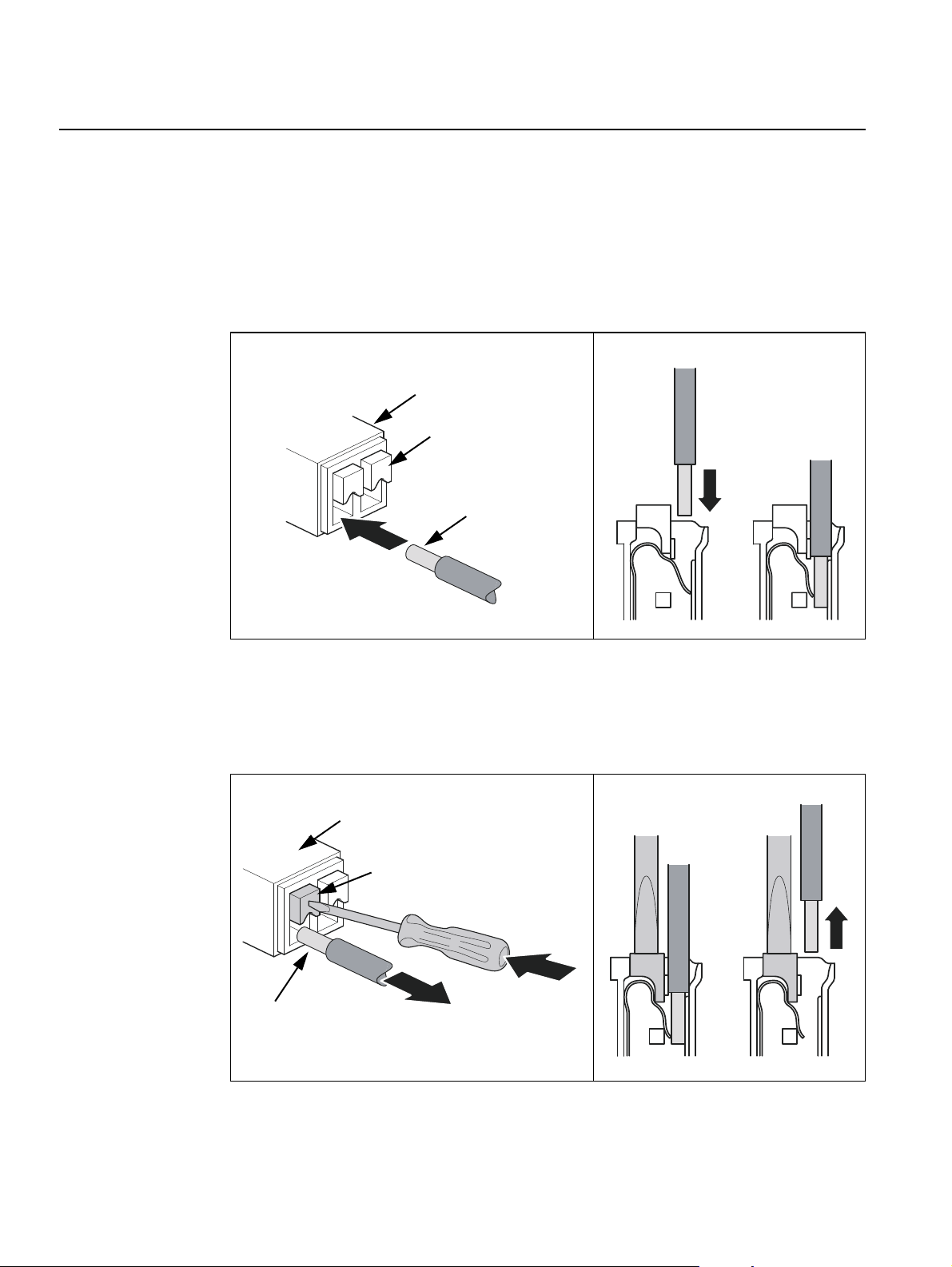

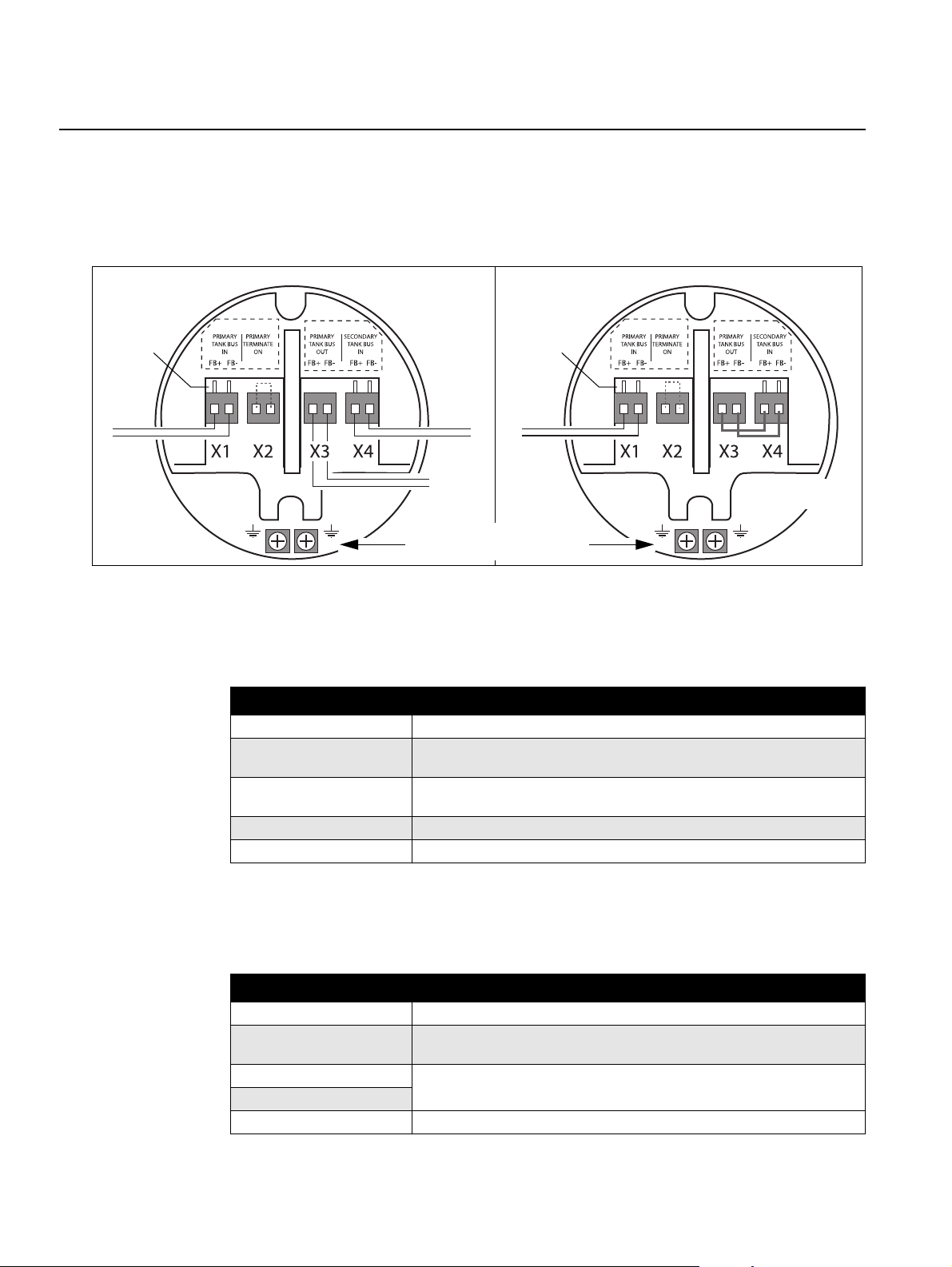

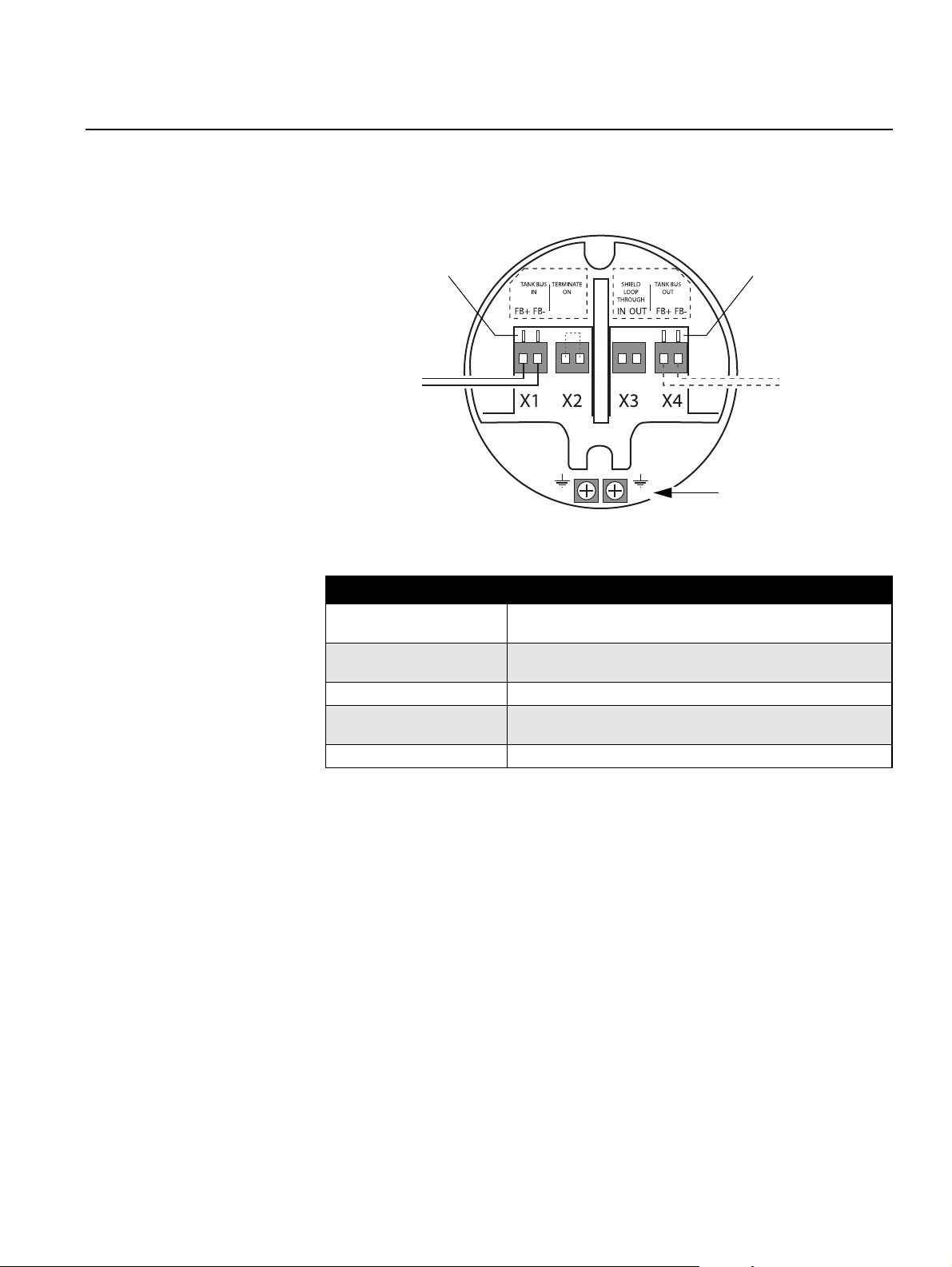

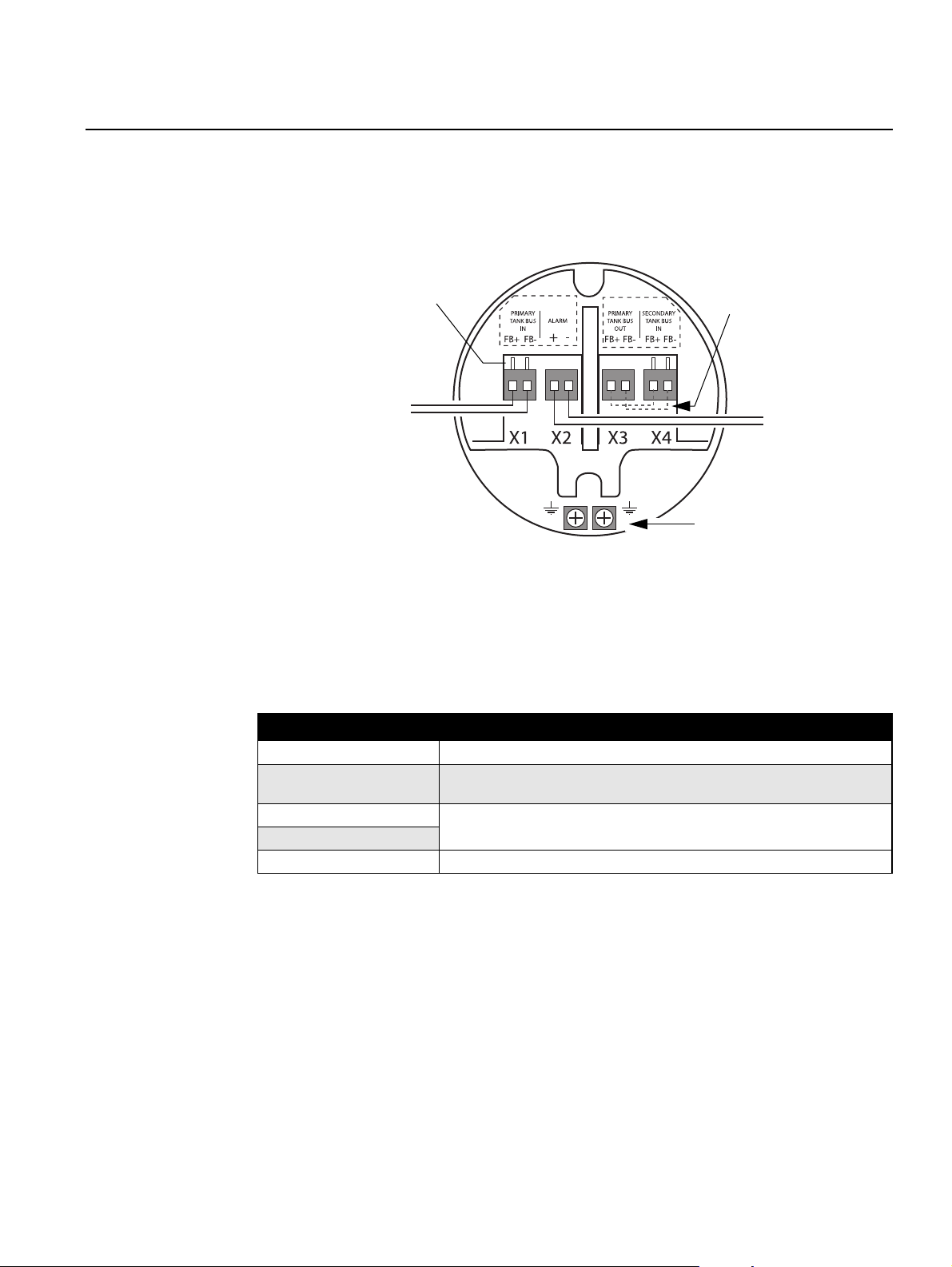

3.4.11 Terminal Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-49

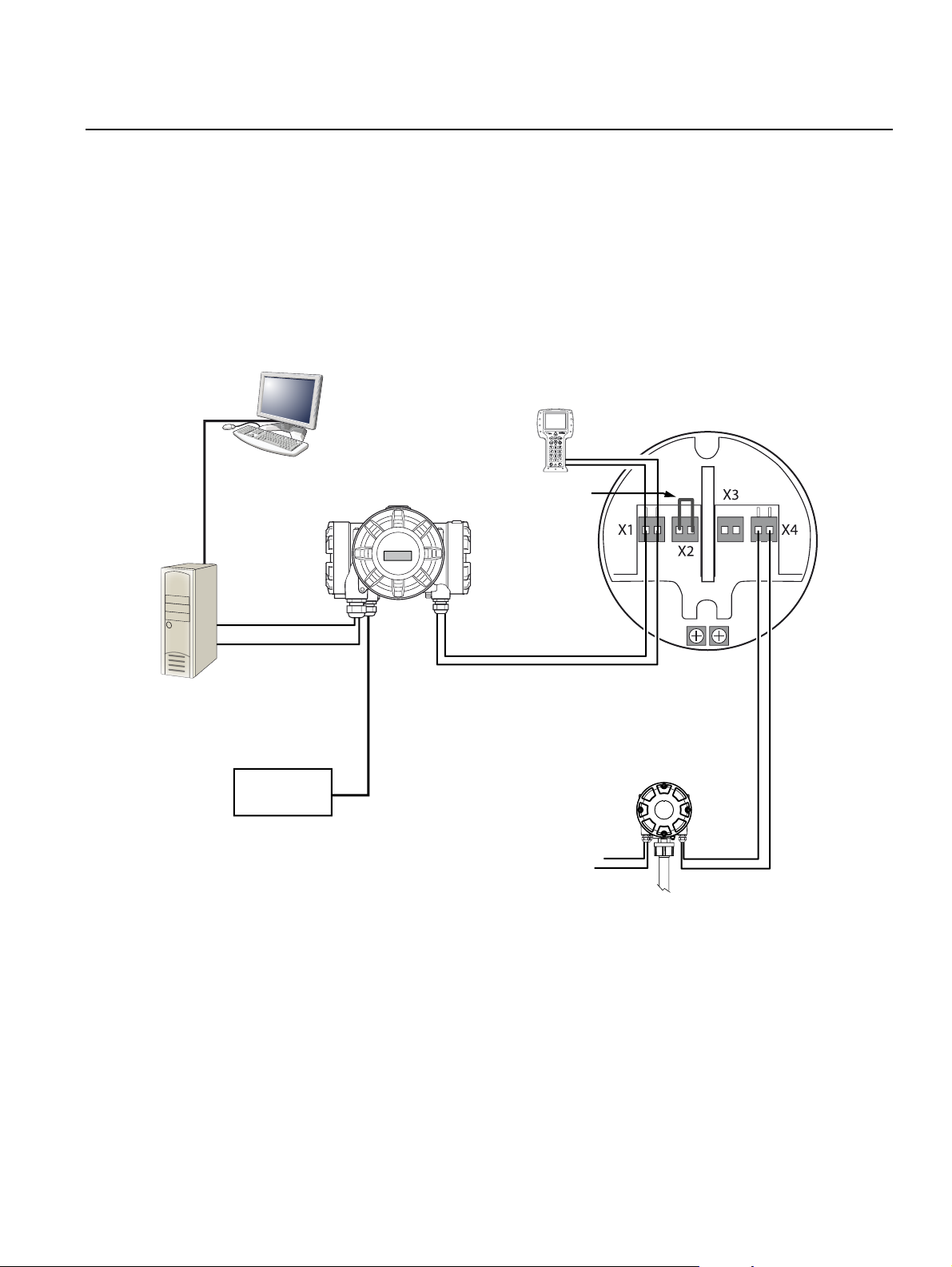

3.4.12 Wiring Diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-52
www.rosemount-tg.com
Page 6
Rosemount 5900S Series
Reference Manual
00809-0100-5900, Rev CA
June 2014
SECTION 4
Configuration
4.1 Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
4.2 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
4.2.1 Basic Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
4.2.2 Advanced Configuration. . . . . . . . . . . . . . . . . . . . . . . 4-4
4.2.3 Configuration Tools . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
4.3 Configuration Using Rosemount TankMaster . . . . . . . . . . . . . . 4-5
4.3.1 Installation Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
4.4 Basic Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
4.4.1 Tank Geometry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
4.4.2 Tank Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

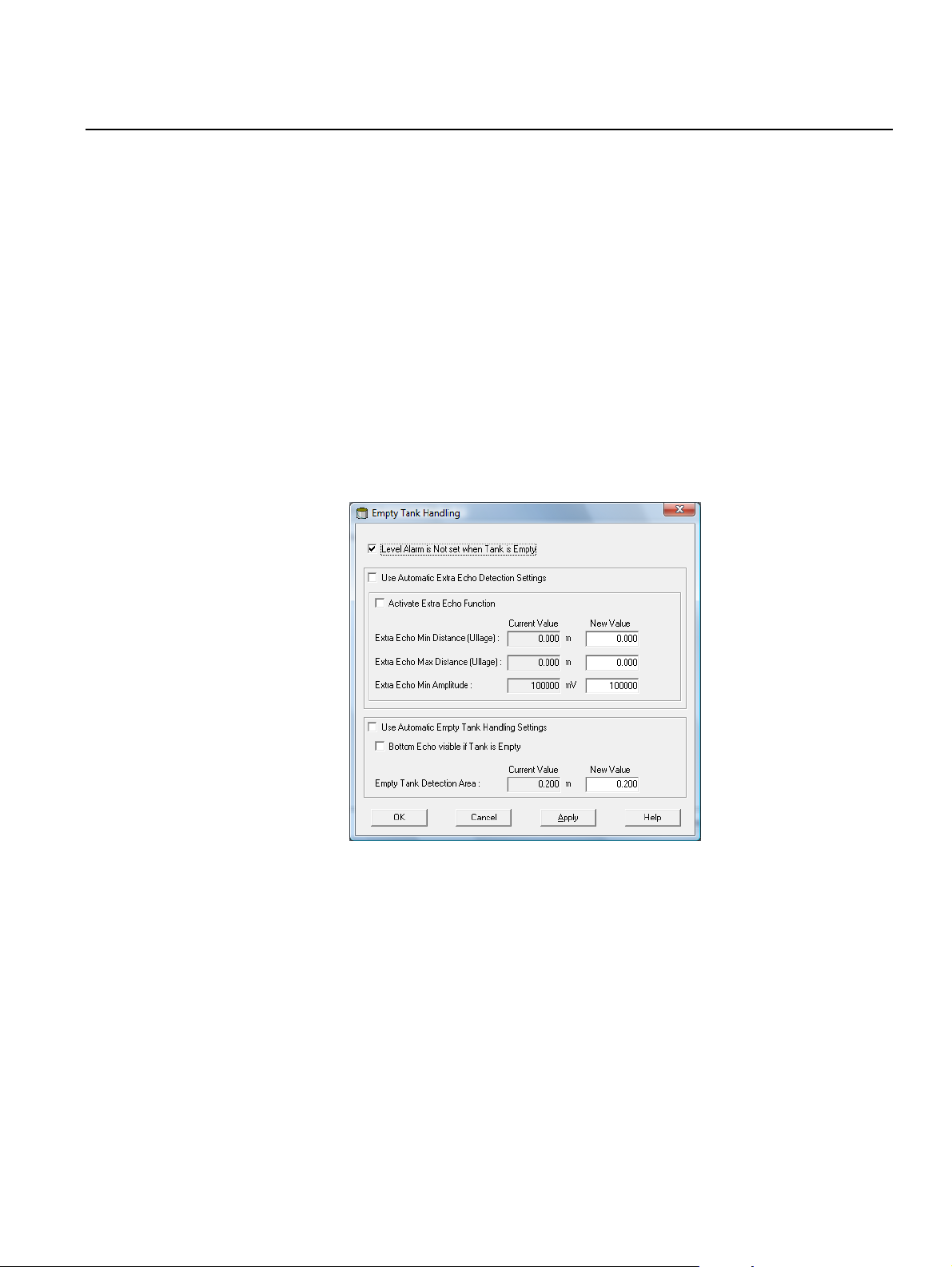

4.4.3 Empty Tank Handling. . . . . . . . . . . . . . . . . . . . . . . . 4-11
4.5 Advanced Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
4.5.1 Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
4.5.2 Tank Shape . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
4.5.3 Surface Echo Tracking. . . . . . . . . . . . . . . . . . . . . . . 4-16
4.5.4 Filter Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18
4.6 LPG Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20
4.6.1 Preparations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20
4.6.2 LPG Setup Using TankMaster . . . . . . . . . . . . . . . . . 4-21
4.7 Calibration Using WinSetup. . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29
4.8 FOUNDATION Fieldbus Overview. . . . . . . . . . . . . . . . . . . . . . . . 4-34
4.8.1 Block Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-34
4.9 Device Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-38
4.9.1 Link Active Scheduler. . . . . . . . . . . . . . . . . . . . . . . . 4-38
4.9.2 Capabilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-38
4.10 General Block Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-39
4.10.1 Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-39
4.10.2 Block Instantiation . . . . . . . . . . . . . . . . . . . . . . . . . . 4-40
4.10.3 Factory Configuration . . . . . . . . . . . . . . . . . . . . . . . . 4-40
4.11 Analog Input Block. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-41
4.11.1 Configure the AI Block . . . . . . . . . . . . . . . . . . . . . . . 4-41
4.11.2 Factory Supplied AI Blocks . . . . . . . . . . . . . . . . . . . 4-42
4.11.3 Application Example. . . . . . . . . . . . . . . . . . . . . . . . . 4-42
4.11.4 Simulation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-43
4.11.5 Filtering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-44
4.11.6 Signal Conversion . . . . . . . . . . . . . . . . . . . . . . . . . . 4-45
4.11.7 Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-46
4.11.8 Process Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-46
4.11.9 Alarm Priority . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-46
4.11.10 Status Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-47
4.11.11 Advanced Features . . . . . . . . . . . . . . . . . . . . . . . . . 4-47
4.12 Analog Output Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-48
4.12.1 Application Example. . . . . . . . . . . . . . . . . . . . . . . . . 4-49
4.13 Resource Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-50
4.13.1 FEATURES and FEATURES_SEL . . . . . . . . . . . . . 4-50
4.13.2 MAX_NOTIFY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-51
4.13.3 PlantWeb™ Alerts. . . . . . . . . . . . . . . . . . . . . . . . . . . 4-52
4.14 475 Field Communicator Menu Tree . . . . . . . . . . . . . . . . . . . . 4-55
4.15 Configuration Using AMS Device Manager . . . . . . . . . . . . . . . 4-56
4.15.1 Volume configuration . . . . . . . . . . . . . . . . . . . . . . . . 4-64
4.15.2 Advanced configuration . . . . . . . . . . . . . . . . . . . . . . 4-65
TOC-2
Table of Contents
Page 7
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount 5900S Series
4.16 Plantweb Alert Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-72
4.16.1 FF I/O Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-73
4.16.2 Radar Level Gauge . . . . . . . . . . . . . . . . . . . . . . . . . 4-74
4.16.3 Simulation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-75
4.16.4 Alert Default Settings . . . . . . . . . . . . . . . . . . . . . . . . 4-76
4.17 LPG Setup Using DeltaV / AMS Device Manager . . . . . . . . . . 4-77
SECTION 5
Operation
SECTION 6
Service and
Troubleshooting
5.1 Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
5.2 Viewing Measurement Data in TankMaster. . . . . . . . . . . . . . . . 5-2
5.3 Alarm Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
5.3.1 PlantWeb Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
5.4 Viewing Measurement Data in AMS Suite. . . . . . . . . . . . . . . . . 5-3
6.1 Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
6.2 Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
6.2.1 Viewing Input and Holding Registers . . . . . . . . . . . . . 6-2
6.2.2 Backing Up the Gauge Configuration. . . . . . . . . . . . . 6-4
6.2.3 To Recover a Backup Configuration Database . . . . . 6-6
6.2.4 Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
6.2.5 Upgrading the Gauge Software . . . . . . . . . . . . . . . . . 6-8
6.2.6 Write Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10
6.2.7 Write Protection Switch . . . . . . . . . . . . . . . . . . . . . . 6-12
6.2.8 Logging Measurement Data. . . . . . . . . . . . . . . . . . . 6-13
6.2.9 Loading the Default Database . . . . . . . . . . . . . . . . . 6-14
6.3 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15
6.3.1 Device Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-19
6.3.2 Warning Messages. . . . . . . . . . . . . . . . . . . . . . . . . . 6-20
6.3.3 Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-21
6.3.4 Measurement Status . . . . . . . . . . . . . . . . . . . . . . . . 6-23
6.4 Resource Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-24
6.5 Transducer Block. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-24
6.6 Analog Input (AI) Function Block . . . . . . . . . . . . . . . . . . . . . . . 6-25
6.7 PlantWeb Alerts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-26
6.7.1 Viewing Active Alerts in AMS . . . . . . . . . . . . . . . . . . 6-26
6.7.2 Recommended Actions . . . . . . . . . . . . . . . . . . . . . . 6-29
6.8 Viewing Device Status in AMS . . . . . . . . . . . . . . . . . . . . . . . . 6-30
APPENDIX A
Reference Data
APPENDIX B
Product Certifications
Table of Contents
A.1 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-1
A.2 Dimensional Drawings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-5
A.3 Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-9
A.3.1 Transmitter Head (TH) . . . . . . . . . . . . . . . . . . . . . . . .A-9
A.3.2 Antenna Selection . . . . . . . . . . . . . . . . . . . . . . . . . . A-11
A.3.3 5900S Radar Level Gauge Options . . . . . . . . . . . . .A-13
B.1 Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-1
B.2 EU Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2
B.3 Hazardous Locations Certifications . . . . . . . . . . . . . . . . . . . . . .B-3
B.3.1 Factory Mutual US Approvals. . . . . . . . . . . . . . . . . . .B-3
B.3.2 Factory Mutual Canadian Approvals . . . . . . . . . . . . .B-4
B.3.3 European ATEX Directive Information . . . . . . . . . . . .B-5
B.3.4 IECEx Approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-6
B.4 Approval Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-7
TOC-3
Page 8
Rosemount 5900S Series
Reference Manual
00809-0100-5900, Rev CA
June 2014
APPENDIX C
OUNDATION Fieldbus
F
Block Information
C.1 Resource Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-2
C.2 Analog Input Block. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-6
C.2.1 Simulation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-8
C.3 Analog Output Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-9
C.3.1 Setting the Output . . . . . . . . . . . . . . . . . . . . . . . . . .C-10
C.4 Measurement Transducer Block . . . . . . . . . . . . . . . . . . . . . . .C-11
C.4.1 Diagnostic Device Alerts . . . . . . . . . . . . . . . . . . . . .C-16
C.5 Volume Transducer Block . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-17
C.6 Register Transducer Block . . . . . . . . . . . . . . . . . . . . . . . . . . .C-19
C.7 Advanced Configuration Transducer Block . . . . . . . . . . . . . . .C-21
C.8 LPG Transducer Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-24
C.8.1 Correction Method . . . . . . . . . . . . . . . . . . . . . . . . . .C-26
C.8.2 Gas Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-26
C.9 Supported Units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-27
C.9.1 Unit Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-27
TOC-4
Table of Contents
Page 9
Reference Manual
00809-0100-5900, Rev CA
June 2014
Section 1 Introduction
1.1 Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1-1
1.2 Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1-2
1.3 Manual Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1-3
1.4 Technical Documentation . . . . . . . . . . . . . . . . . . . . page 1-4
1.5 Service Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1-5
1.6 Product Recycling/ Disposal . . . . . . . . . . . . . . . . . . page 1-5
1.7 Packing Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1-5
Rosemount 5900S Series
1.1 SAFETY MESSAGES
Procedures and instructions in this manual may require special precautions to
ensure the safety of the personnel performing the operations. Information that
raises potential safety issues is indicated by a warning symbol ( ). Refer to
the safety messages listed at the beginning of each section before performing
an operation preceded by this symbol.
Failure to follow these installation guidelines could result in death or serious
injury:
• Make sure only qualified personnel perform the installation.
• Use the equipment only as specified in this manual. Failure to do so may
impair the protection provided by the equipment.
Explosions could result in death or serious injury:
• Verify that the operating environment of the transmitter is consistent with the
appropriate hazardous locations certifications.
• Before connecting a communicator in an explosive atmosphere, make sure the
instruments in the loop are installed in accordance with intrinsically safe or
non-incendive field wiring practices.
• Do not remove the gauge cover in explosive atmospheres when the circuit is
alive.
Electrical shock could cause death or serious injury.
• Use extreme caution when making contact with the leads and terminals.
www.rosemount-tg.com
Any substitution of non-recognized parts may jeopardize safety. Repair, e.g. substitution
of components etc., may also jeopardize safety and is under no circumstances allowed.
Page 10
Rosemount 5900S Series
1.2 SYMBOLS
Reference Manual
00809-0100-5900, Rev CA
June 2014
The CE marking symbolizes the conformity
of the product with the applicable European
Community Directives.
The EC-Type Examination Certificate is a
statement of a Notified Certification Body
declaring that this product meets the
Essential Health and Safety Requirements
of the ATEX directive
The FM APPROVED Mark indicates that the
equipment is approved by FM Approvals
according to applicable Approval Standards
and is applicable for installation in
hazardous locations
Protective Earth
Ground
External cabling must be approved for use in
min. 81°C
1-2
Section 1. Introduction
Page 11
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount 5900S Series
1.3 MANUAL OVERVIEW
This manual provides installation, configuration, and maintenance information
for the Rosemount 5900S Series Radar Level Gauge.
Section 2: Overview
• Gauge components
• System overview
• Antenna types
• Installation procedure
Section 3: Installation
• Installation considerations
• Mechanical installation
• Electrical installation
Section 4: Configuration
• Basic configuration
• Advanced Configuration
• Configuration using TankMaster WinSetup
• LPG configuration
• Calibration
•FOUNDATION Fieldbus Information
Section 5: Operation
• Viewing measurement data
• Alarm handling
Section 6: Service and Troubleshooting
• Service functions
• Troubleshooting
• Device and measurement status
• Error and warning codes
Appendix A: Reference Data
• Specifications
• Dimensional Drawings
• Ordering Information
Appendix B: Product Certifications
• European ATEX Directive information
• FM approvals
• Labels
• Drawings
Appendix C: Foundation Fieldbus Block Information
• Block Information
• Supported Units
Section 1. Introduction
1-3
Page 12
Rosemount 5900S Series
Reference Manual
00809-0100-5900, Rev CA
June 2014
1.4 TECHNICAL DOCUMENTATION
The Raptor System includes the following documents:
• Rosemount Raptor System Data Sheet (704010EN)
• Rosemount 5900S Reference Manual (00809-0100-5900)
• Rosemount 2410 Reference Manual (300530EN)
• Rosemount 2240S Reference Manual (300550EN)
• Rosemount 2230 Reference Manual (300560EN)
• Raptor System Configuration Manual (300510EN)
• Rosemount 5300 Product Data Sheet (00813-0100-4530)
• Rosemount 5400 Product Data Sheet (00813-0100-4026)
• Rosemount 5300 Series Reference Manual (00809-0100-4530)
• Rosemount 5400 Series Reference Manual (00809-0100-4026)
• Rosemount TankMaster WinOpi Reference Manual (303028EN)
• Rosemount Raptor Installation Drawings
1-4
Section 1. Introduction
Page 13
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount 5900S Series
1.5 SERVICE SUPPORT For service support contact the nearest Emerson Process
Management/Rosemount Tank Gauging representative. Contact information
can be found on the web site www.rosemount-tg.com.
1.6 PRODUCT RECYCLING/ DISPOSAL
Figure 1-1. A green label is
attached to the level gauge
housing
1.7 PACKING MATERIAL
1.7.1 Reuse and
Recycling
Recycling of equipment and packaging should be taken into consideration
and disposed of in accordance with local and national legislation/regulations.
The label below is put on Rosemount Tank Gauging products as a
recommendation to customers if scrapping is considered.
Recycling or disposal should be done following instructions for correct
separation of materials when breaking up the units.
R
A
A
T
P
E
E
S
S
T
E
E
L
&
Rosemount Tank Radar AB is fully certified according to ISO 14001
environmental standards. By recycling the corrugated paperboard, or wooden
boxes, used for shipping our products you can contribute to take care of the
environment.
Experience has shown that wooden boxes can be used several times for
various purposes. After careful disassembly the wooden parts may be reused.
Metal waste may be converted.
C
I
T
S
A
L
P
1.7.2 Energy recovery Products which have served their time may be divided into wood and metal
components and the wood can be used as fuel in sufficient ovens.
Due to its low moisture content (approximately 7%) this fuel has a higher
calorific value than ordinary wood fuel (moisture content approximately 20%).
When burning interior plywood the nitrogen in the adhesives may increase
emissions of nitrogen oxides to the air 3-4 times more than when burning bark
and splinter.
NOTE!
Landfill is not a recycling option and should be avoided.
Section 1. Introduction
1-5
Page 14
Rosemount 5900S Series
Reference Manual
00809-0100-5900, Rev CA
June 2014
1-6
Section 1. Introduction
Page 15
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount 5900S Series
Section 2 Overview
2.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-1
2.2 Main Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-2
2.3 Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-3
2.4 System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . .page 2-4
2.5 Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-11
2.6 Installation Procedure . . . . . . . . . . . . . . . . . . . . . . .page 2-13
2.1 INTRODUCTION The Rosemount 5900S is a two-wire radar level gauge for high accuracy
non-contact measurements. The level gauge continuously emits a radar
signal with varying frequency towards the product surface. This allows very
accurate level measurements by processing the difference between the
frequencies of the emitted and received radar signals.
The Rosemount 5900S is an integral part of the flexible Raptor system. The
advanced and robust design makes it suitable for a vast range of applications.
It is designed for high accuracy level measurements as well as handling
complex tank shapes and obstacles in the tank that may interfere with
measurement signals.

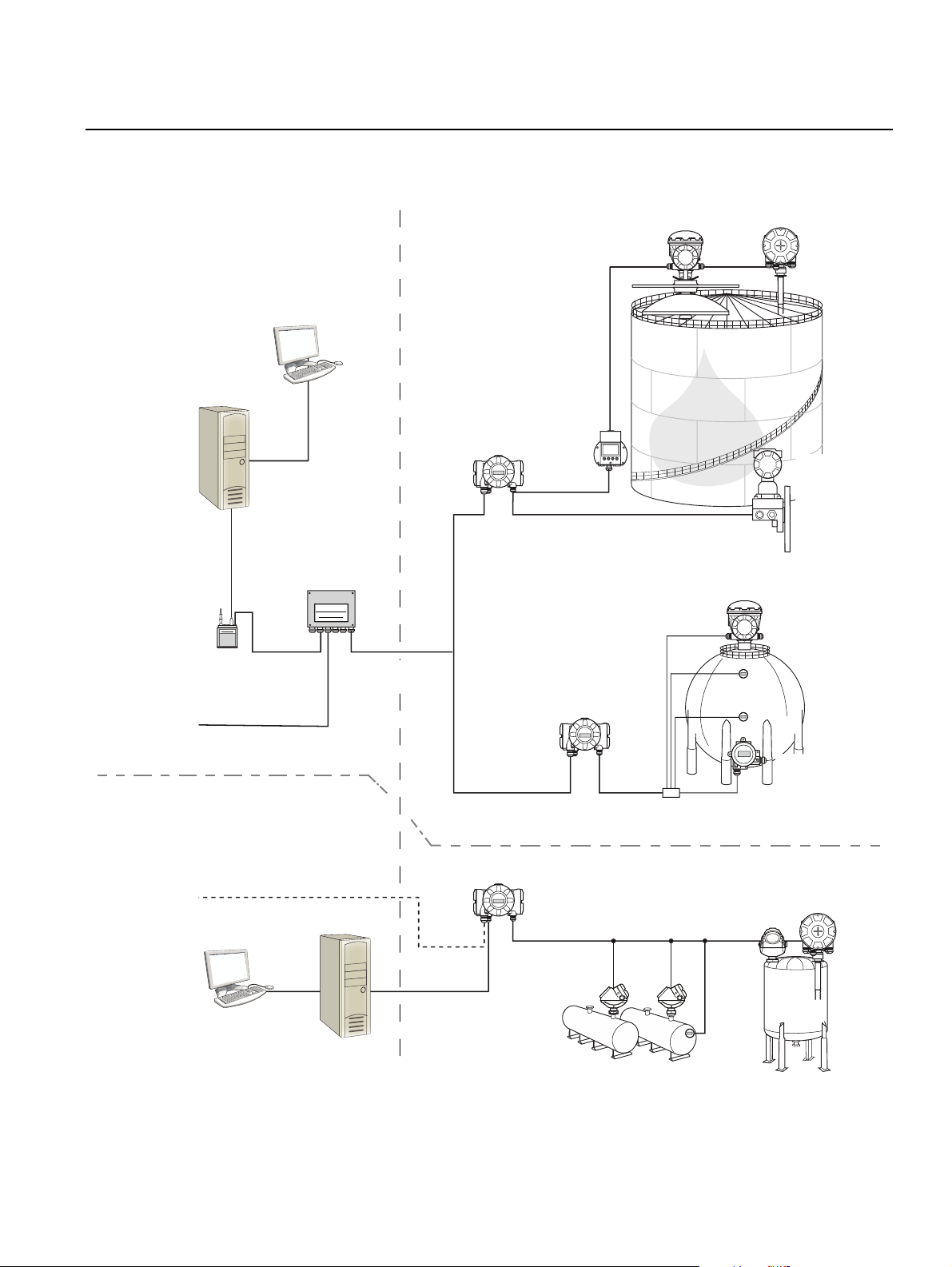

Figure 2-1. System integration
5900S Radar
Level Gauge
2240S
Temperature
TankMaster
Group Bus
Modem
2160 Field
Communication Unit
Primary Bus
Secondary Bus
(Non-IS)
Relay outputs
The Rosemount 5900S delivers measurement data and status information to
a Rosemount 2410 Tank Hub via the intrinsically safe Tankbus
Data from a group of tanks is buffered by a 2160 Field Communication Unit
(FCU), and is distributed via the Group Bus to a TankMaster PC, or a host
system, whenever the FCU receives a request for data.
(1) The intrinsically safe Tankbus complies with the FISCO FOUNDATION™ fieldbus standard.
2410 Tank Hub
2230 Display
Tankbus
Secondary bus (IS)
(1)
.
www.rosemount-tg.com
Page 16
Rosemount 5900S Series
2.2 MAIN LABEL
Figure 2-2. 5900S main label
Reference Manual
00809-0100-5900, Rev CA
June 2014
Model Code
Tag no.
Serial number
Manufacturing date
SIL Baseline
Device ID
IC ID
FCC ID
Explosion protection
Explosion protection
2-2
Section 2. Overview
Page 17
Reference Manual
00809-0100-5900, Rev CA
June 2014
2.3 COMPONENTS
Figure 2-3. Rosemount 5900S
components
Rosemount 5900S Series
1
22
3
4
6
5
1. Terminal compartment
2. Cable entries (½ - 14 NPT, M20 x 1.5 adapters)
3. Flange
4. Antenna
5. Grounding terminal
6. Weather protection hood
7. Label
8. Transmitter head with signal processing electronics
8
7
Section 2. Overview
2-3
Page 18
Rosemount 5900S Series
Reference Manual
00809-0100-5900, Rev CA
June 2014
2.4 SYSTEM OVERVIEW
Raptor is a state-of-the art inventory and custody transfer radar tank level
gauging system. It is developed for a wide range of applications at refineries,
tank farms and fuel depots, and fulfills the highest requirements on
performance and safety.
The field devices on the tank communicate over the intrinsically safe
Tankbus. The Tankbus is based on a standardized fieldbus, the FISCO
FOUNDATION™ fieldbus, and allows integration of any device supporting that
protocol. By utilizing a bus powered 2-wire intrinsically safe fieldbus the power
consumption is minimized. The standardized fieldbus also enables integration
of other vendors’ equipment on the tank.
The Raptor product portfolio includes a wide range of components to build
small or large customized tank gauging systems. The system includes various
devices, such as radar level gauges, temperature transmitters, and pressure
transmitters for complete inventory control. Such systems are easily
expanded thanks to the modular design.
Raptor is a versatile system that is compatible with and can emulate all major
tank gauging systems. Moreover, the well-proven emulation capability
enables step-by-step modernization of a tank farm, from level gauges to
control room solutions.
It is possible to replace old mechanical or servo gauges with modern Raptor
gauges, without replacing the control system or field cabling. It is further
possible to replace old HMI/SCADA-systems and field communication
devices without replacing the old gauges.
(1)
There is a distributed intelligence in the various system units which
continuously collect and process measurement data and status information.
When a request for information is received an immediate response is sent
with updated information.
The flexible Raptor system supports several combinations to achieve
redundancy, from control room to the different field devices. Redundant
network configuration can be achieved at all levels by doubling each unit and
using multiple control room work stations.
2-4
(1) See documents IEC 61158-2 and IEC/TS 60079-27
Section 2. Overview
Page 19
Reference Manual
00809-0100-5900, Rev CA
June 2014
Figure 2-4. Rosemount Tank
Gauging System architecture
NON-HAZARDOUS AREA HAZARDOUS AREA
TankMaster PC
2230 Display
2410 Tank Hub
Tankbus
Rosemount 5900S Series
5900S Radar
Level Gauge
2240S Temperature
Transmitter
3051S
Pressure
Transmitter
2160 Field
2180 Field
Bus Modem
Plant Host Computer
Communication Unit
Group bus
CUSTODY TRANSFER / INVENTORY TANK GAUGINGOPERATIONAL CONTROL
Plant Host Computer
TankMaster PC
TRL2 Modbus
2410 Tank Hub
2410 Tank Hub
Tankbus
5300 Level
Transmitter
5900S Radar
Level Gauge
Segment coupler
5400 Level
Transmitter
644
644
644
644Temperature
Transmitter
2240S Temperature
Transmitter
Section 2. Overview
2-5
Page 20
Rosemount 5900S Series
Figure 2-5. Rosemount Tank
Gauging system architecture for
wireless systems
NON-HAZARDOUS AREA HAZARDOUS AREA
Reference Manual
00809-0100-5900, Rev CA
June 2014
TankMaster PC
Smart Wireless
Gateway
2410 Tank Hub
Tankbus
THUM
2230
Display
THUM
5900S Radar
Level Gauge
2240S Temperature
Transmitter
3051S
Pressure
Transmitter
5900S Radar
Level Gauge
2-6
2410 Tank Hub
644
644
644Temperature
Transmitter
Segment coupler
Section 2. Overview
Page 21
Reference Manual
00809-0100-5900, Rev CA
June 2014
Figure 2-6. Rosemount Tank
Gauging system architecture in
a Foundation fieldbus network
Rosemount 5900S Series
NON-HAZARDOUS AREA HAZARDOUS AREA
2230
Display
FOUNDTION Fieldbus
Power Supply
5900S Radar
Level Gauge
2240S Temperature
Transmitter
3051S
Pressure
Transmitter
5900S Radar
Level Gauge
CUSTODY TRANSFER
INVENTORY TANK GAUGING
PC
OPERATIONAL CONTROL
644
644
Segment coupler
644Temperature
Transmitter
Segment coupler
Section 2. Overview
2-7
Page 22
Rosemount 5900S Series
Reference Manual
00809-0100-5900, Rev CA
June 2014
TankMaster HMI Software
TankMaster is a powerful Windows-based Human Machine Interface (HMI)
for complete tank inventory management. It provides configuration, service,
set-up, inventory, and custody transfer functions for Raptor systems and other
supported instruments.
TankMaster is designed to be used in the Microsoft Windows XP and Vista
environment providing easy access to measurement data from your Local
Area Network.
The TankMaster WinOpi program lets the operator monitor measured tank
data. It includes alarm handling, batch reports, automatic report handling,
historical data sampling as well as inventory calculations such as Volume,
Observed Density and other parameters. A plant host computer can be
connected for further processing of data.
The TankMaster WinSetup program is a graphical user interface for
installation, configuration and service of the different devices in the Raptor
system.
Rosemount 2160 Field Communication Unit
The 2160 Field Communication Unit (FCU) is a data concentrator that
continuously polls and stores data from field devices such as radar level
gauges and temperature transmitters in a buffer memory. Whenever a request
for data is received, the FCU can immediately send data from a group of
tanks from the updated buffer memory.
Rosemount 2410 Tank Hub
The Rosemount 2410 Tank Hub acts as a power supply to the connected field
devices in the hazardous area using the intrinsically safe Tankbus.
The 2410 collects measurement data and status information from field
devices on a tank. It has two external buses for communication with various
host systems.
There are two versions of the 2410 for single tank or multiple tanks operation.
The 2410 multiple tanks version supports up to 10 tanks and 16 devices. With
the Rosemount 5300 and 5400 level transmitters the 2410 supports up to 5
tanks.
The 2410 is equipped with two relays which support configuration of up to 10
“virtual” relay functions allowing you to specify several source signals for each
relay.
The 2410 supports Intrinsically Safe (IS) and Non-Intrinsically Safe (Non-IS)
analog 4-20 mA inputs/outputs. By connecting a Smart Wireless THUM
Adapter to the IS HART 4-20 mA output, the 2410 is capable of wireless
communication with a Smart Wireless Gateway in a WirelessHART network.
2-8
Rosemount 5900S Radar Level Gauge
The Rosemount 5900S Radar Level Gauge is an intelligent instrument for
measuring the product level inside a tank. Different antennas can be used in
order to meet the requirements of different applications. The 5900S can
measure the level of almost any product, including bitumen, crude oil, refined
products, aggressive chemicals, LPG and LNG.
Section 2. Overview
Page 23
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount 5900S Series

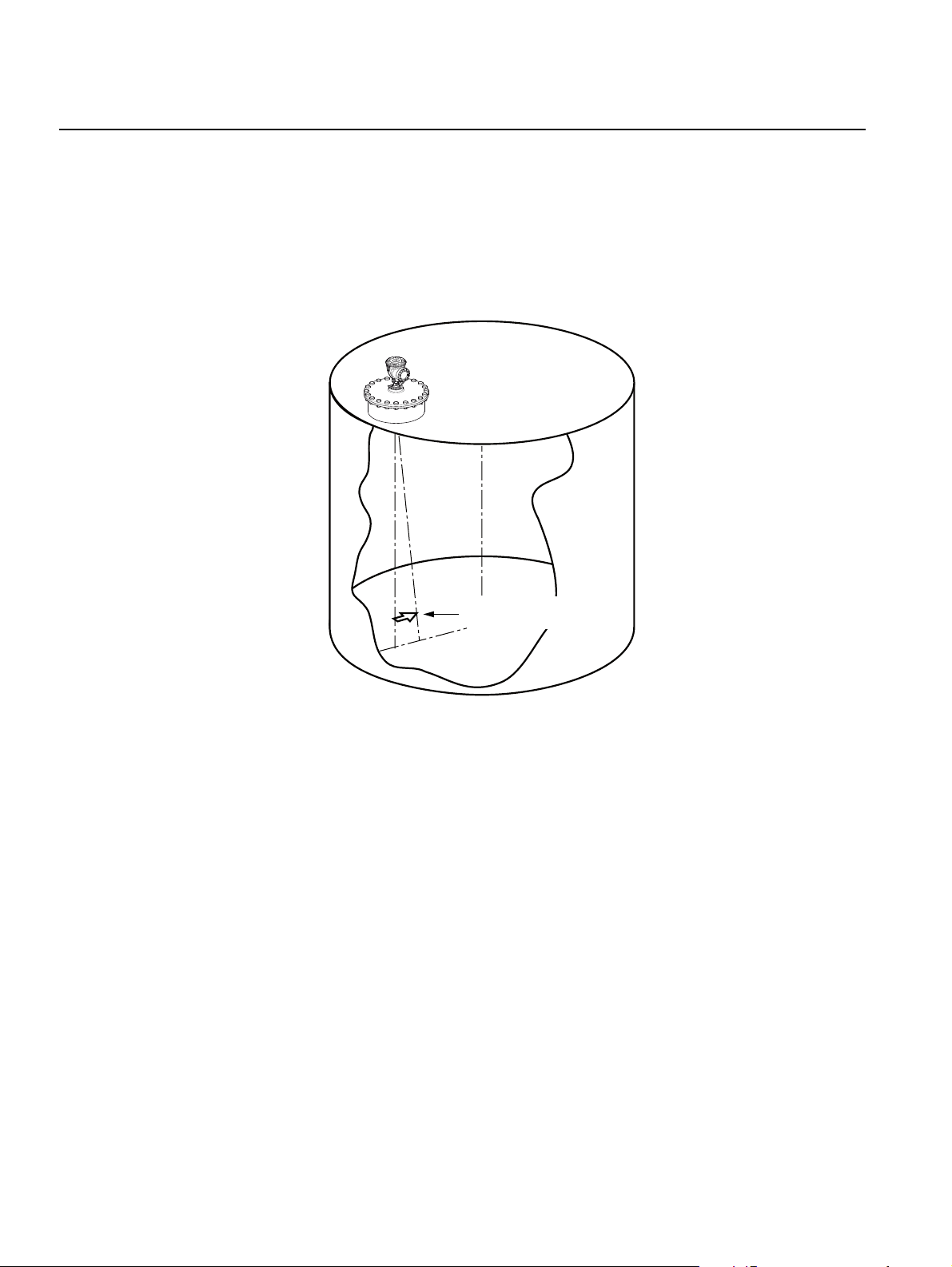

The Rosemount 5900S sends microwaves towards the surface of the product
in the tank. The level is calculated based on the echo from the surface. No
part of the 5900S is in actual contact with the product in the tank, and the
antenna is the only part of the gauge that is exposed to the tank atmosphere.
The 2-in-1 version of the 5900S Radar Level Gauge has two radar modules in
the same transmitter housing allowing two independent level measurements
using one antenna.
Rosemount 5300 Guided Wave Radar
The Rosemount 5300 is a premium 2-wire guided wave radar for level
measurements on liquids, to be used in a wide range of medium accuracy
applications under various tank conditions. Rosemount 5300 includes the
5301 for liquid level measurements and the 5302 for liquid level and interface
measurements.
Rosemount 5400 Radar Level Transmitter
The Rosemount 5400 is a reliable 2-wire non-contact radar level transmitter
for liquids, to be used in a wide range of medium accuracy applications under
various tank conditions.
Rosemount 2240S Multi-Input Temperature Transmitter
The Rosemount 2240S Multi-input Temperature Transmitter can connect up
to 16 temperature spot sensors and an integrated water level sensor.
Rosemount 2230 Graphical Field Display
The Rosemount 2230 Graphical Field Display presents inventory tank
gauging data such as level, temperature, and pressure. The four softkeys
allow you to navigate through the different menus to provide all tank data,
directly in the field. The Rosemount 2230 supports up to 10 tanks. Up to three
2230 displays can be used on a single tank.
Rosemount 644 Temperature Transmitter
The Rosemount 644 is used with single spot temperature sensors.
Rosemount 3051S Pressure Transmitter
The 3051S series consists of transmitters and flanges suitable for all kinds of
applications, including crude oil tanks, pressurized tanks and tanks with /
without floating roofs.
By using a 3051S Pressure Transmitter near the bottom of the tank as a
complement to a 5900S Radar Level Gauge, the density of the product can be
calculated and presented. One or more pressure transmitters with different
scalings can be used on the same tank to measure vapor and liquid pressure.
Rosemount 2180 Field Bus Modem
Section 2. Overview
The Rosemount 2180 field bus modem (FBM) is used for connecting a
TankMaster PC to the TRL2 communication bus. The 2180 is connected to
the PC using either the RS232 or the USB interface.
2-9
Page 24
Rosemount 5900S Series
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount Smart Wireless Gateway and Rosemount Smart Wireless
THUM Adapter
A THUM Adapter allows wireless communication between a 2410 Tank Hub
and a Smart Wireless Gateway. The gateway is the network manager that
provides an interface between field devices and the TankMaster inventory
software or host / DCS systems.
See the Raptor Technical Description (Document no. 704010en) for more
information on the various devices and options.
2-10
Section 2. Overview
Page 25
Reference Manual
00809-0100-5900, Rev CA
June 2014
2.5 ANTENNAS
Rosemount 5900S Series
The Rosemount 5900S with Horn Antenna is
designed for an 8 inch antenna to be used in small
size openings on fixed roofs tanks.
The 5900S is designed for measurements of a
variety of oil products and chemicals. However, for
bitumen/asphalt and similar products the Parabolic
antenna is recommended.
The Rosemount 5900S with Parabolic Antenna
measures level of all types of liquids, from light
products to bitumen/asphalt. The gauge is designed
for mounting on tanks with fixed roofs and has
custody transfer accuracy.
The design of the parabolic antenna provides
extreme tolerance against sticky and condensing
products. The narrow beam of this antenna makes it
very suitable in narrow tanks with internal structures.
The Rosemount 5900S with Still-pipe Array
Antenna is used on tanks with still pipes and with all
products suited for still pipes.
The gauge uses a low-loss radar propagation mode
which virtually eliminates the influence of the still pipe
condition. Measurement is made with highest
accuracy even when the pipe is old, rusty and
covered with deposits.
The Still-pipe Array Antenna fits 5, 6, 8, 10, and 12
inch pipes. It can be mounted on an existing still pipe
and there is no need to take the tank out of operation
during installation.
Section 2. Overview
There are two versions of the 5900S with Still-pipe
Array Antenna: fixed and hinged hatch. The hinged
hatch enables full pipe size product sampling or
verification hand-dips.
2-11
Page 26
Rosemount 5900S Series
Reference Manual
00809-0100-5900, Rev CA
June 2014
The Rosemount 5900S with LPG/LNG Antenna is
designed for level measurements in LPG and LNG
tanks. A 4 inch still-pipe is used as a wave guide for
the measurement and prevents a turbulent surface
from disturbing the measurement. Radar signals are
transmitted inside the pipe towards the surface.
The pressure sealing is a quarts window approved
for use in pressure vessels. As standard the gauge is
also equipped with a fire-proof block valve and a
vapor space pressure sensor.
The Rosemount 5900S with LPG/LNG Antenna is
available in two versions for 150 PSI and 300 PSI.
The Verification Pin allows you to verify
measurements without opening the tank by
comparing the measured distance with the actual
distance to the Verification Pin.
2-12
Section 2. Overview
Page 27
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount 5900S Series
2.6 INSTALLATION PROCEDURE
Follow these steps for proper installation:
Review Installation Considerations.
See “Installation Considerations”
on page 3-3.
Mount the gauge.
See “Mechanical Installation” on
page 3-19.
Wire the gauge.
See “Electrical Installation” on
page 3-41.
Make sure covers and
cable/conduit connections are tight
Power Up the gauge
Configure the gauge.
See Section 4: Configuration.
Verify measurements
Enable the Write
Protection switch
SIL configuration
Section 2. Overview
2-13
Page 28
Rosemount 5900S Series
Reference Manual
00809-0100-5900, Rev CA
June 2014
2-14
Section 2. Overview
Page 29
Reference Manual
00809-0100-5900, Rev CA
June 2014
Section 3 Installation
3.1 Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3-1
3.2 Installation Considerations . . . . . . . . . . . . . . . . . . . page 3-3
3.3 Mechanical Installation . . . . . . . . . . . . . . . . . . . . . . page 3-19
3.4 Electrical Installation . . . . . . . . . . . . . . . . . . . . . . . . page 3-41
Rosemount 5900S Series
3.1 SAFETY MESSAGES
Procedures and instructions in this section may require special precautions to
ensure the safety of the personnel performing the operations. Information that
raises potential safety issues is indicated by a warning symbol ( ). Please
refer to the following safety messages before performing an operation
preceded by this symbol.
Failure to follow safe installation and servicing guidelines could result in death or
serious injury:
Make sure only qualified personnel perform the installation.
Use the equipment only as specified in this manual. Failure to do so may impair the
protection provided by the equipment.
Do not perform any service other than those contained in this manual unless you are
qualified.
To prevent ignition of flammable or combustible atmospheres, disconnect power before
servicing.
Substitution of components may impair Intrinsic Safety.
Explosions could result in death or serious injury:
Verify that the operating environment of the transmitter is consistent with the appropriate
hazardous locations certifications.
Before connecting a communicator in an explosive atmosphere, make sure the
instruments in the loop are installed in accordance with intrinsically safe or
non-incendive field wiring practices.
Do not remove the gauge cover in explosive atmospheres when the circuit is alive.
www.rosemount-tg.com
Page 30
Rosemount 5900S Series
Reference Manual
00809-0100-5900, Rev CA
June 2014
High voltage that may be present on leads could cause electrical shock:
Avoid contact with leads and terminals.
Make sure the main power to the transmitter is off and the lines to any other external
power source are disconnected or not powered while wiring the gauge.
NOTICE
The device is designed for installation in complete enclosed container to prevent
unwanted RF emission. Installation must be in accordance with local regulations and
may require local radio approvals.
Installation in open air applications may be subject for site license approval.
Installation shall be done by trained installers, in compliance with the manufacturer's
instructions.
3-2
Section 3. Installation
Page 31
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount 5900S Series
3.2 INSTALLATION CONSIDERATIONS
When finding an appropriate location on the tank for a Rosemount 5900S
Radar Level Gauge, the conditions of the tank must be carefully considered.
The 5900S should be installed so that the influence of disturbing objects is
kept to a minimum, preferably outside the radar signal beam.
Ensure that environmental conditions are within specified limits as listed in
Appendix A: Reference Data.
Ensure that the Rosemount 5900S Radar Level Gauge is installed such that it
is not exposed to higher pressure and temperature than specified in
Appendix A: Reference Data.
It is the responsibility of the user to ensure that the device meets the specific
inside tank installation requirements such as:
• chemical compatibility of wetted materials
• design/operation pressure and temperature
For a complete specification of the 5900S device to be installed, you can
identify the model code on the attached antenna label and match with data in
“Ordering Information” on page A-9.
Do not install the Rosemount 5900S in non-intended applications, for
example environments where it may be exposed to extremely intense
magnetic fields or extreme weather conditions.
Antennas with plastic surfaces and painted surface, may under certain
extreme conditions generate an ignition-capable level of electrostatic charge.
When installing in hazardous areas ensure using tools, cleaning material etc.
which can not generate electrostatic charge.
See chapters 3.2.1 to 3.2.4 for requirements and recommendations to
consider when installing a Rosemount 5900S Radar Level Gauge with
different antenna types.
Section 3. Installation
3-3
Page 32
Rosemount 5900S Series
Reference Manual
00809-0100-5900, Rev CA
June 2014
3.2.1 Horn Antenna Requirements
Table 3-1. Minimum nozzle
diameter for the 5900S with
Horn Antenna

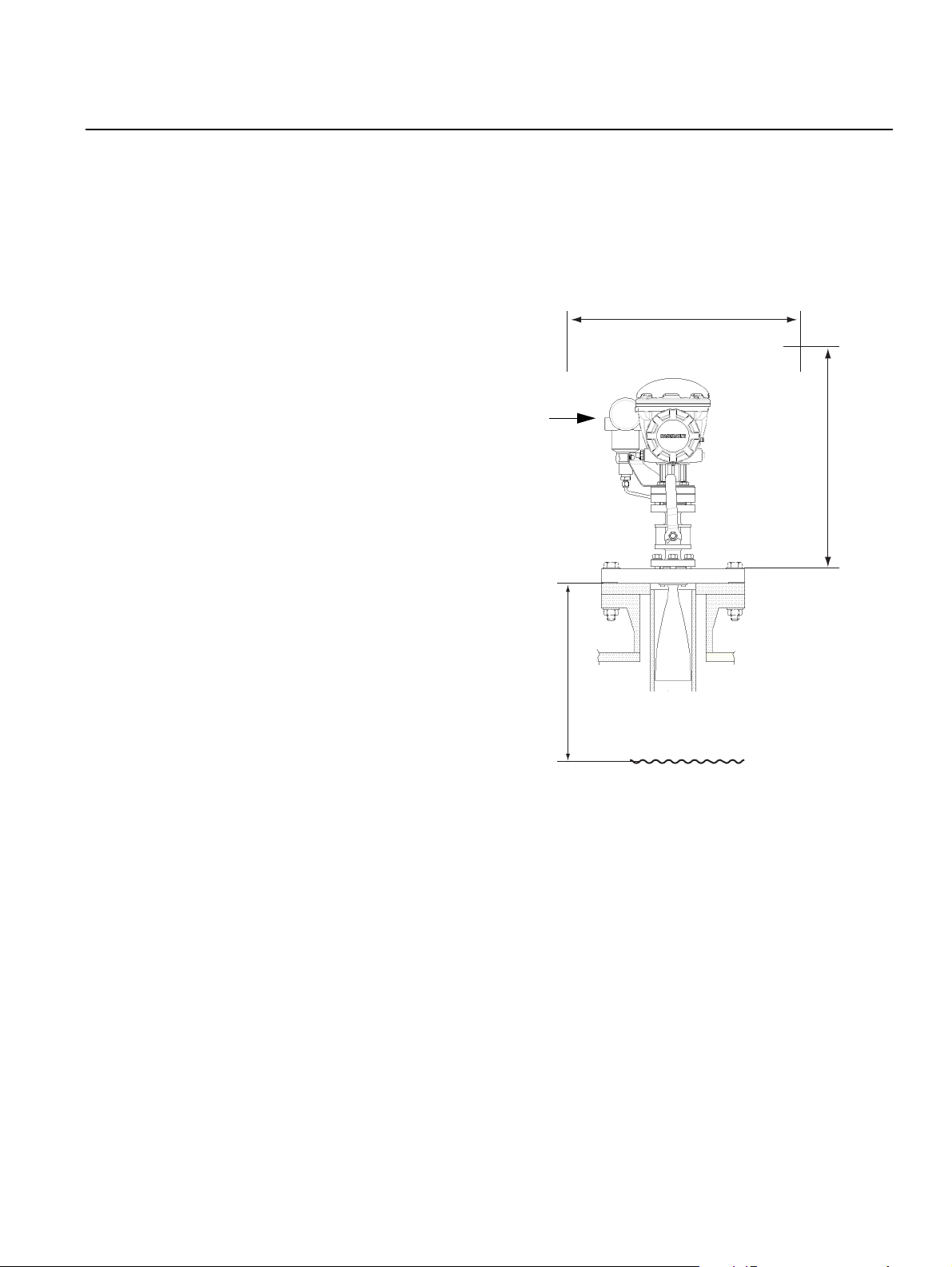

Figure 3-1. Nozzle requirements
for the Horn Antenna Gauge
The Rosemount 5900S with Horn Antenna must be installed so that there are
no pipes or other obstacles that could prevent the radar beam from reaching
the tank bottom unobstructed. There are two flanges available; a horizontal
flange for vertical installation, and an inclined flange for installation close to
the tank wall.
Please refer to mechanical installation drawings for more information on the
installation requirements of the Horn Antenna and service space
requirements.
Nozzle Requirements
Maximum nozzle height 330 mm.
Minimum nozzle diameter:
Flange Minimum nozzle diameter (mm)
Horizontal flange 180
4° inclined flange 185
HORIZONTAL FLANGE 4° INCLINED FLANGE
Maximum height:
330 mm
Note!
For best performance the
antenna should extend
from the nozzle
Minimum nozzle
diameter 180 mm
Minimum 800 mm for
highest accuracy
Minimum 500 mm with
reduced accuracy
±1°±1°
Maximum height:
330 mm
Minimum nozzle
diameter 185 mm
3-4
Section 3. Installation
Page 33
Reference Manual
00809-0100-5900, Rev CA
June 2014

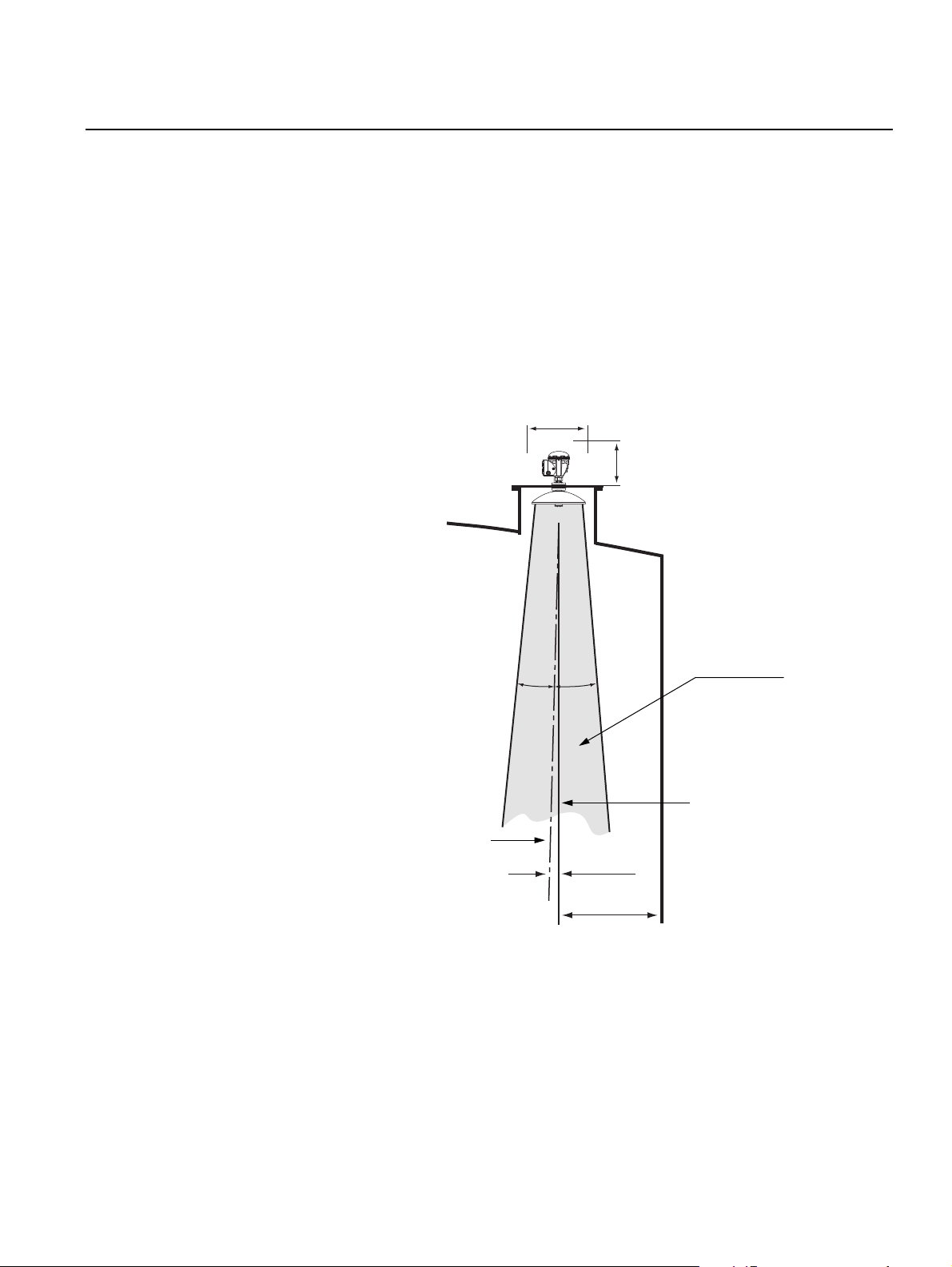

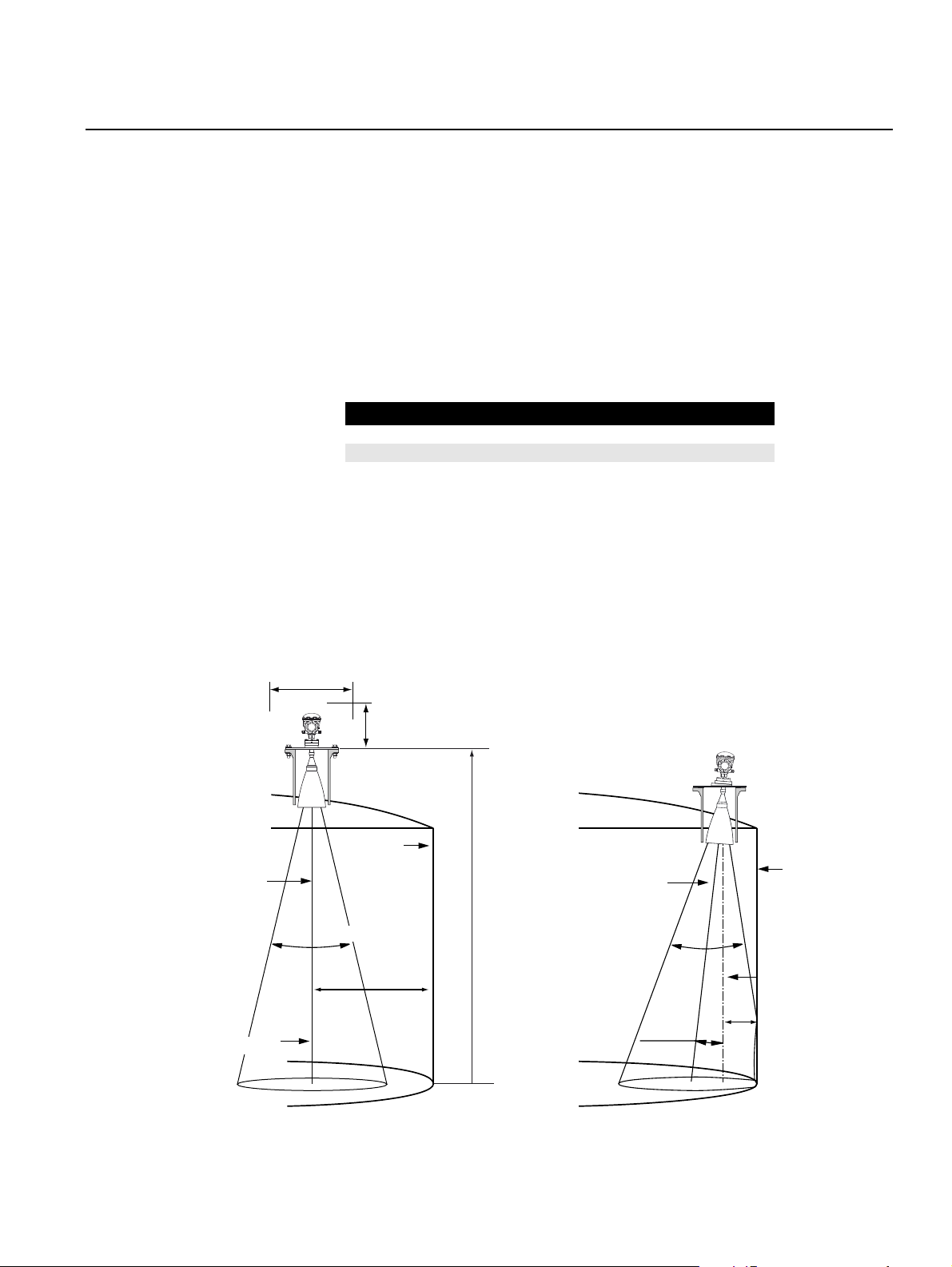

Table 3-2. Minimum distance L
to tank wall for the 5900S with
Horn Antenna
Rosemount 5900S Series
Free Space Requirements
There are two flanges available for the Horn Antenna gauge. One flange has
a 4° inclination and the other is horizontal. See installation drawing for flange
dimensions.
The horizontal flange can be used if the wall does not intrude into the 30°
wide radar beam from the Horn Antenna. If a vertical antenna axis installation
is not possible without the tank wall intruding into the radar beam, the 5900S
has to be directed away from the wall by using the 4° flange. The inclination is
necessary to ensure maximum accuracy.
The minimum free space distance L:
Flange Minimum distance L to tank wall (m)
Horizontal flange Rx0.2 (R=tank reference height)
4° flange 0.6
(1) In exceptional cases the 5900S with Horn Antenna can be installed closer to
the tank wall if required. Please contact Emerson Process Management /
Rosemount Tank Gauging for advice.
(1)
Figure 3-2. Two different flange
options are available
Service space 550 mm
Antenna axis
Vertical plumb line
In certain cases, when maximum accuracy is not required, the horizontal
flange can be used even if the wall intrudes into the radar beam. In doubtful
cases, please contact Emerson Process Management / Rosemount Tank
Gauging or one of its representatives for advice.
Service space 500 mm
Tank wall
Tank wall
Vertical plumb line
30° radar beam
L
Antenna axis
30° radar beam
Tank reference height (R)
L
4° ± 1°
Section 3. Installation
HORIZONTAL FLANGE INCLINED FLANGE
3-5
Page 34
Rosemount 5900S Series
Reference Manual
00809-0100-5900, Rev CA
June 2014

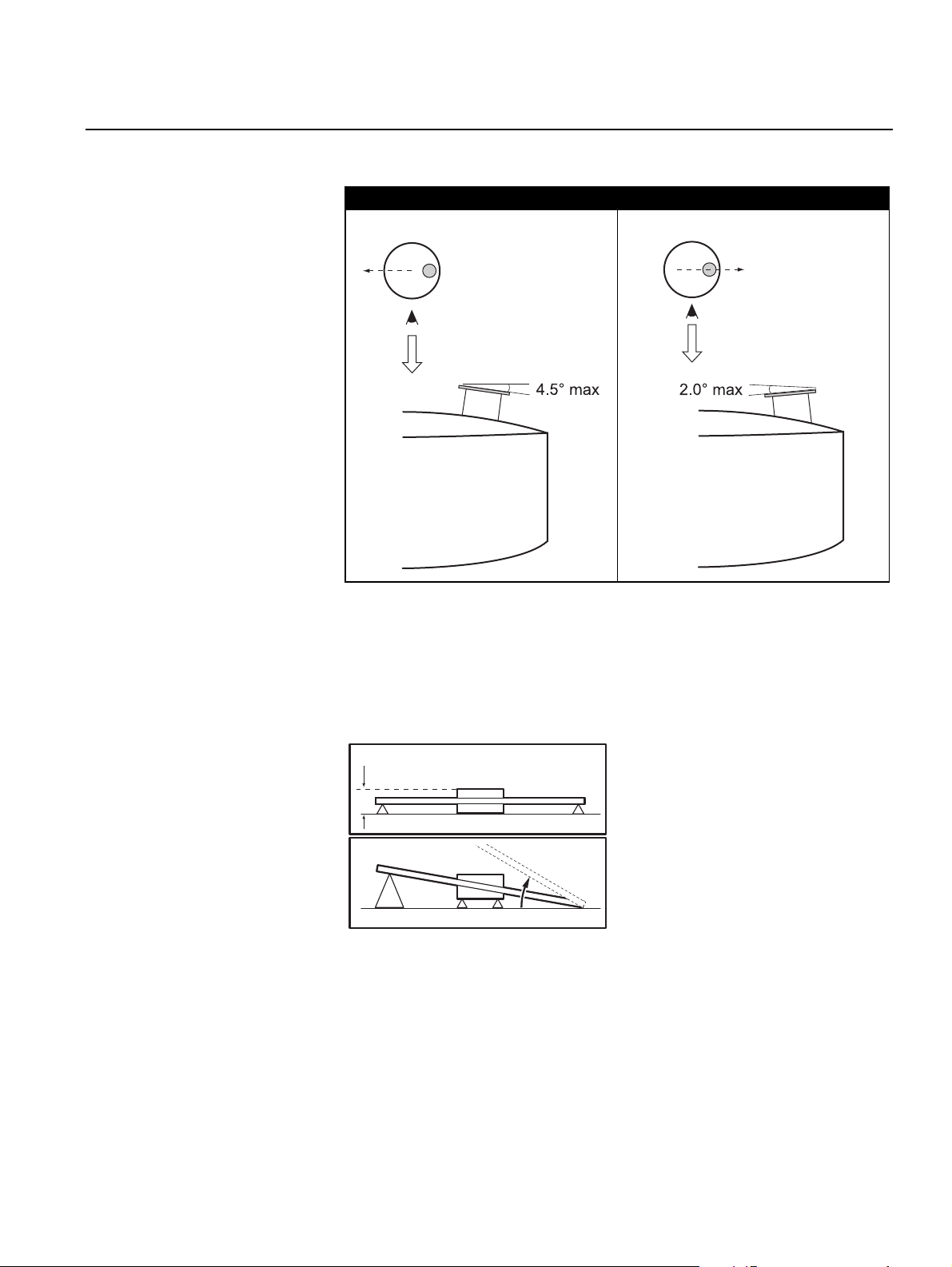

3.2.2 Parabolic Antenna Requirements
Figure 3-3. Maximum inclination
with Parabolic Antenna
Inclination
The inclination of the Rosemount 5900S with Parabolic Antenna should not
exceed 1.5 ° towards the center of the tank. For products with high
condensation such as bitumen/asphalt applications, the radar beam should
be directed vertically without any inclination.
Maximum inclination 1.5°
Flange Requirements
The Rosemount 5900S with Parabolic Antenna is mounted on the tank nozzle
by using the Flange Ball. It is designed for easy adjustment of gauge
inclination within the specified limits.
There are two versions of the Flange Ball. One that is clamped to the flange
by using a nut, and another one which is welded to the flange.
The Flange Ball has to be mounted on the flange prior to mounting the gauge
on the tank nozzle.
The flange needs to fulfill certain requirements in order to ensure that the
radar beam is not disturbed by the tank wall. This allows the radar signal to be
reflected on the product surface and transmitted back to the level gauge at a
maximum signal strength.
The tank flange has to meet the following inclination requirements (see
Figure 3-4) in order to allow proper adjustment of the antenna:
• maximum 4.5° away from the tank wall
• maximum of 2° towards the tank wall
3-6
Section 3. Installation
Page 35
Reference Manual
00809-0100-5900, Rev CA
June 2014
Figure 3-4. Maximum inclination
of tank flange
Rosemount 5900S Series
Maximum inclination towards tank center Maximum inclination towards tank wall
Figure 3-5. Maximum inclination
with welded flange
In case the tank flange does not meet the requirements as illustrated in
Figure 3-4, the inclination requirements for the Parabolic Antenna can still be
met by using the welded Flange Ball. The Flange Ball can be mounted at a
maximum angle of 17° to the flange as illustrated in Figure 3-5:
60 mm
< 17°
Section 3. Installation
3-7
Page 36
Rosemount 5900S Series

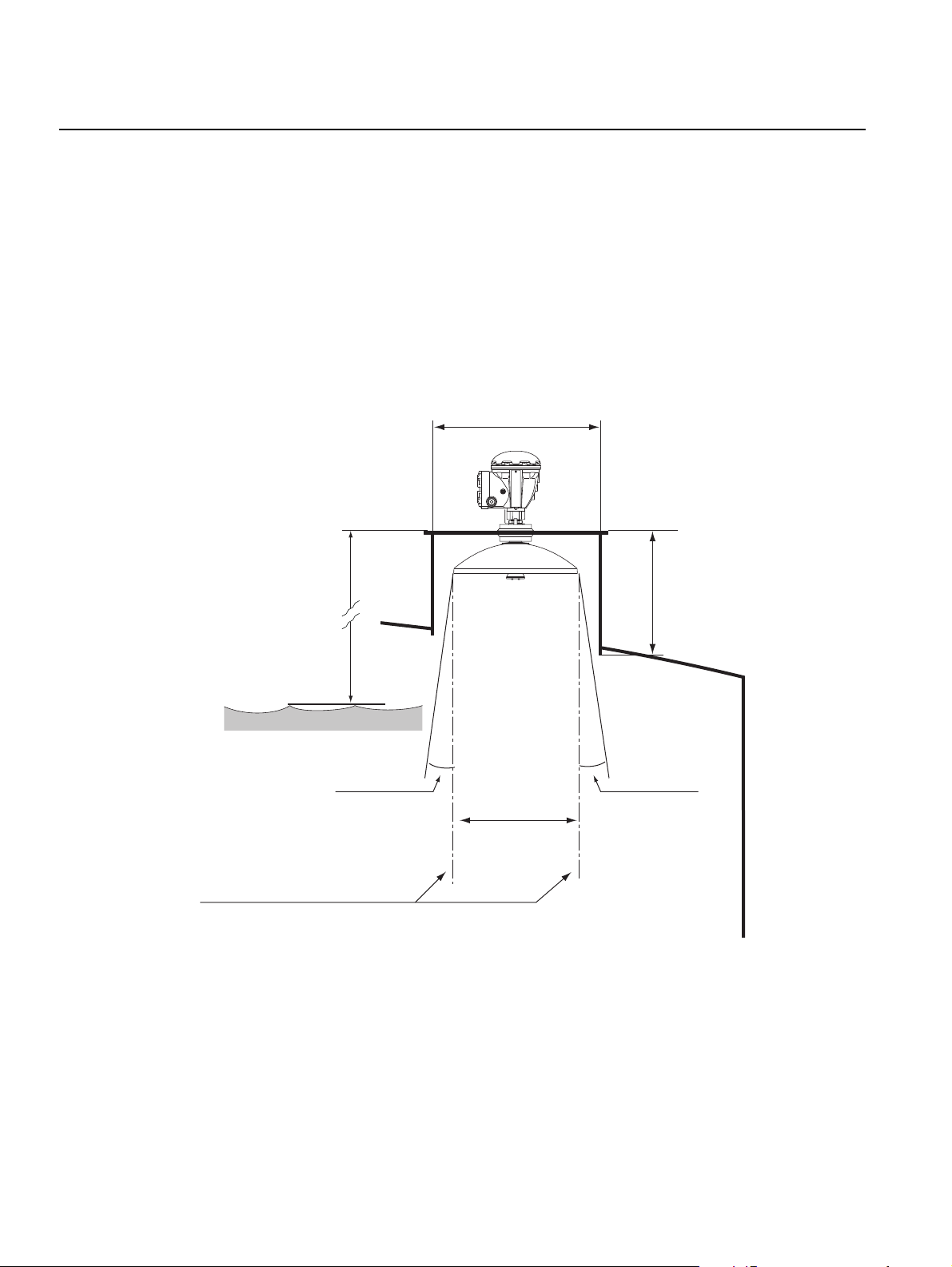

Figure 3-6. Nozzle requirements
for the Rosemount 5900S with
Parabolic Antenna
Reference Manual
00809-0100-5900, Rev CA
June 2014
Nozzle Requirements
When installing the 5900S with Parabolic Antenna on a Ø 20" nozzle, the
nozzle height must not exceed 600 mm. There has to be a free passage for
the radar beam within a 5° angle from the edge of the parabolic reflector to
the lower end of the nozzle.
The 5900S should be installed so that the distance between flange and
product surface exceeds 800 mm. Highest accuracy is obtained for product
levels below this point.
Ø > 500 mm (20 inch)
Minimum 800 mm for
highest accuracy
Minimum 500 mm with
reduced accuracy
Vertical plumb line
Recommended height: 400 mm
Maximum height: 600 mm
5° minimum5° minimum
Ø 440 mm
Nozzles with larger diameter may be higher than 0.6 meter as long as the
requirement of 5° free passage is fulfilled.
3-8
Section 3. Installation
Page 37
Reference Manual
00809-0100-5900, Rev CA
June 2014
Figure 3-7. Free space
requirements for the Rosemount
5900S with Parabolic Antenna
Rosemount 5900S Series
Free Space Requirements
The radar beam of the 5900S with Parabolic Antenna is 10° wide. Obstacles
(construction bars, pipes larger than Ø 2", etc.) within the radar beam are
generally not accepted, as these may result in disturbing echoes. However, in
most cases, a smooth tank wall or small objects will not have any significant
influence on the radar beam.
The antenna axis should be located at least 800 mm from the tank wall for
best performance.
Recommended space 550 mm
for installation and service
Recommended space 500 mm
for installation and service
5°5°
Antenna axis
Max. 1.5 °
Min. 0.8 m
Free passage
Vertical plumb
For evaluation contact Emerson Process Management / Rosemount Tank
Gauging.
Section 3. Installation
3-9
Page 38
Rosemount 5900S Series
Reference Manual
00809-0100-5900, Rev CA
June 2014
3.2.3 Still-pipe Antenna Requirements
Table 3-3. Antenna size and
appropriate pipe inner diameter
The Rosemount 5900S is designed for still-pipe mounting and can be
mounted on existing still-pipe flanges without taking the tank out of operation.
The Rosemount 5900S Still-pipe Array Antenna is available for pipe size 5, 6,
8, 10 and 12 inch.
There are two versions available in order to suit various requirements for easy
installation and maintenance:
• The Rosemount 5900S Still-pipe Array Antenna Fix version which has
a flange for easy mounting when there is no need for opening the
still-pipe for hand dipping
• The Rosemount 5900S Still-pipe Array Antenna Hatch version suitable
for still-pipes that need to be opened for hand dipping
Still-pipe Requirements
The Rosemount 5900S Still-pipe Array Antenna fits 5, 6, 8, 10 and 12 inch
flanges and pipes. The adaptation is accomplished by selecting a suitable
Still-pipe Array Antenna.
The still-pipe must be vertical
(1)
within 0.5° (0.2 m over 20 m).
Table 3-3 shows the wide range of schedules and pipe inner diameters that
the Array antennas can be mounted in.
Antenna size
(inch)
5 120.2
6 145.2 SCH10-SCH60 161.5 - 150.3
8 189 SCH20-SCH80 206.3 - 193.7
10 243 SCH10-SCH60 264.7 - 247.7
12 293.5 SCH 10-40-XS 314.7 - 298.5
Antenna dimension
(mm)
Suitable for pipe dimension
Size Inner diameter (mm)
SCH10-SCH60
134.5 - 125.3
3-10
(1) Please contact Emerson Process Management / Rosemount Tank Gauging for advice if this requirement
can not be met.
Section 3. Installation
Page 39
Reference Manual
00809-0100-5900, Rev CA
June 2014

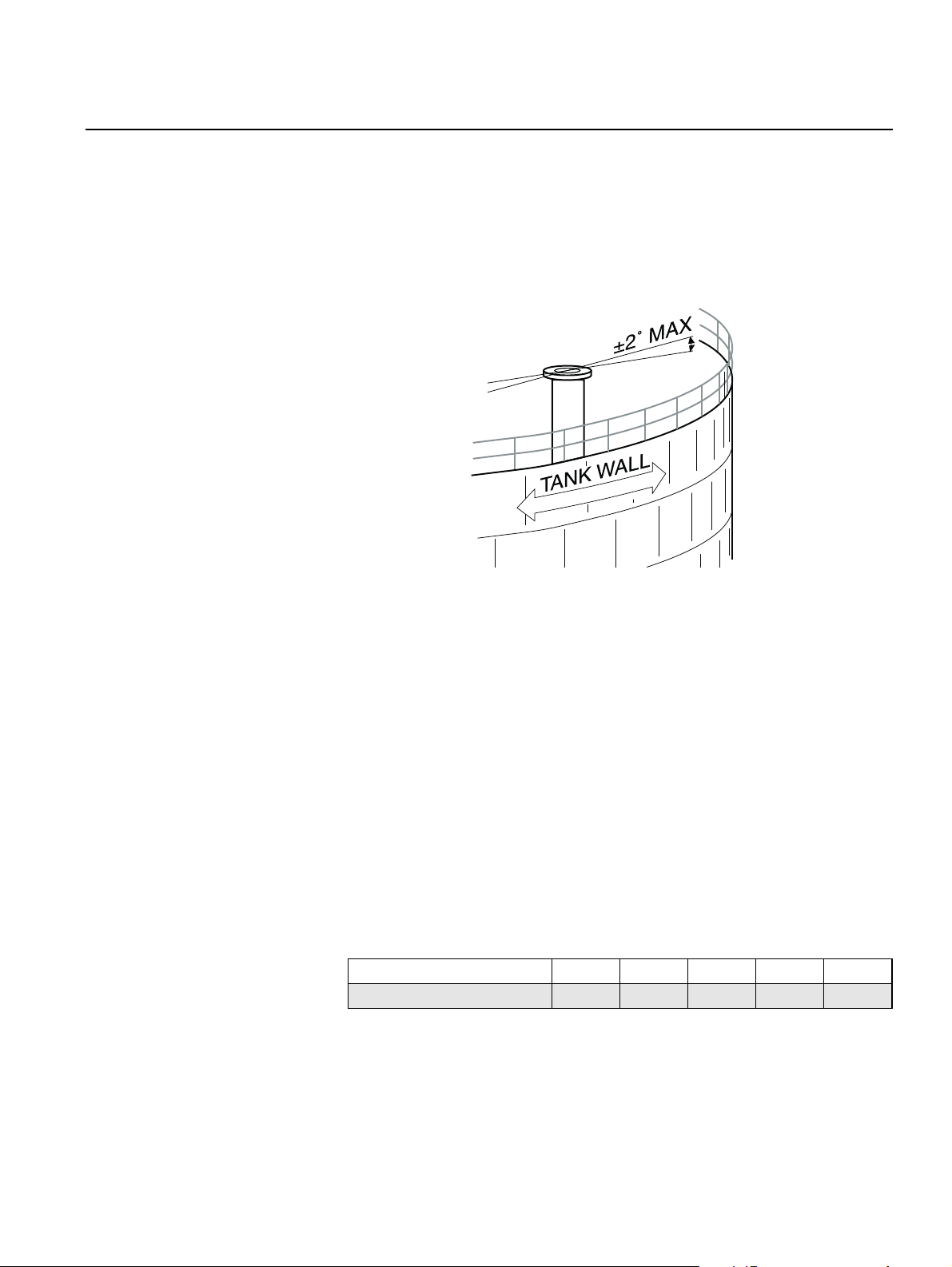

Figure 3-8. The flange must be
horizontal within ±2°
Rosemount 5900S Series
Flange Requirements
The Rosemount 5900S with Still-pipe Array Antenna fits flanges of size 5, 6,
8, 10 and 12 inch. The gauge has a flange for sealing the tank. The tank
flange must be horizontal within ±2°.
Table 3-4. Maximum area of
slots and holes
Recommended Installation
When designing new tanks, an 8 inch still-pipe or larger is recommended.
This is particularly important in tanks with sticky and viscous products. See
drawing 9150 070-946 “Recommended still-pipes” for more information on
recommended still-pipes for the Rosemount 5900S. Before manufacturing a
new still-pipe, we recommend that you contact Emerson Process
Management / Rosemount Tank Gauging for advice.
For highest performance, the total area of the slots or holes in the still-pipe
must not exceed the values shown in Table 3-4 below. The listed values refer
to the total area of the holes over the entire length of the pipe, regardless of its
length. In some cases it is possible to allow a larger total area than stated in
Table 3-4. When the limits are exceeded, please contact Emerson Process
Management / Rosemount Tank Gauging for advice.
Pipe Dimension (inch) 5 6 8 10 12
Max Area of Slots or Holes (m2) 0.1 0.1 0.4 0.80 1.2
Section 3. Installation
3-11
Page 40
Rosemount 5900S Series
Figure 3-9. Free space
requirements for 5900S with
Array antenna Fix version
Reference Manual
00809-0100-5900, Rev CA
June 2014
Free Space
The following free space is recommended for mounting the 5900S with
Still-pipe Array Antenna:
Recommended space 550 mm
for installation and service
Recommended space 500 mm
for installation and service
Figure 3-10. Free space
requirements for 5900S with
Array antenna Hatch version
Antenna size (inch) Space B (mm)
5 470
6 470
8 480
10 490
12 490
Minimum 800 mm for
highest accuracy
Minimum 500 mm with
reduced accuracy
Recommended space 500 mm
for installation and service
Product surface
Space (B) for opening
3-12
Minimum 800 mm for
highest accuracy
Minimum 500 mm with
reduced accuracy
Product surface
Section 3. Installation
Page 41
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount 5900S Series
3.2.4 LPG/LNG Antenna Requirements
Temperature and Pressure Measurement
Measurements of temperature and pressure is a prerequisite for high

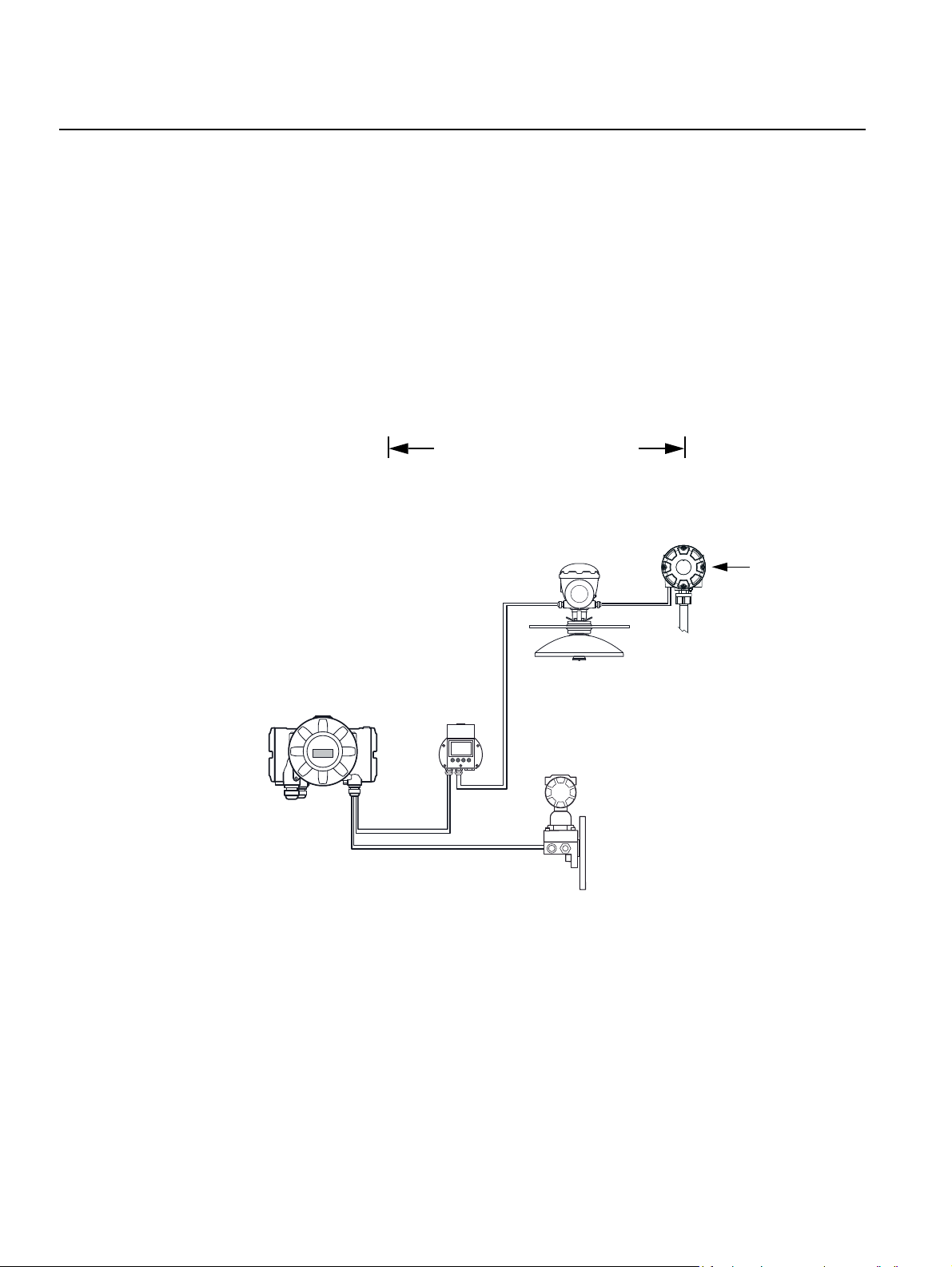

accuracy level measurements in LPG/LNG tanks. A Raptor system may
include 5900S Radar Level Gauges, 2240S Multi-input Temperature
Transmitters, 644 Temperature Transmitters as well as pressure transmitters
in order to obtain all necessary measurement variables.
Still-pipe and Verification Pin
A still-pipe must be installed prior to the gauge installation. The still-pipe is
customer supplied and should be manufactured according to the installation
drawings.
Three types of steel pipe are recommended:
• DN100
• 4 inch SCH 10 stainless steel pipe
• 4 inch SCH 40 stainless steel pipe
When ordering the level gauge specify the pipe type in the Required System
Information (RSI) form.
The still-pipe must be vertical within ±0.5° and the customer flange must be
horizontal within ±1° as illustrated in Figure 3-11 on page 3-14.
The still-pipe is manufactured with a number of holes to allow proper
circulation of the product, and to ensure equalization of product density inside
and outside the pipe. The hole diameter should be 20 mm or 3/4”. All holes in
the upper still-pipe section must be placed along a line on one side of the
pipe.
The Verification Pin allows you to verify 5900S level measurements when
the tank is pressurized. It is mounted on the still-pipe in a hole oriented 90
degrees to the other holes.
The Verification Pin should be placed at a position of 1200 mm below the
flange as illustrated in Figure 3-11 on page 3-14. There must be a minimum
distance of 200 mm between the Verification Pin and the maximum product
level. In order to fulfill this requirement, the Verification Pin may be mounted
higher, up to 1000 mm below the flange.
The Verification Pin must be aligned with a bolt hole on the still-pipe flange as
illustrated in Figure 3-11. The Verification Pin’s position must be clearly
marked on the still-pipe flange (see Figure 3-11) to allow proper alignment of
the 5900S gauge.
See installation drawing 9240 041-910 for LPG/LNG Still-pipe for information
on how to install the Verification Pin on the still-pipe. Installation instructions
are enclosed with the Verification Pin and Deflection Plate.
See “LPG Configuration” on page 4-20 and the Raptor System Configuration
Manual, Document No. 300510EN for further information on how to configure
the 5900S for LPG/LNG measurements.
Section 3. Installation
3-13
Page 42
Rosemount 5900S Series
Figure 3-11. Installation of
Verification Pin and inclination
requirements for flange and
still-pipe
Reference Manual
00809-0100-5900, Rev CA
June 2014
Mark on still-pipe flange
1000 < L < 2500 mm
Recommended:
1200 mm
Min. 200 mm
Product surface
500 mm
Hole for Verification Pin
Ø 20 mm
Holes for density
equalization;
Ø 20 mm (3/4 in.)
The Verification Pin is
directed towards the bolt
hole at the pipe flange
marking

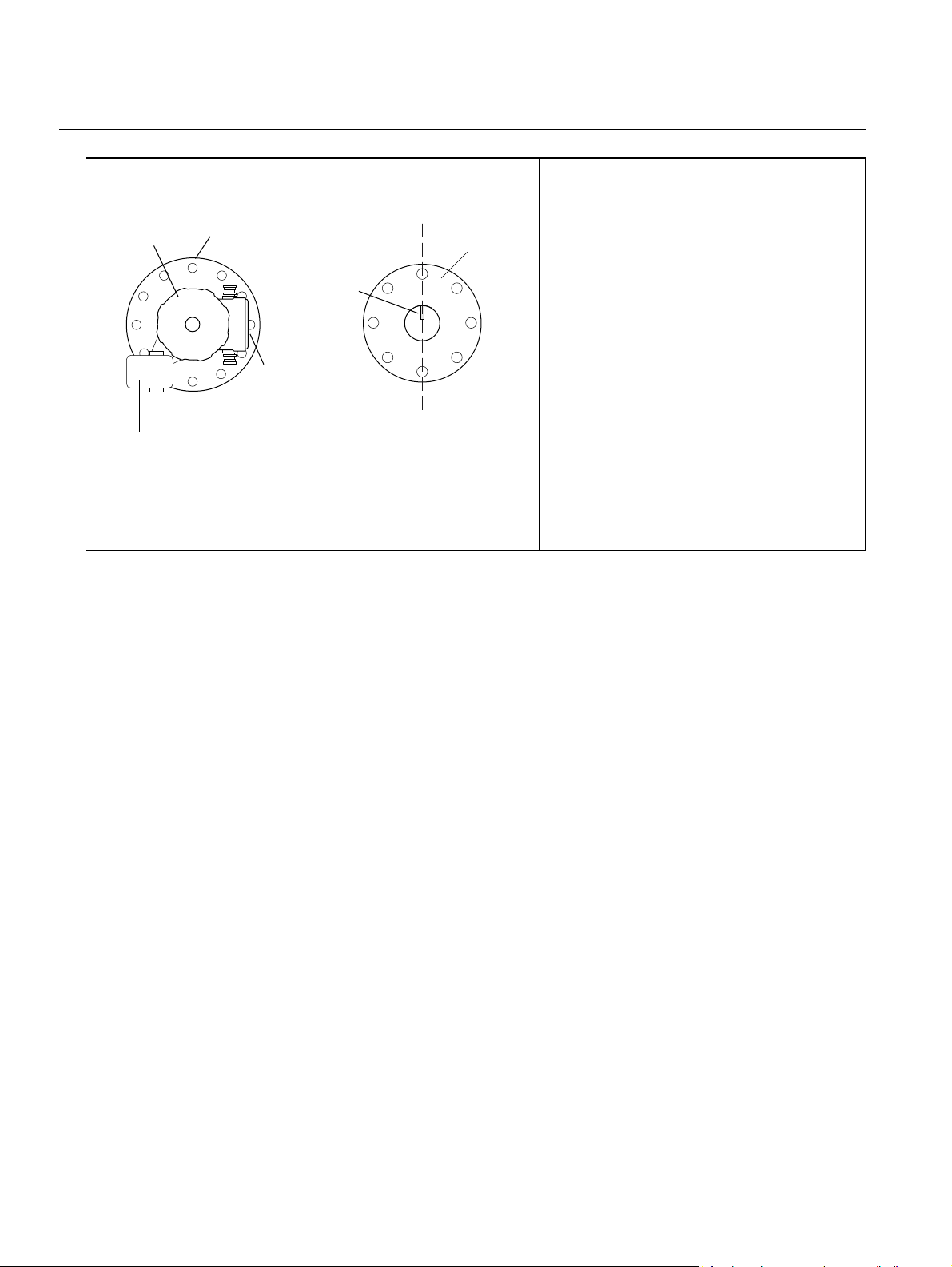

Flange seen
from above
Bolt hole
Align Verification Pin
and bolt hole within 1°
Maximum 1°
3-14
Maximum 0.5°
Section 3. Installation
Page 43
Reference Manual
00809-0100-5900, Rev CA
June 2014

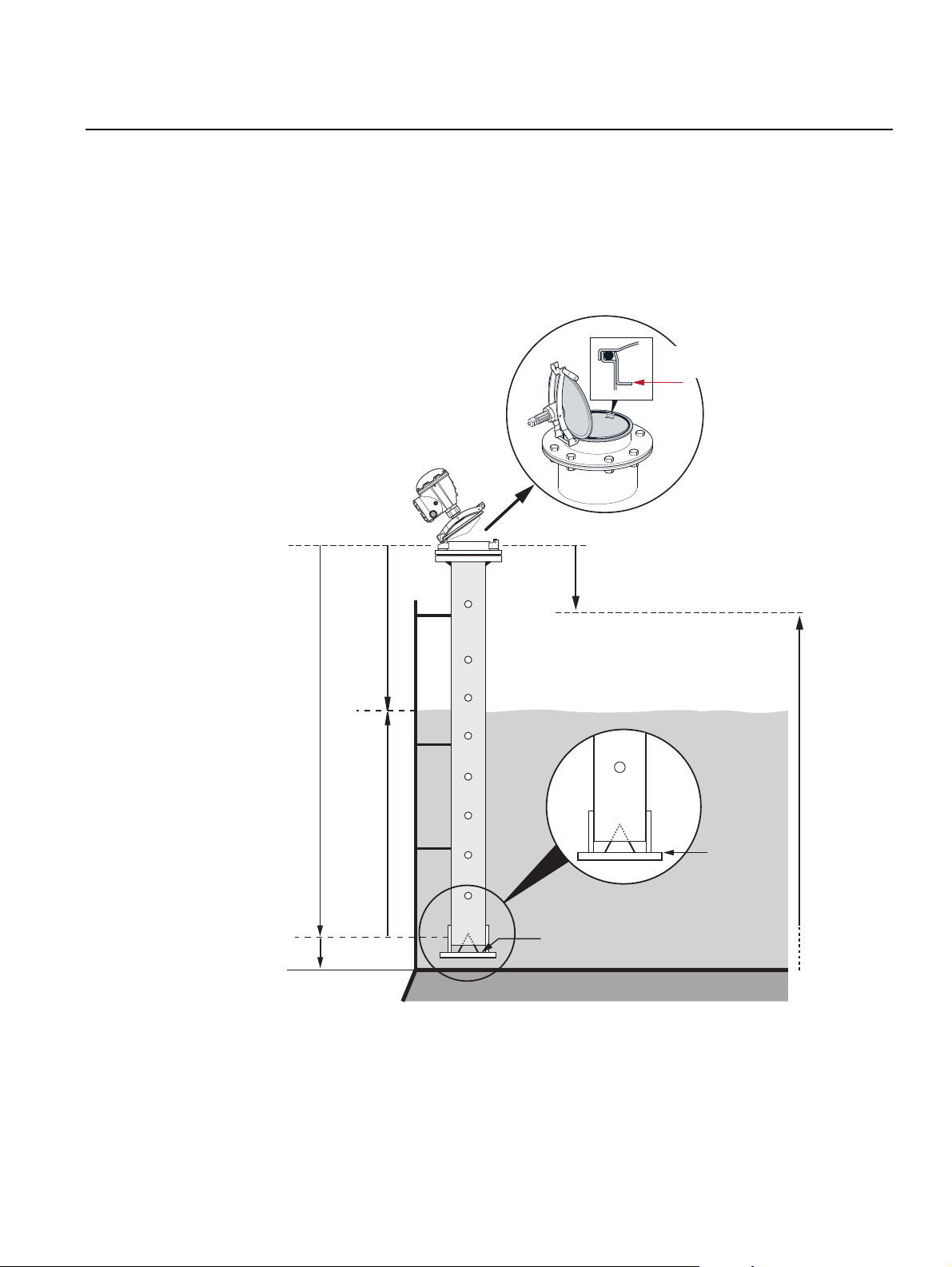

Figure 3-12. Still-pipe with
Deflection Plate and Verification
Pin
Rosemount 5900S Series
Deflection Plate with Calibration Ring
A Deflection Plate is mounted at the lower end of the still-pipe and is
integrated with a ring that is used for calibrating the gauge during the
installation phase when the tank is empty. Installation instructions are
enclosed with the Verification Pin and Deflection Plate.
Still-pipe
Calibration ring
Deflection
plate
The Deflection Plate can be attached to the still-pipe by using one of three
methods:
• Welding
• M4 screw and nut
• Riveting

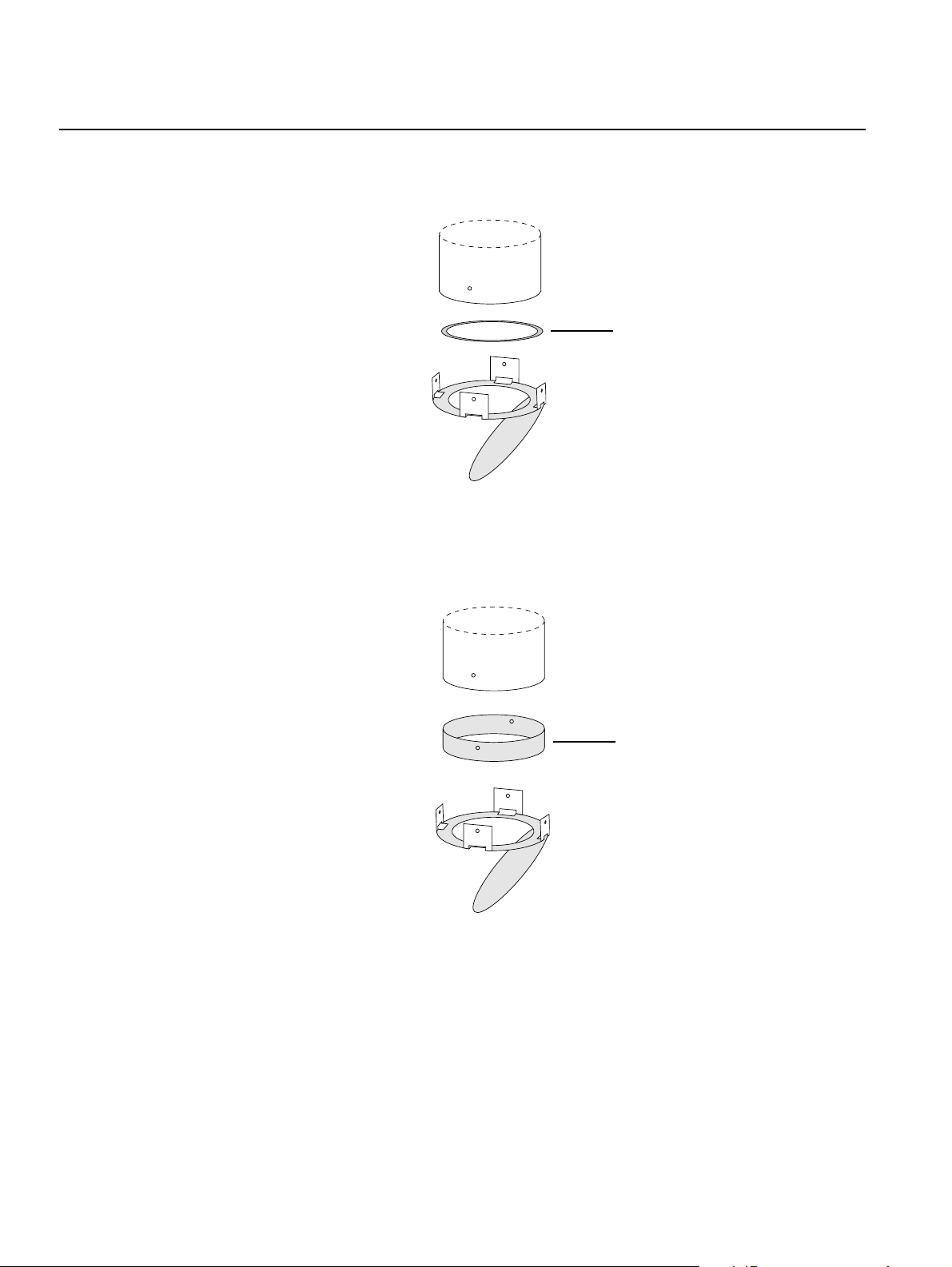

For pipe dimensions 4 inch SCH 40 and DN 100, an extra ring is needed for
the Deflection Plate as illustrated in Figure 3-13 and Figure 3-14.
See “LPG Configuration” on page 4-20 and the Raptor System Configuration
Manual, Document No. 300510EN for further information on how to configure
the 5900S for LPG/LNG measurements.
Support
Min. 150 mm
Section 3. Installation
3-15
Page 44
Rosemount 5900S Series
Figure 3-13. Mounting the
Deflection Plate on pipe 4 inch
SCH 40
Reference Manual
00809-0100-5900, Rev CA
June 2014
Ring is marked 4” SCH40
Figure 3-14. Mounting the
Deflection Plate on pipe DN 100
Ring is marked DN100
3-16
Section 3. Installation
Page 45
Reference Manual
00809-0100-5900, Rev CA
June 2014
Figure 3-15. Free space
requirements for 5900S with
LPG/LNG antenna
Rosemount 5900S Series
Free Space
The following free space is recommended for mounting the 5900S with
LPG/LNG Antenna:
Recommended space 550 mm
for installation and service
Optional pressure
transmitter
Minimum 1200 mm to product
surface for highest accuracy
Minimum 800 mm with reduced
accuracy
Product surface
Recommended space 1000 mm
for installation and service
Section 3. Installation
3-17
Page 46
Rosemount 5900S Series

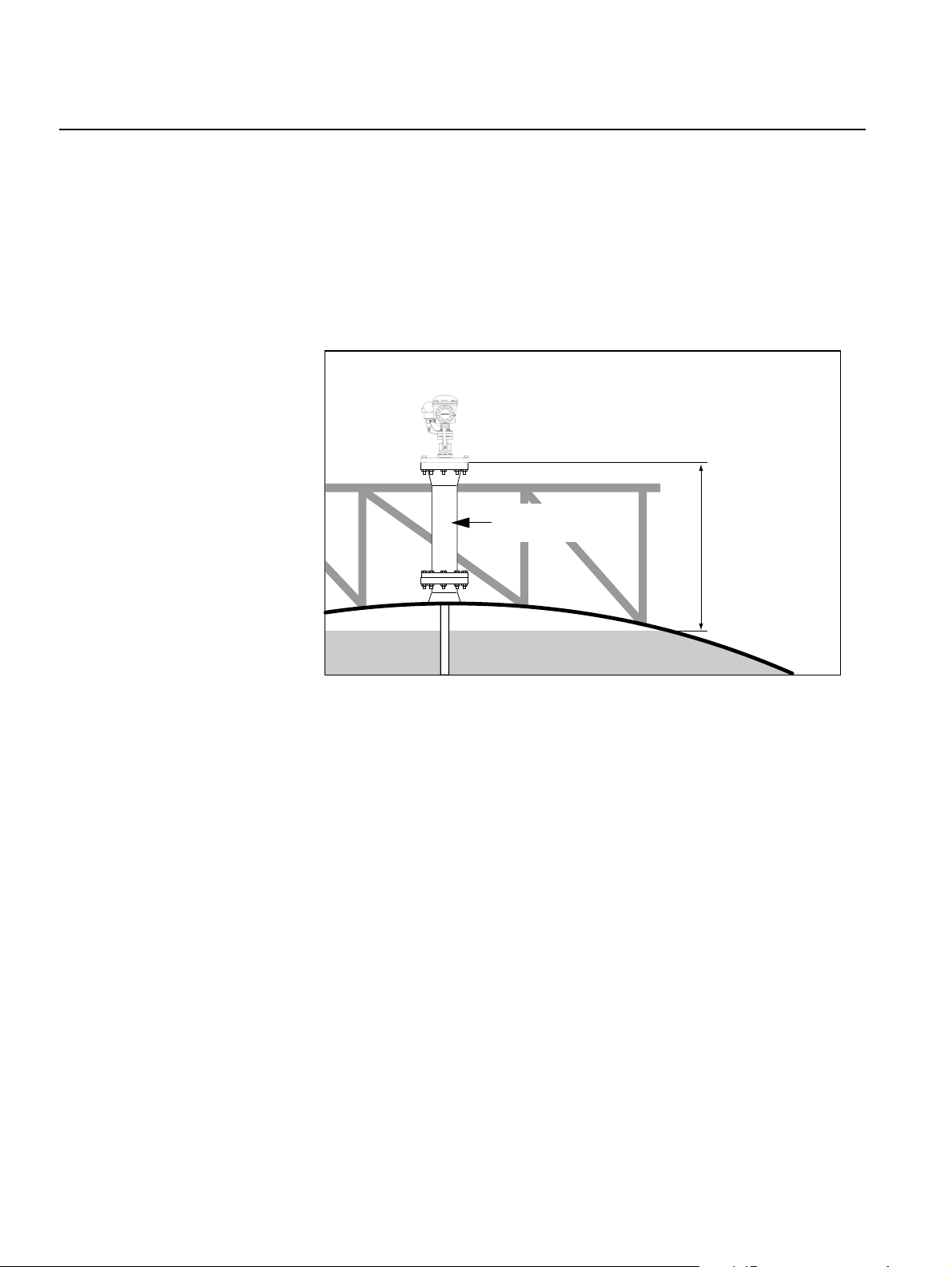

Figure 3-16. Rosemount 5900S
with extension pipe
Reference Manual
00809-0100-5900, Rev CA
June 2014
Extension Pipe for Minimum Distance
The 5900S Radar Level Gauge should be placed such that there is a
minimum gap of 1200 mm between the flange and the maximum product level
(see “Still-pipe and Verification Pin” on page 3-13). If necessary, an extension
pipe can be used to raise the level gauge. This will allow measurements
closer to the top of the tank than would otherwise be possible, as illustrated in
Figure 3-16.
Extension pipe
Minimum 1200 mm
to product surface
3-18
Section 3. Installation
Page 47
Reference Manual
00809-0100-5900, Rev CA
June 2014
3.3 MECHANICAL
INSTALLATION
Rosemount 5900S Series

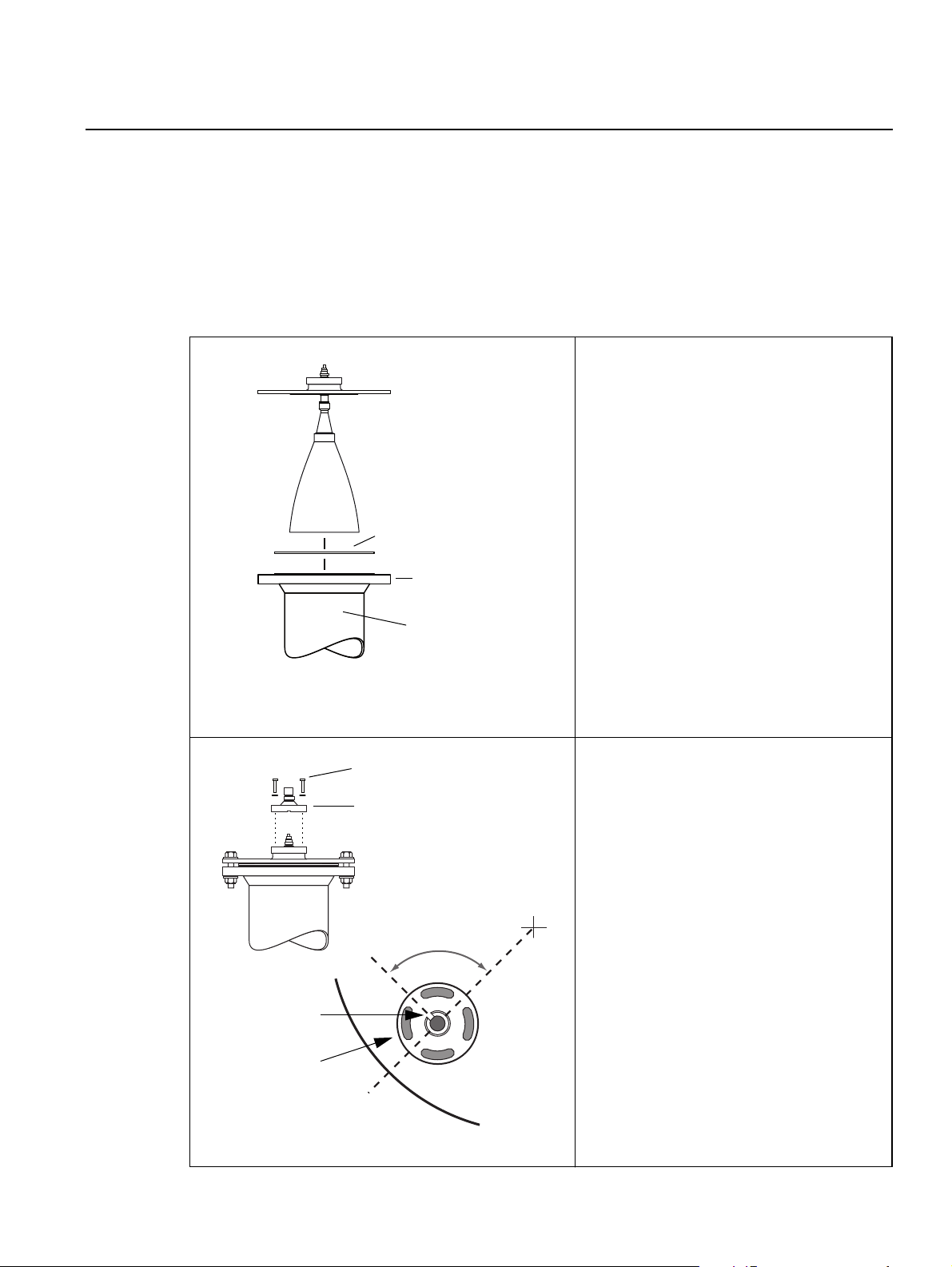

3.3.1 Horn Antenna
Follow this instruction when installing the Rosemount 5900S with Horn
Antenna. See “Horn Antenna Requirements” on page 3-4 for information on
mounting considerations before installing the gauge on the tank.
1. Check that all parts and tools are
available before carrying them up to
the tank roof.
Horn antenna and
flange assembly
2. Put a gasket on the socket and
carefully insert the horn antenna and
flange assembly.
3. Tighten the flange with required
torque depending on gasket and
Gasket (Customer supplied)
Customer supplied
flange
Nozzle
flange type by using suitable screws
and nuts (customer supplied).
Section 3. Installation
Groove
Adapter
Four M10 screws and
washers
Adapter
Tank center
90°
4. Put the adapter on the flange.
The groove on the adapter should be
directed approximately 90° to the line
of sight from the nozzle to the center
of the tank.
5. Tighten the four M10 screws with
washers by hand so that the adapter
can be rotated.
3-19
Page 48
Rosemount 5900S Series
45°
Tank
Tank center
Transmitter head
Nut
Adapter
Line of sight
Reference Manual
00809-0100-5900, Rev CA
June 2014

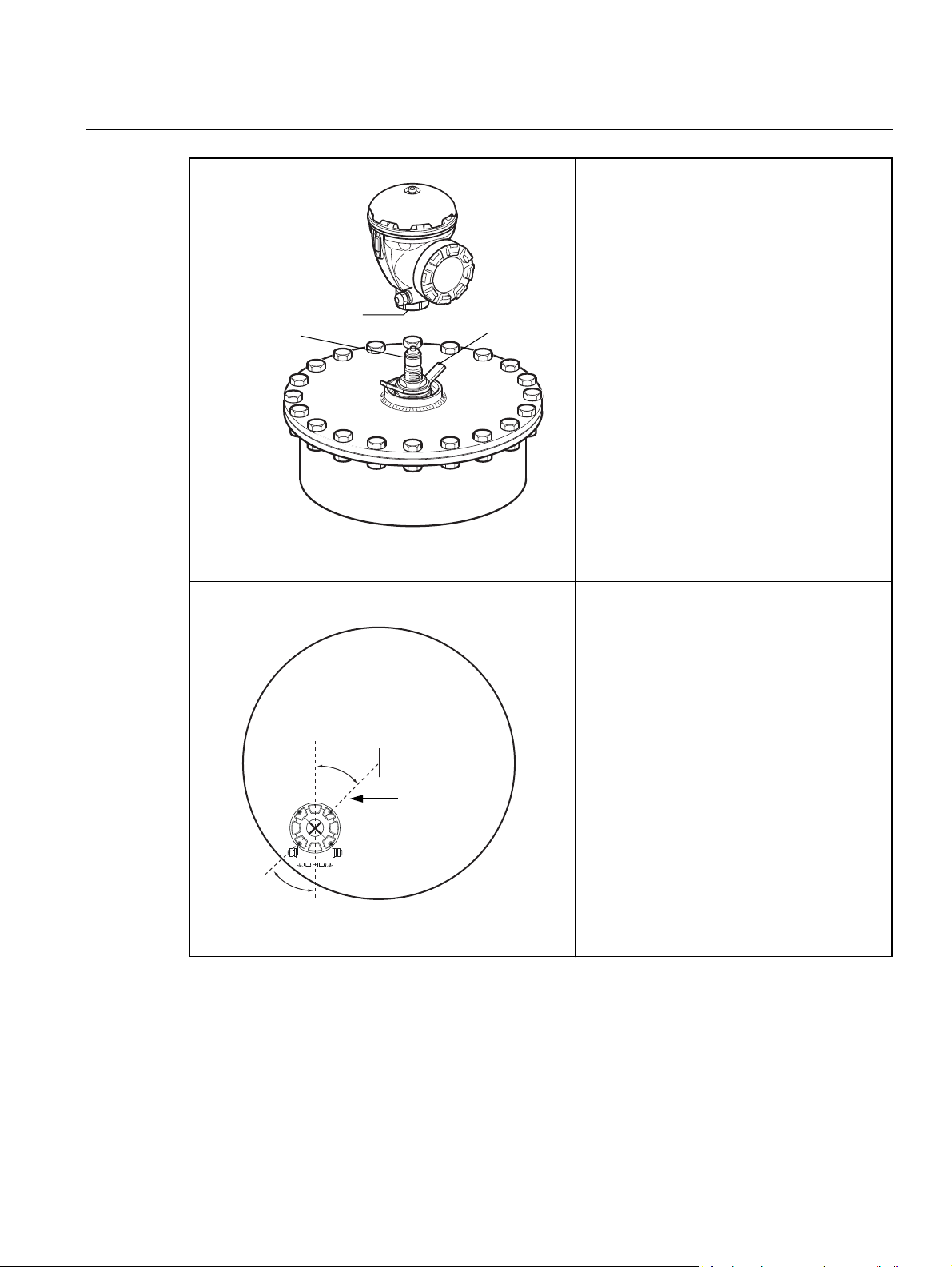

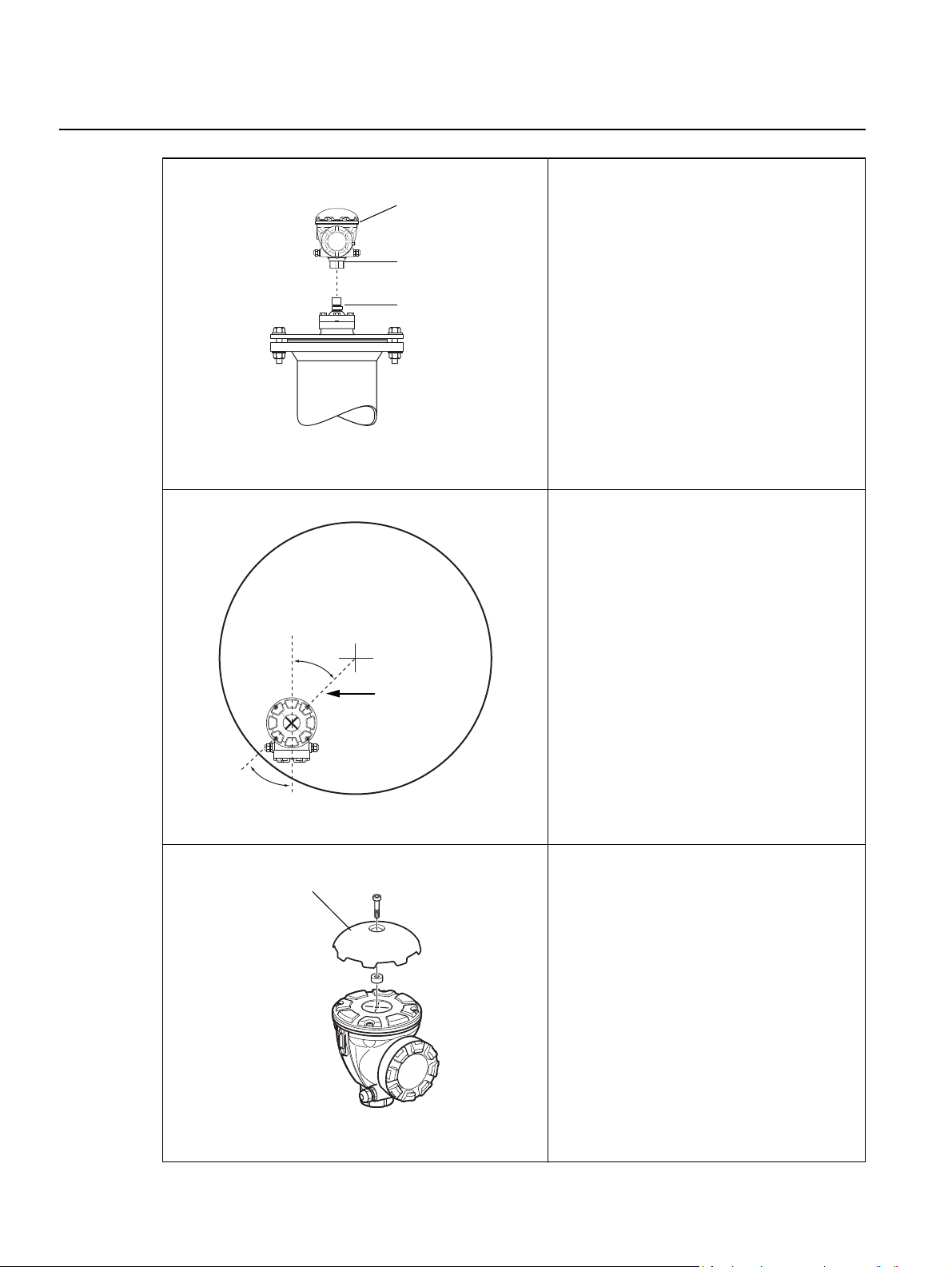

6. Put the transmitter head onto the
antenna adapter.
7. Ensure that the guide pin inside the
transmitter head fits the groove on
the adapter.
8. Tighten the nut that connects the
transmitter head to the adapter.
9. The lid on top of the transmitter head
has cross hairs that can be used to
properly align the 5900S gauge. In
case the weather protection hood is
attached, the gauge can be aligned
by using a line of sight along the
screws on top of the head.
10. Ensure that the gauge is directed at
an angle of 45° to the line of sight
from the center of the tank to the
nozzle.
11. Tighten the adapter screws
(4 M10).
3-20
45°

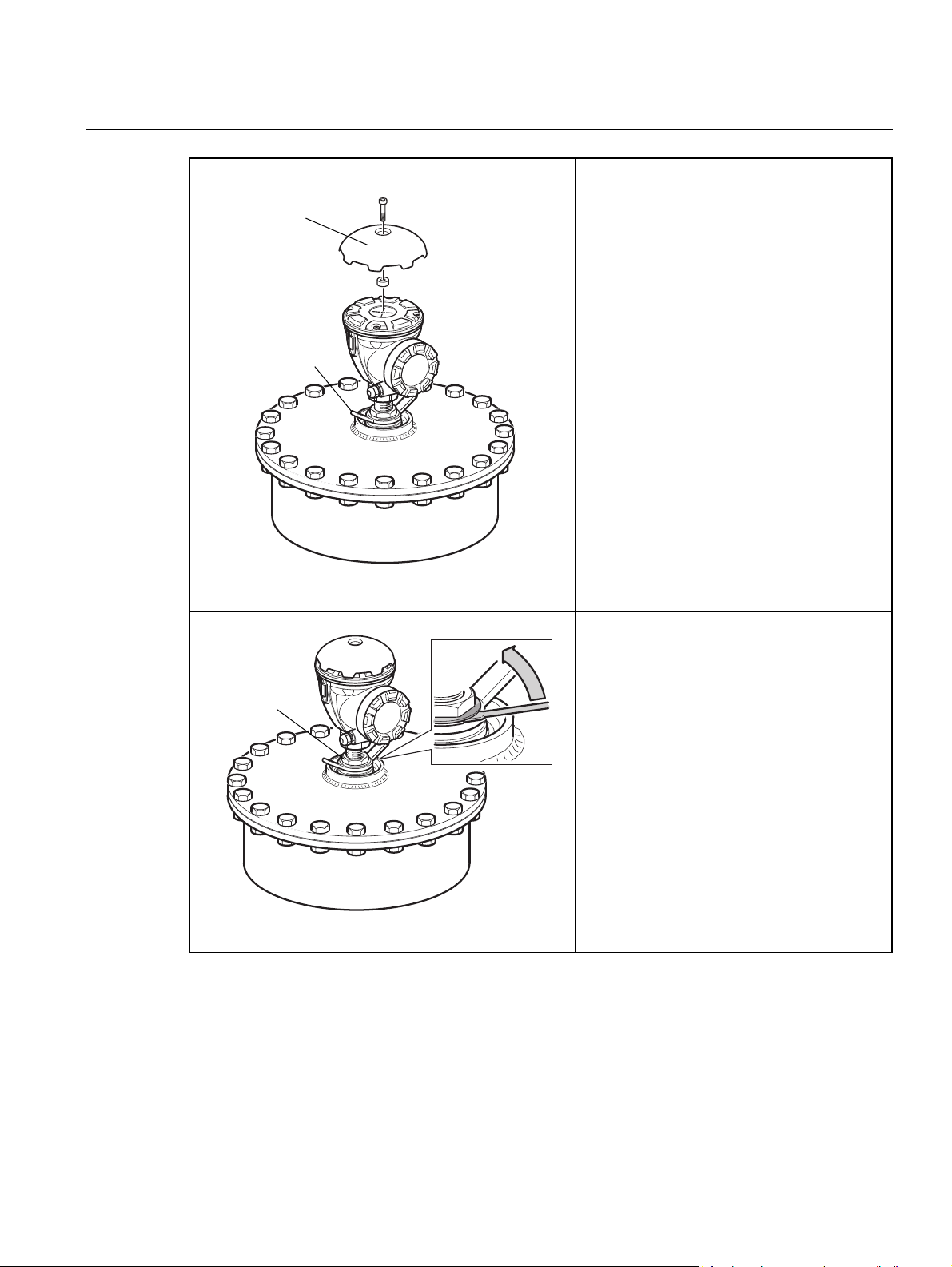

Weather
Protection Hood
12. In case the Weather Protection Hood
was removed, put it back on top of
the head and tighten the screw.
13. Connect the electrical cabling and
configure the gauge by using the
TankMaster WinSetup software (see
the Raptor System Configuration
Manual, Document No. 300510EN)
Section 3. Installation
Page 49
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount 5900S Series
3.3.2 Parabolic Antenna

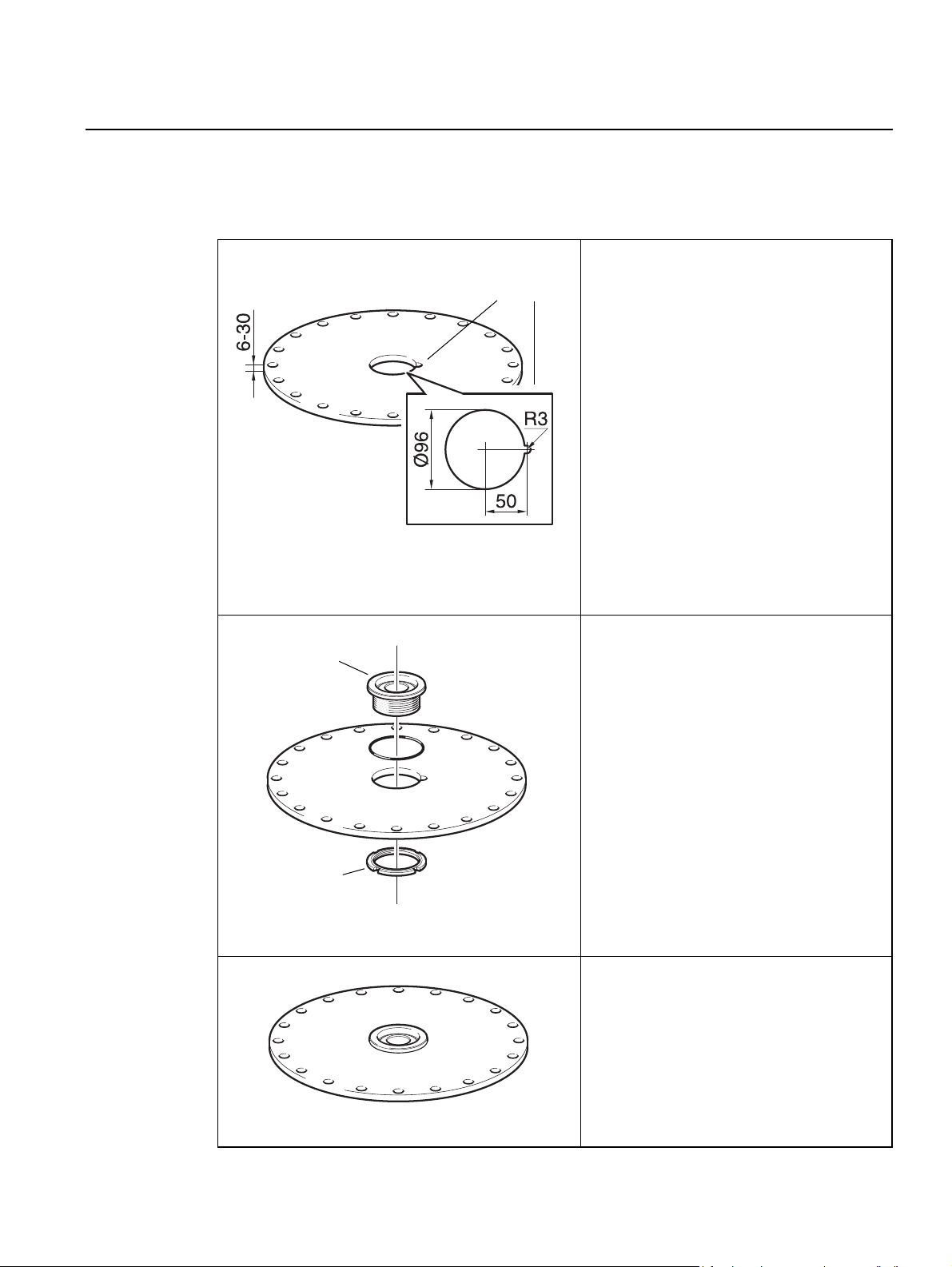

Mounting the clamped Flange Ball
To mount the clamped Flange Ball do the following:
1. Use a flange of thickness 6 - 30 mm.
Recess
2. Make sure that the diameter of the
hole is 96 mm.
Make a small recess at one side of
the flange hole.
Flange Ball
Nut
3. Put the O-ring on the flange and
insert the Flange Ball into the hole.
Make sure that the pin on the side of
the Flange Ball fits into the recess
on the flange.
4. Tighten the nut so that the Flange
Ball fits tightly to the flange (torque
50 Nm).
Section 3. Installation
3-21
Page 50
Rosemount 5900S Series
6-38 mm
Mounting the welded Flange Ball
To mount the welded Flange Ball do the following:
1. For horizontal mounting according to
116±2 mm
requirements in chapter “Parabolic
Antenna Requirements” on
page 3-6, make sure that the
diameter of the hole is 116 ± 2 mm.
2. In case the flange requirements in
chapter “Parabolic Antenna
Requirements” on page 3-6 is not
met, the hole needs to be machined
to an oval shape prepared for
inclined welding of the Flange Ball.
Reference Manual
00809-0100-5900, Rev CA
June 2014
Protection plate
Groove
Flange Ball
3. Let the protection plates remain on
the Flange Ball until the welding is
finished. These plates protect the
surface of the Flange Ball from
welding sparks.
4. Make sure that the Flange Ball is
mounted in such a way that the
grove is directed upwards when the
flange is mounted on the tank
nozzle.
3-22
Section 3. Installation
Page 51
Reference Manual
00809-0100-5900, Rev CA
June 2014
Protection plate
60 mm
Rosemount 5900S Series
5. If the tank flange is inclined, make
sure that the Flange Ball is welded
so that the Flange Ball is horizontal
when it is mounted on the tank.
The tank flange inclination should
not exceed 17 degrees.
< 17°
6. Remove the protection plates when
the Flange Ball is welded to the
flange.
Protection plate
Section 3. Installation
3-23
Page 52
Rosemount 5900S Series
Reference Manual
00809-0100-5900, Rev CA
June 2014
Mounting the Parabolic Antenna
Follow this instruction when installing the Parabolic antenna. See “Parabolic
Antenna Requirements” on page 3-6 for considerations before installing the
gauge on the tank.
1. Check that all parts and tools are
M5x5
Parabolic Reflector
Antenna Feeder
available before carrying them up to
the tank top.
2. Fit the Parabolic Reflector onto the
Antenna Feeder and tighten the five
M5 screws.
3. Tighten the screws.
3-24
Section 3. Installation
Page 53
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount 5900S Series

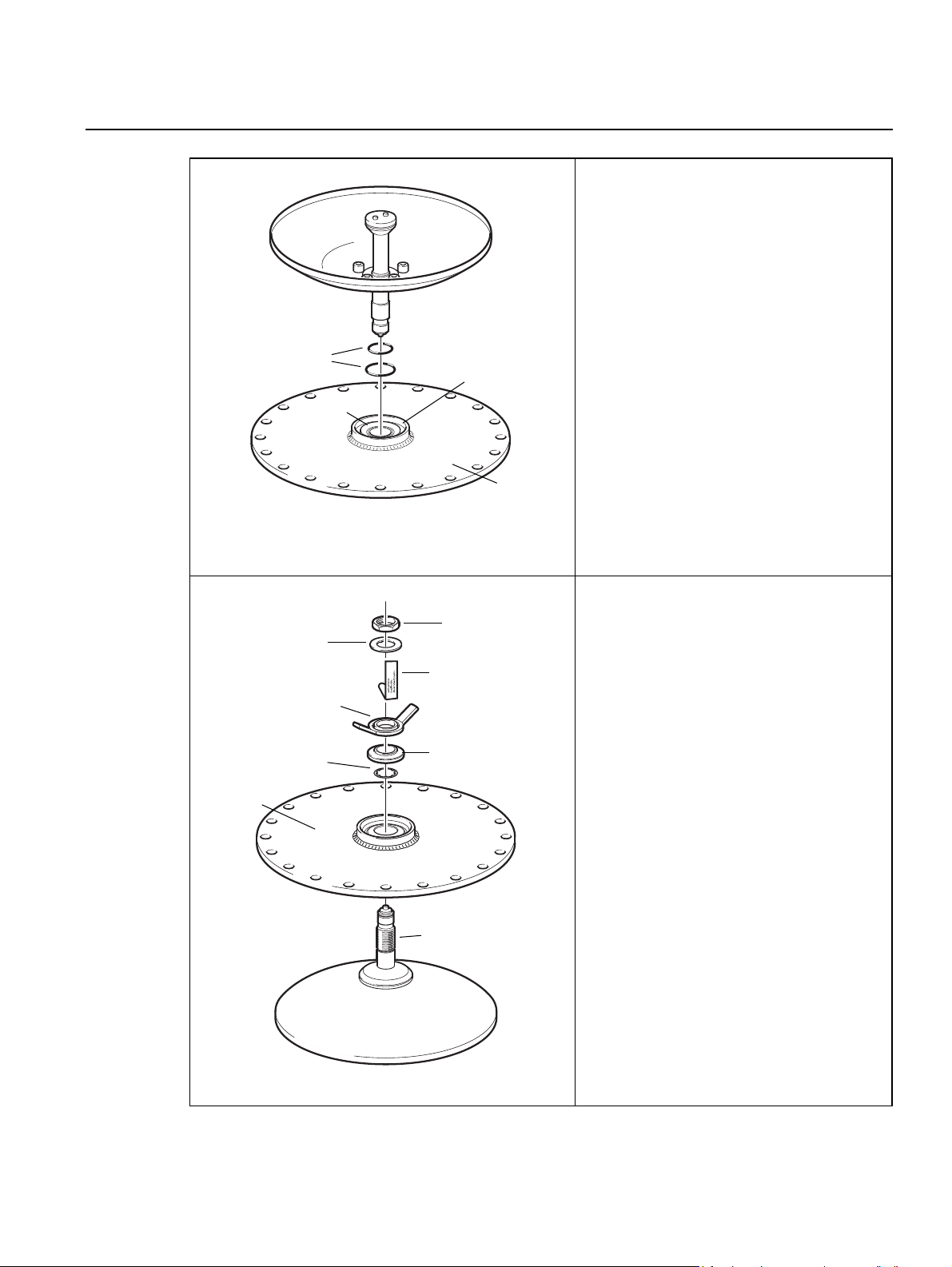

4. Put the two O-rings in the grooves on
the upper surface of the Flange Ball.
2 O-rings
Flange Ball
Grooves
Flange
Tab Washer
Stop Washer
Flange
Finger Nut
Nut
Antenna
label plate
Washer Ball
Antenna Waveguide
5. Turn the flange around and insert the
Antenna Waveguide into the flange
hole.
6. Mount the washers and nuts.
7. Note that the purpose of the Stop
Washer is to prevent the antenna
from falling down into the tank.
Therefore it fits tightly to the Antenna
Waveguide.
Section 3. Installation
3-25
Page 54
Rosemount 5900S Series
Finger Nut
Upper Nut
Reference Manual
00809-0100-5900, Rev CA
June 2014
8. Tighten the finger nut and the upper
nut by hand.
Antenna Waveguide
Flange
Antenna
Nozzle
9. Place the antenna and flange
assembly on the tank nozzle and
tighten the flange screws.
3-26
Section 3. Installation
Page 55
Reference Manual
00809-0100-5900, Rev CA
June 2014
Antenna
Waveguide
Nut
Rosemount 5900S Series

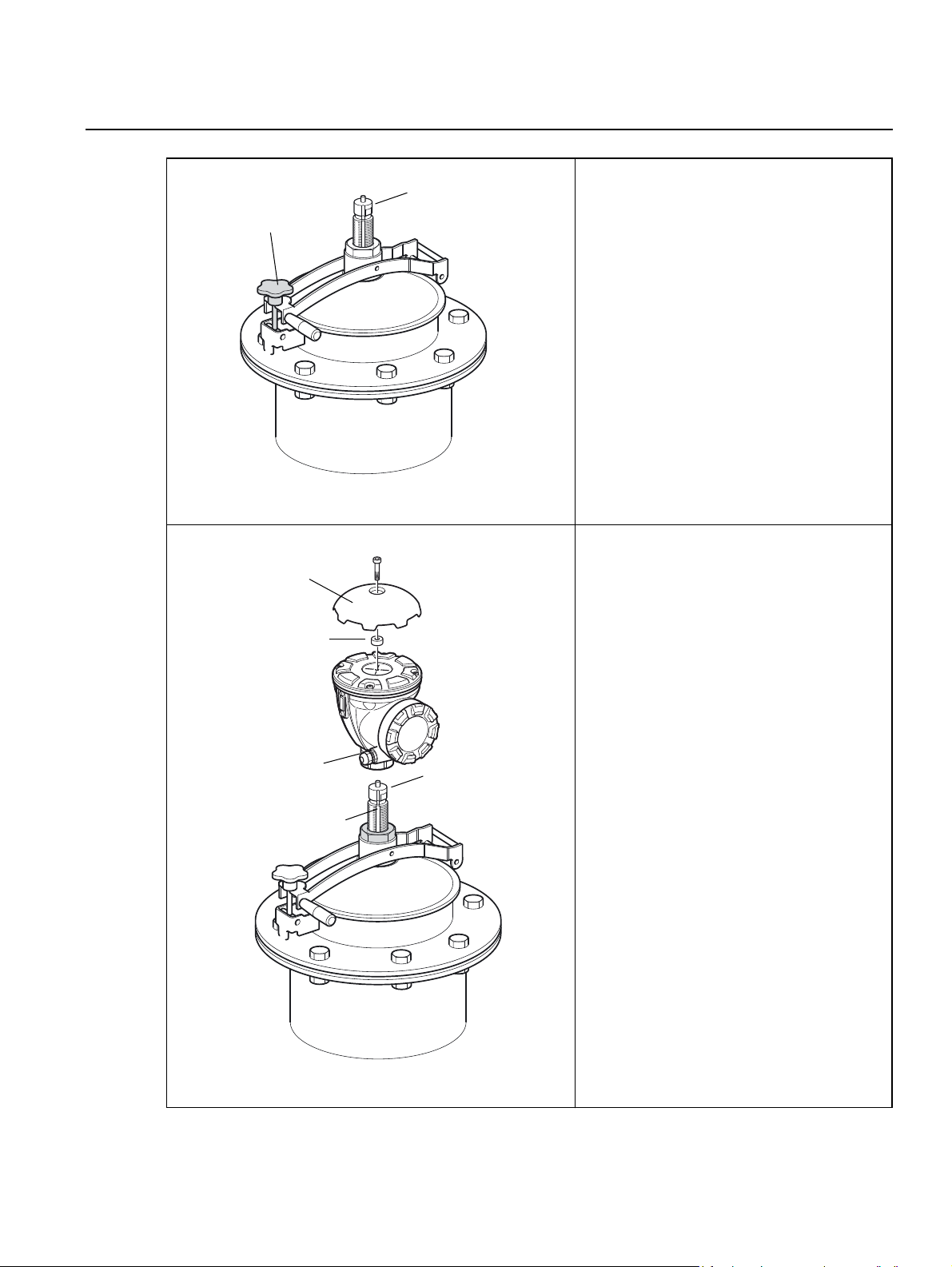

10. Put the level gauge on the Antenna
Waveguide. Ensure that the guide
pin inside the transmitter head fits
into the groove on the Antenna
Waveguide.
11. Tighten the nut that connects the
transmitter head to the antenna.
Finger Nut
45°
Tank
Tank center
Line of sight

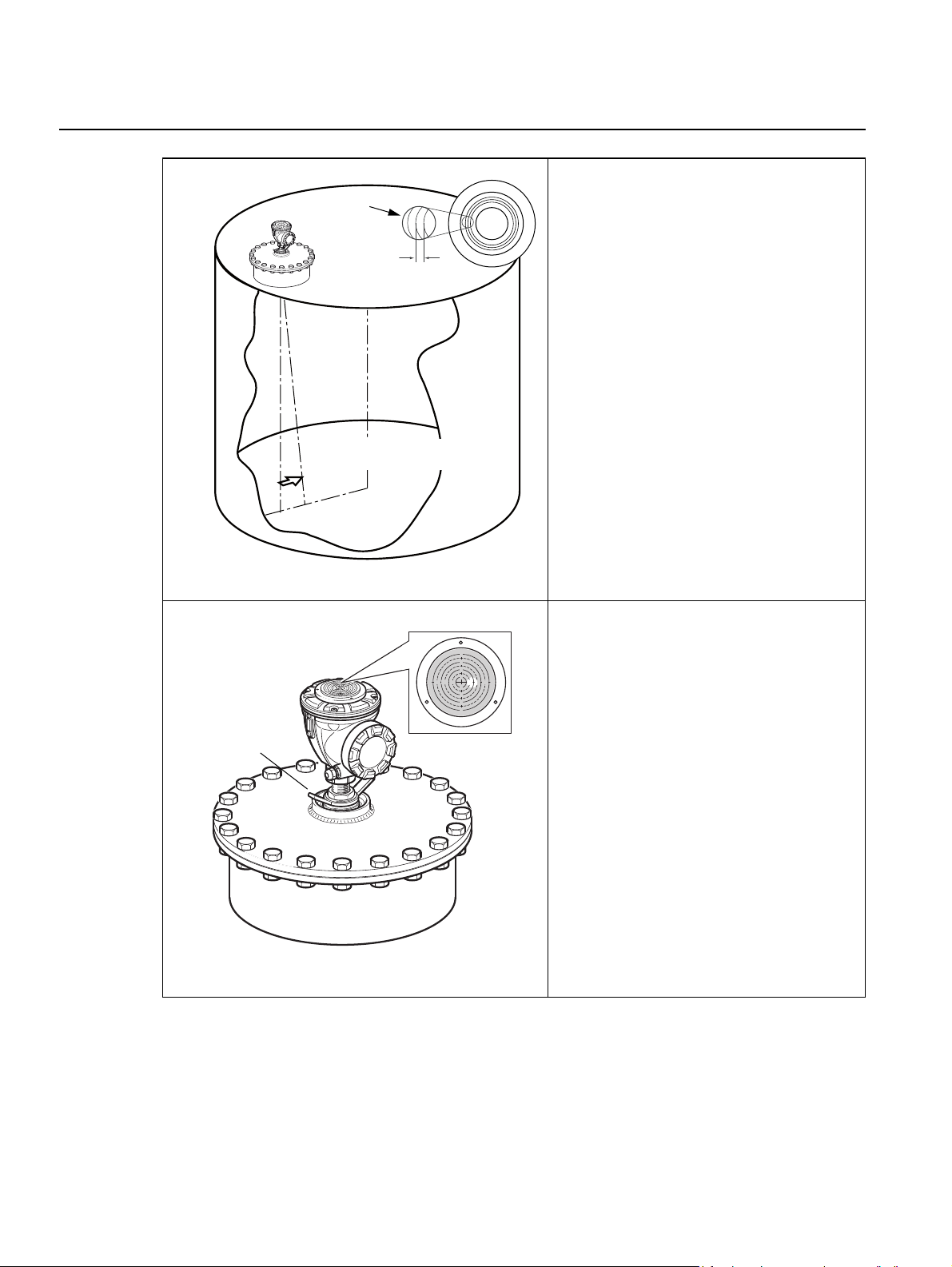

12. Loosen the finger nut slightly.
13. The lid on top of the transmitter head
has cross hairs that can be used to
properly align the transmitter. In case
the weather protection hood is
attached, the 5900S can be aligned
by using a line of sight along the
screws on top of the transmitter
head.
14. Ensure that the gauge is directed at
an angle of 45° to the line of sight
from the center of the tank to the
wall.
Section 3. Installation
3-27
Page 56
Rosemount 5900S Series
Marks
0.5°
Reference Manual
00809-0100-5900, Rev CA
June 2014
15. Use the marks on the Washer Ball to
adjust the gauge so the antenna is
inclined roughly 1.5° towards the
center of the tank.
Note: For products with high
condensation, such as bitumen, the
gauge should be mounted with 0°
inclination in order to achieve
maximum signal strength.
16. Tighten the finger nut.
Finger Nut
Plumb line
Tank center
Incline antenna 1.5°
towards the tank center
3
2
1
0
0,5 0,5
1,5 1,5
2,5 2,5
0
1
2
3
17. You may use a level (optional) to
verify correct inclination of 1.5°
towards the tank center. Ensure that
the level is put on a flat and steady
surface on top of the transmitter
head.
If needed, loosen the finger nut and
adjust the gauge.
Note: Make sure the air bubble
touches, but doesn't overlap the 1.5°
mark.
18. Tighten the finger nut firmly.
3-28
Section 3. Installation
Page 57
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount 5900S Series
Weather
Protection Hood
Finger Nut
Upper Nut
19. In case the Weather Protection Hood
was removed, put it back on top of
the transmitter head and tighten the
screw.
20. Tighten the upper nut to lock the
finger nut (you may temporarily
remove the transmitter head to make
room for tools if needed), and secure
by folding the tab washer over the
nut.
21. Connect the electrical cabling and
configure the gauge by using the
TankMaster WinSetup software (see
the Raptor System Configuration
Manual, Document No. 300510EN).
Section 3. Installation
3-29
Page 58
Rosemount 5900S Series
Reference Manual
00809-0100-5900, Rev CA
June 2014

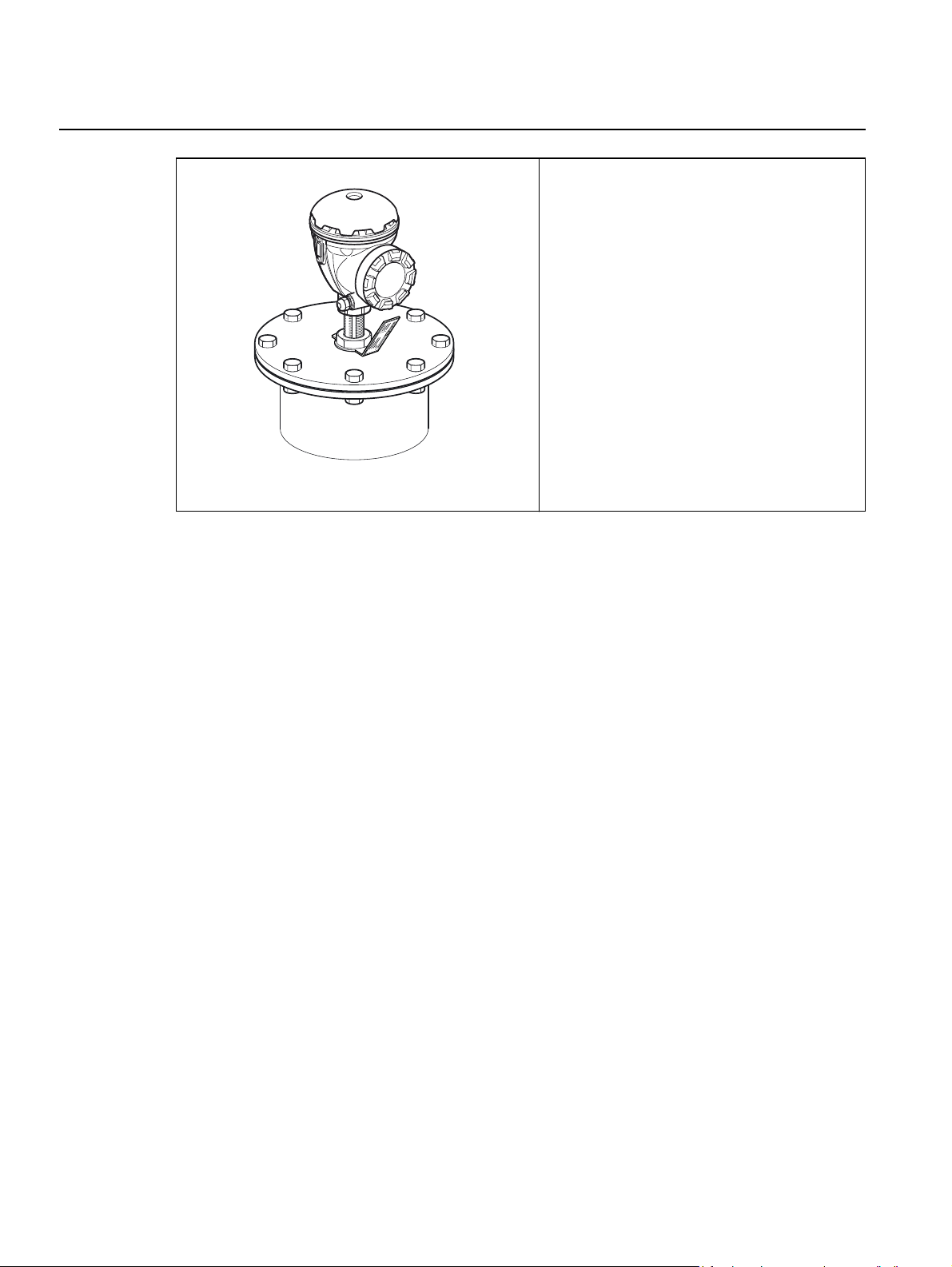

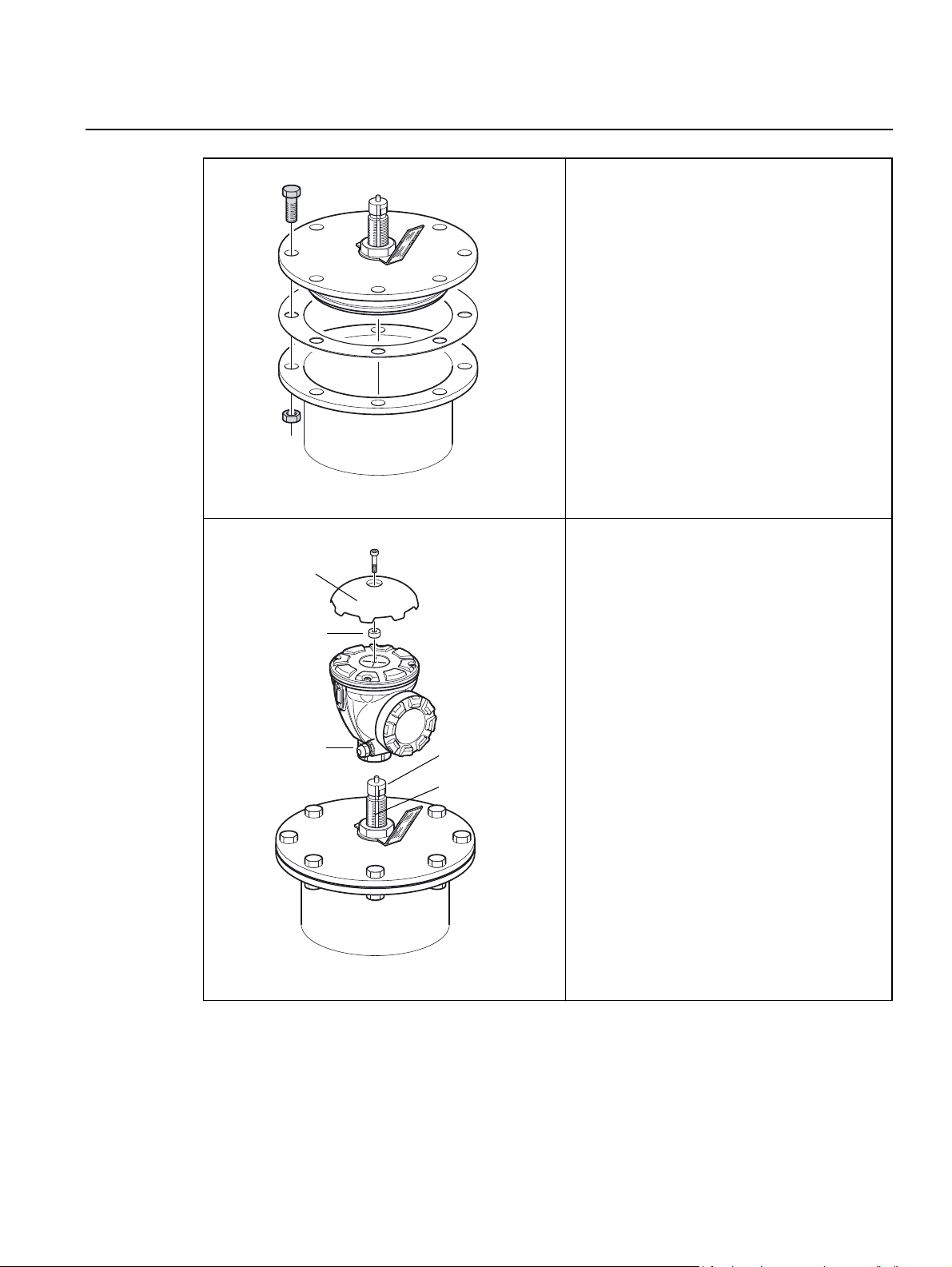

3.3.3 Array Antenna Fix version
Nut
Antenna
Waveguide
Follow this Step by Step instruction when installing the Array Antenna Fixed
version. See “Still-pipe Antenna Requirements” on page 3-10 for information
on mounting considerations before installing the gauge on the tank.
Antenna label
plate
1. Insert the Antenna Waveguide into the
flange hole, and place the antenna
label into position, with text down.
Nut
2. Tighten the nut.
3. Secure the nut by folding the tab on
the label plate over the nut.
4. Bend the antenna label plate at the
slot mark to a position with the text
clearly visible.
3-30
Section 3. Installation
Page 59
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount 5900S Series
5. Put the antenna and flange assembly
on the tank nozzle and tighten the
flange screws.
Weather
Protection Hood
Spacer
Nut
6. Carefully put the gauge on top of the
Antenna Waveguide and tighten the
nut. Ensure that the guide pin inside
the transmitter head fits the groove on
the Waveguide.
7. In case the Weather Protection Hood
was removed, put it back on top of the
transmitter head and tighten the
screw.
Antenna
Waveguide
Groove
Section 3. Installation
3-31
Page 60
Rosemount 5900S Series
Reference Manual
00809-0100-5900, Rev CA
June 2014
8. Connect the electrical cabling and
configure the 5900S by using the
TankMaster WinSetup software, see
the Raptor System Configuration
Manual (Document No. 300510EN).
3-32
Section 3. Installation
Page 61
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount 5900S Series
3.3.4 Array Antenna Hinged Hatch
Gasket
Follow this instruction when installing the Array antenna Hinged Hatch
version.
1. Mount the hatch on the nozzle. The
hatch has a welded flange with a hole
pattern that fits the nozzle flange.
2. Tighten the flange screws. The
smaller hatches may have a couple
of pin bolts in addition to the screws.
Antenna
Antenna Waveguide
Groove
3. Mount the antenna on the lid. Ensure
that the guide pin inside the lid fits
the groove on the Antenna
Waveguide.
Section 3. Installation
3-33
Page 62
Rosemount 5900S Series
Nut
Reference Manual
00809-0100-5900, Rev CA
June 2014
4. Tighten the nut which holds the
antenna to the lid.
Hand Dip Plate
O-ring
5. Check that the O-ring is properly
seated all around the cover and is
pressed down behind the Hand Dip
Plate.
3-34
Section 3. Installation
Page 63
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount 5900S Series
Tighten the locking
screw
Weather
Protection Hood
Spacer
Antenna Waveguide
6. Close the lid and tighten the locking
screw.
7. Carefully put the gauge on top of the
Antenna Waveguide and tighten the
nut. Ensure that the guide pin inside
the transmitter head fits the groove
on the Antenna Waveguide.
8. In case the Weather Protection Hood
was removed, put it back on top of
the transmitter head and tighten the
screw..
Section 3. Installation
Nut
Groove
Antenna
Waveguide
3-35
Page 64
Rosemount 5900S Series
Reference Manual
00809-0100-5900, Rev CA
June 2014
9. Connect the electrical cabling and
configure the gauge by using the
TankMaster WinSetup software (see
the Raptor System Configuration
Manual, Document No. 300510EN)
3-36
Section 3. Installation
Page 65
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount 5900S Series
3.3.5 LPG/LNG Antenna
Follow this step by step instruction when installing the LPG/LNG antenna.
See “LPG/LNG Antenna Requirements” on page 3-13 for information on
mounting considerations before installing the gauge on the tank.
NOTE!
There must be a mark on the still-pipe flange to show the direction of the
Verification Pin. Carefully check that the closing is aligned to the mark on the
still-pipe flange as described below.
1. Ensure that all parts and tools are
available before carrying them to the
tank top.
2. Install the still-pipe according to
mechanical installation drawing
9240041-910.

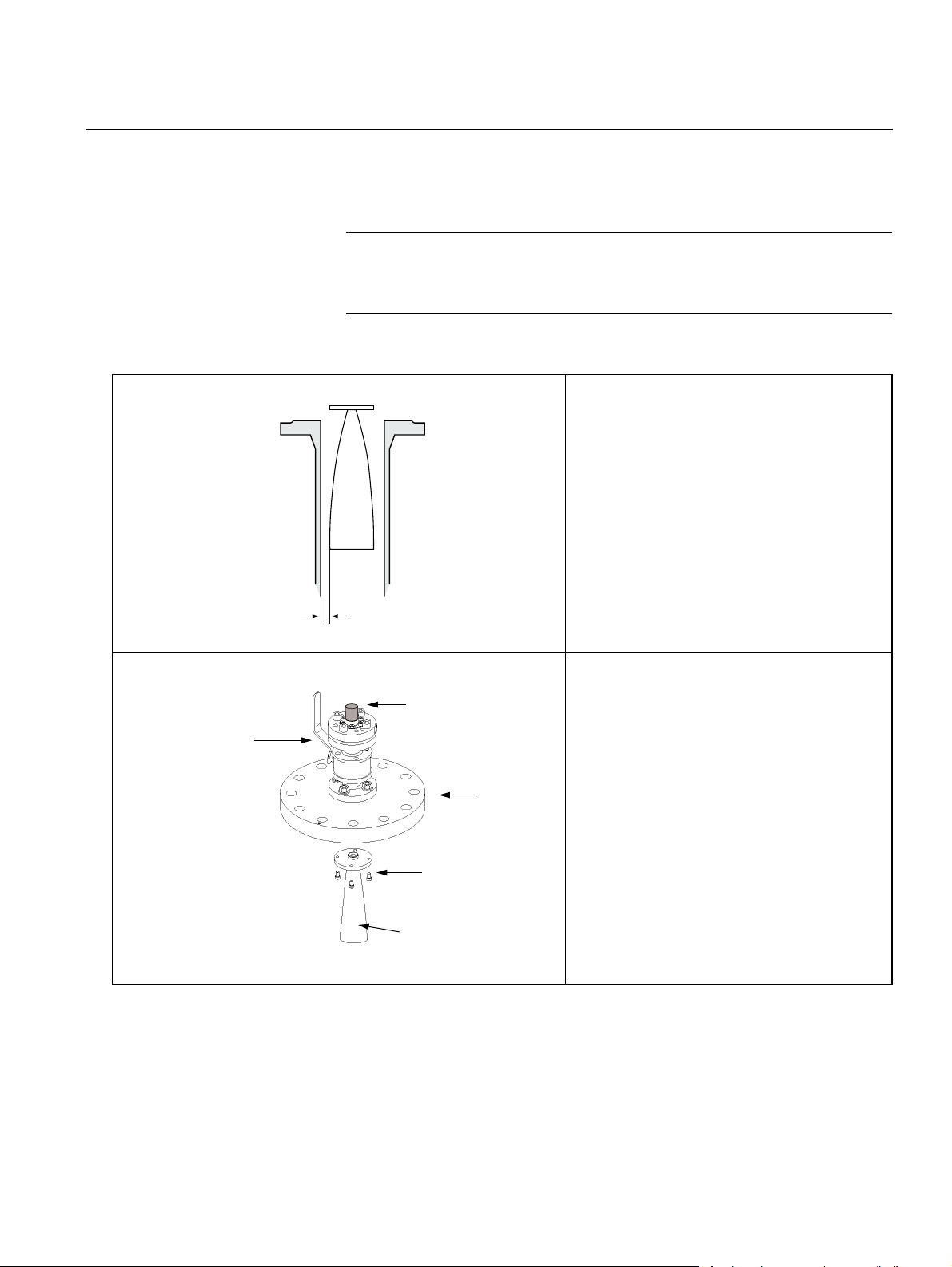

3. Check that the cone antenna fits into
the still-pipe. The gap between the
cone antenna and the pipe must not
exceed 2 mm.
Maximum 2 mm
Ball valve
Protection cap
Four M6 screws
Antenna
Closing
4. Mount the antenna on the closing
using four M6 Allen head screws. Be
careful when handling the closing and
antenna assembly. It is important that
the antenna is undamaged without
dents.
Let the protection cap remain on the
waveguide until the antenna is
installed.
Section 3. Installation
3-37
Page 66
Rosemount 5900S Series

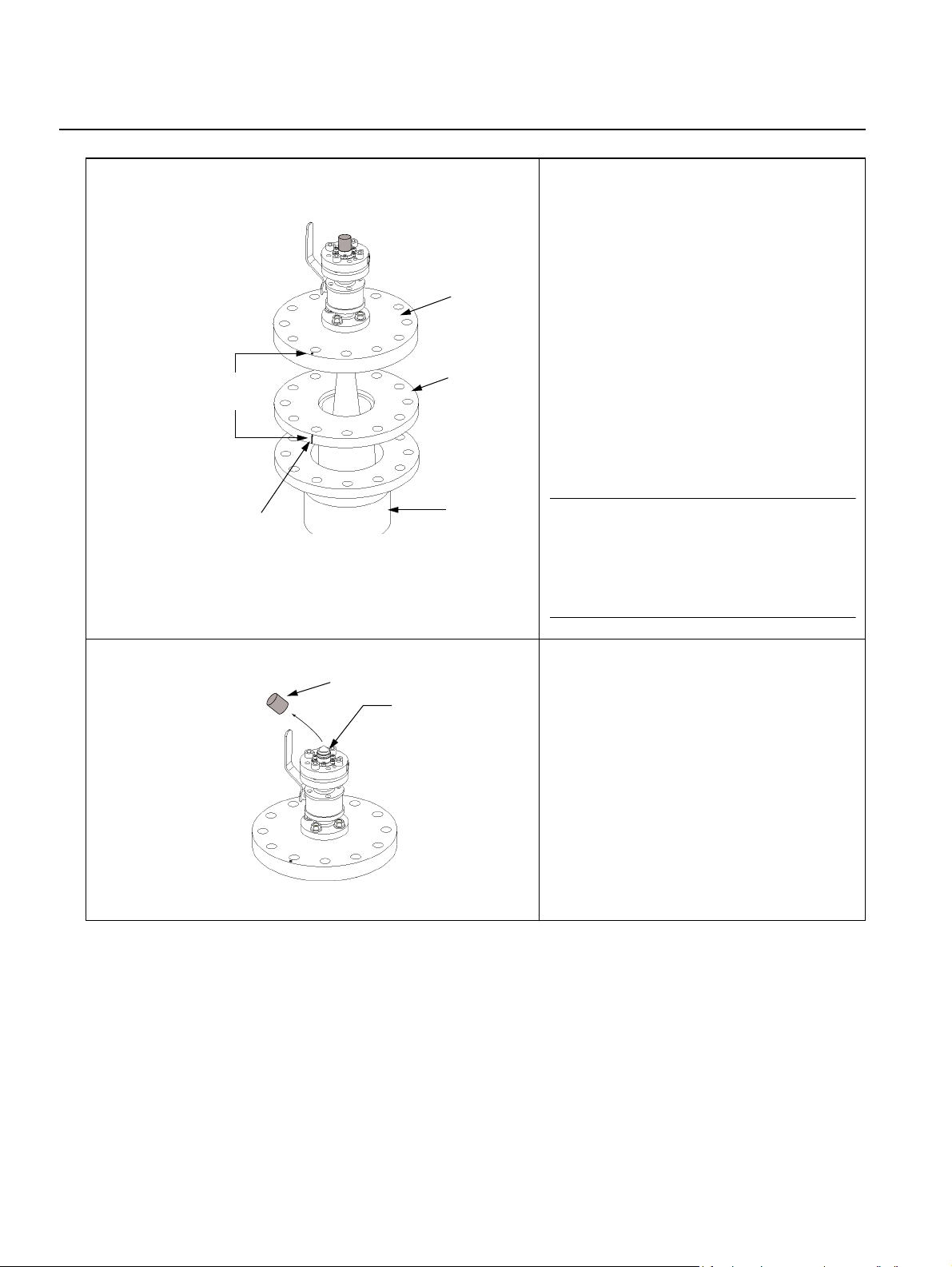

Align mark with
notch on the
pipe flange
Closing
Still-pipe
flange
Reference Manual
00809-0100-5900, Rev CA
June 2014
5. Place a gasket (customer supplied) on
the still-pipe flange.
6. Carefully fit the antenna into the
still-pipe.
7. Direct the closing so that the mark
aligns with the notch on the pipe
flange.
8. Tighten the closing onto the still-pipe
flange (customer supplied screws and
nuts).
9. The tank is now sealed and can, as far
as Rosemount Tank Gauging
equipment is concerned, be
pressurized.
Notch that indicates
direction of the
Verification Pin
Protection cap
Do not remove
this cone!
Nozzle
NOTE!
For a safe installation on a pressurized tank
it is important that the gauge is installed in
accordance with the appropriate local,
national, and international standards,
codes, and practices.
10. Remove the yellow protection cap
from the waveguide.
Do not remove the rubber cone.
3-38
Section 3. Installation
Page 67
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount 5900S Series
Four M10 screws
Adapter
Holes for
guide pins
Pressure transmitter
Bracket
Groove
Mark
Flange
Ball valve
Mark
Adapter
Entry for
pressure
transmitter
Closing
11. Put the adapter on the flange.
Ensure that the guide pins on the
flange fit the holes at the bottom of the
adapter.
12. Ensure that the mark on top of the
adapter aligns with the mark on the
closing.
13. Mount the bracket and the pressure
transmitter.
14. Tighten the four M10 screws with
washers.
15. Connect the pipe at the pressure
transmitter input to the entry on the
flange and tighten the nut.
Pressure
transmitter
Bracket for
Bracket for
pressure
pressure
transmitter
transmitter
Still-pipe
5900S level
gauge
Nut
Adapter
Verification Pin
16. Put the 5900S radar gauge on the
adapter. Ensure that the guide pin
inside the waveguide of the 5900S fits
the groove on the adapter.
Note! The adapter has two grooves.
Use the one that allows the transmitter
head to be aligned with the Verification
Pin as illustrated below in step 18.
The direction of the Verification Pin is
indicated by marks on the still-pipe
flange and the closing. See “LPG/LNG
Antenna Requirements” on page 3-13
for more information.
(The second groove on the adapter is
used for measurement verification
when replacing a TankRadar Rex level
gauge with a Raptor 5900S).
17. Tighten the nut that connects the
transmitter head to the adapter.
Section 3. Installation
3-39
Page 68
Rosemount 5900S Series
Reference Manual
00809-0100-5900, Rev CA
June 2014
5900 level
gauge
Pressure
transmitter
Mark that indicates
direction of the
Verification Pin
Verification Pin
Cover on the
terminal
compartment
Still-pipe
18. Verify that the level gauge head is
properly aligned. The cover on the
terminal compartment shall be parallel
with the Verification Pin.
The notch on the still-pipe flange
indicates the direction of the
Verification Pin.
19. Connect the electrical cabling and
configure the gauge by using the
TankMaster WinSetup software, see
the Raptor System Configuration
Manual (Document no. 300510EN).
20. Configure the level gauge for LPG
measurements (see “LPG
Configuration” on page 4-20).
3-40
Section 3. Installation
Page 69
Reference Manual
00809-0100-5900, Rev CA
June 2014
3.4 ELECTRICAL INSTALLATION
Rosemount 5900S Series
3.4.1 Cable/conduit entries
Figure 3-17. Cable entry with
NPT threaded gland
The electronics housing has two entries for ½ - 14 NPT. Optional M20×1.5,
minifast and eurofast adapters are also available. The connections must be
made in accordance with local or plant electrical codes.
Make sure that unused ports are properly sealed to prevent moisture or other
contamination from entering the terminal block compartment of the electronics
housing.
NOTE!
Use the enclosed metal plugs to seal unused ports. The plastic plugs
mounted at delivery are not sufficient as seal!
NOTE!
It is recommended that a sealant of type PTFE is used to prevent water
ingress and to enable future removal of the plug/gland.

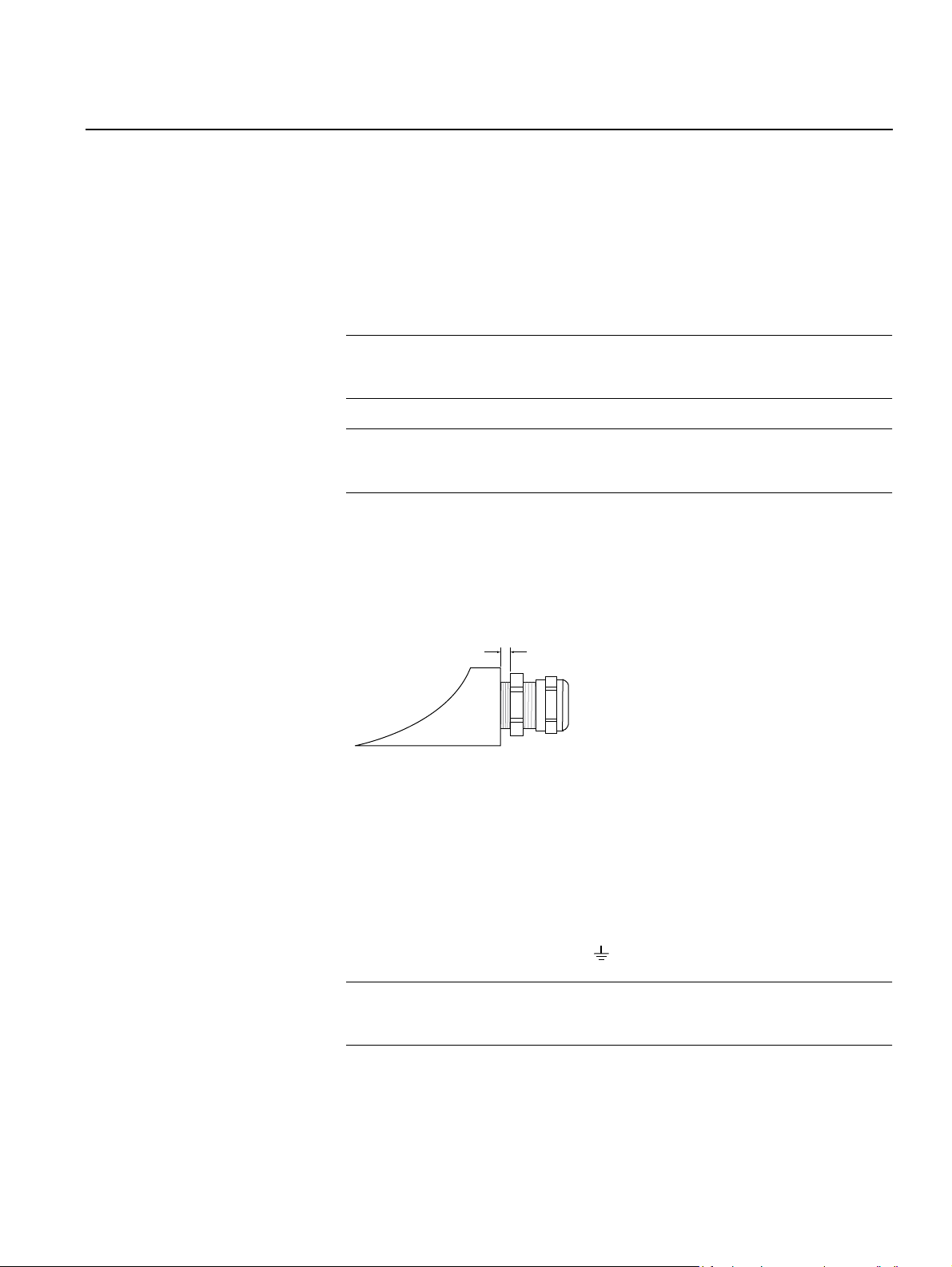

NPT is a standard for tapered threads. Engage the gland with 5 to 6 threads.
Note that there will be a number of threads left outside the housing as
illustrated below.
The NPT threaded gland leaves a
number of threads outside the housing
Ensure that glands for the cable entries meet requirements for IP class 66 and
67.
3.4.2 Grounding The housing should always be grounded in accordance with national and
local electrical codes. Failure to do so may impair the protection provided by
the equipment. The most effective grounding method is direct connection to
earth ground with minimal impedance. There are three grounding screw
connections provided. Two are located inside the terminal compartment of the
housing and the third is located on the housing. The internal ground screws
are identified by a ground symbol: .
NOTE!
Grounding the transmitter via threaded conduit connection may not provide
sufficient ground.
Grounding - Foundation Fieldbus
Signal wiring of the fieldbus segment can not be grounded. Grounding out
one of the signal wires may shut down the entire fieldbus segment.
Section 3. Installation
3-41
Page 70
Rosemount 5900S Series
Reference Manual
00809-0100-5900, Rev CA
June 2014
Shield Wire Ground
To protect the fieldbus segment from noise, grounding techniques for shield
wire usually require a single grounding point for shield wire to avoid creating a
ground loop. The ground point shall be located at the power supply.
The Raptor devices designed for “daisy-chain” connection offer an isolated
shield loop-through terminal in order to enable a continuous shield throughout
the Tankbus network.
In order to avoid unintentional grounding points, the cable shield inside the
terminal compartment must be isolated.
3.4.3 Cable Selection Use shielded twisted pair wiring for the Rosemount 5900S Series in order to
comply with FISCO
(1)
requirements and EMC regulations. The preferred cable
is referred to as type “A” fieldbus cable. The cables must be suitable for the
supply voltage and approved for use in hazardous areas, where applicable. In
the U.S. explosion-proof conduits may be used in the vicinity of the vessel.
We recommend cable size 1.0 mm2 or 18 AWG in order to facilitate wiring.
However, cables within the range 0.5 to 1.5 mm2 or 20 to 16 AWG can be
used.
The FISCO FOUNDATION™ fieldbus specification requires that cables for the
Raptor Tankbus comply with the following cable parameters:
Table 3-5. FISCO cable
parameters
Parameter Value
Loop resistance 15/km to 150/km
Loop inductance 0.4 mH/km to 1 mH/km
Capacitance 45 nF/km to 200 nF/km
Maximum length of each spur cable 60 m in apparatus class IIC and IIB
Maximum cable length including trunk and
spurs
1000 m in apparatus class IIC and 1900 m in
apparatus class IIB
3.4.4 Hazardous Areas When the Rosemount 5900S level gauge is installed in hazardous areas,
local regulations and specifications in applicable certificates must be
observed.
3.4.5 Power Requirements
The Rosemount 5900S is powered over the intrinsically safe Tankbus by the
Rosemount 2410 Tank Hub. The 2410 feeds the intrinsically safe fieldbus
segment by acting as a FISCO power supply on the Tankbus.
When installed in a FOUNDATION Fieldbus system without a 2410 Tank Hub,
the 5900S is powered by the FF segment.
3.4.6 Power Budget The Rosemount 5900S power consumption is 50 mA for standard devices
and 100 mA for the 2-in-1 versions. This has to be considered when
connecting field devices to the Tankbus. See section “Power Budget” in the
Rosemount 2410 Reference Manual (Document No. 300530EN) for more
information.
(1) See IEC 61158-2 and IEC/TS 60079-27:2002.
3-42
Section 3. Installation
Page 71
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount 5900S Series
3.4.7 The Raptor Tankbus
The Raptor system is easy to install and wire. Devices can be “daisy-chained”
thus reducing the number of external junction boxes.
In a Raptor system devices communicate with a Rosemount 2410 Tank Hub
via the intrinsically safe Tankbus. The Tankbus complies with the FISCO
(1)
FOUNDATION fieldbus standard. The Rosemount 2410 acts as power supply to
the field devices on the Tankbus. A FISCO system enables more field devices
to be connected to the segment compared to conventional IS systems based
on the entity concept.
Termination
A terminator is needed at each end of a FOUNDATION Fieldbus network.
Generally, one terminator is placed in the fieldbus power supply, and the other
one in the last device in the fieldbus network.
NOTE!
Ensure that there are two terminators on the fieldbus.
In a Raptor system the Rosemount 2410 Tank Hub acts as power supply.
Since the 2410 normally is the first device in the fieldbus segment, the built-in
termination is enabled at factory
Other Raptor devices such as the standard version of the Rosemount 5900S
Radar Level Gauge, the Rosemount 2230 Graphical Field Display, and the
Rosemount 2240S Multi-input Temperature Transmitter also have built-in
terminators which can easily be enabled by inserting a jumper in the terminal
block when necessary.
Segment design
When designing a FISCO fieldbus segment a few requirements need to be
considered. Cabling has to comply with FISCO requirements as described in
“Cable Selection” on page 3-42.
You will also have to ensure that the total operating current of the connected
field devices is within the output capability of the Rosemount 2410 Tank Hub.
The 2410 is able to deliver 250
(2)
mA. Consequently, the number of field
devices has to be considered so that the total current consumption is less
than 250 mA, see “Power Budget” on page 3-42.
Another requirement is to ensure that all field devices have at least 9 V input
voltage at their terminals. Therefore you will have to take into account the
voltage drop in the fieldbus cables.
Distances are normally quite short between the Rosemount 2410 Tank Hub
and field devices on the tank. In many cases you can use existing cables as
long as the FISCO requirements are fulfilled (see “Cable Selection” on
page 3-42).
See chapter “The Raptor Tankbus” in the Rosemount 2410 Reference
Manual (Document no. 305030EN) for more information on segment design
of a Raptor system.
Section 3. Installation
(1) FISCO=Fieldbus Intrinsically Safe Concept
(2) In Smart Wireless Systems the 2410 can deliver 200 mA on the Tankbus
3-43
Page 72
Rosemount 5900S Series
Reference Manual
00809-0100-5900, Rev CA
June 2014
3.4.8 Typical installation
Figure 3-18. Example of a
Tankbus connection for a single
tank
The example below (Figure 3-18) illustrates a system with daisy-chained field
devices on a single tank. Terminators are installed at both ends of the fieldbus
segment as required in a FOUNDATION fieldbus system. In this case
terminators are enabled in the Rosemount 2410 Tank Hub and a field device
at the end of the network segment.
In addition to the field instruments on the Tankbus, Figure 3-18 illustrates how
an instrument such as a pressure transmitter can be connected to the
intrinsically safe 4 -20 mA analog input of the 2410 Tank Hub.
Tankbus length up to 1000 meter depending
on number of devices and cable type
2240S Multi-input Temperature
5900S Radar
Level Gauge
Transmitter
Built-in
terminator
enabled on the
last device
2410 Tank Hub with
intrinsically safe power
supply, integrated power
conditioner, and built-in
terminator
2230 Display
3051S Pressure
Transmitter
Tankbus
Maximum number of HART
IS Analog Input
(Secondary bus)
Slave Devices:
Passive current loop: 5
Active current loop: 3
The maximum distance between the 2410 Tank Hub and the field devices on
the tank depends on the number of devices connected to the Tankbus and the
quality of cables.
See chapter “Electrical Installation” in the Rosemount 2410 Reference
Manual (Document no. 305030EN) for more information about cable
selection, power budget, and the 2410 Tankbus.
See also “Typical Installations” in the Rosemount 2410 Reference Manual
(Document no. 305030EN) for more examples of how to install systems that
include the 2410 Tank Hub.
3-44
Section 3. Installation
Page 73
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount 5900S Series
3.4.9 5900S in
OUNDATION
F
fieldbus system

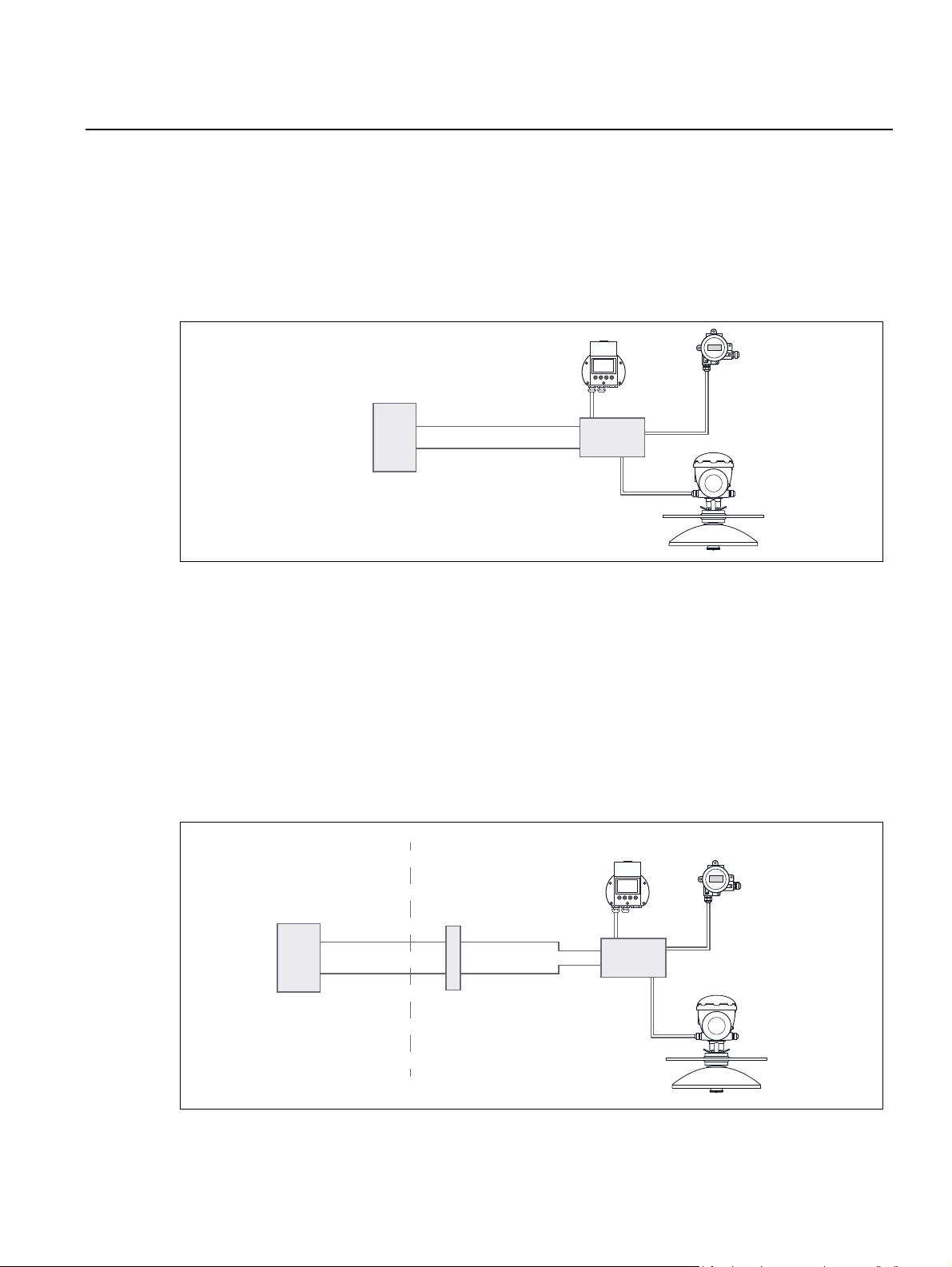

Figure 3-19. Example of an I.S.
FOUNDATION fieldbus system
with Raptor devices
FISCO/Entity compliant
FM USA, FM Canada:
AIS Class I, Division 1
ATEX and IECEx:
Ex [ia], or Ex [ib] (FISCO)
Ex [ia] (Entity)
The Rosemount 5900S Radar Level Gauge supports the FOUNDATION fieldbus
(FF) technology and lets you integrate a 5900S into an existing FF network.
As long as the power supply meets certain requirements (see Figure 3-19 and
Figure 3-20) the 5900S
I.S. Power Supply
(1)
2230 Display
Trunk
will be able to operate as any other FF device.
644 Temperature
Transmitter
Segment
Coupler
5900S Radar Level
Gauge
Ensure that the power supply is able to provide the total current needed for all
the connected devices. See “Power Requirements” on page 3-42 and “Power
Budget” on page 3-42 for further information.
Figure 3-20. Example of a
Non-I.S. FOUNDATION fieldbus
system with Raptor devices
Non-I.S. Power Supply
Ensure that the 5900S and other devices connected to the FOUNDATION
fieldbus (FF) system are compliant with the FISCO or Entity parameters of the
power supply.
Ensure that the short circuit protection of the Segment Coupler
(2)
current consumption of the connected devices.
SAFE AREA HAZARDOUS AREA
2230 Display
Barrier
IS Trunk
FISCO/Entity compliant
FM USA, FM Canada:
AIS Class I, Division 1
ATEX and IECEx:
Ex [ia], or Ex [ib] (FISCO)
Ex [ia] (Entity)
Segment
Coupler
644 Temperature
Transmitter
5900S Radar Level
Gauge
matches the
Section 3. Installation
(1) See Appendix B: Product Certifications for 5900S approval information
(2) See the Rosemount 2410 Reference Manual (Document No. 300530EN) for more informa-
tion on the Segment Coupler.
3-45
Page 74
Rosemount 5900S Series
3.4.10 Wiring To connect the Rosemount 5900S level gauge:
1. Ensure that the power supply is switched off.
2. Remove the cover on the terminal compartment.
3. Run the wires through the appropriate cable gland/conduits.
Install cables with a drip loop in such a way that the lower part of the loop
is under the cable/conduit entry.
4. Connect wires as described in “Terminal Blocks” on page 3-49.
5. Ensure that the positive lead is connected to the terminal marked FB+
and the negative lead to the terminal marked FB-.
6. Use metal plugs to seal unused ports.
7. Attach and tighten the cover on the terminal compartment. Make sure
that the cover is fully engaged to meet explosion-proof requirements and
to prevent water from entering the terminal compartment.
8. Tighten the cable gland/conduit. Note that adapters are required for M20
glands.
NOTE!
Ensure that o-rings and seats are in good condition prior to mounting the
cover in order to maintain the specified level of ingress protection. The same
requirements apply for cable inlets and outlets (or plugs). Cables must be
properly attached to the cable glands.
Reference Manual
00809-0100-5900, Rev CA
June 2014

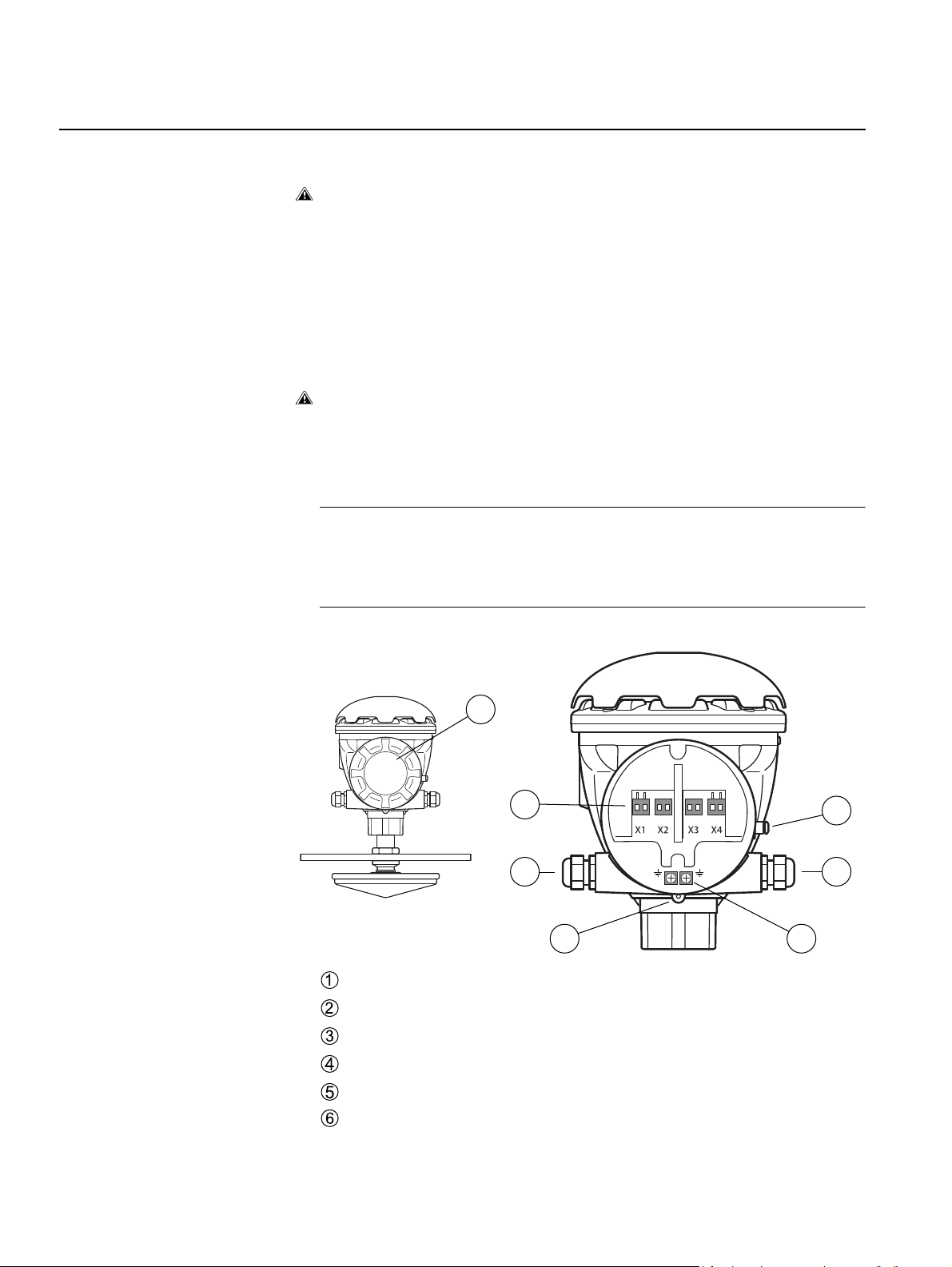

Figure 3-21. Terminal
compartment
6
3
Cable glands
Internal Ground screws
Terminals for signal and power supply
Locking screw (Flameproof version)
External Ground screw
5
11
24
3-46
Cover
Section 3. Installation
Page 75
Reference Manual
00809-0100-5900, Rev CA
June 2014

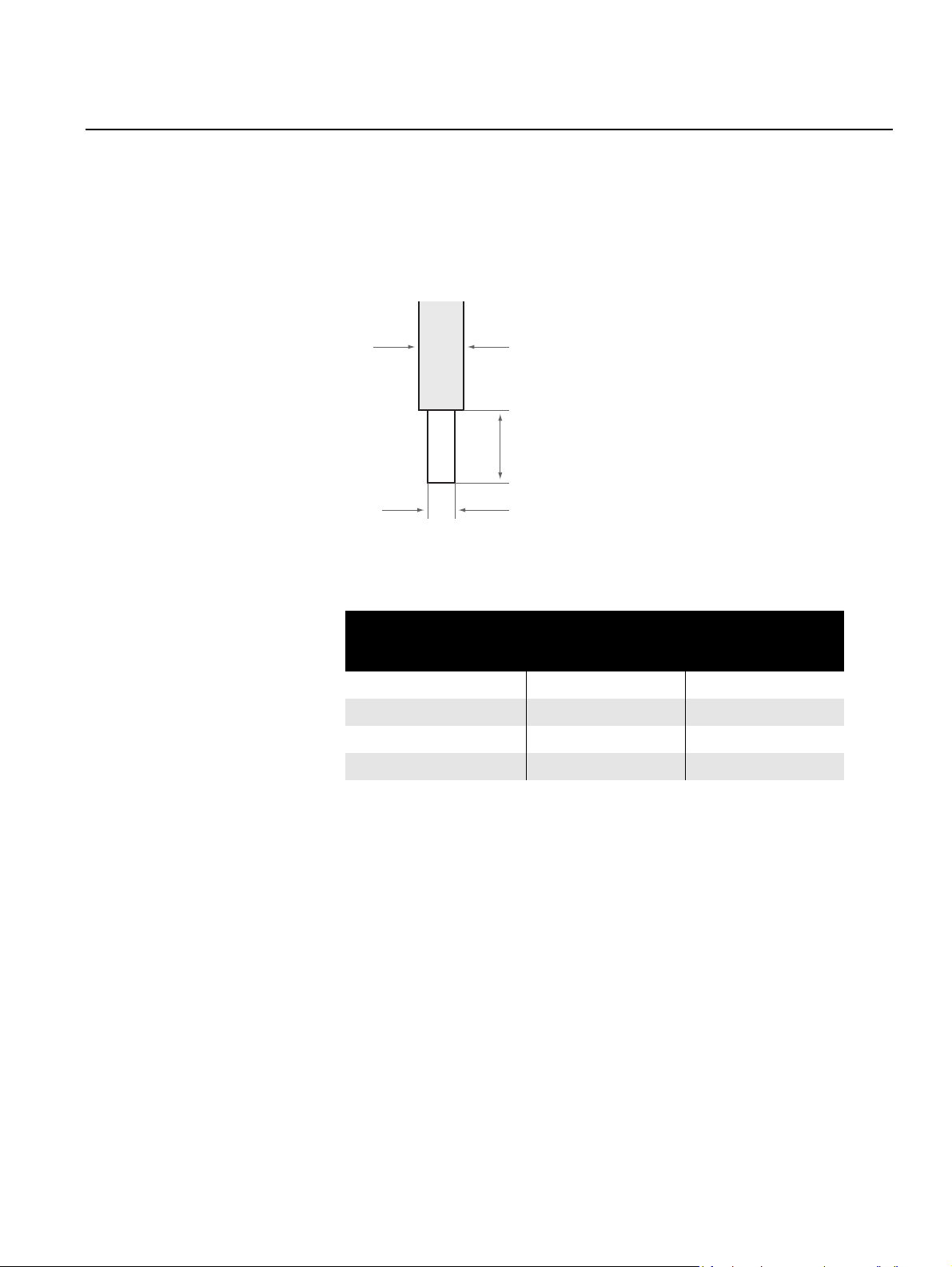

Figure 3-22. Conductor and
insulation requirements
Rosemount 5900S Series
Conductor Recommendations
Ensure that you use cables suitable for the terminal block of the 5900S. The
terminal block is designed for cables that meet the specifications as illustrated
below.
Conductor insulation,
maximum diameter Ø: 2.9 mm
Stripping length: 8 to 9 mm
Conductor cross-sectional area,
see Table 3-6
Table 3-6. Conductor
cross-sectional area
Conductor connection Cross-section
Minimum Maximum
Solid 0.2 mm2 / AWG 24 1.5 mm2 /AWG16
Flexible 0.2 mm2 / AWG 24 1.5 mm2 /AWG16
With wire end ferrule 0.25 mm2 / AWG 24 1.5 mm2 /AWG16
With plastic collar ferrule 0.25 mm2 / AWG 24 0.75 mm2 /AWG19
In case conductor insulation diameter exceeds 2.9 mm it may not be possible
to insert cable properly into the terminal block. In such a case the stripping
length may have to be increased. Adjust stripping length such that no bare
conductor appears outside the terminal when conductor is attached to the
terminal block.
Section 3. Installation
3-47
Page 76
Rosemount 5900S Series
Figure 3-23. A solid conductor or
a conductor with end ferrule can
easily be pushed into the
terminal block
Reference Manual
00809-0100-5900, Rev CA
June 2014
A solid conductor, or a flexible conductor with end ferrule, can easily be
pushed into the terminal block without using any tools. In case a flexible
(stranded) conductor is used, you will have to push the release button in order
to insert the conductor.
Terminal block
Release buttons
Conductor
Figure 3-24. Push the button to
release the conductor from the
terminal block
Conductor
To disconnect, push the release button and remove the conductor.
Terminal block
Release buttons
1
2
3-48
Section 3. Installation
Page 77
Reference Manual
00809-0100-5900, Rev CA
June 2014
3.4.11 Terminal Blocks
Figure 3-25. Rosemount 5900S
terminal compartment
Rosemount 5900S Series
Test terminalsTest terminals
Table 3-7. Terminal block
connections for the 5900S
FB+
FB- FB+
Connection Description
X1: Tankbus in Intrinsically safe Tankbus input, power and communication (spur
X2: Terminate on The integrated line terminator is connected over the Tankbus
X3: Shield loop through Cable shield daisy-chain connector (not grounded)
X4: Tankbus out Tankbus output connected to X1 for optional daisy-chain
Test terminals Test terminals for temporary connection of a Field Communicator
OUNDATION fieldbus system)
in F
when a jumper is placed in the terminal block
connection to other devices
FB-
Ground terminals, internal
The X1 terminal is connected to the intrinsically safe Raptor Tankbus.
Section 3. Installation
A jumper on the X2 terminal enables the built-in termination. The termination
should be used if the Rosemount 5900S gauge is installed at the end of a
Tankbus network. See “The Raptor Tankbus” on page 3-43 for more
information on how to terminate the Raptor Tankbus.
The X3 terminal is used for connecting the cable shield in order to enable a
continuous shield throughout the Tankbus network.
The X4 terminal can be used for “daisy-chain” connection to other Raptor
devices such as the Rosemount 2240S Multi-input Temperature Transmitter,
or the Rosemount 2230 Graphical Field Display, see also Figure 3-28 on
page 3-52.
3-49
Page 78
Rosemount 5900S Series
Figure 3-26. Terminal
compartment.2-in-1 version
Reference Manual
00809-0100-5900, Rev CA
June 2014
Terminal Block Two-in-One Version
The Rosemount 5900S Two-in-One version can be connected to a single
Tankbus or two separate Tankbuses.
Single tankbusTwo tankbuses
Test
terminals
FB+
FB-
Table 3-8. Terminal Block
connections for the 5900S with
two tankbuses
X1: Primary Tankbus in Intrinsically safe Tankbus input for level gauge 1, power and communication
X2: Primary Terminate on Termination for primary tankbus. The integrated line terminator is connected
X3: Primary Tankbus out Primary Tankbus output connected to X1 for optional daisy-chain connection
X4: Secondary Tankbus in Intrinsically safe Tankbus input for level gauge 2, power and communication
Test terminals Test terminals for temporary connection of a Field Communicator
Test
terminals
FB-
FB+
FB-
FB+
Ground terminals, internal
FB+
FB-
Jumpers between
X3 and X4
When using two separate tankbuses, connect X1 to Tankbus 1 and X4 to
Tankbus 2.
Connection Two-in-One / Two tankbuses
over the Tankbus when a jumper is placed in the terminal block.
to other devices
Table 3-9. Terminal Block
connections for the 5900S
with single tankbus
3-50
Connect to X1 when using a single tankbus, and jumpers between X3 and X4.
Connection Two-in-One / Single tankbus
X1: Primary Tankbus in Intrinsically safe Tankbus input, power and communication
X2: Primary Terminate on Termination for primary tankbus. The integrated line terminator is connected
over the Tankbus when a jumper is placed in the terminal block.
X3: Primary Tankbus out
X4: Secondary Tankbus in
Test terminals Test terminals for temporary connection of a Field Communicator
Jumpers between X3 and X4
Section 3. Installation
Page 79
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount 5900S Series
Gauge Terminal Block SIL Safety System
The Rosemount 5900S has a SIL2/SIL3 alarm output which is connected to
the Rosemount 2410 Tank Hub.
Figure 3-27. Terminal
compartment
Table 3-10. Terminal Block
connections for the 5900S with
SIL option
2-in-1: optional jumpers
between X3 and X4 for
Test terminals
FB+
FB-
connection to second
level gauge
-
SIL Alarm
+
Ground terminals, internal
For the 2-in-1 SIL version of the Rosemount 5900S, optional jumpers are
placed between terminals X3 and X4 for connection to the second radar level
gauge.
Connection SIL Safety System
X1: Primary Tankbus in Intrinsically safe Tankbus input, power and communication
X2: Alarm
X3: Primary Tankbus out
X4: Secondary Tankbus in
Test terminals Test terminals for temporary connection of a Field Communicator
SIL2/SIL3 alarm output
(connect to Exi terminal block on Rosemount 2410 Tank Hub)
Optional jumpers between X3 and X4 for connection to second level gauge of
the Rosemount 5900S / 2-in-1 version
See the Rosemount Raptor Safety Manual for Use in Safety Instrumented
Systems (Document no. 300540en) for more information on how to setup a
Raptor SIL safety system.
Section 3. Installation
3-51
Page 80
Reference Manual
Rosemount 5900S Series
00809-0100-5900, Rev CA
June 2014
3.4.12 Wiring Diagrams The standard version of the Rosemount 5900S has a single intrinsically safe
fieldbus input. The 5900S has a built-in termination by short-circuiting the X2
connector.
An intrinsically safe output on connector X4 can be used for “daisy-chain”
connection to other devices in a Raptor system.
Connector X3 is used for a fieldbus input/output cable shield connection
(separated from chassis ground).
Figure 3-28 illustrates a typical wiring diagram with a Rosemount 5900S
Radar Level Gauge connected to a Rosemount 2240S Multi-input
Temperature Transmitter. In this example the termination is enabled in the
2240S transmitter which is the last device on the Tankbus (see “The Raptor
Tankbus” on page 3-43).
In case you prefer to connect the 2240S to the 2410 Tank Hub, you may
“daisy-chain” the 5900S to the 2240S, and terminate the Tankbus by a jumper
in terminal X2 on the 5900S terminal block.
Figure 3-28. 5900S wiring
diagram
TankMaster PC
Field Communicator
Rosemount 2410 Tank Hub
Power supply
Tankbus
Rosemount 2240S Multi-input
Temperature Transmitter with
built-in terminator
ROSEMOUNT 5900S
RADAR LEVEL GAUGE
Shield
3-52
See also “Terminal Blocks” on page 3-49 for information on terminal block
connections.
Section 3. Installation
Page 81
Reference Manual
00809-0100-5900, Rev CA
June 2014
Figure 3-29. Rosemount 5900S
wiring diagram for 2-in-1 version
with two tankbuses
Rosemount 5900S Series
The Rosemount 5900S 2-in-1 version
The 2-in-1 version of the Rosemount 5900S has two separate level gauges in
the same housing. One of the tankbuses can be terminated in the 5900S
terminal compartment.
The 2-in-1 version can be connected to two separate tankbuses as illustrated
in Figure 3-29 and 3-31, or to a single tankbus as illustrated in Figure 3-30 on
page 3-54.
Terminal X1 is an intrinsically safe tankbus input for level gauge 1, and
terminal X4 connects to the second level gauge.
Figure 3-29 illustrates a wiring diagram with a 2-in-1 version of the
Rosemount 5900S Radar Level Gauge which is “daisy-chained” to a
Rosemount 2240S Multi-input Temperature Transmitter. Note that the
Primary Tankbus is terminated in the 5900S terminal block (X2).
TankMaster PC
Power supply
Rosemount 2410 Tank Hub
Field Communicator
Termination
Rosemount 2240S
Multi-input Temperature
Transmitter
Primary Tankbus in
(gauge 1)
ROSEMOUNT 5900S RADAR
LEVEL GAUGE (2-IN-1)
Secondary Tankbus
(gauge 2)
Section 3. Installation
See also “Terminal Blocks” on page 3-49 for information on terminal block
connections.
3-53
Page 82
Rosemount 5900S Series

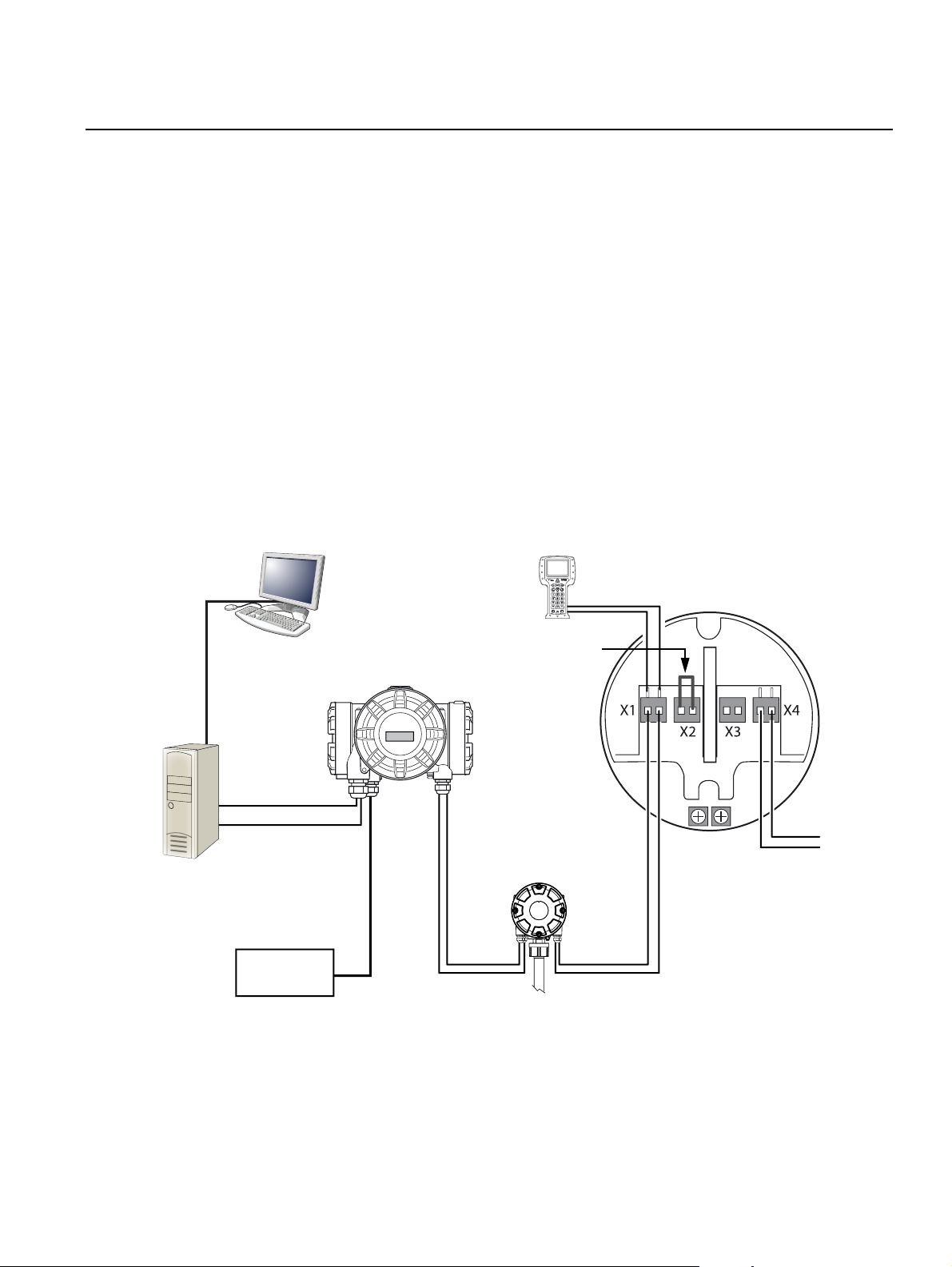

Figure 3-30. Rosemount 5900S
wiring diagram for 2-in-1 version
with a single tankbus
Reference Manual
00809-0100-5900, Rev CA
June 2014
Figure 3-30 illustrates the 2-in-1 version of the Rosemount 5900S with a
single intrinsically safe Tankbus. The Tankbus is connected to the first level
gauge via terminal X1, and to the second level gauge via a jumper between
terminals X3 (Primary Tankbus out) and X4 (Secondary Tankbus in).
The Tankbus termination is enabled in the 5900S terminal block (X2).
Field Communicator
ROSEMOUNT 5900S RADAR
Termination
Rosemount 2410 Tank Hub
LEVEL GAUGE (2-IN-1)
TankMaster PC
Power supply
Rosemount 2240S
Multi-input Temperature
Transmitter
Tankbus
3-54
Section 3. Installation
Page 83
Reference Manual
00809-0100-5900, Rev CA
June 2014

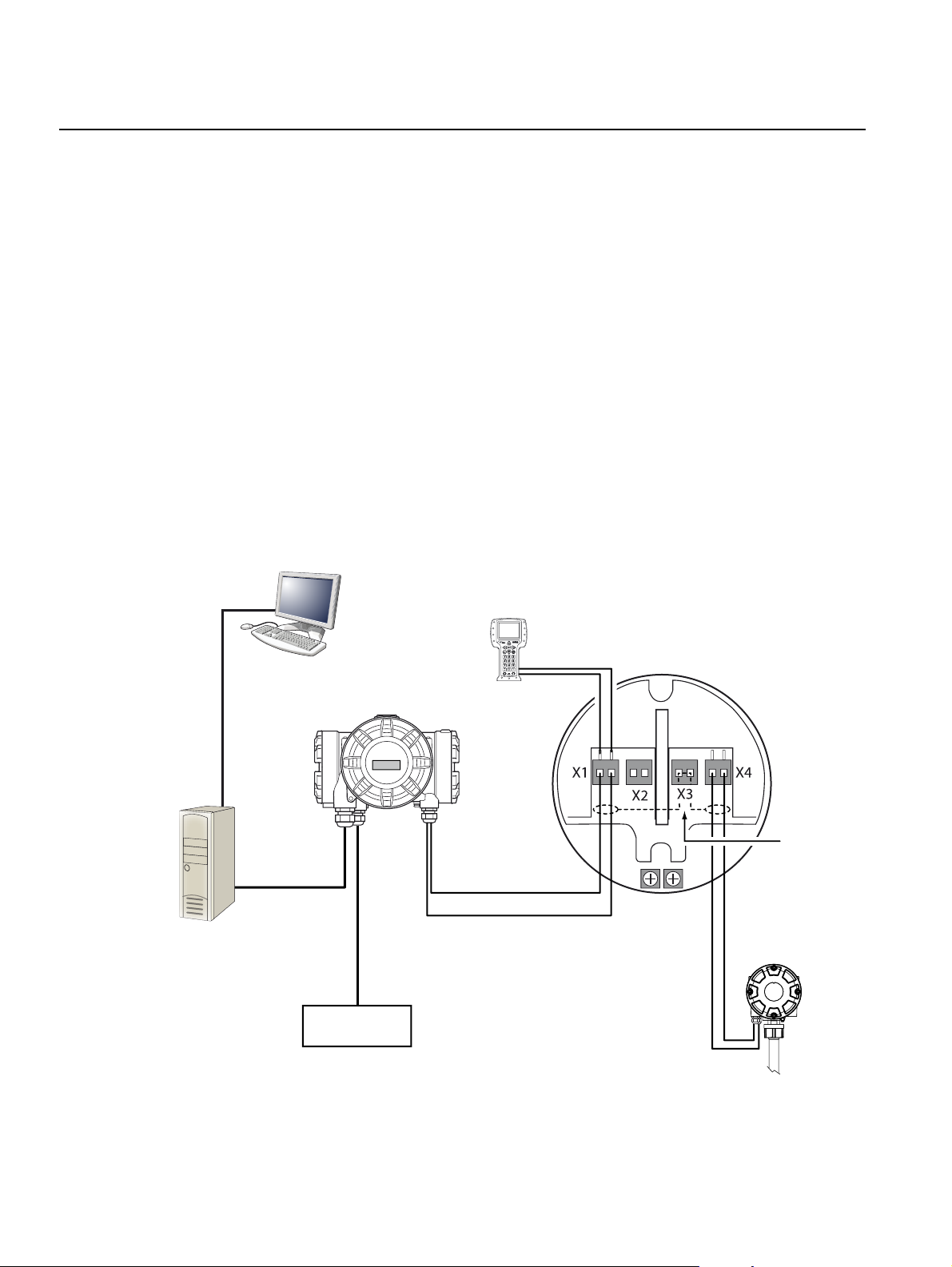

Figure 3-31. Wiring diagram for
Rosemount 5900S 2-in-1
version with two tankbuses
Rosemount 5900S Series
In Figure 3-31 a Rosemount 2240S transmitter is wired to the second level
gauge of a 2-in-1 version of the Rosemount 5900S Radar Level Gauge.
The Primary Tankbus is terminated in the 5900S terminal block (X2). The
Secondary Tankbus is terminated by enabling the built-in termination of the
2240S temperature transmitter.
TankMaster PC
Power supply
Field Communicator
Rosemount 2410 Tank Hub
Primary Tankbus in (gauge 1)
ROSEMOUNT 5900S RADAR
LEVEL GAUGE (2-IN-1)
Termination
Rosemount 2240S
Multi-input Temperature
Transmitter with built-in
terminator
Secondary Tankbus in (gauge 2)
Section 3. Installation
3-55
Page 84
Rosemount 5900S Series
Reference Manual
00809-0100-5900, Rev CA
June 2014
3-56
Section 3. Installation
Page 85
Reference Manual
00809-0100-5900, Rev CA
June 2014
Section 4 Configuration
4.1 Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-1
4.2 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-3
4.3 Configuration Using Rosemount TankMaster . . . . page 4-5
4.4 Basic Configuration . . . . . . . . . . . . . . . . . . . . . . . . . page 4-6
4.5 Advanced Configuration . . . . . . . . . . . . . . . . . . . . . page 4-15
4.6 LPG Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-20
4.7 Calibration Using WinSetup . . . . . . . . . . . . . . . . . . page 4-29
4.8 FOUNDATION Fieldbus Overview . . . . . . . . . . . . . . . . page 4-34
4.9 Device Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-38
4.10 General Block Information . . . . . . . . . . . . . . . . . . . . page 4-39
4.11 Analog Input Block . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-41
4.12 Analog Output Block . . . . . . . . . . . . . . . . . . . . . . . . page 4-48
4.13 Resource Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-50
4.14 475 Field Communicator Menu Tree . . . . . . . . . . . . page 4-55
4.15 Configuration Using AMS Device Manager . . . . . . page 4-56
4.16 Plantweb Alert Setup . . . . . . . . . . . . . . . . . . . . . . . . page 4-72
4.17 LPG Setup Using DeltaV / AMS Device Manager . . page 4-77
Rosemount 5900S Series
4.1 SAFETY MESSAGES
Procedures and instructions in this section may require special precautions to
ensure the safety of the personnel performing the operations. Information that
raises potential safety issues is indicated by a warning symbol ( ). Please
refer to the following safety messages before performing an operation
preceded by this symbol.
Failure to follow safe installation and servicing guidelines could result in death or
serious injury:
Make sure only qualified personnel perform the installation.
Use the equipment only as specified in this manual. Failure to do so may impair the
protection provided by the equipment.
Do not perform any service other than those contained in this manual unless you are
qualified.
Substitution of components may impair Intrinsic Safety.
www.rosemount-tg.com
Page 86
Rosemount 5900S Series
Reference Manual
00809-0100-5900, Rev CA
June 2014
Explosions could result in death or serious injury:
Verify that the operating environment of the transmitter is consistent with the appropriate
hazardous locations certifications.
Before connecting a communicator in an explosive atmosphere, make sure the
instruments in the loop are installed in accordance with intrinsically safe or
non-incendive field wiring practices.
Do not remove the gauge cover in explosive atmospheres when the circuit is alive.
4-2
Section 4. Configuration
Page 87
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount 5900S Series
4.2 OVERVIEW The 5900S can be installed in Rosemount Tank Gauging systems including
2160 Field Communication Units and Rosemount 2410 Tank Hubs. The
5900S also supports installation in FOUNDATION fieldbus systems. Installation
of the 5900S is a simple and straight-forward procedure. In a Rosemount
Tank Gauging system with 2410 Tank Hub and 2160 Field Communication
Unit it basically includes the following steps:
1. Preparations: make a note of Unit ID, Modbus address
tank geometry parameters such as tank height, tank type, strapping table
2. Set up communication protocol and communication parameters.
3. Configuration of the Rosemount 2160 Field Communication Unit.
4. Configuration of the Rosemount 2410 Tank Hub.
5. Configuration of field devices such as the Rosemount 5900S Radar
Level Gauge and 2240S Multiple-Input Temperature Transmitter.
6. Calibration of the 5900S level gauge.
Installation of the 5900S in FOUNDATION fieldbus systems is supported by a
complete set of Resource, Function, and Transducer blocks. You can easily
integrate the 5900S level gauge into any existing FOUNDATION fieldbus
network by using an appropriate configuration tool such as the AMD Device
Manager. See section “FOUNDATION Fieldbus Overview” on page 4-34 for
more information.
(1)
, antenna type,
The TankMaster WinSetup program is the recommended tool for installation
and configuration of a Rosemount 5900S Radar Level Gauge in systems that
include the 2410 Tank Hub. The 5900S is preferably installed as part of the
procedure when installing a Rosemount 2410 Tank Hub.
This is the standard procedure for installing a 5900S Radar Level Gauge:
1. Start by installing and configuring the 2410 Tank Hub by using the device
installation wizard in TankMaster WinSetup.
2. Finish the 2410 installation procedure. Ensure that automatic installation
of field devices is enabled. The 2410 Tank Hub, the 5900S Level Gauge,
and other field devices on the Tankbus will automatically appear in the
WinSetup workspace.
3. Configure the 5900S level gauge via the Properties window.
If a 5900S is added to an existing system the Rosemount 2410 tank database
must be updated before the 5900S is configured. The tank database maps
the 5900S to the tank on which it is installed.
A detailed description of how to install and configure a Rosemount 5900S and
other devices by using the TankMaster WinSetup software is provided in the
Raptor System Configuration manual (Document no. 300510EN).
NOTE!
If the system contains a 2160 Field Communication Unit (FCU) it should be
installed and configured before other devices such as level gauges and
temperature multiplexers.
Section 4. Configuration
See section “FOUNDATION Fieldbus Overview” on page 4-34 for more
information on installing the 5900S in FOUNDATION fieldbus systems.
(1) See the System Configuration manual (Document no. 300510EN)
4-3
Page 88
Rosemount 5900S Series
Reference Manual
00809-0100-5900, Rev CA
June 2014
The Rosemount 5900S supports basic configuration which is sufficient in
most cases. There are a number of advanced configuration options available
as well, which may be used for special applications when further fine-tuning is
needed.
4.2.1 Basic Configuration
4.2.2 Advanced Configuration
Basic configuration includes specifying parameters for a standard
configuration. This is sufficient in most cases. A basic configuration includes
the following items:
• Measurement units
• Tank geometry; tank height, tank type, tank bottom type, pipe diameter,
hold off distance, calibration distance, etc.
• Process conditions; rapid level changes, turbulence, foam, solids,
product dielectric range
• Volume; standard tank types, strapping table

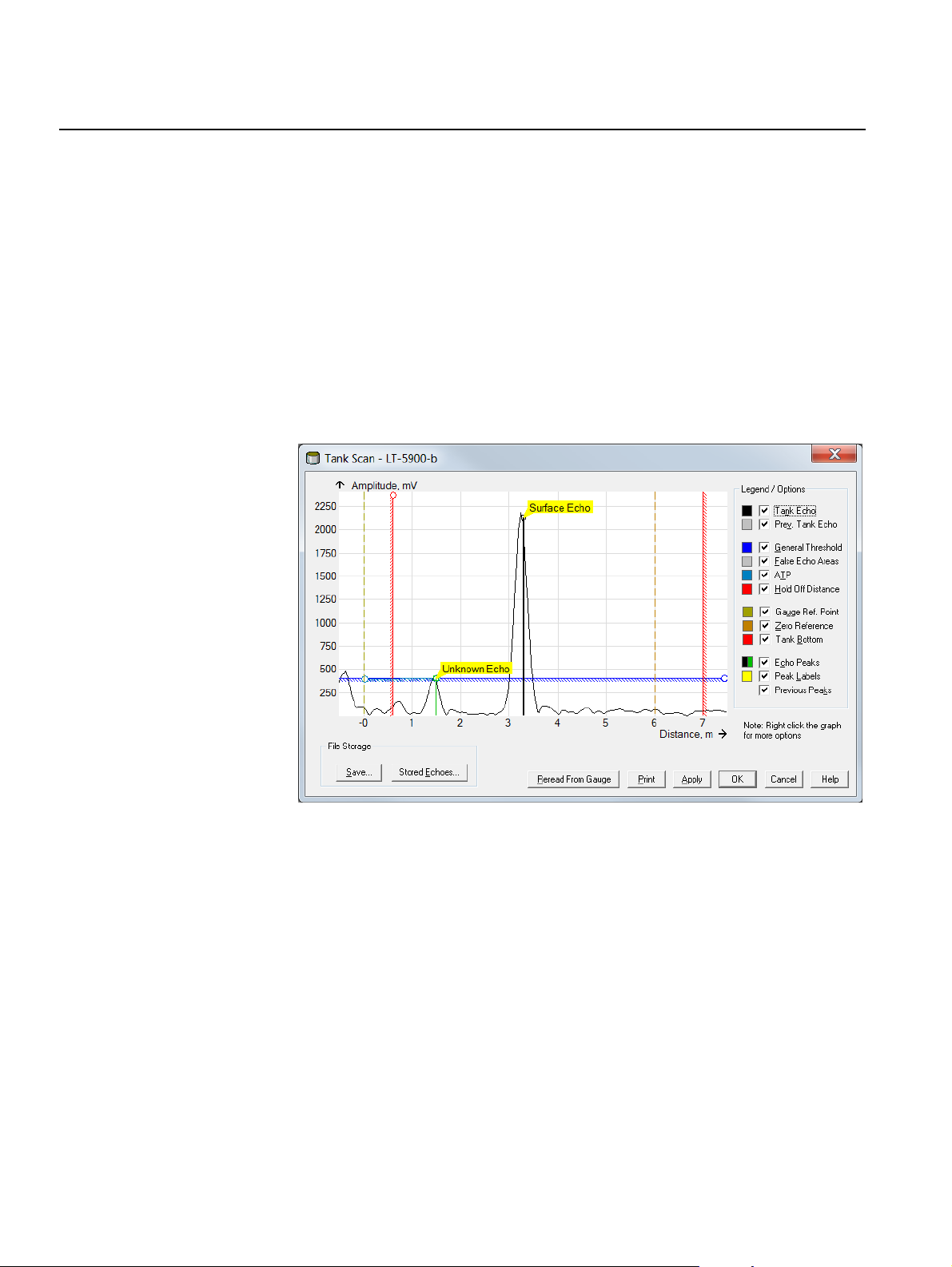

• Tank scan; analyze the 5900S measurement signal
• Empty tank handling; optimize measurements close to the tank bottom
See “Basic Configuration” on page 4-6 for more information.
In addition to basic configuration, the Rosemount 5900S supports advanced
functions for optimizing measurement performance in certain applications.
The 5900S can be fine-tuned to handle a wide range of product properties,
various tank types, disturbing objects, and turbulent conditions in the tank.
Examples of advanced functions supported by the Rosemount 5900S and the
Rosemount TankMaster WinSetup configuration program:
• Surface echo tracking
• Filter settings
4.2.3 Configuration Tools
4-4
See “Advanced Configuration” on page 4-15 for more information.
Different tools are available for configuration of a Rosemount 5900S level
gauge:
• Rosemount TankMaster Winsetup
• Field Communicator
• AMS Device Manager for FOUNDATION fieldbus systems
•FOUNDATION fieldbus hosts supporting DD4
The TankMaster Winsetup is a user-friendly software package that includes
basic configuration options as well as advanced configuration and service
functions.
For DeltaV users, the DD can be found at www.easydeltav.com. For other
hosts that use Device Descriptions (DD) and DD Methods for device
configuration, the latest DD versions can be found on FOUNDATION’S website
at www.fieldbus.org.
Section 4. Configuration
Page 89
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount 5900S Series
4.3 CONFIGURATION USING ROSEMOUNT TANKMASTER
4.3.1 Installation
Wizard
For a Rosemount Tank Gauging system that includes the Rosemount 2410
Tank Hub it is recommended that the Rosemount 5900S is configured by
using the TankMaster Winsetup configuration tool. In such a system the host
computer communicates with the 2410 Tank Hub via TRL2 Modbus or RS485
Modbus. By using the TankMaster Winsetup configuration tool, installation
and configuration of the Rosemount 5900S can be performed by any of the
following methods:
• as part of the installation and configuration procedure of a Rosemount
2410 Tank Hub (recommended)
• by using the TankMaster installation wizard
A Rosemount 5900S is typically installed as part of the installation procedure
when installing a Rosemount 2410 Tank Hub in TankMaster WinSetup. Then
the 5900S appears in the WinSetup workspace and is configured in a
separate stage via the Properties window.
See the Raptor System Configuration Manual (Document no. 300510EN) for
more information on using the TankMaster WinSetup program to configure a
Rosemount 5900S Radar Level Gauge.
The WinSetup installation wizard is a tool that facilitates installation and
configuration of Rosemount 5900S and other devices. This may be useful in
case the 5900S was not installed as part of the 2410 installation procedure.
See the Raptor System Configuration Manual (Document no. 300510EN) for
more information.
The 5900S may also be installed by using the TankMaster WinSetup
installation wizard.
NOTE!
In case the Rosemount 5900S level gauge was installed “offline” via a
Rosemount 2410 Tank Hub, it needs to be configured separately via the
Properties window.
To install a Rosemount 5900S by using the TankMaster WinSetup wizard do
the following:
1. Start the TankMaster WinSetup program.
2. Select the Devices folder.
3. Click the right mouse button and select Install New.
4. Follow the instructions.
There are a number of configuration options available which are not included
in the installation wizard. See “Basic Configuration” on page 4-6 and
“Advanced Configuration” on page 4-15 for information on how to use various
options such as Tank Scan, Empty Tank Handling, Surface Echo Tracking
and Filter Settings.
See also the Raptor System Configuration Manual (Document no. 300510EN)
for more information on using the TankMaster WinSetup program to configure
a Rosemount 5900S.
Section 4. Configuration
4-5
Page 90
Reference Manual
Rosemount 5900S Series
00809-0100-5900, Rev CA
June 2014
4.4 BASIC CONFIGURATION
4.4.1 Tank Geometry The following parameters are used for tank geometry configuration of a
Rosemount 5900S Radar Level Gauge:

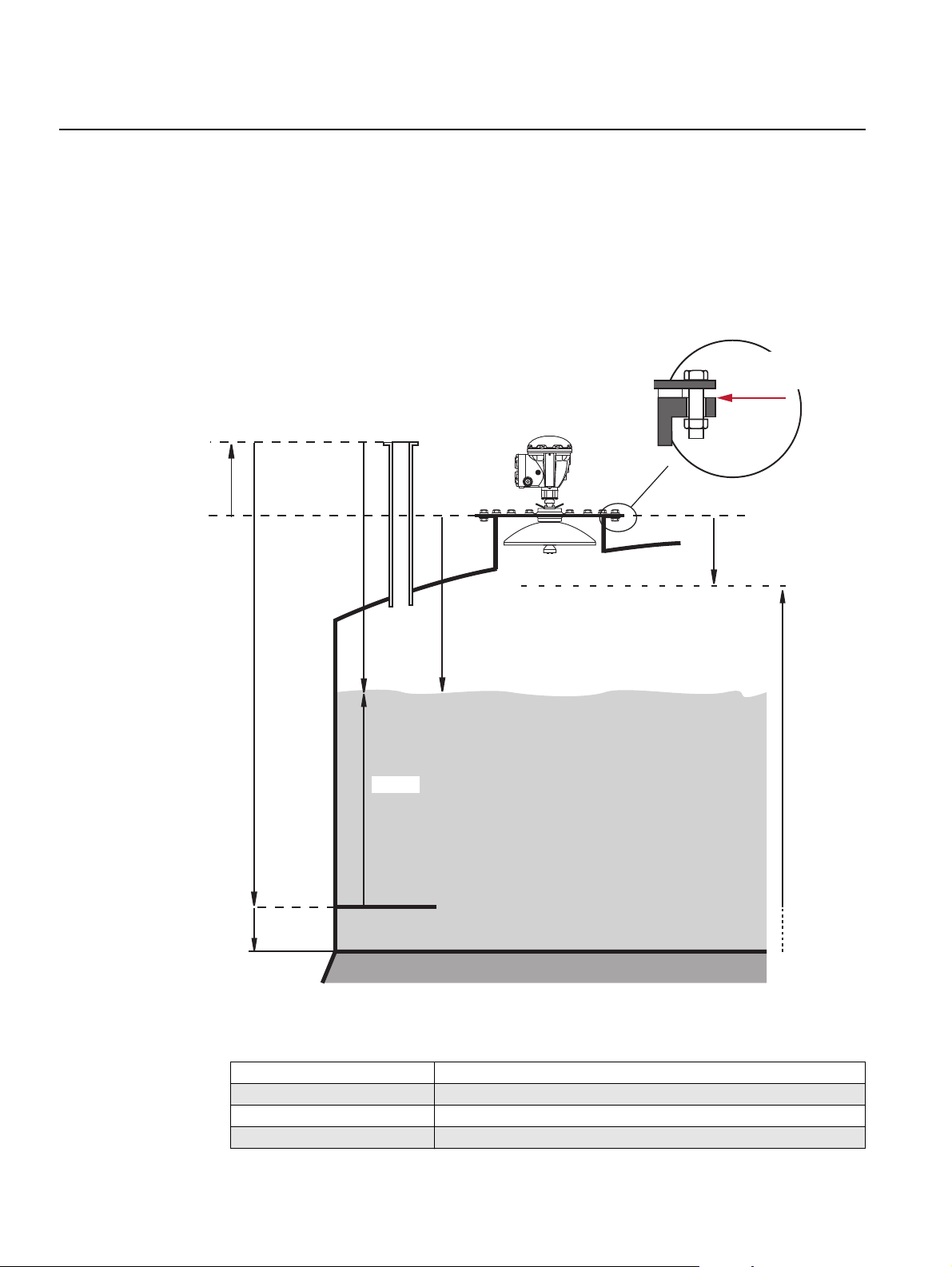

Figure 4-1. Tank geometry
parameters for the 5900S
Gauge Reference
Point
Tank Reference Point
Gauge Reference
Distance (G)
Gauge Reference Point
Tank Reference
Height (R)
Minimum Level Offset (C)
Tank Ullage
Hold Off Distance
Ullage
Level
MEASURING RANGE
Zero Level
(Dipping Datum Point)
Table 4-1. Definition of tank
geometry parameters
Tank Height (R) Distance from Tank Reference Point to Zero level
Gauge Reference Distance (G) Distance from Tank Reference Point to the Gauge Reference Point
Minimum Level Offset (C) Distance from Zero Level to tank bottom
Hold Off Distance Defines how close to the Gauge Reference Point levels can be measured
4-6
Section 4. Configuration
Page 91
Reference Manual
00809-0100-5900, Rev CA
June 2014

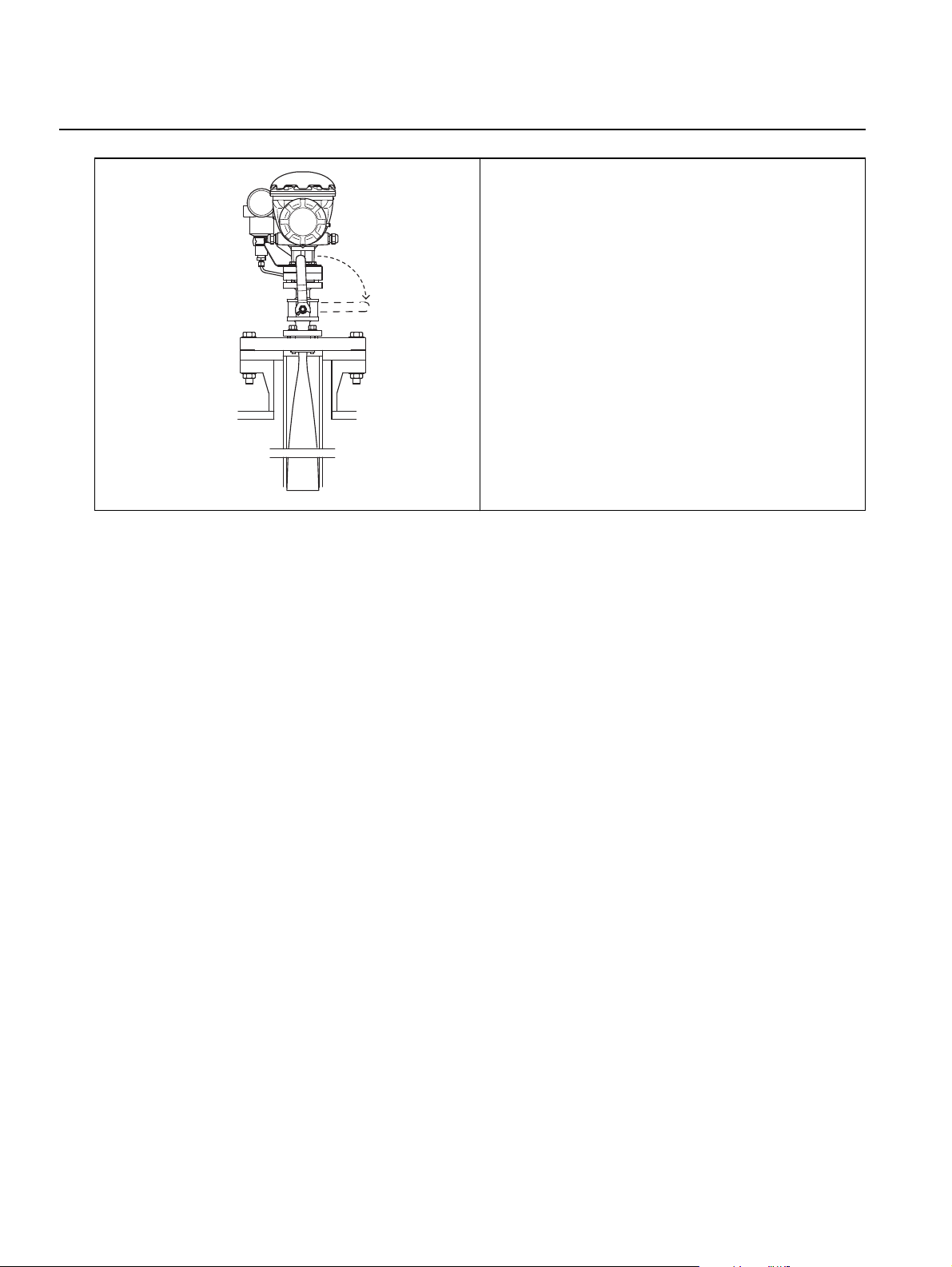

Figure 4-2. Tank geometry for
Array Antenna with hinged hatch
Rosemount 5900S Series
The 5900S with Array Antenna and hinged hatch allows you to hand dip by
opening the lid and moving the gauge away from the tank opening. A hand dip
plate is located inside the hatch. The plate is used as the Tank Reference
Point for the tank geometry parameter Tank Height (R).
Hand dip plate /
Tank Reference Point
Tank Reference Point
Tank Reference
Height (R)
Minimum Level Offset (C)
Hold Off Distance
Tank
Ullage
Level
Zero Level
MEASURING RANGE
Zero Level (Dipping Datum Point)
Section 4. Configuration
4-7
Page 92
Rosemount 5900S Series

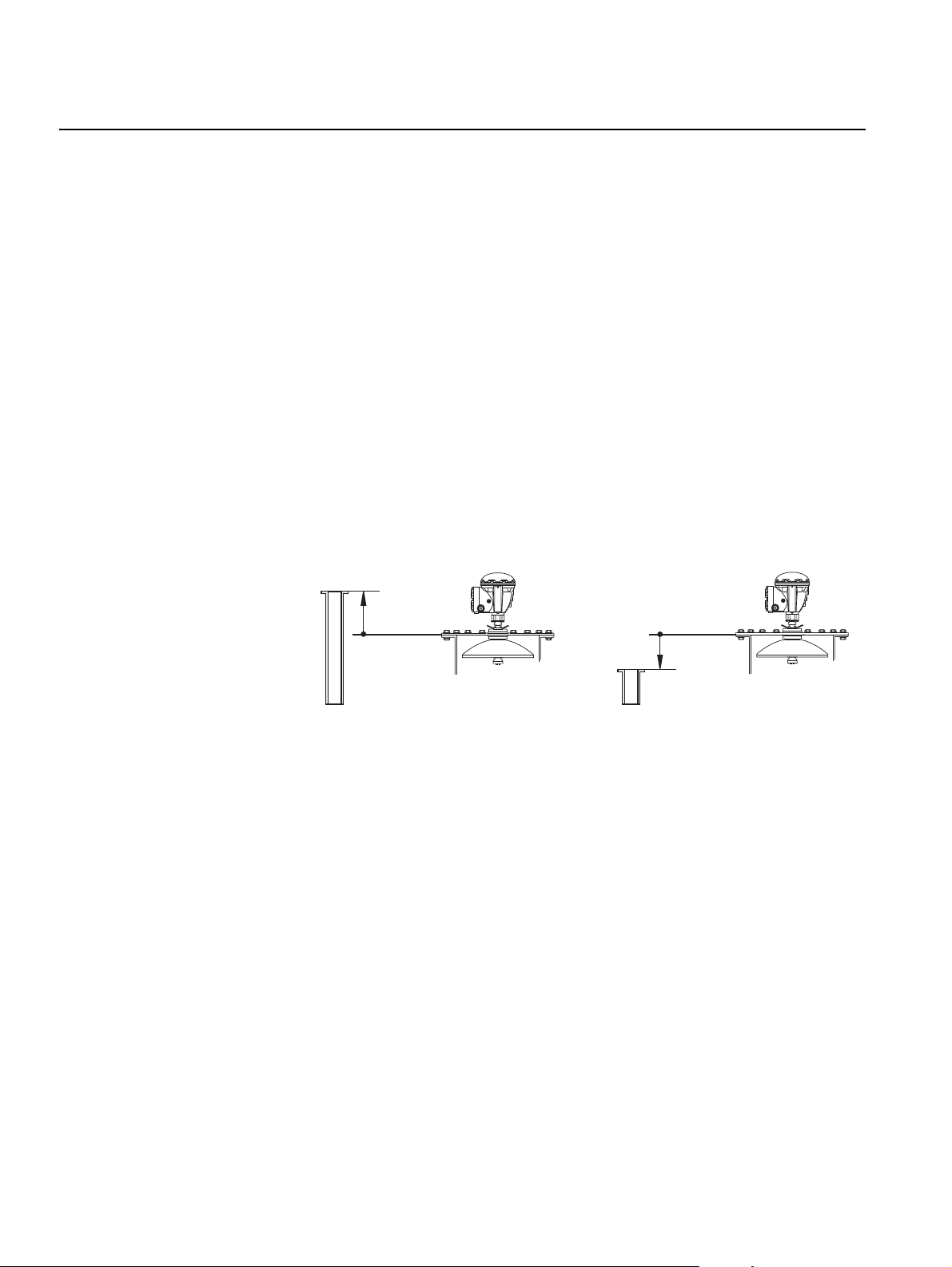

Figure 4-3. Definition of Gauge
Reference Distance
Reference Manual
00809-0100-5900, Rev CA
June 2014
Tank Reference Height (R)
The Tank Reference Height (R) is the distance from the hand dipping nozzle
(Tank Reference Point) to the Zero Level (Dipping Datum Plate) close to, or at
the bottom of the tank. For the Array Antenna with hinged hatch the reference
point is located at the hand dip plate as illustrated in Figure 4-2 on page 4-7.
Gauge Reference Distance (G)
The Gauge Reference Distance (G) is measured from the Gauge Reference
Point to the Tank Reference Point, which is located at the top surface of the
customer’s flange or manhole cover on which the level gauge is mounted as
illustrated in Figure 4-1 and Figure 4-3.
For the hinged hatch version of the 5900S with Array Antenna, the Tank
Reference Point and the Gauge Reference Point are located at the same
position i.e. at the hand-dip plate on the Still Pipe Gauge Stand as illustrated
in Figure 4-2 on page 4-7.
Set G=0 for the 5900S with Array Antenna hinged hatch version when using
the hand dip plate as the Tank Reference Point (see Figure 4-2).
G is positive if the Tank Reference Point is located above the Gauge
Reference Point. Otherwise G is negative.
Tank Reference Point
G>0
Gauge Reference Point
G<0
Minimum Level Offset (C)
The Minimum Level Distance (C) is defined as the distance between the Zero
Level (Dipping Datum Point) and the Minimum Level of the product surface
(tank bottom). By specifying a C-distance, the measuring range can be
extended to the bottom of the tank.
If C>0, negative level values will be displayed when the product surface is
below the Zero Level. Select the Show negative level values as zero check
box in TankMaster WinSetup if you want levels below the Zero Level to be
displayed as Level=0.
Measurements below the Zero Level will not be approved if the C-distance=0,
i.e. the 5900S will report an invalid level.
Hold Off Distance
The Hold Off distance defines how close to the Gauge Reference Point a level
value is accepted. Normally the Hold Off distance does not need to be
changed. However, if there are disturbing echoes in the upper part of the tank,
for example from the tank nozzle, you can increase the Hold Off distance in
order to avoid measurements in the region close to the antenna.
4-8
Section 4. Configuration
Page 93
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount 5900S Series
Calibration Distance
Use this variable to calibrate the 5900S so that measured product levels
match hand dipped levels. A minor adjustment may be necessary when the
gauge is installed if, for example, there is a deviation between the actual tank
height and the height given by tank drawings.
See “Calibration Using WinSetup” on page 4-29 for more information.
Pipe Diameter
When a Rosemount 5900S Radar Level Gauge is installed in a still-pipe, the
inner diameter of the pipe must be specified. The Pipe Diameter is used to
compensate for the lower microwave propagation speed inside the pipe. An
incorrect value results in a scale factor error. If locally supplied still pipes are
used, make sure the inner diameter is noted before the pipe is installed.
Section 4. Configuration
4-9
Page 94
Reference Manual
Rosemount 5900S Series
00809-0100-5900, Rev CA
June 2014
4.4.2 Tank Scan The Tank Scan window is a useful tool for analyzing the Rosemount 5900S
measurement signal. It allows you to view tank echoes and setup the most
important parameters to enable the gauge to distinguish between the surface
echo and disturbing echoes and noise.
To open the Tank Scan window:
1. Start the TankMaster WinSetup program.
2. In the TankMaster WinSetup workspace, click the right mouse button on
the icon that represents the 5900S Radar Level Gauge.
3. From the popup menu choose the Properties option.
The RLG Properties window appears.
4. In the RLG Properties window, select the Advanced Configuration tab.
5. Click the Tank Scan button to open the Tank Scan window:
Figure 4-4. The WinSetup Tank
Scan window
4-10
6. The Tank Scan window contains the Graph Area, Legend/Options area,
File Storage buttons, and various action buttons.
When the Tank Scan window is opened, the system starts reading tank data
from the gauge (indicated by a progress bar in the lower right-hand corner).
The Tank Echo curve shows the measurement signal in graphical form. In
addition to the surface echo there might be echoes from obstacles in the tank.
In the graph area you can configure the gauge to filter out echoes that
originate from obstacles in the tank in order to facilitate tracking of the product
surface echo.
The tank echo and echo peaks can be refreshed at any time with the Reread
From Gauge button. The new echo curve will be shown as a black line and
the previous curve as a grey line. The graph may show up to two old echo
curves. An old echo peak will be marked by a small cross. This can be used to
compare the existing tank signal with previous signals.
See the Raptor System Configuration manual (Document No. 300510EN) for
more information on how to use the Tank Scan function.
Section 4. Configuration
Page 95
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount 5900S Series
4.4.3 Empty Tank Handling
Figure 4-5. The WinSetup
Empty Tank Handling window
The Rosemount 5900S Empty Tank Handling function handles situations
when the surface echo is close to the tank bottom. It has the ability to:
• track weak product echoes
• handle lost echoes
If the surface echo is lost this function makes the 5900S present a zero-level
measurement.
To open the Empty Tank Handling window:
1. In the TankMaster WinSetup workspace, click the right mouse button on
the icon that represents the desired 5900S Radar Level Gauge.
2. From the popup menu choose the Properties option.
The RLG Properties window appears.
3. In the RLG Properties window, select the Advanced Configuration tab.
4. Click the Empty Tank Handling button:
Section 4. Configuration
Level Alarm is not set when Tank is Empty
In case the product surface echo is lost in the Empty Tank Detection Area
close to the tank bottom, the device will enter Empty Tank state and an
Invalid Level Alarm is triggered (appears in the Diagnostics window).
Enable this check box if you don’t want the alarm to be triggered when the
gauge enters empty tank state.
4-11
Page 96
Rosemount 5900S Series
Reference Manual
00809-0100-5900, Rev CA
June 2014
Activate Extra Echo Function
The Extra Echo Detection function is used for tanks with a dome or conical
bottom shape provided the tank bottom does not produce a strong echo when
the tank is empty. This function results in more robust measurements near the
tank bottom.
For tanks with a conical bottom, an echo may appear beneath the actual tank
bottom when the tank is empty. If the device is not able to detect the tank
bottom this function can be used to ensure that the device stays in empty tank
state as long as this extra echo is present.
You can find out if such an echo exists by using the Tank Scan function when
the tank is empty. Ensure that the scan extends below the tank bottom. The
tank spectrum can be used to find suitable values for parameters such as the
Extra Echo Min Distance, Extra Echo Max Distance and Extra Echo Min
Amplitude. The tank is considered empty when an echo appears within the
Min and Max Distance at an amplitude above the specified threshold.
Extra Echo Min Distance
Defines the minimum distance to the extra echo. This parameter should be
greater than the Tank Height.

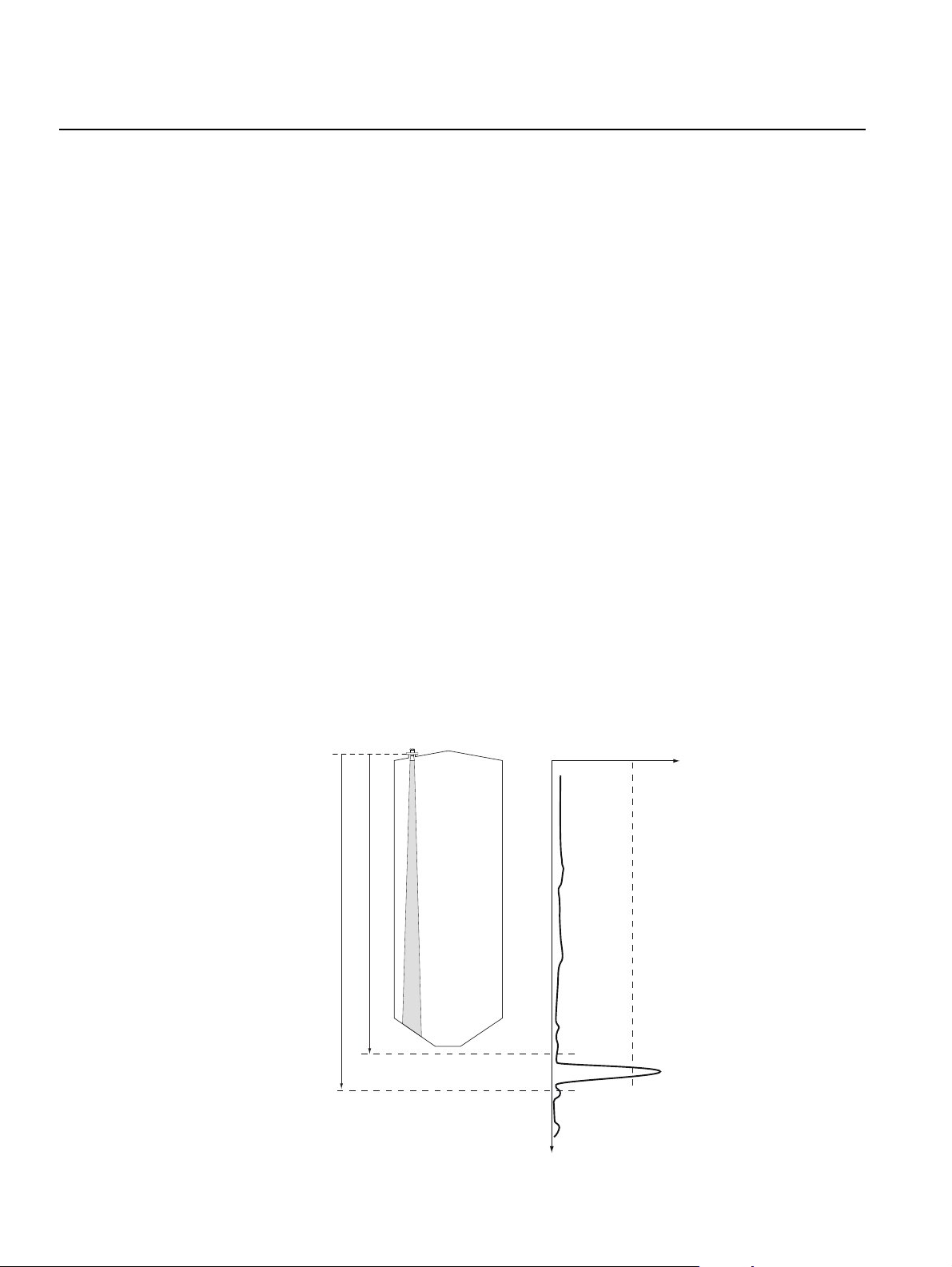

Figure 4-6. The Extra Echo
Function
Extra Echo Max Distance
Defines the maximum distance to the extra echo. This parameter should
be greater than the Extra Echo Min Distance.
Extra Echo Min Amplitude
Defines the minimum signal strength of the extra echo. If the signal
strength exceeds this value and is found in the region between Min
Distance and Max Distance, the device stays in empty tank state and
presents Level=0.
Amplitude
Extra Echo Min. Distance
Extra Echo Max. Distance
Distance
4-12
Section 4. Configuration
Page 97
Reference Manual
00809-0100-5900, Rev CA
June 2014

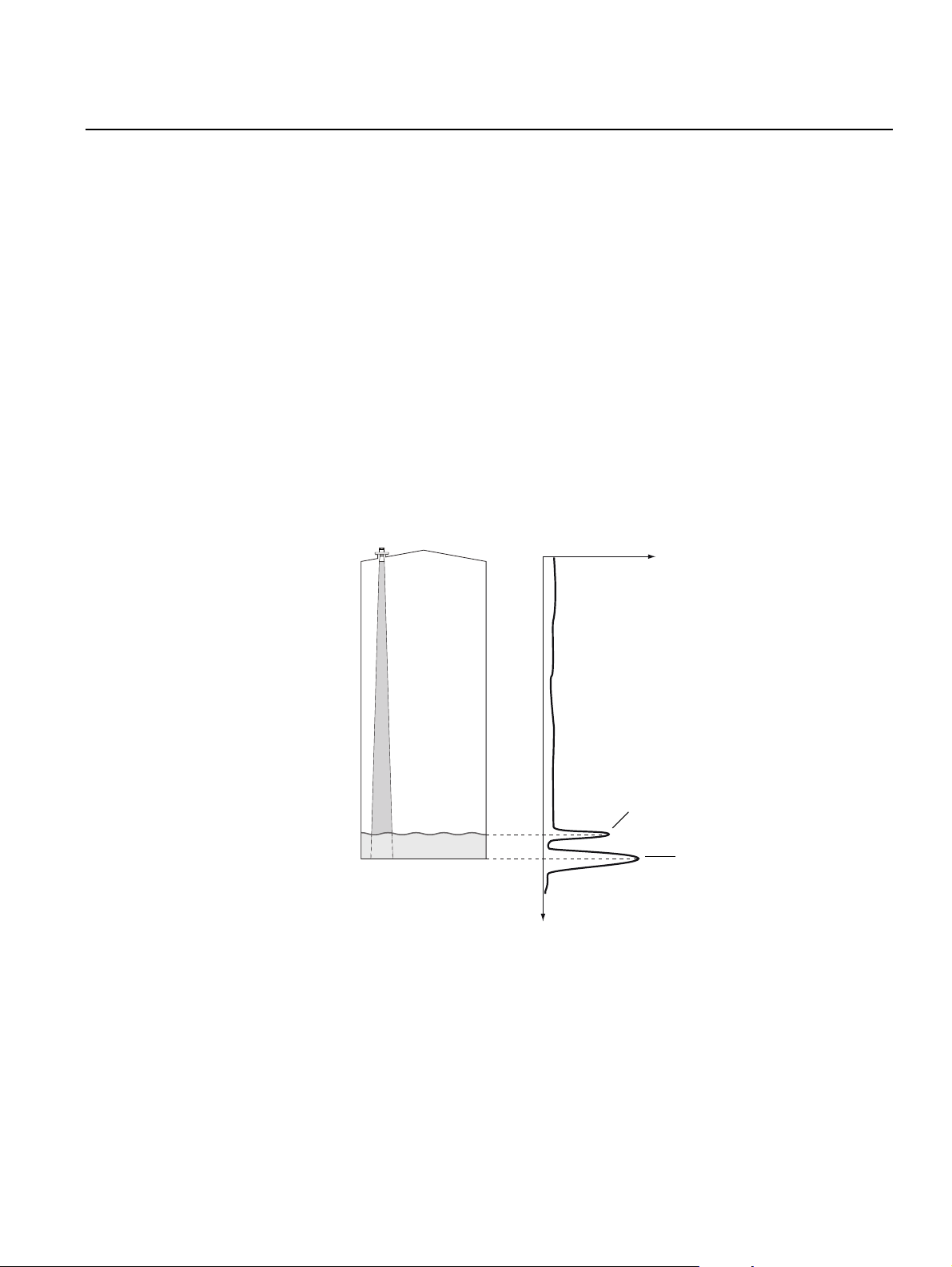

Figure 4-7. Bottom Echo Visible
Rosemount 5900S Series
Bottom Echo Visible if Tank is Empty
By using this function the level gauge will be able to track relatively weak
surface echoes close to the tank bottom by treating the bottom echo as a
disturbance echo. This function may be useful for products which are
relatively transparent for microwaves such as oil.
Before activating this function, you should use the WinSetup/Tank Scan
function to find out if there is a clearly visible echo at the tank bottom when the
tank is empty. If this is the case, the Bottom Echo Visible If Tank Is Empty
check box in the Empty Tank Handling window should be marked.
If the Bottom Echo Visible... function is disabled, searching for the product
surface echo is limited to a region close to the tank bottom (Empty Tank
Detection Area).
If there is no strong bottom echo interfering with the surface echo, mark the
Use Automatic Empty Tank Handling Settings check box to let the level gauge
automatically control the empty tank handling function.
Amplitude
Distance
Surface echo
Echo at tank bottom
Section 4. Configuration
4-13
Page 98
Rosemount 5900S Series

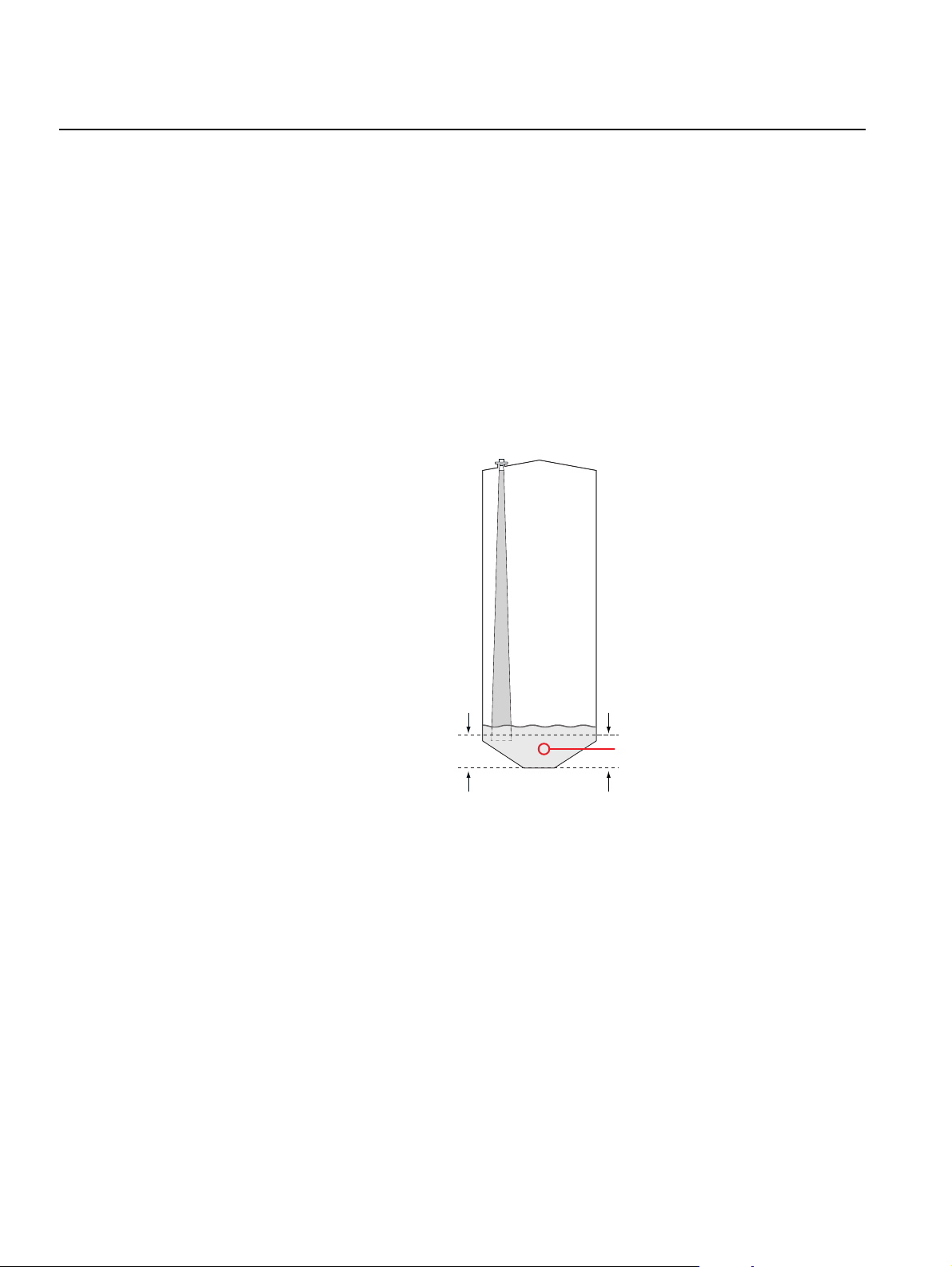

Figure 4-8. Empty Tank
Detection Area
Reference Manual
00809-0100-5900, Rev CA
June 2014
Empty Tank Detection Area
The Empty Tank Detection Area defines a range within a lower limit of
200 mm (8 in.) above the tank bottom. If the surface echo is lost in this region,
the tank is considered empty (the device enters Empty Tank State) and the
level gauge presents a zero level reading.
If the tank is empty the 5900S level gauge searches for the product surface in
a region 2 x Empty Tank Detection Area. It is important that there are no
disturbances in this area, since when a new echo is found it is considered to
be the product surface. To ensure robust measurements in this region,
disturbances may need to be filtered out.
The Empty Tank Detection Area is only used if there is no visible bottom
echo. The Bottom Echo Visible if Tank is Empty function shall be disabled.
Minimum 200 mm (8 in.)
Empty Tank Detection Area
If the product surface is lost in this
region the tank is considered empty
4-14
Section 4. Configuration
Page 99
Reference Manual
00809-0100-5900, Rev CA
June 2014
Rosemount 5900S Series
4.5 ADVANCED CONFIGURATION
There are a number of advanced configuration options for the Rosemount
5900S gauge which may be useful in certain situations. These options are
available via TankMaster Winsetup and the 5900 RLG Properties window.
4.5.1 Environment Foam
You can use this parameter to optimize the gauge for conditions with low and
varying surface echo amplitudes such as foam. When the foam is light and
airy the actual product level is measured. For heavy and dense foam the
transmitter measures the level of the upper surface of the foam.
Turbulent Surface
Splash loading, agitators, mixers, or boiling products may cause a turbulent
surface. Normally the waves in a tank are quite small and cause local rapid
level changes. By setting the Turbulent Surface parameter the performance of
the level gauge will be improved when there are small and quickly changing
amplitudes and levels.
Rapid Level Changes
Optimize the level gauge for measurement conditions where the product level
changes quickly due to filling and emptying of the tank. The Rosemount
5900S is able to track level changes of up to 1.5 inch/s (40 mm/s). The Rapid
Level Changes function allows the 5900S to track level changes of up to 8
inch/s (200 mm/s).
The Rapid Level Changes function shall not be used in normal conditions
when the product surface moves slowly.
Solid Products
Setting this parameter optimizes the gauge for solid products, for example
concrete or grains, which are not transparent for radar signals. For instance,
this parameter can be used when the application is a silo with product
build-up.
Product Dielectric Range
The Dielectric Constant is related to the reflectivity of the product. This
parameter can be used to optimize measurement performance. However, the
level gauge will still be able to perform well even if the actual Dielectric
Constant differs from the configured value.
4.5.2 Tank Shape The Tank Type and Tank Bottom Type parameters optimize the 5900S for
various tank geometries and for measurements close to the tank bottom.
Section 4. Configuration
4-15
Page 100
Rosemount 5900S Series
Reference Manual
00809-0100-5900, Rev CA
June 2014
4.5.3 Surface Echo Tracking

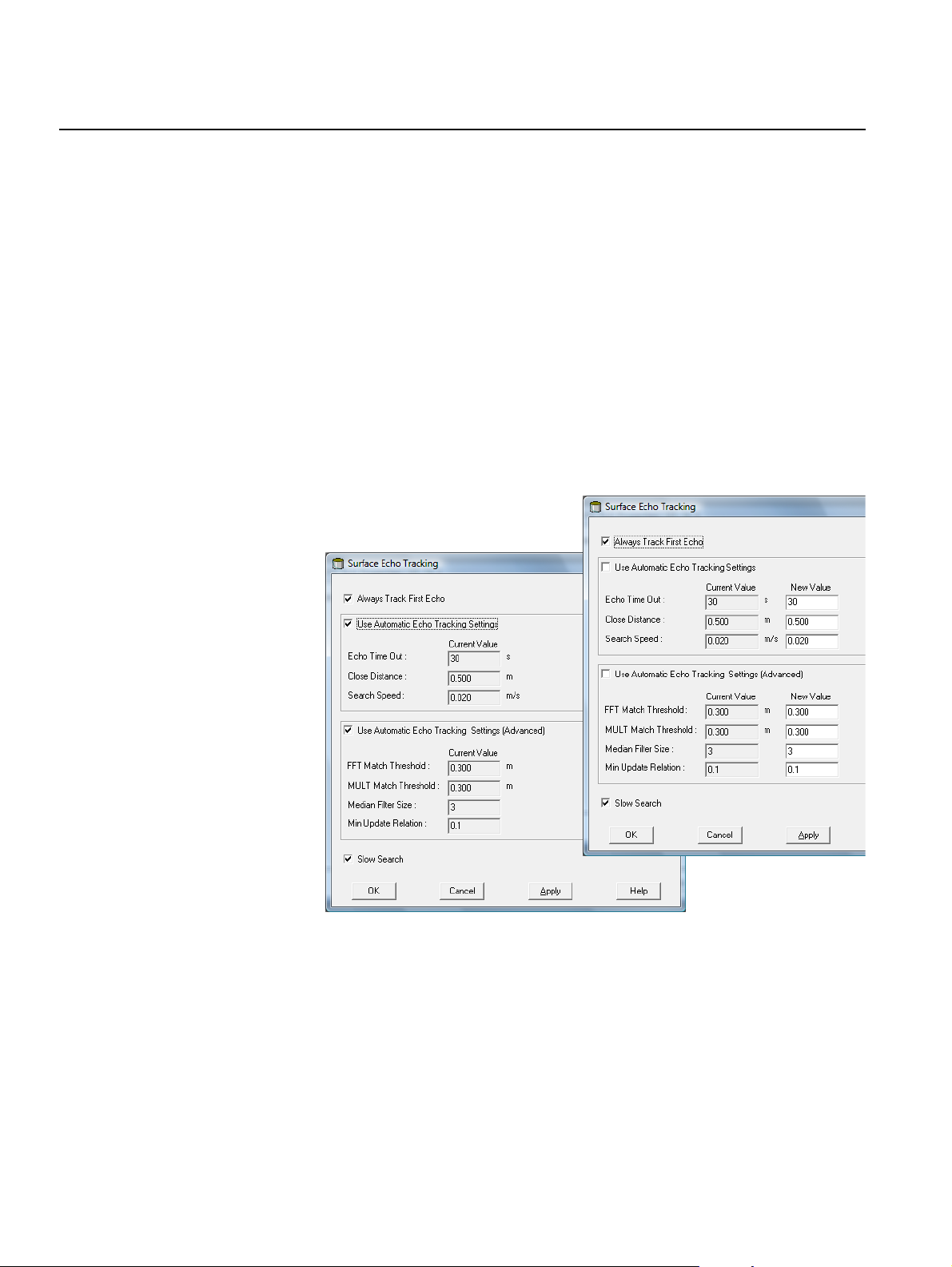

Figure 4-9. The WinSetup
Surface Echo Tracking window
The Surface Echo Tracking function can be used to eliminate problems with
certain types of ghost echoes below the product surface. This may, for
example, occur in still-pipes as a result of multiple reflections between the
pipe wall, flange and antenna. In the tank spectrum these echoes appear as
amplitude peaks at various distances below the product surface.
To activate this function, ensure that there are no disturbing echoes above the
product surface and select the Always Track First Echo check box.
To open the Surface Echo Tracking window:
1. In the TankMaster WinSetup workspace, click the right mouse button on
the desired 5900S Radar Level Gauge icon.
2. Choose the Properties option from the popup menu.
3. In the RLG Properties window, select the Advanced Configuration tab.
4. Click the Surface Echo Tracking button:
4-16
Echo Time Out
Use Echo Time Out to define the delay time until the gauge will start
searching for a surface echo after it has been lost. Until this period of time has
elapsed, the gauge will not start searching or trigger any alarms.
Section 4. Configuration
