Emerson Rosemount 3308A Reference Manual

Reference Manual

00809-0100-4308, Rev BB

October 2016

Rosemount™ 3308 Series Wireless Guided Wave Radar, Rosemount 3308A

Reference Manual

00809-0100-4308, Rev BB

Rosemount™ 3308 Series Wireless
Guided Wave Radar Level Transmitter

NOTICE

Read this manual before working with the product. For personal and system safety, and for optimum
product performance, make sure you thoroughly understand the contents before installing, using, or
maintaining this product.

The United States has two toll-free assistance numbers and one international number.
Customer Central

1-800-999-9307 (7:00 a.m. to 7:00 p.m. CST)
North American Response Center

1-800-654-7768 (24 hours a day)
Equipment service needs

International
1-952-906-8888

Power Module Considerations.

Each Power Module contains two "C" size primary lithium/thionyl chloride batteries. Each battery
contains approximately 2.5 grams of lithium, for a total of 5 grams in each pack. Under normal
conditions, the battery materials are self-contained and are not reactive as long as the batteries and the
pack integrity are maintained. Care should be taken to prevent thermal, electrical or mechanical
damage. Contacts should be protected to prevent premature discharge.

Battery hazards remain when cells are discharged.
Power modules should be stored in a clean and dry area. For maximum battery life, storage temperature

should not exceed 30 °C.
The Power Module may be replaced in a hazardous area. The Power Module has surface resistivity

greater than one gigaohm and must be properly installed in the wireless device enclosure. Care must be
taken during transportation to and from the point of installation to prevent electrostatic charge
build-up.

Shipping considerations for wireless products.

The unit was shipped to you without the Power Module installed. Please remove the Power Module prior
to shipping the unit.

Each Power Module contains two "C" size primary lithium/thionyl chloride batteries. Primary lithium
batteries (charged or discharged) are regulated during transportation by the U.S. Department of
Transportation. They are also covered by IATA (International Air Transport Association), ICAO
(International Civil Aviation Organization), and ARD (European Ground Transportation of Dangerous
Goods). It is the responsibility of the shipper to ensure compliance with these or any other local
requirements. Consult current regulations and requirements before shipping.

Title Page

October 2016

Title Page

iii

Title Page

October 2016

Reference Manual

00809-0100-4308, Rev BB

Explosions could result in death or serious injury.

 Verify that the operating environment of the gauge is consistent with the appropriate hazardous

locations certifications.

 Installation of device in an explosive environment must be in accordance with appropriate local,

national and international standards, codes, and practices.

 Ensure device is installed in accordance with intrinsically safe or non-incendive field practices.

Electrical shock can result in death or serious injury.

 Ground device on non-metallic tanks (e.g. fiberglass tanks) to prevent electrostatic charge build-up.
 Single lead probes are sensitive for strong electromagnetic fields and therefore not suitable for

non-metallic tanks.

 Care must be taken during transportation of power module to prevent electrostatic charge build-up.
 Device must be installed to ensure a minimum antenna separation distance of 8 in. (20 cm) from all

persons.

 Probes covered with plastic and/or with plastic discs may generate an ignition-capable level of

electrostatic charge under certain extreme conditions. Therefore, when the probe is used in a
potentially explosive atmosphere, appropriate measures must be taken to prevent electrostatic
discharge.

Process leaks could result in death or serious injury.

 Only qualified personnel should install the equipment.
 Install transmitter prior to process start-up.
 Install and tighten process connectors before applying pressure.
 Handle the transmitter carefully.
 Do not remove the transmitter while in operation.
 If the process seal is damaged, gas could escape from the tank when removing the transmitter head

from the probe.

Failure to follow safe installation guidelines could result in death or serious injury.

 Verify that the operating environment of the gauge is consistent with the appropriate hazardous

locations certifications.

 Make sure the transmitter is installed by qualified personnel and in accordance with applicable code

of practice.

 Use the equipment only as specified in this manual. Failure to do so may impair the protection

provided by the equipment.

iv

Title Page

Reference Manual

00809-0100-4308, Rev BB

Electronic boards are electrostatically sensitive. Failure to observe proper handling precautions for
static-sensitive components can result in damage to the electronic components. Do not remove the
electronic boards from the Rosemount 3308 Series Transmitter.

To ensure long life for your radar transmitter, and to comply with hazardous location installation
requirements, tighten covers on both sides of the electronics housing.

Any substitution of non-recognized parts may jeopardize safety. Repair, e.g. substitution of components
etc., may also jeopardize safety and is under no circumstances allowed.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: This
device may not cause harmful interference. This device must accept any interference received, including
interference that may cause undesired operation. This device must be installed to ensure a minimum
antenna separation distance of 20 cm (8 in.) from all persons.

Title Page

October 2016

The products described in this document are NOT designed for nuclear-qualified applications.
Using non-nuclear qualified products in applications that require nuclear-qualified hardware or

products may cause inaccurate readings.
For information on Rosemount nuclear-qualified products, contact your local Emerson Process

Management Sales Representative.

Individuals who handle products exposed to a hazardous substance can avoid injury if they are informed
of and understand the hazard. If the product being returned was exposed to a hazardous substance as
defined by Occupational Safety and Health Administration (OSHA), a copy of the required Material
Safety Data Sheet (MSDS) for each hazardous substance identified must be included with the returned
goods.

Use caution when handling the Power Module. The Power Module may be damaged if dropped from
heights in excess of 20 ft (6 m).

Changes or modifications to the equipment not expressly approved by Rosemount Inc. could void the
user’s authority to operate the equipment.

Title Page

v

Title Page

October 2016

Reference Manual

00809-0100-4308, Rev BB

vi

Title Page

Reference Manual

00809-0100-4308, Rev BB

Contents

1Section 1: Introduction

2Section 2: Transmitter Overview

Contents

October 2016

1.1 Using this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.2 Product recycling/disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

2.1 Theory of operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2.2 Wireless by Emerson

2.3 Application characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.3.1 Tank shape. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.3.2 In-tank obstructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.3.3 Interface level measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.4 Application examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.5 Components of the transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

™

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.6 Probe selection guide for the Rosemount 3308 Series Transmitter. . . . . . . . . . . . . . . . . . . . . . 10

3Section 3: Installation

3.1 Safety messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.2 Installation procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.3 Review mounting considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.3.1 Recommended mounting position. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.3.2 Flange connection on nozzles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.3.3 Installation in non-metallic tanks and open-air applications . . . . . . . . . . . . . . . . . . . . . . 19

3.4 Review mounting preparations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3.4.1 Measure tank height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3.4.2 Shorten the probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3.4.3 Mount a centering disc for pipe installations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

3.5 Anchor the probe. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

3.5.1 Flexible single/twin lead probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

3.5.2 Rigid single lead probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

3.5.3 Coaxial probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

3.6 Mount device on tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

3.6.1 Threaded tank connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

3.6.2 Tank connection with flange . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Content s

3.6.3 Tank connection with loose flange (“plate design”) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

3.6.4 Tank connection with Tri Clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

i

Contents

October 2016

Reference Manual

00809-0100-4308, Rev BB

3.6.5 Segmented probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

3.7 Ground the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

3.8 Install the power module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

3.9 Position the antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

3.10Utilize the device display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

3.10.1Rotate the device display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

3.10.2Retrofitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

4Section 4: Configuration

4.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

4.2 Safety messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

4.3 Configuration procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

4.4 Get started with your preferred configuration tool. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

4.4.1 AMS Wireless Configurator (version 12.0 or later is required) . . . . . . . . . . . . . . . . . . . . . 54

4.4.2 Field Communicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

4.5 Join device to wireless network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

4.5.1 Power up the wireless device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

4.5.2 Connect to device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

4.5.3 Configure Update Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

4.5.4 Obtain Network ID and Join Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

4.5.5 Enter Network ID and Join Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

4.5.6 Verify device joins network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

4.6 Configure device using Guided Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

4.6.1 Connect to device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

4.6.2 Basic Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

4.6.3 Optional Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

4.7 Verify Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

5Section 5: Operation

5.1 Safety messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

5.2 Device display screen messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

5.2.1 Variable screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

5.2.2 Diagnostic button screen sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

5.3 View measurement values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

5.3.1 View current measurement values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

5.3.2 View trends . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

5.3.3 Interpret measurement status bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

5.4 Check Device Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

ii

Contents

Reference Manual

00809-0100-4308, Rev BB

6Section 6: Service and Troubleshooting

Contents

October 2016

6.1 Safety messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

6.2 Alert messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

6.2.1 Device display alerts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

6.2.2 Alert messages in AMS Wireless Configurator and Field Communicator. . . . . . . . . . . . 81

6.3 Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

6.3.1 Incorrect level readings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

6.3.2 Incorrect or missing interface level reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

6.3.3 Power module troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

6.3.4 Device display troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

6.3.5 Wireless Network troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

6.4 Service and troubleshooting tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

6.4.1 Reading the Echo Curve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

6.4.2 Adjusting thresholds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

6.4.3 Viewing Measurement History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

6.4.4 Reviewing Network Join Status and Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

6.4.5 Locating the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

6.4.6 Using the Simulation Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

6.5 Application challenges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

6.5.1 Resolving thin oil layers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

6.5.2 Handling disturbances at the top of the tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

6.5.3 Interface measurements with fully submerged probes. . . . . . . . . . . . . . . . . . . . . . . . . . 100

6.5.4 Noise or weak surface echoes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

6.6 Power module replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

6.7 Transmitter head replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

6.8 Probe replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

6.9 Service support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

AAppendix A: Specifications and Reference Data

A.1 Functional specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107

A.1.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107

A.1.2 Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

A.1.3 Display and configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

A.1.4 Temperature limits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

A.1.5 Process temperature and pressure rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108

A.1.6 Interface measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Content s

A.1.7 Conditions used for flange strength calculations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

A.2 Performance specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

iii

Contents

October 2016

Reference Manual

00809-0100-4308, Rev BB

A.2.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111

A.2.2 Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

A.2.3 Interface measuring range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

A.2.4 Accuracy over measuring range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

A.3 Physical specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

A.3.1 Material selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

A.3.2 Tank connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

A.3.3 Flange dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

A.3.4 Probes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

A.3.5 Material exposed to tank atmosphere . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

A.3.6 Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116

A.3.7 End weight and anchoring options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

A.3.8 Installation in non-metallic tanks and open-air applications . . . . . . . . . . . . . . . . . . . . .119

A.3.9 Other mechanical considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

A.3.10Engineered solutions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119

A.3.11Chamber/pipe installations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

A.4 Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

A.5 Spare parts and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

A.6 Dimensional drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

BAppendix B: Product Certifications

B.1 Safety messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

B.2 Product certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

B.2.1 European Union Directive Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

B.2.2 Approved manufacturing locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

B.2.3 ATEX Directives (94/9/EC) (2014/34/EU). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

B.2.4 Electro Magnetic Compatibility (EMC) (2004/108/EC) (2014/30/EU) . . . . . . . . . . . . . 146

B.2.5 Radio and Telecommunications Terminal Equipment Directive (R&TTE) (1999/5/EC). .

146

B.2.6 Telecommunication Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

B.2.7 FCC and IC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

B.2.8 Ordinary Location Certification for FM Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

B.2.9 Pressure Equipment Directive (PED) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .146

B.2.10Hazardous Locations Certificates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

B.2.11Other certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

B.3 Approval drawings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

iv

Contents

Reference Manual

00809-0100-4308, Rev BB

CAppendix C: High Gain Remote Antenna Option

Contents

October 2016

C.1 Safety messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

C.2 Functional and physical specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .152

C.2.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

C.2.2 Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .152

C.2.3 Coaxial cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

C.2.4 RF Lightning Arrestor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .152

C.2.5 Mounting bracket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

C.2.6 Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

C.3 Review installation considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

C.3.1 Antenna mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .152

C.3.2 Antenna height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .152

C.3.3 Affix coaxial cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

C.3.4 Install coaxial drip loop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .153

C.3.5 Apply coaxial sealant moisture protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

C.4 Transient/lightning considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

C.4.1 Gateway transient protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

C.4.2 RF lightning arrestor ground connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

C.5 Install the high gain remote antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .154

DAppendix D: Configuration Parameters

D.1 Safety messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

D.2 Menu overview of the Device Descriptor (DD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .158

D.3 Configuration parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159

D.3.1 Guided Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159

D.3.2 Manual Setup - Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .162

D.3.3 Manual Setup - Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

D.3.4 Alert Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .171

D.3.5 Echo Tuning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

EAppendix E: Alert Message Mapping

E.1 Alert messages and descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

Content s

v

Contents

October 2016

Reference Manual

00809-0100-4308, Rev BB

vi

Contents

Reference Manual

00809-0100-4308, Rev BB

Section 1 Introduction

1.1 Using this manual

The sections in this manual provide information on installing, configuring, operating, and maintaining
the Rosemount

Section 2: Transmitter Overview provides an introduction to theory of operation and description of the

transmitter. Information on applications and a probe selection guide are also included.

Section 3: Installation contains mechanical and electrical installation instructions.

Section 4: Configuration provides instructions on how to configure and make the transmitter join the

wireless network.

Section 5: Operation contains operation techniques such as viewing measurement data and display

functionality.

Section 6: Service and Troubleshooting provides troubleshooting techniques for the most common

operating problems, as well as diagnostic and error messages, and service instructions.

™

3308 Series Transmitter. The sections are organized as follows:

Introduction

October 2016

Appendix A: Specifications and Reference Data supplies reference and specification data, as well as ordering

information.

Appendix B: Product Certifications contains hazardous locations certifications and approval drawings.

Appendix C: High Gain Remote Antenna Option contains specification and installation information of the high

gain remote antenna option.

Appendix D: Configuration Parameters provides a menu overview for the Device Descriptor in AMS

Configurator and the Field Communicator. Description of the configuration parameters is also included.

Appendix E: Alert Message Mapping outlines the most important alerts in the HART

Additional Status Field for Rosemount 3308 Series.

1.2 Product recycling/disposal

Recycling of equipment and packaging should be taken into consideration and disposed in accordance
with local and national legislation/regulations.

®

command 48

™

Wireless

Introduction

1

Introduction

October 2016

Reference Manual

00809-0100-4308, Rev BB

2

Introduction

Reference Manual

Time

Reference Peak

Signal Amplitude

Tank He ight

Product Level

Upper Reference Point

Zero Reference Point

Interface
Level

Probe
Length

Product Surface

Peak

Interface Peak

00809-0100-4308, Rev BB

Section 2 Transmitter Overview

Theory of operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3

Wireless by Emerson™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 6

Application characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 6

Application examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 8

Components of the transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 9

Probe selection guide for the Rosemount 3308 Series Transmitter . . . . . . . . . . . . . . . . . . . . . . page 10

2.1 Theory of operation

The Rosemount™ 3308 Series is the first true wireless level transmitter that is based on the Time Domain
Reflectometry (TDR) principle. Low power nano-second-pulses are guided along a probe submerged in
the process media. When a pulse reaches the surface of the material it is measuring, part of the energy is
reflected back to the transmitter, and the time difference between the generated and reflected pulse is
converted into a distance from which the total level or interface level is calculated (see Figure 2-1).

Transmitter Overview

October 2016

The reflectivity of the product is a key parameter for measurement performance. A high dielectric
constant of the media gives better reflection and a longer measuring range.

Figure 2-1. Guided Wave Radar Operating Principle

Tra nsm itter Overv iew

3

Transmitter Overview

F

E

ABCD

October 2016

Reference peak

This peak is caused by the transition between transmitter and the tank vapor space or air. It is used by the
transmitter as a starting reference point for distance to the level surface.

Product surface peak

This peak indicates the product level and is caused by a reflection from the product surface.

Interface peak

This peak indicates the interface level. The peak is caused by reflection from the interface between an
upper product and a bottom product with a relatively high dielectric constant. This peak is identified
when the Measurement Mode is set to Product Level and Interface Level or Interface Level with
Submerged Probe.

Probe end peak

It is caused by reflection from the probe end. If the probe is grounded, the peak will be positive. If the
probe end is submerged in a high dielectric media, such as water, it will not be visible.

Upper reference point

Reference Manual

00809-0100-4308, Rev BB

The Upper Reference Point is located at the underside of the transmitter flange or the bottom end of the
threaded adapter, as illustrated in Figure 2-2 on page 4.

Figure 2-2. Upper Reference Point

A. NPT D. Tri Cla mp
B. BSP/G E. Upper Reference Point
C. Flange F. Probe Length

Zero reference point

The Zero Reference Point is selected by the user and is usually located close to or at the bottom of the
tank. The Zero Reference Point can be set to any position in the tank by adjusting the Tank Height.

4

Tra nsmit ter O vervi ew

Reference Manual

C

A

B

D

E

00809-0100-4308, Rev BB

Tank height

The Tank Height is the distance from the Upper Reference Point to the Zero Reference Point. The
transmitter measures the distance to the product surface and subtracts this value from the Tank Height
to determine the level.

Probe length

The probe length is the distance between the Upper Reference Point and the end of the probe. If a
weight is used at the end of the probe it shall be included.

Blind zones

The measuring range depends on probe type, dielectric constant of the product and installation
environment, and is limited by the Blind Zones at the very top and bottom of the probe. In the Blind
Zones, the accuracy exceeds ±1.18 in. (30 mm), and measurements may not be possible. Measurements
close to the Blind Zones will have reduced accuracy.

Figure 2-3 illustrates how the measuring range is related to the Blind Zones and the areas with reduced

accuracy. Values for different probe types and dielectric constants are presented in section “Ac cu ra cy

over measuring range” on page 113.

Transmitter Overview

October 2016

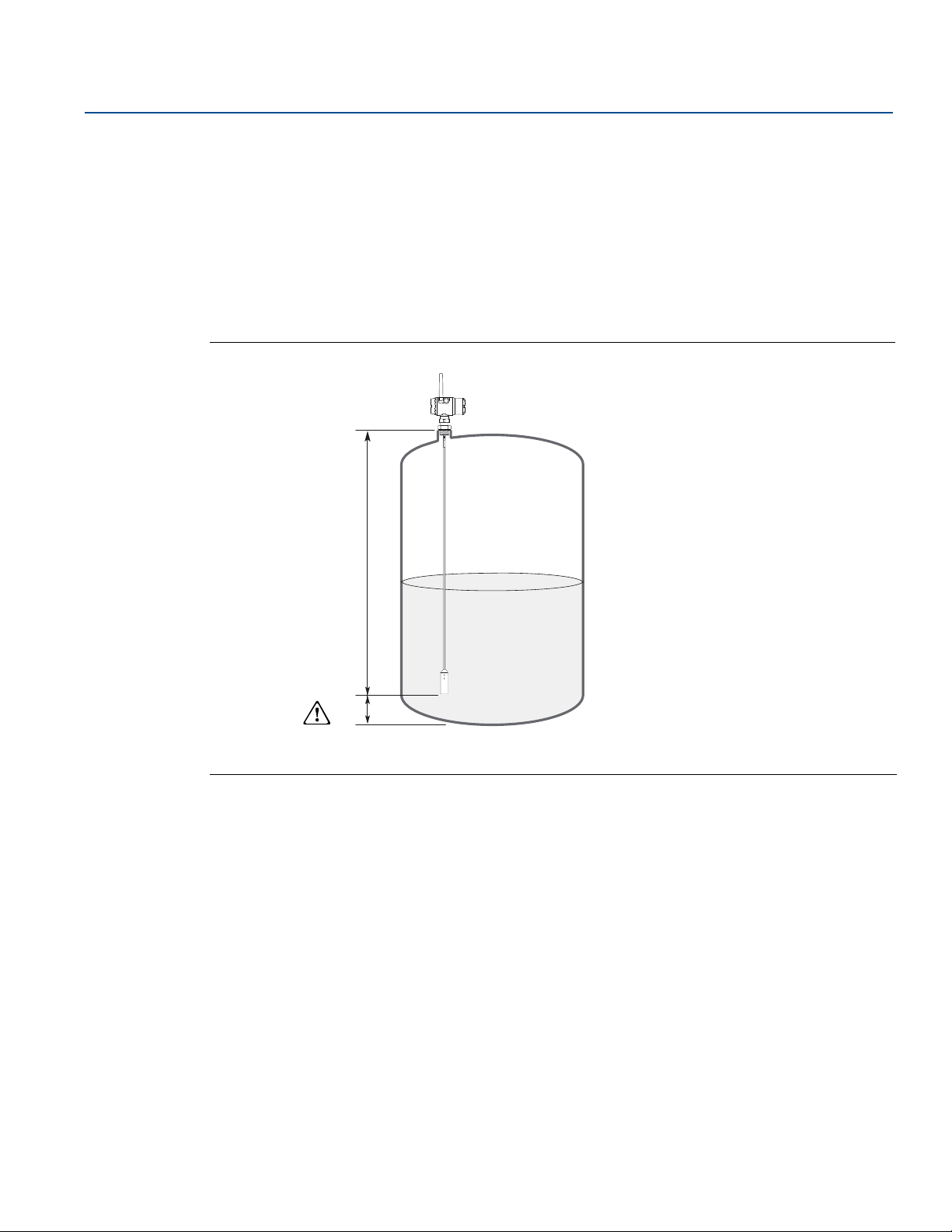

Figure 2-3. Blind Zones

A. Upper Blind Zone D. Reduced Accuracy
B. Reduced Accuracy E. Lower Blind Zone
C. Maximum Measuring Range

Tra nsm itter Overv iew

Note

Measurements may not be possible in the Blind Zones, and measurements close to the Blind Zones will
have reduced accuracy. Therefore, the alarm points should be configured outside these zones.

5

Transmitter Overview

October 2016

Reference Manual

00809-0100-4308, Rev BB

2.2 Wireless by Emerson

The Emerson Wireless network is a self-organizing solution. Wireless field instruments send data to a
Gateway, directly or routed through any of the wireless devices in the network, as illustrated in

Figure 2-4. Multiple communication paths are managed and analyzed in parallel to assure optimal

communication and sustained network reliability even if obstructions are introduced.

Figure 2-4. Emerson Wireless Network

™

Gateways interface with existing host systems using industry standard protocols, and native integration
into DeltaV

Interference from other radios, WiFi, and EMC sources is avoided through Time Synchronized Channel
Hopping and Direct Sequence Spread Spectrum (DSSS). Also, a layered security implementing industry
standard Encryption, Authentication, Verification, Anti-Jamming, and Key Management ensures that
data transmissions are secure and received only by the Gateway.

™

and Ovation is transparent and seamless.

2.3 Application characteristics

2.3.1 Tank shape

The guided wave radar transmitter is insensitive to the tank shape. Since the radar signal travels along a
probe, the shape of the tank bottom has no effect on the measurement performance. The transmitter
handles flat or dish-bottom tanks equally well.

6

Tra nsmit ter O vervi ew

Reference Manual

A

B

C

00809-0100-4308, Rev BB

2.3.2 In-tank obstructions

The Rosemount 3308 Series Transmitter is relatively insensitive to objects in the tank since the radar
signal is transmitted along a probe.

Avoid physical contact between probes and agitators as well as applications with strong fluid movement
unless the probe is anchored. If the probe can move within 1 ft (30 cm) away from any object, such as an
agitator, during operation then probe tie-down is recommended.

In order to stabilize the probe for side forces, you have the option to either hang a weight at the probe
end (flexible probes only) or fix/guide the probe to the tank bottom.

2.3.3 Interface level measurement

Rosemount 3308 Series Transmitter is well suited for measuring the interface of oil and water, or other
liquids with significant dielectric differences.

Figure 2-5. Interface Level Measurement

Transmitter Overview

October 2016

Tra nsm itter Overv iew

A. Product Level C. Interface Level
B. Interface Level

All probes can be used for measuring interfaces. Single probes are the preferred choice in almost all
applications but depending on the application and installation geometries a coaxial probe or a flexible
twin probe may be a better fit.

For measuring the interface level, the transmitter uses the residual wave of the first reflection. Part of the
wave, which was not reflected at the upper product surface, continues until it is reflected at the lower
product surface. The speed of this wave depends fully on the dielectric constant of the upper product.

The maximum allowable upper product thickness/measuring range is primarily determined by the
dielectric constants of the two liquids. Target applications include interfaces between oil/oil-like and
water/water-like liquids. For such applications the upper product dielectric constant is low (<3) and the
lower product dielectric constant is high (>20). Refer to “Interface measurements” on page 109 for
further interface application guidelines.

Emulsion layers

Sometimes there is an emulsion layer (mix of the products) between the two products which, depending
on its characteristics, will affect interface measurements. Please consult factory for guidelines on how to
handle emulsion layers.

7

Transmitter Overview

Oil

Oil

Water

October 2016

2.4 Application examples

The Rosemount 3308 Series Transmitter is suited for aggregate (total) level measurements on a wide
range of liquids, semi-liquids, and liquid to liquid interfaces.

Moreover, the reliable and accurate guided wave radar technology offers a versatile solution that is
virtually unaffected by process conditions such as temperature, pressure, vapor gas mixtures, density,

turbulence, bubbling/boiling, varying dielectric media, pH, and viscosity.

Reference Manual

00809-0100-4308, Rev BB

Production, storage,
and buffer tanks

Low pressure
separators

Waste tanks and
sump pits

The Rosemount 3308 Series Transmitter is
ideal for production and shorter storage or
buffer tanks that contain oil, gas
condensate, water, or chemicals.

The Rosemount 3308 Series Transmitter
can measure both level and interface level
in for example separator applications.

The Rosemount 3308 Series Transmitter is
a good choice for waste tanks and
underground tanks, such as sump pits.

Chamber
applications

8

The Rosemount 3308 Series Transmitter is
a good choice for both chamber and pipe
installations.

Tra nsmit ter O vervi ew

Reference Manual

D

FG

E

A

B

C

HI JKL

00809-0100-4308, Rev BB

2.5 Components of the transmitter

The Rosemount 3308 Series transmitter housing contains advanced electronics for signal processing.
The transmitter housing is made of aluminum or stainless steel, depending on specified option code.

The radar electronics produces an electromagnetic pulse which is guided by the probe.

There are different probe types available for various applications: Flexible Single Lead, Rigid Single Lead,
Flexible Twin Lead, and Coaxial.

Figure 2-6. Transmitter Components

Transmitter Overview

October 2016

A. Radar Electronics G. NPT
B. Flanged Process Connections H. Flexible Single Lead with weight
C. Probe I. Rigid Single Lead
D. Dual Compartment Housing J. Flexible Twin Lead with weight
E. Threaded Process Connections K. Coaxial
F. BSP (G) L. Segmented rigid single lead probe

Tra nsm itter Overv iew

9

Transmitter Overview

October 2016

Reference Manual

00809-0100-4308, Rev BB

2.6 Probe selection guide for the Rosemount 3308 Series
Transmitter

Use the following guidelines to choose appropriate probe for your Rosemount 3308 Series transmitter:

Table 2-1. Probe Selection Guide. G=Good, NR=Not Recommended, AD=Application Dependent

(consult factory)

Rigid single lead,

Flexible

single lead

Measurements

Level G G G G

Interface (liquid/liquid) G G G G

Process medium characteristics

Changing density G G G G

Changing dielectric

Wide pH variations G G G G

Pressure changes GGGG

(2)

GGGG

segmented rigid

single lead

Flexible

twin lead

Coaxial

(1)

Temperature changes GGGG

Condensing vapors G G G G

Bubbling/boiling surfaces G G G G

Foam (mechanical avoidance) NR NR NR AD

Foam (top of foam measurement) AD AD AD NR

Foam (foam and liquid measurement) AD AD AD NR

Clean liquids GGGG

Liquid with dielectric<2.0 AD AD AD AD

Coating liquids G G NR NR

Viscous liquids G G AD NR

Crystallizing liquids AD AD NR NR

Solids/Powders NR NR NR NR

Fibrous liquids G G NR NR

Tank environment considerations

Probe is close (<12 in./30 cm) to
disturbing objects

Tall and narrow mounting nozzles
(diameter <6 in./15 cm and
height>diameter + 4 in./10 cm)

Probe might touch nozzle / disturbing
object

Liquid or vapor spray might touch
probe

NR NR AD G

AD AD AD G

NR NR NR G

NR NR NR G

10

Tra nsmit ter O vervi ew

Reference Manual

00809-0100-4308, Rev BB

High turbulence AD

Turbulent conditions causing breaking
forces

Non-metallic tanks or open
atmosphere applications

1. Not in fully submerged applications.

2. For overall level applications a changing dielectric has no effect on the measurement. For interface measurements a changing dielectric
of the top fluid will degrade the accuracy of the interface measurement.

3. Ok If probe is anchored.

4. Not suitable in applications with disturbing EMC from nearby equipment.

Transmitter Overview

Rigid single lead,

Flexible

single lead

(3)

AD NR AD NR

(4)

AD

segmented rigid

single lead

GAD

(4)

AD

Flexible

twin lead

(3)

(4)

AD

October 2016

Coaxial

G

G

Tra nsm itter Overv iew

11

Transmitter Overview

October 2016

Reference Manual

00809-0100-4308, Rev BB

12

Tra nsmit ter O vervi ew

Reference Manual

00809-0100-4308, Rev BB

Section 3 Installation

Safety messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 13

Installation procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 15

Review mounting considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 16

Review mounting preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 20

Anchor the probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 30

Mount device on tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 33

Ground the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 48

Install the power module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 49

Position the antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 49

Utilize the device display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 50

3.1 Safety messages

Installation

October 2016

Procedures and instructions in this section may require special precautions to ensure the safety of the
personnel performing the operations. Information that raises potential safety issues is indicated by a

warning symbol ( ). Refer to the following safety messages before performing an operation preceded
by this symbol.

Failure to follow safe installation guidelines could result in death or serious injury.

 Verify that the operating environment of the gauge is consistent with the appropriate hazardous

locations certifications.

 Make sure the transmitter is installed by qualified personnel and in accordance with applicable code

of practice.

 Use the equipment only as specified in this manual. Failure to do so may impair the protection

provided by the equipment.

Explosions could result in death or serious injury.

 Verify that the operating environment of the gauge is consistent with the appropriate hazardous

locations certifications.

 Installation of device in an explosive environment must be in accordance with appropriate local,

national and international standards, codes, and practices.

 Ensure device is installed in accordance with intrinsically safe or non-incendive field practices.

Installation

13

Installation

October 2016

Reference Manual

00809-0100-4308, Rev BB

Electrical shock can result in death or serious injury.

 Ground device on non-metallic tanks (e.g. fiberglass tanks) to prevent electrostatic charge build-up.
 Single lead probes are sensitive for strong electromagnetic fields and therefore not suitable for

non-metallic tanks.

 Care must be taken during transportation of power module to prevent electrostatic charge build-up.
 Device must be installed to ensure a minimum antenna separation distance of 8 in. (20 cm) from all

persons.

 Probes covered with plastic and/or with plastic discs may generate an ignition-capable level of

electrostatic charge under certain extreme conditions. Therefore, when the probe is used in a
potentially explosive atmosphere, appropriate measures must be taken to prevent electrostatic
discharge.

Process leaks could result in death or serious injury.

 Only qualified personnel should install the equipment.
 Install transmitter prior to process start-up.
 Install and tighten process connectors before applying pressure.
 Handle the transmitter carefully.
 Do not remove the transmitter while in operation.
 If the process seal is damaged, gas could escape from the tank when removing the transmitter head

from the probe.

14

Electronic boards are electrostatically sensitive. Failure to observe proper handling precautions for
static-sensitive components can result in damage to the electronic components. Do not remove the
electronic boards from the Rosemount

™

3308 Series Transmitter.

To ensure long life for your radar transmitter, and to comply with hazardous location installation
requirements, tighten covers on both sides of the electronics housing.

Any substitution of non-recognized parts may jeopardize safety. Repair, e.g. substitution of components
etc., may also jeopardize safety and is under no circumstances allowed.

Use caution when handling the Power Module. The Power Module may be damaged if dropped from
heights in excess of 20 ft (6 m).

This device complies with Par t 15 of the FCC Rules. Operation is subject to the following conditions: This
device may not cause harmful interference. This device must accept any interference received, including
interference that may cause undesired operation. This device must be installed to ensure a minimum
antenna separation distance of 20 cm (8 in.) from all persons.

Installation

Reference Manual

GROUND THE DEVICE

INSTALL THE POWER

MODULE

POSITION THE ANTENNA

UTILIZE THE DISPLAY

Threaded Tank

Connection

REVIEW MOUNTING

CONSIDERATIONS

REVIEW MOUNTING

PREPARATIONS

MOUNT DEVICE ON

TAN K

Measure Tank Height

Shorten the Probe

Mount a Centering disc

for Pipe Installations

Tank Connection

with Flange

Tank Connection

with Loose Flange

(“plate design”)

ANCHOR THE PROBE

Recommended

Mounting Position

Flange Connection on

Nozzles

Non-metallic tanks

Tank Connection

with Tri Clamp

Optional

Segmented Probe

00809-0100-4308, Rev BB

3.2 Installation procedure

Follow these steps for proper installation:

Installation

October 2016

Installation

15

Installation

A

C

B

October 2016

3.3 Review mounting considerations

Before installing the Rosemount 3308 Series Transmitter, consider recommendations for sufficient free
space, mounting position and special needs for non-metallic tanks.

3.3.1 Recommended mounting position

When finding an appropriate mounting position for the transmitter, the conditions of the tank must be
carefully considered. The transmitter should be mounted so that the influence of disturbing objects is
reduced to a minimum. For easy access to the transmitter make sure that it is mounted with sufficient
service space.

Figure 3-1. Mounting Position

Reference Manual

00809-0100-4308, Rev BB

A. Inlet pipe C. Heating coils
B. Agitator

The following guidelines should be considered when mounting the transmitter:

 Do not mount close to inlet pipes.
 Do not mount close to agitators. If the probe can move to within 12 in. (30 cm) away from an agitator,

the probe should be anchored. See “Anchor the probe” on page 30 for more information.

 If the probe tends to sway due to turbulent conditions in the tank, the probe should be anchored. See

“Anchor the probe” on page 30 for more information.

 Avoid mounting close to heating coils.
 Position the probe such that it is subject to a minimum of lateral force.
 Make sure the probe does not come into contact with the nozzle or other objects in the tank.

16

Installation

Reference Manual

A

00809-0100-4308, Rev BB

 Make sure the nozzle does not extend into the tank.

Note

Violent fluid movements causing high sideway forces may break rigid probes.

If the probe is mounted close to a wall, nozzle or other tank obstruction, noise might appear in the level
signal. Therefore the following minimum clearance, according to Tab l e 3 - 1, must be maintained.

Figure 3-2. Free Space Requirement

Installation

October 2016

Installation

A. Clearance to tank wall

Table 3-1. Recommended Minimum Free Space to Tank Wall or Other Objects in the Tank

Probe type Condition Minimum free space

Rigid Single/Flexible Single/
Segmented Rigid Single Lead

Flexible Twin

Coaxial N/A 0 in. (0 mm)

Smooth metal wall 4 in. (100 mm)

Disturbing objects such as pipes and
beams, or rugged metal tank walls

Smooth metal wall 4 in. (100 mm)

Disturbing objects such as pipes and
beams, or rugged metal tank walls

16 in. (400 mm)

16 in. (400 mm)

17

Installation

A

B

October 2016

3.3.2 Flange connection on nozzles

Figure 3-3. Mounting in Nozzles

A. Maximum nozzle height B. Minimum nozzle diameter

Reference Manual

00809-0100-4308, Rev BB

The transmitter can be mounted in nozzles by using an appropriate flange. It is recommended that the
nozzle size is within the dimensions given in Tab l e 3 -2 .

Note

The probe must not be in contact with the nozzle (except for the coaxial probe).

Table 3-2. Nozzle Considerations

Rigid single lead
Flexible single
lead probe

Recommended
nozzle diameter

Minimum nozzle
diameter

Maximum nozzle
height

1. The Trim Near Zone (TNZ) function may be necessary or an Upper Null Zone (UNZ) setup may be required to mask the nozzle.

2. Recommended maximum nozzle height. For coaxial probes there is no limitation on nozzle height.

3. For nozzles taller than 4 in. (100 mm), the Long Stud version is recommended (option code LS) to prevent the flexible portion from touching

(1)

(2)

the edge of the nozzle.

4 in. (100 mm) or
more

1.5 in. (38 mm)

4 in. (100 mm)
+ nozzle diameter

probe/Segmented

rigid single lead

4 in. (100 mm) or

more

1.5 in. (38 mm) for

probe type 4A

2 in. (50 mm) for

probe type 4B and 4S

4 in. (100 mm)

(3)

+ nozzle diameter

Flexible twin
lead probe

4 in. (100 mm) or
more

2 in. (50 mm) > probe diameter

4 in. (100 mm)
+ nozzle diameter

Coaxial probe

> probe diameter

N/A

18

Installation

Reference Manual

Metal flange Metal sheet

(d > 14 in./350 mm)

00809-0100-4308, Rev BB

Installation

October 2016

3.3.3 Installation in non-metallic tanks and open-air applications

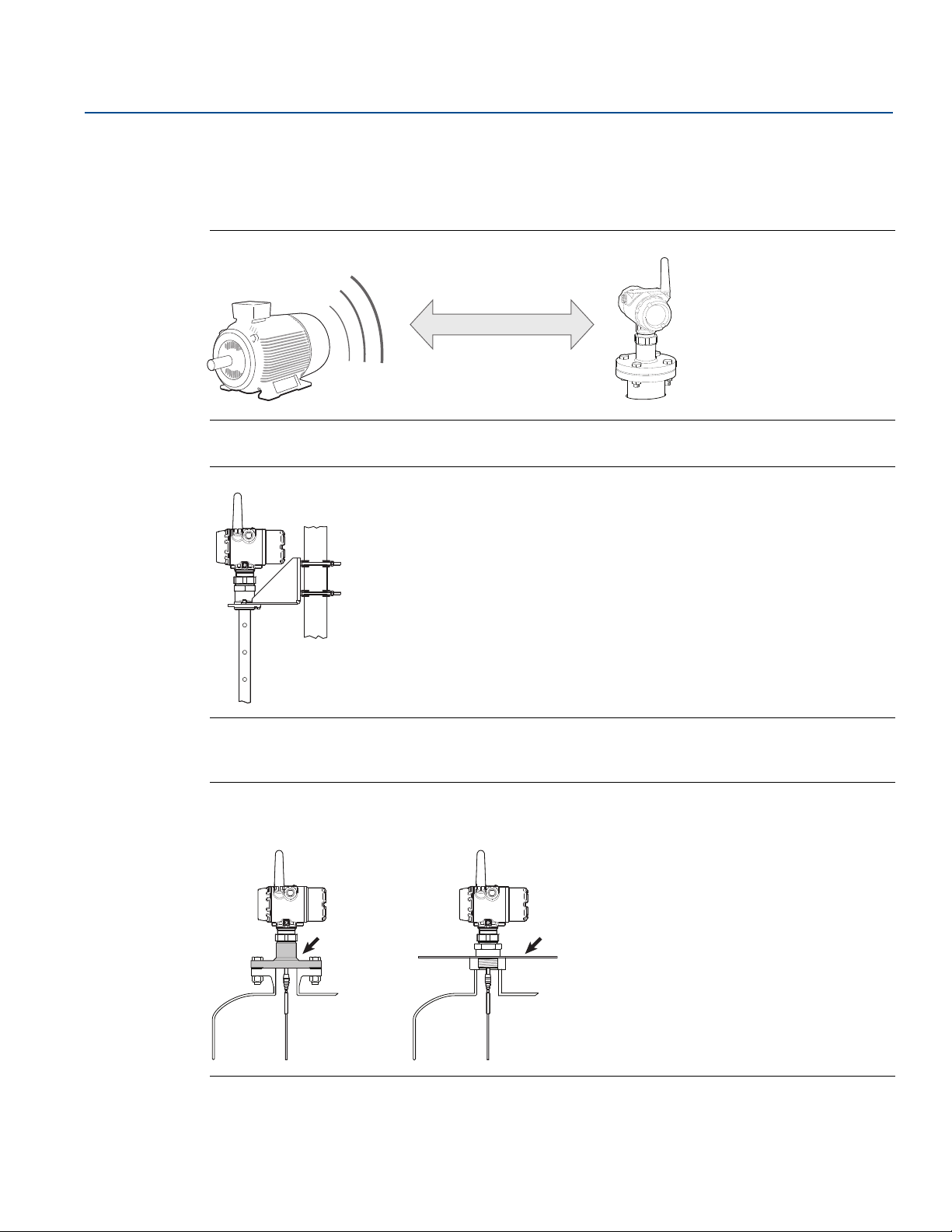

Avoid major sources of electrical disturbance in proximity of the installation, e.g. electrical motors,
stirrers, servo mechanisms.

Figure 3-4. Avoid Electromagnetic Disturbances

For clean liquids, use a coaxial probe to reduce effect of potential electrical disturbances.

Figure 3-5. Coaxial Probe in an Open-Air Application

For optimal single lead probe performance in non-metallic tanks, the probe must be mounted with a
metal flange, or screwed in to a metal sheet (d > 14 in./350 mm) if a threaded version is used.

Figure 3-6. Mounting in Non-Metallic Tanks

Installation

19

Installation

A

C

B

October 2016

3.4 Review mounting preparations

3.4.1 Measure tank height

The Tank Height is defined as the measured distance from the Upper Reference Point to the Zero
Reference Point.

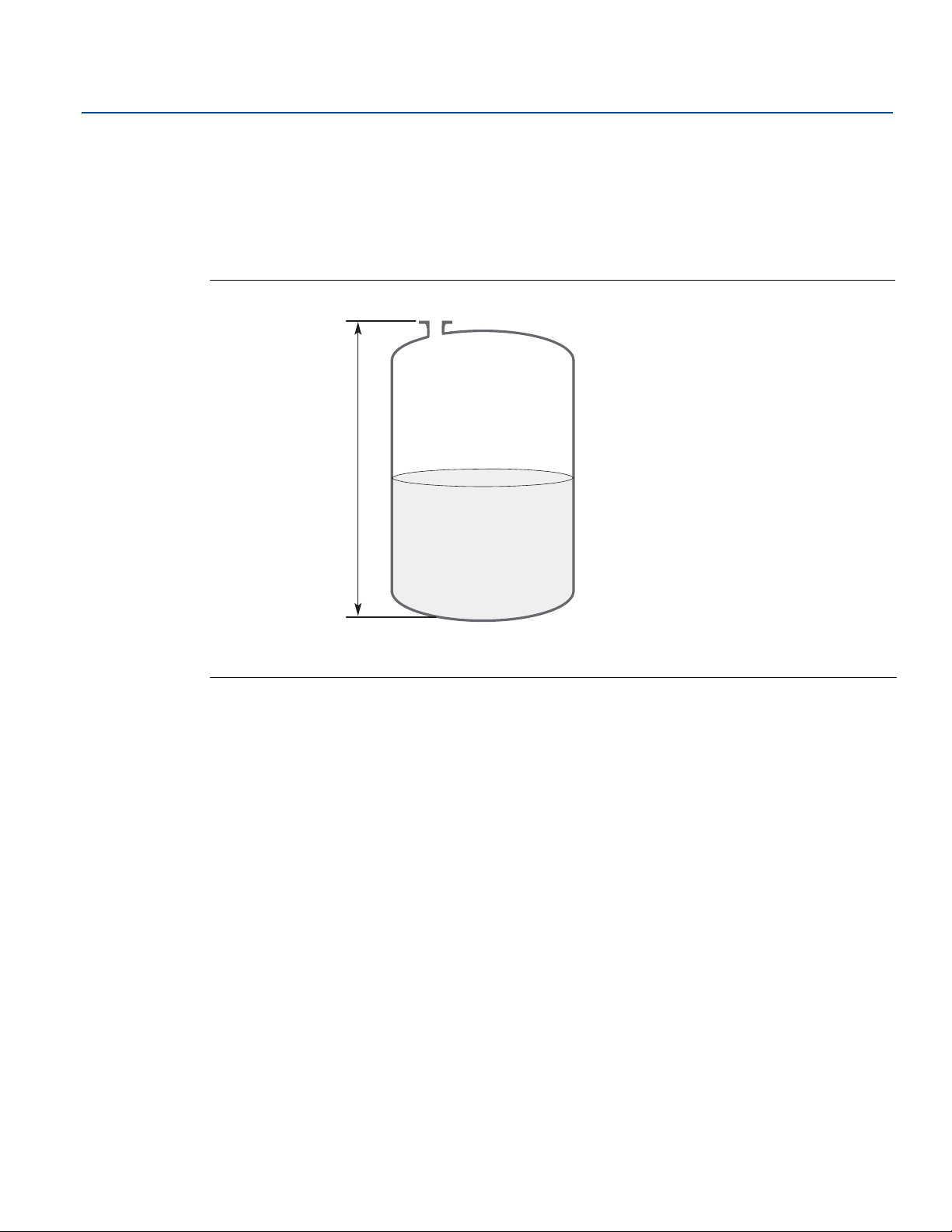

Figure 3-7. Measure Tank Height

Reference Manual

00809-0100-4308, Rev BB

A. Upper Reference Point C. Zero Reference Point
B. Tank He ight

20

Installation

Reference Manual

A

B

00809-0100-4308, Rev BB

3.4.2 Shorten the probe

In order to leave some clearance distance between the probe end and the tank bottom, the probe might
have to be shortened. The goal is to have the probe hang straight so that it does not touch the wall. 2 in.
(5 cm) is a suggested value. The probe can be shortened in field. Use the following form to calculate the
probe length:

Probe Length = Tank height - 2 in. (5 cm)

After shortening the probe make sure to update the transmitter configuration to the new probe length,
see “Probe Length” on page 160.

Figure 3-8. Calculate Probe Length

Installation

October 2016

Installation

A. Probe Length B. 2 in. (5 cm) clearance

21

Installation

October 2016

Reference Manual

00809-0100-4308, Rev BB

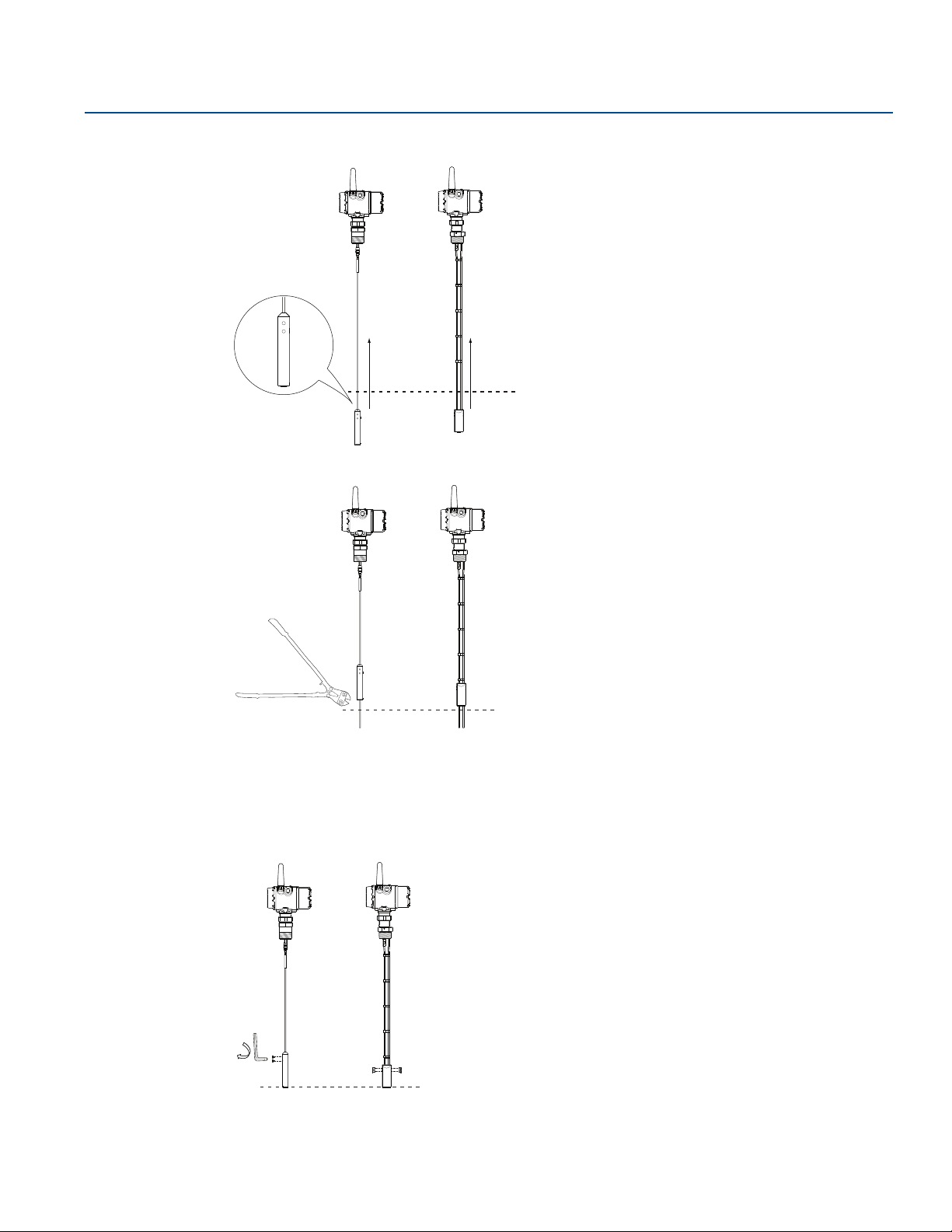

Flexible single/twin lead probe

Note

The PTFE covered probes must not be cut in field.

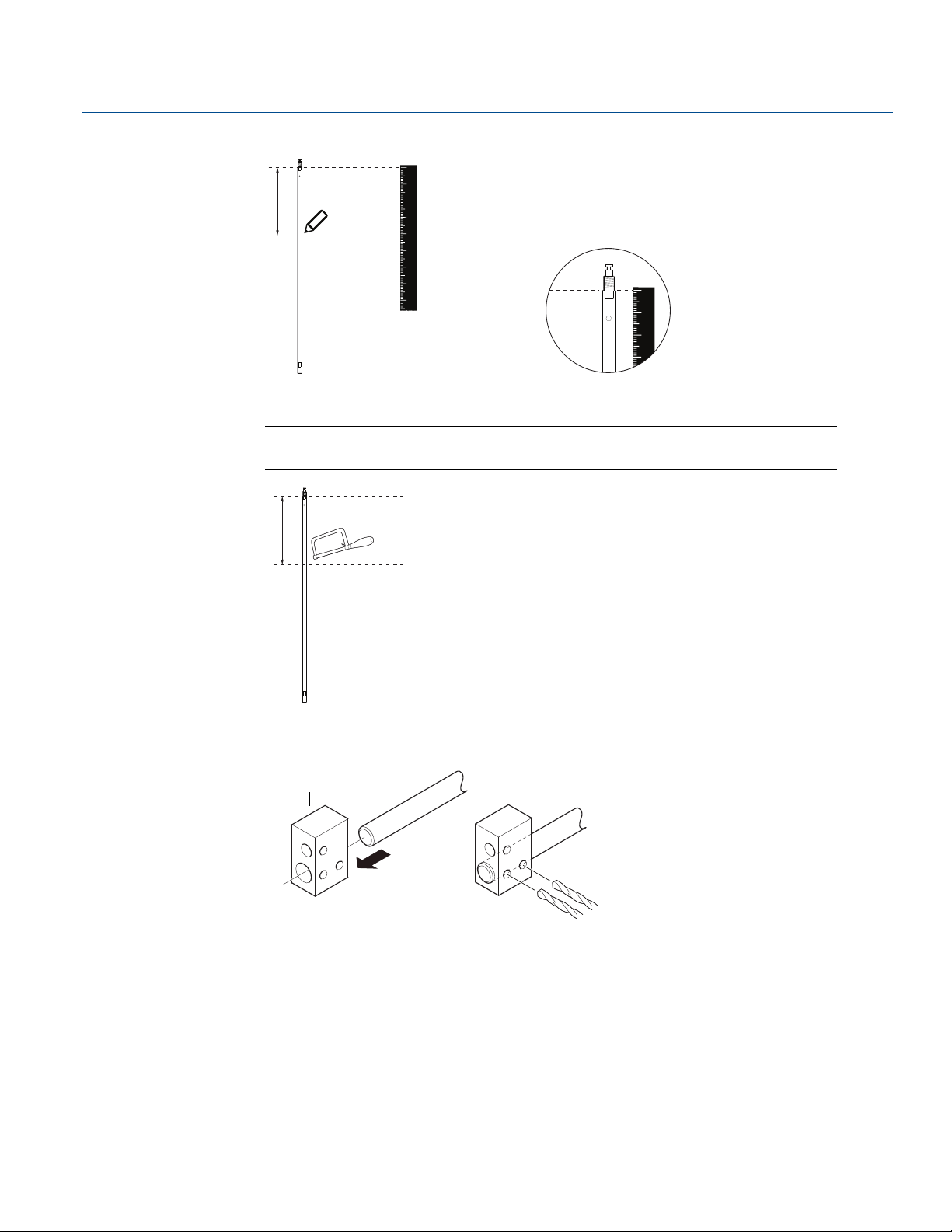

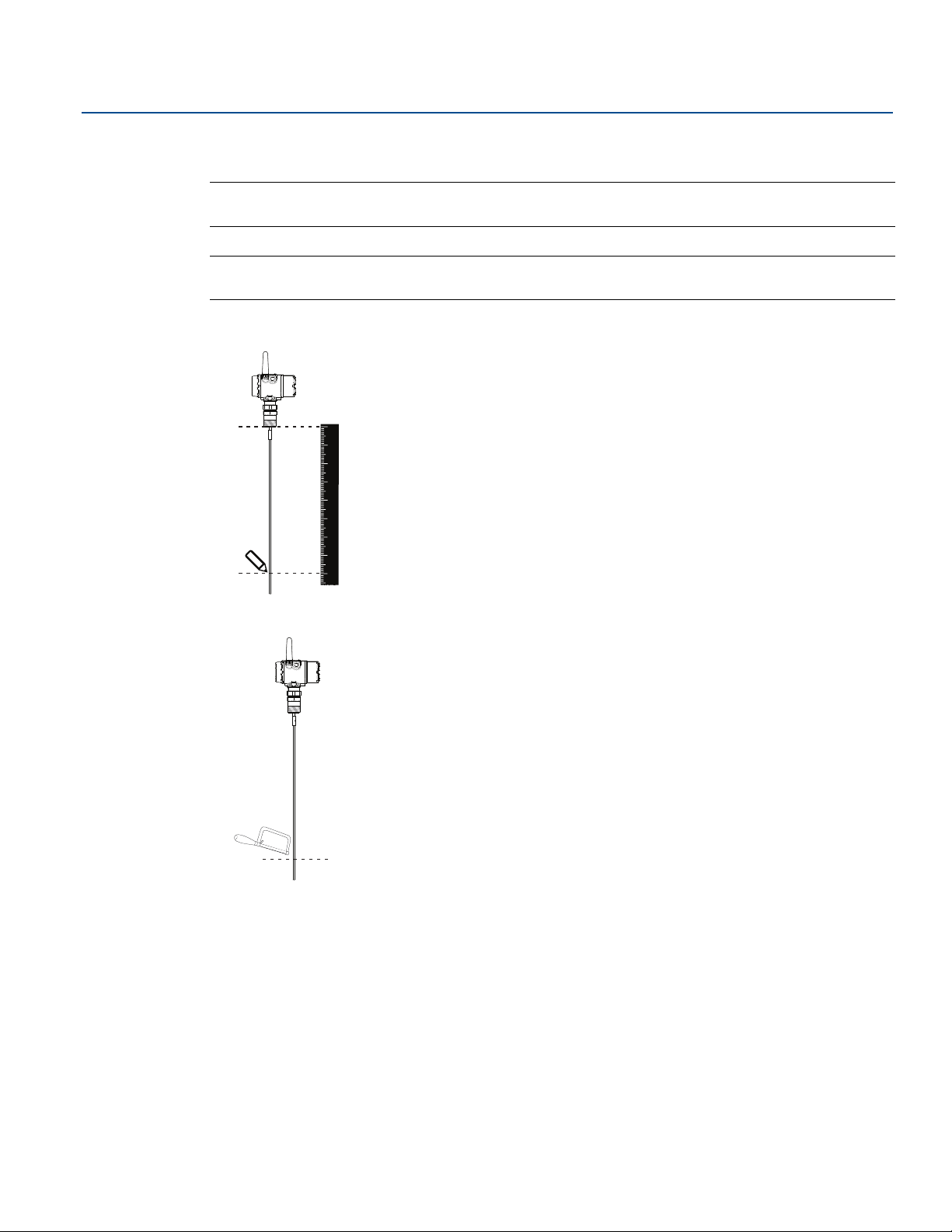

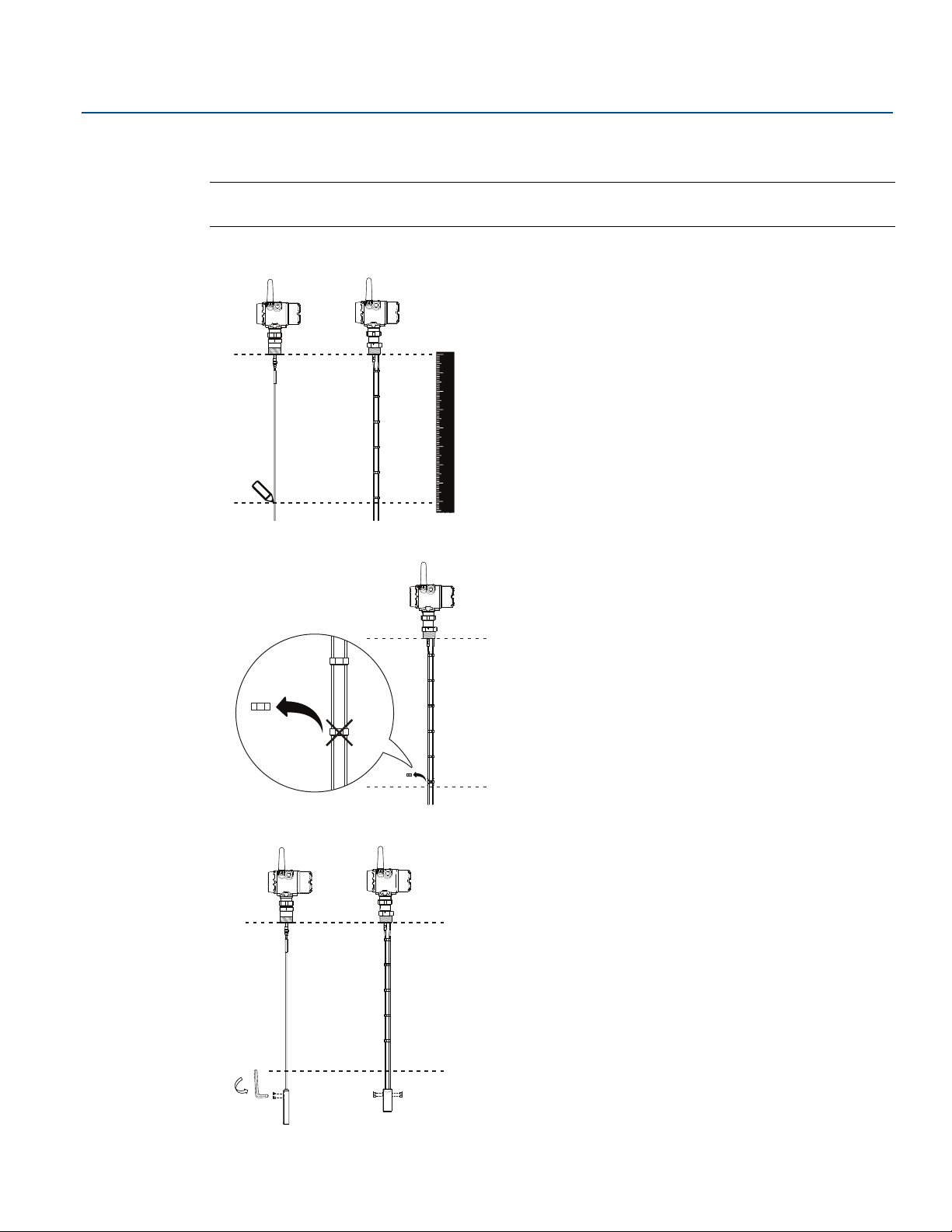

1. Mark where to cut the probe.

0

123

4

5

6

7

8

2. Remove enough spacers to make place for the weight (only flexible twin lead probes).

3. Loosen the weight.

22

Installation

Reference Manual

00809-0100-4308, Rev BB

4. Slide the weight up.

5. Cut the probe at the mark.

Installation

October 2016

Installation

6. Fasten the weight with the following torque:

 Small weight (W1): 5 Nm
 Short weight (W2): 5 Nm
 Heavy weight (W3): 5 Nm
 Weight, Flexible Twin: 6 Nm

23

Installation

October 2016

Reference Manual

00809-0100-4308, Rev BB

Rigid single lead probe

Note

The PTFE covered probes must not be cut in field.

Note

Make sure the lead is fixed while cutting.

1. Mark where to cut the probe.

0

123

4

5

6

7

8

2. Cut the probe at the mark.

24

Installation

Reference Manual

Centering piece

Maximum shortening 23.6
in. (600 mm)

> 49 in.
(1250 mm)

Minimum probe length

15.7 in. (400 mm)

 49 in.
(1250 mm)

00809-0100-4308, Rev BB

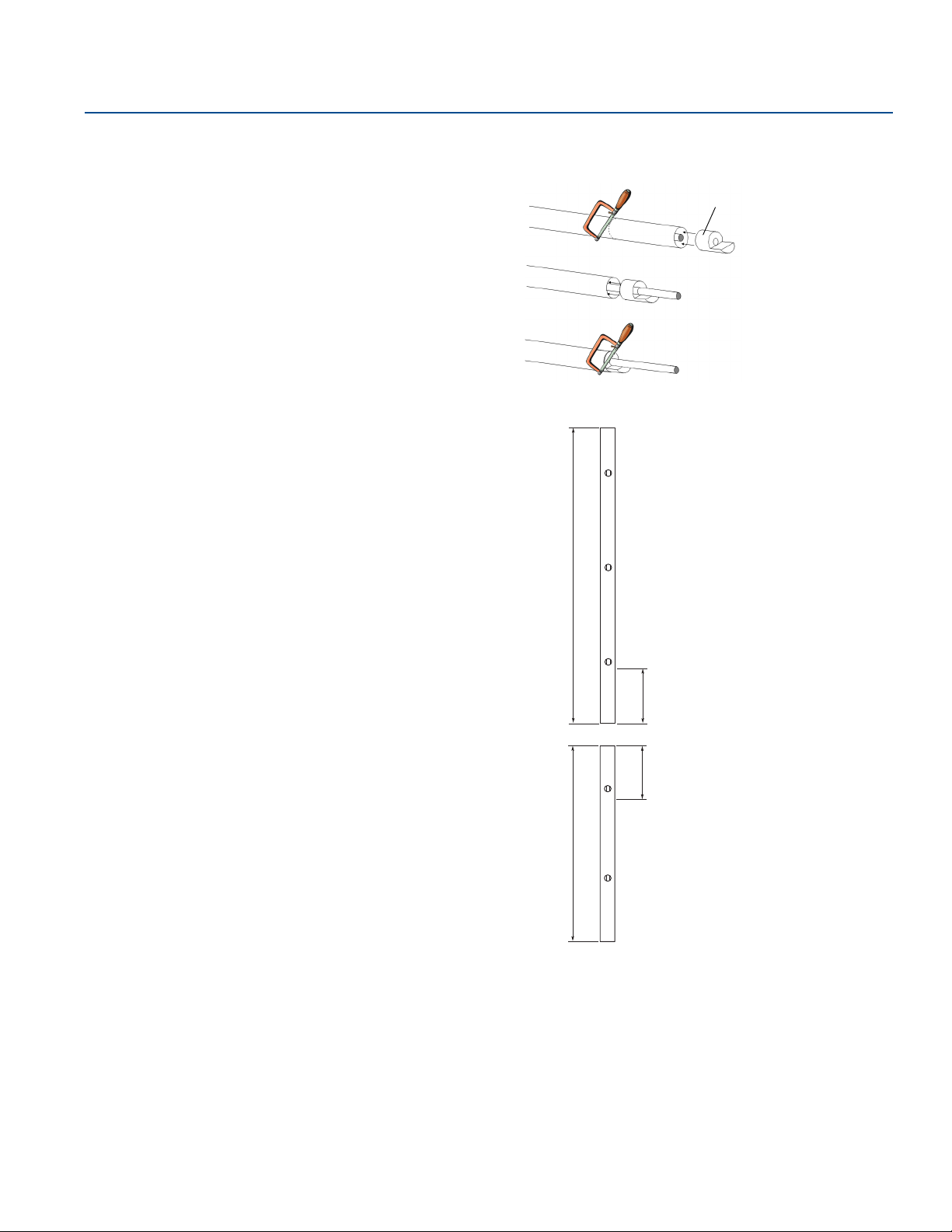

Coaxial probe

1. Mark where to cut the probe.

2. Insert the centering piece.
(The centering piece is delivered from
factory and should be used to prevent the
spacers centering the rod from coming
loose).

3. Cut the tube to the desired length.

4. Move the centering piece.

5. Cut the rod inside the tube. Make sure the
rod is fixed with the centering piece while
cutting.

 Pipes longer than 49 in. (1250 mm)

Installation

October 2016

can be shortened by as much as

23.6 in. (600 mm).

Installation

 Pipes shorter than 49 in. (1250

mm) can be cut as long as the
remaining length is not less than

15.7 in. (400 mm).

25

Installation

A B C

D

Tab wa sher

October 2016

3.4.3 Mount a centering disc for pipe installations

To prevent the probe from contacting the chamber or pipe wall, centering discs are available for flexible
single, rigid single, and flexible twin lead probes. The disc is attached to the end of the probe.

Flexible single/twin lead probe

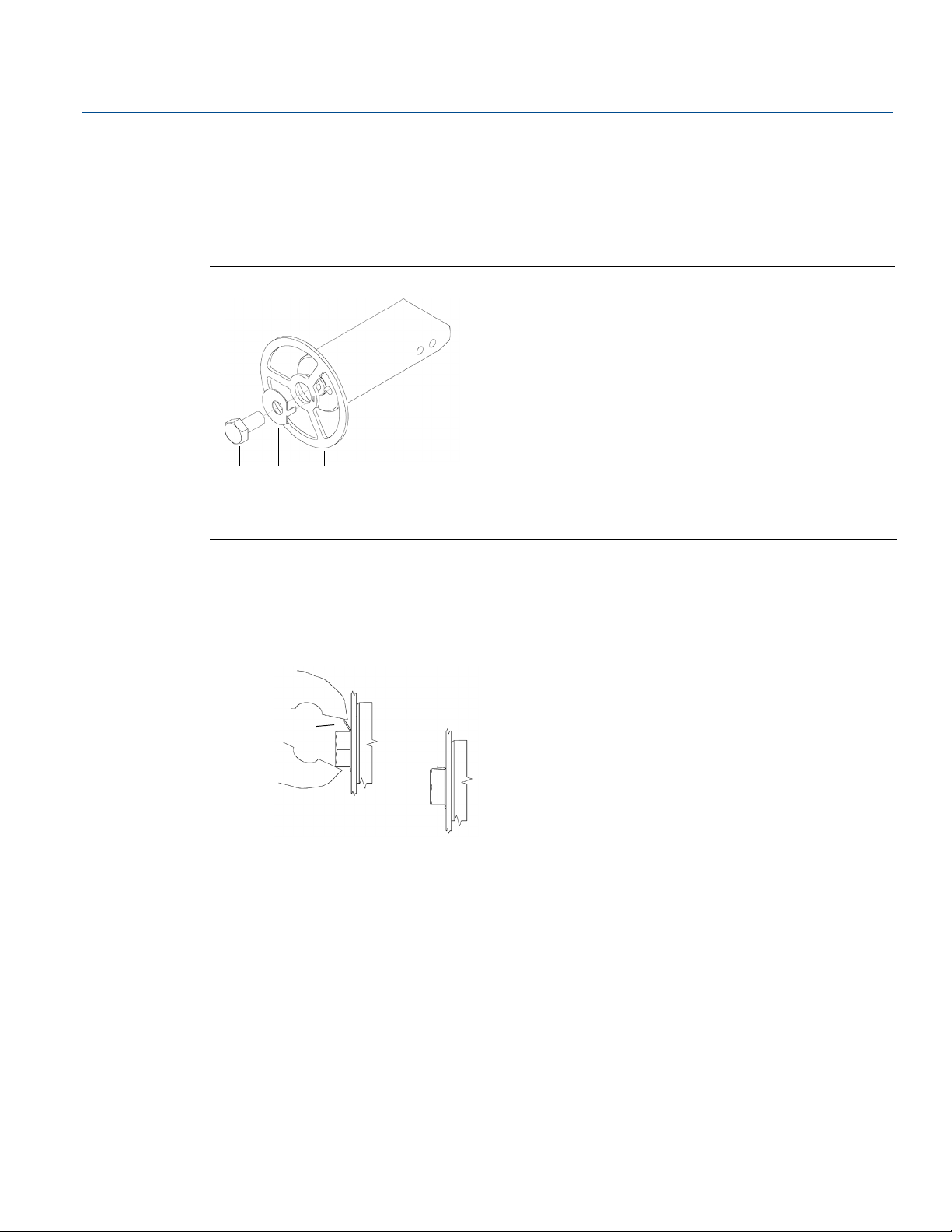

Figure 3-9. Centering Disc at the End of the Weight

A. Bolt C. Centering disc
B. Tab wa sh er D. Weigh t

Reference Manual

00809-0100-4308, Rev BB

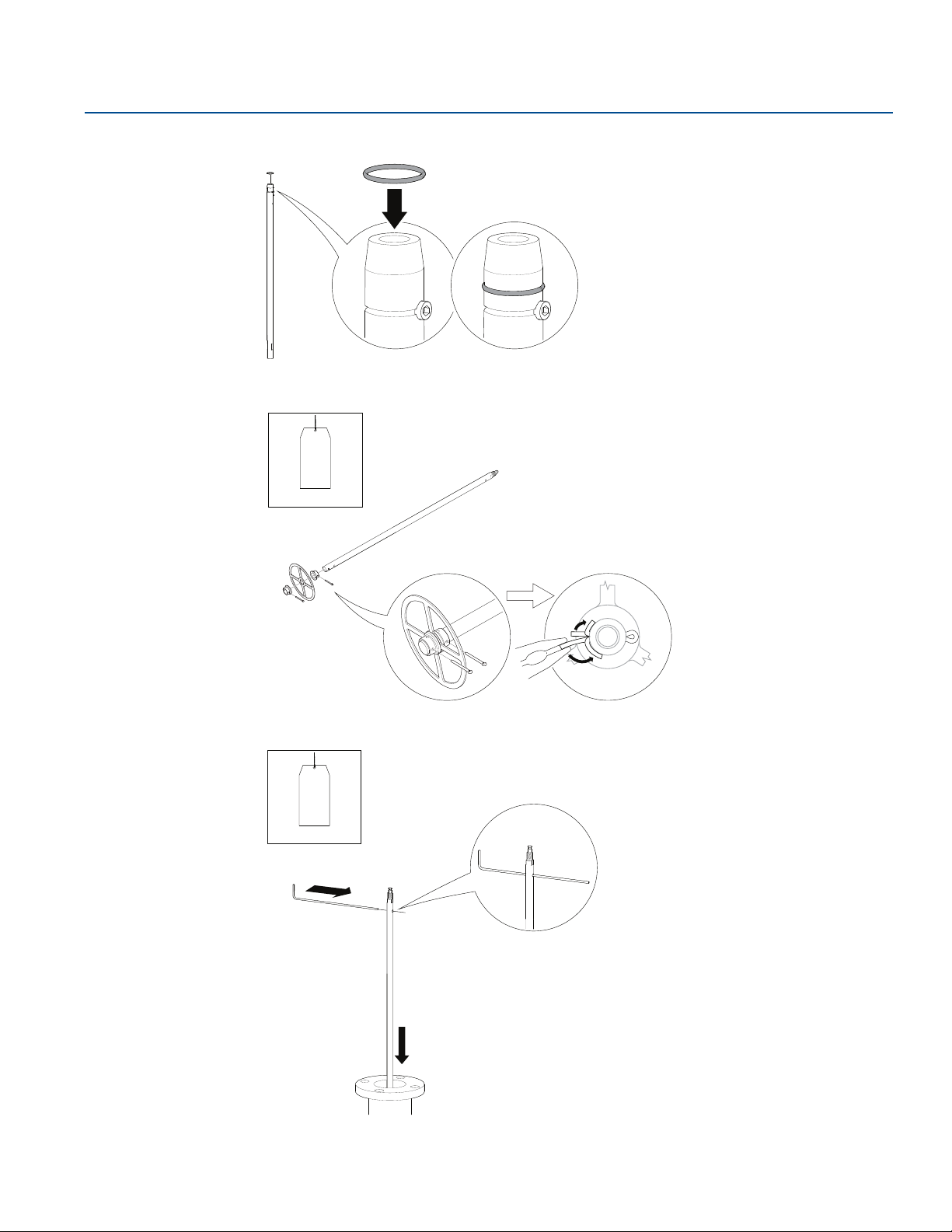

1. Mount the centering disc at the end of the weight.

2. Make sure that the tab washer is properly inserted in the centering disc.

3. Fasten the centering disc with the bolt.

4. Secure the bolt by folding the tab washer.

26

Installation

Reference Manual

A

B

A. Drilling fixture
B. Probe

Note

Do not mount the washer if the centering disc material is PTFE.

A

A. Washer
B. Centering disc
C. Bushing

B

C

00809-0100-4308, Rev BB

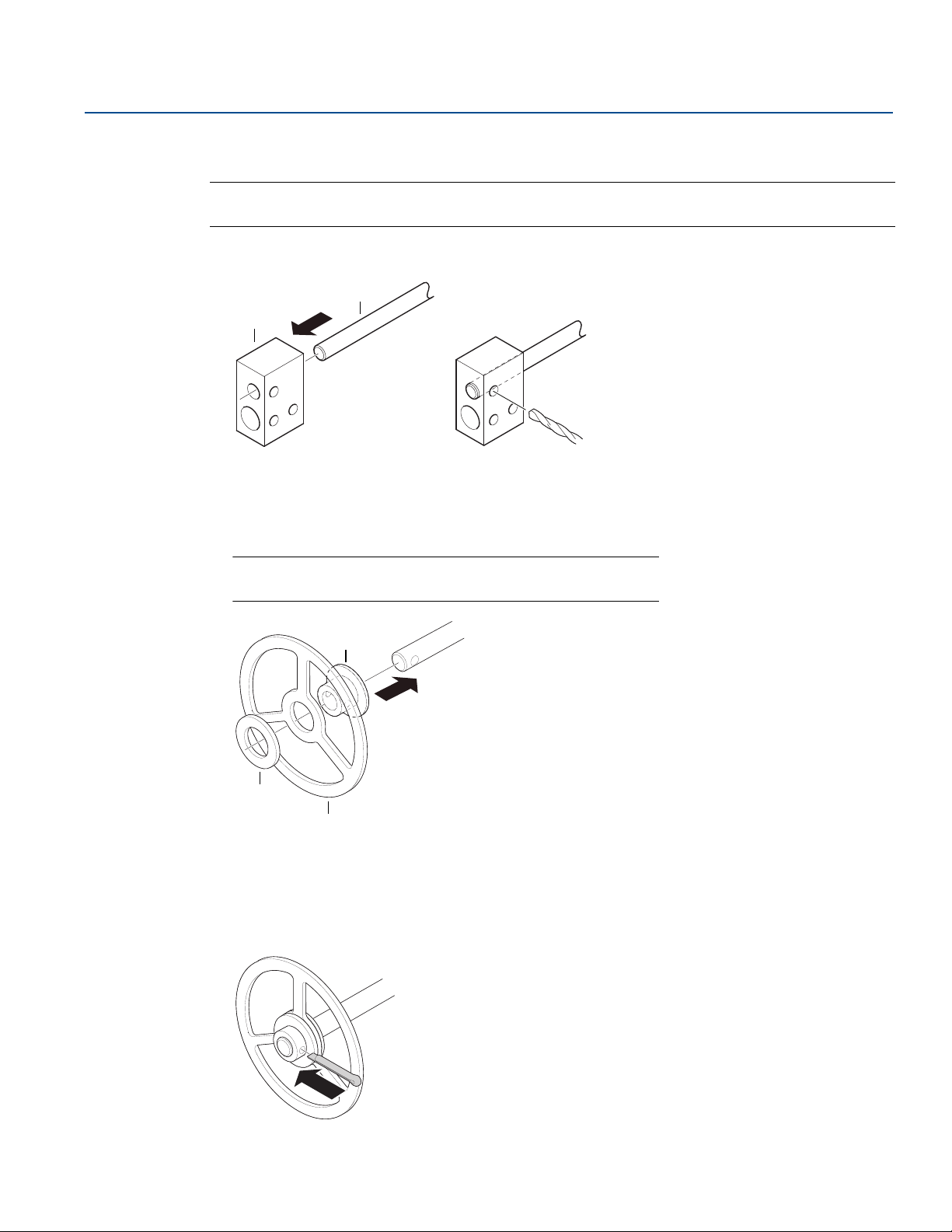

Rigid single lead probe (8 mm)

Note

Centering discs shall not be used with PTFE covered probes.

1. Drill one hole using the drilling fixture (included in your shipment).

Installation

October 2016

2. Mount the bushing, centering disc, and washer at the probe end.

3. Insert the split pin through the bushing and the probe.

Installation

27

Installation

A

B

A. Drilling fixture
B. Probe

A

B

A

A. Bushing
B. Centering disc

October 2016

Reference Manual

00809-0100-4308, Rev BB

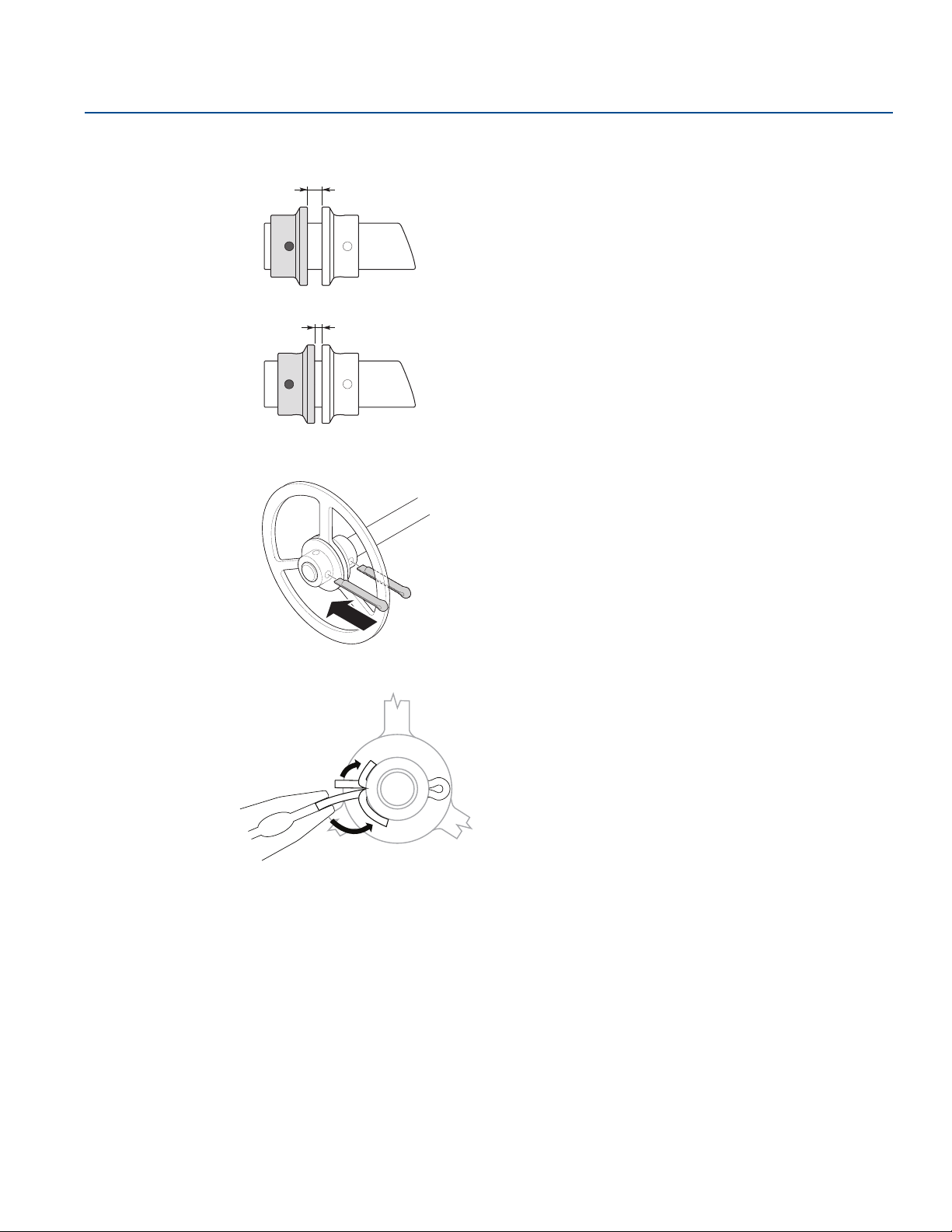

4. Secure the split pin.

Rigid single lead probe (13 mm)

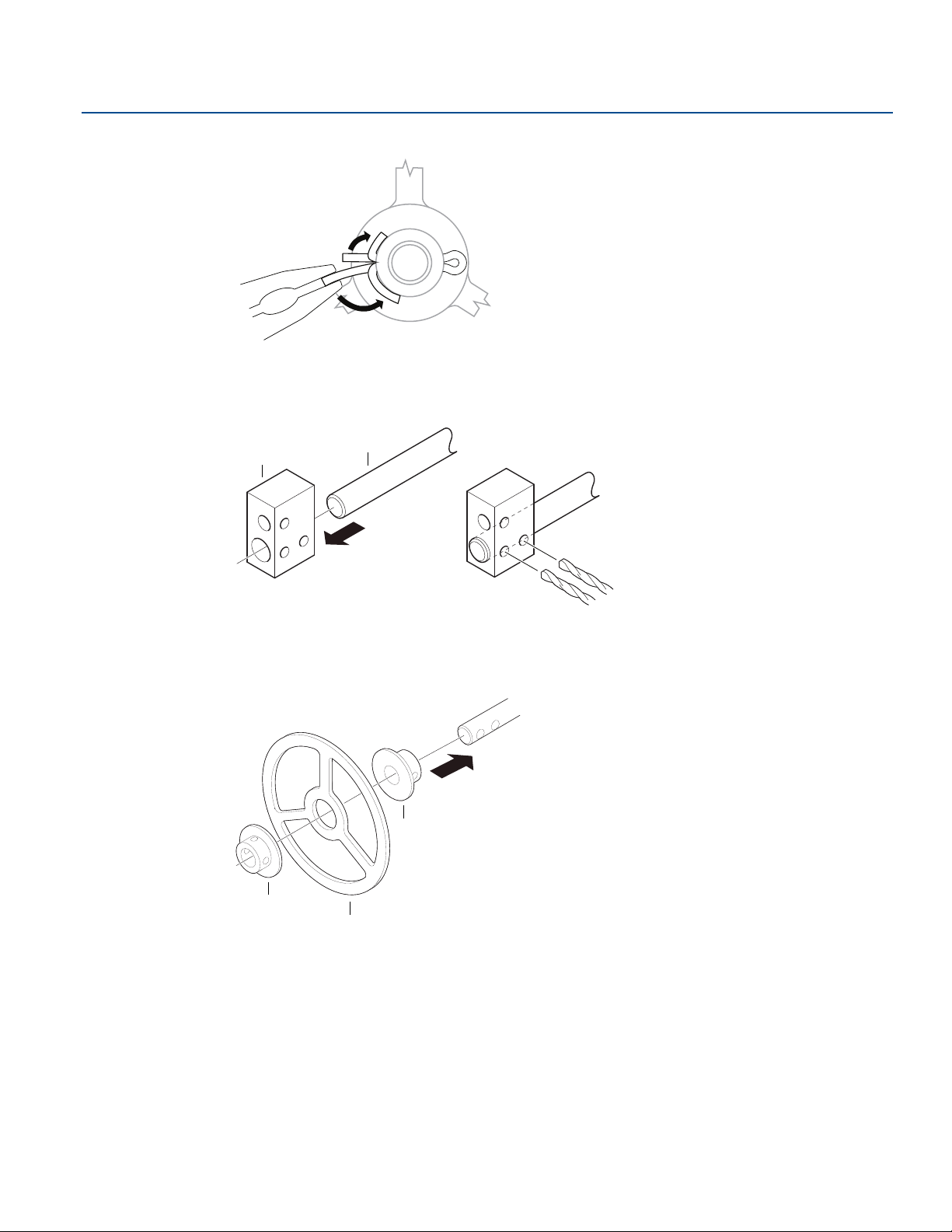

1. Drill two holes using the drilling fixture (included in your shipment).

28

2. Mount the bushings and centering disc at the probe end.

Installation

Reference Manual

0.16 in. (4 mm)

0.08 in. (2 mm)

00809-0100-4308, Rev BB

3. Adjust distance by shifting hole for split pin in lower bushing.

4. Insert the split pins through the bushings and the probe.

Installation

October 2016

5. Secure the split pins.

Installation

29

Installation

A

B

October 2016

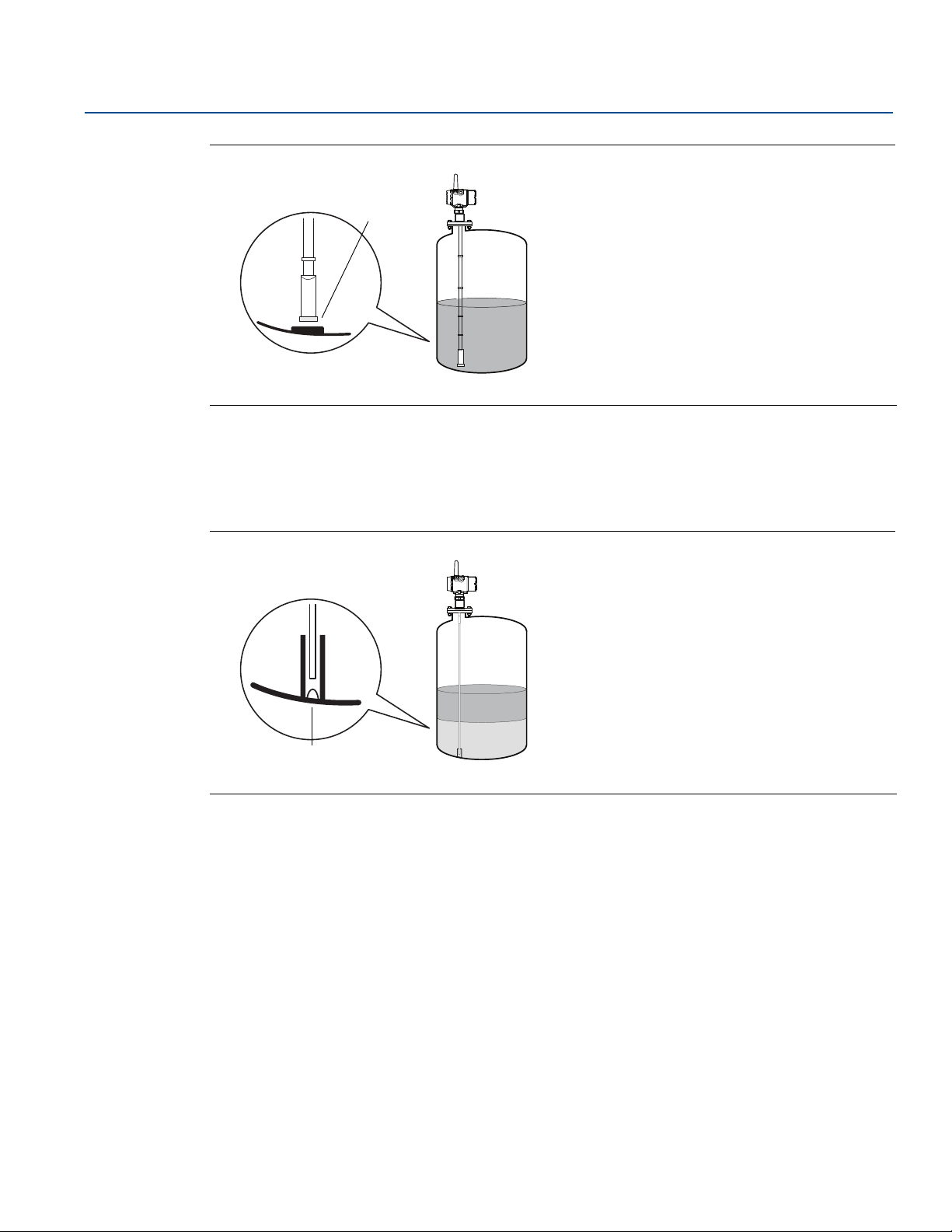

3.5 Anchor the probe

In turbulent tanks it may be necessary to fix the probe. Depending on the probe type, different methods
can be used to guide the probe to the tank bottom. This may be needed in order to prevent the probe
from hitting the tank wall or other objects in the tank, as well as preventing a probe from breaking.

3.5.1 Flexible single/twin lead probe

The flexible single lead probe itself can be used for anchoring. Pull the probe rope through a suitable
anchoring point, e.g. a welded eye, and fasten it with a chuck.

The length of the loop will add to the Blind Zone. The location of the chuck will determine the beginning
of the Blind Zone. See “Accuracy over measuring range” on page 113 for further information on Blind
Zones.

The Probe Length should be configured as the distance from the Upper Reference Point to the top of the
chuck.

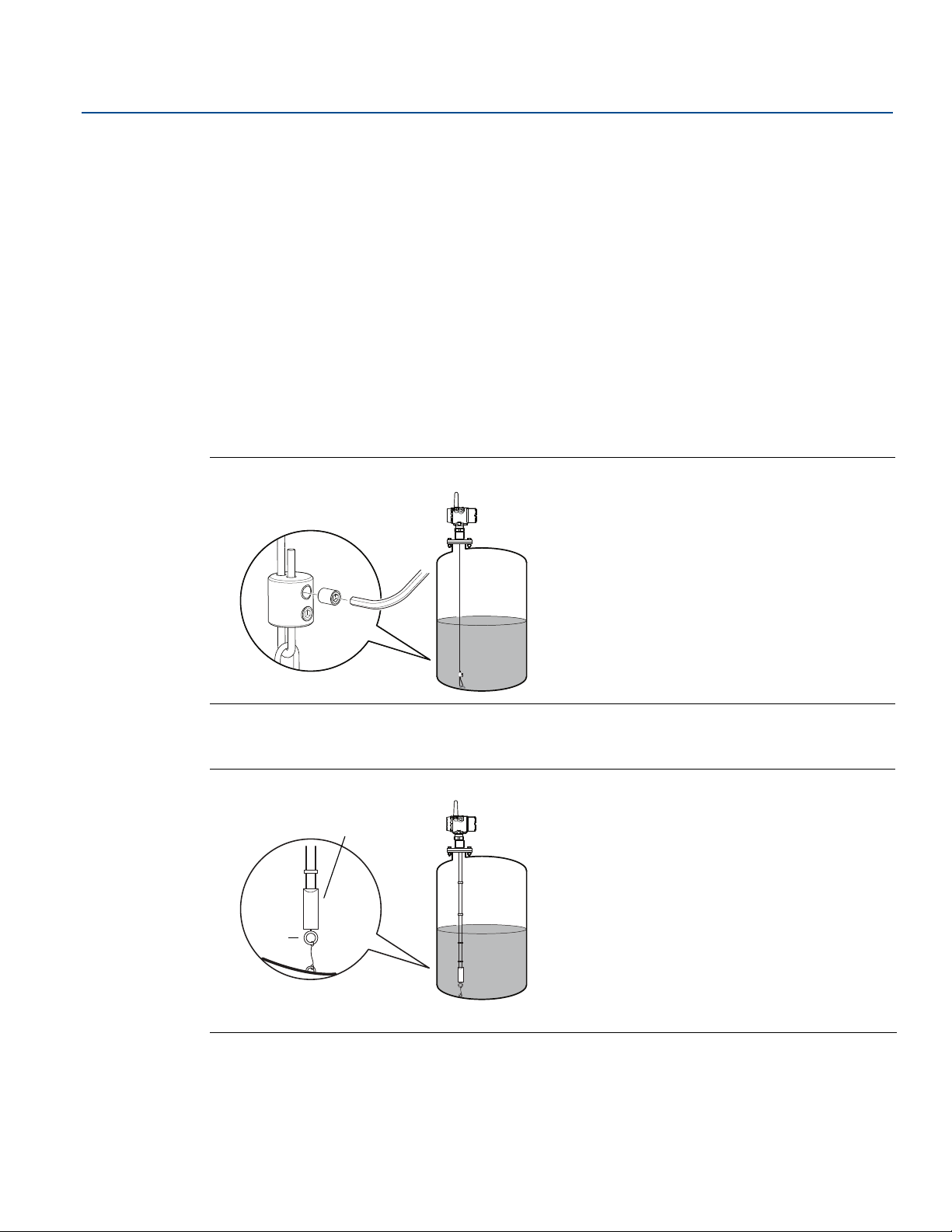

Figure 3-10. Flexible Single Lead Probe with Chuck

Reference Manual

00809-0100-4308, Rev BB

A ring (customer supplied) can be attached to the weight in a threaded (M8x14) hole at the end of the
weight. Attach the ring to a suitable anchoring point.

Figure 3-11. Flexible Twin/Single Lead Probe with Weight and Ring

A. Weight with internal threads M8x14 B. Ring

30

A magnet (customer supplied) can be fastened in a threaded (M8x14) hole at the end of the weight. The
probe can then be guided by placing a suitable metal plate beneath the magnet.

Installation

Reference Manual

A

A

00809-0100-4308, Rev BB

Figure 3-12. Flexible Twin/Single Lead Probe with Weight and Magnet

A. Magnet

3.5.2 Rigid single lead probe

The rigid single lead probe can be guided by a tube welded on the tank bottom. Tubes are customer
supplied. Make sure that the probe can move freely in order to handle thermal expansion. The
measurement accuracy will be reduced close to the tube opening.

Installation

October 2016

Figure 3-13. Rigid Single Lead Probe with Tube

A. Drain

Installation

31

Installation

A

A

October 2016

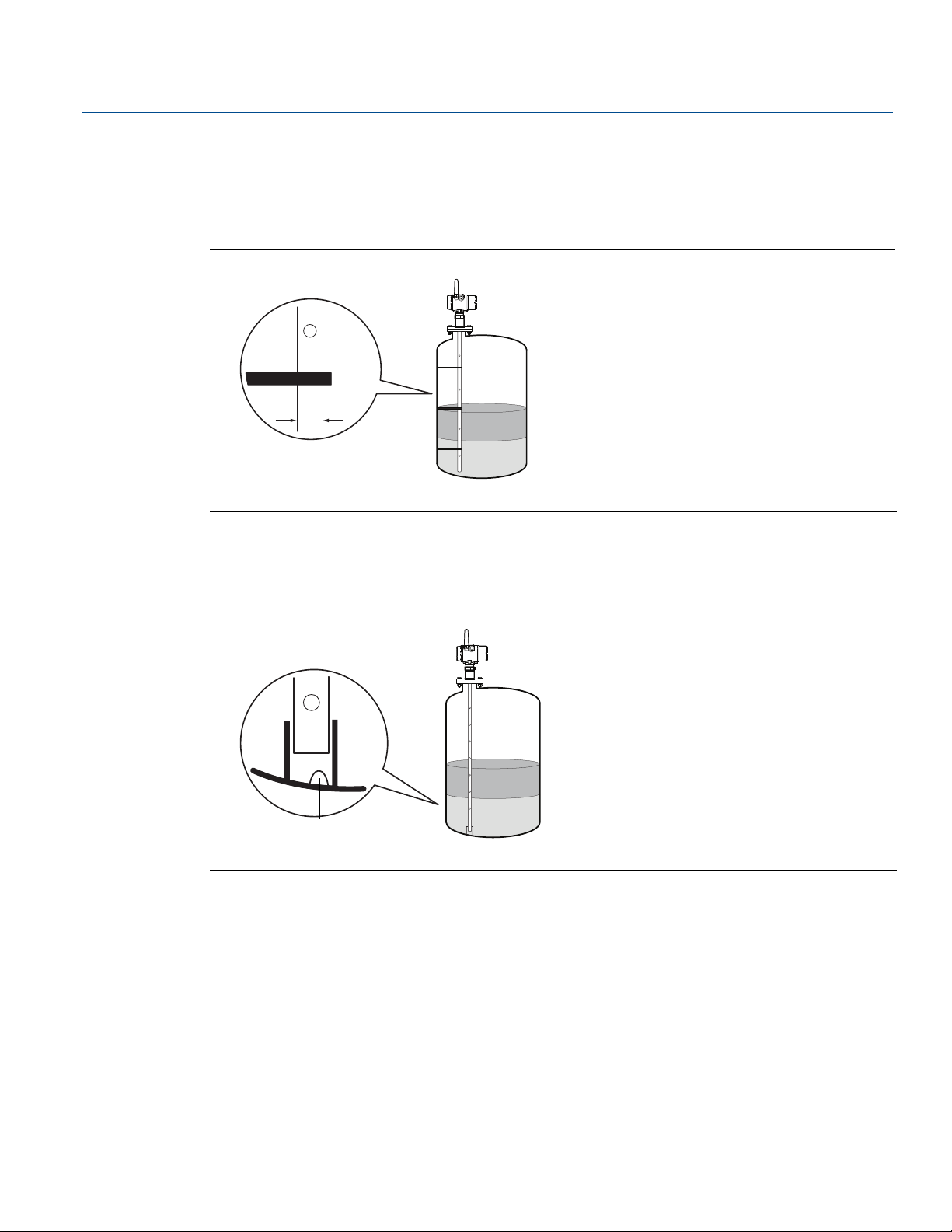

3.5.3 Coaxial probe

The coaxial probe can be secured to the tank wall by fixtures fastened to the tank wall. Fixtures are
customer supplied. Make sure the probe can move freely due to thermal expansion without getting
stuck in the fixture.

Figure 3-14. Coaxial Probe Secured to the Tank Wall

A. 1.1 in. (28 mm)

Reference Manual

00809-0100-4308, Rev BB

The coaxial probe can be guided by a tube welded on the tank bottom. Tubes are customer supplied.
Make sure that the probe can move freely in order to handle thermal expansion. The measurement
accuracy will be reduced close to the tube opening.

Figure 3-15. Coaxial Probe with Tube

A. Drain

32

Installation

Reference Manual

E

F

A

B

C

D

00809-0100-4308, Rev BB

3.6 Mount device on tank

Mount the transmitter with flange on a nozzle on top of the tank. The transmitter can also be mounted
on a threaded connection. Make sure only qualified personnel perform the installation.

Note

If the transmitter head must be removed from the probe, make sure that the Process seal is carefully
protected from dust and water. See “Transmitter head replacement” on page 103 for further
information.

Note

PTFE covered probes must be handled carefully to prevent damage to the coating.

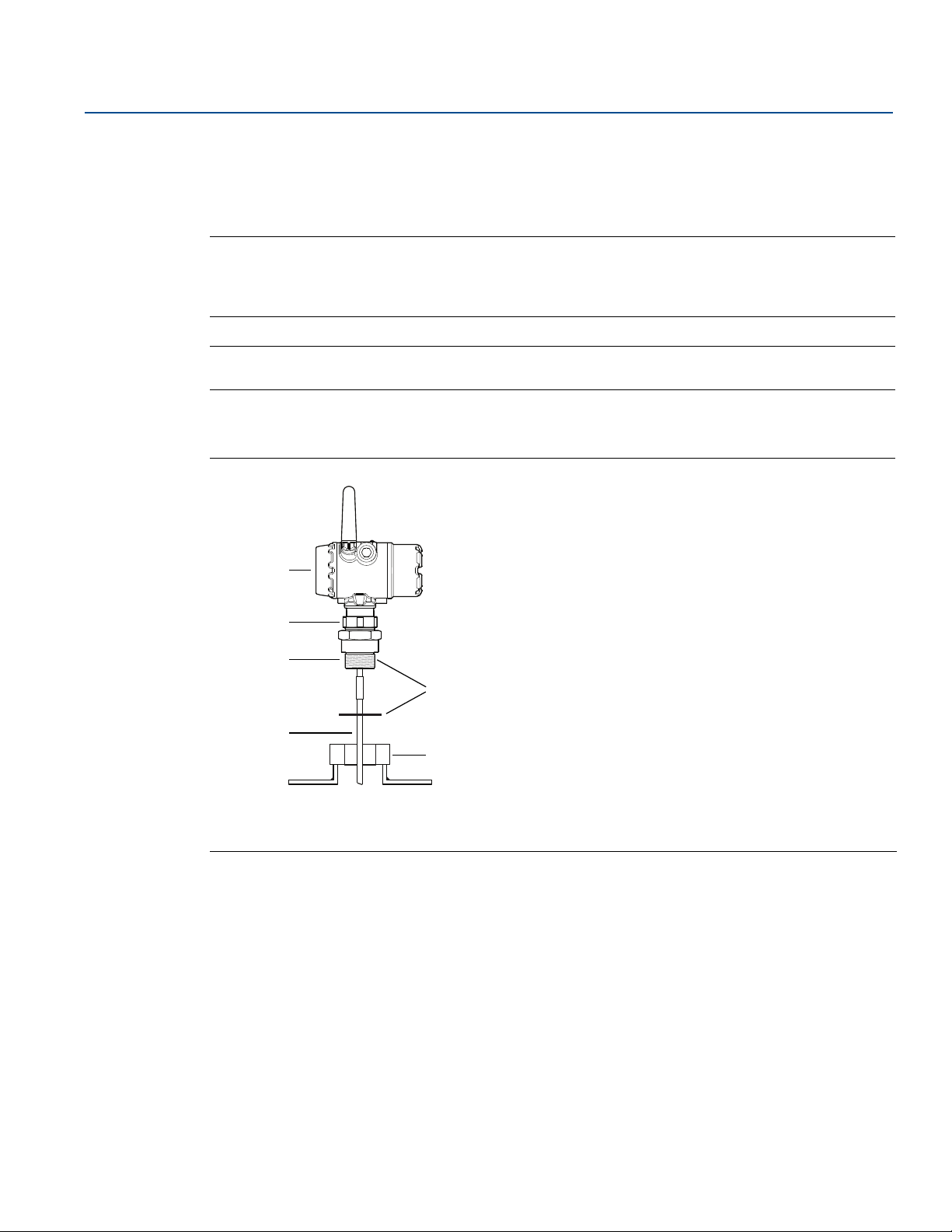

3.6.1 Threaded tank connection

Figure 3-16. Threaded Tank Connection

Installation

October 2016

Installation

A. Transmitter head D. Probe
B. Nut E. Sealant on threads (NPT) or Gasket (BSP/G)
C. Adapter F. Tank flange/Process connection

33

Installation

A

B

C

E

D

F

G

October 2016

Reference Manual

00809-0100-4308, Rev BB

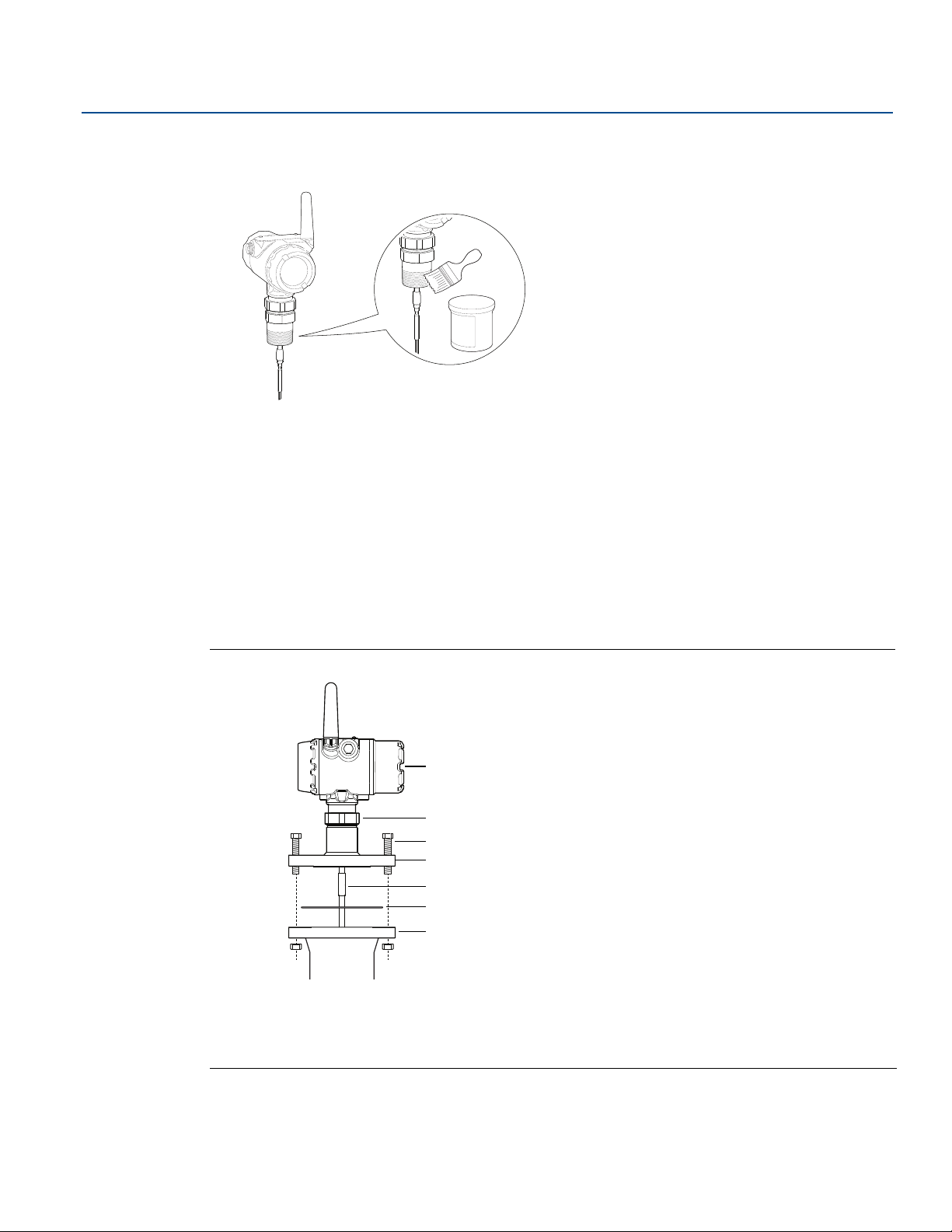

1. For adapters with BSP/G threads, place a gasket on top of the tank flange.

2. For adapters with NPT threads, use anti-seize paste or PTFE tape according to your site procedures.

3. Lower the transmitter and probe into the tank.

4. Loosen the nut that connects the transmitter head to the probe slightly.

5. Screw the adapter into the process connection.

6. Rotate the transmitter head so the device display faces the desired direction.

7. Tighten the nut. Max torque is 30 Lbft (40 Nm).

8. Continue with the grounding step.

3.6.2 Tank connection with flange

Figure 3-17. Tank Connection with Flange

34

A. Transmitter head E. Probe
B. Nut F. Gasket
C. Bolts G. Ta nk flange
D. Flange

Installation

Reference Manual

F

AA

B

C

D

E

G
H
I

00809-0100-4308, Rev BB

1. Place a gasket on top of the tank flange.

2. Lower the transmitter and probe with flange into the tank.

3. Tighten the bolts.

4. Loosen the nut that connects the transmitter head to the probe slightly.

5. Rotate the transmitter head so the device display faces the desired direction.

6. Tighten the nut. Max torque is 30 Lbft (40 Nm).

7. Continue with the grounding step.

3.6.3 Tank connection with loose flange (“plate design”)

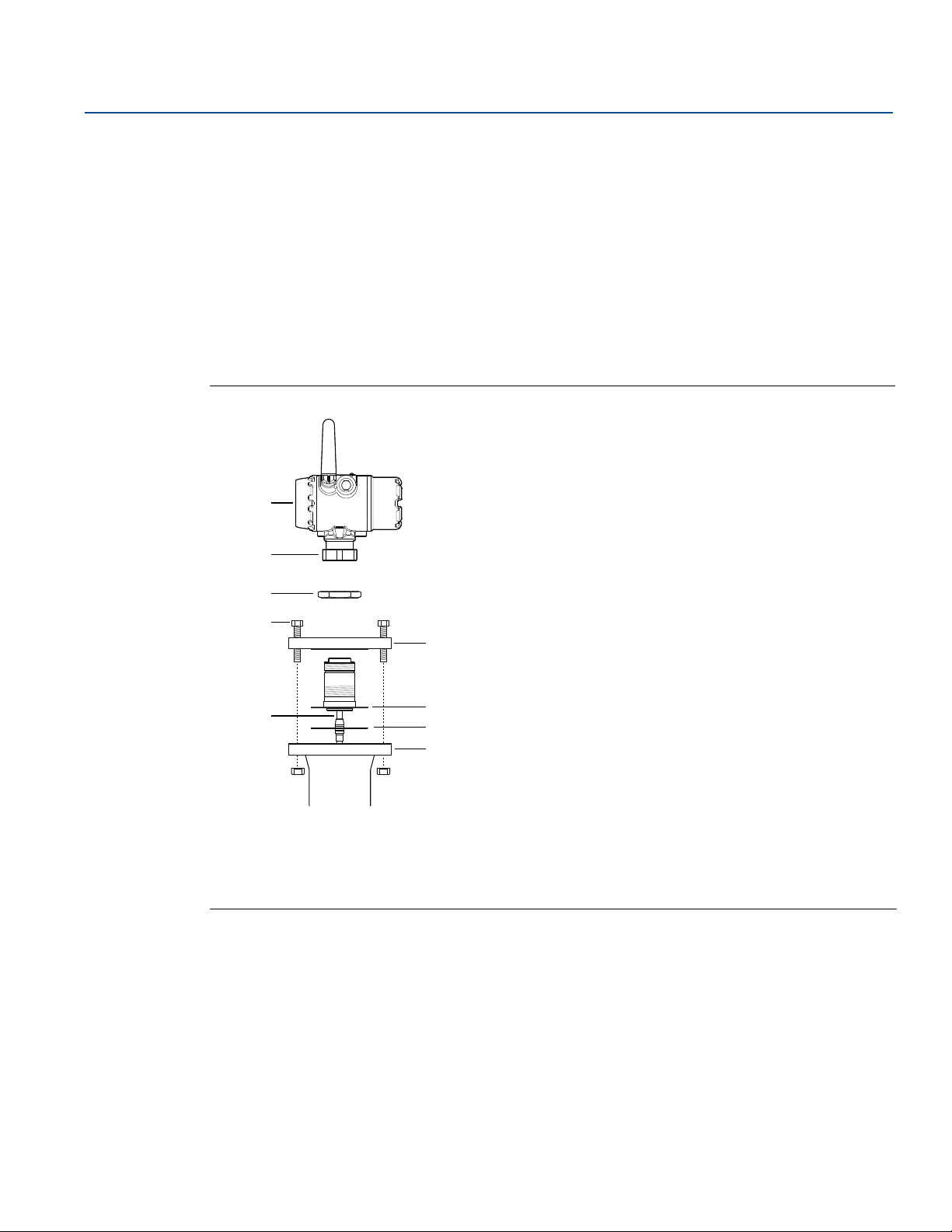

Figure 3-18. Tank Connection with Loose Flange

Installation

October 2016

A. Transmitter head F. Loose flange
B. Nut G. Plate
C. Flange nut H. Gasket
D. Bolts I. Tank fl ange
E. Probe

The transmitter is delivered with head, flange and probe assembled into one unit. If, for some reason,
these parts have been disassembled mount the transmitter as described below:

Installation

35

Installation

A

B

C

D

E

F

G

October 2016

1. Place a gasket on top of the tank flange.

2. Mount the flange on the probe and tighten the flange nut.

3. Mount the transmitter head.

4. Lower the transmitter and probe with flange into the tank.

5. Tighten the bolts.

6. Loosen the nut that connects the transmitter head to the probe slightly.

7. Rotate the transmitter head so the device display faces the desired direction.

8. Tighten the nut. Max torque is 30 Lbft (40 Nm).

9. Continue with the grounding step.

3.6.4 Tank connection with Tri Clamp

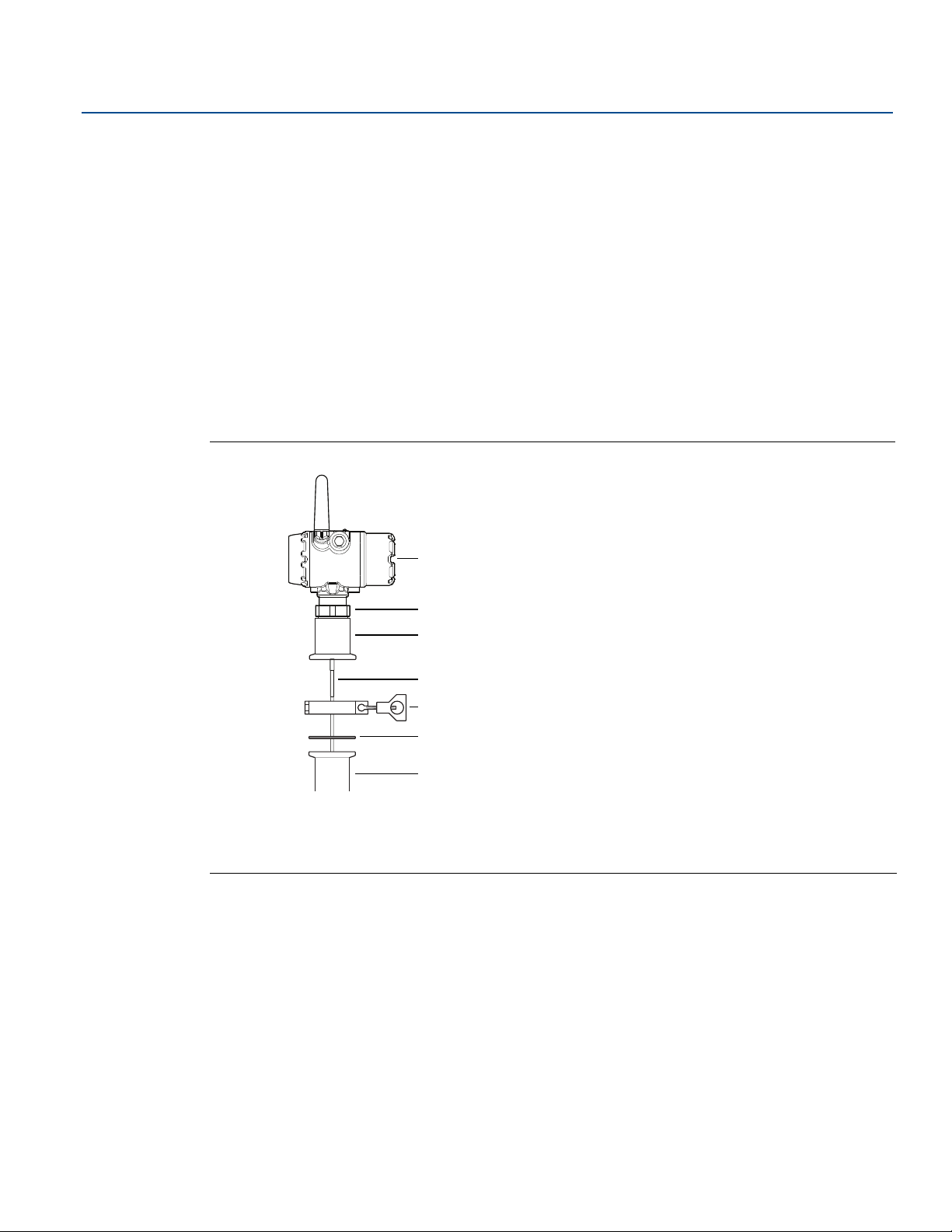

Figure 3-19. Tank connection with Tri Clamp

Reference Manual

00809-0100-4308, Rev BB

36

A. Transmitter head E. Clamp
B. Nut F. Gasket
C. Tri Clam p G. Ta n k
D. Probe

1. Place a gasket on top of the tank flange.

2. Lower the transmitter and probe into the tank.

3. Fasten the Tri Clamp to the tank with a clamp.

4. Loosen the nut that connects the transmitter head to the probe slightly.

5. Rotate the transmitter head so the device display faces the desired direction.

6. Tighten the nut. Max torque is 30 Lbft (40 Nm).

7. Continue with the grounding step.

Installation

Reference Manual

A

B

D

G

E

C

I

J

D

E

F

H

I

D

D

31.5

(800)

15.2

(385)

00809-0100-4308, Rev BB

3.6.5 Segmented probe

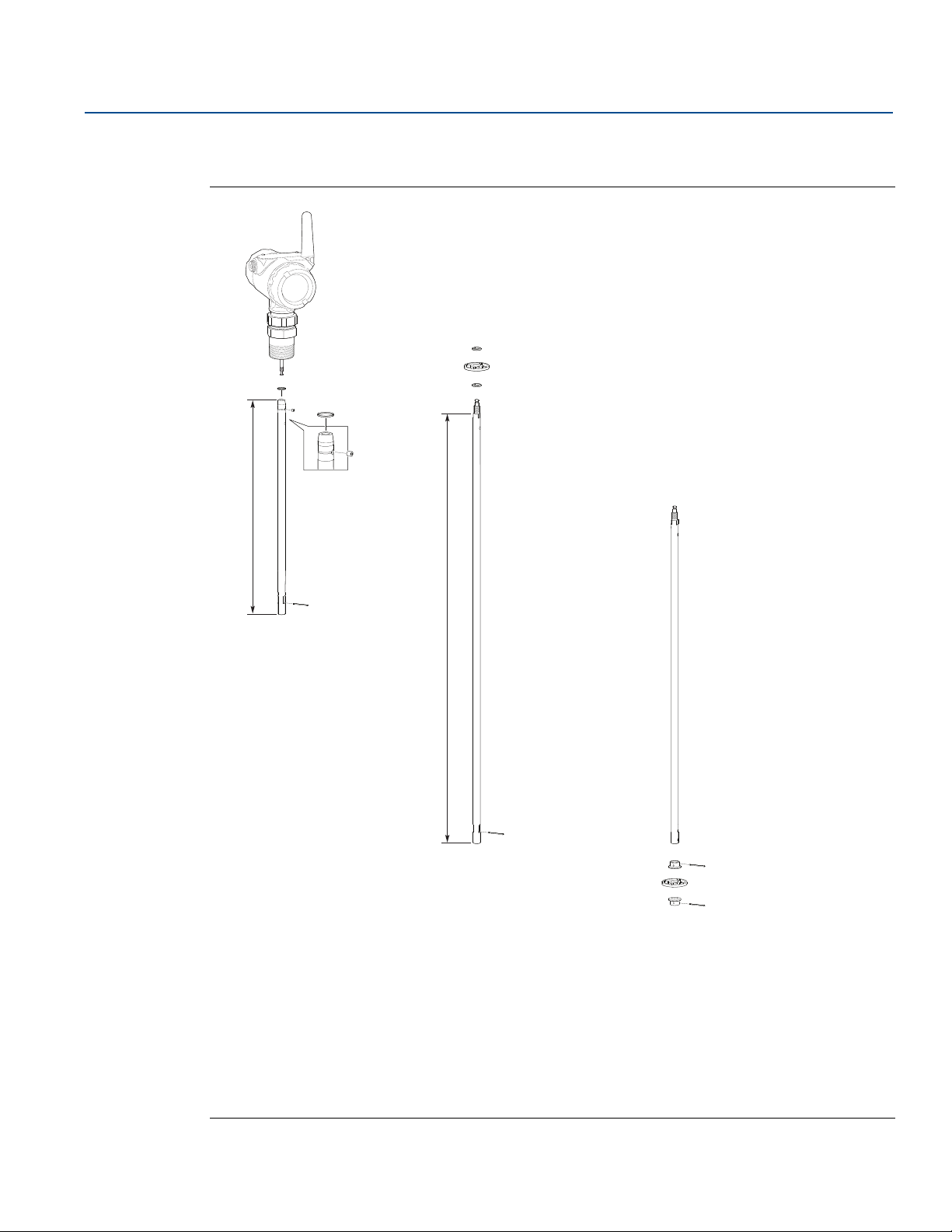

Figure 3-20. Segmented Probe Parts

Installation

October 2016

Dimensions are in inches (mm).
A. Safety ring
B. Screw
C. Top segment
D. Split pin
E. PTFE washer (optional)
F. Centering disc in PTFE (optional)
G. Middle segment
H. Bottom segment (length varies depending on total probe length)
I. Bushing (for the centering disc at the probe end)
J. Bottom centering disc in PTFE or Stainless Steel (optional)

Installation

37

Installation

Probe length

Probe segments box

Top Segment

~

Two tur ns

October 2016

Reference Manual

00809-0100-4308, Rev BB

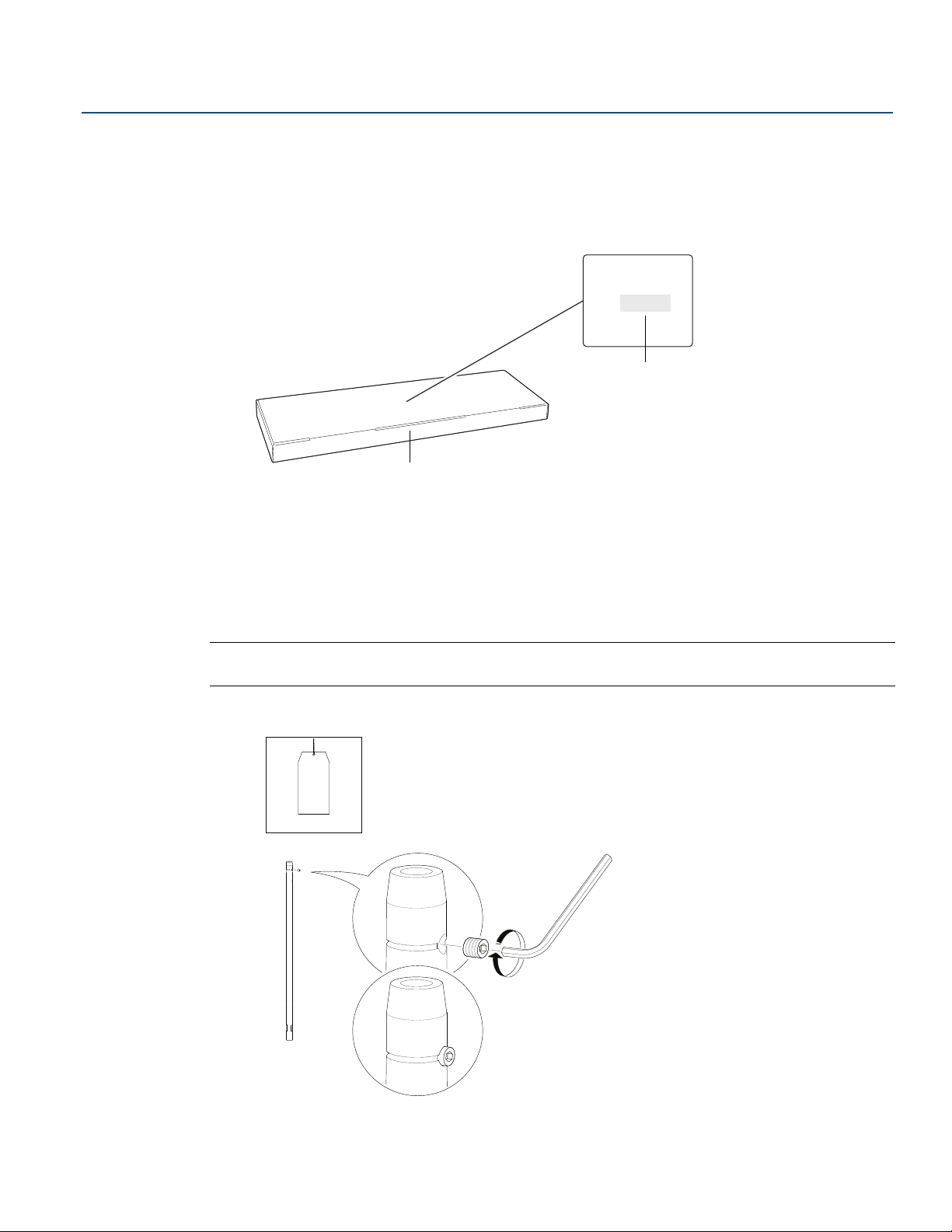

Verify probe length

Segmented probe ordered with model code 4S

Before installation, verify the probe length (L) on the label. If the probe length needs to be adjusted, see

“Adjusting the probe length” on page 45.

SN:
L =

Segmented probe ordered as spare part kit

Before installation, the number of segments that add up to the desired probe length must be
determined. Also, the bottom segment may need to be shortened. See “Adjusting the probe length” on

page 45.

Assemble the segmented probe

Note

If there is enough space beside the tank, the probe can be assembled before inserting it into the tank.

1. Insert the stop screw to the top segment. Tighten approximately two turns.

38

Installation

Reference Manual

Bottom Segment

Bottom Segment

00809-0100-4308, Rev BB

2. Pre-assemble the safety ring.

3. Optional: If ordered, mount the centering disc on the bottom segment of the probe.

Installation

October 2016

Installation

4. Insert the support tool.

39

Installation

Note

 Maximum five pcs/probe
 Minimum two segments between each centering disc

Hand tighten

October 2016

Reference Manual

00809-0100-4308, Rev BB

5. Optional: If ordered, mount the centering disc.

6. Mount a middle segment.

40

Installation

Reference Manual

00809-0100-4308, Rev BB

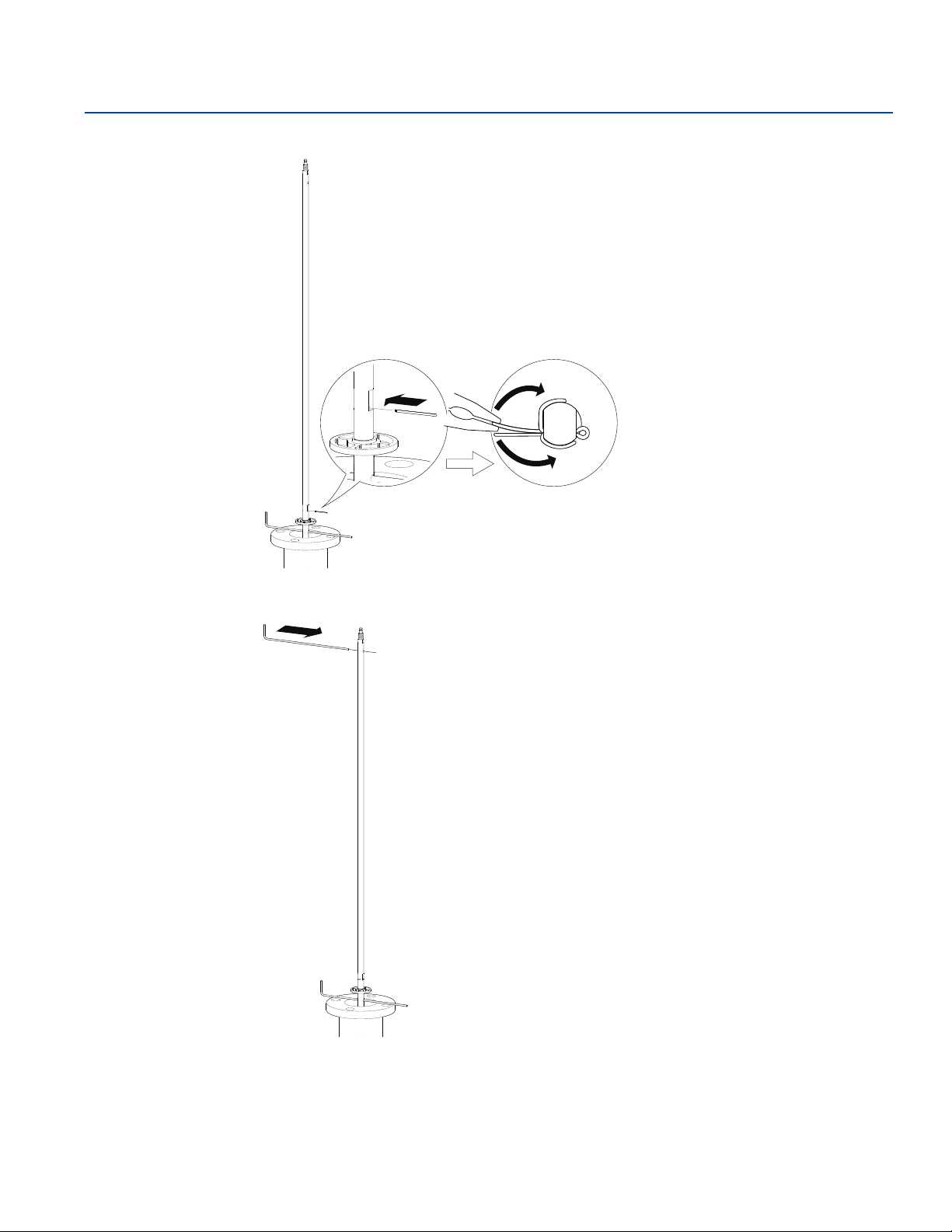

7. Secure the split pin.

Installation

October 2016

8. Insert the second support tool.

Installation

41

Installation

Use anti-seize paste or PTFE tape

according to your site procedures.

October 2016

Reference Manual

00809-0100-4308, Rev BB

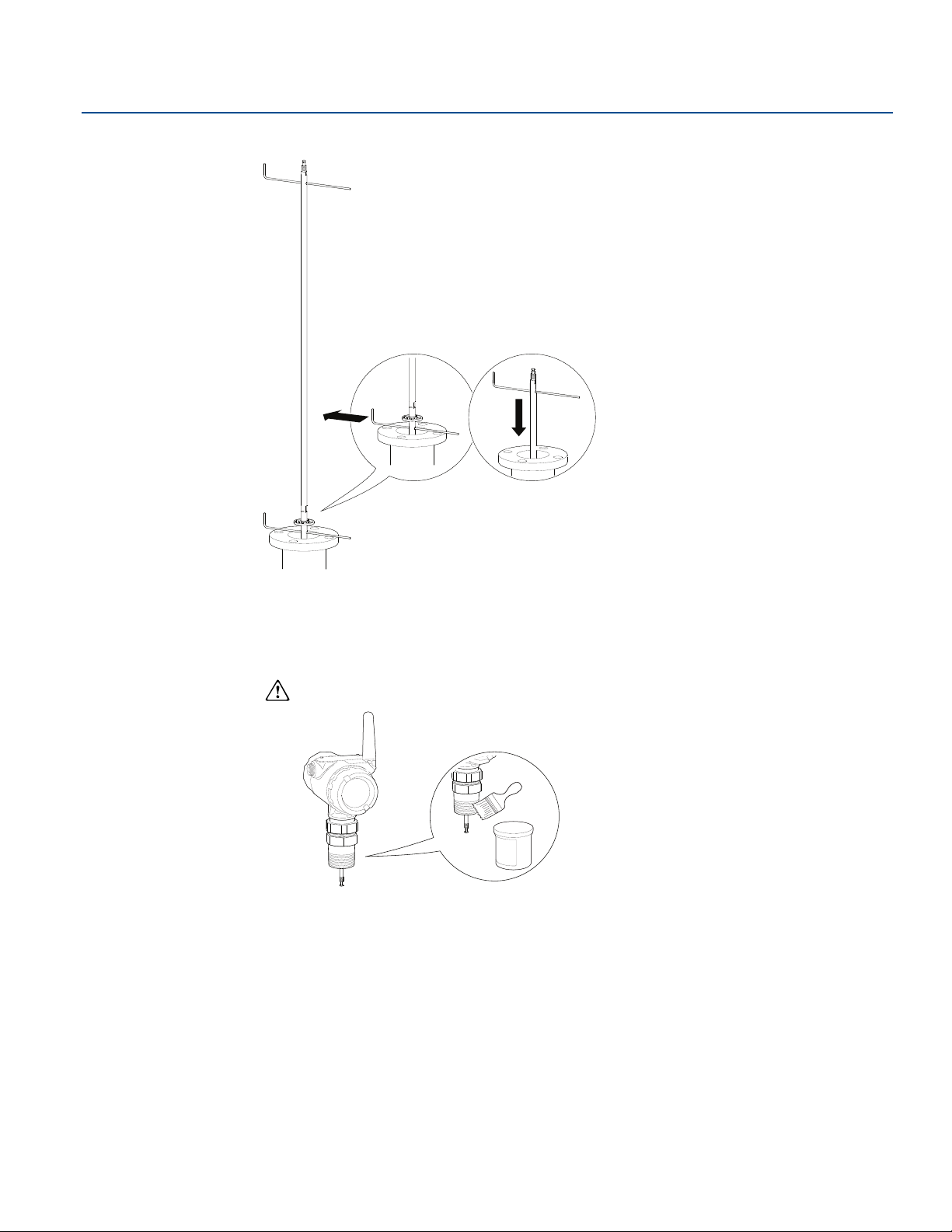

9. Remove the first support tool and lower the probe into the tank.

10. Repeat steps 5 to 9 until all segments are mounted. Make sure to finish with the top segment of
the probe.

11. Seal and protect threads.

Only for NPT threaded tank connection.

42

Installation

Reference Manual

Flange / Tri Clamp

Threaded

Gasket

Sealant on
threads (NPT)
or

Gasket (BSP/G)

Note

For safety reasons, at least two people are needed when mounting the device.

Make sure to hold the device above the tank. High loads can break the support tool.

00809-0100-4308, Rev BB

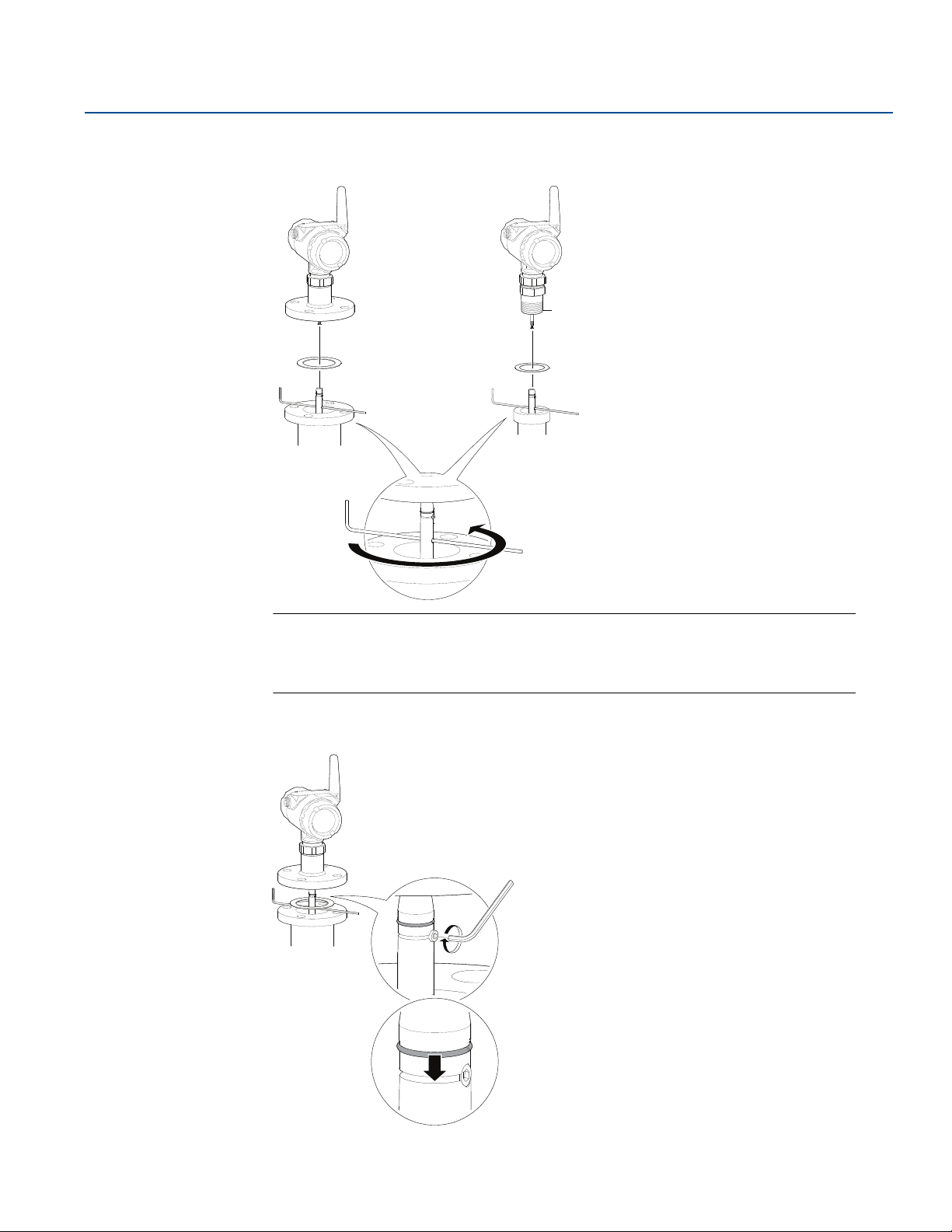

12. Attach the probe to the device.

Installation

October 2016

13. Tighten the stop screw and slide the safety ring into the groove.

Installation

43

Installation

Flange

Threaded

Tri Cla mp

October 2016

Reference Manual

00809-0100-4308, Rev BB

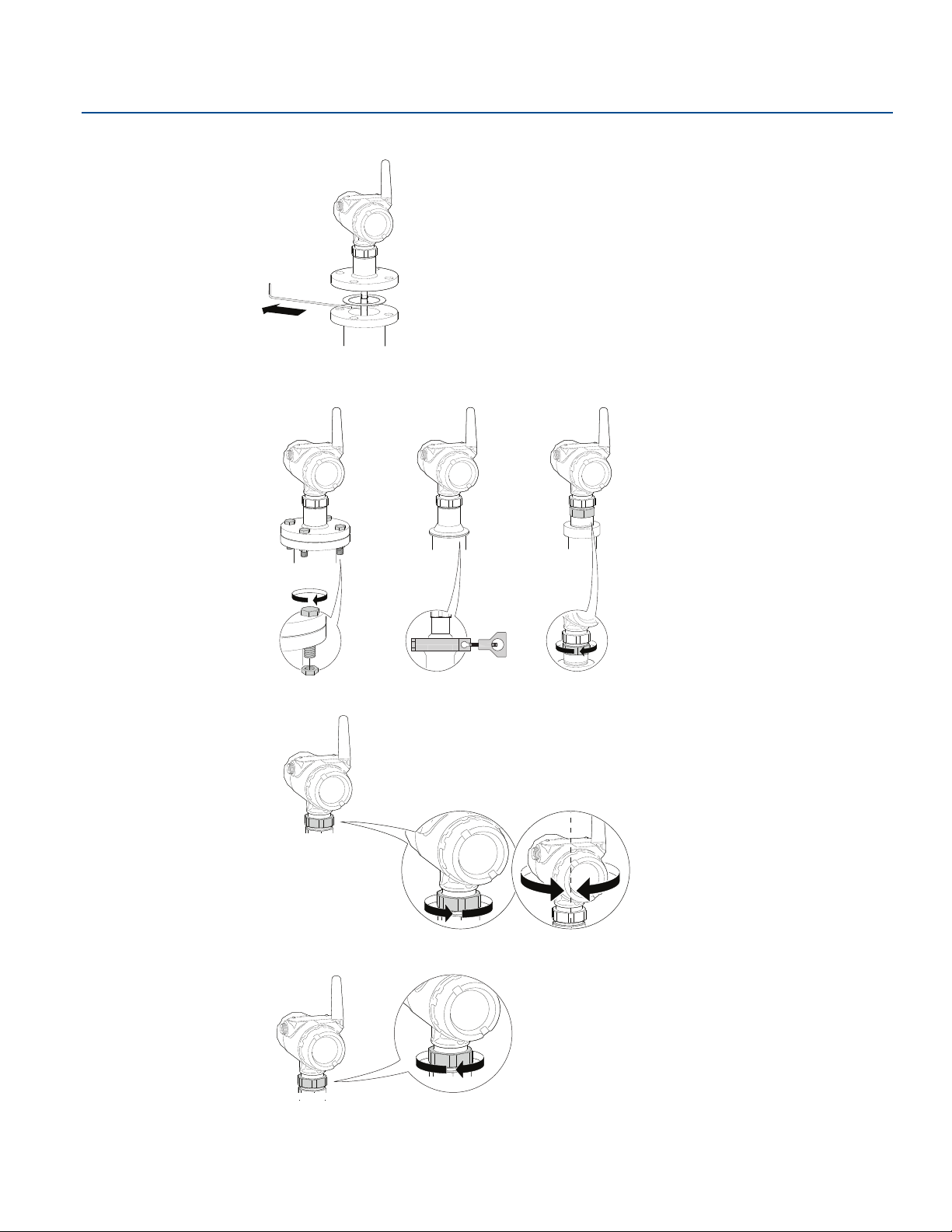

14. Remove the support tool.

15. Mount the device on the tank.

16. Rotate the housing to the desired direction.

17. Tighten the nut. The torque must be 30 Lbft (40 Nm).

18. Connect the wiring.

44

Installation

Reference Manual

L, desired probe length:

L

n, number of middle segments:

n

Y, length of bottom segment:

Y

Y < 0.4 in. (10 mm)

Y ≥ 0.4 in. (10 mm)

Y = 31.5 in. (800 mm)

00809-0100-4308, Rev BB

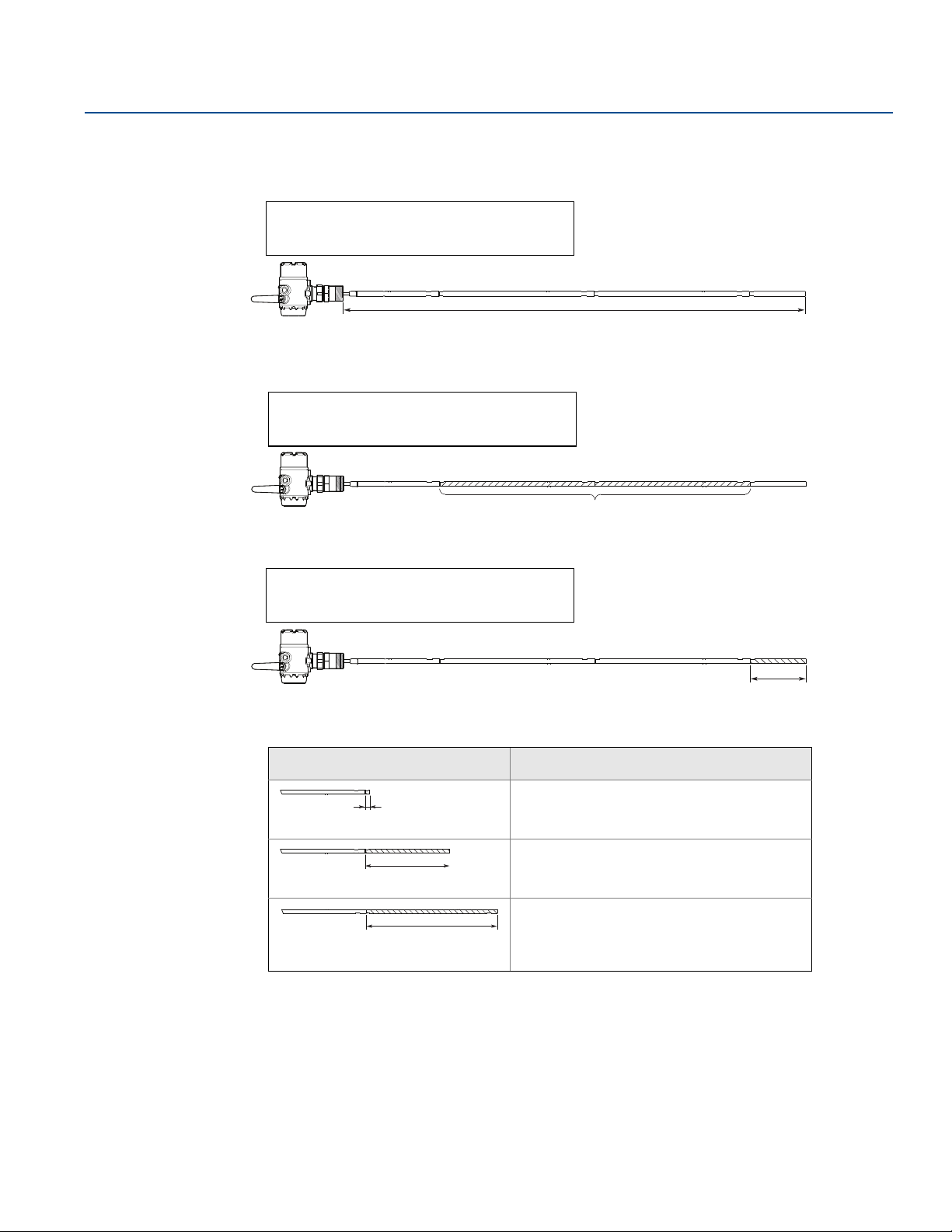

Adjusting the probe length

1. Determine L, the desired probe length.

2. Determine n, the number of middle segments needed for the desired probe length. See Ta bl e

Installation

October 2016

3-3 on page 47.

3. Calculate Y, the length of the bottom segment. See Table 3-3 on page 47.

4. Continue as follows:

Length of bottom segment (Y) Action

 Continue with step (7).

Do not use the bottom segment.

 Continue with step (5) and cut the bottom

segment.

1. Add one extra middle segment to the
calculated n.

2. Continue with step (7).

Installation

45

Installation

12

3

0

Y

Note

Make sure the bottom segment is fixed while cutting.

Y

Drilling fixture

October 2016

Reference Manual

00809-0100-4308, Rev BB

5. Mark where to cut the bottom segment.

0

12

3

4

5

6

7

8

6. Cut the bottom segment at the mark.

46

7. Optional: If a bottom centering disc is ordered, then drill two holes on the bottom segment
using the drilling fixture.

Installation

Reference Manual

00809-0100-4308, Rev BB

Table 3-3. Determination of Probe Segments for Standard Seal

Installation

October 2016

Desired probe length (L)

(1)

Number of

Length of bottom segment (Y)

middle

in. mm in. mm

15.8 ≤ L ≤ 47.2 400 ≤ L ≤ 1200 0 pc Y = L -15.8 Y = L - 400

47.2 < L ≤ 78.7 1200 < L ≤ 2000 1 pc Y = L - 47.2 Y = L - 1200

78.7 < L ≤ 110.2 2000 < L ≤ 2800 2 pcs Y = L - 78.7 Y = L - 2000

110.2 < L ≤ 141.7 2800 < L ≤ 3600 3 pcs Y = L - 110.2 Y = L - 2800

141.7 < L ≤ 173.2 3600 < L ≤ 4400 4 pcs Y = L - 141.7 Y = L - 3600

173.2 < L ≤ 204.7 4400 < L ≤ 5200 5 pcs Y = L - 173.2 Y = L - 4400

204.7 < L ≤ 236.2 5200 < L ≤ 6000 6 pcs Y = L - 204.7 Y = L - 5200

236.2 < L ≤ 267.7 6000 < L ≤ 6800 7 pcs Y = L - 236.2 Y = L - 6000

267.7 < L ≤ 299.2 6800 < L ≤ 7600 8 pcs Y = L - 267.7 Y = L - 6800

299.2 < L ≤ 330.7 7600 < L ≤ 8400 9 pcs Y = L - 299.2 Y = L - 7600

330.7 < L ≤ 362.2 8400 < L ≤ 9200 10 pcs Y = L - 330.7 Y = L - 8400

362.2 < L ≤ 393.7 9200 < L ≤ 10000 11 pcs Y = L - 362.2 Y = L - 9200

1. Maximum probe length is 32 ft 9 in. (10 m) for the Rosemount 3308 Series.

segments (n)

Installation

47

Installation

A

October 2016

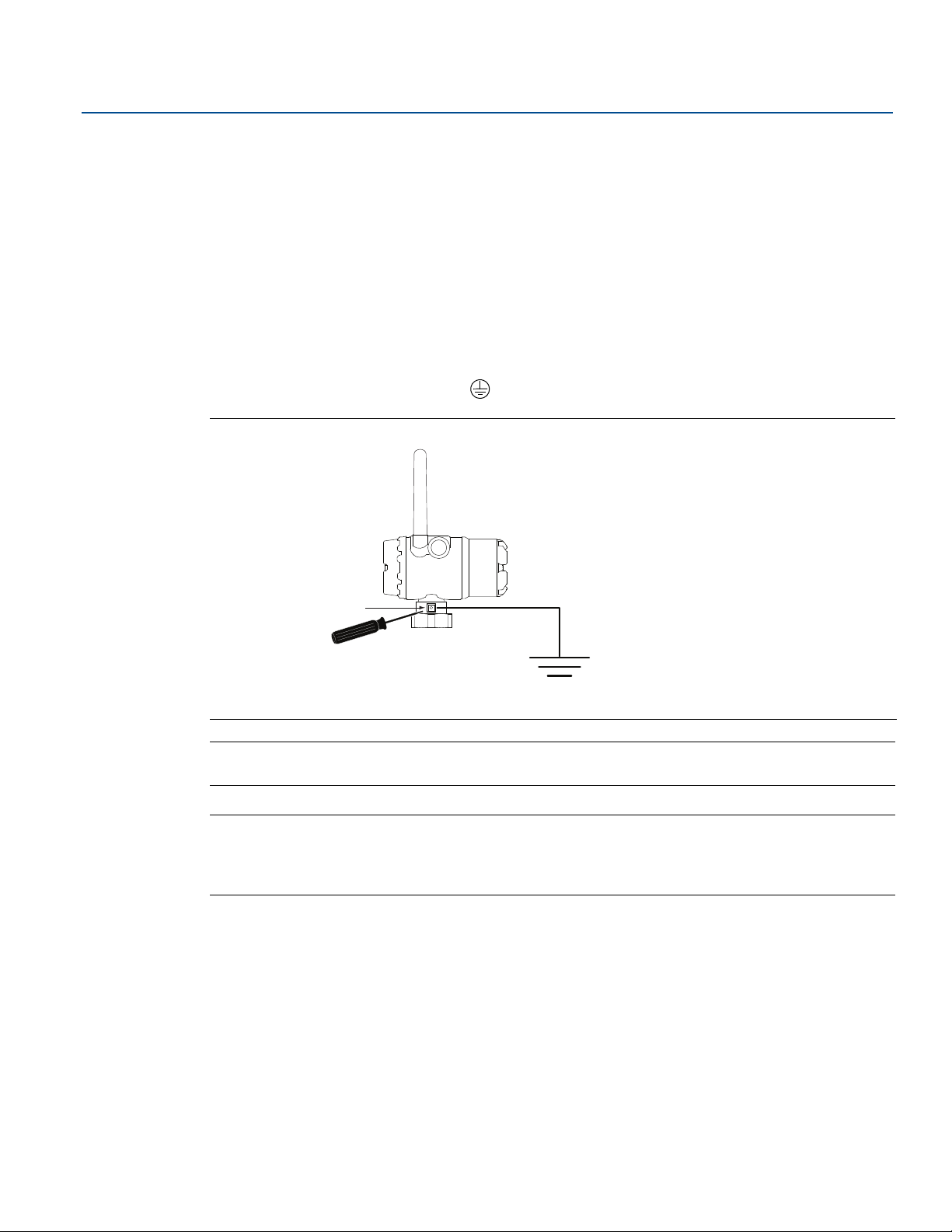

3.7 Ground the device

The Rosemount 3308 Series Wireless Guided Wave Radar transmitter operates with the housing
grounded or floating. Floating systems can cause extra noise that may affect many types of readout
devices. If the signal appears noisy or erratic, grounding at a single point may solve the problem.

Grounding of the electronics enclosure should be done in accordance with local and national installation
codes. Grounding is accomplished by using the external case grounding terminal.

Non-metallic tanks

Ground device on non-metallic tanks (e.g. fiberglass tanks) to prevent electrostatic charge build-up.

There is one grounding screw connection provided, located on the housing, see Figure3-21. The ground
screw is identified by a ground symbol:

Figure 3-21. Ground Screw

Reference Manual

00809-0100-4308, Rev BB

48

A. Ground screw

Note

Always use facility recommended wiring practices.

Note

Flexible twin lead probe or coaxial probe are the recommended choice for non-metallic tanks. Single
lead probes are not suited for non-metallic tanks or open atmosphere applications, due to high
susceptibility to strong electromagnetic fields.

Installation

Reference Manual

1. 2.

Keep cover tight

00809-0100-4308, Rev BB

3.8 Install the power module

Note

Use caution when handling the power module, it may be damaged if dropped from heights in excess of
20 ft (6 m).

1. Install the Black Power Module, SmartPower™ Solutions model number 701PBKKF into the

transmitter.

2. Close the housing cover and tighten to site or safety specifications. Always ensure a proper seal by

tightening the electronics housing covers so that metal touches metal, but do not over tighten.

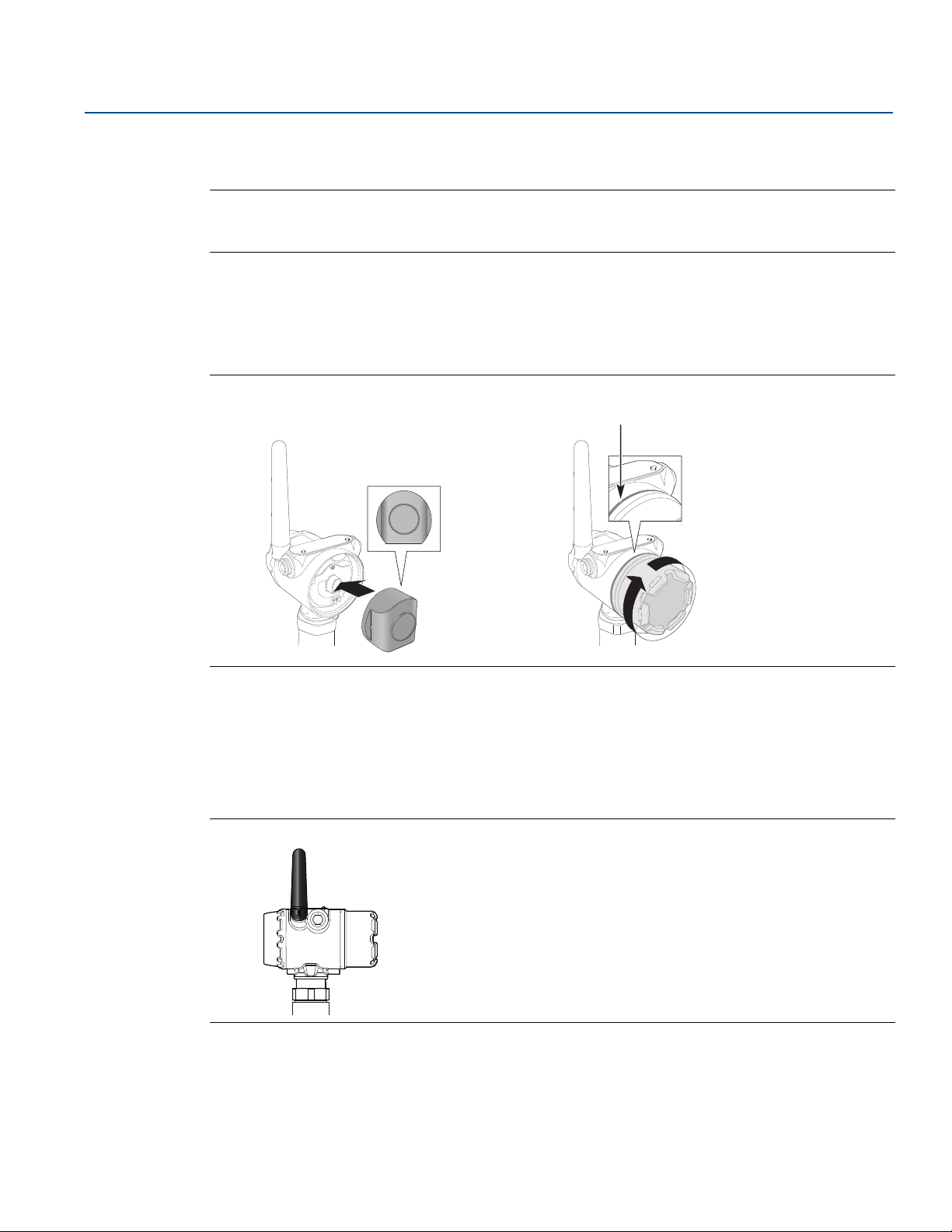

Figure 3-22. Power Module Installation

Installation

October 2016

3.9 Position the antenna

The antenna should be positioned vertically, either straight up or straight down, and it should be
approximately 3 ft (1 m) from any large structure, building, or conductive surface to allow for clear
communication to other devices.

Figure 3-23. Antenna Positioned Vertically

Installation

49

Installation

A B C D

October 2016

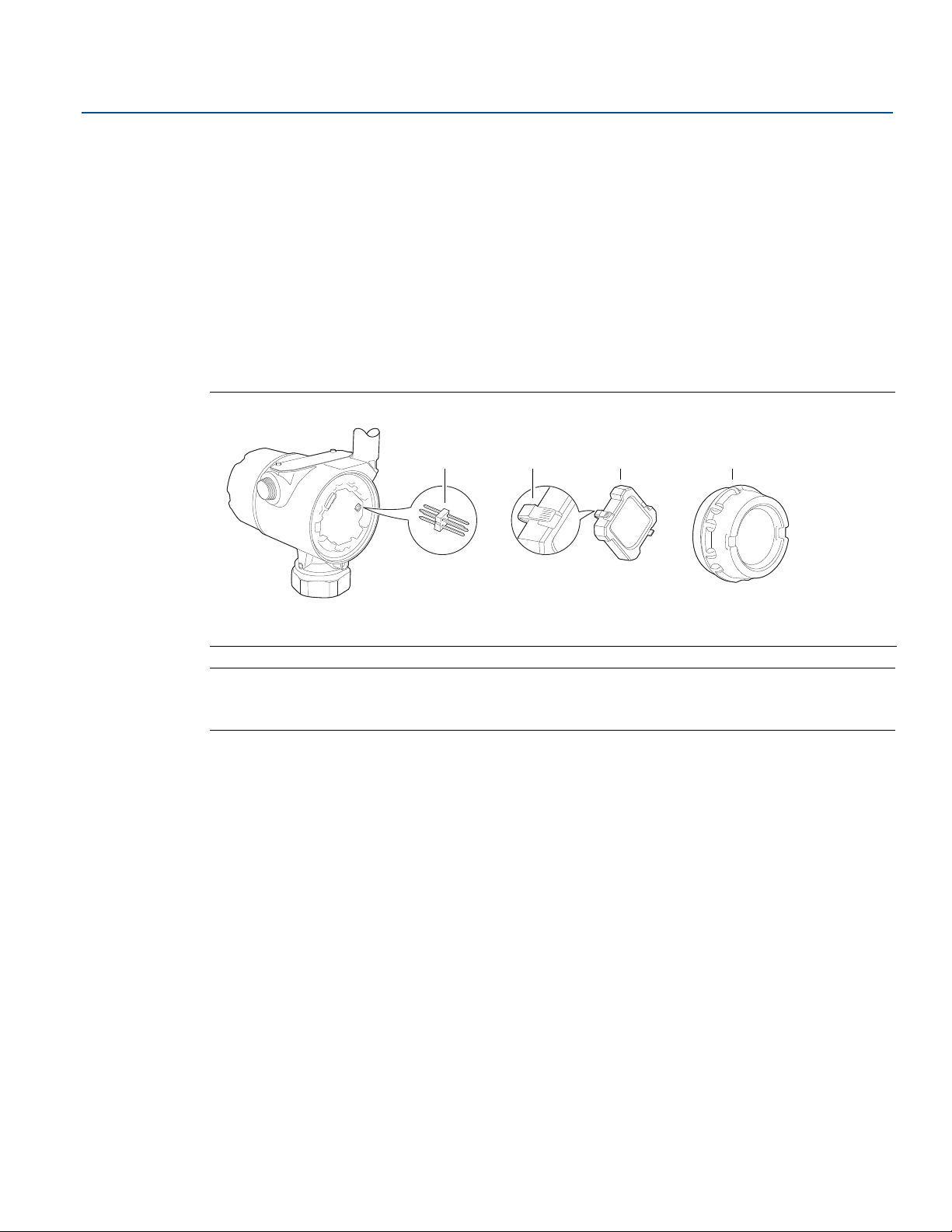

3.10 Utilize the device display

If a device display is ordered, it will be shipped attached to the transmitter. The display is ordered in the
transmitter model number, option code M5.

3.10.1 Rotate the device display

To rotate the display in 90-degree increments, do the following:

1. Squeeze the two black tabs on opposite sides of the display. Refer to Figure 3-24.

2. Gently pull out the display.

3. Rotate the display to the desired orientation, and snap the display into place.

Figure 3-24. Device Display

Reference Manual

00809-0100-4308, Rev BB

A. Display Pins C. Display
B. Black tabs D. Cover

Note

If the device display four-pin connector is inadvertently removed from the interface board, carefully
re-insert the connector before snapping the device display back into place.

3.10.2 Retrofitting

If an existing transmitter with no display (flat electronics cover) is to be retrofitted with a new display,
order spare part kit number 00753-9004-0001(aluminum display kit) or 00753-9004-0004 (stainless
steel display kit). These kits contain an extended cover with a display viewing window, a display board,
and a display pin connector. Replace the flat cover with the extended display and tighten.

50

Installation

Reference Manual

00809-0100-4308, Rev BB

Section 4 Configuration

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 51

Safety messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 52

Configuration procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 53

Get started with your preferred configuration tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 54

Join device to wireless network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 57

Configure device using Guided Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 65

Verify Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 67

4.1 Overview

This chapter provides information about configuration, configuration tools, and configuration
parameters.

 For a proper configuration, follow the steps listed in the section “Configuration procedure” on

page 53.

 The configuration can be performed using one of the described configuration tools: AMS

Configurator or a Field Communicator. The section “Get started with your preferred configuration

tool” on page 54 describes what preparations must be done in order to use the configuration tool.

 Appendix D: Configuration Parameters provides extended information about the configuration

parameters. An overview of Device Descriptor (DD) menu is presented in the section “Menu overview

of the Device Descriptor (DD)” on page 158. All configuration parameters are described in section
“Configuration parameters” on page 159.

Configuration

October 2016

™

Wireless

Config uration

51

Configuration

October 2016

4.2 Safety messages

Instructions and procedures in this section may require special precautions to ensure the safety of the
personnel performing the operations. Information that potentially raises safety issues is indicated by a

warning symbol ( ). Refer to the following safety messages before performing an operation preceded
by this symbol.

Explosions could result in death or serious injury.

 Verify that the operating environment of the gauge is consistent with the appropriate hazardous

locations certifications.

 Installation of device in an explosive environment must be in accordance with appropriate local,

national and international standards, codes, and practices.

 Ensure device is installed in accordance with intrinsically safe or non-incendive field practices.

Electrical shock can result in death or serious injury.

 Ground device on non-metallic tanks (e.g. fiberglass tanks) to prevent electrostatic charge build-up.
 Single lead probes are sensitive for strong electromagnetic fields and therefore not suitable for

non-metallic tanks.

 Care must be taken during transportation of power module to prevent electrostatic charge build-up.
 Device must be installed to ensure a minimum antenna separation distance of 8 in. (20 cm) from all

persons.

Reference Manual

00809-0100-4308, Rev BB

Process leaks could result in death or serious injury.

 Only qualified personnel should install the equipment.
 Handle the transmitter carefully.
 If the process seal is damaged, gas could escape from the tank when removing the transmitter head

from the probe.

To ensure long life for your radar transmitter, and to comply with hazardous location installation
requirements, tighten covers on both sides of the electronics housing.

Use caution when handling the Power Module. The Power Module may be damaged if dropped from
heights in excess of 20 ft (6 m).

This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: This
device may not cause harmful interference. This device must accept any interference received, including
interference that may cause undesired operation. This device must be installed to ensure a minimum
antenna separation distance of 20 cm (8 in.) from all persons.

52

Configuration

Reference Manual

JOIN DEVICE TO

WIRELESS NETWORK

Insert Power Module

Connect to Device

Obtain Network ID

and Join Key

CONFIGURE DEVICE

Configure Update Rate

Enter Network ID and

Join Key

Veri fy Device Joins

Network

Connect to Device

Basic Setup

Optional Setup

VERIFY LEVEL

GET STARTED

00809-0100-4308, Rev BB

4.3 Configuration procedure

Follow these steps for proper configuration:

Configuration

October 2016

Config uration

53

Configuration

A

A

October 2016

Reference Manual

00809-0100-4308, Rev BB

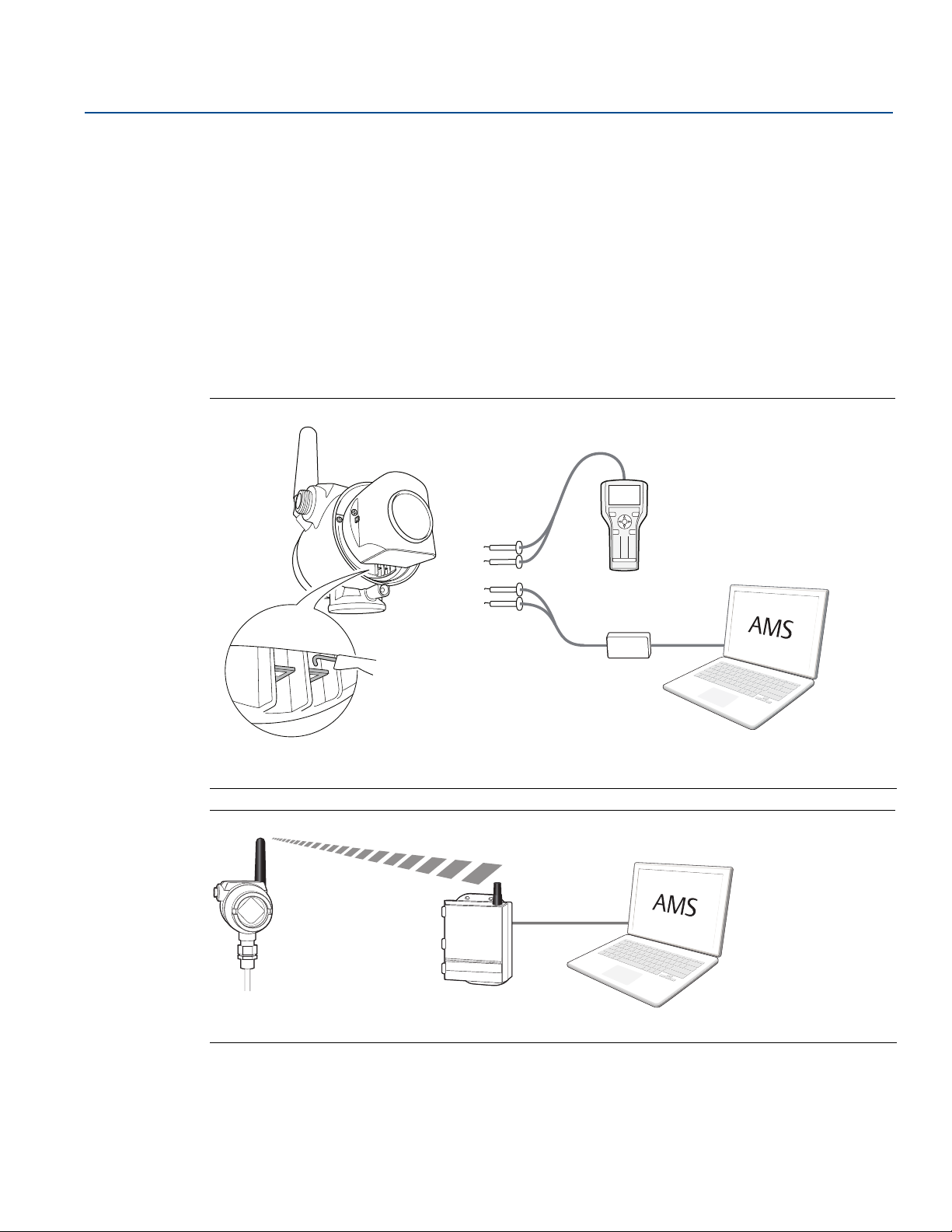

4.4 Get started with your preferred configuration tool

4.4.1 AMS Wireless Configurator (version 12.0 or later is required)

The AMS Wireless Configurator is the recommended software tool for the wireless network devices, and
is supplied with the Emerson Wireless Gateway. Refer to the AMS Wireless Configurator Manual

Supplement for further information.

Configuration can be done by connecting to the wireless network devices either point-to-point using a

®

HART

modem as shown in Figure 4-1, or wirelessly through the Gateway as shown in Figure 4-2. Initial

configuration to join a device to the wireless network must be done point-to-point.

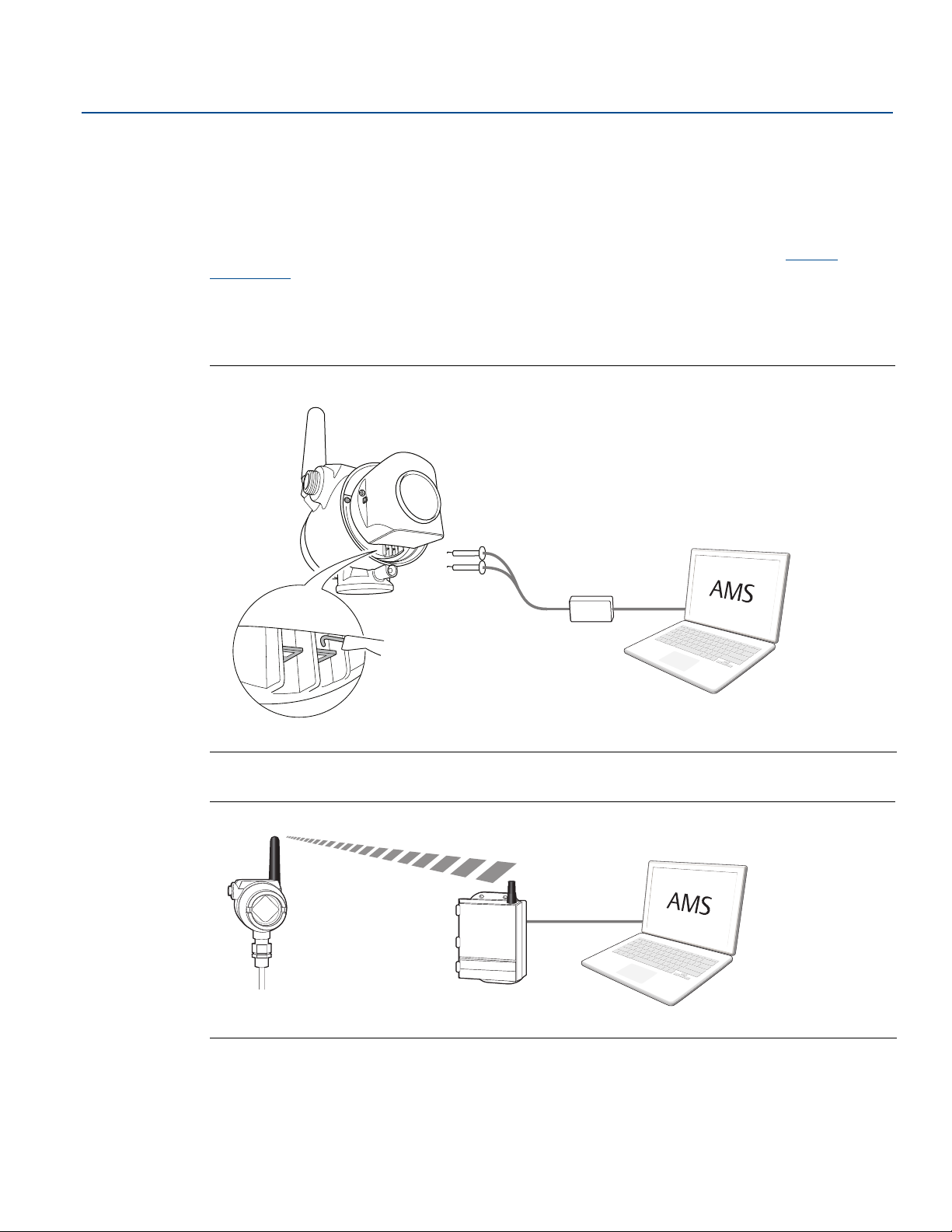

Figure 4-1. Connect Point-to-Point using HART Modem

54

A. Communication terminals

Figure 4-2. Connect Wirelessly through the Wireless Gateway

A. Wireless Gateway

Configuration

Reference Manual

00809-0100-4308, Rev BB

Get the latest Device Descriptor (DD)

The Device Descriptor (DD) is a configuration tool that is developed to assist the user through the
configuration.

The Rosemount
download the latest HART DD, visit the Emerson

E

mersonProcess.com/Devicefiles

After downloading, add the DD to AMS Wireless Configurator:

1. Close AMS Wireless Configurator.

2. Go to Start > Programs > AMS Device Manager and select Add Device Type.

3. Browse to the downloaded DD files and select Ok.

4. In the Add Device Type application, select the Help button for more information on how to complete

this operation.

Configure the HART modem interface

Before connecting to the device using a HART modem, the HART modem interface must be configured
in AMS Wireless Configurator:

Configuration

October 2016

™

3308 Series DD is typically installed together with AMS Wireless Configurator. To

™

Process Management Device Install Kit site at:

1. Close AMS Wireless Configurator.

2. Go to Start > Programs > AMS Device Manager and select Network Configuration.

3. Select Add.

4. In the drop down list, select HART modem and then select Install.

5. Follow the instructions. In the Network Configuration application, select the Help button for more

information on how to complete this operation.

Configure the wireless network interface

Before connecting to the device wirelessly using a Wireless Gateway, the wireless network must be
configured in AMS Wireless Configurator:

1. Close AMS Wireless Configurator.

2. Go to Start > Programs > AMS Device Manager and select Network Configuration.

3. Select Add.

4. In the drop down list select Wireless Network and then select Install.

5. Follow the instructions. In the Network Configuration application, select the Help button for more

information on how to complete this operation.

Config uration

55

Configuration

123
456
7809

A

F

E

D

G

A

C

B

October 2016

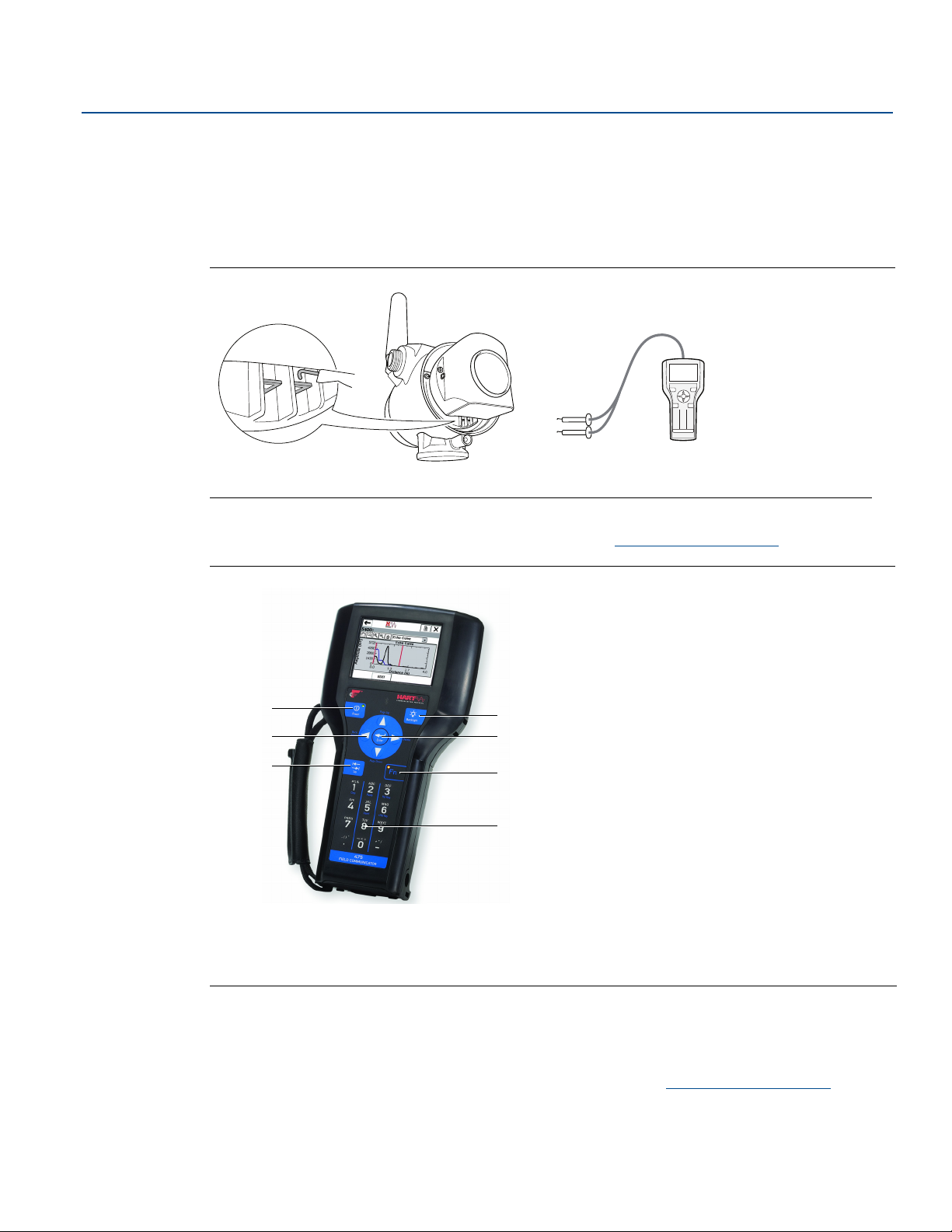

4.4.2 Field Communicator

This section describes how to prepare the Field Communicator to communicate with a Rosemount 3308
Series Transmitter. The Field Communicator can be used to configure the device with a point-to-point
connection. Connect the leads on the Field Communicator to the communication terminals of the
device as shown in Figure 4-3.

Figure 4-3. Connect Point-to-Point using a Field Communicator

A. Communication terminals

Reference Manual

00809-0100-4308, Rev BB

An overview of the Field Communicator is shown in Figure 4-4. For information on all the capabilities,
refer to the Field Communicator Product Manual, available at FieldCommunicator.com

.

Figure 4-4. 475 Field Communicator

A. Power key E. Enter key
B. Navigation keys F. Func tion key
C. Ta b key G. Alphanumeric keypad
D. Backlight key

Get the latest Device Descriptor (DD)

56

If the Rosemount 3308 Series DD is not included in your 475, then use the Easy Upgrade Utility to update
the Field Communicator with the latest DD. For more information on how to update the device
descriptors see the Field Communicator Product Manual, available at FieldCommunicator.com

.

Configuration

Reference Manual

00809-0100-4308, Rev BB

4.5 Join device to wireless network

4.5.1 Power up the wireless device

Make sure that the Wireless Gateway is installed and functioning properly before any wireless field
devices are powered. See “Install the power module” on page 49 for further information on how to
install the power module.

Wireless devices should be powered up in order of proximity from the Gateway, beginning with the
closest. This will result in a simpler and faster network installation.

Enable Active Advertising on the Gateway to ensure that new devices join the network faster. For more
information, see the Gateway Reference Manual

Startup screen sequence

The following screens will be displayed in sequence when the power module is first connected to the
Rosemount 3308 Series Transmitter.

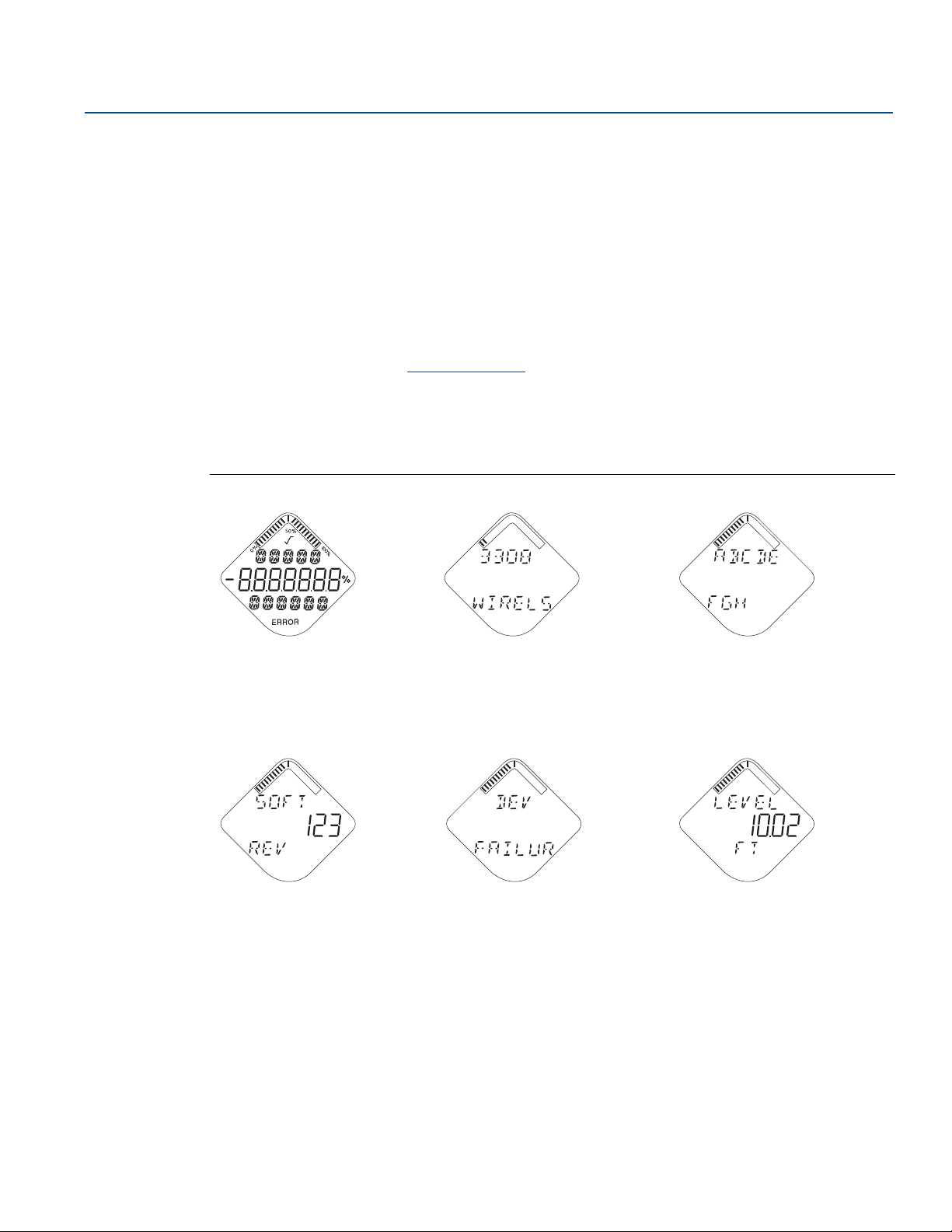

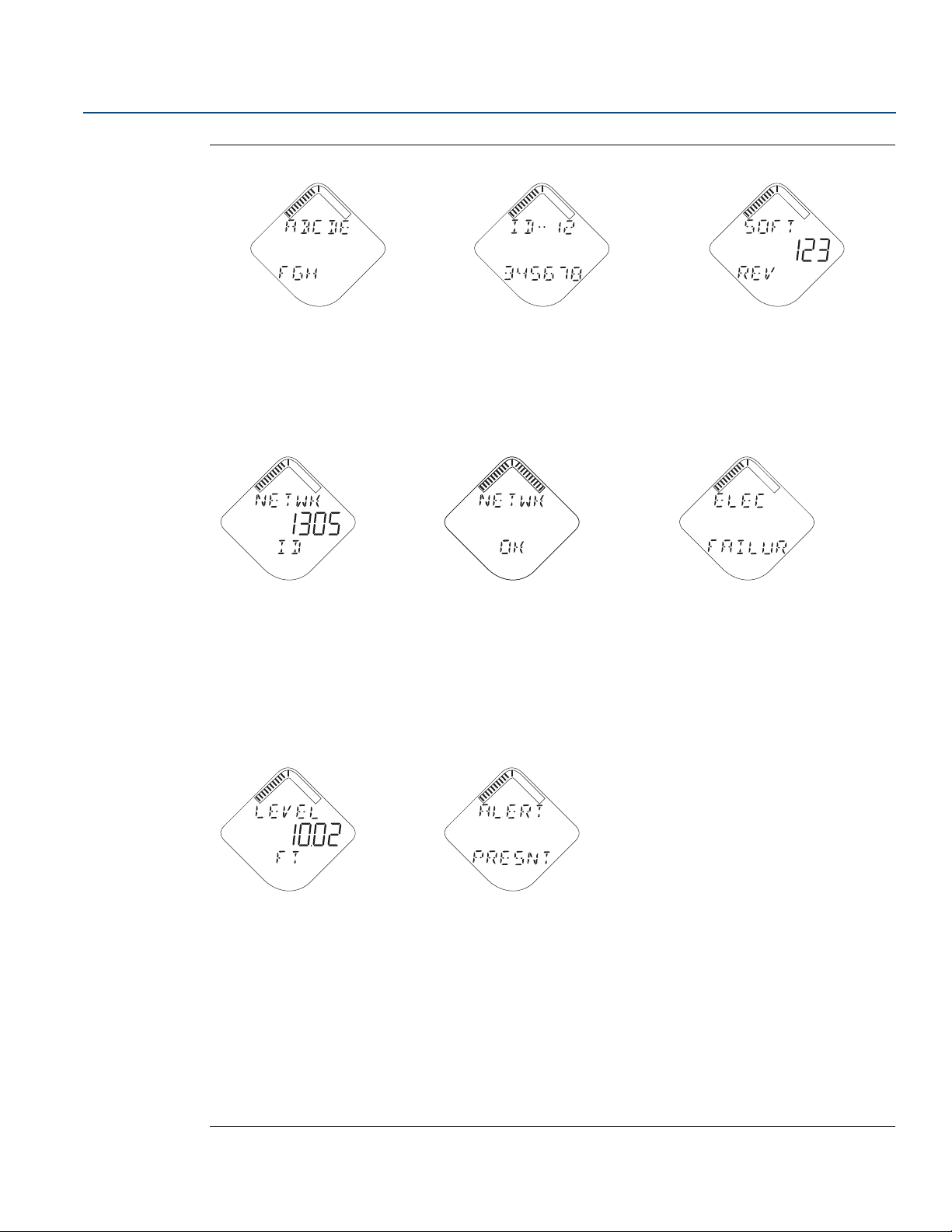

Figure 4-5. Startup Screen Sequence

.

Configuration

October 2016

1. All Segments ON 2. Device Identification 3. Device Information: Tag

Used to visually determine if
there are any bad segments on
the device display.

4. Software Revision 5. Device Information: Status 6. Primary Variable

Used to determine Device
Software Revision.

Identification string used to
determine the Device Type.

This screen will only appear if
there is a critical error which may
prevent the device from
operating correctly. Check
additional status screens for more
information about failure source,
refer to “Diagnostic button

screen sequence” on page 72.

User entered tag, 8 characters
long. This screen will not display
if all characters are blank.

Measurement value of mapped
Primary Variable.

Config uration

57

Configuration

> 6 V Good

5.2 V – 6.0 V Low

< 5.2 V Very low

October 2016

Reference Manual

00809-0100-4308, Rev BB

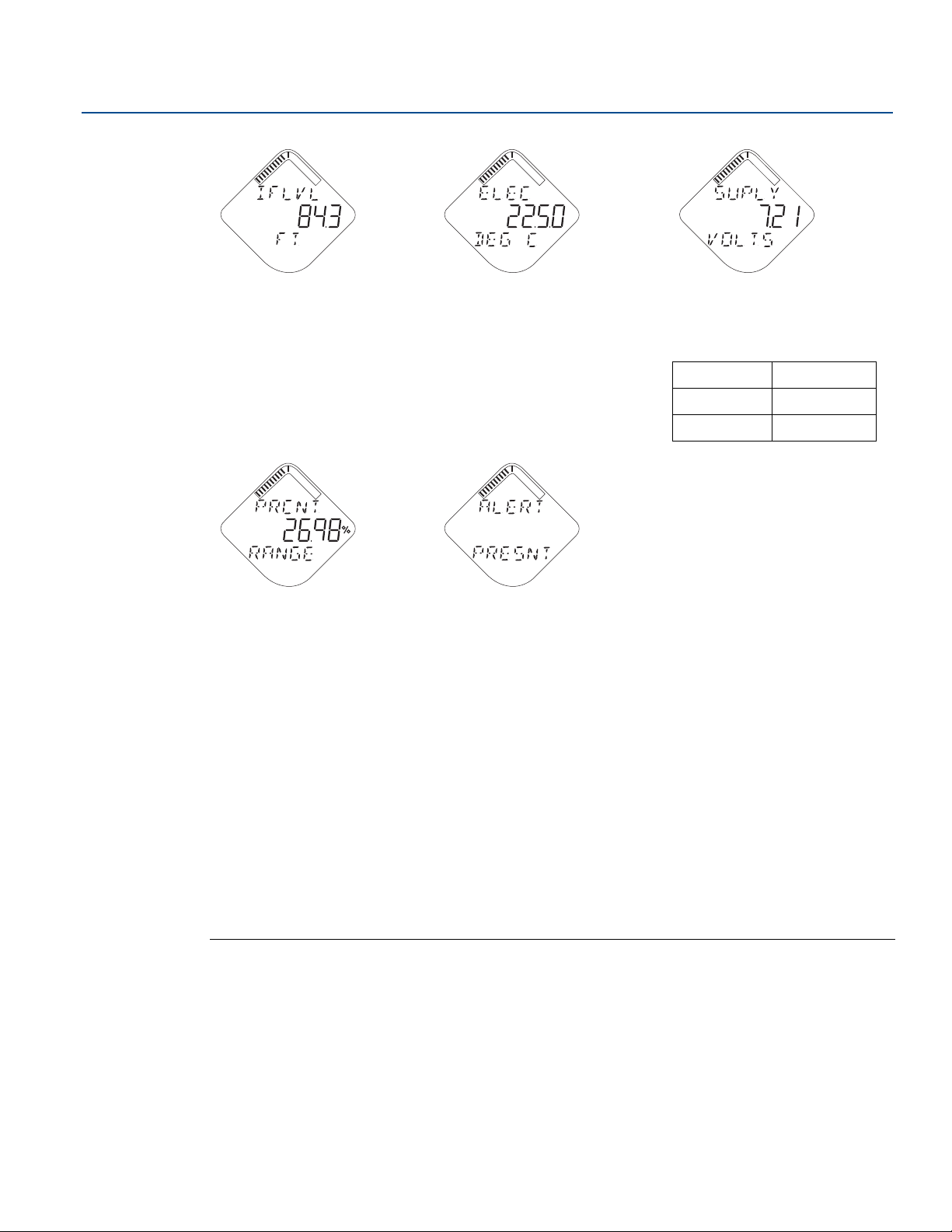

7. Secondary Variable 8. Electronics Temperature 9. Supply Voltage

Measurement value of mapped
Second Variable.

Temperature value of device
electronics.

Voltage reading of the Power
Module.

10. Percent of Range 11. Active Alert Present

Level value in percent of total
measurement range.

This screen will only appear if
there is at least one Active Alert
present. For detailed information
of the failure source and
recommended actions, go to the
Active Alerts screen in AMS
Wireless Configurator or Field
Communicator. Refer to “Check

Device Status” on page 75.

Some Active Alerts will be
displayed on the LCD display as
part of the diagnostic button
screen sequence, refer to

“Diagnostic button screen
sequence” on page 72.

58

Configuration

Reference Manual

Communication
terminals

Field Communicator

HART Modem

00809-0100-4308, Rev BB

4.5.2 Connect to device

Connect a Field Communicator or a HART modem to the communication terminals as shown in

Figure 4-6.

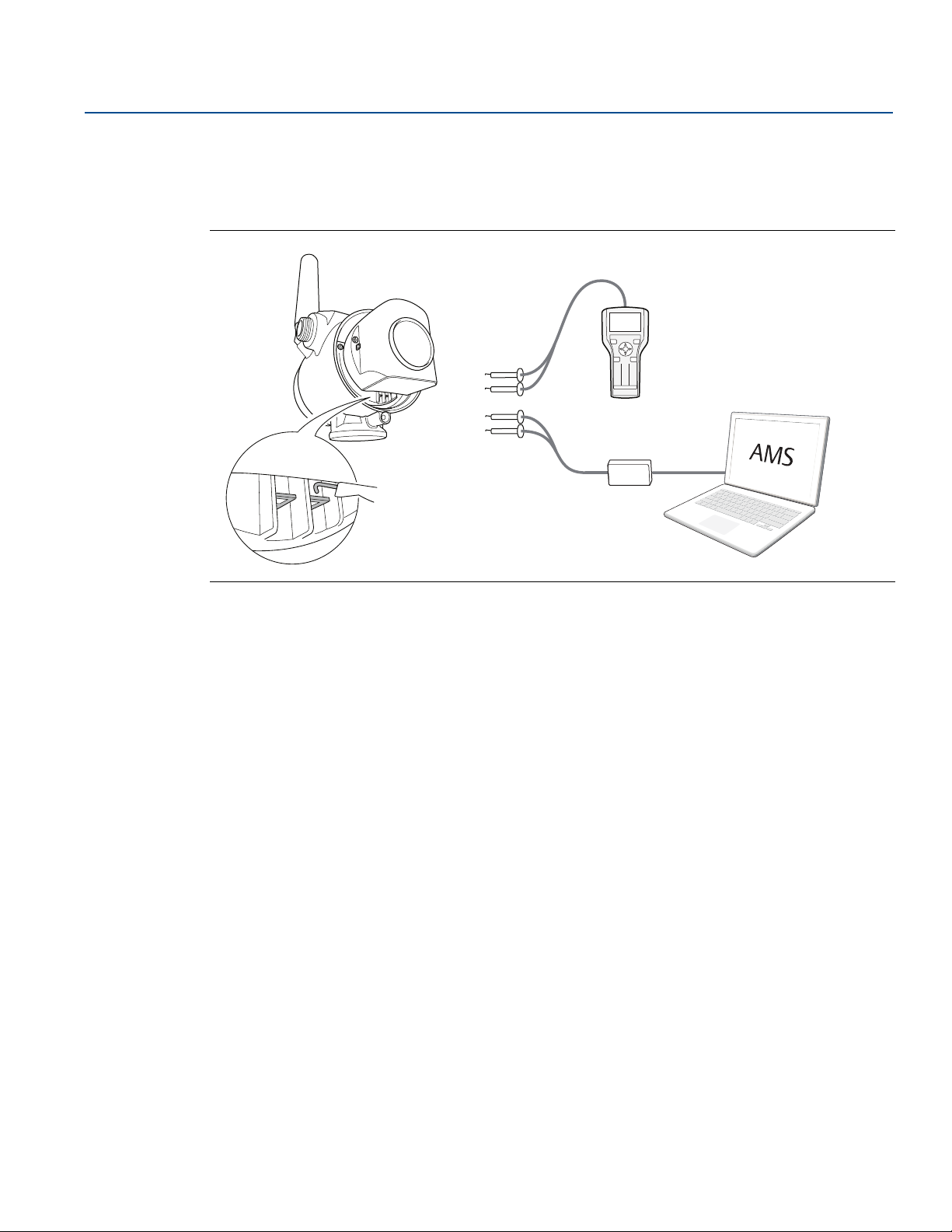

Figure 4-6. Connect to Device

123
456
7809

Configuration

October 2016

AMS Wireless Configurator: Field Communicator:

a. Start AMS Wireless Configurator.
b. Select Device Connection View in the

View menu.

c. Double click the device under the HART

modem.

a. Turn on the Field Communicator.
b. Tap the HART symbol from the main

menu.

c. The Field Communicator now connects

to the device.

For more information on how to connect to device refer to “Get started with your preferred

configuration tool” on page 54.

Config uration

59

Configuration

October 2016

4.5.3 Configure Update Rate

The Update Rate is the frequency at which a new measurement is transmitted over the wireless network.
The default update rate is 1 minute. This may be changed at commissioning, or at any time via AMS
Wireless Configurator or a Field Communicator. The Update Rate is user selectable from 4 seconds to 60
minutes.

1. From the Home screen, select Configure.

2. Go to Guided Setup > Wireless Setup.

3. Select Configure Update Rate, and follow the instructions.

Note

Make sure to set the Update Rate so that there is enough safety margin in the system for high/low alerts.
If the time between each update is too long, the high/low alerts may be triggered too late.

Run Check Level Response to make sure that configured Update Rate is sufficient for the application,
refer to section “Optional Setup” on page 66.

4.5.4 Obtain Network ID and Join Key

Reference Manual

00809-0100-4308, Rev BB

In order to communicate with the Wireless Gateway, and ultimately the host system, the transmitter
must be configured to communicate on the wireless network. This step is the wireless equivalent of
connecting wires from a transmitter to the host system.

The Network ID and Join Key may be obtained from the Wireless Gateway's integrated web interface on
the Setup > Network > Settings page, as shown in Figure 4-7.

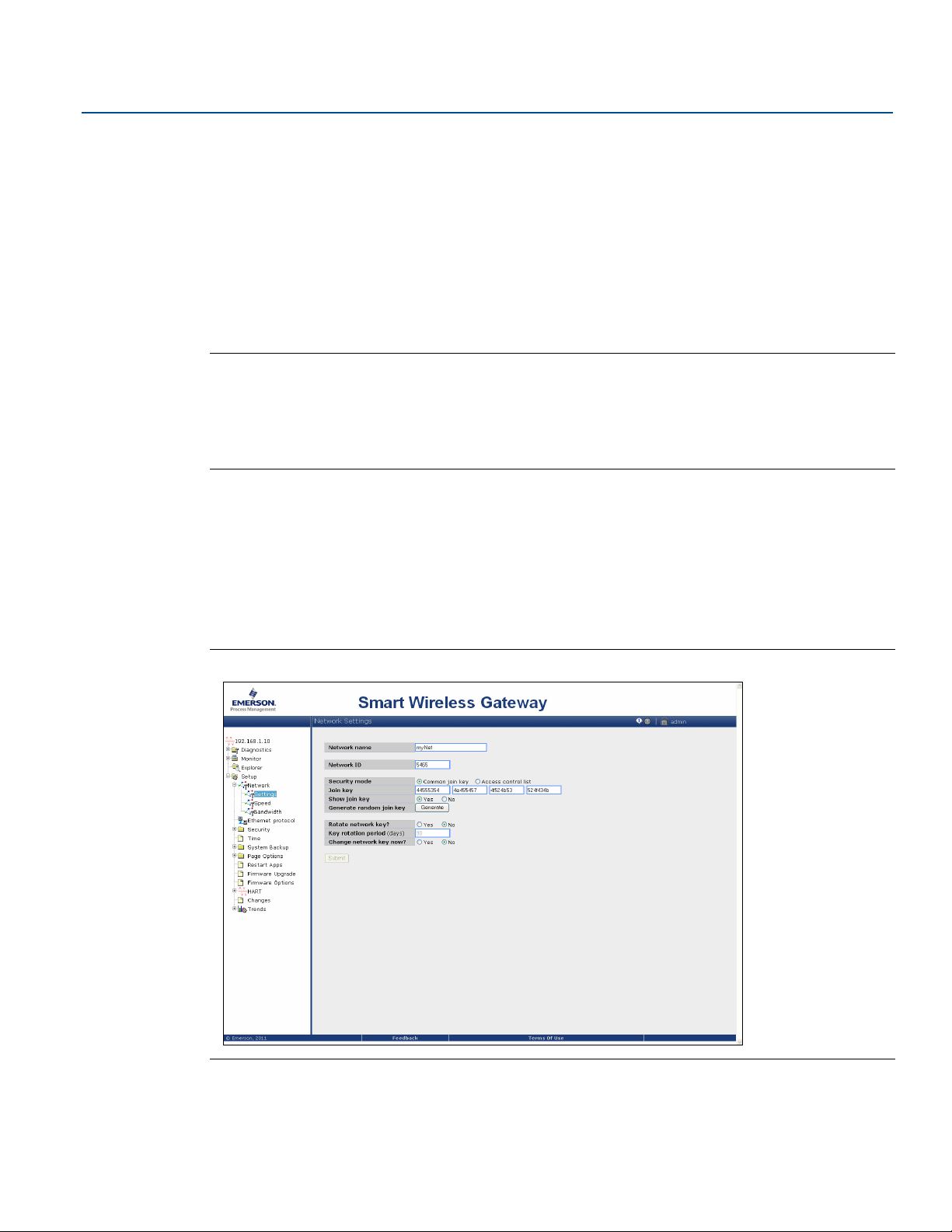

Figure 4-7. Gateway Network Settings

60

Configuration

Reference Manual

00809-0100-4308, Rev BB

4.5.5 Enter Network ID and Join Key

The devices must be configured with the same Network ID and Join Key as the Gateway in order to join
the network. Use a Field Communicator or AMS Wireless Configurator to enter the Network ID and Join
Key so they match the Network ID and Join Key of the Gateway.

1. From the Home screen, select Configure.

2. Go to Guided Setup > Wireless Setup.

3. Select Join Device to Network, and follow the instructions.

If the device is not to be commissioned yet, remove the power module and fasten the housing cover. This
is to conserve power module life and to ensure safe transmitter transportation. The power module
should be inserted only when the device is ready to be commissioned.

4.5.6 Verify device joins network

Network connection can be verified in four ways, further described in this section:

1. At the device display

2. Using the AMS Wireless Configurator

Configuration

October 2016

3. In the Wireless Gateway's integrated web interface

4. Using the Field Communicator

If the Rosemount 3308 Series was configured with the Network ID and Join Key, and sufficient time has
passed, the transmitter should be connected to the network. It usually takes a few minutes for the device
to join the network. If the device has not joined the network, please see “Wireless Network trouble-

shooting” on page 87.

Verify by device display

To verify that the device is connected to the network by the display, press the DIAG button. The display
will show: the Tag, Device Serial Number, Software Revision, Network ID, Network Connection Status,
and Device Status screens. Refer to “Diagnostic button screen sequence” on page 72.

When the network diagnostic status is displayed as “NETWK OK”, the device has successfully joined the
network. When joining the wireless network, the status displayed will be changed through the sequence
until the device finally has joined the network. Figure 4-8 on page 62 presents the different network
connection status screens.

Config uration

61

Configuration

October 2016

Reference Manual

00809-0100-4308, Rev BB

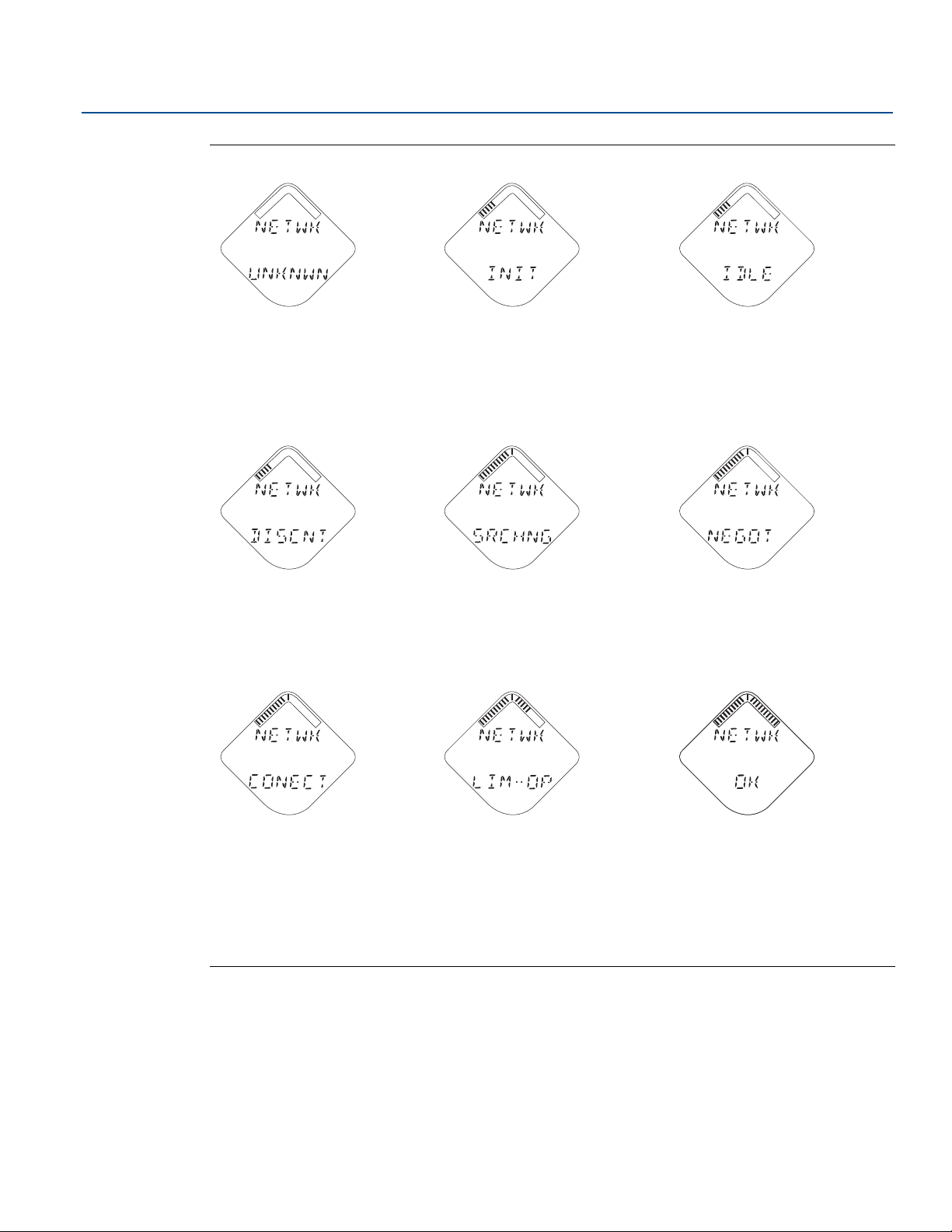

Figure 4-8. Network Connection Status Screens

Network Unknown Network Restarted Network Idle

The device is starting to join the

The device is still in the process of
being activated.

The device has just restarted.

process.

Disconnected from Network Searching for Network Joining the Network

The device is in a disconnected
state and requires a “Force Join”

The device is searching for the
network.

The device is attempting to join
the network.

command to join the network.

Connected but in a
“quarantined” state

The device is connected to the
network, but is in a
“quarantined” state.

Connected with Limited
Bandwidth

The device is joined and
operational, but is running with
limited bandwidth for sending

Connected

The device has successfully
joined the network.

periodic data.

62

Configuration

Reference Manual

00809-0100-4308, Rev BB

Verify with AMS Wireless Configurator

Start the AMS Wireless Configurator. When the device has joined the network, it will appear in the AMS
Wireless Configurator window as illustrated in Figure 4-9.

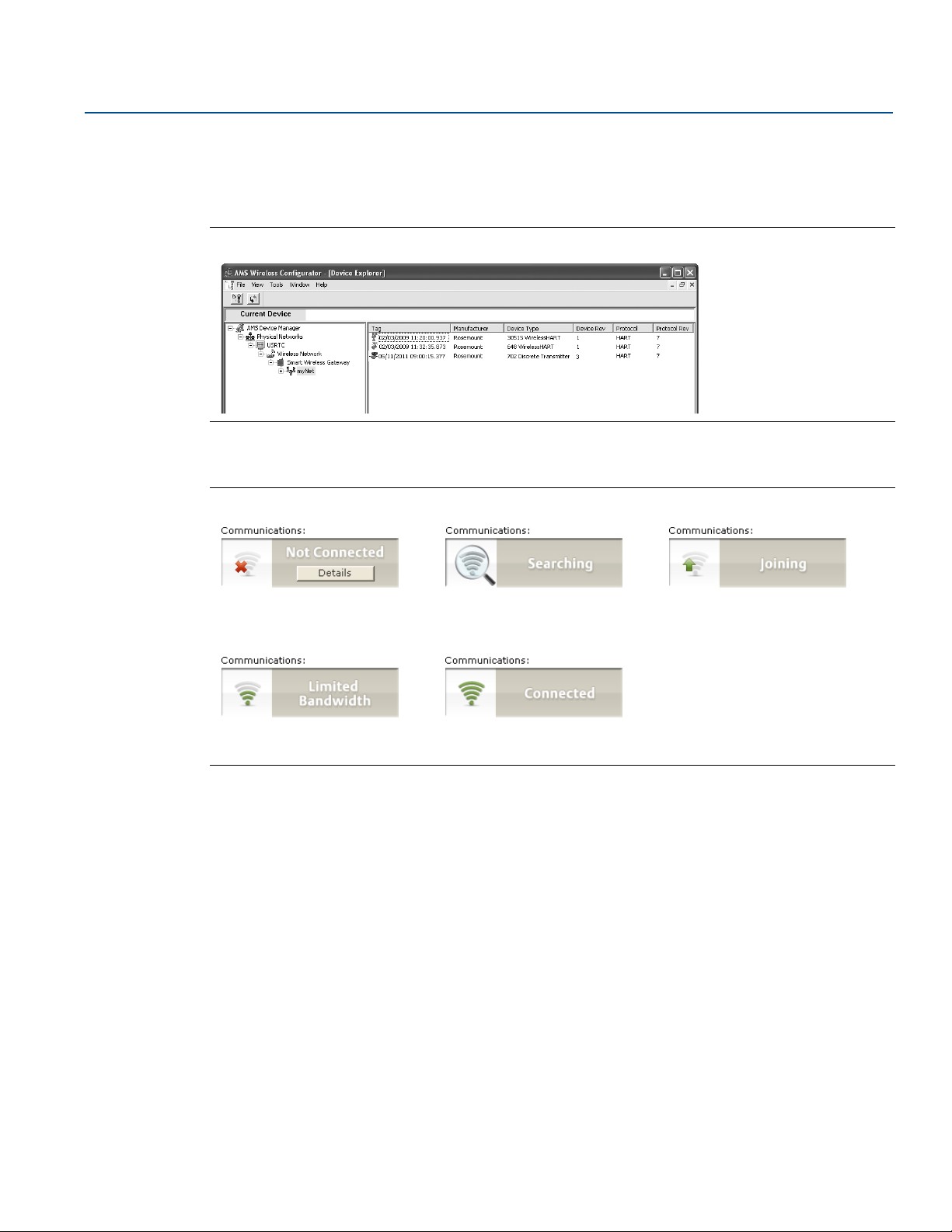

Figure 4-9. AMS Wireless Configurator Screen

Figure 4-10 presents the different network connection status images that are shown in the AMS Wireless

Configurator Overview screen.

Figure 4-10. Network Connection Status Images

Configuration

October 2016

Not Connected Searching Joining

Limited Bandwidth Connected

Config uration

63

Configuration

October 2016

Reference Manual

00809-0100-4308, Rev BB

Verify by Gateway

To use the Wireless Gateway's integrated web interface, navigate to the Explorer > Status page as shown
in Figure 4-11. This page shows whether the device has joined the network and if it is communicating
properly.

Locate the device in question and verify all status indicators are good (green). It may take several
minutes for the device to join the network and be seen on the Gateway's integrated web interface.

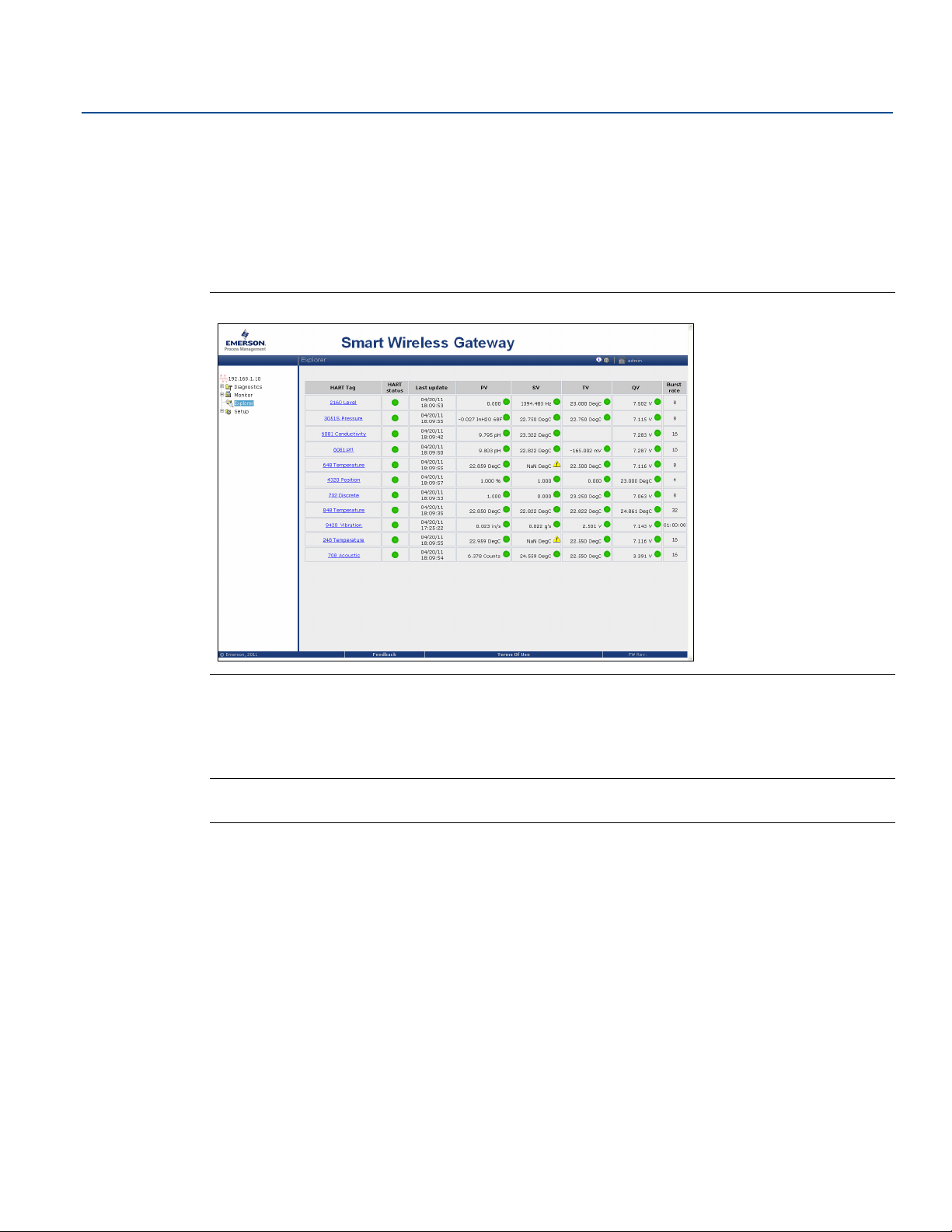

Figure 4-11. Wireless Gateway Explorer Status Page

Verify with Field Communicator

Connect the Field Communicator as shown in Figure 4-6 on page 59. Do not remove the power module.
Removing the power module may cause the device to drop off the network.

Note

In order to communicate with a Field Communicator, the device must be powered by the power module.

To verif y the device has joined the network, do the following:

1. From the Home screen, select Service Tools > Communications.

2. Select Join Status, and follow the instructions.

64

Configuration

Reference Manual

123
456
7809

A

B

C

A

00809-0100-4308, Rev BB

4.6 Configure device using Guided Setup

4.6.1 Connect to device

Connect to the device using your preferred configuration tool, as shown in Figure 4-12 and Figure 4-13.

AMS Wireless Configurator: Field Communicator:

a. Start AMS Wireless Configurator.
b. Select Device Connection View in the

View menu.

c. Double click on the device under the

HART modem.

Figure 4-12. Connect to Device - Point-to-Point

a. Turn on the Field Communicator.
b. Tap the HART symbol from the main

menu.

c. The Field Communicator now

connects to the device.

Configuration

October 2016

Config uration

A. Communication terminals C. HART Modem
B. Field Communicator

Figure 4-13. Connect to Device - Wirelessly

A. Wireless Gateway

65

Configuration

October 2016

4.6.2 Basic Setup

All Basic Setup parameters are described in the section “Configuration parameters” on page159.

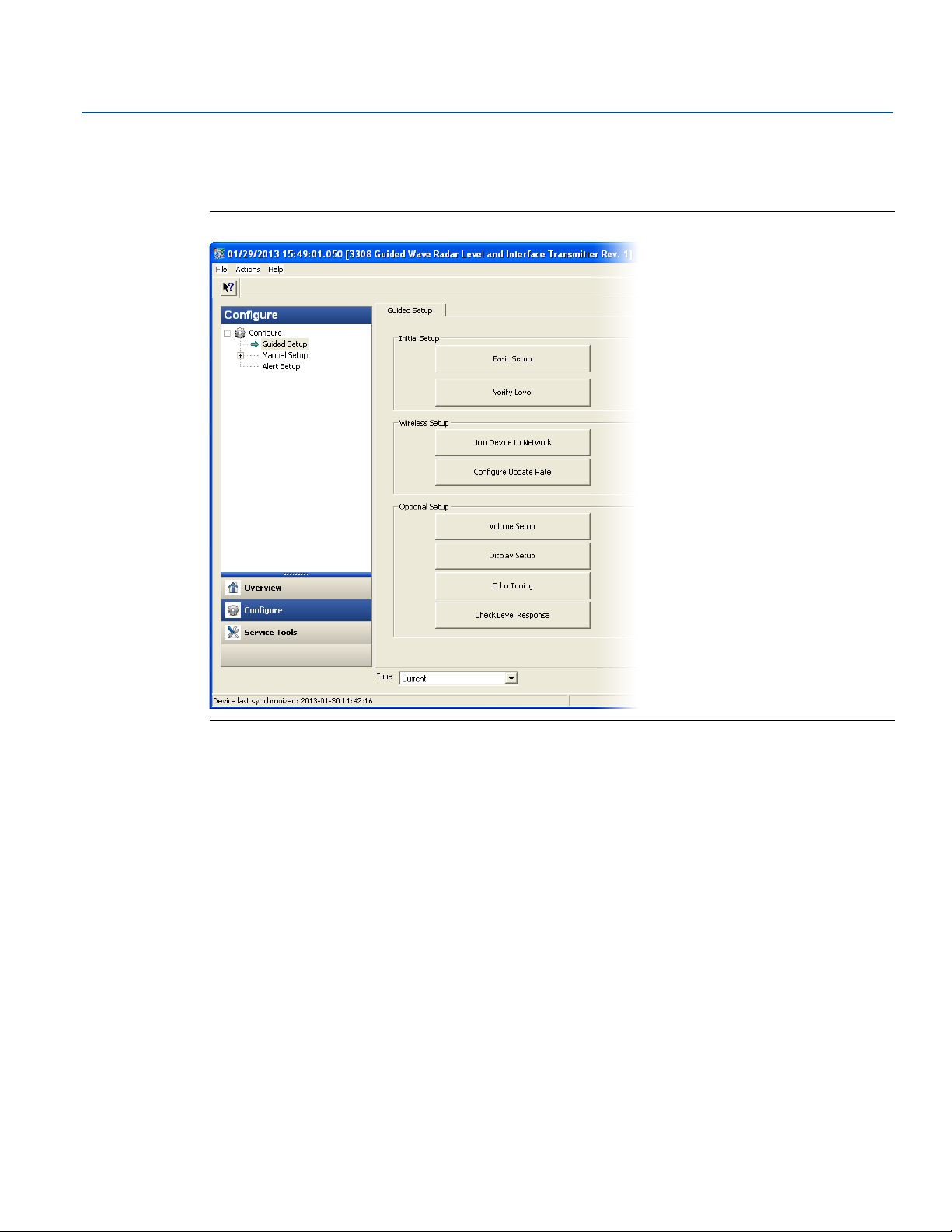

Figure 4-14. Guided Setup Screen

Reference Manual

00809-0100-4308, Rev BB

1. From the Home screen, select Configure.

2. Go to Guided Setup > Initial Setup.

3. Select Basic Setup, and follow the instructions.

4.6.3 Optional Setup

Consider Optional Setup such as Volume, Device Display, Echo Tuning, and Check Level Response, found
in the Guided Setup. Run Check Level Response to review the maximum level change between updates
with the current configuration.

1. From the Home screen, select Configure.

2. Go to Guided Setup > Optional Setup.

3. Select the selected Optional Setup, and follow the instructions.

Additional configuration parameters are available in the Manual Setup menu. For further information
about the parameters see “Configuration parameters” on page 159.

66

Configuration

Reference Manual

C

D

A

B

00809-0100-4308, Rev BB

4.7 Verify Level

Run the Verify Level tool to match the product level reported by the device to a reference measurement
(measured by using for example handgauging). If any difference, the Calibration Offset parameter will be
adjusted as shown in Figure 4-15.

A minor adjustment using Calibration Offset is normal. There may, for example be a deviation between
the actual tank height and the configured value.

Non-metallic (e.g. plastic) vessels and installation geometry may introduce an offset for the Upper
Reference Point. This offset may be up to ± 2 in. (50 mm). The offset can be compensated for using
Calibration Offset.

Note

Before running Verify Level, make sure the product surface is calm, the tank is not being filled or
emptied, and the actual level is well above the probe end.

To run Verify Level, do the following:

1. From the Home screen, select Configure.

Configuration

October 2016

2. Go to Guided Setup > Initial Setup.

3. Select Verify Level to check your level measurement, and follow the instructions.

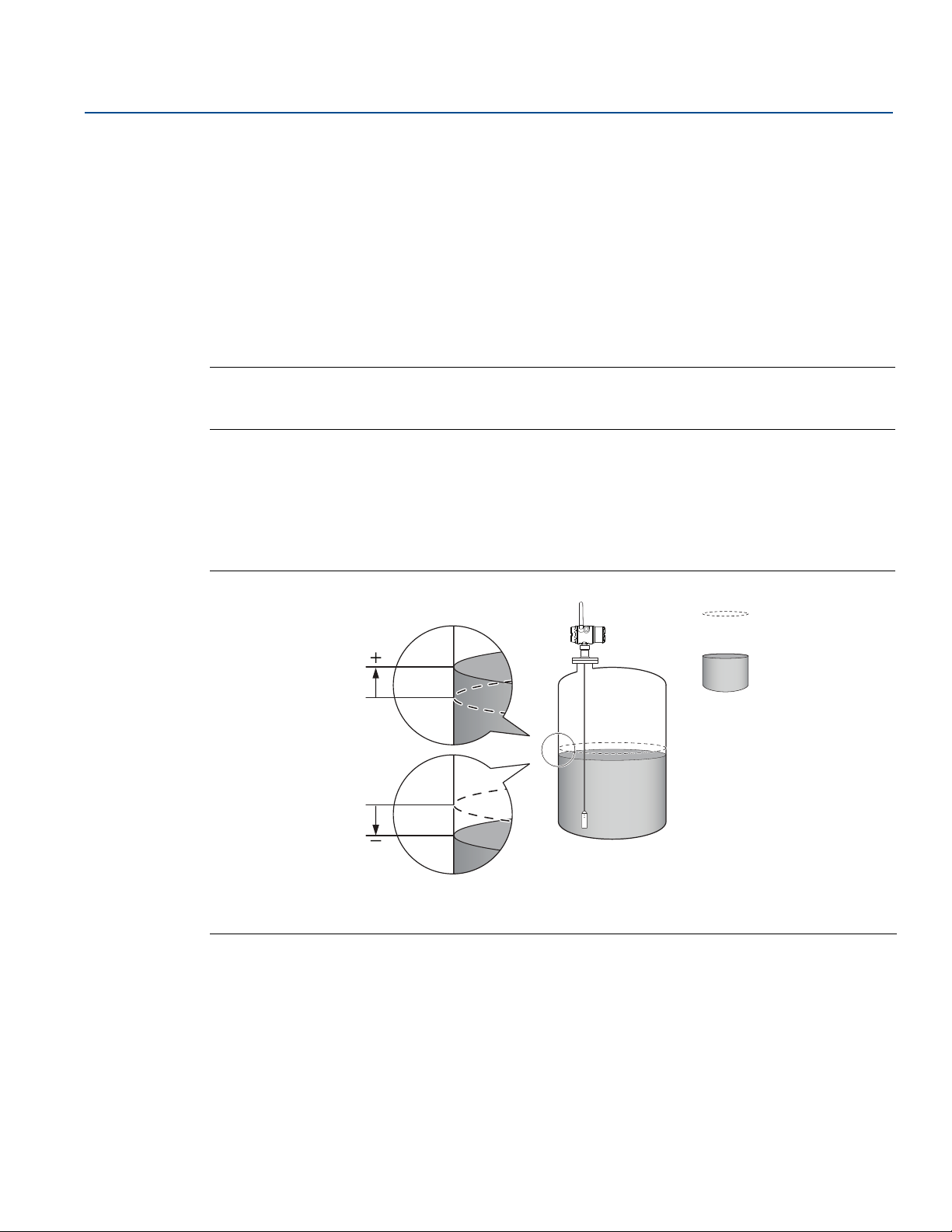

Figure 4-15. Calibration Offset

A. Positive Calibration Offset value C. Reported level
B. Negative Calibration Offset value D. Actual level

Config uration

67

Configuration

October 2016

Reference Manual

00809-0100-4308, Rev BB

68

Configuration

Reference Manual

00809-0100-4308, Rev BB

Section 5 Operation

Safety messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 69

Device display screen messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 71

View measurement values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 74

Check Device Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 75

5.1 Safety messages

Instructions and procedures in this section may require special precautions to ensure the safety of the
personnel performing the operations. Information that potentially raises safety issues is indicated by a

warning symbol ( ). Refer to the following safety messages before performing an operation preceded
by this symbol.

Operation

October 2016

Explosions could result in death or serious injury.

 Verify that the operating environment of the gauge is consistent with the appropriate hazardous

locations certifications.

 Installation of device in an explosive environment must be in accordance with appropriate local,

national and international standards, codes, and practices.

 Ensure device is installed in accordance with intrinsically safe or non-incendive field practices.

Electrical shock can result in death or serious injury.

 Ground device on non-metallic tanks (e.g. fiberglass tanks) to prevent electrostatic charge build-up.
 Single lead probes are sensitive for strong electromagnetic fields and therefore not suitable for

non-metallic tanks.

 Care must be taken during transportation of power module to prevent electrostatic charge build-up.
 Device must be installed to ensure a minimum antenna separation distance of 8 in. (20 cm) from all

persons.

Process leaks could result in death or serious injury.

 Handle the transmitter carefully.
 If the process seal is damaged, gas could escape from the tank when removing the transmitter head

from the probe.

 Only qualified personnel should install the equipment.
 Do not remove the transmitter while in operation.

Operation

To ensure long life for your radar transmitter, and to comply with hazardous location installation
requirements, tighten covers on both sides of the electronics housing.

69

Operation

October 2016

Reference Manual

00809-0100-4308, Rev BB

This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: This
device may not cause harmful interference. This device must accept any interference received, including
interference that may cause undesired operation. This device must be installed to ensure a minimum
antenna separation distance of 20 cm (8 in.) from all persons.

70

Operation

Reference Manual

00809-0100-4308, Rev BB

5.2 Device display screen messages

The device display can be used to present different variables and a diagnostic screen sequence.

5.2.1 Variable screens

If the Display Mode is set to Periodic, the device display shows a periodic sequence of user-chosen
variables during operation. A new screen appears according to configured wireless update rate. The
device display will also show ALERT PRESNT if at least one alert is present. For information on how to
configure the device display, see “Device Display” on page 163.

The Rosemount

™

3308 Series Transmitter can display the following variables.

Operation

October 2016

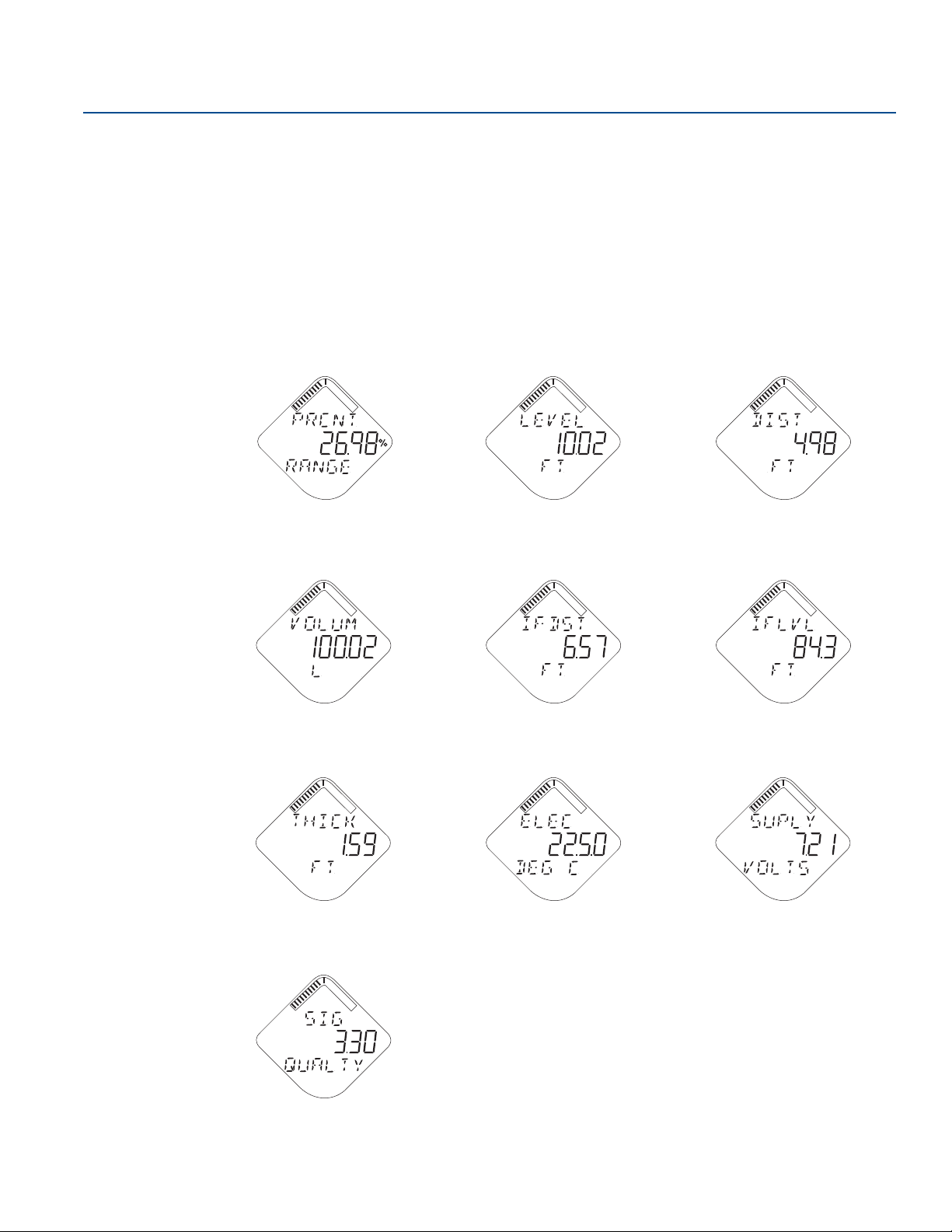

Percent of Range Level Distance

Tot al Vo lume Interface Distance Interface Level

Upper Product Thickness Electronics Temperature

Supply Voltage

Operation

Signal Quality

71

Operation

October 2016

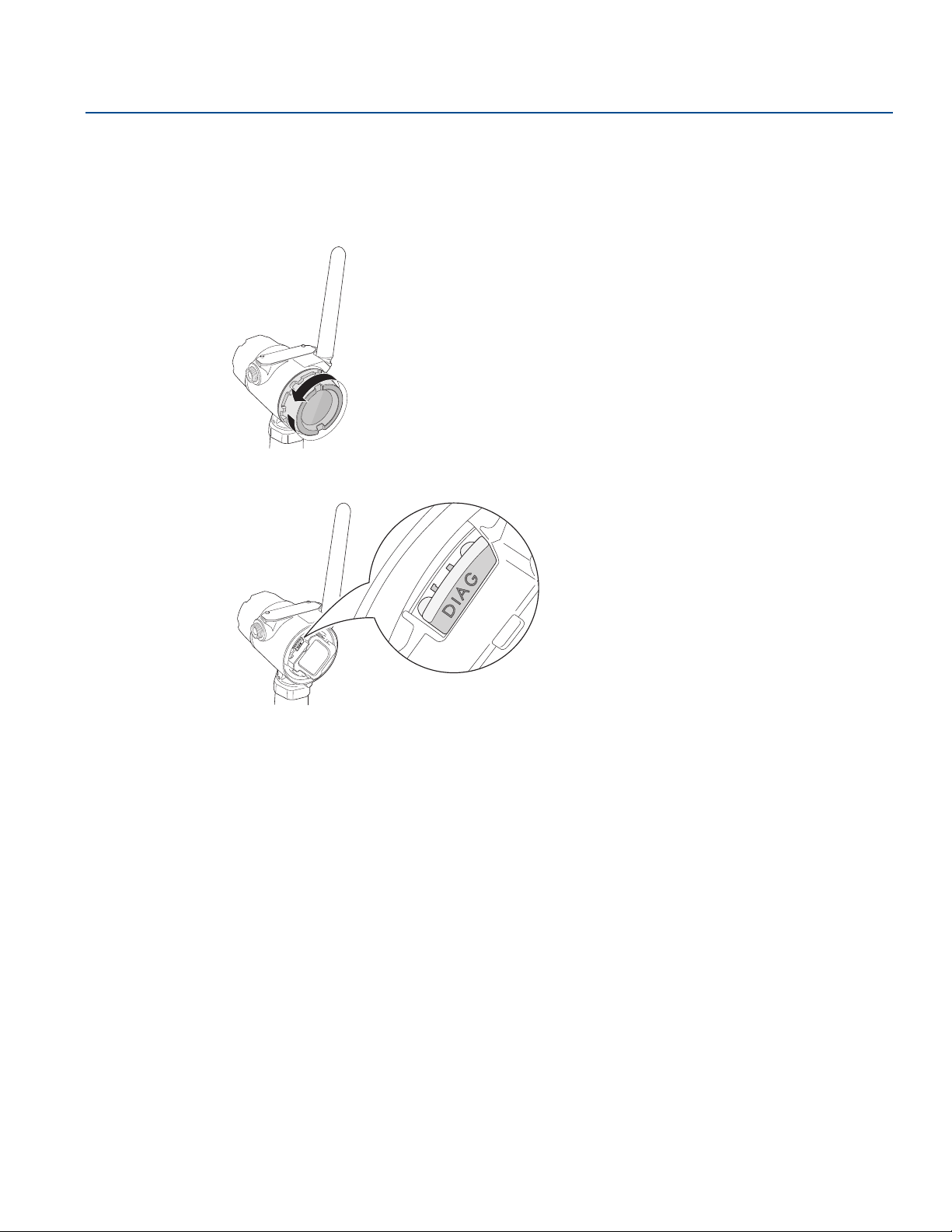

5.2.2 Diagnostic button screen sequence

The diagnostic button screen sequence on the device display can be used to obtain detailed diagnostic
information. Do the following:

1. Unscrew the device display cover.

2. Press and hold the DIAG button until the first diagnostic button screen appears on the device display.

Release the DIAG button.

Reference Manual

00809-0100-4308, Rev BB

72

The device display will now automatically show the diagnostic screens as illustrated in Figure5-1.

Operation

Reference Manual

00809-0100-4308, Rev BB

Figure 5-1. Diagnostic Button Screen Sequence

1. Device Information: Tag 2. Device Serial Number 3. Software Revision

User entered tag which is 8
characters long. This screen will
not display if all characters are
blank.

Used to determine Device Serial
Number.

Operation

October 2016

Used to determine Device
Software Revision.

4. Network ID 5. Network Connection Status 6. Active Alert Screens
(if present)

Used to determine the entered
Network ID in the device.

The screen displayed is
dependent on the progress of the
device in joining the wireless
network. See Figure 4-8 on

See “Device display alerts” on

page 79 for a full list of Active

Alerts that may appear on this
position of the sequence.

page 62 for more information.

7.Variable Screens 8. Active Alert Present

At the end of the sequence, the
device display shows all
selected variable screens.

This screen will only appear if
there is at least one Active Alert
present. For detailed information
of the failure source and
recommended actions, go to the

Active Alerts screen in AMS

™

Wireless Configurator or Field
Communicator. Refer to “Check

Device Status” on page 75.

Operation

73

Operation

October 2016

5.3 View measurement values

Measurement values can be viewed using AMS Wireless Configurator and Field Communicator.

5.3.1 View current measurement values

Current measurement data of the Primary Variable (PV) and Secondary Variable (SV) are presented on
the Overview screen. To view all current measurement values:

1. From the Home Screen, go to Service Tools > Variables.

2. Select the desired group of measurement values to view.

 To view gauges for the Primary Variable (PV), Secondary Variable (SV), Third Variable (TV) and

Fourth variable (QV), select Mapped Variables.

 To view process values such as Level, Distance, Percent of Range, select Process.
 To view device values such as Electronics Temperature, Supply Voltage, select Device.
 To view Signal Quality, select Signal Quality.

5.3.2 View trends

Reference Manual

00809-0100-4308, Rev BB

1. From the Home Screen, go to Service Tools > Trends.

2. Select to log measurement values either in a graph or a table.

 To log Level and Interface Level values in a graph, select Level.
 To log Distance values in a graph, select Distance.
 To log Total Volume in a graph, select Vol ume.
 To log Signal Quality in a graph, select Signal Quality.
 To log the trend of 12 data points shown in a table, select Data History, and then select View

Data History. See “Configure Data History” on page 164 for information on how to configure
device variable for recording and time between samples.

Note

Values are logged in the trend graphs only as long as the Tre nd s item is selected.

5.3.3 Interpret measurement status bars

A “Good” or “Bad” status next to a value is an indication of the reliability or integrity of the data being
received, not an indication of whether or not the value is within the configured upper or lower ranges. A
value that triggers an alert, such as a high or low temperature indication, will change the overall status of
the device, but the measurement might still be indicated as “Good” if the reliability of the data is good.

Figure 5-2. Measurement Status Bars

74

Operation

Reference Manual

00809-0100-4308, Rev BB

5.4 Check Device Status

The overall device status is presented in AMS Wireless Configurator and Field Communicator under the
Overview screen. The Rosemount 3308 Series reports diagnostic alerts when there is a device
malfunction. For information on these alerts, see “Alert messages in AMS Wireless Configurator and Field

Communicator” on page 81. The device can also be configured to report user defined alerts based on

the measured variables, see “Alert Setup” on page 171 for more information.

To check device status and see whether there are any Active Alerts reported, do one of the following:

 The overall device status is presented in the Overview screen. If status is anything than Good, select the

button in the device status image to open a window with Active Alerts. The different device status
images can be found in Tab l e 5 -1 .

 Active Alerts can also be obtained via Service Tools > Active Alerts.

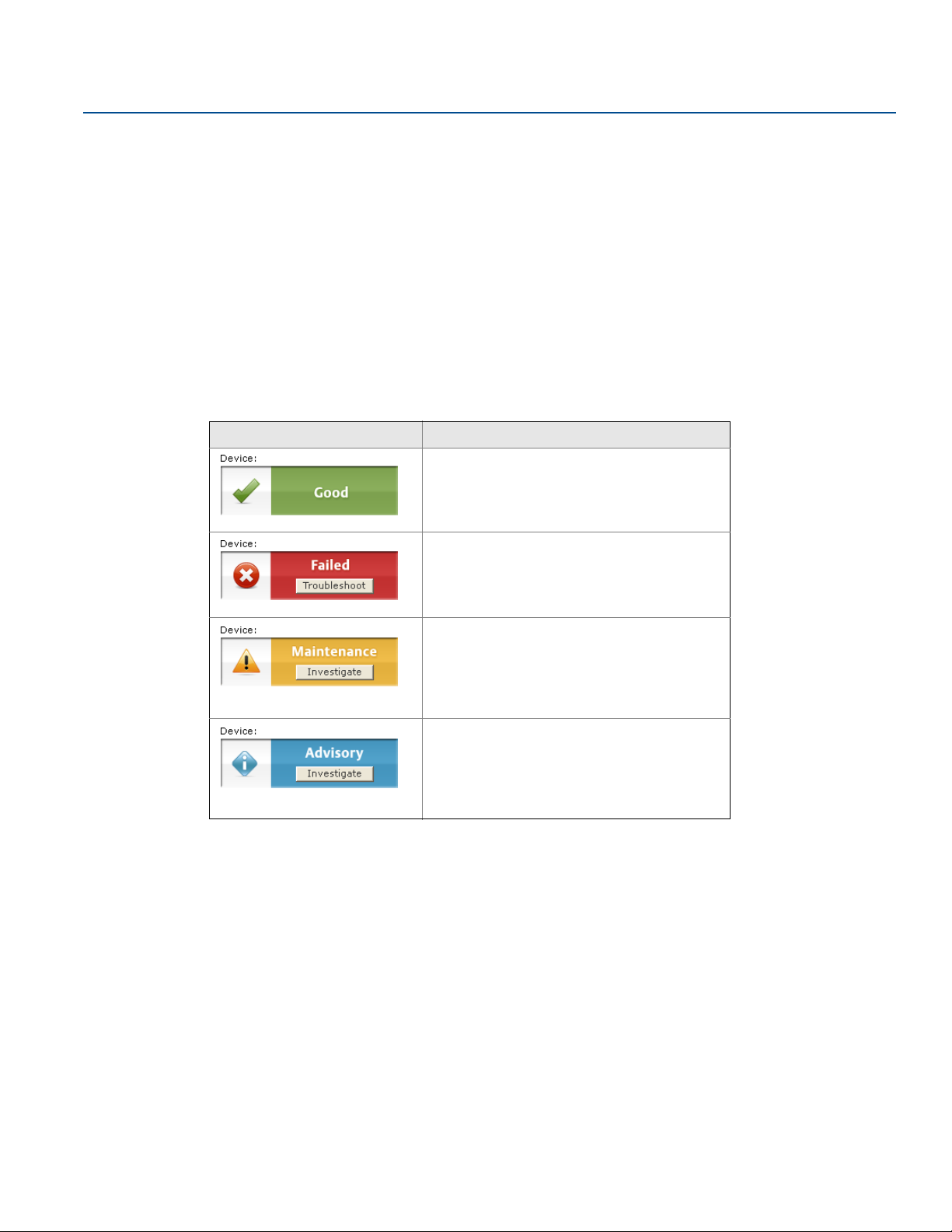

Table 5-1. Presentation of Device Status Images

Device status image Condition

Good: No active alert.

Operation

October 2016

Failed: At least one Failure Alert is active.
Click the Troubleshoot button to open a
window with Active Alerts together with
recommended actions.

Maintenance: At least one Maintenance Alert
is active (and no Failed alerts). Click the
Investigate button to open a window with
Active Alerts together with recommended
actions.

Advisory: At least one Advisory Alert is active
(and no Failed or Maintenance Alerts). Click
the Investigate button to open a window
with Active Alerts together with
recommended actions.

Operation

75

Operation

October 2016

Reference Manual

00809-0100-4308, Rev BB

76

Operation

Reference Manual

00809-0100-4308, Rev BB

Service and Troubleshooting

Section 6 Service and Troubleshooting

Safety messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 77

Alert messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 79

Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 85

Service and troubleshooting tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 88

Application challenges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 95

Power module replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 101

Transmitter head replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 103

Probe replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 104

Service support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 105

6.1 Safety messages

Procedures and instructions in this section may require special precautions to ensure the safety of the
personnel performing the operations. Information that raises potential safety issues is indicated by a

warning symbol ( ). Refer to the following safety messages before performing an operation preceded
by this symbol.

October 2016

Failure to follow safe installation and servicing guidelines could result in death or serious
injury.

 Make sure the transmitter is installed by qualified personnel and in accordance with applicable

code of practice.

 Use the equipment only as specified in this manual. Failure to do so may impair the protection

provided by the equipment.

Electrical shock can result in death or serious injury.

 Ground device on non-metallic tanks (e.g. fiberglass tanks) to prevent electrostatic charge

build-up.

 Single lead probes are sensitive for strong electromagnetic fields and therefore not suitable for

non-metallic tanks.

 Care must be taken during transportation of power module to prevent electrostatic charge

build-up.

 Device must be installed to ensure a minimum antenna separation distance of 8 in. (20 cm) from

all persons.

 Probes covered with plastic and/or with plastic discs may generate an ignition-capable level of

electrostatic charge under certain extreme conditions. Therefore, when the probe is used in a
potentially explosive atmosphere, appropriate measures must be taken to prevent electrostatic
discharge.

Service and Troubleshooting

77

Service and Troubleshooting

October 2016

Explosions could result in death or serious injury.

 Verify the operating environment of the gauge is consistent with the appropriate hazardous

locations certifications.

 Installation of device in an explosive environment must be in accordance with appropriate local,

national and international standards, codes, and practices.

 Ensure device is installed in accordance with intrinsically safe or non-incendive field practices.

Process leaks could result in death or serious injury.

 Only qualified personnel should install the equipment.
 Install transmitter prior to process start-up.
 Install and tighten process connectors before applying pressure.
 Handle the transmitter carefully.
 Do not remove the transmitter while in operation.
 If the process seal is damaged, gas could escape from the tank when removing the transmitter

head from the probe.

Reference Manual

00809-0100-4308, Rev BB

To ensure long life for your radar transmitter, and to comply with hazardous location installation
requirements, tighten covers on both sides of the electronics housing.

Any substitution of non-recognized parts may jeopardize safety. Repair, e.g. substitution of components
etc., may also jeopardize safety and is under no circumstances allowed.

Use caution when handling the Power Module. The Power Module may be damaged if dropped from
heights in excess of 20 ft (6 m).

This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: This
device may not cause harmful interference. This device must accept any interference received, including
interference that may cause undesired operation. This device must be installed to ensure a minimum
antenna separation distance of 20 cm (8 in.) from all persons.

78

Service and Troubleshooting

Reference Manual

00809-0100-4308, Rev BB

6.2 Alert messages

6.2.1 Device display alerts

The following active alert screens will show the device diagnostics depending on the state of the device.

If the device display shows ALERT PRESNT but none of the following screens appear, then go to the Active
Alerts screen in AMS

For detailed information of the failure source and recommended actions, go to the Active Alerts screen in
AMS Wireless Configurator or Field Communicator, see “Alert messages in AMS Wireless Configurator

and Field Communicator” on page 81.

™

Wireless Configurator or Field Communicator for further information.

Service and Troubleshooting

October 2016

Service and Troubleshooting

79

Service and Troubleshooting

October 2016

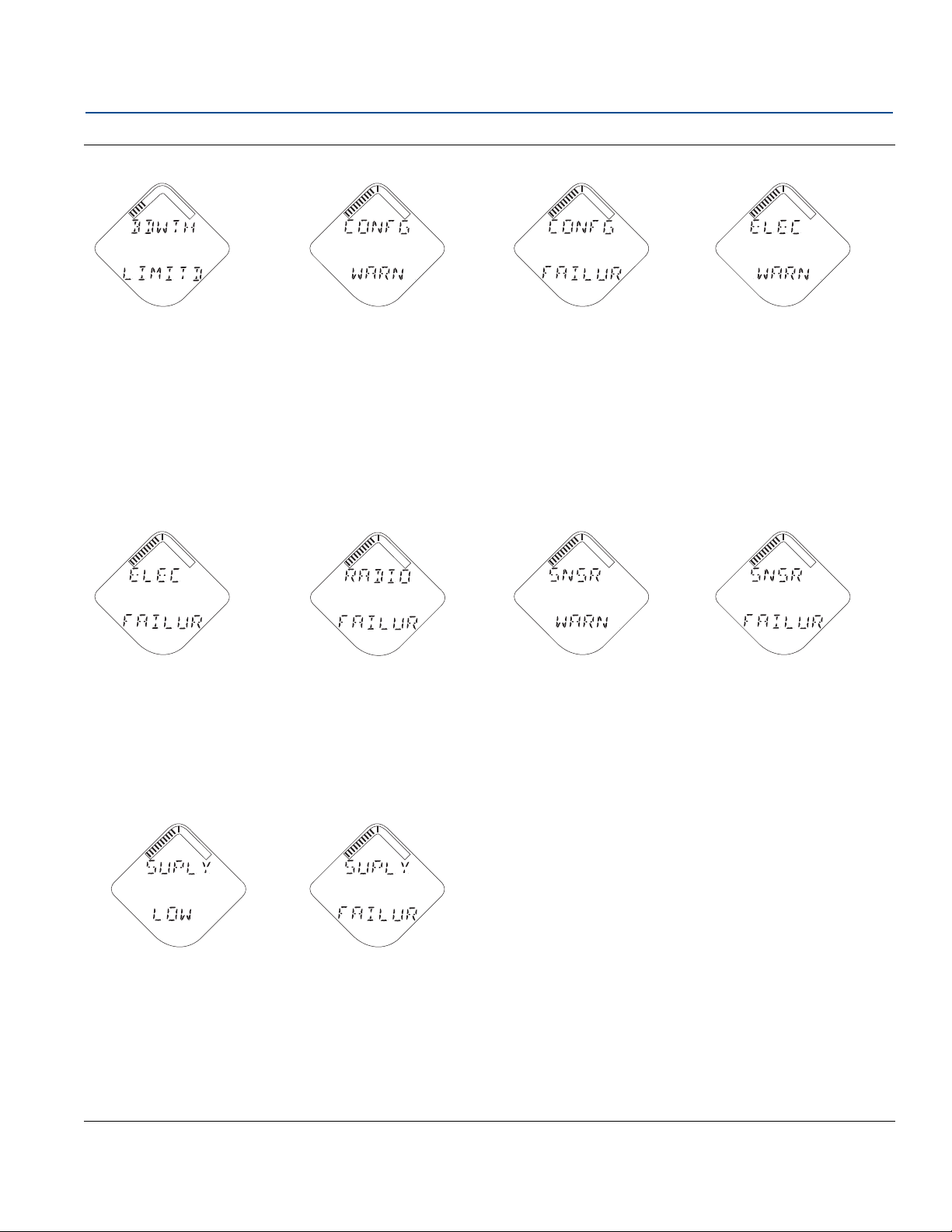

Figure 6-1. Active Alerts Screens

Bandwidth Limited Configuration Warning Configuration Failure Electronics Warning

The device has not yet
received all of the requested
wireless bandwidth needed
to operate as configured.
See “Wireless Network

troubleshooting” on
page 87 for recommended

actions.

The device has detected a
configuration error.
Non-critical operation of the
device may be affected.

The device has detected a
configuration error. Critical
operation of the device may
be affected.

There is a warning which
should be addressed but
should not affect the device
output.

Reference Manual

00809-0100-4308, Rev BB

Electronics Failure Radio Failure Sensor Warning Sensor Failure

An electronics error that
could impact the device
measurement reading has
occurred.

Supply Voltage Low Supply Voltage Failure

The voltage is below the
recommended operating
range. Replace the Power
Module, see “Power module

replacement” on page 101.

The wireless radio has
detected a failure or
stopped communicating.

The supply voltage is too
low and will affect device
operation. Replace the
Power Module, see “Power

module replacement” on
page 101.

A sensor attached to the
transmitter is degraded.
Readings from that sensor
may not be within accuracy
specifications.

A sensor attached to the
transmitter has failed, and
valid readings from that
sensor are no longer
possible.

80

Service and Troubleshooting

Reference Manual

Service and Troubleshooting

00809-0100-4308, Rev BB

6.2.2 Alert messages in AMS Wireless Configurator and Field
Communicator

Ta bl e 6 - 1 to Tab l e 6 - 4 shows list of alert messages that may be displayed in the AMS Wireless

Configurator and Field Communicator.

To view Active Alerts, do the following:

 From the Home Screen, go to Service Tools > Active Alerts.

Table 6-1. Failure Alerts (F:)

Message Description Recommended actions

October 2016

Electronics Failure An electronics error that could impact the

Radio Failure The wireless radio has detected a failure or

Supply Voltage Failure The supply voltage is too low and will affect

Probe Disconnected The device cannot detect the probe.

Electronics Temperature
Critical

Remote Housing Error The device has detected a problem associated

Configuration Error The device has detected a configuration error.

device measurement reading has occurred.

stopped communicating.

device operation.

The internal temperature of the device has
reached critical levels and the integrity of the
device electronics may be compromised.
Environmental temperature should not
exceed device specifications.

with the remote housing.

Reasons may be multiple.
See Ta bl e 6 - 2 for a list of detailed
Configuration Errors that may be displayed.

1. Restart the device.

2. Restore default settings and reconfigure the device.

3. If the condition persists, replace the device.

1. Restart the device.

2. If the condition persists, replace the device.

1. Replace the Power Module, see “Power module

replacement” on page 101.

1. Check that the probe connection is properly
tightened.

2. Check that the probe connection is dry and clean.

3. Restart level measurements.

4. If the condition persists, replace the device and/or
the probe.

1. Verify that ambient temperature is within the
specified range. For more information about the
maximum ambient temperature, see “Temperature

limits” on page 108.

2. Remote mount the transmitter head away from the
process and environmental conditions.

3. Restart the device.

4. If the condition persists, replace the device.

1. Correct remote housing configuration to match
connected remote housing cable.

2. Check remote housing cable.

1. Click on the Details button for more information.

2. Correct the parameter causing the configuration
error.

Service and Troubleshooting

81

Service and Troubleshooting

October 2016

Table 6-2. Configuration Error Details (D:)

Message Description Recommended actions

Reference Manual

00809-0100-4308, Rev BB

Lower Range Value or
Upper Range Value is out
of limits

Configured Measurement
Mode not Supported

Volume Configuration
Error

Parameter Out of Limits One or more of the configuration values, in a

Low Low Level Alert
configuration is invalid

Low Level Alert
configuration is invalid

High Level Alert
configuration is invalid

High High Level Alert
configuration is invalid

User Defined Alert
configuration is invalid

Signal Quality Alert
configuration is invalid

No user configuration
errors detected

The lower/upper range value is outside the
lower/upper sensor limits. This is outside the
range where the sensor works properly, hence
the measurement may be unreliable.

The configured Measurement Mode does not
work since support has not been purchased.

The volume cannot be calculated correctly
with the current configuration.

set that belongs together, has been changed
and reduced the measurement range of the
device.

Low Low Level Alerts will not be raised as
expected because of invalid configuration.

Low Level Alerts will not be raised as expected
because of invalid configuration.

High Level Alerts will not be raised as expected
because of invalid configuration.

High High Level Alerts will not be raised as
expected because of invalid configuration.

User Defined Alerts will not be raised as
expected because of invalid configuration.

Signal Quality Alerts will not be raised as
expected because of invalid configuration.

No user configuration errors detected.

1. Check the lower and upper range values in relation
to the sensor limits.

1. Upgrade the device.

2. Change the Measurement Mode to match, refer to

“Measurement Mode” on page 161.

1. Check that the level-volume values in the strapping
table are entered in increasing order, refer to

“Strapping Table” on page 170.

2. Check that the number of strapping points to use is
correct.

3. Check size measures in the Volume Setup.

1. Check the configured values for Probe Length,
Vapor Dielectric Constant, and Upper Product
Dielectric Constant.

2. Restore default settings and reconfigure the device.

1. Check entered limit and deadband values in
comparison with entered tank and probe
parameters such as probe length, tank height etc.

1. Check entered limit and deadband values in
comparison with entered tank and probe
parameters such as probe length, tank height etc.

1. Check entered limit and deadband values in
comparison with entered tank and probe
parameters such as probe length, tank height etc.

1. Check entered limit and deadband values in
comparison with entered tank and probe
parameters such as probe length, tank height etc.

1. Check entered limit and deadband values in relation
to the selected variable.

1. Check entered limit and deadband values regarding
their range [0.1 – 10.0] and mutual relationship.

82

Service and Troubleshooting

Reference Manual

Service and Troubleshooting

00809-0100-4308, Rev BB

Table 6-3. Maintenance Alerts (M:)

Message Description Recommended actions

October 2016

Supply Voltage Low The supply voltage is low and may affect

Electronics Temperature
Out of Limits

Level Measurement Lost No valid Level reading. Reasons may be

Simulation Active The device is in simulation mode and is not

Low Signal Quality The Signal Quality is below the defined alert

Device Operation.

The temperature of the electronics board has
exceeded the transmitter’s operating range.

multiple:

- No valid surface echo peak in the measuring
range.

- Incorrect transmitter configuration.

reporting actual information.

limit.

1. Replace the Power Module, see “Power module

replacement” on page 101.

1. Verify that ambient temperature is within the
operating range.

2. Restart the device.

3. Remote mount the transmitter head away from the
process and environmental conditions.

4. If the condition persists, replace the device.

1. Analyze the Echo Curve for reason and check device
configuration, especially thresholds, Near Zone,
Maximum Level Rate and settings on the Lost
Measurement tab in the Alert Setup.

2. Check device physical installation (for instance
probe contamination).

3. Restart level measurement.

4. Restore default settings and reconfigure the device.

5. If the condition persists, replace the device.

1. If this behavior is not desired, stop simulation
mode.

2. If the condition persists, restart level
measurements.

1. Take action based on your intended use of this alert.

2. Clean the probe.

3. I f no ac tions were n ecessary, con sider to ch ange the
limit.

Service and Troubleshooting

83

Service and Troubleshooting

October 2016

Table 6-4. Advisory Alerts (A:)

Message Description Recommended actions

Reference Manual

00809-0100-4308, Rev BB

Database Memory
Warning

Non-Critical User Data
Warning

Volume Range Warning The level measurement is outside the

Button Stuck The button on the Electronics Board is

HiHi Level Alert The level is above the defined limit.

Hi Level Alert The level is above the defined limit.

Lo Level Alert The level is below the defined limit.

LoLo Level Alert The level is below the defined limit.

User Defined Alert The variable has surpassed the user defined

The device has failed to write to the database
memory at some time in the past. Any data
written during this time may have been lost.

A user written parameter does not match
expected value.

configured volume range.

detected as stuck in the active position.

limit.

1. If logging dynamic data is not needed, this advisory
alert can be safely ignored.

2. Restart the device.

3. Reconfirm all configuration items in the device.

4. Restore default settings and reconfigure the device.

5. If the condition persists, replace the device.

1. Restart the device.

2. Reconfirm all configuration items in the device.

3. Restore default settings and reconfigure the device.

4. If the condition persists, replace the device.

1. Check volume configuration.

1. Check the buttons for obstructions.

2. If the condition persists, restart the device.

3. If the condition persists, replace the device.

1. Bring the system to a safe state.

2. Verify that the level is within specified limits.

3. Reconfirm the level alert limit.

4. If not needed, disable this alert.

1. Bring the system to a safe state.

2. Verify that the level is within specified limits.

3. Reconfirm the level alert limit.

4. If not needed, disable this alert.

1. Bring the system to a safe state.

2. Verify that the level is within specified limits.

3. Reconfirm the level alert limit.

4. If not needed, disable this alert.

1. Bring the system to a safe state.

2. Verify that the level is within specified limits.

3. Reconfirm the level alert limit.

4. If not needed, disable this alert.

1. Bring the system to a safe state.

2. Verify that the process variable is within user
specified limits.

3. Reconfirm the user defined alarm limit.

4. If not needed, disable this alert.

84

Service and Troubleshooting

Reference Manual

00809-0100-4308, Rev BB

6.3 Troubleshooting guide

If there is a malfunction despite the absence of alerts, see Ta b l e 6 .3 . 1 for information on possible causes
and recommended actions.

The troubleshooting guide contains the following symptoms:

 Incorrect level readings, see page 85.
 Incorrect or missing interface level reading, see page 86.
 Power module troubleshooting, see page 87.
 Device display troubleshooting, see page 87.
 Wireless Network troubleshooting, see page 87.

6.3.1 Incorrect level readings

Symptom Possible cause and recommended actions

Service and Troubleshooting

October 2016

The level readings do not correspond to a
reference measurement, for example a
handgauged value.

There is no level reading.

Level spikes or level is suddenly reported
as full or empty.

Level stuck in full.

 Check the Tank Height parameter, refer to “Tank Height” on

page 160.

 Check Thresholds, refer to “Adjusting thresholds” on page 89.
 Run Verify Level, see “Verify Level” on page 67.
 Check transmitter configuration. Run Basic Setup, refer to “Basic

Setup” on page 66.

 The tank is empty. No action is needed.
 Check Thresholds, refer to “Adjusting thresholds” on page 89.

 Check the Upper Product Dielectric Constant, see “Upper Product

Dielectric Constant” on page 161.

 The transmitter is configured with wrong Probe Type, refer to

“Probe Type” on page 160.

 Check Thresholds, see “Adjusting thresholds” on page 89.
 The transmitter has locked on disturbing obstacles at top of the

tank. See “Handling disturbances at the top of the tank” on

page 96 for recommended actions.

 The surface is turbulent. Set the Performance Mode to High to get

a stable measurement signal, refer to “Noise or weak surface

echoes” on page 101.

 The tank is full. Check the product level.
 Check Thresholds, see “Adjusting thresholds” on page 89.
 The transmitter has locked on disturbing obstacles at top of the

tank. See “Handling disturbances at the top of the tank” on

page 96 for recommended actions.

 The transmitter is configured with wrong Probe Type, refer to

“Probe Type” on page 160.

 The reference peak is not detected since it is weaker than the

Reference Threshold. Adjust Reference Threshold to an
appropriate value so that reference peak is not filtered out. Refer
to “Adjusting thresholds” on page 89.

Service and Troubleshooting

85

Service and Troubleshooting

October 2016

Symptom Possible cause and recommended actions

Reference Manual

00809-0100-4308, Rev BB

Level stuck in measuring range.

 May be caused by a disturbing object in the tank. Read the Echo

Curve and adjust Thresholds, see “Adjusting thresholds” on

page 89.

 Check if the probe is bent and in contact with the tank wall. This

contact causes a false echo reading.

 Heavy coating or contamination on the probe. Clean the probe.

Level stuck in empty.

 Thresholds may be too high, see “Adjusting thresholds” on

page 89.

Level fluctuations (a couple of inches).

 There is too much disturbing noise in the tank (from foam,

splashing etc.). Set the Performance Mode to High to get a stable
measurement signal, refer to “Noise or weak surface echoes” on

page 101.

 There are rapid level changes in the tank. Select a faster Update

Rate, refer to “Configure Update Rate” on page 60.

 Thin oil layer on top of water that is sometimes detected,

sometimes not. Set the Peak Detection Method to Threshold
Intersection to improve the stability of level measurements in
such applications. Refer to “Resolving thin oil layers” on page 95.

6.3.2 Incorrect or missing interface level reading

Symptom Possible cause and recommended actions

Incorrect Interface Level reading.

Missing Interface Level reading (reported
as NaN).

There are two products in the tank, but
only the product surface or interface is
detected.

There are two products in the tank, but
no readings are reported.

There is only oil in the tank but the
transmitter reports water.

There is only water in the tank but the
transmitter reports oil.

 The Upper Product Dielectric Constant is not correct, see “Upper

Product Dielectric Constant” on page 161.

 Air gap is too big when the Measurement Mode is set to Interface

Level with Submerged Probe. Reduce air gap or switch the
Measurement Mode to Product Level and Interface Level.

 The Measurement Mode is set to Product Level. Set Measurement

Mode to Product Level and Interface Level, refer to “Measurement

Mode” on page 161.

 The Interface Peak is difficult to detect, because the bottom

product has a low dielectric constant, or the signal is attenuated in
the upper product. Check Thresholds. For more information, see

“Example 2: Interface Peak not found” on page 92.

 The upper produc t is too thin to be detected. No action is needed.

See “Interface measurements” on page 109 for minimum
interface thickness for different probe types.

 Check Thresholds, see “Adjusting thresholds” on page 89.
 Check Thresholds, see “Adjusting thresholds” on page 89.

 Check Thresholds, see “Adjusting thresholds” on page 89.
 Make sure the Typical Interface Condition is set to Layer at the

bottom (thin) if you typically have a thin layer at the bottom, see

“Typical Interface Condition” on page 162.

 Check Thresholds, see “Adjusting thresholds” on page 89.
 Make sure the Typical Interface Condition is set to Layer on Top

(Thin) if you typically have a thin layer at the top, see “Typical

Interface Condition” on page 162.

86

Service and Troubleshooting

Reference Manual

00809-0100-4308, Rev BB

6.3.3 Power module troubleshooting

Symptom Possible cause and recommended actions

Service and Troubleshooting

October 2016

The Power Module seems to run out of
battery very fast.

 Consider Update Rate, refer to “Configure Update Rate” on

page 60. Selecting a fast update rate has an impact on Power

Module life.

 Consider Performance Mode, refer to “Performance mode” on

page 165. The Power Module life is reduced if Performance Mode

is set to High.

 Check that Power Mode is set to Normal, see “Power Mode” on

page 165.

 Verify device is not installed in extreme temperatures.
 Verify that device is not a network pinch point.

6.3.4 Device display troubleshooting

Symptom Possible cause and recommended actions

The device display is not functioning.

 Display Mode is set to Disabled. Set Display Mode to On Demand

or Periodic, refer to “Display mode” on page 163.

 Reseat the device display according to “Utilize the device display”

on page 50.

6.3.5 Wireless Network troubleshooting

Symptom Possible cause and recommended actions

The device is not joining the wireless
network.

Limited Bandwidth error

 Verify Network ID and Join Key. The Network ID and Join Key in the

device must match the Network ID and Join Key of the Gateway,
refer to “Obtain Network ID and Join Key” on page 60 and “Enter

Network ID and Join Key” on page 61.

 Enable High Speed Operation on the Wireless Gateway.
 Check Power Module.
 Verify that Active Advertising has been enabled on the Wireless

Gateway.

 Verify device is within range of at least one other wireless device or

the Wireless Gateway, see “Network Join Details” on page 94.

 Verify device is configured to join. Send the “Join Now” command

to the device, see “Network Join Details” on page 94.

 See the Troubleshooting section in the Gateway Reference Manual

for more information.

 Reduce the Update Rate on transmitter, refer to “Configure

Update Rate” on page 60.

 Increase communication paths by adding more wireless points.
 Check that device has been online for at least an hour.
 Check that device is not routing through a “limited” routing node.
 Create a new network with an additional Wireless Gateway.

Service and Troubleshooting

87

Service and Troubleshooting

Interface Peak

Product
Surface Peak

Reference Peak

October 2016

6.4 Service and troubleshooting tools

Reference Manual

00809-0100-4308, Rev BB

This section briefly describes tools and functions in the AMS Wireless Configurator and Field
Communicator which may be useful for service and troubleshooting of Rosemount
Transmitter.

6.4.1 Reading the Echo Curve

The AMS Wireless Configurator and Field Communicator have powerful tools for advanced troubleshoot­ing. By using the Echo Curve function you get a view of the tank signal. Measurement problems can be
solved by studying the position and amplitude of the different peaks.

To read the echo curve, do the following:

1. From the Home Screen, go to Service Tools > Echo Tuning > Echo Curve.

2. AMS Wireless Configurator: In the dialog box, select Next > to start reading the echo curve. The
reading may take several minutes.

Field Communicator: Select Echo Curve and follow the on-screen instructions. The reading may take
several minutes.

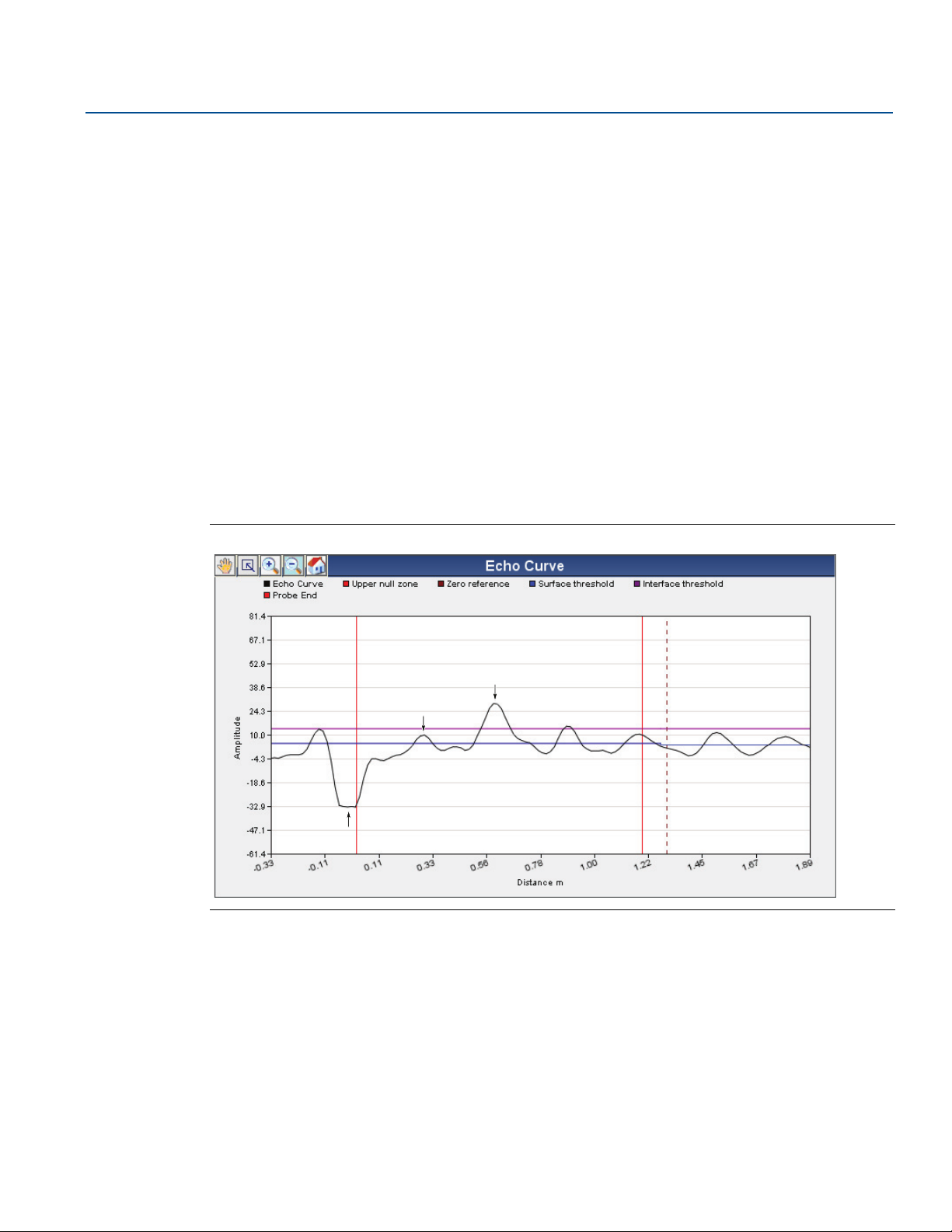

Figure 6-2. Echo Curve Plot in AMS Wireless Configurator

™

3308 Series

88

Service and Troubleshooting
