Emerson Rosemount 3300 Series Reference Manual

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Guided Wave Radar Level and Interface Transmitters

www.rosemount.com

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Rosemount 3300 Series

Guided Wave Radar Level and
Interface Transmitters

NOTICE

Read this manual before working with the product. For personal and system safety, and for
optimum product performance, make sure you thoroughly understand the contents before
installing, using, or maintaining this product.

Within the United States, Rosemount Inc. has two toll-free assistance numbers.

Customer Central: 1-800-999-9307(7:00 a.m. to 7:00 p.m. CST)
Technical support, quoting, and order-related questions.

North American Response Center:

Equipment service needs.

1-800-654-7768 (24 hours a day – Includes Canada)

For equipment service or support needs outside the United States, contact your local
Rosemount representative.

The products described in this document are NOT designed for nuclear-qualified
applications.

Using non-nuclear qualified products in applications that require nuclear-qualified hardware
or products may cause inaccurate readings.

For information on Rosemount nuclear-qualified products, contact your local Rosemount
Sales Representative.

This product is designed to meet FCC and R&TTE requirements for a non-intentional
radiator. It does not require any licensing whatsoever and has no tank restrictions
associated with telecommunications issues.

This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.

Rosemount 3300 Series Guided Wave Radar Level and Interface Transmitters may be protected by one or
more U.S. Patents pending and foreign patents pending.
Rosemount and the Rosemount logotype are registered trademarks of Rosemount Inc.
HART is a registered trademark of the HART Communication Foundation.
Teflon, VITON, and Kalrez are registered trademarks of E.I. du Pont de Nemours & Co.
Asset Management Solutions is a trademark of Emerson Process Management.
Cover Photo: CoverPhoto_06/CoverPhoto_07

www.rosemount.com

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Table of Contents

SECTION 1
Introduction

SECTION 2
Transmitter Overview

SECTION 3
Installation

Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Manual Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

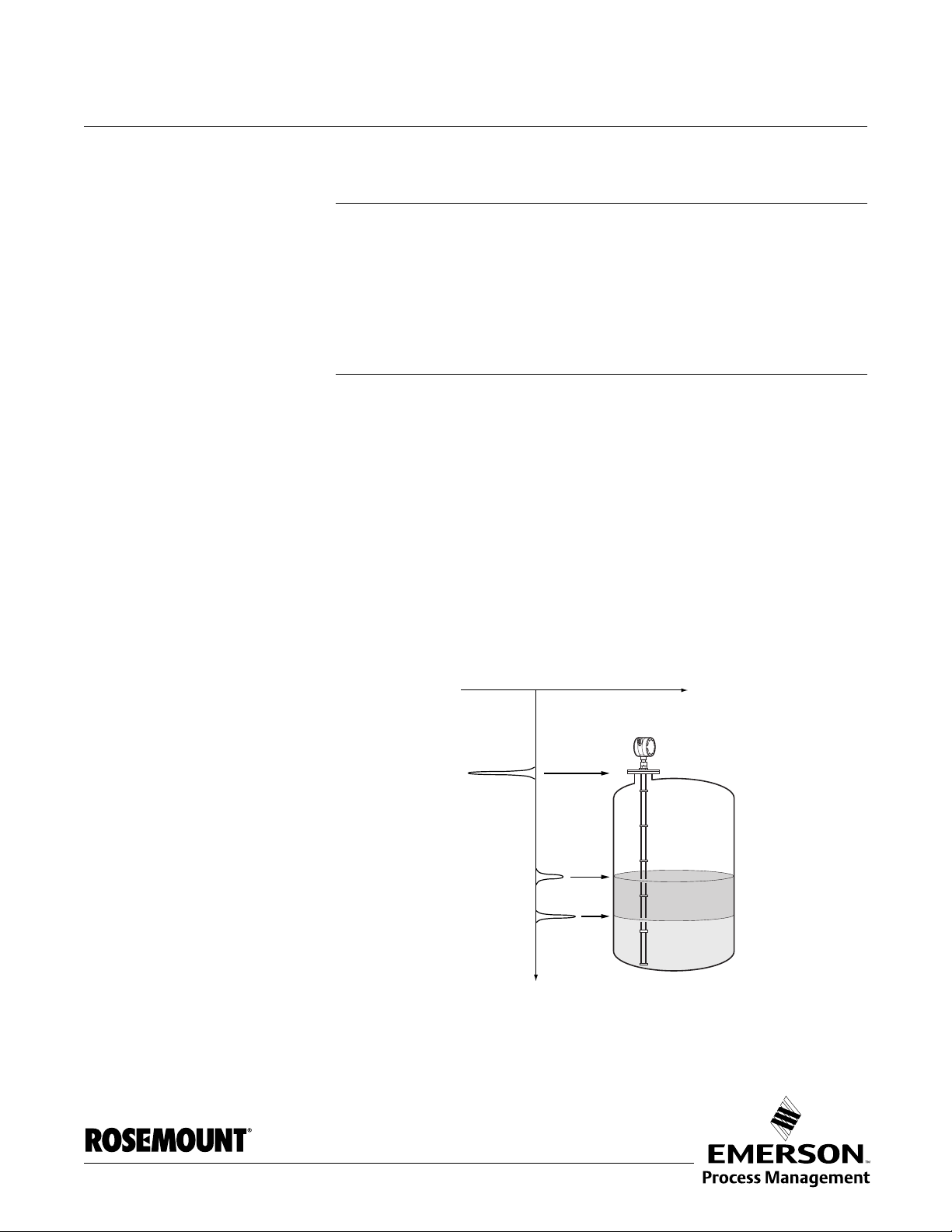

Theory of Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

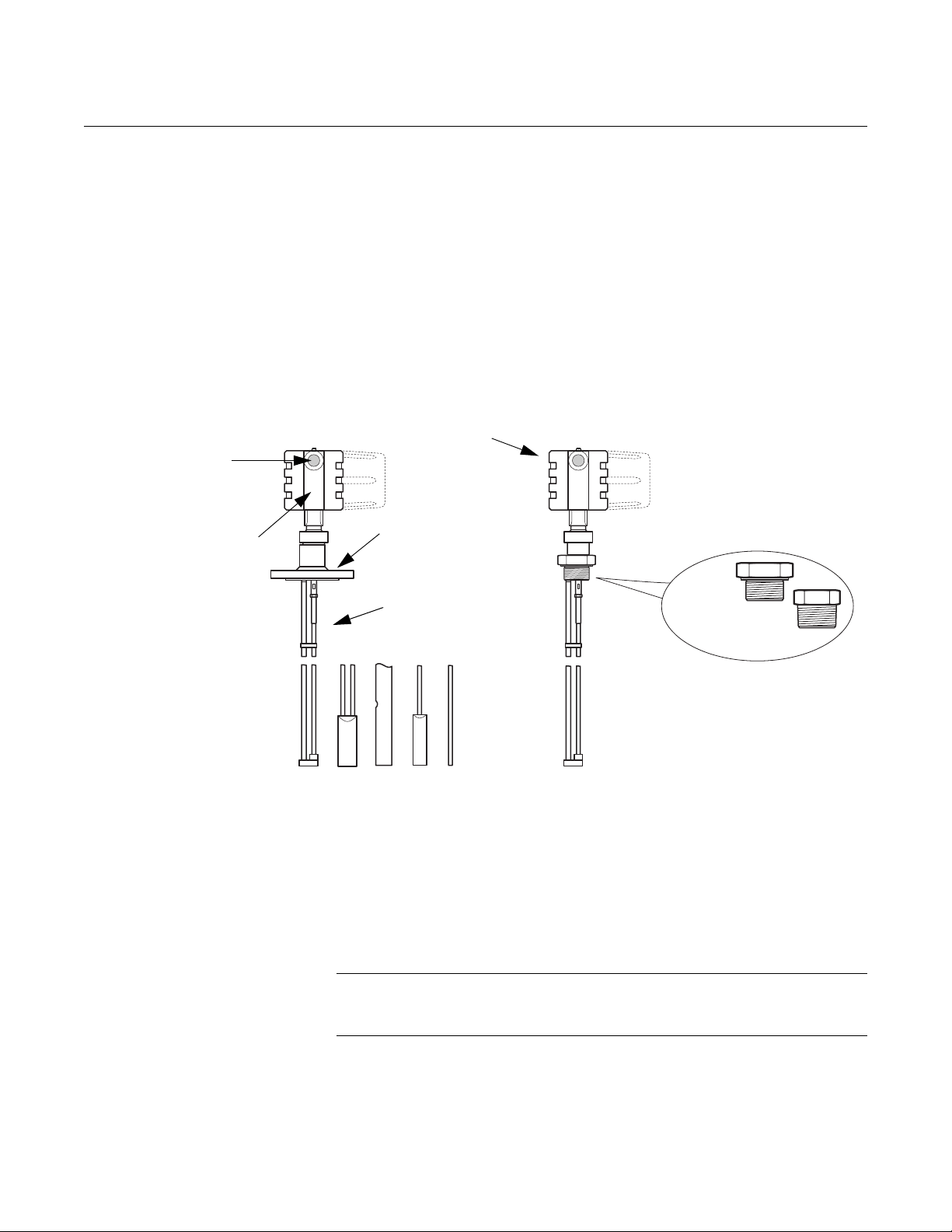

Components of the Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

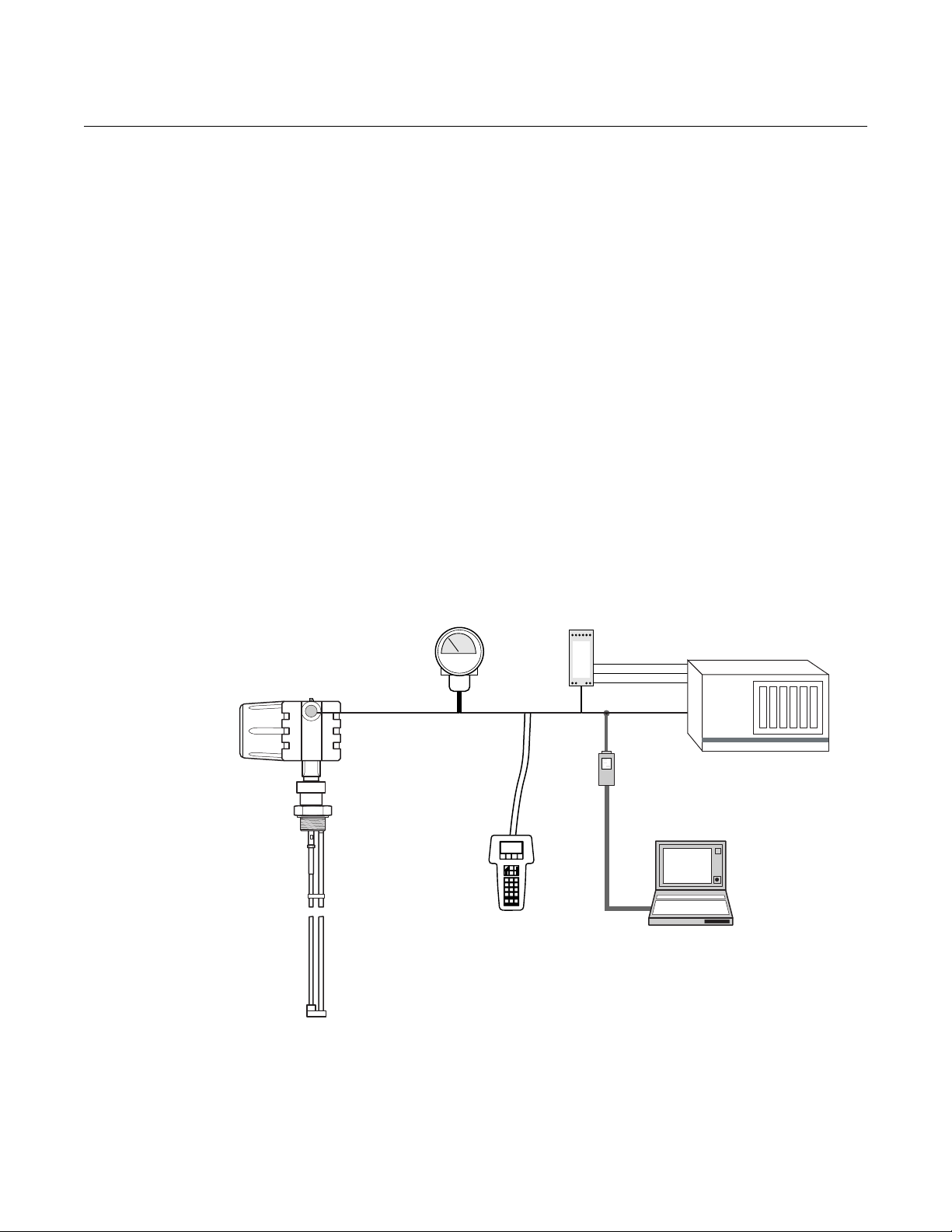

System Architecture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

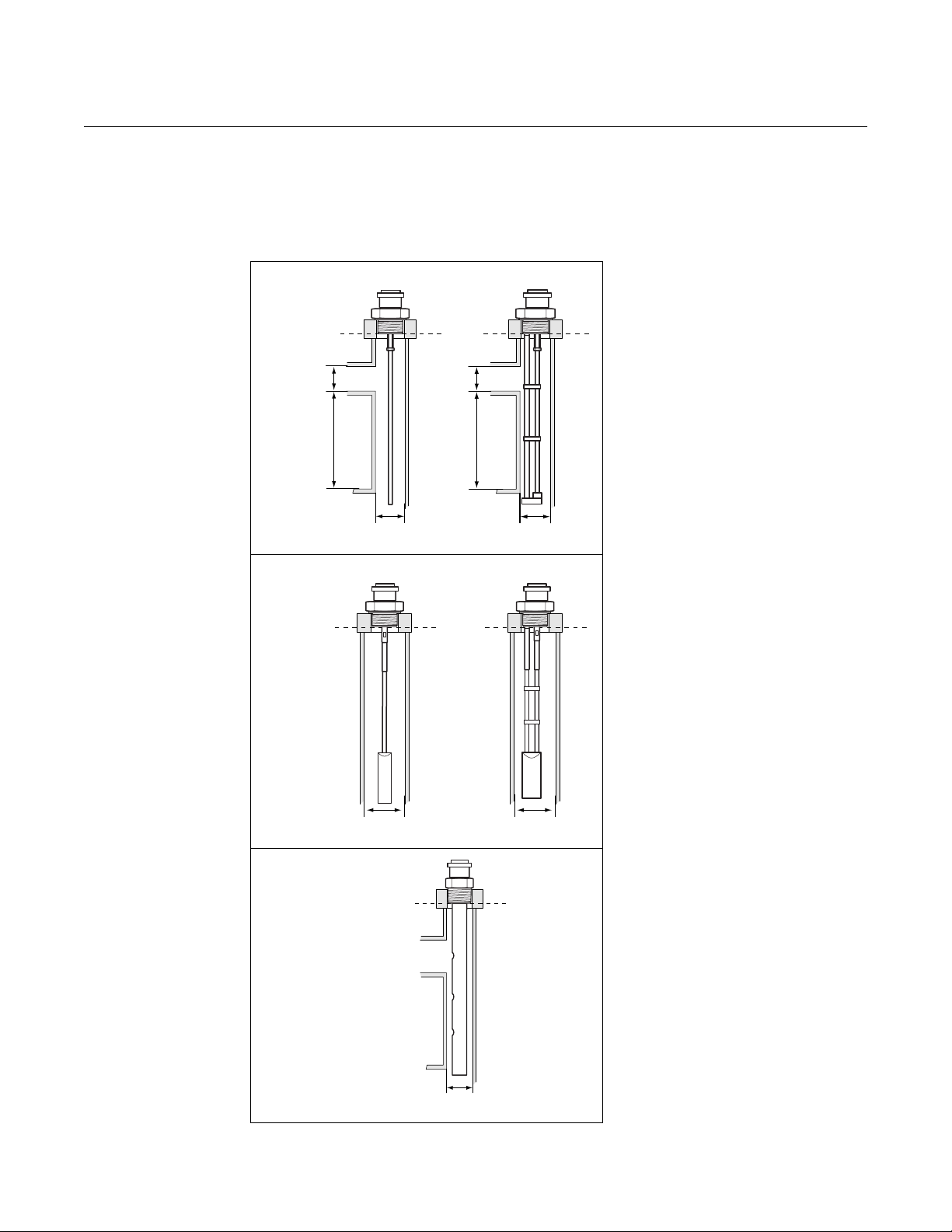

Probe Selection Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

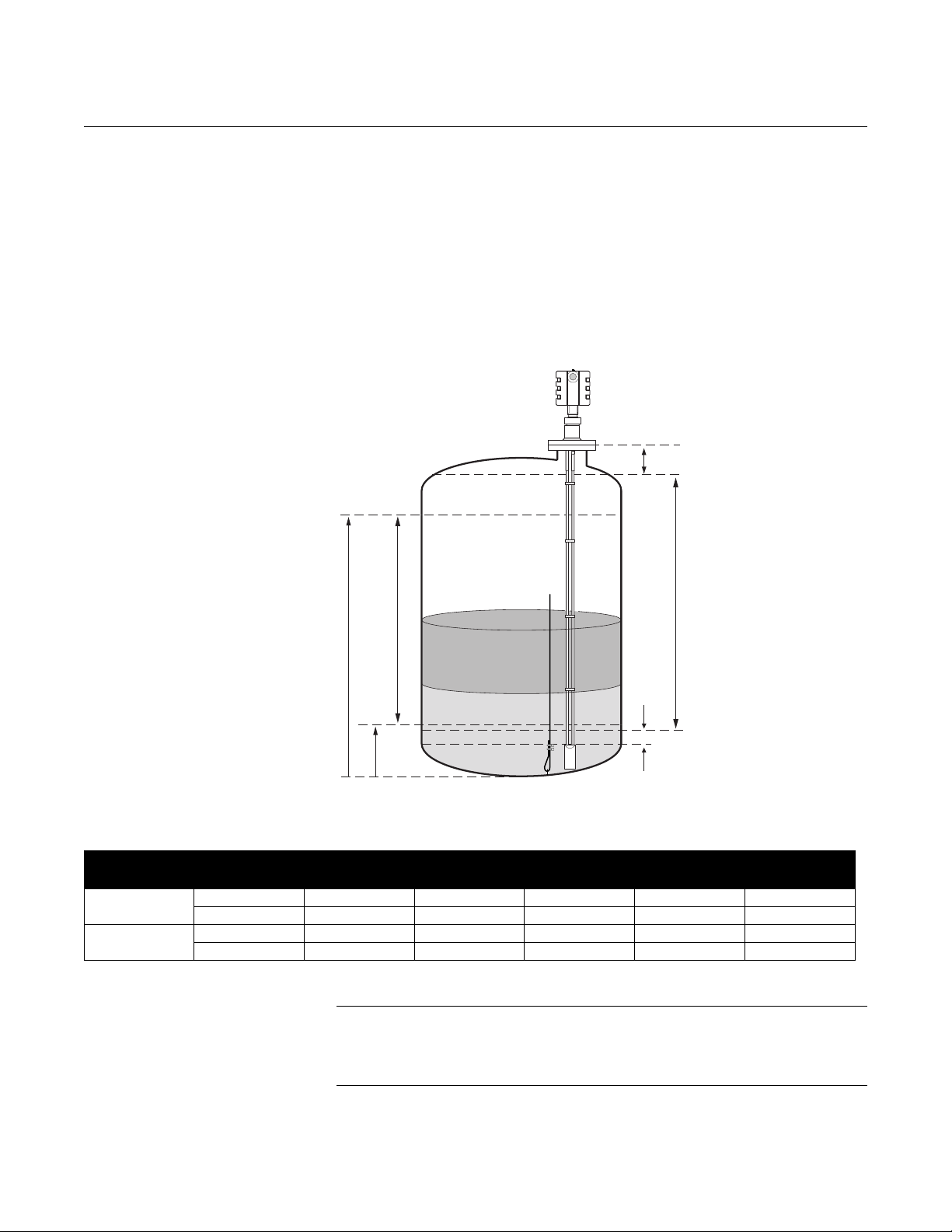

Dead Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Process Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Coating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Bridging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Foam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Vapor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Measuring Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

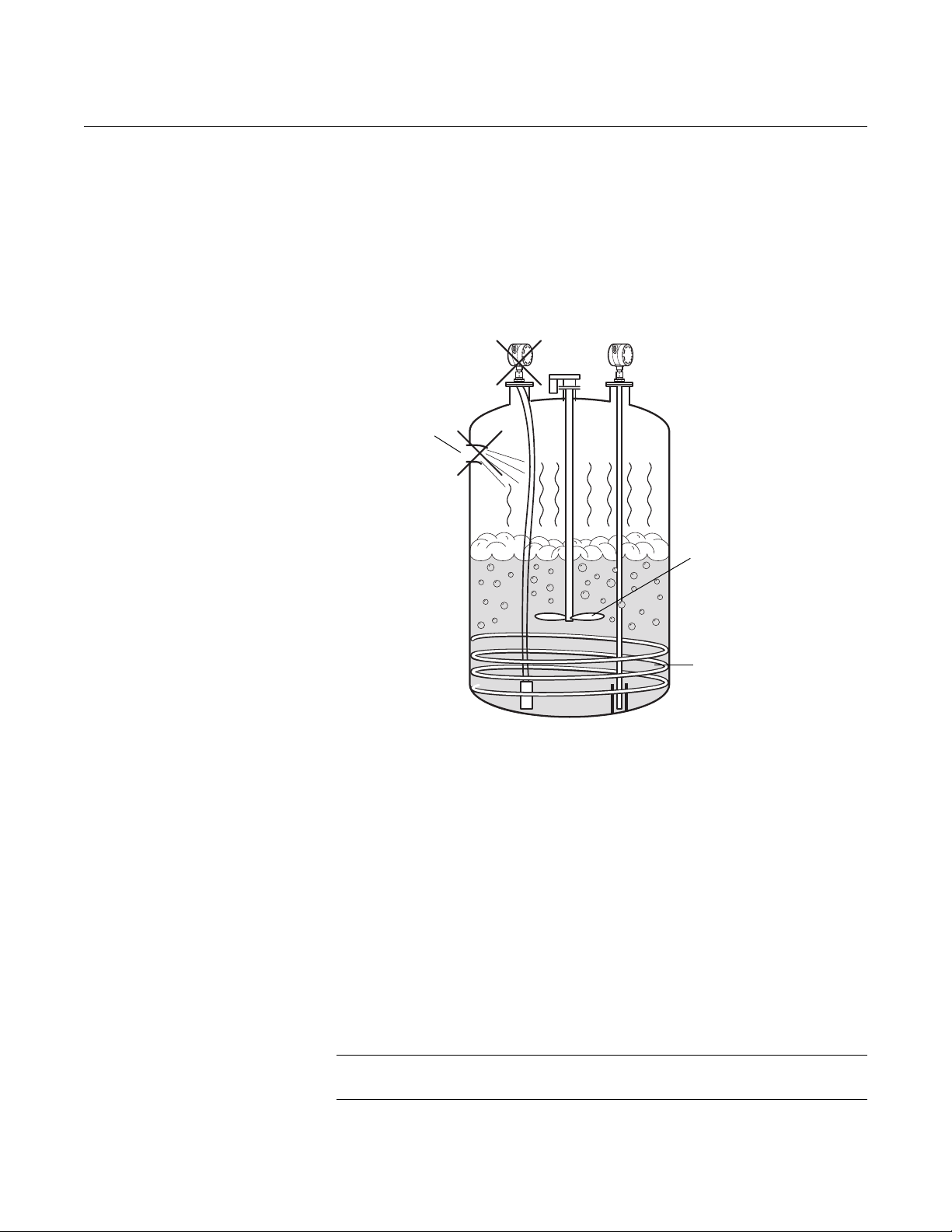

Vessel Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Heating Coils, Agitators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Tank Shape . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Safety messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Installation Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Before You Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

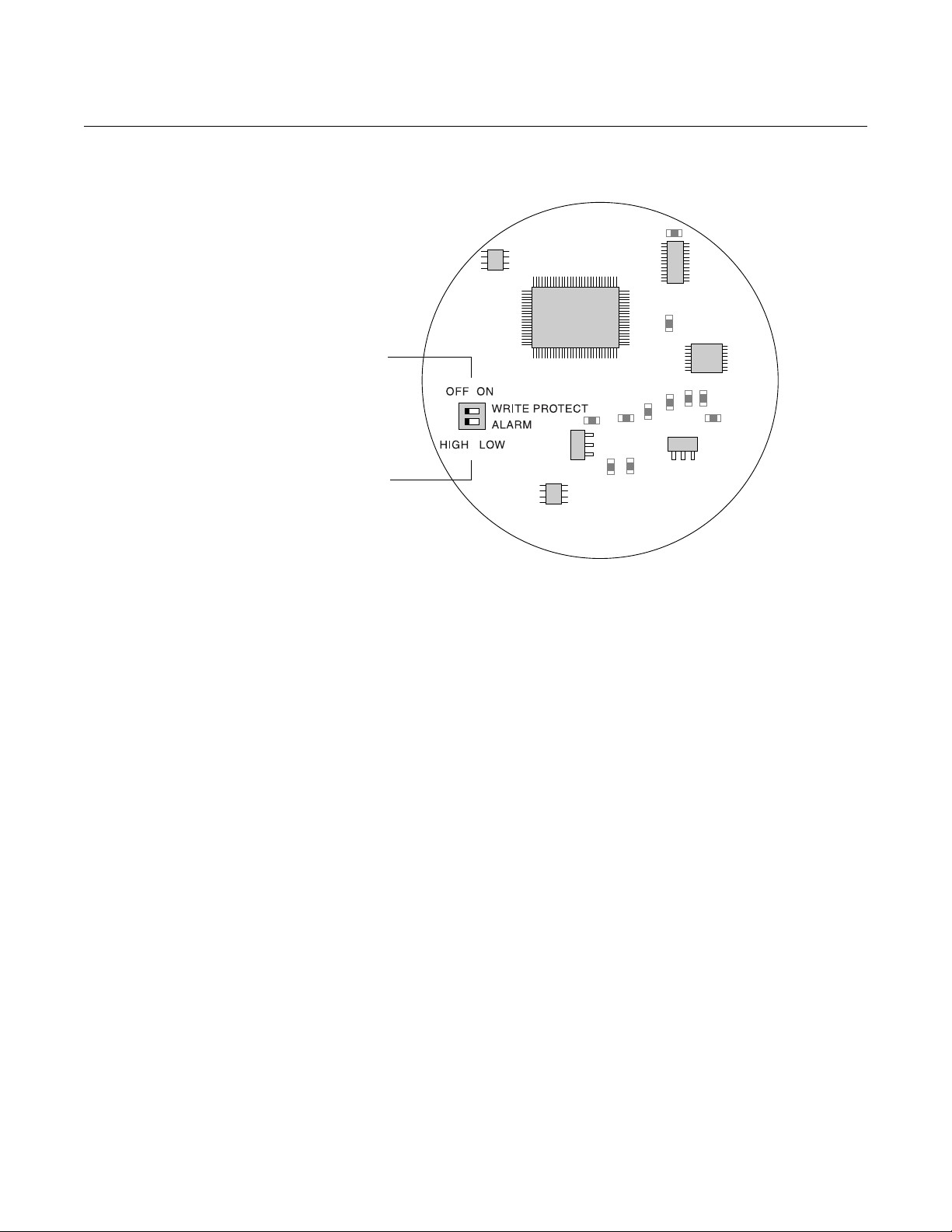

Alarm and Write Protection Switches . . . . . . . . . . . . . . . . . . . . . . . 3-4

Mounting Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

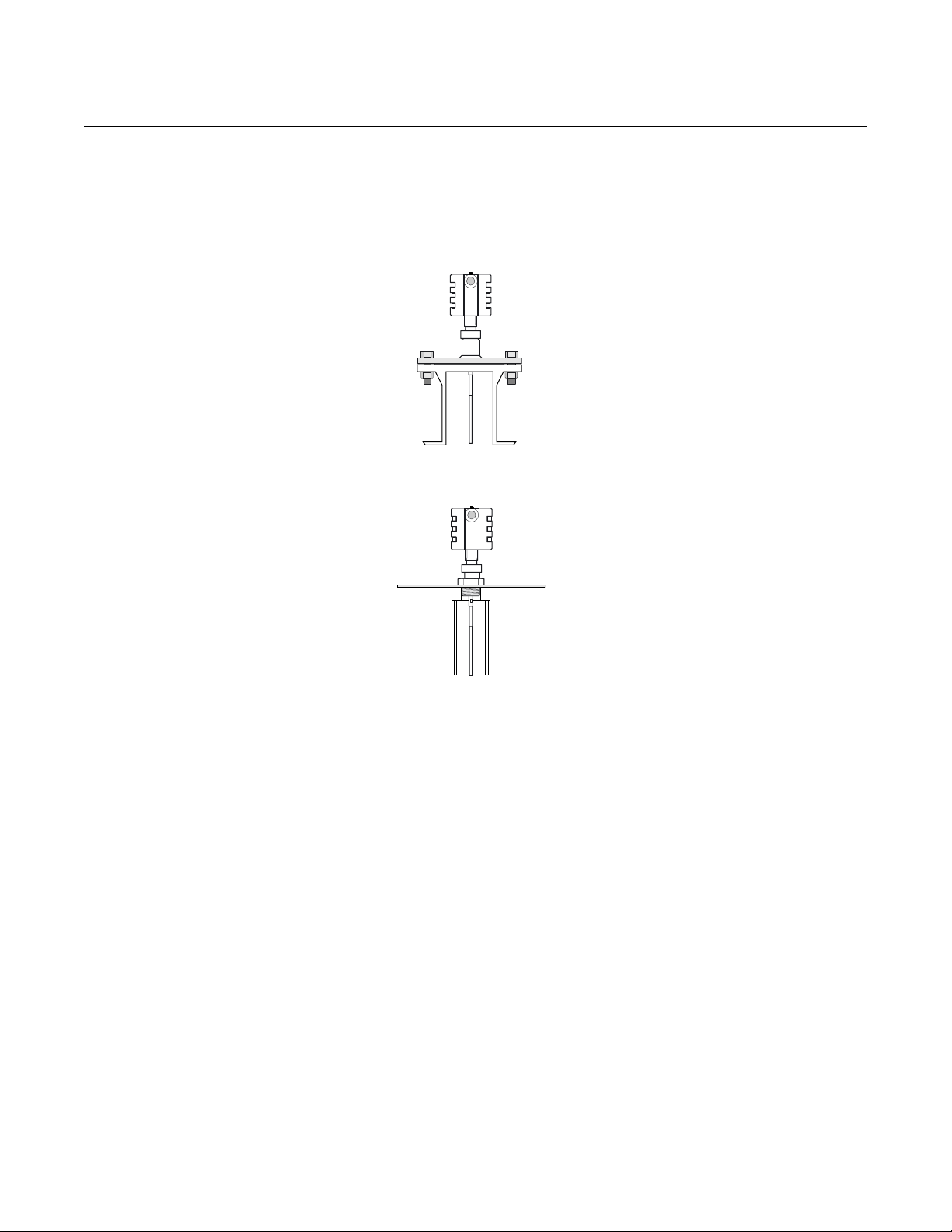

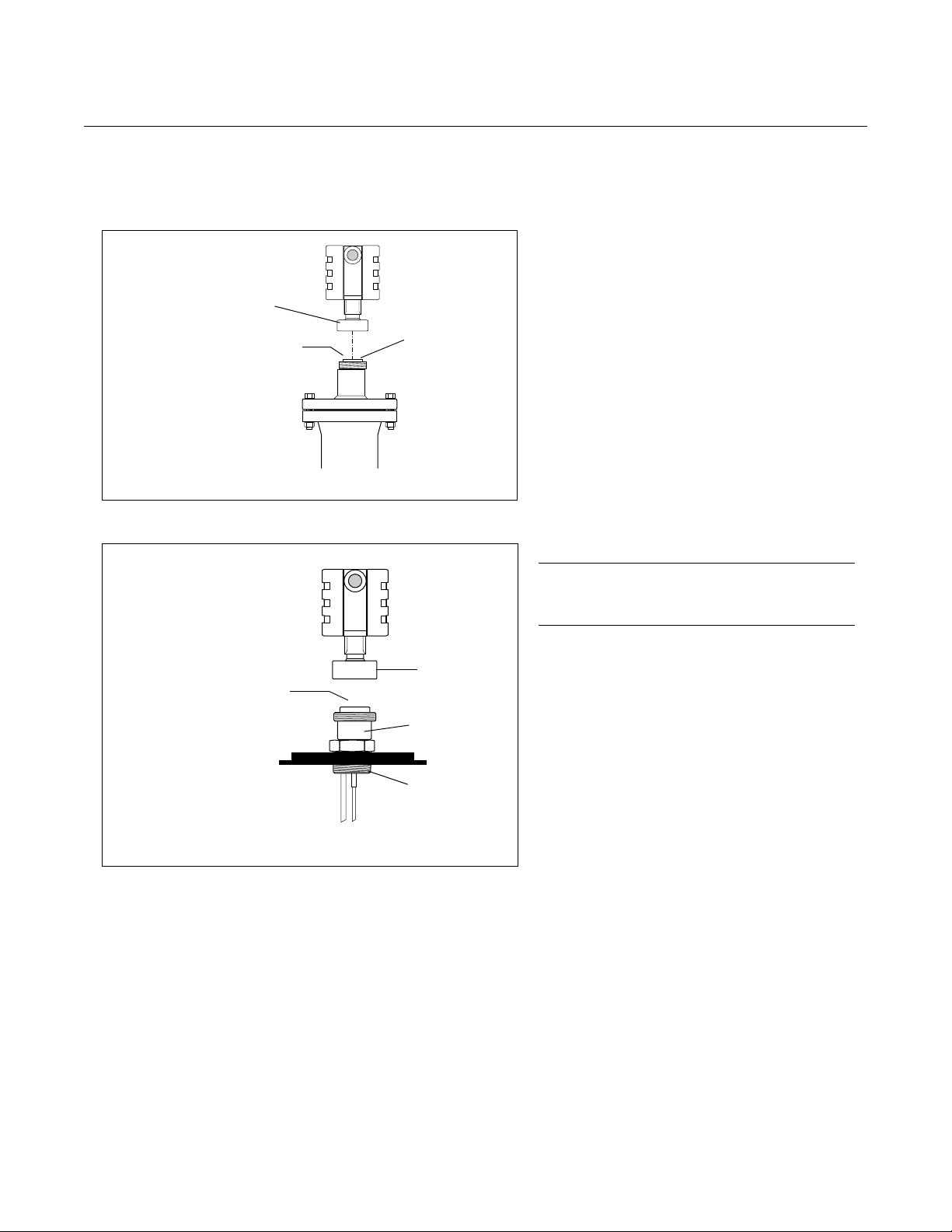

Process connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Installation of single lead probes in non-metallic tanks . . . . . . . . . 3-8

Mounting in Still pipes/by-pass pipes . . . . . . . . . . . . . . . . . . . . . . . 3-9

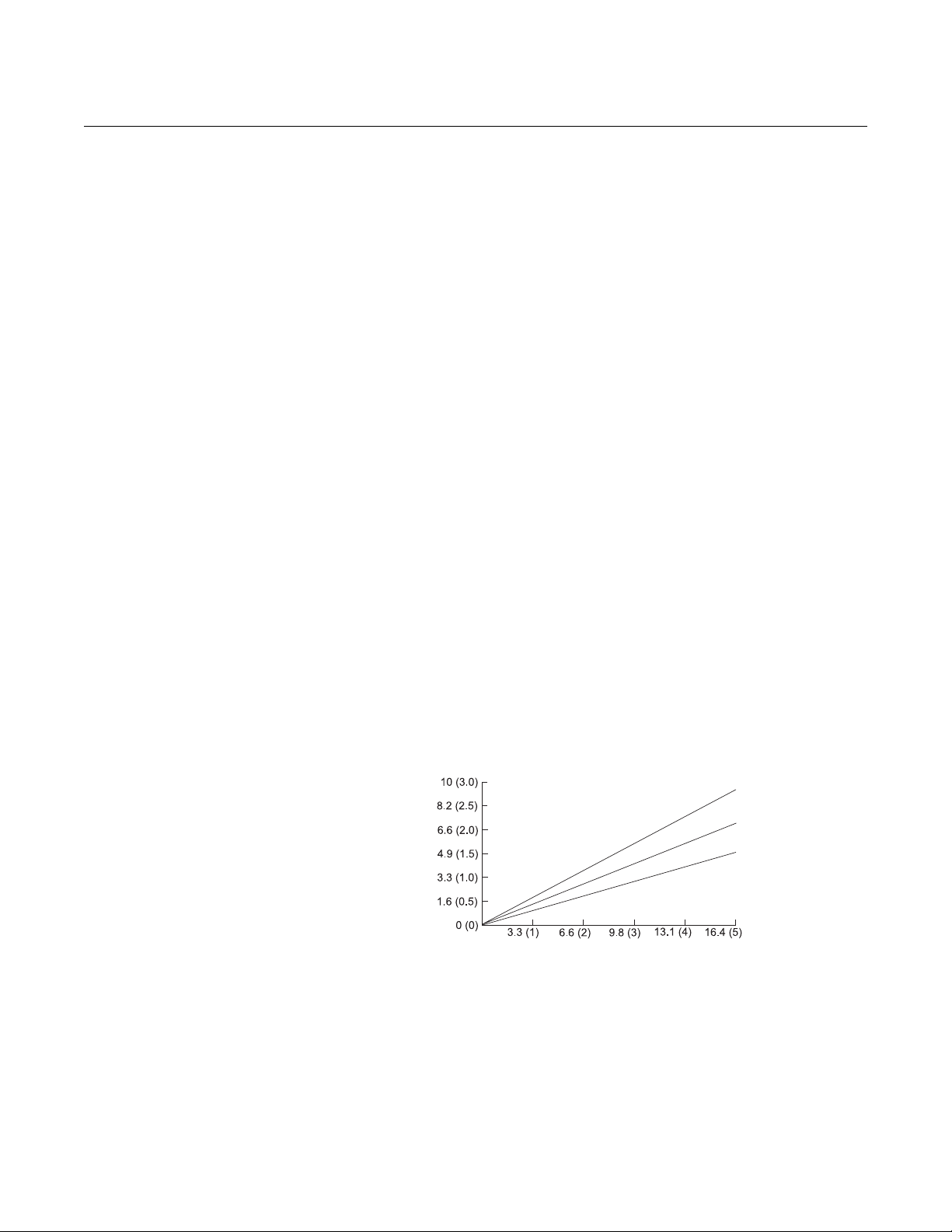

Free Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

Recommended Mounting Position . . . . . . . . . . . . . . . . . . . . . . . . 3-11

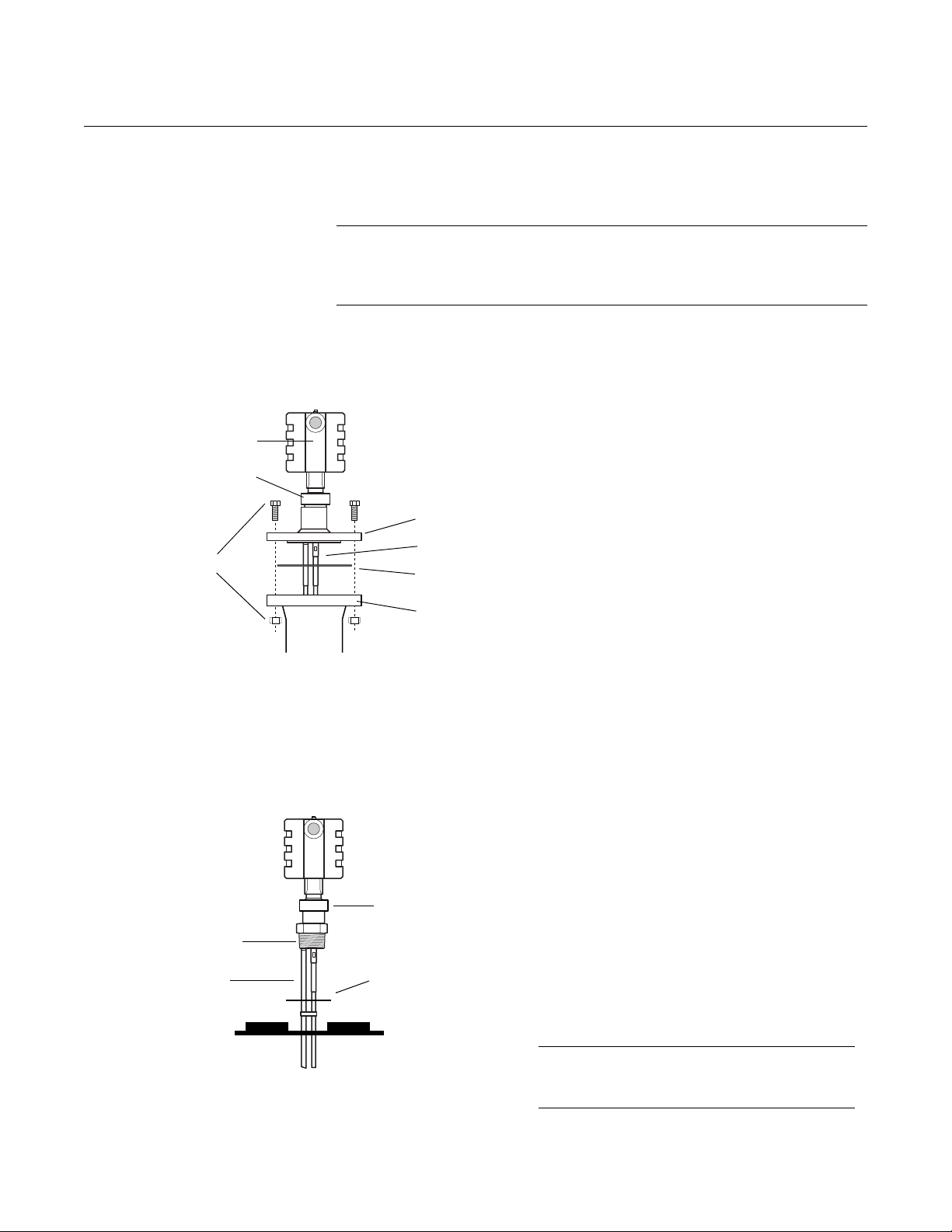

Mechanical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12

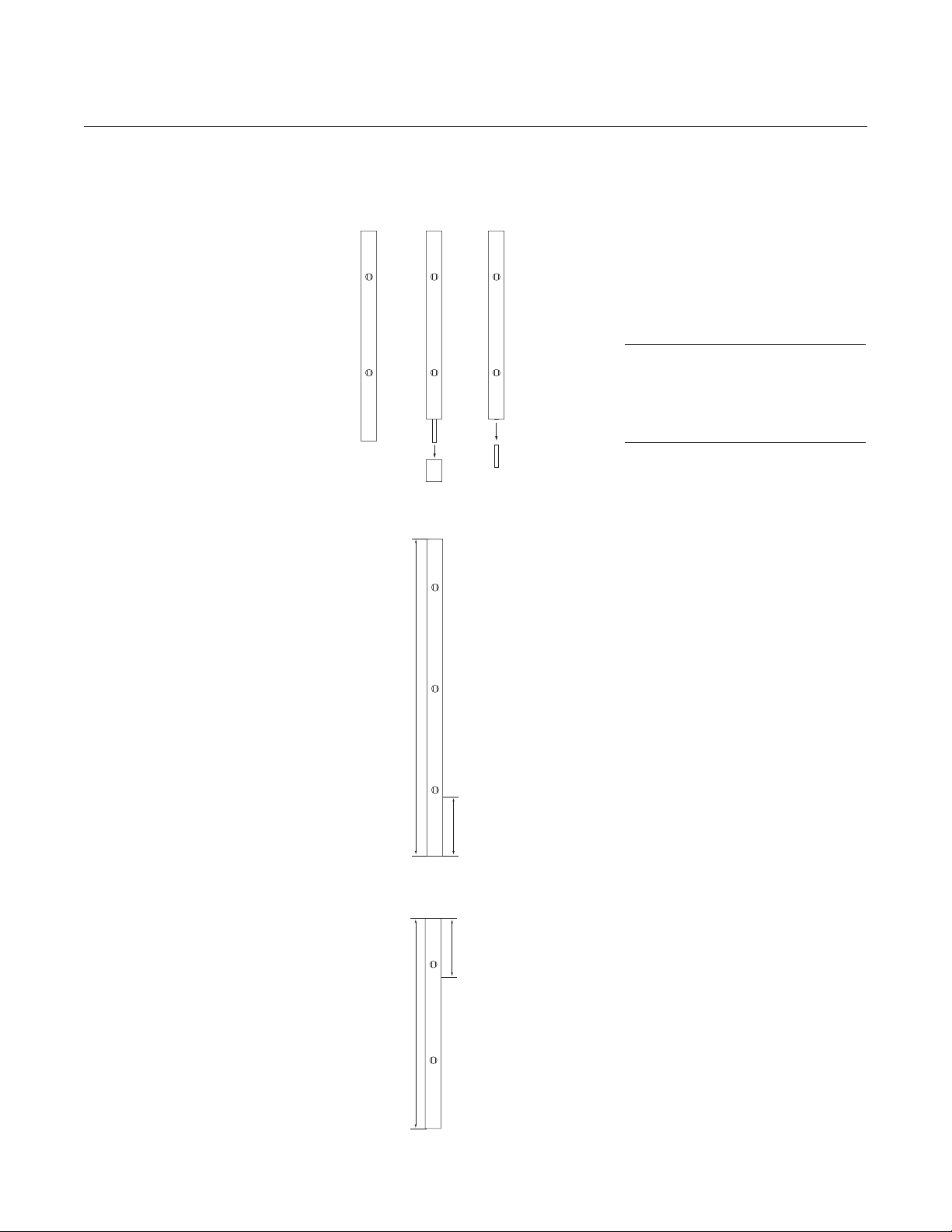

Shortening the Probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

Anchoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15

Electrical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Cable/conduit entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Grounding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Cable Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Hazardous Areas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18

Maximum Loop Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18

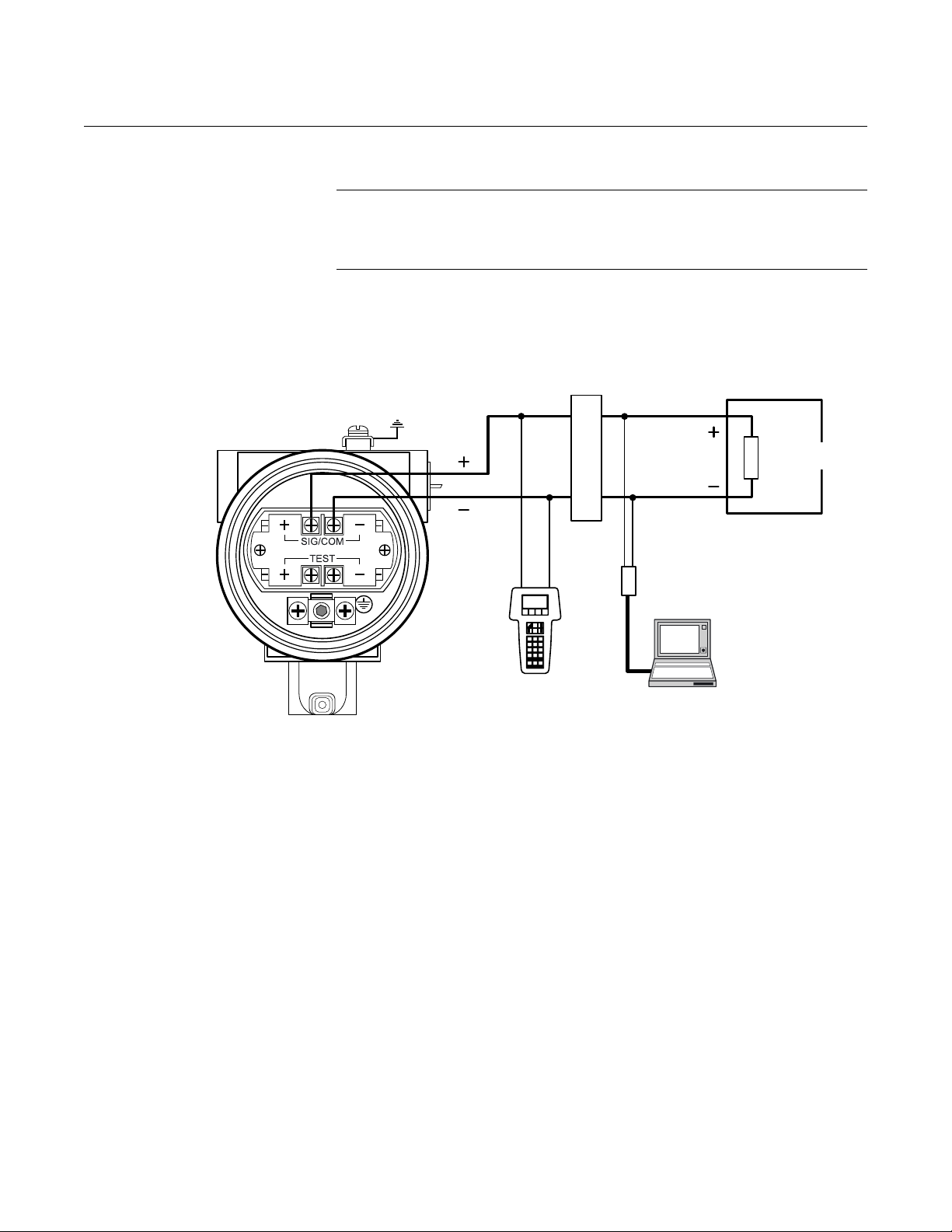

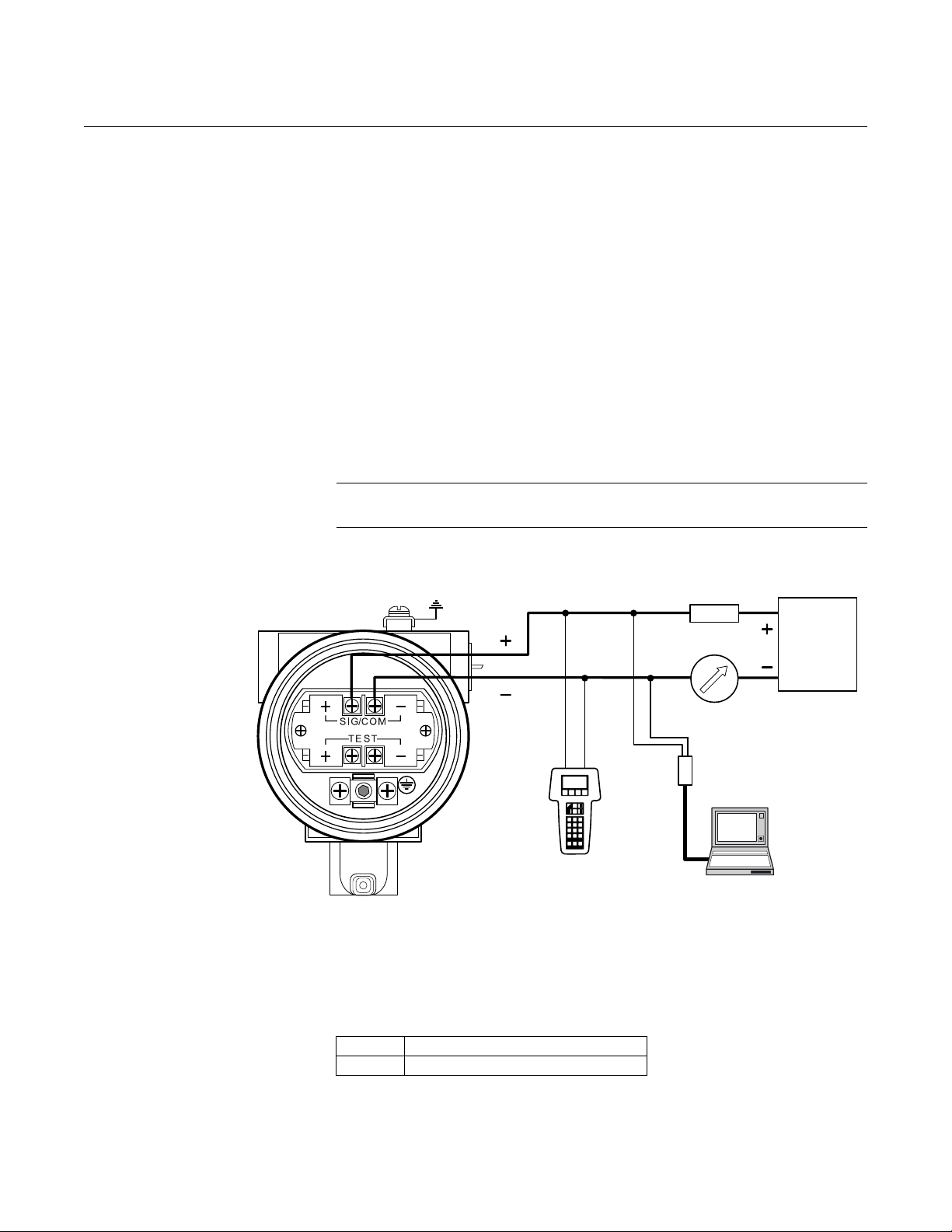

Connecting the Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19

Non-Intrinsically Safe Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19

Intrinsically Safe Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20

www.rosemount.com

Rosemount 3300 Series

Optional Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21

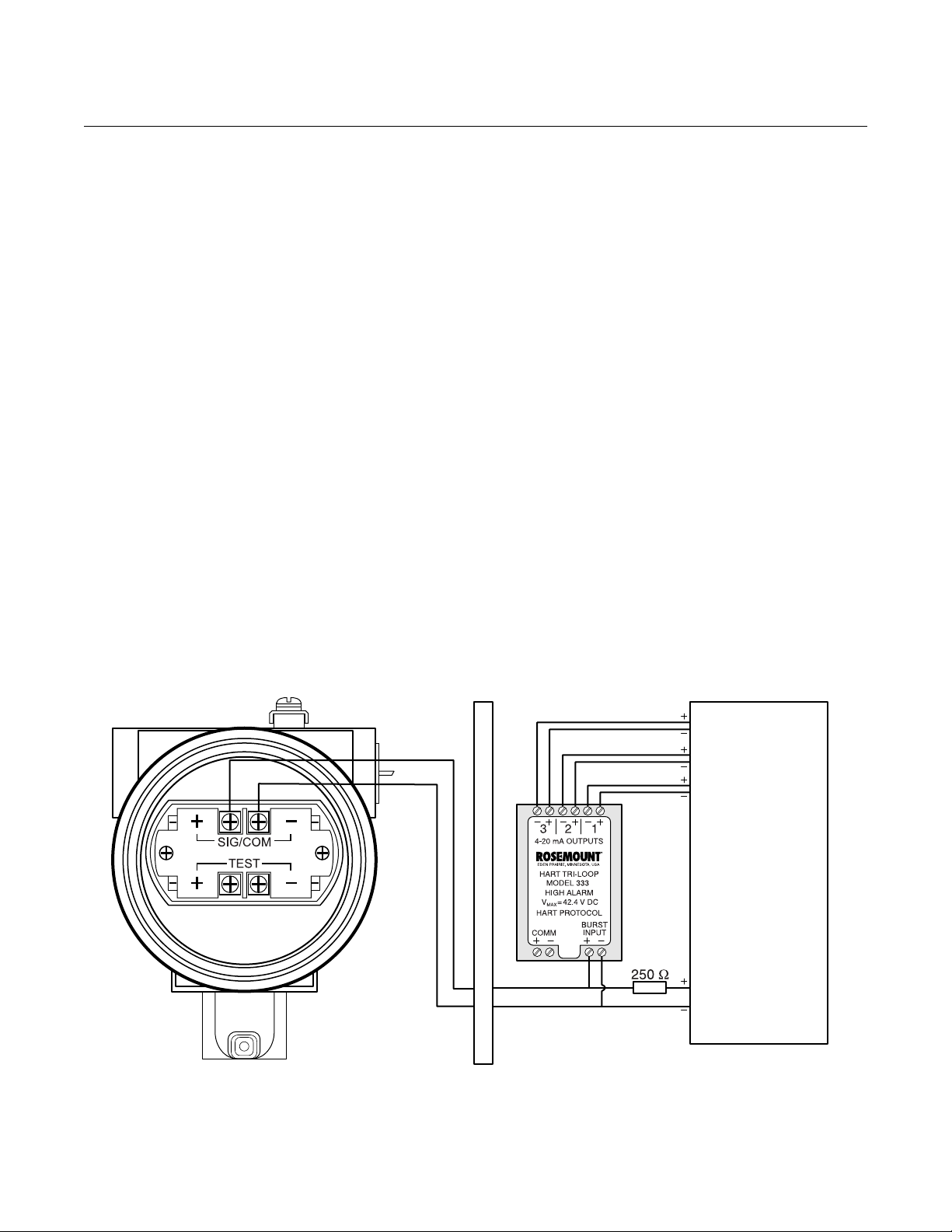

Tri-Loop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21

Using More than one transmitter on the bus . . . . . . . . . . . . . . . . 3-22

Reference Manual

00809-0100-4811, Rev AB

July 2003

SECTION 4
Start-Up

Safety messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Configuration Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Basic Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Volume Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

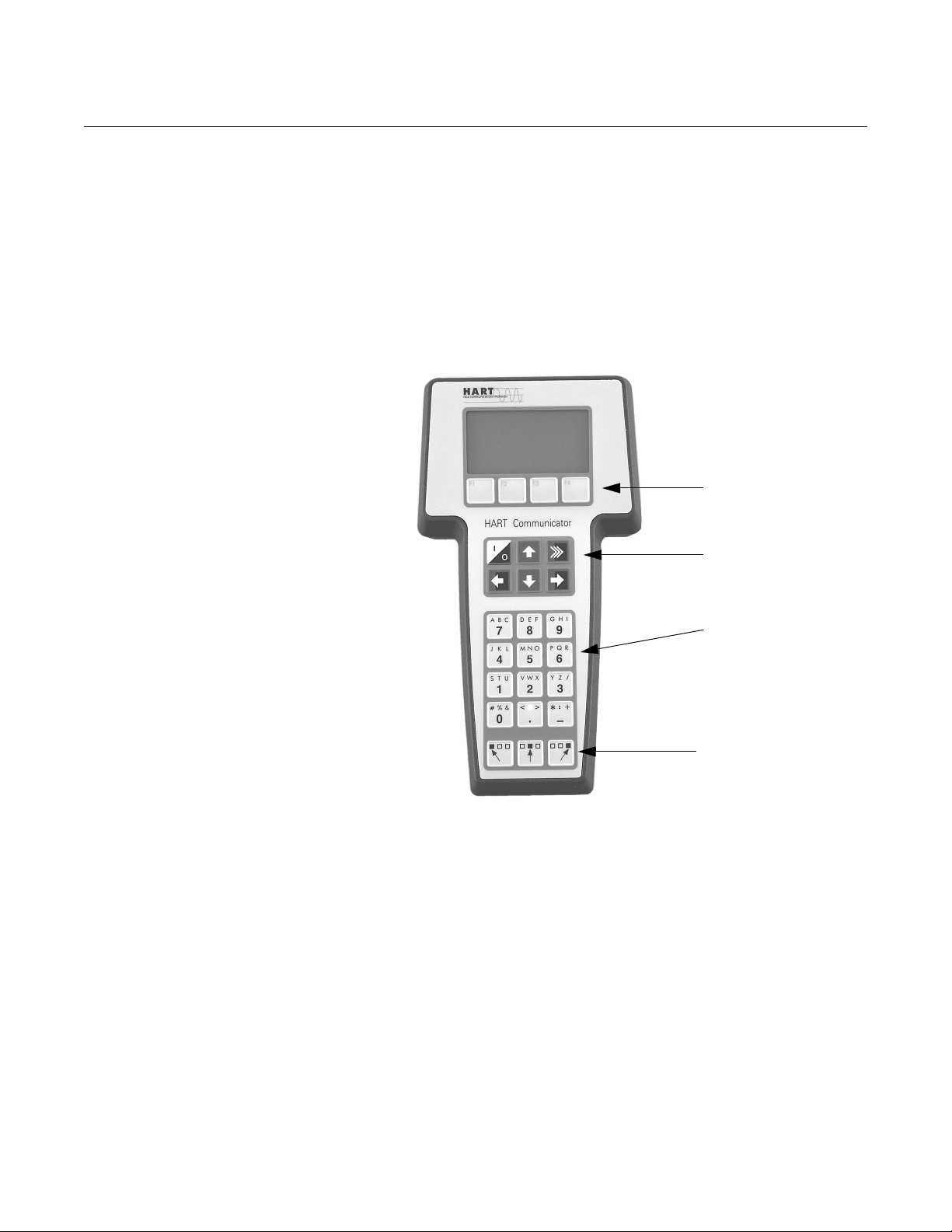

Configuration using a 275 or 375 HART Communicator . . . . . . . . . . . 4-7

Basic Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Transmitter Variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Transmitter Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

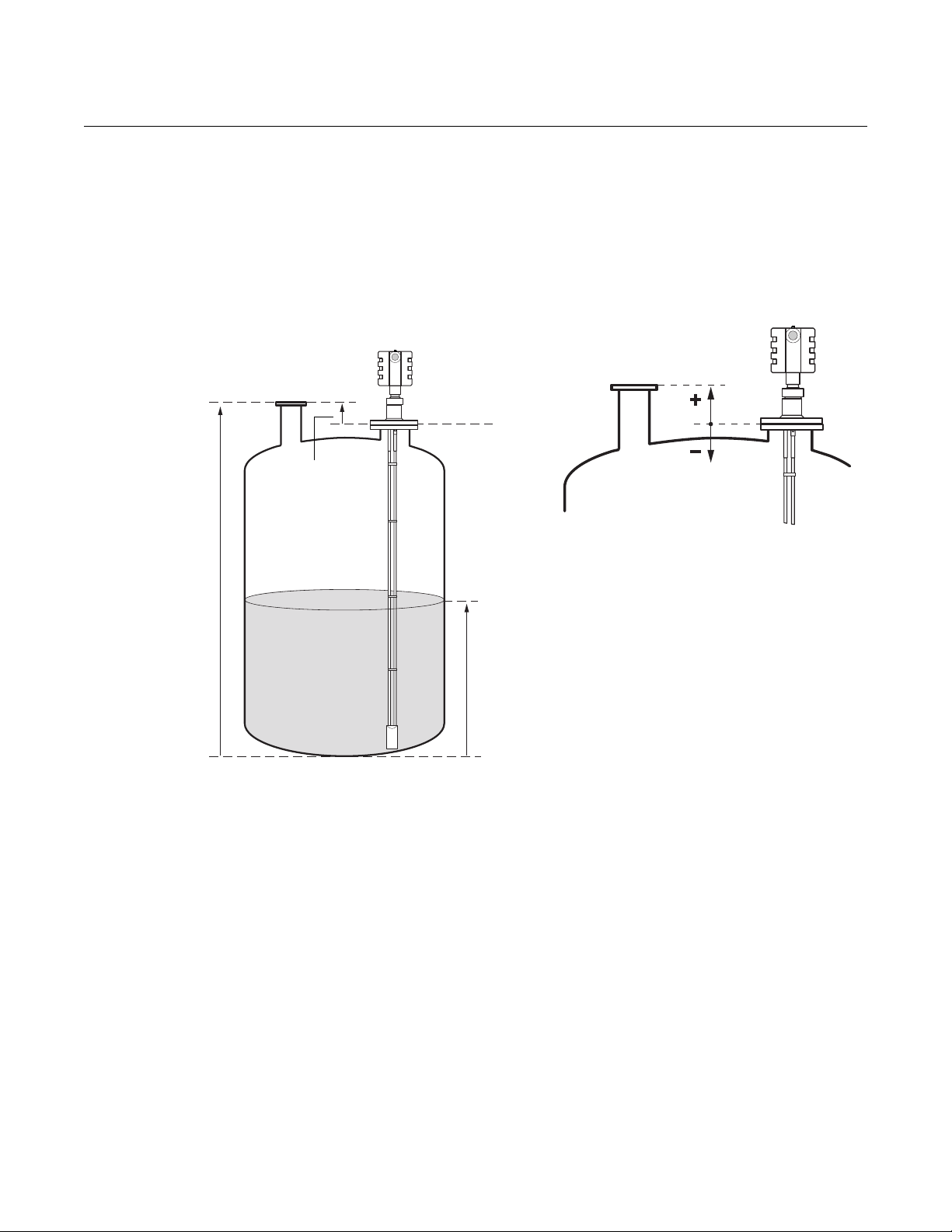

Reference Gauge Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Probe Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Probe Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Product Dielectric . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Vapor Dielectric . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Measurement Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11

Probe Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11

Maximum Upper Product Thickness. . . . . . . . . . . . . . . . . . . . . . . 4-11

Damping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11

Display panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11

4 and 20 mA Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12

Volume Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

Transmitter Variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

Volume Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

Tank Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

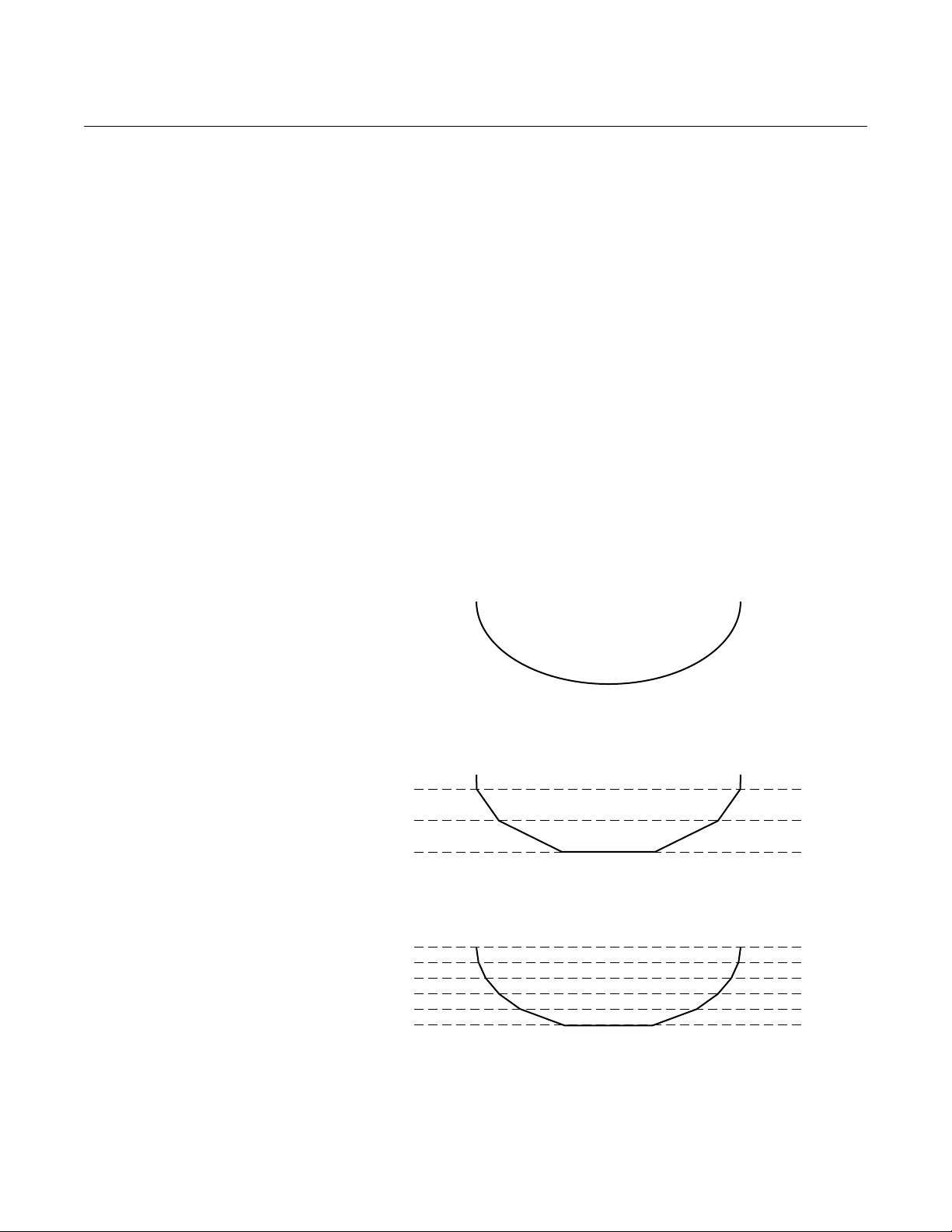

Tank Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

Strapping Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

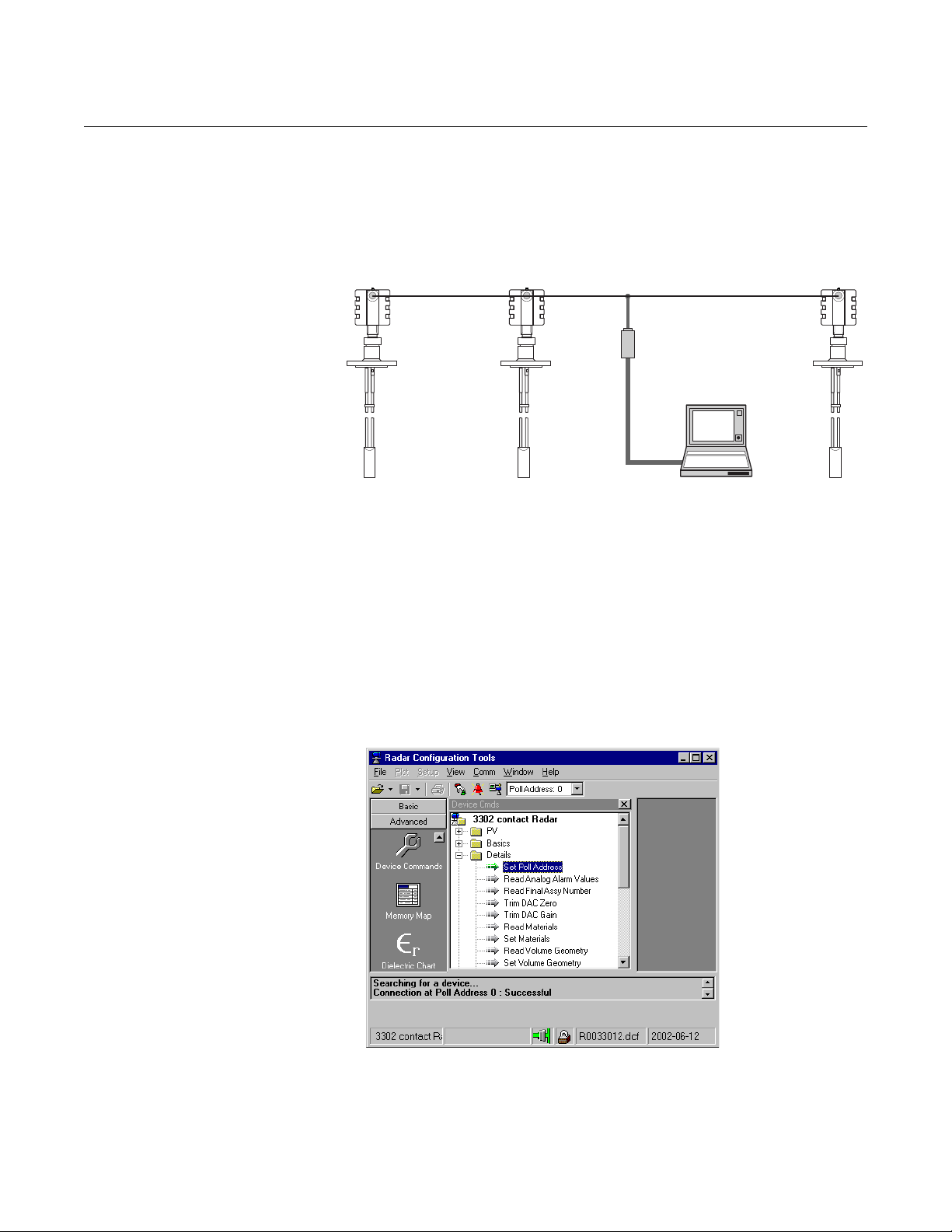

Configuration using The Radar Configuration Tool . . . . . . . . . . . . . . 4-14

Installing the RCT software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14

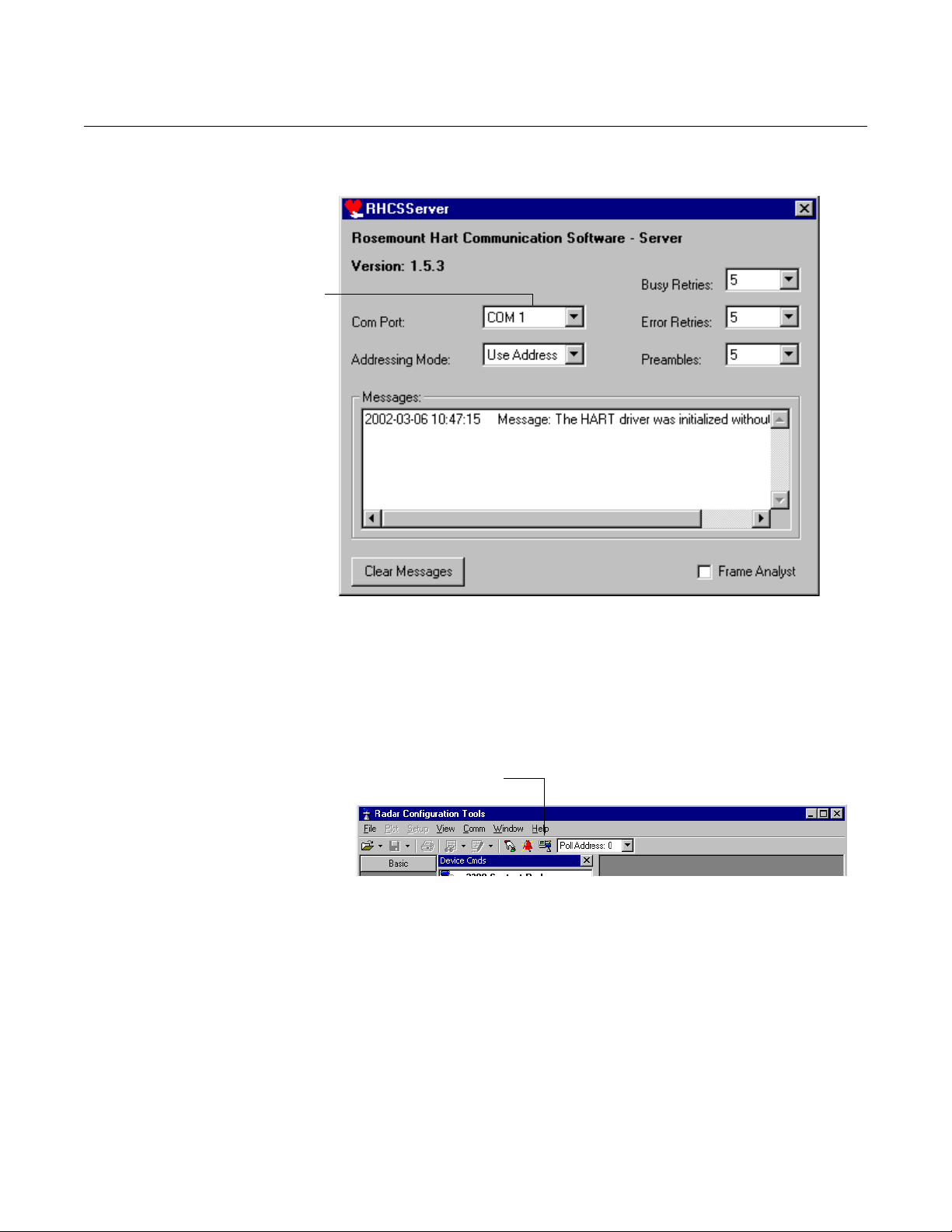

Specifying the COM Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14

Help In RCT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

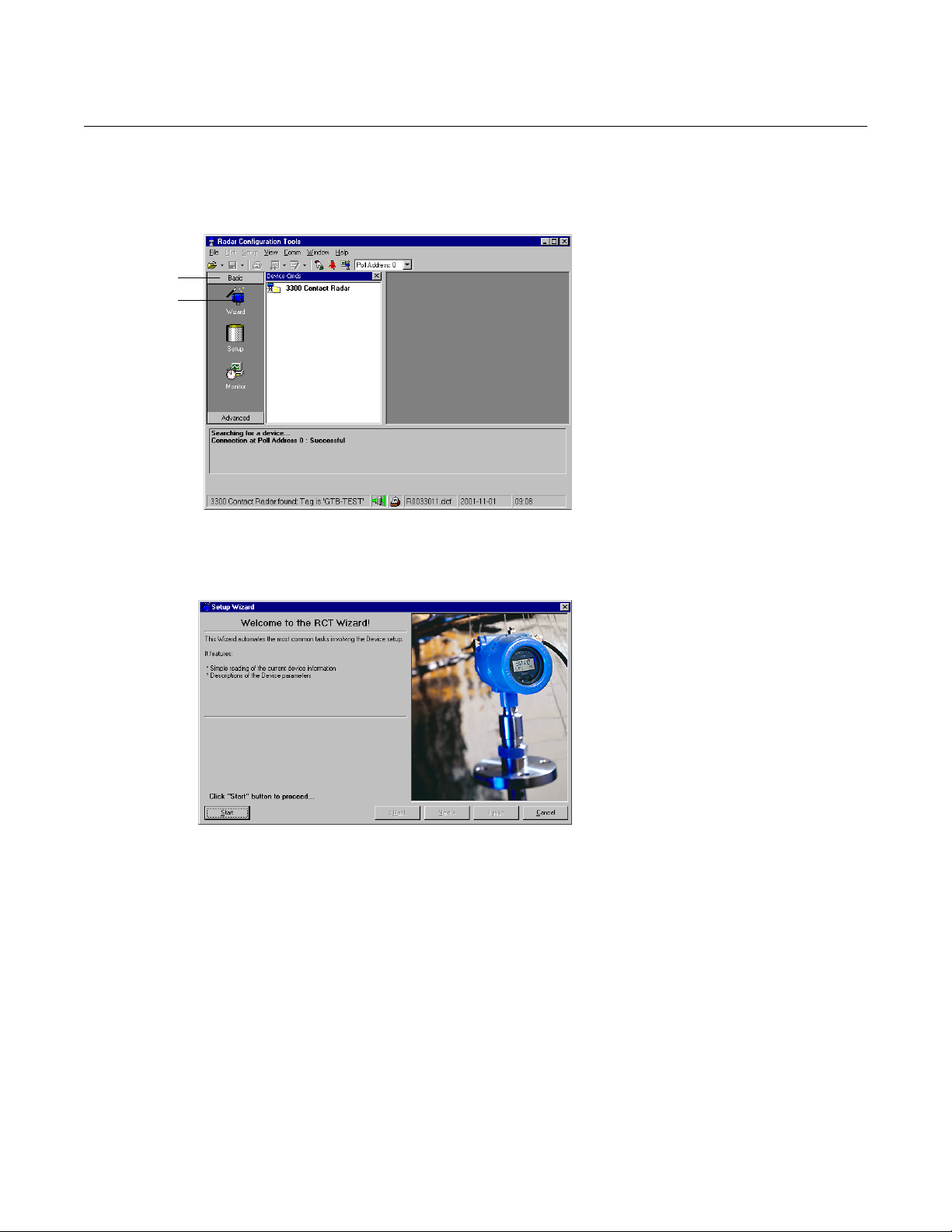

Using the Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16

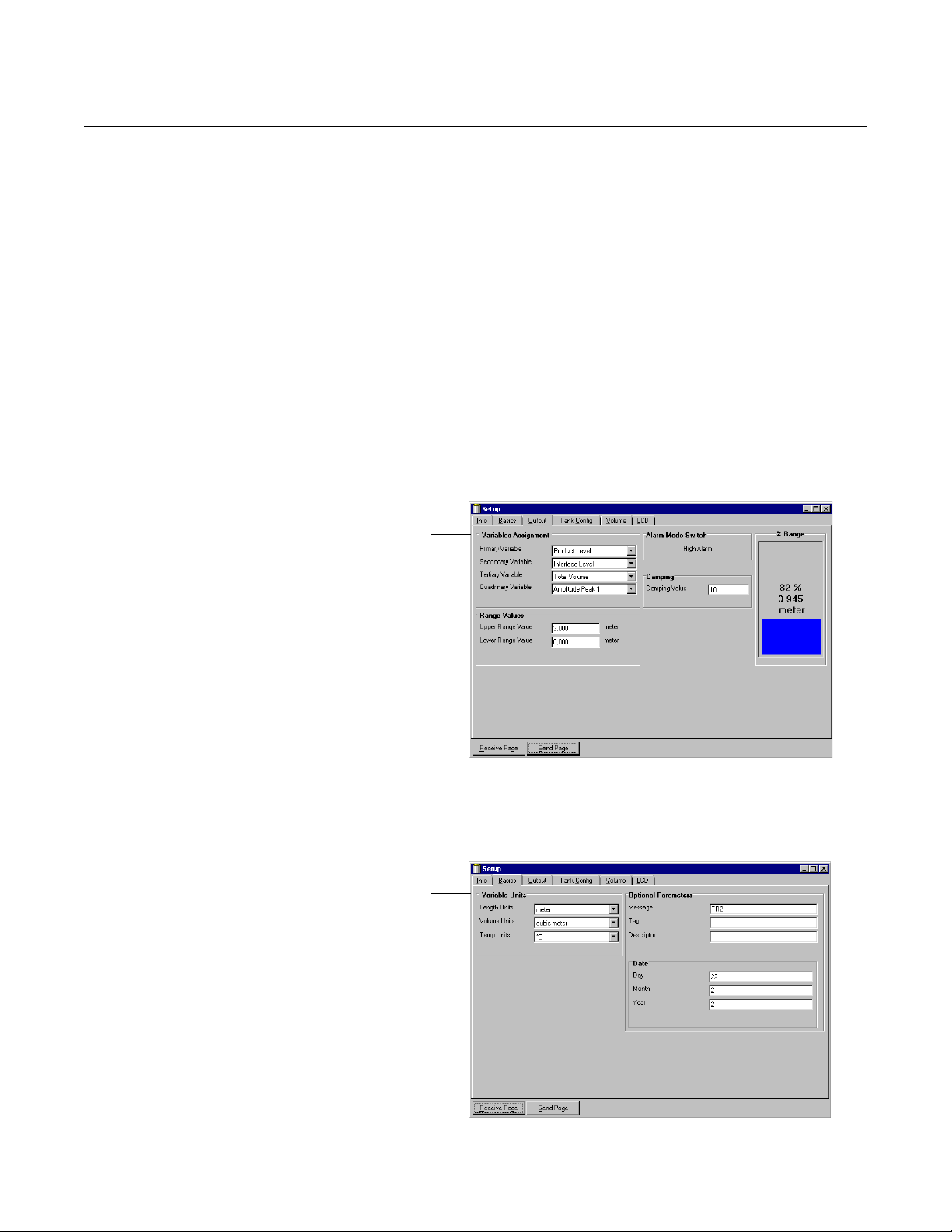

Using the Setup Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17

Setup - Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18

Setup - Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18

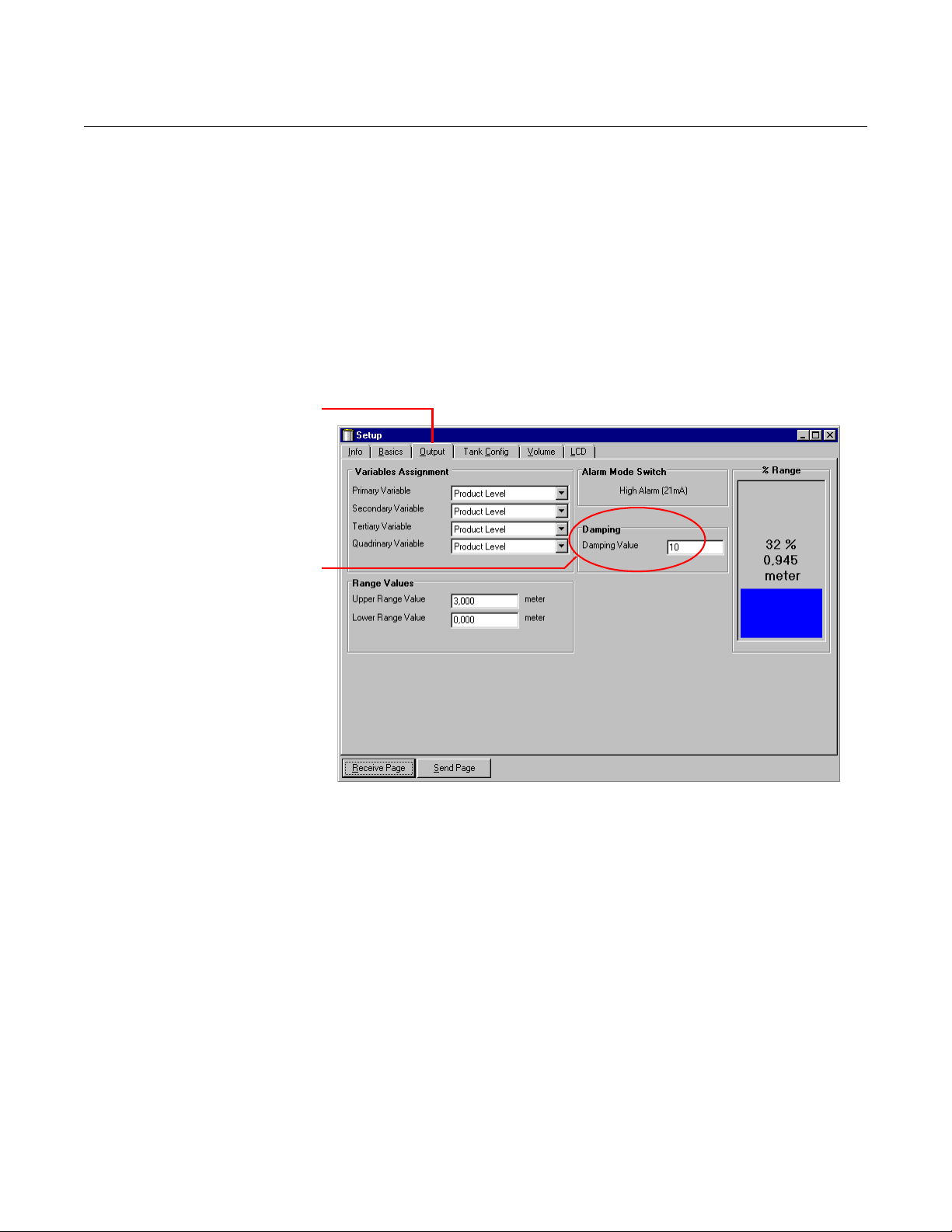

Setup - Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19

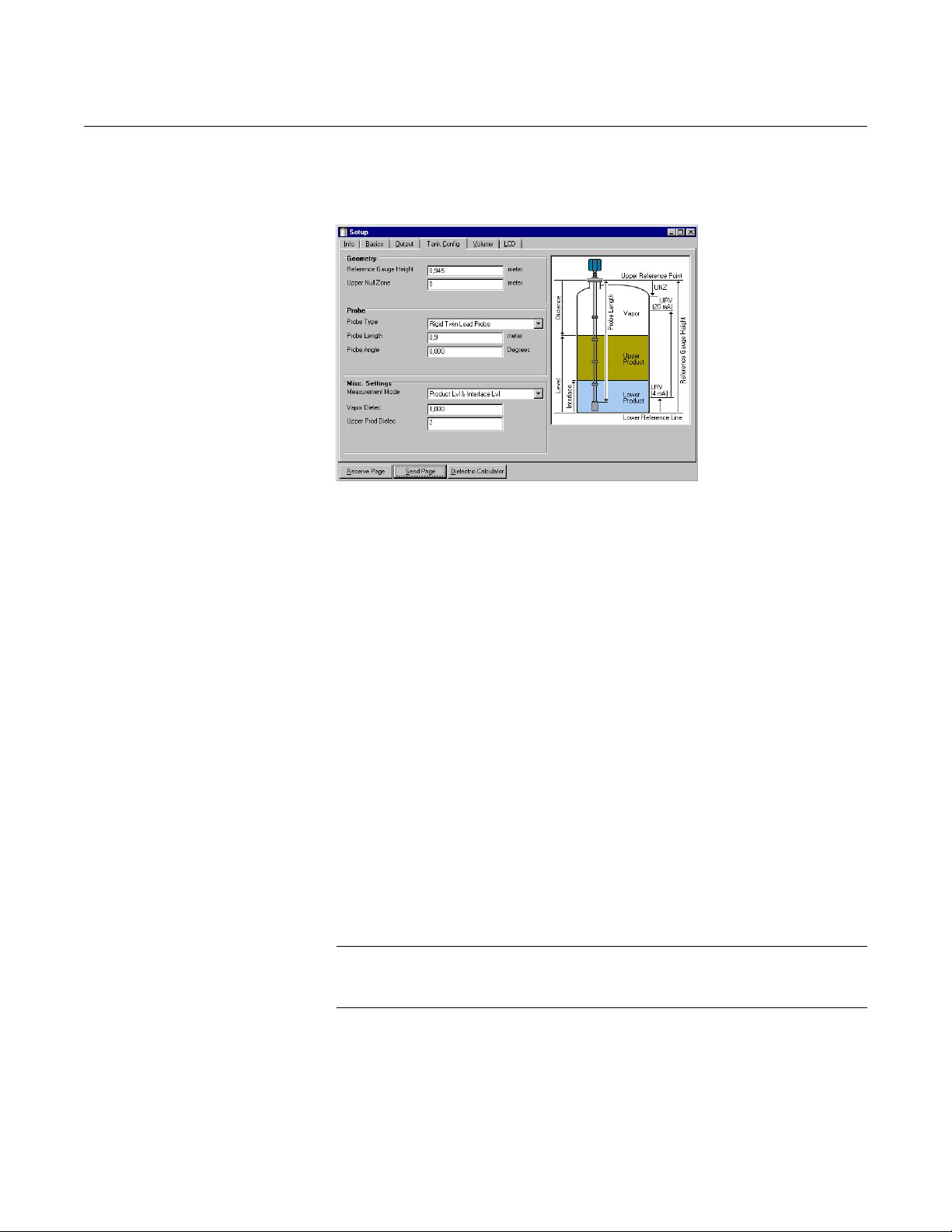

Setup - Tank Config . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20

Setup - Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22

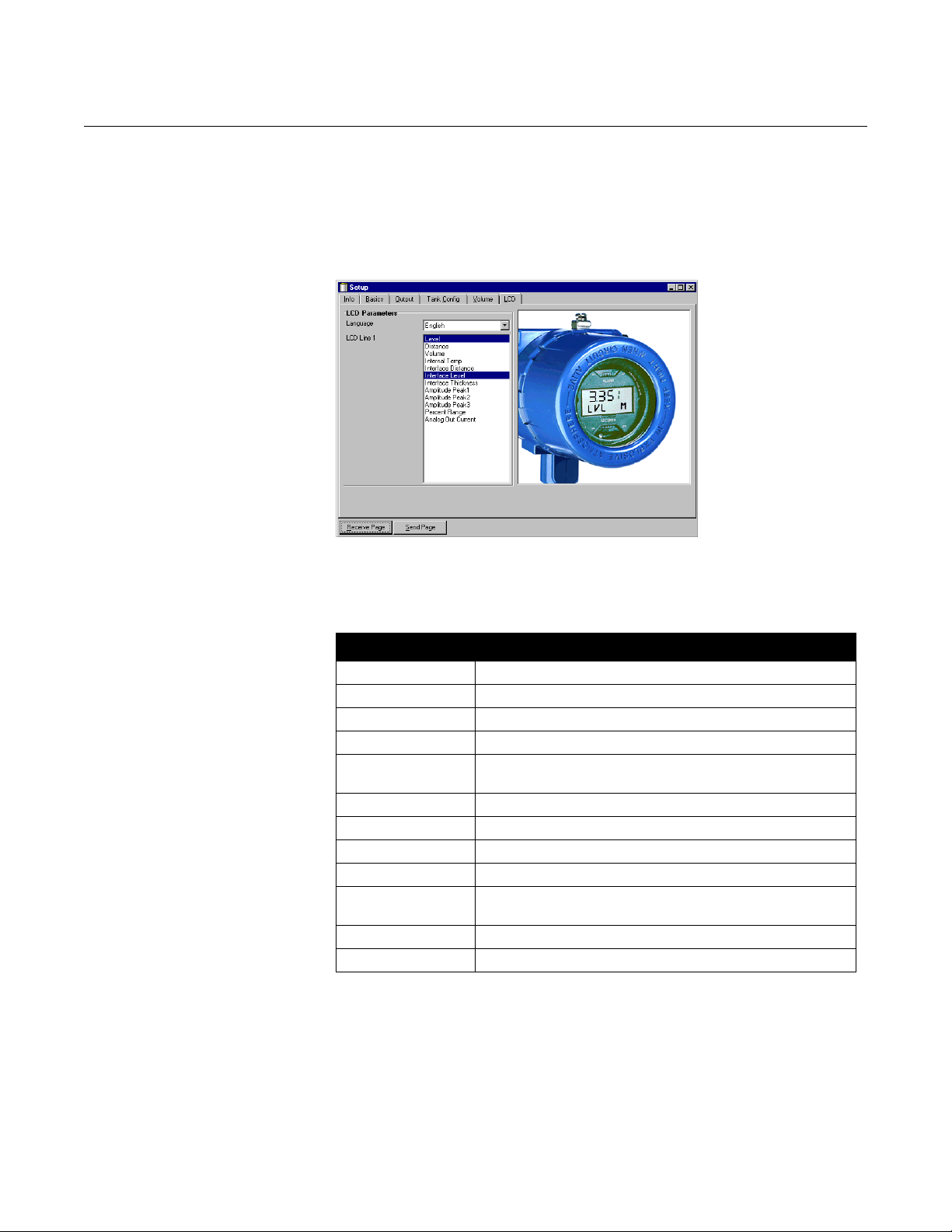

Setup - LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23

Special Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-24

TriLoop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-24

SECTION 5
Operating the Display
Panel

SECTION 6
Service and
Troubleshooting

TOC-2

Display Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Alarm and Write Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Safety messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Advanced Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

User defined Upper Reference Point . . . . . . . . . . . . . . . . . . . . . . . 6-2

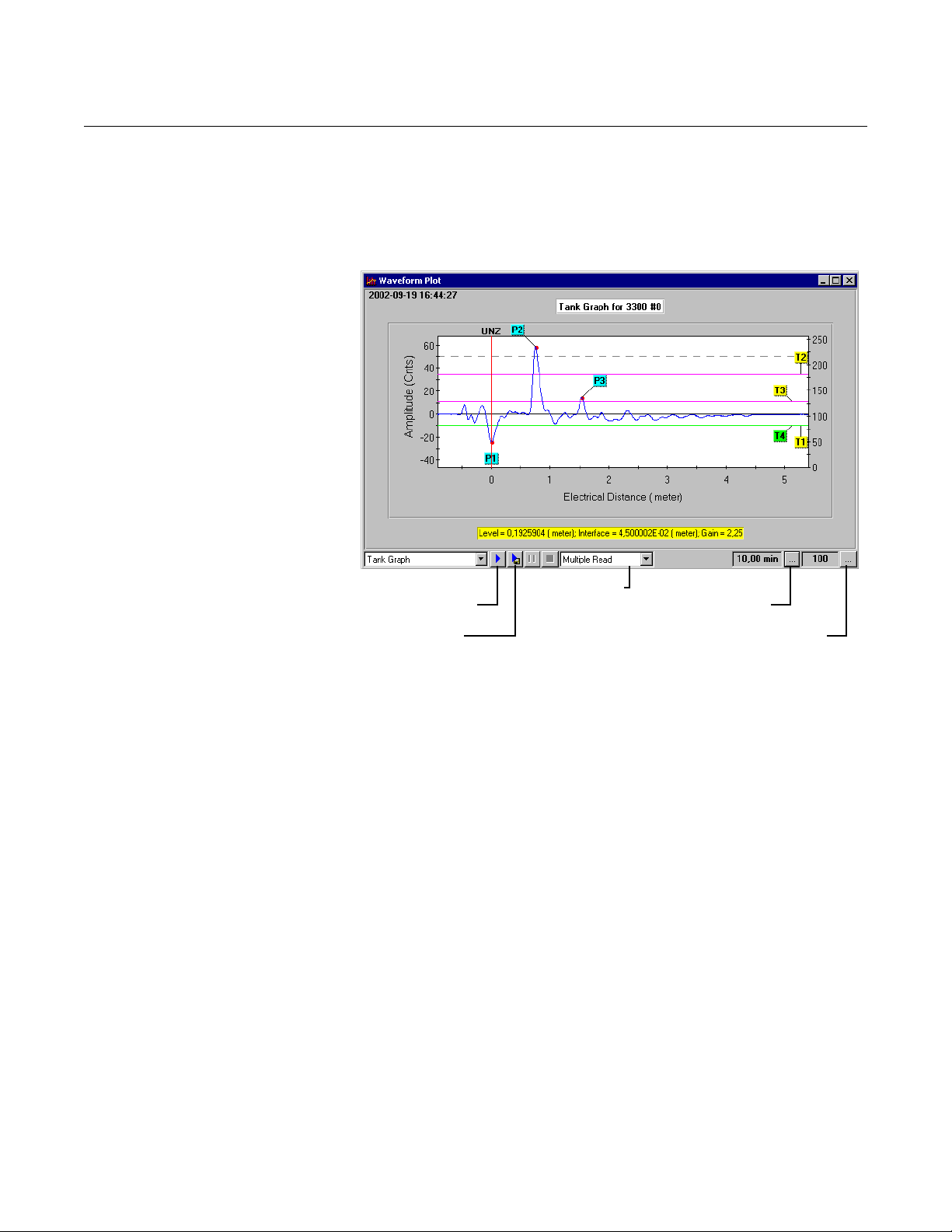

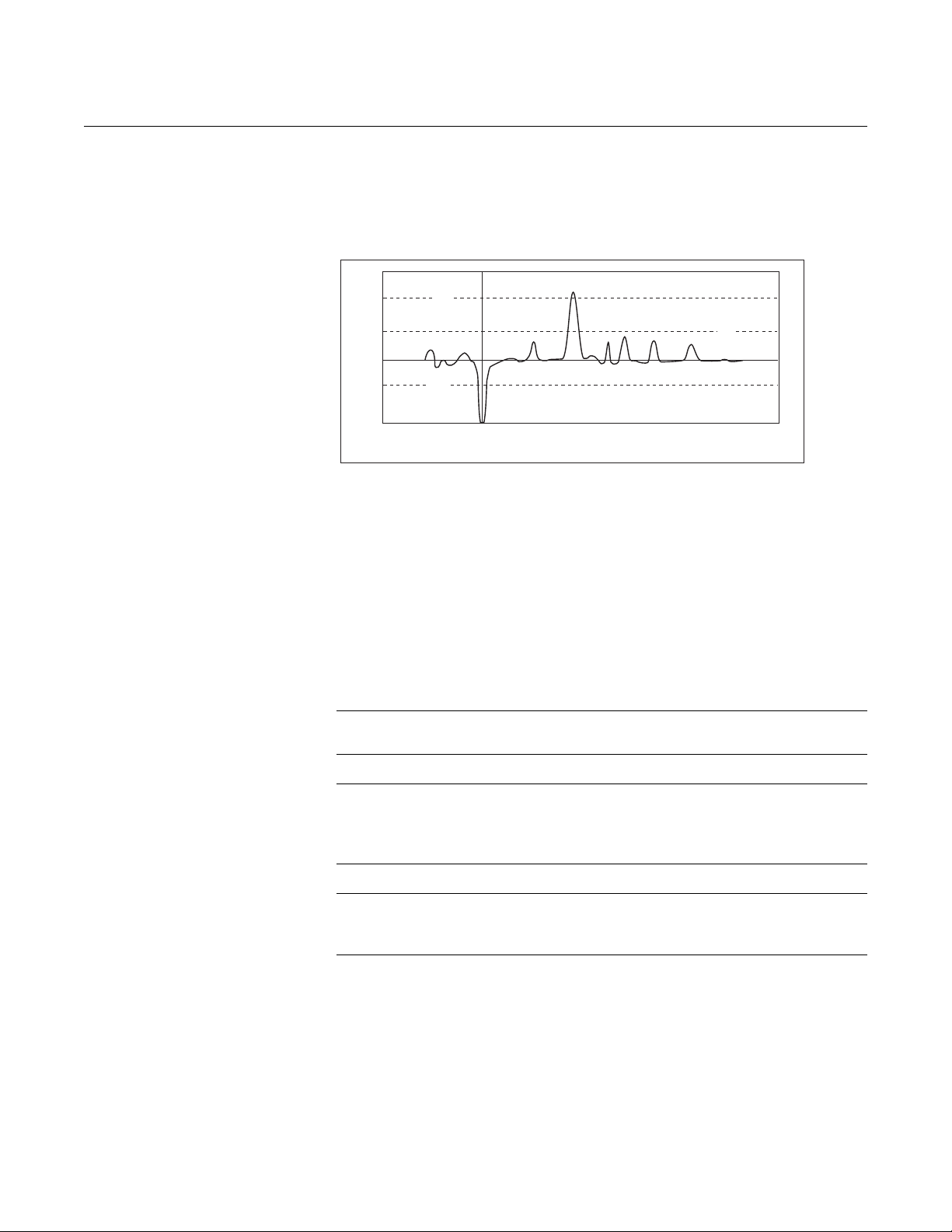

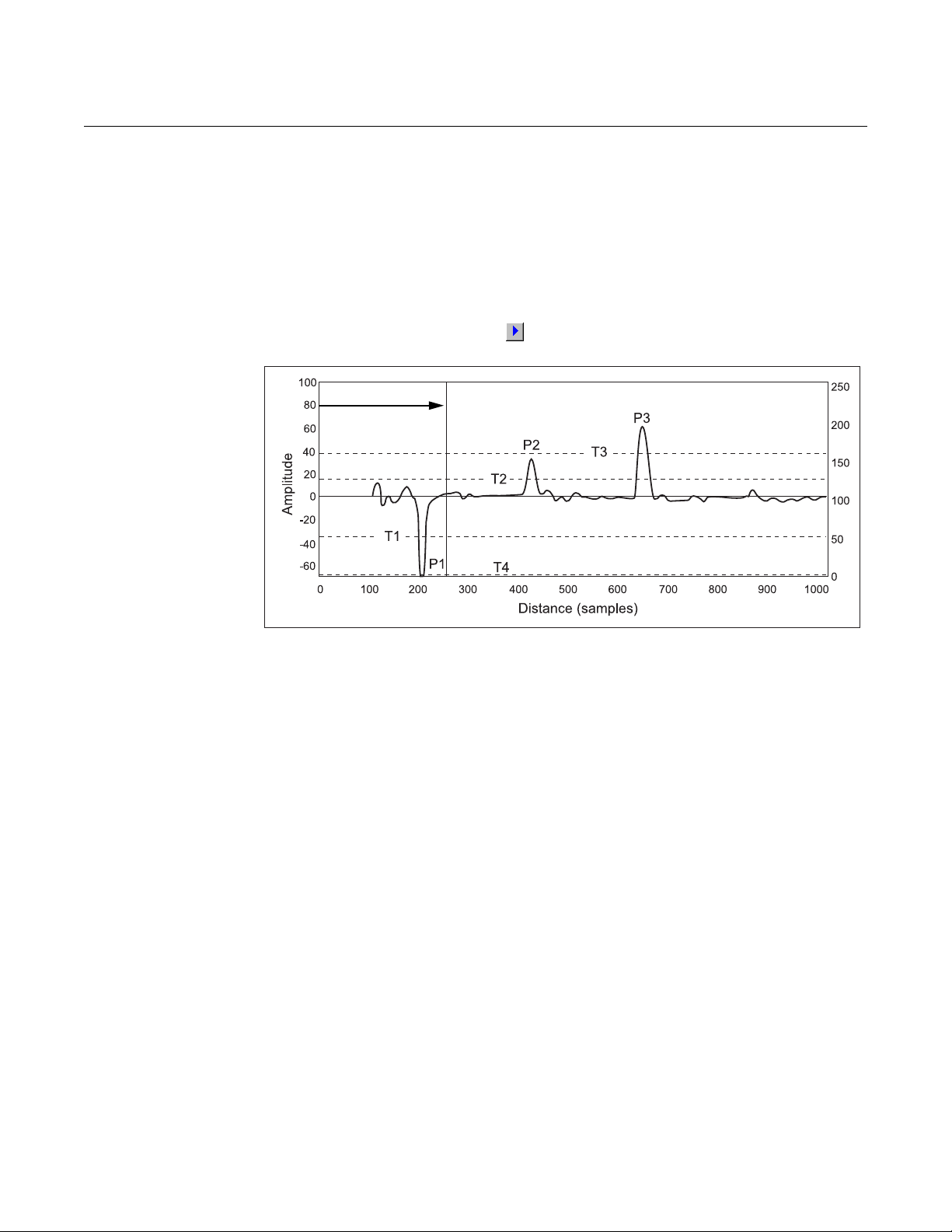

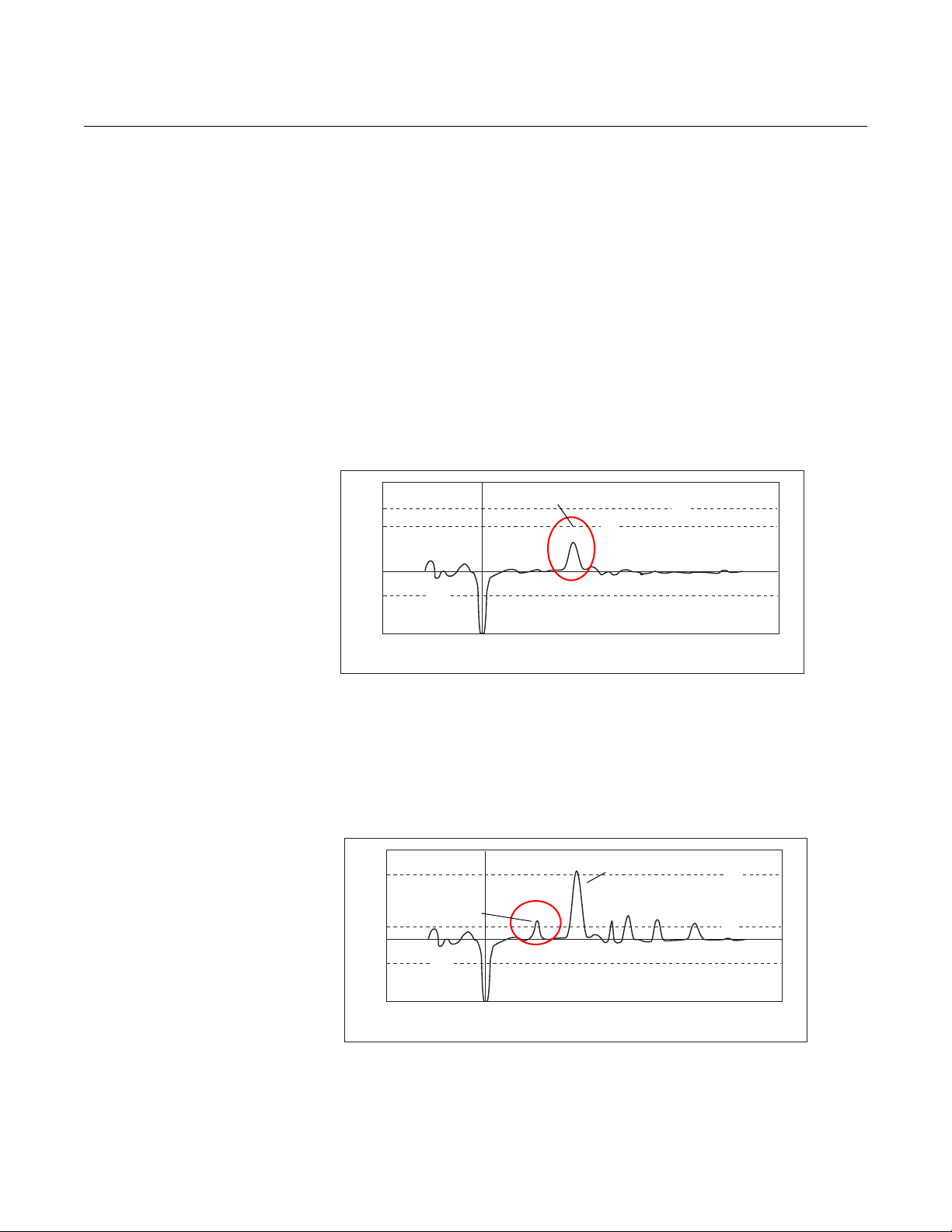

Plotting the measurement signal . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Interface Measurements for Semi-Transparent Bottom Products . 6-5

High Level Rates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7

Interface measurements with fully immersed probes . . . . . . . . . . . 6-8

Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9

Analog Output calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9

Level and Distance Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10

Changing the Probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11

Disturbances at the Top of the Tank . . . . . . . . . . . . . . . . . . . . . . 6-12

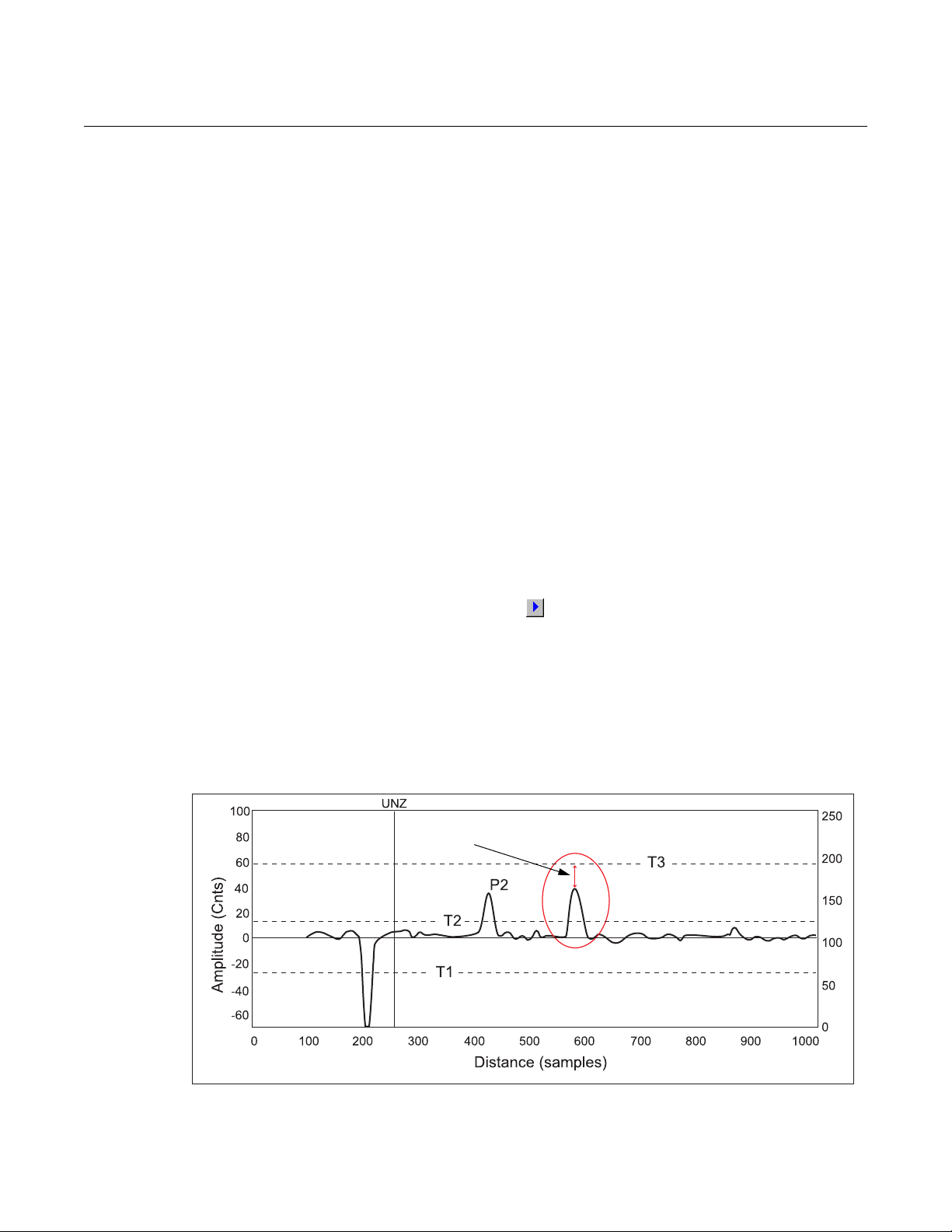

Amplitude Threshold Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14

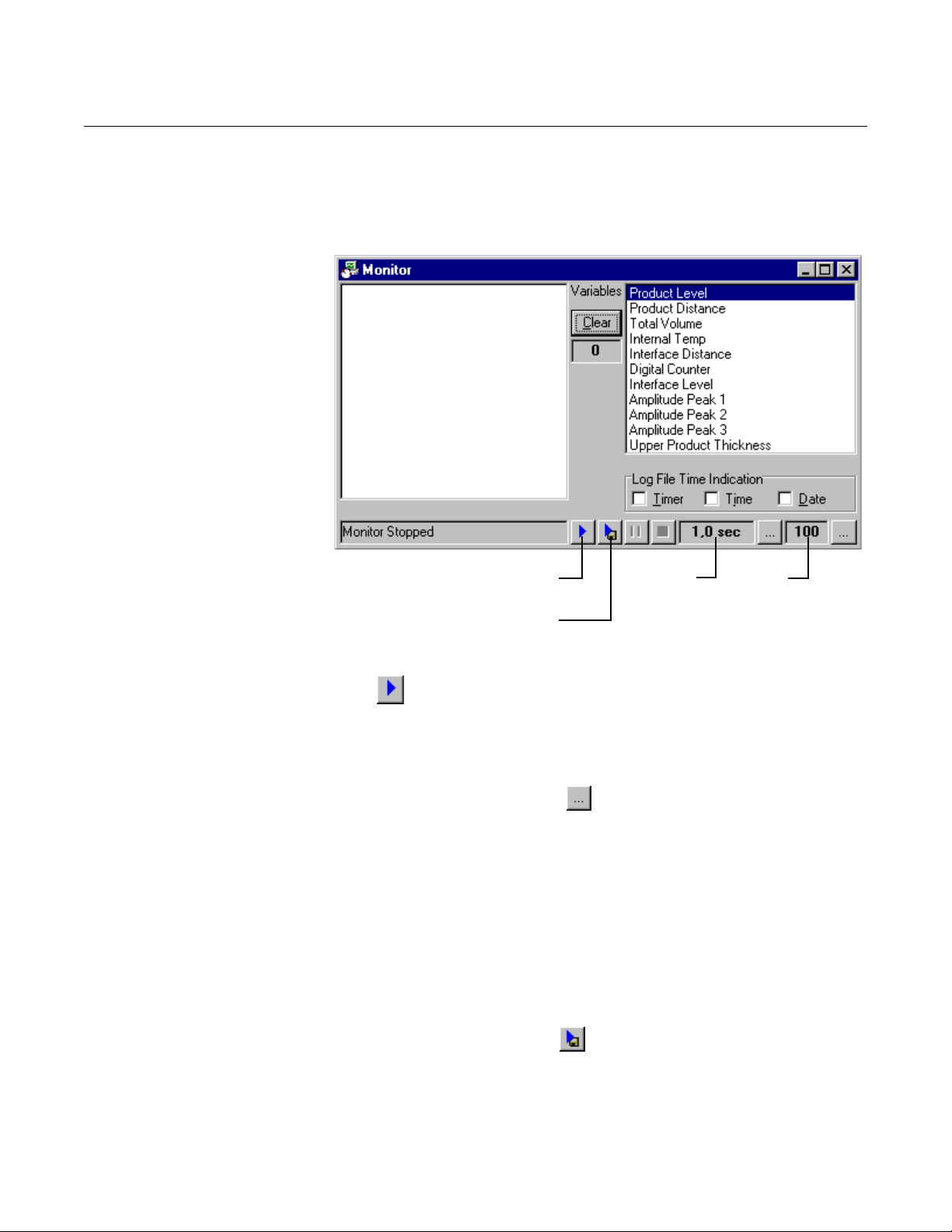

Logging measurement data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16

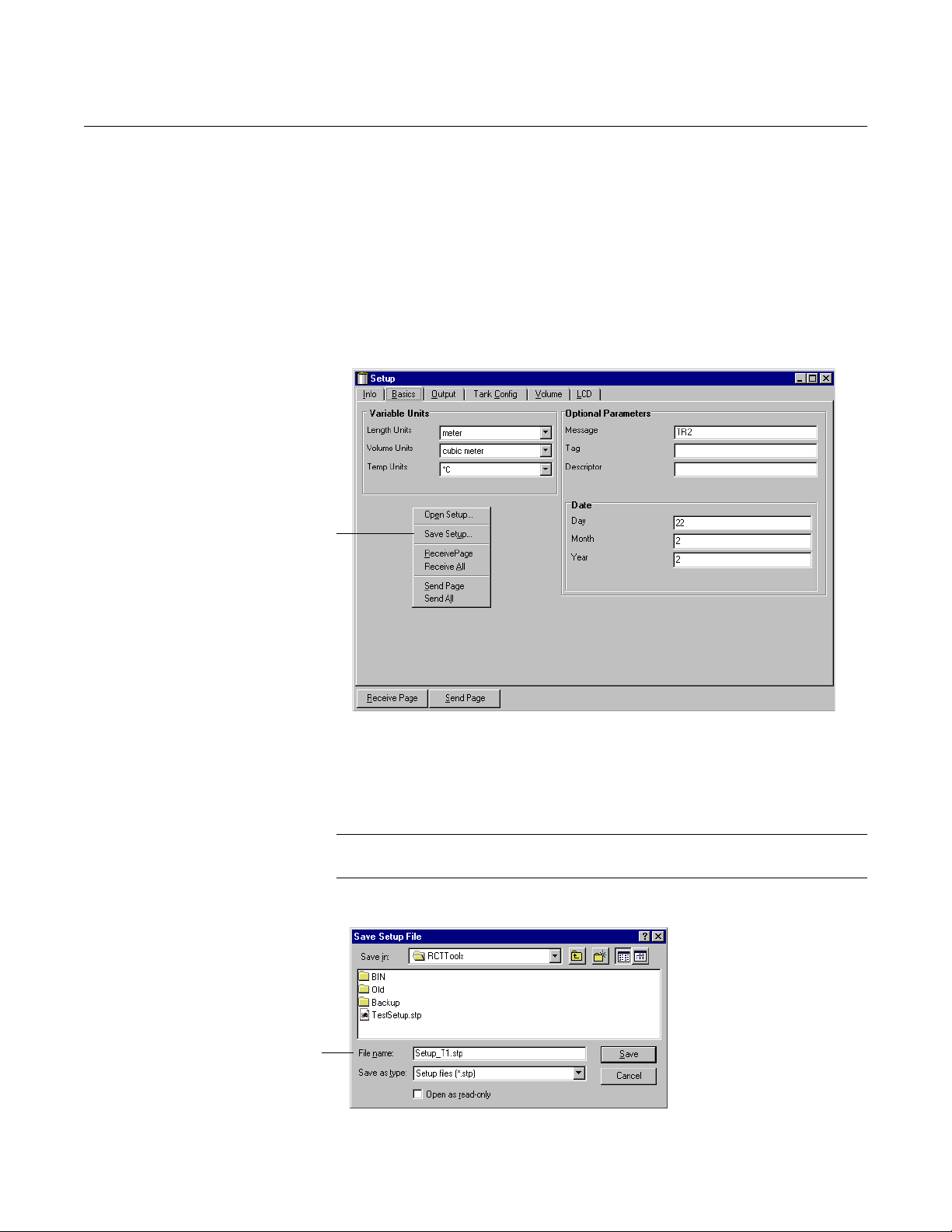

Saving the Transmitter Configuration . . . . . . . . . . . . . . . . . . . . . . 6-17

Removing the Transmitter Head. . . . . . . . . . . . . . . . . . . . . . . . . . 6-19

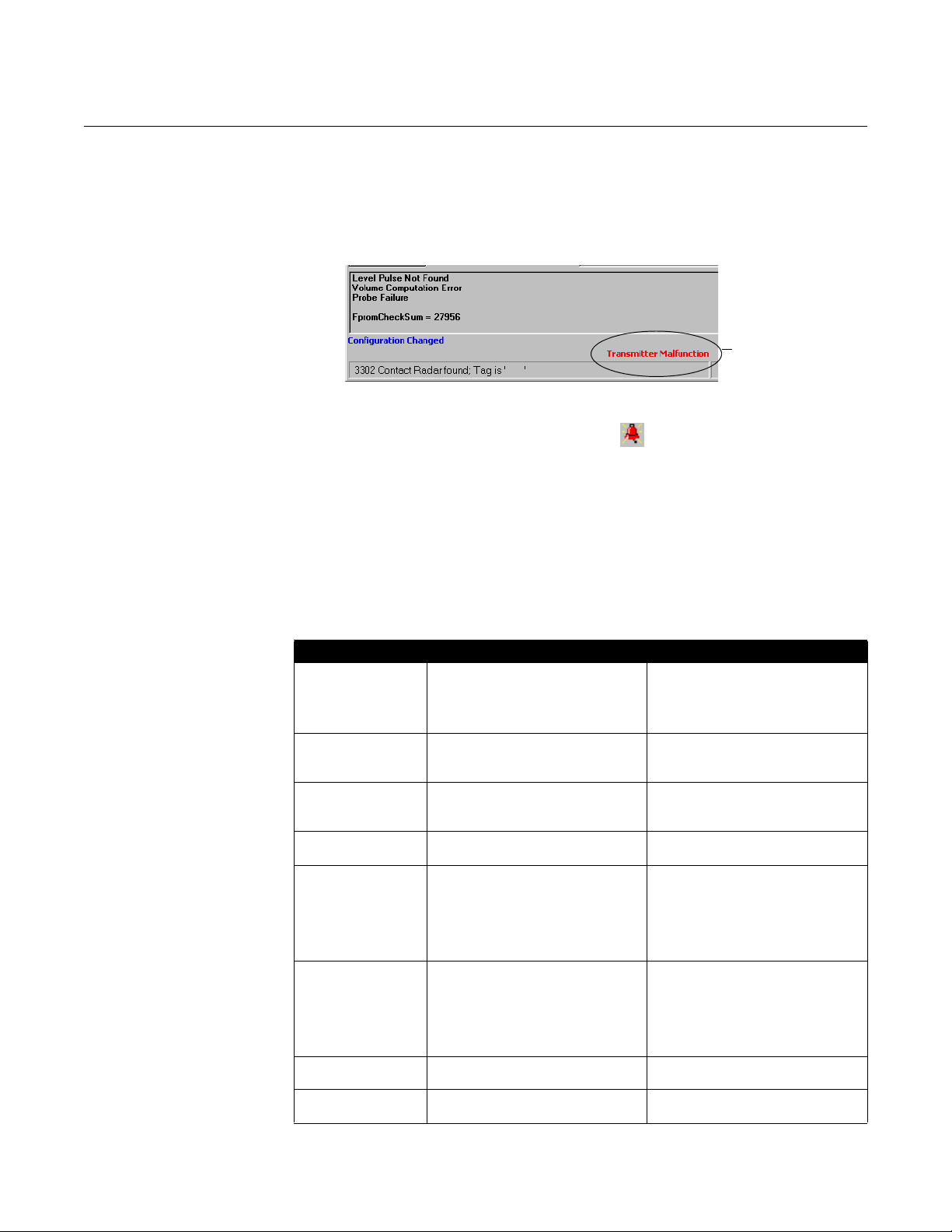

Diagnostic Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-20

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-20

Errors.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-21

Warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-22

APPENDIX A
Reference Data

APPENDIX B
Hazardous Approvals

APPENDIX C
HART Communicator

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

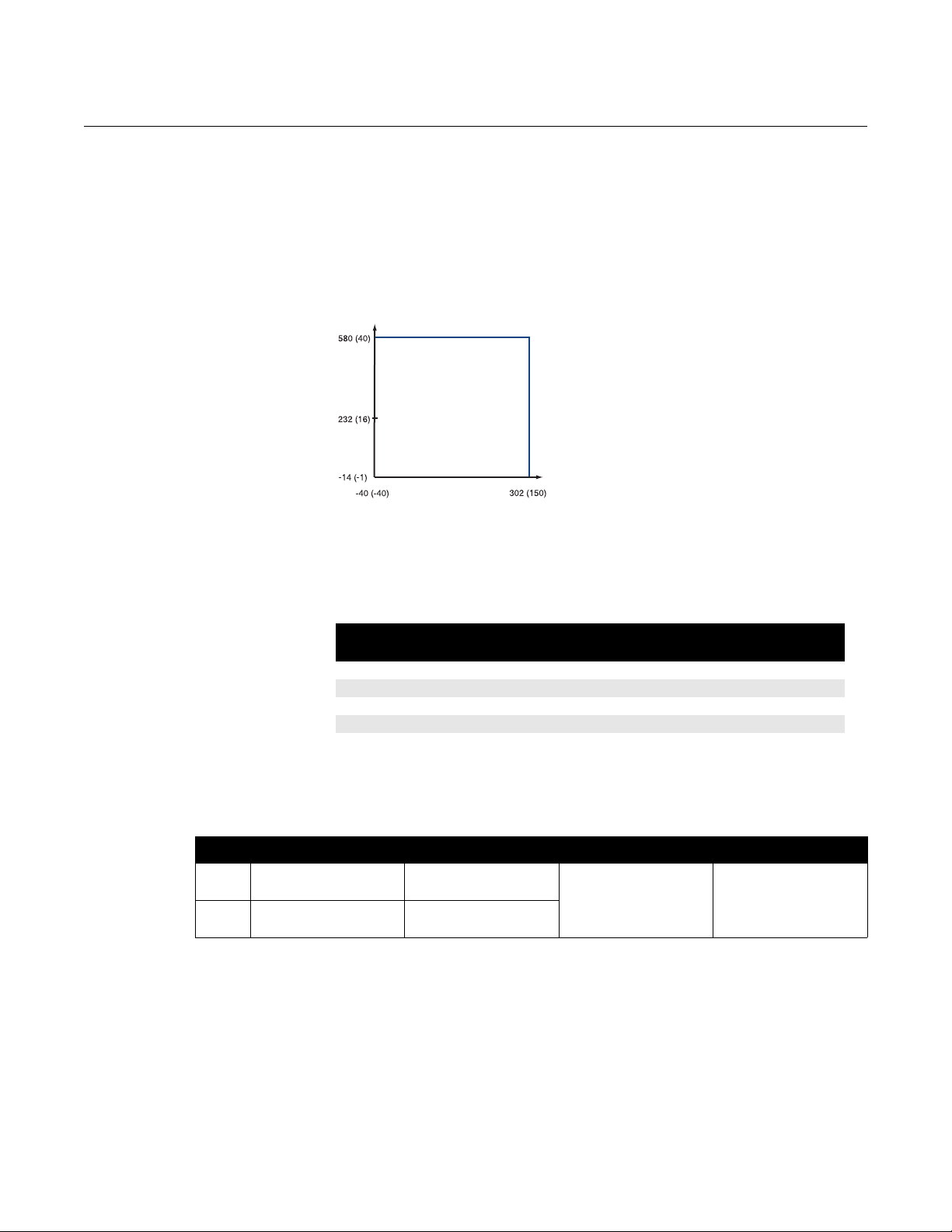

Process Temperature and Pressure Rating . . . . . . . . . . . . . . . . . . A-3

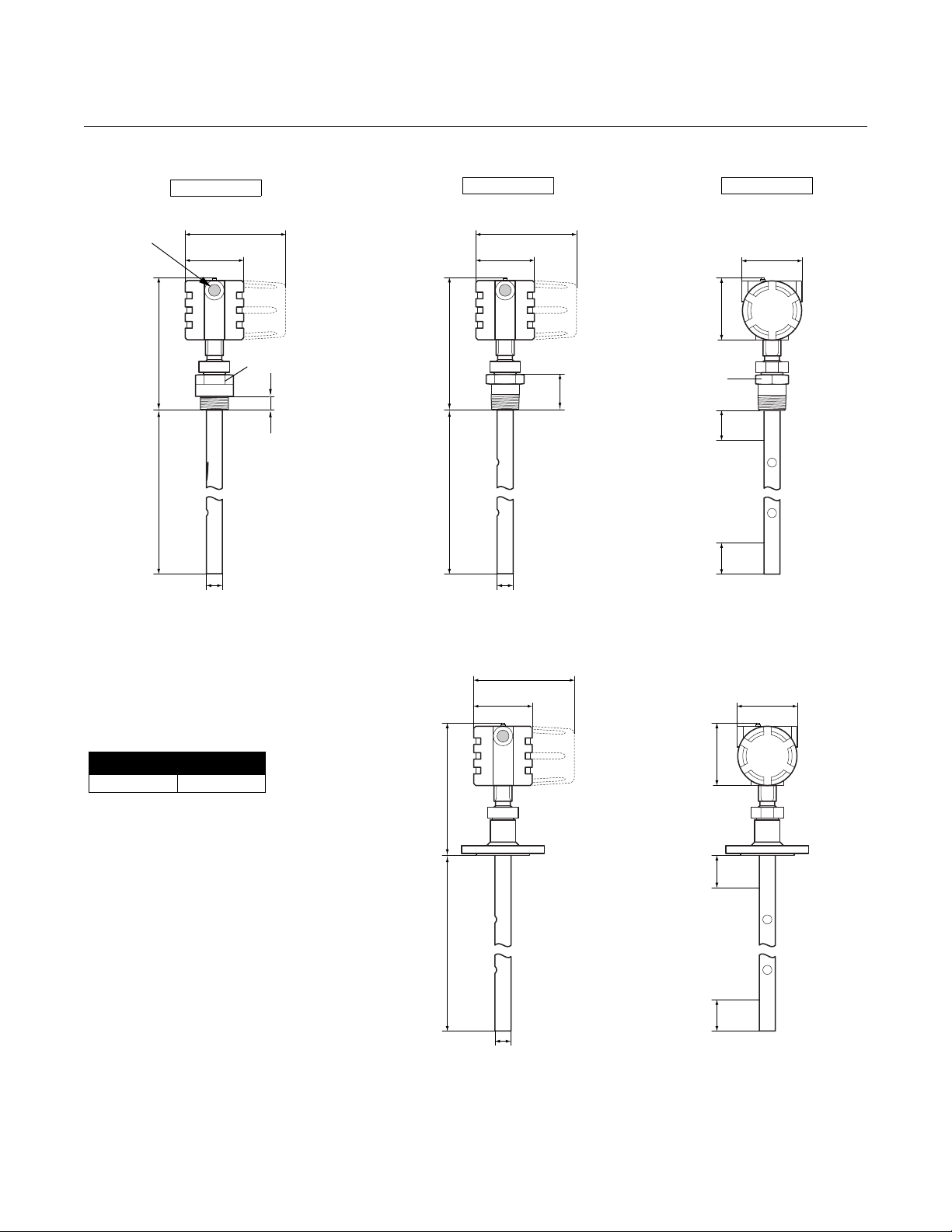

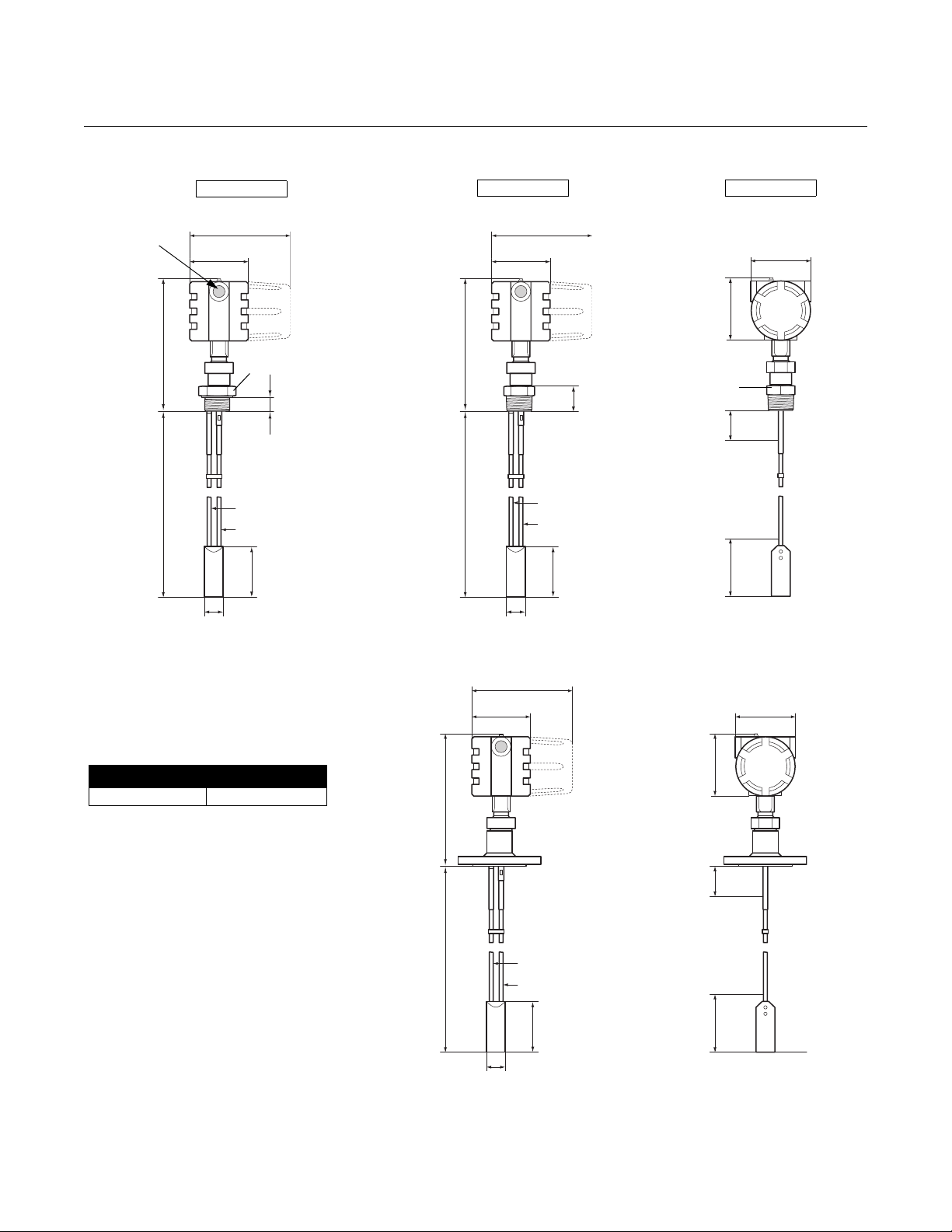

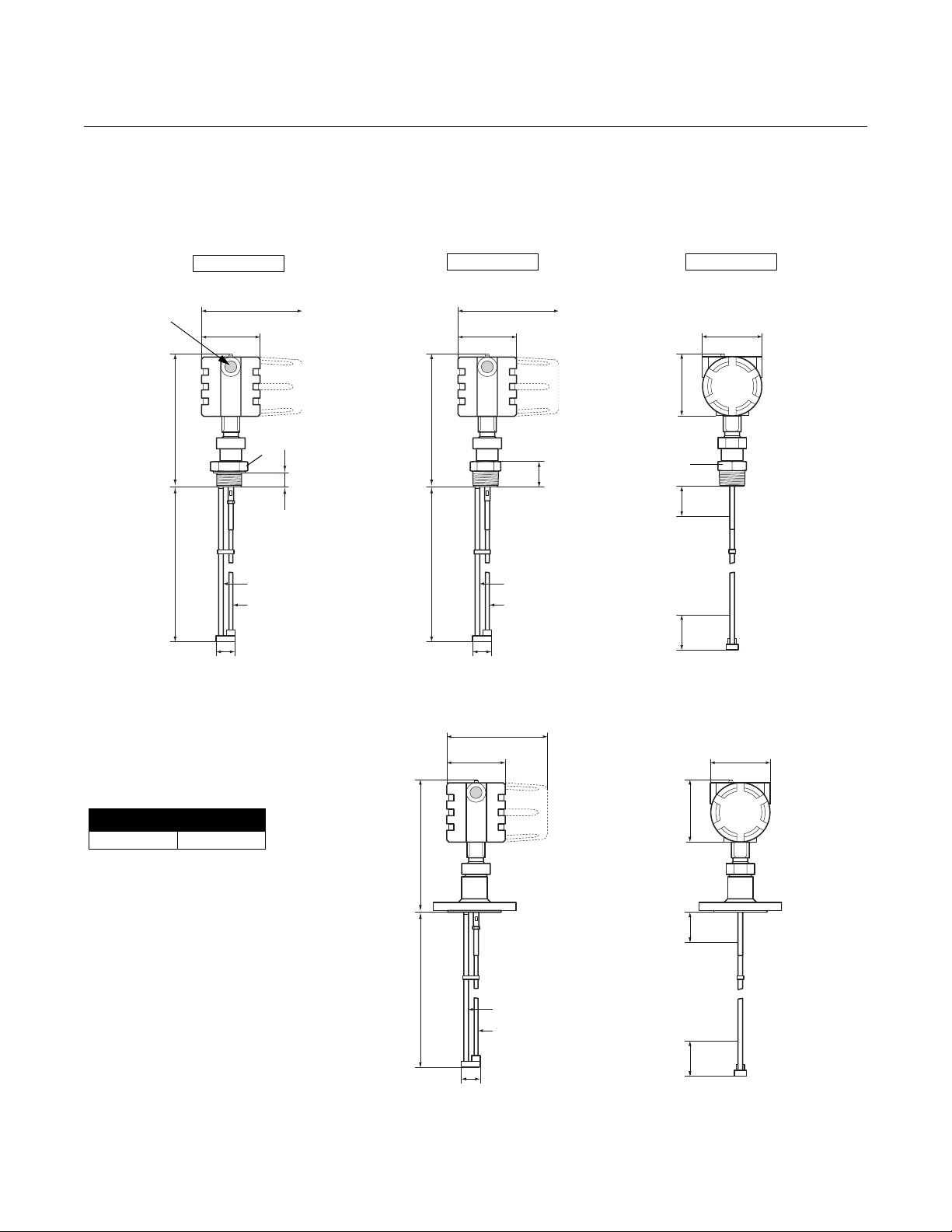

Dimensional drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4

Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-9

Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-13

Safety messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

European Atex Directive Information . . . . . . . . . . . . . . . . . . . . . . . . . . B-2

Intrinsic Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2

Flame Proof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3

Hazardous Locations Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . B-4

Factory Mutual (FM) Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . B-4

Canadian Standards Association (CSA) Approval . . . . . . . . . . . . . B-5

Approval Drawings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-6

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-1

Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-1

Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-5

Basic Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-6

Menus and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-8

Hart Communicator Diagnostic Messages . . . . . . . . . . . . . . . . . . .C-9

TOC-3

Rosemount 3300 Series

Reference Manual

00809-0100-4811, Rev AB

July 2003

TOC-4

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Section 1 Introduction

Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1-1

Manual Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1-2

SAFETY MESSAGES Procedures and instructions in this manual may require special precautions to

ensure the safety of the personnel performing the operations. Information that
raises potential safety issues is indicated by a warning symbol ( ). Refer to
the saftey messages listed at the beginning of each section before performing
an operation preceded by this symbol.

Failure to follow these installation guidelines could result in death or serious
injury.

• Make sure only qualified personnel perform the installation.

• Use the equipment only as specified in this manual. Failure to do so may
impair the protection provided by the equipment.

Explosions could result in death or serious injury.

• Verify that the operating environment of the transmitter is consistent with the
appropriate hazardous locations certifications.

• Before connecting a HART
make sure the instruments in the loop are installed in accordance with
intrinsically safe or non-incendive field wiring practices.

Electrical shock could cause death or serious injury.

• Use extreme caution when making contact with the leads and terminals.

®

-based communicator in an explosive atmosphere,

www.rosemount.com

Any substitution of non-recognized parts may jeopardize safety. Repair, e.g. substitution
of components etc., may also jeopardize safety and is under no circumstances allowed.

Reference Manual

00809-0100-4811, Rev AB

Rosemount 3300 Series

July 2003

MANUAL OVERVIEW This manual provides installation, configuration and maintenance information

for the Rosemount 3300 Series Radar Transmitter.

Section 2: Transmitter Overview

• Theory of Operation

• Descripton of the transmitter

• Process and vessel characteristics

Section 3: Installation

• Mounting considerations

• Mechanical installation

• Electrical installation

Section 4: Start-Up

• Configuration instructions

• Configuration using the HART Communicator

• Configuration using the RCT software

Section 5: Operating the Display Panel

• Display functionality

• Error messages

Section 6: Service and Troubleshooting

• Advanced Configuration

• Error and Warning Codes

• Communication Errors

Appendix A: Reference Data

• Specifications

• Ordering Information

Appendix B: Hazardous Approvals

• Examples of labels

• European ATEX Directive information

• FM approvals

• CSA approvals

•Drawings

Appendix C: HART Communicator

•Features

• Connections

• Diagnostic messages

1-2

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Section 2 Transmitter Overview

Theory of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-1

Probe Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-6

Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-2

Components of the Transmitter . . . . . . . . . . . . . . . . . . . . page 2-4

System Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-5

Probe Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-6

Process Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-8

Vessel Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-11

THEORY OF OPERATION The Rosemount 3300 Series Radar Transmitter is a smart, two-wire

continuous level transmitter that is based on Time Domain Reflectometry
(TDR) principles. Low power nano-second-pulses are guided along a probe
immersed in the process media. When a pulse reaches the surface of the
material it is measuring, part of the energy is reflected back to the transmitter,
and the time difference between the generated and reflected pulse is
converted into a distance from which the total level or interface level is
calculated (see below).

Figure 2-1. Measurement
Principle.

The reflectivity of the product is a key parameter for measurement
performance. A high dielectric constant of the media gives better reflection
and a longer measuring range. A calm surface gives better reflection than a
turbulent surface.

Signal Amplitude

Reference Pulse

Level

Interface Level

Time

TDR_PRINCIPLES

www.rosemount.com

Reference Manual

00809-0100-4811, Rev AB

Rosemount 3300 Series

July 2003

APPLICATIONS The Rosemount 3300 Series Radar Transmitter program is suited for

aggregate (total) level measurements on most liquids, semi-liquids, and
liquid/liquid interfaces.

Guided microwave technology offers highest reliability and precision which
ensure measurements are virtually unaffected by temperature, pressure,
vapor gas mixtures, density, turbulence, bubbling/boiling, low level, varying
dielectric media, pH, and viscosity.

Guided wave radar technology in combination with advanced signal
processing make the 3300 transmitters suitable for a wide range of
applications:

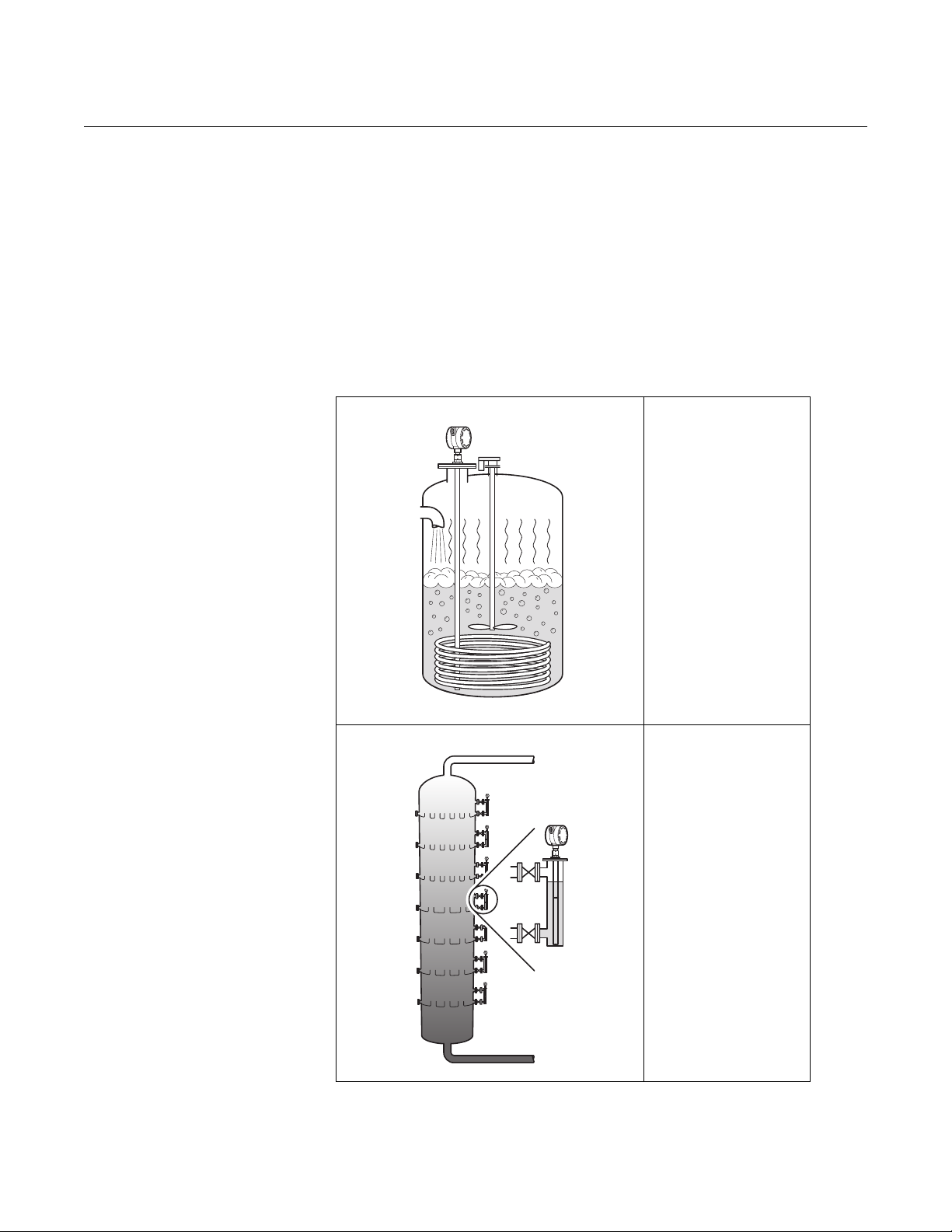

Figure 2-2. Application
examples

Boiling conditions with
vapor and turbulence. For
these applications the
Coaxial probe is particularly
suitable.

APPLIC TURBULENCE

APPLIC BRIDLE

The 3300 Series of
transmitters is well suited
for bridle applications such
as distillation columns.

2-2

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

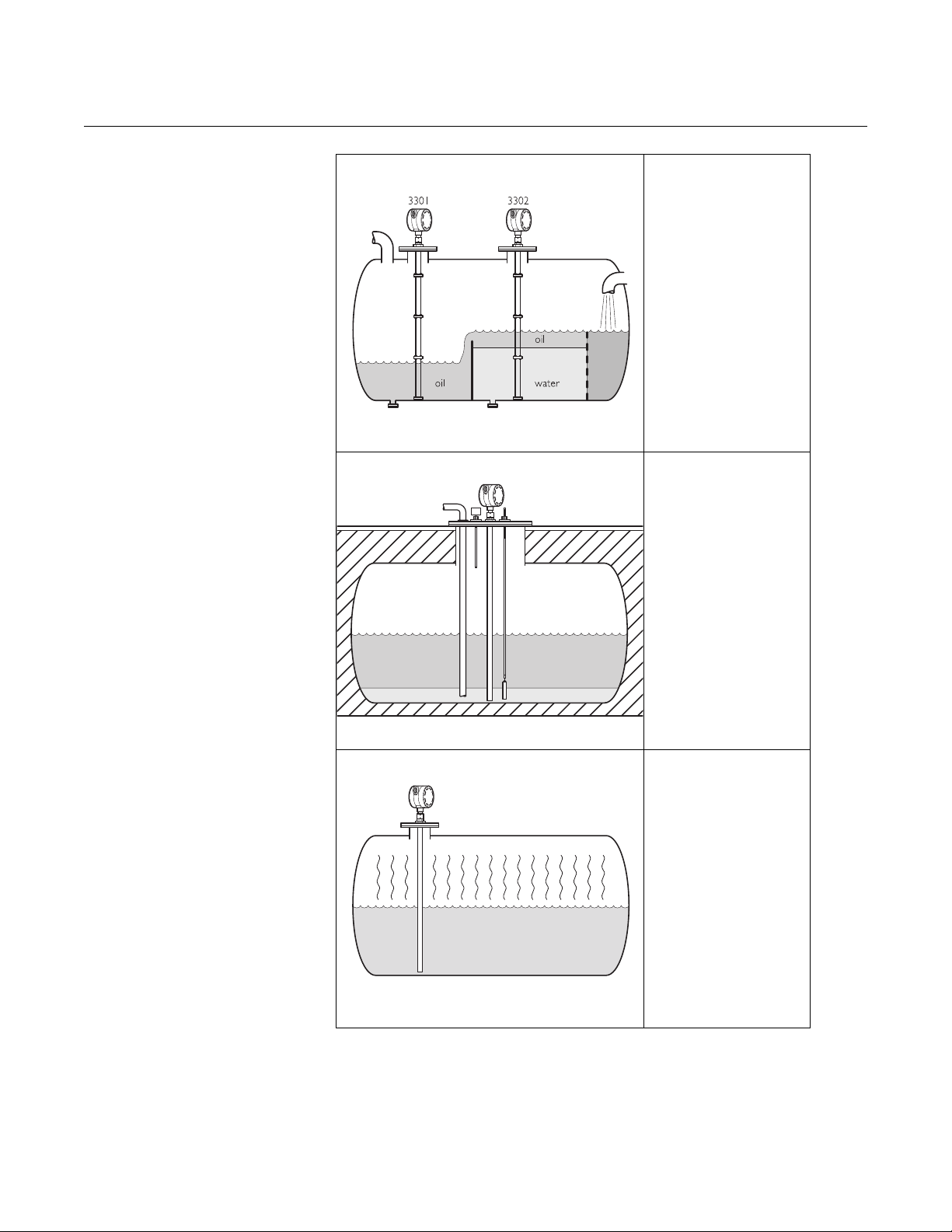

Separator tank. The model
3302 measures both level
and interface level.

APPLIC SEPARATOR

The Rosemount 3300
series is a good choice for
underground tanks since it
is installed on the tank top
with the radar pulse
concentrated near the
probe. It can be equipped
with probes that are
unaffected by high and
narrow openings or nearby
objects.

APPLIC SEPARATOR

APPLIC AMMONIA

Guided wave radar
technology is a good choice
for reliable measurements
in small ammonia, NGL and
LPG tanks.

2-3

Rosemount 3300 Series

Reference Manual

00809-0100-4811, Rev AB

July 2003

COMPONENTS OF THE TRANSMITTER

Figure 2-3. Transmitter
components.

Cable Entry:

½" NPT.
Optional adapters:
M20, PG13.5

Radar Electronics

The Rosemount 3300 Series Radar Transmitter has an aluminum transmitter
housing which contains advanced electronics for signal processing.

The radar electronics produces an electromagnetic pulse which is guided by
the probe.

There are different probe types available for various applications: Rigid Twin
Lead, Flexible Twin Lead, Rigid Single Lead, Flexible Single Lead, and
Coaxial.

Dual Compartment Housing

Process Connection Thread

Twin Lead, Coaxial:

1.5” NPT, 1.5” BSP/G
Single Lead:

Process Connection

Welded Flange

Probe

1”/1.5” NPT, 1”/1.5” BSP/G

BSP (G)

NPT

2-4

COMPONENTS TRANSMITTER

Flexible Twin Lead wi

Rigid

Tw

i

n

L

Co

a

xi

a

l

e

a

d

R

Fl

ig

e

xi

id Sin

b

t

h

le Sin

weight

g

le L

g

e

ad wi

l

e

L

e

a

d

t

h

wei

g

ht

NOTE

Flexible and Rigid probes require different radar electronics and can not be
used with the same transmitter head.

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

SYSTEM ARCHITECTURE

Figure 2-4. System architecture.

The Rosemount 3300 Series Radar Transmitter is loop-powered which
means it uses the same two wires for both power supply and output signal.
The output is a 4-20 mA analog signal superimposed with a digital HART
signal.

By using the optional HART Tri-loop, it is possible to convert the HART signal
to up to three additional 4-20 mA analog signals.

With the HART protocol it is possible to use multidrop configuration. In this
case communication is restricted to digital since current is fixed to the 4 mA
minimum value.

The transmitter can be connected to display Model 751 Field Signal Indicator
or it can be equipped with an integral display.

The transmitter can easily be configured by using a HART 275/375
Communicator or a PC with the Radar Configuration Tool software.
Rosemount 3300 Series transmitters are also compatible with the AMS

™

(Asset Management Solutions™) software which also can be used for
configuration.

Model 751
Field Signal Indicator

Tri-Loop

SYSTEM

Integral
Display

3300 SERIES

RADAR

TRANSMITTE R

4-20 mA/HART

HART 275/375
Communicator

3 x 4-20 mA

HART modem

Radar Configuration Tool
or
AMS

DCS

2-5

Rosemount 3300 Series

Reference Manual

00809-0100-4811, Rev AB

July 2003

PROBE SELECTION GUIDE

Use the following guidelines to choose appropriate probe for your 3300
transmitter:

Table 2-1. Probe selection guide. G=Good, NR=Not Recommended, AP=Application Dependent (consult factory)

Coaxial Rigid Twin Lead Flexible Twin Lead Rigid Single Lead Flexible Single Lead

Measurements

Level GGGGG
Interface (liquid/liquid) G G G NR NR

Process Medium Characteristics

Changing density G GGGG
Changing dielectric
Wide pH variationsGGGGG
Pressure changes G GGGG
Temperature changes G GGGG
Condensing vapors G GGGG
Bubbling/boiling surfaces G G AP G AP
Foam (mechanical

avoidance)
Foam (top of foam

measurement)
Foam (foam and liquid

measurement)
Clean liquids GGGGG
Liquid with dielectric<2.5 G AP AP NR NR
Coating liquids NR NR NR AP AP
Viscous liquids NR AP AP AP G
Crystallizing liquids NR NR NR AP AP

Probe is close
(<12 in./30 cm) to tank wall
/ disturbing objects

High turbulence G G AP G AP
Turbulent conditions

causing breaking forces
Long and small mounting

nozzles
(diameter <6 in./15 cm,
height>diameter + 4 in./10
cm)

Probe might touch nozzle /
disturbing object

Liquid or vapor spray might
touch probe G NR NR NR NR

(1)

GGGGG

AP NR NR NR NR

NR AP AP AP AP

NR AP AP NR NR

Tank Environment Considerations

GAPAPNRNR

NR NR AP NR AP

G APNRNRNR

G NRNRNRNR

Disturbing EMC
environment in tank

(1) For overall level applications a changing dielectric has no effect on the measurement. For interface measurements a changing dielectric of the top fluid

will degrade the accuracy of the interface measurement.

2-6

AP NR NR NR NR

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Dead Zones The measuring range depends on probe type and properties of the product.

The Upper Dead Zone is the minimum measurement distance between the
upper reference point and the product surface. The Upper Dead Zone varies
between 4 - 20 in. (0.1 and 0.5 m) depending on probe type and product.

At the end of the probe the measuring range is reduced by the Lower Dead
Zone. The Lower Dead Zone also varies depending on probe type and
product.

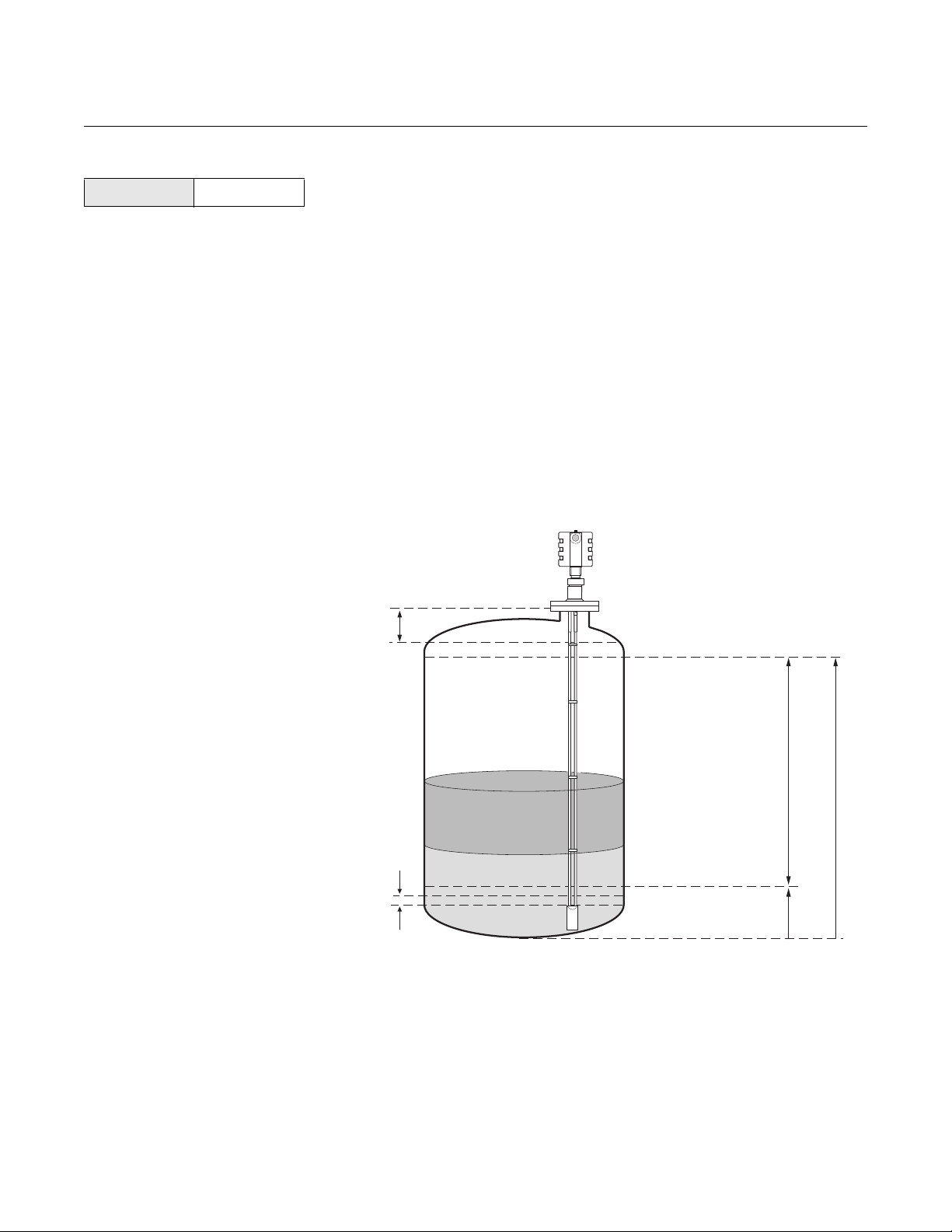

Figure 2-5 illustrates how the measuring range is related to the Dead Zones:

Figure 2-5. Dead Zones

Upper Reference Point

Upper Dead Zone

20mA

DEAD ZONES

Upper Dead
Zone

Lower Dead
Zone

Maximum
Measuring Range

Range 0 -100 %

4mA

Lower Dead Zone

Table 2-2. Dead Zones for different probe types

Dielectric
Constant

2 3.9 in. (10 cm) 3.9 in. (10 cm) 7.9 in. (20 cm) 3.9 in. (10 cm) 19.7 in. (50 cm)
80 3.9 in. (10 cm) 3.9 in. (10 cm) 5.9 in. (15 cm) 3.9 in. (10 cm) 5.9 in. (15 cm)
2 2 in. (5 cm) 2.8 in. (7 cm) 5.9 in. (15 cm) 3.9 in. (10 cm) 4.7 in. (12 cm)
80 1.2 in. (3 cm) 2 in. (5 cm) 2 in. (5 cm) 2 in. (5 cm) 2 in. (5 cm)

Coaxial Probe Rigid Twin Lead

Probe

Flexible Twin
Lead Probe

Rigid Single
Lead Probe

Flexible Single
Lead Probe

NOTE

The measurement accuracy is reduced in the Dead Zones. It may even be
impossible to make any measurements at all in those regions. Therefore the
4-20 mA set points should be configured outside the Dead Zones.

2-7

Rosemount 3300 Series

Reference Manual

00809-0100-4811, Rev AB

July 2003

PROCESS CHARACTERISTICS

The Rosemount 3300 Series has a high sensitivity due to its advanced signal
processing and high signal to noise ratio, which makes it able to handle
various disturbances. However, the following circumstances should be
considered before mounting the transmitter.

Coating Coating on the probe should be avoided since the sensitivity of the transmitter

may be decreased leading to measurement errors. In viscous or sticky
applications, periodic cleaning may be required.

For viscous or sticky applications, it is important to choose a suitable probe:

Coaxial Twin Lead Single Lead

Maximum viscosity

500 cP 1500 cP 8000 cP

Coating/Build-up

Coating not recommended Thin coating allowed, but no

bridging

(1) Consult factory if agitation/turbulence and high viscous products.

Coating allowed

(1)

Maximum measurement error due to coating is 1-10 % depending on probe
type, dielectric constant, coating thickness and coating height above product
surface.

Bridging Heavy coating that results in product bridging across the two probes for twin

lead versions, or between the pipe and the inner rod for coaxial probes, will
cause erroneous level readings and must be prevented. Single lead probes
are preferred in this case.

Foam How well the Rosemount 3300 Series Radar Transmitter measures in foamy

applications depends upon the properties of the foam; light and airy or dense
and heavy, high or low dielectrics, etc. If the foam is conductive and creamy
the transmitter will probably measure the surface of the foam. If the foam is
less conductive the microwaves will probably penetrate the foam and
measure the liquid surface.

Vapor In some applications, as ammonia, there is heavy vapor above the product

surface that will influence the level measurement. The Rosemount 3300
Series Radar Transmitter can be configured to compensate for the influence
of vapor.

2-8

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Measuring Range The measuring range differs depending on probe type and characteristics of

the application. The values given in Tabl e 2-3 can be used as a guideline for
clean liquids.

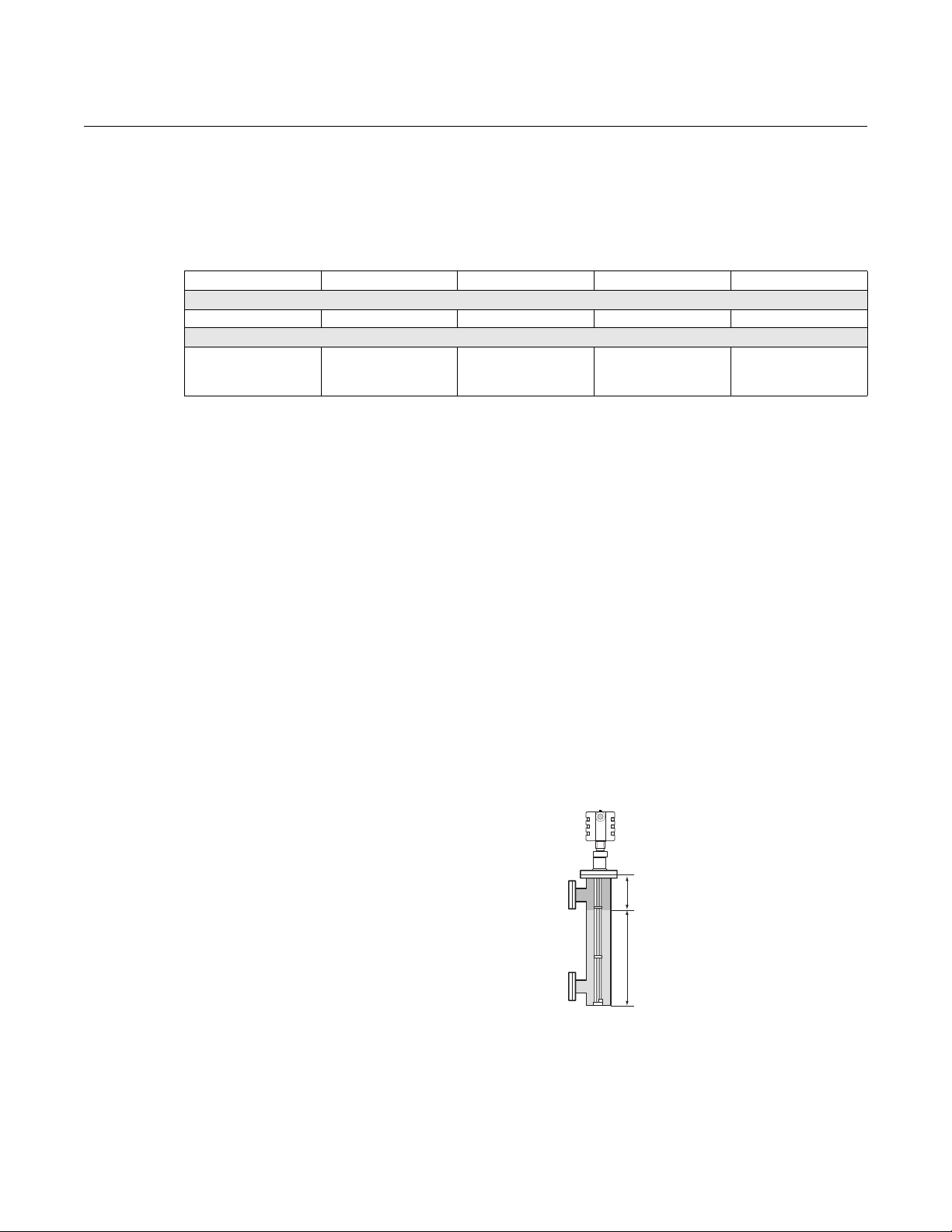

Table 2-3. Measuring Range

Coaxial Rigid Twin Lead Flexible Twin Lead Rigid Single Lead Flexible Single Lead

Maximum Measuring Range

19 ft 8 in. (6 m) 9 ft 10 in. (3 m) 65 ft 7 in. (20 m) 9 ft 10 in. (3 m) 65 ft 7 in. (20 m)

Minimum Dielectric Constant at Maximum Measuring Range

1.6 1.9 2.0
(1.6 up to 32.8 ft/10 m)

The maximum measuring range differs depending on application according
to:

• Disturbing objects close to the probe.

• Media with higher dielectric constant (ε
allows a longer measuring range.

• A calm surface gives better reflection than a turbulent surface. For a
turbulent surface the measuring range might be reduced.

• Surface foam and particles in the tank atmosphere are also
circumstances that might affect measuring performance.

• Coating/contamination can reduce the measuring range.

• Disturbing EMC environment in tank.

2.5 (1.9 if installed in a
metallic bypass or
stilling well)

) gives better reflection and

r

5.0
(2.5 up to 36.1 ft/11 m)

Interface Model 3302 is the ideal choice for measuring the interface of oil and water or

other liquids with significant dielectric differences. It is also possible to
measure interface with the Model 3301 in bridle/tank applications when the
probe is fully immersed in the liquid.

Figure 2-6. Fully immersed
probe

Upper product

Lower product

BRIDLE_INTERFACE

Rigid twin lead, flexible twin lead and coaxial probes can be used to measure
interfaces. However, the coaxial probe is the preferred choice. For measuring
the interface level, the transmitter uses the residual wave of the first reflection.
Part of the wave, which was not reflected at the upper product surface,
continues until it is reflected at the lower product surface. The speed of this
wave depends fully on the dielectric constant of the upper product.

2-9

Rosemount 3300 Series

If interface is to be measured, the following criteria have to be fulfilled:

• The dielectric constant of the upper product must be known. The Radar

• The dielectric constant of the upper product must have lower dielectric

• The difference between the dielectric constants for the two products

• Maximum dielectric constant for the upper product is 10 for the coaxial

• The upper product thickness must be larger than 8 inch (0.2 m) for the

The maximum allowable upper product thickness/measuring range is
primarily determined by the dielectric constants of the two liquids.

Reference Manual

00809-0100-4811, Rev AB

July 2003

Configuration Tools software has a built-in dielectric constant calculator
to assist user´s in determining the dielectric constant of the upper
product (see “Dielectrics” on page 4-21).

constant than the lower product in order to have a distinct reflection.

must be larger than 10.

probe and 5 for twin lead probes.

flexible twin lead probe and 4 inch (0.1 m) for the rigid twin lead and
coaxial probes in order to distinguish the echoes of the two liquids.

Figure 2-7. Reduction of
maximum measuring range for
Flexible Twin Lead probe

Target applications include interfaces between oil/oil-like and water/water-like
liquids. For such applications the upper product dielectric constant is low (<3)
and the lower product dielectric constant is high (>20), and the maximum
measuring range is only limited by the length of the coaxial and rigid twin lead
probes.

For the flexible twin lead probe, the reduction of maximum measuring range
(65 ft/20 m), can be gained from Figure 2-7 on page 2-10..

However characteristics varies widely between different applications. For
other product combinations, consult factory.

Reduction of Maximum Measuring Range for
different Upper Product Dielectric constants.
Flexible Twin Lead probe (ft/m)

INTERFACE_REDUCTION_SCALE

Maximum Upper Product Thickness (ft/m)

3.5

3

2

2-10

Emulsion Layers

Sometimes there is an emulsion layer (mix of the products) between the two
products which, depending on its characteristics, will affect interface
measurements.

For guidelines on emulsion situations, consult factory.

Reference Manual

00809-0100-4811, Rev AB

Rosemount 3300 Series

July 2003

VESSEL CHARACTERISTICS

Heating Coils, Agitators The Rosemount 3300 Series Radar Transmitter is relatively insensitive to

objects in the tank since the radar signal is transmitted along a probe.

Avoid physical contact between probes and agitators as well as applications
with strong fluid movement unless the probe is anchored. If the probe can
move within 1 ft (30 cm) away from any object, such as an agitator, during
operation then probe tie-down is recommended.

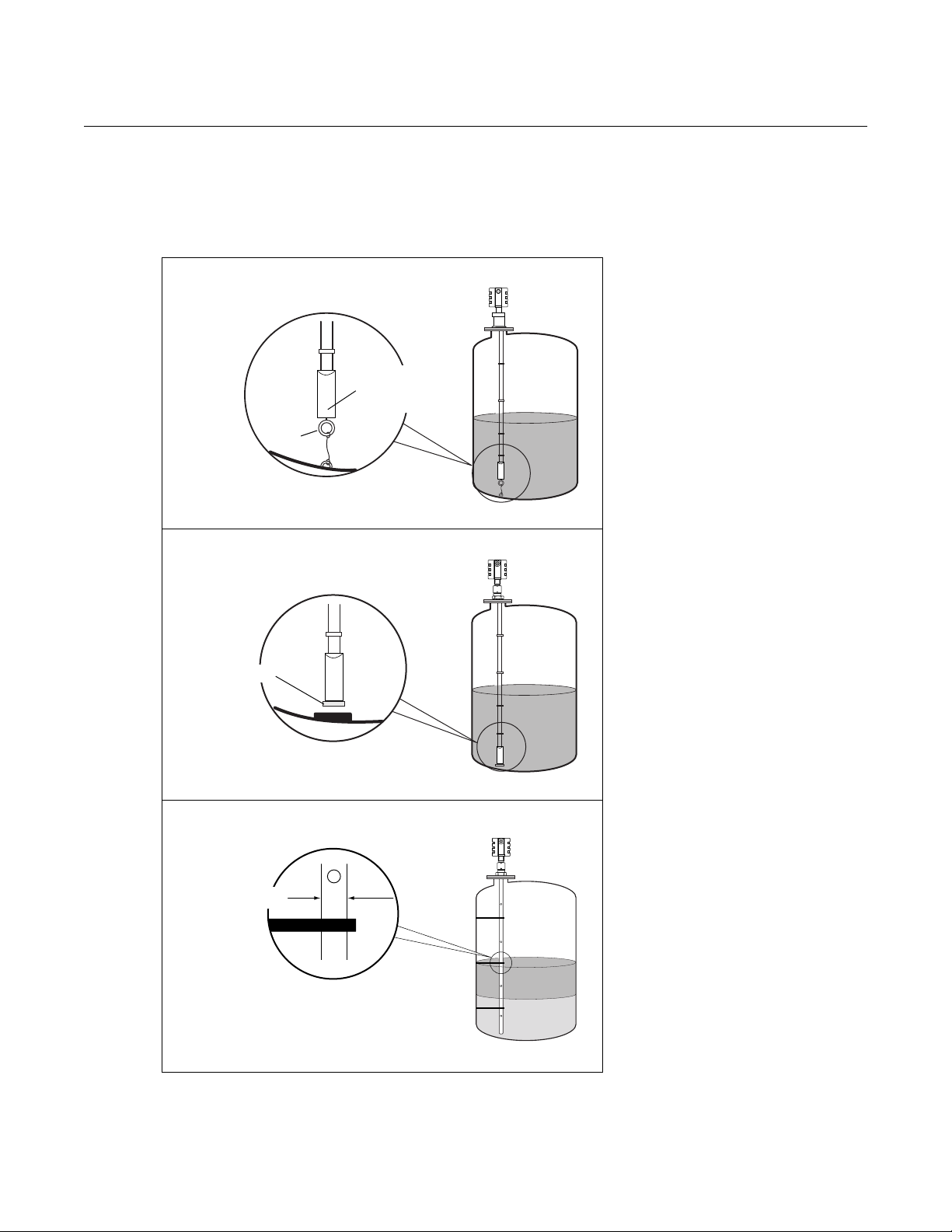

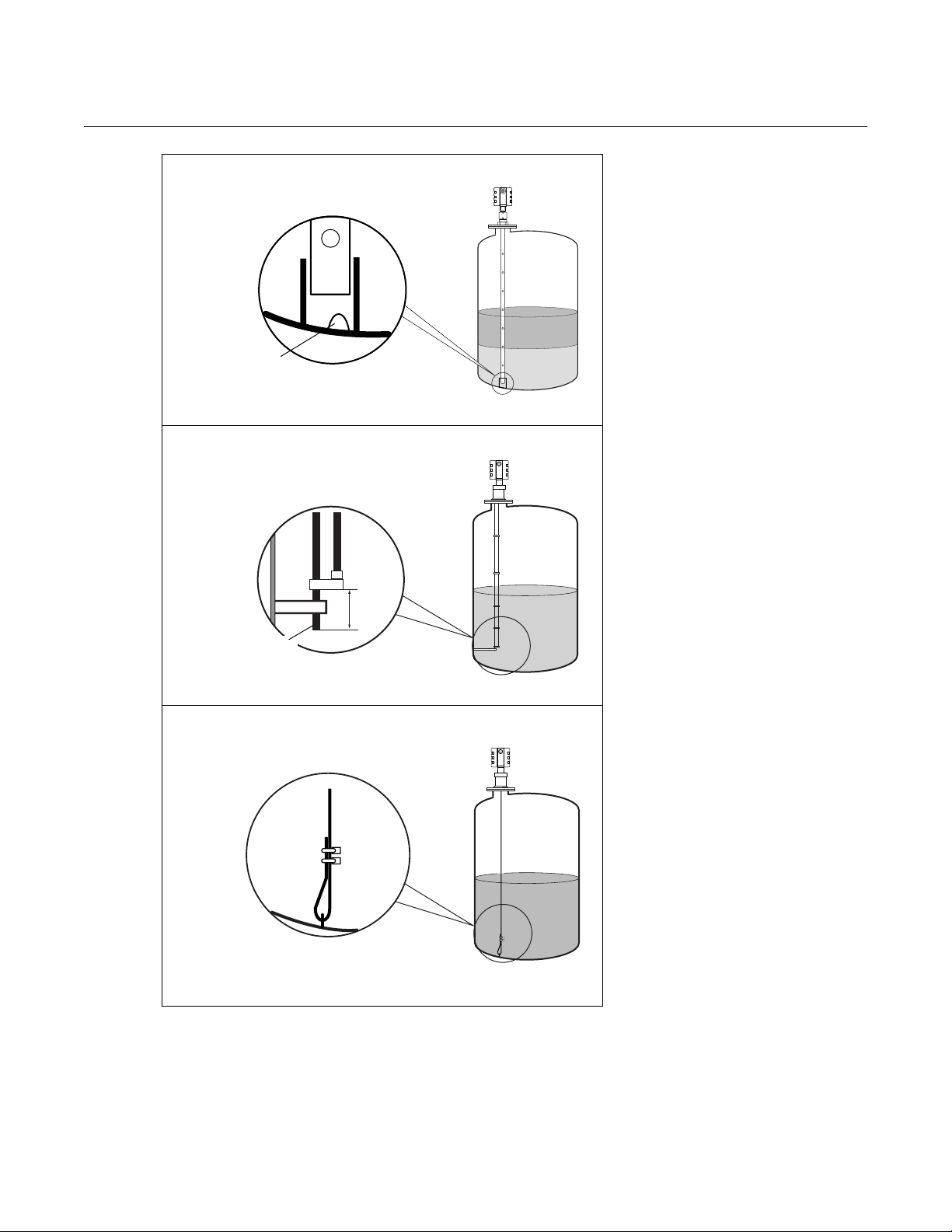

In order to stabilize the probe for side forces, it is possible to hang a weight at
the probe end (flexible probes only) or fix/guide the probe to the tank bottom.

Tank Sha pe The guided wave radar transmitter is insensitive to the tank shape. Since the

radar signal travels along a probe, the shape of the tank bottom has virtually
no effect on the measurement performance. The transmitter handles flat or
dish-bottom tanks equally well.

2-11

Rosemount 3300 Series

Reference Manual

00809-0100-4811, Rev AB

July 2003

2-12

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Section 3 Installation

Safety messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3-1

Installation Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3-3

Before You Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3-4

Mounting Considerations . . . . . . . . . . . . . . . . . . . . . . . . . page 3-6

Recommended Mounting Position . . . . . . . . . . . . . . . . . . page 3-11

Mechanical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3-12

Electrical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3-17

Optional Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3-21

SAFETY MESSAGES Procedures and instructions in this section may require special precautions to

ensure the safety of the personnel performing the operations. Information that
raises potential safety issues is indicated by a warning symbol ( ). Please
refer to the following safety messages before performing an operation
preceded by this symbol.

Explosions could result in death or serious injury:

Verify that the operating environment of the transmitter is consistent with the appropriate
hazardous locations certifications.

Before connecting a HART-based communicator in an explosive atmosphere, make
sure the instruments in the loop are installed in accordance with intrinsically safe or
non-incendive field wiring practices.

Do not remove the gauge cover in explosive atmospheres when the circuit is alive.

Failure to follow safe installation and servicing guidelines could result in death or
serious injury:

Make sure only qualified personnel perform the installation.

Use the equipment only as specified in this manual. Failure to do so may impair the
protection provided by the equipment.

Do not perform any service other than those contained in this manual unless you are
qualified.

www.rosemount.com

Rosemount 3300 Series

High voltage that may be present on leads could cause electrical shock:

Avoid contact with leads and terminals.

Make sure the main power to the 3300 transmitter is off and the lines to any other
external power source are disconnected or not powered while wiring the gauge.

Reference Manual

00809-0100-4811, Rev AB

July 2003

3-2

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

INSTALLATION PROCEDURE

Follow these steps for proper installation:

Review Installation

Considerations

(see page 3-6)

Check switches for

4-20 mA AlarmOutput

(see page 3-4)

Mount the transmitter

(see page 3-12)

Wire the transmitter

(see page 3-17)

Make sure covers
and cable/conduit

connections are

tight.

Power Up the

transmitter

Configure the

transmitter

(see page 4-1)

Verify measurements

Set the Write

Protection Switch

NOTE!

Disconnect power supply before setting the Write Protection.

3-3

Rosemount 3300 Series

BEFORE YOU INSTALL

Reference Manual

00809-0100-4811, Rev AB

July 2003

Alarm and Write Protection Switches

Electronic boards are electrostatically sensitive. Failure to observe proper
handling precautions for static-sensitive components can result in damage to
the electronic components. Do not remove the electronic boards from the
3300 Radar Transmitter.

NOTE

To ensure long life for your radar transmitter, and to comply with hazardous
location installation requirements, tighten covers on both sides of the
electronics housing.

Table 3-1. 3300 Radar Transmitter Switch Settings

Switch

Bank

Alarm 4–20 mA Alarm Output High High, Low

Write

Protect

Description Default Setting Position Settings

Security Write

Protection

Disabled (OFF) ON = Enabled,

OFF = Disabled

Table 3-2. Analog Output: Standard Alarm Values vs. Saturation Values

Level 4–20 mA Saturation Values 4–20 mA Alarm Value

Low 3.9 mA 3.75 mA

High 20.8 mA 21.75 mA

Table 3-3. Analog Output: NAMUR-Compliant Alarm Values vs. Saturation
Values

Level 4–20 mA Saturation Values 4–20 mA Alarm Value

Low 3.8 mA 3.6 mA

High 20.5 mA 22.5 mA

The transmitter monitors its own operation. This automatic diagnostic routine
is a timed series of checks repeated continuously. If the diagnostic routine
detects a failure in the transmitter, the 4–20 mA output is driven upscale (high)
or downscale (low) depending on the position of the Alarm switch.

Security write protection prevents unauthorized access to configuration data
through the Rosemount Configuration Tool (RCT) software, a HART 275
Communicator or Asset Management Solutions (AMS) software.

3-4

Reference Manual

00809-0100-4811, Rev AB
July 2003

Figure 3-1. Switches for Alarm
and Write Protection

Rosemount 3300 Series

Write Protection

Alarm Output

To set the Alarm and Write Protect switches do the following:

1. Remove the cover on the circuit side (see main label).

2. To set the 4-20 mA alarm output to Low, move the Alarm switch to the
LOW position. HIGH is the factory default setting (see Figure 3-1).

3. To enable the security write protection feature, move the Write Protect
switch to the ON position. The OFF position is the factory default setting
(see Figure 3-1).

4. Replace and tighten the cover.

SWITCH WRP ALARM

3-5

Rosemount 3300 Series

Reference Manual

00809-0100-4811, Rev AB

July 2003

MOUNTING CONSIDERATIONS

Before you install the Rosemount 3300 Series Radar Transmitter, be sure to
consider specific mounting requirements, vessel characteristics and process
characteristics.

Process connection The 3300 Series has a threaded connection for easy mounting on the tank

roof. It can also be mounted on a nozzle by using different flanges.

Threaded Connection

Figure 3-2. Mounting on tank
roof using threaded connection

MOUNT THREADED ROOFMOUNT THREADED PIPE

Mounting on tank roof.

Mounting in threaded pipe.

3-6

Reference Manual

00809-0100-4811, Rev AB
July 2003

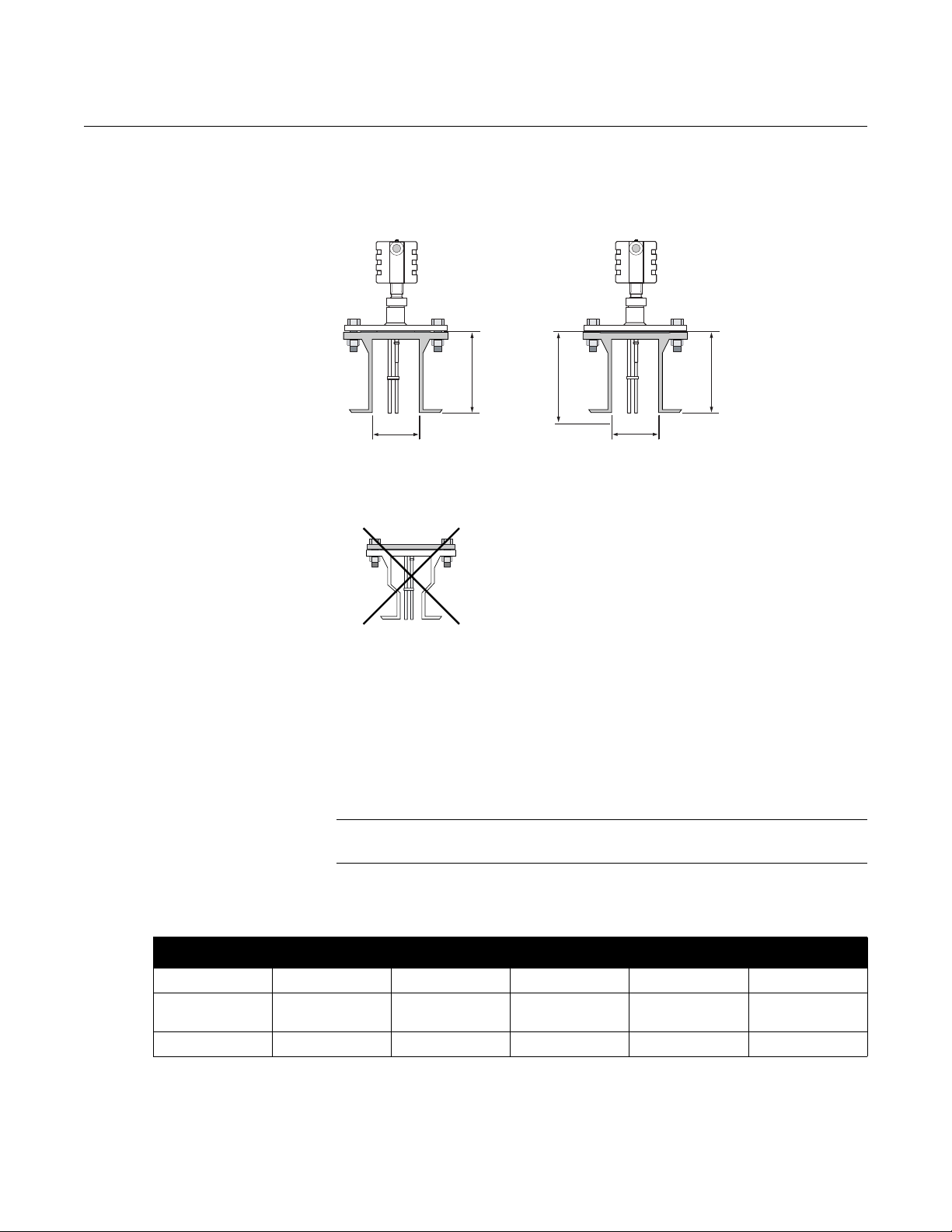

Figure 3-3. Mounting in nozzles

Rosemount 3300 Series

Flange Connection on Nozzles

D1=min. diameter

H

D2=min. diameter with

HUNZ

Upper Null Zone adjustment

Avoid nozzles
with reducer

NO_REDUCER/NOZZLE MOUNT V3

The transmitter can be mounted in nozzles by using an appropriate flange. It
is recommended that the nozzle size is within the dimensions given in
Table 3-4. For small nozzles it may be necessary to increase the Upper Null
Zone (UNZ) in order to reduce the measuring range in the upper part of the
tank. By setting the UNZ equal to the nozzle height, the impact on the
measurement due to interfering echoes from the nozzle will be reduced to a
minimum. See also section “Disturbances at the Top of the Tank“ on
page 6-12. Amplitude Threshold adjustments may also be needed in this
case.

NOTE

Except for the Coaxial Probe the probe must not be in contact with the nozzle.

Table 3-4. Minimum nozzle diameter and maximum nozzle height (inch/mm)

Rigid Twin Lead Flexible Twin Lead Coaxial Single Lead Flexible Single

(1)

D1

(2)

D2

(5)

H

(1) Upper Null Zone=0.
(2) Upper Null Zone>0.
(3) Process connection 1.5 inch
(4) Process connection 1 inch
(5) Recommended maximum nozzle height. For coaxial probes there is no limitation on nozzle height.
(6) Nozzle diameter

4(100) 4(100) > Probe diameter 6(150) 6(150)

2(50) 2(50) > Probe diameter 2(50)

4(100) + D

(6)

4(100) + D

(6)

- 4(100) + D

1.5(38)

(3)

(4)

(6)

2(50)

4(100) + D

(6)

3-7

Rosemount 3300 Series

Reference Manual

00809-0100-4811, Rev AB

July 2003

Installation of single lead probes in non-metallic tanks

Figure 3-4. Mounting in
non-metallic tanks.

For optimal single lead probe performance in non-metallic tanks the probe
must be mounted with a metal flange, or screwed in to a metal sheet (d>8
in./200 mm) if the threaded version is used.

Metal flange Ø>2”/DN50

Metal sheet Ø>8”/200 mm

NON-METAL_METALSHEET/NON-METAL_FLANGE

Avoid disturbing EMC environment in the tank. Installation in metallic tank is
recommended.

3-8

Reference Manual

00809-0100-4811, Rev AB
July 2003

Mounting in Still pipes/by-pass pipes

Figure 3-5. Mounting in
Still Pipes.

Rosemount 3300 Series

Rigid Single Rigid Twin

Rigid Twin Lead.

Pipe diameter Ø≥2 inch (50 mm).
Inlet pipe diameter N<Ø.
L≥12 inch (300 mm).

STILL_PIPE MOUNT_RTL/STILL_PIPE MOUNT_RSL

STILL_PIPE MOUNT_FTL/STILL_PIPE MOUNT_FSL

N

L

Ø

Flexible Single Flexible Twin

Ø

N

L

The center rod must be placed more than

0.6 inch/15 mm away from the pipe wall.

Rigid Single Lead.

Pipe diameter Ø≥2 inch (50 mm).
Inlet pipe diameter N<Ø.
L≥12 inch (300 mm).

Make sure that the probe is at the center of
the Still pipe.

Ø

Note! It is not recommended that flexible

probes are installed in by-pass pipes.

Flexible Twin Lead.

Pipe diameter Ø≥3 inch (75 mm).

The center rod must be placed more than

0.6 inch/15 mm away from the pipe wall. The
probe may under no circumstances get into
contact with the pipe wall.

Flexible Single Lead.

Pipe diameter Ø≥3 inch (75 mm).

Make sure that the probe is at the center of
the Still pipe.

Ø

STILL PIPE MOUNT CL

Coaxial Lead.

Pipe diameter Ø≥1.5 inch (38 mm).

Ø

3-9

Reference Manual

00809-0100-4811, Rev AB

Rosemount 3300 Series

July 2003

Free Space For easy access to the transmitter make sure that it is mounted with sufficient

service space. For maximum measurement performance the transmitter
should not be mounted too close to the tank wall or other objects in the tank.

If the probe is mounted close to a wall, nozzle or other tank obstruction noise
might appear in the level signal. Therefore the following minimum clearance,
according to the table below, must be maintained:

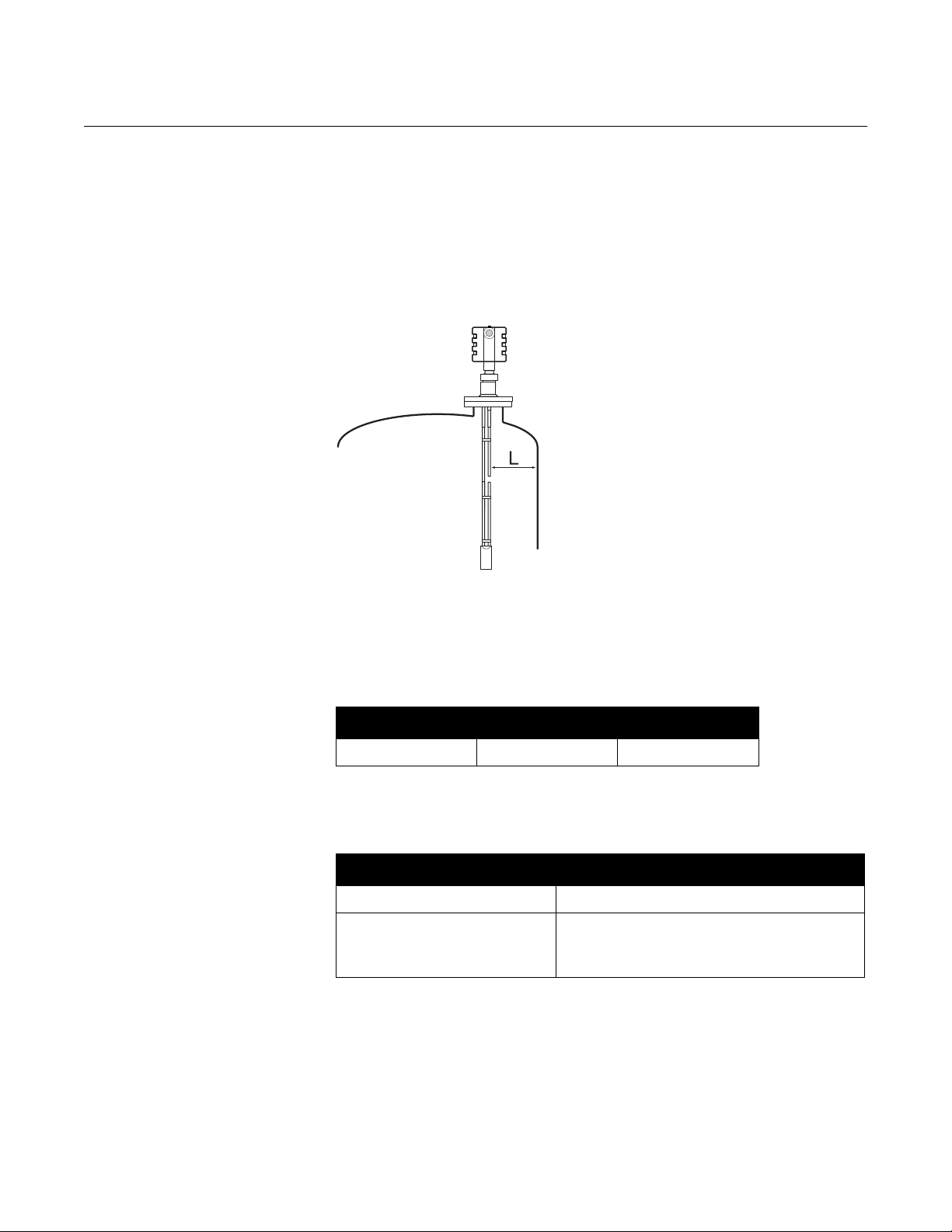

Figure 3-6. Free Space
Requirement

Table 3-5. Recommended free space L to tank wall or other objects in the
tank.

Coaxial Rigid Twin Flexible Twin

0 in. (0 mm) 4 in. (100 mm) 4 in. (100 mm)

Table 3-6. Recommended free space L to tank wall or other objects in the
tank for Single Lead probes.

Rigid Single/Flexible Single

4 in. (100 mm) Smooth metal wall.

12 in. (300 mm) Disturbing objects such as pipes and

beams, concrete or plastic tank walls,
rugged metal tank walls.

FREE SPACE

3-10

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Recommended Mounting Position

Figure 3-7. Mounting Position

When finding an appropriate mounting position for the transmitter the
conditions of the tank must be carefully considered. The transmitter should be
mounted so that the influence of disturbing objects is reduced to a minimum.

In case of turbulence the probe may need to be anchored to the bottom, see
“Mechanical Installation“ on page 3-12 for more information.

Inlet pipe

Agitator

Heating coils

3300 MOUNTING POSITION

The following guidelines should be considered when mounting the transmitter:

• Do not mount close to inlet pipes.

• Do not mount close to agitators. If the probe can move to within 30 cm
away from an agitator a probe tie-down is recommended.

• If the probe tends to sway due to turbulent conditions in the tank, the
probe should be anchored to the tank bottom.

• Avoid mounting close to heating coils.

• Make sure that the nozzle does not extend into the tank.

• Make sure that the probe does not come into contact with the nozzle or
other objects in the tank.

• Position the probe such that it is subject to a minimum of lateral force.

NOTE!

Violent fluid movements causing high sideway forces may break rigid probes.

3-11

Rosemount 3300 Series

Reference Manual

00809-0100-4811, Rev AB

July 2003

MECHANICAL INSTALLATION

Figure 3-8. Tank connection with
flange.

Transmitter housing

Nut

Bolt/nut

Mount the transmitter with flange on a nozzle on top of the tank. The
transmitter can also be mounted on a threaded connection. Make sure only
qualified personnel perform the installation.

NOTE

If you need to remove the transmitter head from the probe, make sure that the
Process Seal is carefully protected from dust and water. See Section 6:
Service for further information.

1. Place a gasket on top of the tank flange.

2. Lower the transmitter and probe with
flange into the tank.

3. Tighten the bolts.

4. Loosen the nut that connects the

Flange

Probe

Gasket

Tan k flan g e

transmitter housing to the probe slightly.

5. Rotate the transmitter housing so the
cable entries/display face the desired
direction.

6. Tighten the nut.

TRANSMITTER MOUNT FLANGE

Figure 3-9. Threaded tank
connection.

Adapter

Probe

TRANSMITTER MOUNT THREAD

Nut

Gasket
(for BSP (G) threads)

1. For adapters with BSP/G threads, place
a gasket on top of the tank flange.

2. Lower the transmitter and probe into the
tank.

3. Screw the adapter into the process
connection.

4. Loosen the nut that connects the
transmitter housing to the probe slightly.

5. Rotate the transmitter housing so the
cable entries/display face the desired
direction.

6. Tighten the nut.

NOTE!

For adapters with NPT threads, pressure-tight
joints may require a sealant.

3-12

Reference Manual

00809-0100-4811, Rev AB
July 2003

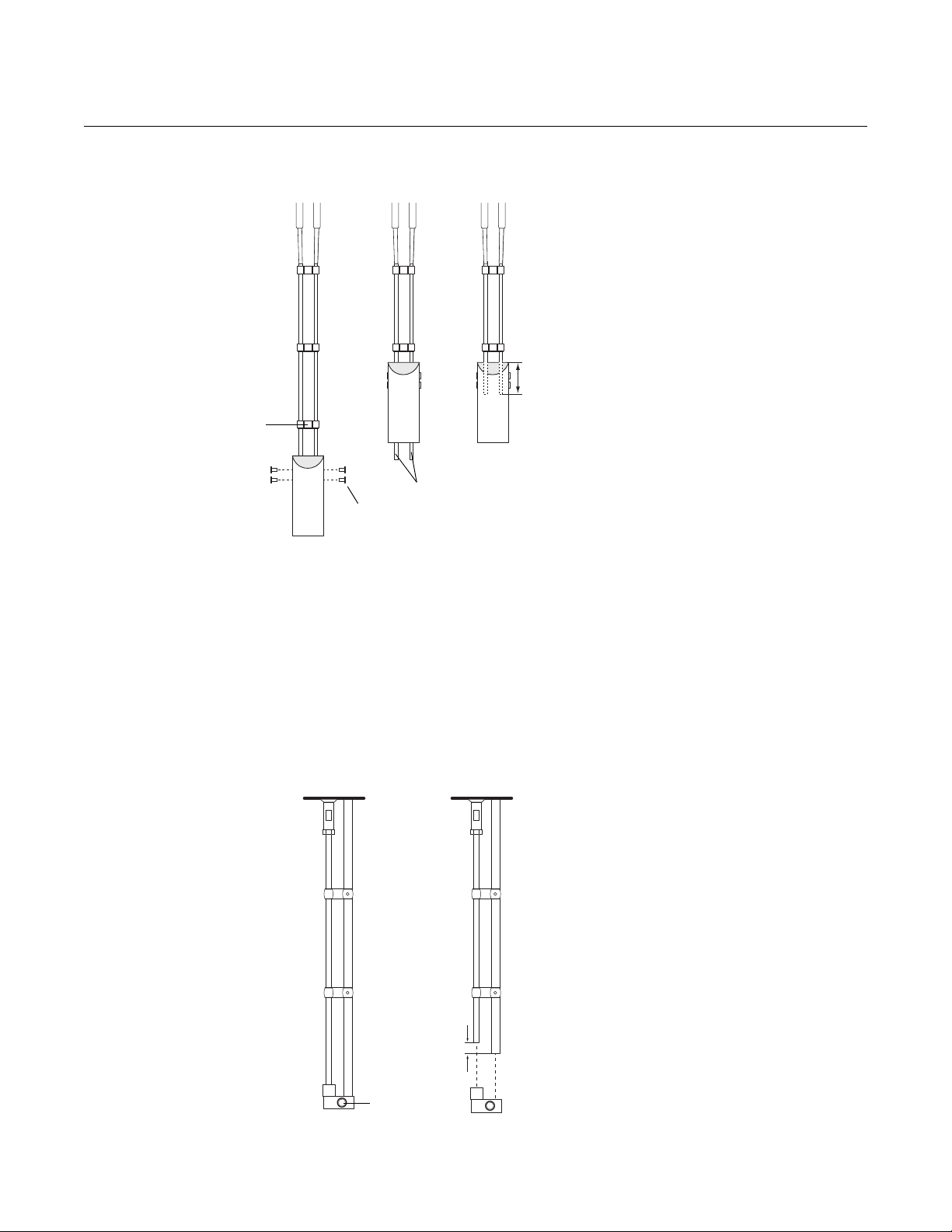

Shortening the Probe Flexible Twin Lead

Spacer

Cut

Allen
screws

FLEX TWIN SHORT3

Rosemount 3300 Series

1. Mark off the required probe
length. Add at least 1.6 inch
/40 mm to the required probe
length to be inserted into the
weight.

2. Loosen the Allen screws.

3. Slide the weight upwards as
much as needed in order to cut

Minimum:

1.6 inch/
40 mm

the probe.

4. Cut the probe. If necessary,
remove a spacer to make room
for the weight.

5. Slide the weight down to the
required cable length.

6. Tighten the screws.

7. Update the transmitter
configuration to the new probe
length, see “Probe Length“ on
page 4-9.

Rigid Twin Lead

Min. 15 mm
(0.6 inch)

If the weight was removed from the
cables when cutting, make sure
that at least 1.6 inch/40 mm of the
cable is inserted when the weight is
replaced.

1. Loosen the screw and remove
the end piece.

2. Cut the rods to the desired
length. Make sure that the thin
rod is 0.6 inch/15 mm shorter
than the other probe to make
sure that they fit into the end
piece.

3. Replace the end piece and
tighten the screw.

4. Update the transmitter
configuration to the new probe
length, see “Probe Length“ on
page 4-9.

RIGID TWIN SHORT1

Screw

3-13

Rosemount 3300 Series

Coaxial

COAXIAL_CUT

Reference Manual

00809-0100-4811, Rev AB

July 2003

1. Cut the pipe to the desired
length.

2. Cut the rod inside the pipe.
Make sure that the rod is fixed
while cutting.

NOTE!

Be careful when cutting the inner
rod. Too much force on the inner
rod may cause the spacers
centering the rod to come loose.

COAXIAL SHORT1

L>49 inches/
1250 mm

L≤49 inches/
1250 mm

Maximum shortening

23.6 inches/
600 mm

Minimum

15.7 inches/
400 mm

3. Update the transmitter
configuration to the new probe
length.

• Pipes longer than 49
inches/1250 mm can be
shortened by as much as 23.6
inches/600 mm.

• Pipes shorter than 49
inches/1250 mm can be cut as
long as the remaining length is
not less than 15.7 inches/400
mm.

3-14

COAXIAL SHORT2

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Anchoring In turbulent tanks it may be necessary to fix the probe. Depending on the

probe type different methods can be used to guide the probe to the tank
bottom. This may be needed in order to prevent the probe from hitting the
tank wall or other objects in the tank, as well as preventing a probe from
breaking.

Flexible Twin/Single Lead probe
with weight and ring.

A ring (customer supplied) can be
attached to the weight in a threaded
(M8x14) hole at the end of the

Weight with
internal threads
M8x14

Ring

PROBEANCHOR RING FLEXIBLE TWIN

weight. Attach the ring to a suitable
anchoring point.

Magnet

PROBEANCHOR MAGNET FLEXIBLE TWIN

1.1 inch/28 mm

Flexible Twin/Single Lead probe

with weight and magnet.

A magnet (customer supplied) can
be fastened in a threaded (M8x14)
hole at the end of the weight. The
probe can then be guided by placing
a suitable metal plate beneath the
magnet.

Coaxial probe fixed to the tank wall.

The coaxial probe can be guided to
the tank wall by fixtures fastened to
the tank wall. Fixtures are customer
supplied. Make sure the probe can
move freely due to thermal
expansion without getting stuck in
the fixture.

PROBE SUPPORT COAX

3-15

Rosemount 3300 Series

Drain

PROBE SUPPORT2 COAX

Reference Manual

00809-0100-4811, Rev AB

July 2003

Coaxial probe.

The Coaxial probe can be guided by
a tube welded on the tank bottom.
Tubes are customer supplied. Make
sure that the probe can move freely
in order to handle thermal expansion.

Rigid Twin Lead probe.

The Rigid Twin Lead probe can be
guided to the tank wall by a fixture at
the lower end of the outer rod. The
end piece needs to be moved
accordingly by cutting the center rod.
The length of the rod outside the end
piece will add to the dead zone.

Ø 0.3 inch/8 mm

PROBEANCHOR RIGID TWIN

PROBEANCHOR FLEXIBLE SINGLE

The fixture is customer supplied.
Make sure the probe is only guided
and not fastened in the fixture to be
able to move freely for thermal
expansion.

Flexible Single Lead probe.

The probe rope itself can be used for
anchoring. Pull the probe rope
through a suitable anchoring point,
e.g. a welded eye and fasten it with
two clamps.

The length of the loop will add to the
dead zone.The location of the
clamps will determine the beginning
of the dead zone. See section “Dead
Zones“ on page 2-7 for further
information on Dead Zones.

3-16

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

ELECTRICAL INSTALLATION

Cable/conduit entries The electronics housing has two entries for ½ - 14 NPT. Optional M20×1.5

and PG 13.5 adapters are also available. The connections are made in
accordance with local or plant electrical codes.

Make sure that unused ports are properly sealed to prevent moisture or other
contamination from entering the terminal block compartment of the electronics
housing.

NOTE!

Use the enclosed metal plug to seal the unused port.

Grounding The housing should always be grounded in accordance with national and

local electrical codes. Failure to do so may impair the protection provided by
the equipment. The most effective grounding method is direct connection to
earth ground with minimal impedance. There are two grounding screw
connections provided. One is inside the Field Terminal side of the housing
and the other is located on top of the housing. The internal ground screw is
identified by a ground symbol: .

NOTE!

Grounding the transmitter via threaded conduit connection may not provide
sufficient ground.

NOTE!

In the Explosionproof/Flameproof version the electronics is grounded via the
transmitter housing. After installation and commissioning make sure that no
ground currents exist due to high ground potential differences in the
installation.
Grounding (+) will cause faulty operation but does not cause permanent
damage.

Cable Selection Use shielded twisted pair wiring for the Rosemount 3300 Series in order to

comply with EMC regulations. The cables must be suitable for the supply
voltage and approved for use in hazardous areas, where applicable. For
instance, in the U.S., explosion-proof conduits must be used in the vicinity of
the vessel. For the ATEX flame proof approval version of the 3300 Series,
suitable conduits with sealing device or flame proof (EEx d) cable glands must
be used depending on local requirements.

Use 18 AWG to 12 AWG in order to minimize the voltage drop to the
transmitter.

Hazardous Areas When the 3300 transmitter is installed in hazardous area, local regulations

and specifications in applicable certificates must be observed.

3-17

Reference Manual

00809-0100-4811, Rev AB

Rosemount 3300 Series

July 2003

Power Requirements Terminals in the transmitter housing provide connections for signal cables.

The 3300 transmitter is loop-powered and operates with power supplies
ranging from 11 to 42 VDC. For Intrinsically Safe output the supply voltage
must be within 11 to 30 VDC. For Explosion Proof/Flame Proof the supply
voltage must be within 16 to 42 VDC.

Maximum Loop Resistance

Figure 3-10. Explosion Proof
/Flame Proof installations

Figure 3-11. Non-hazardous
installations

The maximum current loop resistance can be gained from the following
diagrams:

NOTE
This diagram is only valid if the
load resistance is at the + side,
otherwise the maximum load
resistance is limited to 300 Ohm.

MAX_LOAD_EX

Figure 3-12. Intrinsically Safe
installations

3-18

MAX_LOAD_NON_INTIRNSIC

MAX_LOAD_INTIRNSIC

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Connecting the Transmitter

The 3300 Series is a two-wire loop powered transmitter accepting power
supplies ranging from 11 VDC to 42 VDC. It uses 4-20 mA power
superimposed with a HART signal.

To connect the transmitter:

1. Make sure that the power supply is disconnected.

2. Remove the cover on the transmitter housing terminal side (see label).

3. Pull the cable through the cable gland/conduit.

4. Connect wires according to Figure 3-13 for non-intrinsically safe output
and according to Figure 3-14 for Intrinsically safe output. Make sure that
the transmitter housing is grounded (see “Grounding“ on page 3-17).

5. Replace the cover, tighten the cable gland and connect the power
supply.

Non-Intrinsically Safe Output

For non-intrinsically safe installations wire the transmitter as shown in
Figure 3-13.

NOTE!

Make sure that the power supply is off when connecting the transmitter.

Figure 3-13. Wiring diagram for non-intrinsically safe installations.

Model 3300 Radar
Transmitter

Ground Connection

V

min

- 42 VDC

Load Resistance = 250 Ω

Power Supply

WIRING NON IS

HART modem

HART 275
Communicator

PC

The HART 275 Communicator requires a minimum load resistance of 250
Ohm within the loop in order to function properly. For maximum load
resistance see Figure 3-10 (Explosion/Flame Proof) and Figure 3-11
(Non-hazardous installations).

The power supply voltage ranges from V

VDC to 42 VDC where V

min

min

is the

minimum voltage given by:

11 V Non-hazardous locations certification

16 V Explosion proof/flameproof certification

For Explosion Proof/Flame Proof applications the resistance between the
negative terminal on the transmitter and the power supply must not exceed
300 Ohm.

3-19

Reference Manual

00809-0100-4811, Rev AB

Rosemount 3300 Series

July 2003

Intrinsically Safe Output For intrinsically safe installations wire the transmitter as shown in Figure 3-14.

NOTE!

Make sure that the instruments in the loop are installed in accordance with
intrinsically safe field wiring practices and System Control Drawings when
applicable.

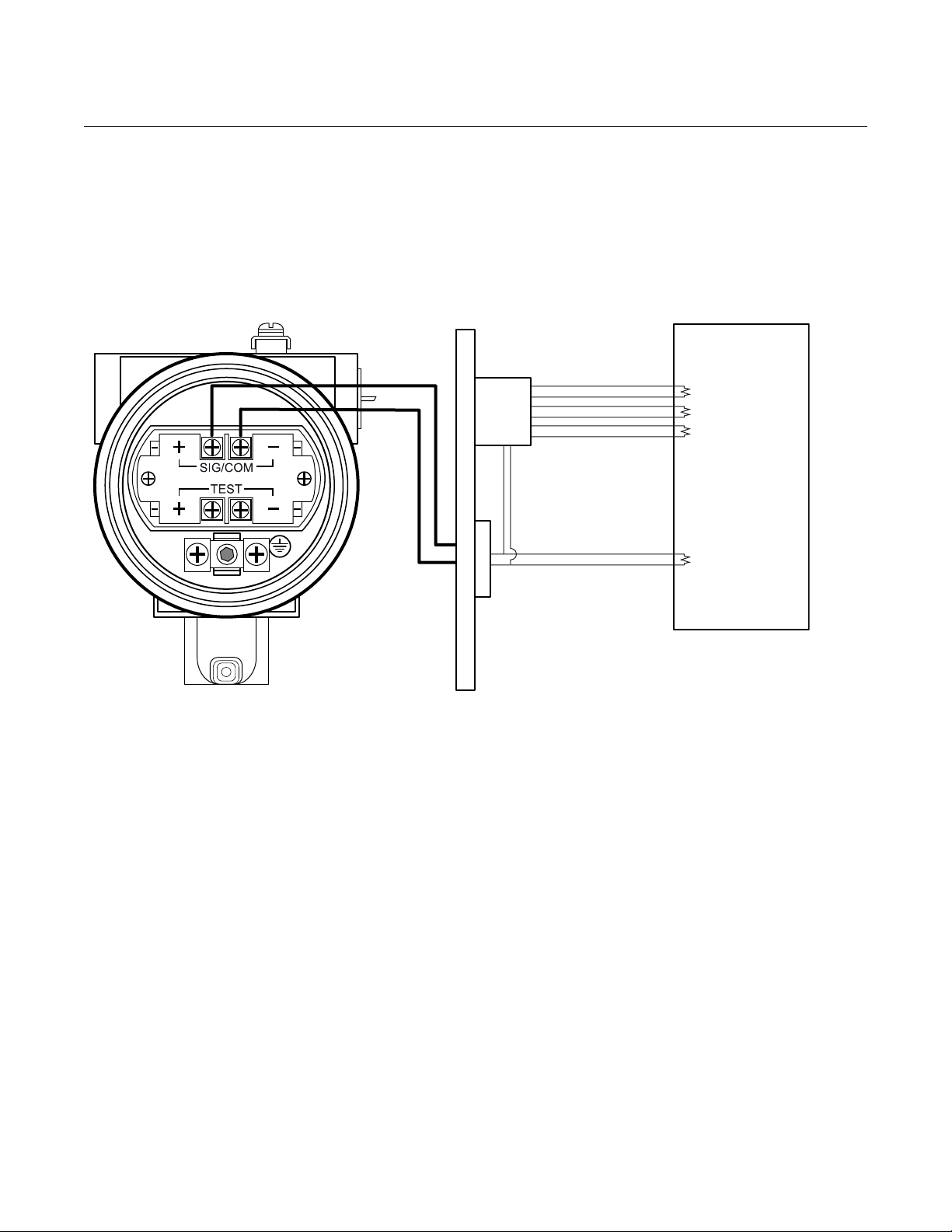

Figure 3-14. Wiring diagram for
intrinsically safe installations

WIRING IS

Model 3300 Radar

Transmitt er

Approved IS barrier

Ground Connection

Power Supply

11 - 30 VDC

HART modem

HART 275
Communicator

DCS

RL=250 Ω

PC

The HART 275 Communicator requires a minimum load resistance within the
loop of 250 Ohm in order to function properly. For maximum load resistance
see Figure 3-12.

3-20

The power supply voltage ranges from 11 V to 30 V.

IS parameters

Ui=30 V.

Ii=130 mA.

Pi=1 W.

Ci=0.

Li=0.

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

OPTIONAL DEVICES

Tri-Loop The Model 3300 transmitter outputs a HART signal with four process

variables. By using the Model 333 HART Tri-Loop up to three additional
analog 4-20 mA outputs are provided.

Figure 3-15. Wiring diagram for
HART Tri-Loop

DIN Rail Mounted
HART Tri-Loop

Ch. 3
Ch. 2
Ch. 1

Burst Input
to Tri-Loop

Each Tri-Loop
Channel
recieves power
from Control
Room

Channel 1 must
be powered for
the Tri-Loop to
operate

≥ 250 Ω

R

L

HART Burst Command 3/
Analog Output

Intrinsically Safe Barrier

Device recieves
power from
Control Room

Control Room

Configure Channels 1, 2, and 3 to reflect the units as well as Upper Range
Values and Lower Range Values for your secondary, tertiary and fourth
variables (variable assignment is configured in the Model 3300). It is also
possible to enable or disable a channel from this menu. See “Special
Functions“ on page 4-24 for further information on how to install a Tri-Loop.

WIRING TRILOOP

3-21

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Using More than one transmitter on the bus

Figure 3-16. Multidrop
connection

MULTIDROP

The 3300 transmitter can be run in multidrop mode. In the multidrop mode
each transmitter has a unique HART address.

The poll address can be changed by using a HART 275 Communicator or by
using the Rosemount Configuration Tools software.

To change the poll address using a 275 Communicator choose HART
command [1, 4, 5, 2, 1].

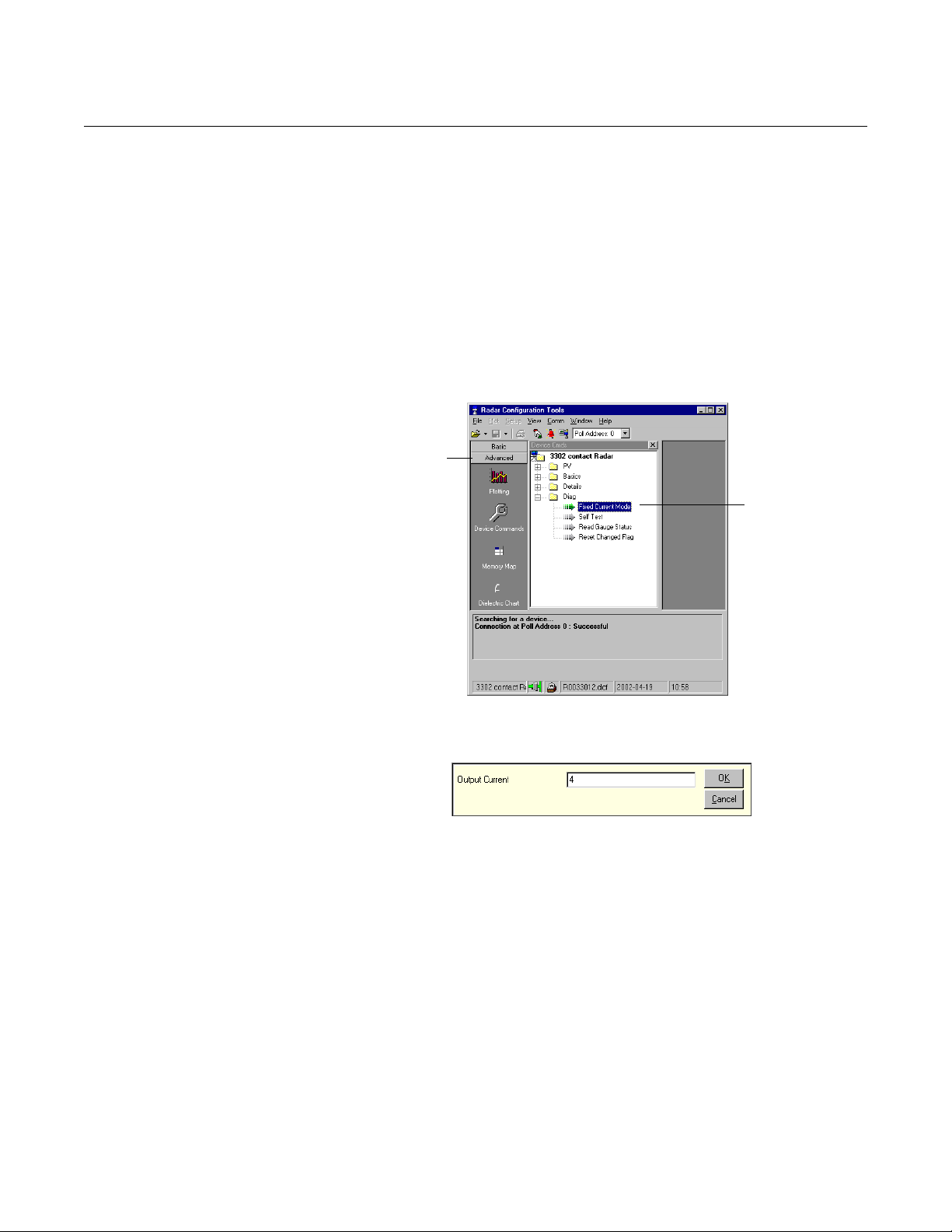

To change the poll address using the Rosemount Configuration Tools (RCT)
software do the following:

1. Choose the View>Device Commands option.
or
choose the Device Commands icon from the Project Bar Advanced
section.

RCT_DEVICECOMMANDS_POLLADDRESS.TIF

2. Open the Details folder.

3. Choose the Set Poll Address option.

4. Set the desired address.

3-22

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Section 4 Start-Up

Safety messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-1

Configuration Parameters . . . . . . . . . . . . . . . . . . . . . . . . . page 4-2

Configuration using a 275 or 375 HART Communicator . page 4-7

Configuration using The Radar Configuration Tool . . . . page 4-14

Special Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-24

SAFETY MESSAGES Procedures and instructions in this section may require special precautions to

ensure the safety of the personnel performing the operations. Information that
raises potential safety issues is indicated by a warning symbol ( ). Refer to
the safety messages listed at the beginning of each section before performing
an operation preceded by this symbol.

Explosions could result in death or serious injury:

Verify that the operating environment of the gauge is consistent with the appropriate
hazardous locations certifications.

Before connecting a HART-based communicator in an explosive atmosphere, make
sure the instruments in the loop are installed in accordance with intrinsically safe or
non-incendive field wiring practices.

Do not remove the gauge cover in explosive atmospheres when the circuit
is alive.

Failure to follow safe installation and servicing guidelines could result in death or
serious injury:

Make sure only qualified personnel perform the installation.

Use the equipment only as specified in this manual. Failure to do so may impair the
protection provided by the equipment.

Do not perform any service other than those contained in this manual unless you are
qualified.

www.rosemount.com

Rosemount 3300 Series

Reference Manual

00809-0100-4811, Rev AB

July 2003

CONFIGURATION PARAMETERS

The Model 3301 transmitter can be configured for level and volume
measurements. The Model 3302 is designed to measure interface level and
interface distance as well.

The Rosemount 3300 transmitter can be pre-configured according to the
ordering specifications in the Configuration Data Sheet.

Basic Configuration The basic transmitter configuration includes setting the tank geometry

parameters. For interface measurements the dielectric constant of the top
liquid must also be given. For some applications with heavy vapor, the vapor
dielectric must be given as well.

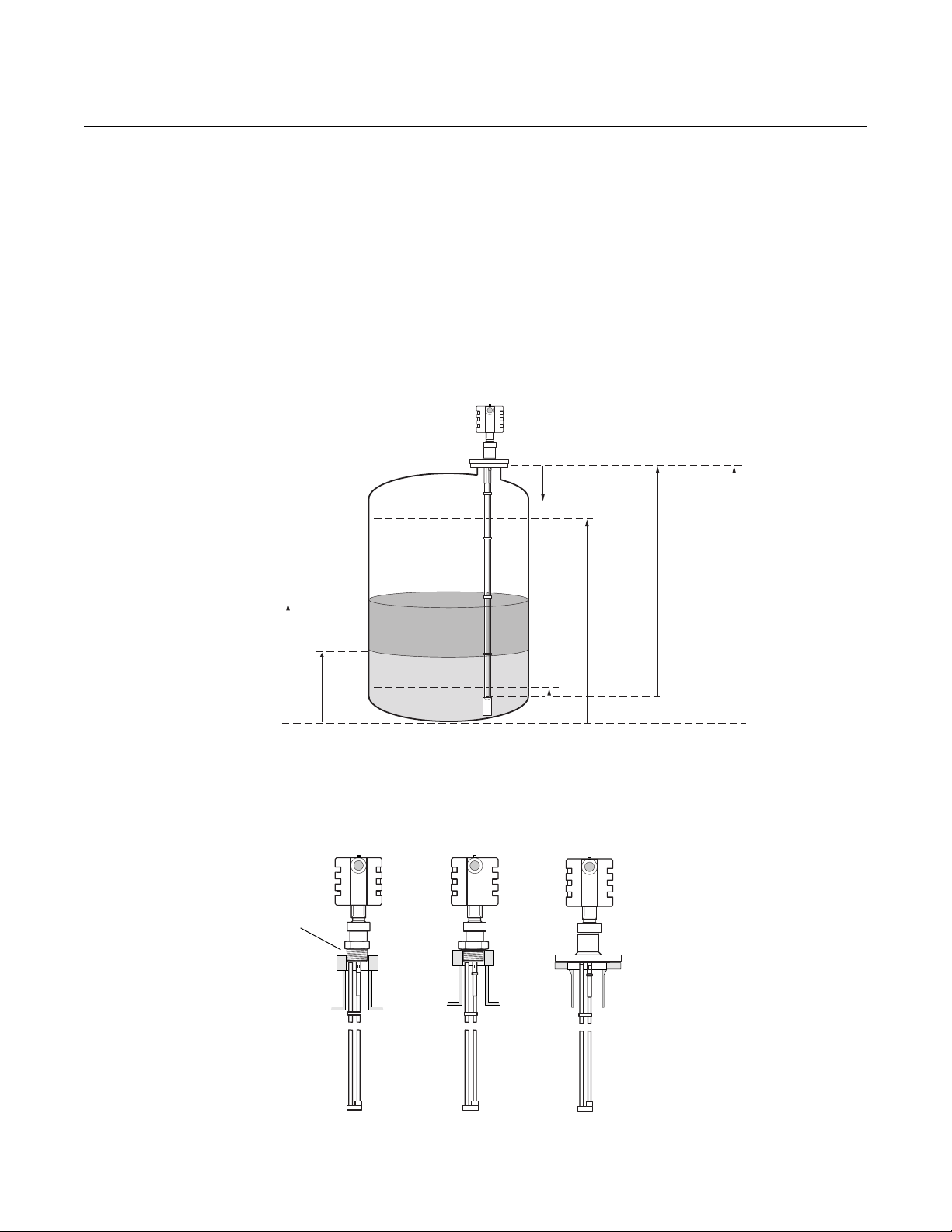

Figure 4-1. Tank Geometry

Upper Reference Point

Upper Null Zone

20mA

Reference Gauge
Height

Product Level

Probe
Length

Figure 4-2. Upper Reference
Point

Adapter

Upper Reference Point

Interface
Level

4mA

Lower Reference Point

For the different tank connections the Upper Reference Point is located at the
underside of the threaded adapter or at the underside of the welded flange, as
illustrated in Figure 4-2:

TANK GEOMETRY

4-2

NPT BSP (G) FLANGE

3300_UPPERREFERENCE

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Reference Gauge Height

The Reference Gauge Height is the distance from the Upper Reference Point
to the bottom of the tank. The transmitter measures the distance to the
product surface and subtracts this value from the Reference Gauge Height to
determine the level.

Probe Length

The probe length is the distance between the Upper Reference Point and the
end of the probe. If a weight is used at the end of the probe it shall not be
included.

This parameter is pre-configured at factory. It must be changed if the probe is
shortened.

Probe Type

The transmitter is designed to optimize measurement performance for each
probe type.

This parameter is pre-configured at factory. This value needs to be changed if
the probe type is changed.

Flexible and Rigid probes require different radar electronics and can not be
used with the same transmitter head.

Dielectric Constant of Upper Product

For interface measurements the dielectric constant of the upper product is
essential in order to obtain good accuracy. See section “Interface” on
page 2-9 for further information on dielectric constants.

If the dielectric constant of the lower product is significantly smaller than the
dielectric constant of water, you may need to make special adjustments. See
section “Interface Measurements for Semi-Transparent Bottom Products” on
page 6-5 for further information.

For level measurements the Upper Product Dielectric parameter corresponds
to the actual dielectric constant of the product in the tank. Normally this
parameter does not need to be changed even if the actual dielectric constant
of the product deviates from the Upper Product Dielectric parameter value.
However, for some products measurement performance can be optimized by
setting the proper product dielectric constant.

Dielectric Constant of Vapor

In some applications there is heavy vapor above the product surface having a
significant influence on the level measurement. In such cases the vapor
dielectric can be entered to compensate for this effect.

The default value is equal to 1 which corresponds to the dielectricity of
vacuum. Normally this value does not need to be changed since the effect on
measurement performance is very small for most vapors.

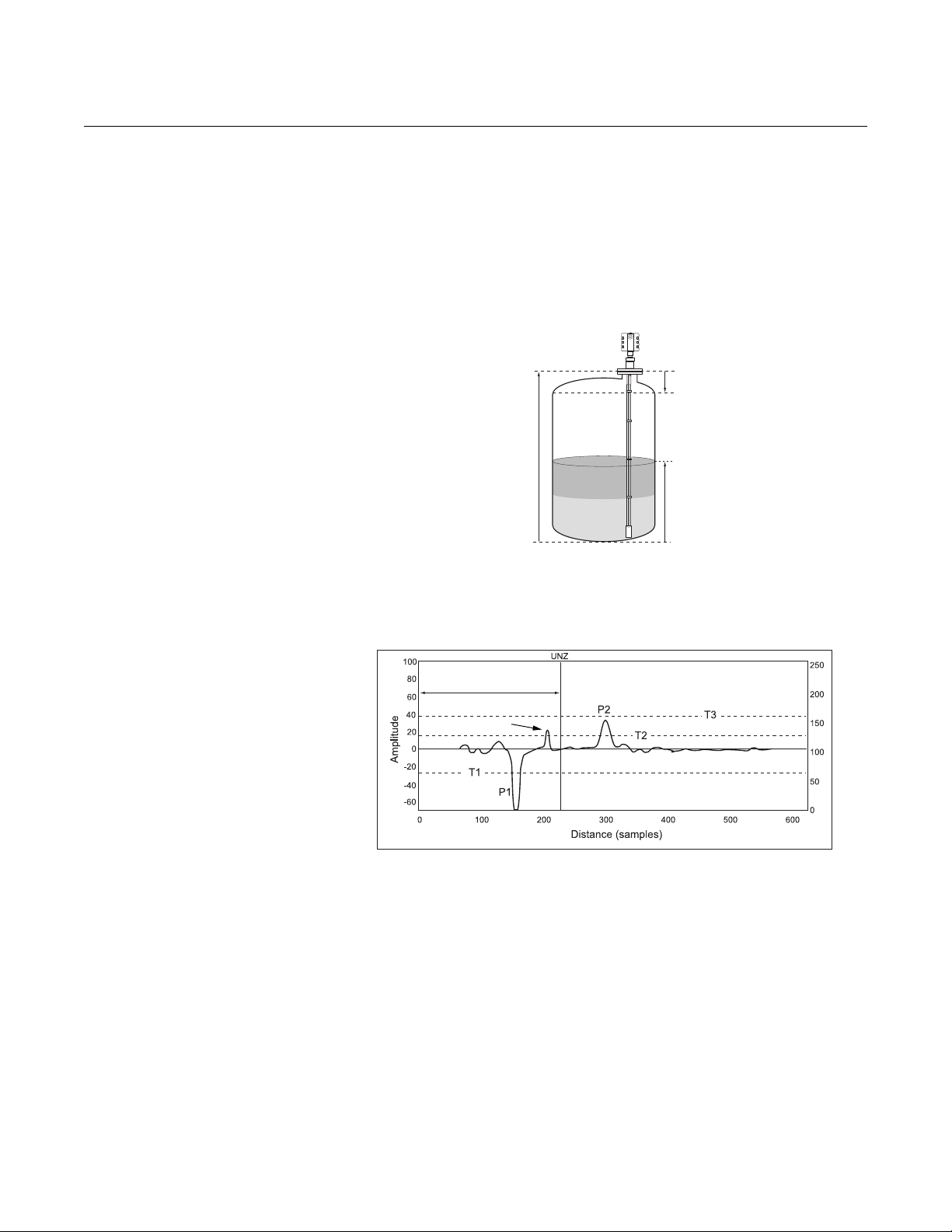

Upper Null Zone

This parameter should only be changed if there are measurement problems in
the upper part of the tank. Such problems may occur if there are disturbing
objects close to the probe. By setting the Upper Null Zone the measuring
range is reduced. See Section 6: Disturbances at the top of the tank for
further information.

4-3

Rosemount 3300 Series

4 mA point

The 4 mA point should be set above the Lower Dead Zone (see Section 2:
Dead Zones). If the 4 mA point is set to a point within the Dead Zone or below

the probe end, the full range of the analog output is not used.

20 mA point

Make sure that the 20 mA point is below the Upper Null Zone.

The 20 mA point should be set below the Upper Dead Zone (see “Dead
Zones” on page 2-7). If the 20 mA point is set to a point within the Dead Zone
the full range of the analog output is not used.

Probe angle

If the transmitter is not mounted vertically the angle from vertical position must
be given.

Reference Manual

00809-0100-4811, Rev AB

July 2003

4-4

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Volume Configuration For volume calculations you can choose one of the standard tank shapes or

the strapping option. Choose None if volume calculation is not used.

Tank Type

You can choose one of the following options:

• Strap table

• Vertical Cylinder

• Horizontal Cylinder

• Vertical Bullet

• Horizontal Bullet

• Sphere

•None

Strapping Table

Use a strapping table if a standard tank type does not provide sufficient
accuracy. Use most of the strapping points in regions where the tank shape is
non-linear. A maximum of 10 points can be added to the strapping table.

Figure 4-3. Strapping points

Actual tank bottom may look like this.

Using only 3 strapping points results in a level-to-volume profile
that is more angular than the actual shape.

Using 6 of the points at the bottom of the tank yields a
level-to-volume profile that is similar to the actual tank bottom.

STRAPPING POINTS

4-5

Rosemount 3300 Series

Standard Tank Shapes

Figure 4-4. Standard tank
shapes

VERTICAL CYLINDER

Diameter

Reference Manual

00809-0100-4811, Rev AB

July 2003

Vertical Cylinder

Vertical Cylinder tanks are specified by
Diameter and Height.

Height

Horizontal Cylinder

Diameter

Height

HORIZONTAL CYLINDER

Horizontal Cylinders are specified by
Diameter and Height.

Vertical Bullet

Vertical Bullet tanks are specified by
Diameter and Height. The volume
calculation model for this tank type

Diameter

VERTICAL BULLET

Height

assumes that the radius of the bullet
end is equal to the Diameter/2.

Horizontal Bullet

Horizontal Bullets are specified by

Diameter

Diameter and Height. The volume
calculation model for this tank type
assumes that the radius of the bullet
end is equal to the Diameter/2.

HORIZONTAL BULLET

Height

4-6

SPHERE

Diameter

Sphere

Spherical tanks are specified by
Diameter.

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

CONFIGURATION USING A 275 OR 375 HART COMMUNICATOR

Figure 4-5. The HART 275
Communicator.

This section describes how to configure the 3300 transmitter by using a HART
275 or 375 Communicator.

Appendix C: HART Communicator provides brief instructions on the use of
the HART Communicator. For information on all the capabilities, refer to the
HART Communicator Product Manual.

Function Keys

Action Keys

Alphanumeric Keys

Shift Keys

275

4-7

Rosemount 3300 Series

Figure 4-6. HART Communicator Menu Tree

Reference Manual

00809-0100-4811, Rev AB

July 2003

Online Menu

1 DEVICE SETUP

2PV
3AO
4LRV
5URV

1 Process

Varia bl es

2Diag/Service

3 Basic Setup

4 Detailed Setup

1 Variable mapping

2 Level
3 Distance
4Volume
5 Internal Temp
6 Interface Dist
7 Interface Level
8 Amplitude Peak 1

- Amplitude Peak 2

- Amplitude Peak 3

- Upper Prod Thickn

1 Test Device

2 Loop Test
3 D/A Trim

1Tag

2 Transmitter Units
3 Reranging

4 Ref Height
5 Probe Length
6 Probe Type
7 Vapor Dielectric
8 Product Dielectric
9 Measurement

Mode

- Upper Null Zone

- Probe Angle

- Max Up Prod Tkn

1Device

Information

1 Variable re-map
2PV is
3SV is
4TV is
5QV is

1Status

2 Master Reset

1 Level Units
2 Volume Units
3 Temperature Units

1 Apply values
2 Range values
3 PV % rnge

1 Distributor
2 Model
3 Dev Id
4Tag
5Date
6 Write Protect
7 Descriptor
8 Message

9 Revision #´s

- Construction Matls

- Level

- Distance

- Volume

- Internal Temp

- Interface Dist

- Interface Level

- Amplitude Peak 1

- Amplitude Peak 2

- Amplitude Peak 3

- Upper Prod Thickn

1 Status Group 1
2 Status Group 2

1 Universal rev
2 Fld dev rev
3 Software rev

1 Flange Type
2 Flange Material
3 Meter
4Probe
5 Probe Type

5 Review Menus

2Display

3Volume

Geometry

4 Signal

Condition

5 Output

Condition

6 Advanced

Service

1 Display variables
2 Display language

1 Tank Type

2 Tank Diameter
3 Tank Height

4 Strapping Table

1 PV LRV
2PV URV
3 PV % range
4Damp
5 Upper Null Zone
6 Alarm/Sat Levels

1 Analog Output

2 HART Output

1 Gain Control
2 Thresholds
3 Reset to Default
4 Calibration Offst

1 Entries Used
2 Max Entries
3 Lvl0
4Vol0
5 Lvl1
6Vol1
7 Lvl2
8Vol2
9 Lvl3

Vol3

Lvl9
Vol9

1AO
2 AO Alarm Type

3 Loop Test

4D/A Trim
5 Scaled D/A Trim

1 Poll addr
2 Num req preamps
3 Burst mode
4 Burst option

1 Strap Table
2 Ver Cylinder
3 Hor Cylinder
4 Vert Bullet
5 Hor Bullet
6 Sphere
7None

To enable volume
calcualtions based on
a strapping table, the
“Strapping Table”
option must be
selected for tank type

1 High Alarm
2 Low Alarm
3 High Saturation
4 Low Saturation
5 AO Alarm Type

4-8

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

BASIC CONFIGURATION This section describes the various HART commands used to configure the

3300 Series of transmitters for level measurements. The transmitter outputs a
4 - 20 mA signal proportional to the primary variable. Three additional
variables are available through the HART signal.

Transmitter Variables

HART Comm

1, ,1 ,1, 1

Transmitter Units

HART Comm

1, 3, 2

Reference Gauge Height

HART Comm

1, 3, 4

You may assign up to four transmitter variables. Typically, the primary variable
(PV) is configured to be Aggregate Level, Interface Level or Volume.

For the model 3301 the primary variable is typically set to be Level. If the
transmitter is in the Immerse Probe mode (see section “Measurement Mode” )
the PV is normally set to Interface Level.

For the model 3302 the PV is typically set to Interface Level, but Level and
other options may also be used.

Set transmitter units for level and temperature.

The Reference Gauge Height is the distance from the Upper Reference Point
to the bottom of the tank (see Figure 4-1 on page 4-2). When setting the
Reference Gauge Height, keep in mind that this value is used for all level
measurements performed by the 3300 Series transmitter.

The Reference Gauge Height must be set in linear (level) units, such as feet
or meters, regardless of primary variable assignment.

Probe Length

HART Comm

1, 3, 5

The probe length is the distance from the Upper Reference Point to the end of
the probe, see Figure 4-1. If the probe is anchored to a weight do not include
the height of the weight. This parameter is pre-configured at factory. The
Probe Length needs to be changed if for example the probe is shortened.

4-9

Rosemount 3300 Series

Probe Type

Reference Manual

00809-0100-4811, Rev AB

July 2003

HART Comm

Product Dielectric

HART Comm

1, 3, 6

1, 3, 8

The transmitter automatically makes an initial calibration based on the type of
probe that is used. This parameter is pre-configured at factory and only needs
to be set if the probe is changed to another type. Choose one of the following
options:

• Rigid Twin Lead

• Flexible Twin Lead

•Coaxial

• Rigid Single Lead

• Flexible Single Lead

NOTE

Flexible and Rigid probes require different radar electronics and can not be
used with the same transmitter head.

For interface measurements the dielectric constant of the upper product is
essential for calculating the interface level and the upper product thickness.
By default the Product Dielectric parameter is about 2.

If the dielectric constant of the lower product is significantly smaller than the
dielectric constant of water, you may need to make special adjustments. See
section “Interface Measurements for Semi-Transparent Bottom Products” on
page 6-5 for further information.The dielectric constant of the product is used
for setting the appropriate signal amplitude thresholds, see Section 6: Service
and Troubleshooting for more information on amplitude threshold settings.
Normally this parameter does not need to be changed for level
measurements. However, for some products measurement performance can
be optimized by setting the proper product dielectric constant.

Vapor Dielectric

HART Comm

4-10

1, 3, 7

The Rosemount Configuration Tool (RCT) software includes a Dielectric Chart
wich lists the dielectric constants of a wide range of products. RCT also
includes a tool which allows you to calculate dielectric constants based on
measurements of the Upper Product Thickness.

In some applications there is heavy vapor above the product surface having a
significant influence on the level measurement. In such cases the vapor
dielectric can be entered to compensate for this effect.

The default value is equal to 1 which corresponds to the dielectric constant of
vacuum. Normally this value does not to be changed since the effect on
measurement performance is very small for most vapors.

Reference Manual

00809-0100-4811, Rev AB
July 2003

Measurement Mode

Rosemount 3300 Series

HART Comm

Probe Angle

HART Comm

1, 3, 9

1, 3, 11

Normally the Measurement Mode does not need to be changed. The
transmitter is pre-configured according to the specified model:

Table 4-1. Measurement Mode

Model Measurement Mode

3301 Level
3302 Level, Level and Interface

(1) Default setting

(1)

, Interface Immersed probe

(1)

, Interface Immersed probe

Interface Immersed Probe is used for applications where the probe is fully
immersed in liquid. In this mode the transmitter ignores the upper product
level. See Section 6: Interface measurements with fully immersed probes for
more information.

NOTE!

Only use Interface Immersed Probe for applications where interface is
measured for a fully immersed probe.

Enter the angle between the probe and the vertical line. The default value is
equal to zero. Do not change this value if the transmitter is mounted with the
probe along the vertical line (which is normally the case).

Maximum Upper Product Thickness

HART Comm

1, 3, 12

Damping

HART Comm

1, 4, 4, 4

Display panel

HART Comm

1, 4, 2

For interface measurements the Maximum Upper Product Thickness
parameter may be used in special cases when the dielectric constant of the
upper product is relatively high. By setting this parameter you can avoid that
interface measurements are getting out of range.

The default Damping value is 10. Normally this value does not need to be
changed. The Damping parameter determines how quickly the transmitter
responds to level changes and how robust the measurement signal is against
noise. See “High Level Rates” on page 6-7 for more information.

Choose which variables to be displayed and the desired language to be used.
The display toggles between the selected variables every two seconds.

4-11

Rosemount 3300 Series

4 and 20 mA Points

Reference Manual

00809-0100-4811, Rev AB

July 2003

HART Comm

1, 3, 3, 2

Figure 4-7. Range Values

When setting the range values, it is possible to enter the values directly using
the keypad on the HART 275 Communicator, or you may use actual values
(HART command [1, 3, 3, 1]). Keep in mind that the 20 mA value should be
below the Upper Dead Zone. If the 20 mA point is set to a point within the
Dead Zone the full range of the analog output is not used.

Also make sure that the 20 mA value is below the Upper Null Zone (UNZ).
(This parameter may be used if there are measurement problems in the upper
part of the tank, see Section 6: Disturbances at the top of the tank). The UNZ
is equal to zero in the default configuration.

The 4 mA point should be above the Lower Dead Zone. If the 4 mA point is
set to a point within the Dead Zone or below the probe end (tank bottom for
example), the full range of the analog output is not used.

See Section 2: Dead Zones for more information on the size of Upper and
Lower Dead Zones.

Upper Reference Point

Upper Dead Zone

20 mA Upper Range Value (URV)

4-12

Product Level

Range 0-100 %

Interface Level

4 mA Lower Range Value
(LRV)

Lower Dead Zone

4 20 MA POINTS

Reference Manual

00809-0100-4811, Rev AB
July 2003

VOLUME CONFIGURATION

Transmitter Variables

Rosemount 3300 Series

HART Comm

Volume Units

HART Comm

Tank Type

HART Comm

1, 1, 1, 1

1, 3, 2, 2

1, 4, 3, 1

Select the Volume option in order to configure the transmitter for volume
measurements.

Choose one of the following units:

• Gallons

•Liters

• Imperial Gallons

• Cubic Meters

•Barrels

•Cubic Yards

• Cubic Feet

• Cubic Inch

Choose a standard tank shape, or select the strapping option. Standard
shapes are: Vertical Cylinder, Horizontal Cylinder, Vertical Bullet, Horizontal
Bullet or Sphere. (If Primary Variable is Level choose None for Tank Type).

If your tank does not correspond to any of the above tank shapes, select Strap
Ta bl e .

Tank Dimensions

HART Comm

Strapping Table

HART Comm

1, 4, 3, 2

1, 4, 3, 4

If a standard tank type was chosen, enter the diameter and height of the tank.
See “Volume Configuration” on page 4-5 for information on how to specify
tank dimensions.

If tank type Strapping Table was chosen, enter how many entries you will use
and the actual level and volume points. You can enter from 2 to 10 points. The
strapping points must be entered such that the first point corresponds to the
lowest level, and the last point corresponds to the topmost level of the tank.

4-13

Rosemount 3300 Series

Reference Manual

00809-0100-4811, Rev AB

July 2003

CONFIGURATION USING THE RADAR CONFIGURATION TOOL

Installing the RCT software

The Radar Configuration Tool (RCT) is a user-friendly software tool that
allows you to configure the 3300 transmitter. You can choose either of the
following two methods to configure a 3300 transmitter:

• Start the Wizard for a guided installation if you are un-familiar with the
3300 transmitter.

• Use the Setup function if you are already familiar with the configuration
process or if you just want to change the current settings.

To install the Rosemount Configuration Tool:

1. Insert the installation CD into your CD-ROM drive.

2. If the installation program is not automatically started, from the windows

Start Bar choose Run and type D:\Setup.exe where D is the CD-ROM
drive.

3. Follow the instructions on the screen.

4. For optimum performance set COM Port Buffers to 1, see “To set the
COM port buffers” on page 4-26.

To start the RCT:

1. From the Start menu click Programs>RCT Tools>RCT.

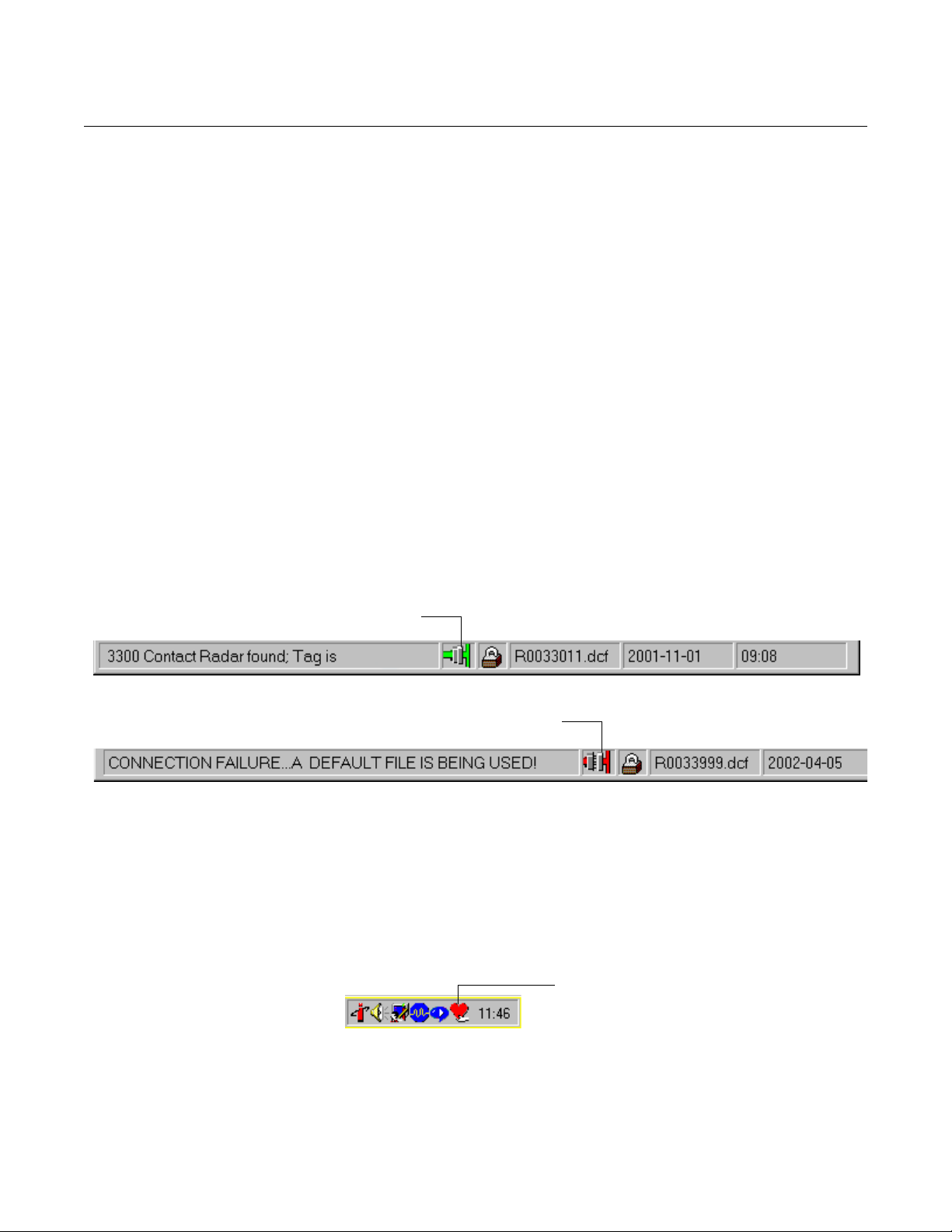

2. In the RCT Status Bar check that RCT communicates with the
transmitter:

Communication is established (green symbol)

Communication is not established (red symbol)

Specifying the COM Port If communication is not established open the HART Communication Server

window and check that the right COM Port is selected.

To check the current COM port settings do the following:

1. Locate the HART Server icon in the lower right corner of the screen.

HART Server icon

2. Double-click the HART Server icon.

4-14

Reference Manual

00809-0100-4811, Rev AB
July 2003

Figure 4-8. RHCS Server
window

Check that the selected
COM port matches the
connected port on the PC.

Rosemount 3300 Series

RCT-RHCS_SERVER

3. Check the COM port.

4. Choose the COM Port option that matches the COM Port connected to
the transmitter.

5. If communication is intermittent, increase Busy Retries and Error Retries
to 5 and 5 respectively.

6. Click the Search for a device icon in the RCT tool bar:

Search for a device

Help In RCT Help is accessed by pressing the F1 key or by selecting the Contents option

from the Help menu. If the F1 key is pressed a help text appears with
information about the window that is currently open. If a menu option is
selected a help text appears with information about that particular menu.

4-15

Reference Manual

00809-0100-4811, Rev AB

Rosemount 3300 Series

July 2003

Using the Setup Wizard To install a 3300 transmitter by using the installation Wizard do the following:

Figure 4-9. RCT workspace

1. Start the RCT software.

Basic

Wizard

RCT1

2. In the RCT workspace click the
Wizard icon (make sure that the
Basic section is open),
or
choose the View>Wizard menu
option.

Figure 4-10. RCT Wizard

WIZARD WELCOME

3. Click the Start button and follow the
instructions. Now you will be guided
through a number of dialogs
allowing you to configure the
transmitter.

4-16

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Using the Setup Function

Figure 4-11. RCT workspace

Basic

Setup

RCT-RCT1

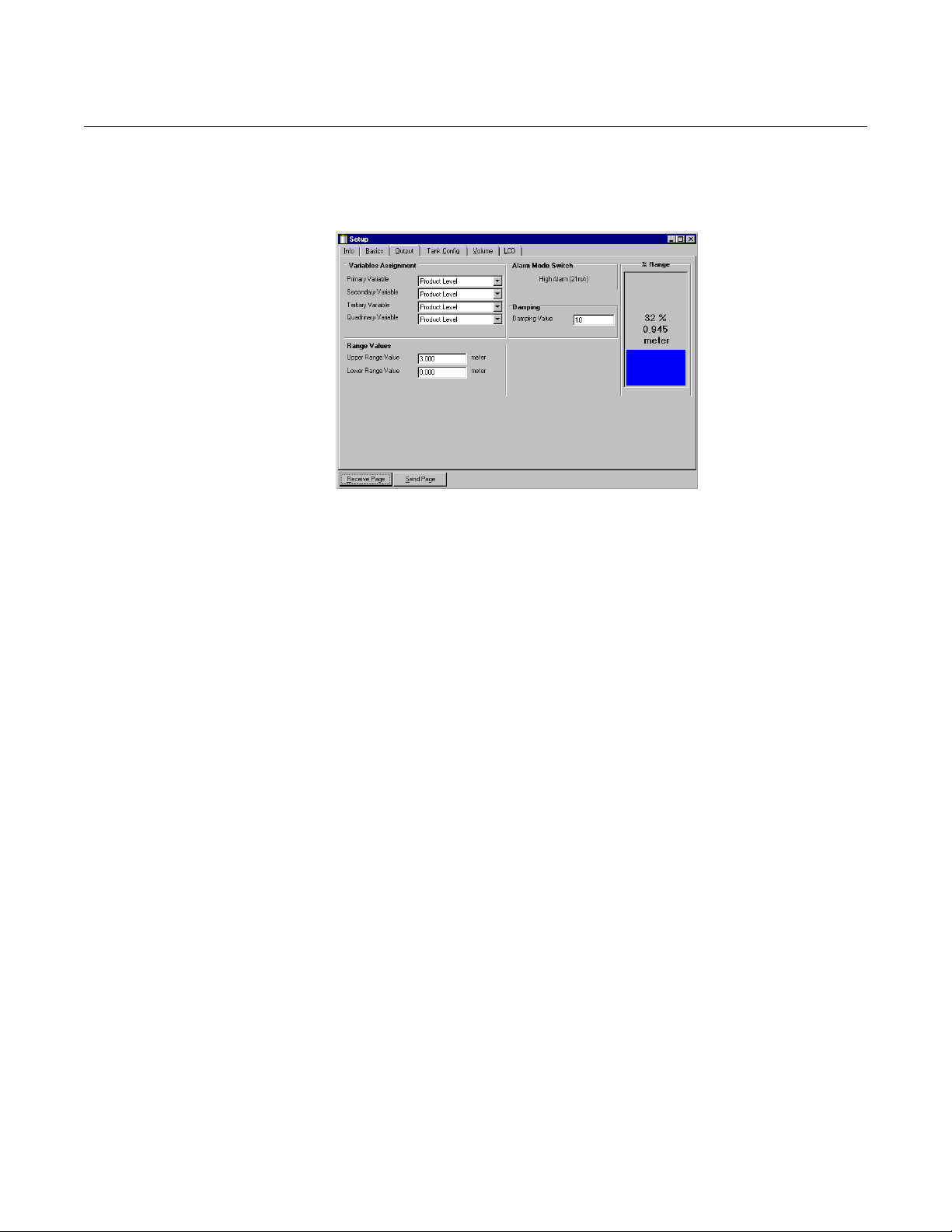

Figure 4-12. Setup Info

To install a 3300 transmitter by using the Setup function do the following:

1. Start the RCT software.

2. In the RCT workspace click the
Setup icon (make sure that the
Basic area is open),
or
choose the View>Setup menu
option.

RCT-SETUP_INFO

3. Choose the appropriate tab:

Info: information about the device.

Basics: Set Probe Type and

measurement units.

Analog: Variable assignment and
range value settings.

Tank Config: Tank height and other
geometry settings, dielectric
constants for vapor and upper
product.

Volume: specification of tank
geometry for volume calculations.

LCD: display panel settings.

NOTE

When working with the Setup window keep in mind that for all tabs except the
Info tab, data is updated by clicking the Receive button. To download data to
the transmitter click the Send button.

4-17

Reference Manual

00809-0100-4811, Rev AB

Rosemount 3300 Series

Setup - Info The Title tab shows information about the connected transmitter.

Figure 4-13. Setup Title tab

RCT-SETUP_INFO

Device Name: designation of the current transmitter model.
EPROM ID:current transmitter database version.
Device Type: designates the transmitter type. 33 is used for the 3300 Series.
Device ID: a unique identifier for each 3300 Series transmitter.
Hardware Rev: the current revision of the transmitter electronic board.
Software Rev:the current revision of the transmitter software that controls
measurement, communication, internal checks etc.

July 2003

Setup - Basics The Basics tab lets you choose Measurement Units for Level, Volume and

Temperature. These units are used wherever measurement and configuration
data is presented.

Figure 4-14. Setup Basic tab

RCT-SETUP BASICS

This window also allows you to enter some general information about the
transmitter like Message, Tag, Descriptor and Date. This information is not
required for the operation of the transmitter and can be left out if desired.

4-18

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Setup - Output The Output tab lets you assign up to four transmitter variables

Figure 4-15. Setup output tab

RCT-SETUP_OUTPUT

Typically, the Primary Variable (PV) is configured to be Product Level,
Interface Level or Volume.

Other variables like Product Distance, Interface Distance, Upper Product
Thickness, etc. are available as well.

For model 3301 the primary variable is typically set to be Level. If the
transmitter is in the Immersed Probe mode (see section
“Measurement Mode” ) the PV is normally set to Interface Level.

For the model 3302 the PV is typically set to Interface Level, but Level and
other options may also be used.

Set the Lower Range Value (4 mA) and the Upper Range Value (20 mA) to
the desired values. Keep in mind that the 20 mA value should be below the
Upper Dead Zone, and the 4 mA point should be above the Lower Dead Zone
if you want to use the full 4-20 mA range within the measuring range of the
transmitter.

Also make sure that the 20 mA value is set below the Upper Null Zone (UNZ).
(the UNZ parameter may be used if there are measurement problems in the
upper part of the tank, see Section 6: Disturbances at the top of the tank). The
UNZ is equal to zero in the default configuration.

See Section 2: Dead Zones for more information on Upper and Lower Dead
Zones.

See Section 4: Basic Configuration for more information on setting the Upper
and Lower Range values.

The default Damping value is 10. Normally this value does not need to be
changed. The Damping parameter may be changed if there are high filling
rates, see “High Level Rates” on page 6-7 for more information.

4-19

Reference Manual

00809-0100-4811, Rev AB

Rosemount 3300 Series

Setup - Tank Config The Tank Configuration tab contains information on tank geometry

parameters and dielectrics.

Figure 4-16. Setup Tank
Configuration tab

RCT-SETUP_TANK CONFIG

Tank Geometry

July 2003

The Reference Gauge Height is the distance from the Upper Reference
Point to the bottom of the tank (see Figure 4-1 on page 4-2). When setting the
Reference Gauge Height, keep in mind that this value is used for all level and
volume measurements performed by the 3300 transmitter.

The Reference Gauge Height must be set in linear (level) units, such as feet
or meters, regardless of primary variable assignment.

The Upper Null Zone (UNZ) should not be changed unless there are
disturbances at the top of the tank. By increasing the Upper Null Zone value
measurements in this region can be avoided. See Section 6: Disturbances at
the top of the tank for more information on how to use the UNZ. The UNZ is
equal to zero in the factory configuration.

Probe

The 3300 Series transmitter automatically makes some initial calibrations
based on the chosen Probe Type. The following Probe Types are available:

• Twin Lead

• Flexible Twin Lead

•Coaxial

• Rigid Single Lead

• Flexible Single Lead

NOTE

Flexible and Rigid probes require different radar electronics and can not be
used with the same transmitter head

4-20

The Probe Length is the distance from the Upper Reference Point to the end
of the probe, see Figure 4-1. If the probe is anchored to a weight do not
include the height of the weight.

The Probe Angle is the angle between the probe and the vertical line. Set
this value equal to zero if the transmitter is mounted with the probe along the
vertical line (which is normally the case).

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Measurement Mode

Normally the Measurement Mode does not need to be changed. The
transmitter is pre-configured according to the specified model:

Table 4-2. Measurement Mode

Model Measurement Mode

3301 Level
3302 Level, Level and Interface

(1) Default setting

Interface Immersed Probe is used for applications where the probe is fully

immersed in liquid. In this mode the transmitter ignores the upper product
level. See “Section 6: Interface measurements with fully immersed probes” for
more information.

NOTE!

Only use Interface Immersed Probe for applications where interface is
measured for a fully immersed probe.

Dielectrics

(1)

, Interface Immersed probe

(1)

, Interface Immersed probe

In some applications there is heavy vapor above the product surface having a
significant influence on the level measurement. In such cases the Vapor
Dielectric can be entered to compensate for this effect.

The default value is equal to 1 which corresponds to the dielectric constant of
vacuum. Normally this value does not need to be changed since the effect on
measurement performance is very small for most vapors.

For interface measurements the dielectric constant of the upper product is
essential for calculating interface level and the upper product thickness. By
default the Upper Product Dielectric parameter is about 2.

If the dielectric constant of the lower product is significantly smaller than the
dielectric constant of water, you may need to make special adjustments. See
section “Interface Measurements for Semi-Transparent Bottom Products” on
page 6-5 for further information.

The dielectric constant of the product is used for setting the appropriate signal
amplitude thresholds, see Section 6: Service and Troubleshooting for more
information on amplitude threshold settings. Normally this parameter does not
need to be changed for level measurements. However, for some products
measurement performance can be optimized by setting the proper product
dielectric constant.

RCT contains tools to estimate the dielectric constant of the current product:

•The Dielectric Chart lists the dielectric constant of a large number of

products. Use one of the two following methods to view the Dielectric
Chart:

- Choose the View>Dielectric>Dielectric Chart menu option.

- Click the Dielectric Chart icon in the Project Bar Advanced section.

•The Dielectric Calculator lets you calculate the dielectric constant of

the Upper Product based on the following input:

- actual upper product thickness,

- the dielectric constant value stored in the transmitter, and

- the upper product thickness presented by the transmitter.

4-21

Reference Manual

00809-0100-4811, Rev AB

Rosemount 3300 Series

July 2003

Setup - Volume The Volume tab lets you configure the transmitter for volume calculations.

Figure 4-17. Setup Volume tab

RCT-SETUP VOLUME

You can choose one of the standard tank shapes or the strapping option.
Choose None if volume calculation is not used at all.

Choose one of the following options:

• Vertical Cylinder

• Horizontal Cylinder

• Vertical Bullet

• Horizontal Bullet

• Sphere

• Strap table

•None

See Section 4: Volume Configuration for more information on Volume
configuration.

4-22

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Setup - LCD The LCD tab lets you specify which parameters to appear on the display

panel. The display has two rows, the upper row with five characters is for the
measured value and the lower row with six characters for the value name.
The display toggles between the different variables every 2 seconds.

Figure 4-18. Setup LCD tab

RCT-SETUP LCD

Choose one of the following options:

Table 4-3. LCD parameters

Parameter Description

Level Product level.

Distance Distance from the upper reference point to the product surface.

Volume Total product volume.

Internal Temperature Temperature inside the transmitter housing.

Interface Distance Distance between the upper reference point and the interface

between the upper and lower product.

Interface Level Level of the lower product.

Interface Thickness Thicknes of the upper product.

Amplitude Peak 1 Signal amplitude of the reflected signal from the reference pulse.

Amplitude Peak 2 Signal amplitude of the reflected signal from the product surface.

Amplitude Peak 3 Signal amplitude of the reflected signal from the surface of the

bottom product (interface measurements).

Percent Range Level value in percent of total measurement range.

Analog Output Current 4 -20 mA current.

4-23

Rosemount 3300 Series

SPECIAL FUNCTIONS

Reference Manual

00809-0100-4811, Rev AB

July 2003

TriLoop

The Model 333 HART Tri-Loop HART-to-Analog Signal Converter is capable
of converting a digital HART burst signal into three additional 4-20 mA analog
signals.

To set the 3300 transmitter up for the HART Tri-Loop do the following:

1. Make sure that the 3300 transmitter is properly configured.

2. If RCT is used for the 3300 setup, it is recommended that the Receive
Buffer and Transfer Buffer for the selected COM port are adjusted as
described below in section “To set the COM port buffers” . Otherwise the
Burst Mode can not be turned off by RCT (for further information on other
options for turning off the Burst Mode see “To turn off the Burst Mode” .

3. Assign transmitter variables Primary Variable, Secondary Variable etc.
HART command [1,1,1,1].
RCT: Setup>Output tab.

Variables
Assignment

4-24

RCT-SETUP_OUTPUT_TRILOOP

4. Configure variable units: Length, Volume and Temperature.
HART command [1,3,2,1-3].
RCT: Setup>Basics tab.

Variabl e
Units

RCT-SETUP_BASICS

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

5. Set the 3300 in Burst mode.
HART command [1, 4, 5, 2, 3].
RCT: Device Commands>Details>Set Burst Mode option.

6. Select Burst option 3=Process variables and current (Process vars/crnt).
HART command [1,4,5,2,4].

7. Install the Tri-Loop. Connect channel 1 wires, and optionally wires for
Channel 2 and Channel 3.

8. Configure Tri-Loop Channel 1:

a. Assign variable: Tri-Loop HART command [1,2,2,1,1].

Make sure that the SV, TV, and QV match the configuration of the
3300 transmitter.

b. Assign units: Tri-Loop HART command [1,2,2,1,2]. Make sure that

the same units are used as for the 3300 transmitter.

c. Set the Upper Range Value and the Lower Range Value: Tri-Loop

HART command [1,2,2,1,3-4].

d. Enable the channel. Tri-Loop HART command [1,2,2,1,5].

9. (Optional) Repeat steps a-d for Channels 2 and 3.

10. Connect wires to Tri-Loop Burst Input.

11. Enter the desired tag, descriptor and message information:
Tri-Loop HART command [1,2,3].

12. (Optional) If necessary, perform an analog output trim for Channel 1 (and
Channel 2 and 3 if they are used).
Tri-Loop HART command [1,1,4].

Figure 4-19. Tri-Loop wiring.

DIN Rail Mounted
HART Tri-Loop

Each Tri-Loop

QV

Channel
recieves power

TV

from Control
Room

SV

Channel 1 must
be powered for
the Tri-Loop to
operate

Device recieves
power from

PV

HART Burst Command 3/
Analog Output

Intrinsically Safe Barrier

Control Room

WIRING TRILOOP333

Control Room

See the reference manual for the Model 333 HART Tri-Loop HART-to-Analog
Signal Converter for further information on how to install and configure the

Tri-Loop.

4-25

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

To turn off the Burst Mode

In order to turn off the Burst Mode use one of the following options:

• The RCT program (requires that the Receive and Transfer Buffers for
the selected COM Port is adjusted)

• The Rosemount Burst Mode Switch software

• A HART 275 Communicator

• The AMS software

To set the COM port buffers

In order to be able to communicate with the 3300 in Burst Mode the Receive
and Transfer Buffers need to be adjusted as follows:

1. In the MS Windows Control Panel open the System option.

2. Choose the Hardware tab and click the Device Manager button.

3. Expand the Ports node in the tree view.

4. Click the right mouse button on the selected COM port and choose

Properties.

5. Select the Port Settings tab and click the Advanced button.

6. Drag the Receive Buffer and Transfer Buffer slides to 1.

7. Click the OK button.

8. Reboot the computer.

4-26

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Section 5 Operating the Display Panel

Display Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5-1

Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5-2

DISPLAY FUNCTIONALITY

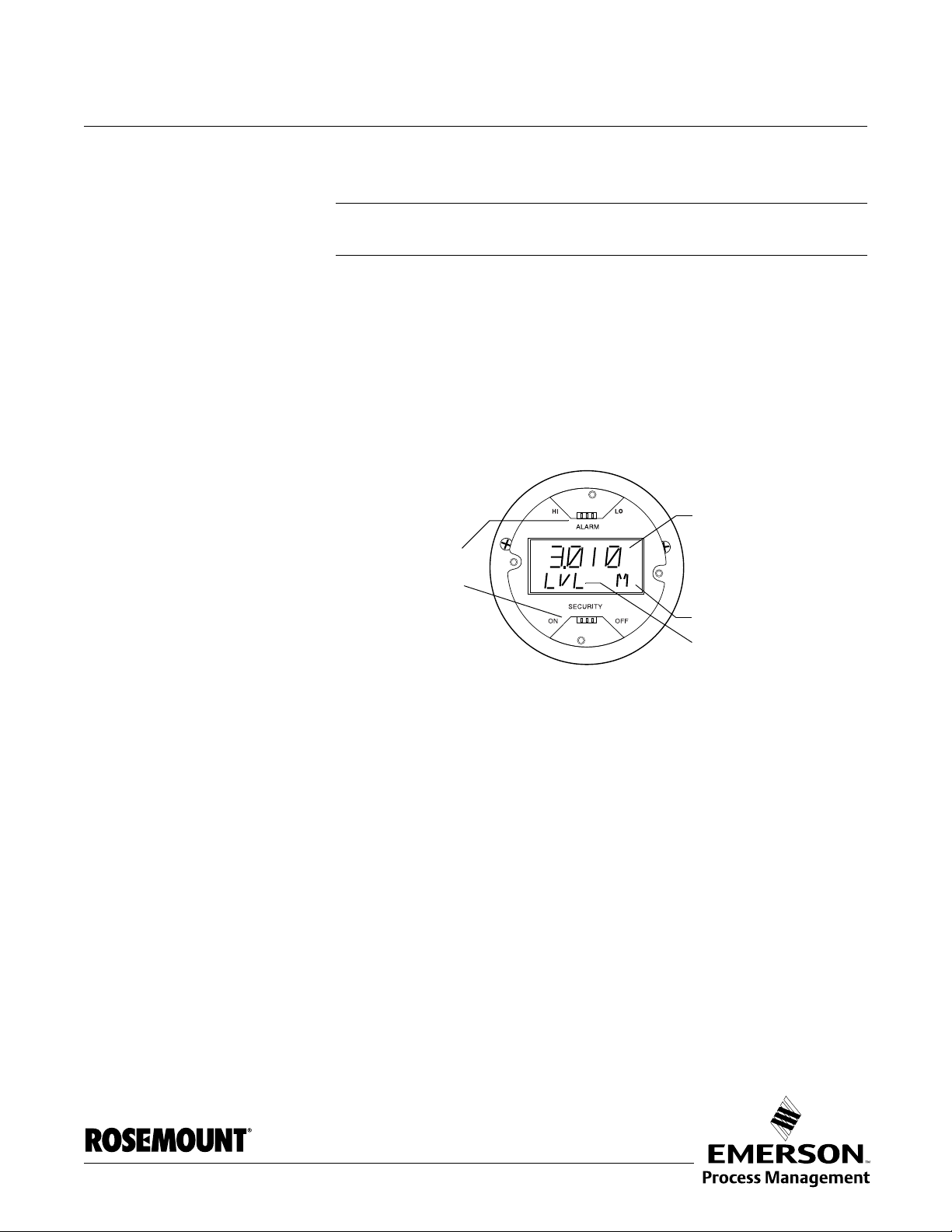

Figure 5-1. Presentation of
measurement data

The 3300 transmitter uses the display for presentation of measurement
variables. The display has two rows, the upper row with five characters is for
the measured value and the lower row with six characters for the value name
and measurement unit. The display toggles between the different variables
every 2 seconds. Variables to be presented are configurable by using a HART
275 Communicator or by using the Radar Configuration Tools software.

Measurement value

Jumpers for Alarm
and Write
Protection settings

Measurement unit

Measurement variable

DISPLAY1

Model 3300 can display the following variables:

•Level

• Distance

•Volume

• Internal Temperature

• Interface Distance

• Interface Level

• Amplitude 1, 2 and 3 (see chapter 6 for more information)

• Interface Thickness

• Percent of range

• Analog current out

www.rosemount.com

Reference Manual

00809-0100-4811, Rev AB

Rosemount 3300 Series

July 2003

ERROR MESSAGES The display can alos be used for presentation of software errors. The upper

row shows error codes and the lower row shows 'ERROR'.

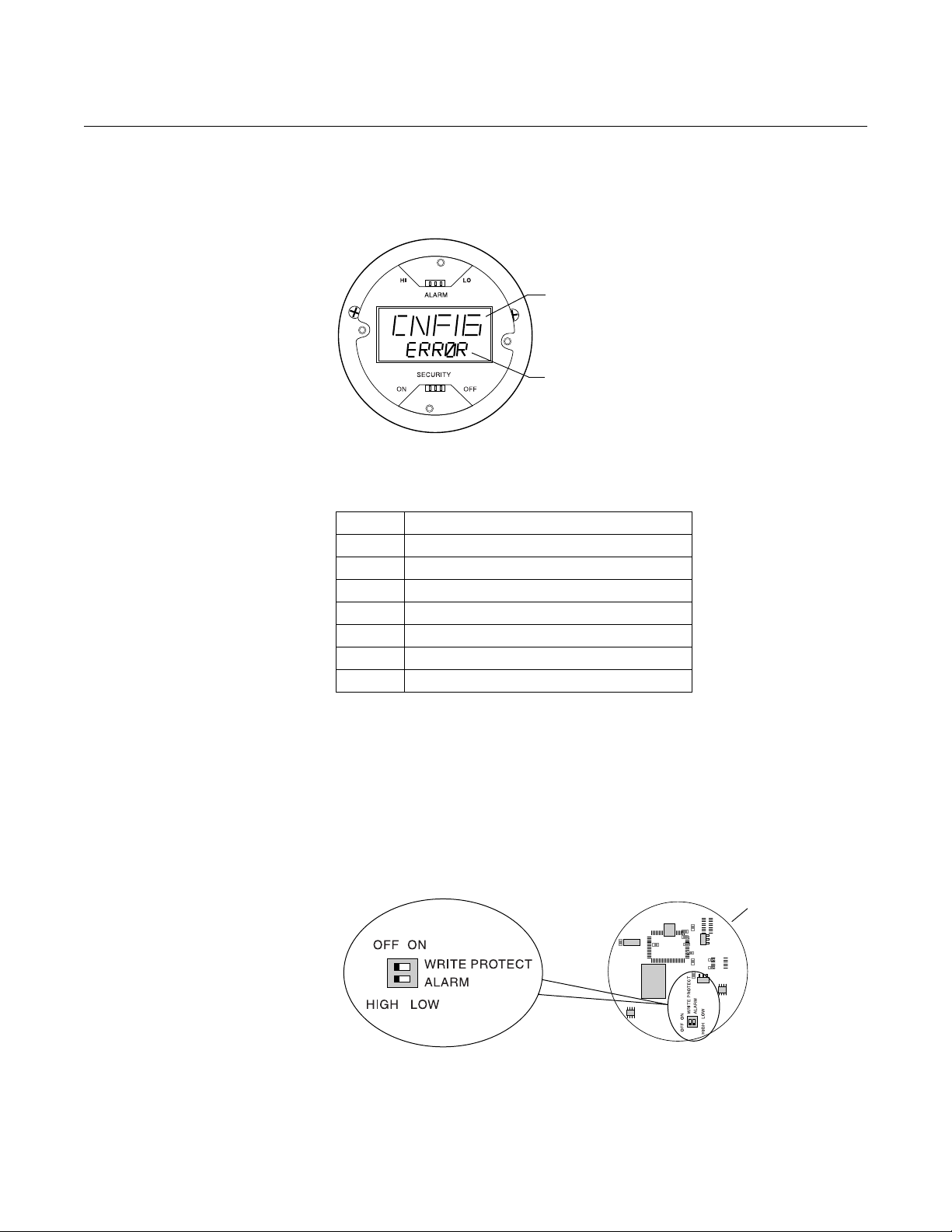

Figure 5-2. Presentation of error
messages

Error code

“ERROR”

The following errors can be displayed:

DISPLAY ERROR

ALARM AND WRITE PROTECTION

Figure 5-3. Alarm and Write
Protection switches.

Code Error

CNFIG Invalid Configuration

00001 Ram Failure

00002 ROM Checksum

00006 Waveform Acquisition Failure

00007 EEprom Factory Checksum

00010 Software Error

00013 Probe Failure

See also “Errors.” on page 6-20.

When mounting the Integral Display panel it is important that the Alarm and
Write Protection switches on the transmitter mother board are correctly set.
Make sure that the Alarm switch is in the HIGH position and the Write
Protection switch is in the OFF position, see Figure 5-3. See also Section 3:
Before You Install for more information.

Motherboard

5-2

SWITCH_WRP_ALARM_DISPLAY

Once the mother board positions are set, then the display positions become
the master.

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Section 6 Service and Troubleshooting

Safety messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 6-1

Advanced Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . page 6-2

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 6-9

Diagnostic Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 6-20

SAFETY MESSAGES Procedures and instructions in this section may require special precautions to

ensure the safety of the personnel performing the operations. Information that
raises potential safety issues is indicated by a warning symbol ( ). Please
refer to the following safety messages before performing an operation
preceded by this symbol

.

Explosions could result in death or serious injury.

Verify that the operating environment of the gauge is consistent with the appropriate
hazardous locations certifications.

Before connecting a HART-based communicator in an explosive atmosphere, make
sure the instruments in the loop are installed in accordance with intrinsically safe or
non-incendive field wiring practices.

Do not remove the gauge cover in explosive atmospheres when the circuit is alive.

Failure to follow safe installation and servicing guidelines could result in death or
serious injury.

Make sure only qualified personnel perform the installation.

Use the equipment only as specified in this manual. Failure to do so may impair the
protection provided by the equipment.

Do not perform any service other than those contained in this manual unless you are
qualified.

High voltage that may be present on leads could cause electrical shock.

Avoid contact with leads and terminals.

Make sure the main power to the Rosemount 3300 Transmitter is off and the lines to any
other external power source are disconnected or not powered while wiring
the gauge.

Process leaks could result in death or serious injury.

Make sure that the transmitter is handled carefully. If the Process Seal is damaged, gas
might escape from the tank if the transmitter head is removed from the probe.

www.rosemount.com

Rosemount 3300 Series

Reference Manual

00809-0100-4811, Rev AB

July 2003

ADVANCED CONFIGURATION

User defined Upper Reference Point

Figure 6-1. Tank Geometry

Upper Reference Point

Reference Gauge
Height

This section covers non-standard configuration.

If you want to specify your own Upper Reference Point you can do this by
setting the Calibration Offset parameter.

Transmitter
Reference Point

Calibration
Offset

Product Level

To set the desired upper reference point do the following:

1. Adjust the Reference Gauge Height to the distance from the tank
bottom to the desired Upper Reference Point.

2. Add the the distance between the Upper Reference Point and the
Transmitter Reference Point to the Calibration Offset value that is
stored in the transmitter database.
With the HART Communicator the Calibration Offset is available as
HART Fast Key sequence [1, 3, 7].
In Radar Configuration Tool (RCT) the Calibration Offset is available
under the Advanced section in the RCT Project Bar:
Device Commands>Basic>Set Calibration Offset.

REFOPINT_USER_V2

6-2

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Plotting the measurement signal

Figure 6-2. Waveform plot in RCT

The Radar Configuration Tool (RCT) has powerful tools for advanced
troubleshooting. By using the Waveform Plot function you get an instant view
of the tank signal. Measurement problems can be solved by studying the
position and amplitude of the different pulses.

To plot the measurement signal:

1. Start the Radar Configuration Tool program.

2. Choose the View>Plotting menu option, or choose the Plotting icon in
the RCT workspace (Advanced page at the left side of the workspace)
and click the Read button.

Upper Null Zone

WAVEFORMPLOT_GENERAL

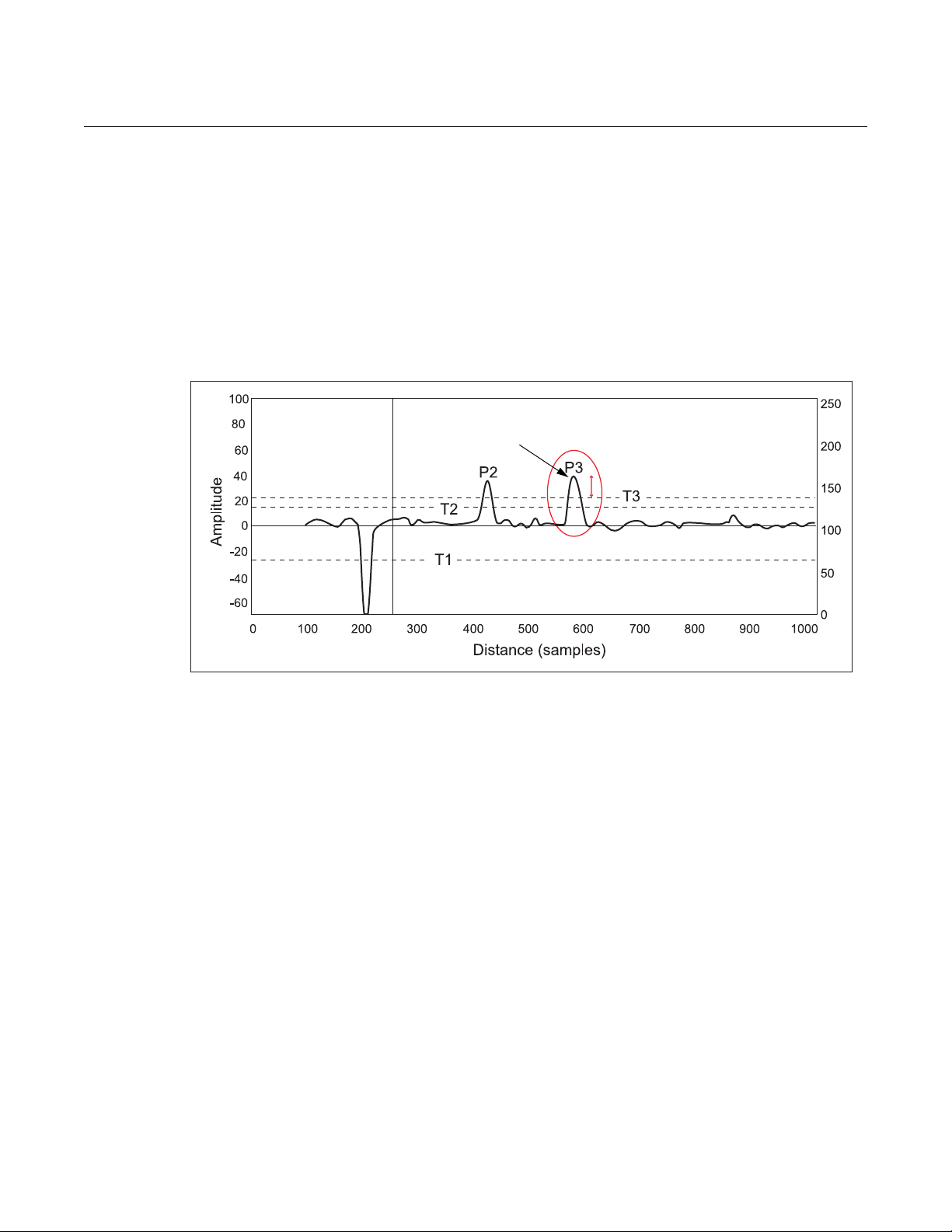

In a typical measurement situation the following pulses appear in the diagram:

P1 - Reference pulse. This pulse is caused by the transition between
transmitter head and probe. It is used by the transmitter as a reference at
level measurements.

P2 - Product surface. This pulse is caused by a reflection on the product
surface. In Measurement Mode=Interface when Immersed Probe however, P2
indicates the interface since the surface of the upper product is ignored.

P3 - Interface or probe end. This pulse is caused by reflection on the interface
between an upper product and a bottom product with a relatively high
dielectric constant. It may also be caused by the probe end if there is no
product above. This pulse is shown when the transmitter is in Measurement
Mode=Level & Interface.

Different amplitude thresholds are used in order to filter out unwanted signals.
The following amplitude thresholds are used for the 3300 transmitter:

T1 - amplitude threshold for detection of the Reference pulse P1.

T2 - amplitude threshold for detection of the product level peak P2.

T3 - amplitude threshold for detection of the interface level peak P3.

T4 - amplitude threshold that is used to detect whether the probe is fully

immersed in the upper product or not.

Normally the thresholds are adjusted to approximately 50% of the signal peak
amplitdue. To adjust the Amplitude Thresholds open the Advanced section
in the RCT Project Bar and choose Device Commands>Details>Set Nominal
Thresholds.

6-3

Rosemount 3300 Series

Logging and saving to disk

The Waveform plot can be automatically logged and saved to file by
specifying the read plot interval and the number of plots to log.

Figure 6-3. Disk logging
Waveform plot

Reference Manual

00809-0100-4811, Rev AB

July 2003

Read action type

Start monitoring

Start disk logging

Read plot interval

Number of plots

The Read Plot Interval entry field specifies the time interval between plots
that are saved to disk. For example, type 10 if you want the waveform plot to
be updated every ten minutes.

Number of plots to log specifies the maximum number of plot files that will
be stored. The default value is 100.

Click the Start Disk Logging button to start the log. Make sure that Read
Action type is set to Multiple Read. Otherwise RCT will only save one log file.
Choose a destination folder and enter a file name. For each new file the
corresponding number is appended to the end of the file name.

6-4

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Interface Measurements for Semi-Transparent Bottom Products

In interface applications where the bottom product has a low dielectric
constant, or if the signal is attenuated in the upper product, the amplitude of
the reflected signal is relatively low and difficult for the transmitter to detect. In
such a case it may be possible to detect the reflected signal if the
corresponding amplitude threshold is adjusted.

The Radar Configuration Tool (RCT) lets you view a waveform plot to analyze
the measurement signal. The plot shows the signal and the thresholds used
for the different amplitude peaks. By adjusting amplitude threshold T3 it is
possible to detect even weak interface signals.

Guidelines for amplitude threshold settings:

• The amplitude threshold T3 should be approximately 50 % of the
interface signal amplitude.

• Threshold T3 should not be less than 3.

• If possible, T3 should be higher than T2.

You can use the RCT software or a HART 275 Communicator to change the
amplitude thresholds. For the HART Communicator use the HART command
[1, 4, 6, 2]. See also “Amplitude Threshold Settings” on page 6-14.

RCT lets you view a plot of the measurement signal along with the current
thresholds:

1. From the View menu choose the Plotting option, or double-click the

Plotting icon in the Advanced section of the RCT Project Bar.

2. Click the Read button .

3. To adjust the Amplitude Thresholds open the Advanced section in the

RCT Project Bar and choose Device Commands>Details>Set Nominal
Thresholds.

Figure 6-4. Waveform plot
indicating that the amplitude
threshold for the interface peak
is too high.

WAVEFORMPLOT INTERFACE LOW EPSILON

The amplitude threshold is above
the measurement signal peak

6-5

Rosemount 3300 Series

Figure 6-4 illustrates a situation where amplitude threshold T3 is too high. The
signal amplitude peak at the interface between the upper and lower products
is not detected in this case. By adjusting amplitude threshold T3, the peak at
the interface between the upper and lower products is detected as illustrated
in Figure 6-5:

Figure 6-5. After changing the
amplitude threshold the
transmitter detects the interface

Reference Manual

00809-0100-4811, Rev AB

July 2003

The amplitude threshold is
adjusted below the peak to allow
the interface peak to be detected

WAVEFORMPLOT INTERFACE LOW EPSILON AFTER

6-6

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

High Level Rates The measurement signal is filtered in order to minimize the influence of

disturbing noise. In most measurement situations this has no noticeable effect
on the response time to level changes. If high level rates occur it may
however be necessary to reduce the damping value in order to allow the
transmitter to respond quicker. If there is too much noise the damping value
may be increased in order to get a stable measurement signal.

You can use the RCT software or a HART 275 Communicator to change the
Damping value. For the HART Communicator use the key sequence
[1, 4, 4, 4].

In the RCT software open the Setup>Output tab and enter the desired
Damping value:

Output tab

Damping

SETUP_OUTPUT

The Damping parameter determines how quickly the transmitter responds to
level changes and how robust the measurement signal is against noise.
Technically, a damping value of 10 means that in 10 seconds the output from
the transmitter is about 63% of the new level value. Consequently, when there
are rapid level changes in the tank, it may be necessary to decrease the
Damping value for the transmitter to be able to track the surface. On the other
hand, in noisy environments, and if level rates are low, it may be better to
increase the damping value to have a stable output signal.

6-7

Rosemount 3300 Series

Reference Manual

00809-0100-4811, Rev AB

July 2003

Interface measurements with fully immersed probes

The 3300 series has a measurement option which makes it possible to handle
interface measurements when the product level is not visible, for example in a
full bridle pipe as illustrated in Figure 6-6. In this case the probe is fully
immersed into the upper product, and only the interface level is detected by
the transmitter. Even if the upper product level drops, it is ignored by the
transmitter which continues to measure only the interface level, but the
measurement accuracy is reduced since the transmitter does not take into
account the influence of the air gap above the product surface.

The Measurement Mode parameter is available via the
HART command [1, 3, 9]. Choose the Interface when Immersed Probe option.

Measurement mode Interface when Immersed Probe can also be activated in
the RCT software:

1. Open the Setup window.

2. Select the Tank Config tab.

3. Choose Measurement Mode Interface when Immersed Probe.

4. Click the Send Page button.

NOTE!

Do not use Measurement Mode Interface when Immersed Probe in “standard”
applications when both Interface Level and Product Level are measured.

If the product level drops, the air filled region in the upper part of the pipe will
slightly reduce the measurement accuracy of the interface level. To achieve
high accuracy in this measuement mode the probe must be fully immersed.

Figure 6-6. Interface Level
measurements in a full bridle
pipe.

Product Level
is ignored

Interface Distance

Interface Level is
measured

Interface Level

BRIDLE_INTERFACE/BRIDLE_INTERFACE_LEVEL

NOTE!

Adjust Threshold T2 if the level pulse is not detected.

6-8

Reference Manual

00809-0100-4811, Rev AB
July 2003

SERVICE

Rosemount 3300 Series

Analog Output calibration

To calibrate the Analog Output current do the following:

1. Start RCT and make sure that the transmitter communicates with the PC
(see Section 4: Installing the RCT software).

2. Open the Advanced section in the RCT workspace Project Bar and click
the Device Commands icon,
or
choose the Device Commands option from the View menu.

3. Open the folder named Diag and double-click the Fixed Current Mode
option.

Advanced

Fixed Current
Mode

WORKSPACE_ADVANCED_FIXEDCURRENT

4. Set the output current to 4 mA.

5. Measure the output current.

6. Open the folder named Details.

7. Choose the Trim DAC Zero option and enter the measured output
current.

8. In the Diag folder double-click the Fixed Current Mode option and set the
output current to 20 mA.

9. Measure the output current.

10. In the Details folder double-click the Trim DAC Gain option and enter the
measured output current.

11. In the Diag folder double-click the Fixed Current Mode option and set the
output current to 0 mA in order to leave the Fixed Current mode.

6-9

Rosemount 3300 Series

Reference Manual

00809-0100-4811, Rev AB

July 2003

Level and Distance Calibration

When calibrating the transmitter it is important that the product surface is calm
and that the tank is not being filled or emptied.

A complete calibration is performed in two steps:

1. Calibrate the Distance measurement by adjusting the Calibration Offset
parameter.

2. Calibrate the Level measurement by adjusting the Reference Gauge
Height.

Distance calibration

1. Measure the actual distance between the Upper Reference Point and the
product surface.

2. Adjust the Calibration Offset so that the Distance measured by the
transmitter corresponds to the actual distance.
The Calibration Offset parameter is available via
HART command [1, 4, 6, 4],
or,
RCT: open the Advanced section in the Project Bar and choose Device
Commands>Basics>Set Calibration Offset.

Level calibration

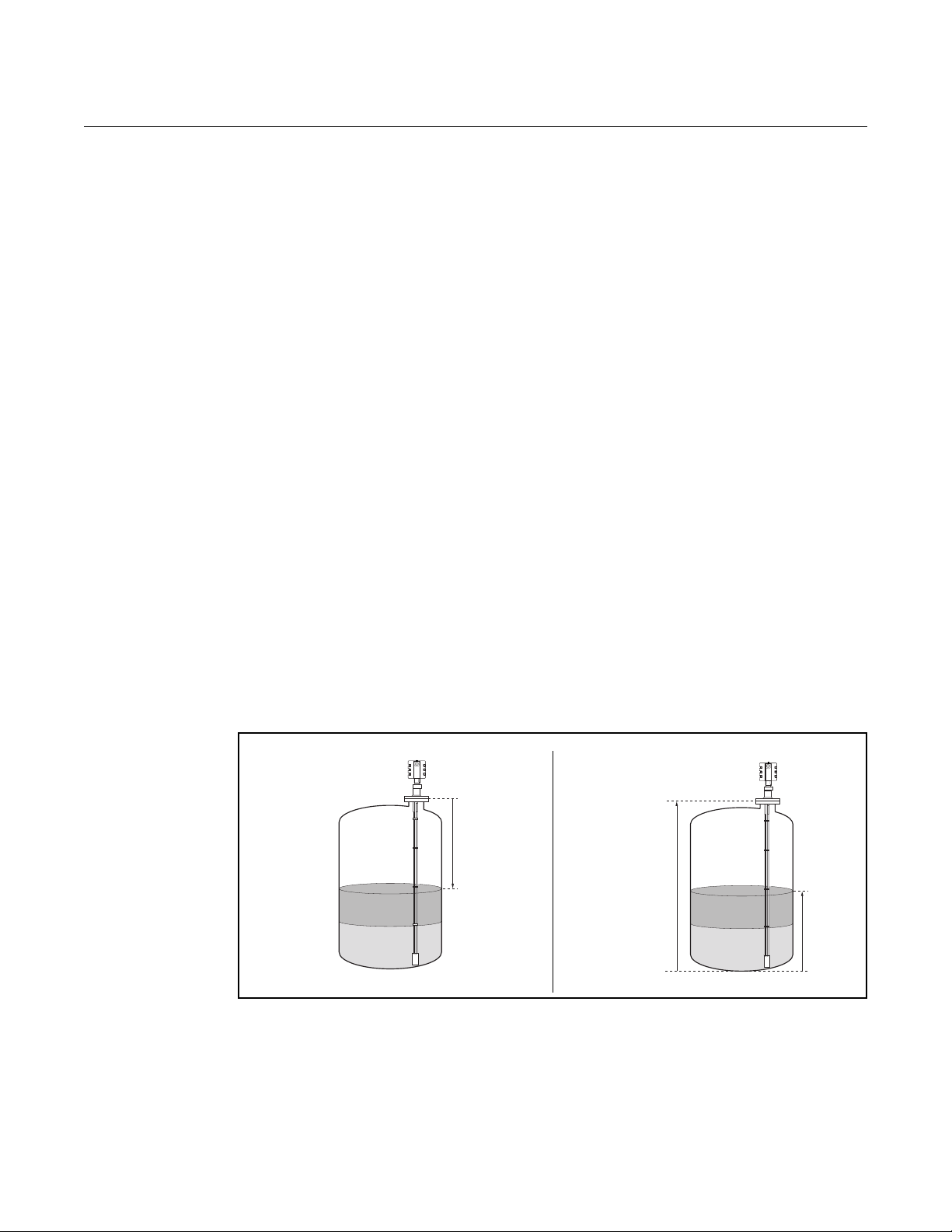

Figure 6-7. Distance and Level
calibration

1. Measure the actual Product Level.

2. Adjust the Reference Gauge Height so that the measured Product Level
corresponds with the actual level.

Reference Point

Distance

Reference Gauge
Height

CALIBRATE_DISTANCE

Reference Point

Level

CALIBRATE_LEVEL

6-10

Reference Manual

00809-0100-4811, Rev AB
July 2003

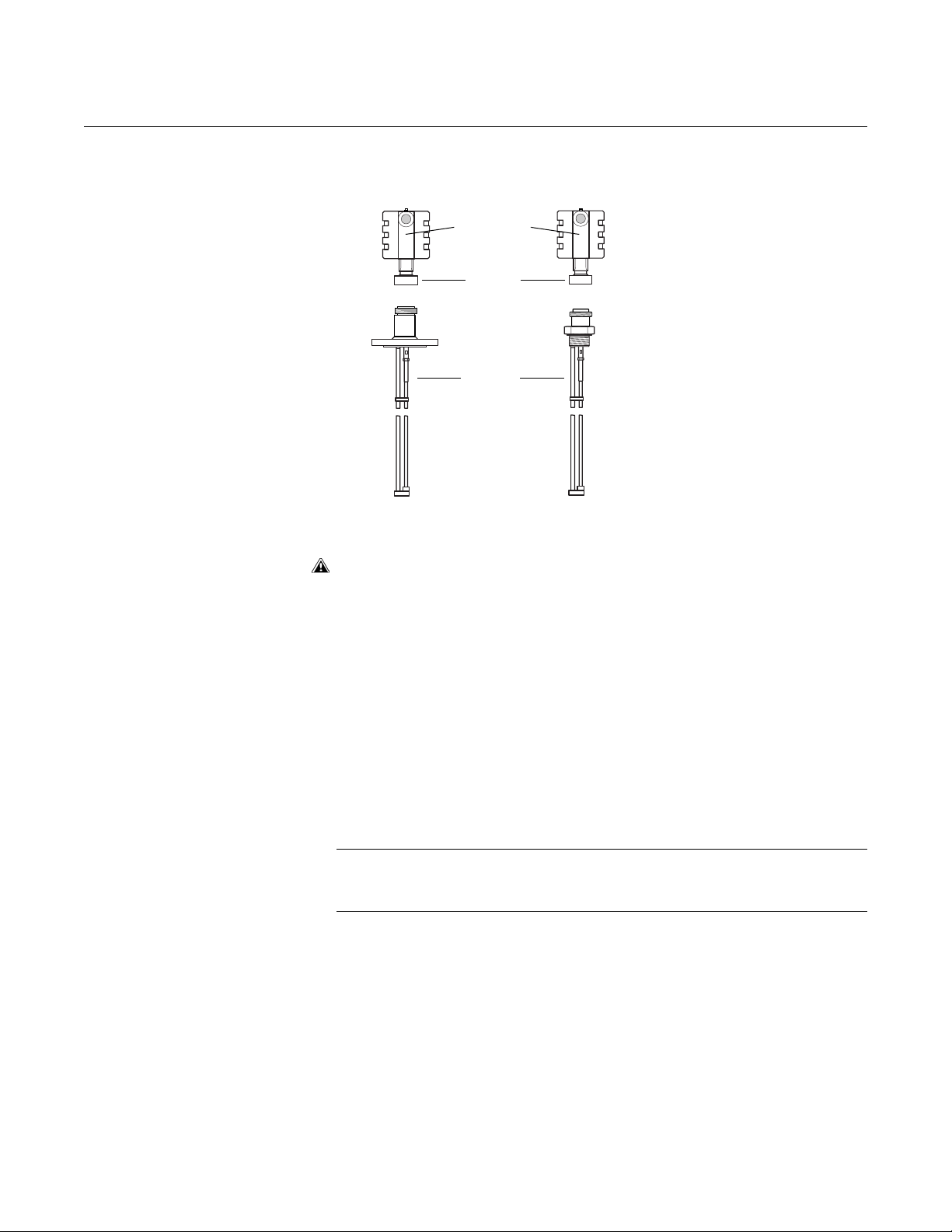

Changing the Probe

Transmitt er

head

Nut

e

b

o

r

P

Rosemount 3300 Series

PROBE CHANGE FL/PROBE CHANGE THREAD

1. Loosen the nut.

2. Remove the transmitter head from the old probe and mount the new
probe.

3. Fasten the nut again.

4. If the new probe is not of the same type as the old one, update the
transmitter configuration by setting the Probe Type parameter to the
appropriate value:
HART Fast Key sequence [1, 3, 6],
or
RCT Setup/Tank Config.

5. Measure the probe length and enter the measured value:
HART Fast Key sequence [1, 3, 5],
or
RCT Setup/Tank Config.

6. Verify that the transmitter is calibrated.

NOTE

Flexible and Rigid probes require different radar electronics and can not be
used with the same transmitter head.

6-11

Rosemount 3300 Series

Reference Manual

00809-0100-4811, Rev AB

July 2003

Disturbances at the Top of the Tank

Using the Trim Near Zone Function

For transmitters using the Guided Wave Radar technology the performance In
the Near Zone (referred to as the region between 0-1.6 ft (0-0.5 m) below the
Upper Reference Point) is normally somewhat limited. However, the 3300
transmitter is equipped with software functionality that minimizes the Upper
Dead Zone. The factory setting is normally sufficient and doesn’t need to be
repeated after installation.

However, since the setting is optimized depending on actual installation,
further trimming may be necessary in the case of unfavourable conditions.
This may for example be the case if a Single Lead probe is mounted in a
small nozzle, or if there are disturbing obstacles in the Near Zone. The
trimming means that the measurement performance in the Near Zone is
maintained even under these conditions and prevents false echo indication.

To trim the Near Zone perfomance do the following:

1. Make sure that the product level is below the Near Zone region
(0-1.6 ft (0-0.5 m) below the Upper Reference Point).

2. Start the Radar Configuration Tools (RCT).

3. Choose the Device Commands option from the View menu.

4. Open the Details folder.

5. Click the Trim Near Zone option.

6. Select the Update option and click the OK button.

To reset the transmitter to factory settings do the following:

1. Start the Radar Configuration Tools (RCT).

2. Choose the Device Commands option from the View menu.

3. Open the Details folder.

4. Click the Trim Near Zone option.

5. Select the Reset to Factory Settings option and click the OK button.

Changing the Upper Null Zone

If there are measurement problems in the upper part of the tank you may use
the Trim Near Zone function as described above.

However, if the desired measurement range is below the Near Zone, or if
disturbing objects are located below the Near Zone, the Upper Null Zone
parameter can be used to avoid measurements above a specific level.

To set the Upper Null Zone do one of the following:

1. Select the HART command [1, 4, 4, 5].

2. Enter the desired value,

or

1. Start the Radar Configuration Tool (RCT).

2. Click the Setup icon in the RCT workspace Project Bar.

6-12

Reference Manual

00809-0100-4811, Rev AB
July 2003

Figure 6-8. Upper Null Zone

Rosemount 3300 Series

3. Choose the Tank Config tab in the Setup window.

4. Click the Receive Page button.

5. Type the desired value in the Upper Null Zone field.

6. Click the Send Page button. Now the Upper Null Zone is stored in the
transmitter memory.

Figure 6-9. Identifying the Upper
Null Zone in the RCT Waveform
Plot

Upper Reference Point

Upper Null
Zone

Reference Gauge Height

Product Level

UPPERNULLZONE

Upper Null Zone

Disturbance

6-13

WAVEFORMPLOT_UNZ

Rosemount 3300 Series

Reference Manual

00809-0100-4811, Rev AB

July 2003

Amplitude Threshold Settings

Figure 6-10. Example 1:
amplitude threshold T2 is too
high.

The amplitude thresholds are automatically adjusted to appropriate values in
order to filter out noise and other non-valid measurements from the
measurement signal.

The amplitude of the measurement signal, i.e. the amplitude of the signal that
is reflected by the product surface, is related to the actual dielectric constant
of the product. The amplitude threshold that is used by the transmitter is
based on the parameter configuration of the current product dielectric
constant (see Section 4: Basic Configuration). Normally no other threshold
adjustment is needed, but if the transmitter still does not track the product
surface correctly it may be necessary to adjust the threshold values.

The Radar Configuration Tool (RCT) has a plot function allowing you to view
the reflections along the probe.

If the amplitude threshold is too high the product level is not detected as
illustrated in Figure 6-10.

100

80

60

40

20

0

Amplitude

-20

-40

-60

0 100 200 300 400 500 600

T1

T2 is above the
Level peak

P1

T3

T2

Distance (samples)

250

200

150

100

50

0

Figure 6-11. Example 2:
amplitude threshold T2 is too
low.

WAVEFORMPLOT THRESHOLD HIGH

If there are disturbing objects in the tank the threshold must be carefully set in
order to avoid locking on the wrong amplitude peak. In Figure 6-11 the
transmitter has locked on a peak above the actual product surface, i.e. a
disturbance was interpreted as the product surface, whereas the actual
product surface was interpreted as an interface or the probe end.

100

80

Disturbing echo

60

misinterpreted as

40

product surface

20

0

Amplitude

-20

-40

-60

0 100 200 300 400 500 600

T1

P2

P1

Distance (samples)

Actual surface

P3

T3

T2

250

200

150

100

50

0

WAVEFORMPLOT THRESHOLD LOW

6-14

Reference Manual

00809-0100-4811, Rev AB
July 2003

Figure 6-12. Waveform plot after
threshold T2 was adjusted

Rosemount 3300 Series

By adjusting the amplitude threshold T2 the product surface is detected
correctly as illustrated in Figure 6-12.

100

80

60

40

20

0

Amplitude

-20

-40

-60

0 100 200 300 400 500 600

T3

T1

P1

After T2 is adjusted the product

P2

surface is correctly detected

Distance (samples)

T2

250

200

150

100

50

0

WAVEFORMPLOT THRESHOLD ADJUSTED

To adjust the amplitude thresholds select HART command [1, 4, 6, 2]

or

1. Start the Radar Configuration Tool (RCT).

2. Choose the Device Commands option from the View menu.

3. Open the Details folder.

4. Click the Set Nominal Thresholds option.

The thresholds T2 and T3 should be set to about 50% of the measured signal
amplitude for the product surface and the interface peaks, respectively.

NOTE

Amplitude thresholds should not be set to values less than 3.

NOTE

Check that the dielectric constant parameter setting is reasonably close to the
actual dielectric constant value of the upper product before changing the
amplitude thresholds.

NOTE

Default Amplitude thresholds can be set by typing 0 as the new threshold
value.

6-15

Rosemount 3300 Series

Reference Manual

00809-0100-4811, Rev AB

July 2003

Logging measurement data

To start logging do the following:

1. Click the Monitor icon in the RCT workspace or choose the Monitor
option from the View menu.

RCT-MONITOR

Start monitoring CounterLog interval

Start disk logging

2. Choose the desired variables to be monitored and click the Start Monitor

button.

Saving the log to disk

1. Choose the desired variables to be monitored.

2. Click the Log interval button and enter a time interval. For example,
type 10 if you want data to be logged every tenth second.

3. Click the Counter button and enter the maximum number of files to be
stored. The Counter is used to limit the amount of data stored on the
hard disk. Each time the maximum number of entries in a log file is
reached, the current log file is saved and a new file is created. This
procedure continues up to the maximum number of files given by the
Counter value. The file size is limited to 60000 entries which can easily
be handled by spreadsheet programs like MS Excel.

4. Select the desired options for Timer, Time and Date. By selecting a
check box the corresponding time indication is stored for each log entry
in the log file.

5. Click the Start disk logging button.

6-16

6. Choose a destination folder and enter a file name.

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Saving the Transmitter Configuration

Save Setup

The Radar Configuration Tool offers different methods to save the current
transmitter configuration:

• Save only the configuration specified in the Setup window.

• Use the more extensive function in the Memory Map window.

You can use a stored configuration file as a backup of the current
configuration, or it can be distributed for service purposes.

To save the current transmitter setup do the following:

1. Click the Setup icon in the RCT workspace or choose the Setup option
from the View menu to open the Setup window.

File name

RCT-SETUP_BASICS_SAVESETUP

2. Click the right mouse button and choose the Receive All option,
or
from the Setup menu choose the Receive All option.
Alternatively, you can use the Receive Page option on each individual
page.

NOTE!

All pages must be received before the setup can be saved.

3. Click the right mouse button and choose the Save Setup option.

RCT-SAVESETUPFILE

6-17

Rosemount 3300 Series

4. Choose a destination folder and enter a file name.

5. Click the Save button.

To load a setup

1. Click the Setup icon in the RCT workspace or choose the Setup option
from the File menu.

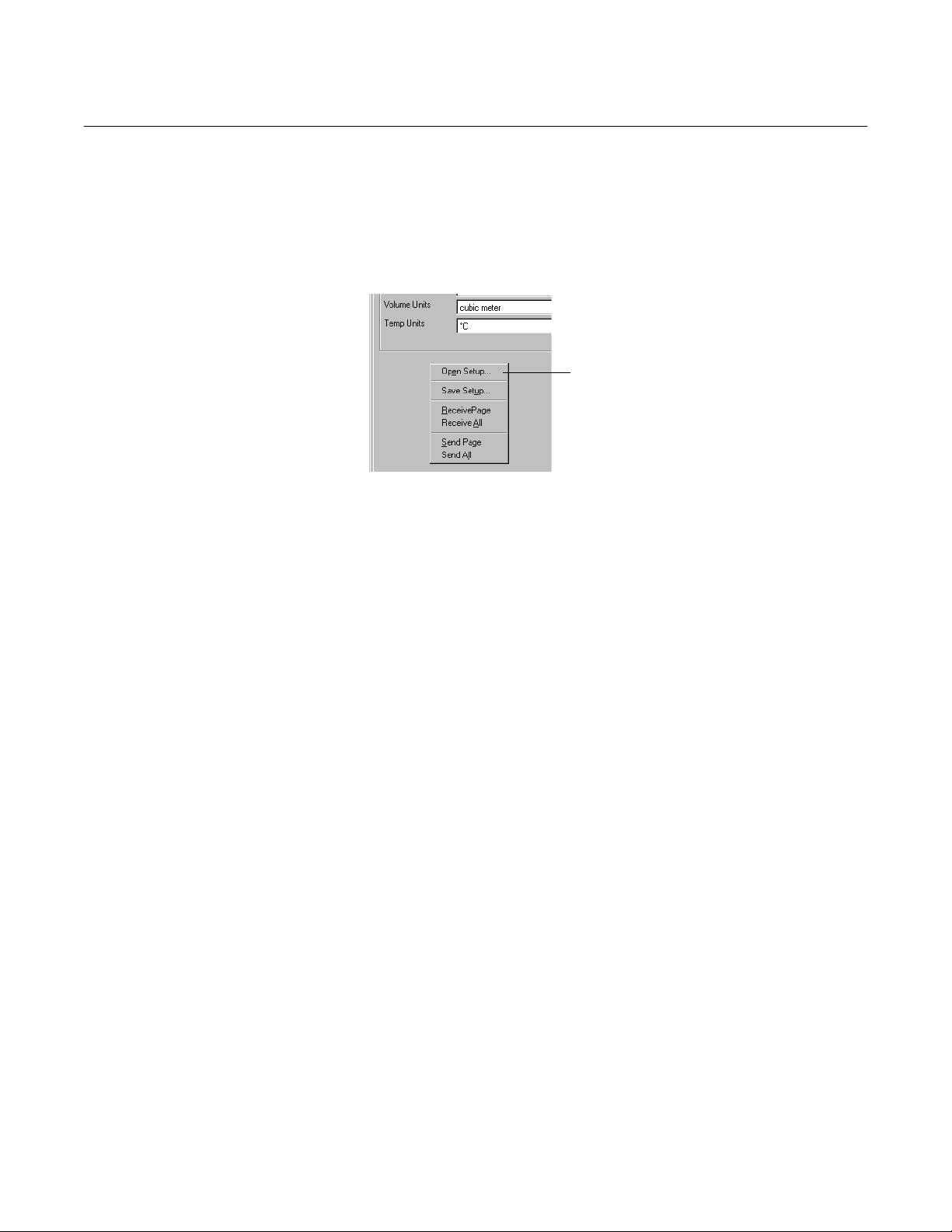

2. In the Setup window click the right mouse button and choose the Open
Setup option, or
from the File menu choose the Open Setup option.

3. Open the source folder and select the desired setup file.

4. Click the Open button.

Reference Manual

00809-0100-4811, Rev AB

July 2003

Open Setup

RCT-SETUP_BASICS_SAVESETUP

Memory Map

The Memory Map window lets you view the current transmitter database
registers. It is also possible to save the current database for backup or service
purposes, and it is also possible to download a backup database to the
transmitter. To save configuration data in the Memory Map window:

1. Start the RCT program.

2. Choose the View>Memory option, or click the Memory Map icon in the
RCT workspace (Advanced section at the left side of the workspace
window).

3. Choose the All EE option from the drop-down list.

4. Click the Receive button. (It may take a few minutes to read the
database).

5. Click the right mouse button and choose the Save Memory As option.

6. Type the desired file name and click the OK button. Now the current
database is stored.

See the Online Help in RCT for further information on how to open a saved
database and how to download a database to the transmitter.

6-18

Reference Manual

00809-0100-4811, Rev AB
July 2003

Removing the Transmitter Head

Rosemount 3300 Series

FLANGE VERSION

Put the protection
plug here!

TRANSMITTER HOUSING REMOVE

THREADED VERSION

Put the protection
plug here!

Nut

Process Seal

Nut

Process Seal

1. Losen the nut that connects the
transmitter housing to the Process Seal.

2. Carefully lift the transmitter head.

3. Attach the protection plug to the Process
Seal.

NOTE

Do not remove the Process Seal from the
adapter!

TRANSMITTER HOUSING THREAD REMOVE

Adapter

6-19

Reference Manual

00809-0100-4811, Rev AB

Rosemount 3300 Series

July 2003

DIAGNOSTIC MESSAGES

Troubleshooting If there is a malfunction despite the absence of diagnostic messages, see

Table 6-1 for information on possible causes.

Table 6-1. Troubleshooting
chart

Symptom Possible cause Action

No HART communication.

Analog Out is set in Alarm. Use the command “Read Gauge Status”

Both P2 and P3 are detected but Interface
Level is reported as Not A Number (NAN)
in the waveform plot.

Both Level and Interface Level are
reported as NAN.

Both P2 and P3 are detected but the
interface level is equal to the product
Level.

P2 is detected but Level is incorrectly
reported as Full or Empty.

The reference pulse is not detected.

Level accuracy seems off.

Integral display does not work.

• COM Port configuration does not match
the connected COM Port.

• Cables may be disconnected.

• Wrong HART adderss is used.

• Hardwafe failure.

Measurement Mode is set to “Level Only”. Set Measurement Mode to “Level and

Probe is not connected. Use the command “Read Gauge Status”

• P3 is identified as a double bounce.

• P2 and P3 are very close.

• The tank is full.

• The transmitter is configured with
wrong probe type.

• Amplitude Threshold T1 is not correct.

• Configuration error. • Check the Reference Gauge Height

• Check that correct COM Port is
selected in the HART server (see
“Specifying the COM Port” on
page 4-14.

• Check wiring diagram.

• Verify that the 250 Ohm resistor is in
the loop.

• Check cables.

• Make sure that correct HART short
address is used. Try address=0.

• Check Analog Output current value to
verify that transmitter hardware works.

in order to check active errors.

Interface” (see “Basic Configuration” on
page 4-9).

and check if error “Probe Failure” is
active. If this is the case, check the probe
connection.

Adjust thresholds T2 and T3, see
“Amplitude Threshold Settings” on
page 6-14 for more information.

Use the command “Read Gauge Status”
and check if the warning “Probe
Immersed” is active. If this is the case
check that:

• the transmitter is configured with
correct probe type,

• the reference pulse (P1) is below
amplitude threshold T4. If not, adjust
T4 to an appropriate value.

• Check the product level.

• Check that correct probe type is
configured.

• Check Amplitude Threshold T1.

parameter.

• Check status information and
diagnostic information.

• Check the display configuration.

• Check loop power.

• Check Display connection.

6-20

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Errors. Table 6-2 is a list of diagnostic messages that may be displayed on the

Integral Display, on the Model 275 HART Communicator, in AMS or by the
Radar Configuration Tools (RCT) software. Errors normally result in Analog
Output alarm.

Errors are indicated in RCT by the message “Transmitter malfunction”:

Error indication

To see the error message do one of the following:

• Click the Read Gauge Status icon in the toolbar at the top of the
RCT workspace.

• 1. Open the Advanced section in the RCT workspace Project Bar and
click the Device Commands icon,
or
choose the Device Commands option from the View menu.

2. Open the folder named Diag and double-click the Read Gauge
Status option.

TRANSMITTERMALFUNCTION

Table 6-2. Error messages.

Message Description Action

Invalid configuration. At least one configuration parameter

RAM failure was
detected during
startup test.

FPROM failure was
detected during
startup test.

Waveform acquisition
failure.

EEPROM factory
checksum.

EEprom user
checksum error.

Software error. Contact Rosemount service

Probe failure. Probe is not detected. Check that the probe is correctly

is outside allowed range.
NOTE: the default values are used
until the problem is solved.

The transmitter performs an
immediate reset.

The transmitter performs an
immediate reset.

This error is probably caused by
hardware failure.

Checksum error in the factory
configuration parameters. Can be
caused by power failure during
configuration or by hardware error.
NOTE: the default values are used
until the problem is solved.

Caused by error in the User
Configuration parameters. Can be
caused by power failure during
configuration or by hardware error.
NOTE: the default values are used
until the problem is solved

• Load default database and restart
the transmitter.

• Contact Saab Rosemount service
department if the problem persists.

Contact Rosemount service
department.

Contact Rosemount service
department.

Contact Rosemount service
department.

Contact Rosemount service
department.

• Load default database and restart
the transmitter.

• Contact Saab Rosemount service
department if the problem persists.

department.

mounted.

6-21

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Warnings. Table 6-3 is a list of diagnostic messages that may be displayed on the

Integral Display, on the Model 275 HART Communicator or by the Radar
Configuration Tools (RCT) software. Warnings are less serious than errors
and in most cases do not result in Analog Output alarms.

Warnings are indicated by a message at the bottom of the RCT workspace. To
see the warning message do one of the following:

• Click the Read Gauge Status icon in the toolbar at the top of the
RCT workspace.

• 1. Open the Advanced section in the RCT workspace Project Bar and
click the Device Commands icon,
or
choose the Device Commands option from the View menu.

2. Open the folder named Diag and double-click the Read Gauge
Status option.

Table 6-3. Warning messages.

Message Description Action

Reference pulse not
found.

No level pulse is
found.

Interface pulse not
found.

Possible cause:

• Reference pulse immersed in
high dielectric liquid.

• Wrong threshold level T1.

• Hardware error.

Possible cause:

• Wrong threshold level T2.

• Liquid level in Dead Zone or
below probe end.

Possible cause:

• Wrong threshold level T3.

• Interface level too close to the
upper product level.

• No level pulse detected.

• View the waveform plot and check
amplitude threshold T1.

• Check that the tank is not overfull.

• View the waveform plot and
check amplitude threshold T2.

• View the waveform plot and
check amplitude threshold T3.

Internal temperature
out of range.

Volume computation
warning.

Immersed probe.

-40 ºC<Internal Temperature<85 ºC. Contact Rosemount service
department.

• Volume configuration error.

• Strapping table error.

• Wrong threshold level T4.

• Reference pulse immersed in
liquid.

• Check that correct tank type is
selected for volume configuration.

• Check that tank dimensions for
volume are correct.

• If strapping table is used, check the
level vs. volume points.

• View the waveform plot and check
amplitude threshold T4.

6-22

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Appendix A Reference Data

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page A-1

Dimensional drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . page A-4

Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page A-9

Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page A-13

SPECIFICATIONS

General

Product Rosemount Series 3300 Guided Wave Radar Level and Interface

Measurement principle Time Domain Reflectometry (TDR).
Reference Conditions Twin Lead probe, 77 °F (25 °C) water
Microwave Output Power Nominal 50 µW, Max. 2 mW.
CE-mark Complies with applicable directives (R&TTE, EMC, ATEX)
Upstart time < 10 s

Display / Configuration

Integral Display The integral display toggles between the following variables: level,

Output Units For Level, Interface and Distance: ft, inch, m, cm or mm.

Output Variables Model 3301: Level, Distance (to product surface) and Volume. With fully

HART device for remote confifguration Rosemount hand-held communicator Model 275.
PC for remote configuration Radar Configuration Tools software package.

Electric

Power supply Loop-powered (2-wire), 11 - 42 VDC (11 -30 VDC in IS applications, 16-42

Output Analog 4 - 20 mA, HART.
Signal on alarm Standard: Low=3.75 mA. High=21.75 mA.

Saturation levels Standard: Low=3.9 mA. High=20.8 mA.

IS parameters Ui = 30 V,li= 130 mA, Pi = 1 W, Li=0, Ci=0.
Cable entry ½ - 14 NPT for cable glands or conduit entries. Optional: M20 x 1.5

Output Cabling Twisted shielded pairs, 18-12 AWG..

Transmitter;
Model 3301 for Level (Interface available for fully immersed probe).
Model 3302 for Level and Interface.

distance, volume, internal temperature, interface distance, interface level,
peak amplitudes, interface thickness, percent of range, analog current
output.
Note! The Integral Display can not be used for configuration purposes.

For Volume: ft

immersed probe: Interface Level and Interface Distance.
Model 3302: Level, Distance (to product surface), Volume, Interface Level,
Interface Distance and Upper Product Thickness.

Rosemount AMS software.

VDC in Explosion Proof/Flame Proof applications).

Namur NE 43: Low=3.60 mA. High=22.50 mA.

Namur NE 43: Low=3.8 mA. High=20.5 mA.

conduit/cable adapter or PG 13.5 conduit/cable adapter.

3

, inch3, US gals, Imp gals, barrels, yd3, m3 or liters.

www.rosemount.com

Reference Manual

00809-0100-4811, Rev AB

Rosemount 3300 Series

Mechanical

Probes Coaxial: 1.3 ft (0.4 m) to 19.7 ft (6 m).

Rigid Twin Lead: 1ft 11 inch (0.6 m) to 9.8 ft (3 m).
Flexible Twin Lead: 3.3 ft (1 m) to 65.6 ft (20 m).
Rigid Single Lead: 1ft 11 inch (0.6 m) to 9.8 ft (3 m).
Flexible Single Lead: 3.3 ft (1 m) to 65.6 ft (20 m).
For further information see “Ordering Information” on page A-9.

Material exposed to tank atmosphere 316/316L SST (EN 1.4404), Teflon (PTFE, PFA) and O-ring materials (see

ordering information).
Dimensions See “Dimensional drawings” on page A-4.
Probe angle 0 to 90 degrees from vertical axis.
Housing / Enclosure Polyurethane-covered Aluminium.
Flanges, Threads See “Ordering Information” on page A-9.
Height above flange See “Dimensional drawings” on page A-4.
Tensile strength Flexible Single Lead probe, Ø=0.16 in. (4 mm): 2698 lb (12 kN).

Flexible Twin Lead probe: 2023 lb (9 kN).
Collapse load Flexible Single Lead probe, Ø=0.16 in. (4 mm): 3597 lb (16 kN).
Sideway capacity Coaxial probe: 73.7 ft lbf, 3.7 lb at 19.7 ft (100 Nm, 1.67 kg at 6 m).

Rigid Twin Lead: 2.2 ft lbf, 0.22 lb at 9.8 ft (3 Nm, 0.1 kg at 3 m).

Rigid Single Lead: 4.4 ft lbf, 0.44 lb at 9.8 ft (6 Nm, 0.2 kg at 3 m).

Environment

Ambient temperature -40 °F to +185 °F ( -40 °C to +85 °C), depends on approval (see App. B).

For the LCD display the temperature range is

-4 °F to +185 °F (-20 °C to +85 °C).
Storage temperature -40 °F to + 176 °F ( -40 °C to +80 °C).
Process temperature -40 °F to +302 °F ( -40 °C to +150 °C).
Process pressure Full vacuum to 580 psig ( -1 to 40 Bar).
Humidity 0 - 100 % relative humidity
Ingress protection NEMA 4X, IP 66.
Telecommunication (FCC and R&TTE) FCC part 15 (1998) subpart B and R&TTE (EU directive 97/23/EC).

Considered to be an unintensional radiator under the Part 15 rules.
Factory sealed Yes.
Vibration resistance DIN EN 60068-2-64, IEC 68-2-64, ANSI/ISA-571.03 SA1, VC2.
Electromagnetic compatibility Emission and Immunity: meets EN 61326-1 (1997) and amendment A1,

class A equipment intended for use in industrial locations if installed in

metallic vessels or still-pipes.

When rigid/flexible single and twin lead probes are installed in plastic or

wood silos influence of strong electromagnetic fields might affect

measurements.
Built-in Lightning Protection Meets EN 61000-4-4 Severity Level 4 and EN 61000-4-5 Severity Level 4.
Pressure Equipment Directive (PED) Complies with 97/23/EC article 3.3 (confirmed by DNV).
Ordinary Location FM 3810, Compliance.
Boiler Approval CSA B51-97 Compliance.

Measuring Performance

Reference accuracy ± 0.2 inch (5 mm) for probes ≤ 16.4 ft (5 m) and

± 0.1% of measured distance for probes >16.4 ft (5 m).
Repeatability ± 0.04 inch (1 mm).
Ambient Temperature Effect Less than 0.01 % of measured distance per °C.
Update interval 1 per second
Measuring range 4 inch (0.1 m) to 65 ft (20 m).

July 2003

A-2

Reference Manual

00809-0100-4811, Rev AB
July 2003

Rosemount 3300 Series

Process Temperature and Pressure Rating

Figure A-1. Process
temperature and pressure
diagramfor Rosemount 3300
Series.

The tank connection consists of tank seal, a welded flange (EN, ANSI, Fisher
or Masoneilan) or NPT or BSP/G threads (1 or 1.5 in. depending on probe
type, see ”Ordering Information”.).

Flange dimensions follows standard ANSI B 16.5 and EN 1092-1 type 05
(DIN 2527 type B) blind flanges if the transmitter is ordered with a flange.

Pressure psig (bar)

Final rating depends on flange
and o-ring selection.

Temperature °F (°C)

PRESSURE&TEMP

The following table gives the temperature ranges for tank seal with different
O-ring material.

Table A-1. Temperature range
for different tank seal material.

Bolting material Gasket Flange material Hub material

ANSI Stainless steel SA193

B8M C1.2

EN EN 1515-1/-2 group

13E0, A4-70.

Tank Seal with different
O-ring material

Viton 5 (-15) 302 (150)
Ethylene Propylene (EPDM) -40 (-40) 266 (130)
Kalrez 6375 14 (-10) 302 (150)
Buna-N -31 (-35) 230 (110)

Min. Temperature
°F (°C) in air

Max. Temperature
°F (°C) in air

Flange connection rating

Flange strength calculations are made with the following conditions:

Soft (1a) with min.
thickness 1.6 mm.

Soft (EN 1514-1) with
min. thickness 1.6 mm.

Stainless steel A182
Gr. F316L and
EN 10222-5-1.4404.

Stainless steel A479M
316L or
EN 10272-1.4404.

Calculations show that the following rating applies:

ANSI: according to ANSI B16.5 Table 2-2.3,
max. 302 °F/580 psig (150 °C/40 Bar).

EN: according to EN 1092-1 Table 18, material group 13E0,
max. 302 °F/580 psig (150 °C/40 Bar).

A-3

Rosemount 3300 Series

DIMENSIONAL DRAWINGS

Figure A-2. Rigid Twin Lead

G 1½ inch

Reference Manual

00809-0100-4811, Rev AB

July 2003

NPT 1½ inch NPT 1½ inch

½ - 14 NPT
Optional
adapters:
M20x1.5
PG13.5

9.6 (244)

L ≤ 10 feet
(3 m)

6.8 (173)

4.3 (110)

1.2 (31)

s60

1.1 (27)

Ø 0.31 (8)

Ø 0.24 (6)

9.6 (244)

≤ 10 feet

L
(3 m)

6.8 (173)

4.3 (110)

1.2 (31)

6.8 (173)

1.8 (45)

Ø 0.31 (8)

Ø 0.24 (6)

4.5 (113)

s50

A

B

4.1 (104)

TWIN-LEAD_G_V2/TWIN-LEAD-NPT1_V2/TWIN-LEAD-NPT2_V2

Dead Zones

A (inch/mm) B (inch/mm)

4/100 2-2.8/50-70

A-4

4.3 (110)

9.6 (244)

L

≤ 10 feet

(3 m)

Ø 0.31 (8)

Ø 0.24 (6)

1.2 (31)

Dimensions are in inches (millimeter).

4.1 (104)

4.5 (113)

A

B

TWIN-LEAD-FLANGE_V2

Reference Manual

00809-0100-4811, Rev AB
July 2003

Figure A-3. Flexible Twin Lead

G 1½ inch

Rosemount 3300 Series

NPT 1½ inch NPT 1½ inch

½ - 14 NPT
Optional
adapters:
M20x1.5
PG13.5

9.6 (244)

≤ 65 feet

L
(20 m)

6.8 (173)

4.3 (110)

1.4 (35)

6.8 (173) 6.8 (173)

4.3 (110)

9.6 (244)

s60

1.1 (27)

≤ 65 feet

L
(20 m)

Ø 0.16 (4)

Ø 0.16 (4)

3.5 (90) 3.5 (90)

Ø 0.16 (4)

Ø 0.16 (4)

1.4 (35)

1.8 (45)

4.1 (104)

4.5 (113)

s50

A

B

FLEXTWIN-LEAD_G_V2/FLEXTWIN-LEAD-NPT1_V2/FLEXTWIN-LEAD-NPT2_V2

Dead Zones

A (inch/mm) B (inch/mm)

5.9-7.9/150-200 5.5-9.4/140-240

6.8 (173)

4.3 (110)

9.6 (244)

L

≤ 65 feet

(20 m)

Ø 0.16 (4)

Ø 0.16 (4)

3.5 (90)

1.4 (35)

Dimensions are in millimeter (inches).

4.1 (104)

4.5 (113)

A

B

FLEX-TWIN-LEAD-FLANGE_V2

A-5

Rosemount 3300 Series

Figure A-4. Coaxial

G 1/1½ inch

NPT 1/1½ inch

Reference Manual

00809-0100-4811, Rev AB

July 2003

NPT 1/1½ inch

½ - 14 NPT
Optional
adapters:
M20x1.5
PG13.5

9.5 (241)

L

≤ 20 feet

(6 m)

6.8 (173)

4.3 (110)

1.1 (28)

s52/s60

1.1 (27)

9.5 (241)9.5 (241)

L ≤ 20 feet
(6 m)

6.8 (173)

4.3 (110)

1.1 (28)

6.8 (173)

4.1 (104)

4.5 (113)

s52

2.4 (62)

A

B

COAX-LEAD_G-V2/COAX-LEAD-NPT_1-V2/COAX-LEAD-NPT-V2_2

Dead Zones

A (inch/mm) B (inch/mm)

3.9/100 1.2-2/30-50

4.3 (110)

9.5 (241)

≤ 20 feet

L
(6 m)

1.1 (28)

Dimensions are in inches (millimeter).

4.1 (104)

4.5 (113)

A

B

COAX-LEAD-FLANGE-V2

A-6
