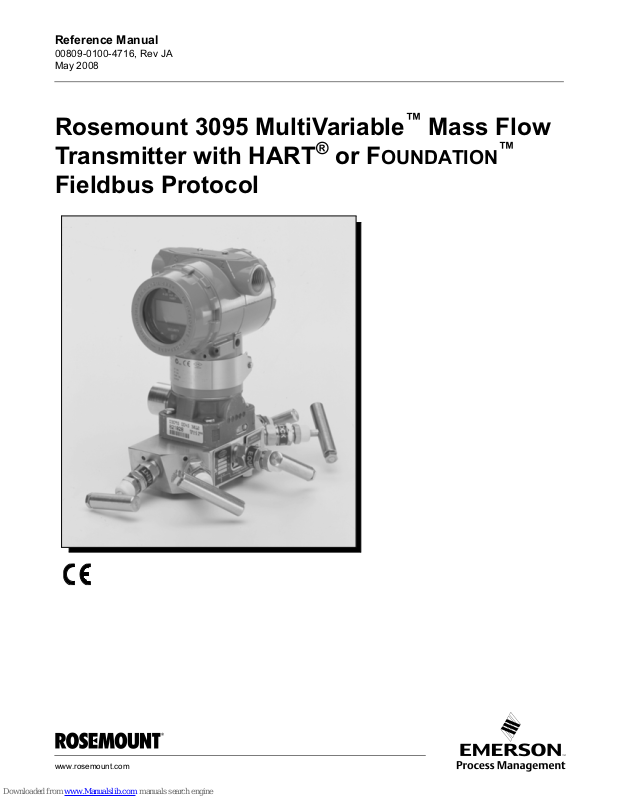

Emerson Rosemount 3095 Reference Manual

Reference Manual

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable™ Mass Flow
Transmitter with HART
Fieldbus Protocol

®

or FOUNDATION™

www.rosemount.com

Reference Manual

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

Table of Contents

SECTION 1
Introduction

SECTION 2
Installation

Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Service Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Installation Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Receiving and Inspecting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Set the Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Write Protect and Failure Mode Alarm Jumpers (HART) . . . . . . . . 2-3

Security and Simulate Jumpers (F

Considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Mechanical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Taps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Impulse Piping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Environmental. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Access Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Process. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Bolt Installation Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Hazardous Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Electrical (HART) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12

Electrical (FOUNDATION Fieldbus) . . . . . . . . . . . . . . . . . . . . . . . 2-12

Grounding the Transmitter Housing . . . . . . . . . . . . . . . . . . . . . . . 2-14

Surges/Transients . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14

Optional Transient Protection Terminal Block . . . . . . . . . . . . . . . 2-15

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15

Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15

Mount Transmitter and Install Bolts . . . . . . . . . . . . . . . . . . . . . . . 2-15

Process Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16

Install RTD Assembly (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

Check for Leaks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19

Power and Signal Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19

Grounding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19

OUNDATION Fieldbus) . . . . . . . . 2-4

www.rosemount.com

Rosemount 3095 MultiVariable

Reference Manual

00809-0100-4716, Rev JA

May 2008

SECTION 3
HART Commissioning

SECTION 4
Foundation Fieldbus
Configuration

Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Engineering Assistant Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Installation and Initial Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Basic Navigation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

Set up Tri-loop Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-33

Flow Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-33

Off-line Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-47

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Engineering Assistant Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Installation and Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

Device Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

Node Address. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Function Block Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Resource Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12

FEATURES and FEATURES_SEL . . . . . . . . . . . . . . . . . . . . . . . 4-12

PlantWeb

Recommended Actions for PlantWeb Alerts . . . . . . . . . . . . . . . . 4-17

Sensor Transducer Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17

Zero Trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17

Damping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18

Mass Flow Transducer Block. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18

LCD Transducer Block. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18

Custom Display Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18

Analog Input (AI) Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20

Configure the AI block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20

Filtering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22

Low Cut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22

Process Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23

Alarm Priority . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23

Status Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-24

Master Reset Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-24

Sensor Transducer Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-24

Sensor Calibration, Zero Trim Method: . . . . . . . . . . . . . . . . . . . . 4-25

Factory Trim Recall Method: . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25

Mass Flow Transducer Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25

Analog Input (AI) Function Block . . . . . . . . . . . . . . . . . . . . . . . . . 4-25

™

Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14

TOC-2

Reference Manual

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

SECTION 5
Troubleshooting

Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

EA Communication Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Alarm Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Corrective Action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Overrange Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

Sensor Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

Unexpected Process Variable (PV) Readings . . . . . . . . . . . . . . . . 5-5

Disassembly Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Removing the Process Sensor Body . . . . . . . . . . . . . . . . . . . . . . . 5-8

Removing the Electrical Housing . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Removing the Electronics Board . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

Removing the Sensor Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

Reassembly Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10

Attaching the Sensor Module to the Electronics Housing. . . . . . . 5-10

Attaching the Electronics Board . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10

Reassembling the Process Sensor Body . . . . . . . . . . . . . . . . . . . 5-11

EA Error Message Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12

Warning Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12

Error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13

Installing a Device Driver (DD) for the

3095 Engineering Assistant for Fieldbus . . . . . . . . . . . . . . . . . . . 5-14

Foundation fieldbus Troubleshooting Guides . . . . . . . . . . . . . . . . . . 5-16

Resource Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-19

Sensor Transducer Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-20

Analog Input (AI) Function Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-22

LCD Transducer Block. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-23

APPENDIX A
Specifications and
Reference Data

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Functional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5

Differential Pressure (DP). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5

Absolute/Gage Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-7

Process Temperature (PT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-7

Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-7

Dimensional Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-9

Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-11

Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-14

Spare Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-14

Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-16

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-18

Product Compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-20

Revision Level Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-20

Sensor Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-21

Electronics Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-22

Hardware Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-23

Communication Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-23

TOC-3

Rosemount 3095 MultiVariable

Reference Manual

00809-0100-4716, Rev JA

May 2008

APPENDIX B
Product Certifications

APPENDIX C
Critical Alarms for
Previous Software
Revisions

APPENDIX D
Block Information

Approved Manufacturing Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

European Directive Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

ATEX Type N. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-2

ATEX Intrinsic Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-3

3095 HART Hazardous Locations Certifications . . . . . . . . . . . . . . . . .B-4

North American Certifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-4

European Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-4

3095 FIELDBUS Hazardous Locations Certifications . . . . . . . . . . . . . B-6

North American Certifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-6

European Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-7

IECEx Certifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-9

Approval Drawings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-10

Alarm Abbreviations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-1

Alarms and Error Conditions for Revision 12 and 13. . . . . . . . . . . . . .C-1

LCD Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-2

Critical Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-2

Alarms and Error Conditions for Revisions 8, 9, and 10 . . . . . . . . . . .C-2

Alarms and Error Conditions for Revisions 4 and 5. . . . . . . . . . . . . . .C-5

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D-1

Analog Input (AI) Function Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-1

AI Parameter Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D-2

LCD Transducer Block. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D-5

National Instrument (NI) Set up for LCD. . . . . . . . . . . . . . . . . . . . . D-5

LCD Parameter Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D-6

Resource Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D-8

Definition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D-8

Parameters and Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D-8

Sensor Transducer Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D-12

Sensor Transducer Block Reference Tables . . . . . . . . . . . . . . . .D-14

APPENDIX E
HART Communicator

TOC-4

EA Software/

Hart Communicator Comparison . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-1

Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-5

Static Pressure Sensor Absolute/Gage Pressure Calibration . . . .E-5

Differential Pressure Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . .E-6

Temperature Sensor Calibration . . . . . . . . . . . . . . . . . . . . . . . . . .E-7

Analog Output Trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-7

Flow Calculation Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-8

Diagnostic Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-9

LCD Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-11

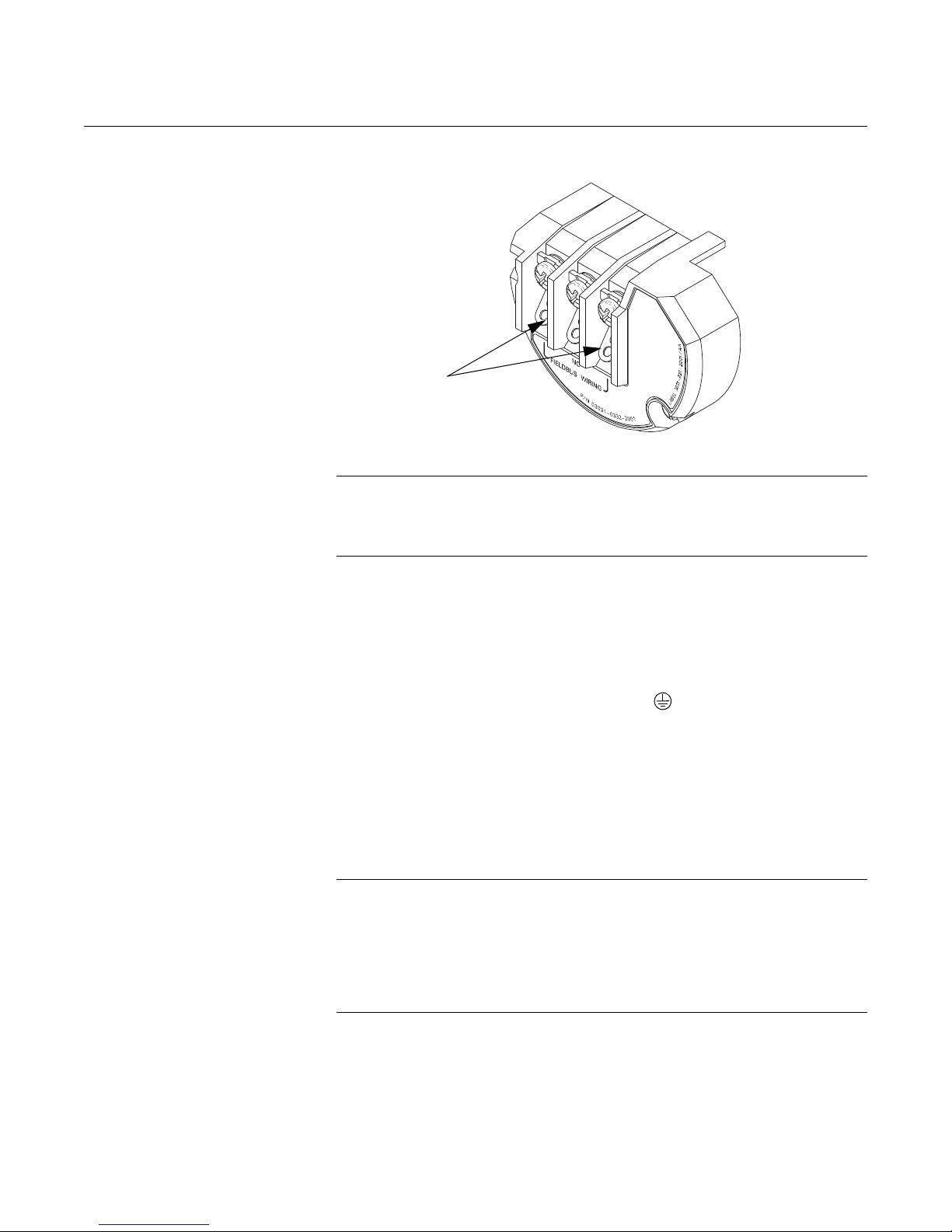

Transient Protection Terminal Block . . . . . . . . . . . . . . . . . . . . . . . . .E-14

Reference Manual

NOTICE

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

Rosemount 3095 MultiVariable
Mass Flow Transmitter

Read this manual before working with the product. For personal and system safety, and for
optimum product performance, make sure you thoroughly understand the contents before
installing, using, or maintaining this product.

Rosemount Inc. has two toll-free assistance numbers:

Customer Central

Technical support, quoting, and order-related questions.

United States - 1-800-999-9307 (7:00 am to 7:00 pm CST)

Asia Pacific- 65 777 8211

Europe/ Middle East/ Africa - 49 (8153) 9390

North American Response Center

Equipment service needs.

1-800-654-7768 (24 hours—includes Canada)

®

Outside of these areas, contact your local Rosemount

representative.

The products described in this document are NOT designed for nuclear-qualified
applications. Using non-nuclear qualified products in applications that require
nuclear-qualified hardware or products may cause inaccurate readings.

For information on Rosemount nuclear-qualified products, contact your local Rosemount
Sales Representative.

www.rosemount.com

Reference Manual

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

Section 1 Introduction

Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1-1

Service Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 1-2

USING THIS MANUAL This manual provides installation, configuration, calibration, troubleshooting,

and maintenance instructions for the Rosemount
Flow Transmitter and for its operation with the 3095 MultiVariable Engineering
Assistant Software.

This manual was developed with the assumption that the user will have a
basic understanding of FOUNDATION Fieldbus concepts and wiring practices
if needed.

Information is available at www.plantweb.emersonprocess.com/university or
check with your system integrator about resources for your specific host
system.

The manual consists of the following sections:

Section 2: Installation

Explains how to install the 3095. It includes an installation flowchart,
installation considerations, and field installation procedure.

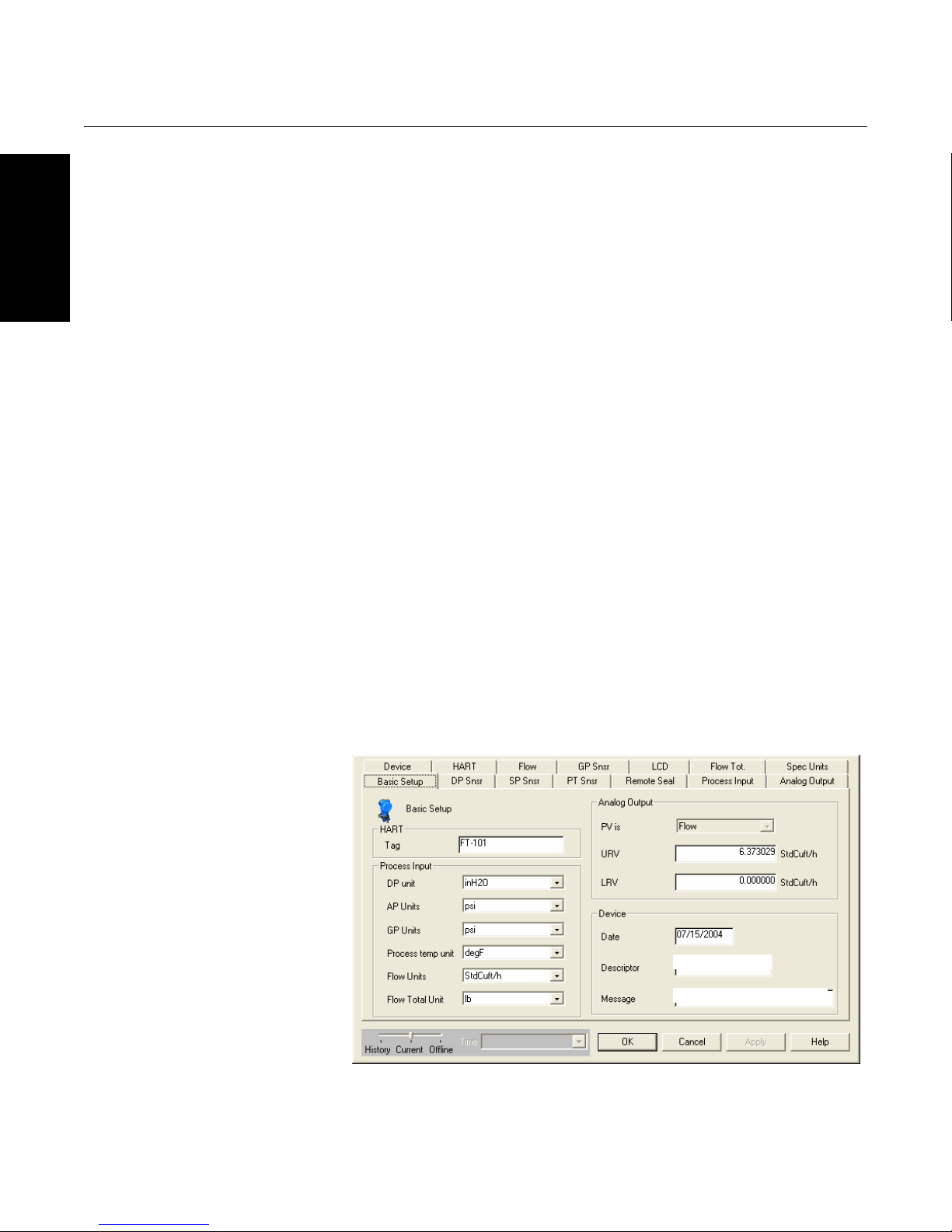

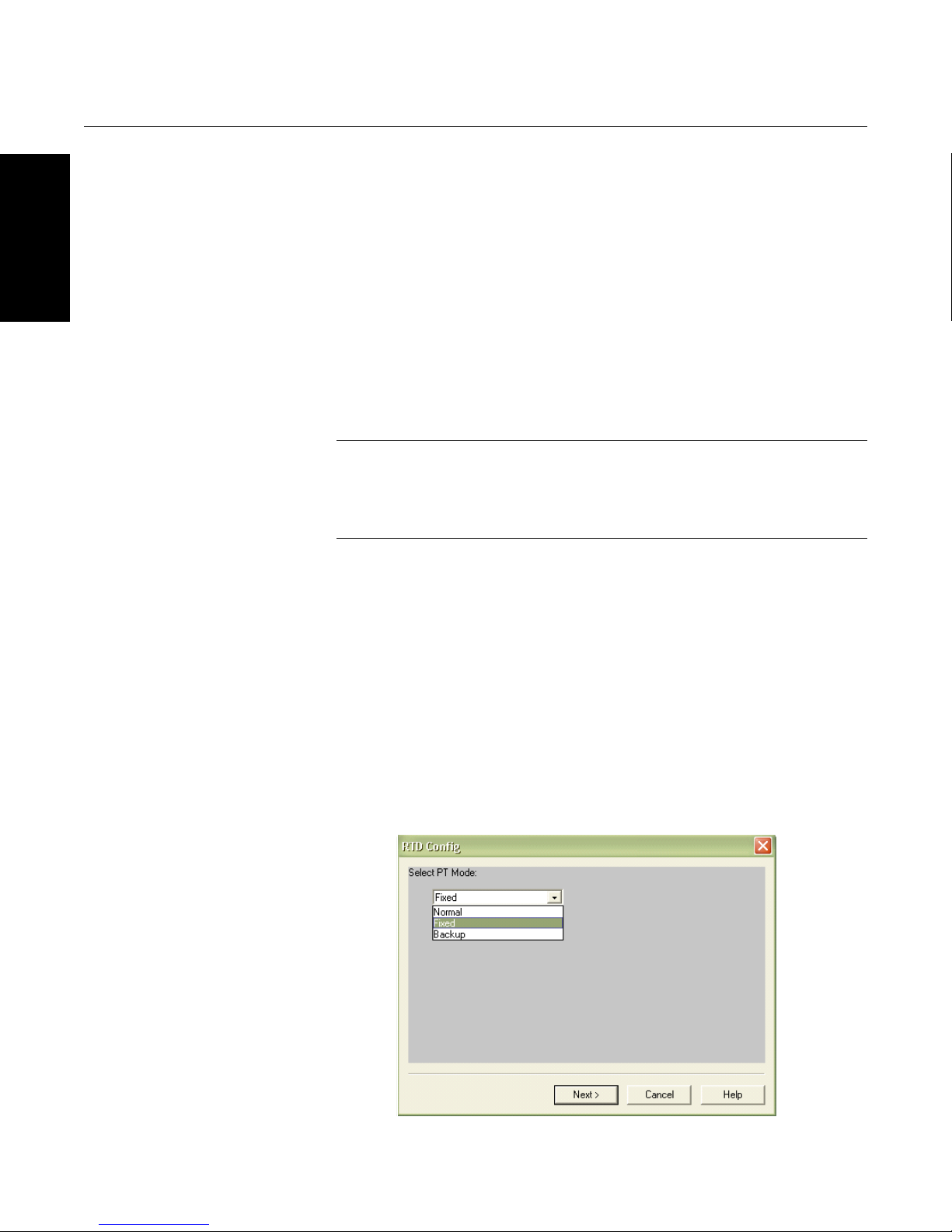

Section 3: HART Commissioning

Explains how to use the configuration software. This includes installing the
software onto a personal computer, establishing communications with the
3095, configuring the transmitter, creating a configuration file, and calibrating
the flow transmitter. This section also explains the configuration software
menus.

Section 4: Foundation Fieldbus Configuration

®

3095 MultiVariable™ Mass

www.rosemount.com

Section 5: Troubleshooting

If a malfunction is suspected, this section describes how to verify that the
transmitter hardware and process connections are in good working order.

Appendix A: Specifications and Reference Data

Contains specifications, dimensional drawings, and ordering information.

Appendix B: Product Certifications

Contains Hazardous Certificates, Factory Mutual (FM) and Canada Standards
Association (CSA) certified drawings.

Appendix C: Critical Alarms for Previous Software Revisions

Appendix D: Block Information

Reference Manual

00809-0100-4716, Rev JA

Rosemount 3095 MultiVariable

May 2008

SERVICE SUPPORT To expedite the return process outside the United States, contact the nearest

Rosemount representative.

Within the United States, call the Rosemount National Response Center using
the 1-800-654-RSMT (7768) toll-free number. This center, available 24 hours
a day, will assist you with any needed information or materials.

The center will ask for product model and serial numbers, and will provide a
Return Material Authorization (RMA) number. The center will also ask for the
name of the process material to which the product was last exposed.

NOTE

People who handle products exposed to a hazardous substance can avoid
injury if they are informed and understand the hazard. If the product being
returned was exposed to a hazardous substance as defined by OSHA, a copy
of the required Material Safety Data Sheet (MSDS) for each hazardous
substance identified must be included with the returned goods.

The Rosemount National Response Center will detail the additional
information and procedures necessary to return goods exposed to hazardous
substances.

1-2

Reference Manual

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

Section 2 Installation

Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-1

Installation Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-2

Receiving and Inspecting . . . . . . . . . . . . . . . . . . . . . . . . . page 2-2

Set the Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-3

Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-4

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-15

SAFETY MESSAGES Instructions and procedures in this section may require special precautions to

ensure the safety of the personnel performing the operations. Information that
potentially raises safety issues is indicated by a warning symbol ( ). Please
refer to the following safety messages before performing an operation
preceded by this symbol.

Explosions could result in death or serious injury:

• Do not remove the transmitter cover in explosive atmospheres when the circuit
is live.

• Before connecting a 375 Field Communicator in an explosive atmosphere, make
sure the instruments in the loop are installed in accordance with intrinsically safe
or non-incendive field wiring practices.

• Verify that the operating atmosphere of the transmitter is consistent with the
appropriate hazardous locations certifications.

• Both transmitter covers must be fully engaged to meet explosion-proof
requirements.

Failure to follow these installation guidelines could result in death or serious injury:

• Make sure only qualified personnel perform the installation.

Electrical shock could cause death or serious injury. If the sensor is installed in a
high-voltage environment and a fault or installation error occurs, high voltage may be
present on the transmitter leads and terminals:

• Use extreme caution when making contact with the leads and terminals.

Process leaks can cause death or serious injury

www.rosemount.com

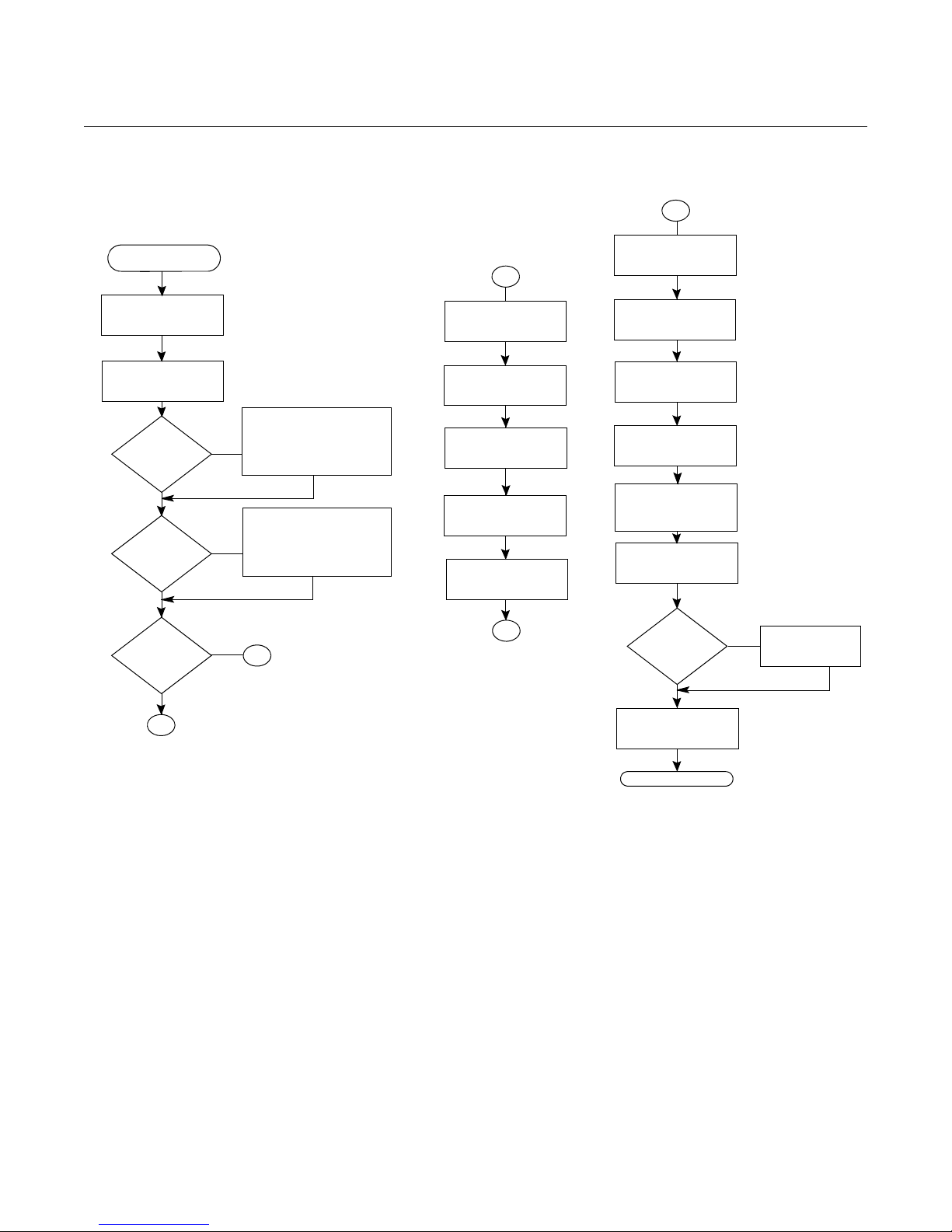

Rosemount 3095 MultiVariable

A

B

B

START

A

B

Review Rosemount

drawing 03095-1025

or 03095-1024

(see Appendix B: Approval

Drawings)

Review Rosemount

drawings 03095-1020 or

03095-1021

(see Appendix B:

Approval Drawings)

Hazardous

Location?

Non­Incendive
Location?

Unpack the

3095

Review the

3095 Manual

Bench

Configure?

BENCH CONFIGURE

Connect Bench

Power Supply

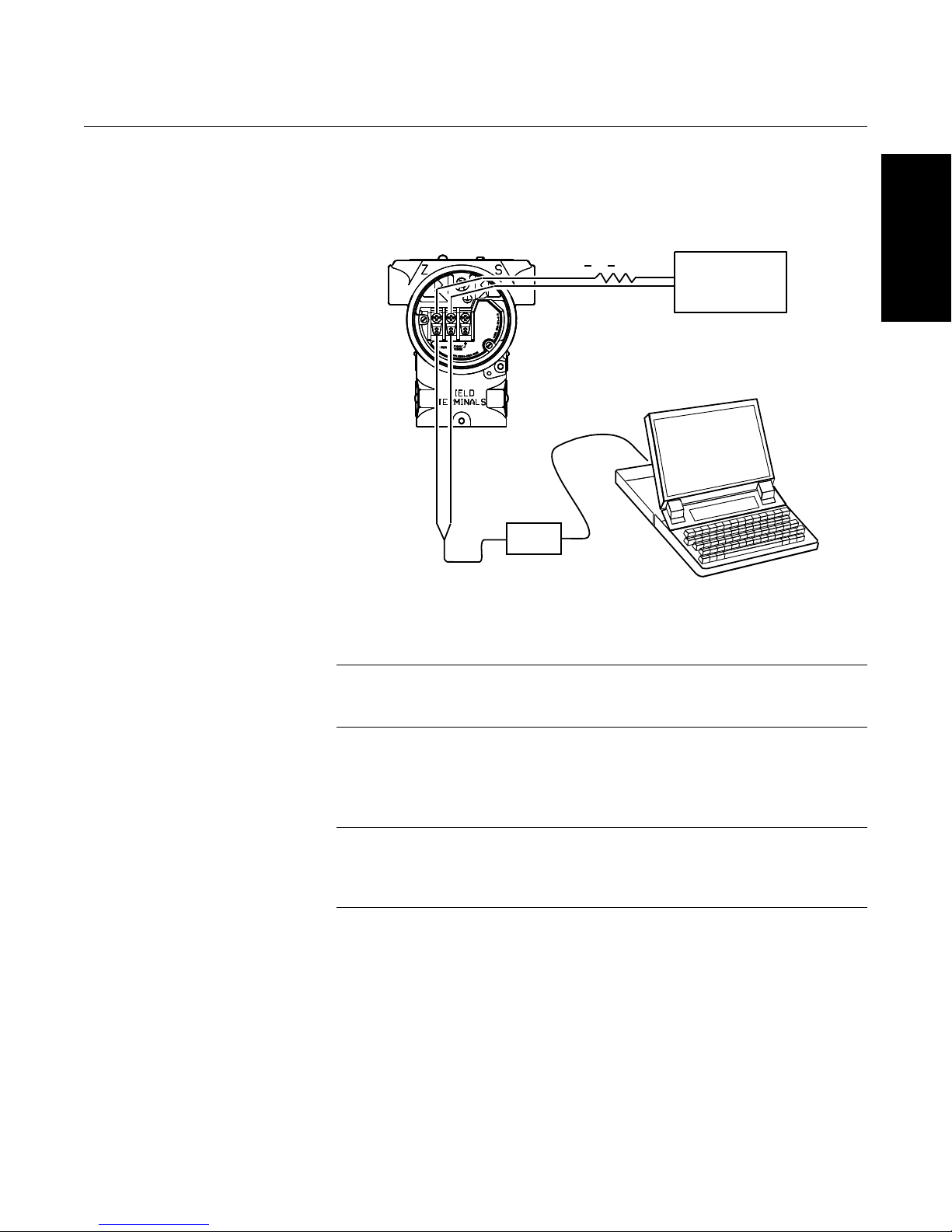

Connect a Personal

Computer or a HART

Communicator

Perform Bench

Configuration Tasks

(Optl.) Perform

Bench Calibration

Tas ks

FIELD

INSTALLATION

Review Installation

Considerations

Mount

Transmitter

Make Process

Connections

DONE

Yes

Yes

No

No

Yes

No

(Optl.) Perform

Field Calibration

Tasks

Configuration

Performed?

No

Perform

Configuration

Tas ks

Yes

Check

for Leaks

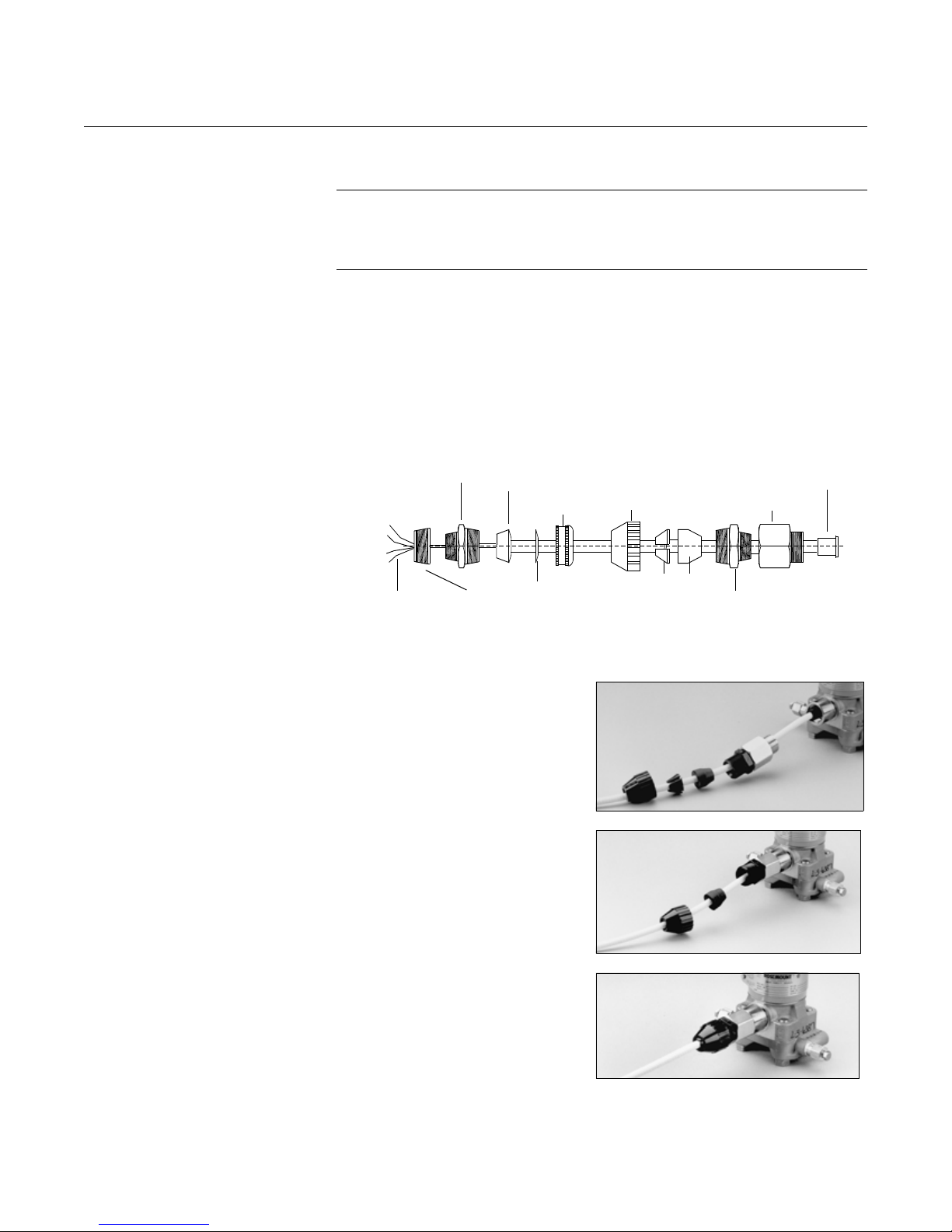

(Optional) Install

RTD Assembly

INSTALLATION
FLOWCHART

Reference Manual

00809-0100-4716, Rev JA

May 2008

RECEIVING AND
INSPECTING

2-2

Depending on the system ordered, the 3095 arrives in as many as three
different shipping containers:

3095 MultiVariable Transmitter

This box contains the 3095 transmitter. If ordered, this package also
contains an RTD cable and optional mounting hardware.

3095 Engineering Assistant Software Package (Accessory)

The complete Engineering Assistant Software Package includes two
installation CD-ROMs and optional HART modem and cables. Engineering
Assistant components may also be ordered separately.

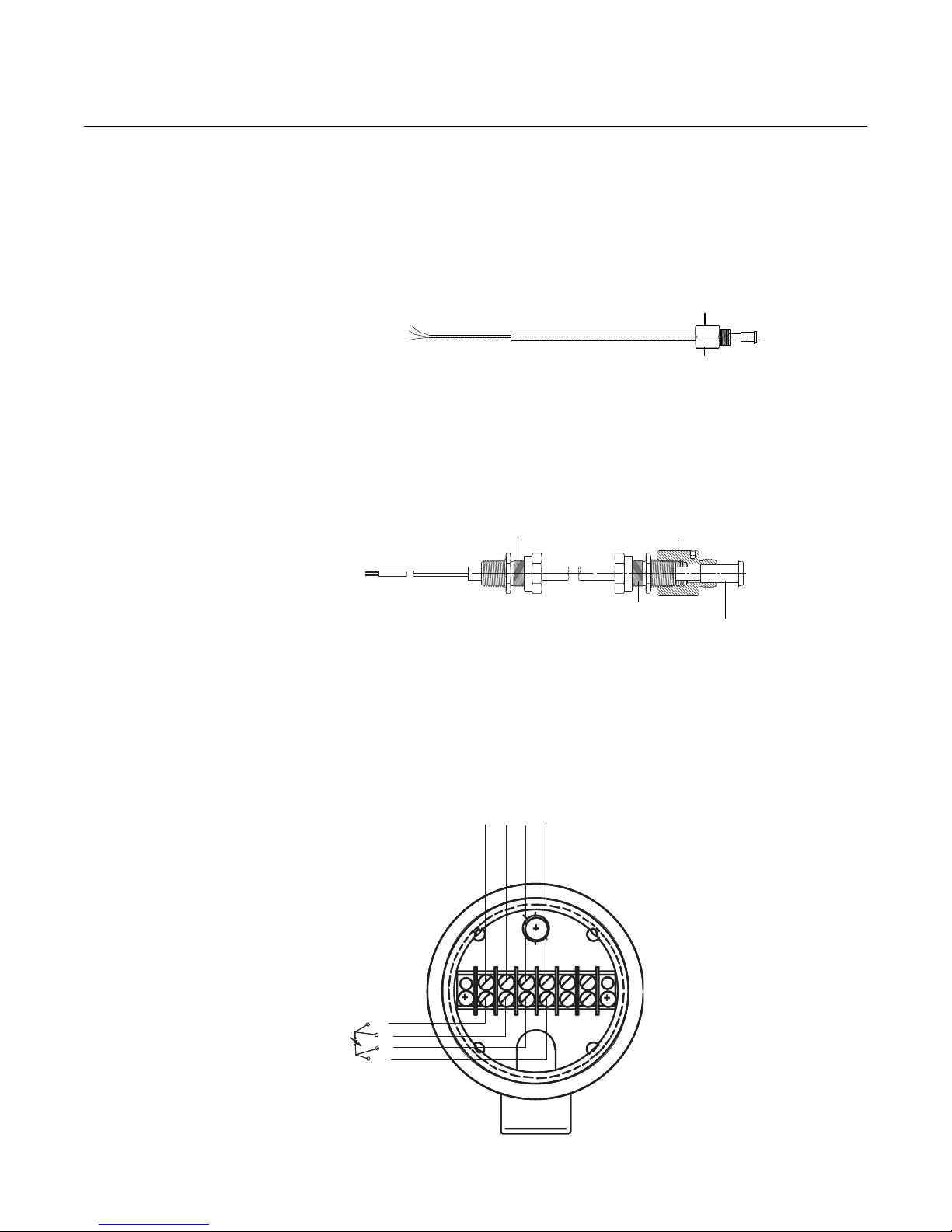

RTD Assembly (Optional)

This box contains the optional Series 68 or Series 78 RTD Assembly and
the Sensor Wiring Instruction Sheet.

Reference Manual

00809-0100-4716, Rev JA
May 2008

SET THE SWITCHES

Rosemount 3095 MultiVariable

Place the shipping containers on a secure bench and open them, taking care
not to damage the contents.

• Review the packing list to verify that all equipment was received.

• Inspect the equipment and report any shipping damage to the carrier.

• See “Exploded View of the Rosemount 3095” on page A-9 to verify
parts

Write Protect and Failure
Mode Alarm Jumpers
(HART)

After the transmitter has been configured, the configuration data can be
protected by moving the write protect jumper. When this jumper is installed,
the transmitter does not allow any changes to its configuration memory.

As part of its normal operation, the 3095 continuously monitors its own
operation. The automatic diagnostic routine is a timed series of checks
repeated continuously. If the diagnostic routine detects a failure in a
transmitter, the transmitter drives its output either below 3.75 mA or above

21.75 mA depending on the position of the failure mode jumper.

Both of these jumpers are located on the electronics board just inside the
electronics housing cover (see Figure 2-1). To avoid exposing the transmitter
electronics to the plant environment after installation, set these jumpers
during the commissioning stage on the bench.

When shipped from the factory, the write protect jumper is set to “OFF,” and
the alarm jumper is set to “High” unless specified differently by ordering the
C2 (Custom Configuration) Option Code.

Failure Mode Alarm vs. Saturation Output Values

The failure mode alarm output levels differ from the output values that occur
when applied pressure is outside the range points. When pressure is outside
the range points, the analog output continues to track the input pressure until
reaching the saturation value listed below; the output does not exceed the
listed saturation value regardless of the applied pressure. For example, for
pressures outside the 4–20mA range points, the output saturates at 3.9 mA or

20.8 mA. When the transmitter diagnostics detect a failure, the analog output
is set to a specific alarm value that differs from the saturation value to allow
for proper troubleshooting.

Level 4–20 mA Saturation Value 4–20 mA Alarm Value

Low 3.9 mA 3.75 mA

High 20.8 mA 21.75 mA

NOTE

The preceding output values can be altered by an analog output
trim procedure.

Use the following steps to change the jumper settings:

2-3

Rosemount 3095 MultiVariable

HART Electronics Board

F

OUNDATION fieldbus Electronics Board

Simulate Jumper

Security Jumper

1. If the transmitter is installed, secure the loop and remove power.

2. Remove the housing cover opposite the field terminal side.

3. Locate the jumper on the electronics board (see Figure 2-1), then

move the jumper to the desired setting.

4. Reattach the transmitter cover. To avoid condensation, metal to metal

contact is preferred.

5. If the transmitter is installed, reapply power.

Figure 2-1. Write Protect and
Alarm Jumpers (HART) and
Security and Simulate Jumpers
(FOUNDATION Fieldbus).

Reference Manual

00809-0100-4716, Rev JA

May 2008

Security and Simulate
Jumpers (FOUNDATION
Fieldbus)

Security

After configuring the transmitter, you may want to protect the configuration
data from unwarranted changes. Each transmitter is equipped with a security
jumper that can be positioned “ON” to prevent the accidental or deliberate
change of configuration data. The jumper is located on the front side of the
electronics module and is labeled SECURITY (see Figure 2-1).

Simulate

The simulate jumper is used in conjunction with the Analog Input (AI) function
block. This switch is used to simulate the measurement and is used as a
lock-out feature for the AI function block. To enable the simulate feature,
insert the jumper across “ENABLE” (see Figure 2-1) while the transmitter is
powered.

NOTE

When power is cycled to the transmitter, simulate is automatically disabled
regardless of the position of the jumper. This prevents the transmitter from
being accidentally left in simulate mode. Therefore, to enable the simulate
feature, the jumper must be inserted after power is applied to the transmitter.

CONSIDERATIONS

General The accuracy of a flow or pressure measurement depends on proper

installation of the transmitter and impulse piping. The piping between the
process and the transmitter must accurately transfer the pressure in order to
obtain accurate measurements. Mount the transmitter close to the process
and use minimum impulse piping to achieve best accuracy. Keep in mind the
need for easy access, safety of personnel, practical field calibration, and a
suitable transmitter environment. In general, install the transmitter to minimize
vibration, shock, and temperature fluctuations.

The following paragraphs discuss the factors necessary for a successful
transmitter installation.

2-4

Reference Manual

6.15

(156)

2.82
(72)

4.3

(110)

7.07

(180)

1.10 (28)

2.81
(71)

4.74

(120)

3.54
(90)

6.25

(159)

Dimensions are in inches (millimeters)

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

Mechanical The Rosemount 3095 may be panel-mounted, wall-mounted, or attached to a

two-inch pipe with an optional mounting bracket. Figure 2-2 illustrates 3095
mounting configurations, “Dimensional Drawings” on page A-9 shows the
transmitter dimensions, and Figure 2-3 illustrates example installations.

Figure 2-2. Mounting
Configurations.

Taps Different measurement conditions require different piping configurations.

Liquid Flow

For liquid flow measurement, place taps on the side of the line to prevent
sediment deposits, and mount the transmitter beside or below these taps so
gases can vent into the process line.

Gas Flow

For gas flow measurement, place taps in the top or side of the line and mount
the transmitter beside or above the taps so liquid will drain into the process
line.

Steam Flow

For steam flow measurement, place taps to the side of the line, with the
transmitter mounted below the taps to ensure the impulse piping remains
filled with condensate.

NOTE

When the transmitter is oriented on its side, the Coplanar

™

flange may be
mounted to ensure proper venting or draining. Mount the flange as shown in
Figure 2-3 so that the drain/vent connections are on the bottom half of the
flange for gas service, or on the top half of the flange for liquid service.

2-5

Rosemount 3095 MultiVariable

LIQUID SERVICE

GAS SERVICE

Flow

Flow

Flow

STEAM

SERVICE

Flow

In steam or other elevated temperature services, it is important that temperatures at
the coplanar process flanges not exceed 185 °F (85 °C).

Figure 2-3. Example
Installations.

Reference Manual

00809-0100-4716, Rev JA

May 2008

NOTE

In steam service, lines should be filled with water to prevent contact of the live
steam with the transmitter.

Impulse Piping Impulse piping, which is the piping between the process and the transmitter,

must accurately transfer the pressure in order to obtain accurate
measurements. In this pressure transfer, there are five possible sources of
error: leaks, friction loss (particularly if purging is used), trapped gas in a liquid

2-6

line, liquid in a gas line, and temperature-induced or other density variation
between the impulse piping.

Reference Manual

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

The best location for the transmitter in relation to the process pipe depends on
the process. Consider the following guidelines in determining transmitter
location and placement of impulse piping:

• Keep impulse piping as short as possible.

• Slope the impulse piping at least one inch per foot (8 centimeters per
meter) upward from the transmitter toward the process connection for
liquid.

• Slope the impulse piping at least one inch per foot (8 centimeters per
meter) downward from the transmitter toward the process connection
for gas.

• Avoid high points in liquid lines and low points in gas lines.

• Make sure both impulse legs are the same temperature.

• Use impulse piping large enough to avoid friction effects and prevent
blockage.

• Vent all gas from liquid piping legs.

• When using a sealing fluid, fill both piping legs to the same level.

• When purging is necessary, make the purge connection close to the
process taps and purge through equal lengths of the same size pipe.

• Avoid purging through the transmitter.

• Keep corrosive or hot (above 250 °F [121 °C]) process material out of
direct contact with the sensor module and flanges.

• Prevent sediment deposits in the impulse piping.

• Keep the liquid head balanced on both legs of the impulse piping.

• Avoid conditions that might allow process fluid to freeze within the
process flange.

NOTE

For steam service, do not blow down impulse piping through the transmitter.
Flush the lines with the blocking valves closed and refill the lines with water
before resuming measurement.

Environmental Mount the transmitter to minimize ambient temperature changes.

“Specifications” on page A-1 lists the transmitter temperature operating limits.
Mount the transmitter to avoid vibration and mechanical shock, and to avoid
external contact with corrosive materials.

Access Requirements When choosing an installation location and position, take into account the

need for access to the transmitter.

Process Flange Orientation

The process flanges must be oriented so that process connections can be
made. In addition, consider the possible need for a testing or calibration
input.

Drain/vent valves must be oriented so that process fluid is directed away from
technicians when the valves are used.

2-7

Rosemount 3095 MultiVariable

Housing Rotation

The electronics housing may be rotated to improve field access to the two
compartments. To rotate the housing less than 90 degrees, release the
housing rotation set screw and turn the housing not more than 90 degrees
from the orientation shown in Figure 2-3 on page 2-6. To rotate the
housing greater than 180 degrees, follow the disassembly procedure on
page 6-8.

Rotating the housing greater than 180 degrees without performing the disassembly
procedure may damage the 3095 sensor module.

Terminal Side of Electronics Housing

• Wiring connections are made through the conduit openings on the top
side of the housing.

• The field terminal side is marked on the electronics housing.

• Mount the transmitter so that the terminal side is accessible. A

0.75-inch (19-mm) clearance is required for cover removal.

• Install a conduit plug in the unused conduit opening.

Reference Manual

00809-0100-4716, Rev JA

May 2008

Circuit Side of Electronics Housing

The circuit compartment should not routinely need to be opened when the
unit is in service; however, provide 0.75 inches (19 mm) clearance if
possible to allow access.

Process The 3095 process connections on the transmitter flange are

Flange adapter unions with
These are Class 2 threads; use your plant-approved lubricant or sealant when
making the process connections. The process connections on the transmitter
flange are on 2

1

/8-inch (54-mm) centers to allow direct mounting to a three- or
five-valve manifold. By rotating one or both of the flange adapters, connection
centers of 2, 2

1

/8, or 21/4 inches (51, 54, or 57 mm) may be obtained.

When compressed, Teflon
sealing capabilities. Whenever flanges or adapters are removed, visually
inspect the Teflon O-rings. Replace them if there are any signs of damage,
such as nicks or cuts. If they are undamaged, they can be reused. If the
O-rings are replaced, the flange bolts may need to be retorqued after
installation to compensate for cold flow.

1

/2–14 NPT connections are available as options.

®

O-rings tend to cold flow, which aids in their

1

/4–18 NPT.

2-8

Reference Manual

Unique O-ring

Grooves

3051/2024/3001/3095

1151

Flange Adapter

O-ring

Flange Adapter

O-ring

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

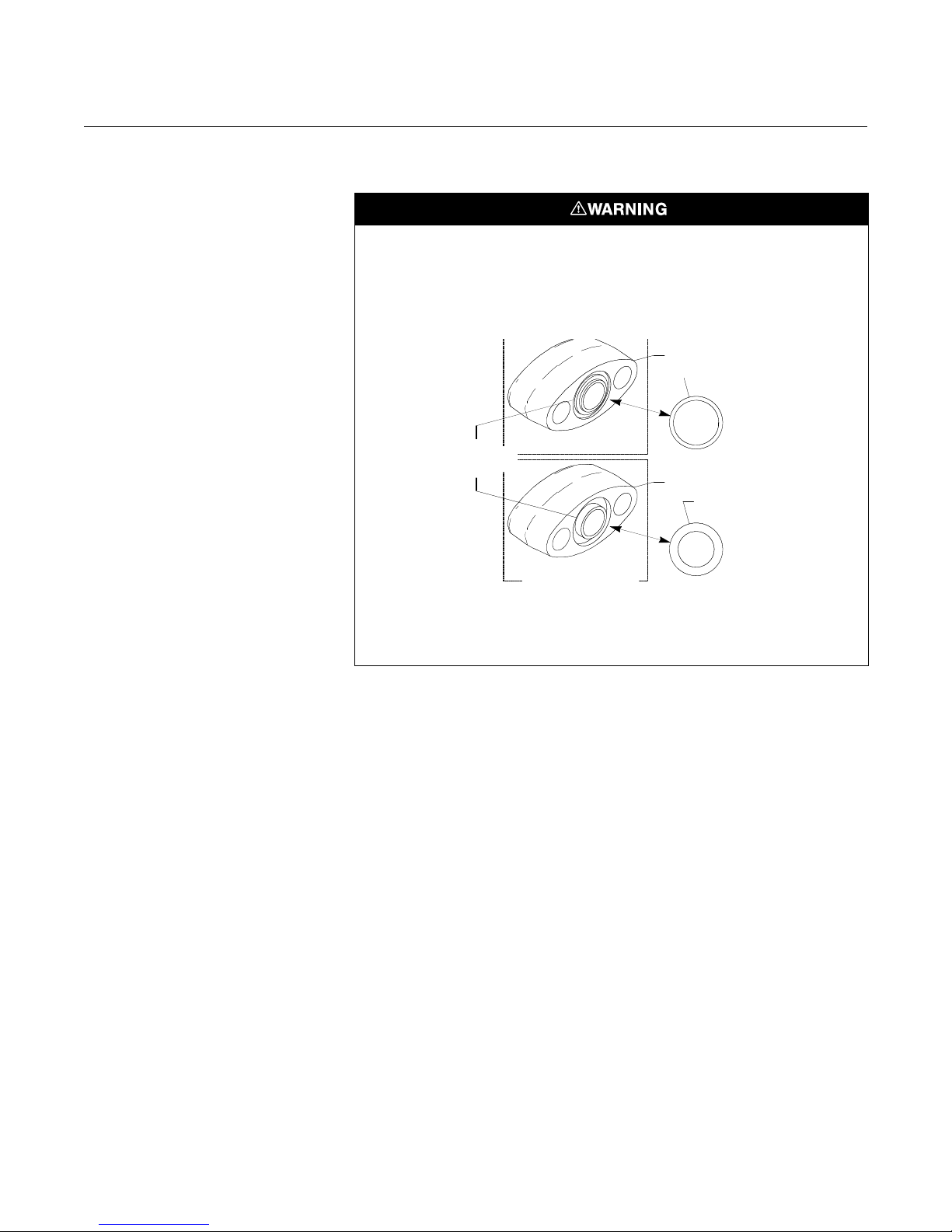

Failure to install proper flange adapter O-rings can cause process leaks, which can
result in death or serious injury.

There are two styles of Rosemount flange adapters, each requiring a unique O-ring, as
shown below. Each flange adapter is distinguished by its unique groove.

Use only the O-ring designed to seal with the corresponding flange adapter. Refer to
the “Spare Parts” on page A-14 for the correct part numbers of the flange adapters and
O-rings designed for the 3095 Multivariable Transmitter.

2-9

Reference Manual

3095

RTD Connector

Process

Connections

RTD Cable

RTD

Assembly

Flow

00809-0100-4716, Rev JA

Rosemount 3095 MultiVariable

May 2008

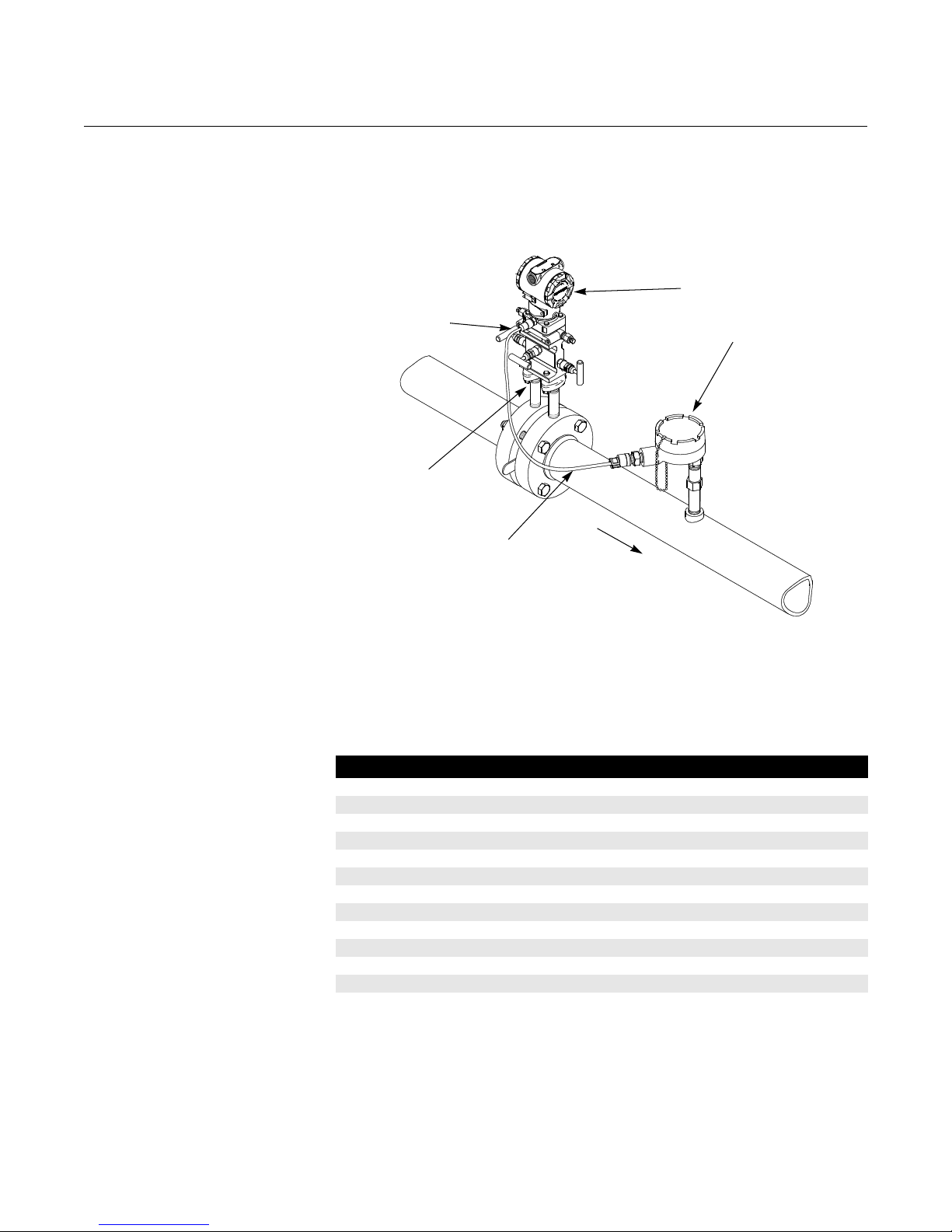

Mounting Figure 2-4 illustrates a typical 3095 installation site. Major components of the

3095 System and the 3095 Multivariable Transmitter are identified in these
figures.

Figure 2-4. Typical 3095
Installation Site

Table 2-1. Transmitter Weight

The 3095 Multivariable Transmitter total weight varies depending on the
components ordered (see “Ordering Information” on page A-11). The weight
must be securely supported.

Component Weight lb (kg)

3095 Transmitter 6.0 (2.7)
SST Mounting Bracket 1.0 (0.4)
12 ft (3.66 m) RTD Shielded Cable 0.5 (0.2)
12 ft (3.66 m) RTD Armored Cable 1.1 (0.5)
24 ft (7.32 m) RTD Shielded Cable 1.0 (0.4)
24 ft (7.32 m) RTD Armored Cable 2.2 (1.0)
75 ft (22.86 m) RTD Shielded Cable 1.9 (0.9)
75 ft (22.86 m) RTD Armored Cable 7.2 (3.2)
21 in (53 cm) RTD Armored Cable 0.5 (0.2)
12 ft (3.66 m) RTD CENELEC Cable 2.1 (0.9)
24 ft (7.32 m) RTD CENELEC Cable 3.0 (1.4)
75 ft (22.86 m) RTD CENELEC Cable 7.1 (3.2)
21 in (53 cm) RTD CENELEC Cable 1.2 (0.5)

2-10

Reference Manual

Carbon Steel Head

Markings (CS)

Stainless Steel Head

Markings (SST)

B7M

316

316

R

B8M

STM

316

316

SW

316

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

Mounting Brackets

Optional mounting brackets available with the 3095 facilitate mounting to a
panel, wall, or 2-in. (51-mm) pipe. The bracket option for use with the
Coplanar flange is 316 SST with 316 SST bolts.

When installing the transmitter to one of the mounting brackets, torque the
bolts to 125 in-lb (14 n-m).

Mounting Pressure Effect

To correct for mounting position effects, the 3095 should be zero trimmed,
using the zero trim procedure described on page 3-13.

Bolt Installation
Guidelines

The following guidelines have been established to ensure a tight flange,
adapter, or manifold seal. Use only bolts supplied with the transmitter or sold
by Rosemount Inc. as a spare part to the 3095 transmitter.

The 3095 is shipped with the Coplanar flange installed with four 1.75-inch
(44-mm) flange bolts. The following bolts also are supplied to facilitate other
mounting configurations:

• Four 2.25-inch (57-mm) manifold/flange bolts for mounting the
Coplanar flange on a three-valve manifold. In this configuration, the

1.75-inch (44-mm) bolts may be used to mount the flange adapters to
the process connection side of the manifold.

• (Optional) If flange adapters are ordered, four 2.88-inch (73-mm)
flange/adapter bolts for mounting the flange adapters to the Coplanar
flange.

Stainless steel bolts supplied by Rosemount Inc. are coated with a lubricant to
ease installation. Carbon steel bolts do not require lubrication. Do not apply
additional lubricant when installing either type of bolt. Bolts supplied by

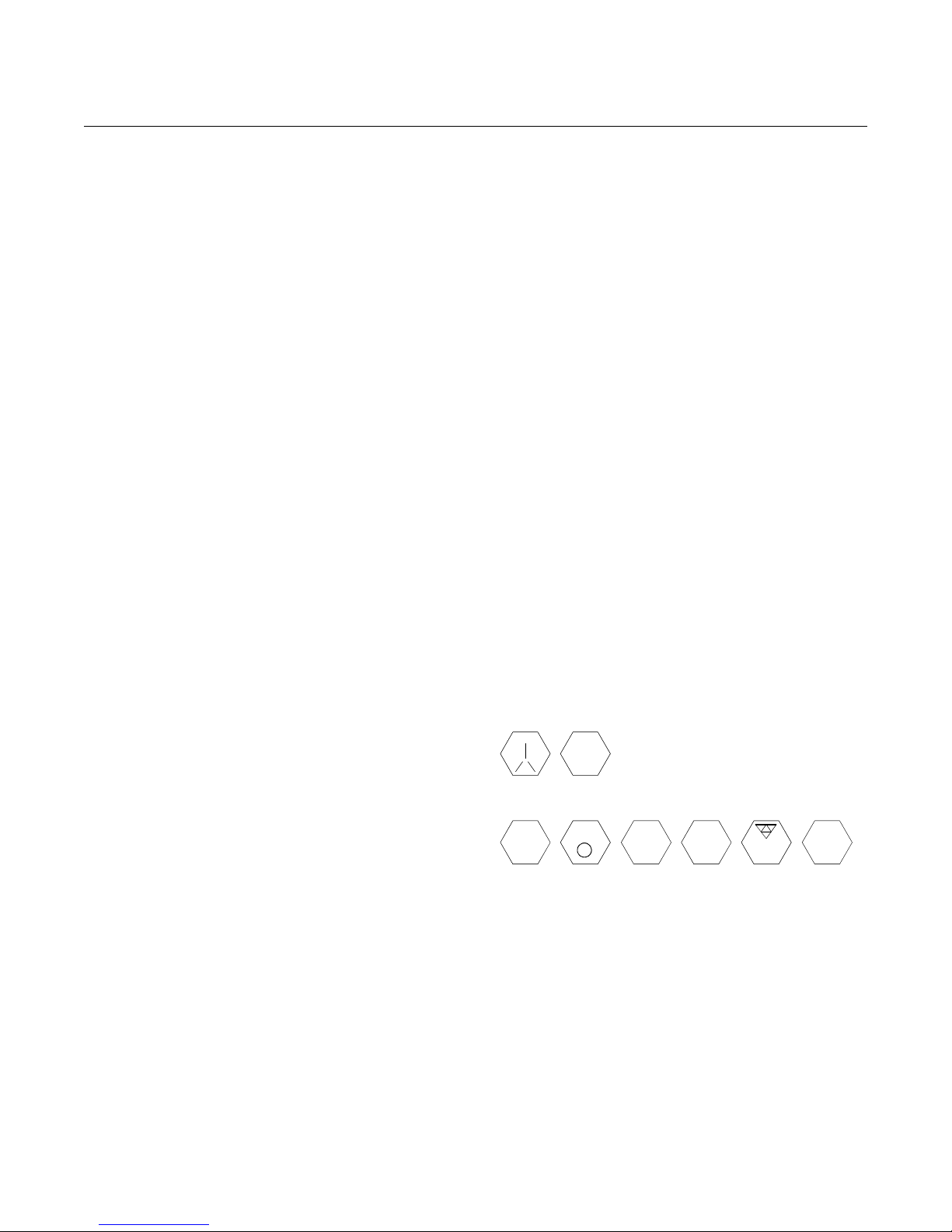

Rosemount Inc. are identified by the following head markings:

Hazardous Locations The Rosemount 3095 has an explosion-proof housing and circuitry suitable

for intrinsically safe and non-incendive operation. Individual transmitters are
clearly marked with a tag indicating the certifications they carry. See
Appendix A: Specifications and Reference Data for specific approval
categories. See Appendix B: Product Certifications for installation drawings.

2-11

Reference Manual

Max. Loop Resistance = Power Supply Voltage-11.0

0.022

2000

Load (Ohms)

0

11.0 42.4

(1)

55

Operating Region

(1) For CSA approval, power supply must not exceed 42.4 V dc.
(2) HART protocol communication requires a loop resistance value

between 250-1100 ohms, inclusive.

Power Supply

250

16.5

(2)

00809-0100-4716, Rev JA

Rosemount 3095 MultiVariable

May 2008

Electrical (HART) The signal terminals are located in a compartment of the electronics housing

separate from the transmitter electronics.

Power Supply

The dc power supply should provide power with less than 2% ripple. The total
resistance load is the sum of the resistance of the signal leads and the load
resistance of the controller, indicator, and related pieces. Note that the
resistance of intrinsic safety barriers, if used, must be included.

NOTE

A loop resistance between 250–1100 ohms inclusive is required to
communicate with a personal computer. With 250 ohms of loop resistance, a
power supply voltage of at least 16.5 V dc is required.

If a single power supply is used to power more than one 3095 transmitter, the
power supply used, and circuitry common to the transmitters, should not have
more than 20 ohms of impedance at 1200 Hz.

(1)

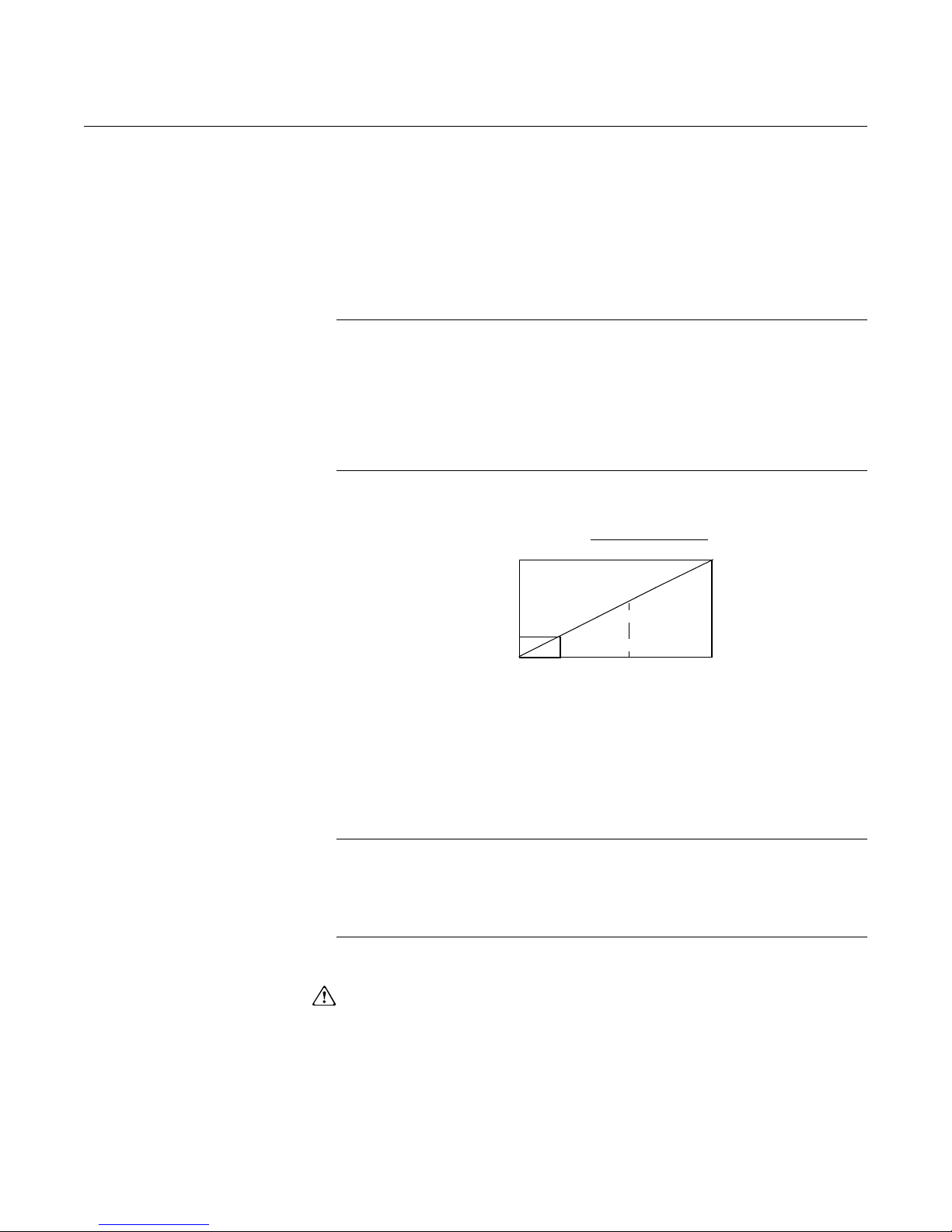

Figure 2-5. Power Supply Load
Limitations.

Electrical (FOUNDATION
Fieldbus)

Proper electrical installation is necessary to prevent errors due to improper
grounding and electrical noise. Shielded, twisted pair cable should be used for
best results in electrically noisy environments. Cable Type A is recommended
by FOUNDATION fieldbus.

NOTE

After a device labeled with multiple approval types is installed, it should not be
reinstalled using any of the other labeled approval types. To ensure this, the
approval label should be permanently marked to distinguish the used from the
unused approval type(s).

2-12

Field Wiring

All power to the transmitter is supplied over the signal wiring. For best
installation practices, use a fieldbus type A cable. Do not run unshielded
signal wiring in conduit or open trays with power wiring or near heavy
electrical equipment. Do not remove the transmitter cover in explosive
atmospheres when the circuit is alive.

(1) Quick troubleshooting check: There must be at least 11.0 V dc across the transmitter

terminals.

Reference Manual

6234 ft (1900 m) max

(depending upon cable

characteristics)

Terminators

Fieldbus
Segment

(Trunk)

Spur

(Spur)

Power

Supply

FOUNDATION

fieldbus

Configuration

Tool

(The power supply
filter, first
terminator, and
configuration tool
are typically
located in the
control room.)

Integrated Power

Conditioner

and Filter

Signal
Wiring

fieldbus

devices on

segment

*Intrinsically safe installations may allow fewer devices per I.S. barrier due to current limitations.

00809-0100-4716, Rev JA
May 2008

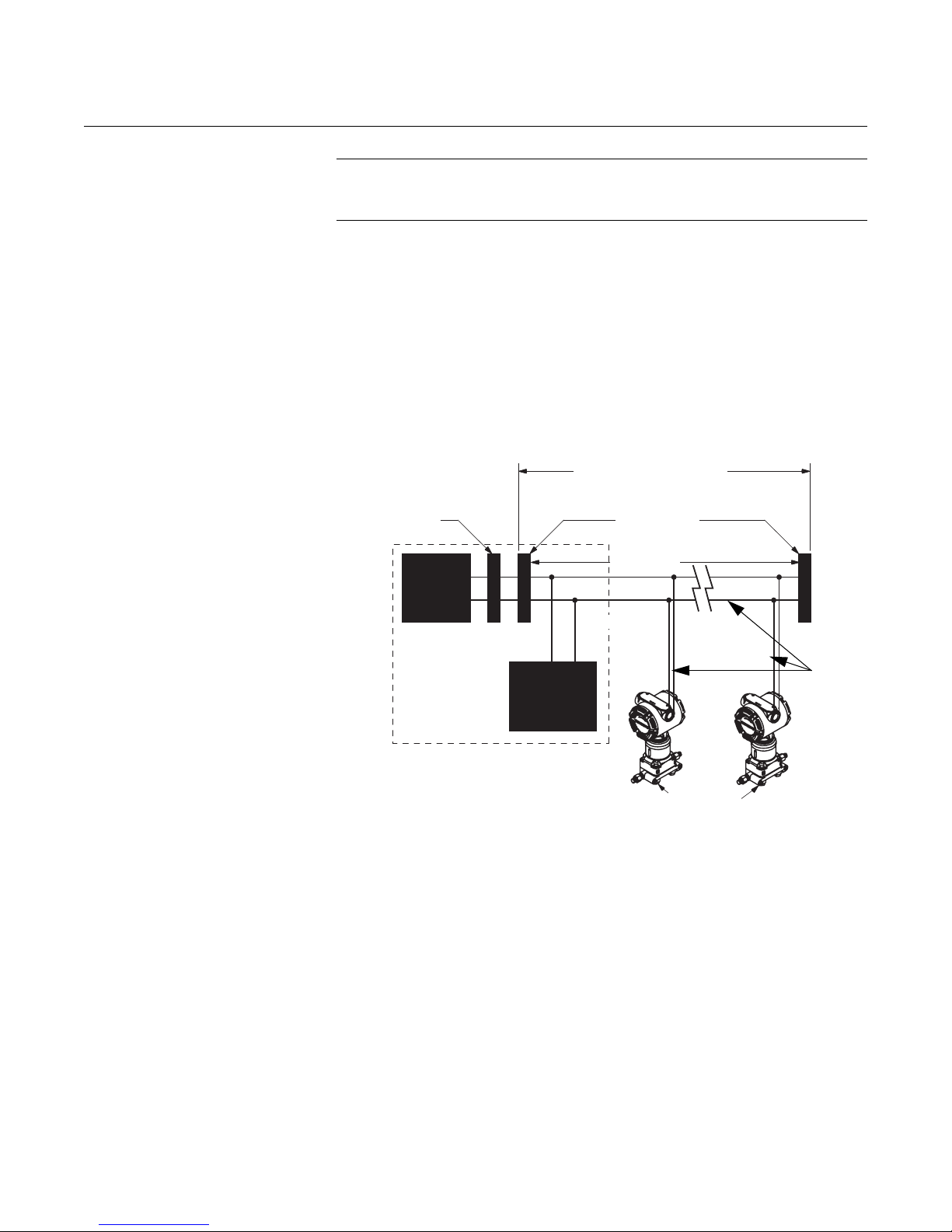

Figure 2-6. FOUNDATION
Fieldbus Wiring Connections

Rosemount 3095 MultiVariable

NOTE

Do not apply high voltage (e.g. ac line voltage) to the transmitter terminals.
Abnormally high voltage can damage the unit.

Grounding

Signal wiring of the fieldbus segment cannot be grounded. Grounding out one
of the signal wires will shut down the entire fieldbus segment.

Shield Wire Ground

To protect the fieldbus segment from noise, grounding techniques for shield
wire usually require a single grounding point for shield wire to avoid creating a
ground loop. The ground point is typically at the power supply.

Power Connections

Use ordinary copper wire of sufficient size to ensure that the voltage across
the transmitter power terminals does not go below 9 V dc. To power the
transmitter, connect the power leads to the terminals marked “FIELDBUS
WIRING” as shown in Figure 2-7. The power terminals are polarity
insensitive, which means the electrical polarity of the power leads does not
matter when connecting to the power terminals. When wiring to screw
terminals, the use of crimped lugs is recommended. Tighten the terminal

screws to ensure adequate contact.

2-13

Rosemount 3095 MultiVariable

Power Terminals

Figure 2-7. FOUNDATION
Fieldbus Transmitter Terminal
Block

NOTE

Do not ground out the live signal wiring to the housing when working on a
segment. Grounding the communication wires may result in temporary loss of
communication with all devices on the segment.

Reference Manual

00809-0100-4716, Rev JA

May 2008

Grounding the
Transmitter Housing

Always ground the transmitter case in accordance with national and local
electrical codes. The most effective transmitter case grounding method is a
direct connection to earth ground with minimal impedance. Methods for
grounding the transmitter case include:

• Internal Ground Connection: The Internal Ground Connection screw
is inside the FIELD TERMINALS side of the electronics housing. The
screw is identified by a ground symbol ( ), and is standard on all
3095 transmitters.

• External Ground Assembly: This assembly is included with the
optional transient protection terminal block (Option Code T1), and it is
included with CESI/CENELEC Flameproof Certification (Option Code
E8), BASEEFA/CENELEC Intrinsic Safety Certification (Option Code
I1), and BASEEFA/CENELEC Type N Certification (Option Code N1).
The External Ground Assembly can also be ordered with the
transmitter (Option Code V5), or as a spare part (03031-0398-0001).

NOTE

Grounding the transmitter case using the threaded conduit connection may
not provide a sufficient ground. The transient protection terminal block (Option
Code T1) does not provide transient protection unless the transmitter case is
properly grounded. Use the above guidelines to ground the transmitter case.
Do not run transient protection ground wire with signal wiring; the ground wire
may carry excessive current if a lightning strike occurs.

Surges/Transients The transmitter will withstand electrical transients of the energy level usually

2-14

encountered in static discharges or induced switching transients. However,
high-energy transients, such as those induced in wiring from nearby lightning
strikes, can cause damage to the transmitter.

Reference Manual

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

Optional Transient
Protection Terminal
Block

INSTALLATION

The transient terminal block can be ordered as an installed option (Option
Code T1 in the transmitter model number) or as a spare part to retrofit existing
3095 transmitters in the field. See “Spare Parts List” on page A-14.

Installation

When the transient protection terminal block is ordered as a spare part, it
must be installed in place of the standard terminal block inside the transmitter
housing. See “Removing the Electrical Housing” on page 5-8.

NOTE

The transient protection terminal block provides transient protection only if the
transmitter housing is properly grounded. See “Grounding the Transmitter
Housing” on page 2-14.

Performance

The transient protection terminal block increases the ability of the 3095
transmitter to withstand electrical transients induced by lightning, welding, or
heavy electrical equipment. With the transient protection block installed, the
3095 transmitter meets the standard performance specifications as outlined in
this product manual. In addition, the transient protection circuitry meets IEEE
Standard 587, Category B and IEEE Standard 472, Surge Withstand
Capability.

Equipment The following equipment and tools are not provided with the 3095 transmitter.

Be sure to review the list prior to field installing the transmitter.

• Installation tools

• Field wire between the power supply and the 3095 transmitter

• Barriers or seals required for hazardous locations

• Conduit

• 2-in. (50.8 mm) mounting pipe or saddles

• Power supply

• 3- or 5-valve manifolds, unless otherwise specified

• Impulse piping

•Tie wraps

Use the following steps to successfully install the 3095 transmitter.

1. Review the installation considerations described on “Considerations”

on page 2-4 to determine the location for the 3095 transmitter.

Mount Transmitter and
Install Bolts

2. Mount the 3095 in the desired location, and install flange or

flange/adaptor bolts.
a. Finger-tighten the bolts.

b. Torque the bolts to the initial torque value using a cross-pattern

(see Table 2-2).

c. Torque the bolts to the final torque value using the same

cross-pattern.

2-15

Rosemount 3095 MultiVariable

Table 2-2. Bolt Installation
Torque Values.

NOTE

Only use bolts supplied with the 3095 or sold by Rosemount Inc. as a spare
part to the 3095. Unauthorized parts can affect product performance and may
render the instrument dangerous.

When installing the transmitter to one of the mounting brackets, torque the
mounting bracket bolts to 125 in-lb (14 n-m).

NOTE

All four flange bolts must be installed and tight before applying pressure, or
process leakage will result. When properly installed, the flange bolts will
protrude through the top of the module housing. Attempting to remove the
flange bolts while the transmitter is in service will result in leakage of the
process fluid.

Bolt Material Initial Torque Value Final Torque Value

Carbon Steel (CS) 300 in-lb (34 n-m) 650 in-lb (73 n-m)

Stainless Steel (SST) 150 in-lb (17 n-m) 300 in-lb (34 n-m)

Reference Manual

00809-0100-4716, Rev JA

May 2008

Process Connections 3. Connect the transmitter to the process.

2-16

Reference Manual

3

/4 to 1/2-14
NPT Adapter
(screws into RTD
Connection Head)

Wash er

Black Cable Connector

(connect to 3095 RTD Pins)

Compression

Fitting

Compression Fitting

Cable Adapter

Bushing

Cap

Conductive Bushing
(slide stop to edge of
armored cable)

RTD Cap

Cable Wires
(2) Red wires
(2) White wires

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

Install RTD Assembly
(optional)

Figure 2-8. Armored Shielded
RTD Cable Assembly

4. (Optional) Install the Series 68 or Series 78 RTD Assembly.

NOTE

To meet ISSep/CENELEC Flameproof certification, only European
Flameproof Cable Assemblies (Process Temperature Input Codes A, B, or C)
may be used for RTD cable installation.

a. Mount the RTD Assembly in the desired location. Refer to the

appropriate primary element standard concerning recommended
RTD installation location.

b. Connect the RTD cable (optional) to the 3095 RTD connector. All

RTD 3095 Cable assemblies use the 3095 RTD cable connector.
Identify the cable type being installed and follow the steps below.

First, fully engage the
black cable connector to
the 3095 RTD connector
pins.

Second, screw in and
tighten the cable adapter
until metal to metal
contact occurs. Install
compression fitting.

Third, use pliers to screw
in and tighten the strain
relief cap onto the
compression fitting.

2-17

Rosemount 3095 MultiVariable

Cable Adapter 1/2–14 NPT

Black Cable Connector

Black Cable Connector

Cable Adapter

Cable Gland

RTD Cable Gland CM20

RTD Cable

Assembly Wires

Red

Red

White

White

A

A
B

B

3095_23A.EPS

• Installing a Shielded 3095 RTD Cable (intended for use in a conduit)
a. Fully engage the black cable connector to the 3095 RTD

Connector (see Figure 2-9).

b. Tighten the cable adapter until metal contacts metal (see

Figure 2-9).

Figure 2-9. Shielded RTD Cable

• Installing a CENELEC Flameproof 3095 RTD Cable
a. Fully engage the black cable connector to the 3095 RTD

Connector (see Figure 2-10).

b. Tighten the cable adapter and cable gland until metal contacts

metal (see Figure 2-10).

Reference Manual

00809-0100-4716, Rev JA

May 2008

Figure 2-10. CENELEC
Flameproof RTD Cable

Figure 2-11 illustrates typical wiring configuration of the Rosemount RTC
Cable Assembly to a 4-wire RTD.

Figure 2-11. RTD Sensor Wiring Diagram

c. Make all necessary wiring connections inside the RTD Flat

Connection Head as explained in the Sensor Wiring Instructions
included with the RTD.

2-18

Reference Manual

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

Check for Leaks 5. Check all process penetrations for leaks.

Power and Signal Wiring 6. Make field wiring connections (see Figure 2-6 or Figure 2-12). These

connections provide both power and signal wiring.

For explosion-proof installations, wiring connections must be made in accordance with
Rosemount drawing 03095-1025 or 03095-1024.

For instrinsically safe installations, wiring connections must be made in accordance
with ANSI/ISA-RP12.6, and Rosemount drawings 03095-1020 or 03095-1031.

For ALL installations, wiring connections must be made in accordance with local or
national installation codes such as the NEC NFPA 70.

NOTES

• Do not run field wiring in conduit or open trays with other power
wiring, or near heavy electrical equipment.

• Field wiring need not be shielded, but use twisted pairs for
best results.

• To ensure communication, wiring should be 24 AWG or larger
and not exceed 5,000 feet (1,500 meters).

• For connections in ambient temperatures above 140 °F (60 °C), use
wiring rated for at least 194 °F (90 °C).

a. Remove the cover on the side marked FIELD TERMINALS on the

electronics housing.

b. Connect the lead that originates at the positive side of the power

supply to the terminal marked “+ SIG” or “+ PWR.” Be sure to
include loop resistance.

NOTE

Incorrect field wiring connections may damage the 3095. Do not connect field
wiring to the “TEST +” terminals.

c. Connect the lead that originates at the negative side of the power

supply to the terminal marked “–.”

d. Plug and seal unused conduit connections on the transmitter

housing to avoid moisture accumulation in the terminal side of the
housing.

NOTE

If the conduit connections are not sealed, mount the transmitter with the
electrical housing positioned downward for drainage. Conduit should be
installed with a drip loop, and the bottom of the drip loop should be lower than
the conduit connections or the transmitter housing.

Grounding 7. Install field wiring ground (optional), and ground the transmitter case

(required).

2-19

Rosemount 3095 MultiVariable

1100  > RL > 250 

User-Provided

Power Supply

Signal loop may be grounded at

any point or left ungrounded

(see step 7.a).

(see step 7.b)

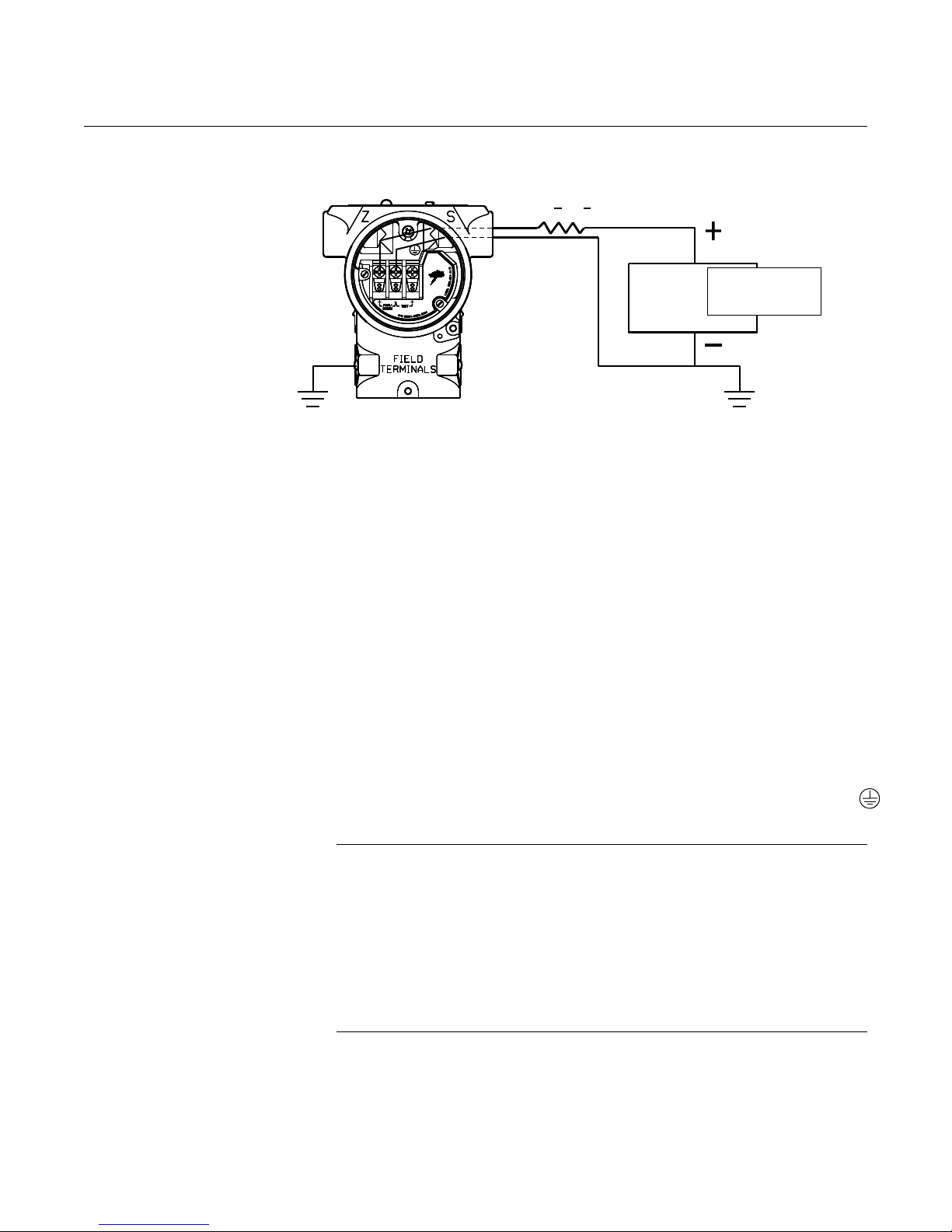

Figure 2-12. HART Wiring
Connections.

Field Wiring Ground

a. Field wiring may be grounded at any one point on the signal loop,

or it may be left ungrounded. The negative terminal of the power
supply is a recommended grounding point.

Reference Manual

00809-0100-4716, Rev JA

May 2008

Ground the Transmitter Case

b. The transmitter case should always be grounded in accordance

with national and local electrical codes. The most effective
transmitter case grounding method is direct connection to earth
ground with minimal impedance. Methods for grounding the
transmitter case include:

• External Ground Assembly: This assembly is included with the

transient protection terminal block. The External Ground
Assembly can also be ordered as a spare part (see “Spare
Parts List” on page A-14).

• Internal Ground Connection: Inside the FIELD TERMINALS

side of the electronics housing is the Internal Ground
Connection screw. This screw is identified by a ground symbol:

NOTE

The transient protection terminal block does not provide transient protection
unless the transmitter case is properly grounded. Use the above guidelines to
ground the transmitter case.

Do not run the transient protection ground wire with field wiring as the ground
wire may carry excessive current if a lighting strike occurs.

Grounding the transmitter case using threaded conduit connection may not
provide sufficient ground.

2-20

8. Replace the cover.

Reference Manual

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

Section 3 HART Commissioning

Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3-1

Engineering Assistant Software . . . . . . . . . . . . . . . . . . . . page 3-2

SAFETY MESSAGES Instructions and procedures in this section may require special precautions to

ensure the safety of the personnel performing the operations. Information that
potentially raises safety issues is indicated by a warning symbol ( ). Please
refer to the following safety messages before performing an operation
preceded by this symbol.

Explosions could result in death or serious injury:

• Do not remove the transmitter cover in explosive atmospheres when the circuit
is live.

• Before connecting a 375 Field Communicator in an explosive atmosphere, make
sure the instruments in the loop are installed in accordance with intrinsically safe
or non-incendive field wiring practices.

• Verify that the operating atmosphere of the transmitter is consistent with the
appropriate hazardous locations certifications.

• Both transmitter covers must be fully engaged to meet explosion-proof
requirements.

Failure to follow these installation guidelines could result in death or serious injury:

• Make sure only qualified personnel perform the installation.

Electrical shock could cause death or serious injury. If the sensor is installed in a
high-voltage environment and a fault or installation error occurs, high voltage may be
present on the transmitter leads and terminals:

• Use extreme caution when making contact with the leads and terminals.

Process leaks can cause death or serious injury

HART

www.rosemount.com

Rosemount 3095 MultiVariable

Reference Manual

00809-0100-4716, Rev JA

May 2008

HART

ENGINEERING
ASSISTANT SOFTWARE

Installation and Initial
Setup

The 3095 Engineering Assistant (EA) Software is a PC-based software
package. The EA Software lets you configure the 3095 Multivariable Mass
Flow Transmitter and 3095 Multivariable Mass Flowmeters.

The EA Software is available as a Snap-On application to AMS 6.0 and
newer, or as Stand-Alone Software powered by AMS. The EA Software
performs configuration, maintenance, and diagnostics functions, and serves
as the primary communications interface to the 3095 transmitter and 3095
Mass Flowmeters.

The following are the minimum system requirements to install the 3095
Engineering Assistant Software:

• IBM-compatible PC

• Pentium 800 MHz personal computer or above

• Operating System: Microsoft

• 512 MB RAM

• 350MB of available hard disk space

• CD-ROM

• 800 x 600 256 color display

NOTE

The available hard disk space specified above is the amount needed for
software installation, not the amount needed for operation (disk space needed
will vary from network to network depending on configuration, number of
devices, etc.).

©

Windows™ NT, 2000 or XP

Installing the 3095 MultiVariable Engineering Assistance Software

The EA Software package is available with or without the HART modem and
connecting cables. The complete EA package contains the EA software
CD-ROM, and one HART modem with cables for connecting the computer to
the 3095. Optional USB HART Modem and cables include separate software
to install USB HART modem drivers. Install USB HART Modem drivers
following the instructions provided with the modem. Install USB HART Modem
drivers prior to beginning the EA software installation.

1. For Stand-Alone users, install the 3095 Engineering Assistant
software by clicking on the “setup.exe” file located on the CD-ROM.

2. For Snap-On users, AMS is a two CD-ROM series with the 3095
Engineering Assistant on the second disk. After installing AMS, install
the 3095 Engineering Assistant software by clicking on the
“setup.exe” file located on the second CD-ROM.

3. A series of screens (called the “Installation Wizard”) will appear and
assist in the installation process. Follow the on-screen instructions. It
is recommended that the default settings on the PC are used.

4. The system will reboot. Installation will continue until the “Finished”
prompt appears.

NOTE

For AMS users, AMS must be installed and activated by submitting the proper
license codes before EA can be launched as a Snap-On option.

3-2

Reference Manual

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

Installing the HART Modem

After the EA Software has been installed, the HART modem device driver
must be installed and configured. The HART modem Installation Wizard
automatically appears when the 3095 EA Software is launched. If the wizard
does not automatically launch, you can configure the modem by accessing
the AMS Network Configuration screen.

If using a HART USB Modem, the modem drivers must be installed prior to
configuring the HART Modem. The USB Modem drivers can be installed by
following the instructions for the software provided with the HART USB
Modem.

For AMS Snap-On users:

1. Click on the Windows “Start” button.

2. Click on “All Programs.”

3. Click on the “AMS” folder.

4. Click on the “AMS Configuration” icon.

For EA Stand-Alone users:

HART

Figure 3-1. HART Modem
Installation

1. Click on the Windows “Start” button.

2. Click on “All Programs.”

3. Click on the “Engineering Assistant” Folder.

4. Click on the “AMS Network” icon.

Once the Install Wizard is open, the HART modem can be installed.

1. Click on the “Add” button.

2. Select “HART Modem” and click the “Install…” button.

3-3

HART

Rosemount 3095 MultiVariable

3. Specify a name for the HART Modem. The default is “HART Modem

1.” Click “Next.”

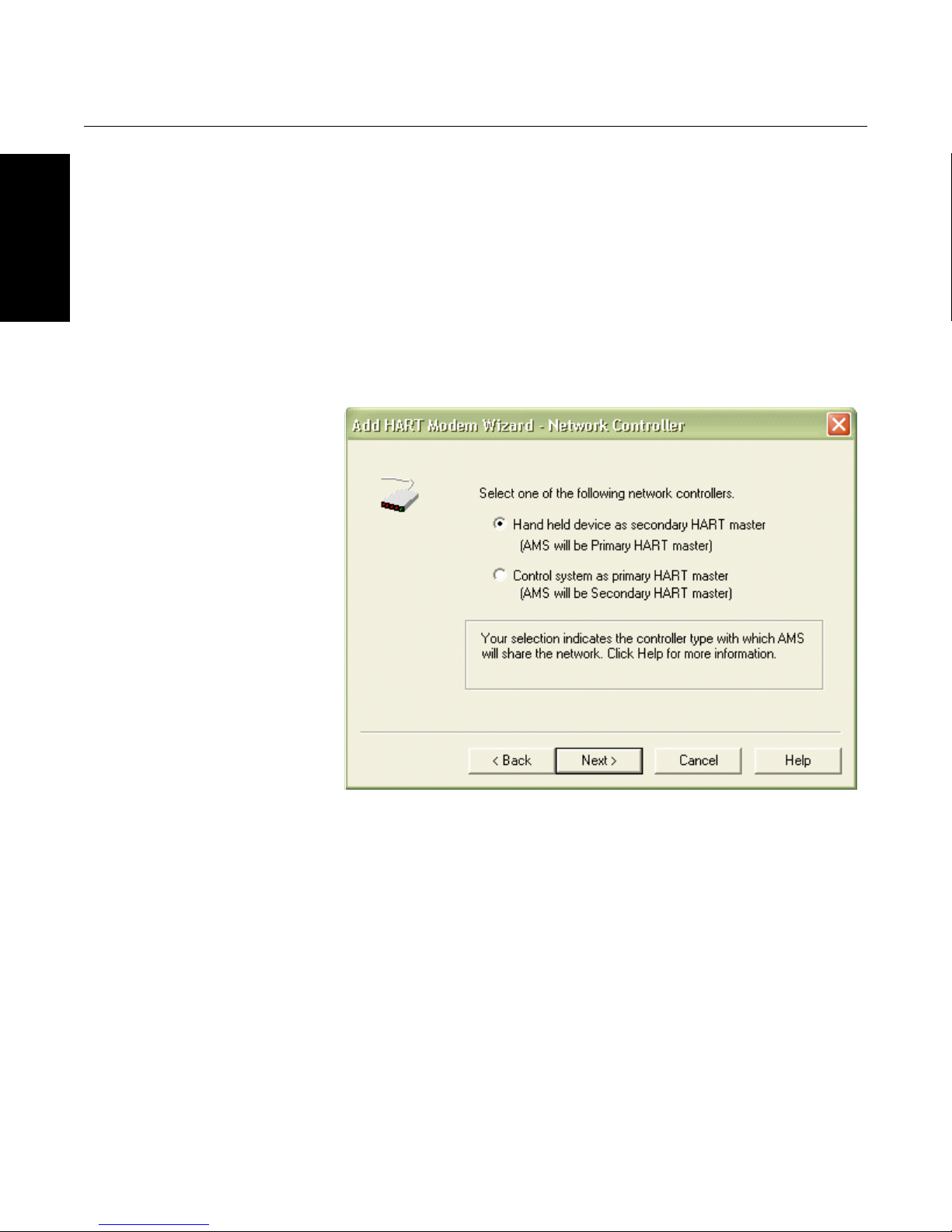

4. Specify whether AMS will act as a primary or secondary HART
master for configuration (See Figure 3-2). If performing a bench
configuration, it is recommended to choose “Hand held device as a
secondary HART master (AMS will be Primary HART master)”. For
field configurations where the instrument is powered by a HART
protocol control system, selecting the second choice is recommended
in order to prevent HART communication conflicts between AMS and
the HART control system. Click “Next.”

Figure 3-2. HART Modem
Installation

Reference Manual

00809-0100-4716, Rev JA

May 2008

3-4

5. Select the PC COM Port for the HART Modem. Click “Next.”

6. If more than one device will be connected to the HART modem at the
same time (such as a Rosemount 333 Tri-Loop), select the “Multi
Drop” check box and then select a scan address range. (Limiting the
address range to 0-2 will improve response time.) Click “Finish” to
complete the HART modem configuration.

7. After configuring the HART modem in the AMS network window,
access the HART modem properties screen again and select the
“Connection” tab. Set the “Retry Count” to a value of 6.

Reference Manual

1100 > R > 250 

Modem

User-Provided
Power Supply

00809-0100-4716, Rev JA
May 2008

Figure 3-3. Connecting a PC to

the 3095

Rosemount 3095 MultiVariable

Connecting to a Personal Computer

Figure 3-3 shows how to connect a computer to a 3095.

HART

1. Power the device as outlined in Section 2.

2. Connect the 9-pin HART modem cable to the 9-pin serial
communications port on the PC.

NOTE

If your PC does not have a 9-pin serial port, you will need a USB-HART
modem, PN 03095-5105-0002.

3. On the side marked “Field Terminals,” connect the modem
mini-grabbers to the two terminals marked “Comm.”

4. Launch the 3095 Engineering Assistance Software.

NOTE

It may be necessary to access the COM port properties on your PC. In the
advanced port settings, adjust the receive buffer to its lowest setting (1) and
re-boot the computer to apply the change.

3-5

HART

admin

Rosemount 3095 MultiVariable

a. For AMS Snap-On users:

1. Click on the Windows “Start” button.

2. Click on “All Programs.”

3. Click on the “AMS” folder.

4. Click on the “AMS System” icon.

b. For EA Stand-Alone users:

1. Click on the Windows “Start” button.

2. Click on “All Programs.”

3. Click on the “MV Engineering Assistant” folder.

4. Click on the “MV Engineering Assistant” icon.

5. Enter username and password and click “OK” to log on to the
software (see Figure 3-4). Once you are logged on, you will be taken
to the default “Device Connection View,” which shows all devices
which are currently online (see Figure 3-5).

NOTE

The default username is “admin” (lowercase) with a blank password.

Reference Manual

00809-0100-4716, Rev JA

May 2008

Figure 3-4. Software Login.

3-6

Reference Manual

00809-0100-4716, Rev JA
May 2008

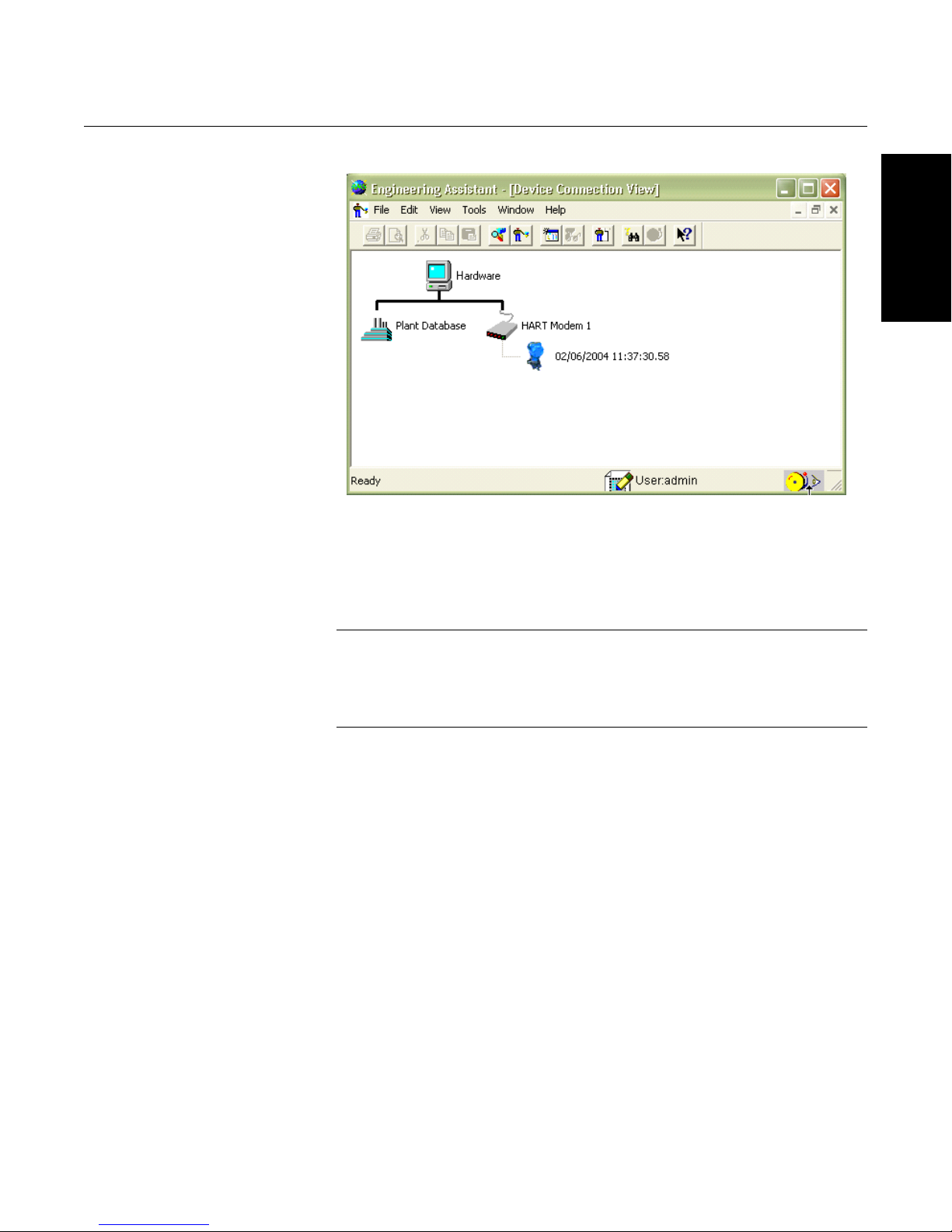

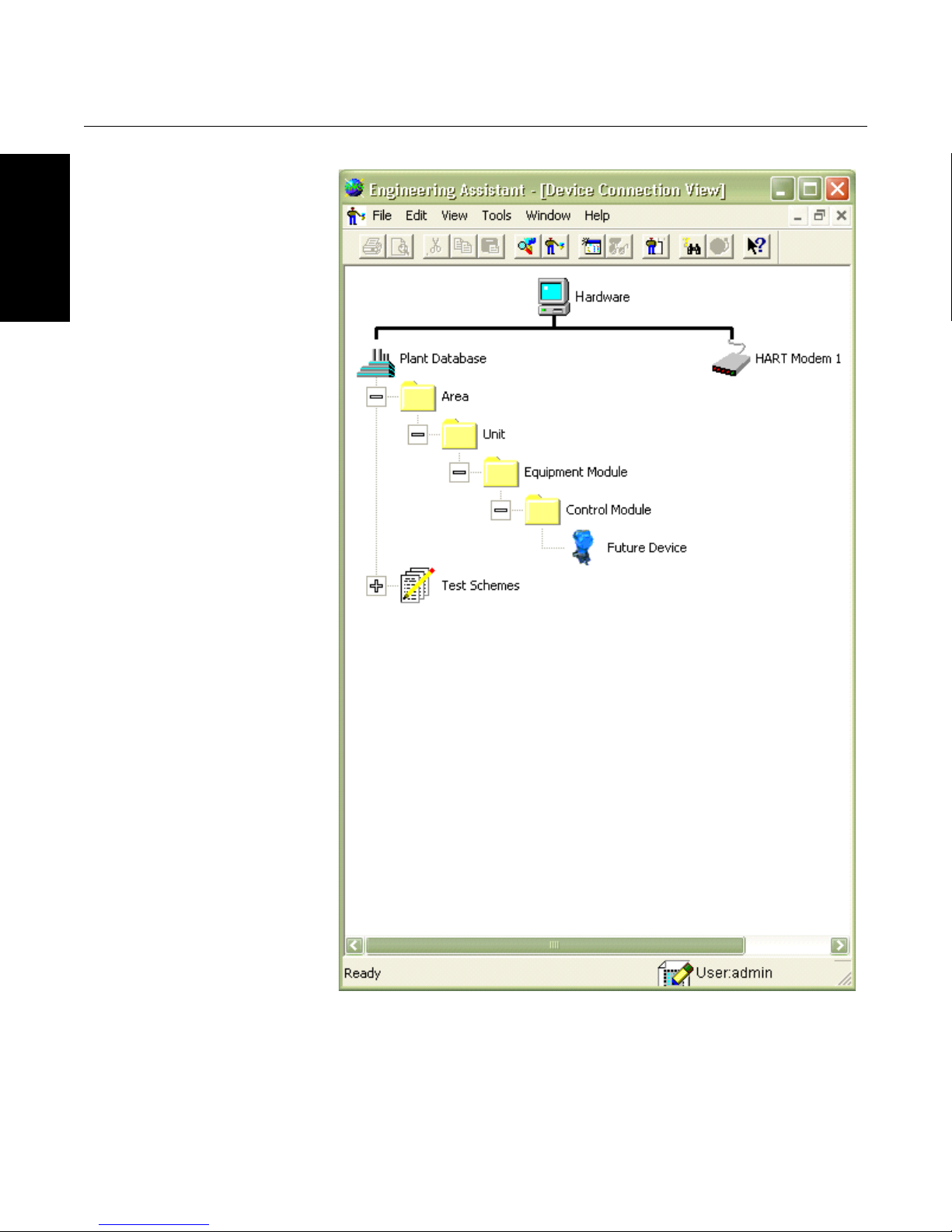

Figure 3-5. Device Connection
View

Rosemount 3095 MultiVariable

HART

Basic Navigation The 3095 Engineering Assistant lets you navigate through the software in a

variety of ways. When first logging onto the system, the default screen is the
Device Connection View (Figure 3-5). You will be able to see all devices
which are connected to the network.

NOTE

If Device Connection View does not appear, go to File_Properties. In the
Properties window, select “Device Connection View” as the default browser.
Then, click on the Device/AMS Sync tab and de-select the Automatic Sync
Function. Click “Apply”.

Menu Categories

File:The File menu contains screens to configure the overall host system,

including AMS settings and user login.

Edit: The Edit menu contains standard Cut and Paste commands.

View: The View menu is used to change the type of graphical interface you

are currently working with.

Tools: The Tools menu does not contain any applications for the 3095
Engineering Assistant software

Window: The Window menu can be used to manage all of the various
windows and applications currently open.

Help: The Help menu accesses the online assistance guide for the AMS
Interface/3095 EA software.

3-7

HART

Reference Manual

00809-0100-4716, Rev JA

Rosemount 3095 MultiVariable

Tool Bar

Another fast way to navigate through the 3095 Engineering Assistance
Software is by using the toolbar (see Figure 3-6).

Figure 3-6. Toolbar Icons

May 2008

Procedures In both Snap-On and Stand-Alone versions of the 3095 Engineering Assistant

Software, most of the device parameters can be accessed by right-clicking on
the transmitter icon (See Figure 3-7 below). To access flow configuration,
right-click on the transmitter icon and select 3095 Engineering Assistant or
SNAP-ON Linked Apps/3095 Engineering Assistant. More information on
completing a flow configuration using the 3095 Engineering Assistant begins
on page 3-33.

NOTE

Some of the links found when right-clicking on the transmitter icon (see
Figure 3-7) may have different titles or may be absent, depending on which
version (SNAP-ON or Stand-Alone) of the 3095 Engineering Assistant is
running, and depending on the revision level version of the device and the
device driver file.

3-8

Reference Manual

00809-0100-4716, Rev JA
May 2008

Figure 3-7. Transmitter Links

Rosemount 3095 MultiVariable

HART

3-9

HART

Rosemount 3095 MultiVariable

Process Variables…

The “Process Variables…” link displays the current reading of the process
variables measured by the 3095. In the “Process Variables…” window,
variables are automatically updated every 2-3 seconds. All values on the
screen are read-only.

1. Right-click on the transmitter icon.

2. Select “Process Variables…” from the pop-up menu.

The following process variables are viewable on the “Process Variables…”
window (see Figure 3-8):

• Absolute/Gage Pressure

• Differential Pressure

• Temperature

•Flow Rate

• Flow Total

• Analog Output (4-20mA)

Reference Manual

00809-0100-4716, Rev JA

May 2008

Figure 3-8. Process Variables
Window (with 3095 Device
Driver File DD2 Rev 3)

3-10

Reference Manual

00809-0100-4716, Rev JA
May 2008

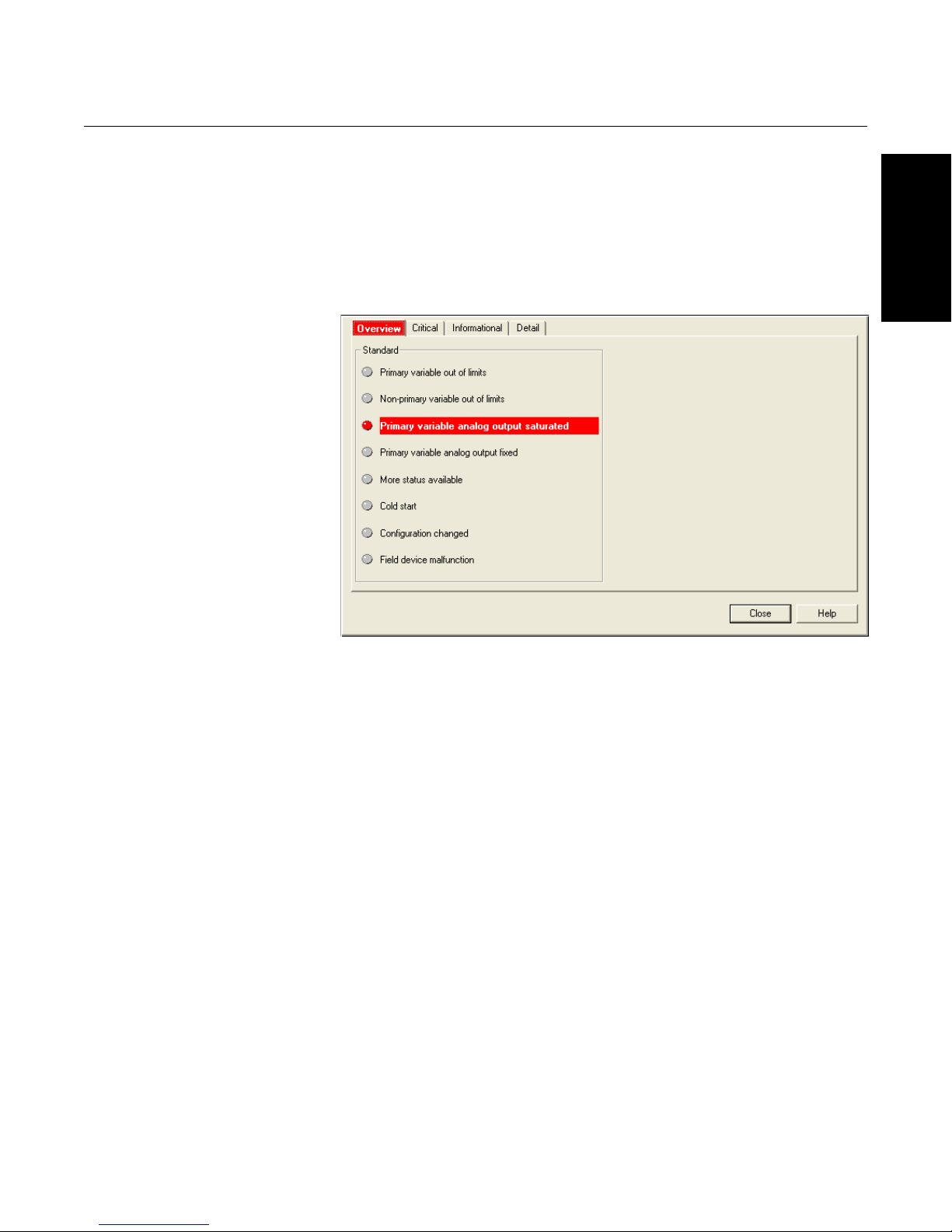

Figure 3-9. Transmitter Status
screen

Rosemount 3095 MultiVariable

Status…

The “Status…” link displays a list of the transmitter errors, alarms, and
failures. If a status flag is triggered, it is highlighted in red.

1. Right-click on the transmitter icon.

2. Select “Status…” from the pop-up menu.

HART

Scan Device

The “Scan Device” function synchronizes the transmitter with the host system,
updating all parameters, readings, etc.

1. Right-click on the transmitter icon.

2. Select “Scan Device” from the menu.

Diagnostics and Tests

The “Loop Test” application, found under the “Diagnostics and Tests” link,
verifies the 4-20mA output of the 3095. The user can manually set the
transmitter output current and then verify the actual loop current using an
Amp meter.

3-11

HART

Rosemount 3095 MultiVariable

1. Right-click on the transmitter icon.

2. Highlight “Diagnostics and Tests” from the pop-up menu.

3. Select “Loop Test” from the submenu.

4. Read the warning message and click “Next.”

5. Select the analog output level for the transmitter and click “Next.” If
“Other” is chosen, another screen appears allowing you to specify the
output current (see Figure 3-10).

6. Measure the output current with an Amp meter and compare with the
expected output current. If a correction trim is needed, it will be done
as a D/A trim in the calibration functions (see page 3-17).

7. When finished, select “End” and click “Next.”

8. Read the warning message, and click “Next.”

9. Select “Finish.” The analog output returns to its normal reading.

Figure 3-10. Loop test analog
output selection.

Reference Manual

00809-0100-4716, Rev JA

May 2008

3-12

Calibrate Menu

The “Calibrate” menu contains links to three different applications: Sensor
Trim, D/A Trim, and Scaled D/A Trim.

From the “Sensor Trim” link, you can access the calibration options for the
Differential Pressure, Static Pressure, and Temperature process variables.

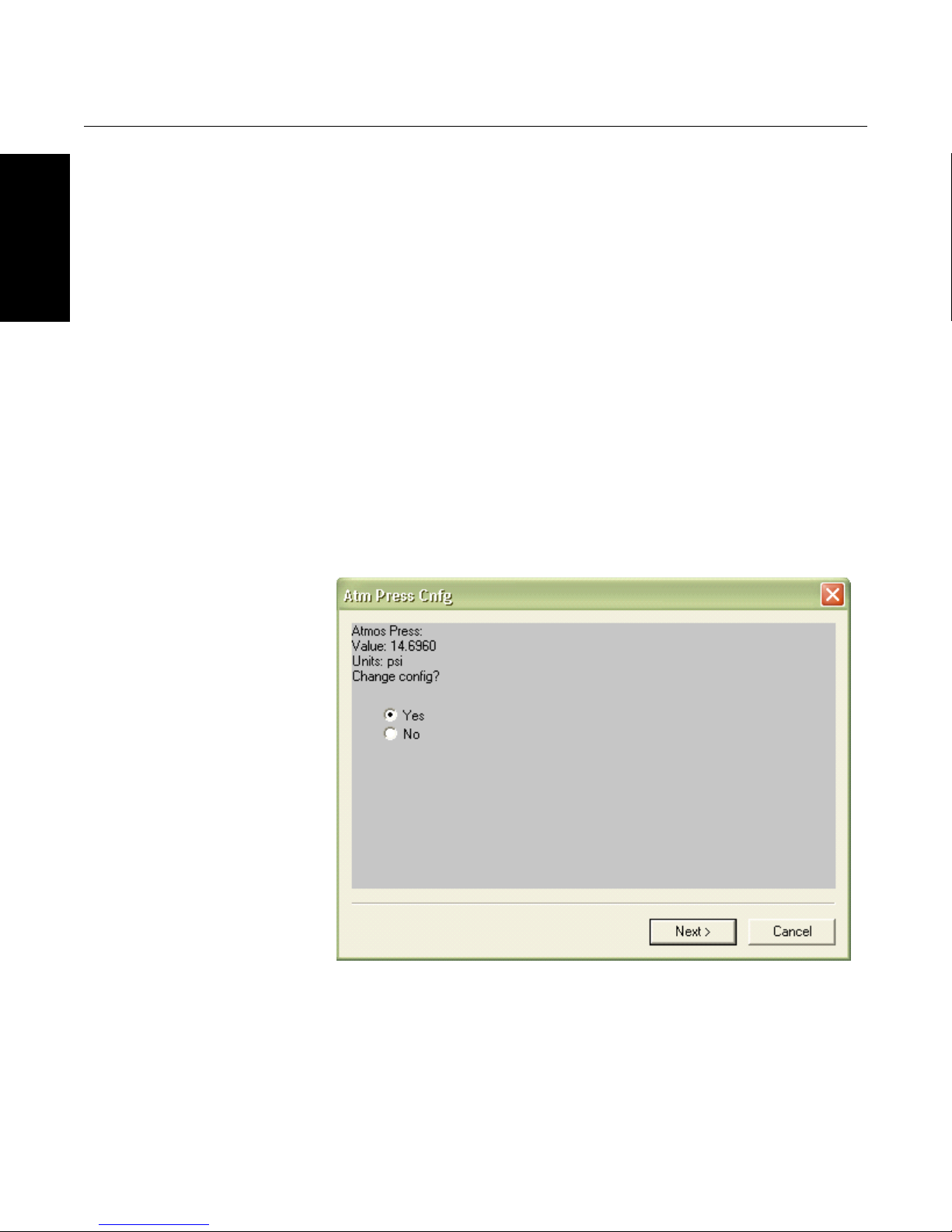

Additionally, you can change the Atmospheric Pressure value and restore the
D/A converter to its factory default setting.

Reference Manual

00809-0100-4716, Rev JA
May 2008

Figure 3-11. Sensor Trim Menu

Rosemount 3095 MultiVariable

HART

In addition to the 3095 EA software, the following equipment is required for a
sensor trim procedure:

• 3095 transmitter

• Dead-weight tester

• Power supply and load resistor

• Vacuum pump or a barometer that is at least 3 times as accurate as the

3095 AP sensor. A barometer is preferred.

3-13

HART

Rosemount 3095 MultiVariable

Sensor Trim Procedure

1. Right-click on the transmitter icon. Select “Process Variables” to view
measured variables and determine if a sensor trim is needed (see
Figure 3-8).

2. Right-click on the transmitter icon. Select “Calibrate/Sensor Trim”
functions.

3. Click on the process variable requiring modification (DP Sens Trim,
AP Sens Trim, GP Sens Trim, or Temp Sens Trim).

4. From the calibration screen (see Figure 3-12), select the type of
calibration procedure:

a. To view the last calibration trim points for the selected process

variable, select “Display Trim,” and click “Next.” The offset and
slope trim points are displayed.

b. To fully calibrate the selected process variable, select “Trim

Sensor,” and click “Next.”

1. Read the warning message and click “Next.”

2. Select the units of measure from the drop-down menu for the
variable being calibrated, and click “Next.”

3. Select whether you want to calibrate the offset or slope (span)
point, and click “Next”. The offset trim should be done first;

then determine if a slope trim is necessary.
a. If setting the offset point for the Absolute Pressure sensor,
pull vacuum to both the low and high sides of the
transmitter, or offset trim the AP sensor using an accurate
barometer or reference sensor.
b. If setting the offset point for the DP Sensor, equalize the
high and low ports.
c. If setting the offset point for the Temperature sensor, insert
the RTD probe into an ice bath or use a verified RTD
simulator.
d. If setting the slope trim (span) for the DP sensor, apply the
desired pressure to the high side of the transmitter.
e. If setting the slope trim for the AP or GP sensor, apply the
reference pressure to the high and low side ports
simultaneously.
f. If setting the slope trim for the Temperature sensor, insert
the RTD probe into a hot oil bath or use a verified RTD
simulator.

4. Enter the new value for the offset or slope point, and click

“Next.”

5. Select “Yes” to implement the new calibration point, and click

“Next.”

6. Read the warning message, and click “Next.”

7. Click “Finish.”

Reference Manual

00809-0100-4716, Rev JA

May 2008

3-14

Reference Manual

00809-0100-4716, Rev JA
May 2008

Figure 3-12. Sensor Trim
Options Screen

Rosemount 3095 MultiVariable

c. To restore the selected process variable to its factory default

calibration, select “Factory Trim Recall” and click “Next.”

1. Read the warning message and click “Next.”

2. Select “Yes” to implement the default calibration, and click
“Next.”

3. Read the warning message, and click “Next.”

4. Click “Finish.”

d. To zero the sensor reading for the selected process variable (not

available for Temperature Sensor Calibration), select “Zero
Sensor,” and click “Next.”*

1. Read the warning message and click “Next.”

2. Select “Yes” to zero the current sensor reading, and click “Next.”

3. Read the warning message, and click “Next.”

4. Click “Finish.”

HART

* NOTE: Do not zero an AP sensor unless an absolute 0 pressure (vacuum)
source is available.

3-15

HART

Rosemount 3095 MultiVariable

Changing the Atmospheric Pressure Value:

The Gauge Sensor on the 3095 takes measurements with respect to the
atmospheric pressure. To change the assumed atmospheric pressure value:

1. Right-click on the transmitter icon.

2. Highlight “Calibrate” from the pop-up menu.

3. Highlight “Sensor Trim” from the submenu.

4. Click on “Atmospheric Press.”

5. A window appears, displaying the current atmospheric pressure value
used by the 3095. Select “Yes” to change the value, and click “Next”
(see Figure 3-13).

6. Enter the new value for the atmospheric pressure, and click “Next.”

7. Select the unit of measure from the drop-down menu, and click
“Next.”

8. Select “Yes” to implement the new assumed Atmospheric Pressure
value, and click “Next.”

9. Read the warning message, and click “Next.”

10. Click “Finish.”

Reference Manual

00809-0100-4716, Rev JA

May 2008

Figure 3-13. Atmospheric
Pressure Configuration

3-16

Reference Manual

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

D/A Trim

The D/A Trim allows the user to adjust the digital-to-analog converter at the
end points of the transmitter output scale to compensate for a discrepancy
with a reference milliamp meter.

1. Right-click on the transmitter icon.

2. Highlight “Calibrate” from the pop-up menu.

3. Click “D/A Trim.”

4. Read the warning and click “Next.”

5. Connect the Ammeter, and click “Next.” The 3095M output will go to
4mA.

6. Enter the value (in mA) that is shown on the reference meter, and
click “Next.”

7. Compare the meter value to the 4mA reference point, and select
“yes” if the two values agree. If “no” is selected, repeat steps 6 and 7.
Click “Next.” The 3095M output will go to 20mA.

8. Enter the value shown on the reference meter, and click “Next.”

9. Compare the meter value to the 20mA reference point, and select
“yes” if the two values agree. If “no” is selected, repeat steps 8 and 9.
Click “Next.”

10. Click “Finish” to end the D/A loop trim.

HART

3-17

HART

Rosemount 3095 MultiVariable

Scaled D/A Trim

For the Scaled D/A Trim, the user can adjust the transmitter digital-to-analog
converter on an alternate unit of measure, such as voltage (example: using a
voltmeter across a 500 ohm resistor produces a low point of 2 volts a high
point of 10V).

1. Right-click on the transmitter icon.

2. Highlight “Calibrate” from the pop-up menu.

3. Click “Scaled D/A Trim.”

4. If you expect your measurement to be from 4 – 20 (mA, V, etc.), click
“Proceed.” Otherwise, click “Change.”

5. Enter the expected low set point, and click “Next.”

6. Enter the expected high set point, and click “Next.”

7. Follow steps 5-7 on the above D/A Trim procedure, using the low and
high values you entered as reference points instead of the normal
4mA and 20mA.

To restore the D/A Conversion to the factory default settings:

Reference Manual

00809-0100-4716, Rev JA

May 2008

1. Right-click on the transmitter icon.

2. Highlight “Calibrate” from the pop-up menu.

3. Highlight “Sensor Trim” from the submenu.

4. Click “Factory Trim.”

5. Select “Yes,” and click “Next” when asked if you want to set the DAC
(Digital-to-Analog Converter) Trim to factory defaults.

6. Click “Finish.”

Reset

The reset command reinitializes the transmitter microprocessor. This is the
equivalent of cycling power to the 3095.

NOTE

This procedure does not return the transmitter to factory trim settings.

1. Right-click on the transmitter icon.

2. Click “Reset” from the pop-up menu.

3. Read the warning message and click “Next.”

4. The transmitter will reset automatically. Click “Finish” to close the
window.

3-18

Reference Manual

00809-0100-4716, Rev JA
May 2008

Table 3-1. 4–20mA Control
Loop Defaults Assignments

Rosemount 3095 MultiVariable

Process Variable Assignments

The “Assignments” (or Process Variable Assignments) link lets you assign
specific variables to individual 4-20mA loops for use with the Rosemount 333
HART Tri-Loop. Table 3-1 illustrates the default variables assigned to each
control loop. If a 333 Tri-Loop is used, the Tri-Loop channels can each be
configured to any of the PV, SV, TV, or QV variables (see page 3-33).

Loop EA Label Label on Tri-Loop Default Variable Default Units

Primary PV N/A Flow Std. Cu.ft / hr
Secondary SV Output 1 Diff. Pressure in. H20
Tertiary TV Output 2 Static Pressure psi
Fourth QV Output 3 Temperature deg. F

To change the process variable assigned to a particular output variable:

1. Right-click on the transmitter icon.

2. Highlight “Assignments” from the pop-up menu.

3. Click on the control loop you wish to change the variable assignment
for. Refer to Table 3-1 for default variable assignments.

4. When the configuration screen appears, select the variable from the
pull-down menu to be assigned to the selected 4-20 loop, and click
“Next” (see Figure 3-14).

5. Read the warning message, and click “Next.”

6. Click “Finish” to implement the loop assignment change.

HART

Figure 3-14. Changing the
Primary Loop Variable

NOTE

When used with a 333 Tri-Loop, each channel of the Tri-Loop can be
configured to any of the variables (PV, SV, TV, or QV). Therefore, it is
suggested to leave the 3095M set to its default order of variable assignments.

3-19

HART

Rosemount 3095 MultiVariable

RTD Configuration

The RTD Config link specifies the process temperature (PT) mode. It allows
you to enable or disable PT input or to specify automatic backup mode.

When in Normal Mode, the transmitter uses the external RTD for PT
measurement. In the event of an RTD failure, the transmitter goes into alarm
condition.

When in Fixed Mode the transmitter will stay on a fixed value that is entered
by the user.

When in Backup Mode, a value is specified that the transmitter will go to in the
event the RTD fails or is disconnected. Upon failure, the transmitter will use
the backup value and set a HART status bit for PT alarm, but will not go into
alarm condition. The transmitter returns to automatic temperature sensor
readings when the RTD failure condition no longer exists.

NOTE

The fixed and backup process temperature ranges are wider than the actual
process temperature range:

Process Temperature Range: -300 to 1500 °F (-185 to 815 °C)
Fixed/Backup Temperature Range: -459 to 3500 °F (-273 to 1927 °C)

Reference Manual

00809-0100-4716, Rev JA

May 2008

Figure 3-15. RTD Configuration.

To change the RTD configuration:

1. Right-click on the transmitter icon.

2. Click on “RTD Config” from the pop-up menu.

3. Select “Yes” to change the configuration, and click “Next.”

4. From the drop-down menu, select the mode you wish to place the
process temperature input in, and click “Next” (see Figure 3-15).

5. Enter a temperature value to be used if the transmitter is in Fixed or
Backup Mode, and click “Next.”

6. Select the unit of measure for the temperature input from the
drop-down menu, and click “Next.”

7. Click “Finish.”

3-20

Reference Manual

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

DP Low Flow Cutoff

The DP Low Flow Cutoff screen allows the minimum differential pressure
(DP) limit for the 3095 to calculate flow to be set. At a DP value less than the
low flow cutoff, the flow value will equal zero.

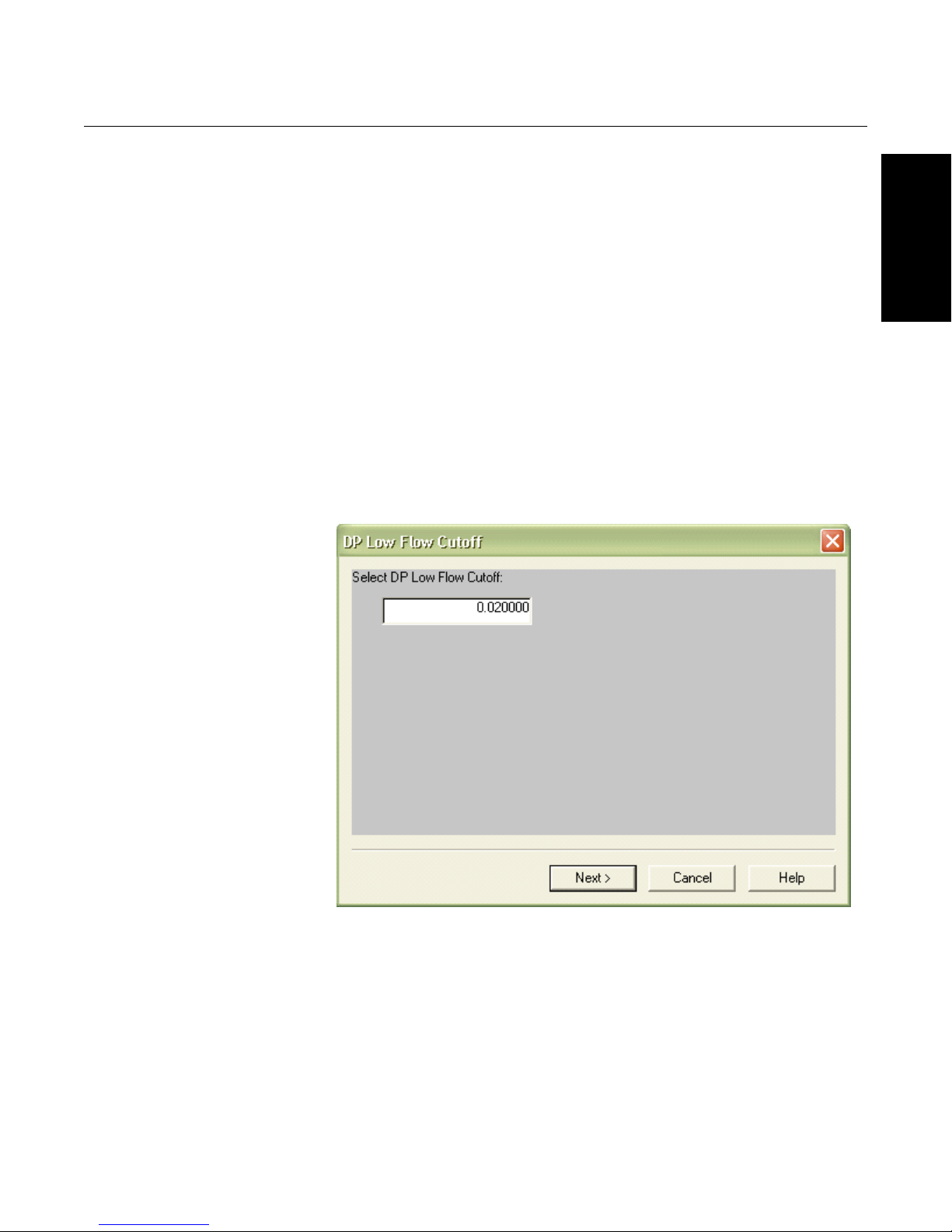

Figure 3-16. DP Low Flow
Cutoff.

The default value for the DP Low Flow Cutoff is 0.02 inH20 (5 Pa).

To change the DP Low Flow Cutoff point:

1. Right-click on the transmitter icon.

2. Click “DP Low Flow Cutoff” from the pop-up menu.

3. Select “Yes” to change the Low Flow Cutoff point, and click “Next.”

4. Enter the cutoff value, and click “Next” (see Figure 3-16).

5. Select “differential pressure” for the unit of measure, and click “Next.”

6. Select “Yes” to implement the change in the DP Low Flow Cutoff
point, and click “Next.”

7. Click “Finish.”

HART

3-21

HART

Rosemount 3095 MultiVariable

Rename

To change the name that appears next to the transmitter icon on the 3095
Engineering Assistant software:

1. Right-click on the transmitter icon.

2. Click “Rename” from the pop-up menu.

3. Type a new name for the transmitter, and press “Enter” on the
keyboard.

Clear Offline Configuration or Delete

To remove the offline configuration that is currently saved for the selected

3095. (For more information on Offline Configurations, see page 3-47):

1. Right-click on the transmitter icon.

2. Click “Clear Offline Configuration or Delete” from the pop-up menu.

3. Click “Yes” to delete the offline configuration.

Compare Configurations…

“Compare Configurations” lets you compare current, historic, and offline
configurations for the selected 3095.

Reference Manual

00809-0100-4716, Rev JA

May 2008

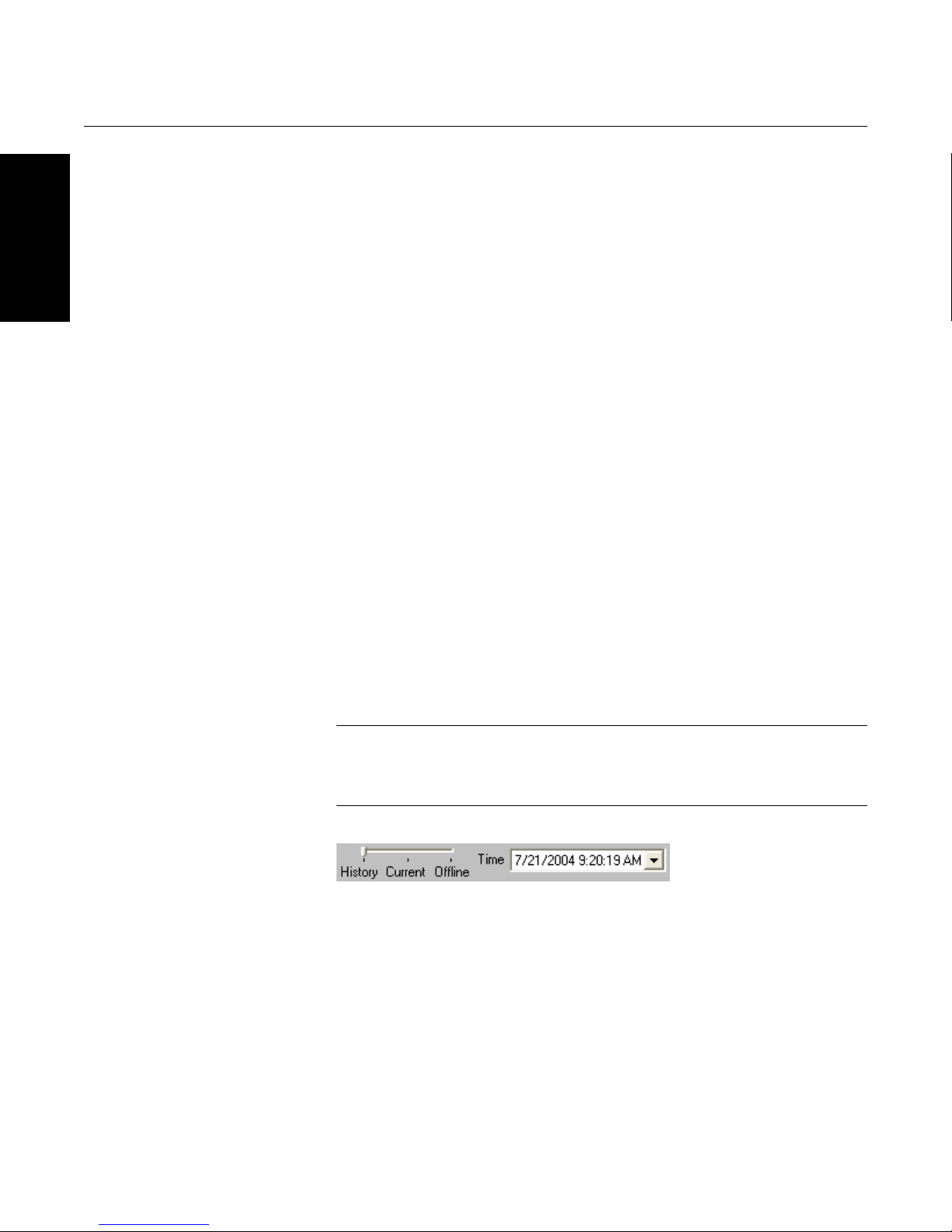

Figure 3-17. Time Selector

1.Right-click on the transmitter icon.

2.Click “Compare Configurations” from the pop-up menu.

Compare current, offline, and previous configurations for the selected device.
From the tabs at the top of the window, you can select the set of parameters
to view. A green tab denotes a difference on one or more parameters found
on that tab between the two selected configurations.
Compare two different configurations by moving the slide bar to the time
setting you want for each of the configurations (see Figure 3-17).

NOTE

“Compare Configurations” function compares those configuration settings in
the Configurations Properties functions only (see Figure 3-18). The flow
configuration file is not included in this comparison.

If you are comparing the current configuration for the 3095, you can also
change the configuration by modifying the appropriate field and clicking
“Apply.”

3-22

Reference Manual

00809-0100-4716, Rev JA
May 2008

Figure 3-18. Compare
Configurations

Rosemount 3095 MultiVariable

HART

3-23

HART

STEAM FLOW

MAIN STEAM LINE

Rosemount 3095 MultiVariable

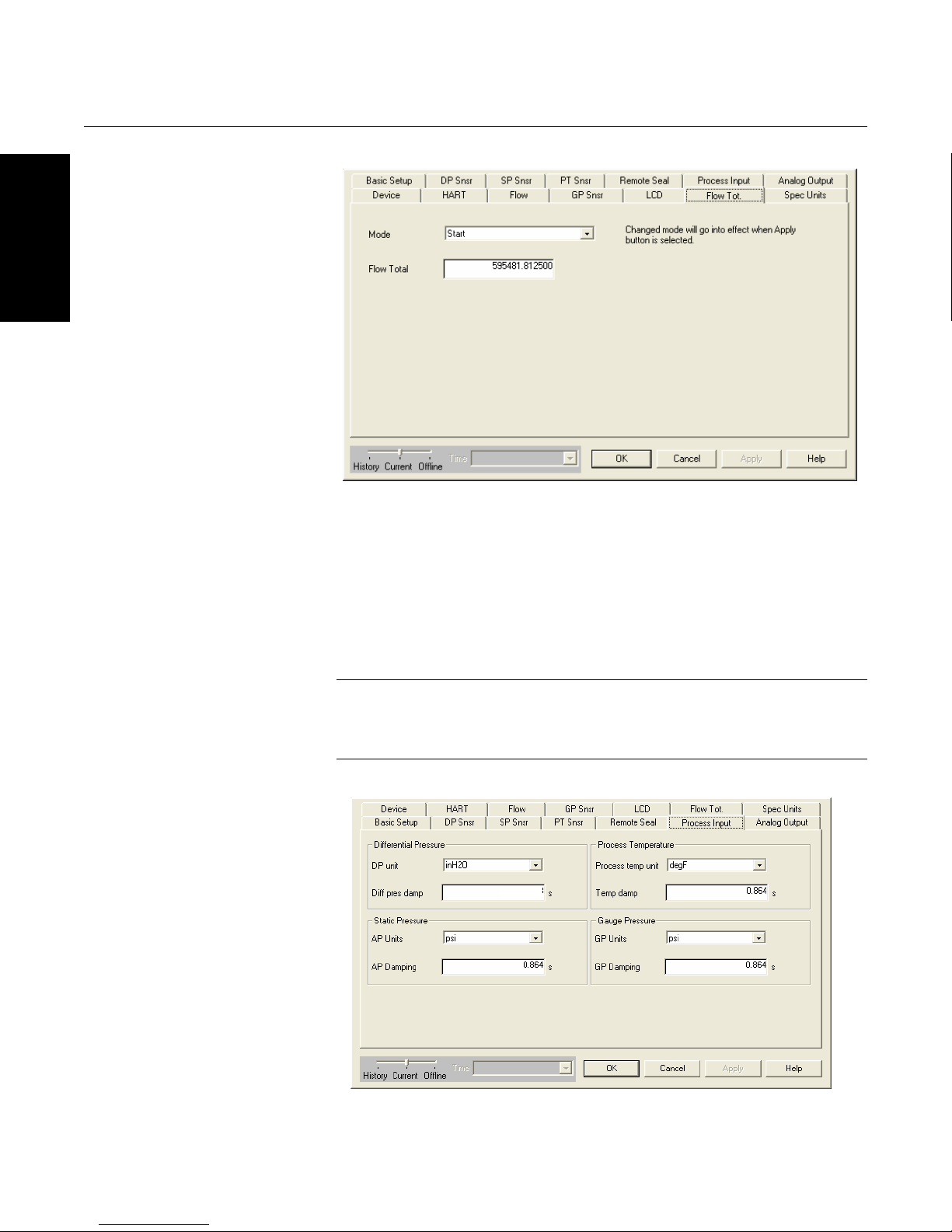

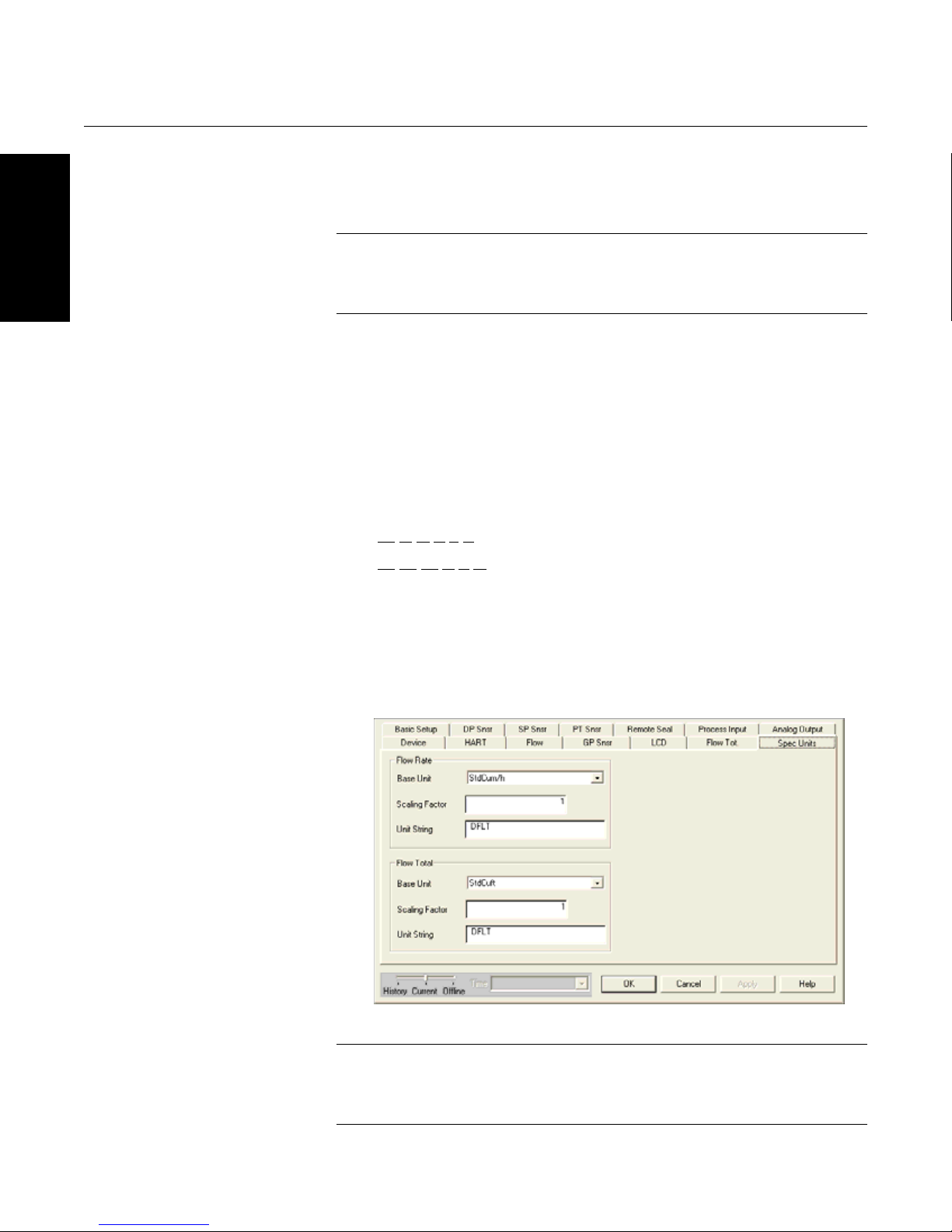

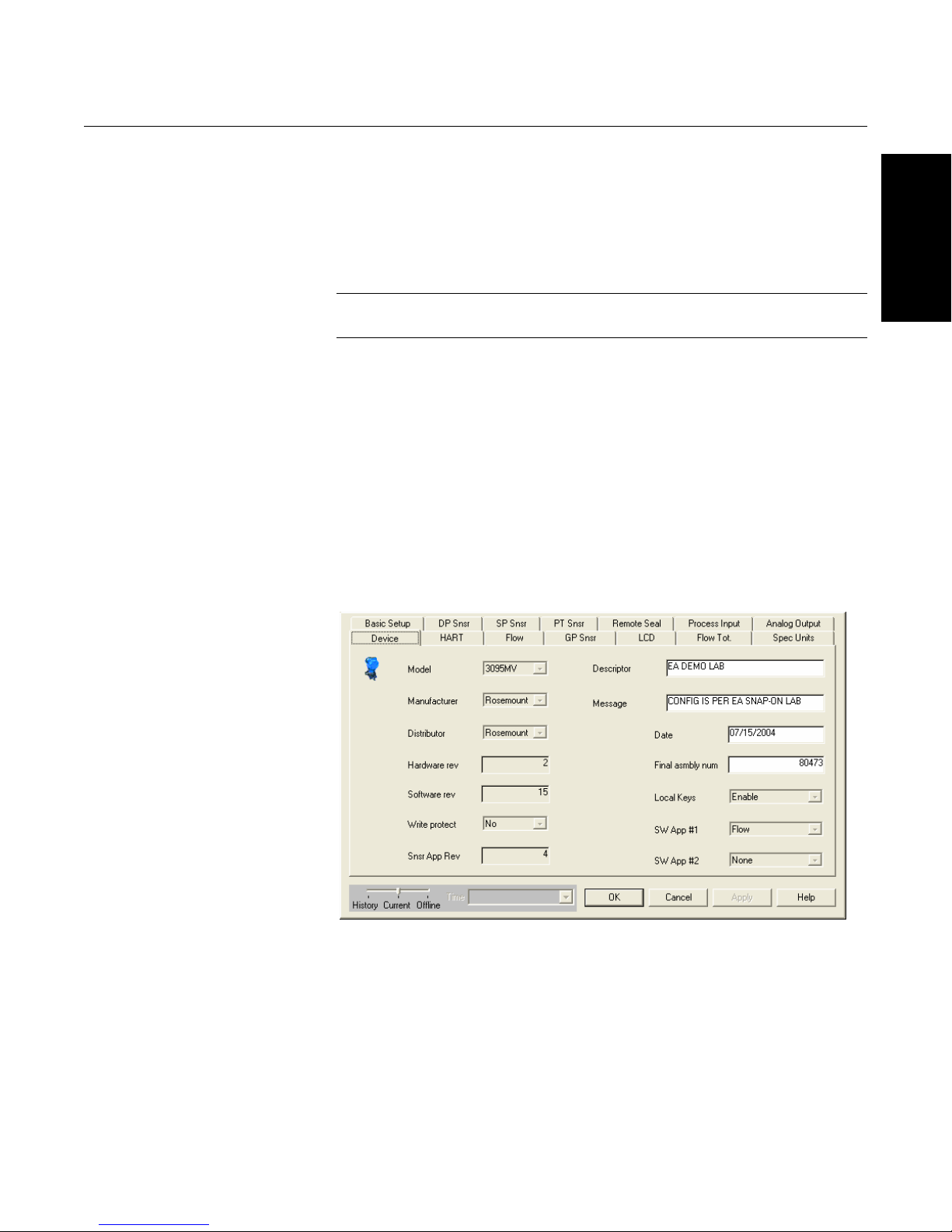

Configuration Properties…

The Configuration Properties screen contains device parameters that are
grouped into tabs located at the top of the window. To access the
Configuration Properties window:

1. Right-click on the transmitter icon.

2. Click “Configuration Properties…” from the pop-up menu.

When navigating throughout the Configuration Properties screens, the time
bar at the bottom of the screen lets you switch your view between previous
configurations, the current online configuration, and the saved offline
configuration. The history configuration is read-only.

When making changes to the configuration, click “Apply” or “OK” to implement
and save the configuration to the device.

Basic Setup

The basic setup tab provides access to the essential parameters that should
be defined upon initial configuration (see Figure 3-19). These include:

• Tag: unique name entered by the user (8 characters) to identify the

transmitter

• DP, AP, GP, Temp, Flow, and Flow Total: units of measure; all

selectable

• URV Upper Range Value (20mA output): entered by user to range the

output

• LRV Lower Range Value (4mA output): entered by user to range the

output

• Date, Descriptor, and Message: used to further help identify the

transmitter for the user

Reference Manual

00809-0100-4716, Rev JA

May 2008

Figure 3-19. Basic Setup tab

3-24

Reference Manual

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

Device Tab

The device tab provides more in-depth information about the 3095 transmitter.
Only the Date, Descriptor, and Message fields can be edited. All other fields
on the Device tab are read only:

• Date, Descriptor, and Message: same parameters as found on the

“Basic Setup” tab (See Figure 3-20).

NOTE

All other fields on the Device Tab are read only.

• Model, Manufacturer, and Distributor: Give the transmitters

background information

• Hardware Rev: Refers to the hardware revision of the transmitter

• Software Rev: Refers to the electronics output board revision of the

transmitter

• Write Protect: Indicates the position of the security write protect

jumper pins on the transmitter output board. This is not selectable from
the software (see page 2-3).

• Final Assembly Number: assigned by Rosemount at the time of final

assembly manufacture

HART

Figure 3-20. Device Tab

3-25

HART

Rosemount 3095 MultiVariable

HART Tab

The HART tab is used to set some of the communications parameters that are
used by HART protocol.

• Tag: same parameter as found on the “Basic Setup” tab.

• Poll Address: users can assign a unique HART address to the 3095 to

differentiate it from other devices if set up on a multidrop network.

• Number of Response Preambles: changes the number of response

preambles for the transmitter to EA communication. Typically, this
value is set at five. Increase the value only if the transmitter is installed
in an electrically noisy environment.

• Burst Mode: must be enabled for operation with a Rosemount 333

Tri-Loop. With burst mode ON, the 3095 continuously outputs HART
parameters, eliminating the time required for the control system to
request information from the transmitter.

Burst mode is compatible with use of the analog signal. Because HART
protocol features simultaneous digital and analog data transmission, the
analog value can drive other equipment in the loop while the control system or
Tri-Loop receives the digital information.

Reference Manual

00809-0100-4716, Rev JA

May 2008

Access to information other than burst data is obtained through the normal
poll/response method of HART communication. The EA or the control system
may request any of the information that is normally available while the
transmitter is in burst mode. However, the response time to these requests
will be longer. Between each burst message sent by the transmitter, a short
pause allows the EA or control system to initiate a request. The transmitter
receives the request, processes the response message, and then continues
bursting the data approximately three times per second. When sending a new
flow configuration file from the EA, the burst mode must be OFF.

Burst mode is not compatible with Multi Dropping more than one transmitter
because there is no method to discriminate the data communications from
multiple field devices.

• Burst Option: From the pull down menu select what type of data will

be sent when the transmitter is in Burst Mode. For use with the 333
Tri-Loop, the Burst Option must be set to “process vars/crnt” (HART
CMD3).

3-26

Reference Manual

00809-0100-4716, Rev JA
May 2008

Figure 3-21. HART Tab

Rosemount 3095 MultiVariable

HART

Figure 3-22. DP Sensor Tab

DP Sensor Tab

The DP Sensor screen provides read only information about the DP sensor
module (see Figure 3-22).

• Flange Type: From the drop-down menu, select the flange type used in

the primary assembly

• Flange Material: From the drop-down menu, select the flange material

used in the primary assembly

• O ring Material: From the drop-down menu, select the O ring material

used in the transmitter

• Drain/Vent Material: From the drop-down menu, select the drain and

vent material used in the transmitter.

3-27

HART

Rosemount 3095 MultiVariable

Flow Tab

The Flow Tab allows for the configuration of flow damping and units of
measure (see Figure 3-23).

• Flow USL and Flow LSL: This is a value calculated by the transmitter.

The calculation is dependent on the DP sensor limit and the flow
configuration file.

• Flow Units: From the drop-down menu, select the units of measure for

the flow rate. This parameter is also on the “Basic Setup” tab.

• Flow Damping: Not a selectable parameter in the 3095 transmitter. To

dampen the flow measurement, go to the “Process Input” tab and set
the DP damping.

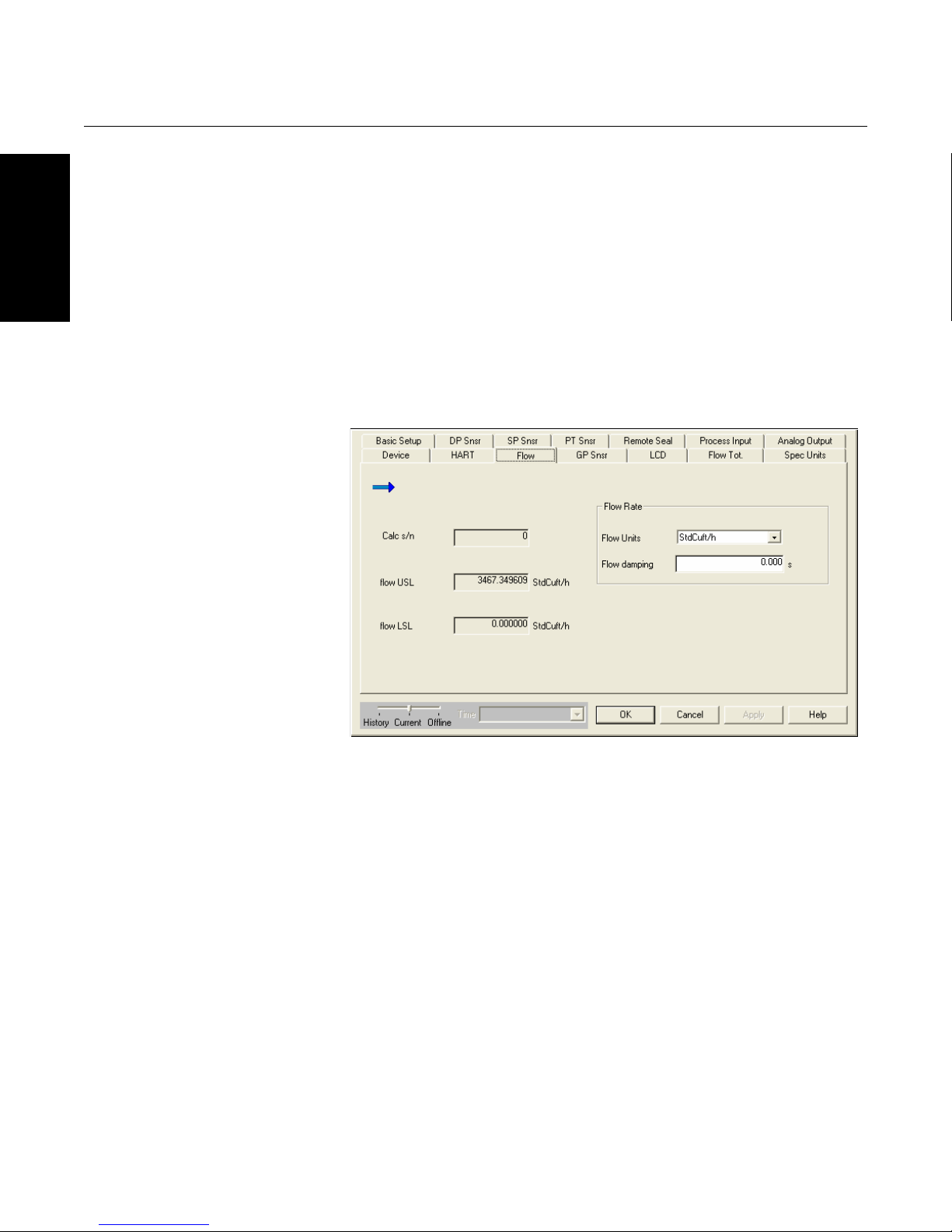

Figure 3-23. Flow Tab

Reference Manual

00809-0100-4716, Rev JA

May 2008

3-28

GP, PT, and SP Snsr Tabs

The configuration tabs for the SP, GP, and PT sensors display the high and
low sensor limits. There are no writable parameters for these tabs.

Remote Seal Tab

All parameters found under the Remote Seal tab should show “None,” as the
3095 is not generally used with the Rosemount Diaphragm Seals System.

These fields are selectable by the user in cases where remote diaphragm
seals have been assembled to the transmitter.

Reference Manual

00809-0100-4716, Rev JA
May 2008

Figure 3-24. LCD Configuration
Ta b

Rosemount 3095 MultiVariable

LCD Configuration Tab

The following parameters can be displayed on the LCD (if LCD is ordered and
installed on transmitter). See Figure 3-24.

• Differential Pressure

• Static Pressure (Absolute Pressure)

• Gage Pressure

• Process Temperature

• Flow

• Flow Total

• Current Output

• % Range

Display Period sets the display time of each parameter selected. Display time
is selectable in one-second increments, from two to ten seconds.

HART

Flow Total Tab

The Flow Total tab shows the running flow total.

• Mode: From the drop-down menu, select “Start” to begin (or continue)

flow accumulation. Select “Stop” to stop flow accumulation. Select
“Reset” to set to zero. Click “OK” or “Apply” to implement any changes.

• Flow Total: Displays the current flow total (updated automatically). The

parameter is read-only.

3-29

HART

0.864

Rosemount 3095 MultiVariable

Figure 3-25. Flow Total

Reference Manual

00809-0100-4716, Rev JA

May 2008

Figure 3-26. Process Inputs Tab.

Process Input Tab

On the Process Input tab, the units of measure and damping can be
configured for each of the measured variables (DP, AP/GP, and Temp).

• Units: From the drop-down menu, select the units of measure for the

chosen process variable. The unit parameters are also selectable on
the “Basic Setup” tab.

• Damping: Enter in the desired damping value (in seconds).

NOTE

The transmitter sets the damping value to the nearest acceptable value. An
information message is provided to the operator indicating the new damping
values.

3-30

Reference Manual

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

Analog Output Tab

• Upper Range Value (URV) and Lower Range Value (LRV): Sets the

range represented by the 4 to 20mA output. These functions are also
selectable on the “Basic Setup” tab.

Figure 3-27. Analog Output Tab

NOTE

All other fields on the Analog Output Tab are read only.

• Min span: A value calculated by the transmitter. The calculation is

dependent on the DP sensor minimum range and the flow configuration
file.

•AO Alm Typ: Indicates the position of the alarm jumper pins on the

transmitter output board.

• Xfer Fnctn: The value is “linear” for the 3095.

•PV is: Indicates which variable is set as the primary variable. This is

selectable on the “Basic Setup” tab.

HART

3-31

HART

Rosemount 3095 MultiVariable

Spec Units Tab

The Special Units tab configures flow measurement and flow total to be
displayed in units considered nonstandard in the 3095M transmitter.

NOTE

After completing a special unit configuration, reset the 4-20mA range (LRV
and URV). The range values must be re-entered and applied to the device
using either Engineering Assistant or a HART hand-held communicator.

• Base Unit: From the drop-down menu, select the desired base unit of

measure for flow.

• Scaling Factor: Enter a scaling factor. The scaling factor multiplied by

the Base Unit will equal the Flow Special Unit.

• Unit String: Enter the desired display units. Up to 5 characters can be

entered for display of the special units, including all alphanumeric
characters and the forward slash (“/”) key. (The field contains 6 spaces
but the first space is the space bar.)

The following are examples of unit string entries:

Reference Manual

00809-0100-4716, Rev JA

May 2008

Figure 3-28. Special Units Tab

M M C F D

G P M

After entering each parameter (Base Unit, Scaling Factor, Unit String),
click “Apply” to send the parameter to the transmitter. Click “Yes” to the
warning messages. The transmitter will accept one field at a time. Click
“Apply” again, until all the entered fields (highlighted in yellow) have
been sent to the transmitter.

3-32

NOTE

After configuring Special Units, remember to set the Flow Units (on the Basic
Setup tab to “SPCL” and re-range the LRV-URV for the desired flow range in
terms of special units

Reference Manual

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

Set up Tri-loop
Configuration

1. Start AMS.

2. Right-click the on-line 3095 and select Configuration Properties.

3. Select the HART tab.

4. Select Burst Mode Off.

5. Select Burst option to processvars/crnt. This is HART command 3.
Select Apply and OK.

6. Exit Configuration Properties.

7. Right-click on the Tri-Loop icon and select Configuration

Properties.

8. In Basic Setup, enter the desired tag name. View device information
and channel enable.

9. Select Channel 1 tab. Select desired Process variable. Input units,
upper range value, low Range and Enabled to Yes. Select Apply.

10. Select Channel 2 tab. Select desired Process variable. Input units,
upper range value, low Range and Enabled to Yes. Select Apply.

11. S elect Channel 3 tab. Select desired Process variable. Input units,
upper range value, low Range and Enabled to Yes. Select Apply.

12. If necessary, perform an analog output trim on each of the 4-20 loops
on the 333 HART Tri-Loop.

13. After all configuration steps have been completed for the 333
Tri-Loop and the 3095 transmitter, AND the flow configuration file has
been sent to the 3095 transmitter, return to the Configuration
Properties functions of the 3095M and go to the HART tab to set the
Burst Mode to On.

HART

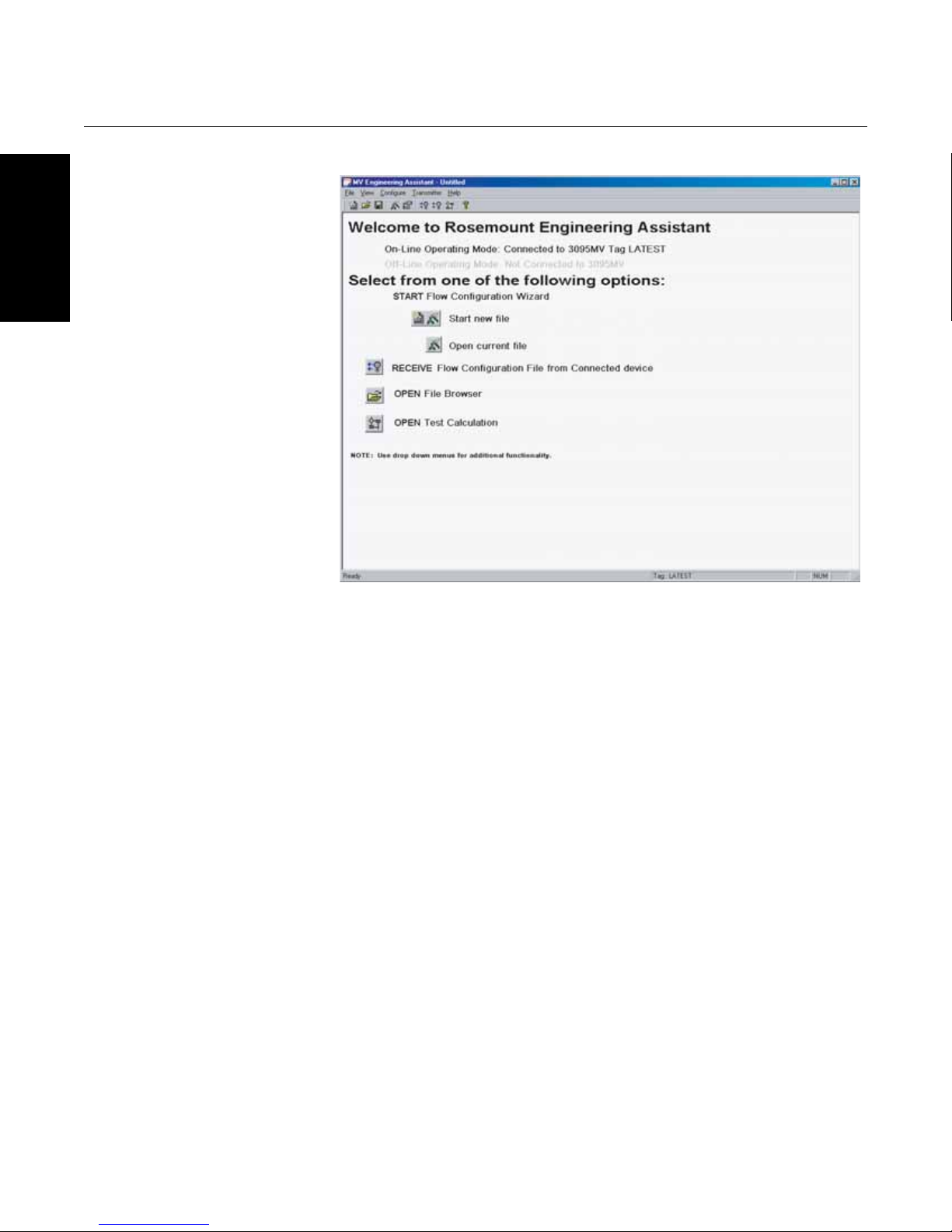

Flow Configuration Flow configuration for the 3095 is achieved by launching the 3095 Snap-On

application from the Device Configuration screen. The following steps
highlight how to access the flow configuration program for the 3095:

1. Right-click on the transmitter icon.

2. Highlight “SNAP-ON” from the pop-up menu.

3. Click “MultiVariable Engineering Assistant” from the submenu.

3-33

HART

Rosemount 3095 MultiVariable

Figure 3-29. 3095 Engineering
Assistant Menu Structure.

Reference Manual

00809-0100-4716, Rev JA

May 2008

Basic Navigation File Menu

“New” starts with a fresh configuration file. This should be selected before
import and opening a file.

“Open” lets you open a previously saved configuration file.

“Save” and “Save as” lets you save the current configuration file. You can
save a created configuration while in off-line that can be imported to a 3095
when in on-line mode.

“Reports” will print or save the transmitter, primary element, fluid, and natural
gas reports. The transmitter report is only available when a 3095 is on-line.

View Menu

Select “Toolbar” to show or hide the toolbar.

Select “Status Bar” to show or hide the status bar.

Configure Menu

“Configure Flow…” launches the Flow Configuration Wizard.

“Options” enables or disables password usage. The security must be enabled
before the password screen can be accessed.

The “Import…” link imports previous versions of 3095 Flow Configuration files.
Only EA Mass Flow (*.mfl) files can be imported. The flow configuration
wizard automatically opens, and the file is imported to the current file format.

3-34

The “Preferences” link is used to switch between US or SI/Metric Units for
flow configuration. Default units are applied to all new configurations, not the
current configuration. To start a new configuration, Click “File” from the
menubar and select “New”.

Reference Manual

New
Document

Save
Config

Options

Receive
Config

Help

Open
Document

Configure
Flow

Send
Config

Tes t
Calculation

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

Transmitter Menu

Use “Send Configuration…” to fully implement the flow configuration to the
transmitter. When finished with the flow configuration wizard, the transmitter
does not use the new configuration until the “Send Configuration…” link is
used. The function is also accessible within the flow configuration wizard.

HART

To receive the current configuration from the transmitter, select “Receive
Configuration.” This will load the currently used configuration from the
transmitter’s memory and open the flow configuration wizard.

“Test Calculation” lets you verify the accuracy of the 3095’s flow configuration.

1. Enter values for DP, AP, and Temp.

2. Select the units of measure for each process input.

3. Click “Calculate.” The 3095 computes flow based on the values
entered.

4. In the Test Calculation window, the “Insert” button inserts the test
calculation results into a report. The report can be saved to the PC, or
printed.

“Privileges” let you change or set up security and password.

Toolbar

The toolbar provides another way to access some of the links found under the
various headers menubar.

3-35

HART

Process Fluid

Selection Screen

Steam

Database Gas

Database Liquid

Custom Gas

Custom Liquid

Gross

Characterization 1

(ISO Physical

Property

Gross

Characterization 2

Detail

Characterization

(ISO Molar

Composition)

Primary Element

Selection

Process Operating

Conditions, Flow

Units, and
Reference

Conditions to

Define the

Standard

Volumetric Unit

Calculated

Compressibility

and Viscosity

Parameters

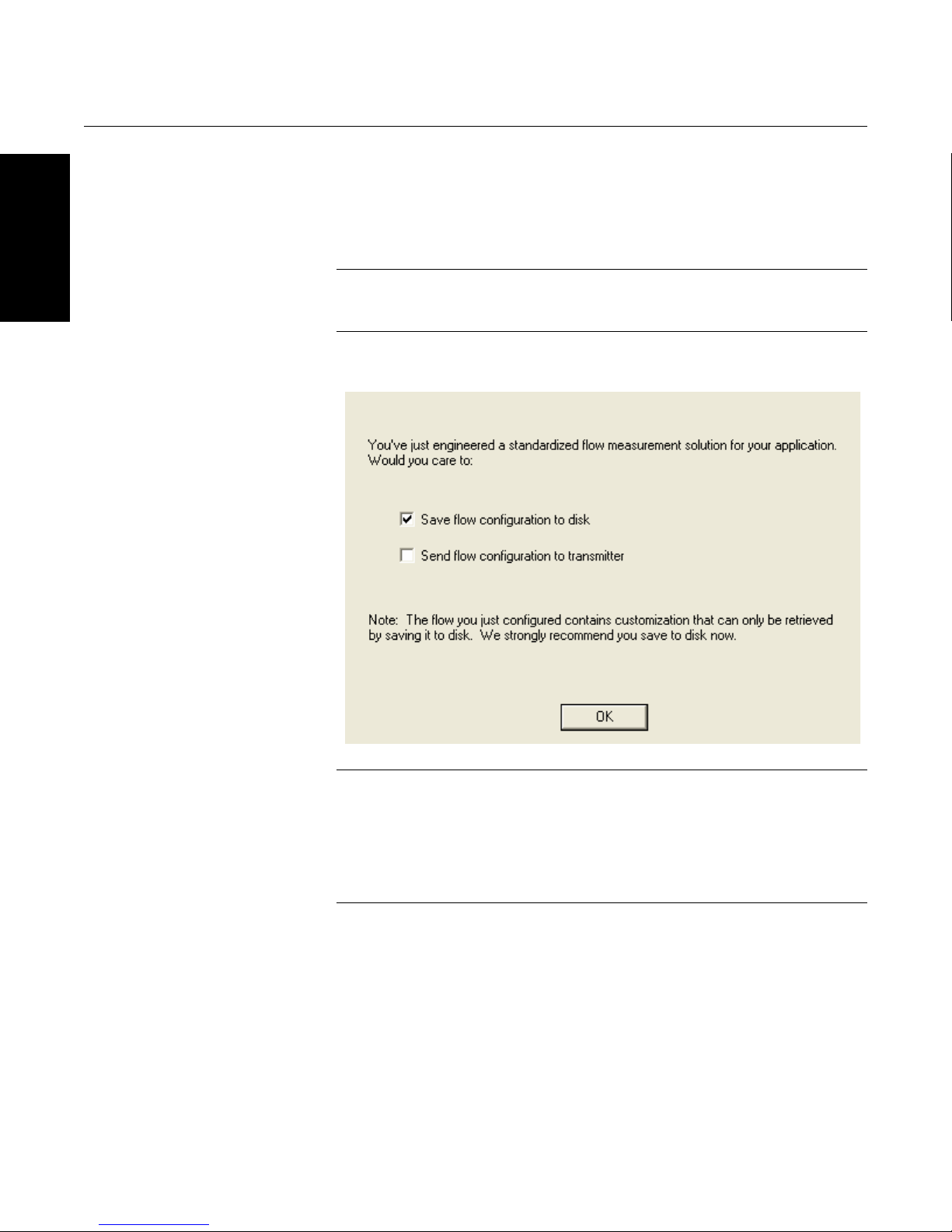

Save Flow

Configuration

Rosemount 3095 MultiVariable

Flow Configuration Wizard

The flow configuration wizard screens are used to define compensated flow
parameters and to create flow configuration files for sending to a transmitter.
The flow configuration wizard can be launched by clicking on the “Configure
Flow” icon from the toolbar or from the menubar.

1. Click on “Configure” from the menubar.

2. Click “Configure Flow…” from the drop-down menu.

The following flow chart illustrates the screens that will take you through the
flow configuration process. If Natural Gas is selected as the process fluid
type, there is an extra screen for the configuration of the gas compressibility
factor.

Figure 3-30. Flow Configuration
Wizard Flowchart

Reference Manual

00809-0100-4716, Rev JA

May 2008

3-36

Reference Manual

00809-0100-4716, Rev JA
May 2008

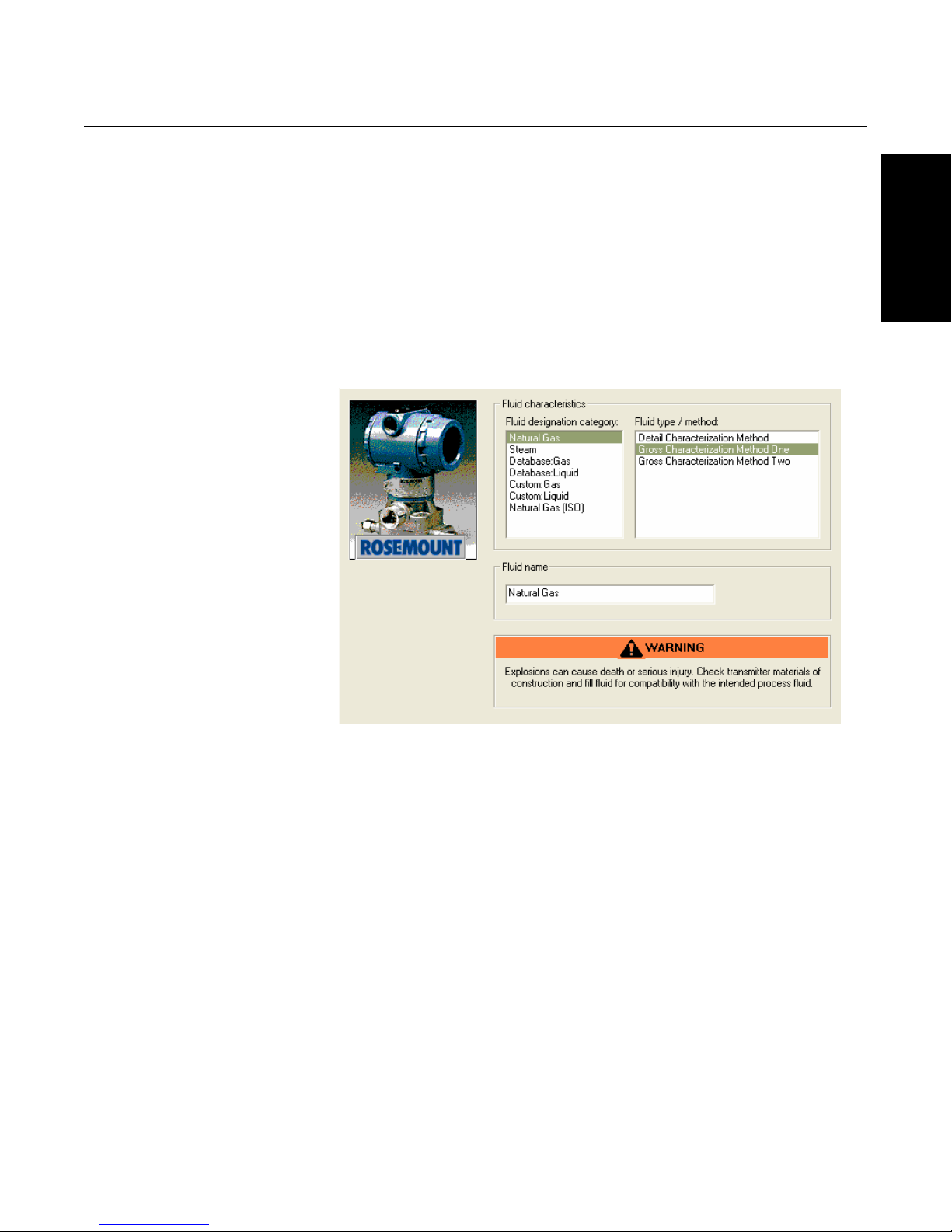

Figure 3-31. Process Fluid
Selection

Rosemount 3095 MultiVariable

Process Fluid Selection

The first screen of the flow configuration wizard lets you select the process
fluid used in your application. Available fluids include:

• Natural Gas (AGA & ISO)

• Steam

•Gas

•Liquid

• Custom Gas & Liquid

HART

Natural Gas Flow

1. Select “Natural Gas” or “Natural Gas (ISO)” from the column with the
“Fluid Designation Category” header.

2. Select the characterization method for gas compressibility the 3095
Engineering Assistant will use to calculate the natural gas
compressibility factor. Gross characterization is a simplified method
that is acceptable for a narrow range of pressure, temperature, and
gas composition. Detail characterization covers all pressure,
temperature, and gas composition ranges for which AGA8 computes
compressibility factors. Table 3-2 identifies the acceptable ranges for
both of these characterization methods. For ISO Natural Gas, Molar
Composition Method is similar to the Detail Characterization Method,
and the Physical Property Method is similar to Gross Characterization
1 Method.

3. Click “Next”.

3-37

HART

Rosemount 3095 MultiVariable

Table 3-2. Gross vs. Detail
Characterization Method

Engineering Assistant Variable Gross Method Detail Method

Pressure 0–1200 psia
Temperature 32 to 130 °F
Specific Gravity 0.554–0.87 0.07–1.52
Heating Value 477–1150

Mole % Nitrogen 0–50.0 0–100
Mole % Carbon Dioxide 0–30.0 0–100
Mole % Hydrogen Sulfide 0–0.02 0–100
Mole % Water 0–0.05 0–Dew Point
Mole % Helium 0–0.2 0–3.0
Mole % Methane 45.0–100 0–100
Mole % Ethane 0–10.0 0–100
Mole % Propane 0–4.0 0–12
Mole % i-Butane 0–1.0 0–6
Mole % n-Butane 0–1.0 0–6
Mole % i-Pentane 0–0.3 0–4
Mole % n-Pentane 0–0.3 0–4
Mole % n-Hexane 0–0.2 0–Dew Point
Mole % n-Heptane 0–0.2 0–Dew Point
Mole % n-Octane 0–0.2 0–Dew Point
Mole % n-Nonane 0–0.2 0–Dew Point
Mole % n-Decane 0–0.2 0–Dew Point
Mole % Oxygen 0 0–21.0
Mole % Carbon Monoxide 0–3.0 0–3.0
Mole % Hydrogen 0–10.0 0–100
Mole % Argon 0 0–1.0

NOTE: Reference conditions are 14.73 psia and 60 °F for Gross Method.

(1) The 3095 MultiVariable sensor operating limits may limit the pressure and temperature range.
(2) The summation of i-Butane and n-Butane cannot exceed 6 percent.
(3) The summation of i-Pentane and n-Pentane cannot exceed 4 percent.

BTU/SCF

Reference Manual

00809-0100-4716, Rev JA

(1)

(1)

–200 to 400 °F

0–20,000 psia

0–1800
BTU/SCF

(2)

(2)

(3)

(3)

May 2008

(1)

(1)

3-38

Steam Flow

1. Select “Steam” from the “Fluid Designation Category” header.

2. From the “Fluid Type” header, select either Superheated & Saturated
Steam or Saturated Steam.

3. Click “Next”.

NOTE

Saturated Steam should be selected ONLY if the steam being measured is
always saturated. With this option, the density of the saturated steam is based
on the actual static pressure measurement. The Saturated Steam option also
requires that the 3095 is set to fixed temperature mode. The fixed
temperature value set must be a value within the saturated steam range
relative to the operating pressure range entered in the flow configuration
wizard.

Reference Manual

00809-0100-4716, Rev JA
May 2008

Table 3-3. 3095 Liquids and
Gases Database

Acetic Acid
Acetone
Acetonitrile
Acetylene
Acrylonitrile
Air
Allyl Alcohol
Ammonia
Argon
Benzene
Benzaldehyde
Benzyl Alcohol
Biphenyl
Carbon Dioxide
Carbon Monoxide
Carbon Tetrachloride
Chlorine
Chlorotrifluoroethylene
Chloroprene
Cycloheptane
Cyclohexane
Cyclopentane
Cyclopentene

Cyclopropane
Divinyl Ether
Ethane
Ethanol
Ethylamine
Ethylbenzene
Ethylene
Ethylene Glycol
Ethylene Oxide
Fluorene
Furan
Helium–4
Hydrazine
Hydrogen
Hydrogen Chloride
Hydrogen Cyanide
Hydrogen Peroxide
Hydrogen Sulfide
Isobutane
Isobutene
Isobutylbenzene
Isopentane
Isoprene

Rosemount 3095 MultiVariable

Gas & Liquid Flow

1. Select either Database Gas, Database Fluid, Custom Gas, or Custom
Fluid from the “Fluid Designation Category” Header.

2. If using a database gas or fluid, select the fluid used from the “Fluid
Type” header. Refer to Table 3-3 for a list of database fluids.

3. If using a custom gas or fluid, enter the name of the fluid under the
“Fluid Name” parameter.

4. Click “Next”.

Isopropanol
Methane
Methanol
Methyl Acrylate
Methyl Ethyl Ketone
Methyl Vinyl Ether
m–Chloronitrobenzene
m–Dichlorobenzene
Neon
Neopentane
Nitric Acid
Nitric Oxide
Nitrobenzene
Nitroethane
Nitrogen
Nitromethane
Nitrous Oxide
n–Butane
n–Butanol
n–Butyraldehyde
n–Butyronitrile
n–Decane
n–Dodecane
n–Heptadecane

n-Heptane
n–Hexane
n–Octane
n–Pentane
Oxygen
Pentafluorothane
Phenol
Propane
Propadiene
Pyrene
Propylene
Styrene
Sulfer Dioxide
To lu en e
Trichloroethylene
Vinyl Acetate
Vinyl Chloride
Vinyl Cyclohexane
Water
1–Butene
1–Decene
1–Decanal
1–Decanol
1–Dodecene

1–Dodecanol
1–Heptanol
1–Heptene
1–Hexene
1–Hexadecanol
1–Octanol
1–Octene
1–Nonanal
1–Nonanol
1–Pentadecanol
1–Pentanol
1–Pentene
1–Undecanol
1,2,4–Trichlorobenzene
1,1,2–Trichloroethane
1,1,2,2–Tetrafluoroethane
1,2–Butadiene
1,3–Butadiene
1,3,5–Trichlorobenzene
1,4–Dioxane
1,4–Hexadiene
2–Methyl–1–Pentene
2,2–Dimethylbutane

HART

3-39

HART

Rosemount 3095 MultiVariable

Composition Mole % (Natural Gas Only)

The next screen will take you to either the gas composition table or the gross
characterization screens, depending on what you selected in the previous
screen.

Detail Characterization (AGA) & Molar Composition Method (ISO)

If either Detail Characterization or Molar Composition Method was
selected on the previous screen, the gas composition table will appear.

1. Enter the Mole % for each component in the gas mixture. Refer to
Table 3-2 on page 3-38 for valid entries when entering values into the
gas composition. The total mole % must add up to 100%.

• To zero all 21 fields, click “Clear”.

• The normalize button provides a method to automatically modify

all non-zero values to total 100%.

2. Click “Next”.

Reference Manual

00809-0100-4716, Rev JA

May 2008

Figure 3-32. Gas Composition

3-40

Reference Manual

00809-0100-4716, Rev JA
May 2008

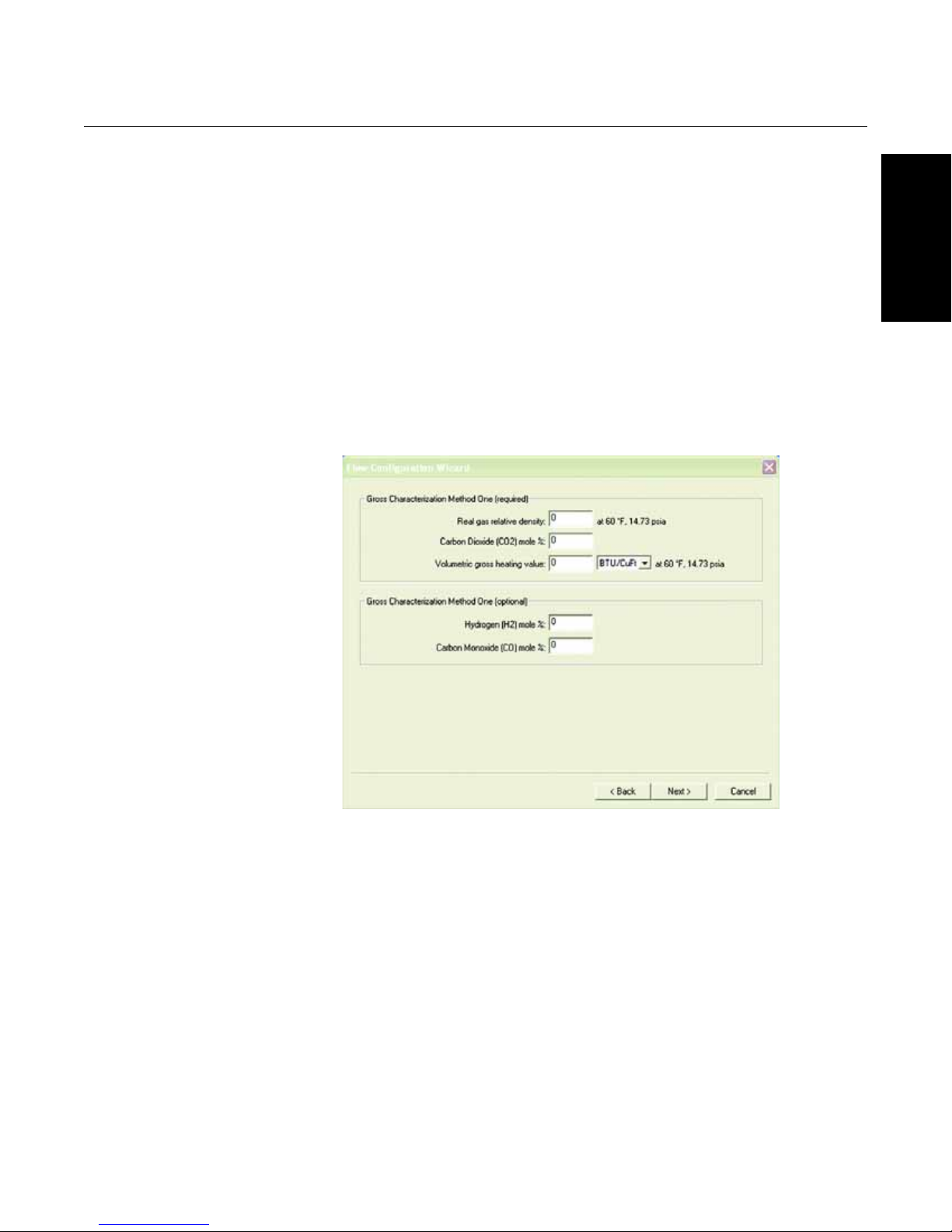

Figure 3-33. Gross Method I &
SGRG-88 Configuration

Rosemount 3095 MultiVariable

Gross Characterization Method 1 (AGA) & Physical Property:
SGRG-88 (ISO)

Gross Method 1 uses the density of natural gas, its heating value, and the
quantity of non-hydrocarbon components to calculate the gas
compressibility factor per AGA8. SGRG-88 is the equivalent gas
compressibility factor for ISO applications.

1. Enter values for the following parameters:

• Real gas relative density (Specific gravity relative to air)

• Mole % of CO

• Volumetric gross heating value

• Mole % of H

2. Click “Next”.

2

(optional)

2

HART

Gross Characterization Method 2 (AGA)

Gross Method 2 uses the density of natural gas and the quantity of
non-hydrocarbon components to calculate the gas compressibility factor
per AGA8.

1. Enter values for the following parameters:

• Real gas relative density (Specific gravity relative to air)

• Mole % of CO

• Mole % of N

2

2

• Mole % of H2 (optional)

• Mole % of CO (optional)

2. Click “Next”.

3-41

HART

Rosemount 3095 MultiVariable

Primary Element Selection

The Primary Element Selection Screen lets you configure the primary element
used with the 3095. The following steps apply to all fluid types (gas, fluid,
natural gas, steam).

1. Select the general type of primary used under the “Category “header.

2. Select the specific type of primary used under the “Specific Primary
Element” header.

NOTE

If complying with AGA3 Natural Gas, the primary element should be an orifice
plate with AGA flange taps.

If a calibrated primary is selected, you will be prompted to enter values to a
table of Flow Coefficients vs. Reynolds Numbers at the next screen.

If a primary is selected with Constant Cd, you will be prompted to enter a
single value for the Discharge Coefficient at the next screen.

Reference Manual

00809-0100-4716, Rev JA

May 2008

3. Enter the orifice diameter, sensor size, or beta ratio. This parameter
will be different depending on the type of primary selected during the
previous two steps.

NOTE

To be in compliance with appropriate national or international standards, beta
ratios and differential producer diameters should be within the limits as listed
in the standards. The EA software will alert the operator if a primary element
value exceeds these limits. However, the EA software will not stop the
operator from proceeding with a flow configuration because of this type of
exception.

4. Enter the primary element material (see Table 3-4 and Figure 3-34 on
page 3-43).

5. Enter the meter tube diameter (pipe ID) and units at reference
temperature for the measured dimension.

6. Enter the meter tube material.

7. Click “Next”.

3-42

Reference Manual

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

Table 3-4. Primary Element Options

Annubar Orifice Plate

®

Annubar
Annubar® Diamond II+ / Mass ProBar 1195 Mass ProPlate
Calibrated Annubar
Calibrated Annubar® Diamond II + / Mass ProBar 1195 Mass ProPlate, Cd with Bias
485 Annubar
485 Annubar® / 3095MFA Mass ProBar, Constant K Calibrated Cd: 2½ D & 8D Taps
Calibrated 485 Annubar

Nozzle Constant Cd: Flange, Corner, D & D/2 Taps

Long Radius Wall Taps, ASME Corner Taps, ASME
Long Radius Wall Taps, ISO Corner Taps, ISO
ISA 1932, ISO Corner Taps, ISO 99 Amendment 1
Calibrated Cd D & D/2 Taps, ASME
Constant Cd D & D/2 Taps, ISO

Venturi Flange Taps, AGA

Nozzle, ISO
Rough Cast/Fabricated Inlet, ASME Flange Taps, ISO
Rough Cast Inlet, ASME
Machined Inlet, ASME Small Bore Orifice, Corner Taps, ASME
Machined Inlet, ISO
Welded Inlet, ISO 405P Compact Orifice
Calibrated Cd 405C Compact Conditioning Orifice
Constant Cd 1595 Conditioning Orifice Plate, Corner Taps

Other 1595 Conditioning Orifice Plate, Flange Taps

Area Averaging Meter Calibrated Cd: Flange, Corner, D & D/2 Taps: ISO-5167 (2002)
Standard V-Cone
Wafer-Cone
Calibrated Standard V-Cone
Calibrated Wafer-Cone
Wedge Meter

Diamond II (Discontinued 1999) 1195 Integral Orifice

®

Diamond II (Discontinued 1999) 1195 Mass ProPlate, Calibrated Cd

®

/ 3095MFA Mass ProBar 2½ D & 8D Taps, ASME

®

/ 3095MFA Mass ProBar Calibrated Cd: Flange, Corner, D & D/2 Taps

®

®

®

®

®

(1)

Constant Cd: 2.5D & 8D Taps

D & D/2 Taps, ISO 99 Amendment 1

Flange Taps, ASME

Flange Taps, ISO 99 Amendment 1

Small Bore Orifice, Flange Taps, ASME

1595 Conditioning Orifice Plate, D & D/2 Taps

Constant Cd: Flange, Corner, D & D/2 Taps: ISO-5167 (2002)
Corner Taps, ISO-5167 (2002)
D & D/2 Taps, ISO-5167 (2002)
Flange Taps, ISO-5167 (2002)

HART

Figure 3-34. Primary Element
Selection

(1) List of available primaries is subject to change.

3-43

HART

Rosemount 3095 MultiVariable

Operating & Reference Conditions

After supplying information about the primary element, the next screen
prompts you to enter values for environmental and operating conditions. This
screen applies to all process fluids.

1. Enter the operating pressure range and units.

2. Enter the operating temperature range and units.

3. If desired, modify the atmospheric pressure, flow units, or reference
conditions.

4. Click “Next”.

Figure 3-35. Operating and
Reference Conditions

Reference Manual

00809-0100-4716, Rev JA

May 2008

3-44

Reference Manual

00809-0100-4716, Rev JA
May 2008

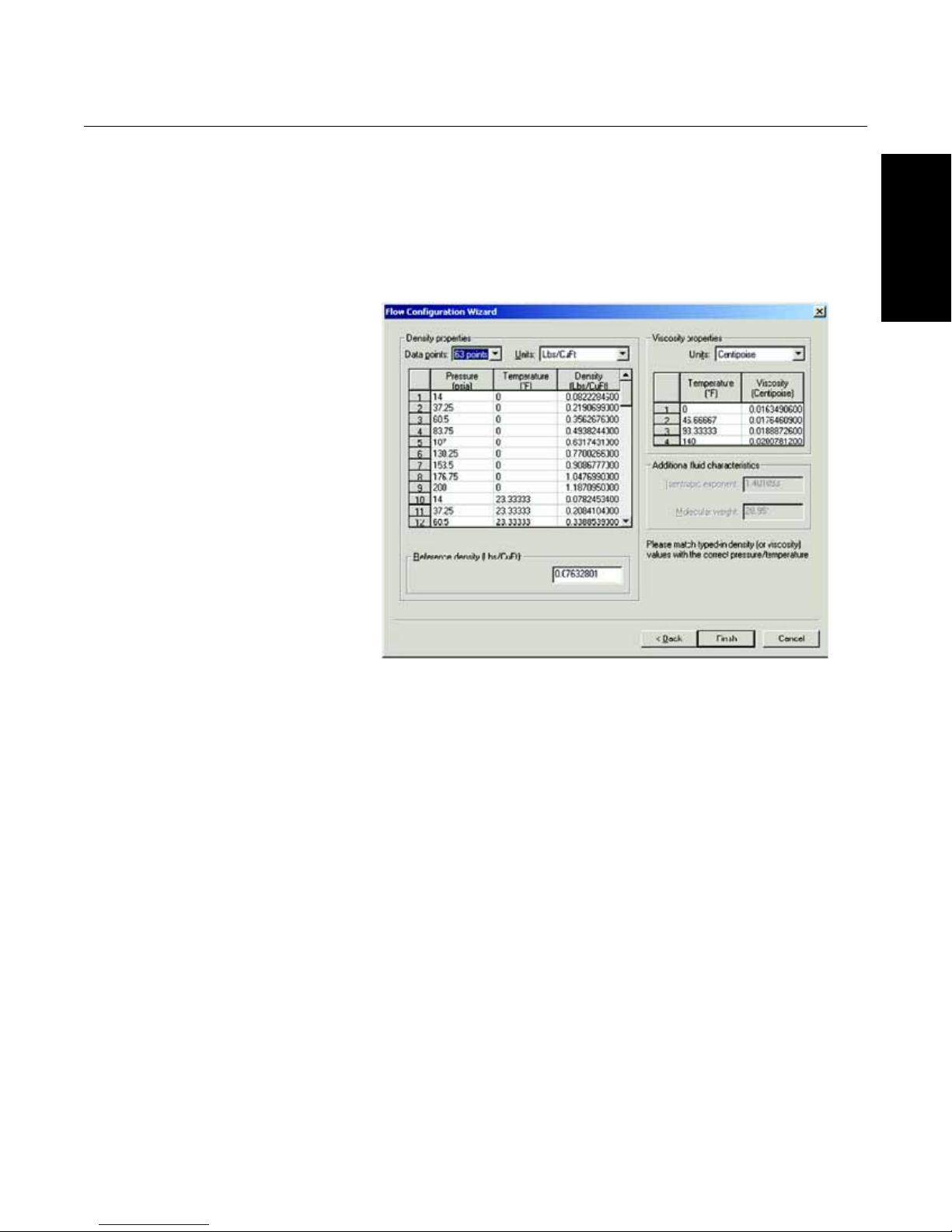

Figure 3-36. Density, Viscosity,
and Compressibility

Rosemount 3095 MultiVariable

Density, Viscosity, and Compressibility Configuration

The next screen displays the calculated density and viscosity values based on
entries made in previous screens in the flow configuration wizard. If a change
is made to either a density or viscosity value, the 3095 EA software considers
the fluid to be “Custom Fluid.” Click “Finish” to exit the screen.

HART

3-45

HART

Rosemount 3095 MultiVariable

Saving the Flow Configuration

Once the flow configuration wizard is complete, you will be prompted to save
the new flow configuration. You can save it on the computer’s hard disk, the
3095’s flash memory, or both. Select the box next to the option you wish to
perform, and click “OK.”

NOTE

It is recommended to save the flow configuration to the computer for later use
or installation.

Figure 3-37. Saving Options

Reference Manual

00809-0100-4716, Rev JA

May 2008

3-46

CAUTION

If you selected a custom fluid, or made density or viscosity changes to a
database fluid, be sure to save the information to a configuration file so that
you can modify the flow configuration information at a later date. Although you
can read a flow configuration from a transmitter, it is NOT possible to retrieve
custom density, custom viscosity, or custom primary element information.
Therefore, be sure to save custom fluid configurations to a unique file.

Reference Manual

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

Off-line Configuration In off-line mode, the 3095 Engineering Assistant does not communicate

directly with the transmitter. Instead, the configuration file is saved to the
computer and loaded onto the transmitter at a later time when in on-line
mode. To launch the 3095 MultiVariable Engineering Assistant in off-line
mode:

1. When at the default Device Connection view, double click on the
“Plant Database” icon.

2. Expand the “Area” folder by clicking on the “+” box.

3. Expand the “Unit” folder.

4. Expand the “Equipment Module” folder.

5. Right-click on the “Control Module” folder.

6. Select “Add Future Device” from the pop-up menu.

7. Select “3095 template” from the list of devices and click “OK.”

8. Right-click on the transmitter icon.

9. Launch the MultiVariable Engineering Assistant application (located
under the SNAP-ON menu for AMS Snap-on users).

HART

From here you can open up the flow configuration wizard and save a flow
configuration file (.mv file). Follow the same procedure for creating a flow
configuration as found on page 3-33 or page 3-36.

3-47

HART

Rosemount 3095 MultiVariable

Figure 3-38. Off-Line
Configuration

Reference Manual

00809-0100-4716, Rev JA

May 2008

3-48

Reference Manual

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

Section 4 FOUNDATION Fieldbus

Configuration

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-1

Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-1

Engineering Assistant Software . . . . . . . . . . . . . . . . . . . . page 4-2

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-10

Function Block Overview . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-12

Resource Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-14

Sensor Transducer Block . . . . . . . . . . . . . . . . . . . . . . . . . page 4-19

Mass Flow Transducer Block . . . . . . . . . . . . . . . . . . . . . . page 4-20

LCD Transducer Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-20

Analog Input (AI) Block . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-22

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-26

OVERVIEW This section covers basic operation, software functionality, and basic

configuration procedures for the 3095 Multivariable™ Transmitter with
F

OUNDATION Fieldbus. This section is organized by block information. For

detailed information about the function blocks used in the 3095, refer to “Block
Information” on page D-1 and the F
00809-0100-4783.

OUNDATION Fieldbus Block manual

FIELDBUS

SAFETY MESSAGES Instructions and procedures in this section may require special precautions to

ensure the safety of the personnel performing the operations. Information that
potentially raises safety issues is indicated by a warning symbol ( ). Please
refer to the following safety messages before performing an operation
preceded by this symbol.

www.rosemount.com

FIELDBUS

Rosemount 3095 MultiVariable

Failure to follow these installation guidelines could result in death or
serious injury.

• Make sure only qualified personnel perform the installation.

Explosions could result in death or serious injury.

• Do not remove the connection head cover in explosive atmospheres when the
circuit is live.

• Before powering a F
make sure the instruments in the loop are installed in accordance with instrinsically
safe or non-incendive field wiring practices.

• Verify that the operating atmosphere of the transmitter is consistent with the
appropriate hazardous locations certifications.

• All connection head covers must be fully engaged to meet
explosion-proof requirements.

Process leaks could result in death or serious injury.

• Do not remove the thermowell while in operation.

• Install and tighten thermowells and sensors before applying pressure

Electrical shock could cause death or serious injury.

• Use extreme caution when making contact with the leads and terminals.

Reference Manual

00809-0100-4716, Rev JA

May 2008

OUNDATION fieldbus segment in an explosive atmosphere,

ENGINEERING
ASSISTANT SOFTWARE

Installation and Setup Installing the 3095 Engineering Assistant for FOUNDATION Fieldbus

Operation of the software requires the installation of both the 3095
Engineering Assistant (EA) for FOUNDATION Fieldbus and FOUNDATION
Fieldbus communications card drivers. (The 3095 EA for Ff and the 3095 EA
for HART can be loaded onto the same computer.) The following instructions
detail the installation of both the National Instruments (NI) PCMCIA interface
card and software as well as the 3095 EA for Ff.

NOTE

It is necessary to follow the instructions in order. This will simplify the
installation process of the National Instruments software and EA. Deviating
from these steps may significantly complicate the installation process.

4-2

Reference Manual

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

1. Install the NI-FBUS Communications Manager Driver Software from
the National Instruments CD.

a. Insert the NI-FBUS Communications Manager Driver CD.

b. Windows should detect the presence of a CD and start the

installation program. Follow the onscreen prompts to finish the
installation. If Windows does not detect the presence of a CD, use
Windows Explorer or My Computer to view the contents of the
CD-ROM, and then double click the SETUP.EXE program.

c. Click the Install NI-FBUS Software button.

d. Follow the Installation wizard to complete the installation process.

e. The second installation screen asks for a serial number. The serial

number is not needed, click Next. A pop-up comes up and says
that you have entered an invalid serial number, and asks if you
would like to enter a valid serial number, click No.

f. Continue to follow the installation wizard.

g. A licensing and activation pop-up will appear. No serial number or

activation code is needed.

h. This wizard will prompt the user to restart the computer once the

installation is completed.

i. When computer reboots, the Add Interface Wizard will appear,

continue with the instructions in step 2 before using this screen.

2. Insert the PCMCIA card and install the New Hardware.
a. Insert the PCMCIA Card into the PCMCIA slot.

b. The Windows New Hardware Installation wizard will appear.

Choose Yes this time only, and continue with the installation
wizard.

3. Install the Driver for the National Instruments (NI) PCMCIA-FBus
interface card.

a. Return to the Add Interface Window. Follow the wizard to

complete the installation of the PCMCIA card. If the software does
not run automatically navigate to Start > All Programs > National
Instruments > NI-FBUS > Utilities > Interface Configuration Utility.
Click the Add Interface button and choose the PCMCIA Interface
type.

FIELDBUS

4-3

FIELDBUS

Rosemount 3095 MultiVariable

4. Download the Rosemount 3095MV Device Descriptor (DD) files from
the Fieldbus.org web site.

a. Go to Fieldbus.org.

b. Click the End User Resources button.

c. Click Registered Products.

d. Choose Emerson Process Management from the Manufacturer

drop-down menu.

e. Choose Flow from the Category drop-down menu.

f. Click Search.

g. Click on Rosemount 3095 MultiVariable™ Transmitter.

h. Click Download DD / CFF File.

i. Click I Accept to the terms to complete the download.

j. A dialog box will appear when the DD is ready to download. Click

Open.

k. The files are located in a Zip file, extract all three files into a

location on the PC of your choosing. To do this select all of the
files and click Extract. Then choose the location that you would
like to save them to using your browser.

5. Import the DD into NI-FBUS
a. Start the NI-FBus Interface Config. Utility. Go to Start > All

Programs > National Instruments > NI-FBUS > Utilities > Interface
Configuration Utility.

b. Right click on the “Board” icon to click “Enable”. (If no board

appears in this window, the Interface card was not added correctly,
please go back to step 3 and follow the instructions.)

c. Click the Import DD/CFF button.

d. Click the Browse button,

e. Navigate to the directory that the DD files were extracted (in step

4K).

f. Select the correct file in the directory, the click Open to select the

directory.

g. Click OK to install the files.

h. When the import succeeds, click OK.

i. Click OK on the Interface Configuration Utility screen to close the

Utility.

6. Install the Rosemount Engineering Assistant for Ff software
a. Insert disc 2 of the EA-5.5.1 CD set. The latest version of EA can

also be found online at Rosemount.com.

b. Windows should automatically open the CD to windows explorer

view. Open the EAFF Folder.

c. Double-click SETUPEAFF.exe.

d. Follow the instructions in the Installation Wizard to complete the

installation.

e. Instructions will appear to reboot the computer once the

installation has finished.

Reference Manual

00809-0100-4716, Rev JA

May 2008

4-4

Reference Manual

Scan

fieldbus

Segment

3095 Device Tag

Name(s) on Segment

Selected Device
Status

Communication Status
ONLINE or OFFLINE

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

Establish Communications with the 3095 FOUNDATION Fieldbus
Transmitter using 3095 EA for F

1. Connect the 9-pin communications cable into the PCMCIA card port
located in the computer.

2. Connect communication wiring to the cable connectors labeled “D
and “D

-

”.

3. Open the transmitter cover on the side marked “Field Terminals”.
Connect the communication wires to the 3095 transmitter terminals
labeled “Fieldbus Wiring”.

4. Verify device is properly powered to establish communications.

5. Open the 3095 Engineering Assistant for F
program. Select the 3095 Engineering Assistant for F
Fieldbus from the program menu or use the 3095 EA for FF shortcut
icon.

6. Select Scan to scan the F
locate and present live 3095 F
segment. The transmitter device tag name will appear on the screen
in the Device view. The Device Status view will publish the status of
the transmitter.

OUNDATION Fieldbus

OUNDATION Fieldbus

OUNDATION

OUNDATION Fieldbus segment. Scanning will

OUNDATION Fieldbus transmitters on the

+

”

FIELDBUS

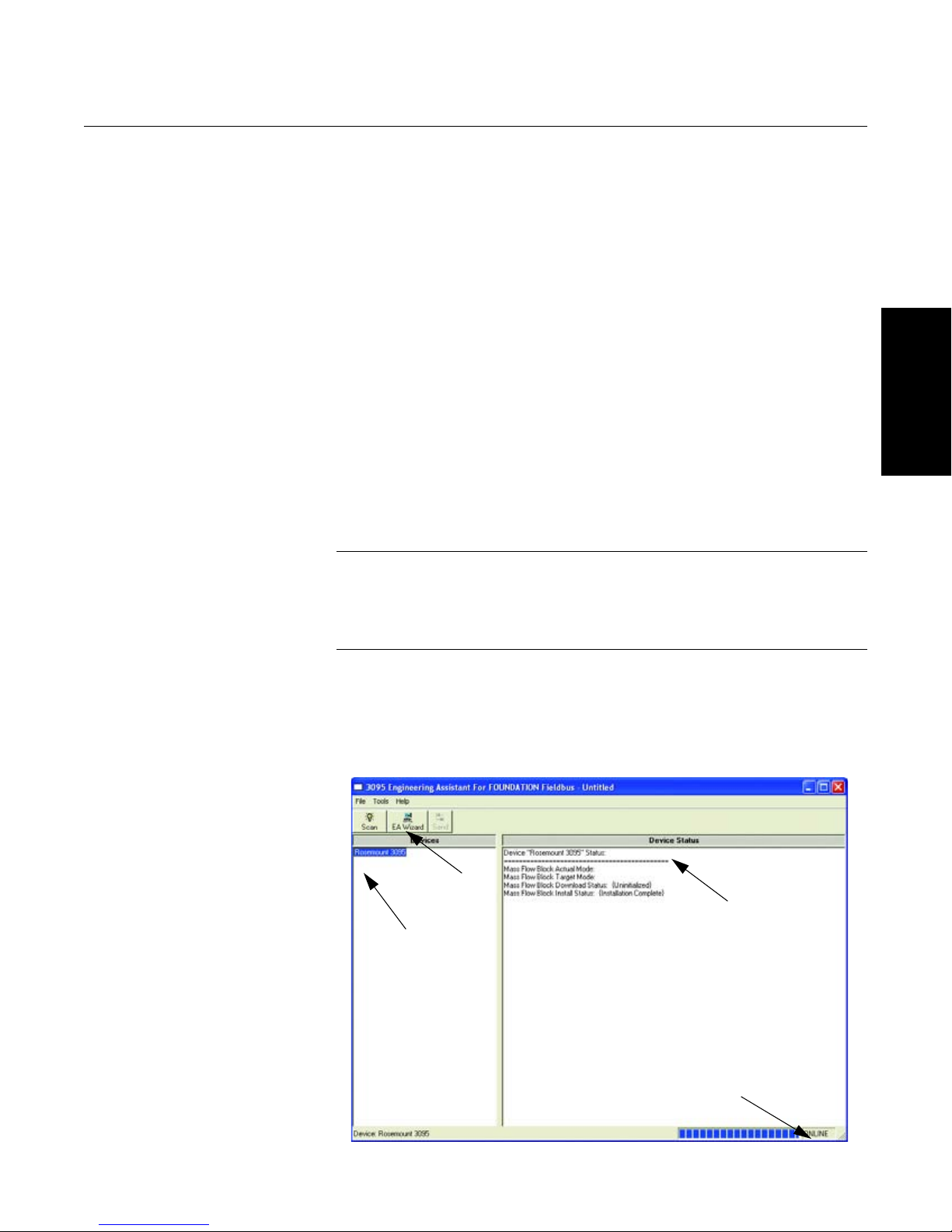

Figure 4-1. Device View

NOTE

The EA for F

OUNDATION fieldbus will not communicate with devices set with a

non-commissioned address within the address range 248-251. It may be
necessary to change the address of the device before EA will be able to
communicate with the 3095 FOUNDATION fieldbus transmitter.

OUNDATION Fieldbus communication status is represented in the

7. F
lower right corner of the screen. If status is ONLINE, communication
has been established. If status is OFFLINE, communication has not
been established and/or communication has been disconnected.

4-5

FIELDBUS

Start EA Wizard

Browse and

Open

Existing FIle

Mass Flow Configuration File
Name

Open EA

Wizard

Select Device

Tag Name

Scan

FOUNDATION

fieldbus segment

for 3095 devices

Rosemount 3095 MultiVariable

Create and Send a Mass Flow Configuration using 3095 EA for
FOUNDATION Fieldbus

A mass flow configuration file can be created in either OFFLINE or ONLINE
mode.

1. Select the device tag name requiring a new or updated mass flow
configuration file. The selected device tag will become highlighted.
Information about the selected device will appear on the Device
Status portion of the screen.

2. Select the EA Wizard. A window stating, “Welcome to Rosemount
Engineering Assistant for Foundation Fieldbus” will appear.

Figure 4-2. Open EA Wizard

Reference Manual

00809-0100-4716, Rev JA

May 2008

4-6

3. Select either “Start new file in Flow Wizard” or “Open existing
configuration files” in Flow Wizard. Select either create a new file or
open a current (saved) file and edit. Follow the EA Wizard and step
through completing a mass flow configuration (see page 3-33 for
details).

Reference Manual

EA Wizard

00809-0100-4716, Rev JA
May 2008

Figure 4-3. EA Wizard View

Rosemount 3095 MultiVariable

FIELDBUS

4. Upon completing a mass flow configuration using the EA Wizard, the
file can be saved to disk. The file must be saved for review or to edit
the mass flow configuration file in the future. FOUNDATION Fieldbus
mass flow configuration files cannot be uploaded from the Mass Flow
Transducer Block. If the file is not saved, it cannot be retrieved.

5. Select the “Send” button to download the mass flow configuration file
to the Mass Flow Transducer Block. Sending the mass flow
configuration file will overwrite the existing file in the Mass Flow
Transducer Block. The transmitter must be out of service to send a
mass flow configuration file.

6. A message box will appear confirming the action to send the mass
flow configuration file to the Mass Flow Transducer Block. Select
“OK” to send the mass flow configuration file.

7. Completing the download of the file to the Mass Flow Transducer
Block, a screen that says “Installation Completed Successfully” will
appear. Select OK.

8. The installation is now complete and will appear in the Device Status
portion of the screen.

9. Bring the transmitter back into service using the host system, for
example DeltaV.

4-7

FIELDBUS

Selected
Device
(Highlighted)

Send Mass Flow
Configuration File to
Selected Device

Status Confirms Mass

Flow Configuration File

Installations

Rosemount 3095 MultiVariable

Figure 4-4. Download Mass
Flow Configuration File

Reference Manual

00809-0100-4716, Rev JA

May 2008

4-8

Reference Manual

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

Verify the Flow Configuration

To view the flow configuration parameters:

1. Open the Mass Flow Block.

2. The following parameters, shown in Table 4-1, contain the flow
configuration information that can be viewed in the Mass Flow Block.

Table 4-1. Flow Configuration Parameters

Parameter Index Number Parameter Name

21 FLUID_DENSITY
22 FLUID_VISCOSITY
23 GAS_EXPANSION_FACTOR
24 DISCHARGE_COEFFICIENT
25 REYNOLDS_NUMBER
32 FLUID_PHASE
33 FLUID_NAME
34 PRIMARY_ELEMENT_CATEGORY
35 PRIMARY_ELEMENT_TYPE
36 ORIFICE_BORE_MATERIAL
37 ORIFICE_BORE_DIAMETER
39 METER_TUBE_MATERIAL
40 METER_TUBE_DIAMETER
42 TEMPERATURE_UPPER_RANGE_VALUE
43 TEMPERATURE_LOWER_RANGE_VALUE
44 PRESSURE_UPPER_RANGE_VALUE
45 PRESSURE_LOWER_RANGE_VALUE

FIELDBUS

An important step to verify the correct flow configuration was sent to the
transmitter is by running a Test Calculation. This will simulate the differential
pressure, static pressure, and process temperature and return the mass flow
output from the transmitter. To run a Test Calculation:

1. Open the Mass Flow Transducer Block.

2. Set the Mass Flow Transducer Block into Out Of Service mode.

3. Enter the parameters from the DP Flow Calculation Data Sheet in the
parameter indices shown in Table 4-2. These values must be entered
in the following units: inH

O, PSIA, and °F, respectively. (The status

2

for these values should be set to
Good_Noncascade_Nonspecific_Not Limited).

Table 4-2. Test Calculation Input Parameters

Parameter Index Number Parameter Name

14 DIFFERENTIAL_PRESSURE
16 PRESSURE
18 TEMPERATURE

4. Write/Apply changes (As applicable for the Fieldbus host).

5. Set the block into Manual mode.

6. The Mass Flow Block will calculate the mass flow value (Index
Number 13) based on the differential pressure, static pressure, and
process temperature values that were entered. This value will be
displayed in lb/s and should agree with the calculated mass flow
value on the DP Flow Calculation Data Sheet.

7. When complete, set the block into Auto mode.

4-9

Rosemount 3095 MultiVariable

GENERAL
INFORMATION

Reference Manual

00809-0100-4716, Rev JA

May 2008

FIELDBUS

Device Description

Before configuring the device, ensure the host has the appropriate Device
Description file revision for this device. The device descriptor can be found on
www.rosemount.com. The initial release of the 3095 with FOUNDATION
Fieldbus protocol is device revision 1.

Node Address The transmitter is shipped at a temporary (248) address. This will enable

FOUNDATION Fieldbus host systems to automatically recognize the device
and move it to a permanent address.

Modes The Resource, Transducer, and all function blocks in the device have modes

of operation. These modes govern the operation of the block. Every block
supports both automatic (AUTO) and out of service (OOS) modes. Other
modes may also be supported.

Changing Modes

To change the operating mode, set the MODE_BLK.TARGET to the desired
mode. After a short delay, the parameter MODE_BLOCK.ACTUAL should
reflect the mode change if the block is operating properly.

Permitted Modes

It is possible to prevent unauthorized changes to the operating mode of a
block. To do this, configure MODE_BLOCK.PERMITTED to allow only the
desired operating modes. It is recommended to always select OOS as one of
the permitted modes.

4-10

Reference Manual

Resource

Block

Transducer

Block

Analog Input

(AI Block)

Other

function

blocks

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

Types of Modes

For the procedures described in this manual, it will be helpful to understand
the following modes:

AUTO

The functions performed by the block will execute. If the block has any
outputs, these will continue to update. This is typically the normal
operating mode.

Out of Service (OOS)

The functions performed by the block will not execute. If the block has any
outputs, these will typically not update and the status of any values passed
to downstream blocks will be “BAD”. To make some changes to the
configuration of the block, change the mode of the block to OOS. When
the changes are complete, change the mode back to AUTO.

MAN

In this mode, variables that are passed out of the block can be manually
set for testing or override purposes.

Other Types of Modes

Other types of modes are Cas, RCas, ROut, IMan and LOW. Some of
these may be supported by different function blocks. For more information,
see the Function Block manual (document number 00809-0100-4783).

FIELDBUS

NOTE

When an upstream block is set to OOS, this will impact the output status of all
downstream blocks. The figure below depicts the hierarchy of blocks:

4-11

FIELDBUS

Rosemount 3095 MultiVariable

Capabilities Virtual Communication Relationship (VCRs)

There are a total of 20 VCRs. One is permanent and 18 are fully configurable
by the host system. Twenty five link objects are available.

Table 4-3. Parameters

Virtual Communication Relationship (VCRs) Value

VCRs 20
Links 25

Host timer recommendations Value

T1 96000
T2 192000
T3 480000

Network Parameter Value

Slot Time 8
Maximum Response Delay 2
Maximum Inactivity to Claim LAS Delay 32
Minimum Inter DLPDU Delay 8
Time Sync class 4 (1 ms)
Maximum Scheduling Overhead 21
Per CLPDU PhL Overhead 4
Maximum Inter-channel Signal Skew 0
Required Number of Post-transmission-gab-ext Units 0
Required Number of Preamble-extension Units 1

Block Execution Times Value

Analog Input 90ms
PID 120 ms
Arithmetic 90 ms
Input Selection 90 ms
Signal Characterizer 90 ms
Integrator 90 ms
Output Splitter 90 ms
Control Selector 90 ms
Analog Output 90 ms

Reference Manual

00809-0100-4716, Rev JA

May 2008

FUNCTION BLOCK
OVERVIEW

4-12

For reference information on the Resource, Mass Flow Transducer, Sensor
Transducer, AI, LCD Transducer blocks refer to Appendix D: Block
Information. Reference information on the ISEL, INT, ARTH, SGCR, and PID
blocks can be found in the Foundation Fieldbus Blocks manual (document
number 00809-0100-4783).

Resource Block (1000)

The Resource block contains diagnostic, hardware and electronics
information. There are no linkable inputs or outputs to the Resource block.

Sensor Transducer Block (1100)

The Sensor Transducer Block contains sensor information including the
sensor diagnostics and the ability to trim the pressure, temperature and
differential pressure sensors or recall factory calibration.

(Contains PT, P, DP, T sensor variables)

Reference Manual

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

Mass Flow Transducer Block (1200)

Contains configuration and diagnostic information to perform fully
compensated mass flow calculations. Contains the mass flow process
variable (PV). Mass flow is calculated using process differential pressure and
pressure. Temperature can be based on either process temperature or a fixed
temperature value.

LCD Transducer Block (1300)

The LCD Transducer Block is used to configure the LCD display.

Analog Input Block (1400 to 1800)

Takes the analog input data from the analog input signal and it makes
available to other function blocks. It has scaling conversion, filtering, square
root, low cut and alarm processing.

FIELDBUS

Analog Output Block (1900)

The AO block provides an analog value to generate an analog output signal. It
provides value and rate limiting, scaling conversion, fault state mechanism
and other features.

Input Selector Block (2200)

Has four analog inputs that may be selected by an input parameter or
according to a criterion as first good, maximum, middle and average.

Integrator Block (2100)

Integrates a variable in function of the time. There is a second flow input that
may be used for the following applications: net flow totalization, volume/mass
variation in vessels and precise flow ratio control.

Arithmetic Block (2300)

This calculation block provides some pre-defined equations ready for use in
applications as flow compensation, HTG, ratio control and others.

Signal Characterizer Block (2400)

Has capability for two signal characterization based on the same curve. The
second input has an option for swapping “x” to “y”, providing an easy way to
use the inverse function, which may be used in signal characterization of
read-back variables.

PID Block (2000)

Allows the selection of either the standard ISA algorithm or a series algorithm.
Additionally the Proportional, Integral and Derivative actions can be based
either on the PV or on the error. An additional enhancement provides beta
and gamma factors for proportional and derivative multipliers providing a “two
degrees of freedom” system.

4-13

FIELDBUS

Rosemount 3095 MultiVariable

Control Selector Block (2500)

The control selector is used to select the most appropriate control output
based on a preconfigured criteria. The outputs of up to three PID blocks are
accepted as inputs to the control selector. The control selector selects which
control output to pass on to downstream blocks based on user configured
criteria such as maximum, minimum, middle, or first good.

Output Splitter Block (2600)

The output splitter is used to pass the output of a single PID block to one of
two analog output blocks depending on process conditions. Applications such
as temperature control may require either heating or cooling depending on
process conditions. The output splitter allows the output of the control PID to
be sent through two different AO blocks to two different final control elements.

RESOURCE BLOCK

Reference Manual

00809-0100-4716, Rev JA

May 2008

FEATURES and
FEATURES_SEL

The parameters FEATURES and FEATURE_SEL determine optional
behavior of the 3095.

FEATURES

The FEATURES parameter is read only and defines which features are
supported by the 3095. Below is a list of the FEATURES the 3095 supports.

UNICODE

All configurable string variables in the 3095, except tag names, are octet
strings. Either ASCII or Unicode may be used. If the configuration device is
generating Unicode octet strings, you must set the Unicode option bit.

REPORTS

The 3095 supports alert reports. The Reports option bit must be set in the
features bit string to use this feature. If it is not set, the host must poll for
alerts.

FAULT STATE

The fault state condition is set by loss of communication to an output block,
when the fault state is promoted to an output block or a physical contact.
When fault state is set, then output function bocks will perform their FSTATE
actions. The Rosemount 3095 supports fault state action. The fault state
option bit must be set in the features bit to use this feature.

SOFT W LOCK and HARD W LOCK

Inputs to the security and write lock functions include the hardware security
switch, the hardware and software write lock bits of the FEATURE_SEL
parameter, the WRITE_LOCK parameter, and the DEFINE_WRITE_LOCK
parameter.

4-14

The WRITE_LOCK parameter prevents modification of parameters within the
device except to clear the WRITE_LOCK parameter. During this time, the
block will function normally updating inputs and outputs and executing
algorithms. When the WRITE_LOCK condition is cleared, a WRITE_ALM
alert is generated with a priority that corresponds to the WRITE_PRI
parameter.

Reference Manual

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

The FEATURE_SEL parameter enables the user to select a hardware or
software write lock or no write lock capability. To enable the hardware security
function, enable the HW_SEL bit in the FEATURE_SEL parameter. When this
bit has been enabled the WRITE_LOCK parameter becomes read only and
will reflect the state of the hardware switch. In order to enable the software
write lock, the SW_SEL bit must be set in the FEATURE_SEL parameter.
Once this bit is set, the WRITE_LOCK parameter may be set to “Locked” or
“Not Locked.” Once the WRITE_LOCK parameter is set to “Locked” by either
the software or the hardware lock, all user requested writes as determined by
the DEFINE_WRITE_LOCK parameter shall be rejected.

The DEFINE_WRITE_LOCK parameter allows the user to configure whether
the write lock functions (both software and hardware) will control writing to all
blocks, or only to the resource and transducer blocks. Internally updated data
such as process variables and diagnostics will not be restricted by the
security switch.

The following table displays all possible configurations of the WRITE_LOCK
parameter.

FIELDBUS

FEATURE_SEL
HW_SEL bit

0 (off) 0 (off) NA 1 (unlocked) Read only NA All
0 (off) 1 (on) NA 1 (unlocked) Read/Write NA All
0 (off) 1 (on) NA 2 (locked) Read/Write Physical Function

0 (off) 1 (on) NA 2 (locked) Read/Write Everything None
1 (on) 0 (off)
1 (on) 0 (off) 1 (locked) 2 (locked) Read only Physical Function

1 (on) 0 (off) 1 (locked) 2 (locked) Read only Everything None

(1) The hardware and software write lock select bits are mutually exclusive and the hardware select has the highest priority. When the HW_SEL bit if set to 1

(on), the SW_SEL bit is automatically set to 0 (off) and is read only.

FEATURE_SEL
SW_SEL bit

(1)

SECURITY SWITCH WRITE_LOCK

0 (unlocked) 1 (unlocked) Read only NA All

WRITE_LOCK
Read/Write

DEFINE_WRITE_LOCK

Write access
to blocks

Blocks only

Blocks only

FEATURES_SEL

FEATURES_SEL is used to turn on any of the supported features. The default
setting of the 3095 does not select any of these features. Choose one of the
supported features if any.

MAX_NOTIFY

The MAX_NOTIFY parameter value is the maximum number of alert reports
that the resource can have sent without getting a confirmation, corresponding
to the amount of buffer space available for alert messages. The number can
be set lower, to control alert flooding, by adjusting the LIM_NOTIFY
parameter value. If LIM_NOTIFY is set to zero, then no alerts are reported.

4-15

Reference Manual

00809-0100-4716, Rev JA

Rosemount 3095 MultiVariable

May 2008

PlantWeb™ Alerts The Resource Block will act as a coordinator for PlantWeb alerts. There will

be three alarm parameters (FAILED_ALARM, MAINT_ALARM, and
ADVISE_ALARM) which will contain information regarding some of the device
errors which are detected by the transmitter software. There will be a
RECOMMENDED_ACTION parameter which will be used to display the
recommended action text for the highest priority alarm and a HEALTH_INDEX
parameters (0 - 100) indicating the overall health of the transmitter.
FAILED_ALARM will have the highest priority followed by MAINT_ALARM
and ADVISE_ALARM will be the lowest priority.

FIELDBUS

FAILED_ALARMS

A failure alarm indicates a failure within a device that will make the device or
some part of the device non-operational. This implies that the device is in
need of repair and must be fixed immediately. There are five parameters
associated with FAILED_ALARMS specifically, they are described below.

FAILED_ENABLED

This parameter contains a list of failures in the device which makes the
device non-operational that will cause an alert to be sent. Below is a list of
the failures with the highest priority first.

1. Electronics

2. NV Memory

3. HW / SW Incompatible

4. Primary Value

5. Secondary Value

FAILED_MASK

This parameter will mask any of the failed conditions listed in
FAILED_ENABLED. A bit on means that the condition is masked out from
alarming and will not be reported.

FAILED_P RI

Designates the alerting priority of the FAILED_ALM, see “Alarm Priority”
on page 4-25. The default is 0 and the recommended value are between 8
and 15.

4-16

FAILED_ACTIVE

This parameter displays which of the alarms is active. Only the alarm with
the highest priority will be displayed. This priority is not the same as the
FAILED_PRI parameter described above. This priority is hard coded within
the device and is not user configurable.

FAILED_A LM

Alarm indicating a failure within a device which makes the device
non-operational.

Reference Manual

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

MAINT_ALARMS

A maintenance alarm indicates the device or some part of the device needs
maintenance soon. If the condition is ignored, the device will eventually fail.
There are five parameters associated with MAINT_ALARMS, they are
described below.

MAINT_ENABLED

The MAINT_ENABLED parameter contains a list of conditions indicating
the device or some part of the device needs maintenance soon.

Below is a list of the conditions with the highest priority first.

1. Primary Value Degraded

2. Secondary Value Degraded

3. Configuration Error

4. Calibration Error

MAINT_MASK

The MAINT_MASK parameter will mask any of the failed conditions listed
in MAINT_ENABLED. A bit on means that the condition is masked out
from alarming and will not be reported.

FIELDBUS

MAINT_PRI

MAINT_PRI designates the alarming priority of the MAINT_ALM, “Process
Alarms” on page 4-25. The default is 0 and the recommended values is 3
to 7.

MAINT_ACTIVE

The MAINT_ACTIVE parameter displays which of the alarms is active.
Only the condition with the highest priority will be displayed. This priority is
not the same as the MAINT_PRI parameter described above. This priority
is hard coded within the device and is not user configurable.

MAINT_ALM

An alarm indicating the device needs maintenance soon. If the condition is
ignored, the device will eventually fail.

4-17

FIELDBUS

Rosemount 3095 MultiVariable

Advisory Alarms

An advisory alarm indicates informative conditions that do not have a direct
impact on the device's primary functions There are five parameters
associated with ADVISE_ALARMS, they are described below.

ADVISE_ENABLED

The ADVISE_ENABLED parameter contains a list of informative
conditions that do not have a direct impact on the device's primary
functions. Below is a list of the advisories with the highest priority first.

1. NV Writes Deferred

2. SPM Process Anomaly detected

ADVISE_MASK

The ADVISE_MASK parameter will mask any of the failed conditions listed
in ADVISE_ENABLED. A bit on means the condition is masked out from
alarming and will not be reported.

ADVISE_PRI

ADVISE_PRI designates the alarming priority of the ADVISE_ALM, see
“Process Alarms” on page 4-25. The default is 0 and the recommended
values are 1 or 2.

Reference Manual

00809-0100-4716, Rev JA

May 2008

ADVISE_ACTIVE

The ADVISE_ACTIVE parameter displays which of the advisories is
active. Only the advisory with the highest priority will be displayed. This
priority is not the same as the ADVISE_PRI parameter described above.
This priority is hard coded within the device and is not user configurable.

ADVISE_ALM

ADVISE_ALM is an alarm indicating advisory alarms. These conditions do
not have a direct impact on the process or device integrity.

4-18

Reference Manual

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

Recommended Actions
for PlantWeb Alerts

Table 4-4.
RECOMMENDED_ACTION

RECOMMENDED_ACTION

The RECOMMENDED_ACTION parameter displays a text string that will give
a recommended course of action to take based on which type and which
specific event of the PlantWeb alerts are active.

Alarm Type

None None No action required

Advisory

Maintenance

PlantWeb Alerts

Failed

Failed/Maint/Advise
Active Event

Simulation Active Disable Simulate Switch before returning

NV Write Deferred Limit the number of periodic writes to all static

Mass Flow Transducer
Block Reverse Flow
Mass Flow Transducer
Block Sensor Out of
Range
Mass Flow Transducer
Block SP or PT Clipped

Primary Value
Degraded

Secondary Value
Failure
Primary Value Failure Verify the Instrument process is within the

Output Board
Electronics Failure
Output Board NV
Memory Failure
Sensor Board NV
Memory Failure
HW/SW Incompatible Verify the Hardware Revision is compatible

Recommended Action Text String

device to service.

or non-volatile parameters.
Check DP sensor configuration and trim as
needed.
Check DP sensor configuration and trim as
needed.

Check that Engineering Assistant (EA) has
generated configuration for the proper range of
DP values.
Confirm the operating range of the applied
sensor and/or verify the sensor connection and
device environment.
Verify the ambient temperature is within
operating limits.

Senor range and/or confirm sensor
configuration and wiring.
Replace the Fieldbus Electronic Module
Assembly.
Reset the Device then download the device
configuration.
Replace Sensor Module.

with the Software Revision.

FIELDBUS

SENSOR TRANSDUCER
BLOCK

Zero Trim Once the final installation of the transmitter has been completed, perform a

Before operating the transmitter, perform a Zero Trim and set the Damping.

NOTE

When the engineering units of the XD_SCALE in the associated AI Block are
selected, the engineering units in the Transducer Block change to the same
units. THIS IS THE ONLY WAY TO CHANGE THE ENGINEERING UNITS IN
THE SENSOR TRANSDUCER BLOCK.

Zero Trim before operating the transmitter. The Zero Trim procedure can be
found in Section 5: Troubleshooting.

4-19

FIELDBUS

Reference Manual

00809-0100-4716, Rev JA

Rosemount 3095 MultiVariable

May 2008

Damping The damping parameter in the Transducer Block may be used to filter

measurement noise. By increasing the damping time, the transmitter will have
a slower response time, but will decrease the amount of process noise that is
translated to the Transducer Block Primary Value. Because both the LCD and
AI Block get input from the Transducer Block, adjusting the damping
parameter will effect the values passed to both blocks.

NOTE

The AI Block has it's own filtering parameter called PV_FTIME. For simplicity,
it is better to do filtering in the Transducer Block as damping will be applied to
primary value on every sensor update. If filtering is done in AI block, damping
will be applied to output every macrocycle. The LCD will display value from
Transducer block.

MASS FLOW
TRANSDUCER BLOCK

LCD TRANSDUCER
BLOCK

Custom Display
Configuration

The Mass Flow Transducer Block is an optional licensed transducer block.
The Block is configured using the Rosemount Engineering Assistant for
F

OUNDATION fieldbus software program. The block may be configured to

utilize the process variables measured by the 3095 multivariable transmitter
to include: differential pressure, pressure (gage or absolute) and temperature.
Process variable measurements may also be used from independent
measurement devices on the F
Transducer Block can also use a fixed temperature input to calculate mass
flow.

The LCD display connects directly to the Rosemount 3095 electronics
F

OUNDATION fieldbus output board. The display indicates output and

abbreviated diagnostic messages.

The display features a two-line display and a 0-100% scaled bar graph. The
first line of five characters displays the output description, the second line of
seven digits displays the actual value, the third line of six characters displays
engineering units and the fourth line displays “Error” when the transmitter is in
alarm. The LCD display can also display diagnostic messages.

Each parameter configured for display will appear on the LCD for a brief
period before the next parameter is displayed. If the status of the parameter
goes bad, the LCD will also cycle diagnostics following the displayed variable:

Shipped from the factory, Parameter #1 is configured to display the Primary
Variable (pressure) from the LCD Transducer Block. Parameters 2 – 4 are not
configured. To change the configuration of Parameter #1 or to configure
additional parameters 2 – 4, use the configuration parameters below.

OUNDATION fieldbus segment. The Mass Flow

4-20

The LCD Transducer Block can be configured to sequence four different
process variables as long as the parameters are sourced from a function
block that is scheduled to execute within the 3095 MultiVariable transmitter. If
a function block is scheduled in the 3095 that links a process variable from
another device on the segment, that process variable can be displayed on the
LCD.

DISPLAY_PARAM_SEL

The DISPLAY_PARAM_SEL parameter specifies how many process
variables will be displayed. Select up to four display parameters.

Reference Manual

00809-0100-4716, Rev JA
May 2008

Rosemount 3095 MultiVariable

BLK_TAG_#

(1)

Enter the Block Tag of the function block that contains the parameter to be
displayed. The default function block tags from the factory are:

TRANSDUCER CHAR 2400
AI 1400 AO 1900
PID 2000 CSEL 2500
INTEG 2100 OSPL 2600
ISEL 2200 MASS FLOW 1200
ARITH 2300

BLK_TYPE_#

(1)

Enter the Block Type of the function block that contains the parameter to be
displayed. This parameter is generally selected via a drop-down menu with a
list of possible function block types. (e.g. Transducer, PID, AI, etc.)

PARAM_INDEX_#

(1)

The PARAM_INDEX_# parameter is generally selected via a drop-down
menu with a list of possible parameter names based upon what is available in
the function block type selected. Choose the parameter to be displayed.

CUSTOM_TAG_#

(1)

The CUSTOM_TAG_# is an optional user-specified tag identifier that can be
configured to be displayed with the parameter in place of the block tag. Enter
a tag of up to five characters.

UNITS_TYPE_#

(1)

FIELDBUS

The UNITS_TYPE_# parameter is generally selected via a drop-down menu
with three options: AUTO, CUSTOM, or NONE. Select AUTO only when the
parameter to be displayed is pressure, temperature, or percent. For other
parameters, select CUSTOM and be sure to configure the
CUSTOM_UNITS_# parameter. Select NONE if the parameter is to be
displayed without associated units.

CUSTOM_UNITS_#

(1)

Specify custom units to be displayed with the parameter. Enter up to six
characters. To display Custom Units the UNITS_TYPE_# must be set to
CUSTOM.

(1) _# represents the specified parameter number.

4-21

Rosemount 3095 MultiVariable

Reference Manual

00809-0100-4716, Rev JA

May 2008

FIELDBUS

ANALOG INPUT (AI)
BLOCK

The Analog Input (AI) function block provides the link communicating the
process variables in the transducer block to the F

OUNDATION fieldbus

segment. The Rosemount 3095 provides process variable measurement for
static pressure (absolute or gage), differential pressure, process temperature
and sensor temperature. Fully compensated Mass Flow is available as a
calculated process variable.

Configure the AI block A minimum of four parameters are required to configure the AI Block. The

parameters can be changed in the field using any F
or configuration tool which supports DD methods.

CHANNEL

Channel defines which transducer block measurement is used by the AI
Block. Select the channel that corresponds to the desired measurement.

Channel Measurement

1 Differential Pressure
2 Static Pressure
3 Process Temperature
4 Sensor Temperature
5Mass Flow

L_TYPE

The L_TYPE parameter defines the relationship of the sensor measurement
(pressure or sensor temperature) to the desired output temperature of the AI
Block (e.g. pressure, level, flow, etc.). The relationship can be direct, indirect,
or indirect square root.

OUNDATION fieldbus host

Direct

Select direct when the desired output will be the same as the sensor
measurement (pressure or sensor temperature).

Indirect

Select indirect when the desired output is a calculated measurement
based on the sensor measurement (e.g. a pressure measurement is made
to determine level in a tank). The relationship between the sensor
measurement and the calculated measurement will be linear.

Indirect Square Root

Select indirect square root when the desired output is an inferred
measurement based on the sensor measurement and the relationship
between the sensor measurement and the inferred measurement is
square root (e.g. flow).

4-22
