PORTABLE CD, CD-R /RW PLAYER

with AM / FM STEREO RADIO

OWNER’S MANUAL

PD5201

Visit our web site at www.emersonradio.com

PD5201_D022403.p65

18



24/2/2003, 15:05





















CAUT I ON

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

The lightning flash with arrowhead symbol, within an equilateral triangle is intented to alert the user to the presence of uninsulated ‘dangerous voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUT I O N

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER ( O R B A C K ) , N O U S E R SERVICEABLE PARTS INSIDE R E F E R S E R V I C I N G T O Q U A L I F I E D S E R V I C E PERSONNEL.

!

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

IMPORTANT SAFETY INSTRUCTIONS

1.) Read these instructions.

2.) Keep these instructions.

3.) Heed all warnings.

4.) Follow all instructions.

5.) Do not use this apparatus near water.

6.) Clean only with dry cloth.

7.) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8.) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9.) Do not defeat the safety purpose of the polarized or grounding-typeplug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10.) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11.) Only use attachments / accessories specified by the manufacturer.

12.) Unplug this apparatus during lightning storms or when unused for long periods of time.

13.) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supplycord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

14.) This appliance shall not be exposed to dripping or splashing water and no object filled with liquids such as vases shall be placed on the apparatus.

15.) Do not overload wall outlet. Use only power source as indicated. 16.) Use replacement parts as specified by the manufacturer.

17.) The product may be mounted to a wall only if recommended by the manufacturer.

18.) Upon completion of any service or repairs to this product, ask the service technician to perform safety checks.

1

PD5201_D022403.p65

1



24/2/2003, 15:05





















BEFORE WE BEGIN

Thank you for purchasing this Emerson audio product. The Emerson brand is your assurance of quality, performance and value.

Our engineers have included many useful and convenient features in this product. Please be sure to read this Owner’s Manual completely to make sure you are getting the maximum benefit from each feature.

This product was manufactured using the highest quality components and standards of workmanship. It was tested by Emerson inspectors and found to be in perfect working order before it left our factory. However, there is always the chance that some problem may occur because of rough handling during shipment to the retail store or to the final consumer.

If, after reading this Manual, you experience any problems with the operation of this product, please refer to the instructions for obtaining service at the end of this Manual. Emerson and Emerson retailers are committed to your satisfaction.

Once again, thanks for purchasing this Emerson audio product.

For future reference, record the serial number in the space provided.

Model No: PD5201

Serial No:

2

PD5201_D022403.p65

2



24/2/2003, 15:05





















IMPORTANT NOTES

Avoid installing this unit in places exposed to direct sunlight or close to heat radiating appliances such as electric heaters, on top of other stereo equipment that radiates too much heat, places lacking ventilation or dusty areas, places subject to constant vibration and/ or humid or moist areas.

Do not attempt to clean this unit with chemical solvents as this might damage the finish. Use a clean dry cloth.

Operate controls and switches as described in the manual.

Before turning ‘On’ the power, make certain that power cord is properly installed.

Store your CDs in a cool area to avoid damage from heat.

When moving the set, be sure to first disconnect the power cord.

CLASS 1 LASER PRODUCT

CLASS 1 LASER PRODUCT APPAREIL Á LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1

CAUTION

INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED.

AVOID EXPOSURE TO BEAM

This product contains a low power Laser Device.

FCC INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1)This device may not cause harmful interference, and

(2)This device must accept any interference received, including interference that may cause undesired operation.

3

PD5201_D022403.p65

3



24/2/2003, 15:05





















PREPARATION FOR USE

UNPACKING AND SET UP

Carefully remove the unit from the carton and remove all packing materials from the unit.

Carefully remove any small strips of tape which may have been used to keep the CD and Cassette doors closed during shipment.

Open the CD compartment by placing you finger under center of the CD door and lifting upward. Inside the CD compartment you will see a white transit card which is used to prevent the laser pick-upfrom moving during shipment. Carefully remove this card and close the CD compartment door.

Please save the carton and packing materials in the event that your unit ever needs to be returned for service. The original carton and packing materials are the only way to protect the unit from damage during shipment.

POWER SOURCES

This unit is designed to operate on 6 pcs “C” batteries, not included, or on normal 120V 60Hz AC house current. Operating this unit from any other power source may cause damage to the unit, and such damage is not covered by your warranty.

AC Operation

Connect the small end of the AC Power Cord to the AC socket on the back cabinet, then insert the plug in any convenient household 120V 60Hz AC outlet.

4

PD5201_D022403.p65

4



24/2/2003, 15:05





















AC Plug
AC Outlet

NOTE:

This unit has a polarized AC plug with one

wide blade and one narrow blade. This plug will only fit into a matching polarized AC outlet. This is a safety feature to reduce

the possibility of electric shock. If this plug will not fit in your AC outlet, you probably

have an outdated non-polarizedoutlet. You

should have your outdated outlet changed by a qualified, licensed electrician. Do not file the wide blade on the plug, or use an adapter to make the plug fit into your outlet. This defeats the safety feature and could expose you to electric shock.

Battery Operation

1.) Remove the battery compartment door on the back of the cabinet by pressing down on the two tabs directly below the “” marks.

2.) Insert 6 pcs “C”size batteries into t h e b a t t e r y c o m p a r t m e n t according to the polarity diagram engraved inside the compartment. If the batteries are inserted incorrectly the unit will not work.

3.) Replace the battery compartment door.

NOTE: In order to operate the unit on battery power the AC cord must be disconnected from the AC socket on the back cabinet.

5

PD5201_D022403.p65

5



24/2/2003, 15:05





















PROTECT YOUR FURNITURE

This model is equipped with non-skidrubber 'feet' to prevent the product from moving when you operate the controls. These 'feet' are made fromnon-migratingrubber material specially formulated to avoid leaving any marks or stains on your furniture. However certain types of oil based furniture polishes, wood preservatives, or cleaning sprays may cause the rubber 'feet' to soften, and leave marks or a rubber residue on the furniture. To prevent any damage to your furniture we strongly recommend that you purchase smallself-adhesivefelt pads, available at hardware stores and home improvement centers everywhere, and apply these pads to the bottom of the rubber 'feet' before you place the product on fine wooden furniture.

BATTERY PRECAUTIONS

Follow these precautions when using batteries in this device:

1.Use only the size and type of batteries specified.

2.Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment. Reversed batteries may cause damage to the device.

3.Do not mix different types of batteries together (e.g. Alkaline and Carbon-Zinc)or old batteries with fresh ones.

4.If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

5.Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow battery manufacturer’s directions.)

6

PD5201_D022403.p65

6



24/2/2003, 15:05





















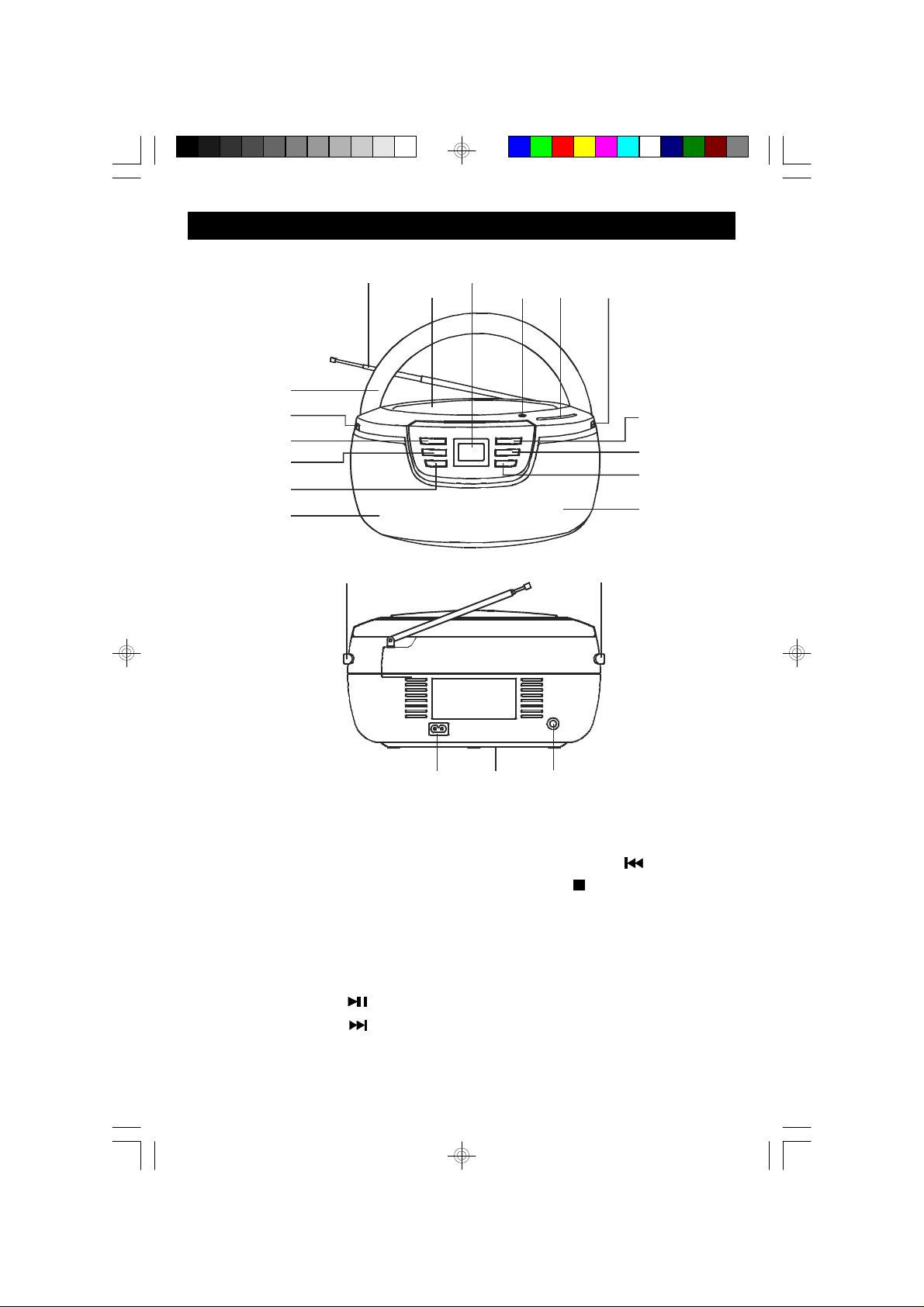

LOCATION OF CONTROLS AND INDICATORS

3

5

7

8

4

6

2





















































































































































1



































































9





































15









































































10















































































































































14







































































































































































11



































13











































































































12

12









































































































































































































































































16

























17













































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































18

19

20

1.)

VOLUME Control.



12.)

Speakers.

2.)

Carrying Handle.



13.)

CD REPEAT Button.

3.)

Telescopic Antenna.



14.)

Skip/Search REV Button.

4.)

CD Door.



15.)

CD STOP Button.

5.)

CD Display.



16.)

BAND Switch.

6.)

FM STEREO Indicator.



(FM STEREO/FM/AM)

7.)

Dial Scale.



17.)

FUNCTION Switch.

8.)

TUNING Control.





(CD/RADIO/POWER OFF)

9.)

CD PLAY/PAUSE

Button.

18.)

AC Socket.

10.)

Skip/Search FWD

Button.

19.)

Battery Compartment. (Bottom)

11.)

CD PROGRAM Button.

20.)

PHONES Jack.







7





PD5201_D022403.p65

7



24/2/2003, 15:05





















OPERATING INSTRUCTIONS

LISTENING TO THE RADIO

1.) Move the FUNCTION selector to RADIO position.

2.) Move the BAND switch to select FM STEREO, FM or AM.

3.) Tune to your desired station with the TUNING control.

4.) Set the VOLUME control to the desired level.

5.) When you are finished listening move the FUNCTION selector back to the POWER OFF position to shut the power ‘Off’and extend the battery life.

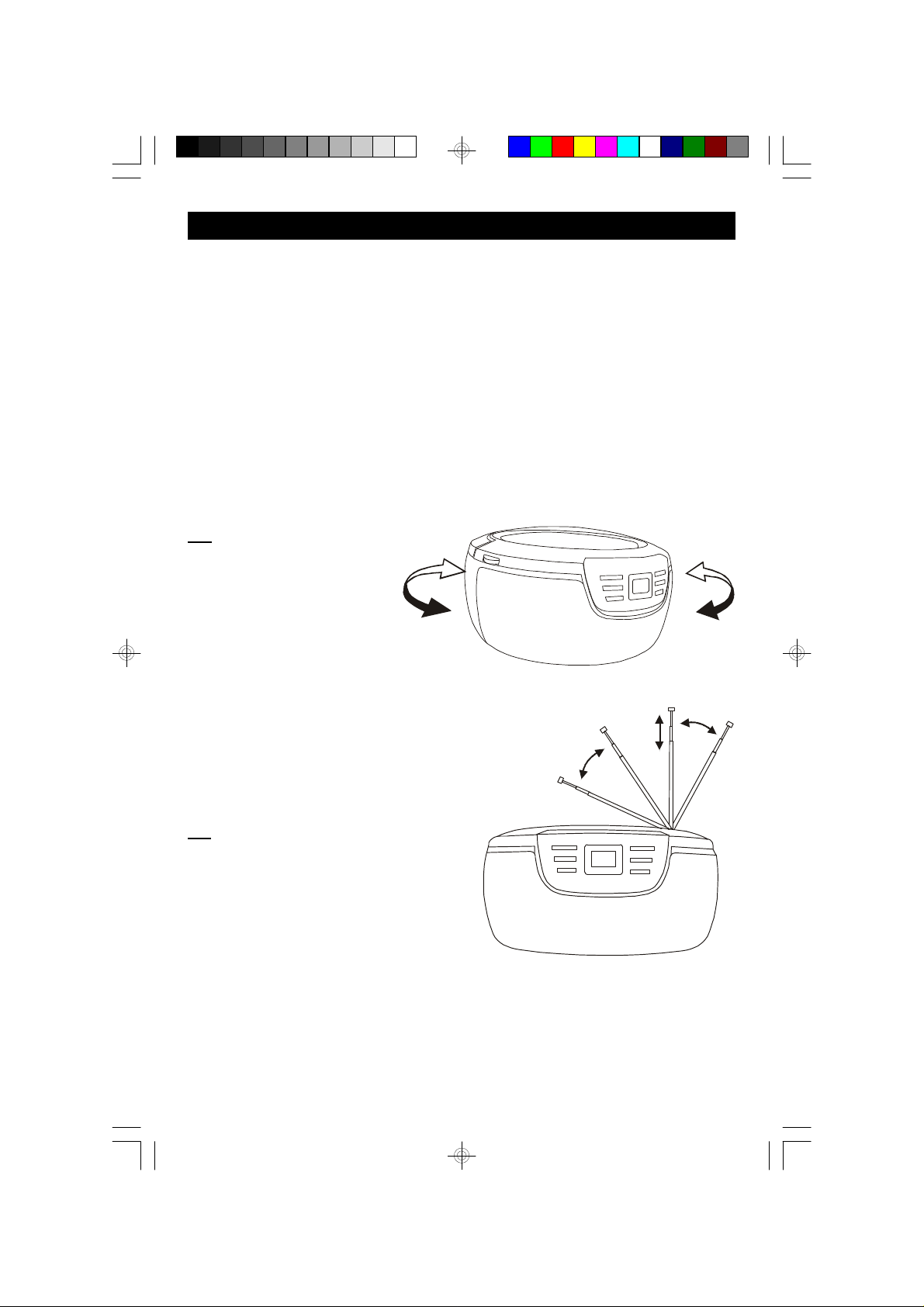

Antenna Information

AM

The AM antenna is inside the cabinet. IF AM reception is unsatisfactory try rotating the entire unit until you find the position that provides the best reception.

FM

Vary the direction of the FM antenna to find the position that provides the best reception.

8

PD5201_D022403.p65

8



24/2/2003, 15:05





















PLAYING COMPACT DISCS

NOTE: Although this portable CD player can readCD-RandCD-RWdiscs, in addition to normal CDs, the playability ofCD-RandCD-RWdiscs may be effected by the type of software that was used to create the discs, as well as the quality and condition of the blank media you are using. 100% playability cannot be guaranteed. This is not an indication of a problem with the player.

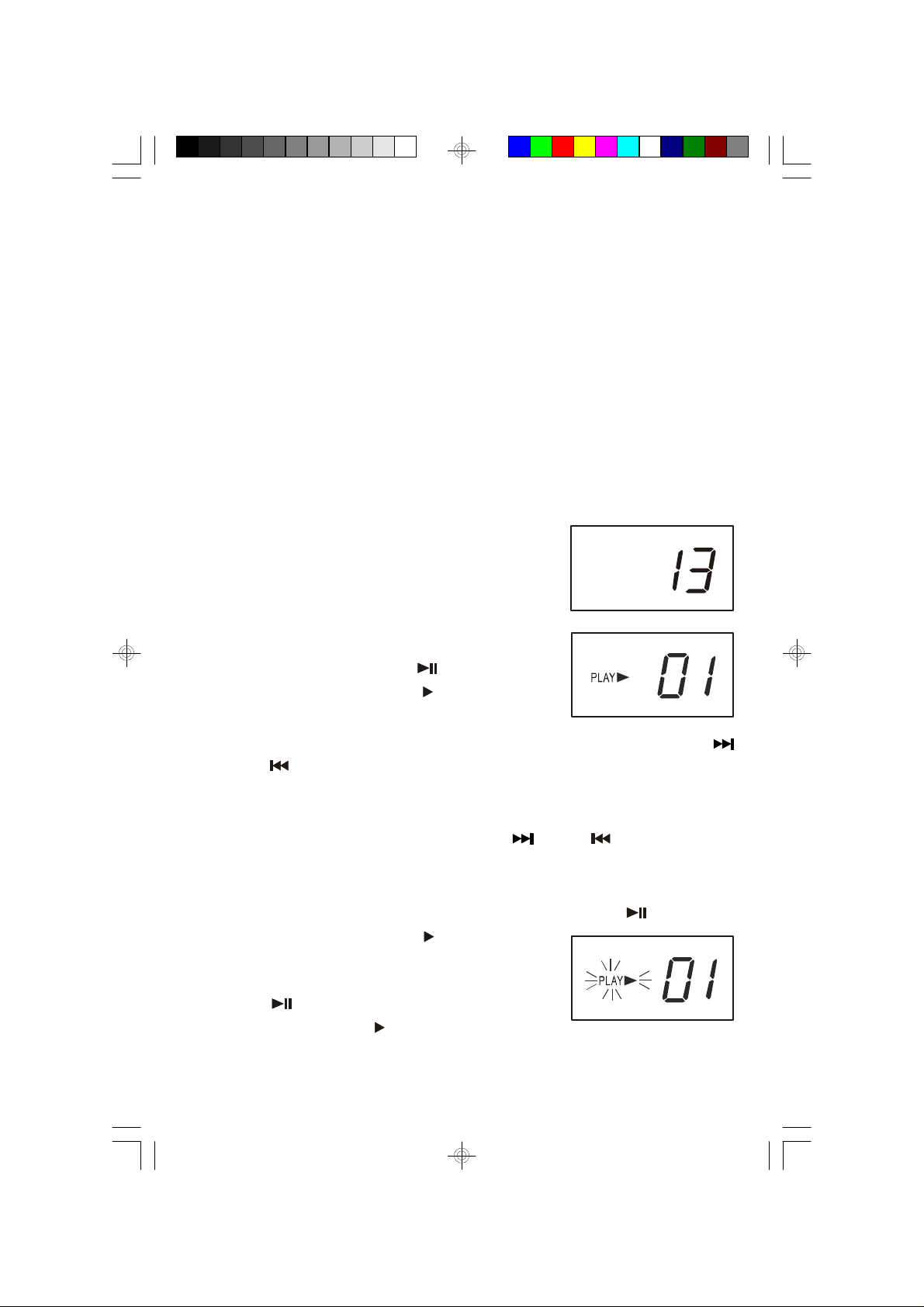

NORMAL PLAYBACK

1.) Move the FUNCTION selector to the CD position.

2.) Open the CD door by pressing at CD door OPEN/CLOSE position. If you have not already removed the white transit card from the CD player, please remove it now.

3.) Place your CD on the center spindle with the printed label side facing up. Close the CD door. The player will read the Table of Contents and the display will show the total number of tracks on the disc. If the disc is damaged or up side down, display shows “

4.) Press the CD PLAY/PAUSE button to begin playback on Track 1. The PLAYIndicator appears in the display .

To skip to higher or lower numbered tracks during playback press the FWD or REVbutton repeatedly until the desired track number appears in the display. Playback will begin on the selected track.

To search rapidly forward or backward during playback to locate a specific portion of a track, depress and hold the FWD or REVbutton. The player will search rapidly forward or backward as long as the buttons are depressed. Normal speed playback will resume when the buttons are released.

To Pause momentarily during playback press the PLAY/PAUSE button again.

The sound stops and the PLAY Indicator flashes, however the disc continues to spin. To cancel Pause and resume normal playback press the PLAY/ PAUSEbutton once more. Normal playback resumes and the PLAYIndicator stops flashing.
