Page 1
Portable CD-R/RW Player
with AM/FM Stereo Radio
OWNER’S MANUAL
PD5100
Visit our web site at www.emersonradio.com
PD5100_072705.p65 27/7/2005, 16:1220
Page 2
!
CAUTION
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE
OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol, within an equilateral triangle is intended to
alert the user to the presence
of uninsulated ‘dangerous voltage’
within the product’s enclosure
that may be of sufficient
magnitude to constitute a risk
of electric shock to persons.
WARNING: TO REDUCE THE
RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER
(OR BACK ) , N O U SER
SERVICEABLE PARTS INSIDE
REFER SERVICING TO
Q U A LI F IE D S E R V IC E
PERSONNEL.
The exclamation point within
an equilateral triangle is intended to alert the user to
the presence of important
operating and maintenance
(servicing) instructions in
the literature accompanying the appliance.
IMPORTANT SAFETY INSTRUCTIONS
1.) Read these instructions.
2.) Keep these instructions.
3.) Heed all warnings.
4.) Follow all instructions.
5.) Do not use this apparatus near water.
6.) Clean only with dry cloth.
7.) Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8.) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9.) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong is provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10.) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11.) Only use attachments / accessories specified by the manufacturer.
12.) Unplug this apparatus during lightning storms or when unused for long periods of time.
13.) Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain
or moisture, does not operate normally, or has been dropped.
14.) This appliance shall not be exposed to dripping or splashing water and no object filled with
liquids such as vases shall be placed on the apparatus.
15.) Do not overload wall outlet. Use only power source as indicated.
16.) Use replacement parts as specified by the manufacturer.
17.) The product may be mounted to a wall only if recommended by the manufacturer.
18.) Upon completion of any service or repairs to this product, ask the service technician to
perform safety checks.
1
PD5100_072705.p65 27/7/2005, 16:121
Page 3
Before We Begin
Thank you for purchasing this Emerson audio product. The Emerson brand
is your assurance of quality, performance and value.
Our engineers have included many useful and convenient features in this
product. Please be sure to read this Owner’s Manual completely to make
sure you are getting the maximum benefit from each feature.
This product was manufactured using the highest quality components and
standards of workmanship. It was tested by Emerson inspectors and found
to be in perfect working order before it left our factory. However, there is
always the chance that some problem may occur because of rough handling
during shipment to the retail store or to the final consumer.
If, after reading this Manual, you experience any problems with the operation
of this product, please refer to the instructions for obtaining service at the
end of this Manual. Emerson and Emerson retailers are committed to your
satisfaction.
Once again, thanks for purchasing this Emerson audio product.
PD5100_072705.p65 27/7/2005, 16:122
2
Page 4
IMPORTANT NOTES
•Avoid installing this unit in places
exposed to direct sunlight or close to heat
radiating appliances such as electric
heaters, on top of other stereo
equipment that radiates too much heat,
places lacking ventilation or dusty areas,
places subject to constant vibration and/
or humid or moist areas.
•Do not attempt to clean this unit with
•Operate c ontrols and switches as
described in the manual.
•Before turning ‘On’ the power, make
certain that power c ord is properly
installed.
•Store your CDs in a cool area to avoid
damage from heat.
•When moving the set, be sure to first
disconnect the power cord.
chemical solvents as this might damage
the finish. Use a clean dry cloth.
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
APPAREIL Á LASER DE CLASSE 1
PRODUCTO LASER DE CLASE 1
This product contains a low power Laser Device.
CAUTION
INVISIBLE LASER RADIATION
WHEN OPEN AND INTERLOCKS
DEFEATED.
AVOID EXPOSURE TO BEAM
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
PD5100_072705.p65 27/7/2005, 16:123
3
Page 5
PREPARATION FOR USE
UNPACKING AND SET UP
• Carefully remove the unit from the carton and remove all packing materials from
the unit.
• Carefully remove any small strips of tape which may have been used to keep
the CD door closed during shipment.
• Open the CD compartment by placing you finger under the OPEN/CLOSE tab
on the CD door and lifting upward. Inside the CD compartment you will see a
white transit card which is used to prevent the laser pick -up from moving during
shipment.
Carefully remove this card and close the CD compartment door.
• Please save the carton and packing materials in the event that your unit ever
needs to be returned for service. The original carton and packing materials are
the only way to protect the unit from damage during shipment.
POWER SOURCES
This unit is designed to operate on 6 pcs “C” batteries, not included, or on normal
120V 60Hz AC house current.
Operating this unit from any other power source may cause damage to the unit,
and such damage is not covered by your warranty.
4
PD5100_072705.p65 27/7/2005, 16:124
Page 6
AC Operation
AC Outlet
Connect the small end of the AC Power Cord to the AC socket on the back cabinet,
then insert the plug in any convenient household 120V 60Hz AC outlet.
NOTE: This unit has a polarized AC plug with one wide blade and one narrow
blade. This plug will only fit into a matching polarized AC outlet. This is a safety
feature to reduce the possibility of electric shock. If this plug will not fit in your AC
outlet, you probably have an outdated non-polarized outlet. You should have your
outdated outlet changed by a qualified, licensed electrician. Do not file the wide
blade on the plug, or use an adapter to make the plug fit into your outlet. This
defeats the safety feature and could expose you to electric shock.
AC Plug
5
PD5100_072705.p65 27/7/2005, 16:125
Page 7

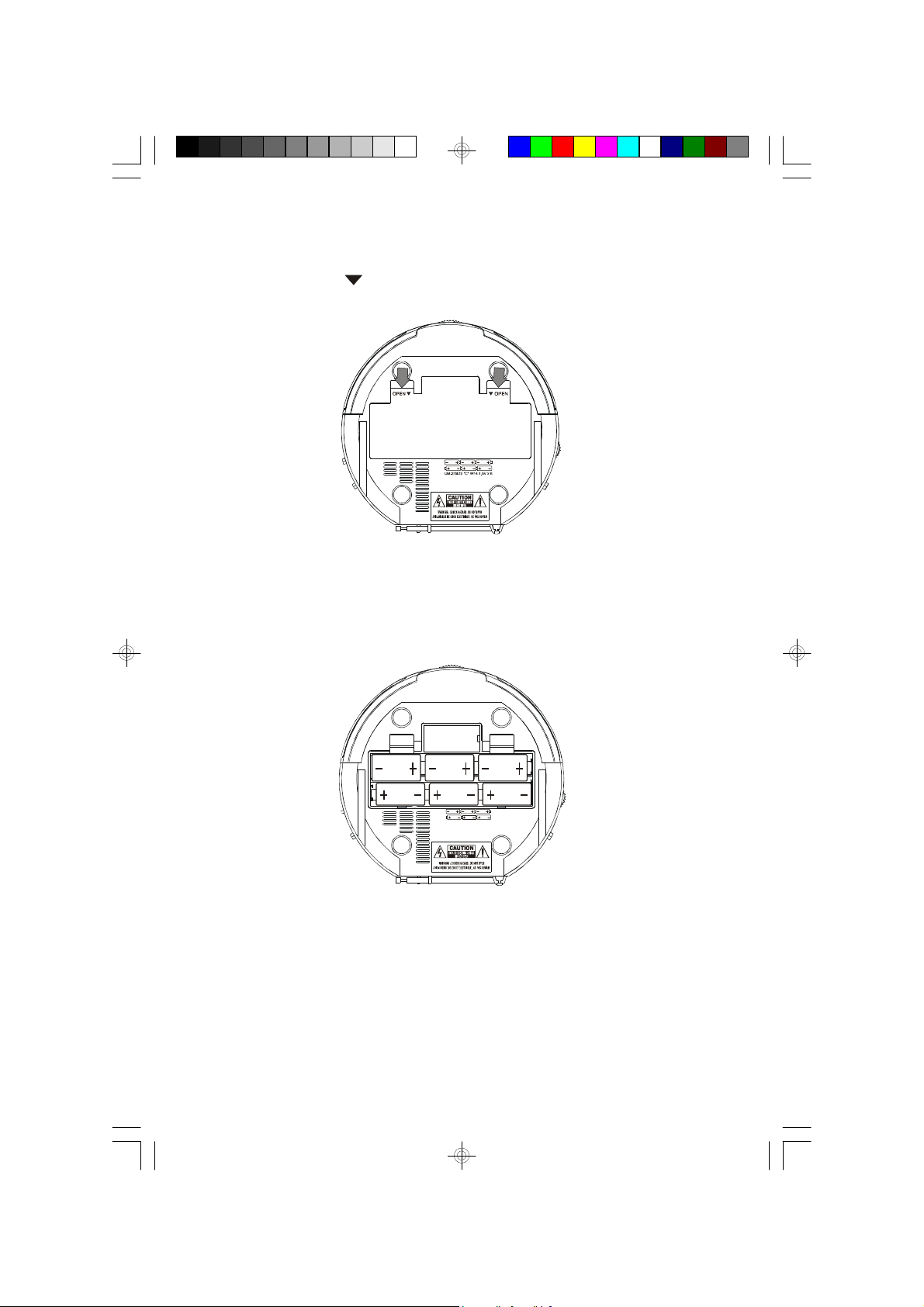

Battery Operation
UM-2/SIZE "C" /R14 1.5V
1.) Remove the battery compartment door on the back of the cabinet by pressing
on the two “OPEN ” tabs in the direction of the arrows and lift it up.
2.) Insert 6 pcs “C” size batteries into the battery compartment according to the
polarity diagram engraved inside the compartment. If the batteries are inserted
incorrectly the unit will not work.
6
X
3.) Replace the battery compartment door.
NOTE: In order to operate the unit on battery power the AC cord must be
disconnected from the AC socket on the back cabinet.
6
PD5100_072705.p65 27/7/2005, 16:126
Page 8
BATTERY PRECAUTIONS
Follow these precautions when using batteries in this device:
1. Use only the size and type of batteries specified.
2. Be sure to follow the correct polarity when installing the batteries as indicated in the battery
compartment. Reversed batteries may cause damage to the device.
3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-Zinc) or old batteries
with fresh ones.
4. If the device is not to be used for a long period of time, remove the batteries to prevent
damage or injury from possible battery leakage.
5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture.
(Follow battery manufacturer’s directions.)
PROTECT YOUR FURNITURE
This model is equipped with non-skid rubber 'feet' to prevent the product from
moving when you operate the controls. These 'feet' are made from non-migrating
rubber material specially formulated to avoid leaving any marks or stains on your
furniture. However certain types of oil based furniture polishes, wood preservatives,
or c leaning sprays may cause the rubber 'feet' to soften, and leave marks or a
rubber residue on the furniture. To prevent any damage to your furniture we strongly
recommend that you purchase small self-adhesive felt pads, available at hardware
stores and home improvement centers everywhere, and apply these pads to the
bottom of the rubber 'feet' before you place the product on fine wooden furniture.
PD5100_072705.p65 27/7/2005, 16:127
7
Page 9

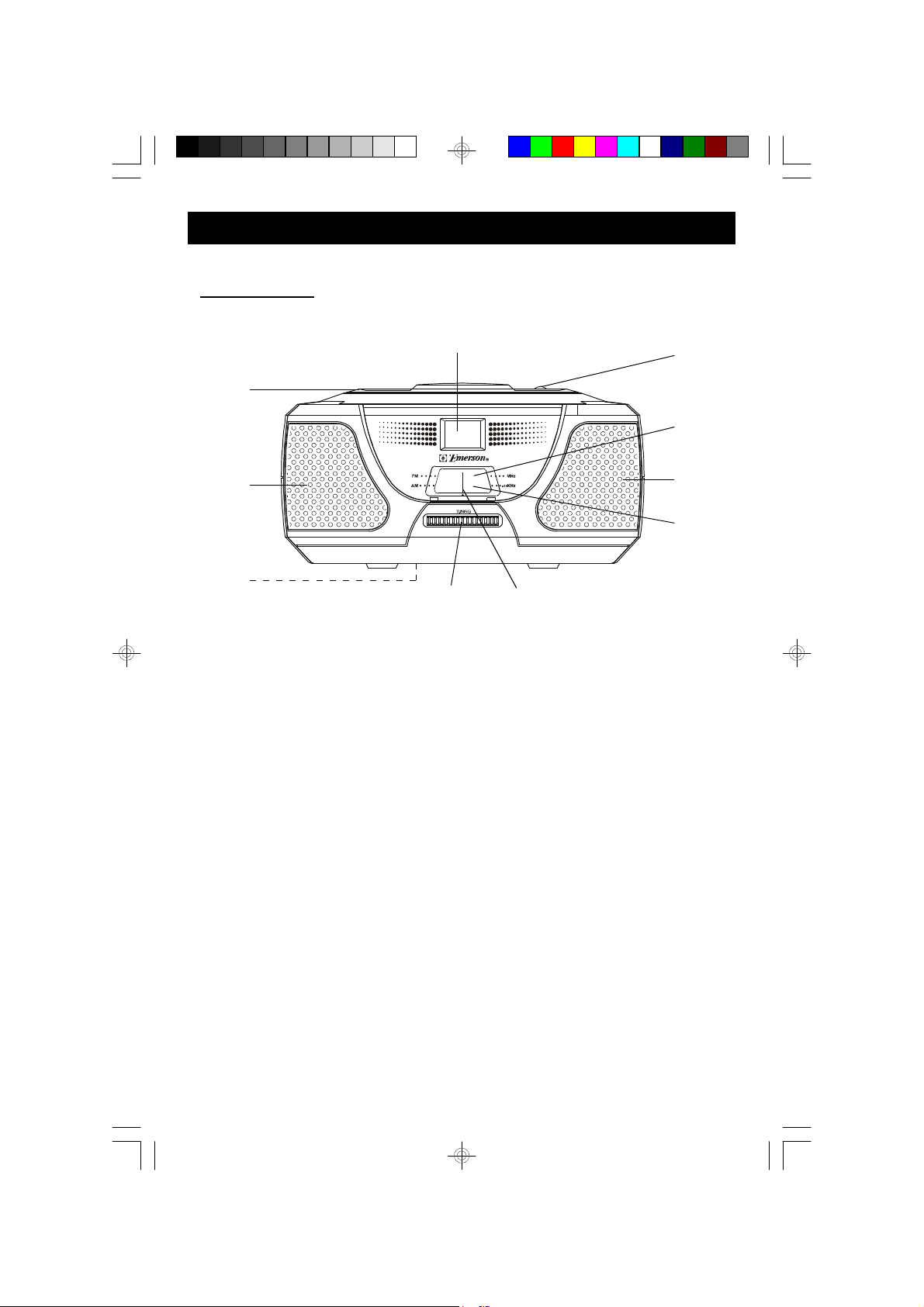

LOCATION OF CONTROLS AND INDICATORS
FRONT VIEW
3
2
1
1.) Battery Compartment.
(Bottom Cabinet)
2.) Speakers.
3.) CD Door.
4.) CD Display.
5.) CD Door OPEN/CLOSE Tab.
6.) FM Dial Scale.
7.) AM Dial Scale.
8.) Dial Pointer.
9.) TUNING Control.
4
92 96 100 104
60 70 80 100
5
6
2
7
89
PD5100_072705.p65 27/7/2005, 16:128
8
Page 10

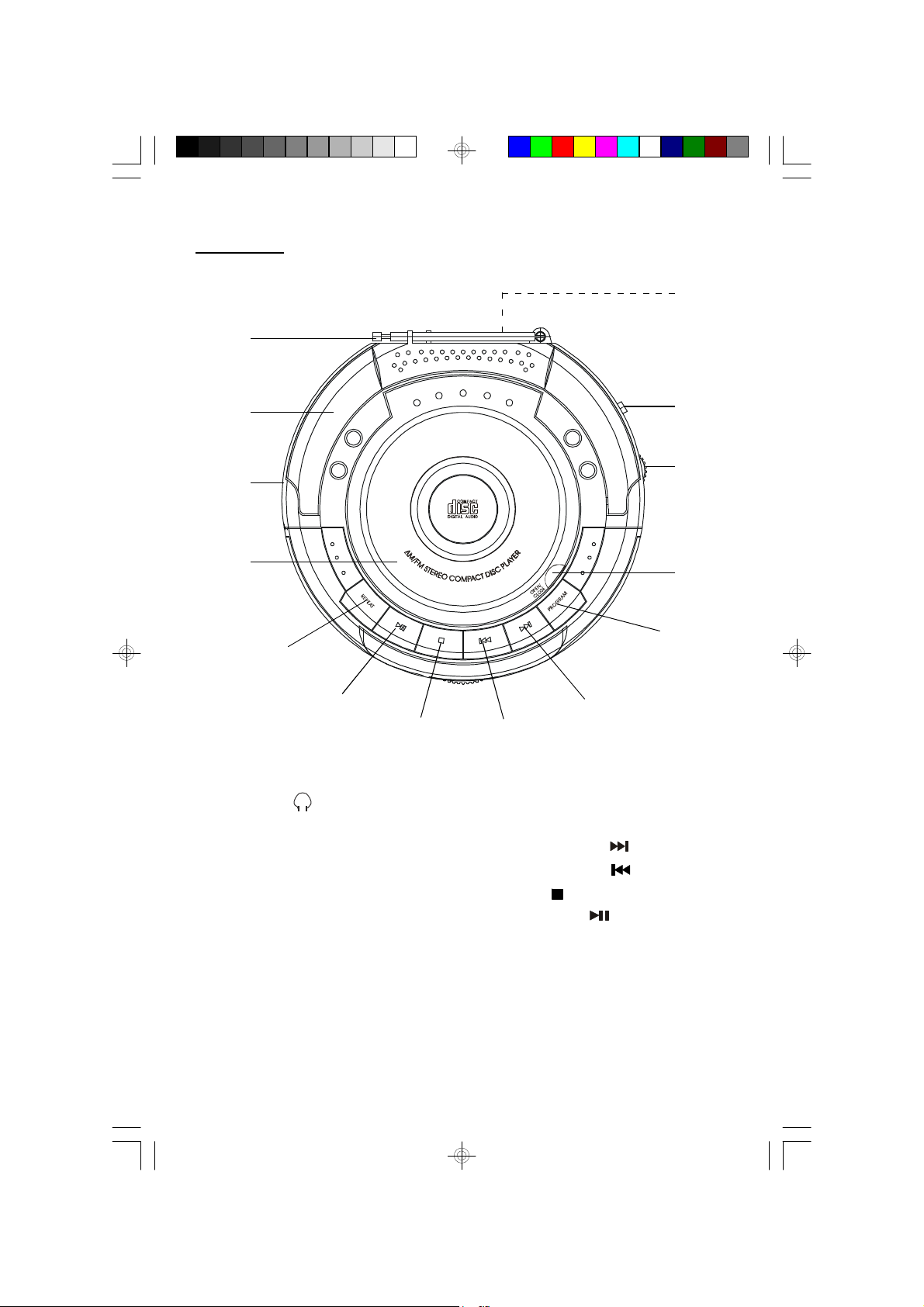

TOP VIEW
12
13
11
10
3
21
20
10.) PHONES Jack.
11.) Carrying Handle.
12.) FM Telescopic Antenna.
13.) AC Power Cord Socket.
(Back Cabinet)
14.) Function Selector Switch.
(AM/FM/CD/OFF)
19
14
15
5
16
17
18
15.) VOLUME Control.
16.) PROGRAM Button.
17.) Skip Forward Button.
18.) Skip Reverse Button.
19.) Stop Button.
20.) Play/Paue Button.
21.) REPEAT Button.
PD5100_072705.p65 27/7/2005, 16:129
9
Page 11
OPERATING INSTRUCTIONS
LISTENING TO THE RADIO
1.) Move the AM/FM/CD/OFF function selector to AM or FM position as desired.
2.) Tune to your desired station with the TUNING control.
3.) Set the VOLUME control to the desired sound level.
4.) When you are finished listening move the Function selector back to the OFF
position to shut the power ‘Off’ and extend the battery life.

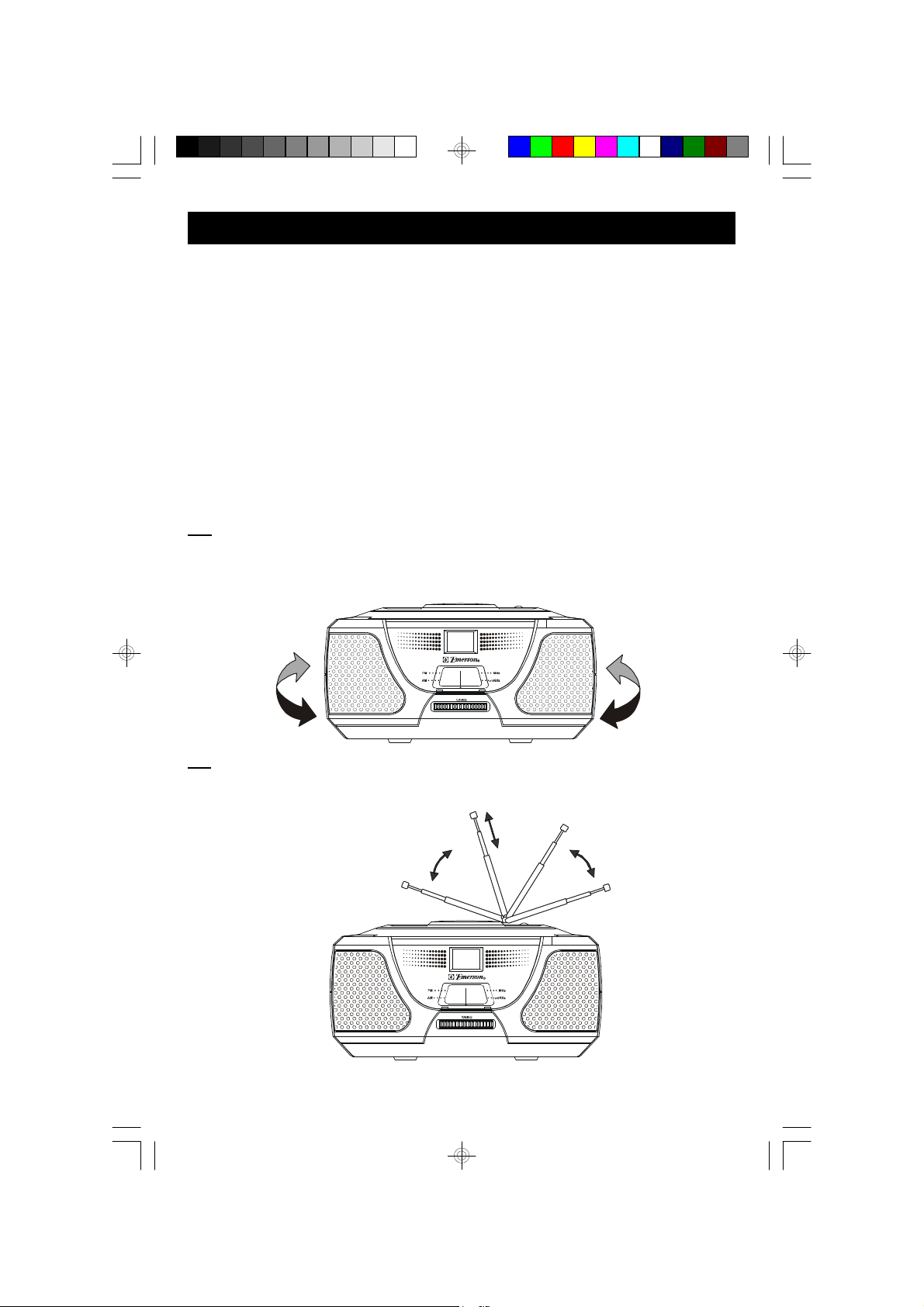

Antenna Information
AM
The AM bar antenna is inside the cabinet. If AM reception is unsatisfactory try
rotating the entire unit until you find the position that provides the best reception.
92 96 100 104
60 70 80 100
FM
Vary the direction of the FM antenna to find the position that provides the best
reception.
92 96 100 104
60 70 80 100
10
PD5100_072705.p65 27/7/2005, 16:1210
Page 12

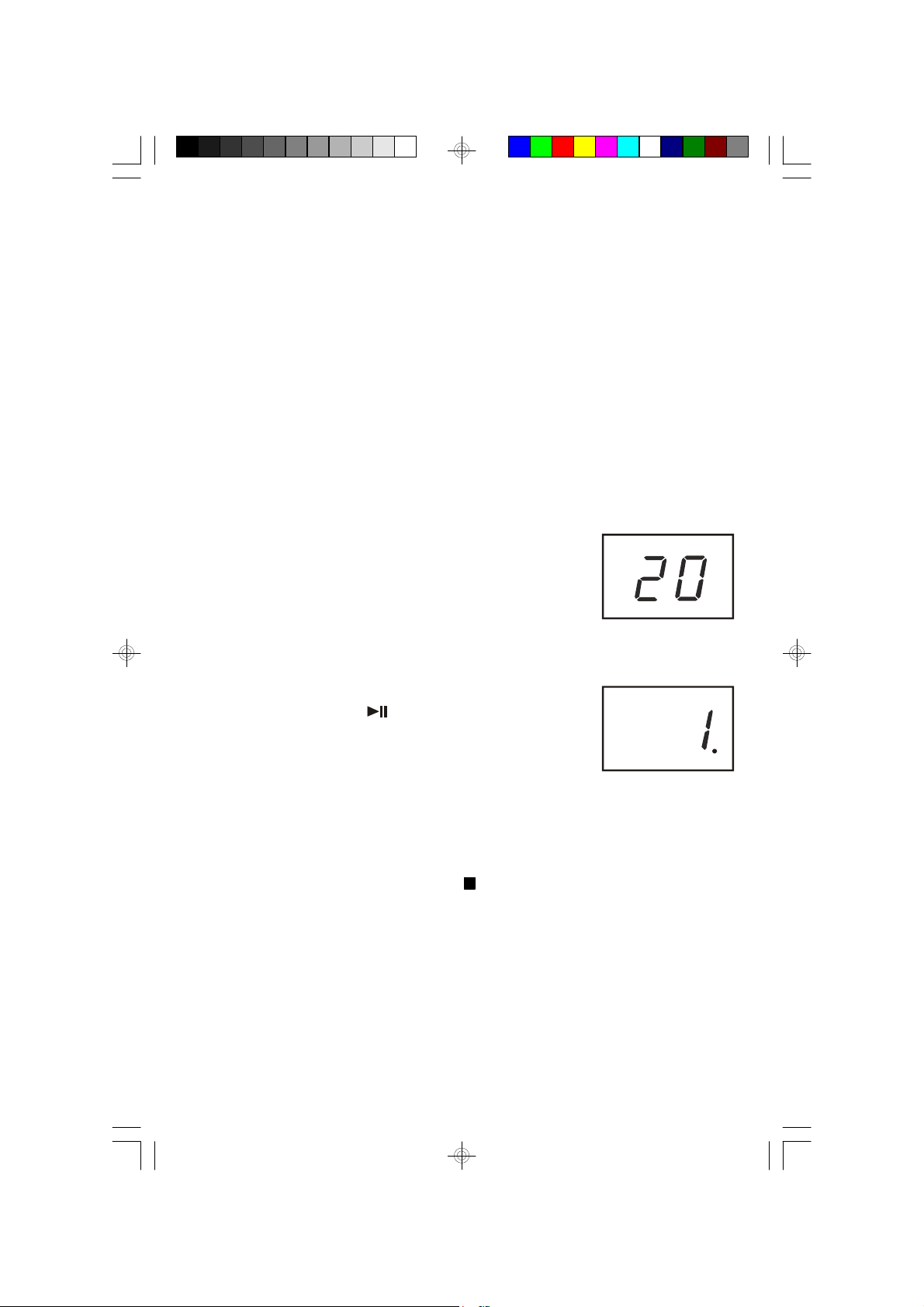

PLAYING COMPACT DISCS
NOTE: Although this portable CD player can read CD-R and CD-RW discs, in
addition to normal CDs, the playability of CD-R and CD-RW discs may be affected
by the type of software that was used to create the discs, as well as the quality and
condition of the blank media you are using. 100% playability cannot be guaranteed.
This is not an indication of a problem with the player.
NORMAL PLAYBACK
1.) Move the AM/FM/CD/OFF function selector to the CD position.
2.) Open the CD door by lifting the CD door OPEN/CLOSE tab. If you have not
already removed the white transit card from the CD player, please remove it
now.
3.) Place your CD on the center spindle with the printed
label side facing up. Close the CD door. The player will
read the Table of Contents and the display will show the
total number of tracks on the disc.
If the disc is damaged or up side down, display shows “0 0”
4.) Press the Play/Pause button to begin playback on
Track 1. The Play ‘dot’ Indicator appears in the display.
5.) Adjust the VOLUME control as desired.
6.) Playback will continue until the end of the disc. When the disc ends the display
again shows the total number of tracks on the disc. You may also stop playback
at any time by pressing the CD Stop button.
7.) Open the CD door, remove your disc, and close the CD door again.
8.) Move the function selector to the OFF position to shut the power ‘Off’.
11
PD5100_072705.p65 27/7/2005, 16:1211
Page 13
Pause Control
To pause momentarily during playback press the CD Play/Pause button again.
Playback stops but the disc continues to spin and the Play
‘dot’ indicator flashes. Press the Play/Pause button once
more to cancel Pause and resume playback. The Play ‘dot’
indicator stops flashing.
Skipping Tracks and High Speed Music Search
During CD Playback, repeatedly press the Skip forward or Skip reverse
buttons to skip to higher or lower number tracks.
When the desired track number appears on the display release the buttons and
playback will begin on the desired track.
To rapidly search forward or back within a track to locate a specific musical passage,
depress and hold either the Skip forward or Skip reverse buttons.
The player will move forward or backward at high speed as long as the buttons are
depressed. When you hear the desired passage release the buttons. Normal
playback will resume at that point.
PD5100_072705.p65 27/7/2005, 16:1212
12
Page 14

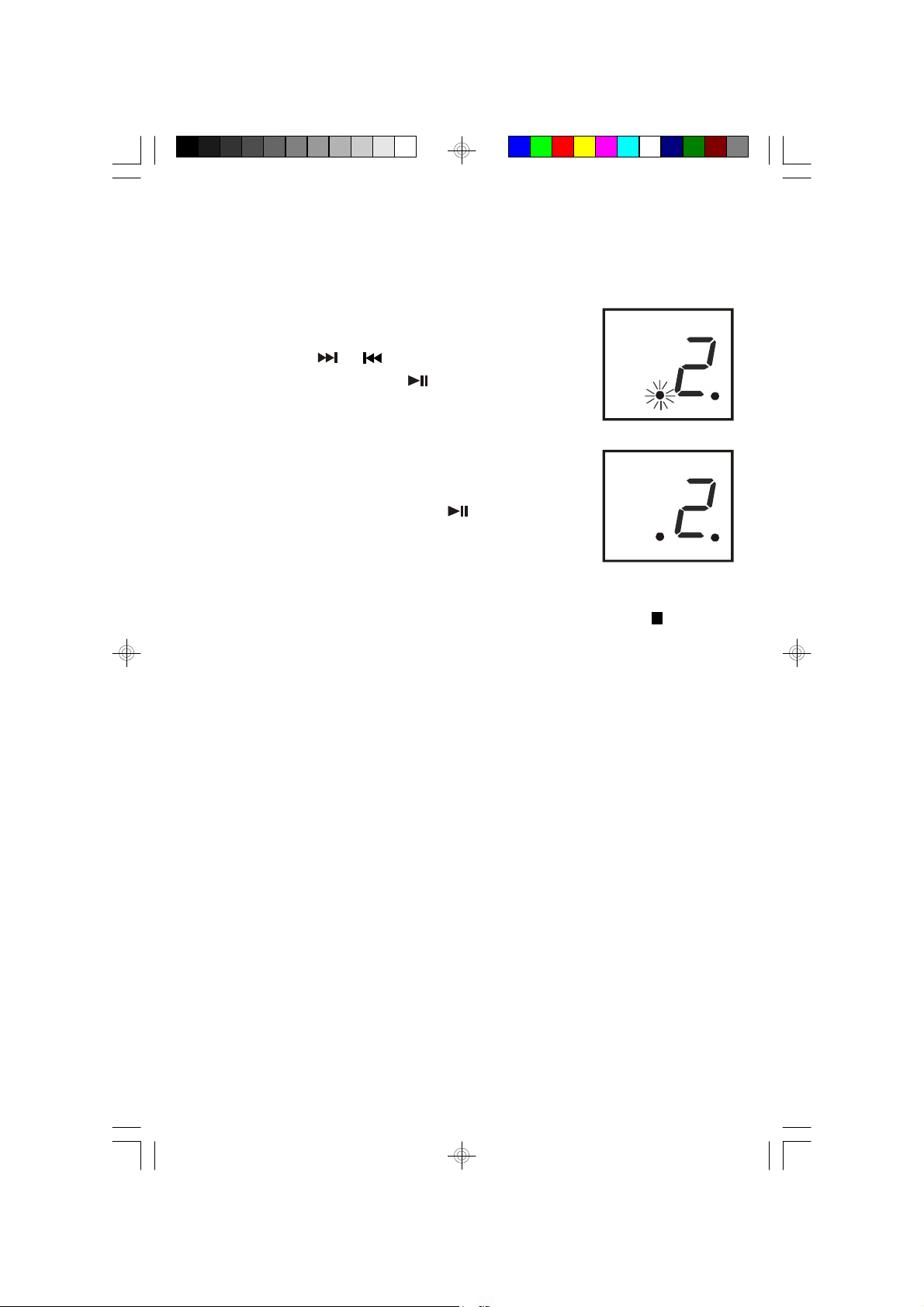

Repeat Playback
This feature allows you to continuously repeat a single track or the entire disc.
To Repeat A Single Track
Press the REPEAT button once. The Repeat ‘dot’ indicator
flashes. Press the or buttons to select the desired
track, then press the Play/Pause button to begin Repeat
Playback of the selected track.
To Repeat The Entire Disc
Press the REPEAT button twice. The Repeat ‘dot’ indicator
remains ‘on’. Press the Play/Pause button to begin
Repeat Playback of the entire disc.
To cancel Repeat Playback press the REPEAT button until the Repeat ‘dot’ Indicator
goes ‘off’. Repeat Playback is also canceled by pressing the Stop button, or
setting the Function selector to the AM or FM position.
PD5100_072705.p65 27/7/2005, 16:1213
13
Page 15

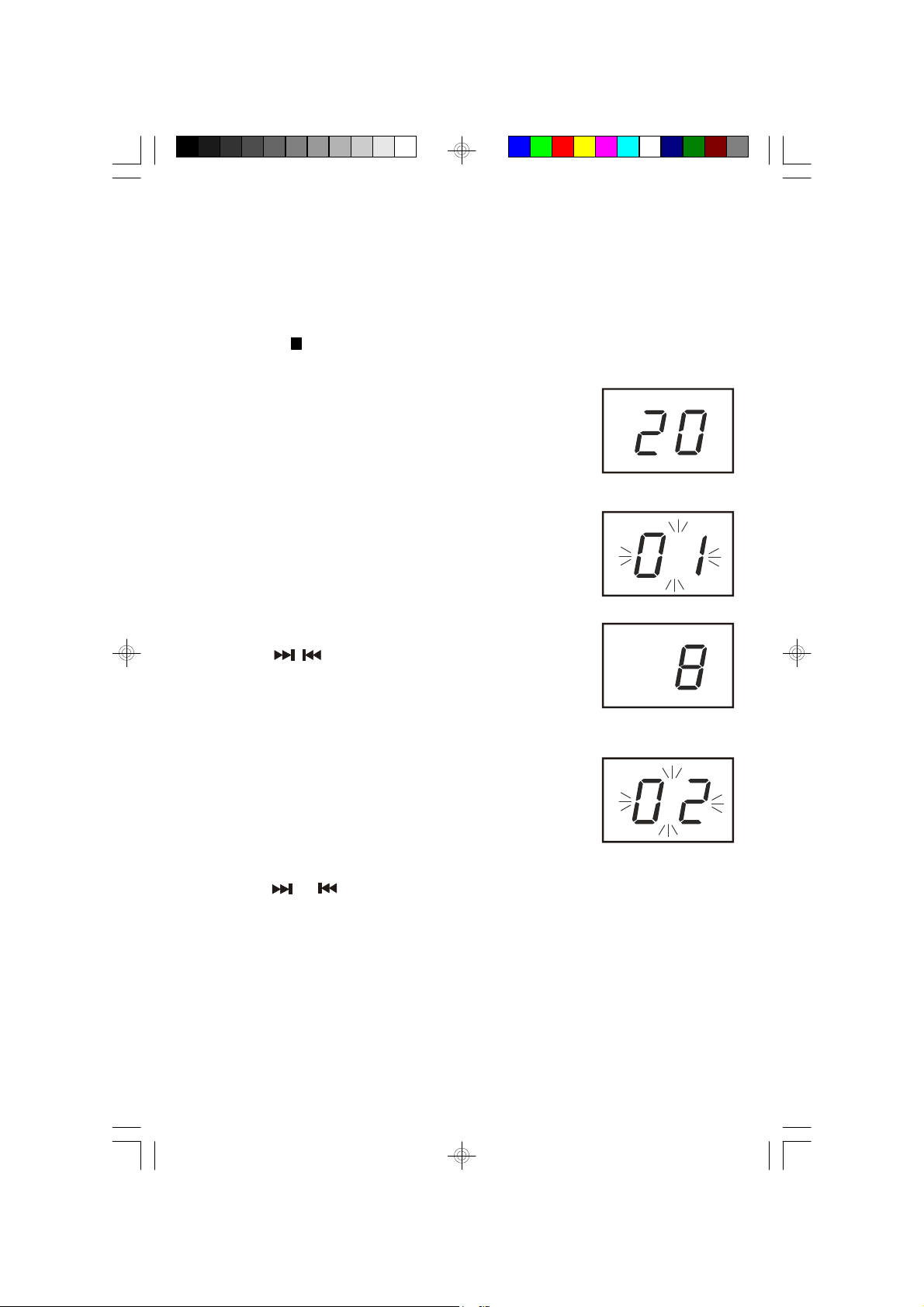

PROGRAMMED PLAYBACK
You can program up to 20 tracks on a disc to playback in any desired order. You
may also program a specific track to play several times within the same program.
Note: The player cannot be programmed while a disc is playing. If a disc is playing
press the Stop button to stop playback before you begin the programming steps
below.
1.) Move the AM/FM/CD/OFF function selector to CD
position, insert your disc in the player, close the door,
and wait until the total track number appears in the
display.
2.) Press the PROGRAM button once. The Program
number “01” begins flashing in the display.
3.) Use the / buttons to s elect the first track to be
programmed. (Example: Track # 8).
4.) When track number “8” appears in the display, press
the PROGRAM button once again to enter the track “8”
in program memory number “01”. Track number “8”
disappears and the Program number advances to
flashing “02”.
5.) Use the or buttons to select the next track to be programmed. When
the desired track number appears in the display press the PROGRAM button
again to enter that track in the program memory.
6.) Repeat Step 5 until you have entered up to 20 tracks in the program memory.
14
PD5100_072705.p65 27/7/2005, 16:1214
Page 16

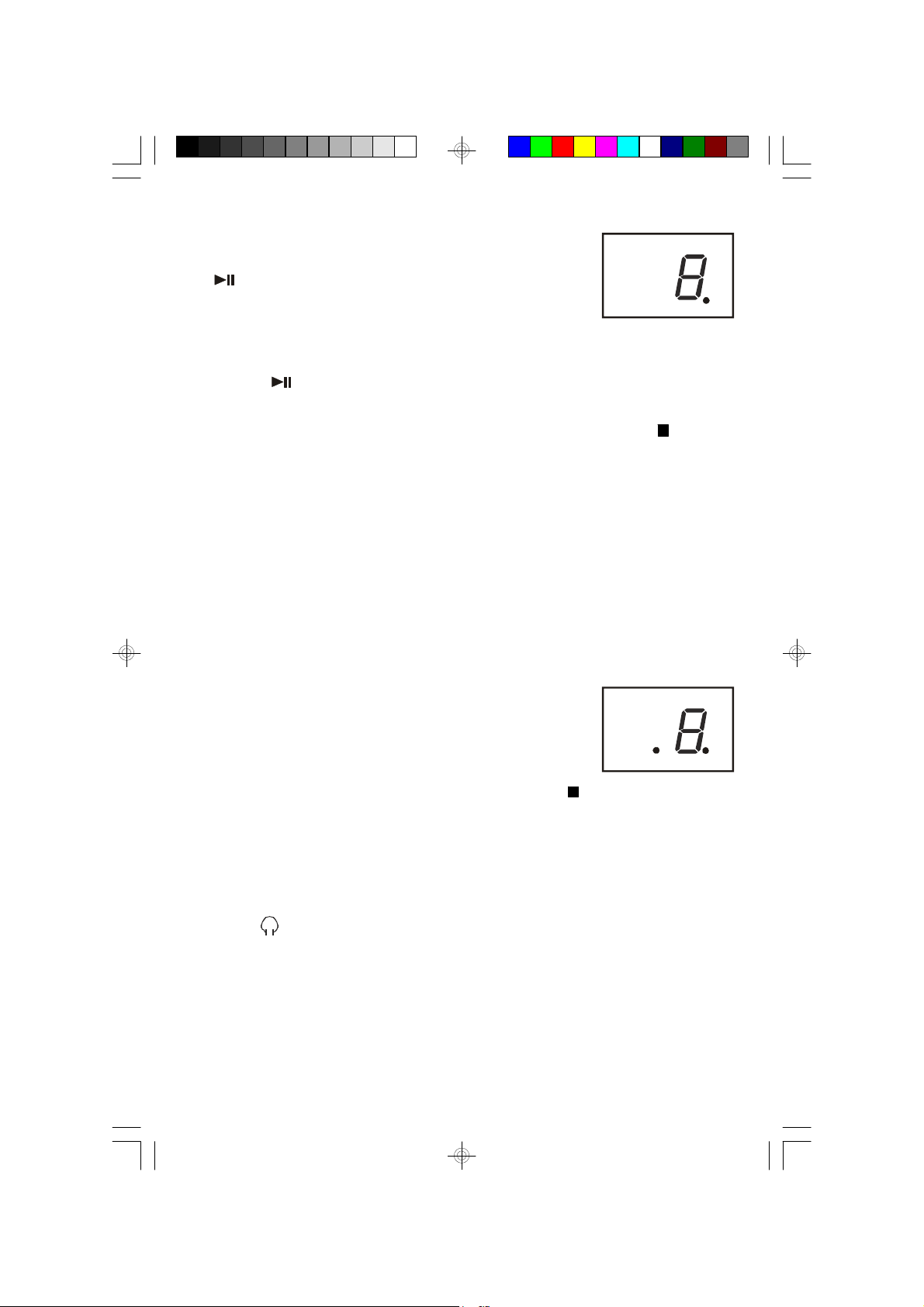

7.) To begin programmed playback press the Play/Pause
button. The LCD display will show the first
programmed track and playback will begin on that track.
After the last programmed track has played the player stops but the programmed
tracks remain in the memory. To play the programmed tracks again, press the
Play/Pause button.
To c ancel the programmed sequence from memory, press the Stop button at
stop mode, open the CD door, or move the AM/FM/CD/OFF selector to the OFF
position.
Program Repeat Playback
You can use the Program and Repeat features together to continuously repeat a
programmed sequence of tracks.
First, program the desired tracks according to Steps 1 through 7 on previous page.
When Programmed Playback begins press the REPEAT button twice to activate
the All Tracks Repeat feature.
The Repeat ‘dot’ Indicator appears in display and all the
trac ks in your programmed sequence will be repeated
continuously.
To cancel Programmed Repeat Playback press the Stop button until the Repeat
‘dot’ Indicator goes ‘Off’.
STEREO HEADPHONE JACK
Connect a set of stereo headphones (not included) with a 3.5mm mini plug to the
PHONES jac k (located at left panel) for private listening without disturbing
others. Before putting on the headphones reduce the VOLUME control to a low
level, then put the headphones on and gradually increase the VOLUME control to
a comfortable listening level. The built in speakers are automatically disconnected
when headphones are connected to the headphone jack .
15
PD5100_072705.p65 27/7/2005, 16:1215
Page 17

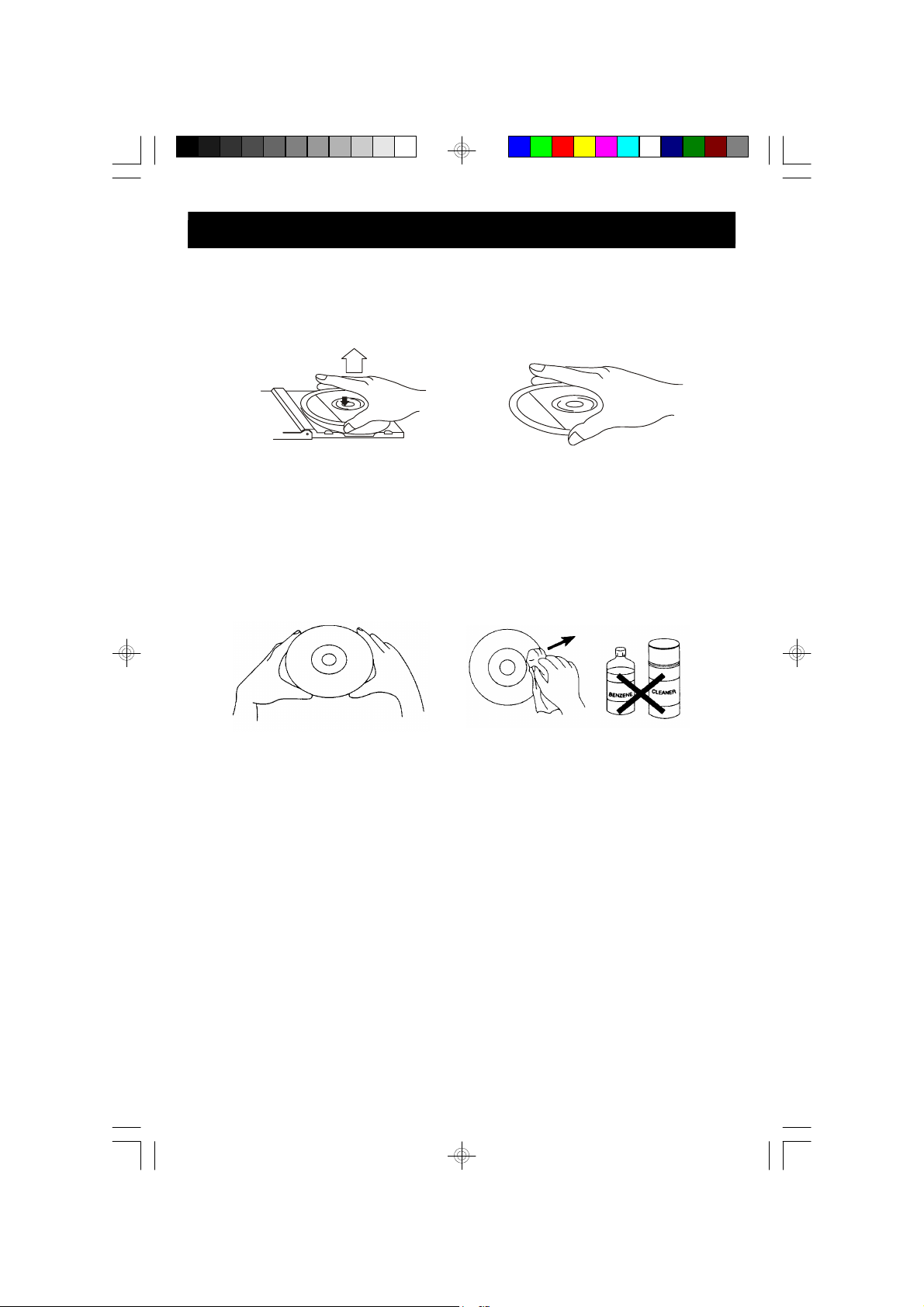

CARE AND MAINTENANCE
COMPACT DISC CARE
• To remove a disc from its storage case, press down on the center of the case
and lift the disc out, holding it carefully by the edges.
• Fingerprints and dust should be carefully wiped off the disc’s recorded surface
with a soft cloth.Unlike conventional records, compact discs have no grooves
to collect dust and microscopic debris, so gently wiping with a soft cloth should
remove most particles. Wipe in a straight line from the inside to the outside of
the disc. Small dust particles and light stains will have absolutely no effect on
reproduction quality.
• Clean the disc periodically with a soft, lint-free, dry cloth. Never use detergents
or abrasive cleaners to clean the disc. If necessary, use a CD cleaning kit.
• Never write on or affix labels to the surface of compact discs.
CARE OF THE CABINET
If the cabinet becomes dusty wipe it with a soft dry dust cloth. Do not use any wax,
polish sprays, or abrasive cleaners on the cabinet.
CAUTION
Never allow any water or other liquids to get inside the unit while cleaning.
16
PD5100_072705.p65 27/7/2005, 16:1216
Page 18
R
TROUBLESHOOTING GUIDE
Should this unit exhibit a problem, check the following before seeking service.
Symptom Possible Cause Solution
Radio
Noise or sound Station not tuned properly for Retune the AM or FM
distorted on AM or FM AM or FM. broadcast station.
broadcasts. FM: Telescopic antenna is not Extend FM Telescopic
extended. antenna.
AM: The bar antenna is not Reposition the unit until
positioned correctly. best reception is obtained.
AM or FM, no sound. Function switch is not set to Set Function switch to
AM or FM. AM or FM position.
Volume at minimum. Increase Volume.
Compact Disc Player
CD Player will not play. Function switch is not set to Set Function switch to
CD. CD.
CD is not installed or installed Insert CD with Iabel side
incorrectly. up.
CD skips while playing. Disc is dirty or scratched. Wipe disc with cloth or use
another disc.
SERVICE
CALL TOLL FREE: 1-800-695-0098
FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE
FOR CUSTOMER SERVICE, PLEASE WRITE TO:
PD5100_072705.p65 27/7/2005, 16:1217
TO FIND THE LOCATION AND PHONE
NUMBER OF YOUR NEAREST SERVICE
CENTER PERMITTED TO PERFORM
WARRANTY...
PLEASE CALL:
1-800-898-9020
Emerson Radio Corp.,
Consumer Affairs Dept.,
5101 Statesman Drive,
Irving, TX 75063.
17
Page 19
LIMITED WARRANTY
Emerson Radio Corp. warrants manufacturing defects in original material, including
original parts and workmanship, under normal use and conditions, for a period of
ninety (90) days from the date of original purchase in the U.S. With your dated
proof of purchase, we will provide repair service at no charge for labor and parts at
an authorized Depot Repair Facility, or replace the product in our discretion. For
repair or replacement, pack your unit in a padded box, enclose your check or
money order payable to Emerson Radio Corp. in the amount of $9.00 (not required
by California residents) to cover shipping and handling costs, and enclose a copy
of your proof of purchase. Send your unit to:
Emerson Radio Corp.,
5101 Statesman Drive,
Irving, TX 75063.
This warranty does not cover damage from negligence, misuse, abuse, accident,
failure to follow operating instructions, commercial use, rental, repairs by an
unauthorized facility, or products purchased, used, serviced or damaged outside
of the United States.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY
ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
AU898M
The serial number can be found on the back cabinet. We suggest that you
record the serial number of your unit in the space below for future reference.
Model No: PD5100
Serial No:
18
PD5100_072705.p65 27/7/2005, 16:1218
Page 20
EMERSON
R
Part No.16-2950
507-02
PD5100_072705.p65 27/7/2005, 16:1219
Printed in China
Loading...
