SYSTEM OVERVIEW
Home
Description: +24VDC to -48VDC @ up to 375A
converter system.
The NetSure™ DCS48375 Converter
System is comprised of a main shelf
and up to two (2) expansion shelves.
Each shelf provides mounting positions
for up to four (4) converter modules.
Each shelf also provides a 15-position
distribution row (19” version) or
20-position distribution row (23”
version) which accepts bullet nose
circuit breakers and TPS/TLS
fuseholders. A GMT fuse block option
is also available.
Note: Refer to UM1C24481500
SAG584622100, SAG584622200
SAG584622300, SAG584622400
System Application Guide
Spec. Nos. 584622100, 584622200,
584622300, 584622400 (Model DCS48375)
Issue AC, July 3, 2012
(Converter Module User
Instructions) for converter
module information.
Family: NetSure™
Spec. Nos.: 584622100 (Main Shelf – 19” version)
584622200 (Expansion Shelf – 19” version)
584622300 (Main Shelf – 23” version)
584622400 (Expansion Shelf – 23” version)
Model: DCS48375
Shelves per System: (1) Main Shelf, up to (2) Expansion Shelves
Input Voltage Nominal +24VDC
Output Voltage: -48VDC, -50VDC, -52VDC, or -54VDC
(User Selectable)
Output Capacity:
per Converter Module: 31A (1500W)
per Shelf: 125A, maximum (Converter Output)
per Distribution Row: 250A, maximum (Distribution Load)
System: 375A, maximum (Converter Output + Distribution Load)
Agency Approval: UL 60950 Recognized (“c UR”), NEBS
(see “1.4 System Compliance Information” under SPECIFICATIONS)
Mounting Type: Nominal 19” or 23” Relay Rack or Equipment Rack Mounting
Mounting Depth: 18.750” (w/out Expansion Wiring Cover)
20.375 (with Expansion Wiring Cover)
6” Front Projection
Mounting Height: 6.968” (4U) (w/out optional 1U Wiring Space Access Cover)
7.718” (5U) (with optional 1U Wiring Space Access Cover)
Page 1 of 34
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
SAG584622100, SAG584622200 System Application Guide
Home
SAG584622300, SAG584622400 Spec. Nos. 584622100, 584622200
Issue AC, July 3, 2012 584622300, 584622400 (Model DCS48375)
Access: Front and Rear for Installation, Expansion, and
Maintenance. Front for Operation.
Color: Distribution Door and Converter Module Faceplates: Textured Gray
Shelf: Galvannel
Environment: -40°C to +40°C (-40°F to +104°F).
-40°C to +65°C (-40°F to +149°F), with derating.
(see “1.3.1 Operating Ambient Temperature Range:” under
SPECIFICATIONS)
Page 2 of 34
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
System Application Guide SAG584622100, SAG584622200
584622100 / 584622200 shown.
584622300 / 584622400 similar.
Front View
(door removed in illustration for clarity only)
Mounting
Angles
P/N 1C24481500
Converter Modules.
Four (4) per Shelf.
Home
15-Position (19” version)
20-Position (23” version)
Distribution Panel
Optional 1U Wiring
Space Access Cover (if
space permits). Allows
greater access to load
distribution return
connection points.
One (1) Main Shelf
Up to Two (2) Expansion
Shelves
Expansion Wiring
Access Cover
(extra cover supplied with Expansion
Shelf, to be installed on Main Shelf)
Dual Input Feed
Adapter Busbars
Spec. Nos. 584622100, 584622200, SAG584622300, SAG584622400
584622300, 584622400 (Model DCS48375) Issue AC, July 3, 2012
584622100 (19” Main Shelf) 584622300 (23” Main Shelf)
584622200 (19” Expansion Shelf) 584622400 (23” Expansion Shelf)
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
Page 3 of 34
SAG584622100, SAG584622200 System Application Guide
System
Overview
Ordering
Information
Specifications
Physical Size
Information
Related
Documentation
SAG584622300, SAG584622400 Spec. Nos. 584622100, 584622200
Issue AC, July 3, 2012 584622300, 584622400 (Model DCS48375)
TABLE OF CONTENTS
SYSTEM OVERVIEW................................................................................................................................................. 1
TABLE OF CONTENTS ............................................................................................................................................. 4
ORDERING INFORMATION ...................................................................................................................................... 5
584622100 Main Shelf and 584622200 Expansion Shelves – 19” Version ..................................................... 5
584622300 Main Shelf and 584622400 Expansion Shelves – 23” Version ..................................................... 5
DC-DC Converter Module (P/N 1C24481500) .................................................................................................... 6
Distribution Devices ............................................................................................................................................ 6
Bullet Nose Circuit Breakers and Bullet Nose Fuseholders e/w TPS/TLS Fuses ........................................... 6
Optional Bullet Nose 6-Position GMT Distribution Fuse Block (P/N 545333) ................................................ 11
Bullet Nose Bypass Busbar (P/N 535015) ..................................................................................................... 12
Replacement Alarm, Reference, and Control Fuses ..................................................................................... 12
Special Application Crimp Lugs, Busbar Adapter Kits, and Hardware Kits ............................................... 12
Special Application Crimp Lugs ..................................................................................................................... 12
Busbar Adapter and Hardware Kits................................................................................................................ 13
Wiring Notes ...................................................................................................................................................... 15
Recommended Frame Ground Wire Size and Lug Selection ........................................................................ 15
Recommended DC Inputs Wire Sizes and Lugs Selection ............................................................................ 15
Recommended Load Distribution Wire Sizes and Lugs Selection ................................................................. 17
Recommended External Alarm, Reference, Monitoring, and Control Wire Sizes ......................................... 19
Wiring Illustrations ............................................................................................................................................ 20
DC Inputs and Frame Ground ........................................................................................................................ 20
Load Distribution (TPS/TLS Fuses and Bullet Nose Circuit Breakers) .......................................................... 21
Load Distribution (Optional Bullet Nose 6-Position GMT Fuse Block) ........................................................... 22
External Alarm, Reference, Monitoring, and Control ..................................................................................... 23
Shelf Interconnections .................................................................................................................................... 24
SPECIFICATIONS .................................................................................................................................................... 26
PHYSICAL SIZE INFORMATION ............................................................................................................................ 29
RELATED DOCUMENTATION ................................................................................................................................ 33
REVISION RECORD ................................................................................................................................................ 34
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
1.1 System Output Ratings .............................................................................................................................. 26
1.2 System Input Ratings ................................................................................................................................. 26
1.3 System Environmental Ratings ................................................................................................................. 26
1.4 System Compliance Information ............................................................................................................... 27
1.5 System Standard Features......................................................................................................................... 27
Overall Dimensions – 584622100 Main Shelf .................................................................................................. 29
Overall Dimensions – 584622200 Expansion Shelf........................................................................................ 30
Overall Dimensions – 584622300 Main Shelf .................................................................................................. 31
Overall Dimensions – 584622400 Expansion Shelf........................................................................................ 32
Page 4 of 34
System Application Guide SAG584622100, SAG584622200
Home
Spec. Nos. 584622100, 584622200, SAG584622300, SAG584622400
584622300, 584622400 (Model DCS48375) Issue AC, July 3, 2012
ORDERING INFORMATION
584622100 Main Shelf and 584622200 Expansion Shelves – 19” Version
Features
Includes reversible mounting angles for nominal 19” or 23” rack mounting.
Includes the optional 1U wiring space access cover.
Includes two (2) P/N 552506 optional dual input feed busbars.
Accepts up to four (4) DC-DC converter modules.
Includes a 15-position load distribution fuse / circuit breaker panel which accepts...
3A to 100A TPS/TLS fuses,
1A to 250A bullet nose circuit breakers, and
“Optional Bullet Nose 6-Position GMT Distribution Fuse Block (P/N 545333)”.
Ordering Notes
1) Order one (1) Spec. No. 584622100 Main Shelf and up to two (2) Spec. No. 584622200 Expansion
Shelves per system.
2) Order DC-DC converter modules (P/N 1C24481500) as required.
3) Refer also to “Distribution Devices”, “Special Application Crimp Lugs, Busbar Adapter Kits, and Hardware
Kits”, and “Wiring Notes” under ORDERING INFORMATION.
584622300 Main Shelf and 584622400 Expansion Shelves – 23” Version
Features
Includes the optional 1U wiring space access cover.
Includes two (2) P/N 552506 optional dual input feed busbars.
Accepts up to four (4) DC-DC converter modules.
Includes a 20-position load distribution fuse / circuit breaker panel which accepts...
3A to 100A TPS/TLS fuses,
1A to 250A bullet nose circuit breakers, and
“Optional Bullet Nose 6-Position GMT Distribution Fuse Block (P/N 545333)”.
Ordering Notes
1) Order one (1) Spec. No. 584622300 Main Shelf and up to two (2) Spec. No. 584622400 Expansion
Shelves per system.
2) Order DC-DC converter modules (P/N 1C24481500) as required.
3) Refer also to “Distribution Devices”, “Special Application Crimp Lugs, Busbar Adapter Kits, and Hardware
Kits”, and “Wiring Notes” under ORDERING INFORMATION.
Page 5 of 34
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
SAG584622100, SAG584622200 System Application Guide
Home
SAG584622300, SAG584622400 Spec. Nos. 584622100, 584622200
Issue AC, July 3, 2012 584622300, 584622400 (Model DCS48375)
DC-DC Converter Module (P/N 1C24481500)
Features
Provides one (1) Model C24/48-1500, Spec. No. 1C24481500,
1500 watt / 24 to 48 volt DC-DC converter module.
Refer to UM1C24481500 (Converter Module User Instructions) for
converter module information.
Restrictions
Each shelf accepts up to four (4) DC-DC converter modules.
Ordering Notes
1) Order by P/N 1C24481500 as required.
Distribution Devices
Bullet Nose Circuit Breakers and Bullet Nose Fuseholders e/w TPS/TLS Fuses
Features
A single fuseholder provides for installation of a 3A to 100A Bussmann TPS or Littelfuse TLS fuse (as
listed in Table 1). This fuseholder plugs into a single distribution row mounting position. This fuseholder
provides a GMT-A alarm fuse, which operates open to provide an alarm indication if the associated
distribution fuse opens.
Each circuit breaker (as listed in Table 2 and Table 3) plugs into one, two, or three distribution row
mounting position(s).
Restrictions
Load should not exceed 80% of device rating.
Unless otherwise specified, fuses and/or circuit breakers are mounted from left to right, starting with the
highest capacity and working to the lowest capacity.
125A, 150A, 175A, and 200A circuit breakers occupy two mounting positions. 225A and 250A circuit
breakers occupy three mounting positions.
Caution: For ambient temperatures at or below +40°C (+104°F), overcurrent devices rated 100A or
greater MUST HAVE an empty mounting position between it and any other overcurrent
protective device. Maximum size circuit breakers that can be used are 100A single pole,
200A double pole, and 250A triple pole. Maximum size fuse is 100A. The distribution row is
rated for a maximum of 250A.
For ambient temperatures between +40°C (+104°F) and +65°C (+149°F), overcurrent devices
rated 60A or greater MUST HAVE an empty mounting position between it and any other
overcurrent protective device. Maximum size circuit breakers that can be used are 70A
single pole. No double pole or triple pole circuit breakers can be used. Maximum size fuse
70A. The distribution row is rated for a maximum of 250A.
Page 6 of 34
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
System Application Guide SAG584622100, SAG584622200
Home
Spec. Nos. 584622100, 584622200, SAG584622300, SAG584622400
584622300, 584622400 (Model DCS48375) Issue AC, July 3, 2012
Ordering Notes
1) Order distribution fuses as required per Table 1. Also order one (1) P/N 117201 bullet nose fuseholder
per fuse ordered. Order replacement alarm fuses (18/100A) per Table 5.
2) Order distribution circuit breakers as required per Table 2 or Table 3.
3) See Table 11 for recommended load distribution wire sizes and to order lugs.
Distribution devices requiring a single distribution position require a two hole lug with 1/4” bolt
clearance holes on 5/8” centers (order per Table 11, order hardware kits per Table 7).
Distribution devices requiring two (2) or three (3) distribution positions require special application lugs
(order per Table 11 and Table 6) or busbar adapter kits (order per Table 7) and two hole lugs with
3/8” bolt clearance holes on 1” centers (order per Table 8).
Page 7 of 34
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
SAG584622100, SAG584622200 System Application Guide
Ampere
Rating
Part
Number
Bussmann
P/N
Littelfuse
P/N
3
248230900
TPS-3
TLS003
5
248231000
TPS-5
TLS005
6
248231200
TPS-6
TLS006
10
248231500
TPS-10
TLS010
15
248231800
TPS-15
TLS015
20
248232100
TPS-20
TLS020
25
248232400
TPS-25
TLS025
30
248232700
TPS-30
TLS030
40
248233300
TPS-40
TLS040
50
248233900
TPS-50
TLS050
60
248234200
TPS-60
TLS060
70
248234500
TPS-70
TLS070
80
118413
--
TLS080
90
118414
--
TLS090
100
118415
--
TLS100
Bullet Nose Fuseholder
P/N 117201
(Includes Fuseholder,
18/100A GMT-A Alarm Fuse,
and GMT-X Safety Fuse
Cover)
See Table 11 for recommended load distribution wire sizes
and lugs.
Home
SAG584622300, SAG584622400 Spec. Nos. 584622100, 584622200
Issue AC, July 3, 2012 584622300, 584622400 (Model DCS48375)
Bullet Nose Fuseholders and TPS/TLS Fuses
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
Table 1
Page 8 of 34
System Application Guide SAG584622100, SAG584622200
Ampere
Rating
Number
of Poles
Number of
Mounting
Positions
Part Number
Electrical Trip1
(White Handle)
Electrical/
Mechanical Trip2
(Black Handle)
1 1 1
102272
101596
3 1 1
102273
101597
5 1 1
102274
101598
10 1 1
102275
101599
15 1 1
102276
101600
20 1 1
102277
101601
25 1 1
102278
101602
30 1 1
102279
101603
35 1 1
102280
101604
40 1 1
102281
101605
45 1 1
121998
121997
50 1 1
102282
101606
60 1 1
102283
101607
70 1 1
102284
101608
75 1 1
102285
101609
80 1 1
121996
121995
100 1 1
102286
101610
125 2 2
516991
516838
150 2 2
516993
516839
175 2 2
144883
144884
200 2 2
121831
121832
225 3 3
144885
144886
250 3 3
121835
121836
See Table 11 for recommended load distribution wire sizes and lugs.
For 2-pole devices;
either order lugs from Table 6 or
adapter kit 545404 and lugs from Table 8.
For 3-pole devices;
either order lugs from Table 6 or
adapter kit 545571 and lugs from Table 8.
Home
Spec. Nos. 584622100, 584622200, SAG584622300, SAG584622400
584622300, 584622400 (Model DCS48375) Issue AC, July 3, 2012
Circuit Breaker Alarm Operation:
1
Provides an alarm during an electrical trip condition only.
2
Provides an alarm during an electrical or manual trip condition.
Table 2
Toggle Handle Bullet Nose Circuit Breakers
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
Page 9 of 34
SAG584622100, SAG584622200 System Application Guide
Ampere
Rating
Number of
Poles (and
Mounting
Positions)
Number of
Mounting
Positions
Part Number
Electrical Trip1
(White Handle)
Electrical/
Mechanical Trip2
(Black Handle)
1 1 1
142856
142878
3 1 1
142857
142879
5 1 1
142858
142880
10 1 1
142859
142881
15 1 1
142861
142882
20 1 1
142862
142883
25 1 1
142863
142884
30 1 1
142864
142885
35 1 1
142865
142886
40 1 1
142866
142887
45 1 1
142867
142888
50 1 1
142868
142889
60 1 1
142869
142890
70 1 1
142870
142891
75 1 1
142871
142892
80 1 1
142872
142901
100 1 1
142873
142902
125 2 2
142874
142903
150 2 2
142875
142904
200 2 2
142876
142905
250 3 3
142877
142906
See Table 11 for recommended load distribution wire sizes and lugs.
For 2-pole devices;
either order lugs from Table 6 or
adapter kit 545404 and lugs from Table 8.
For 3-pole devices;
either order lugs from Table 6 or
adapter kit 545571 and lugs from Table 8.
Home
SAG584622300, SAG584622400 Spec. Nos. 584622100, 584622200
Issue AC, July 3, 2012 584622300, 584622400 (Model DCS48375)
Circuit Breaker Alarm Operation:
1
Provides an alarm during an electrical trip condition only.
2
Provides an alarm during an electrical or manual trip condition.
Table 3
Rocker Handle Bullet Nose Circuit Breakers
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
Page 10 of 34
System Application Guide SAG584622100, SAG584622200
Ampere Rating
Part Number
Fuse Color
18/100 (GMT-A)
248610301
---
1/4
248610200
VIOLET
1/2
248610300
RED
3/4
248610500
BROWN
1-1/3
248610700
WHITE
2
248610800
ORANGE
3
248610900
BLUE
5
248611000
GREEN
7-1/2
248611300
BLACK-WHITE
10
248611200
RED-WHITE
15
248611500
RED-BLUE
Replacement
Safety Fuse
Cover (GMT-Y)
102774
---
Replacement
Dummy Fuse
248872600
---
Home
Spec. Nos. 584622100, 584622200, SAG584622300, SAG584622400
584622300, 584622400 (Model DCS48375) Issue AC, July 3, 2012
Optional Bullet Nose 6-Position GMT Distribution Fuse Block (P/N 545333)
Features
Provides six (6) load distribution fuse positions
(1/4A to 15A GMT alarm fuses).
Mounts in two (2) distribution positions.
Screw clamp type load and load return terminals provided.
Includes six (6) dummy fuses equipped with safety fuse covers.
Restrictions
When used for power distribution, load should not exceed 80% of device rating,
except 10 and 15 amp fuses, for which load should not exceed 70% of device
rating.
Occupies two (2) bullet device mounting positions.
Terminal block wire size capacity: 24 to 14 AWG.
At 40°C ambient, GMT fuses greater than 10A MUST HAVE an empty mounting
position between it and any other fuse. Maximum total current is 35A. Maximum GMT fuse size is 15A.
At 65°C ambient, GMT fuses greater than 5A MUST HAVE an empty mounting position between it and any
other fuse. Maximum total current is 21A. Maximum GMT fuse size is 10A.
Ordering Notes
1) Order optional Bullet Nose 6-Position GMT Fuse Block (P/N 545333) as required.
2) Order fuses as required per Table 4.
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Table 4
GMT Fuses
Page 11 of 34
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
SAG584622100, SAG584622200 System Application Guide
Assembly
Desig.
Function
Size
(Amperes)
Type
Part No.
TPS/TLS
Fuseholders
(P/N 117201)
FA
Fuse Alarm
18/100
Bussmann GMT-A
248610301
--
--
--
Safety Fuse Cover
(GMT-X)
248898700
Lead Size
Part Number
1/0 AWG
245393500
2/0 AWG
245393600
3/0 AWG
245393700
4/0 AWG
245393800
250 kcmil
514872
350 kcmil
514873
Home
SAG584622300, SAG584622400 Spec. Nos. 584622100, 584622200
Issue AC, July 3, 2012 584622300, 584622400 (Model DCS48375)
Bullet Nose Bypass Busbar (P/N 535015)
Features
Replaces bullet nose circuit breaker or fuseholder where protective or
disconnect device is not required.
Ordering Notes
1) Order by P/N 535015 as required.
Replacement Alarm, Reference, and Control Fuses
Ordering Notes
1) Order replacement fuses as required per Table 5.
Table 5
Replaceable Alarm, Reference, and Control Fuses
Special Application Crimp Lugs, Busbar Adapter Kits, and Hardware Kits
Special Application Crimp Lugs
Features
Lug connects one (1) cable to two (2) distribution positions. Lug has 1/4” bolt clearance holes on 5/8”
centers.
Ordering Notes
1) See Table 6 for part numbers for various cable sizes.
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
Table 6
Special Application Crimp Lugs / Strap Combination
(Two-Hole Lug, 1/4” Bolt Clearance Hole, 5/8” Centers)
Page 12 of 34
System Application Guide SAG584622100, SAG584622200
Part Number
Description
545404
Busbar Adapter Kit – Converts (2) load positions (1/4-20 on
5/8” centers) to (1) landing (3/8-16 on 1” centers). Right-angle
load busbar & straight return busbar for rear wiring egress.
545405
Busbar Adapter Kit – Converts (1) load position (1/4-20 on 5/8”
centers) to (1) load landing (1/4-20 on 5/8” centers), right angle.
545571
Busbar Adapter Kit – Converts (3) load positions (1/4-20 on
5/8” centers) to (1) landing (3/8-16 on 1” centers). Right-angle
load busbar & straight return busbar for rear wiring egress.
552876
Lug Hardware Kit – (32) 1/4-20 nuts, lock washers and flat
washers.
545404
545405
552876
545571
Home
Spec. Nos. 584622100, 584622200, SAG584622300, SAG584622400
584622300, 584622400 (Model DCS48375) Issue AC, July 3, 2012
Busbar Adapter and Hardware Kits
Features
Kits include hardware shown in Table 7.
Unless otherwise specified, busbar adapter kits are factory installed when ordered with shelf(s).
Ordering Notes
1) See Table 7 for part numbers and descriptions of available kits. For kits that provide 3/8-16 on 1” lug
landings, order lugs from Table 8 as required.
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
Busbar Adapter and Hardware Kits
Table 7
Page 13 of 34
SAG584622100, SAG584622200 System Application Guide
Wire Size
Part Number
6 AWG
245349900
4 AWG
245350000
2 AWG
245348200
1/0 AWG
245347100
2/0 AWG
245347200
3/0 AWG
245347300
4/0 AWG
245347400
250 kcmil
245347500
300 kcmil
245347600
350 kcmil
245347700
400 kcmil
245347800
500 kcmil
245347900
600 kcmil
245348000
750 kcmil
245348100
Home
SAG584622300, SAG584622400 Spec. Nos. 584622100, 584622200
Issue AC, July 3, 2012 584622300, 584622400 (Model DCS48375)
Table 8
Crimp Lugs
(Two-Hole Lug, 3/8” Bolt Clearance Hole, 1” Centers)
Page 14 of 34
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
System Application Guide SAG584622100, SAG584622200
Home
Recm 90 C
Wire Size
1
(AWG)
Recommended
Crimp Lug 2
Vendor
Part No.
6
T & B
54205
Burndy
YAV6CL-2TC14FX
Emerson
245346700
1
Equipment grounding conductor size based on the American National
Standards Institute (ANSI) approved National Fire Protection Association's
(NFPA) National Electrical Code (NEC). Table 250-122 for copper wire
was used. If aluminum or copper clad aluminum grounding conductor is
used, refer to Table 250-122 for increased conductor size. For operation
in countries where the NEC is not recognized, follow applicable codes.
2
Two-hole lug, 1/4" bolt clearance hole, 5/8" centers. Refer to drawing
031110100 for lug crimping information.
Home
Spec. Nos. 584622100, 584622200, SAG584622300, SAG584622400
584622300, 584622400 (Model DCS48375) Issue AC, July 3, 2012
Wiring Notes
Refer also to the next section, Wiring Illustrations.
Recommended Frame Ground Wire Size and Lug Selection
Features
1/4-20 x 0.5” studs on 5/8” center are provided for installation of a customer provided frame ground lead
terminated in a 2-hole lug.
Ordering Notes
1) Frame ground lug must be ordered separately (hardware is provided). For recommended wire size and
lug selection, refer to Table 9. For additional lug information, refer to drawings 031110100 through
031110300.
Table 9
Recommended Frame Ground Wire Size and Lug
Recommended DC Inputs Wire Sizes and Lugs Selection
Features
3/8-16 x 0.875” studs on 1” centers are provided for installation of customer provided DC input leads
terminated in 2-hole lugs. Terminations are provided for each converter module (individual feed).
Adapter busbars are provided loose with each shelf which allows two (2) converter modules to be fed by
a single input.
Restrictions
Maximum lug width is 0.812 inches (individual feed) or 1.156 (dual feed).
Ordering Notes
1) DC input lugs must be ordered separately (hardware is provided). For recommended wire sizes and lug
selection, refer to Table 10. For additional lug information, refer to drawings 031110100 through
031110300.
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
Page 15 of 34
SAG584622100, SAG584622200 System Application Guide
Individual Converter Module Feed
Ambient
Operating
Temperature
Recommended
DC Input
Protective
Device Rating
Recm 90 C
Wire Size
1
(AWG)
Loop
Length 2
(feet)
Recommended
Crimp Lug 3
Vendor
Part No.
40°C
100A
2
60
T & B
256-30695-257
Burndy
YA2CL-2TC38
Emerson
245348200
65°C 6
2 4
60
T & B
256-30695-257
Burndy
YA2CL-2TC38
Emerson
245348200
Dual Converter Module Feed – One (1) Input per Two (2) Converter Modules
(requires two busbar adapters P/N 552506, shipped loose with each shelf)
Ambient
Operating
Temperature
Recommended
DC Input
Protective
Device Rating
Recm 90 C
Wire Size
1
(AWG)
Loop
Length 2
(feet)
Recommended
Crimp Lug 3
Vendor
Part No.
40°C
200A 5
4/0
95
T & B
256-30695-835
Burndy
YAV28L-2TC38FX-
YEL
Emerson
245390500
65°C 6
4/0 7
95
T & B
256-30695-835
Burndy
YAV28L-2TC38FX-
YEL
Emerson
245390500
1
Wire sizes based on recommendations of the American National Standards Institute (ANSI) approved
National Fire Protection Association's (NFPA) National Electrical Code (NEC). Table 310-16 for copper
wire at 90°C conductor temperature, operating in ambient of 40°C and 65°C was used. For other operating
ambient temperatures, refer to the NEC. For operation in countries where the NEC is not recognized,
follow applicable codes.
2
Wire sizes listed are sufficient to restrict voltage drop to 1.0 volt or less at rated full load output current for
the loop lengths shown. Loop length is the sum of the lengths of the positive and negative leads.
3
Two-hole lug, 3/8" bolt clearance hole, 1" centers. Refer to drawing 031110100 for lug crimping
information.
4
Maximum and minimum OCPD is 80A at 65°C.
5
Minimum OCPD is 200A at 40°C.
6
Calculated input current is 60A @ 24Vdc at 65°C per converter module based on 85% efficiency rating and
1200VA.
7
Maximum and minimum OCPD is 150A at 65°C with de-rated input current.
Home
SAG584622300, SAG584622400 Spec. Nos. 584622100, 584622200
Issue AC, July 3, 2012 584622300, 584622400 (Model DCS48375)
Recommended DC Input Wire Sizes and Lugs
Table 10
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
Page 16 of 34
System Application Guide SAG584622100, SAG584622200
Home
Spec. Nos. 584622100, 584622200, SAG584622300, SAG584622400
584622300, 584622400 (Model DCS48375) Issue AC, July 3, 2012
Recommended Load Distribution Wire Sizes and Lugs Selection
Features
1/4-20 x 0.625” studs on 5/8” centers are provided for installation of customer provided load distribution
leads terminated in 2-hole lugs.
Restrictions
Maximum lug width, 0.625 inches.
Maximum size of wire to be connected to a single fuseholder or circuit breaker position is 2 AWG.
Ordering Notes
1) Load distribution lugs must be ordered separately. Customer must provide (or order) lug mounting
hardware. The rating of the distribution device determines the load lead wire size requirement. For
recommended wire sizes and lug selection for various loop lengths per fuse/circuit breaker ampere rating,
refer to Table 11. For additional lug information, refer to drawings 031110100 through 031110300.
Maximum size of wire to be connected to a single fuseholder or circuit breaker position is 2 AWG.
For wiring up to 350 kcmil, see “Special Application Crimp Lugs” under ORDERING INFORMATION.
Distribution devices requiring a single distribution position require a two hole lug with 1/4” bolt
clearance holes on 5/8” centers (order per Table 11, order hardware kits per Table 7).
Distribution devices requiring two (2) or three (3) distribution positions require special application lugs
(order per Table 11 and Table 6) or busbar adapter kits (order per Table 7) and two hole lugs with
3/8” bolt clearance holes on 1” centers (order per Table 8).
Notes to Table 11:
1
Wire sizes are based on recommendations of the American National Standards Institute (ANSI)
approved National Fire Protection Association's (NFPA) National Electrical Code (NEC). Table 310-16
for wire rated at 90 C conductor temperature operating in ambient temperatures of 40 C, 50°C, and
65°C was used. For other operating ambient temperatures, refer to the NEC. For operation in
countries where the NEC is not recognized, follow applicable codes.
2
Recommended wire sizes are sufficient to restrict voltage drop to 1.0 volt or less at listed branch current
for the loop lengths shown. Loop length is the sum of the lengths of the positive and negative leads.
3
Wire Size / Loop Length Combination Calculated using 40°C Ambient Operating Temperature.
4
Wire Size / Loop Length Combination Calculated using 50°C Ambient Operating Temperature.
5
Wire Size / Loop Length Combination Calculated using 65°C Ambient Operating Temperature.
6
These lugs are two-hole for 1/4" bolt clearance on 5/8" centers. Refer to drawing 031110100 for lug
crimping information.
7
Special application crimp lug / strap combination.
Table 11 (cont'd on next page)
Recommended Load Distribution Wire Sizes and Lugs
Page 17 of 34
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
SAG584622100, SAG584622200 System Application Guide
Fuse/Circuit
Breaker
Amperage
Recm 90 C Wire Size
(1)
14 AWG
12 AWG
10 AWG
8 AWG
6 AWG
4 AWG
2 AWG
Loop Length (feet)
(2)
1, 3, 5, 6, 10A
37
(3, 4, 5)
58
(3, 4, 5)
93
(3, 4, 5)
148
(3, 4, 5)
236
(3, 4, 5)
376
(3, 4, 5)
597
(3, 4, 5)
15A
24
(3, 4)
39
(3, 4, 5)
62
(3, 4, 5)
99
(3, 4, 5)
157
(3, 4, 5)
250
(3, 4, 5)
398
(3, 4, 5)
20A
--
29
(3, 4)
46
(3, 4, 5)
74
(3, 4, 5)
118
(3, 4, 5)
188
(3, 4, 5)
298
(3, 4, 5)
25A
--
--
37
(3, 4,)
59
(3, 4, 5)
94
(3, 4, 5)
150
(3, 4, 5)
239
(3, 4, 5)
30A
--
--
31
(3, 4)
49
(3, 4, 5)
78
(3, 4, 5)
125
(3, 4, 5)
199
(3, 4, 5)
35A
--
--
--
42
(3, 4)
67
(3, 4, 5)
107
(3, 4, 5)
170
(3, 4, 5)
40A
--
--
--
37
(3, 4)
59
(3, 4, 5)
94
(3, 4, 5)
149
(3, 4, 5)
45A
--
--
--
33
(3, 4)
52
(3, 4)
83
(3, 4)
132
(3, 4)
50A
--
--
--
29
(3)
47
(3, 4,)
75
(3, 4)
119
(3, 4)
60A
--
--
--
--
39
(3, 4)
62
(3, 4)
99
(3, 4)
70A
--
--
--
--
--
53
(3, 4)
85
(3, 4)
75A
--
--
--
--
--
50
(3, 4)
79
(3, 4)
80A
--
--
--
--
--
47
(3)
74
(3, 4)
Recommended Crimp Lug
(6)
Lug
245342300
245342300
245342300
245390200
245346700
245346800
245346900
Fuse/Circuit
Breaker
Amperage
Recm 90 C Wire Size
(1)
2 AWG
1/0 AWG
2/0 AWG
3/0 AWG
4/0 AWG
250 kcmil
350 kcmil
Loop Length (feet)
(2)
90A
66
(3, 4)
105
(3)
133
(3)
--
--
--
--
100A
59
(3, 4)
95
(3)
119
(3)
--
--
--
--
125A
47
(3)
76
(3)
95
(3)
120
(3)
--
--
--
150A
--
63
(3)
79
(3)
100
(3)
--
--
--
175A
--
--
68
(3, 4)
86
(3, 4)
108
(3, 4)
--
--
200A
--
--
--
75
(3)
95
(3)
112
(3)
--
225A
--
--
--
--
67
(3)
84
(3, 4)
100
(3, 4)
250A
--
--
--
--
76
(3,8)
90
(3, 8)
126
(3,8)
Recommended Crimp Lug
Lug
245346900
(6)
245393500
(7)
245393600
(7)
245393700
(7)
245393800
(7)
514872
(7)
514873
(7)
Home
SAG584622300, SAG584622400 Spec. Nos. 584622100, 584622200
Issue AC, July 3, 2012 584622300, 584622400 (Model DCS48375)
Table 11 (cont'd from previous page)
Recommended Load Distribution Wire Sizes and Lugs
Page 18 of 34
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
System Application Guide SAG584622100, SAG584622200
Home
Spec. Nos. 584622100, 584622200, SAG584622300, SAG584622400
584622300, 584622400 (Model DCS48375) Issue AC, July 3, 2012
Recommended External Alarm, Reference, Monitoring, and Control Wire Sizes
Features
The system interface circuit card is mounted on the inside of the main shelf’s front door. This circuit card
provides four (4) sets of Form C relay contacts for external alarms, reference and monitoring inputs, plus
an ESTOP input. Terminal blocks are provided on the circuit card for customer connections. Refer to
Paragraphs 1.5.3 and 1.5.4 under “Specifications” for details.
Restrictions
Terminal block wire size capacity is 12 to 22 AWG.
Relay contacts are rated for 1A at 30VDC or 0.3A at 110VDC.
Relays are energized for normal operating conditions and de-energized for an alarm condition.
Ordering Notes
1) Recommended Wire Size: 22 AWG for Loop Lengths Up to 200 ft.
18-20 AWG for Loop Lengths Over 200 ft.
Page 19 of 34
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
SAG584622100, SAG584622200 System Application Guide

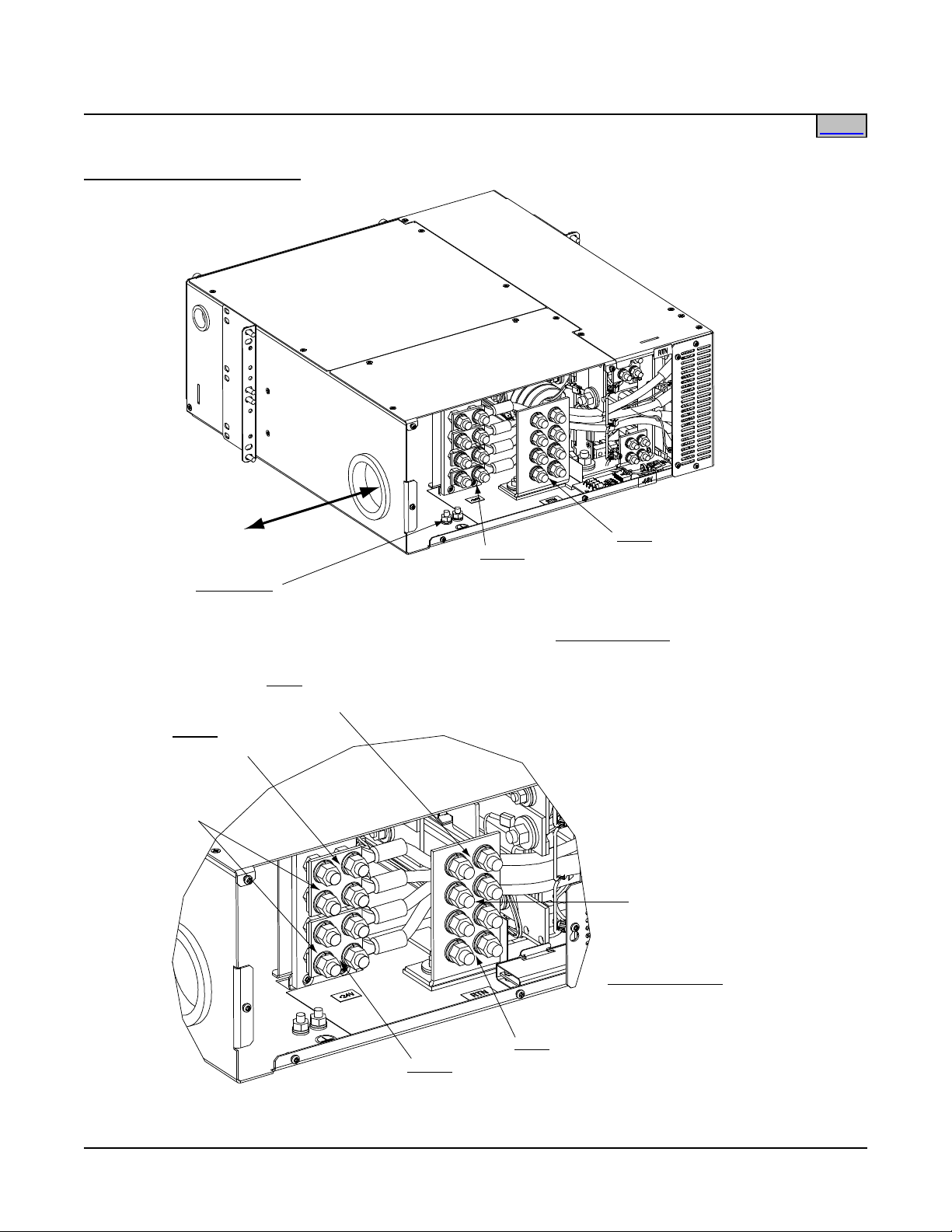

DC Input Connections
* 3/8-16 x 0.875” studs on 1” centers
for installation of leads with 2-hole lugs.
* Provide separate inputs for each converter.
* Maximum lug width 0.812”.
* Torque to 240 in-lbs.
+24VDC
Converter #1 (top)
Converter #2
Converter #3
Converter #4 (bottom)
DC Input Leads
Enter Here
Return
Converter #1 (top)
Converter #2
Converter #3
Converter #4 (bottom)
Frame Ground
* 1/4-20 x 0.5” studs on 5/8” center
for installation of lead with 2-hole lug.
* Torque to 84 in-lbs.
Rear panels removed in illustration.
Rear
Dual Converter Module Feed
with Adapter Busbars
P/Ns 552506
Feed Two
Feed One
+24VDC
Converter #3
Converter #4
Return
Converter #3
Converter #4
+24VDC
Converter #1
Converter #2
Return
Converter #1
Converter #2
DC Input Connections
* 3/8-16 x 0.875” studs on 1” centers
for installation of leads with 2-hole lugs.
* Provide one input for two converters.
* Maximum lug width 1.156”.
* Torque to 240 in-lbs.
Discard Extra Hardware
Busbars
P/Ns 552506
584622100 / 584622200 shown.
584622300 / 584622400 similar.
Home
SAG584622300, SAG584622400 Spec. Nos. 584622100, 584622200
Issue AC, July 3, 2012 584622300, 584622400 (Model DCS48375)
Wiring Illustrations
DC Inputs and Frame Ground
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
Page 20 of 34
System Application Guide SAG584622100, SAG584622200
Load Distribution Connections
* 1/4-20 x 0.625” studs on 5/8” centers
for installation of leads with 2-hole lugs.
* Maximum lug width 0.625”.
* Torque to 58 in-lbs.
-48VDC
Return
Front
Front
Components removed in
illustration for clarity only.
Load
Distribution
Leads Enter
Here (break
tabs off shield
as required)
P/N 545405
P/N 545404
P/N 545571
Top Cover Removed in
Illustration for Clarity Only
Optional Busbar Adapters
584622100 / 584622200 shown.
584622300 / 584622400 similar.
Home
Spec. Nos. 584622100, 584622200, SAG584622300, SAG584622400
584622300, 584622400 (Model DCS48375) Issue AC, July 3, 2012
Load Distribution (TPS/TLS Fuses and Bullet Nose Circuit Breakers)
Page 21 of 34
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
SAG584622100, SAG584622200 System Application Guide
Load Leads
Load Return Leads
Wire Size Capacity: 26-14 AWG.
Recommended Torque: 4.5 in-lbs.
Home
SAG584622300, SAG584622400 Spec. Nos. 584622100, 584622200
Issue AC, July 3, 2012 584622300, 584622400 (Model DCS48375)
Load Distribution (Optional Bullet Nose 6-Position GMT Fuse Block)
Page 22 of 34
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
System Application Guide SAG584622100, SAG584622200
Inside View of Main Shelf’s Front Door
TB1
1 9 1 12
TB2P2
TB1
1 9
1 12
TB2
Conv
Minor
Conv
MajorFuse / CB
Low Input
Voltage
NC C NONC C NONC C NONC C NO
E
S
T
O
P+VO-VO+IO-IO+BT-BT
CANH
CANL
CAN
TERM
P2
Recommended Torque is 5.0 in-lbs. Recommended Torque is 5.0 in-lbs.
Relays are energized for normal operating conditions
and de-energized for an alarm condition.
Relays are shown in the de-energized state.
Home
Spec. Nos. 584622100, 584622200, SAG584622300, SAG584622400
584622300, 584622400 (Model DCS48375) Issue AC, July 3, 2012
External Alarm, Reference, Monitoring, and Control
Note: External FA/CBA Alarm Input: An external FA/CBA alarm signal can be connected to the system as
shown in the “Shelf Interconnections” section.
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
Page 23 of 34
SAG584622100, SAG584622200 System Application Guide
Cable, lugs, and labels are provided
loose with the Expansion Shelf to
assemble a Return and a -48V
paralleling cable.
Expansion
Wiring Covers
Hardware provided
on terminals.
RETURN
PARALLELING
CABLE
-48V
PARALLELING
CABLE
584622100 / 584622200 shown.
584622300 / 584622400 similar.
Home
SAG584622300, SAG584622400 Spec. Nos. 584622100, 584622200
Issue AC, July 3, 2012 584622300, 584622400 (Model DCS48375)
Shelf Interconnections
Output Paralleling Leads
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
Page 24 of 34
System Application Guide SAG584622100, SAG584622200
Connect these connectors
to mating connectors in
shelf above.
Connect these connectors
to mating connectors in
shelf above.
If there are expansion shelves,
move the termination plug
from connector in main shelf
to same connector inbottom
most expansion shelf.
If there are expansion shelves,
unplug the external FA/CBA
lead from this connector.
Move the termination plug
from connector in main shelf
to same connector inbottom
most expansion shelf.
Plug the external FA/CBA
lead from main shelfinto
same connector in bottom
most expansion shelf.
Connect an external FA/CBAlead to
the butt splice located at the end of the
external FA/CBA plug assembly.
Supply a voltage signal within 1V of the
converter system output voltage to this
lead to activate the system’s fuse alarm
circuit.
Rear
External FA/CBA
connector in
bottom most
shelf.
External FA/CBA
plug terminated in
butt splice connector.
(12” long, 22 AWG,
yellow wire)
(Factory Supplied)
584622100 / 584622200 shown.
584622300 / 584622400 similar.
Home
Spec. Nos. 584622100, 584622200, SAG584622300, SAG584622400
584622300, 584622400 (Model DCS48375) Issue AC, July 3, 2012
FA/CBA and CAN Interconnections
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
Page 25 of 34
SAG584622100, SAG584622200 System Application Guide
Home
SAG584622300, SAG584622400 Spec. Nos. 584622100, 584622200
Issue AC, July 3, 2012 584622300, 584622400 (Model DCS48375)
SPECIFICATIONS
Note: For DC-DC converter module specifications, refer to UM1C24481500 (Converter Module User
Instructions).
1.1 System Output Ratings
1.1.1 Voltage: Nominal -48 volts DC, positive ground. User adjustable for either -48VDC, -50VDC,
-52VDC, or -54VDC.
1.1.2 Current: 375A, maximum (Converter Output + Distribution. Load). 125A, maximum (Converter Output) per shelf. 250A, maximum (Distribution Load) per distribution row.
1.2 System Input Ratings
1.2.1 Input Voltage: Nominal +24 volts DC.
1.2.2 Nameplate Rating: (A) Individual Feed: +20.5 to +30 volts DC, 87 to 59A. (B) Dual Feed (one input per two converters): +20.5 to +30 volts DC, 175 to 120A.
1.2.3 Filtering: Noise reflected back to the central office battery is within the parameters set forth in
Telcordia Technical Reference TR-TSY-000009, paragraph 5.0, using test measurements in
Telcordia Technical Reference PUB 43802, pages 5 and 6.
1.3 System Environmental Ratings
1.3.1 Operating Ambient Temperature Range: (A) -40°C to +40°C (-40°F to +104°F).
Overcurrent devices rated 100A or greater MUST HAVE a space adjacent to it. Maximum
size circuit breakers that can be used are 100A single pole, 200A double pole, and 250A
triple pole. Maximum size fuse is 100A.
(B) -40°C to +65°C (-40°F to +149°F), with derating.
For ambient temperatures between +40°C (+104°F) and +65°C (+149°F), overcurrent
devices rated 60A or greater MUST HAVE a space adjacent to it. Maximum size circuit
breakers that can be used are 70A single pole. No double pole or triple pole circuit
breakers can be used. Maximum size fuse 70A.
1.3.2 Storage Ambient Temperature Range: -40°C to +85°C (-40°F to +185°F).
1.3.3 Humidity: Capable of operating in an ambient relative humidity range of 0% to 95%, non-
condensing.
1.3.4 Altitude: Capable of operating in an altitude range of -200 feet to 10,000 feet. The maximum
operating ambient temperature should be derated by 3°C per 1000 feet above 5000 feet.
1.3.5 Ventilation Requirements: (A) Ventilation: A shelf must be mounted so ventilating openings are not blocked and
temperature of the air entering the shelf does not exceed the Operating Ambient
Temperature Range stated above.
(B) Stacking Considerations: This system is designed for front to back ventilation to
facilitate stacking of shelves, one above the other, in a relay rack. There is no spacing
requirement between stacked shelves of a single system.
1.3.6 Audible Noise (System): With four converter modules installed and operating, the audible
noise at any point 5 feet from any vertical surface of the mounting shelf does not exceed 68
dBA when measured with a sound level meter conforming to ANSI S1.4.
Page 26 of 34
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
System Application Guide SAG584622100, SAG584622200
Home
Spec. Nos. 584622100, 584622200, SAG584622300, SAG584622400
584622300, 584622400 (Model DCS48375) Issue AC, July 3, 2012
1.3.7 Mounting: (A) The shelf is designed for mounting in a 19-inch or 23-inch wide relay rack with 1-3/4 inch
multiple drilling.
(B) This product is intended only for installation in a Restricted Access Location on or above a
non-combustible surface.
(C) This product must be located in a Controlled Environment with access to Craftspersons
only.
(D) This product is intended for installation in Network Telecommunication Facilities (CO, vault,
hut, or other environmentally controlled electronic equipment enclosure).
(E) This product is intended to be connected to the common bonding network in a Network
Telecommunication Facility (CO, vault, hut, or other environmentally controlled electronic
equipment enclosure).
(F) Typical industry standards recommend minimum aisle space clearance of 2'6" for the front
of the relay rack and 2' for the rear of the relay rack.
1.4 System Compliance Information
1.4.1 Safety Compliance: This unit meets the requirements of UL 60950, Standard for Information
Technology Equipment, and is UL Recognized as a power supply for use in Telephone,
Electronic Data Processing or Information Processing Equipment. This unit meets the
requirements of CAN/CSA 22.2, No. 60950-00 and is tested and Certified by UL ("c UR") as a
Component Type Power Supply.
1.4.2 NEBS Compliance: Compliance verified by a Nationally Recognized Testing Laboratory (NRTL) per GR-1089-CORE and GR-63-CORE. Contact Emerson Network Power for NEBS compliance reports.
Converter Modules: In order to remain compliant during a fan failure condition, the system
must operate with a redundant module installed.
1.5 System Standard Features
1.5.1 Local Indicators: The following local indicators are provided on the front of the main shelf’s
front door.
(A) Circuit Breaker or Fuse Open (Red LED)
(B) Input Voltage OK (Green LED)
(C) Converter Major (Red LED)
(D) Converter Minor (Yellow LED)
1.5.2 Test Points: The following test points are provided on the front of the main shelf’s front door. (A) Output Voltage: Provided for measuring system output voltage. (B) Output Current: Provided for measuring system output current. Scale is User selectable
for 400A/50mV or 1A/1mV. Current measurement is User selectable to be referenced to
plus battery, minus battery, or no reference.
1.5.3 Emergency Shutdown Input (ESTOP): The converter modules can be inhibited by applying an external ground signal (24V Return). Converter modules automatically restart upon removal of the ground signal.
1.5.4 External Alarm Circuits: A set of Form-C relay contacts, rated for 1 ampere at 30 volts DC or
0.3 ampere at 110VDC, is provided for each of the following alarms. Relays are energized for
normal operating conditions and de-energized for an alarm condition.
Page 27 of 34
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
SAG584622100, SAG584622200 System Application Guide
Home
SAG584622300, SAG584622400 Spec. Nos. 584622100, 584622200
Issue AC, July 3, 2012 584622300, 584622400 (Model DCS48375)
(A) Converter Minor Alarm: Alarms if one converter module fails. Failure conditions
are as follows.
(1) A converter module reports a high voltage shutdown condition (HVSD).
(2) A converter module reports a fan failure.
(3) A converter module reports an EEPROM failure.
(4) A converter module reports a converter failure.
(5) A converter module reports a low input voltage condition.
(6) A converter module reports a high temperature condition.
(7) A converter module reports a thermal derating condition.
(B) Converter Major Alarm: Alarms if more than one converter module fails (or if only one
converter module is installed in the system and it fails). Failure conditions are as stated in
(A) above.
(C) FA/CB Alarm: Alarms if any distribution fuse or circuit breaker opens.
(D) Low Input Voltage: Alarms if a converter module reports a low input voltage condition.
Page 28 of 34
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
System Application Guide SAG584622100, SAG584622200

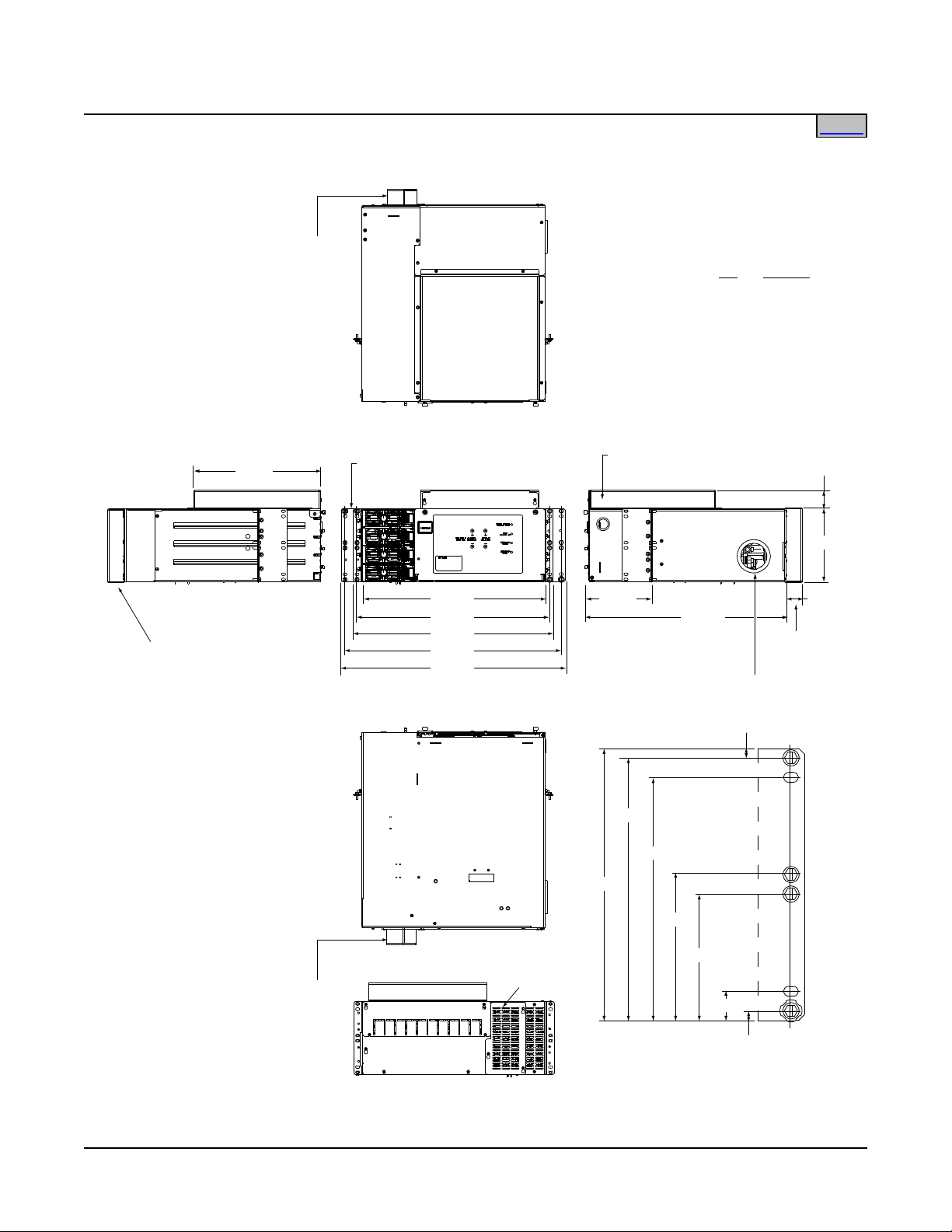

1. All dimensions are in inches
unless otherwise specified.
2. Weight (in lbs): Net Shipping
Shelf: 40 50
Converter Module: 5.5 7
3. Finish:
Shelf and Converter Module Bodies:
Galvanneal
DistributionDoor and Converter
Module Faceplates:
TexturedGray
Notes:
Front View
Bottom View
Right Side View
Left Side View
Rear View
See MountingAngle Detail
Optional Expansion
Wiring Cover
Optional Expansion
Wiring Cover
Optional Wiring
Access Panel
Optional Expansion
Wiring Cover
19.000
22.312
23.000
17.375
18.312
6.000
18.750
6.968
1.750
12.06
3.0” Diam. Hole
TopView
Mounting
Angle Detail
6.968
3.234
3.734
6.234
6.734
0.734
0.234
0.234
1.625
Optional
Expansion
Wiring Cover
Optional
Expansion
Wiring Cover
Home
Spec. Nos. 584622100, 584622200, SAG584622300, SAG584622400
584622300, 584622400 (Model DCS48375) Issue AC, July 3, 2012
PHYSICAL SIZE INFORMATION
Overall Dimensions – 584622100 Main Shelf
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
Page 29 of 34
SAG584622100, SAG584622200 System Application Guide
1. All dimensions are in inches
unless otherwise specified.
2. Weight (in lbs): Net Shipping
Shelf: 41 51
Converter Module: 5.5 7
3. Finish:
Shelf and Converter Module Bodies:
Galvanneal
Distribution Door and Converter
Module Faceplates:
Textured Gray
Notes:
Front View
Bottom View
Right Side View
Left Side View
Rear View
See MountingAngle Detail
Optional Wiring
Access Panel
19.000
22.312
23.000
17.375
18.312
6.000 1.625
18.750
6.968
1.750
12.06
3.0” Diam. Hole
TopView
Mounting
Angle Detail
6.968
3.234
3.734
6.234
6.734
0.734
0.234
0.234
Expansion
Wiring Cover
Expansion
Wiring Cover
Expansion
Wiring Cover
Expansion
Wiring Cover
Expansion
Wiring Cover
Home
SAG584622300, SAG584622400 Spec. Nos. 584622100, 584622200
Issue AC, July 3, 2012 584622300, 584622400 (Model DCS48375)
Overall Dimensions – 584622200 Expansion Shelf
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
Page 30 of 34
System Application Guide SAG584622100, SAG584622200
1.All dimensions are in inches
unless otherwise specified.
2. Weight (in lbs): Net Shipping
Shelf: 51 59
Converter Module: 5.5 7
3. Finish:
Shelf and Converter Module Bodies:
Galvanneal
Distribution Door and Converter
Module Faceplates:
TexturedGray
Notes:
Front View
Bottom View
Right Side View
Left Side View
Rear View
See MountingAngle Detail
Optional Expansion
Wiring Cover
Optional Expansion
Wiring Cover
Optional Wiring
Access Panel
Optional Expansion
Wiring Cover
22.312
23.000
21.375
6.000
18.750
6.968
1.750
12.06
3.0” Diam. Hole
TopView
Mounting
Angle Detail
6.968
3.234
3.734
6.234
6.734
0.734
0.234
0.234
1.625
Optional
Expansion
Wiring Cover
Optional
Expansion
Wiring Cover
Home
Spec. Nos. 584622100, 584622200, SAG584622300, SAG584622400
584622300, 584622400 (Model DCS48375) Issue AC, July 3, 2012
Overall Dimensions – 584622300 Main Shelf
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
Page 31 of 34
SAG584622100, SAG584622200 System Application Guide

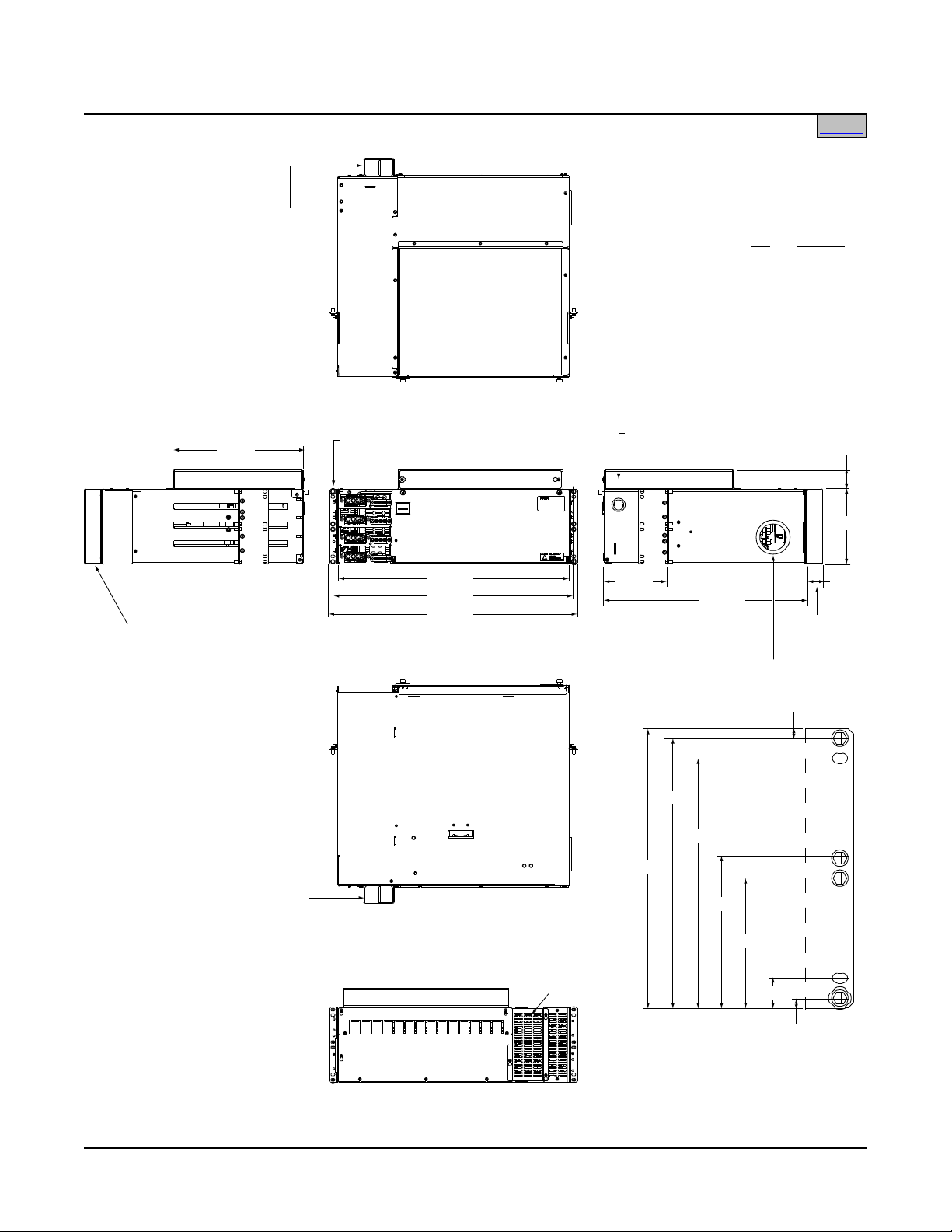

1. All dimensions are in inches
unless otherwise specified.
2. Weight (in lbs): Net Shipping
Shelf: 52 60
Converter Module: 5.5 7
3. Finish:
Shelf and Converter Module Bodies:
Galvanneal
Distribution Door and Converter
Module Faceplates:
Textured Gray
Notes:
Front View
Bottom View
Right Side View
Left Side View
Rear View
See MountingAngle Detail
Optional Wiring
Access Panel
21.375
22.312
23.000
6.000 1.625
18.750
6.968
1.750
12.06
3.0” Diam. Hole
TopView
Mounting
Angle Detail
6.968
3.234
3.734
6.234
6.734
0.734
0.234
0.234
Expansion
Wiring Cover
Expansion
Wiring Cover
Expansion
Wiring Cover
Expansion
Wiring Cover
Expansion
Wiring Cover
Home
SAG584622300, SAG584622400 Spec. Nos. 584622100, 584622200
Issue AC, July 3, 2012 584622300, 584622400 (Model DCS48375)
Overall Dimensions – 584622400 Expansion Shelf
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
Page 32 of 34
System Application Guide SAG584622100, SAG584622200
Home
Spec. Nos. 584622100, 584622200, SAG584622300, SAG584622400
584622300, 584622400 (Model DCS48375) Issue AC, July 3, 2012
RELATED DOCUMENTATION
System Installation and User Instructions: UM584622100
Converter Module Instructions: UM1C24481500
System Schematic Diagram: SD584622100 / SD584622300
SD584622200 / SD584622400
System Wiring Diagram: T584622100 / T584622300
T584622200 / T584622400
Load and Battery 031110100
Lug Detail Drawings: 031110200
031110300
Page 33 of 34
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
SAG584622100, SAG584622200 System Application Guide
Issue
Change
Number
(ECO)
Description of Change
Date
Approved
AA
LLP215922
New
09/20/11
John Jasko
AB
LLP216279
Optional external FA/CBA plug assembly added.
11/09/11
John Jasko
AC
LLP217215
Added new toggle-handle circuit breakers (175A
and 225A) information. Added 584622300 and
584622400.
07/03/12
John Jasko
Emerson Network Power, Energy Systems, North America, Inc.
4350 Weaver Parkway, Warrenville, IL 60555
Toll Free: 800-800-1280 (USA and Canada)
Telephone: 440-246-6999 Fax: 440-246-4876
Web: EmersonNetworkPower.com/EnergySystems
EnergyNet: Secure.EmersonNetworkPower.com
Home
SAG584622300, SAG584622400 Spec. Nos. 584622100, 584622200
Issue AC, July 3, 2012 584622300, 584622400 (Model DCS48375)
REVISION RECORD
John Jasko
Jul 26, 2012
Donald Rake
Jul 27, 2012
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
Page 34 of 34
Loading...
