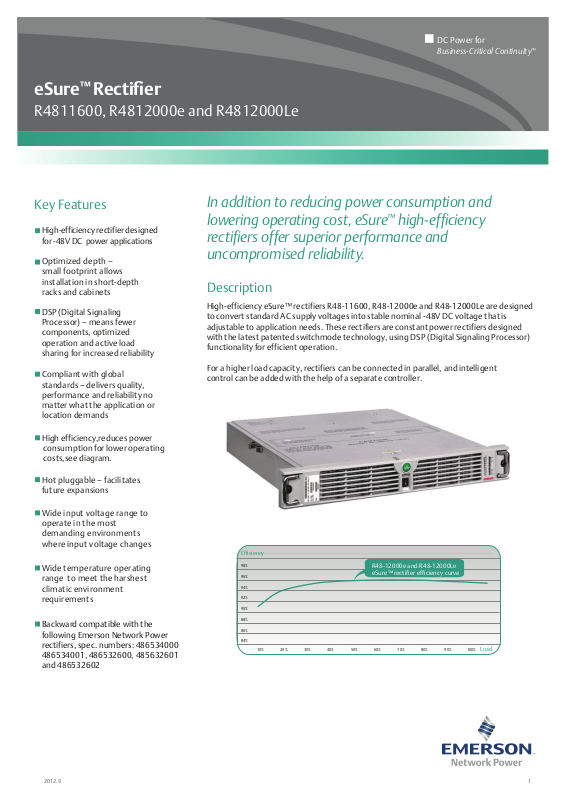

eSure™ Rectifier
R4811600, R4812000e and R4812000Le
DC Power for
Business-Critical Continuity
™
Key Features
High-efficiency rectifier designed
for -48V DC power applications
Optimized depth –
small footprint allows
installation in short-depth
racks and cabinets
DSP (Digital Signaling
Processor) – means fewer
components, optimized
operation and active load
sharing for increased reliability
Compliant with global
standards – delivers quality,
performance and reliability no
matter what the application or
location demands
High efficiency,reduces power
consumption for lower operating
costs,see diagram.
Hot pluggable – facilitates
future expansions
In addition to reducing power consumption and
lowering operating cost, eSure
™
high-efficiency
rectifiers offer superior performance and
uncompromised reliability.
Description
High-efficiency eSure™ rectifiers R48-11600, R48-12000e and R48-12000Le are designed
to convert standard AC supply voltages into stable nominal -48V DC voltage that is
adjustable to application needs. These rectifiers are constant power rectifiers designed
with the latest patented switchmode technology, using DSP (Digital Signaling Processor)
functionality for efficient operation.
For a higher load capacity, rectifiers can be connected in parallel, and intelligent
control can be added with the help of a separate controller.
Wide input voltage range to
operate in the most
demanding environments
where input voltage changes
Wide temperature operating
range to meet the harshest
climatic environment
requirements
Backward compatible with the
following Emerson Network Power
rectifiers, spec. numbers: 486534000
486534001, 486532600, 485632601
and 486532602
2012.9
Efficiency
98%
96%
94%
92%
90%
88%
Efficiency
86%
84%
10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
Efficiency
R48-12000e and R48-12000Le
eSure™ rectifier efficiency curve
™
eSure
Rectifier
Load
Load
Load
1
eSure™ Rectifier R4811600, R4812000e and R4812000Le
Technical Specifications
AC Input
Input Voltage, Nominal 400/480 VAC
Input Voltage, Permitted Variation
408-528 VAC
Line Frequency 57-63Hz
Max Input Current 19.36 A
Power Factor 0.99
THD (Total Harmonic Distortion) <5% from 50 to 100% of rated load
DC Output
R4811600 R4812000e R4812000Le
Output Voltage, Adjustment Range -48 to -58 VDC
Output Power 11600W@Vout >48VDC
Output Power, Derated for Input
Voltage
See diagram B
Output Current 220 A maximum
Output Current Limit Set Point 0-220 A
Efficiency 93 %
Psophometric
Noise (system) Type 21 dBrnc,<38dBrnc
Temperature Derating
Control and Monitoring
Rectifier Alarm
and Signaling Alarm and status reported via CAN bus to system controller
Green LED: Normal Operation
Visual Indications
Yellow LED: Alarm
Red LED: Failure
Environmental
Temperature Range, Operating 0 to +65°C, 32 to +149°F (see diagram for derating curve)
Temperature Range, Storage -40 to +65°C, -40 to +149°F
Relative Humidity 0 to 95%
Altitude 2000 m, 6
EMC
FCC CFR 47 Part 15 class A, Telcordia
GR-1089-CORE class A
560 ft at full power
Safety UL 60950
Mechanics
Dimensions (H x W x D) 607 x 87.3 x 622.6mm / 23.9 x 3.4 x 24.5 inches
Weight 18.14 kg / 40 Ibs
Other Parts
Controller Units See separate Eclipse datasheets
R4812000eR4811600 R4812000Le
208 VAC 480 VAC
340-530 VAC 176-264 VAC
45-65Hz 47-63Hz
17.83 A 34.25 A
See diagram C
96 % 96 %
See diagram A
Ordering Information
Models
Spec.Numbers
R4811600 R4812000e R4812000Le
486532602
486534003486532603
Diagrams
A)Output Power vs. Temperature
120
100
80
60
40
20
0
% of max output power
0 10 20
For R4812000e and R4811600 curve
For R4812000Le curve
B)Output Power vs. Input Voltage
120
100
80
60
40
20
% of max output power
0
200 250 300 350 400 450 500 550
For R4812000e and R4811600 curve
C)Output Power vs. Input Voltage
and Vo >48V at Tamb <45°C
120
100
80
60
40
20
% of max output power
0
0 50 100 150 200 250 300 350
For R4812000Le curve
D)Output voltage vs. Output current,
max. output power 11600 W
70
60
50
40
30
20
10
Output Voltage (V)
0
0 20 40 60 80 100 120140 160 180 200 220 240
at Uin>340VAC
40
30 40
Temperature (C°)
at Tamb <45°C
260
304
Input Voltage (VAC)
180
145
Input Voltage (VAC)
150
Output Current (A)
For R4812000e and R4811600 curve
For R4812000Le curve
45
50
55
50
60
265
200A
65
07 08
525
220A
260
