MS3110
HOME AUDIO SYSTEM
with 3-CD Changer,
Digital AM/FM Receiver
and Remote Control
OWNER'S MANUAL
MS3110
Visit our web site at www.emersonradio.com
MS3110_112106.p65 22/11/2006, 11:4844
!
CAUTION
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE
OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol, within an equilateral triangle is intended to
alert the user to the presence
of uninsulated ‘dangerous voltage’
within the product’s enclosure
that may be of sufficient
magnitude to constitute a risk
of electric shock to persons.
WARNING: TO REDUCE THE
RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER
(OR BACK), NO U SER
SERVICEABLE PARTS INSIDE
REFER SERVICING TO
Q U A LI F IE D S E R VI C E
PERSONNEL.
The exclamation point within
an equilateral triangle is intended to alert the user to
the presence of important
operating and maintenance
(servicing) instructions in
the literature accompanying the appliance.
The Caution Marking maybe located at the bottom enclosure of the apparatus.
IMPORTANT SAFETY INSTRUCTIONS
1.) Read these instructions. Keep these instructions. Follow all instructions. Heed all warnings.
2.) Do not use this apparatus near water.
3.) Clean only with dry cloth.
4.) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
5.) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.

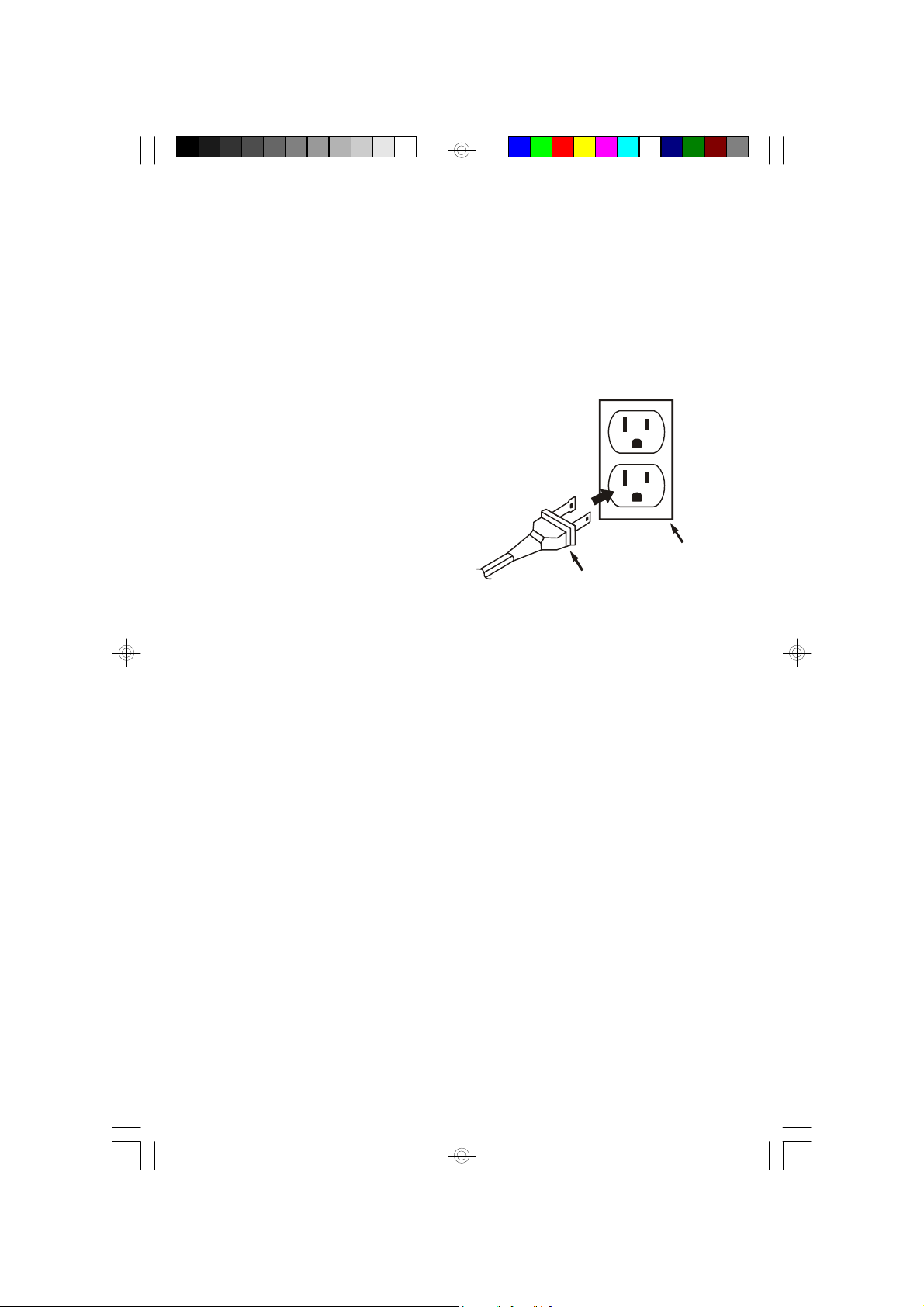

6.) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong is provided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for replacement of the obsolete outlet.
7.) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
8.) Only use attachments / accessories specified by the manufacturer.
9.) Unplug this apparatus during lightning storms or when unused for long periods of time.
10.) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
11.) This appliance shall not be exposed to dripping or splashing water and no object filled with liquids
such as vases shall be placed on the apparatus.
12.) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13.) Do not overload wall outlet. Use only power source as indicated.
14.) Use replacement parts as specified by the manufacturer.
15.) The product may be mounted to a wall only if recommended by the manufacturer.
16.) Upon completion of any service or repairs to this product, ask the service technician to
perform safety checks.
1
MS3110_112106.p65 22/11/2006, 11:481
BEFORE WE BEGIN
Thank you for purchasing this Emerson audio product. The Emerson brand
is your assurance of quality, performance and value.
Our engineers have included many useful and convenient features in this
product. Please be sure to read this Owner’s Manual completely to make
sure you are getting the maximum benefit from each feature.
This product was manufactured using the highest quality components and
standards of workmanship. It was tested by Emerson inspectors and found
to be in perfect working order before it left our factory. However, there is
always the chance that some problem may occur because of rough handling
during shipment to the retail store or to the final consumer.
If, after reading this manual, you experience any problems with the operation
of this product, please refer to the instructions for obtaining service at the
end of this manual. Emerson and Emerson retailers are committed to your
satisfaction.
Once again, thanks for purchasing this Emerson audio product.
2
MS3110_112106.p65 22/11/2006, 11:482
IMPORTANT NOTES
• Avoid installing this unit in pla ces exposed
to direct sunlight or close to heat radiating
appliances such as electric heaters, on top
of other stereo equipment that radiates too
much heat, places lacking ventilation or
dusty areas, places subject to constant
vibration and/ or humid or moist areas.
• Do not attempt to clean this unit with
• Operate controls and switches as described
in the manual.
• Before turning ‘On’ the power, make certain
that AC po wer cord is properly installed.
• Store your CDs in a cool area to avoid
damage from heat.
• When moving the s et, be sure to first
disconnect the AC power cord.
chemica l solvents as this might damage the
finish. Use a clean dry cloth.
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
APPAREIL Á LASER DE CLASSE 1
PRODUCTO LASER DE CLASE 1
This product contains a low power Laser Device.
FCC Information
This equipment has been tested and found to comply with th e limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and u sed in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guara ntee that
interference will not occ ur in a particular installation. If this equipment does cause harmful
interference to radio or te levision reception, which can be determined by turning the equipment
off and on , the user is encouraged to try to correct the interference by one or more of the following
mea sures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and rece iver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
CAUTION
INVISIBLE LASER RADIATION
WHEN OPEN AND INTERLOCKS
DEFEATED.
AVOID EXPOSURE TO BEAM
Changes or modifications not expressly app roved by the party responsible for compliance could
void the user’s authority to operate the equipment.
3
MS3110_112106.p65 22/11/2006, 11:483
PREPARATION FOR USE
Unpacking and Set Up
• This carton contains the main unit, two speakers with removable front panels,
the pedestal stand, and the remote control handset. Carefully remove all the
components from the carton and remove all packing materials form the
components. Make sure nothing is accidentally discarded with the packing
materials.
• Save the carton and packing materials, if possible, in the unlikely event that
this unit ever needs to be returned for service. Using the original carton and
packing material is the only way to properly protect the unit from shipping
damage.
• Remove any descriptive stickers or labels from the front panel of the main unit.
Do not remove any labels or stickers that may be affixed to the back panel of
the main unit or the speakers.
• Note the serial number on the back of the main unit and write this number in
the space provided on the Warranty page of this manual.
• Unwind the AC power cord on the back of the main unit and extend it to its full
length.
• Unwind the FM lead wire antenna on the back of the main unit and extend it to
its full length.
• Unwind the speaker cables on the backs of the speakers and extend them to
their full length.
4
MS3110_112106.p65 22/11/2006, 11:484
Attaching The Pedestal Stand
Note: This system can be us ed and operated with or without the pedestal
stand. If you plan to use this sys tem on a bookshelf, for example, you may find
that it is more convenient to use without the pedestal attached.
However the pedestal does provide extra stability so we do recommend
attaching the pedestal if space is not a problem.
1.) Place the main unit face down
on a flat surface as shown.
2.) Position the pedestal base so that
the 4 guide rails on the base slide
into the 4 slots on the bottom of
the main unit.
MS3110_112106.p65 22/11/2006, 11:485
5
3.) Return the main unit and the pedestal base to the upright position and slide the
B
A
main unit all the way backward in the direction of the ‘arrow’ onto the pedestal
until the locking tabs ‘click’ and the main unit is locked in place.
If you ever need to remove the main unit from the pedestal:
1.) Place the entire unit face down
on a flat surface.
2.) (A) Depress the two pedestal
locking tabs to releas e the
pedestal.
(B) Slide the pedestal upward
to completely remove it from
the main unit.
MS3110_112106.p65 22/11/2006, 11:486
6
Installing The Back Up Batteries
This system inc ludes a battery back up circuit that will maintain the tuner preset
station memories, the clock time, and the timer settings in the event of a temporary
power interruption. The battery back up system requires three “AA” batteries, not
included. Please use a well-known brand of alkaline batteries for longest life and
most reliable performance.
The back-up battery compartment is located on the backside of the main unit.
1.) Press down on the battery door-locking tab as shown and remove the door.
2.) Install 3 fresh “AA” alkaline batteries in the battery compartment. Be sure to
install the batteries correctly, according to the polarity (+ / -) markings inside
the battery compartment.
3.) Replace the battery door.
Note: The life expectancy of the back up batteries will depend on the number
and the length of the power interruptions that y ou experience. Under normal
circ umstances we recommend that you replace the back up batteries every 12
months.
7
MS3110_112106.p65 22/11/2006, 11:487
Remote Control Battery
The remote control requires one “button-type” 3-volt lithium
battery, included. To extend the life of the original battery
we have inserted a small clear plastic spacer tab between
the lithium battery and the battery terminal.
You must remove this battery spacer tab before you can
use the remote control.
To remove the tab, pull it in the direction of the arrow in the
illustration as shown.
RC-3110
Remove
before use
Remueva
antes de
usar
When the operation of the remote control becomes intermittent or unsatisfactory,
replace the original battery with a new 3-volt lithium battery.
The battery number is CR2025 or equivalent.
To replace the battery, slide the battery holder out of the remote control as shown
in the following illustration.
Remove the original battery from the holder and install a new CR2025 battery with
the “+” side facing up as shown in the illustration. Then slide the battery holder
back into the remote control.
Dispose of the original battery properly. It should not be thrown into a
fire as the battery may explode if incinerated. It should not be left around
where small children or pets might play with, or swallow it. If the battery
is accidentally swallowed, contact a physician immediately.
8
MS3110_112106.p65 22/11/2006, 11:488
Remote Control Storage
For your convenience we have included a remote control handset holder on the
back cabinet of the main unit.
To avoid misplacing the handset we suggest that you store it in this holder when
not in use.
Battery Precautions
• Replacement of batteries must be done by an adult.
• Do not mix old and new batteries.
• Do not mix alkaline, s tandard (carbon-zinc) or rechargeable (nickel-cadmium)
batteries.
• The supply terminals are not to be short-circuited.
• Non-rechargeable batteries are not to be recharged.
• Exhausted batteries are to be removed.
• Only batteries of the equivalent type are to be used.
• Batteries are to be inserted with the correct polarity.
• Dispose of batteries properly. Do not dispose of batteries in fire. The batteries
may explode or leak.
9
MS3110_112106.p65 22/11/2006, 11:489
Connecting The Speakers
Black with
Gray Dashes
+
L
Note: Always connect the speakers before switching the power ‘On’, and
never operate the system without the speakers properly connected.
The speaker cables and the speaker terminals are color-coded.
Connect the Black with Gray dashes wires to the Red terminals.
Connect the Black wires to the Black terminals. If the wires are connected incorrectly
the sound will be “muddy” or distorted.
To make the connection, completely depress the plastic levers to open the terminals,
insert the bare end of the speaker wire into the terminal openings, and release the
plastic levers to lock the wires in place.
+
R
Black with
Gray Dashes
MS3110_112106.p65 22/11/2006, 11:4810
10
Active Subwoofer Output Jack
To Optional Subwoofer Amplifier
This system includes an output jack for the connection of an optional active/powered
subwoofer. The subwoofer must have its own power supply and AC power cord.
You cannot use a passive/un-powered subwoofer.
Connect your active subwoofer to the SUB-WOOFER output jack on the back
panel of this system. Connect the subwoofers AC power cord to your AC outlet,
set the subwoofer power switch ‘On’ and adjust the subwoofers level control to the
desired setting.
When you operate this system the low frequencies will be sent to the external
powered subwoofer for a more powerful bass sound.
Note: the remote controller of this system cannot control the external
subwoofer. You must remember to switch the external subwoofer ‘On’ and
‘Off’, and adjust the subwoofer output manually.
Subwoofer Out
MS3110_112106.p65 22/11/2006, 11:4811
11
Auxiliary Input Jacks
From External
This system includes AUX IN R/L Jacks. These jacks allow you to connect external
audio equipment to this system and listen to the sound from the external equipment
through the speakers of this system.
Examples of the types of external equipment that may be connected are: a cassette
deck; the audio outputs from a VCR or DVD player; a personal cassette player,
MP3 player, MD player, or a personal hard-disc audio jukebox device such as an
iPod®.
Connect the audio output jack(s) or headphone jack of the external audio equipment
to the AUX IN R/L jacks on the back panel of this system.
CONNECTION CABLES ARE NOT INCLUDED.
You may leave your external device permanently connected to this system if you
wish. It is not necessary to disconnect the external device in order to listen to the
Tuner or CD player in this system.
Audio Source
Instructions for listening to your external device will be found at the end of this
Owner’s Manual.
12
MS3110_112106.p65 22/11/2006, 11:4812
Stereo Headphone Jack
This system includes a stereo PHONES jack on the back panel of the main unit.
You may connect a set of stereo headphones, not included, to this jack for private
listening without disturbing others.
The main speakers are automatically shut off when headphones are connected to
the PHONES jack. Make sure that the plug from your headphones is fully inserted
into the headphone jack. If the plug is not fully inserted the sound may be intermittent,
or you may only hear sound from one side of the headphones.
IMPORTANT: To prevent hearing damage always set the volume control to a
low level before you connect the headphones. Then connect the headphones,
put them on, and very gradually increase the volume to a comfortable listening
level. Remember that CDs may contain both very soft and very loud passages.
Adjust the volume to a comfortable level using a louder passage, so that you
always know what the maximum level will be.
Placement Of The System
The system should be placed on a stable, level surface such as a table, shelf, or
stand, convenient to a 120V 60Hz AC outlet, out of direct sunlight, and away from
sources of excess heat, dust, moisture, or vibration.
The speakers may be separated from the main as far the wires allow for maximum
stereo separation, or the may be placed to the immediate left and right of the main
unit. However to avoid interfering with the operation of the CD door the speakers
should not be placed directly against the main unit. Always leave a gap of at least
1/2 inch between the speakers and the main unit.
13
MS3110_112106.p65 22/11/2006, 11:4813
Loading...
