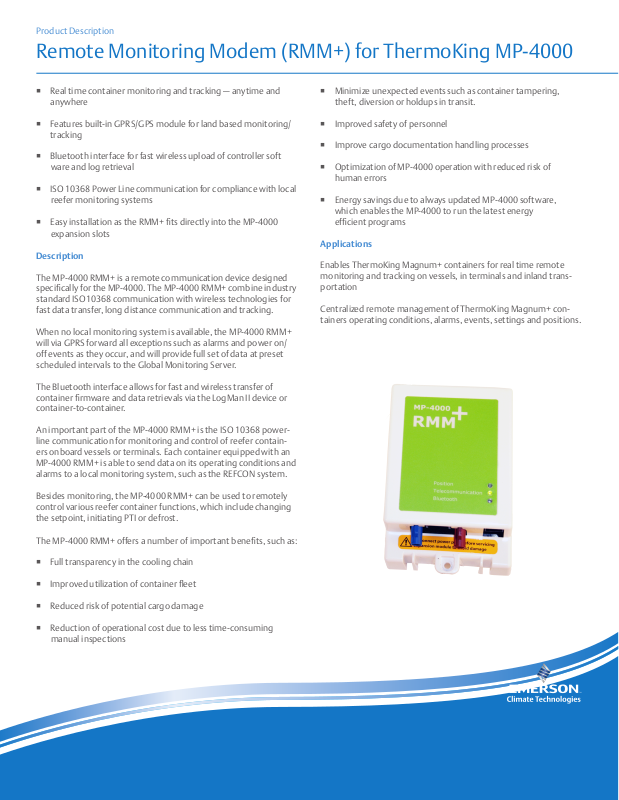

Product Description

Remote Monitoring Modem (RMM+) for ThermoKing MP-4000

� Real time container monitoring and tracking — anytime and
anywhere

� Features built-in GPRS/GPS module for land based monitoring/
tracking

� Bluetooth interface for fast wireless upload of controller soft
ware and log retrieval

� ISO 10368 Power Line communication for compliance with local
reefer monitoring systems

� Easy installation as the RMM+ ts directly into the MP-4000
expansion slots

Description

The MP-4000 RMM+ is a remote communication device designed

specically for the MP-4000. The MP-4000 RMM+ combine industry

standard ISO10368 communication with wireless technologies for

fast data transfer, long distance communication and tracking.

When no local monitoring system is available, the MP-4000 RMM+
will via GPRS forward all exceptions such as alarms and power on/
off events as they occur, and will provide full set of data at preset

scheduled intervals to the Global Monitoring Server.

� Minimize unexpected events such as container tampering,

theft, diversion or holdups in transit.

� Improved safety of personnel

� Improve cargo documentation handling processes

� Optimization of MP-4000 operation with reduced risk of

human errors

� Energy savings due to always updated MP-4000 software,
which enables the MP-4000 to run the latest energy

efcient programs

Applications

Enables ThermoKing Magnum+ containers for real time remote
monitoring and tracking on vessels, in terminals and inland trans­portation

Centralized remote management of ThermoKing Magnum+ con-

tainers operating conditions, alarms, events, settings and positions.

The Bluetooth interface allows for fast and wireless transfer of

container rmware and data retrievals via the LogMan II device or
container-to-container.

An important part of the MP-4000 RMM+ is the ISO 10368 power­line communication for monitoring and control of reefer contain-

ers onboard vessels or terminals. Each container equipped with an

MP-4000 RMM+ is able to send data on its operating conditions and

alarms to a local monitoring system, such as the REFCON system.

Besides monitoring, the MP-4000 RMM+ can be used to remotely
control various reefer container functions, which include changing

the setpoint, initiating PTI or defrost.

The MP-4000 RMM+ offers a number of important benets, such as:

� Full transparency in the cooling chain

� Improved utilization of container eet

� Reduced risk of potential cargo damage

� Reduction of operational cost due to less time-consuming

manual inspections

Environmental Specications:

Software:

Operating temperature -20°C < Top < 70°C

Shock 20G operating,

50G non-operating

Vibration Random (20Hz to 2kHz)

Functions:

Bluetooth 2.1+EDR short range wireless

communication

QUAD band GSM/GPRS (850/900/1800/1900 MHz) and TRI band
UMTS (850/1900/2100 MHz) for long range wireless communication

ISO10368 compliant power line communication

32-channel x embedded positioning system

RS232 interface toward host reefer container controller

Status LED’s to indicate operating status

Mod-bus interface for external sensors

Digital input for opitional door sensor

Over-the-Air rmware upgrade to apply new features

Immediate notication of controller alarms and container power

ON/OFF events

Remote setting of scheduled transmission
intervals and other communications rules

Internal hourly condition logging until
transmission is established

Maximum operation in container power off mode: 120 days

Included items:

Installation instruction

Sticker “RMM+ modem installed”

Hardware:

Serial FLASH for data and program storage, including controller

rmware for automatic distribution

Inbuilt 3-axis motion sensor

Embedded SIM card

Self-contained rechargeable battery for container off-power
operation

MP-4000 RMM+ Antenna:
