Emerson MONITORING OpenComms User Manual
OpenComms NIC
MONITORING
USER MANUAL
TABLE OF CONTENTS
1.0 INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1 OpenComms Compatibility . . . . . . . . . . . . . . . . . . . . . . . 2
2.0 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.1 Retrofit Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 Self-Contained Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3 User Connections for OpenComms NIC . . . . . . . . . . . . . 6
2.3.1 Network Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3.2 BMS Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3.3 Configuration Port / Service Terminal . . . . . . . . . . . . . . . . 6
3.0 SYSTEM CONFIGURATION. . . . . . . . . . . . . . . . . . . . . . . 9
3.1 DIP Switch Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.2 Service Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.0 OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.1 SNMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.2 Liebert Global Products MIB. . . . . . . . . . . . . . . . . . . . . 14
4.3 RFC 1628 UPS MIB . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.3.1 SNMP Traps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.4 MIB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.5 HTTP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.6 Modbus RTU. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.7 System Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.8 Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.0 MODBUS COMMUNICATIONS AND CONNECTIVITY. . . . . 19
5.1 Implementation Basics . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.1.1 Constraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.2 Transmission Format. . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.3 Physical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
i
5.4 Modbus Slave Functions . . . . . . . . . . . . . . . . . . . . . . . . 21
5.4.1 Data Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.4.2 Function Code Support . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.4.3 Read/Write Holding Registers (0x03, 0x06, 0x10) . . . . . . 22
5.4.4 Read Input Registers (0x04) . . . . . . . . . . . . . . . . . . . . . . . 22
5.4.5 Read, Set Coil Status (0x01, 0x05, 0x0F) . . . . . . . . . . . . . 22
5.4.6 Read Input Status (0x02) . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.4.7 Error Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.5 RTU Framing Examples . . . . . . . . . . . . . . . . . . . . . . . . 24
5.5.1 Read Registers (Function Code 0x03 & 0x04) . . . . . . . . . 24
5.5.2 Write single holding register (Function Code 0x06) . . . . 24
6.0 NIC SETUP AND TESTING. . . . . . . . . . . . . . . . . . . . . . 25
6.1 Jumper Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.2 Testing the Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6.3 Service Terminal Troubleshooting . . . . . . . . . . . . . . . . 26
6.4 SNMP Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . 26
6.5 Web Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6.6 Modbus Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . 27
7.0 FIRMWARE UPDATES . . . . . . . . . . . . . . . . . . . . . . . . . 28
7.1 Establishing Communication—Necessary
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
7.2 Establishing Communication—Service Terminal
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
7.3 Firmware Update Procedure . . . . . . . . . . . . . . . . . . . . . 30
8.0 EXTERNAL ENCLOSURES . . . . . . . . . . . . . . . . . . . . . . 33
8.1 Power Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
8.2 Communication Connection. . . . . . . . . . . . . . . . . . . . . . 33
9.0 RETROFIT INSTALLATION . . . . . . . . . . . . . . . . . . . . . . 34
9.1 Environmental Installation . . . . . . . . . . . . . . . . . . . . . . 34
9.1.1 Deluxe System/3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
9.2 System Wiring (SM, AM, AG Microprocessors) . . . . . . 37
ii
9.3 Power Connection (SM, AM, AG Microprocessors). . . . 37
9.3.1 Power Connection (Level 0 and Level 10
Microprocessors) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
9.3.2 Communication Connection (SM, AM, AG
Microprocessor) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
9.3.3 Communication Connection (Level 0 and Level 10
Microprocessors) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
9.4 Himod (LNA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
9.4.1 System Wiring (Himod). . . . . . . . . . . . . . . . . . . . . . . . . . . 39
9.4.2 Power Connection (Himod) . . . . . . . . . . . . . . . . . . . . . . . . 39
9.4.3 Communication Connection (HiMod) . . . . . . . . . . . . . . . . 39
9.5 Mini-Mate2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
9.6 Emerson Network Power (CEMS100 / LECS15) . . . . . 40
9.7 UPS Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
9.8 Npower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
9.8.1 Power Connection for NPower . . . . . . . . . . . . . . . . . . . . . 40
9.8.2 Communication Connection for NPower . . . . . . . . . . . . . 40
9.9 7200 UPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
9.10 HiPulse UPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
9.11 Static Switch2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
9.12 STS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
9.13 PDU and DataWave with PMP & EPMP . . . . . . . . . . . 47
iii
FIGURES
Figure 1 Typical installation of OpenComms NIC card . . . . . . . . . . . . . . . 1
Figure 2 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Figure 3 Null modem cable diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Figure 4 NIC main menu in HyperTerminal . . . . . . . . . . . . . . . . . . . . . . . 8
Figure 5 LED locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

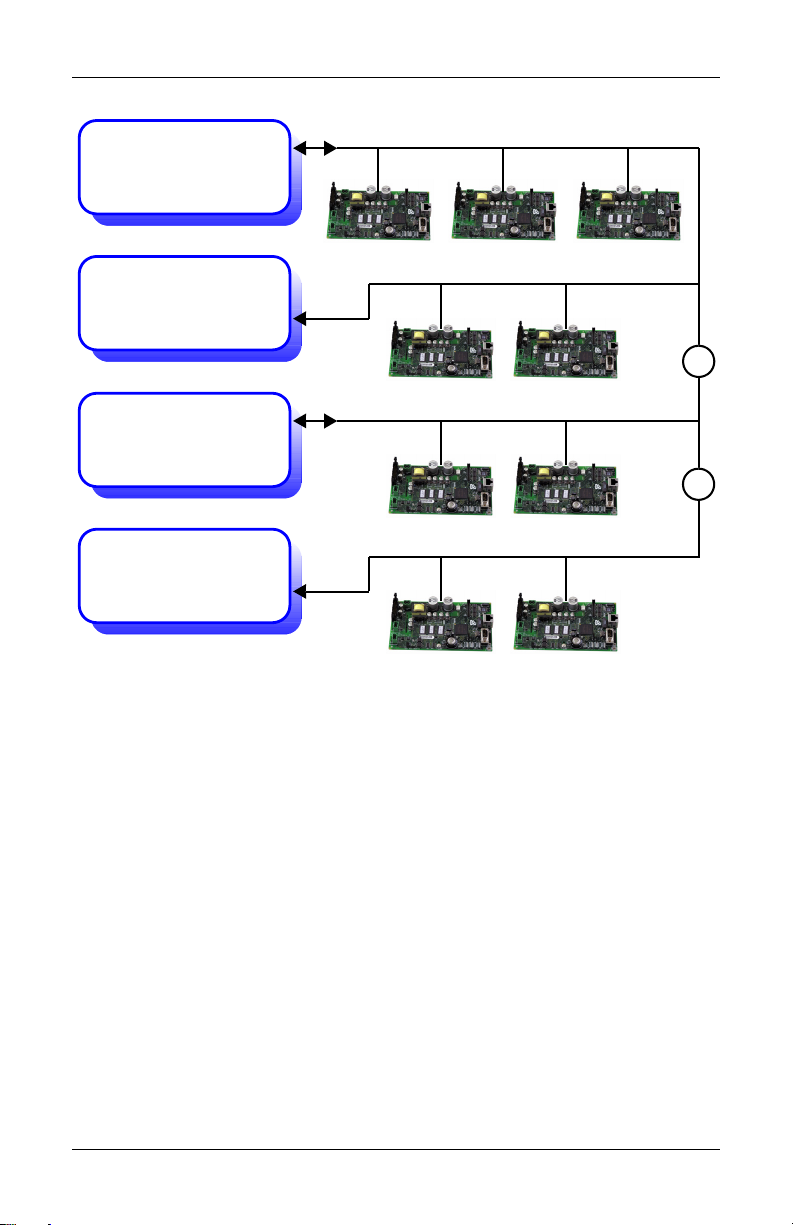

Figure 6 Typical maximum installation . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Figure 7 Exceeding maximum specifications . . . . . . . . . . . . . . . . . . . . . . 21
Figure 8 Jumper positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

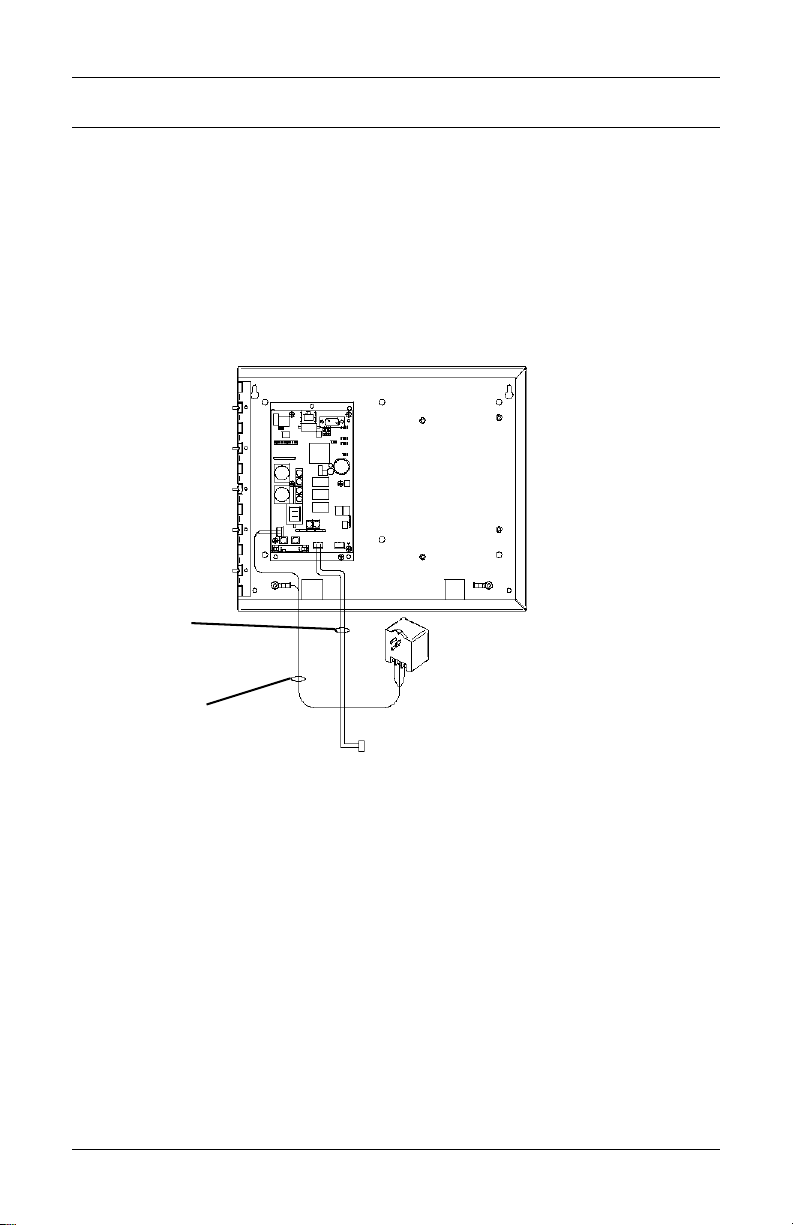

Figure 9 NIC-ENCL1 internal view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

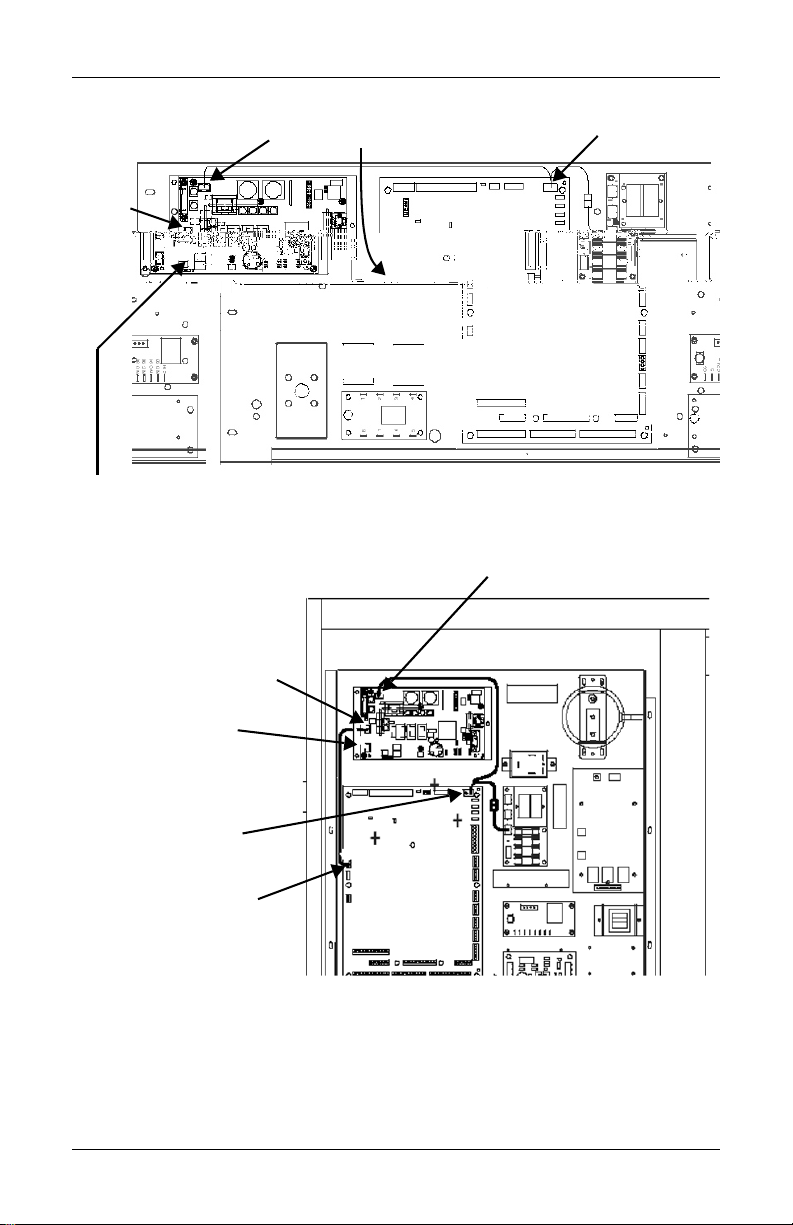

Figure 10 Deluxe System 3 NIC installation . . . . . . . . . . . . . . . . . . . . . . . 34
Figure 11 Deluxe System 3 chilled water control cavity . . . . . . . . . . . . . . 35
Figure 12 ICS control cavity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Figure 13 Challenger installation location . . . . . . . . . . . . . . . . . . . . . . . . . 36
Figure 14 Himod NIC installation location . . . . . . . . . . . . . . . . . . . . . . . . . 38
Figure 15 NPower UPS NIC installation . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Figure 16 7200 UPS NIC installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Figure 17 HiPulse installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Figure 18 STS2 typical NIC location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Figure 19 STS2 NIC installation, 800-1000A units . . . . . . . . . . . . . . . . . . 46
Figure 20 STS2 NIC installation, 100 - 600A units . . . . . . . . . . . . . . . . . . 47
TABLES
Table 1 OpenComms availability . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Table 2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Table 3 Service terminal navigation . . . . . . . . . . . . . . . . . . . . . . . . 10
Table 4 Exception response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
iv
Introduction
1.0 INTRODUCTION
The OpenComms NIC Card transforms Liebert units into manageable
nodes within your Network, NMS, and BMS systems.
The OpenComms NIC Card contains a standard Ethernet and EIA-485
(2-wire) port designed to support viewing and management through:
• HTTP for Web browsers (I.E. 5.5 or later)
• SNMP (v1, v2c) for network management systems
• Modbus RTU for building management systems (and SiteScan)
For the first time, the system that monitors the status of your computing, communication and facility infrastructure can comprehensively
monitor your Liebert equipment concurrently.
These standard open protocols allow simple integration into your monitoring system, leveraging prior infrastructure investments and established procedures.
Figure 1 Typical installation of OpenComms NIC card
Network
Management
Systems
OpenC omms N IC
Buildi ng
Management
System
SNMP HTTP
ETHERNET
Power
Modbus
UPS
1
Air
Internet Web
Browser s
Introduction
1.1 OpenComms Compatibility
The OpenComms NIC may be installed and used with these units:
Environmental Units
• Deluxe System3—Advanced Microprocessor with Graphics,
Advanced Microprocessor and standard microprocessor
• Challenger 3000—Advanced Microprocessor with Graphics,
Advanced Microprocessor and standard microprocessor
• Mini-Mate2
• Level 00—Deluxe System3, Challenger 3000
• Level 10—Deluxe System3, Challenger 3000
• Level 05/15 (UK)
•Himod
• Emerson Network Power (CEMS100 / LECS15)
3-Phase UPS
•Npower
• Hiross 7200 (Italy)
• Hiross HiPulse (Italy)
3-Phase Power
• PDU with PMP or EPMP monitoring
• DataWave with PMP or EPMP monitoring
• Static Switch
• Static Switch2
• Static Switch2/PDU
NOTE
All units are manufactured in North America unless otherwise
noted.
2
Introduction
Table 1 OpenComms availability
Unit
Option
Environmental Products
Factory
Deluxe System 3 and
ICS
Yes Yes NIC-K-SYS3
Challenger Yes Yes NIC-K-CHALL
Mini-Mate2 Yes
Level 00/05/10/15 Yes NIC
Himod Yes Yes NIC
Emerson Network
Power (CEMS100 /
Yes
LECS15)
3-Phase UPS
Npower Yes Yes
Hiross 7200 (Italy) Yes Yes
Hiross HiPulse (Italy) Yes Yes
3-Phase power
PDU DataWave With
PMP or EPMP
Static Switch Yes
Static Switch 2 Yes Yes
1
Requires an external enclosure assembly
2
Contact your sales / service representative or liebert global services for installation.
3
For Australian units, contact the international sales department @
YC.KOK@emersonnetwork.com.au
3
Retrofit
Kit
1
3
Yes
2
37OP000NIC8
2
4645114G
2
4645114d
1,2
Yes
1,2
2
STSNIC
Retrofit Kit
Part #
NIC-ENCL1 OR 2
Consult sales department
NIC-ENCL1 OR 2
NIC-ENCL1 OR 2
Retrofit Kits are designed specifically for individual units. Consult
your local Emerson and Liebert sales representative for pricing, part
numbers and installation help.
3
Table 2 Specifications
Electrical Requirements
Voltage
Power 6VA maximum
Environmental Conditions, °F (°C)
Operating Ambient Temperature 41 to 104 (5 to 40)
Storage Ambient Temperature -4 to 140 (-20 to 60)
Relative Humidity 10% to 90% RH (Non-condensing)
Dimensions, Inches (mm)
Unit Only 7 x 4 x 1.5 (178 x 102 x 38)
As Shipped 9.75 x 7.0 x 2.5 (248 x 178 x 64)
Weight, lb (kg)
Unit Only 0.4 (0.2)
As Shipped 1.3 (0.6)
18 to 24VAC
50/60 Hz, Single Phase
12 to 36VDC
Introduction
4
Installation
2.0 INSTALLATION
The OpenComms NIC card may be ordered as a factory-installed
option, and it may be installed as a kit for field retrofit to existing Liebert units or as a self-contained unit in its own enclosure.
If ordered as a factory-installed option, proceed to 2.3 - User Connec-
tions for OpenComms NIC.
2.1 Retrofit Kit
As a retrofit kit, the circuit board is secured to a metal mounting
plate. The mounting plate then is attached to a flat metal surface in a
low-voltage section of the Liebert unit.
2.2 Self-Contained Unit
The self-contained model packages the interface card inside a steel
enclosure, for mounting external to the Liebert unit. A low-voltage
transformer is also provided.
Figure 2 Connections
IGMnet or SiteScan
Comms from Unit
(input to TB1)
Input Power
(Input to TB3)
Network Port for
NMS and Web access
Modbus Output for BMS
(Output from TB2)
DTE Serial Port
for Configuration
5
Installation
2.3 User Connections for OpenComms NIC
The OpenComms NIC can use simultaneous connections, sometimes
requiring three user connections:
• Permanent network connection
• Modbus 485 connection
• Temporary serial connection for configuration/setup
2.3.1 Network Port
Consult with the network administrator or other responsible party for
arranging a network drop to the Liebert equipment. The OpenComms
NIC communicates via standard 10 Base-T Ethernet network connection. Route the 10 Base-T cable to the Liebert unit and connect to J3,
the RJ45 jack on the interface card. The OpenComms Network card
will operate with any 10 Base-T Ethernet, regardless of operating system used.
2.3.2 BMS Port
The Modbus 485 connection will use the terminals marked “Repeater.”
(TB2) The Modbus server uses RTU protocol and will allow for a maximum of 32 units on 4000ft. of wire on a common line. EIA-485 repeaters may be necessary to accommodate additional units or longer
cables. Point availability may be referenced in the document, “NIC
Reference Library,” which may be downloaded at www.liebert.com
under the OpenComms product family.
2.3.3 Configuration Port / Service Terminal
A temporary serial connection to the interface card is necessary for
configuration and setup.
Using a DB9F-DB9F null-modem cable, connect the “DTE Serial Port”
P18 to an ASCII terminal or computer running terminal emulation
application. HyperTerminal® and Procomm® are examples of terminal emulation applications running on Microsoft Windows® operating
systems. All trademarks are property of their respective owners.
6
Installation
Accessing the Configuration Port
What you will need:
• PC capable of running a terminal emulation application, such as
Microsoft Windows® HyperTerminal®.
• DB9 Null modem or file transfer cable. (The correct cable will have
at a minimum, pins 2 and 3 crossed at the ends.) Null modem
cables are commonly found in computers stores and may also be
referred to as a file transfer cable.
Figure 3 Null modem cable diagram
DTE Device
Receive Rx (pin2)
Null Connection
DTE Device
Receive Rx (pin2)
Transmit Tx (pin3)
Transmit Tx (pin3)
NOTE
Turn off the power management on your PC or laptop to ensure
that the communications port will not “go to sleep” during the
configuration process.
1. Launch HyperTerminal. When you see the
screen at right, select Cancel.
2. Select the disconnect icon from the menu bar.
This step ensures that you will be able to
modify the configuration settings.
3. Go to File > Properties to make
configuration changes. Under the Connect
To setting, choose the appropriate communications port for your
computer. Generally this is Com 1.
4. Select the Configure button
and adjust the terminal
communication settings to:
• Bits per second: 9600
•Data Bits: 8
• Parity: None
• Stop Bit: 1
• Flow Control: None
•Select OK to close both win-
dows.
5. After the communication
settings are adjusted, press
7
Installation
the Enter key on your keyboard. This will initiate
communications with the card and the following screen should be
displayed.
Figure 4 NIC main menu in HyperTerminal
(You can also cycle power on the OpenComms NIC card. This will
also initiate communications and provide information on current
revision status.)
6. When the message “Initializing Network…” appears, hit the
Enter key on your keyboard. (Additional network information
may appear)
CAUTION
!
Cycling power on either the 7200 or the HiPulse UPS is not
recommended unless the unit is in bypass mode. Consult the
UPS user manual for further instructions.
8
System Configuration
3.0 SYSTEM CONFIGURATION
3.1 DIP Switch Settings
A four-position DIP switch is provided, but no user configuration via
DIP switches is necessary at this time.
3.2 Service Terminal
Refer to Accessing the Configuration Port on page 7 for explicit
details on accessing the service terminal / configuration port.
By default, the service terminal communication parameters are:
• 9600 bps
•No parity
• 8 data bits
• 1 stop bit
• Flow Control: None
After connecting to the OpenComms NIC card, press the space bar or
<Enter> key to activate the service terminal session. If no response is
apparent and you have verified connectivity, cycle power on the OpenComms NIC and the service terminal sessions should appear automatically.
CAUTION
!
Cycling power on either the 7200 or the HiPulse UPS is not
recommended unless the unit is in bypass mode. Consult the
UPS user manual for further instructions.
9
Table 3 Service terminal navigation
Main Menu
1. System Information
1.1 Name
1.2 Contact
1.3 Location
1.4 Description
2. Network Settings
2.1 Boot / IP Settings
2.1.1 Boot Mode
2.1.1.1 Static
2.1.1.2 BootP
2.1.1.3 DHCP
2.1.2 IP Address
2.1.3 Netmask
2.1.4 Default Gateway
2.2 SNMP Communications
2.2.1 SNMP agent (enable/disable)
2.2.2 Authentication Traps (enable/disable)
2.2.3 Display / Modify Communities
2.2.4 Display / Modify Trap Communities
2.3 Web Server
2.3.1 Web Server (enable/disable)
2.3.2 Configuration Control (enable/disable)
2.3.3 Refresh rate
2.4 Telnet Server
2.4.1 Telnet server (enable/disable)
System Configuration
10
System Configuration
System Information Menu
The System Information Menu seeks descriptive input to enable the
unit to be identified. This data is readable via SNMP queries. The (“)
character is not permitted in any of the descriptive fields
Network Settings Menu
The Network Settings Menu configures network parameters essential
for proper network operation. The network administrator or other personnel responsible for the network should be consulted for the proper
parameters to be entered in this menu.
In the static mode, the IP address is entered. Use the standard fourpart dotted decimal format. The NetMask and Default Gateway
should also be entered in dotted decimal format. The NetMask, also
known as subnet mask, delineates devices on the same physical network segment, versus devices that require the services of a network
router for access to other networks. The Default Router is the address
of default router on the local segment.
CAUTION
!
Consult your network administrator to ascertain the
parameters appropriate to your network.
BOOTP and DHCP Mode
The OpenComms NIC supports DHCP and BOOTP if a DCHP or
BOOTP server must exist on the network. When this feature is
enabled, at boot-up the card will perform a DHCP or BOOTP request
for configuration information, including automatic assignment of an
IP address. If the card receives the information, no further requests
are made. If, at boot-up, a response is not received, the card will continue to send a request approximately every 30 seconds until a
response is received. When this condition is encountered, pushing the
<Enter> key returns the unit to the service terminal mode.
SNMP Communications Menu
The SNMP (Simple Network Management Protocol) Communications
Menu specifies parameters particular to the SNMP interface. Communities are used as a means of security for SNMP v1; only specified
hosts with the appropriate community name(s) are allowed to perform
particular SNMP operations. Up to 20 different communities can be
assigned.
For each community, specify the dotted decimal IP address of the
remote host, the privilege level (read or read/write), and community
name. Trap Communities specify the recipient(s) of SNMP trap messages generated by the OpenComms Network Interface Card. Typically; the recipient is the management station of the NMS. Specify the
11
Loading...
