AC Power For Business-Critical Continuity

™

Liebert® NX

UPS For Small And Medium Business

™

Emerson Network Power Has A UPS That Matches Your Growth Plans

Changing data centers, rapid and unpredictable growth, plus a myriad of other power-related challenges are making it increasingly difficult to protect critical network equipment and other electronic components.

As you upgrade and expand your business, do you find small UPS proliferating throughout your racks? Do you lose track of how old each UPS is and when the batteries should be replaced? Are dropped loads your first indication that the UPS has a problem?

If this situation sounds familiar, then a data center UPS like the Liebert NX can simplify your life by eliminating multiple points of failure, and consolidating your power equipment into one professionally serviced system. If your power requirements are changing faster than your UPS can, there is a Liebert NX model that is perfect for your application.

Liebert NX: The Right Combination Of Features And Flexibility For Growing Data Centers

Liebert NX is a true on-line, double conversion, threephase UPS system that delivers complete, centralized power protection for mission-critical systems. Designed to meet the high availability power needs of a wide variety of IT applications, this power solution delivers advanced operating features and low cost of ownership.

There Is A Liebert NX UPS System That Is Ideally Suited To Power Electronic Equipment In Your Small To Medium Business:

Small to mid-size data centers

Server rooms

Production

Labs and testing

Telecommunications

Process control

Point-of-sale

And other sensitive electronics

A Power Solution For Every Level Of Need

The full line of Liebert NX power systems covers a range of UPS capacities to meet the needs of small and medium data centers:

Small Data Centers with up to 10 Racks:

Liebert NX 10-30 kVA UPS

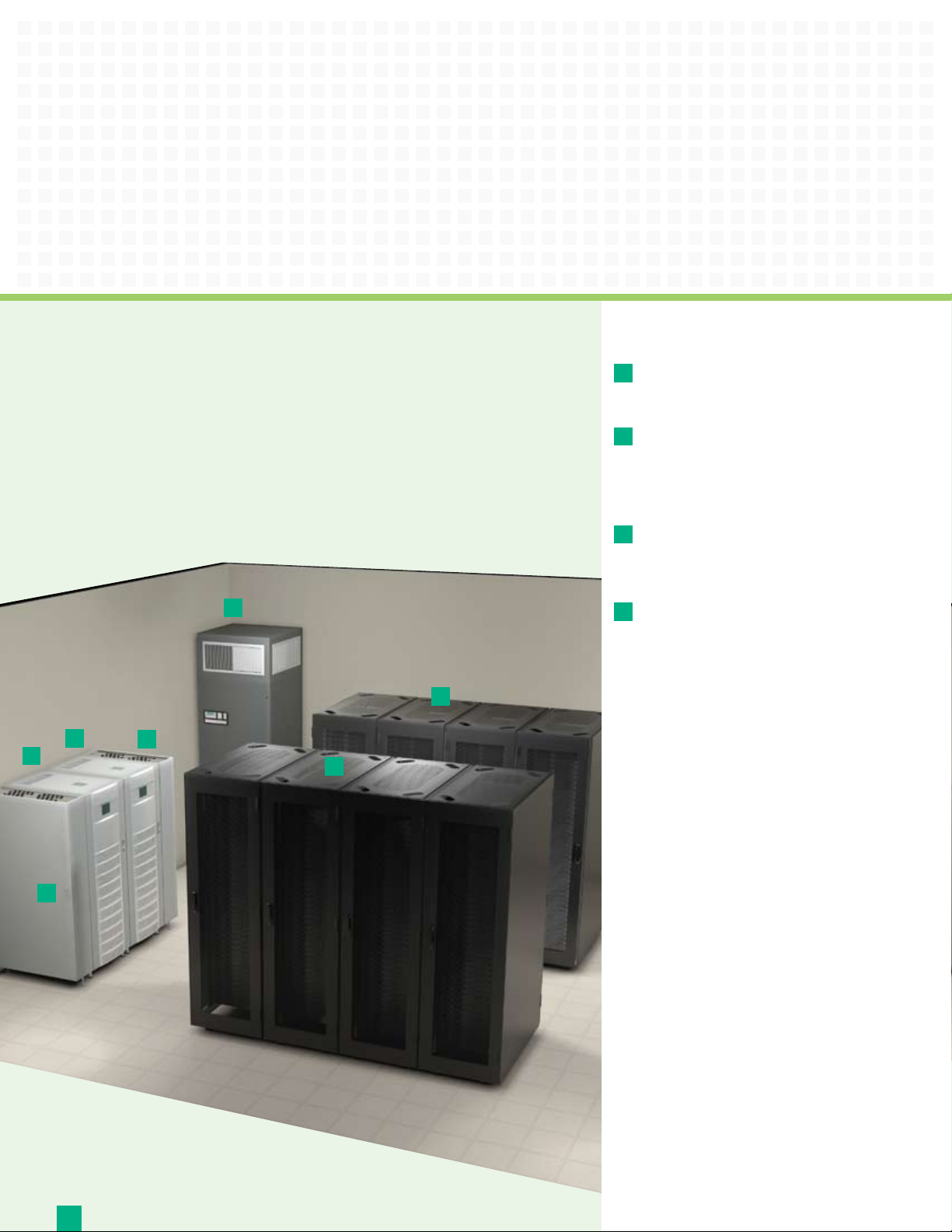

Small Data Centers with 10-30 Racks

Liebert NX 40-120 kVA UPS with Softscale

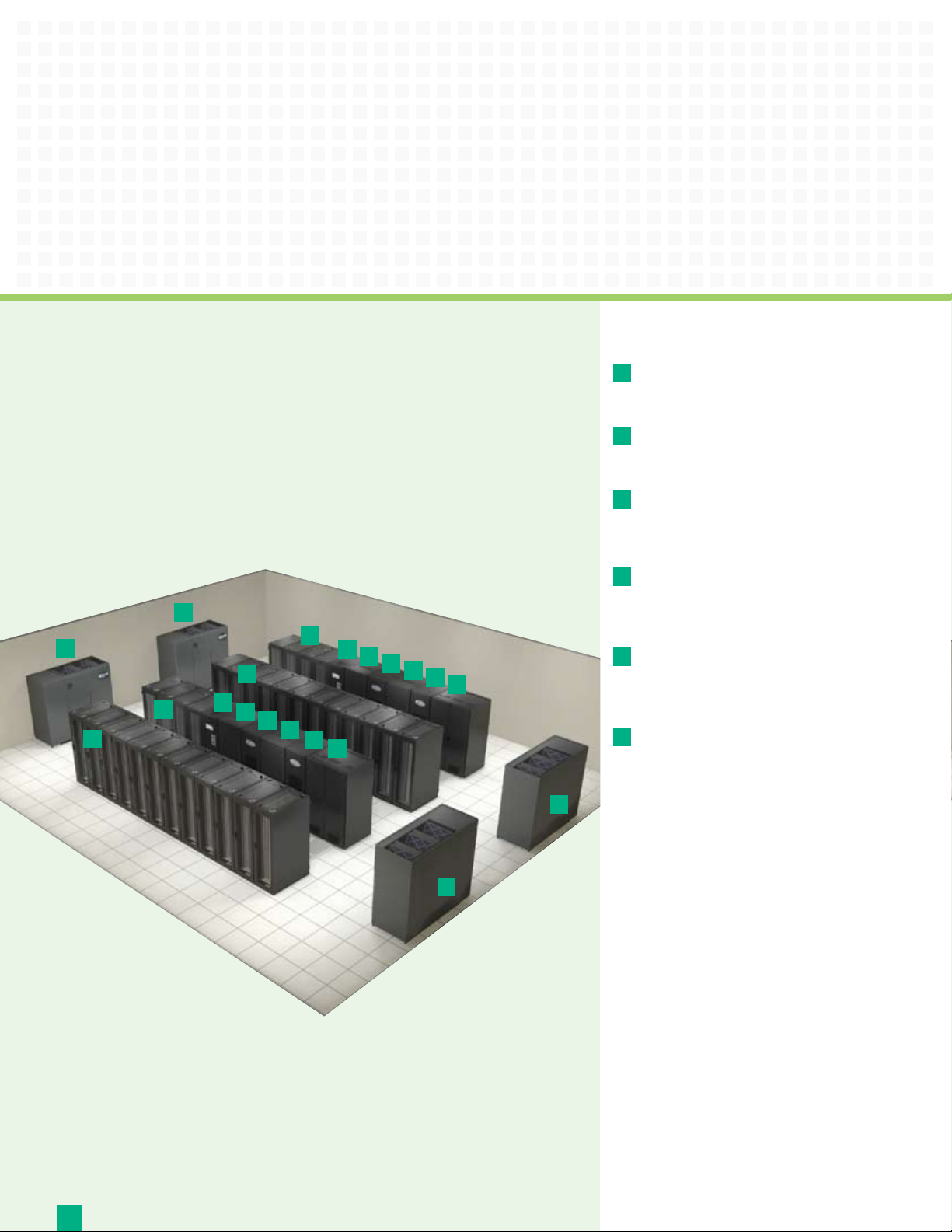

Medium Data Centers with up to 200 Racks

™

Liebert NX 160-200 kVA UPS with Softscale

Liebert NX 10, 15, 20 & 30 kVA

Liebert NX 10-30 kVA UPS

Increases growth flexibility by handling larger loads, plus the ability to parallel 20 and 30 kVA modules for increased capacity and redundancy.

Achieves higher availability by reducing the number of UPS units required to power your room.

Reduces total cost of ownership through the use of longer life batteries and simplified preventive maintenance.

Liebert NX 40, 60, 80, 100 & 120 kVA

Liebert NX 160 & 200 kVA

Liebert NX 40-200 kVA UPS

Softscale™ technology provides flexibility to increase UPS capacity by 20 or 40 kVA without changes in your infrastructure.

Parallel UPS modules for capacity and redundancy and eliminate the batteries as a single point of failure because each UPS has its own isolated battery.

Softscale™ technology, paralleling capabilities and Eco-mode™, all contribute to lower initial, incremental and operating costs.

Select The Liebert NX Model That’s Right For Current And Future Needs

The versatile Liebert NX is available in capacities and configurations to meet the current and future power needs of many small to mid-size applications.

NX Features Overview

10, 15 kVA 20, 30 kVA 40, 60, 80, 100, 120, 160, 200 kVA 40, 60, 80, 100, 120, 160, 200 kVA Capacity Growth Single Module Multi Module Single Module Multi Module

Parallel for capacity

Parallel for redundancy

Parallel unlike capacities

Optional paralleling cabinet

n n

up to 3 modules

up to 4 modules

Softscale™ technology

Advanced Electronics

Digital signal processor controls

True on-line double conversion

n n n n

Optimized efficiency using soft-switching technology

IGBT-based input power factor corrected rectifier

Dual bus synchronization Optional

n n n n

Optional Integrated Integrated

Performance

™

Eco-Mode

high efficiency configuration

Wider input voltage and frequency tolerances

High overload protection

Built-in automatic bypass Optional Matching Bypass distribution cabinet

n n n n

Paralleling Cabinet Used

for 2+ Modules

Optional battery cabinet interconnect cables

Optional internal batteries

Optional external battery cabinets

Triple-mode battery charger for fast battery recharge

n n n n

n n

n n n n

Physical Characteristics

In-The-Row form factor

Front access service

Front access installation

Compact footprint

Communications

Liebert IntelliSlot® communications compatibility

Multi-language LCD display

1 year Free Ntegrated Reporting

n n

n n n n

n n

n n n n

with Virtual Ntegrity Gateway purchase

UPS Service with Ntegrated Monitoring Optional

Optional

Warranty/Service

One Year Warranty

Optional start-up: extends one year warranty

n n n n

to include cost of travel and labor

n n

n n n

n n

Paralleling Cabinet Used

up to 3 modules*

up to 4 modules*

for 2+ Modules

n n

*Note: Contact factory for switchgear options when paralleling more than four UPS modules or when paralleling 160-200kVA UPS modules.

Liebert NX Features

The Liebert NX family of UPS systems offers a variety of operating features to meet a wide range of requirements:

Capacity Growth

n Parallel for capacity — Up to 3 UPS modules may

be used in a parallel configuration to provided added capacity as needs grow.

n Parallel for redundancy — Up to 4 UPS modules

may be used in a parallel configuration to provide redundancy for added reliability. Contact factory for switchgear options when paralleling more than 4 UPS modules.

n Parallel unlike capacities — The Softscale

technology of the Liebert NX allows you to change your growth increment without having to obsolete your existing UPS. For example, a Softscale UPS rated 80kVA can be paralleled with another Softscale UPS rated 120kVA for a combined output capacity of 200kVA.

n Optional paralleling cabinets — These cabinets

include various switchgear configurations to parallel NX modules rated 20kVA or 30 kVA, or Softscale models rated 40kVA – 200kVA, for additional capacity and redundancy.

n Softscale

™

technology — The Liebert NX UPS

Softscale capability provides fast software scalability. Purchase the capacity you need today, then when your power needs grow you simply purchase a software key and an Emerson Customer Engineer will visit your site to increase the UPS capacity. Softscale models are available in the range of 40kVA to 80kVA; 80kVA to 120kVA, and 160 & 200 kVA.

Advanced Electronics

n Digital signal processor controls — The

advanced topology of the Liebert NX features a digital signal processor (DSP) controlled IGBT rectifier and IGBT inverter. Digital controls provide the fastest possible power management to enhance reliability, accuracy and efficiency while reducing component count.

n True on-line double conversion — Output power

is regenerated inside the UPS, providing protection from the full range of power irregularities.

n Optimized Efficiency using

Soft-switching technology — This design technique improves system efficiency and maintains high efficiency performance from 40% to 100% utilization.

n IGBT-based input power factor corrected

rectifier — Enables the Liebert NX to achieve its impressive THD and PF performance.

n Dual bus synchronization — Provides the

capability to synchronize the outputs of two independent UPS when they are configured as a redundant system feeding independent distribution paths.

Performance

n Eco-Mode high efficiency configuration —

Operating mode that switches the UPS to static bypass during normal operation. When power problems are detected the UPS automatically switches back to double conversion mode.

n High overload protection — The system’s static

switch overload rating makes it capable of clearing a 20 A branch circuit breaker. Handles 125% for 10 minutes, 150% for one minute and a 1000% overload for 10 milliseconds.

n Built-in automatic bypass — Transfers the load

to bypass in the unlikely event that a fault occurs in the UPS.

n Optional maintenance bypass

distribution cabinet — Provides complete wrap-around maintenance bypass allowing UPS to be powered down or taken out of service without disconnecting power to the load.

n Optional internal batteries — Batteries can be

housed within the UPS itself in Liebert NX 10, 15, 20 and 30 kVA sizes.

n Optional external battery cabinets — Provide

added back-up capacity for extended runtimes.

n Triple-mode battery charger for fast battery

recharge — Three charging modes ensure maximum battery availability:

•Constant current charging provides maximum rated current to the battery until the voltage rises to a pre-determined limit.

•Constant voltage charging allows the batteries to recover the final percentage of recharge capacity. A boost voltage is provided for a short term to reduce the battery recharge interval.

•Float charging maintains the battery at the recommend voltage.

Physical Characteristics

n In-The-Row form factor — Liebert NX 40-200 kVA

models are housed in IT rack style cabinets for easy integration within equipment rows.

n Front access service — Allows easy servicing of

critical internal components.

n Front access installation — No need for side

access when installing UPS.

n Compact footprint — Requires less floor space,

leaving you with more room for other equipment.

Communications

n Liebert IntelliSlot

compatibility — Power communications available through Liebert IntelliSlot Web Card LB and Liebert MultiLink

n Multi-language LCD display — Large and

user-friendly LCD display provides operating information in twelve languages.

n Liebert NX Softscale Service with Ntegrated

Monitoring — Advanced monitoring and network security capabilities from the service business of Emerson Network Power provide an integrated approach to alarm management, predictive maintenance and emergency service response. Utilizes remote monitoring capabilities to provide periodic equipment condition reports, alarm retrieval and warehousing, escalation management, and 7 x 24 emergency service response.

n UPS Service with Ntegrated Monitoring —

Advanced monitoring and network security capabilities from the service business of Emerson Network Power provide an integrated approach to alarm management, predictive maintenance and emergency service response.

communications

™

shutdown software.

Warranty/Service

n One year warranty — Standard warranty provides

full coverage for one year.

n Optional start-up of UPS — factory trained

service personnel ensure proper start-up of the UPS. This option extends the one year warranty to include labor and travel.

Liebert NX: Flexible, Reliable And Economical

The Liebert NX family of UPS systems combines

numerous technology advances and innovations

to create a power system that combines high

performance, compact size, reliability and cost-

efficiency. Liebert NX models are available with

characteristics to fit the flexibility and availability

needs of different sites.

Flexibility:

Parallel units that are the

same or different capacities for greater flexibility in managing power growth.

Generator compatible.

Power communications available

through Liebert IntelliSlot Card LB and Liebert MultiLink shutdown software.

Large and user-friendly LCD display

provides operating information in twelve languages.

Internal automatic bypass

transfers load to bypass in the unlikely event that a fault occurs in the UPS. Optional wrap-around maintenance bypass allows the UPS to be powered down or taken out of service without disconnecting power to the load.

Easy servicing due to front

accessibility of critical components, self-diagnostics and various monitoring options.

Optional Bypass

Distribution Cabinets.

Web

™

Higher Availability:

Wider input voltage window

and frequency tolerances help to minimize transfer to battery, reducing the number of charging and discharging cycles.

High overload rating capable of

clearing a 20 A branch circuit breaker.

True on-line double conversion

technology protects and conditions against the full range of power irregularities, requiring fewer transfers to battery.

Advanced inverter control

technology provides the highest output power quality to maximize efficiency and operating life of connected equipment.

Load Bus Synchronization provides

the capability to synchronize the outputs of two independent UPS modules when they are configured as a redundant system feeding independent distribution paths.

An intelligent battery

management algorithm monitors the battery to detect any premature battery failure.

Lowest Total Cost Of Ownership:

Soft-switching technology

optimizes operation with the same high efficiency at 40% utilization as at 100% utilization.

Adaptive input voltage window

results in fewer hits on the battery.

The unit’s compact footprint

requires less floor space, leaving you with more room for other equipment.

Temperature-compensated

battery charging extends battery life.

Softscale technology allows you

to purchase the capacity you need now and economically upgrade in the future without the expense of additional cabinets or floorspace.

UPS Monitoring And Service:

A Critical Part Of The Uptime Solution

Liebert Services from Emerson Network Power will

help you maximize the availability of your protected

equipment, and increase the life of your Liebert NX

UPS, with a full range of monitoring and scheduled

preventive maintenance offerings.

Liebert NX Softscale Service With Ntegrated Monitoring

When purchasing startup of a Liebert NX 40-200 kVA UPS and an optional Virtual Ntegrity Gateway, you will receive one free year of Ntegrated Monitoring and Reporting. After the first year, you may continue your service by renewing it for as long as you like. A maintenance contract is required to continue the same level of monitoring service.

Ntegrated Monitoring from Liebert Services incorporates advanced monitoring, and leading network security, to provide an integrated approach to alarm management, equipment maintenance and emergency service response.

How It Works

Ntegrated Monitoring links your critical resources (power, UPS, environmental equipment) to the Liebert High Availability Response Center for 24x7x365 monitoring. Redundant system hardware and separate connections in two countries maintain a continuous connection at all times. Your system is safe, secure and always working.

Ntegrated Monitoring includes:

Alarm Reporting — All alarm and service activity is summarized

for you in a monthly status report. The critical information in these reports is used to pinpoint trouble spots, anticipate maintenance, and highlight any issues that may cause your

™

Liebert NX to operate at less than peak performance.

Escalation Plan — With Ntegrated Monitoring’s continuous communication, your equipment can operate unmanned, saving you costly maintenance hours. You simply need to select the recipients for notification in a predetermined escalation plan.

Trending and Analysis — Vital information on your system status is recorded, stored and reported, so you can easily analyze it for patterns and areas of concern. Whenever an alarm is generated at your site, it is recorded and entered in our database along with the action that was taken. These reports are used to pinpoint any trouble spots and help to resolve any issues that may have your system running at less than peak performance.

The Real Value Of Preventive Maintenance

Another way end-users can further minimize unit-related failures is to institute a comprehensive preventive maintenance program that is implemented by OEM trained and certified technicians such as those with Liebert Services from Emerson Network Power.

Liebert Customer Engineers (CE) are continuously trained in order to be up-to-date with new procedures, equipment, designs and updates that have been made.

Factory Trained Resources Available 24X7

Liebert Services from Emerson Network Power has the industry’s largest coverage with over 2000 Certified Factory Trained Engineers. Our Liebert High Availability Response Center supports you 24x7 with a staff of knowledgeable people who understand the technology and your equipment. And to make sure the job gets done when it needs to, we have factory-certified parts — availible for shipment when you need them.

Accessories To Extend The Capabilities Of Your Liebert NX System

Benefits Of Using 208 or 480V Systems

Depending on your site needs, input and output power requirements can affect your efficiency and ROI.

In general, when site application needs are 60kVA and lower, 208V power will typically be available at the room entrance. Matching your UPS to this voltage is a more efficient method of delivering power to your connected equipment and maximizing existing the infrastructure. When power requirements reach 40kVA and above, operating your UPS at 480V can result in significantly reduced installation costs while improving the quality of power provided to your loads.

Liebert NX BDC Bypass and Distribution Cabinet

The Liebert NX 40-200 kVA, 480VAC UPS can be

paired with a Liebert NX Bypass and Distribution Cabinet, available with various input and output voltage combinations and distribution options. These matching cabinets bolt directly to right side of the UPS and include all internal power and control interconnect wiring.

Liebert NX BDC Cabinets are available in capacities of 75kW, 125kW and 200kW covering the Liebert NX UPS range of 40-200kVA.

Liebert NX 10-30 kVA UPS SlimLine Power Distribution Cabinet is designed to bolt directly to

the Liebert NX 10-30kVA UPS and provides a 42-pole panelboard for power distribution. Load cabling can be routed through the top or bottom of the SlimLine cabinet.

Operating the UPS at an input voltage of 480V eliminates the need to run a neutral conductor and requires smaller gauge wire vs. operation at 208V. Utilizing a BDC or FPC on the output of the UPS creates a separately derived source of 208/120V providing computer grade power isolation and reduced short circuit fault currents while creating a solid neutral to ground bond located close to your protected loads.

This Means:

Lower installation costs due to 20% less copper wiring.

More reliable system by establishing neutral to ground bond close to the

protected load.

Easier installation of fewer wires of smaller size.

Liebert FPC™ Power Conditioning And Distribution Cabinet

The rack-size Liebert FPC power conditioning and distribution cabinet provides higher quality, more flexible power distribution for high-density data centers. It is engineered to combine the convenience and cost savings of a pre-packaged, factory-tested unit with the flexibility of a customtailored power system. This selfcontained system provides power isolation, power distribution to the individual racks, IT equipment-grade grounding and power monitoring.

The Liebert FPC is designed to fit at the end of, or within, a row of racks, as well as in a standalone configuration.

Liebert NX Battery Cabinet

Valve Regulated Lead Acid (VRLA) batteries provide mission critical back up. High reliability features include 10-year design life batteries with flame retardant cases, factory installed battery circuit breaker protection, and optional Albér battery monitoring for early warning detection of battery problems.

Liebert NX UPS Paralleling Cabinet

Increase UPS capacity or add redundancy with the addition of the NX Paralleling Cabinet. Parallel up to three UPS modules for capacity, and add a fourth for redundancy.

10-30 KVA Liebert NX Single Module

20-30 KVA Liebert NX Multi-Module

Liebert Slimline

Distribution

Cabinet

Liebert

Maintenance

Bypass

Cabinet

Liebert NX

UPS

Liebert Battery

Cabinet

40-200 KVA Liebert NX Single Module

Liebert Battery

Cabinet

Liebert NX

UPS

Liebert Battery

Cabinet

Liebert NX

UPS

Liebert

Paralleling

Cabinet

40-200 KVA Liebert NX Multi-Module

Battery Cabinet

Liebert NX UPSLiebert

Liebert Bypass

and Distribution

Cabinet

Liebert Battery

Cabinet

Liebert NX

UPS

Liebert Battery Cabinet

Liebert NX

UPS

Liebert

Paralleling

Cabinet

Up To 10 Racks — Small Data Center Three Phase

Liebert NX: Part Of A Total IT System Protection Solution

Solution:

Products:

Liebert NX — 10kVA to 30kVA. Can also

be paralled to 90 kVA redundant to meet room power needs.

For the server room or small data center consisting of 2-10

Liebert Slimline Distribution Cabinet

racks, this innovative and reliable Liebert solution might be the fit for your network protection needs. When information is highly critical, and downtime inexcusable, this Solution has the reliability you demand. Racks, air, power, service and monitoring — installed and pre-engineered to work together and to never stop working.

— provides a space-saving 42-pole panelboard for load distribution from the UPS output. Each panelboard includes a main circuit breaker.

Knurr Miracel® Racks — Lightweight,

easy to assemble, stable racks that offer 83% ventilation and simple add-on options.

Liebert Challenger 3000 — A self-

contained environmental control system that produces 3-5 tons of precision cooling in less than 7 square feet. Provides temperature control, humidity control and air filtration 24 hours a day, 365 days a year.

Liebert MultiLink Shutdown Software — Monitors battery status

and warns users of impending power loss, and automatically shuts down systems in a safe and orderly manner.

10-30 KVA Liebert NX

Specifications

NX Maintenance NX Parallel NX Slimline NX Battery Cabinet Bypass Cabinet Cabinet Distribution Cabinet Models

NX 10 kVA NX 15 kVA NX 20 kVA NX 30 kVA 10kVA-30kVA 10-30 kVA 20-30 kVA 10kVA-30kVA

Power Rating - kVA 10 15 20 30 N/A 10, 15, 20, 30 20 to 90 kVA N/A

Power Rating - kW 8 12 16 24 N/A 8, 12, 16, 24 16 to 72 N/A Input AC Specifications

Phase 3 N/A 3 3 3 Power Factor 0.99 N/A N/A N/A N/A Frequency - Hz 50 or 60 N/A 60 60 60 Frequency Range - Hz +/- 5 Hz N/A N/A N/A N/A Input Voltage 120/208 N/A 120/208, 220, 480, 600 208,480, 600 208/120 Input Voltage Range +10,-20 N/A N/A N/A N/A

General Specifications

UPS Technology On-Line, Double Conversion N/A N/A N/A N/A

Battery Specifications

Battery Test Type On-Line N/A N/A N/A N/A Battery Technology VRLA, Wet Cells VRLA N/A N/A N/A

Output AC Specifications

Nominal Voltage 120/208 288 VDC 120/208 120/208 120/208 Frequency - Hz 50 or 60 60 60 60 60 Output Waveform Sinewave Sinewave Sinewave Sinewave Sinewave Distribution N/A N/A N/A N/A 1 Panelboard (42 poles)

User Interface

LCD Display Yes N/A N/A N/A N/A

Communications

Communications Options Intellislot, SNMP, Relay Card, MultiLink N/A N/A N/A N/A

Physical Data

Form Factor Stand Alone Stand Alone Stand Alone Stand Alone Stand Alone Unit Height - inches (mm) 63 (1,600) 63 (1,600) 63 (1,600) 63 (1,600) 63 (1,600) Unit Width - inches (mm) 24 (600) 27 (686) 27 (686) 27 (686) 11 (279) Unit Depth - inches (mm) 32.5 (825) 32.5 (825) 32.5 (825) 32.5 (825) 32.5 (825) Unit Weight - lbs. (kg) 450 (205) to 1250 (567) w/ internal batteries 1350 (612) to 3740 (1697) 620(281) to 1400 (635) 904 (410) to 1912 (867) 250 (115) Shipping Height - inches (mm) 69 (1,753) 69 (1,753) 69 (1,753) 69 (1,753) 69 (1,753) Shipping Width - inches (mm) 32 (813) 35 (889) 35 (889) 35 (889) 35 (889) Shipping Depth - inches (mm) 40 (1,016) 40 (1,016) 40 (1,016) 40 (1,016) 40 (1,016) Shipping Weight - lbs. (kg) 600 (273) to 1400 (635) w/ internal batteries 1,500 (680) to 3940 (1787) 770 (349) to 1550 (703) 1104 (500) to 2112 (958) 400 (182)

Environmental

Operating Temperature, Min., °F (°C) 32 (0) 32 (0) 32 (0) 32 (0) 32 (0) Operating Temperature, Max., °F (°C) 104 (40) 104 (40) 104 (40) 104 (40) 104 (40) Storage Temperature, Min., °F (°C) -4 (-20) -4 (-20) -4 (-20) -4 (-20) -4 (-20) Storage Temperature, Max., °F (°C) 158 (70) 158 (70) 158 (70) 158 (70) 158 (70) Relative Humidity 0% to 95%, Non Condensing Operating Elevation - ft. (m) to 3,300 (1000) to 3,300 (1000) to 3,300 (1000) to 3,300 (1000) to 3,300 (1000) Storage Elevation - ft. (m) to 40,000 (12,200) to 40,000 (12,200) to 40,000 (12,200) to 40,000 (12,200) to 40,000 (12,200) Sound Emission/Audible Noise <54 dBA, at 1meter N/A N/A N/A N/A Cooling Fan Cooled Convection Cooled Convection Cooled Convection Cooled Convection Cooled

Agency/Certification/Conformance

Agency Approval

Warranty

Standard 1 Year 1 Year 1 Year 1 Year 1 Year

UL 1778, c-UL, FCC Class A

0% to 95%, Non Condensing 0% to 95%, Non Condensing 0% to 95%, Non Condensing 0% to 95%, Non Condensing

UL 1778, c-UL, FCC Class A UL 1778, c-UL, FCC Class A UL 1778, c-UL, FCC Class A UL 1778, c-UL, FCC Class A

10-30 Racks — Small Data Center Three Phase

Liebert NX: Sized To Fit The IT Space

Solution:

As your rack-mount systems grow more complex and critical,

Products:

Liebert NX — 40-120 kVA with Softscale

technology, can be paralleled up to 360 kVA redundant.

Liebert has the solution for you. Designed for a 10-30 rack data

Liebert NX Battery Cabinet — provides

center, this example combines racks, UPS, precision cooling, service, monitoring, installation and the highly important power distribution equipment — pre-engineered to work together. Use this suggested scenario to begin framing the protection to suit your needs.

battery back up. Add cabinets to meet back up needs.

Liebert NX Paralleling Cabinet —

provides the necessary componentry for parallel operation of multiple Liebert NX modules.

Liebert NX Bypass Distribution

Cabinet — Packaged power distribution

for today’s rack-based data centers and IT facilities, withplug-and-play flexibility.

Knurr Miracel® Racks — Lightweight,

easy to assemble, stable racks that offer 83% ventilation and simple add-on options.

Liebert DS — Provides precision control

of the room environment, including temperature, humidity, filtration and airflow. Available in 28-105kW (8-30 tons).

Liebert MultiLink Shutdown Software — Monitors battery status and

warns users of impending power loss,

and automatically shuts down systems in a safe and orderly manner.

Liebert Nform™ IT Network Monitoring Software — Cost-effective monitoring

and communications software solution combines full-scale monitoring with costeffective deployment through the use of the existing network infrastructure.

Liebert IntelliSlot® Web Card LB — Communications interface card compatible with Liebert NX UPS, delivers SNMP, Telnet and web-management capability for enhanced communications and control.

40-120 KVA Liebert NX

Specifications

Models

Power Rating - kVA

Power Rating - kW

Input AC Specifications

Phase

Power Factor

Frequency - Hz

Input Voltage

Input Voltage Range

General Specifications

Technology

Battery Specifications

Battery Test Type

Battery Technology

Output AC Specifications

Nominal Voltage

Frequency - Hz

Output Waveform

Distribution

User Interface

LCD Display

Communications

Communications Options

Physical Data

Form Factor

Unit Height - inches (mm)

Unit Width - inches (mm)

Unit Depth - inches (mm)

Unit Weight - lbs. (kg)

Shipping Height - inches (mm)

Shipping Width - inches (mm)

Shipping Depth - inches (mm)

Shipping Weight - lbs. (kg)

Environmental

Operating Temperature, Min., °F (°C)

Operating Temperature, Max., °F (°C)

Storage Temperature, Min., °F (°C)

Storage Temperature, Max., °F (°C)

Relative Humidity

Operating Elevation - ft. (m)2²

Sound Emission/Audible Noise

Cooling

Agency/Certification/Conformance

Agency Approval

Warranty

Standard

NX 40 kVA

UPS

40 60 80 80 100 120 80 120 75, 125

36 54 72 72 90 108 72 108 75, 125

NX 60 kVA

25.5 (648) 41 (1040)

1290 (585) 1422 (645) 1750 - 2620

48.0 (1200) 48.0 (1200) 48 (1220) 48 (1220) varies by configuration

48.0 (1200) 60.0 (1524) 48 (1220) 65 (1651) varies by configuration

1440 (653) 1572 (713) 1900 - 2770

UPS

86 (2185) 86 (2185) 86 (2185) 86 (2185) varies by configuration

61 63 N/A 55

NX 80 kVA

UPS

> 0.99 at full load; >0.98 at half load N/A 1

480, 3 Wire + Ground N/A 208, 220, 240, 480, 600

On-Line, double conversion UPS VRLA Battery Cabinet Optional Maintenance

VRLA, Wet Cells, Nicad Valve Regulated Lead Acid (VRLA) N/A

480 VAC, 3 wire plus ground 480 VDC 208/120, 220/127, 480. 600

60 (50 Hz in frequency converter mode) N/A 60 Hz.

Intellislot, SNMP, Relay Card, MultiLink Optional Alber Battery Monitoring Local V & I, Optional ModBUS

NX 80 kVA

UPS

3 N/A 3

50 or 60Hz. N/A 60hZ

+15, -20 N/A +15-20

On-Line Optional Alber Battery Monitoring N/A

Sinewave N/A Sinewave

N/A N/A Optional subfeeds,

Yes N/A LCD Display

Fan Cooled convection convection

UL 1778, c-UL, FCC Class A UL 60950, c-UL, FCC Class A

NX 100 kVA

UPS

25.5 (648) when used with BDC

158 (70) Note: Batteries should not be stored above 86 (30)

3,300 (1000) per IEC 62040/3

NX 120 kVA

UPS

Rack

78.7 (2000)

39.0 (990)

32 (0)

104 (40)

-4 (-20)

0% to 95%, Non Condensing

1 Year

31” Battery

Cabinet

33.5 (850) 48.8 (1240) 24-71 (609-1803)

(794 - 1188)

(885 - 1280)

54” Battery

Cabinet

3438 - 5502

(1560 - 2496)

3638 - 5702

(1650 - 2586)

BDC

Bypass & Distribution

panelboards or terminals

varies by configuration

31 To 200 Racks — Large Data Center Three Phase

Liebert NX: Flexibility To Support IT Growth

Solution:

The flexible design of Liebert NX 160-200kVA UPS is perfect for mid-size and large data centers anticipating growth. Designed for data centers with up to 200 racks, this example combines racks, UPS, precision cooling, service, monitoring, installation and the highly important power distribution equipment — pre-engineered to work together. The UPS lineup may be installed inside or outside of the data center. Use this suggested scenario to begin framing the protection to suit your needs.

Products:

Liebert NX UPS— 160-200 kVA with

Softscale technology, can be paralleled up to 600 kVA redundant.

Liebert NX Battery Cabinet — provides

battery back up. Add cabinets to meet back up needs.

Liebert NX BDC Bypass Distribution

Cabinet — available with various input

and output voltage combinations and distribution options. Includes all internal power and control interconnect wiring.

Liebert NX UPS Multi-Module Systems — Parallel modules for

increased capacity or redundancy. Contact factory applications for switchgear options.

Liebert FPC — Packaged power distribution for today’s rack-based data centers and IT facilities, with plug-andplay flexibility.

Knurr Miracel® Racks — Lightweight,

easy to assemble, stable racks that offer 83% ventilation and simple add-on options.

Liebert DS — Provides precision

control of the room environment, including temperature, humidity, filtration and airflow. Available in 28-105kW (8-30 tons).

Liebert MultiLink Shutdown Software — Monitors battery status and

warns users of impending power loss, and automatically shuts down systems in a safe and orderly manner.

Liebert Nform™ IT Network Monitoring Software — Cost-effective monitoring

and communications software solution combines full-scale monitoring with costeffective deployment through the use of the existing network infrastructure.

Liebert IntelliSlot® Web Card LB — Communications interface card compatible with Liebert NX UPS, delivers SNMP, Telnet and web management capability for enhanced communications and control.

160-200 KVA Liebert NX

Specifications

Models NX 160 kVA NX 200 kVA NX Battery Cabinet 160-200 kVA NX BDC

Power Rating - kVA 160 200 200 225

Power Rating - kW 144 180 180 225

Input AC Specifications

Phase 3 N/A 3

Power Factor > 0.99 at full load; >0.98 at half load N/A 1

Frequency - Hz 50 or 60Hz N/A 60hZ

Input Voltage 480, 3 Wire + Ground N/A 208, 220, 240, 480, 600

Input Voltage Range +15, -20 N/A +15-20

General Specifications

Technology On-Line, double conversion VRLA Battery Cabinet Optional Maintenance Bypass &

Battery Specifications

Battery Test Type On-Line Optional Alber Battery Monitoring N/A

Battery Technology VRLA, Wet Cells, Nicad Valve Regulated Lead Acid (VRLA) N/A

Output Specifications

Nominal Voltage 480VAC, 3 wire plus ground 480 VDC 208/120, 220/127, 480. 600

Frequency - Hz 60 (50 Hz in frequency converter mode) N/A 60 Hz

Output Waveform Sinewave N/A Sinewave

Distribution N/A N/A Optional subfeeds, panelboards or

User Interface

LCD Display Ye s N/A Yes

Communications

Communications Options Intellislot, SNMP, Relay Card, MultiLink Optional Alber Battery Monitoring Local V & I, Optional ModBUS

Physical Data

Form Factor Rack

Unit Height - inches (mm) 78.7 (2000)

Unit Width - inches (mm) 64.4 (1636) 48.8 (1240) 47 - 94 (1194 - 2388)

Unit Depth - inches (mm) 39 (990)

Unit Weight - lbs. (kg) 2201 (1000) 3438 - 5502 (1560 - 2496) varies by configuration

Shipping Height - inches (mm) 86 (2185) 86 (2185) varies by configuration

Shipping Width - inches (mm) 48 (1220) 48 (1220) varies by configuration

Shipping Depth - inches (mm) 48 (1220) 65 (1651) varies by configuration

Shipping Weight - lbs. (kg) 2500 (1134) 3638 - 5702 (1650 - 2586) varies by configuration

Environmental

Operating Temperature, Min., °F (°C)

Operating Temperature, Max., °F (°C)

Storage Temperature, Min., °F (°C)

Storage Temperature, Max., °F (°C)

Relative Humidity

Operating Elevation - ft. (m)2²

Sound Emission/Audible Noise

Cooling

Agency/Certification/Conformance

Agency Approval UL 1778, c-UL, FCC Class A UL 1778, c-UL, FCC Class A UL 60950, c-UL, FCC Class A

Warranty

Standard 1 Year

68.5 N/A 55

Fan Cooled convection convection

158 (70) Note: Batteries should not be stored above 86 (30)

0% to 95%, Non Condensing

3,300 (1000) per IEC 62040/3

32 (0)

104 (40)

-4 (-20)

Distribution

terminals

Emerson Network Power.

The global leader in enabling Business-Critical Continuity

™

EmersonNetworkPower.com

AC Power

Connectivity DC Power

Embedded Computing Embedded Power Infrastructure Management & Monitoring

Outside Plant Power Switching & Controls

Racks & Integrated Cabinets Services

Precision Cooling

Surge Protection

Emerson Network Power

Liebert Corporation

World Headquarters

1050 Dearborn Drive P.O. Box 29186 Columbus, Ohio 43229

United States Of America 800 877 9222 Phone (U.S. & Canada Only) 614 888 0246 Phone (Outside U.S.) 614 841 6022 FAX

Emerson Network Power

European Headquarters

Via Leonardo Da Vinci 8

Zona Industriale Tognana 35028 Piove Di Sacco (PD) Italy 39 049 9719 111 Phone 39 049 5841 257 FAX

Emerson Network Power Asia Pacific 29/F, The Orient Square Building

F. Ortigas Jr. Road, Ortigas Center

Pasig City 1605

Philippines

+63 2 687 6615

+63 2 730 9572 FAX

liebert.com

24 x 7 Tech Support

800 222 5877 Phone

614 841 6755 (outside U.S.)

Ensuring The High Availability Of Mission-Critical Data And Applications.

Emerson Network Power, a business of Emerson (NYSE:EMR), is the global leader in enabling Business-Critical Continuity™ from grid to chip for telecommunication networks, data centers, health care and industrial facilities. Emerson Network Power provides innovative solutions and expertise in areas including AC and DC power and precision cooling systems, embedded computing and power, integrated racks and enclosures, power switching and controls, infrastructure management, and connectivity. All solutions are supported globally by local Emerson Network Power service technicians. Liebert AC power, precision cooling and monitoring products and services from Emerson Network Power deliver Efﬁciency Without Compromise™ by helping customers optimize their data center infrastructure to reduce costs and deliver high availability.

While every precaution has been taken to ensure accuracy and completeness in this literature, Liebert Corporation assumes no responsibility, and disclaims all liability for damages resulting from use of this information or for any errors or omissions.

All names referred to are trademarks or registered trademarks of their respective owners.

® Liebert is a registered trademark of the Liebert Corporation.

SL-25200 (R05/10) Printed in USA

Emerson Liebert NX 40-200kVA Brochures and Data Sheets

Specifications and Main Features

Frequently Asked Questions

User Manual
