i
IPMC7126E/7616E I/O Module
Installation and Use
6806800A45B
September 2008 Edition
©
Copyright 2008 Emerson
All rights reserved.
Trademarks
Emerson, Business-Critical Continuity, Emerson Network Power and the Emerson Network Power logo are trademarks and service marks of
Emerson Electric Co.
All other trademarks are the property of their respective owners.
®
PICMG
Computer Manufacturers Group.
, CompactPCI®, AdvancedTCA™ and the PICMG, CompactPCI and AdvancedTCA logos are registered trademarks of the PCI Industrial
©
2008 Emerson Electric Co.
Notice
While reasonable efforts have been made to assure the accuracy of this document, Emerson assumes no liability resulting from any omissions
in this document, or from the use of the information obtained therein. Emerson reserves the right to revise this document and to make changes
from time to time in the content hereof without obligation of Emerson to notify any person of such revision or changes.
Electronic versions of this material may be read online, downloaded for personal use, or referenced in another document as a URL to a Emerson
website. The text itself may not be published commercially in print or electronic form, edited, translated, or otherwise altered without the
permission of Emerson,
It is possible that this publication may contain reference to or information about Emerson products (machines and programs), programming, or
services that are not available in your country. Such references or information must not be construed to mean that Emerson intends to announce
such Emerson products, programming, or services in your country.
Limited and Restricted Rights Legend
If the documentation contained herein is supplied, directly or indirectly, to the U.S. Government, the following notice shall apply unless otherwise
agreed to in writing by Emerson.
Use, duplication, or disclosure by the Government is subject to restrictions as set forth in subparagraph (b)(3) of the Rights in Technical Data
clause at DFARS 252.227-7013 (Nov. 1995) and of the Rights in Noncommercial Computer Software and Documentation clause at DFARS
252.227-7014 (Jun. 1995).
Contact Address
Emerson Network Power - Embedded Computing
2900 South Diablo Way, Suite 190
Tempe, AZ 85282
USA
Safety Summary
Warning
The following general safety precautions must be observed during all phases of operation, service, and repair
of this equipment. Failure to comply with these precautions or with specific warnings elsewhere in this manual
could result in personal injury or damage to the equipment.
The safety precautions listed below represent warnings of certain dangers of which Emerson is aware. You,
as the user of the product, should follow these warnings and all other safety precautions necessary for the
safe operation of the equipment in your operating environment.
Ground the Instrument.
To minimize shock hazard, the equipment chassis and enclosure must be connected to an electrical ground.
If the equipment is supplied with a three-conductor AC power cable, the power cable must be plugged into
an approved three-contact electrical outlet, with the grounding wire (green/yellow) reliably connected to an
electrical ground (safety ground) at the power outlet. The power jack and mating plug of the power cable meet
International Electrotechnical Commission (IEC) safety standards and local electrical regulatory codes.
Do Not Operate in an Explosive Atmosphere.
Do not operate the equipment in any explosive atmosphere such as in the presence of flammable gases or
fumes. Operation of any electrical equipment in such an environment could result in an explosion and cause
injury or damage.
Keep Away From Live Circuits Inside the Equipment.
Operating personnel must not remove equipment covers. Only Factory Authorized Service Personnel or other
qualified service personnel may remove equipment covers for internal subassembly or component
replacement or any internal adjustment. Service personnel should not replace components with power cable
connected. Under certain conditions, dangerous voltages may exist even with the power cable removed. To
avoid injuries, such personnel should always disconnect power and discharge circuits before touching
components.
Use Caution When Exposing or Handling a CRT.
Breakage of a Cathode-Ray Tube (CRT) causes a high-velocity scattering of glass fragments (implosion). To
prevent CRT implosion, do not handle the CRT and avoid rough handling or jarring of the equipment.
Handling of a CRT should be done only by qualified service personnel using approved safety mask and
gloves.
Do Not Substitute Parts or Modify Equipment.
Do not install substitute parts or perform any unauthorized modification of the equipment. Contact your local
Emerson representative for service and repair to ensure that all safety features are maintained.
Observe Warnings in Manual.
Warnings, such as the example below, precede potentially dangerous procedures throughout this manual.
Instructions contained in the warnings must be followed. You should also employ all other safety precautions
which you deem necessary for the operation of the equipment in your operating environment.
Warning
To prevent serious injury or death from dangerous voltages, use
extreme caution when handling, testing, and adjusting this
equipment and its components.
Flammability
!
Caution
!
Warning
All Emerson PWBs (printed wiring boards) are manufactured with a flammability rating of 94V-0 by UL-recognized
manufacturers.
EMI Caution
Caution
This equipment generates, uses and can radiate electromagnetic energy. It may cause or be
susceptible to electromagnetic interference (EMI) if not installed and used with adequate EMI
protection.
CE Notice (European Community)
Warning
Emerson products with the CE marking comply with the EMC Directive (89/336/EEC). Compliance with this directive
implies conformity to the following European Norms:
Board products are tested in a representative system to show compliance with the above mentioned requirements.
A proper installation in a CE-marked system will maintain the required EMC/safety performance.
This is a Class A product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
EN55022 “Limits and Methods of Measurement of Radio Interference Characteristics of Information
Technology Equipment”; this product tested to Equipment Class A
EN 300 386 V.1.2.1 “Electromagnetic compatibility and radio spectrum matters (ERM);
Telecommunication network equipment; Electromagnetic compatibility (EMC) requirements”
In accordance with European Community directives, a “Declaration of Conformity” has been made and is on file
within the European Union. The “Declaration of Conformity” is available on request. Please contact your sales
representative.
The product has been designed to meet the directive on the restriction of the use of certain hazardous substances
in electrical and electronic equipment (RoHS) Directive 2002/95/EC.
Industrie Canada
This product meets the requirements of the Canadian Interference-Causing Equipment Standard ICES-003.
Cet appareil numérique est conforme à la norme NMB-003 du Canada.
Contents
About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
Summary of Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
Comments and Suggestions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
Conventions Used in This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
1 Product Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
General Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IPMC Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Design Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
PCI Bus Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Configurable Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
PCI-to-ISA Bridge (PIB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SCSI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
ISA Local Resource Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
PCI-to-ISA Bridge (PIB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Super I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
ESCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
CIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Static ROM (SROM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Input/Output Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
PCI Signaling Voltage Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
RS232 Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2 Installing the IPMC Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Configuring the IPMC Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Installing IPMC Modules on Host Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Before You Install or Remove a Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Observe ESD Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Watch for Bent Pins or Other Damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Use Caution When Installing or Removing Boards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Preserve EMI Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Recognize Different Injector/Ejector Lever Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Verify Slot Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
v
Contents
3 Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Programing Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
PCI Local Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
The PCI-to-ISA Bridge (PIB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
The SCSI Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
IDSEL Address Assignments for PCI Local Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
PCI Arbitration Assignments on Host Boards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
MVME5100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
MVME5500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
MVME6100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Interrupt Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
MVME5100 IPMC Module Interrupt Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
MVME5500 IPMC Module Interrupt Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
MVME6100 IPMC Module Interrupt Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
ISA Local Resource Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
PCI-to-ISA Bridge (PIB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Super I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
ISA DMA Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Z8536 CIO Port Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
ISA DMA Connections/Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Interrupt Routing to PIB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Vital Product Data (VPD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4 Connector Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
IPMC712 Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
IPMC761 Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
PCI Interface and I/O Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
A Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
B Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Emerson Network Power - Embedded Computing Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Manufacturers’ Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Related Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
vi
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
List of Figures
Figure 1-1. IPMC761 with Default Switch Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Figure 1-2. IPMC761 Functional Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Figure 1-3. IPMC712 with Default Switch Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Figure 1-4. IPMC712 Functional Block Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

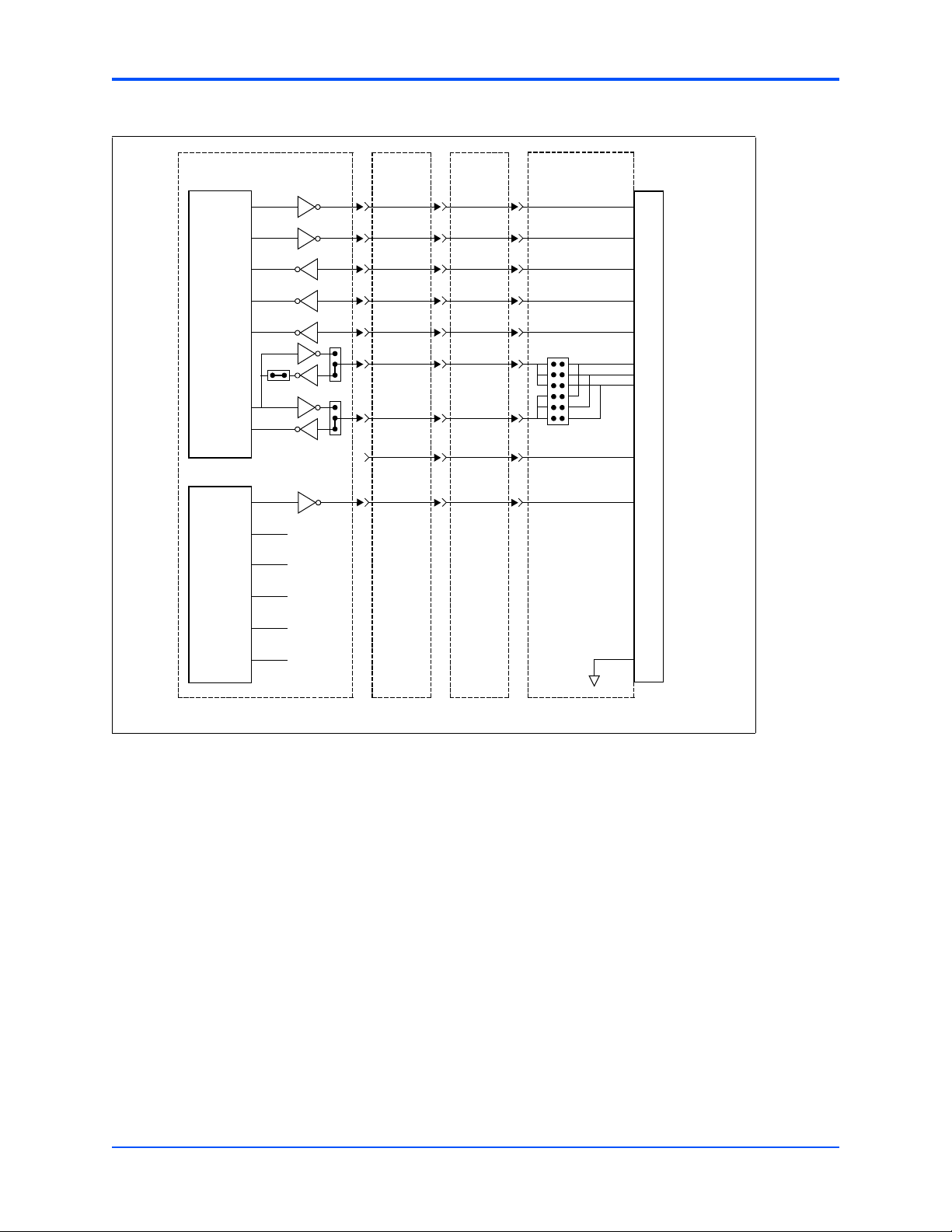

Figure 1-5. IPMC712 Serial Port 4 Clock Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

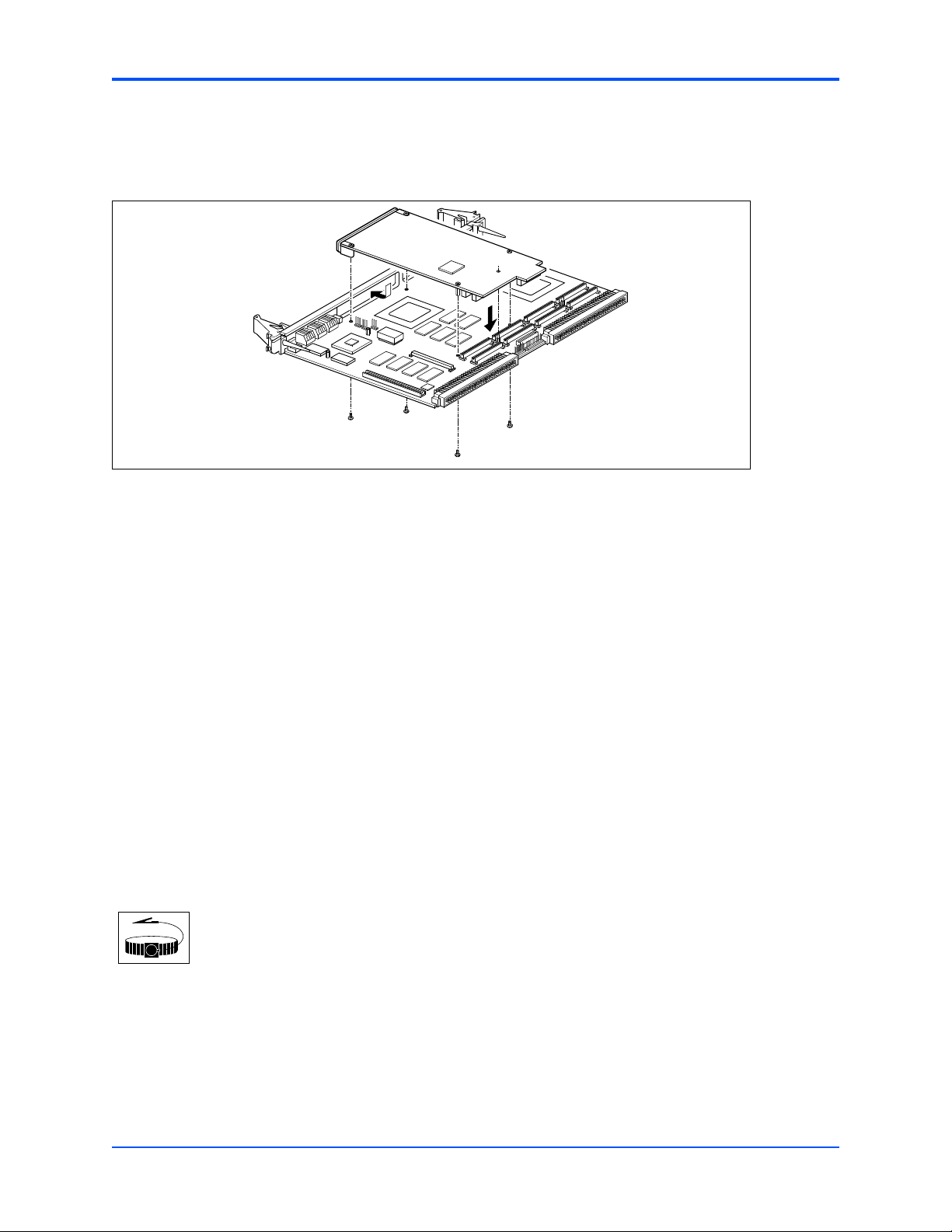

Figure 2-1. IPMC Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Figure 2-2. Injector/Ejector Lever Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Figure 3-1. GPIO Switch Settings (S1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Figure 3-2. IDSEL Switch Settings (S2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
vii
List of Figures
viii
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
List of Tables
Table 1-1. IPMC761 Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Table 1-2. IPMC712 Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Table 3-1. GPIO Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Table 3-2. SCSI Speed/Width Settings Using GPIO2:[1,2] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Table 3-3. IDSEL and IDSELB Mapping for PCI Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Table 3-4. On-Board PCI Device Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Table 3-5. PCI Arbitration Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Table 3-6. Hawk MPIC Interrupt Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Table 3-7. Strap Pins Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Table 3-8. PIB DMA Channel Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Table 3-9. Z8536 CIO Port Pins Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Table 3-10. DMA Connection/Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Table 3-11. PIB Interrupt Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Table 4-1. IPMC712 Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Table 4-2. IPMC761 Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Table 4-3. PCI Connector Pin Assignments (P11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Table 4-4. PCI Connector Pin Assignments (P12) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Table 4-5. PCI Connector Pin Assignments (P13) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Table 4-6. PCI Connector Pin Assignments (P14) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Table 4-7. PCI Connector Pin Assignments (P15) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Table A-1. IPMC Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Table A-2. Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Table B-1. Emerson Network Power - Embedded Computing Publications . . . . . . . . . . . . . . . . . . . 35
Table B-2. Manufacturers’ Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Table B-3. Related Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
ix
List of Tables
x
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
About This Manual
The IPMC7126E/7616E I/O Module Installation and Use manual provides the information you
will need to install, use, and program your IPMC7126E or IPMC7616E module. These are
optional I/O modules installed on the variants of the MVME5100, MVME5500 and MVME6100
Single Board Computers (SBCs). Their design utilizes the PowerPlus II architecture. Hereafter,
the IPMC7126E and IPMC7616E modules will be referred to as the IPMC712 and IPMC761.
The IPMC712 is a variation of the IPMC761 The primary differences between the two modules
are in the physical interfaces of the Ethernet port and serial ports 3 and 4. These differences
along with others are discussed in the following chapters of this manual.
As of the printing date of this manual, these I/O module models are available:
Model Number Product Description and I/O Features
IPMC7126E-002 Multifunction rear I/O PMC module; Ultra-Wide SCSI, one parallel port,
three asynchronous and one synchronous/asynchronous serial port
IPMC7616E-002 Multifunction rear I/O PMC module; Ultra-Wide SCSI, one parallel port,
two asynchronous and two synchronous/asynchronous serial ports
This manual is organized as follows:
■ Chapter 1, Product Features
■ Chapter 2, Installing the IPMC Module
■ Chapter 3, Programming
■ Chapter 4, Connector Pin Assignments
■ Appendix A, Specifications
■ Appendix B, Related Documentation
Summary of Changes
See the table below for manual revisions and changes.
Part Number Date Description
6806800A45B September 2008 Update document to Emerson style (logo, copyright,
trademarks, etc.)
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
xi
About This Manual
Comments and Suggestions
We welcome and appreciate your comments on our documentation. We want to know what you
think about our manuals and how we can make them better.
Mail comments to us by filling out the following online form:
http://www.emersonnetworkpowerembeddedcomputing.com/ > Contact Us > Online Form
In “Area of Interest” select “Technical Documentation”. Be sure to include the title, part number,
and revision of the manual and tell us how you used it.
Terminology
A character precedes a data or address parameter to specify the numeric format, as follows (if
not specified, the format is hexadecimal. An asterisk (#) following a signal name for signals that
are level significant denotes that the signal is true or valid when the signal is low.
An asterisk (#) following a signal name for signals that are edge significant denotes that the #
actions initiated by that signal occur on high to low transition.
In this manual, assertion and negation are used to specify forcing a signal to a particular state.
In particular, assertion and assert refer to a signal that is active or true; negation and negate
indicate a signal that is inactive or false. These terms are used independently of the voltage
level (high or low) that they represent.
Data and address sizes are defined as follows:
0x Specifies a hexadecimal number
% Specifies a binary number
& Specifies a decimal number
Byte 8 bits, numbered 0 through 7, with bit 0 being the least significant.
Half word 16 bits, numbered 0 through 15, with bit 0 being the least significant.
Word 32 bits, numbered 0 through 31, with bit 0 being the least significant.
Double word 64 bits, numbered 0 through 63, with bit 0 being the least significant.
Conventions Used in This Manual
The following typographical conventions are used in this document:
bold
xii
is used for user input that you type just as it appears; it is also used for commands, options
and arguments to commands, and names of programs, directories and files.
italic
is used for names of variables to which you assign values. Italic is also used for comments
in screen displays and examples, and to introduce new terms.
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
About This Manual
courier
is used for system output (for example, screen displays, reports), examples, and system
prompts.
<Enter>, <Return> or <CR>
represents the carriage return or Enter key.
Ctrl
represents the Control key. Execute control characters by pressing the Ctrl key and the
letter simultaneously, for example, Ctrl-d.
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
xiii
About This Manual
xiv
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
1 Product Features
The IPMC712 and IPMC761 are optional modules that provide backward compatibility with
earlier Emerson products using the MVME761 or MVME712M rear transition modules.
General Functionality
Both models are designed around a PMC form factor and both modules incorporate a PCI-toISA bridge, Ultra-wide SCSI adapter, and Super I/O functionality. Both modules are single wide,
standard length, standard height PMC boards. They attach to the host board PCI bus via the
PMC P11, P12, P13, P14, and P15 connectors.
■ One single-ended ultra-wide SCSI port
■ One parallel port
1
■ Four serial ports (2 or 3 asynchronous and 1 or 2 synchronous/asynchronous, depending
on the module)
With this PMC card configuration, the memory mezzanine, one PMC slot, and the PMCspan
are still available, providing support for additional product customization.
IPMC Mode
In IPMC mode, the MVME 6100, MVME5500, and MVME5100 support legacy MVME761 or
MVME712M rear transition modules (with limited PMC I/O) when an IPMC712 or IPMC761
module is installed in PMC slot 1. In this configuration, signals used by wide (16-bit SCSI
conflict with signals that are used by PMC slot 2 rear I/O.
Design Features
The following sections describe the basic features that are incorporated in the design of both
IPMC modules.
PCI Bus Interface
Both modules contain four EIA-E700 AAAB connectors, which provide a 32-bit PCI interface to
an IEEE P1386.1 PMC-compliant host board such as the MVME6100, MVME5500, or
MVME5100.
Connectors P11-P13 on each module provide the 32-bit PCI interface while P14 provides an
I/O path from the module to the host board.
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
1
Chapter 1 Product Features
Signals routed to P14 include: narrow SCSI, parallel port, COM1 and COM2 synchronous serial
ports, COM3 and COM4 synchronous serial ports, power, and P2 mux signals. The remaining
SCSI data lines are routed to P15.
The on-board PCI devices on each module are as follows:
■ Winbond PCI-to-ISA Bridge (PIB)
■ LSI SCSI device (SYM53C895A)
Configurable Switches
S1 Switch
A 1x4 switch (S1) is provided on each module for configuring GPIO pins 2 and 3. The factory
default setting is for Ultra-Speed and Ultra-Wide SCSI. Refer to Table 3-1 on page 16 for the
GPIO pin assignments and to Figure 3-1 on page 16 for the default switch settings.
S2 Switch
There is a 1x2 switch (S2) on each module that is in line with the PCI-to-ISA bridge for selecting
either AD[11] IDSEL or IDSELB for connection to the Winbond chip, depending on the IPMC
module you are using.
Note The S2 is not dependent on either IPMC module. It is dependent on either the
MVME5100, MVME5500, or MVME6100 host board. The IPMC modules are shipped
configured for these boards.
Details on IDSEL mapping and PCI arbitration assignments for these SBCs can be found in
Chapter 3, Programming. An illustration showing the S2 switch settings can be found in Figure
3-2 on page 17.
PCI-to-ISA Bridge (PIB)
The PIB provides the bridging functions between PCI local bus and the ISA local resource bus.
The following are a few of the features of the PIB.
SCSI
The SCSI controller is an LSI Logic SYM53C895A device. The SCSI clock frequency is 40 MHz.
The SCSI controller features:
■ 32-bit PCI Interface with 64-bit addressing
■ 8KB internal SCRIPTS RAM
■ Improved PCI caching design (improves PCI bus efficiency)
The SCSI device maintains backward compatibility with the MVME761 rear transition module
and P2 adapter card. It is also Ultra-wide capable and has a performance of 40MB/s
synchronous transfer rate across a 16-bit bus.
2
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
2844 0905
P12P14
P11P13
DS2 DS1
U5
J3
U12
U6
C10
U11
J2
C8
C9
C7
C5
C2
C4
U3
IPMC761
SCSI BUSYPIB BUSY
J1
S1
Y2 Y1
Y3
U2
U19
U7
U4
P15
C9
S1
C7
S2
Chapter 1 Product Features
Note SCSI signals leading to connector P15 go through zero ohm resistors (R92-R100) before
terminating at P15. When the host board’s PMC slot 2 is populated, and there is an IPMC
module in slot 1, there exists a possibility for contention on these signals.
Figure 1-1. IPMC761 with Default Switch Setting
Table 1-1. IPMC761 Jumpers
Jumper Description Setting
J1 Reserved 9PLD programming
J2 Port 3 Transmit Clock 1-2: driven by IPMC761
J3 Port 4 Transmit Clock 1-2: driven by IPMC761
header
N/A
2-3: received by IPMC761
2-3: received by IPMC761
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
3
Chapter 1 Product Features
2863 0101
PIB
ISA bus
WINBOND
W83C554F_(H)
SCSI
LSILOGIC
SYM53C895A
PMC PCI BUS CONNECTORS P11, P12
IPMC761 Receptacle to Base Board
Super I/O
NATIONAL
PC97307
ESCC
85230
CIO
Z8536
SROM
(VPD)
P2 MUX
LOGIC
PMC I/O Connector P1
Parallel
2 Async Serial Ports
Figure 1-2. IPMC761 Functional Block Diagram
4
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
2843 0905
P12P14
P11P13
DS2 DS1
U5
J3
U12
U6
C10
U11
J2
J5
J4
C8
C9
C7
C5
C2
C4
U3
IPMC761
SCSI BUSYPIB BUSY
J1
Y2 Y1
Y3
U15
U19
U7
P15
C9
S1
C7
S2
S2
S1
Figure 1-3. IPMC712 with Default Switch Settings
Chapter 1 Product Features
Table 1-2. IPMC712 Jumpers
Jumper Description Setting
J1 Reserved 9PLD programming
N/A
header
J2 Port 4 Receive Clock 1-2: driven by IPMC712
2-3: received by IPMC712
J3 Port 4 Transmit Clock 1-2: driven by IPMC712
2-3: received by IPMC712
J5 Clock Loopback MAX207 14/15in connects to R1out
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
5
Chapter 1 Product Features
JSA bus
PCI bus
Rear SCSI
COM1
COM2
Parallel
COM3
COM4 (sync)
PMC P11 & P12
PIB
WB-554
SCSI
LSI
Super IO
National
ESCC
85230
CIO
8536
PMC P14 & P15
Figure 1-4. IPMC712 Functional Block Layout
6
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
Base Board + IPMC712
Z8536
DSR4#
DTR4#
LLB4#
RLB4#
RI4#
TM4#
TXD
DCD
RXD
RXCI
RTS
TXCI
TXCO
DTE
NC
2865 0101
J2
1
Z85230
2
3
1
2
3
J3
TXDB
RTSB#
DCDB#
RXDB
RTXCB
TRXCB
CTSB#
J5
DB25
Connector
P2
ADAPTER
64-PIN
CABLE
MVME712M
MODULE
7
2
8
4
5
3
15
17
CTS
NC
NC
NC
NC
24
20
DCD
GND
J15
Figure 1-5. IPMC712 Serial Port 4 Clock Configuration
Chapter 1 Product Features
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
7
Chapter 1 Product Features
ISA Local Resource Bus
PCI-to-ISA Bridge (PIB)
The PIB (W83C554F) contains the ISA Bridge I/O Registers necessary for various functions.
These registers are also accessible from the PCI bus.
Super I/O
The Super I/O device (PC97307) provides the following functions on the IPMC:
■ Two synchronous serial ports (COM1 and COM2)
■ Parallel printer port
ESCC
Two DTE synchronous/asynchronous serial ports are provided by the ESCC device (Z85230).
Since the Z85230 device does not have all modem control lines, a Z8536 CIO device (described
below) is used to provide the missing lines.
A PAL device is used to perform decode for the Z85230 and the Z8536 for register accesses
and pseudo interrupt acknowledge cycles in the ISA I/O space. DMA supports for the Z85230
is provided by the PIB.
The clock input to the Z85230 PCLK pin is a 10 MHz clock. The Z85230 supplies an interrupt
vector during a pseudo interrupt acknowledge cycle. The vector is modified based upon the
interrupt source within the device.
All modem control lines from the ESCC are multiplexed/demultiplexed through connector P2 by
the P2MX function due to pin limitation of the connector.
CIO
The CIO device (Z8536) is used to provide the modem control lines not provided by the Z85230
ESCC. In addition, the device has three independent 16-bit counters/timers. The clock input to
the Z8536 PCLK pin is a 5 MHz clock.
Static ROM (SROM)
Both modules contains one +3.3V, 256 x 8 serial EEPROM device (AT24C02) onboard. This
device provides for Vital Product Data (VPD) storage of the module hardware configuration. The
serial EEPROM is located on the baseboard’s I
2
C bus at address $A4.
8
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
Input/Output Modes
Both modules are designed to be plugged into PMC slot 1 of the base board. As stated earlier,
these SBCs have two P2 I/O modes (IPMC and PMC) that are user configurable. The user
should configure the baseboard for the IPMC module being used.
The jumpers route the on-board Ethernet port 2 to row C of connector P2. When used, both
modules are backwards compatible with the MVME761 rear transition module and P2 adapter
card (excluding PMC I/O routing) used on the MVME2600/2700. The rear panel Ethernet is not
available when using the IPMC712.
LEDs
Both modules use two LEDs to provide PMC status.
■ The module’s green SCSI LED is lit when the SCSI device is Master
■ The module’s green PIB LED is lit when the PCI bus grant to the PIB is asserted
Chapter 1 Product Features
PCI Signaling Voltage Level
Both modules will operate with only +5V signaling levels.
RS232 Interface
On the IPMC712 module, the four serial ports are used to communicate at RS232 voltage levels
(P14). The first three ports are fixed asynchronous ports, while the remaining port can be
configured as either a synchronous or an asynchronous port.
For additional handshaking signals, the IPMC712 module has the following features:
■ Port 1 has RTS and CTS
■ Ports 2, 3, and 4 have RTS, CTS, DTR, DCD
■ Port 4 has configurable serial clock signals RTxC and TRxC
Jumpers J2, J3 and J5 determine the sources for these two signals, refer to Figure 1-5 on
page 7.
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
9
Chapter 1 Product Features
10
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
2 Installing the IPMC Module
This chapter discusses the configuration and installation of IPMC modules on an MVME6100,
MVME5500, or MVME5100 SBCs.
For additional information pertaining to the MVME51005E, refer to the information contained in
the MVME51005E Single Board Computer Installation and Use manual before proceeding with
these instructions contained in this chapter.
Packaging
As a precautionary measure, IPMC modules are sealed in an anti-static package to protect
them from static discharge. Observe standard handling practices of static sensitive equipment.
2
Configuring the IPMC Modules
There are two user configurable switches on the IPMC712 and IPMC761 I/O modules. Switches
S1 and S2 are described in Chapter 3, Programming.
Installing IPMC Modules on Host Board
Both the IPMC712 and the IPMC761 modules are installed on PMC slot 1 of the host board. As
a general reminder, IPMC modules must be installed on the host board prior to installing it into
the VME chassis.
To install an IPMC module, refer to the following figure and proceed as follows:
1. Inspect the host board and the IPMC module for evidence of any damage to the PCB itself or
for evidence of any damage on the mating connectors.
2. If the host board is installed in a VMEbus card slot, carefully remove it and place it with
connectors P1and P2 facing you.
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
11
Chapter 2 Installing the IPMC Module
Use ESD
Wrist Strap
3. Remove the filler plate from the host board’s front panel. Position the IPMC module over the
center area of the slot 1 connectors as follows:
Figure 2-1. IPMC Installation
4. Line up the IPMC module’s front panel into the IPMC filler cutout slot on the host board’s front
panel.
5. Align connectors P11, P12, P13, P14, and P15 on the IPMC module with the mating connectors
on the host board and press firmly into place.
6. Insert the appropriate number of Phillips screws (typically 4) from the bottom of the host board
into the standoffs on the IPMC module and tighten the screws.
The host board is now ready to be installed into a VME chassis.
Before You Install or Remove a Board
Boards may be damaged if improperly installed or handled. Please read and follow the
guidelines in this section to protect your equipment.
Observe ESD Precautions
ESD
Emerson strongly recommends that you use an antistatic wrist strap and a conductive
foam pad when installing or upgrading a system. Electronic components, such as disk
drives, computer boards, and memory modules, can be extremely sensitive to
electrostatic discharge (ESD). After removing the component from its protective
wrapper or from the system, place the component flat on a grounded, static-free
surface (and, in the case of a board, component side up). Do not slide the component
over any surface.
12
If an ESD station is not available, you can avoid damage resulting from ESD by wearing
an antistatic wrist strap (available at electronics stores) that is attached to an active
electrical ground. Note that a system chassis may not be grounded if it is unplugged.
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
!
Caution
!
Caution
Watch for Bent Pins or Other Damage
Chapter 2 Installing the IPMC Module
Caution
Bent pins or loose components can cause damage to the board, the backplane, or
other system components. Carefully inspect your board and the backplane for both pin
and component integrity before installation.
ECC and our suppliers take significant steps to ensure there are no bent pins on the backplane
or connector damage to the boards prior to leaving our factory. Bent pins caused by improper
installation or by boards with damaged connectors could void the warranty for the backplane or
boards.
If a system contains one or more crushed pins, power off the system and contact your local
sales representative to schedule delivery of a replacement chassis assembly.
Use Caution When Installing or Removing Boards
When first installing boards in an empty chassis, we recommend that you start at the left of the
card cage and work to the right when cards are vertically aligned; in horizontally aligned cages,
work from bottom to top.
When inserting or removing a board in a slot adjacent to other boards, use extra caution to avoid
damage to the pins and components located on the primary or secondary sides of the boards.
Preserve EMI Compliance
Caution
To preserve compliance with applicable standards and regulations for electromagnetic
interference (EMI), during operation all front and rear openings on the chassis or board
faceplates must be filled with an appropriate card or covered with a filler panel. If the
EMI barrier is open, devices may cause or be susceptible to excessive interference.
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
13
!
Caution
4243 1103
B CA
Chapter 2 Installing the IPMC Module
Recognize Different Injector/Ejector Lever Types
The modules you install may have different ejector handles and latching mechanisms. The
following illustration shows the typical board ejector handles used with ECC payload cards: (A)
Elma Latching, (B) Rittal Type II, (C) Rittal Type IV. All handles are compliant with the
CompactPCI specification and are designed to meet the IEEE1101.10 standards.
Figure 2-2. Injector/Ejector Lever Types
Each lever type has a latching mechanism to prevent the lever from being opened accidentally.
You must press the lever release before you can open the lever. Never force the lever. If the lever
does not open easily, you may not have pressed firmly enough on the release. If the lever does
not close easily, the board may not be properly seated in the chassis.
To open a lever, press the release and move the lever outward away from the faceplate.
To close a lever, move the lever inward toward the faceplate until the latch engages.
Verify Slot Usage
Caution
Prevent possible damage to module components by verifying the proper slot usage for
your configuration.
14
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
3 Programming
Programing Details
The overall design of the IPMC712 and IPMC761 is based on the PowerPlus II architecture. The
programming characteristics for both modules conforms to the PowerPlusII Programming
Specification.
Note The PowerPlus II Programming Specification covers a large variety of programming
configurations, many of which are not applicable to either module. This chapter describes those
aspects of the specification that are unique to both modules.
3
PCI Local Bus
The on-board PCI devices on the IPMC712 and the IPMC761 are the PCI-to-ISA Bridge and
the SCSI controller.
The PCI-to-ISA Bridge (PIB)
The PCI-to-ISA Bridge (PIB) provides the bridging functions between PCI local bus and the ISA
local resource bus. Other features contained in the PIB are:
■ 8259 Interrupt Controller
■ ISA DMA support
■ Timers and counters
The SCSI Controller
The SCSI controller’s clock speed is 40 MHz. The presence of the SCSI device can be positively
determined by reading the Device ID PCI Configuration Register 0x02 - 0x03. The Device ID is
0x0012.
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
15
Chapter 3 Programming
ON ON
1
1
88
S1-P3=1
S1-P4=1
S1-P2=1
S1-P1=1
S1-P3=0
S1-P4=0
S1-P2=0
S1-P1=0
The General Purpose I/O (GPIO) pin assignments for the SCSI Controller are shown in the
table below. A 1x4 switch (S1) is provided to configure GPIO pins 2 and 3. The factory default
setting shall be for Ultra-Speed and Ultra-Wide SCSI.
Table 3-1. GPIO Pin Assignments
GPIO Pin Direction Level Usage
GPIO1_MASTER_l output 1 SCSI LED; SCSI is not MASTER.
0 SCSI is MASTER.
GPIO2
GPIO3
0, 4, 5, 6, 7, 8 - - Not used.
input 1 SCSI speed; selectable by switch S1.
S1:1 OFF selects Ultra
0 S1:1 ON selects FAST (default).
input 1 SCSI bus width; selectable by switch S1.
S1:2 in OFF selects Wide-SCSI.
0 S1:2 in ON selects Narrow-SCSI.
Table 3-2. SCSI Speed/Width Settings Using GPIO2:[1,2]
SCSI Type Width Speed
FAST SCSI Narrow (8 bit) 10MB/second
FAST SCSI Wide (16 bit) 20MB/second
Ultra SCSI Narrow (8 bit) 20MB/second
Ultra SCSI Narrow (16 bit) 40MB/second
Figure 3-1. GPIO Switch Settings (S1)
SW1-P1 controls GPIO2 (Ultra/FAST SCSI) and SW1-P2 controls GPIO3 (Wide/Narrow SCSI
bus. SW1-P3 and SW1-P4 are No Connect. Select the SCSI characteristics of your
configuration according to the following table:
Width of Bus Ultra (P1 OFF) Fast (P1 ON)
Wide (16-bit) SCSI bus (P2 OFF) 40MB/second 20MB/second
Narrow (8-bit) SCSI bus (P2 ON) 20MB/second 10MB/second
16
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
S2-P1 = 1
S2-P2 = 0
ON ON
12
12
S2-P1=0
S2-P2 =1
MVME5100 and MVME5500 S2 Default Setting
MVME6100 S2 Setting
Chapter 3 Programming

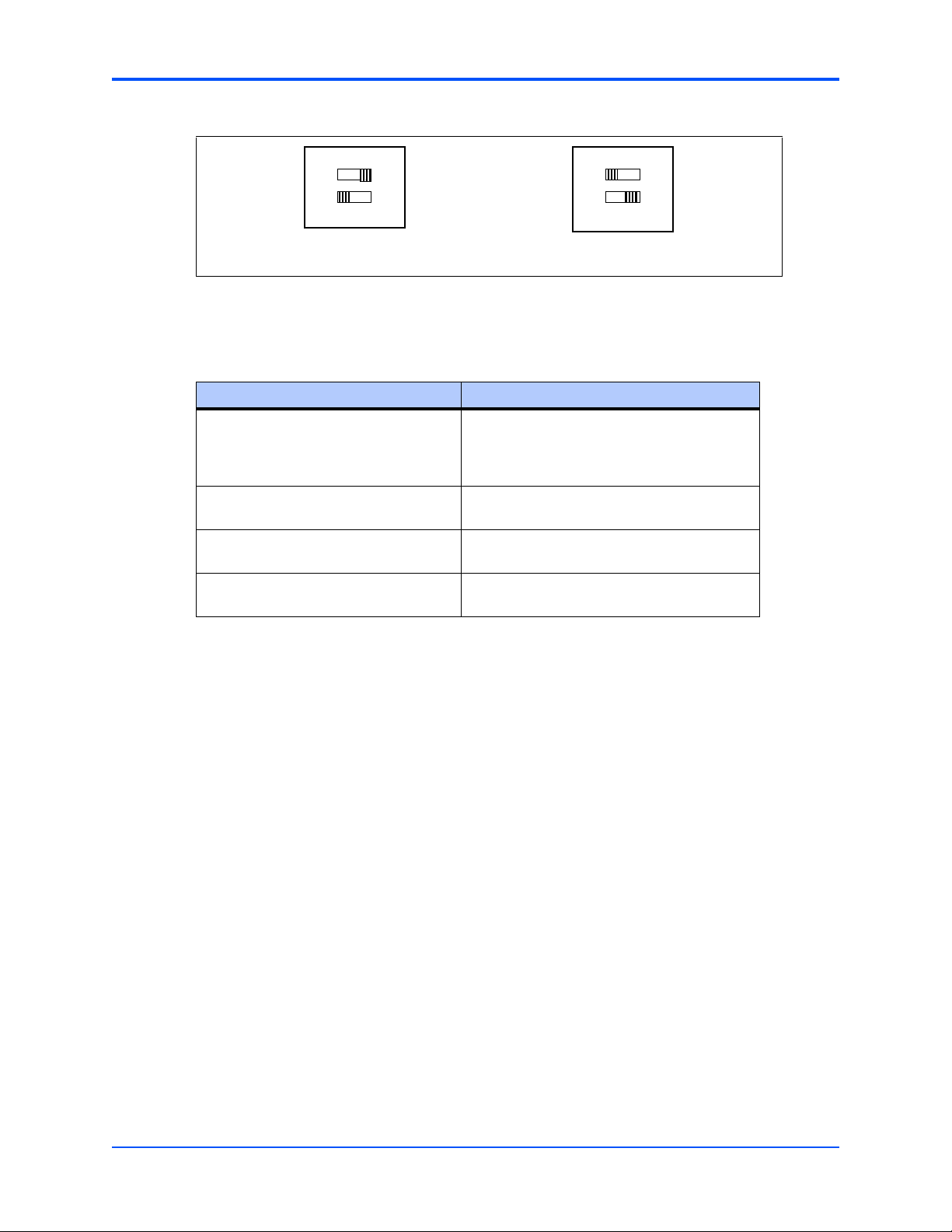

Figure 3-2. IDSEL Switch Settings (S2)
The settings of SW2 determine the IDSEL used by the W83C553 PCI/ISA Bridge. It is important
that the settings of P1 and P2 are neither both on nor both off, otherwise the device will be
enumerated twice.
If Then
The SW2-P1 is OFF The W83C553’s IDSEL is connected to
IDSELB (P12:34). The IDSEL is then
determined by the carrier’s configuration of the
IPMC site.
The SW2-P2 is OFF The W83C553’s IDSEL is connected to AD11
on the IPMC.
The IPMC761-002 is used on an
MVME6100
The IPMC761-002 is used on an
MVME5100 or MVME5500
The SW2-P1 should be OFF and SW2-P2 set
ON for proper operation.
The SW2-P1 should be ON and SW2-P2 OFF
to emulate the IPMC761-001.
IDSEL Address Assignments for PCI Local Bus
Legacy IDSEL assignment for the PCI-to-ISA Bridge (PIB) is maintained to ensure software
compatibility between MVME2700 and MVME5100 while functioning in IPMC mode. The
IPMC712 and IPMC761 boards have a switch (S2) that allows you to configure the board for
the correct IDSEL connection to the Winbond chip, as described below:
■ Connection to IDSEL, AD[11] on PMC connector pin P11-48 is selected when using the
IPMC 712/761 with ECC VME boards MVME5100 and MVME5500 (boards released prior
to the MVME6100)
■ Connection to IDSEL, AD[16] on PMC connector pin P12-34 is selected when using the
IPMC712/761 with the MVME6100 board
■ Connection to IDSELB varies according to the base board:
– 5100: No Connect
– 5500: AD[17]
– 6100: AD[21]
– PrPMC Carrier: AD[17]
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
17
Chapter 3 Programming
The IDSEL assignments for both modules are shown below:
Table 3-3. IDSEL and IDSELB Mapping for PCI Devices
Device Number
Field PCI Address Line IDSEL Connection
0b0_1011 AD11 PCI/ISA Bridge
0b1_0000 AD16 PMC Slot 1 SCSI Device
0b1_0001 AD17 PMC Slot 1 MVME5500
0b1_0101 AD21 PMC Slot 1 MVME6100
The following table shows the Vendor ID, the Device ID, and Revision ID for each of the planar
PCI devices on the IPMC712 and IPMC761:
Table 3-4. On-Board PCI Device Identification
Device Device Vendor ID Device ID Revision ID
SCSI Controller LSI SYM53C895A 0x1000h 0x0012h 0x00h
PCI-ISA Bridge W83C554F 0x10ADh 0x0565h XXh
PCI Arbitration Assignments on Host Boards
The IPMC module PCI arbitration is provided by the host board.
MVME5100
The MVME5100 PCI arbitration is performed by the Hawk ASIC on the host board which
supports eight external PCI masters. Included is the Hawk itself and seven external PCI
masters. The arbitration assignments for the IPMC712 and IPMC761, when installed on the
MVME5100, are as follows:
Table 3-5. PCI Arbitration Assignments
PCI Bus Request PCI Master(s)
Request 1 (PARBI1) PMC Slot 1 (SCSI device on the module in PMC Slot 1)
Request 2 (PARBI2) PIB device on the module in PMC Slot 1
MVME5500
18
The MVME5500 IPMC module PCI arbitration is performed using logic implemented in
Programmable Logic Devices (PLDs). These arbiters use a rotating priority scheme for fairness
and bus parking and will always be on the GT-64260B. There are no software programmable
modes to these arbiters.
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
MVME6100
The MVME6100 IPMC module PCI arbitration is performed by the MV64360 ASIC. The internal
PCI arbiter REQ#/GNT# signals are multiplexed on the MV64360 MPP[31:0] pins. The internal
PCI arbiter is disabled by default (the MPP pins function as general purpose inputs). Software
will configure the MPP pins to function as request/grant pairs for the internal PCI arbiter.
The IPMC module arbitration pairs for the MVME6100 are assigned to the MPP pins as follows;
■ MPP pin 8, PCI Bus Grant (PIB device on IPMC module)
■ MPP pin 9, PCI Bus Request (PIB device on IPMC module)
■ MPP pin 12, PCI Bus Grant (SCSI device on IPMC module)
■ MPP pin 13, PCI Bus Request (SCSI device on IPMC module)
Interrupt Assignments
The interrupt architecture for the IPMC712 and IPMC761 is fully compliant with the PowerPlusII
Programming Specification for a single processor board configuration.
Chapter 3 Programming
MVME5100 IPMC Module Interrupt Assignments
Legacy interrupt assignment for the PCI-to-ISA Bridge (PIB) is maintained to ensure software
compatibility between MVME5100 and IPMC761 while in IPMC mode. This is accomplished by
using the on-board IPMC761 connector to route the PIB’s interrupt to external interrupt 0 of the
Hawk’s MPIC.
The MVME5100 Ethernet port 2 is routed to the PIB’s IRQ10 input. The SCSI interrupt on the
IPMC761 is also routed to the PIB at IRQ14. The SCSI device is connected to the INTA# pin
J11-04 of PMC Slot 1. Interrupts are routed to the Hawk from on-board resources as specified
by the module’s programming.
The Hawk interrupt assignments are shown below:
Table 3-6. Hawk MPIC Interrupt Assignments
MPICIRQEdge/Leve
l
IRQ0 Level High PIB (8259) in PMC Slot 1 1
IRQ9 Level Low SCSI Controller interrupt shall be connected to
Polarity Interrupt Source
INTA# pin J11-04
Note
s
2
Notes
1. This interrupt provided for software compatibility with MVME2700.
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
19
Chapter 3 Programming
2. MVME5100 Hawk MPIC IRQ9 interrupt sources may be one of the following: PCI-PMC1
INTA#, PMC2 INTB#, or PCIX INTA#.
MVME5500 IPMC Module Interrupt Assignments
Legacy Interrupt assignments were not maintained on the MVME5500 due to the vastly
different host bridge device (GT-64260) used. The MVME5500 uses the GT-64260 interrupt
controller to handle interrupts internal to the GT-64260 as well as the external interrupt sources.
The GT-64260 us's general purpose pins that are configured by software to act as interrupt
inputs. The following are the IPMC module-related interrupt assignments.
GPP PIN Edge/Level Polarity Interrupt Source
11 Level Low IPMC PIB (8259) Int in Slot 1
8 Level Low SCSI Controller Interrupt
Connected to INTA# pin J11-04
Note The MVME5500 does not have any Ethernet interrupts routed back to the IPMC PIB
device.
MVME6100 IPMC Module Interrupt Assignments
Legacy Interrupt assignments were not maintained on the MVME6100 because of the vastly
different host bridge device (MV64360).
The MVME6100 uses the interrupt controller integrated into MV64360 to manage the MV64360
internal interrupts as well as the external interrupt requests. The IPMC module interrupts are
routed to the MV64360 MPP pins as follows;
GPP PIN Edge/Level Polarity Interrupt Source
5 Level High IPMC PIB (8259) Int in Slot 1
16 Level Low SCSI Controller Interrupt
Connected to INTA# pin J11-04
Note The MVME6100 does not have any Ethernet interrupts routed back to the IPMC PIB
device.
ISA Local Resource Bus
The ISA devices on the IPMC712 and IPMC761 are as follows:
■ PCI-to-ISA Bridge
■ Super I/O
20
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
PCI-to-ISA Bridge (PIB)
The PIB contains ISA Bridge I/O Registers for various functions. These registers are accessible
from the PCI bus.
Super I/O
The Super I/O device provides the following functions:
■ Two serial ports (asynchronous)
■ Parallel port interface
The device’s hardware configuration is based on two strap-pins: BADDR0 and BADDR1. During
reset, strapping options shown on BADDR0 and BADDR1 pins determine the device’s
operation. Clock speed is 48 MHz.The following table shows the hardware strapping for the
Super I/O device:
Table 3-7. Strap Pins Configuration
Chapter 3 Programming
Pins Reset Configuration
BADDR1
BADDR0
ISA DMA Channels
The following table lists PIB DMA Channel Assignments not used.
Table 3-8. PIB DMA Channel Assignments
PIB Priority PIB Label Controller DMA Assignment
Highest Channel 2 DMA1 Not used on module
Z8536 CIO Port Pins
The following table lists port pins not used by the IPMC761 module.
Notes
1. The Hawk External Register Set interface now provides these functions.
1,1 - Index Register 002Eh, Data Register 002Fh,
PnP motherboard mode,Wake up in Config state
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
21
Chapter 3 Programming
2. On the IPMC712, pins PA0 through PA4, PA6, PA7, PB0 through PB4 are not used on the
Z8536 CIO.
Table 3-9. Z8536 CIO Port Pins Assignment
Port Pin Signal Name Direction Descriptions
PA6 BRDFAIL Output Not used on module
PB6 FUSE Input Not used on module
PB7 ABORT_ Input Not used on module
PC1 Reserved I/O Not used on module
PC2 BASETYP0 Input Not used on module
PC3 BASETYP1 Input
ISA DMA Connections/Assignments
The following table shows the DMA connections/assignments between the PC97307 and the
PIB.
Table 3-10. DMA Connection/Assignments
Chann
el Connection Level Usage
0 SCC W//REQA high Serial Port 3 RX
1 SCC
DTR//REQA
2SIO
DRQ2/DACK2
3SIO
DRQ3/DACK3
4 None PIB Internal DMA cascade
5 SCC W//REQB high Serial Port 4 RX
6 SCC
DTR//REQB
7 None
high Serial Port 3 TX
high User SIO configurable, suggested use is parallel port
high User SIO configurable, suggested use is parallel port
high Serial Port 4 TX
22
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
Interrupt Routing to PIB
Module interrupts and MVME5100 Ethernet Port 2 interrupts go through the 8259 pair and into
the PIB. The output of the PIB then goes to the Hawk MPIC on the MVME5100. The table below
lists the ISA interrupts routed to the PIB.
Table 3-11. PIB Interrupt Assignments
Chapter 3 Programming
ISA
PRI
1 IRQ0 INT1 Edge High Timer 1 / Counter 0 1
3-10 IRQ2 Edge High Cascade Interrupt from INT2
4 IRQ9 INT2 Level High Z8536 CIO 2,3
5 IRQ10 INT2 Level Low PCI-Ethernet Interrupt (from
9 IRQ14 INT2 Level Low PCI-SCSI Interrupt 2
11 IRQ3 INT1 Edge High COM2 (Async Serial Port 2)
12 IRQ4 Edge High COM1 (Async Serial Port 1)
15 IRQ7 Edge High Parallel Port Interrupt
IRQ
Edge/Leve
l
Controller
Interrupt Source
Polarity
Z85230 ESCC
MVME5100 Port 2)
Notes
1. Internally generated by the PIB.
2. After a reset, all ISA IRQ interrupt lines default to
edge-sensitive mode.
Notes
2,4
3. Interrupts from the Z8536 and Z85230 devices are externally wired. External logic will
determine which device to acknowledge during a pseudo IACK cycle. The Z8536 CIO has
higher priority than the Z85230 ESCC. This IRQ MUST be programmed for level-sensitive
mode.
4. This interrupt is routed from the MVME5100 through the IPMC connector to the module’s
PIB to allow backward compatibility to other products.
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
23
Chapter 3 Programming
Vital Product Data (VPD)
To access VPD information for each SBC, access the registers through the I2C interface as
follows:
■ MVME5100 - via the Hawk ASIC; IPMC761’s VPD address is $A4.
■ MVME5500 - via the Discovery1 device GT64260
■ MVME6100 - via the Discovery2 device MV64360
24
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
4 Connector Pin Assignments
This chapter provides connector pin assignments for the IPMC712 and IPMC761 modules.
IPMC712 Connector
This connector provides the on-board interface of the IPMC712 I/O signals. The pin
assignments for this connector are as follows:
Table 4-1. IPMC712 Connector
Pin Signal Description Signal Description Pin
1 I2CSCL I2CSDA 2
4
3GND GND 4
5JDB8# GND 6
7GND JDB9# 8
9 JDB10# +3.3V 10
11 +3.3V JDB11# 12
13 JDB12# GND 14
15 GND JDB13# 16
17 JDB14# +3.3V 18
19 +3.3V JDB15# 20
21 JDBP1# GND 22
23 GND LANINT2_L 24
25 PIB_INT +3.3V 26
27 +3.3V PIB_PMCREQ# 28
29 PIB_PMCGNT# GND 30
31 GND +3.3V 32
33 +5.0v +5.0v 34
35 GND GND 36
37 +5.0v +5.0v 38
39 GND GND 40
IPMC7126E/7616E I/O Module Installation and Use (6806800A45B)
25
Chapter 4 Connector Pin Assignments
IPMC761 Connector
connector provides the on-board interface of the IPMC761 I/O signals. The pin assignments
for this connector are as follows:
Table 4-2. IPMC761 Connector
Pin Signal Description Signal Description Pin
1 I2CSCL I2CSDA 2
3GND GND 4
5DB8# GND 6
7 GND DB9# 8
9 DB10# +3.3V 10
11 +3.3V DB11# 12
13 DB12# GND 14
15 GND DB13# 16
17 DB14# +3.3V 18
19 +3.3V DB15# 20
21 DBP1# GND 22
23 GND LANINT2_L 24
25 PIB_INT +3.3V 26
27 +3.3V PIB_PMCREQ# 28
29 PIB_PMCGNT# GND 30
31 GND +3.3V 32
33 +5.0v +5.0v 34
35 GND GND 36
37 +5.0v +5.0v 38
39 GND GND 40
26
