Emerson HIGHPOINTE CF205BS01, HIGHPOINTE CF205GES01 Owner's Manual

Download

Part No. F40BP73750001 Form No. BP7375-1

U.L. Model No.: CF205

READ AND SAVE THESE INSTRUCTIONS

Net Weight: 22.1 Lbs.

HIGHPOINTE

™

Ceiling Fan

Owner's Manual

Model Numbers

CF205BS01

Brushed Nickel Finish with

Opal Matte Glass and

Dark Mahogany Blades

CF205GES01

Golden Espresso with

Sandstone Glass and

Chocolate Blades

WARNING: To avoid fire, shock, and serious personal injury, follow these instructions.

Safety Instructions

1. Read your owner’s manual carefully and keep it for future reference.

2. Before servicing or cleaning unit, switch power off at service panel and lock service panel disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a warning device, such as a tag, to the service panel.

3. Be careful of the fan and blades when cleaning, painting, or working near the fan. Always turn off the power to the ceiling fan before servicing.

4. Do not put anything into the fan blades while they are turning.

5. Do not operate reversing switch until fan blades have come to a complete stop.

Additional Safety Instructions for Installation

1. To avoid possible shock, be sure electricity is turned off at the fuse box before wiring, and do not operate fan without blades.

2. The installation is to be in accordance with the National Electrical Code, ANSI/NFPA 70-2008 and Local Codes. Use the National Electrical Code if Local Codes do not exist. The ceiling fan must be grounded as a precaution against possible electrical shock. Electrical installation should be made or approved by a licensed electrician.

3. The outlet box and joist must be securely mounted and capable of reliably supporting at least 50 pounds. Use only U.L. outlet boxes listed as “Acceptable for Fan Support”, and use the mounting screws provided with the outlet box. Most outlet boxes commonly used for support of light fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt.

4. The longer downrod furnished with the fan provides the minimum recommended floor to fan blade clearance for a 9 foot ceiling. The 6” downrod (supplied) must be used for an 8 foot ceiling.

5. The fan must be mounted with the fan blades at least 7 feet from the floor to prevent accidental contact with the fan blades.

6. Follow the recommended instructions for the proper method of wiring your ceiling fan. If you do not know enough about electrical wiring, have your fan installed by a licensed electrician.

CAUTION: The halogen bulbs operate at high internal pressure and high surface temperatures and could shatter unexpectedly. The halogen bulbs generate UV (ultraviolet) radiation that may cause skin and eye irritation with prolonged exposure. To avoid risks of burns or other injury, assure power is off before attempting to install or replace halogen bulb. Do not operate fan/light without lower glass in place.

7. This fan uses halogen bulbs. Do not touch the bulb with bare hands. Fingerprints may result in shorter bulb life. Remove fingerprints with alcohol.

NOTE: This fan is suitable for use with solid-state speed controls.

WARNING: To reduce the risk of fire or electric shock, this fan should only be used

with fan speed control Model No. UC7067RA, manufactured by Rhine Electric Co., Ltd.

WARNING: This product is designed to use only those parts supplied with this product and/or any accessories designated specifically for use with this product by Emerson Electric Co. Substitution of parts or accessories not designated for use with this product by Emerson Electric Co. could result in personal injury or property damage.

WARNING: To reduce the risk of personal injury, do not bend the blade flange when installing the blade flanges, balancing the blades or cleaning the fan. Do not insert foreign objects in between rotating fan blades.

WARNING

DATE CODE:

The date code of this fan may be found on the box, stamped in ink on a white label. You should record this data above and keep it in a safe place for future use.

U.L. Model No.: CF205

Tools Needed for Assembly

One Phillips head screwdriver One wire stripper One stepladder One wire cutter

Materials

Wiring, outlet box and box connectors must be of type required by the local code. The minimum wire would be a 3-conductor (2-wire with ground) of the following sizes:

Installed Wire Length Wire Size A.W.G.

Up to 50 ft. 14 50-100 ft. 12

This Manual Is Designed to Make it as Easy as Possible for You to

Assemble, Install, Operate and Maintain Your Ceiling Fan

Unpacking Instructions

For your convenience, check-off boxes are provided next to each step. As each step is completed, place a check mark in the box. This will insure that all steps have been completed and will be helpful in finding your place should you be interrupted.

Do not install or use fan if any part is damaged or missing. Call Toll-Free:

1-800-654-3545

WARNING

This product is designed to use only those parts supplied with this product and/or any accessories designated specifically for use with this product by Emerson Electric Co. Substitution of parts or accessories not designated for use with this product by Emerson Electric Co. could result in personal injury or property damage.

WARNING

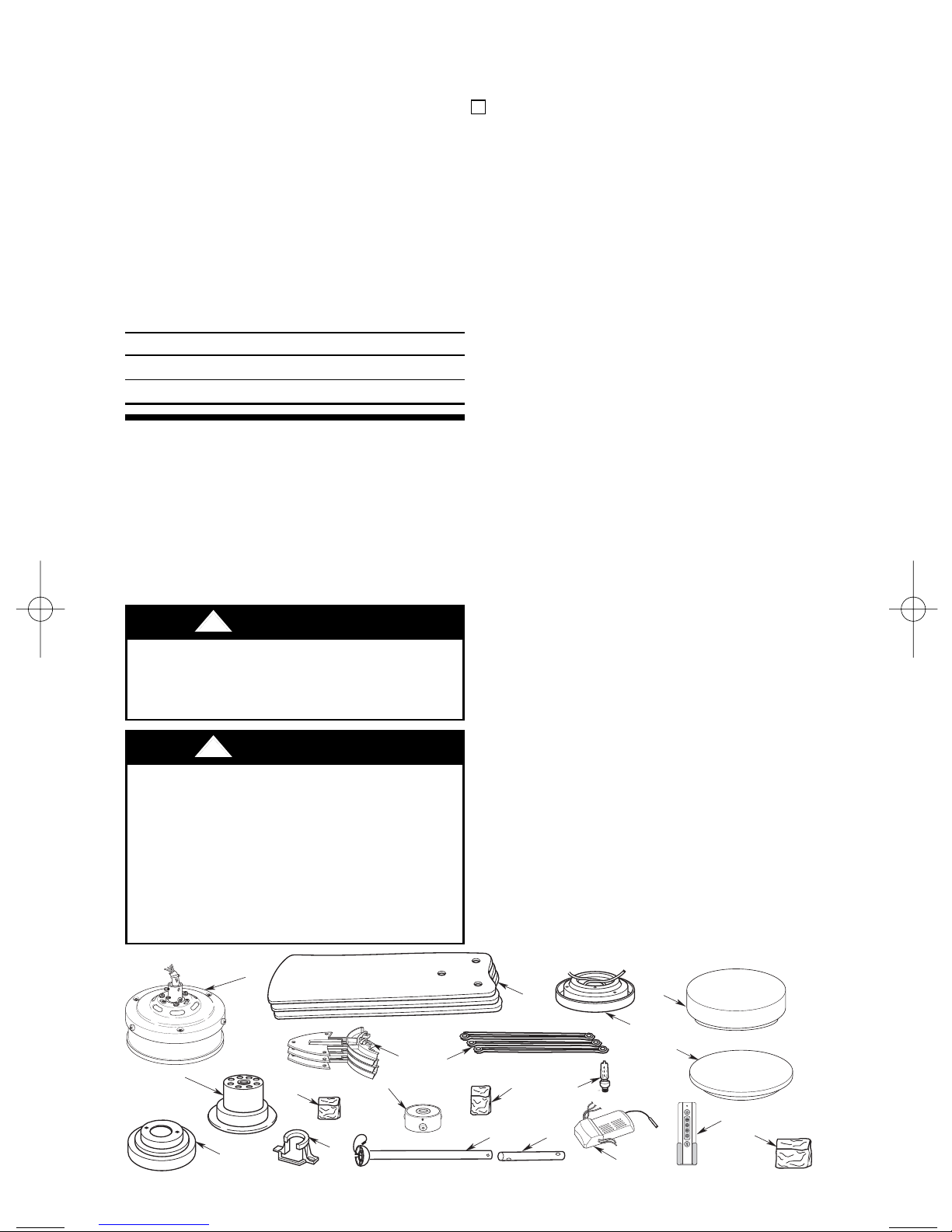

a. Fan motor/housing assembly b. One ceiling cover c. One coupling cover d. Three fan blades e. Three blade flanges f. Nine decorative blade nuts (bagged) g. One hanger bracket h. One hanger ball/12” downrod assembly i. One 6” downrod j. One rod support assembly k. Three decorative rod assemblies l. Six decorative rod assembly screws

(bagged) m. One light kit plate n. One lower glass o. One cover plate p. Two 50-watt mini-candelabra base

halogen bulbs q. One remote control transmitter r. One remote control receiver s. One loose parts bag, containing:

1. Two 1-1/4” threaded studs

2. Two knurled knobs

3. Two lockwashers

4. Seven wire connectors

5. One hairpin clip

6. One clevis pin

7. Seven 1/4-20 x 11mm pan head screws (bagged)

8. Ten 10-24 x 9mm oval head screws (bagged)

NOTE: Place the parts from the loose parts bags in a small container to keep them from being lost. If any parts are missing, contact your local retailer or catalog outlet for replacement before proceeding.

1. Open styrofoam unit containing fan.

Remove top half of styrofoam unit. Remove parts and check to see that you have received the following parts:

NOTE: If you are uncertain of part description, refer to exploded view illustration.

U.L. Model No.: CF205

2. Remove the fan motor/housing

assembly from the protective plastic bag. Place the fan assembly into the lower foam pad with the bottom of the motor facing up.

The lower foam pad serves as a holder for the fan during the first stages of assembly.

General

Your Emerson ceiling fan comes supplied with a Fan/Light Remote Control which consists of a remote control (transmitter) and a remote control receiver mounted under the ceiling cover. This system allows you to regulate your ceiling fan speed and light intensity.

NOTE: An optional Emerson Electric SW406 Wall Control may also be used to control your ceiling fan.

U.L. Model No.: CF205

To reduce the risk of fire, electric shock, or personal injury, mount fan to outlet box marked “Acceptable for Fan Support”, and use screws supplied with outlet box. Most outlet boxes commonly used for support of light fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt.

WARNING

Turning off wall switch is not sufficient. To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. All wiring must be in accordance with National and Local codes and the ceiling fan must be properly grounded as a precaution against possible electrical shock.

WARNING

To avoid possible fire or shock, follow all wiring instructions carefully.

Any electrical work not described in these instructions should be done or approved by a licensed electrician.

WARNING

If your fan is to replace an existing ceiling light fixture, turn electricity off at the main fuse box at this time and remove the existing light fixture.

Electrical Requirements

Your new ceiling fan will require a grounded electrical supply line of 120 volts AC, 60 Hz, 15 amp circuit.

The outlet box must be securely anchored and capable of withstanding a load of at least 50 pounds.

How to Assemble Your

Ceiling Fan

1. Mount the fan blades to the blade

flanges using three 10-24 x 9mm oval head screws and three decorative blade nuts (supplied) (Figure 4).

Figure 4

To reduce the risk of personal injury, do not bend the blade flange when installing the blade flanges, balancing the blades or cleaning the fan. Do not insert foreign objects in between rotating fan blades.

WARNING

10-24 X 9mm OVAL HEAD SCREW (3)

BLADE FLANGE

FAN BLADE

DECORATIVE BLADE NUTS (3)

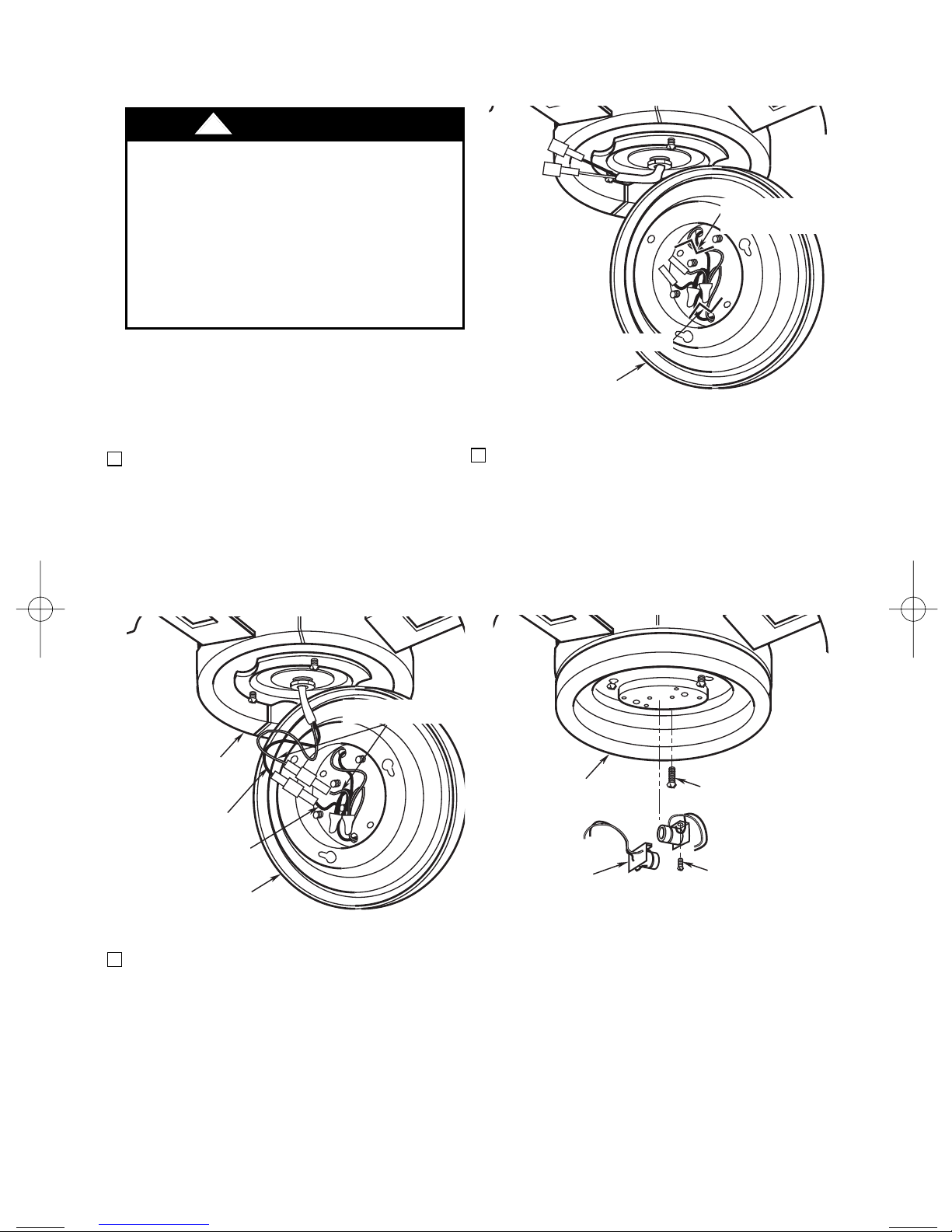

4. Connect the white wire from the light kit

plate to the white wire in the fan motor/ housing assembly (Figure 6). Connect the black wire from the light kit plate to the black wire in the fan motor/housing assembly.

Figure 5

Figure 6

U.L. Model No.: CF205

2. Remove and discard the three shipping

retainers securing the motor hub in the motor housing.

NOTE: Take care not to scratch the fan housing when installing the blade assemblies.

3. Rotate the motor hub to position the

slot in the motor plate over a fan motor/ housing flange hole. Attach the blade flange assembly on the fan motor/ housing by slowly rotating the motor hub to align screw holes. Tighten the screws securely while interlocking the flange assemblies as you rotate the hub (Figure 5).

Your ceiling fan can be assembled with the light kit and glass or without the light kit and glass. To assemble without the light kit and glass, you will use the no-light cover plate. In order to use the no-light cover plate, the light sockets will need to be removed from the light kit plate.

CAUTION: Before installing and tightening the screws, be sure there are no wires pinched between the light kit plate and the fan motor/housing assembly.

NOTE: In order to remove the light sockets, the wires on the light kit plate will need to be cut. MAKE SURE THIS IS THE NO LIGHT ASSEMBLY DESIRED.

NOTE: If no light kit is to be used on the ceiling fan, disregard Steps 4 and 5; proceed to “How to Disassemble Your Light Kit for Cover Plate Assembly Only”, then continue to Step 6.

5. Remove one of the fan motor/housing

assembly screw (retain for later use). Position the light kit plate on the fan motor/housing assembly aligning the keyhole slots over the fan motor screws. Rotate the light kit plate clockwise to engage the screws into the keyhole slots. Reinstall the previous removed screw. Tighten the three screws to secure the light kit plate to the fan motor/housing (Figure 7).

Figure 7

1/4-20 x 11mm PAN HEAD SCREW (2 per flange)

LIGHT KIT PLATE

BLACK WIRE

BLUE WIRE

FAN MOTOR/ HOUSING ASSEMBLY

WHITE WIRES

BLADE FLANGE

MOTOR HUB

MOTOR SCREW (3)

LIGHT KIT PLATE

Figure 9

6. Carefully remove the fan assembly

from the lower foam pad. Turn the fan assembly over and position it on the lower foam pad with the light kit plate resting on the pad so that the top of the motor faces up.

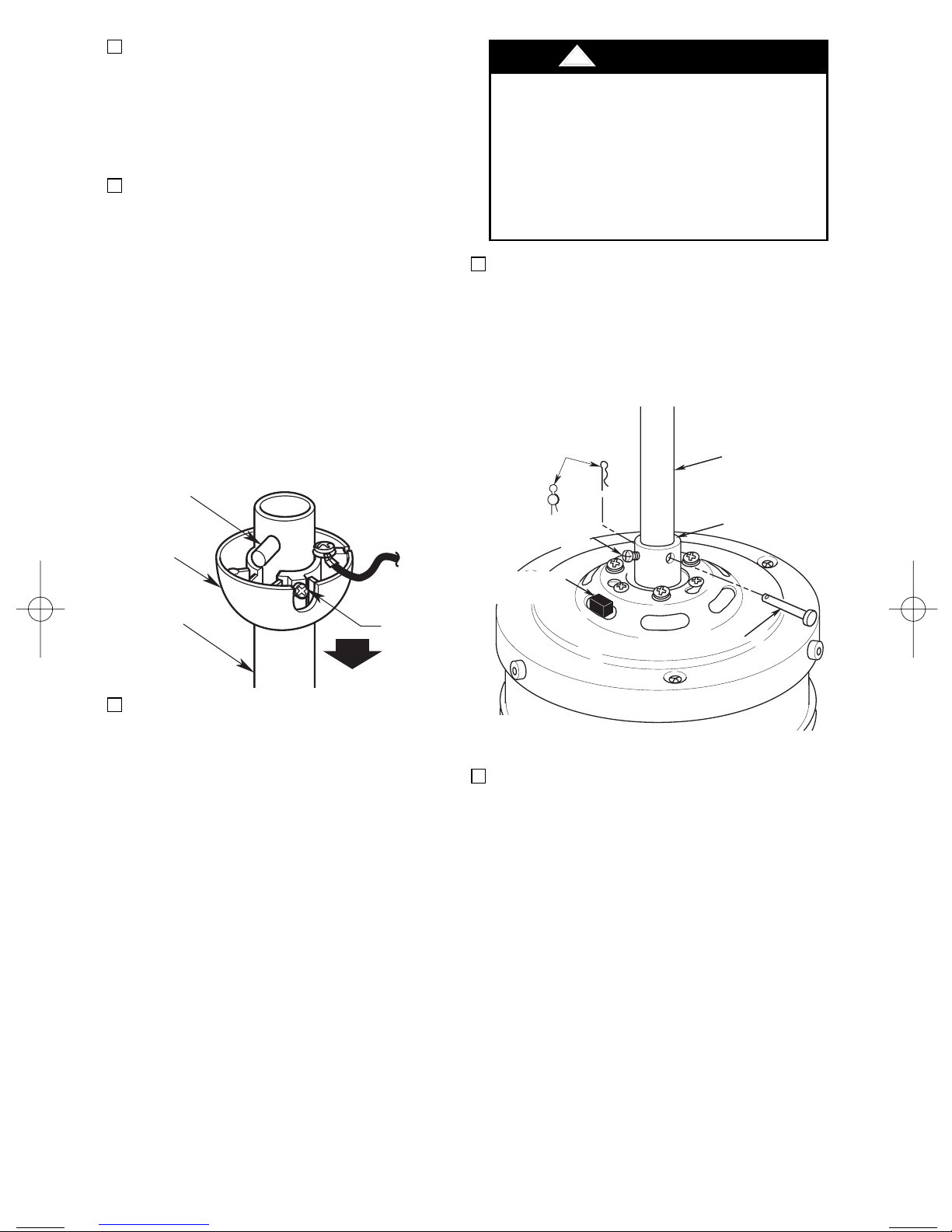

7. Remove the hanger ball by loosening

the setscrew in the hanger ball until the ball falls freely down the downrod (Figure 8). Remove the pin from the downrod, then remove the hanger ball. Retain the pin and hanger ball for reinstallation in Step 15.

NOTE: If you have an eight-foot ceiling, you will have to use the 6” downrod (supplied) in order to maintain the necessary blade-to-floor clearance of seven feet.

9. Tighten the setscrews (Figure 9)

securely while pulling up on the downrod.

NOTE: The setscrews must be properly installed as described above, or fan wobble could result.

Figure 8

It is critical that the clevis pin in the motor coupling is properly installed and the setscrews securely tightened. Failure to verify that the pin and setscrews are properly installed (as shown in Figure 9) could result in the fan falling.

WARNING

U.L. Model No.: CF205

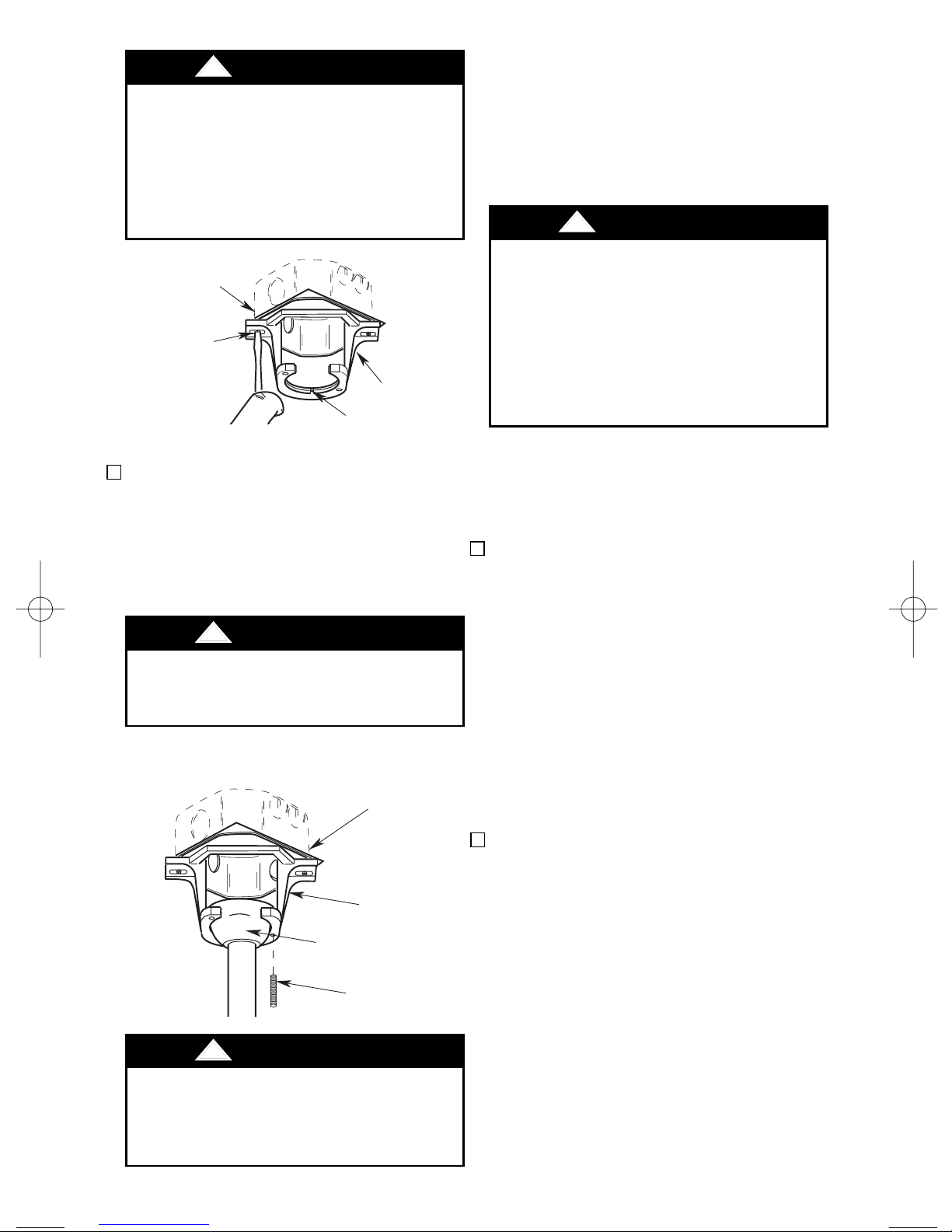

8. Unscrew the two upper setscrews

(Figure 8) until they clear the inside of the motor coupling. Then separate, untwist and unkink the three 80” motor leads. Route the motor lead wires through the downrod. Align the clevis pin holes in the downrod with the holes in the motor coupling. Install the clevis pin and secure with the hairpin clip (Figure 9). The clevis pin must go through the holes in the motor coupling and the holes in the downrod. Be sure to push the straight leg of the hairpin clip through the hole near the end of the clevis pin until the curved portion of the hairpin clip snaps around the clevis pin. The hairpin clip must be properly installed to prevent the clevis pin from working loose. Pull up on the downrod to make sure the clevis pin is properly installed.

10. Make sure the grommet Is properly

installed in the coupling cover, then slide the coupling cover over the downrod until it rests on the motor housing. (Figure 10).

NOTE: If you installed the 6” downrod, the three decorative rod assemblies and the rod support assembly will not be installed. Disregard Steps 12 through 14; proceed to Step 15.

HAIRPIN CLIP

DOWNROD

HANGER BALL

DOWNROD

MOTOR COUPLING

SETSCREW (2)

REVERSE SWITCH

SETSCREW

CLEVIS PIN

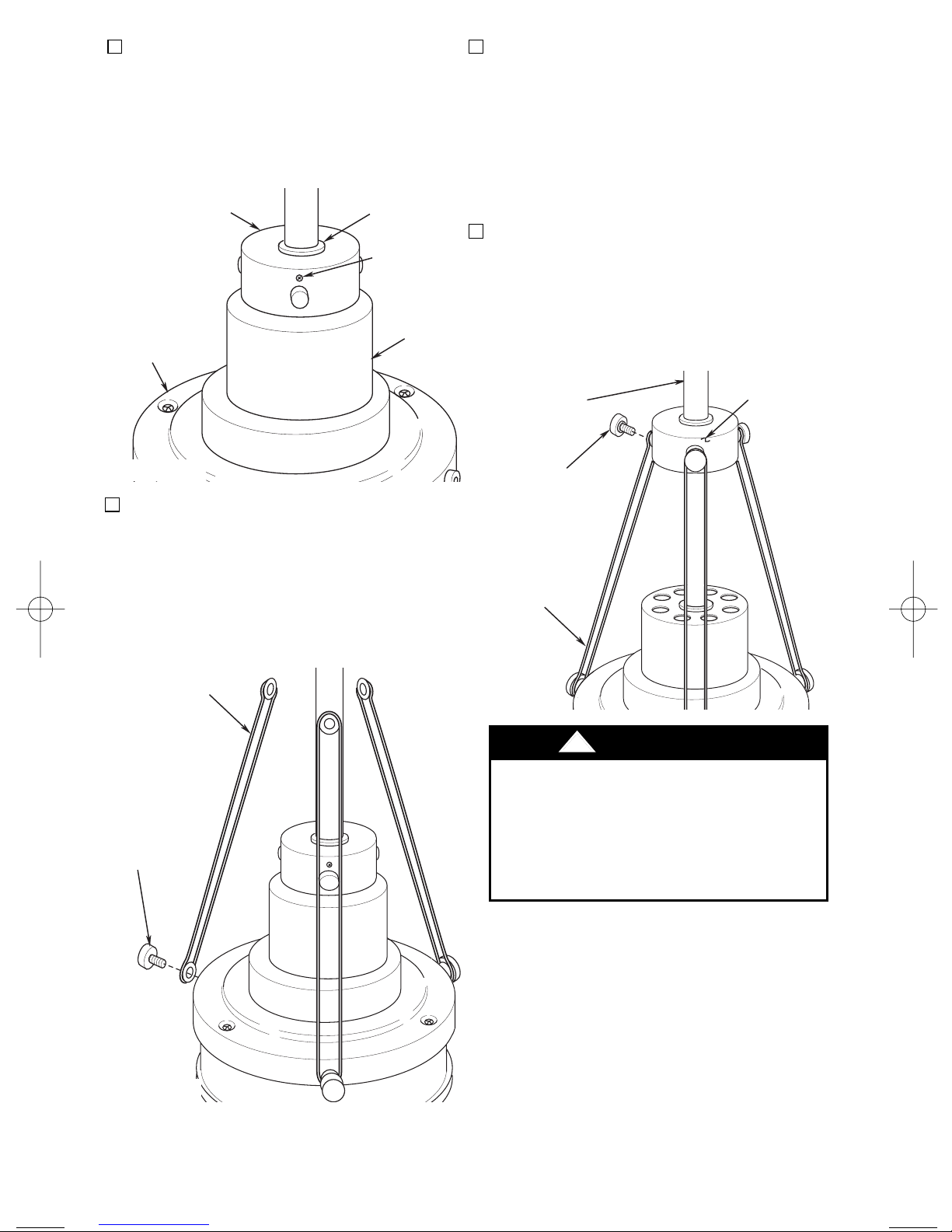

13. Slide the rod support assembly up

the downrod until the threaded holes in the rod support align with the holes in the decorative rod assemblies (Figure 12). Secure the decorative rods to the rod support using three decorative rod screws; do not tighten the rod screws at this time.

14. Rotate the rod support assembly until

the decorative rod assemblies are aligned vertically with the downrod (Figure 12). Hold the rod support in this position while tightening all six decorative rod screws securely.

Figure 11

U.L. Model No.: CF205

11. Make sure the grommets are properly

installed in the rod support assembly. Then position the three screws in the rod support toward the top, and slide the rod support over the downrod (Figure 10).

Figure 10

12. Using the decorative rod screws (sup-

plied), attach the three decorative rod assemblies to the motor housing (Figure 11). The decorative rods must be oriented so that they lean in towards the downrod. Do not tighten the rod screws at this time.

It is critical that the pin in the hanger ball is properly installed and the setscrew securely tightened. Failure to verify that the pin and setscrew are properly installed could result in the fan falling.

WARNING

DECORATIVE ROD ASSEMBLY

DECORATIVE ROD SCREW

DOWNROD

ROD SUPPORT ASSEMBLY

Figure 12

ROD SUPPORT ASSEMBLY

MOTOR HOUSING

GROMMET

SCREWS (3) (Toward Top)

COUPLING COVER

DECORATIVE ROD ASSEMBLY

DECORATIVE ROD SCREW

1. Securely attach the hanger bracket to

the outlet box using the two screws supplied with the outlet box (Figure 15).

15. Place the ceiling cover over the down-

rod. Then reinstall the hanger ball (Figure 13) on the downrod as follows. Route the three 80” motor leads through the hanger ball and slide the hanger ball over the downrod. Position the pin through the two holes in the downrod and align the hanger ball so the pin is captured in the groove in the top of the hanger ball. Pull the hanger ball up tight against the pin and securely tighten the setscrew in the hanger ball. A loose setscrew could create fan wobble.

Figure 13

U.L. Model No.: CF205

How to Hang

Your Ceiling Fan

The fan must be hung with at least 7' of clearance from floor to blades (Figure 14).

WARNING

The outlet box and joist must be securely mounted and capable of supporting at least 50 lbs. Use only a U.L. outlet box listed as “Acceptable for Fan Support”.

WARNING

Figure 14

16. The fan comes with blue, black and

white leads that are 80” long. Before installing the fan, measure up approximately 6 to 9-inches above top of hanger ball/downrod assembly. Cut off excess leads and strip back insulation 1/2” from end of leads.

17. You have now completed the initial

assembly of your new ceiling fan. You can now proceed with hanging and wiring your fan.

HANGERBALL

DOWNROD

CEILING

AT LEAST

FLOOR

CEILING COVER

SETSCREW

1. Position the supply wires to the left side

of the outlet box (Figure 17); position the fan wires to the right side. Partially insert the remote control receiver (flat side up) until one end rests on the hanger ball as shown in Figure 17.

NOTE: Make all wiring connections using wire connectors (supplied). Make sure that all connections are tight, including ground, and that no bare wire is visible at the wire connectors, except for the ground wire.

2. Refer to Figure 17 and 18 and connect

the receiver wires to the supply wires and the fan motor wires as follows:

a. Securely connect the green grounding

wires from the hanger ball and the hanger bracket to the supply grounding conductor (this may be a bare wire or a wire with green insulation).

b. Securely connect the supply white

(neutral) wire to the receiver white (AC IN N) wire.

c. Securely connect the supply black wire

(hot) wire to the receiver black (AC IN L) wire.

How to Wire

Your Ceiling Fan

WARNING

If you feel that you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician.

CAUTION: To reduce the risk of electrical shock, disconnect the electrical supply circuit before installing the fan, light kit or receiver.

2. Carefully lift the fan and seat the hang-

er ball/downrod assembly on the hanger bracket that was just attached to the outlet box (Figure 16). Be sure the groove in the ball is lined up with the tab on the hanger bracket (Figure 15).

Hanger bracket must seat firmly against outlet box. If the outlet box is recessed, remove wall board until bracket contacts box. If bracket and/or outlet box are not securely attached, the fan could wobble or fall.

WARNING

Failure to seat tab in groove could cause damage to electrical wires and possible shock or fire hazard.

WARNING

To avoid possible fire or shock, do not pinch wires between the hanger ball/downrod assembly and hanger bracket.

WARNING

NOTE: CEILING COVER, SUPPLY WIRES AND FAN WIRES OMITTED FOR CLARITY.

OUTLET BOX

HANGER BRACKET

HANGER BALL/ DOWNROD ASSEMBLY

1-1/4" THREADED STUD (2)

Figure 15

Figure 16

U.L. Model No.: CF205

OUTLET BOX

TWO SCREWS SUPPLIED WITH OUTLET BOX

TAB

HANGER BRACKET

Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire connectors, except for the ground wire. Do not operate fan until blades are in place. Noise and fan damage could result.

WARNING

d. Securely connect the fan motor white

wire to the receiver white (TO MOTOR N) wire.

e. Securely connect the fan motor black

wire to the receiver red (TO MOTOR L) wire.

f. Securely connect the fan motor blue

wire to the receiver blue (FOR LIGHT) wire.

Figure 17

U.L. Model No.: CF205

Figure 18

SUPPLY BLACK WIRE (HOT)

GROUND WIRE

GREEN GROUND WIRE FROM HANGER BALL

ANTENNA

GREEN GROUND WIRE FROM HANGER BRACKET

1-1/4" THREADED STUD (2)

120-

VOLT

SUPPLY

WHITE

SUPPLY WHITE WIRE (NEUTRAL)

AC IN L

FAN BLUE WIRE

FAN WHITE WIRE

STANDARD ON-OFF WALL

SWITCH OR OPTIONAL SW406

WALL CONTROL

BLACK

(HOT)

RECEIVER WHITE WIRE

FAN BLACK WIRE

BLACK

WHITE

RECEIVER BLACK WIRE

RECEIVER RED WIRE

TO MOTOR N

FOR LIGHT

RECEIVER WHITE WIRE

BLACK

WHITE

RECEIVER BLUE WIRE

TO MOTOR L

GROUND

GREEN WIRE (GROUND)

FROM HANGER BALL AND

TWO-CONDUCTOR

CABLE (WITH

GROUND)

HANGER BRACKET

RED

BLUE

WHITE

BLACK

BLUE

WHITE

HANGER BALL

8. Place the lower glass into the light fitter,

aligning the three flat areas on the top flange of the lower glass with the three pins on the inside of the fitter (Figure

20). Then turn the lower glass clockwise until it stops turning.

9. Your ceiling fan is now installed and

wired to be controlled by your wall control.

7. Screw the two 50-watt mini-candelabra

base halogen bulbs (supplied) into the light kit plate sockets (Figure 20). Do not touch the glass bulb; use the porcelain base to screw in the bulb, or wear soft gloves.

Figure 20

To avoid possible fire or shock, make sure that the electrical wires are completely inside the outlet box and not pinched between the ceiling cover and the ceiling.

WARNING

3. Push the wires and connectors up into

the outlet box while inserting the receiver fully into the hanger bracket. Position the antenna wire on top of the receiver.

4. Screw the two 1-1/4” threaded studs

(supplied) into the tapped holes in the hanger bracket (Figure 19).

5. Lift the ceiling cover up to the threaded

studs and turn until the studs protrude through the holes in the ceiling cover (Figure 19).

6. Secure the ceiling cover in place by

sliding lockwashers (supplied) over the threaded studs and installing the two knurled knobs (supplied). (Figure 19). Tighten the knurled knobs securely until the ceiling cover fits snugly against the ceiling.

THREADED STUD (2)

CEILING COVER

KNURLED KNOB (2)

LOCKWASHER (2)

Figure 19

U.L. Model No.: CF205

CAUTION: To avoid risks of burns or other injury, assure power is off before attempting to install or replace the halogen bulbs.

NOTICE: Do not touch halogen bulbs with bare hands. Fingerprints may result in shorter bulb life. Remove fingerprints with alcohol.

50-WATT HALOGEN BULB (2)

FLAT AREA

LIGHT KIT PLATE

GLASS

U.L. Model No.: CF205

How to Disassemble Your Light Kit for

Cover Plate Assembly Only

3. Cut light socket wires using wire cut-

ters. Unscrew the screws that is securing the socket plates to the light kit plate. Pull socket wiring though light kit plate holes to completely disengage the light sockets from light kit plate (Figure 23).

1. Detach the light kit plate from the fan

motor/housing assembly by removing one screw and loosening the two other screws (located in the keyholes). Rotate the light kit plate counterclockwise to disengaging the screws in the two key hole slots (Figure 21).

LIGHT KIT PLATE

BLACK WIRE

BLUE WIRE

FAN MOTOR/ HOUSING ASSEMBLY

WHITE WIRES

Figure 21

2. Disconnect the black wire of the light kit

plate from the black wire of the fan motor/housing assembly. Disconnect the white wire of the light kit plate from the white wire of the fan motor/housing assembly (Figure 22).

LIGHT KIT PLATE

CUT LIGHT SOCKET WIRES

Figure 22

REASSEMBLE LIGHT KIT PLATE

REASSEMBLE MOTOR SCREW (3)

REMOVE SOCKET PLATE SCREWS (2 per plate)

REMOVE SOCKET/ SOCKET PLATE (2)

Figure 23

WARNING

CAUTION: To reduce the risk of electrical shock, disconnect the electrical supply circuit before installing the fan, light kit or receiver.

U.L. Model No.: CF205

LIGHT KIT PLATE

LIGHT KIT COVER PLATE

FLAT AREA

LIGHT KIT PLATE SOCKETS REMOVED

Figure 24

5. Place the cover plate onto the fan

motor/housing aligning the three flat areas on the top flange of the cover plate with the three pins on the inside of the fan motor/housing (Figure 24). Then turn the cover plate clockwise until it stops turning.

6. Your cover plate is now installed.

To avoid possible fire or shock, make sure that the electrical wires are completely tucked inside the lower assembly and not pinched by the cover plate.

WARNING

4. Carefully tuck blue and white wires

from motor up into the fan motor/housing assembly (Figure 24).

Remote Control

Procedures

General

Your Emerson Ceiling Fan/Light Remote Control consists of hand-held transmitter and a receiver which is mounted under the fan ceiling cover. The remote control is designed to separately control your ceiling fan speed and light intensity. There are four push buttons (.,..,

...,....

) to set the fan speed and turn the fan off. The light ( ) push button turns the light on and off and controls the light intensity. The blue indicator light will illuminate while any button is pressed, indicating that the battery is good.

The remote control transmitter is powered by two AAA alkaline batteries (not included). To prevent possible damage if the batteries should leak, be sure to remove the batteries when the control is not to be used for an extended period of time.

Code switches in the transmitter may be set in 32 different positions. If your fan and light go on and off without using your control, you may be getting interference from other remote units such as garage door openers, car alarms or security systems. To remedy this situations, simply change the combination code in your transmitter.

Preset Memory Feature

Your Emerson receiver is equipped with a preset memory feature. If the AC supply to the receiver is powered through a wall switch, when the switch is turned OFF, the control will remember the light intensity and fan speed. When the switch is turned back ON the light and fan will resume operation as they we re prior to the switch being turned OFF.

Figure 25

Installation of Battery

1. Remove the battery cover by pressing

firmly below the arrow and sliding the cover off the control (Figure 25).

2. Remove the connector from the battery

compartment and install two AAA alkaline batteries.

REMOTE CONTROL LEVERS

TWO AAA BATTERIES

BATTERY COMPARTMENT COVER

SR400 REMOTE CONTROL

234

CODE SWITCHES

U.L. Model No.: CF205

Setting Operating

Frequency of

Transmitter

Your remote control transmitter has code switches which must be set in one of 32 possible code combinations. The five levers (numbered 1, 2, 3, 4, and 5) on the switches are factory-set in the ON (up) position. Do not use this setting

. Change

the switch settings as follows:

1. Slide the five switch levers in the remote

control (transmitter) to your choice of ON (up) or down positions. Use a ballpoint pen or small screwdriver and slide the levers firmly up or down.

2. When power is restored after installation

of the wall control, push and hold the fan OFF button ( ) for 3 to 5 seconds to set the code in the receiver.

3. The sixth switch marked ON and I is for

dimming control of lights: Set switch to ON to allow for dimming of the lights. Set switch to I for no dimming of the lights such as for fluorescent bulbs.

4. Install the batteries in the transmitter

battery compartment and replace the battery cover.

Installation of Storage

Bracket

A storage bracket is provided for holding your remote control when not in use (Figure 26). If you desire to use the bracket, install it on a wall that is away from excess heat or humidity.

1. To set the desired fan speed, hold the

FAN ( ) button down, then press one of the four buttons (.,..,

...,....

) to oper-

ate your fan from low to high speeds.

2. To turn the light on and off, press the

LIGHT ( ) button down, then press one of the four buttons (.,..,

...,....

) to operate your light intensity from low to high intensities.

Note: When turning the light on, light will turn on at the light intensity previously selected.

Operation of Remote

Control

IMPORTANT

Fan installation must be completed, including the installation of the fan blades, before testing of the remote control.

Your remote control has full control of your fan and light (Figure 26).

NOTE: Prior to operation of the fan and light from the remote control, set the fan speed to HIGH (

....

) and turn the

light ON ( ).

Figure 26

COVER

WALL BRACKET

SCREW HOLES (2)

POWER INDICATOR LIGHT

FAN BUTTON

TO INSTALL BRACKET TO WALL:

SLIDE THE COVER UP TO EXPOSE THE SCREW HOLES FOR INSTALLATION

HIGH TO LOW BUTTONS

LIGHT BUTTON

STORAGE BRACKET

U.L. Model No.: CF205

Do not use water when cleaning your ceiling fan. It could damage the motor or the blades and create the possibility of an electrical shock.

WARNING

The use of any other control not specifically approved for this fan could result in fire, shock and personal injury.

WARNING

Maintenance

IMPORTANT CARE INSTRUCTIONS

for your Ceiling Fan

Periodic cleaning of your new ceiling fan is the only maintenance that is needed.

When cleaning, use only a soft brush or lint free cloth to avoid scratching the finish.

Abrasive cleaning agents are not required and should be avoided to prevent damage to finish.

Accessories

1. Downrod Extension Kits (see store or

catalog).

2. Ceiling Fan Controls (see store or

catalog).

Figure 27

3. If airflow is desired in the opposite

direction, turn the fan off and wait for the blades to stop turning. Then slide the coupling cover up, push the reversing switch in opposite direction (Figure

27) Slide coupling cover down to rest on motor housing and turn the fan on again. The blades will turn in the opposite direction and reverse the airflow.

Fan/Light Fails to Operate

• Check that the speed switch on the fan is set to HIGH (

....

) speed.

• Check that the light switch is on.

• Check that the battery is good (blue indicator light should light when any button is pressed).

• Check that the receiver is wired properly.

• Check that code switches in the remote control and receiver are set in the same position.

Short Range

• If the remote control operates the fan when close to it, but does not operate it at a distance of 40 feet, try placing the antenna wire outside of the ceiling cover.

Trouble Shooting

Remote Control

COUPLING COVER

MOTOR HOUSING

REVERSE SWITCH

U.L. Model No.: CF205

Trouble Shooting

TROUBLE PROBABLE CAUSE SUGGESTED REMEDY

1. Fan will not 1. Fuse or circuit breaker 1. Check main and branch start. blown. circuit fuses or circuit breakers.

2. Loose power line 2. Check line power connections connections to the fan, or to fan and wire. loose wire connections in the switch housing.

3. Remote control switch is off. 3. Turn on remote control .

4. Defective battery in remote 4. Check that the battery is good control transmitter. (red indicator light should

illuminate when any button is pressed).

5. Code switches in remote 5. Check that both code switches control receiver and transmitter are set in the same positions. are not set in the same position.

WARNING: Make sure main power is turned off.

2. Fan sounds 1. Blades not attached to fan. 1. Attach blades to fan before noisy. operating.

2. Screws securing fan blade 2. Check to make sure the screws flanges to motor are loose. which attach the blade flanges

to the motor are tight.

3. Wire connectors inside switch 3. Check to make sure wire housing rattling. connectors in switch housing

are not rattling against each other or against the interior wall of the switch housing.

WARNING: Make sure main power is turned off.

4. Screws holding blades to 4. Tighten screws securely. flanges are loose.

5. Loose screws in motor housing. 5. Check to make sure all screws

in motor housing are snug (not over-tight)

3. Fan wobbles 1. Setscrew in motor coupling is 1. Raise coupling cover and tighten excessively. not tightened securely. setscrew securely.

2. Setscrew in the hanger ball/ 2. Tighten the setscrew in the downrod assembly is loose. hanger ball/downrod assembly.

3. Screws securing fan blade 3. Check to be sure screws which flanges to motor are loose. attach the fan blade flanges

to the motor are tight.

4. Fan blade flanges not seated 4. Check to be sure that the properly. screws securing the fan

blade flanges seat firmly.

5. Hanger bracket and/or ceiling 5. Tighten the hanger bracket outlet box is not securely screws to the outlet box, and/or fastened. secure outlet box.

6. Fan blades out of balance. 6. Interchanging an adjacent (side

by-side) blade pair can redistribute the weight and result in smoother operation. Or use supplied balancing kit to balance blades.

WARNING: FOR YOUR OWN SAFETY TURN OFF POWER AT FUSE BOX

OR CIRCUIT BREAKER BEFORE TROUBLE SHOOTING YOUR FAN.

U.L. Model No.: CF205

INSTRUCTION TO THE USER

(if device contains a digital device)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This equipment has been certified to comply with the limits for a Class B computing device, pursuant to FCC Rules. In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user’s authority to operate this equipment.

This Class B digital apparatus meets all requirements of the Canadian InterferenceCausing Equipment Regulations.

U.L. Model No.: CF205

Repair Parts

U.L. Model No.: CF205

Part Numbers

Key Model No. Model No.

No. Description CF205BS00 CF205GES00

* Hanger Pack,

Consisting of: 761655-74 761655-39 1 Hanger Bracket — — 2 Hanger Ball — — 3 12” Downrod — —

* Parts Bag, Containing: 763596 763596-1 4 Wire Connector (7) — — 5 Threaded Stud, 8-32 x 1-1/4” (2) — — 6 Knurled Knob (2) — — 7 Lockwasher (2) — — 8 Hairpin Pin — — 9 Clevis Pin — —

10 Screw, Oval Head (10) — — 11 Screw, Pan Head (7) — — 12 Screw, Pan Head, #8 x 10mm and lockwashers (4) — —

13 Decorative Blade Nuts (9) 763599-BS 763599-GES

14 Cover, Ceiling 763592-BS 763592-GES

15 Support Assembly, Rod 762709-BS 762709-GES

16 Rod Assembly, Decorative (3) 762710-BS 762710-GES

17 Screw, Decorative Rod (6) 762711-BS 762711-GES

18 Cover, Coupling 762708-BS 762708-GES

19 Blade Set (full set for one fan) 763601 763601-1

20 Flange Set (full set for one fan) 763597-BS 763597-GES

21 Harness Assembly, Wiring 763595 763595

22 Fitter Assembly, Light 763603-BS 763603-GES

23 Glass, Lower 763605 763605-1

24 Cover Plate 763609-BS 763609-GES

25 Bulb, Halogen, 50-watt Mini-Candelabra Base — —

26 Downrod, 6” 761631-32 761631-44

27 Transmitter, Wall Control, SR401 764090 764090

28 Receiver, Remote Control 764089 764089

—

Owner's Manual BP7375-1 BP7375-1

Repair Parts Listing

Before discarding packaging material, be certain all parts have been removed.

HOW TO ORDER REPAIR PARTS

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION:

• PART NUMBER • PART DESCRIPTION

• NAME OF ITEM • MODEL NUMBER

The model number of your Fan will be found on a label attached to the top housing.

For repair parts, phone 1-800-654-3545.

Part No. F40BP73750001 Printed in China 08/10 Form No. BP7375-1

Air Comfort Products

DIVISION OF EMERSON ELECTRIC CO.

8100 W. Florissant • St. Louis, MO 63136

U.L. Model No.: CF205

LIMITED WARRANTY

What The Warranty Covers:

This warranty covers the motor and the other components and accessories of your Emerson ceiling fan against all defects in workmanship and materials. You must be the original purchaser or user of the product to be covered.

What The Period Of Coverage Is:

As it applies to the motor, this warranty will last for the lifetime of your ceiling fan. All other components and accessories are covered by this warranty for one year from the date you purchased your ceiling fan. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, MADE WITH RESPECT TO COMPONENTS AND ACCESSORIES IS ALSO LIMITED TO ONE YEAR.

What W

ill Emerson Electric Co. Do To Corr

ect Problems:

Emerson Electric Co. will replace a defective Emerson Air Comfort Ceiling Fan motor, blade, component or other accessory at no charge to you. If repair of the motor or blades is not practical or possible within a reasonable time and no replacement can be provided, Emerson will refund the actual purchase price of your fan. WE WILL SHIP THE

REPAIRED PRODUCT OR REPLACEMENT TO YOU AT NO CHARGE, BUT YOU ARE RESPONSIBLE FOR ALL COSTS OR REMOVAL, REINSTALLATION AND SHIPPING OF THE PRODUCT TO EMERSON ELECTRIC CO.

How Can Y

ou Get Service:

YOU MUST HAVE PROOF OF YOUR PURCHASE OF THE CEILING FAN TO OBTAIN LIMITED WARRANTY SERVICE. KEEP YOUR RECEIPT OR OTHER PROOF OF PURCHASE. You can return the product to our factory or to your nearest authorized service center.

• To return the product to the factory, obtain a return authorization and service identification tag by writing to Air Comfort Products, Division of Emerson Electric Co., 8100 W. Florissant Ave., St. Louis, MO 63136. Include all model numbers shown on the product with your request.

• To return the product to an authorized service center, call 1-800-654-3545 for the address of the nearest authorized service center.

You will be responsible for all insurance, freight or other transportation charges to our factory or authorized service center. Your Emerson Air Comfort Ceiling Fan should be properly packed to avoid damage in transit since we will not be responsible for any such damage.

What Is Not Cover

ed:

The glass globes and light bulbs of your ceiling fan are not covered by this warranty. This warranty also does not cover any defects, malfunctions or failures caused by:

• Repairs by persons not authorized by Emerson Electric Co.,

• Use of parts or accessories not authorized by Emerson Electric Co.,

• Mishandling, improper installation, modifications or damage to your ceiling fan while in your possession, or

• Unreasonable use, misuse, abuse, including failing to do reasonable and necessary maintenance, and normal wear and tear.

Additionally, this warranty and any implied warranty of merchantability or fitness for a particular purpose are voided when:

• The original purchaser or user ceases to own the product, or

• The fan is moved from its original point of installation.

This warranty is only valid within the 50 states of the United States and the District of Columbia. No other written or oral warranties apply, and no employee, agent, dealer or other person is authorized to give any warranties on behalf of Emerson Electric Co. REPAIR, REPLACEMENT OR A REFUND ARE THE EXCLUSIVE REMEDIES AVAILABLE UNDER THIS WARRANTY AND EMERSON IS NOT RESPONSIBLE FOR DAMAGES OF ANY KIND, INCLUDING INCIDENTAL AND CONSEQUENTIAL DAMAGES. Incidental damages include but are not limited to such damages as loss of time and loss of use. Consequential damages include but are not limited to the cost of repairing or replacing other property which was damaged if this product does not work properly.

How State Law Relates T

o The Warranty:

Some states do not allow the exclusion or limitation of incidental or consequential damages so the above exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Emerson HIGHPOINTE CF205BS01, HIGHPOINTE CF205GES01 Owner's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
