Emerson HD7097 User Manual

PERSONAL CD, CD-R/RW PLAYER

with 45 SECOND JOGGABLE
ANTI-SKIP PROTECTION and
EXTENDED BATTERY LIFE

OWNER’S MANUAL

HD7097

Visit our web site at www.emersonradio.com

HD7097_ib060702.p65 7/6/2002, 15:0518

Thank you.........

For purchasing this Emerson Pers onal CD, CD-R/RW Player. It has a 24 track
programmable memory so you can listen to the songs on your favorite CD's in any
order you choose. Or you can use the Random playback feature and let the player
select the playback order for you. Use the 3-way Repeat feature to repeat a single
track, the entire disc, or a programmed sequence of tracks, indefinitely. We've also
included a 45 Second Joggable Anti-Skip Memory which makes this player virtually
skip-free during most active uses.
There's a Dynamic Bass Boost Control that inc reases and enhances the bass
response and a set of digital quality, lightweight stereo headphones.
Please read this ins truction manual completely and carefully to make sure you
understand the proper operation of this product, and get the maximum enjoyment
out of all the features of this state-of-the-art CD, CD-R/RW player.
Once again, thanks for purchasing this Emerson product.

The serial number of your CD player can be found on the bottom cabinet. We
suggest that you record the serial number of your unit in the space below for future
reference.

Model Number: HD7097
Serial Number:

HD7097_ib060702.p65 7/6/2002, 15:051

1

IMPORTANT NOTES

!

WARNING: TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

Avoid installing the unit in locations described below:

• Places exposed to direct sunlight or
loseto heat radiating appliances such
as electric heaters.

CLASS 1 LASER PRODUCT

• Dusty places.

• Places subject to constant
vibration.

• Humid or moist places.

CLASS 1 LASER PRODUCT

APPAREIL Á LASER DE CLASSE 1

PRODUCTO LASER DE CLASE 1

CAUTION

INVISIBLE LASER RADIATION

WHEN OPEN AND INTERLOCKS

DEFEATED.

AVOID EXPOSURE TO BEAM

This product contains a low power Laser Device.

CAUTION

THIS LASER COMPACT DISC PLAYER FUNCTIONS BY HELP OF INVISIBLE
LASER LIGHT AND IS EQUIPPED WITH SAFETY SWITCHES TO AVOID
EXPOSURE WHEN DOOR IS OPEN AND SAFETY INTERLOCKS ARE
DEFEATED. IT IS DANGEROUS TO DEFEAT OR BYPASS SAFETY SWITCHES.

DANGEROUS VOLTAGE
Uninsulated Dangerous Voltage, that may be of sufficient
magnitude to constitute a risk of electric shock to persons is
present within this product's enclosure.

ATTENTION
The Owner's Manual contains important operating and
maintenance instructions.
For your safety, it is necessary to refer to the manual.

This device complies with part 15 of the FCC rules. Operation is subject to the
condition that this device does not cause harmful interference.

2

HD7097_ib060702.p65 7/6/2002, 15:052

LOCATION OF CONTROLS AND INDICATORS

1

9101112151613

14

8
7

6

5
4

3

1.) DBBS (Bass Boost) ON/OFF Switch - Switch On to increase bass response.

2.) VOLUME (+ / – ) Buttons – Raises or lowers the volume.

3.) PHONES (Headphone) Jack – Connect stereo headphones, included, to this
jack.

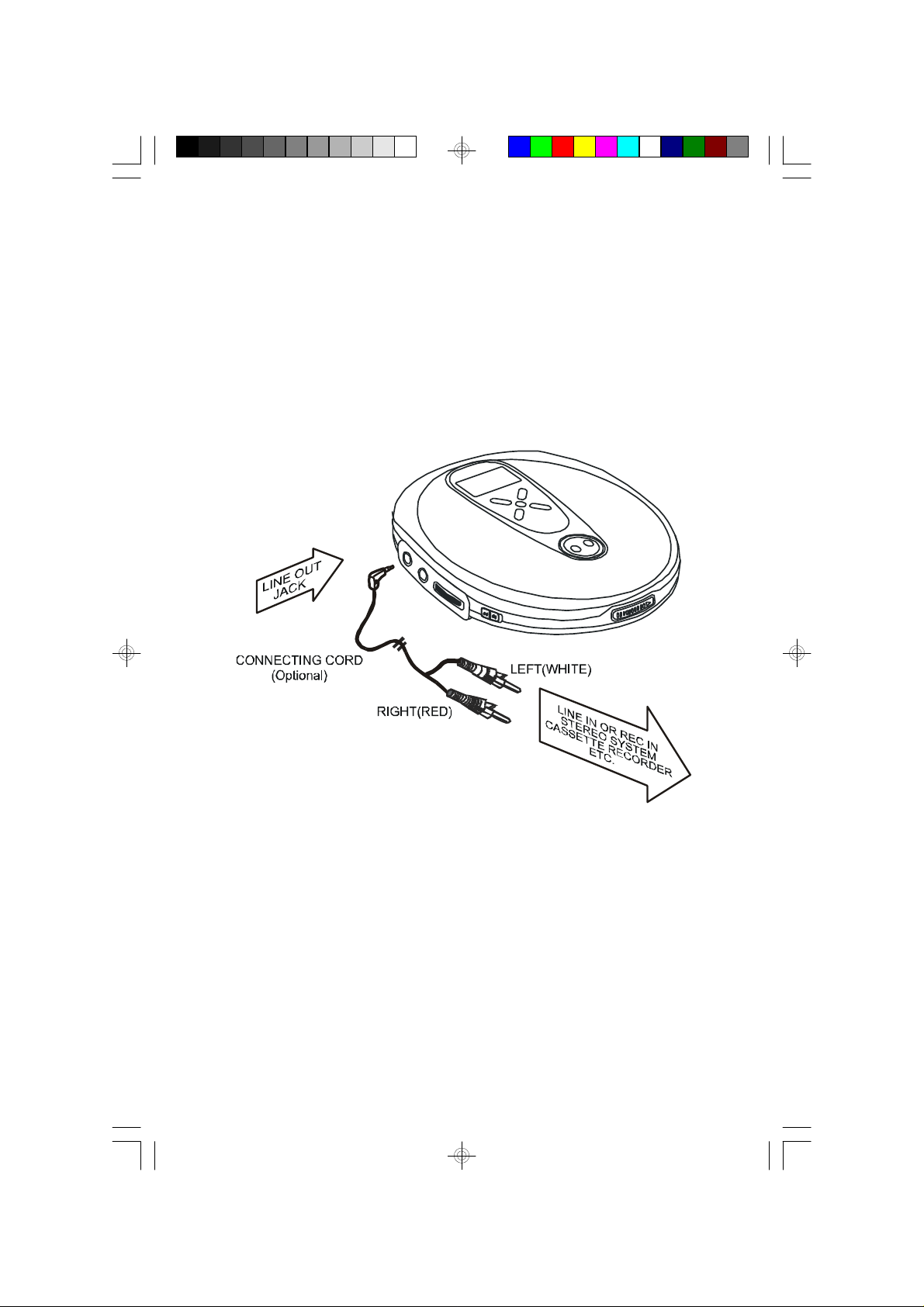

4.) LINE OUT Jack – To connect this CD player to an external amplifier or recording
device. Connection cable not included.

5.) STOP Button – To stop playback, and to turn the power ‘Off’.

6.) ASP (Anti-Skip Protection) Button – Turns Anti-Skip system ‘On’ or ‘Off’.

7.) PROG (Program) Button – To program tracks in the CD memory.

8.) LCD Display – Shows Track number, Playing time, Joggable status, Battery
Status, Program, Repeat, Random, and Intro modes.

9.) DC IN 4.5V Input Jack – Connect an AC adapter (not included) to this jack to
use 120V 60 Hz house current.

10.) Battery Compartment (on bottom cabinet).

11.) MODE Button – Selects the playback mode: Repeat 1/All, Random, or Intro.

12.) PLAY/PAUSE Button – To begin playback, and to pause during playback.

13.) SKIP Button – To skip tracks or search forward.

14.) SKIP Button – To skip tracks or search backward.

15.) CD Door.

16.) OPEN Switch – Slide to the right to unlock and open the CD door.

3

HD7097_ib060702.p65 7/6/2002, 15:053

LCD DISPLAY INDICATORS

546

7

10

8

9

J-ASP

3
2

1

1.) INTRO Indicator – Appears when Intro playback mode is selected.

2.) RAND (Random) Indic ator – Appears when Random playback mode is

selected.

3.) PROG (Program) Indicator – Appears when programming tracks or playing

programmed tracks.

4.) VOL (Volume) Indicator – Appears when pressing VOLUME + /– buttons.

5.) Track Number/Volume Level Display – Shows the track which is being played,

and the total tracks on the disc. Also shows the volume level (0 to 32) when
VOLUME +/– buttons are pressed.

6.) Repeat 1/ALL Indicators – Appears when the Repeat playback mode is

selected.

7.) Battery Level Indicator – Bars indicate battery level.

8.) Anti-Skip Protection Indicator – Flashing icon indicates Anti-Skip Protection

is activated.

9.) CD-RW Indicator – Lights when playing CD-RW disc.

10.) Time Display – Shows elapsed time of the track being played and total playing

time of the disc.

4

HD7097_ib060702.p65 7/6/2002, 15:054

POWER SOURCE

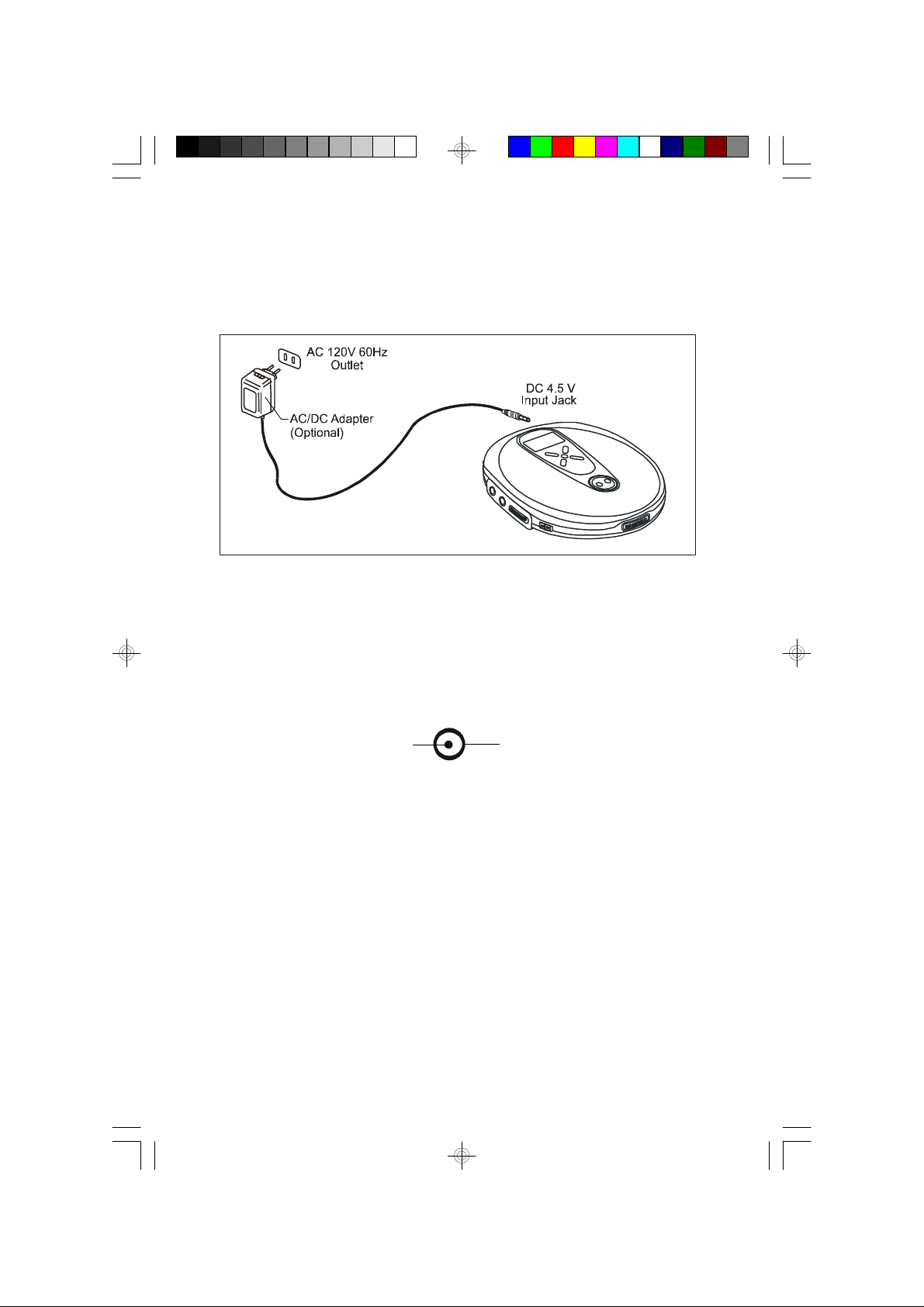

This CD player can be operated on either 120V 60Hz AC hous e current with an
optional AC adapter (not included) or on 3V DC (2 "AA" batteries, not included).

BATTERY OPERATION

1.) Open the battery compartment door on

the bottom cabinet by sliding it in the
direction of the arrow and then lifting it
open. To prevent loss, the door cannot
be removed from the unit.

2.) Insert 2 "AA" batteries (not included) into

the compartment. Use alkaline batteries
for longes t life. Follow the polarity
markings inside the compartment. If the batteries are inserted incorrectly the
unit will not work.

NOTE:

In order to operate the player on batteries the optional AC adapter (not included)
must be disconnected from the DC IN jack.

BATTERY REPLACEMENT

When the batteries become too weak the ‘bars’ inside the battery icon
disappear. The indicator flashes and operation may become erratic. When
this occurs replace the batteries immediately.

Follow these precautions when using batteries in this device:

1. Use only the size and type of batteries specified.

2. Be sure to follow the correct polarity when installing the batteries as indicated in the battery
compartment. Reversed batteries may cause damage to the device.

3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-Zinc) or old batteries
with fresh ones.

4. If the device is not to be used for a long period of time, remove the batteries to prevent
damage or injury from possible battery leakage.

5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture
(Follow battery manufacturer’s directions.)

BATTERY PRECAUTIONS

5
