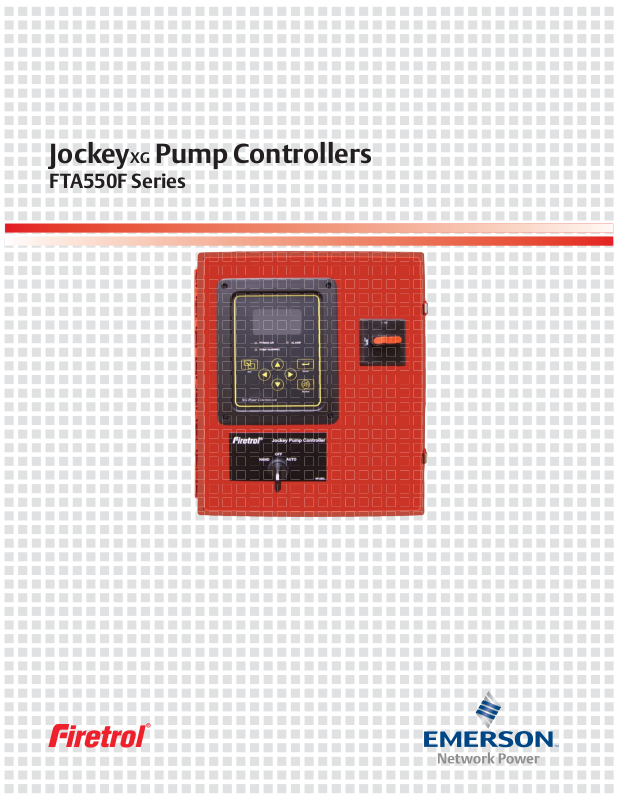

JockeyXG Pump Controllers

FTA550F Series

Firetrol

®

FTA550F Series JockeyXG Pump Con­trollers are intended for use with fi re pump systems.
They are used for pressure maintenance in fi re pump
installations to prevent unnecessary operation of
the main fi re pump.

Approvals — Firetrol Jockey Pump Controllers

are listed by Underwriters Laboratories, Inc., in
accordance with UL508A, Standard for Industrial
Controls, and CSA, Standard for Industrial Control
Equipment (cUL). They are built to meet or exceed
the requirements of the approving authorities as
well as NEMA and the latest edition of NFPA 70,
National Electrical Code.

Enclosures — The standard enclosures, up to 20

HP*, are red non-metallic material for installation in
areas protected from direct sunlight with an ambi­ent temperature above 41°F (5° C). The standard
enclosure rating is NEMA type 2/12 (IEC IP22/IP52).

Standard Features—The following are included
as standard with each controller:

· NEMA Type 2/12 (IEC IP22/IP52) Polycarbonate

enclosure (UL50E Construction)

· Horsepower rated motor circuit protector and

starting contactor

· Suitable for use as service equipment

· HAND-OFF-AUTO selector switch

· Minimum run timer

· On-Delay timer

· Pump restart timer

· Control circuit transformer with 24VAC
secondary

· 0-300 psi (0-20.7 bar) stainless steel solid state

pressure transducer

· Overpressure indication

· Low Pressure indication

· Failed to start indication

· Main switch not in “Auto” alarm

· Pressure recording

· Event log (3000 events stored in controller
memory)

· Data log (including cycle counter)

· Door mounted display/user interface featuring
a 128 x 64 pixel backlit LCD Graphical Display,
Membrane Type User Controller Push-buttons
and LED indication for:

· Power ON

· Pump Running

· Alarm

· 2 lines of user selectable display information

FTA550 Jockey Pump Controllers

The FTA550F Jockey Pump Controller utilizes
across the line, full voltage starting. Full voltage
is applied to the motor as soon as the controller is
actuated, and the motor supplies its rated torque.
When the controller is actuated, either by a
drop in system pressure (in the “Auto” mode), or by
placing the HAND-OFF-AUTO switch in the “Hand”
position, the pump will start. In the “Auto” mode,
the pump will continue to run until the pressure
returns to a normal level and the minimum run
timer has expired, whichever occurs last. In the
“Hand” mode, the pump will continue to run until
the HAND-OFF-AUTO selector switch is moved
from the “Hand” position.
The stainless steel pressure transducer is
mounted inside the enclosure and is piped to a fi t-
ting on the bottom of the enclosure.

Options and Modifications — See publication

PD550F-01 for list of available options and modi­fi cations.

*See publication SD550F-01 for available horse­power and voltage confi gurations.
