Emerson EWC27T3 User Manual

OWNER’S

As an ENERGY STAR

Partner, our company has determined that this product meets the E

NERGY STAR guidelines for

energy efficiency. E

NERGY STAR is

a U.S. registered mark.

MANUAL

“EMERSON AND THE G-CLEF LOGO ARE REGISTERED TRADEMARKS

OF EMERSON RADIO CORP., PARSIPPANY, NEW JERSEY, U.S.A.”

COLOR TV/DVD/VCR TRIPLE COMBO

EWC19T3 EWC27T3

(19 inch) (27 inch)

This Owner’s Manual is

made of recycled paper.

INSTRUCCIONES EN ESPAÑOL INCLUIDAS.

27” MODEL ILLUSTRATED

SUPPLIED ACCESSORIES

ACCESSORIES Remote Control Unit Batteries Owner’s Manual 0EMN02182

If you need additional operating assistance after reading this owner’s manual or to order replacement accessories, please call

TOLL FREE : 1-800-256-2487. Or visit our WEB SITE at http://www.funai-corp.com

Please read before using this equipment

PART NO. NE211UD 2 AA Batteries

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE

PORTABLE CART WARNING

S3126A

SYMBOLE D'AVERTISSEMENT POUR

LES COMPOSANTES

APPAREIL ET MEUBLE A ROULETTES

S3126A

TO RAIN OR MOISTURE.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The caution marking is located on the rear of the cabinet.

1.Read instructions-All the safety and operating instructions should be read before the appliance is operated.

2.Retain Instructions-The safety and operating instructions should be retained for future reference.

3.Heed Warnings-All warnings on the appliance and in the operating instructions should be adhered to.

4.Follow Instructions-All operating and use instructions should be followed.

5.Cleaning-Unplug TV/DVD/VCR from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6.Attachments-Do not use attachments not recommended by the TV/DVD/VCR manufacturer as they may cause hazards.

7.Water and Moisture-Do not use this TV/DVD/VCR near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8.Accessories-Do not place this TV/DVD/VCR on an unstable cart, stand, tripod, bracket, or table. The TV/DVD/VCR may fall, causing serious injury to someone, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the TV/DVD/VCR. Any mounting of the appliance should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care.Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

GEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

IMPORTANT SAFEGUARDS

AMEUBLES- Cet appareil ne doit

être placé que sur un meuble (avec ou sans roulettes) recommandé par le fabricant. Si vous l’installez sur un meuble à roulettes, déplacez les deux ensembles avec précaution. Un arrêt brusque, l’utilisation d’une force excessive et des surfaces irrégulières risquent de désta- biliser l’ensemble et de le renverser.

9. Ventilation-Slots and openings in the cabinet and the back or bottom are provided for ventilation and to ensure reliable operation of the TV/DVD/VCR and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the TV/DVD/VCR on a bed, sofa, rug, or other similar surface. This TV/DVD/VCR should never be placed near or over a radiator or heat register. This TV/DVD/VCR should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

10.Power Sources-This TV/DVD/VCR should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For TV/DVD/VCRs intended to operate from battery power, or other sources, refer to the operating instructions.

11.Grounding or Polarization-This TV/DVD/VCR is equipped with a polarized alternating-current line plug(a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12.Power-Cord Protection-Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

THIS SYMBOL INDICATES THAT DAN-

- 2 - EN

1B15

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE

S2898A

FIGURE A

ELECTRIC SERVICE EQUIPMENT

NEC - NATIO NAL ELE CTRI CAL CO DE

GROUND

CLAMP

ANTENNA

LEAD IN WIRE

ANTENNA

DISCHARGE UNI T (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTIO N 810- 21)

GROUND CL AMPS

POWER SERVICE GRO UNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

13.Outdoor Antenna grounding-If an outside antenna or cable system is connected to the TV/DVD/VCR, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

14.Lightning-For added protection for this TV/DVD/VCR receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV/DVD/VCR due to lightning and power-line surges.

15.Power Lines-An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16.Overloading-Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17.Object and Liquid Entry-Never push objects of any kind into this TV/DVD/VCR through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the TV/DVD/VCR.

18.Servicing-Do not attempt to service this TV/DVD/VCR yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19.Damage Requiring Service-Unplug this TV/DVD/VCR from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged or frayed. b. If liquid has been spilled, or objects have fallen into the

TV/DVD/VCR.

c. If the TV/DVD/VCR has been exposed to rain or water. d. If the TV/DVD/VCR does not operate normally by follow-

ing the operating instructions. Adjust only those controls that are covered by the operating instructions, as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV/DVD/VCR to its normal operation.

e. If the TV/DVD/VCR has been dropped or damaged in any

way.

f. When the TV/DVD/VCR exhibits a distinct change in per-

formance-this indicates a need for service.

20.Replacement Parts-When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, injury to persons or other hazards.

21.Safety Check-Upon completion of any service or repairs to this TV/DVD/VCR, ask the service technician to perform routine safety checks to determine that the TV/DVD/VCR is in proper operating condition.

22.Heat-This TV/DVD/VCR product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

CAUTION:TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

- 3 - EN

1B15

PRECAUTIONS

IMPORTANT COPYRIGHT INFORMATION

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited.

FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

LASER SAFETY

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM.

LOCATION: INSIDE, NEAR THE DECK MECHANISM.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

CAUTION: TO PREVENT ELECTRIC SHOCK,

MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA

PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

- 4 - EN

1B15

LOCATION

For safe operation and satisfactory performance of your TV/DVD/VCR, keep the following in mind when selecting a place for its installation:

Shield it from direct sunlight and keep it away from

•

sources of intense heat. Avoid dusty or humid places.

•

Avoid places with insufficient ventilation for proper

•

heat dissipation. Do not block the ventilation holes at the top and bottom of the unit. Do not place the unit on a carpet because this will block the ventilation holes.

Install unit in a horizontal position.

•

Avoid locations subject to strong vibration.

•

Do not place the TV/DVD/VCR near strong magnetic

•

fields. Avoid moving TV/DVD/VCR to locations where

•

temperature differences are extreme.

AVOID THE HAZARDS OF

ELECTRICAL SHOCK AND FIRE

Do not handle the power cord with wet hands.

•

Do not pull on the power cord when disconnecting

•

it from an AC wall outlet. Grasp it by the plug. If, by accident, water is spilled on your unit, unplug

•

the power cord immediately and take the unit to our Authorized Service Center for servicing.

Do not put your fingers or objects into the

•

TV/DVD/VCR disc loading tray. Do not place anything directly on top of the unit.

•

WARNING

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. If a DVD is played in a TV/DVD/ VCR which has moisture, it may damage the DVD and TV/DVD/VCR. Therefore when the condensation occurs inside the unit, turn the POWER on and allow at least 2 hours for the unit to dry out.

SYMBOLS USED IN THIS MANUAL

The following symbols below appear in some headings and notes in this manual, with the following meanings

TV/VCR

: Description refers to TV/VCR operation (in the

TV/VCR mode).

DVD-V

: Description refers to playback of DVD video discs

(in the DVD mode).

: Description refers to playback of audio CDs

(in the DVD mode).

MP3

: Description refers to playback of MP3 discs

(in the DVD mode).

QUICK

: Description refers to the items to be set by the

QUICK mode (in the DVD mode).

A NOTE ABOUT RECYCLING

This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

The serial number of this product may be found on the back of the unit. No other TV/DVD/VCR has the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft. Serial numbers are not kept on file.

Date of Purchase Dealer Purchase from Dealer Address Dealer Phone No. Model No. Serial No.

- 5 - EN

1C29

TABLE OF CONTENTS

C IMPORTANT SAFEGUARDS . . .2, 3

C PRECAUTIONS . . . . . . . . . . . . . . . .4

LOCATION . . . . . . . . . . . . . . . . . . .5

AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE .5

WARNING . . . . . . . . . . . . . . . . . . . .5

SYMBOLS USED IN THIS

MANUAL . . . . . . . . . . . . . . . . . . . . .5

C TABLE OF CONTENTS . . . . . . . . . .6

C FEATURES . . . . . . . . . . . . . . . . . . . .7

C OPERATING CONTROLS AND

FUNCTIONS . . . . . . . . . . . . . . . .9, 10

C PREPARATION FOR USE . . . . . . .11

ANTENNA/CABLE

CONNECTION . . . . . . . . . . . . . . . .11

CONNECTING TO EXTERNAL

INPUT JACKS . . . . . . . . . . . . . . . .12

INSTALLING THE BATTERIES . .12

EXTERNAL INPUT MODE . . . . . .12

CONNECTING TO A STEREO

SYSTEM . . . . . . . . . . . . . . . . . . . .13

CONNECTING TO A STEREO AMPLIFIER EQUIPPED WITH DIGITAL INPUT JACKS SUCH AS MD DECK OR DAT DECK (for DVD) .13

CONNECTING TO A DOLBY DIGITAL DECODER OR DTS DECODER (for DVD) . . .14

TV/VCR SECTION

C SET UP FOR USE . . . . . . . . . . . . .15

CHANNEL SET UP

FOR THE FIRST TIME . . . . . . . . .15

DELETING (OR ADDING)

CHANNEL . . . . . . . . . . . . . . . . . . .15

CHANNEL SET UPAGAIN . . . . . .16

SELECTING THE LANGUAGE . .16

DAYLIGHT-SAVING TIME . . . . . .16

CLOCK SET UP

(AUTO / MANUAL) . . . . . . . . .17, 18

C TV OPERATION . . . . . . . . . . . . . . .19

WATCHING A TV PROGRAM . . .19

DEGAUSSING . . . . . . . . . . . . . . . .19

PICTURE CONTROL . . . . . . . . . . .19

CLOSED CAPTION SYSTEM . . . .20

V-CHIP SET UP . . . . . . . . . . . . . . .21

C MTS(Multi-Channel Television

sound)SYSTEM . . . . . . . . . . . . . . . .23

CHECKING THE SELECTED

MTS MODE . . . . . . . . . . . . . . . . . .23

MTS RECORDING/MONITOR

MODE . . . . . . . . . . . . . . . . . . . . . .23

SELECTING THE MTS SYSTEM .24

C VIDEO CASSETTE . . . . . . . . . . . . .25

C PLAYBACK . . . . . . . . . . . . . . . . . . .26

NORMAL PLAYBACK . . . . . . . . .26

TRACKING ADJUSTMENT . . . . .26

SLOW MOTION . . . . . . . . . . . . . .26

PICTURE SEARCH . . . . . . . . . . . .26

STILL PICTURE . . . . . . . . . . . . . .26

VERTICAL HOLD CONTROL . . .26

C SPECIAL PLAYBACK . . . . . . . . . .27

RENTAL PLAYBACK . . . . . . . . . .27

AUTO REPEAT PLAYBACK . . . . .27

C SEARCH . . . . . . . . . . . . . . . . . . . . .28

ZERO RETURN . . . . . . . . . . . . . . .28

TIME SEARCH . . . . . . . . . . . . . . .28

INDEX SEARCH . . . . . . . . . . . . . .29

C SPECIAL FEATURES . . . . . . . . . .29

REAL TIME TAPE COUNTER . . .29

AUTO REWIND-EJECT . . . . . . . .29

C RECORDING . . . . . . . . . . . . . . . . .30

NORMAL RECORDING . . . . . . . .30

SKIPPING UNWANTED SCENES DURING

RECORDING . . . . . . . . . . . . . . . . .30

OTR (One Touch Recording) . . . . . .31

COPYING A VIDEO CASSETTE (Requires a VCR or camcorder) . . .31

C TIMER . . . . . . . . . . . . . . . . . . . . . .32

AUTOMATIC

TIMER RECORDING . . . . . . . . . .32

TIMER PROGRAM EXTENSION .33 HINTS FOR AUTOMATIC TIMER

RECORDING . . . . . . . . . . . . . . . . .34

AUTO RETURN . . . . . . . . . . . . . . .34

SLEEP TIMER . . . . . . . . . . . . . . . .34

C ON SCREEN DISPLAY . . . . . . . . .35

C CABLE CHANNEL

DESIGNATIONS . . . . . . . . . . . . . .35

DVD SECTION

C ABOUT THE DISCS . . . . . . . . . . . .36

PLAYABLE DISCS . . . . . . . . . . . .36

DISC TYPES . . . . . . . . . . . . . . . . .36

C PLAYING A DISC . . . . . . . . . . . . . .37

BASIC PLAYBACK . . . . . . . . . . . .37

GENERAL FEATURES . . . . . . . . .37

DISC MENU . . . . . . . . . . . . . . . . .37

TITLE MENU . . . . . . . . . . . . . . . . .37

RESUME . . . . . . . . . . . . . . . . . . . .38

PAUSE . . . . . . . . . . . . . . . . . . . . . .38

STEP BY STEP PLAYBACK . . . . .38

FAST FORWARD/REVERSE

SEARCH . . . . . . . . . . . . . . . . . . . .38

SLOW FORWARD / SLOW

REVERSE . . . . . . . . . . . . . . . . . . . .38

ZOOM . . . . . . . . . . . . . . . . . . . . . .38

C SEARCH FUNCTION . . . . . . . . . . .39

TRACK SEARCH . . . . . . . . . . . . .39

TITLE / CHAPTER SEARCH . . . .39

TIME SEARCH . . . . . . . . . . . . . . .39

MARKER SETUP SCREEN . . . . . .39

SPECIAL PLAYBACK FUNCTION . . .40

REPEAT . . . . . . . . . . . . . . . . . . . . .40

PROGRAM . . . . . . . . . . . . . . . . . . .40

RANDOM PLAYBACK . . . . . . . . .40

C PLAYING A MP3 DISC . . . . . . . . . .41

MP3 PLAYBACK . . . . . . . . . . . . . .41

TRACK SELECTION . . . . . . . . . . .41

PROGRAM . . . . . . . . . . . . . . . . . . .41

RANDOM PLAYBACK . . . . . . . . .41

C CHANGING THE SETTINGS . . . .42

SUBTITLE LANGUAGE . . . . . . . .42

AUDIO LANGUAGE . . . . . . . . . . .42

STEREO SOUND MODE . . . . . . . .42

CAMERA ANGLE . . . . . . . . . . . . .42

BLACK LEVEL SETTING . . . . . . .42

VIRTUAL SURROUND . . . . . . . . .42

THE ON-SCREEN INFORMATION . . .43

C CHANGING THE DVD SETUP

ITEMS . . . . . . . . . . . . . . . . . . . . . . .44

LANGUAGE SETTING . . . . . . . . .44

DISPLAY SETTING . . . . . . . . . . . .45

AUDIO SETTINGS . . . . . . . . . . . .45

PARENTAL CONTROL . . . . . . . . .46

C TROUBLESHOOTING GUIDE . . .47

C MAINTENANCE . . . . . . . . . . . . . . .50

DISC HANDLING . . . . . . . . . . . . .50

C SPECIFICATIONS . . . . . . . . . . . . .51

C WARRANTY . . . . . . . . . . .Back Cover

- 6 - EN

1C29

FEATURES

TV/VCR Mode

Hi-Fi system

•

offers you excellent sound quality with a dynamic range of 80dB, frequency response from 20Hz to 20kHz, and 0.005% wow and flutter.

Rotary 4-head Record/Playback System–Four heads

•

ensure excellent picture quality and special effects playback.

Index Search–

•

Slow Motion–View recorded program at slower

•

than normal speed.

Infrared remote control

•

Trilingual on screen tv/vcr setup display selec-

•

table in English or Spanish or French Real time counter–This shows the elapsed recording

•

or playback time in hours, minutes, and seconds. “–” indication will appear when the tape is rewound further than the tape counter position “0:00:00”.

181 channel capability PLL frequency synthesiz-

•

er tuner with direct station call–

be necessary to view scrambled cable channels.)

Auto Clock Setting–Allows you to set the clock

•

function from a PBS broadcast station.

Closed caption system–You may view specially

•

labeled (cc) TV programs, movies, news, prerecorded tapes, etc. with either a dialogue caption or text display added to the program.

Auto power on and off system–Automatically

•

turns on the TV/DVD/VCR when you insert the cassette, turns off after auto-rewind, and ejects when the beginning of the tape is reached.

Auto rewind when the end of a tape is

•

reached–

timer recording.

Smooth mode change–TV/VCR mode, DVD

•

mode automatically changes without control.

–The Hi-Fi stereo recording system

Fast-forwards to start of next recording.

The

(A converter may

This function doesn’t occur when using

2 Step picture search operation–You can view a

•

video program at a high speed or super high speed in either a forward or reverse direction in LP and SLP mode. For SP mode only high speed.

Three different playback tape speeds : SP/LP/SLP

•

Two different recording tape speeds : SP/SLP

•

Auto Head Cleaner–Automatically cleans video

•

heads as you insert or remove a cassette.

Zero Return–The tape returns to counter of

•

0:00:00 by rewinding or fast forwarding.

Still–“Freeze” the picture at any time, for close

•

viewing of a particular scene.

Digital Auto Tracking (DTR)–Automatically

•

adjusts the tracking for each tape you play.

Rental play mode–Improves playback picture

•

quality from worn tapes, such as rental tapes.

Auto repeat–Allows you to repeat the playing of a

•

tape indefinitely without pressing the PLAY button.

Time search–Let you set the TV/DVD/VCR to

•

advance the tape by entering the desired playback time you want to skip.

OTR (One Touch Recording)–Instant timed

•

recording from 30 to 480 minutes is possible at the push of the REC/OTR button.

1 Year, 8 events (including Daily and Weekly

•

Timer Recording)–

record up to 8 programs at different times on different channels up to 1 year in advance. The Daily timer allows recordings to be made of daily broadcasts, and the Weekly timer allows recording to be made once a week up to the end of the tape.

Auto return–After timer recording is finished, the

•

TV/DVD/VCR can return to the beginning of the recording.

Sleep timer–Allows you to have the

•

automatically turn on or off at a desired time.

Timer Program Extension–Allow you to shift the

time schedule for automatic timer recording.

V-CHIP–Enables parents to prevent their children

•

from watching inappropriate material on TV.

The built-in timer allows you to

TV/DVD/VCR

A NOTE ABOUT RECYCLING

This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

- 7 - EN

1C29

DVD Mode

¡Dolby Digital sound

This player can handle Dolby Digital surround sound having 5.1 channels when connected to a Dolby Digital decoder.

¡Still/fast/slow/step playback

Various playback modes are available including still pictures, fast forward/reverse, slow motion and step frames.

¡Random playback for audio CD and MP3

This player can shuffle the order of tracks to play them in random order.

¡Program playback for audio CD and MP3

You can program the order of tracks to play them in any desired order.

¡DVD menus in a desired language

You can display DVD menus in a desired language, if available on a DVD.

¡Screen saver/Auto power-off functions

The screen saver program starts when there is no input from the player for five minutes in the stop mode. When the screen saver program is activated for 15 minutes, the power automatically turns off.

¡Subtitles in a desired language

You can select a desired language for the display subtitles, if that language is available on a disc.

¡Selecting a camera angle

You can select the desired camera angle, if a disc contains sequences recorded from different angles.

¡Choices for audio language and sound mode

You can select the desired audio language and sound mode, if different languages and modes are available on a disc.

¡Parental lock

You can set the control level to limit playback of discs which may not be suitable for children.

¡Automatic detection of discs

This player automatically detects if the loaded disc is DVD, audio CD or MP3 on disc.

¡Playback MP3 disc

¡On-screen display

Information about the current operation can be displayed on a TV screen, allowing you to confirm the currently active functions (such as program playback), on the TV screen using the remote control.

¡Search

Chapter search / Title search / Track search / Time search

¡Repeat

Chapter / Title / Track / Group / All / A-B

¡Zoom

Magnified screen can be displayed.

¡Marker

The part designated by user can be called back.

¡Resume Play

User can resume to playback from the part at which the play was stopped.

¡Virtual Surround ¡Bit rate indication ¡DRC (Dynamic range control)

You can control the range of sound volume.

NOTE:

We do not recommend the use of universal remote controls. Not all of the functions may be controlled with

•

a universal remote control. If you decide to use a universal remote control with this TV/VCR/DVD, please be aware that the code num-

ber given may not operate this TV/VCR/DVD. In this case, please call the manufacturer of the universal remote control.

- 8 - EN

1C29

OPERATING CONTROLS AND FUNCTIONS

12 4 56 10715149833 411 12 13 212019181716

SELECT

TV/VCR

DVD

AUDIO

VIDEO

HEADPHONE

DVD buttons TV/VCR buttons

AOPEN/CLOSE

CHANNEL

IREC/OTR

STOP

SKIP G

BPLAY

H SKIP

p VOLUME o

POWER

STOP

F.FWD

BPLAY

REW

AEJECT

PAUSE

PLAY

STOP

ENTER

RECORD

DISC

RETURNTITLESETUP

REPEATSEARCH MODE

CLEAR

MODE

ANGLESUBTITLEAUDIO

DISPLAY

SPEED C.RESET

POWER PICTURE SELECTSLEEP

CH.

VOL.

MUTEZOOM

123

456

789

0 +10

+100

(DVD) 3

(TV/VCR) 14

27 28

30 31

3 (DVD)

15 (TV/VCR)

45 44

- TV/DVD/VCR FRONT PANEL - [Fig.1]

- REMOTE CONTROL -

[Fig. 2]

[TV/VCR P.15 / DVD P.37]

1.POWER Button

Press to turn the power on and off.

2.VOLUME X/Y Buttons

Press to control the volume level for the DVD and TV.

3.SKIP Buttons (for DVD)

Press once to skip chapters or tracks to a desired point. Press and hold to change forward or reverse playback speed.

4.PLAY Button

[TV/VCR P.26 / DVD P.37]

[P.38]

Starts playback of the disc or tape contents.

5.STOP Button

Stops operation of the disc.

6.OPEN/CLOSE Button

Press to insert discs into or remove them from the tray.

7.Disc loading tray

8.DVD Indicator

Lights on during DVD mode.

9.SELECT Button

Press to change to TV/VCR mode, external input mode or DVD mode.

10.TV/VCR Indicator

Lights on during TV/VCR mode.

11. CHANNEL K/L Buttons

Press to select memorized channel.

12. Recording Indicator

Flashes during recording. Lights up in the Standby mode for Timer Recording.

13. REC/OTR (RECORD)Button

Press for manual recording. Activates One Touch Recording. (OTR is only during TV/VCR mode.)

14. REW Button (for TV/VCR)

Press to rewind the tape, or to view the picture rapidly in reverse during playback mode. (Rewind Search)

15. FWD Button (for TV/VCR)

Press to rapidly advance the tape, or to view the picture rapidly in forward during playback mode. (Forward Search)

16. STOP/EJECT Button

Press to stop the tape motion. Press in the Stop mode to remove tape from the TV/VCR/DVD.

17. Remote sensor window

18. HEADPHONE Jack

To connect headphone (not supplied) for personal listening.

19. VIDEO input Jack

Connect to the video output jack of a video camera or VCR.

[P.37]

[DVD P.37]

[TV/VCR P.28]

[TV/VCR P.30, 31]

[TV/VCR P.26]

- 9 - EN

1C29

ANT.

AUDIO OUT

COAXIAL

4746 48 49

- TV/DVD/VCR REAR PANEL - [Fig.3]

20. AUDIO L/R input Jacks

Connect to the audio output jacks of a video camera or VCR.

21. Cassette compartment

22. PICTURE Button

Press to adjust the picture.

23. Number Buttons

TV Mode:

[P.15]

Press two digits to directly access the desired channel. Remember to press a "0" before a single digit channel.

+100 Button–

Press to select cable channels which are equal or greater than number 100.

DVD Mode:

Press to enter the desired number.

+10 Button–

Press to enter the desired numbers which are equal or greater than number 10.

24. PAUSE Button

[TV/VCR P.26 / DVD P.38]

Pauses the current disc or tape operation.

25. SPEED Button

[TV/VCR P.30]

Press to choose the desired recording speed: SP/SLP.

26. C.RESET Button

[TV/VCR P.28]

Press to reset counter to 0:00:00. Press to cancel a setting of timer program. (See page 33.)

27. DISPLAY Button

TV/VCR Mode:

Display the counter or the current channel number and current time on the TV screen.

DVD Mode:

[P.43]

Displays the current status on the TV screen for checking purposes.

28. SETUP Button

Press to enter or exit the TV menu or DVD setup mode.

29. TITLE Button

[TV/VCR P.15] [DVD P.44-46]

[DVD P.37]

Displays the title menu.

30. CLEAR Button

Resets a setting.

31. MODE Button

[DVD P.41]

Activates program playback or random playback mode.

32. SEARCH MODE Button

[DVD P.39]

Press to locate a desired point.

33. AUDIO Button

[DVD P.42]

Press to select a desired audio language or sound mode.

34. SUBTITLE Button

[DVD P.42]

Press to select a desired subtitle language.

35. REPEAT Button

[DVD P.42]

Repeats playback of the current disc, title, chapter or track.

36. ANGLE Button (DVD mode)

[DVD P.42]

Press to change the camera angle to see the sequence being played back from a different angle.

37. A-B REPEAT Button

[DVD P.40]

Repeats playback of a selected section.

38. RETURN Button

Returns to the previous operation in the DVD setup mode.

39. ENTER Button

Press to accept a setting.

40. Arrow Buttons

TV/VCR Mode:

Press to select a setting mode from the menu on the TV screen. Press to select or adjust from a particular menu.

DVD Mode:

Use when making settings while watching the display on a TV screen.

41. DISC MENU Button

[DVD P.37]

Displays the menus in the DVD.

42. ZOOM Button

[DVD P.38]

Enlarges part of a DVD-reproduced image.

43. MUTE Button

Mutes the sound. Press it again to resume sound.

44. SLEEP Button

Sets the Sleep Timer.

45. SELECT Button

Press to switch TV/VCR and DVD mode. You can

[TV/VCR P.34]

see the mode (TV/VCR or DVD) on the front panel indicator.

- 10 - EN

1C29

ANT.

AUDIO OUT

COAXIAL

ANT.

OUT

46. ANT. in Jack

Connect to an antenna, cable system, or satellite system.

47. Power cord

Connect to a standard AC outlet (120V/60Hz).

NOTE: Remove the power cord from the hook to

avoid breaking a wire before you connect to a standard AC outlet.

PREPARATION FOR USE

ANTENNA/CABLE CONNECTION

48. COAXIAL digital audio out Jack

Connect to the digital input of an external amplifier or decoder for DVD audio only.

49. AUDIO L/R output Jack

Connect to the analog audio input of an external amplifier or decoder.

Satellite Box or Cable Box (Not supplied)

From Cable System or Satellite Dish

75-ohm From Cable System

Coaxial

Cable

(Not sup-

plied)

75-ohm Coaxial Cable (Not

supplied)

VHF/UHF SEPARATE ANTENNAS

In some areas it will be necessary to use an outdoor antenna.

CABLE WITHOUT CONVERTER/ DESCRAMBLER BOX

Use this connection if your cable system connects directly to your TV/DVD/VCR without a converter box.

By using this connection you can:

1) Use the TV/DVD/VCR remote to select channels.

2) Program one or more unscrambled channels for Automatic Timer Recording.

NOTE: This TV/VCR/DVD will ONLY record and view the same channel.

VHF/UHF Antenna (Not supplied)

VHF Antenna (Not supplied)

UHF Antenna (Not supplied)

VHF/UHF Combiner (Not supplied)

[Fig. 4]

Flat twin-lead cable

CABLE WITH CONVERTER/ DESCRAMBLER BOX OR SATELLITE BOX

If your cable service supplies you with a converter box or if you use a satellite system, you can use the basic connection shown in the illustration.

By using this connection you can also record scrambled channels. However, channel selection must be made with the converter box or satellite box. This means that channels cannot be changed using the TV/DVD/VCR Remote Control. Unattended timer recording is limited to one channel at a time.

Antenna/Cable Connections Continued on the Next Page.

- 11 - EN

1C29

TO RECORD A SCRAMBLED/UNSCRAM-

L-AUDIO-R

VIDEO

HEADPHONE

BLED CHANNEL

1. Set the TV/DVD/VCR channel selector to the out-

put channel of the Cable Converter Box or Satellite Box. (Ex. CH3)

2.Select the channel to record from your Cable

Converter Box or Satellite Box.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

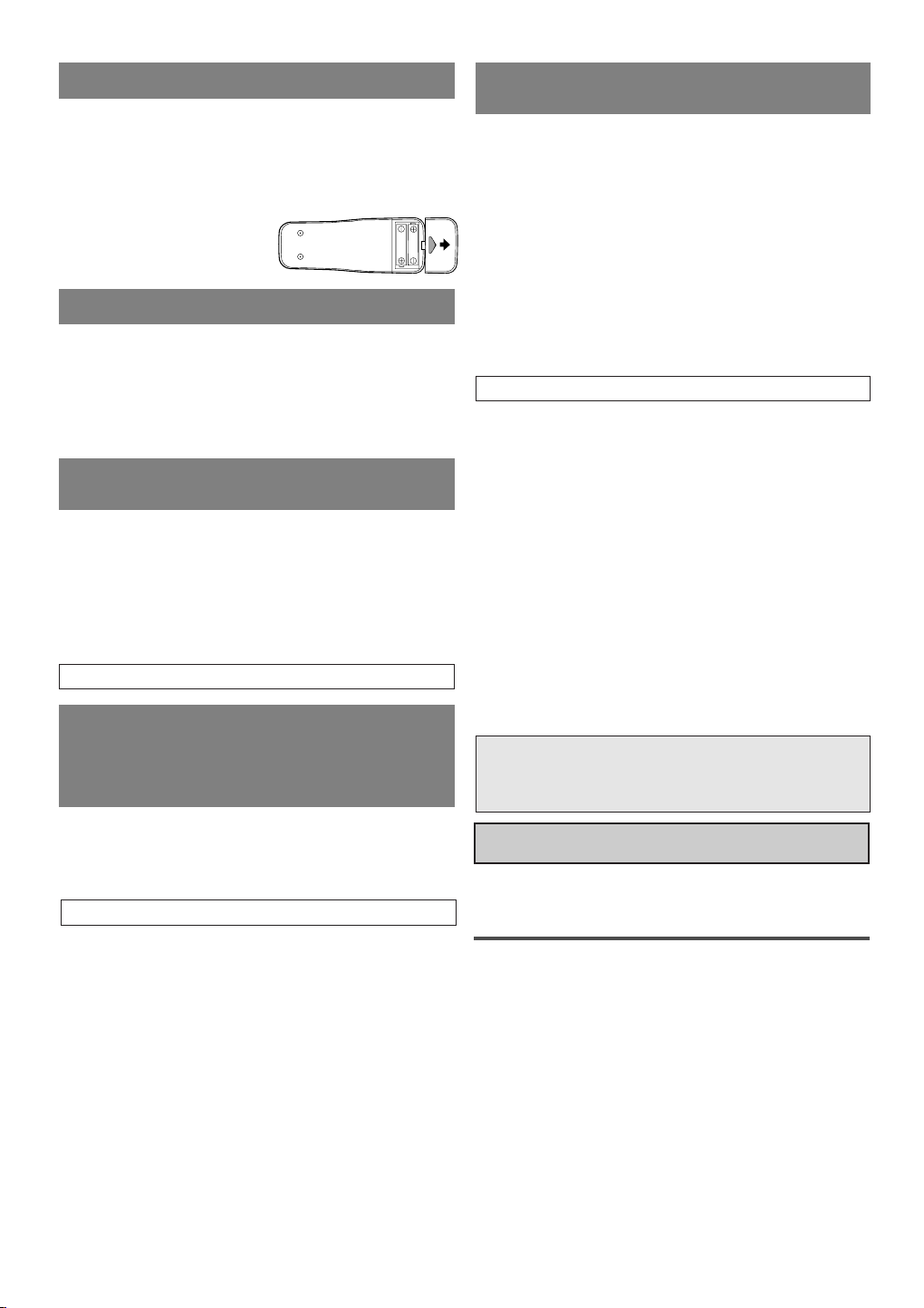

INSTALLING THE BATTERIES

1)Open the battery compartment cover by pressing the cover on the remote unit in the direction of the arrow.

2)Insert 2 “AA” penlight batteries into the battery compartment in the direction indicated by the polarity (+/-) markings.

3)Replace the cover.

EXTERNAL INPUT MODE

CONNECTING TO EXTERNAL

INPUT JACKS

When you watch a program recorded on an another source (VCR or video camera), use the audio/video input jacks on the front of the TV/DVD/VCR.

Connect the audio/video output jacks of another source to the AUDIO L/R and VIDEO jacks of this TV/DVD/VCR.

Then press the CHANNEL buttons K/L until "AUX" appears on the screen.

NOTE:

When you connect a monaural VCR (another

•

source) to this TV/DVD/VCR, connect the Audio output jack of the monaural VCR (another source) to the AUDIO L jack of this TV/DVD/VCR. The audio will output in both L and R channel equally.

To the audio output jacks

[Another source]

Audio/Video coaxial cable (not supplied)

etc.

To the video output jack

[Front of the TV/DVD/VCR]

[Fig. 5]

When using an external input signal (another VCR or video camera), connect the player’s audio/video output cables to the AUDIO L/R IN/ VIDEO IN jacks of your

AUX

TV/DVD/VCR. Then press the CHANNEL button K or L until “AUX” appears on the screen.

- 12 - EN

1C29

CONNECTING TO A STEREO SYSTEM

ANT.

AUDIO OUT

COAXIAL

To Right (red) and Left (white) AUDIO OUT jacks

Stereo system

To ANALOG AUDIO INPUT jacks

ANT.

AUDIO OUT

COAXIAL

Amplifier equipped with digital

input jacks, MD deck,

DAT deck, etc.

To COAXIAL DIGITAL AUDIO INPUT jack

To DIGITAL AUDIO OUT (PCM/BITSTREAM) COAXIAL jack

(only DVD AUDIO OUT)

[Fig. 6]

NOTES:

Be sure to turn off the power to all components in the system before connecting another component.

•

Refer to the Owner's Manuals for your stereo system and any other components to be connected to the

•

TV/DVD/VCR.

CONNECTING TO A STEREO AMPLIFIER EQUIPPED WITH DIGI-

TAL INPUT JACKS SUCH AS MD DECK OR DAT DECK (for DVD)

Use an audio coaxial digital cable available at retail for the audio connections. Connecting to an amplifier equipped with digital input jacks such as MD Deck or DAT Deck.

NOTES:

The audio source on a disc in a 5.1 channel Dolby Digital surround format cannot be recorded as digital

•

sound by an MD or DAT deck. Be sure to turn off the power to all components in the system before connecting another component.

•

Refer to the Owner's Manuals for the components to be connected to the TV/DVD/VCR.

•

Set Dolby Digital to OFF for audio output in the setup mode. Playing a TV/DVD/VCR using incorrect set-

•

tings may generate noise distortion, and may also damage the speakers.

- 13 - EN

[Fig. 7]

1C29

ANT.

AUDIO OUT

COAXIAL

Front speaker

(left)

Center

speaker

Front speaker

(right)

Surround

speaker

(left)

Surround

speaker

(right)

Subwoofer

To DIGITAL AUDIO OUT (PCM/BITSTREAM) COAXIAL jack

To COAXIAL DIGITAL AUDIO INPUT jack

Dolby Digital

decoder

CONNECTING TO A DOLBY DIGITAL DECODER (for DVD)

If using this TV/DVD/VCR to play a DVD disc in a 5.1 channel Dolby Digital surround format, the TV/DVD/VCR outputs a DOLBY DIGITAL Data stream from its COAXIAL digital audio out jack. By hooking the player up to a Dolby Digital decoder, you can enjoy a more convincing, realistic ambience with powerful and high-quality surround sound as enjoyed in movie theaters.

Use audio coaxial digital cables available at retail for the audio connections.

[Fig. 8]

NOTES:

•

Manufactured under license from Dolby Laboratories.“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

Be sure to turn off the power to all components in the system before connecting another component. Refer to the Owner's Manuals for the components to be connected to the TV/DVD/VCR. If connected to a Dolby Digital decoder, set DOLBY DIGITAL to ON for audio output in the setup mode.

(See page 45 to set DOLBY DIGITAL to ON.) Unless connected to a Dolby Digital decoder, set DOLBY DIGITAL to OFF for audio output in the setup

mode. Playing a TV/DVD/VCR using incorrect settings may generate noise distortion, and may also damage the speakers.

- 14 - EN

1C29

TV/VCR SECTION

SET UP FOR USE

You can program the tuner to scan all the channels you receive in your area. NOTE: Channel memory programming is NOT needed when connected to a cable box or satellite box. Just

select the TV/DVD/VCR channel selector to the output channel of the cable box or satellite box (Ex CH3). Then select the channel to be viewed on the Cable Box or Satellite Box.

CHANNEL SET UP FOR THE

FIRST TIME

TV/VCR

1 Plug in the TV/DVD/VCR power

cord

Plug the TV/DVD/VCR power cord into a standard AC outlet.

NOTE:

If some digits appear in the corner of

•

the screen, press the POWER button without unplugging the power cord.

2 Turn on the TV/DVD/VCR

Press the POWER button to turn on the TV/DVD/VCR.

3 Select “ENGLISH” or “ESPAÑOL” or

“FRANÇAIS”

Select “ENGLISH” or “ESPAÑOL”=Spanish or “FRANÇAIS” =French using the

ENTER button. “[ ]” indicate the selected language.

4 Begin auto preset

Press the Arrow button K or L to point to “AUTO PRESET”.

Then press the ENTER button. The tuner scans and memorizes all

active channels in your area.

NOTES:

The TV/DVD/VCR distinguishes between standard

•

TV channels and cable channels. If you want to play or record a video tape

•

BEFORE presetting the tuner, you must press the SETUP button on the remote control. To preset the tuner again, see “CHANNEL SET UP AGAIN” on page 16.

The TV/DVD/VCR may memorize TV channels as

•

CATV channels if reception conditions is poor. If this happens, try AUTO MEMO action again when reception conditions are better.

5 After scanning

The tuner stops on the lowest memorized channel. If you want to recall the selected channels, you can

select the desired channel directly with the remote control number buttons or the CHANNEL button K or L.

– SET UP –

B LANGUAGE

[ENGLISH] ESP FRA

AUTO PRESET

– SET UP –

LANGUAGE [ENGLISH] ESP FRA

B AUTO PRESET

DELETING (OR ADDING)

CHANNEL

TV/VCR

The channels you no longer receive or seldom watch can be deleted from the memory. (Of course, you can

add the deleted channel into the memory again.)

1 Select “CHANNEL SET UP”

Press the SETUP button on the remote control.

Press the Arrow button K or L to point to “CHANNEL SET UP”.

Then, press the ENTER button.

2 Select “ADD/DELETE CH”

Press the Arrow button K or L to point to “ADD/DELETE CH”.

Press the ENTER button.

3 Enter the desired channel number

Press the Arrow button K or L until your desired channel number appears. (You can also use the number buttons or the CHANNEL buttons K/L to enter it) (Example: CH8)

4 Delete (or add) it from (into) memory

Press the ENTER button. The channel number changes to light red. The channel is deleted from memory.

Added channel: Light blue. Deleted channel: Light red.

To delete another channel, repeat steps [3] and [4].

•

If you press the ENTER button again, the channel

•

is memorized again. Press the RETURN button to return to TV/VCR

•

SETUP MENU.

5 Exit the channel setup mode

Press the SETUP button on the remote control to returns to TV mode.

NOTE: To confirm that channel(s) has been deleted or added, press the CHANNEL button K or L.

- 15 - EN

- TV/VCR SETUP -

TIMER PROGRAMMING SETTING CLOCK

B CHANNEL SET UP

USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

– CHANNEL SET UP –

B ADD / DELETE CH (TV)

AUTO PRESET

ADD / DELETE

1C29

CHANNEL SET UP AGAIN

Make sure ...

Press the POWER button to turn on the

•

TV/DVD/VCR.

TV/VCR

NOTE: If Spanish or French is selected accidentally,

1)Press the SETUP button on the remote control.

2) Press the Arrow button K or L to point to “IDIOMA [ESPAÑOL]” or “LANGAGE” [FRANÇAIS].

3) Press the ENTER button to select your desired language.

4)Press the SETUP button to exit.

1 Select “CHANNEL SET UP”

Press the SETUP button on the remote control.

Press the Arrow button K or L to point to “CHANNEL SET UP”.

- TV/VCR SETUP -

TIMER PROGRAMMING SETTING CLOCK

B CHANNEL SET UP

USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

Then, press the ENTER button.

2 Begin auto preset

Press the Arrow button K or L to point to “AUTO PRESET”.

– CHANNEL SET UP –

ADD / DELETE CH (TV)

B AUTO PRESET

Then, press the ENTER button. The tuner scans and memorizes all

the active channels in your area.

3 After scanning

The tuner stops on the lowest memorized channel.

SELECTING THE LANGUAGE

TV/VCR

Make sure ...

Press the POWER button to turn on the

•

TV/DVD/VCR.

NOTE: This function effects only the language on the screen menu and not the audio source.

1 Select “LANGUAGE”

Press the SETUP button on the remote control.

Press the Arrow button K or L to point to “LANGUAGE”.

2 Select “ENGLISH” or “ESPAÑOL” or

“FRANÇAIS”

Select “ENGLISH” or “ESPAÑOL”= Spanish or “FRANÇAIS”= French using the ENTER button.

3 Exit the Language mode

Press the SETUP button on the remote control to return to TV mode.

- TV/VCR SETUP -

TIMER PROGRAMMING SETTING CLOCK CHANNEL SET UP USER’S SET UP V-CHIP SET UP

B LANGUAGE [ENGLISH]

CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

DAYLIGHT-SAVING TIME

TV/VCR

Select this feature and the TV/DVD/VCR’s clock automatically will advance one hour in April, then reverse one hour in October.

When Daylight-Saving Time is ON, the clock will change automatically as follows:

First Sunday of April : At 2 AM the clock imme-

•

diately changes to 3 AM. Any timer programming you have set to occur between 2 AM and 3 AM will not record.

Last Sunday of October : At 2 AM the clock

•

immediately changes to 1 AM.

Make sure ...

Press the POWER button to turn on the

•

TV/DVD/VCR.

1 Select “SETTING CLOCK”

Press the SETUP button on the remote control.

Press the Arrow button K or L to point to “SETTING CLOCK.”

Then, press the ENTER button.

2 Set “D.S.T.” (Daylight-Saving

Time) to [ON]

Press the Arrow button K or L to point to “D.S.T.”

Then, press the ENTER button until [ON] appears.

3 Exit the Daylight-Saving Time mode

Press the SETUP button on the remote control to return to TV mode.

TO CANCEL THE DAYLIGHT-SAVING TIME

Repeat steps [1] to [2], select [OFF] using the ENTER button.

- TV/VCR SETUP -

TIMER PROGRAMMING

B SETTING CLOCK

CHANNEL SET UP USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

– SETTING CLOCK –

AUTO CLOCK [ON] AUTO CLOCK CH SEARCH AUTO CLOCK CH [02] MANUAL CLOCK SET

B D.S.T. [ON]

- 16 - EN

1C29

CLOCK SET UP

(AUTO / MANUAL)

TV/VCR

The TV/DVD/VCR clock must be set correctly before VCR timer recording is possible. It is suggested that the clock be set manually when first setting up the TV/DVD/VCR. Then, setup auto clock correction which will periodically correct the setting if necessary.

NOTE: If you cannot receive a station with time signals, auto clock setting cannot be performed. Use manual setting only.

6 Select the hour

Press the Arrow button K or L until your desired hour appears. (Example: 5, PM)

Then, press the Arrow button B.

7 Select the minute

Press the Arrow button K or L until the desired minute appears. (Example: 40)

– MANUAL CLOCK SET –

MONTH DAY YEAR

0 5 / 0 6 TUE 2 0 0 3

HOUR MINUTE

0 5 : – – PM

– MANUAL CLOCK SET –

MONTH DAY YEAR

0 5 / 0 6 TUE 2 0 0 3

HOUR MINUTE

0 5 : 4 0 PM

MANUAL CLOCK SETTING

Make sure ...

TV/DVD/VCR power is turned on.

•

In the example below, the clock is to be set to:

DATE May 6th, 2003 SETTING TIME 5:40PM

1 Select “SETTING CLOCK”

Press the SETUP button on the remote control.

Press the Arrow button K or L to point to “SETTING CLOCK”.

Then, press the ENTER button.

2 Select “MANUAL CLOCK

SET”

Press the Arrow button K or L to point to “MANUAL CLOCK SET”.

Then, press the ENTER button.

3 Select the month

Press the Arrow button K or L until your desired month appears. (Example: May

Then, press the Arrow button

→ 05)

4 Select the day

Press the Arrow button K or L until your desired day appears. (Example: 6th → 06)

Then, press the Arrow button B.

- TV/VCR SETUP -

TIMER PROGRAMMING

B SETTING CLOCK

CHANNEL SET UP USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

– SETTING CLOCK –

AUTO CLOCK [ON] AUTO CLOCK CH SEARCH AUTO CLOCK CH [02]

B MANUAL CLOCK SET

D.S.T. [OFF]

– MANUAL CLOCK SET –

MONTH DAY YEAR

0 5 / – – – – –– – – –

HOUR MINUTE

– – : – –– –

– MANUAL CLOCK SET –

MONTH DAY YEAR

0 5 / 0 6 – – –– – – –

HOUR MINUTE

– – : – –– –

8 Start the clock

Press the SETUP button on the

5:40 PM

remote control. Although seconds are not displayed,

they begin counting from 00 when you press the SETUP button on the remote control. Use this feature to synchronize the clock with the correct time.

NOTE:

When unplugging the AC cord or if there is a power failure for more than 3 seconds, you may have to reset the clock.

TO CHANGE CLOCK SETTING

If you want to change the clock,

1)Follow steps [1] and [2].

2)Select where you want to change using the Arrow button B or s.

3)Enter correct numbers using the Arrow button K or L.

4)Press the SETUP button on the remote control to start the clock.

PLEASE NOTE:

If there is no local PBS station in your area or on your cable system, select “AUTO CLOCK” and press the ENTER button to turn [OFF] this function. Then you can manually adjust the clock.

5 Select the year

Press the Arrow button K or L until your desired year appears. (Example: 2003)

Then, press the Arrow button B.

– MANUAL CLOCK SET –

MONTH DAY YEAR

0 5 / 0 6 TUE 2 0 0 3

HOUR MINUTE

– – : – –– –

- 17 - EN

1C29
