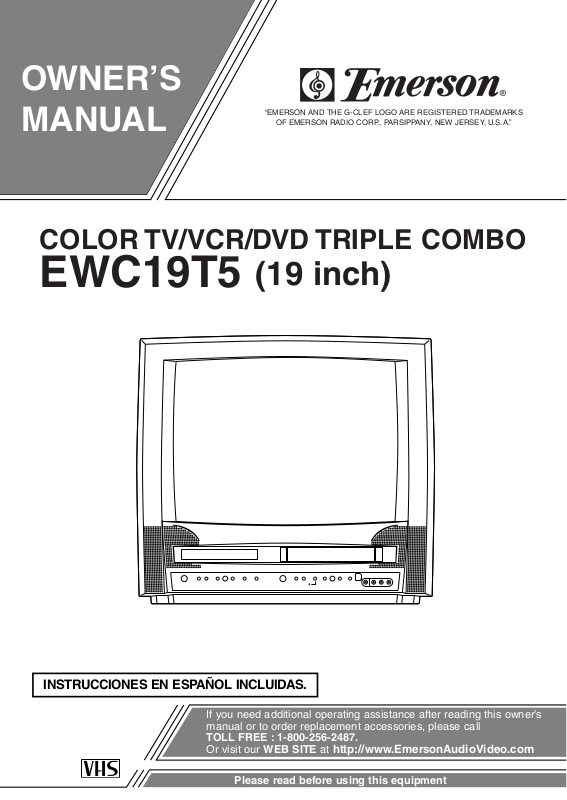

OWNER’S

“EMERSON AND THE G-CLEF LOGO ARE REGISTERED TRADEMARKS

MANUAL

COLOR TV/VCR/DVD TRIPLE COMBO

OF EMERSON RADIO CORP., PARSIPPANY, NEW JERSEY, U.S.A.”

EWC19T5

(19 inch)

INSTRUCCIONES EN ESPAÑOL INCLUIDAS.

If you need additional operating assistance after reading this owner’s manual or to order replacement accessories, please call

TOLL FREE : 1-800-256-2487. Or visit our WEB SITE at http://www.EmersonAudioVideo.com

Please read before using this equipment

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE

TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The caution marking is located on the rear of the cabinet.

IMPORTANT SAFEGUARDS

1.Read instructions-All the safety and operating instructions

should be read before the appliance is operated.

2.Retain Instructions-The safety and operating instructions

should be retained for future reference.

3.Heed Warnings-All warnings on the appliance and in the

operating instructions should be adhered to.

4.Follow Instructions-All operating and use instructions

should be followed.

5.Cleaning-Unplug the unit from the wall outlet before clean-

ing. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6.Attachments-Do not use attachments not recommended by

the unit manufacturer as they may cause hazards.

7.Water and Moisture-Do not use this unit near water-for

example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8.Accessories-Do not place this unit on an unstable cart,

stand, tripod, bracket, or table. The unit may fall, causing serious injury to someone, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the unit. Any mounting of the appliance should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

PORTABLE CART WARNING

S3126A

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

AMEUBLES- Cet appareil ne doit être placé que sur un meuble (avec ou sans roulettes) recommandé par le fabricant. Si vous l’installez sur un meuble à roulettes, déplacez les deux ensembles avec précaution. Un arrêt brusque, l’utilisation d’une force excessive et des surfaces irrégulières risquent de déstabiliser l’ensemble et de le renverser.

9. Ventilation-Slots and openings in the cabinet and the back

or bottom are provided for ventilation and to ensure reliable operation of the unit and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat register. This unit should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

10.Power Sources-This unit should be operated only from the

type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For the units intended to operate from battery power, or other sources, refer to the operating instructions.

11.Grounding or Polarization-This unit is equipped with a

polarized alternating-current line plug(a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12.Power-Cord Protection-Power-supply cords should be

routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

SYMBOLE D'AVERTISSEMENT POUR

LES COMPOSANTES

APPAREIL ET MEUBLE A ROULETTES

S3126A

- 2 - EN

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE

S2898A

FIGURE A

ELECTRIC SERVICE EQUIPMENT

NEC - NATIONAL ELE CTRI CAL CO DE

GROUND

CLAMP

ANTENNA

L EAD IN WIRE

ANTENNA

DISCHARGE UNI T (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDI NG ELECTRODE SYSTEM (NEC ART 250, PART H)

13.Outdoor Antenna grounding-If an outside antenna or

cable system is connected to the unit, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

14.Lightning-For added protection for this unit receiver dur-

ing a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the unit due to lightning and power-line surges.

15.Power Lines-An outside antenna system should not be

located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16.Overloading-Do not overload wall outlets and extension

cords as this can result in a risk of fire or electric shock.

17.Object and Liquid Entry-Never push objects of any kind

into this unit through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the unit.

18.Servicing-Do not attempt to service this unit yourself as

opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19.Damage Requiring Service-Unplug this unit from the wall

outlet and refer servicing to qualified service personnel

under the following conditions: a. When the power-supply cord or plug is damaged or frayed. b. If liquid has been spilled, or objects have fallen into the

unit. c. If the unit has been exposed to rain or water. d. If the unit does not operate normally by following the oper-

ating instructions. Adjust only those controls that are cov-

ered by the operating instructions, as improper adjustment

of other controls may result in damage and will often

require extensive work by a qualified technician to restore

the unit to its normal operation. e. If the unit has been dropped or damaged in any way. f. When the unit exhibits a distinct change in performance,

this indicates a need for service.

20.Replacement Parts-When replacement parts are required,

be sure the service technician has used replacement parts

specified by the manufacturer that have the same character-

istics as the original part. Unauthorized substitutions may

result in fire, electric shock, injury to persons or other haz-

ards.

21.Safety Check-Upon completion of any service or repairs to

this unit, ask the service technician to perform routine safe-

ty checks to determine that the unit is in proper operating

condition.

22.Heat-This unit product should be situated away from heat

sources such as radiators, heat registers, stoves, or other

products (including amplifiers) that produce heat.

- 3 - EN

PRECAUTIONS

IMPORTANT COPYRIGHT INFORMATION

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

LASER SAFETY

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM.

LOCATION: INSIDE, NEAR THE DECK MECHANISM.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

CAUTION: TO PREVENT ELECTRIC SHOCK,

MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

A NOTE ABOUT RECYCLING

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

The serial number of this product may be found on the back of the unit. No other unit has the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft. Serial numbers are not kept on file.

Date of Purchase Dealer Purchase from Dealer Address Dealer Phone No. Model No. Serial No.

- 4 - EN

LOCATION

Owner's Manual

For safe operation and satisfactory performance of your unit, keep the following in mind when selecting a place for its installation:

Shield it from direct sunlight and keep it away from

•

sources of intense heat. Avoid dusty or humid places.

•

Avoid places with insufficient ventilation for proper

•

heat dissipation. Do not block the ventilation holes at the top or bottom of the unit. Do not place the unit on a carpet because this will block the ventilation holes.

Install unit in a horizontal position.

•

Avoid locations subject to strong vibration.

•

Do not place the unit near strong magnetic fields.

•

Avoid moving the unit to locations where tempera-

•

ture differences are extreme. Be sure to remove a disc and unplug the AC power

•

cord from the outlet before carrying the unit.

AV OID THE HAZARDS OF

ELECTRICAL SHOCK AND FIRE

Do not handle the power cord with wet hands.

•

Do not pull on the power cord when disconnecting

•

it from an AC wall outlet. Grasp it by the plug. If by accident, water is spilled on your unit, unplug

•

the power cord immediately and take the unit to our Authorized Service Center for servicing.

Do not put your fingers or objects into the unit disc

•

loading tray. Do not place anything directly on top of the unit.

•

WARNING

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place or after heating a cold room or under conditions of high humidity. If a DVD is played in a unit which has moisture, it may damage the DVD and the unit. Therefore when the condensation occurs inside the unit, turn the unit on and allow at least 2 hours for the unit to dry out.

SYMBOLS USED IN THIS MANUAL

The following symbols below appear in some headings and notes in this manual, with the following meanings

TV/VCR

: Description refers to TV/VCR operation (in the

TV/VCR mode).

DVD-V

: Description refers to playback of DVD video discs

(in the DVD mode).

: Description refers to playback of Audio CDs

(in the DVD mode).

QUICK

: Description refers to the items to be set by the

QUICK mode (in the DVD mode).

SUPPLIED ACCESSORIES

BatteriesRemote Control Unit

2 AA BatteriesNE211UD

If you need to replace these accessories, please refer to the PART NO. under the illustrations and call our

•

help line mentioned on the front page. Depending on your antenna system, you may need different types of Combiners (Mixer) or Separators

•

(Splitter). Contact your local electronics store for these items.

- 5 - EN

Owner’s Manual

1EMN20210

TABLE OF CONTENTS

C IMPORTANT SAFEGUARDS . . . . .2

C PRECAUTIONS . . . . . . . . . . . . . . . .4

LOCATION . . . . . . . . . . . . . . . . . . .5

AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE .5

WARNING . . . . . . . . . . . . . . . . . . . .5

SYMBOLS USED IN THIS

MANUAL . . . . . . . . . . . . . . . . . . . . .5

C SUPPLIED ACCESSORIES . . . . . . .5

C TABLE OF CONTENTS . . . . . . . . . .6

C FEATURES . . . . . . . . . . . . . . . . . . . .7

C OPERATING CONTROLS AND

FUNCTIONS . . . . . . . . . . . . . . . . . . .9

INSTALLING THE BATTERIES . .11

C PREPARATION FOR USE . . . . . . .12

ANTENNA/CABLE

CONNECTION . . . . . . . . . . . . . . . .12

CONNECTING TO FRONT A/V

INPUT JACKS . . . . . . . . . . . . . . . .13

CONNECTING TO A STEREO AMPLIFIER EQUIPPED WITH DIGITAL INPUT JACKS (for DVD) . . .13

CONNECTING TO A DOLBY DIGITAL DECODER (for DVD) . .14

TV/VCR SECTION

C TV OPERATION AND SETTINGS .15

WATCHING A TV PROGRAM . . .15

DEGAUSSING . . . . . . . . . . . . . . . .15

PICTURE CONTROL . . . . . . . . . . .15

SLEEP TIMER . . . . . . . . . . . . . . . .16

CLOSED CAPTION SYSTEM . . . .16

CHANNEL SET UP . . . . . . . . . . . .17

CLOCK SET UP

(AUTO / MANUAL) . . . . . . . . . . . .18

DAYLIGHT-SAVING TIME . . . . . .19

V-CHIP SET UP . . . . . . . . . . . . . . .20

TV RATING SET UP . . . . . . . . .20

MPAA RATING SET UP . . . . . .21

CHANGE ACCESS CODE . . . . .21

MENU LANGUAGE . . . . . . . . . . .21

C VIDEO CASSETTE . . . . . . . . . . . . .22

C PLAYBACK . . . . . . . . . . . . . . . . . . .23

NORMAL PLAYBACK . . . . . . . . .23

TRACKING ADJUSTMENT . . . . .23

SLOW MOTION . . . . . . . . . . . . . .23

STILL PICTURE . . . . . . . . . . . . . .23

VERTICAL HOLD CONTROL . . .23

C SPECIAL PLAYBACK . . . . . . . . . .24

RENTAL PLAYBACK . . . . . . . . . .24

AUTO REPEAT PLAYBACK . . . . .24

C SEARCH . . . . . . . . . . . . . . . . . . . . .25

ZERO RETURN . . . . . . . . . . . . . . .25

PICTURE SEARCH . . . . . . . . . . . .25

TIME SEARCH . . . . . . . . . . . . . . .25

INDEX SEARCH . . . . . . . . . . . . . .26

C SPECIAL FEATURES . . . . . . . . . .27

REAL TIME TAPE COUNTER . . .27

AUTO REWIND-EJECT . . . . . . . .27

C RECORDING . . . . . . . . . . . . . . . . .28

NORMAL RECORDING . . . . . . . .28

SKIPPING UNWANTED SCENES

DURING RECORDING . . . . . . . . .28

OTR (One Touch Recording) . . . . . .29

COPYING A VIDEO CASSETTE (Requires a VCR or camcorder) . . .29

C TIMER RECORDING . . . . . . . . . . .30

AUTOMATIC

TIMER RECORDING . . . . . . . . . .30

AUTO RETURN . . . . . . . . . . . . . . .32

C ON SCREEN DISPLAY . . . . . . . . .33

C CABLE CHANNEL

DESIGNATIONS . . . . . . . . . . . . . .33

DVD SECTION

C ABOUT THE DISCS . . . . . . . . . . . .34

PLAYABLE DISCS . . . . . . . . . . . .34

UNPLAYABLE DISCS . . . . . . . . . .34

C PLAYING A DISC . . . . . . . . . . . . . .35

BASIC PLAYBACK . . . . . . . . . . . .35

GENERAL FEATURES . . . . . . . . .35

DISC MENU . . . . . . . . . . . . . . . . .35

TITLE MENU . . . . . . . . . . . . . . . . .35

RESUME . . . . . . . . . . . . . . . . . . . .36

PAUSE . . . . . . . . . . . . . . . . . . . . . .36

STEP BY STEP PLAYBACK . . . . .36

FAST FORWARD /

FAST REVERSE . . . . . . . . . . . . . .36

SLOW FORWARD /

SLOW REVERSE . . . . . . . . . . . . . .36

ZOOM . . . . . . . . . . . . . . . . . . . . . .36

C SEARCH FUNCTION . . . . . . . . . . .37

TRACK SEARCH . . . . . . . . . . . . .37

TITLE / CHAPTER SEARCH . . . .37

TIME SEARCH . . . . . . . . . . . . . . .37

MARKER SETUP SCREEN . . . . . .37

SPECIAL PLAYBACK FUNCTION . . .38

REPEAT . . . . . . . . . . . . . . . . . . . . .38

PROGRAM . . . . . . . . . . . . . . . . . . .38

RANDOM PLAYBACK . . . . . . . . .38

C CHANGING THE SETTINGS . . . .39

SUBTITLE LANGUAGE . . . . . . . .39

AUDIO LANGUAGE . . . . . . . . . . .39

STEREO SOUND MODE . . . . . . . .39

CAMERA ANGLE . . . . . . . . . . . . .40

BLACK LEVEL SETTING . . . . . . .40

VIRTUAL SURROUND . . . . . . . . .40

THE ON-SCREEN INFORMATION . . .41

C CHANGING THE DVD SET UP

ITEMS . . . . . . . . . . . . . . . . . . . . . . .42

CUSTOM MENU . . . . . . . . . . . . . .42

LANGUAGE SETTING . . . . . . .42

DISPLAY SETTING . . . . . . . . . .43

AUDIO SETTINGS . . . . . . . . . .43

PARENTAL CONTROL . . . . . . .44

OTHER SETTINGS . . . . . . . . . .44

INITIALIZE . . . . . . . . . . . . . . . . . .44

C TROUBLESHOOTING GUIDE . . .45

C MAINTENANCE . . . . . . . . . . . . . . .48

DISC HANDLING . . . . . . . . . . . . .48

C SPECIFICATIONS . . . . . . . . . . . . .49

C ESPAÑOL . . . . . . . . . . . . . . . . . . . .50

C WARRANTY . . . . . . . . . . .Back Cover

- 6 - EN

FEATURES

TV/VCR Mode

Rotary 4-head Record/Playback System–Four

•

heads ensure excellent picture quality and special effects playback.

Index Search–

•

Slow Motion–View recorded program at slower

•

than normal speed.

Infrared remote control

•

Trilingual on screen TV/VCR setup display

•

selectable in English, Spanish or French Real time counter–This shows the elapsed record-

•

ing or playback time in hours, minutes and seconds. The “–” indication will appear when the tape is rewound further than the tape counter position “0:00:00”.

181 channel capability PLL frequency synthesiz-

•

er tuner with direct station call

be necessary to view scrambled cable channels.)

Auto Clock Setting–Allows you to set the clock

•

function from a PBS broadcast station.

Closed Caption Decoder–You may view specially

•

labeled (cc) TV programs, movies, news, prerecorded tapes, etc. with either a dialogue caption or text display added to the program.

Auto power on and off system–Automatically

•

turns on the unit when you insert the cassette, turns off after auto-rewind and ejects when the beginning of the tape is reached.

Auto rewind when the end of a tape is reached

•

(This function doesn’t occur when using timer recording.)

Smooth mode change–TV/VCR mode and DVD

•

mode automatically changes without control.

2 Step picture search operation–You can view a

•

video program at a high speed or super high speed in either a forward or reverse direction in LP and SLP mode. For SP mode, only high speed is available.

Fast-forwards to start of next recording.

(A converter may

Three different playback tape speeds : SP/LP/SLP

•

Two different recording tape speeds : SP/SLP

•

Auto Head Cleaner–Automatically cleans video

•

heads as you insert or remove a cassette.

Zero Return–The tape returns to counter of

•

0:00:00 by rewinding or fast forwarding.

Still–“Freeze” the picture at any time, for close

•

viewing of a particular scene.

Digital Auto Tracking (DTR)–Automatically

•

adjusts the tracking for each tape you play.

Rental play mode–Improves playback picture

•

quality from worn tapes, such as rental tapes.

Auto repeat–Allows you to repeat the playing of a

•

tape indefinitely without hitting [PLAY O].

Time search–Lets you set the unit to advance the

•

tape by entering the desired playback time you want to skip.

OTR (One Touch Recording)–Instant timed

•

recording from 30 to 480 minutes is possible by hitting [REC/OTR].

1 Year, 8 events (including Daily and Weekly)

•

Timer Recording–

record up to 8 programs at different times on different channels up to 1 year in advance. The Daily timer allows recordings to be made of daily broadcasts and the Weekly timer allows recording to be made once a week up to the end of the tape.

Auto return–After timer recording is finished, the

•

unit can return to the beginning of the recording.

Sleep timer–Allows you to have the unit automati-

•

cally turn off at a desired time.

Timer Program Extension–Allows you to shift the

•

time schedule for automatic timer recording.

V-CHIP–Enables parents to prevent their children

•

from watching inappropriate material on TV.

The built-in timer allows you to

- 7 - EN

DVD Mode

¡Dolby Digital sound

This unit can handle Dolby Digital surround sound having 5.1 channels when connected to a Dolby Digital decoder.

¡Still/fast/slow/step playback

Various playback modes are available including still pictures, fast forward/reverse, slow motion and step frames.

¡Random playback for Audio CD

This unit can shuffle the order of tracks to play them in random order.

¡Program playback for Audio CD

You can program the order of tracks to play them in any desired order.

¡DVD menus in a desired language

You can display DVD menus in a desired language, if available on a DVD.

¡Screen saver/Auto power-off functions

The screen saver program starts when there is no input from the unit for 5 minutes in the stop mode. After the screen saver program is activated for 15 minutes, the power automatically turns off.

¡Subtitles in a desired language

You can select a desired language for the display subtitles, if that language is available on a disc.

¡Selecting a camera angle

You can select the desired camera angle, if a disc contains sequences recorded from different angles.

¡Choices for audio language and sound mode

You can select the desired audio language and sound mode, if different languages and modes are available on a disc.

¡Parental lock

You can set the control level to limit playback of discs which may not be suitable for children.

¡Automatic detection of discs

This unit automatically detects if the loaded disc is DVD or Audio CD.

¡On-screen display

Information about the current operation can be displayed on a TV screen, allowing you to confirm the currently active functions (such as program playback), on the TV screen using the remote control.

¡Search

Chapter search / Title search / Track search / Time search

¡Repeat

Chapter / Title / Track / All / A-B

¡Zoom

Magnified screen can be displayed.

¡Marker

The part designated by user can be called back.

¡Resume Play

User can resume to playback from the part at which the play was stopped.

¡Virtual Surround ¡Bit rate indication ¡DRC (Dynamic range control)

You can control the range of sound volume.

- 8 - EN

OPERATING CONTROLS AND FUNCTIONS

POWER

SELECT

DVD

TV/VCR

VOLUME

PLAY

CHANNEL

SKIP STOP REC/OTR

OPEN/CLOSE

STOP/EJECT

SKIP PLAYREW F.FWD

HEADPHONE

VIDEO L R

AUDIO

5 6 10

1514983 3 411 12 13 2120191817162

DVD buttons

TV/VCR buttons

- FRONT PANEL - [Fig.1]

- REMOTE CONTROL -

POWER PICTURE SELECTSLEEP

24 25

123

456

789

PAUSE

0 +10

SPEED C.RESET

(DVD) 3

(TV/VCR) 14

RECORD

DISPLAY

27 28

29 30

CLEAR

MODE

31 32

1.POWER Button

[TV/VCR P.15 / DVD P.35]

Hit to turn the power on and off.

2.VOLUME (VOL.) K / L Buttons

Press to control the volume level for the DVD and TV.

3.SKIP H / G Buttons (for DVD)

Press once to skip chapters or tracks to a desired

SEARCH E / D Buttons (for DVD)

Press and hold to change forward or reverse playback speed.

4.B PLAY Button

point.

[TV/VCR P.23 / DVD P.35]

Starts playback of the disc or tape contents.

[Fig. 2]

+100

PLAY

STOP

ENTER

REPEATSEARCH MODE

MUTEZOOM

RETURNTITLESETUP

ANGLESUBTITLEAUDIO

CH.

VOL.

DISC

9 44

43 42

3 (DVD)

15 (TV/VCR)

5 41

40 39

38 37

36 35

[DVD P.37]

[DVD P.36]

5.C STOP Button

[TV/VCR P.23 / DVD P.35]

(Front panel) Stops operation of the disc. (Remote control) Stops operation of the disc or tape contents.

6.A OPEN/CLOSE Button

[DVD P.35]

Hit to insert a disc into or remove it from the tray.

7.Disc loading tray

8.DVD Indicator

Lights up during DVD mode.

9.SELECT Button

[TV/VCR P.15] [DVD P.35]

Hit to change to TV/VCR mode, external input mode or DVD mode. You can see the mode (TV/VCR or DVD) on the front panel indicator.

10.TV/VCR Indicator

Lights up during TV/VCR mode.

11. CHANNEL (CH.) K / L Buttons

Press to select memorized channels.

12. Recording Indicator

Flashes during recording. Lights up in the standby mode for Timer Recording.

13. REC/OTR Button (Front Panel)

[TV/VCR P.29]

Hit to start manual recording. Hit repeatedly to start One Touch Recording.

RECORD Button (Remote Control)

[TV/VCR P.28]

Hit to start manual recording.

14. E REW Button (for TV/VCR)

[TV/VCR P.25]

Hit to rewind the tape or to view the picture rapidly in reverse during playback mode. (Rewind Search)

15. F.FWD D Button (for TV/VCR)

[TV/VCR P.25]

Hit to rapidly advance the tape or to view the picture rapidly in forward during playback mode. (Forward Search)

16. CASTOP/EJECT Button

[TV/VCR P.22, 25]

Hit to stop the tape motion. Hit in the stop mode to remove tape from the unit.

17. Remote sensor window

18. HEADPHONE Jack

To connect headphone (not supplied) for personal listening.

- 9 - EN

ANT.

AUDIO OUT

COAXIAL

- REAR PANEL - [Fig.3]

19. VIDEO input Jack

Connect to the video output jack of a video camera or VCR.

20. AUDIO L/R input Jacks

Connect to the audio output jacks of a video camera or VCR.

21. Cassette compartment

22. PICTURE Button

Hit to adjust the picture.

23. Number Buttons

TV/VCR Mode:

[P.17]

Press two digits to directly access the desired channel. Remember to hit [0] before a single digit channel.

+100 Button–

Hit to select cable channels which are higher than

99.

DVD Mode:

[P.37]

Hit to enter the desired number.

+10 Button–

Hit to enter the desired numbers which are higher than 9.

24. PAUSE F Button

[TV/VCR P.23 / DVD P.36]

Pauses the current disc or tape operation.

25. SPEED Button

[TV/VCR P.28]

Hit to choose the desired recording speed: SP/SLP.

26. C.RESET Button

[TV/VCR P.25]

Hit to reset counter to “0:00:00”. Hit to cancel a setting of timer program. (Refer to page 31.)

27. DISPLAY Button

TV/VCR Mode:

[P.33]

Displays the counter or the current channel number and current time on the TV screen.

DVD Mode:

[P.41]

Displays the current status on the TV screen.

28. SETUP Button

[TV/VCR P.16] [DVD P.42-44]

Hit to enter or exit the setup menu of TV or DVD.

29. TITLE Button

[DVD P.35]

Displays the title menu.

30. CLEAR Button

[DVD P.37]

Hit to clear or cancel a setting currently entered.

31. MODE Button

[DVD P.38]

Hit to call up the program screen or the random screen in the stop mode. Hit to call up the Black Level Setting screen or the Virtual Surround screen during playback.

32. SEARCH MODE Button

[DVD P.37]

Hit to locate a desired point.

33. AUDIO Button

[DVD P.39]

Hit to select a desired audio language or sound mode.

34. SUBTITLE Button

[DVD P.39]

Hit to select a desired subtitle language.

35. REPEAT Button

[DVD P.38]

Repeats playback of the current disc, title, chapter, or track.

36. ANGLE Button

[DVD P.40]

Hit to change the camera angle to see the sequence being played back from a different angle (if available).

37. A-B Button

[DVD P.38]

Repeats playback of a selected section.

38. RETURN Button

[TV/VCR P.31] [DVD P.37]

Returns to the previous screen in the setup menu.

39. ENTER Button

[TV/VCR P.16] [DVD P.35]

Hit to accept a setting.

40. K / L / { / B Buttons

TV/VCR Mode:

[P.15]

Press to select a setting mode from the menu on the TV screen. Press to select or adjust from a particular menu.

DVD Mode:

[P.35]

Press to select a menu item.

41. DISC MENU Button

[DVD P.35]

Calls up the DVD menu.

42. ZOOM Button

[DVD P.36]

Enlarges part of a DVD-reproduced image.

43. MUTE Button

Mutes the sound. Hit it again to restore sound.

44. SLEEP Button

[TV/VCR P.15]

[TV/VCR P.16]

Sets the Sleep Timer.

- 10 - EN

45. ANT(ENNA). Jack

Connect to an antenna, cable system or satellite system.

46. Power cord

Connect to a standard AC outlet (120V/60Hz).

NOTE:

Remove the power cord from the hook to

•

avoid breaking a wire before you connect to a standard AC outlet.

NOTE:

We do not recommend the use of universal remote controls. Not all of the functions may be controlled with

•

a universal remote control. If you decide to use a universal remote control with this unit, please be aware that the code number given

may not operate this unit. In this case, please call the manufacturer of the universal remote control.

47. AUDIO OUT COAXIAL Jack

Connect to the digital input of an external amplifier or decoder (for DVD Audio only).

INSTALLING THE BATTERIES

1)Open the battery compartment cover by pressing the cover on the remote unit in the direction of the arrow.

2)Insert 2 “AA” penlight batteries into the battery compartment in the direction indicated by the polarity (+/-) markings.

3)Replace the cover.

[BATTERY PRECAUTIONS]

Be sure to follow the correct polarity as indicated

•

in the battery compartment. Reversed batteries may cause damage to the device.

Do not mix different types of batteries together

•

(e.g. Alkaline and Carbon-Zinc) or old batteries with fresh ones.

If the device is not to be used for a long period of

•

time, remove the batteries to prevent damage or injury from possible battery leakage.

Do not try to recharge batteries not intended to be

•

recharged; they can overheat and rupture.

- 11 - EN

PREPARATION FOR USE

ANT.

AUDIO OUT COAXIAL

UHF

VHF

VHF/UHF

OUT IN

VHF

UHF

VHF

UHF

ANTENNA/CABLE CONNECTION

Cables used here are commercially available.

[ANTENNA CONNECTION]

75-ohm Coaxial Cable

[CATV/SATELLITE CONNECTION]

CATV Box or Satellite Box *

VHF/UHF

Combiner

From Cable System or Satellite Antenna

Flat twinlead cable

75-ohm Coaxial Cable

From Cable System

Adaptor

*Some cable TV systems use scrambled signals and

require a special converter to receive these channels.

[Fig. 4]

Consult your local cable company.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

NOTE:

Before plugging the antenna into the ANT. jack of the unit, check that the pin is

•

not bent. If it is bent, straighten the pin as illustrated, then plug the pin into the ANT. jack of the unit.

VHF/UHF COMBINED ANTENNA

A VHF UHF 75 ohm combination antenna can be connected to ANT. jack of the unit.

VHF/UHF SEPARATE ANTENNAS

In some areas it will be necessary to use an outdoor antenna.

CABLE WITHOUT CONVERTER/

CABLE WITH CONVERTER/DESCRAMBLER BOX OR SATELLITE BOX

If your cable service supplies you with a converter box or if you use a satellite system, you can use the basic connection shown above.

Channel selection must be made with the converter box or satellite box. This means that channels cannot be changed using the remote control of this unit.

Bent pin

Cable

Plug

(Needs to be

straightened)

(Straight pin)

DESCRAMBLER BOX

Use this connection if your cable system connects directly to the unit without a converter box.

NOTE:

For your safety and to avoid damages to the unit, unplug the antenna cable from the ANT. jack

•

before moving the unit.

- 12 - EN

CONNECTING TO FRONT A/V INPUT JACKS

ANT.

AUDIO OUT

COAXIAL

ex. MD deck, DAT deck, etc.

To Coaxial digital Audio input jack

To AUDIO OUT COAXIAL jack

(Only DVD AUDIO OUT)

When you watch a program recorded on another source (VCR or video camera), use the Audio/Video input jacks on the front of the unit.

Connect the Audio/Video output jacks of another source to the AUDIO L/R and VIDEO jacks of this unit.

Then press [SELECT] or [CH. KK/ LL] until “AUX” appears on the screen.

POWER

ex. VCR or video camera

, etc.

VOLUME

SKIP STOP REC/OTR

SKIP PLAYREW F.FWD

PLAY

OPEN/CLOSE

To the Audio output jacks

CHANNEL

SELECT

DVD

TV/VCR

STOP/EJECT

HEADPHONE

VIDEO L R

AUDIO

(IN)

Audio cable

(OUT)

(commercially available)

To the Video output jack

(OUT) (IN)

Video cable (commercially available)

HEADPHONE

VIDEO L R

AUDIO

[Front of the unit]

[Fig. 5]

NOTE:

When you connect a monaural VCR (another source) to this unit, connect the Audio output jack of the

•

monaural VCR (another source) to the AUDIO L jack of this unit. The audio will output in both L and R channel equally.

AUX

CONNECTING TO A STEREO AMPLIFIER EQUIPPED WITH

DIGITAL INPUT JACKS (for DVD)

Use an audio coaxial digital cable (commercially available) for the audio connections. Connect to an amplifier equipped with digital input jacks such as MD Deck or DAT Deck.

(IN)

NOTES:

The audio source on a disc in a 5.1 channel Dolby Digital surround format cannot be recorded as digital

•

sound by an MD or DAT deck. Be sure to turn off the power to all components in the system before connecting another component.

•

Refer to the Owner’s Manuals for the components to be connected to the unit.

•

Set “DOLBY DIGITAL” to “PCM” for audio output in the setup mode. Playing a unit using incorrect set-

•

tings may generate noise distortion and may also damage the speakers. (Refer to page 43.)

Audio coaxial digital cable (commercially available)

- 13 - EN

(OUT)

[Fig. 6]

ANT.

AUDIO OUT

COAXIAL

Front speaker

(left)

Center

speaker

Front speaker

(right)

Surround

speaker

(left)

Surround

speaker

(right)

Subwoofer

To AUDIO OUT COAXIAL jack (Only DVD AUDIO OUT)

To Coaxial digital Audio input jack

Dolby Digital

decoder

CONNECTING TO A DOLBY DIGITAL DECODER (for DVD)

If using this unit to play a DVD disc in a 5.1 channel Dolby Digital surround format, the unit outputs a DOLBY DIGITAL Data stream from its AUDIO OUT COAXIAL jack. By hooking the unit up to a Dolby Digital decoder, you can enjoy a more convincing, realistic ambience with powerful and high-quality surround sound as enjoyed in movie theaters.

Use audio coaxial digital cables (commercially available) for the audio connections.

(OUT)

(IN)

Audio coaxial digital cable (commercially available)

[Fig. 7]

NOTES:

Be sure to turn off the power to all components in the system before connecting another component.

•

Refer to the Owner’s Manuals for the components to be connected to the unit.

•

If connected to a Dolby Digital decoder, set “DOLBY DIGITAL” to “BITSTREAM” for audio output in the

•

setup mode. (Refer to page 43.) Unless connected to a Dolby Digital decoder, set “DOLBY DIGITAL” to “PCM” for audio output in the

•

setup mode. Playing a unit using incorrect settings may generate noise distortion and may also damage the speakers. (Refer to page 43.)

Manufactured under license from Dolby Laboratories.“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

- 14 - EN

TV OPERATION AND SETTINGS

TV/VCR SECTION

WATCHING A TV PROGRAM

TV/VCR

1 Plug in the unit power cord

Plug the unit power cord into a standard AC outlet.

NOTE:

If any digits appear in the corner of the

•

screen, hit [POWER] without unplugging the power cord.

2 Turn on the unit

Hit [POWER] to turn on the unit.

3 Select the channel number

Press [CH. K / L] or the Number buttons to select your desired channel number.

Note for using the Number buttons:

¡You must precede single-digit channel numbers

with a zero (for example: 02, 03, 04 and so on).

¡When selecting cable channels which are higher

than 99, hit [+100] first, then press the last two digits. (Example: to select channel 125, first hit

[+100] then hit [2] and [5].)

DEGAUSSING

TV/VCR

This television has a degaussing circuit that will clear up color errors on the TV screen that are caused by any excess magnetism which happens to get too close to the TV. This circuit is designed to operate once when the set is first plugged in. If minor color

errors are seen in some locations on the screen, please unplug the TV for approximately 30 minutes. When the TV is plugged back in, the degauss-

ing circuit will operate once to clear them up. Repeat this procedure any time the TV screen is accidentally magnetized or when the TV is moved or relocated.

PICTURE CONTROL

TV/VCR

The unit’s picture controls – BRIGHT, CONTRAST, COLOR, TINT and SHARPNESS – are

preset to factory specifications. Although they are usually the best, you may need to make some further adjustments for a more natural looking image.

Make sure ...

The unit must be turned on.

•

4 Adjust sound

Press [VOL.XX/ YY] to adjust the volume.

[MUTE] to instantly mute the

Hit sound.

Hit it again to restore the previous sound level.

NOTE:

If you press [CH. K / L] in the DVD mode, you

•

can change the TV channels. Even if you turn off the unit in the DVD mode, when you turn it on again, it will go into the TV/VCR mode.

VOLUME 20

C C C C C C C C C C C C C C C C

TO WATCH CABLE OR SATELLITE CHANNEL

If the unit is connected to a cable box or satellite

•

box, press [CH. K / L] to select CH3 or CH4 according to the output channel setting of the device, and select desired channel on that device.

TO WATCH EXTERNAL INPUT

When an external equipment is connected to the

•

front AUDIO/VIDEO input jacks, press [SELECT] or [CH. K / L] repeatedly until “AUX” appears on the screen.

1 Call up the menu

Hit [PICTURE].

2 Select item you want to adjust

Press [K / L] until desired control is displayed.

BRIGHT CONTRAST COLOR TINT SHARPNESS

BRIGHT

PP PP PP PP PP PP PP CC PP PP PP PP PP PP PP

–

3 Adjust the setting

Press [s/ B]to adjust to your desired level within 5 seconds.

BRIGHT to decrease to increase

brightness brightness

CONTRAST to decrease to increase

contrast contrast

COLOR to pale to brilliant TINT to purple to green

SHARPNESS to soft to clear

Even if there is a power failure of any kind, the

•

unit will retain its memory for this feature.

- 15 - EN

SLEEP TIMER

TV/VCR

The Sleep Timer function turns off the unit without using [POWER] after a desired period of time.

NOTE:

This function does not work during the record-

•

ing mode.

1 Call up the Sleep Timer Setting

Hit [SLEEP] so that “SLEEP 0 MINUTE” appears.

2 Set sleep time

Hit [SLEEP] repeatedly until your desired sleep time appears.

Each additional press will increase the time by 30 minutes up to 120

SLEEP 120 MINUTE

minutes. After 5 seconds, the Sleep Timer setting will disap-

pear automatically.

TO CANCEL THE SLEEP TIMER

Hit [SLEEP] to call up the Sleep Timer Setting. Hit [SLEEP] repeatedly until “SLEEP 0 MINUTE”

appears.

CLOSED CAPTION SYSTEM

TV/VCR

You can view specially labeled (cc) TV programs, movies, news and pre-recorded tapes with either a dialogue caption or text display.

CAPTION mode: You can watch dramas, movies and

news while captioning the dialogues and the contents of news.

TEXT mode: You can watch half screen text informa-

tion if you want.

1-2: You may get these captions or text information

by selecting either “1” or “2”. Caption “2” is usually used for a second language if available.

NOTES:

Not all programs are broadcast with closed cap-

•

tions. Your unit is designed to provide error free closed captions from high quality antenna, cable and VCR signals. Conversely, poor quality signals are likely to result in caption errors or no captions at all. Common signal conditions which may cause caption errors are listed below:

Automobile ignition noise

•

Electric motor brush noise

•

Weak snowy reception on TV screen

•

Multiplex signal reception displaying picture

•

ghosts or airplane flutter. Playback of poorly recorded or worn VCR tapes.

•

If the unit displays a black box

•

on the TV screen, this means that the unit is set to the TEXT mode. To clear screen, select [CAPTION1], [CAPTION2] or [OFF].

Make sure ...

The unit must be turned on.

•

1 Select “CAPTION”

Hit [SETUP]. Press

[K / L]

TION”.

to point to “CAP-

- TV/VCR SETUP -

TIMER PROGRAMMING SETTING CLOCK CHANNEL SET UP USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH]

B CAPTION [OFF]

ZERO RETURN TIME SEARCH INDEX SEARCH

2 Select your desired caption mode

Hit [ENTER] repeatedly until your desired caption menu appears.

([CAPTION1], [CAPTION2], [TEXT1] or [TEXT2])

- TV/VCR SETUP -

TIMER PROGRAMMING SETTING CLOCK CHANNEL SET UP USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH]

B CAPTION [CAPTION1]

ZERO RETURN TIME SEARCH INDEX SEARCH

3 Exit the caption setting mode

Hit [SETUP] to exit the menu. NOTE:

Even if there is a power failure of any kind, the

•

unit will retain its memory for this feature.

TO CANCEL THE CLOSED CAPTION SYSTEM

Repeat steps 1 to 2 and select [OFF] using [ENTER]. Then hit [SETUP] to return to TV mode.

- 16 - EN

CHANNEL SET UP

TV/VCR

Make sure ...

The unit must be turned on.

•

AUTO CHANNEL PROGRAMMING

As the initial setting, this unit has memorized all channels, including the ones not available in your area. This feature automatically puts only available channels into the memory.

1 Select “CHANNEL SET UP”

Hit [SETUP]. Press

[K / L]

“CHANNEL SET UP”, then hit [ENTER].

to point to

- TV/VCR SETUP -

TIMER PROGRAMMING SETTING CLOCK

B CHANNEL SET UP

USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH

INDEX SEARCH

ADDING/DELETING CHANNELS

The channels you no longer receive or seldom watch can be deleted from the memory. (Of course, you can add the deleted channel into the memory again.)

1 Select “CHANNEL SET UP”

Hit [SETUP]. Press

[K / L]

to point to “CHAN-

NEL SET UP”, then hit [ENTER].

2 Select “ADD/DELETE CH”

Press

[K / L]

“ADD/DELETE CH”, then hit [ENTER].

to point to

- TV/VCR SETUP -

TIMER PROGRAMMING SETTING CLOCK

B CHANNEL SET UP

USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

– CHANNEL SET UP –

B ADD / DELETE CH (CATV)

AUTO CH PROGRAMMING

2 Begin channel scanning

Press

[K / L]

to point to “AUTO

CH PROGRAMMING”, then hit [ENTER].

The tuner scans and memorizes all the active channels in your area.

– CHANNEL SET UP –

ADD / DELETE CH (CATV)

B AUTO CH PROGRAMMING

3 After scanning

The tuner stops on the lowest memorized channel.

NOTES:

When “AUTO CH PROGRAM-

•

MING” is activated where there is no TV signal input, “NO TV SIGNALS” will appear on the display after the completion of channel scanning.

The unit may recognize CATV channels to be TV

•

channels if reception condition is poor. In this case, check the antenna connection and try “AUTO CH PROGRAMMING” again when reception conditions are better.

Channel memory programming is NOT neces-

•

sary when connected to a cable box or satellite box. Just select the channel for cable box or satellite input (ex. CH3) on the unit, then select your desired channel on the cable box or satellite box.

NO TV SIGNALS

3 Enter the desired channel number

Press [CH. K / L] or the Number buttons until your desired channel

number appears. (You can also press [K / L] to enter it.)

You must precede single-digit

•

channel numbers with a zero (Example: 02 ... 09).

When selecting cable channels which are higher

•

(Example: CH8)

ADD / DELETE

than 99, hit [+100] first, then press the last two digits. (Example: to select channel 125, first hit [+100] then hit [2] and [5].)

4 Delete (or add) it from (or into) memory

Hit [ENTER]. The channel number changes to light red. The channel is deleted from memory.

To delete another channel, repeat steps 3 to 4.

•

If you hit [ENTER] again, the channel is memo-

•

rized again.

Added channel : Light blue Deleted channel : Light red

5 Exit the channel setup mode

Hit [SETUP] to exit the menu. NOTE:

To confirm that channel(s) has been deleted or

•

added, press [CH. K / L].

- 17 - EN

CLOCK SET UP

(AUTO / MANUAL)

TV/VCR

The unit clock must be set correctly so that VCR timer recording is possible. It is suggested that the clock be set manually when first setting up the unit, then set to [ON] the auto clock setting which will periodically correct the setting if necessary.

NOTE:

If you cannot receive a station with time signals,

•

auto clock setting cannot be performed. Use manual setting only.

MANUAL CLOCK SETTING

Make sure ...

The unit must be turned on.

•

In the example below, the clock is to be set to:

DATE May 6th, 2005 SETTING TIME 5:40PM

5 Select the year

Press [K / L] until your desired year appears.

(Example: “2005”) Then hit

[B].

6 Select the hour

Press [K / L] until your desired hour appears.

(Example: “5”, “PM”) Then hit

[B].

7 Select the minute

Press [K / L] until the desired minute appears.

(Example: “40”)

– MANUAL CLOCK SET –

MONTH DAY YEAR

0 5 / 0 6 FRI 2 0 0 5

HOUR MINUTE

– – : – – – –

– MANUAL CLOCK SET –

MONTH DAY YEAR

0 5 / 0 6 FRI 2 0 0 5

HOUR MINUTE

0 5 : – – PM

– MANUAL CLOCK SET –

MONTH DAY YEAR

0 5 / 0 6 FRI 2 0 0 5

HOUR MINUTE

0 5 : 4 0 PM

1 Select “SETTING CLOCK”

Hit [SETUP]. Press

[K / L]

TING CLOCK”, then hit [ENTER].

to point to “SET-

- TV/VCR SETUP -

TIMER PROGRAMMING

B SETTING CLOCK

CHANNEL SET UP USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

2 Select “MANUAL CLOCK SET”

Press

[K / L]

to point to “MANU-

AL CLOCK SET”, then hit [ENTER].

If there is no local PBS station in your area or on

•

your cable system, select “AUTO CLOCK” and hit [ENTER] to turn [OFF] this function before this step.

3 Select the month

Press

[K / L]

month appears. (Example: May Then hit

back one step.)

until your desired

→ “05”)

[B]. (Or hit [s] to go

– SETTING CLOCK –

AUTO CLOCK [ON]

AUTO CLOCK CH SEARCH

AUTO CLOCK CH [ 02 ]

B MANUAL CLOCK SET

D.S.T. [OFF]

– MANUAL CLOCK SET –

MONTH DAY YEAR

0 5 / – – – – – – – – –

HOUR MINUTE

– – : – – – –

8 Start the clock

Hit [SETUP]. Although seconds are not displayed,

they begin counting from 00 when you hit

[SETUP]. Use this feature

to synchronize the clock with the correct time.

NOTE:

When unplugging the AC cord or if there is a

•

power failure for more than 3 seconds, you may have to reset the clock.

TO CHANGE CLOCK SETTING

If you want to change the clock,

1)Follow steps

2)Select the item you want to change using

3)Enter correct numbers using

4)Hit

[SETUP] to start the clock.

1 to 2.

[B] .

[K / L].

5:40 PM

4 Select the day

Press

[K / L]

appears. (Example: 6th Then hit

until your desired day

→ “06”)

[B].

– MANUAL CLOCK SET –

MONTH DAY YEAR

0 5 / 0 6 – – – – – – –

HOUR MINUTE

– – : – – – –

- 18 - EN

AUTOMATIC CLOCK SETTING

Make sure ...

The unit must be turned on.

•

Confirm the unit is receiving a RF (Radio

•

Frequency) signal from either an antenna or cable system connection using the ANT. jack on the rear of the unit.

NOTES:

If a cable converter box is being used, make sure it

•

is powered on. You must use the remote control to perform the

•

clock setting procedure. If the unit is connected directly to a cable converter

•

box or satellite box, the local PBS station must be selected on the cable box itself and the unit must be set to the output channel of the cable converter box or satellite box (usually channel 3 or 4), to be able to set up or correct the clock automatically.

4 Enter the channel number that contains the

Automatic Clock Setting Signal

Hit [RETURN] to go back to “SETTING CLOCK” menu.

Hit

[L] to select “AUTO CLOCK

CH”.

[s / B] until you locate Auto

Press

– SETTING CLOCK –

AUTO CLOCK [ON]

AUTO CLOCK CH SEARCH

B AUTO CLOCK CH [ 45]

MANUAL CLOCK SET

D.S.T. [OFF]

Clock Set station number.

5 Exit the setting clock mode

Hit [SETUP] to exit the menu.

NOTE:

Once the unit is turned off, it will periodically

•

check and set the correct date and time.

1 Select “SETTING CLOCK”

Hit [SETUP]. Press [K / L] to select “SETTING CLOCK”, then hit [ENTER] .

2 Set “AUTO CLOCK” to [ON]

Hit [ENTER] to select [ON].

- TV/VCR SETUP -

TIMER PROGRAMMING

B SETTING CLOCK

CHANNEL SET UP USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

– SETTING CLOCK –

B AUTO CLOCK [ON]

AUTO CLOCK CH SEARCH

AUTO CLOCK CH [ 02 ]

MANUAL CLOCK SET

D.S.T. [OFF]

3 Begin “AUTO CLOCK CH SEARCH”

Hit [L] to select “AUTO CLOCK CH SEARCH”. Then hit [ENTER].

The unit begins searching for the

•

station which contains the auto clock set signal. The search for a signal may take up to 20 seconds per channel. When the search has ended, “_ _”

•

appears at the lower left of the screen.

Write down the number(s) that

•

appear on the screen. They are the auto clock station(s) in your area.

If no number(s) appear on the TV screen, there are

•

no stations in your area which contain the Auto Clock signal. Auto Clock Setting is not possible. Please use Manual Clock Setting on page 18.

– SETTING CLOCK –

AUTO CLOCK [ON]

B AUTO CLOCK CH SEARCH

AUTO CLOCK CH [ 02 ]

MANUAL CLOCK SET

D.S.T. [OFF]

– AUTO CLOCK CH SEARCH –

08 10 13

_ _

DAYLIGHT-SAVING TIME

TV/VCR

Select this feature and the unit’s clock automatically will advance one hour in April, then reverse one hour in October.

When Daylight-Saving Time is ON, the clock will change automatically as follows:

First Sunday of April : At 2 AM the clock immedi-

•

ately changes to 3 AM. Any timer programming you have set to occur between 2 AM and 3 AM will not record.

Last Sunday of October : At 2 AM the clock

•

immediately changes to 1 AM.

Make sure ...

The unit must be turned on.

•

1 Select “SETTING CLOCK”

Hit [SETUP]. Press

[K / L] to point to “SET-

TING CLOCK”, then hit [ENTER].

2 Set “D.S.T.” (Daylight-Saving Time) to [ON]

Press [K / L] to point to “D.S.T.”, then hit [ENTER] until [ON] appears.

- TV/VCR SETUP -

TIMER PROGRAMMING

B SETTING CLOCK

CHANNEL SET UP USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

– SETTING CLOCK –

AUTO CLOCK [ON]

AUTO CLOCK CH SEARCH

AUTO CLOCK CH [ 02 ]

MANUAL CLOCK SET

B D.S.T. [ON]

NOTE:

During AUTO CLOCK CH SEARCH, the picture

•

may be distorted.

3 Exit the Daylight-Saving Time mode

Hit [SETUP] to exit the menu.

TO CANCEL THE DAYLIGHT-SAVING TIME

Repeat steps 1 to 2 and select [OFF] using [ENTER].

- 19 - EN

V-CHIP SET UP

TV/VCR

This feature enables parents to prevent their children from watching inappropriate material on TV. When you try to access a program which is blocked, “PROTECTED PROGRAM by ...” message appears on the TV screen.

NOTE:

When you select a rating and set

•

it to [BLOCK], the higher ratings will be blocked automatically. The lower ratings will be avail-

TV–Y [VIEW] TV–Y7 ( ) [VIEW]

B TV–G [BLOCK]

TV–PG (DLSV) [BLOCK] TV–14 (DLSV) [BLOCK] TV–MA( LSV) [BLOCK]

able for viewing. When you set the lowest rating to

•

[VIEW], all other ratings will automatically be available for viewing.

V-CHIP SET UP

Make sure ...

The unit must be turned on.

•

1 Select “V-CHIP SET UP”

Hit [SETUP]. Press

[K / L] to select “V-CHIP

SET UP”, then hit [ENTER].

2 Enter Access code

Press the Number buttons to enter the access code.

For the first time set-up or in the

•

- TV/VCR SETUP -

TIMER PROGRAMMING SETTING CLOCK CHANNEL SET UP USER’S SET UP

B V-CHIP SET UP

LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

ACCESS CODE

_ _ _ _

event the unit has lost power, enter the default code of 0000.

3 Select the desired item

Press [K / L] to select “TV RATING”, “MPAA RATING” or “CHANGE CODE”, then hit [ENTER].

Refer to the pages below to set up each item.

– V-CHIP SET UP –

B TV RATING

MPAA RATING CHANGE CODE

TV RATING SET UP

P20 Step

P21 Step

4 4 4

5 Setting “Sub-Ratings”

When you select the ratings of TVY7, TV-PG, TV-14 or TV-MA you will have the option of setting sub rating categories.

Press

[K / L] to select a rating with

sub-ratings you wish to block, then hit [ENTER] twice.

Press

[K / L] to select a sub-rating,

then hit [ENTER] to set it to [BLOCK] or [VIEW].

Selection Rating Category Explanations

TV-Y7

FV Fantasy Violence

TV-PG, TV-14, TV-MA

D Suggestive Dialog L Coarse Language S Sexual Situation VViolence

NOTE:

The blocked sub-ratings will

•

appear next to the rating category in the “TV RATING” menu.

TV–Y [VIEW]

B TV–Y7 ( ) [VIEW]

TV–G [VIEW] TV–PG ( ) [VIEW] TV–14 ( ) [VIEW] TV–MA( ) [VIEW]

TV–Y7 [BLOCK]

B FV [BLOCK]

TV–PG [BLOCK]

B D[BLOCK]

L[BLOCK] S[BLOCK] V[BLOCK]

(TV-PG, TV-14 only)

TV–Y [VIEW] TV–Y7 ( ) [VIEW] TV–G [VIEW]

B TV–PG (DLSV ) [BLOCK]

TV–14 (DLSV) [BLOCK] TV–MA ( LSV) [BLOCK]

Follow steps 1to 3in the “V-CHIP SET UP” section above.

4 Blocking TV programs

Press [K / L] to select a rating that you wish to block.

Hit

[ENTER] repeatedly to set it to

[BLOCK] or [VIEW].

Selection Rating Category Explanations

TV-Y Appropriate for all children TV-Y7 Appropriate for children seven and older TV-G General Audience TV-PG Parental Guidance suggested. TV-14 Unsuitable for children under 14 TV-MA Mature audience only

B TV–Y [VIEW]

TV–Y7 ( ) [VIEW] TV–G [VIEW] TV–PG ( ) [VIEW] TV–14 ( ) [VIEW] TV–MA( ) [VIEW]

6 Exit the V-Chip setting mode

Hit [SETUP] to exit the menu. NOTE:

To change the rating, the TV must

•

be turned to an unprotected program. If “PROTECTED PROGRAM by ...” appears on the screen, please change the channel to a station that is not protected.

- 20 - EN

PROTECTED PROGRAM

by TV-Y

MPAA RATING SET UP

MENU LANGUAGE

Follow steps 1to 3in the “V-CHIP SET UP” section on page 20.

4 Select your desired item

Press [K / L] to point to your desired item, then hit [ENTER] to select [BLOCK] or [VIEW].

Selection Rating Category Explanations

G General Audience PG Parental Guidance suggested. PG-13 Unsuitable for children under 13 R Restricted; under 17 requires accompa-

nying parent or adult guardian NC-17 No one under 17 admitted X Mature audience only

When you select a rating and set it to [BLOCK],

•

the higher ratings will be blocked automatically. The lower ratings will be available for viewing. When you set the lowest rating to [VIEW], all

•

other ratings will automatically be available for viewing.

G[VIEW] PG [VIEW] PG–13 [VIEW]

B R[BLOCK]

NC–17 [BLOCK] X[BLOCK]

5 Exit the V-Chip setting mode

Hit [SETUP] to exit the menu.

TV/VCR

1 Select “LANGUAGE”

Hit [SETUP]. Press

[K / L] to point to “LAN-

GUAGE”.

- TV/VCR SETUP -

TIMER PROGRAMMING SETTING CLOCK CHANNEL SET UP USER’S SET UP V-CHIP SET UP

B LANGUAGE [ENGLISH]

CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

2 Select “ENGLISH”, “ESPAÑOL” or “FRANÇAIS”

Hit [ENTER] repeatedly to select “ENGLISH”, “ESPAÑOL”= Spanish or “FRANÇAIS”= French.

3 Exit the Language mode

Hit [SETUP] to exit the menu. NOTES:

This function effects only the language on the

•

screen menu and not the audio source. If for some reason the menu is in Spanish or

•

French, hit [SETUP], press [K / L] to point to “IDIOMA [ESPAÑOL]” or “LANGAGE [FRANÇAIS]”, then hit [ENTER] repeatedly to select desired language, then hit [SETUP].

CHANGE ACCESS CODE

Follow steps 1to 3in the “V-CHIP SET UP” section on page 20.

4 Enter New code

Press the Number buttons to enter your desired access code in the “NEW CODE” space, then enter

NEW CODE

CONFIRM CODE

_ _ _ _

X X X X

the same code in the “CONFIRM CODE” space. When completed, the menu will return to “V-CHIP SET UP”.

Make sure you enter exactly the same new code in

•

the “CONFIRM CODE” space as one in the “NEW CODE” space. If they are different, the “NEW CODE” space is cleared for redoing.

5 Exit the V-Chip setting mode

Hit [SETUP] to exit the menu. NOTE:

Your personal access code will be erased and will

•

return to the default (0000) when a power failure occurs or when you turn off the power using a wall switch. If you have forgotten the code, unplug the power cord for 10 seconds to restore the access code to 0000.

- 21 - EN

VIDEO CASSETTE

This unit will operate with any cassette that has the mark. For best results, we recommend the use of high-quality tapes. Do not use poor quality or damaged tapes.

PRECAUTIONS

Avoid moisture. Moisture condensation may occur

•

on the tape if it is moved from a cold place to a warm place or vice versa. Before using a tape with these conditions, to avoid damage of the tape and your unit, wait until the tape has warmed to room temperature and the moisture has evaporated.

Avoid extreme heat, high humidity and magnetic

•

fields. Do not tamper with the cassette mechanism.

•

Do not touch the tape with your fingers.

•

TWO DIFFERENT TAPE SPEEDS

Before recording, select the tape speed from : SP mode (Standard Play) or SLP mode (Super Long

Play). The table below shows the maximum recording/play-

back time using T60, T120 or T160 tapes in each mode.

Tape Speed Recording/Playback Time

Type of tape

SP mode 1 hour 2 hours 2-2/3 hours SLP mode 3 hours 6 hours 8 hours

NOTE:

You can play back a tape recorded in LP mode

•

(Long Play).

T60 T120 T160

INSERTING A CASSETTE

Insert the cassette in the direction as shown. Push in gently, but continuously, on the center-back of the cassette until it is drawn into the unit. The unit will automatically turn on.

Window

CORRECT

WRONG

REMOVING A CASSETTE

1)In the stop mode, hit [CASTOP/EJECT] on the

unit. The cassette will be ejected.

2)Pull the cassette out of the cassette compartment.

3)Store the cassette in its case as shown.

ERASE PREVENTION

You can prevent accidental erasing of recording by breaking off the tab on the back edge of the cassette.

Ta b

If you decide to record on the tape again, cover the hole with plastic tape.

Plastic Tape

NOTE:

In DVD mode, whether the cassette is with tab or

•

without tab you insert, it doesn’t start playing until you hit In TV/VCR mode, if the cassette without tab is inserted, playback will automatically start.

- 22 - EN- 22 - EN

[

PLAY].

PLAYBACK

NORMAL PLAYBACK

TV/VCR

Make sure ...

The unit must be turned on.

•

1 Insert a prerecorded tape

If the erase-prevention tab has been removed, the unit will start playback automatically.

2 To begin playback

Hit [PLAY O].

3 To stop playback

Hit [STOP C].

NOTES:

Even in the DVD mode, you can start the VCR

•

playback if you hit [BPLAY] (of the TV/VCR side).

VCR playback will stop and the mode will change

•

to the DVD mode by pressing [SELECT], [BPLAY] (DVD side) or [AOPEN/CLOSE].

PLAY

STOP

TRACKING ADJUSTMENT

TV/VCR

Tracking adjustment will be set automatically

•

(Digital Tracking function) when you start playback.

Noise lines (black and white streaks) may appear

•

on the playback picture when playing pre-recorded tapes or tapes recorded on other VCR. If this occurs, press pear.

You can reduce the noise lines by pressing

•

[CH. K / L] in the slow mode too. Tracking adjust- ment in the slow mode will not be set automatically.

To return to the Digital Auto Tracking function,

•

stop the tape once and start playback.

[CH. K / L] until the streaks disap-

SLOW MOTION

TV/VCR

Hit [PAUSE F], then hit [D] to start the playback in slow motion. The unit mutes the sound during slow motion. Hit [PLAY O] to return to normal playback.

NOTE:

If it is left in the slow mode for more than 5 min-

•

utes, the unit will automatically go into the stop mode.

STILL PICTURE

TV/VCR

You can view a still picture on the TV screen during playback (the still mode). Hit [PAUSE F] during playback. Only tapes recorded in the SLP mode will show the least amount of lines. Hit [PLAY O] to return to playback.

NOTES:

You can advance the picture one frame at a time by

•

hitting [PAUSE F] during the still mode. If it is left in the pause mode for more than 5 min-

•

utes, the unit will automatically switch to the stop mode.

VERTICAL HOLD CONTROL

TV/VCR

In the pause/still mode only, when the picture begins to vibrate vertically, stabilize the picture by pressing

[CH. K / L]. NOTE:

If there are video noise lines on the screen, refer to

•

TRACKING ADJUSTMENT on this page.

- 23 - EN- 23 - EN

SPECIAL PLAYBACK

Make sure ...

The unit must be turned on.

•

Insert a prerecorded tape.

•

RENTAL PLAYBACK

TV/VCR

This function enables you to improve the picture quality when playing back worn cassettes such as rented tapes.

1 Select “USER’S SET UP”

Hit [SETUP]. Press

[K / L] to point to “USER’S

SET UP”, then hit [ENTER].

2 Set “RENTAL” to [ON]

Press [K / L] to point to “RENTAL”.

Hit

[ENTER] until [ON] appears.

3 Exit the Rental setting

Hit [SETUP] to return to the TV mode.

4 Start playback

Hit [PLAY O] to start playback. “RENTAL PLAY

Once you select the rental mode, it stays in effect

•

B” appears.

even after you turn off the unit.

TO CANCEL THE RENTAL MODE

Repeat steps 1 to 2 and select [OFF] using

[ENTER]. Hit [SETUP] to return to TV mode. Even if there is a power failure of any kind, the

unit will retain its memory for this feature.

- TV/VCR SETUP -

TIMER PROGRAMMING SETTING CLOCK CHANNEL SET UP

B USER’S SET UP

V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

USER’S SET UP

–

B RENTAL [ON]

REPEAT PLAY [OFF] AUTO RETURN [OFF]

AUTO REPEAT PLAYBACK

TV/VCR

The unit has the auto repeat function that allows you to repeat a tape indefinitely without hitting

ALL REPEAT: Repeat playback from the beginning

to the end of the tape.

BLANK REPEAT: Repeat playback from the begin-

ning to a blank part, which is blank for more than 10 seconds.

1 Select “USER’S SET UP”

Hit [SETUP]. Press

[K / L] to point to “USER’S

SET UP”, then hit [ENTER].

–

2 Select “ALL” or “BLANK”

Press [K / L] to point to “REPEAT PLAY”.

Hit

[ENTER] repeatedly until your

desired selection [ALL] or [BLANK] appears.

3 Exit the Repeat Play setting

Hit [SETUP] to return to the TV mode.

4 Start playback

Hit [PLAY O] to start the Repeat Play. “REPEAT PLAY

Once you select the repeat play mode, it stays in

•

B” appears.

effect even after you turn off the unit. If the rental mode is set [ON], the “RENTAL

•

PLAY B” display has priority.

TO CANCEL THE REPEAT PLAY MODE

Repeat steps 1 to 2 and select [OFF] using

[ENTER]. Hit [SETUP] to return to TV mode. Even if there is a power failure of any kind, the

unit will retain its memory for this feature.

[PLAYO].

- TV/VCR SETUP -

TIMER PROGRAMMING SETTING CLOCK CHANNEL SET UP

B USER’S SET UP

V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

USER’S SET UP

–

RENTAL [OFF]

B REPEAT PLAY [ALL]

AUTO RETURN [OFF]

–

- 24 - EN- 24 - EN- 24 - EN- 24 - EN

Make sure ...

The unit must be turned on.

•

Insert a tape.

•

ZERO RETURN

TV/VCR

This function allows you to search easily a beginning point that you want to review by rewinding or fast forwarding.

NOTE:

Zero Return WILL NOT work on a blank tape or

•

a blank portion of a tape.

1 Stop a tape at your desired point

Rewind or fast forward the tape to the beginning point at which you want to review.

2 Reset the counter to 0:00:00

Hit [C.RESET] repeatedly.

3 Begin recording or playback

Press [RECORD] or [PLAY O]. Hit

[STOP C]

when recording or playback is com-

pleted.

4 To activate “ZERO RETURN”

Hit [SETUP]. Press

[K / L] to point to “ZERO

RETURN”, then hit [ENTER]. The unit will begin rewinding and

the counter will appear on the TV screen.

The tape will automatically stop when the counter returns to 0:00:00 (approx.).

- TV/VCR SETUP -

TIMER PROGRAMMING SETTING CLOCK CHANNEL SET UP USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF]

B ZERO RETURN

TIME SEARCH INDEX SEARCH

PICTURE SEARCH

TV/VCR

This feature is very useful in finding or skipping over a particular scene on a tape. In this mode, the sound will be muted.

1 Start Picture Search

During playback, press [D] or [E] to view at a high speed (in forward/reverse).

NOTE:

Tapes recorded in the SP or LP mode will normally

•

display a noise bar on the TV screen and the picture may revert to Black and White.

3 Return to normal speed

Hit [PLAY O].

TIME SEARCH

TV/VCR

The Time Search function makes it possible to quickly advance the tape to your desired position simply by entering the exact amount of playback time you want to skip.

NOTE:

Time Search can be set up to a maximum of 9

•

hours 50 minutes (9:50) by 10 minutes at a time. In the example below: To watch a program before/ after 2 hour 50 minutes from the present position, in either direction.

1 Select “TIME SEARCH”

Hit [SETUP]. Press

[K / L] to point to “TIME

SEARCH”, then hit [ENTER].

2 Enter your desired time

Press

[K / L]

until your desired time appears. (Example: “2:50” stands for 2 hours 50 minutes)

If you wish to cancel the Time Search at this point, hit [SETUP].

3 Begin Time Search

By pressing [s/ B], the unit will rewind or fast for- ward to the specified point.

The time counts down during the search. When the display shows “0:00”, the tape will start playback automatically.

TO CANCEL DURING TIME SEARCH

Press [

STOP/EJECT] on the unit or [STOPC].

This will delete the selected time.

- TV/VCR SETUP -

TIMER PROGRAMMING SETTING CLOCK CHANNEL SET UP USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN

B TIME SEARCH

INDEX SEARCH

TIME SEARCH

2 : 50

2 Change searching speed

Press [D] or [E] again to view at super high speed (in the LP/SLP modes only).

- 25 - EN- 25 - EN- 25 - EN- 25 - EN

INDEX SEARCH

TV/VCR

This feature provides a method of indexing the starting point so that it can be easily returned to in either fast forward or rewind mode.

The index mark will be made automatically when

•

[RECORD] is hit. It will also be marked at the starting point of Timer recording and OTR.

The index mark will not be recorded if [PAUSE

•

F] is hit and released during recording. The time gap between making the index marks on

•

the tape should be greater than 1 minute for SP recording, 2 minutes for LP recording and 3 minutes for SLP recording.

In some cases, the index mark at the beginning of

•

video tape cannot be detected.

Example: You are watching program number 4 and

want to fast forward to program number 7. You must skip three programs.

CURRENT PLAYBACK PROGRAM

Beginning of

the tape

Pro.1 Pro.2 Pro.3 Pro.4 Pro.5 Pro.6 Pro.7

4321123

INDEX MARK

End of

the tape

1 Select “INDEX SEARCH”

Hit [SETUP]. Press

[K / L] to point to “INDEX

SEARCH”, then hit

[ENTER].

- TV/VCR SETUP -

TIMER PROGRAMMING SETTING CLOCK CHANNEL SET UP USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH

B INDEX SEARCH

2 Enter your desired number

Press [K / L] until the number of programs that you want to skip appears. (Example: “03” for 3 programs)

The Index Search mode will be canceled if the pro-

•

cedures are not activated in 30 seconds.

INDEX SEARCH

0 3

3 Begin Index Search

Press [s/ B]. The unit begins rewinding or fast for- warding to the beginning of desired program.

NOTE:

Every time an index signal is skipped, the number

•

in the program indicator decreases by one.

4 After Index Search

When the preset program is reached, the unit will start playback automatically.

A video cassette must be inserted in the unit for

•

this function to work. The number of Index Searches can be set up to 20.

•

This function will not operate in the recording

•

mode. When you want to cancel the Index Search while

•

in progress, hit [STOP C].

- 26 - EN- 26 - EN- 26 - EN- 26 - EN

SPECIAL FEATURES

REAL TIME TAPE COUNTER AUTO REWIND-EJECT

TV/VCR

This shows the elapsed recording or playback time in hours, minutes, and seconds. (The displayed time will not change on a blank tape or blank portions on the tape.) The “–” indication will appear when the tape has rewound further than “0:00:00” on the tape counter.

TV/VCR

When the end of a tape is reached during record-

•

ing, playback, or fast-forward, the tape will automatically rewind to the beginning. After rewinding finishes, the unit will eject the tape and turn itself off.

This function is operative when Repeat Play is set

•

to the [OFF] position. The tape will not auto-rewind during timer record-

•

ing or One Touch Recording.

- 27 - EN

RECORDING

Make sure ...

The unit must be turned on.

•

Insert a cassette tape with its erase-prevention tab in place. (If necessary, rewind or fast forward the tape to

•

the point at which you want to begin recording.)

NOTES:

This unit will ONLY record and view the same channel.

•

This unit cannot record the contents from the built-in DVD.

•

NORMAL RECORDING

TV/VCR

You can ONL being recorded.

1 Select the channel to be recorded

Press the Number buttons or [CH. K / L].

NOTE:

If the unit is connected to a cable box or satellite

•

box, the unit must be on CH3 or CH4, then the channel to be recorded must be selected on the cable box or satellite box.

2 Select the tape speed

Hit [SPEED] to select the desired tape speed (SP/ SLP).

3 Begin recording

Hit [RECORD].

Y watch the same TV program that is

REC

CH 10

SKIPPING UNWANTED

SCENES DURING RECORDING

TV/VCR

Hit [PAUSE F] to temporarily stop recording.

Press

[PAUSE F] or [RECORD]

to resume recording.

NOTES:

After 5 minutes, the unit will

•

automatically switch to the recording mode to prevent tape damage.

If Closed Caption mode is on, the On-Screen

•

Display will appear for 5 seconds, then disappear.

PAUSE

4 Stop recording

Hit [STOP C].

- 28 - EN- 28 - EN- 28 - EN- 28 - EN- 28 - EN

OTR (One Touch Recording)

TV/VCR

Time(s) Display Recording length

1 time (normal recording) 2 times 0:30 30 minutes 3 times 1:00 60 minutes

This function enables you to set a recording length simply by hitting

Make sure ...

The unit must be turned on.

•

Insert a cassette tape with its erase-prevention tab

•

in place. (If necessary, rewind or fast forward the tape to the point at which you want to begin recording.)

NOTES:

You cannot start OTR with the remote control.

•

Recording starts immediately when [REC/OTR]

•

is hit. When [REC/OTR] is hit 18 times, the unit returns

•

to the normal recording mode. To stop the OTR operation, hit [C STOP] on the

•

[REC/OTR] on the unit.

17 times 8:00 480 minutes

COPYING A VIDEO CASSETTE

(Requires a VCR or camcorder)

TV/VCR

You can make copies of video tapes made by friends or relatives for your enjoyment.

You can not copy a DVD to a videotape.

WARNING: Unauthorized recordings of copyrighted video tapes may be an infringement of copyright laws.

unit or on the remote control. To show the remaining time, hit [DISPLAY] on

•

the remote control so that “OTR” appears on the TV screen. (It will show up momentarily then disappear.)

Recording stops when the display shows 0:00.

•

Please note that in the SLP mode maximum

•

Connect your unit and a source (Playing) VCR using the following diagram.

[This unit]

STOP/EJECT

YF.FWD

HEADPHONE

VIDEO L R

AUDIO

[Fig.8]

recording time, assuming the tape is started at the beginning, is 8 hours using T-160 (or 6 hours using T-120).

If the tape runs out before the end time, the unit

•

will switch to the stop mode immediately, ejects the tape and turns itself off.

Even if [POWER] is hit during OTR, the unit

•

continues recording.

1 Select the channel to be recorded

Press the Number buttons or [CH. K / L]. NOTE:

If the unit is connected to a cable box or satellite

•

box, the unit must be on CH3 or CH4, then the channel to be recorded is selected on the cable box or satellite box.

Audio/Video cable (not supplied)

1)Insert a pre-recorded video cassette into the source VCR or camcorder.

2)Insert a blank video cassette or one you want to record over, into the unit’s cassette compartment.

3)Hit

[SPEED] on remote control for the unit to

select the desired recording speed (SP/SLP).

4)Press

[CHANNEL K / L] on the unit until “AUX”

[Ex: Source VCR or camcorder]

AUDIO

OUT

VIDEO

OUT

appears on the screen.

2 Select the tape speed

Hit [SPEED] to select the desired tape speed (SP/SLP).

3 Begin OTR

Hit [REC/OTR] on the unit as many times as needed. The recording length will be determined by the number of times you hit [REC/OTR]. Each time it is hit, the recording time will be increased

OTR (2 : 30)

5)Hit

[REC/OTR] on the unit.

6)Begin playback of the tape in the source VCR or camcorder.

NOTE:

For best results during copying, use the front

•

panel controls whenever possible. The remote control might affect the source VCR’s playback operation.

7)To stop copying, hit

[CASTOP/EJECT] on the

unit, then stop the tape on the source VCR or camcorder.

by 30 minutes up to 8 hours.

- 29 - EN- 29 - EN- 29 - EN- 29 - EN

- 29 - EN

TIMER RECORDING

9:00AM 10:00AM 12:00PM

Program 1 10:00AM-11:00AM Program 2 9:00AM-10:00AM Program 3 9:30AM-12:00PM

11:00AM

Recording Sequence

*Recording period is SHADED

AUTOMATIC TIMER

RECORDING

TV/VCR

You may set the unit to start and end a recording while you are away. You can set 8 programs to record on specific days, daily or weekly within a 1 year period.

In the example below, the timer is being set to record:

DATE: July 4th, 2005 SETTING TIME: from 7:30PM to 8:50PM CHANNEL: CH61 TAPE SPEED: SP

Make sure ...

If a cable box or satellite box is connected with the

•

unit you will be limited to record only one channel, and the channel selector on the unit must be selected to the output channel of the boxes CH 3 or CH 4 and then the actual channel to be recorded must be selected on the boxes.

Clock must be set to the correct time and date

•

before setting the timer. The unit must be turned on to program it.

•

Insert a cassette tape with its erase-prevention tab

•

in place. (If necessary, rewind or fast forward the tape to the point at which you want to begin recording.)

The channel you want to record is properly set in

•

advance. (Refer to page 17.)

Avoid overlap of programs ...

There is a chance that a program will not be recorded, when programs overlap;

The program with an earlier start has priority.

•

Once the earliest program finishes, the overlapping

•

programs will begin recording in sequence. When the starting time is the same, the program set

•

on the highest position in the program list has priority.

The illustration below demonstrates the sequence

•

of recordings. Program 1 10:00AM - 11:00AM

Program 2 9:00AM - 10:00AM Program 3 9:30AM - 12:00PM

1 Select “TIMER PROGRAMMING”

Hit [SETUP]. Confirm “TIMER PROGRAM-

MING” is pointed by hitting

[K],

then hit [ENTER].

If you have not yet set the clock,

•

“MANUAL CLOCK SET” appears. If so, follow

3 to 8 on page 18. Then set the timer record-

steps ing.

- TV/VCR SETUP -

B TIMER PROGRAMMING

SETTING CLOCK CHANNEL SET UP USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

2 Select your desired program position (1 to 8)

Press [K / L] to select the desired program position, then hit [B].

3 Set the channel number

Press [K / L] until the desired channel number appears (Example: CH61), then hit [B].

NOTE:

If the unit is connected to a cable box or satellite

•

box, the unit must be on CH3 or CH4, then the channel to be recorded is selected on the cable box or satellite box.

– TIMER PROGRAMMING –

CH DATE BEGIN END

- - -/- - - - - -:- - -:- - - -

– TIMER PROGRAMMING –

CH DATE BEGIN END

- - -/- - - - - -:- - -:- - - -

61 -/- - - - - -:- - -:- - - -

- - -/- - - - - -:- - -:- - - -

4 Select once, every day or weekly recording

For once recording :

Hit [K] until the desired date appears. (Example: “7/04” for July 4th)

Then hit [B].

For every day recording : To r ecord a TV program at the same time on the same channel every day. (Example: Monday through Sunday)

Hit [L] until “EVRY DAY” appears, then hit [B].

– TIMER PROGRAMMING –

CH DATE BEGIN END

- - -/- - - - - -:- - -:- - - -

61 7/04 MON -:- - -:- - - -

- - -/- - - - - -:- - -:- - - -

– TIMER PROGRAMMING –

CH DATE BEGIN END

- - -/- - - - - -:- - -:- - - -

61 EVRY DAY -:- - -:- - - -

- - -/- - - - - -:- - -:- - - -

For weekly recording : To r ecord a TV program at the same time on the same channel every week. (Example: every Monday)

Hit [L] until “EVRY” and your desired day of the week appear together, then hit

[B].

– TIMER PROGRAMMING –

CH DATE BEGIN END

- - -/- - - - - -:- - -:- - - -

61 EVRY MON -:- - -:- - - -

- - -/- - - - - -:- - -:- - - -

- 30 - EN- 30 - EN- 30 - EN- 30 - EN- 30 - EN

5 Set beginning hour

Press [K / L] until the desired hour appears. (Example: “ 7, PM” for 7:30PM)

Then hit

[B].

6 Set beginning minute

Press [K / L] until the desired minute appears. (Example: “30” for 7:30PM)

Then hit

[B].

7 Set end hour

Press [K / L] until the desired hour appears. (Example: “8, PM” for 8:50PM)

Then hit

[B].

8 Set end minute

Press [K / L] until the desired minute appears. (Example: “50” for 8:50PM)

Then hit

[B].

9 Set the tape speed

Press [K / L] until the desired tape speed appears. (Example: “SP”)

– TIMER PROGRAMMING –

CH DATE BEGIN END

- - -/- - - - - -:- - -:- - - -

- - -/- - - - - -:- - -:- - - 61 7/04 MON 7:12

- - -/- - - - - -:- - -:- - - -

– TIMER PROGRAMMING –

CH DATE BEGIN END

- - -/- - - - - -:- - -:- - - -

61 7/04 MON 7:30

- - -/- - - - - -:- - -:- - - -

– TIMER PROGRAMMING –

CH DATE BEGIN END

- - -/- - - - - -:- - -:- - - -

61 7/04 MON 7:30

- - -/- - - - - -:- - -:- - - -

– TIMER PROGRAMMING –

CH DATE BEGIN END

- - -/- - - - - -:- - -:- - - -

61 7/04 MON 7:30

- - -/- - - - - -:- - -:- - - -

– TIMER PROGRAMMING –

CH DATE BEGIN END

- - -/- - - - - -:- - -:- - - -

61 7/04 MON 7:30

- - -/- - - - - -:- - -:- - - -

M 8:50PM- -

NOTES:

The display will not be turned on automatically at

•

the time the programmed recording begins. To

-:- - - -

watch the currently recorded TV program or to play a DVD disc, hit [POWER] and [SELECT] to choose the TV/VCR mode or the DVD mode.

If the tape runs out before the end time, the unit

•

will switch to the stop mode immediately and the tape will be ejected.

-:- - - -

TIMER PROGRAM EXTENSION

To shift the time schedule of an automatic timer recording.

1)Hit

[POWER].

2)Repeat step

3)Hit

8:30

- -

[RECORD] and select the desired program

using [K / L].

4)Hit

[RECORD] again.

Each additional push will shift forward the begin/end time for recording by 10 minutes. When the recording is already in progress, each additional push will shift forward the end time only. If you want to cancel while setting, hit the remote control. The recording time returns to the original time.

NOTE:

When you shift forward the time schedule during

•

recording, the recording speed will automatically

8:50

be set to the SLP mode.

5)Press

menu. Then hit [SETUP] to return to original mode.

1 on page 30.

[PAUSE F] on

[ENTER] or [RETURN] to exit the setting

10 Finish setting the program

Press [ENTER] or [RETURN] to complete setting.

To set another program, repeat steps 2 to 10.

•

Hit [SETUP] to exit the menu.

•

11 Set the timer

Hit [POWER] to set automatic timer recording. The recording indicator lights up.

You must turn off the unit to activate automatic

•

timer recording. If power is not turned off and you continue watch-

ing TV, “TIMER REC STANDBY” starts flashing on the TV screen 2 minutes before the programmed start time.

If the erase-prevention tab is removed, the cassette

•

will be ejected when [POWER] is hit to off.

TO CORRECT A PROGRAM

While setting a program; hit [s] to go back one

•

step and enter the correct numbers using [K / L].

After setting a program;

•

1)Hit [POWER].

2)Repeat steps

3)Hit

[B] (or hit [s] to go back one step) until the

1 to 2 on page 30.

part you want to correct begins flashing, then make the changes using

4)Hit

[POWER] to set automatic timer recording.

[K / L].

TO CANCEL AN AUTOMATIC TIMER RECORDING

1)Hit [POWER].

If recording is in progress, hit [CASTOP/EJECT] on the unit.

3)Repeat steps 1 to 2 on page 30 and select a pro-

gram you want to cancel.

4)Hit

[C.RESET].

5)Hit

[SETUP] to return to TV mode.

- 31 - EN- 31 - EN- 31 - EN- 31 - EN- 31 - EN

TO CONFIRM THE TIMER SETTING

1)Hit [POWER] so that the Recording indicator light

goes off.

2)Hit

[SETUP].

3)Confirm “TIMER PROGRAMMING” is selected.

4)Hit

[ENTER]. The details of programs appear on

the TV screen.

5)Hit

[SETUP] to return to TV mode.

AUTO RETURN

TV/VCR

With this feature, after timer recording is finished, the beginning of the recorded program(s) can be searched for automatically.

1 Select “USER’S SET UP”

Hit [SETUP]. Press

[K / L] to point to “USER’S

SET UP”, then hit [ENTER].

- TV/VCR SETUP -

TIMER PROGRAMMING SETTING CLOCK CHANNEL SET UP

B USER’S SET UP

V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

2 Set “AUTO RETURN” to [ON]

Press [K / L] to point to “AUTO RETURN”, then hit [ENTER] until

USER’S SET UP

–

RENTAL [OFF] REPEAT PLAY [OFF]

B AUTO RETURN [ON]

–

[ON] appears.

3 Auto Return will begin

When all the timer recordings are completed, the unit will rewind to the beginning of the recorded program(s).

NOTE:

If you hit [POWER] while tape is rewinding, the

•

Auto Return will stop.

4 Watch the recorded program

Hit [PLAY O].

TO CANCEL THE AUTO RETURN MODE

Repeat steps 1 to 2 and select [OFF] using

[ENTER]. Even if there is a power failure of any kind, the

unit will retain its memory for this feature.

- 32 - EN- 32 - EN- 32 - EN- 32 - EN- 32 - EN

ON SCREEN DISPLAY

TV Display

CATV channel

TV Display

W+80 W+81 W+82 W+83 W+84

W+65 W+66 W+67 W+68 W+69 W+70 W+71 W+72 W+73 W+74 W+75 W+76 W+77 W+78 W+79

W+55 W+56 W+57 W+58 A-4 A-3 A-2 A-1 W+59 W+60 W+61 W+62 W+63 W+64

W+40 W+41 W+42 W+43 W+44 W+45 W+46 W+47 W+48 W+49 W+50 W+51 W+52 W+53 W+54

W+25 W+26 W+27 W+28 W+29 W+30 W+31 W+32 W+33 W+34 W+35 W+36 W+37 W+38 W+39

W+10 W+11 W+12 W+13 W+14 W+15 W+16 W+17 W+18 W+19 W+20 W+21 W+22 W+23 W+24

A-5

RSTUVWW+1 W+2 W+3 W+4 W+5 W+6 W+7 W+8 W+9

CDEFGH I JKLMNOPQ

5A 2 3 4 5 6 7 8 9 10 11 12 13 A B

123456789101112131415

16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

31 32 33 34 35 36 37 38 39 40 41 42 43 44 45

46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

61 62 63 64 65 66 67 68 69 70 71 72 73 74 75

76 77 78 79 80 81 82 83 84 85 86 87 88 89 90

91 92 93 94 95 96 97 98 99 100 101 102 103 104 105

106 107 108 109 110 111 112 113 114 115 116 117 118 119 120

121 122 123 124 125

CATV channel

To check the Counter, Clock and Channel number on the TV screen, hit [DISPLAY] PLAY], the TV screen will change as follows:

When the Closed Caption mode is OFF:

Counter mode: After 5 seconds, only the counter

•

remains. To clear it, hit [DISPLAY]. Clock mode: After 5 seconds, only the clock and

•

When the Closed Caption mode is ON:

The On Screen Display disappear after 5 seconds.

•

This is true even if [MUTE] or [PAUSE F] is

•

pressed while recording.

the channel number remain. To clear them, hit

[DISPLAY].

OFF mode Counter mode Clock mode

STOP STOP

SP SPCOUNT 0:12:34

After 5 seconds After 5 seconds

COUNT 0:12:34

Counter remains

Clock & Channel remains

5:40PM

CH2

OFF mode Clock/Counter mode

. Each time you hit [DIS-

STOP 5:40 PM

SP COUNT 0:12:34

CH2

CABLE CHANNEL DESIGNATIONS

If you subscribe to cable TV, the channels are displayed as 1-125. Cable companies often designate channels with letters or letter-number combinations. Please check with your local cable company. The following is a chart of common cable channel designations.

- 33 - EN- 33 - EN- 33 - EN- 33 - EN- 33 - EN

DVD SECTION

DVD-Video

* 1,2,3,10

* 1,3,4,5,7,8,9

* 1,3,4,5,6

8,9

* 3,5

* 3,4,5,8,9

DVD-RW

DVD-R

DVD+RW

DVD+R

Audio CD

CD-RW

CD-R

Digital video

(MPEG2)

Digital audio

Region code

Mark (logo)

Playable

discs

Recorded

signals

Disc size

Disc types

12 cm

8cm

12 cm

8cm

Example

Title 1 Title 2

Chapter 1 Chapter 2 Chapter 1

Chapter 2

Chapter 3 Chapter 4

Example

Tra c k 1

Tra c k 2

Tra c k 5

Tra c k 6

Tra c k 3

Tra c k 4

Audio CD

is a trademark of DVD Format/Logo Licensing Corporation.

ABOUT THE DISCS

PLAYABLE DISCS

If you cannot play back a disc which bears one of the marks above, check the following notes.

*1: This unit conforms to the NTSC color system. Discs recorded in other color systems such as PAL cannot

be played back.

*2:

Certain DVD-Video discs do not operate as described in this manual due to the intentions of the disc’s producers. *3: Scratched or stained discs may not be played back. *4: Some discs cannot be played back because of incompatible recording conditions, characteristics of the

recorder or special properties of discs. *5: You can play back discs which bear the marks above. If you use nonstandardized discs, this unit may not

play them back. Even if they are played back, the sound or video quality will be compromised. *6: You may play back the unfinalized DVD-R/RW disc recorded in the video format on our brand’s DVD

recorder. However, depending on the recording status of a disc, the disc may not be played back at all or

normally (the picture or sound may not be smooth, etc.). In this case, you need to finalize the disc with

the DVD recorder. Refer to the manual accompanying the DVD recorder. *7: Only the discs recorded in the video format and finalized can be played back.

Unfinalized discs cannot be played back. Depending on the recording status of a disc, the disc may not be

played back at all or normally (the picture or sound may not be smooth, etc.). *8: If there is too much recording space left on a disc (the used portion is less than 55mm across), it may not

play back properly. *9:

Do not glue paper or put stickers on to the disc. These may damage the disc and the unit may not read it correctly.

*10: The number inside the symbol refers to a region of the world and a disc encoded in a specific region for-

mat can only be played back on unit with the same region code.

This label indicates playback compatibility with DVD-RW discs recorded in VR mode (Video Recording Format).

NOTE:

• This player cannot play the DVD-RW that supports CPRM (Contents Protection for Recordable Media).

• This player cannot play the DVD-R discs recorded in VR mode (Video Recording Format).

¡NEVER play back the following discs. Otherwise, malfunction may result!

DVD-RAM / CD-I / Photo CD / Video CD / DVD with region codes other than 1 or ALL / DTS-CD / DVD-ROM for personal computers / CD-ROM for personal computers / MP3

¡On the following disc, the sound MAY NOT be heard.

Super Audio CD NOTE: Only the sound recorded on the normal CD layer can be delivered.

¡Any other discs without compatibility indications

The sound recorded on the high density Super Audio CD layer cannot be delivered.

UNPLAYABLE DISCS

–34–

PLAYING A DISC

BASIC PLAYBACK

DVD-V

Getting started

¡Turn on the power of amplifier and any other com-

ponents, if necessary.

1 Hit [POWER].

¡The power will turn on.

2 Hit [A OPEN/CLOSE] to open disc loading

tray.

3 Place the chosen disc in the tray, with the

label facing up.

4 Hit [PLAY O].

¡The tray will close automatically and playback will

then start from the first chapter or track of the disc.

¡Closing the disc tray manually or by hitting

[A OPEN/CLOSE] also starts playback.

¡If the playback does not start automatically, hit

[PLAY O].

¡When you playback a DVD which features a title

menu, it may appear on the screen. In this case, refer to “TITLE MENU” on this page.

GENERAL FEATURES

DVD-V

VD may contain menus to navigate the disc and

access special features. Press the appropriate Number buttons or [K / L / s / B] to highlight your selection in the DVD main menu and hit [ENTER] to confirm.

NOTES:

¡Select DVD mode by hitting [SELECT], then oper-

ate the DVD functions.

¡Unless stated, all operations described are based on

remote control use. Some operations can be carried out using the menu bar on the TV screen.

DISC MENU

DVD-V

1 Hit [DISC MENU].

¡The DVD main menu will appear. ¡If the feature is not available, symbol may

appear on the TV screen.

¡If disc menu is available on the disc, audio language,

subtitle options, chapters for the title and other options will appear for selection.

2 Press [K / L / s / B] to select an item and hit

[ENTER] to confirm selection.

TITLE MENU

5 Hit [STOP C] to stop playback.

NOTES:

¡When the DVD mode has been switched to the

TV/VCR mode, the DVD mode shuts down first and then the TV picture and sound appears in about 4 seconds. Similarly, when [POWER] is hit to turn off in the DVD mode, this mode shuts down first and then the unit is turned off.

¡A “prohibited icon” may appear at

the top-right on the TV screen during operation, warning that a prohibited operation has been encountered by the DVD or the disc.

¡With DVDs that use titles for playback program sig-

nals, playback may start from the second title or it may skip these titles.

¡During the playback of a two layered disc, pictures

may stop for a moment. This happens when the 1st layer switches to the 2nd layer. This is not a malfunction.

1 Hit [TITLE].

¡The title menu will appear. ¡If the feature is not available, symbol may

appear on the TV screen.

2 Press [K / L / s / B] to select an item, and

hit [ENTER] to confirm selection.

CALLING UP A MENU SCREEN DURING PLAYBACK

¡Hit [DISC MENU] to call up the DVD menu. ¡Hit [TITLE] to call up the title menu.

NOTE:

¡Contents of menu and corresponding menu opera-

tions may vary between discs. Refer to the manual accompanying the disc for details.

–35–

DVD-V

RESUME

DVD-V

1 During playback, hit [STOP C].

¡Resume message will appear on the TV screen.

2 Hit [PLAY O], playback will resume from the

point at which playback was stopped.

¡To cancel resume, hit [STOP C] twice. ¡The resume information stays on even when the

power is turned off.

PAUSE

DVD-V

1 During playback, hit [PAUSE F].

¡Playback will pause and sound will be muted.

SLOW FORWARD /

SLOW REVERSE

DVD-V

1 During playback, hit [PAUSE F]. 2 Press and hold [g] or [h ] for a few

seconds.

¡“ 1” or “ 1” appears on the screen.

3 To select another speed, repeat step 2 until

your required speed number appears on the screen.

¡Slow forward or reverse speed varies with the disc.

Approximate speed is 1(1/16), 2(1/8) and 3(1/2).

When you press buttons on the main unit, use [SEARCH h / g].

To return to normal playback, hit [PLAY O].

2 To continue playback, hit [PLAY O].

STEP BY STEP PLAYBACK

DVD-V

1 During playback, hit [PAUSE F].

¡Playback will pause and sound will be muted.

2 The disc goes forward by one frame each

time [PAUSE

To exit step by step playback, hit [PLAY O].

F] is hit.

FAST FORWARD /

FAST REVERSE

DVD-V

1 During playback, press and hold [g] or

[

h ] for a few seconds.

¡“ g 1” or “h 1” appears on the screen.

2 To select another speed, repeat step 1 until

your required speed number appears on the screen.

¡For DVDs, fast forward/reverse search speed is dif-

ferent depending on the disc. Approximate speed is 1(×2), 2(×8), 3(×20), 4(×50) and 5(×100).

¡For Audio CDs approximate speed is 1(×2), 2(×8)

and 3(

×30).

When you press buttons on the main unit, use

[SEARCH h / g].

ZOOM

DVD-V

The Zoom function allows you to enlarge the video image and to pan through the enlarged image.

1 Hit [ZOOM] during playback.

¡Playback will continue.

2 Hit [ZOOM] repeatedly to select the required

zoom factor: ZOOM1, ZOOM2, ZOOM3 or OFF.

3 Press [K / L / s / B] to move the zoomed

picture across the screen.

4 To exit zoom mode, hit [ZOOM] to OFF.

NOTES:

¡Zooming function does not work while disc menu is

shown.

¡Zooming function is not available on some discs. ¡It may take several seconds to slide the zoomed pic-

ture.

¡The picture may be distorted if you operate other

functions repeatedly (ex. [PAUSE FF] or [h], etc.) in the zoom mode.

To return to normal playback, hit [PLAY O]

–36–

SEARCH FUNCTION

TRACK SEARCH

There are three ways to begin playback on an Audio CD at a specific track.

Using the Number buttons

1 Press the Number buttons to enter the

desired track number.

¡Playback will start at the selected track. ¡For single digit tracks (1-9), press a single number

(eg. track 3, hit [3]).

¡To play track 26, hit [+10], [2], [6].

Using [SEARCH MODE]

1 Hit [SEARCH MODE].

¡The track search display appears.

2 Within 30 seconds, select the desired track

number using the Number buttons.

¡For single digits hit [0] first, if the total track of the

disc is 10 tracks or more.

¡Playback will start at the selected track.

Using [

During playback, hit [G] to move the next track. Hit it repeatedly to skip subsequent tracks. Hit [H ] to go back to beginning of the current track. Hit it repeatedly to go to the previous tracks.

¡If [H / G ] is pressed while the playback is

NOTE:

¡[H / G ] are not operative when playback is

H/ G

]

paused, the playback will be paused again after skipping to the next track.

stopped.

TIME SEARCH

DVD-V

1 During playback, hit [SEARCH MODE] three

times (CD: twice) to display the Time Search on the TV screen.

2 Within 30 seconds, enter a desired disc

time using the Number buttons.

¡Playback will start at the specified time. ¡Hit [CLEAR] to erase the incorrect input. ¡When there is no need to enter a number, “0”

appears automatically. For example, “ 0 : 0 - : appears in the Time Search display if the total time of the track or title is less than 10 minutes.

- -

MARKER SETUP SCREEN

DVD-V

Use markers to memorize your favorite places on a disc.

1 Hit [SEARCH MODE] four times (CD: three

times) during playback.

¡The display screen and Markers will appear on the

TV screen.

2 Press [s / B] to select 1, 2, 3, 4, 5, 6, 7, 8, 9,

or 10 and ensure that “ appears in the display.

- - - - :- - :- -

3 When you reach the desired point, hit

[ENTER].

¡The Title or Track and elapsed playing time will

appear in the TV screen.

”

TITLE / CHAPTER SEARCH

DVD-V

1 Hit [SEARCH MODE] once for the Chapter

search, twice for the Title search during playback.

_/2

2 Enter the desired chapter/title number using

the Number buttons.

¡Playback will start at the selected chapter or title. ¡Hit [CLEAR] to erase the incorrect input. ¡For single digits hit [0] first, if the total number of

chapter or title of the disc is 10 or more.

4 To return to the Marker later, hit [SEARCH

MODE] four times (CD: three times) during playback and press [ desired marker, then hit [ENTER].

s / B] to choose the

NOTES:

¡Operations which erase all Markers:

– Opening the disc tray. – Turning off the power. – Hitting [SELECT]. – Selecting “AC” at step

¡To clear a marker:

2 and hitting [ENTER].

– Press [s / B] to select a cursor on to the marker

number and hit

¡You can mark up to 10 points.

[CLEAR].

5 Press [SEARCH MODE] or [RETURN] to

exit.

–37–

SPECIAL PLAYBACK FUNCTION

REPEAT

REPEAT is available only during playback.

REPEAT TITLE / CHAPTER

DVD-V

To activate the repeat function, hit [REPEAT] during playback.

¡The repeat mode changes as described below every

time you hit the button.

CHAPTER TITLE OFF

(current chapter repeat) (current title repeat)

NOTES:

¡Repeat Title/Chapter is not available with some

scenes.

¡The REPEAT setting will be cleared when moving

to other title or chapter.

REPEAT TRACK

To activate the repeat function, hit [REPEAT] during playback.

¡The repeat mode changes as described below every

time you hit the button.

TRACK ALL OFF

(current track repeat) (entire disc repeat)

NOTES:

¡Repeat setting will be cleared when moving to other

track.

¡Repeat playback does not function during A-B

repeat playback.

A-B REPEAT

DVD-V

1 Hit [A-B] at your chosen starting point.

¡“ A-” appears briefly on the TV screen.

2 Hit [A-B] again at your chosen end point.

¡“ A-B” appears briefly on the TV screen, and the

repeat sequence begins.

3 To exit the sequence, hit [A-B].

NOTES:

¡The A-B repeat section can only be set within the cur-

rent title (for DVDs) or current track (for Audio CDs).

¡A-B repeat is not available with some scenes in DVD. ¡To cancel the A point which was set, hit [CLEAR]. ¡A-B repeat playback does not function during title,

chapter, track or all repeat playback.

(repeat

off)

PROGRAM

You may determine the order in which tracks will play.

1 In the stop mode, hit [MODE].

¡The “PROGRAM” screen will appear.

2 Press [▲ / ▼] to select a track, then hit

[ENTER].

¡Hit [CLEAR] to erase the

1:03:30

most recently entered track.

¡If the entire Program cannot be

displayed at once on a screen, “G” appears to go to the next

TOTAL

1 3:30 5 5:10 10 4:20 11 3:00 12 3:20 17 4:10 22 2:50

1/4 2/3

page and “H” appears to go back to the previous page.

3 Repeat step 2 until you have selected all the

tracks you want to play in the program.

Hit [PLAY O] to play the programmed tracks.

NOTES:

¡While the program is being played back, hitting

[STOP C] works as follows.

¡Hit [STOP C] once and then [PLAY O] again,

playback will restart from the point where [STOP C] was hit. (Program continued)

¡Hit [STOP C] twice and then [PLAY O] again,

playback will restart from the track in the usual way. (Program canceled)

¡Up to 99 tracks can be entered. ¡To erase all tracks in the program at once, select

“ALL CLEAR” at the bottom of the list at step 2.

¡If you like to repeat the current track in the program,

hit [REPEAT] several times until “ TRACK” appears during playback. If you like to repeat the entire program hit [REPEAT] several times until “ ALL” appears during playback.

RANDOM PLAYBACK

This function shuffles the playing order of tracks instead of playback in the sequence.

1 In the stop mode, hit [MODE] twice.

¡“RANDOM” screen appears.

2 Hit [PLAY O] to start random playback.

NOTE:

If you like to repeat the current track in the random selection, hit TRACK” appears during playback. If you like to repeat the entire random selection hit eral times until “ ALL” appears during playback.

[REPEAT] several times until “

RANDOM

CD-DA TOTAL 0:45:55

RANDOM PROGRAM

- - no indication - -

PLAY

[REPEAT] sev-

–38–

CHANGING THE SETTINGS

1.ENG/6

1.ENG Dolby D 3/2.1ch 48k/ 3

STEREO

NOT AVAILABLE

SUBTITLE LANGUAGE

DVD-V

The unit allows you to select a language for subtitles during DVD disc (if available) playback.

1 Hit [SUBTITLE] during playback.

¡The subtitle language will

appear on the display bar at the top of the TV screen.

2 Hit [SUBTITLE] repeatedly to select your

desired subtitle language.

3 To turn off subtitles, hit [SUBTITLE] repeat-

edly until “OFF” appears.

NOTES:

¡Hitting [SUBTITLE] may not work on some DVDs

with multiple subtitle languages. In this case, set it on the disc menu. (Operation varies between discs. Refer to the manual of the disc.)

¡If the desired language is not shown after hitting

[SUBTITLE] several times, the disc does not have subtitles in that language.

¡When “NOT AVAILABLE”

appears on the TV screen, it means no subtitle is recorded on the scene.

¡If you choose a language that has a 3 letter language

code, the code will be displayed every time you change the Subtitle language setting. If you choose any other languages, “---” will be displayed instead. (Refer to page 42.)

AUDIO LANGUAGE

DVD-V

The unit allows you to select a language during DVD disc (if multi languages are available) playback.

1 Hit [AUDIO] during playback.

2 Hit [AUDIO] repeatedly to select your

desired language.

NOTE:

¡Hitting [AUDIO] may not work on some DVDs with

multiple audio languages (e.g. DVDs which allow audio language setting on the disc menu).

STEREO SOUND MODE

1 Hit [AUDIO] repeatedly during playback to

select between “STEREO”, “L-ch” or “R-ch”.

STEREO - both right and left channels are active (stereo) L-ch - only left channel is active R-ch - only right channel is active

–39–

CAMERA ANGLE

OFF

1 / 8

OFF

VIRTUAL SURROUND

DVD-V

Some DVD discs contain scenes which have been shot simultaneously from various angles. You can change the camera angle when the “ ” icon appears on the screen.

1 Hit [ANGLE] during playback.

¡The selected angle will be displayed on the display

bar at the top of the screen.

¡If the “ANGLE ICON” setting is “OFF” in the

“OTHERS” menu, the “ ” icon will not appear. (Refer to page 44.)

2 Hit [ANGLE] repeatedly to select your

desired angle.

BLACK LEVEL SETTING

DVD-V

Adjust the Black Level Settings to make the black parts of the picture brighter.

1 Hit [MODE] during playback.

DVD-V

You can enjoy surround-sound effect over two speakers on this unit.

1 Hit [MODE] twice (CD: once) during play-

back.

2 Hit [ENTER] to set it “1” (Natural effect),“2”

(Emphasized effect) or “OFF”.

3 Hit [RETURN] to exit.

NOTE: (for CD play only)

¡Virtual Surround will not be effective if the sound

mode is set to something other than STEREO.

2 Hit [ENTER] to switch “ON/OFF”.

ON: Makes the dark parts brighter. OFF: Shows the original picture as recorded.

(Initial setting)

3 Press [MODE] twice or [RETURN] to exit.

NOTE:

¡The setting will be saved even if the unit is turned

off.

–40–

THE ON-SCREEN INFORMATION

9/49 0:00:00 -0:03:30

4/12 0:03:21 - 0:02:15

4/12 0:13:45 - 0:45:40

1/3 0:00:00 - 1:23:45

TL1

PROGRAM B

You can check the information about the current disc by hitting [DISPLAY].

For DVD-Vs

1 Hit [DISPLAY] during playback to show cur-

rent Chapter.

¡The elapsed and remaining

playing time of the current

For Audio CDs

1 Hit [DISPLAY] during playback to show the

current Track.

¡The elapsed and remaining playing time of the cur-

rent track will be displayed.

chapter will be displayed.

Hit [DISPLAY] again to show current Title.

¡The elapsed and remaining

playing time of the current title will be displayed.

2 Hit [DISPLAY] again to show current Total

Track.

¡The elapsed and remaining playing time of the total

track will be displayed.

3 Hit [DISPLAY] again.

¡The bit rate and the current

repeat setting will be displayed.

¡If you are playing a dual lay-

ered disc, the layer number will also be displayed (L0: Layer 0 is playing. L1: Layer 1 is playing).

4 Hit [DISPLAY] again to exit.

3 Hit [DISPLAY] again to exit.

NOTE:

¡When you are playing a disc in

PROGRAM or RANDOM mode, “ PROGRAM” (or RANDOM) will be displayed at step 2.

DVD-V

–41–

CHANGING THE DVD SET UP ITEMS

SETUP LANGUAGE

AUDIO SUBTITLE DISC MENU

ORIGINAL OFF ENGLISH

SUBTITLE

OFF ENGLISH FRENCH

SETUP LANGUAGE

DISC MENU

ENGLISH FRENCH SPANISH

SETUP LANGUAGE

AUDIO

ORIGINAL ENGLISH FRENCH

SETUP LANGUAGE

SETUP

QUICK CUSTOM INITIALIZE

CUSTOM MENU

You can change the DVD player’s settings.

1 Hit [SETUP] twice in the stop mode so that

the DVD SETUP menu appears.

¡Hit [L] to select “CUSTOM”

then hit [ENTER].

NOTE:

If the menu does not appear, hit [PLAY O] first, then hit [STOP C]. Make sure the disc is in the stop mode, then slowly hit [SETUP] twice.

2 Select the desired item.

¡Press [K / L] to select the desired item then hit

[ENTER] to confirm.

Refer to the pages below to set up each item.

SETUP CUSTOM

LANGUAGE DISPLAY AUDIO PARENTAL OTHERS

LANGUAGE SETTING

Follow steps 1to 2in the “CUSTOM MENU” section above.

3 Press [K / L] to select the desired item then

hit [ENTER].

AUDIO:

Sets the audio language.

SUBTITLE:

Sets the subtitle language.

DISC MENU:

Sets the language for DVD menu.

4 Press [K / L] to select a setting then hit

[ENTER].

¡If “OTHER” is selected on

the “AUDIO”, “SUBTITLE” or “DISC MENU” screen, press four-digit number to enter the code for the desired language. (Refer to the language code list.)

¡Only the languages support-

ed by the disc can be selected.

5 Hit [SETUP] to exit the menu.

NOTES:

¡Language Setting for Audio and Subtitle are not

valid for some discs due to default setting of the disc. In this case, set them by hitting [SUBTITLE]. (Refer to page 39.)

¡If you select a language that is not supported by the

disc, subtitle will automatically be set OFF and the first item of the audio languages will be automatically set.

P42 Step

P43 Step

P44 Step

[AUDIO] and

DVD-V

3 3 3 3 3

–42–

Language Code

Abkhazian 4748 Afar 4747 Afrikaans 4752 Albanian 6563 Amharic 4759 Arabic 4764 Armenian 5471 Assamese 4765 Aymara 4771 Azerbaijani 4772 Bashkir 4847 Basque 5167 Bengali;Bangla 4860 Bhutani 5072 Bihari 4854 Bislama 4855 Breton 4864 Bulgarian 4853 Burmese 5971 Byelorussian 4851

Cambodian 5759 Catalan 4947 Chinese [CHI] 7254 Corsican 4961 Croatian 5464 Czech 4965 Danish [DAN] 5047 Dutch [DUT] 6058 English [ENG] 5160 Esperanto 5161 Estonian 5166

Faroese 5261 Fiji 5256 Finnish [FIN] 5255 French [FRE] 5264 Frisian 5271 Galician 5358 Georgian 5747 German [GER] 5051 Greek [GRE] 5158 Greenlandic 5758 Guarani 5360 Gujarati 5367 Hausa 5447 Hebrew 5569 Hindi 5455 Hungarian [HUN] 5467

Icelandic [ICE] 5565 Indonesian 5560 Interlingua 5547 Interlingue 5551 Inupiak 5557 Irish [IRI] 5347 Italian [ITA] 5566 Japanese [JPN] 5647 Javanese 5669 Kannada 5760 Kashmiri 5765 Kazakh 5757 Kinyarwanda 6469 Kirghiz 5771 Kirundi 6460 Korean [KOR] 5761 Kurdish 5767

A-B

C-E

F-H

I-K

Language Code

Laothian 5861 Latin 5847 Latvian;Lettish 5868 Lingala 5860 Lithuanian 5866 Macedonian 5957 Malagasy 5953 Malay 5965 Malayalam 5958 Maltese 5966 Maori 5955 Marathi 5964 Moldavian 5961 Mongolian 5960 Nauru 6047 Nepali 6051 Norwegian [NOR] 6061

Occitan 6149 Oriya 6164 Oromo(Afan) 6159 Panjabi 6247 Pashto;Pushto 6265 Persian 5247 Polish 6258 Por tuguese [POR] 6266 Quechua 6367 Rhaeto-Romance 6459 Romanian [RUM] 6461 Russian [RUS] 6467

Samoan 6559 Sangho 6553 Sanskrit 6547 Scots Gaelic 5350 Serbian 6564 Serbo-Croatian 6554 Sesotho 6566 Setswana 6660 Shona 6560 Sindhi 6550 Singhalese 6555 Siswat 6565 Slovak 6557 Slovenian 6558 Somali 6561 Spanish [SPA] 5165 Sundanese 6567 Swahili 6569 Swedish [SWE] 6568

Tagalog 6658 Tajik 6653 Tamil 6647 Tatar 6666 Telugu 6651 Thai 6654 Tibetan 4861 Tigrinya 6655 Tonga 6661 Tsonga 6665 Tu rkish [TUR] 6664 Tu rkmen 6657 Tw i 6669

Ukrainian 6757 Urdu 6764 Uzbek 6772 Vietnamese 6855 Volapuk 6861 Welsh 4971 Wolof 6961 Xhosa 7054 Yiddish 5655 Yo r uba 7161 Zulu 7267

L-N

O-R

U-Z

If you choose a language that has a 3 letter language code, the code will be displayed every time you change the AUDIO or SUBTITLE language setting above. If you choose any other languages, ‘---’ will be displayed instead. (3 letter language code is written in bracket.)

DISPLAY SETTING

Follow steps 1to 2in the “CUSTOM MENU” section on page 42.

3 Press [K / L] to select the below items then

hit [ENTER].

TV MODE:

You can change certain aspects of the DVD display screens and on-screen messages on the TV screen.

¡4:3 LETTER BOX (default):

To show black bars on top and bottom of the screen.

¡4:3 PAN & SCAN: To show

a full height picture with both sides trimmed.

STILL MODE

This function allows you to adjust picture resolution and quality in the still mode.

¡AUTO (default):

Automatically select the best resolution setting (FRAME or FIELD) based on the data characteristics of the pictures.

¡FIELD: Select “FIELD” when the pictures are still

unstable even if “AUTO” is selected. FIELD stabilizes the pictures, although the picture quality may become coarse due to the limited amount of data.

¡FRAME: Select “FRAME” to display relatively

motionless pictures in higher resolution. FRAME improves the picture quality, although it may unstabilizethe pictures due to simultaneous output of two field data.

QUICK

SETUP DISPLAY

TV MODE

AUTO

STILL MODE

SETUP DISPLAY

TV MODE

AUTO

STILL MODE

4:3 LETTER BOX

AUDIO SETTINGS

Choose the appropriate Audio settings for your equipment as it only affects during the playback of DVD discs.

Follow steps 1to 2in the “CUSTOM MENU” sec-

tion on page 42.

3 Press [K / L] to select the below items then

hit [ENTER].

DRC (Dynamic Range Control):

¡To compress the range of soft

to loud sound.

¡The default setting is “ON”.

DOWN SAMPLING:

¡ON : Output in 48 kHz.

(default)

¡OFF : Output the original

sound.

When playing disc with copyright Protection

¡If you select “OFF”, copyright protection will be

activated and sound will be down sampled at 48kHz.

DOLBY DIGITAL:

QUICK

Set to “BITSTREAM” when the unit is connected to a Dolby Digital Decoder.

¡BITSTREAM: Output a Dolby Digital signal

(default)

¡PCM: Convert the Dolby Digital to PCM

(2 channel stereo)

SETUP AUDIO

DRC ON DOWN SAMPLING DOLBY DIGITAL BITSTREAM

SETUP AUDIO

DRC ON DOWN SAMPLING DOLBY DIGITAL BITSTREAM

SETUP AUDIO

DRC ON DOWN SAMPLING DOLBY DIGITAL BITSTREAM

4 Hit [SETUP] to exit the menu.

QUICK MENU

¡You can select the “TV MODE” or “DOLBY DIGITAL” from the QUICK menu quickly. To access the

QUICK menu, select “QUICK” instead of “CUSTOM” at step

on page 42.

LANGUAGE SETTING FOR THE ON-SCREEN MENUS

¡You can access the TV/VCR SETUP menu by hitting [SETUP] from the DVD mode. Refer to

“MENU LANGUAGE” on page 21 to change the language for the on-screen menus.

–43–

PARENTAL CONTROL

Parental Control limits the disc viewing that exceed your setting (with a password or playback will stop). This feature allows you to prevent discs with alternative scenes from being played by your children.

PARENTAL LEVEL

Parental Level allows you to set the rating level of your DVD discs. Playback will stop if the disc’s ratings exceed the level you set.

Follow steps 1to 2in the “CUSTOM MENU” sec-

tion on page 42.

3 Enter your four-digit password then hit

[ENTER].

SETUP PARENTAL

PASSWORD

Enter current password.

4 Press [K / L] to select “PARENTAL LEVEL”

then hit [ENTER].

SETUP PARENTAL

PARENTAL LEVEL ALL PASSWORD CHANGE

5 Press [K / L]to select the desired level

then hit [ENTER].

SETUP PARENTAL

PARENTAL LEVEL ALL

8 7 [NC-17] 6 [R]

6 Hit [SETUP] to exit the menu.

NOTES:

When doing this for the first time, enter any 4 digits. (except for 4737) That number will be used as the password. (in the event you forget the password, see below)

¡To change the password, press [K / L] to select

“PASSWORD CHANGE” at step 4 then hit

[ENTER]. Enter the four-digit password, then hit [ENTER].

¡With some DVDs, it may be difficult to find if they

are compatible with parental lock. Be sure to check if the parental lock function operates in the way that you have set.

¡Record the password in case you forget it.

CONTROL LEVELS

ALL

All parental lock is cancelled.

Level 8

DVD software of any grade (adult/general/children) can be played back.

Levels 7 to 2

Only DVD software intended for general use and children can be played back.

Level 1

Only DVD software intended for children can be played back, with those intended for adult and general use prohibited.

IF YOU FORGET THE PASSWORD

1 Hit the Number buttons [4], [7], [3], [7] at

step 3. Then enter your new password.

¡Password will be cleared and parental level will be

set to “ALL”.

2 Proceed with steps 4 to 6 again.

OTHER SETTINGS

Follow steps 1to 2in the “CUSTOM MENU” section on page 42.

3 Press [K / L] to select the below items,

then hit [ENTER].

ANGLE ICON:

¡Hit [ENTER] repeatedly to turn Angle icon “ON” or

“OFF”.

¡The default setting is “ON”.

AUTO POWER OFF:

¡Hit [ENTER] repeatedly to turn Auto Power off

“ON” or “OFF”.

The default setting is “ON” and the screen saver program starts when there is no input from the unit for 5 minutes in the stop mode. After the screen saver program is activated for 15 minutes, the power is automatically turned off.

SETUP OTHERS

ANGLE ICON AUTO POWER OFFONON

5 Hit [SETUP] to exit the menu.

INITIALIZE

DVD-V

This allows you to return all selections of SETUP (except for “PARENTAL” and menu language) to their default settings.

1 Hit [SETUP] twice in the stop mode so that

the “INITIALIZE” menu appears.

2 Press [K / L] to select “INITIALIZE” then hit

[ENTER].

3 Press [K / L] to select “YES” then hit

[ENTER] twice.

All the settings (except for “PARENTAL” and menu language) will be cleared.

¡To cancel the initialization,

select “NO”.

4 Hit [SETUP] to exit the menu.

SETUP

QUICK CUSTOM INITIALIZE

SETUP INITIALIZE

Initialize? NO YES

–44–

TROUBLESHOOTING GUIDE

If the unit does not perform properly when operated as instructed in this Owner’s Manual, check the unit, consulting the following checklist.

PROBLEM CORRECTIVE ACTION

No power

No operation by infrared remote control

TV/VCR Mode

Sometimes a performance problem can be easily solved by checking seemingly apparent but often overlooked possibilities. Before arranging for service, check these items. It could save your time and money.

PROBLEM CORRECTIVE ACTION

No picture or sound

No picture or poor picture on the unit

No sound or poor sound

Bars On Screen

Picture Distorted or Blurred

Picture Rolls Vertically Lines or Streaks in Picture

No Color

Poor Reception on Some Channels Ghosts in Picture

Weak Picture

Sound OK, Picture Poor

Make sure the power plug is connected to an AC outlet.

•

Make sure the power is turned on.

•

Check if the power plug is connected to an AC outlet.

•

Check the batteries in the remote control.

•

Aim the remote control directly at the remote sensor. If necessary,

•

remove all the obstacles between the sensor and the remote control. You have to be within 23 feet of the unit.

•

Check if the correct mode is selected. If not switch the mode by

•

hitting [SELECT], whichever you need.

Make sure the AC cord is connected to an AC outlet.

•

Check antenna connection.

•

Hit [SELECT] to select TV mode.

•

Then try other TV feature. Let the unit program its tuner memory.

•

Adjust direction or replace antenna.

•

Adjust picture controls.

•

Check for broken pin of the antenna cable.

•

Adjust volume control on remote control or main unit.

•

Hit [MUTE] to restore sound.

•

If outside antenna is being used, check for broken wire.

•

Check for local interference.

•

Try a new channel, if OK, then possible station trouble.

•

If outside antenna is being used, check for broken wire.

•

Try a new channel, if OK, then possible station trouble.

•

If outside antenna is being used, check for broken wire.

•

Check for local interference.

•

Try a new channel, if OK, then possible station trouble.

•

Is antenna connected to jack on the back of the set?

•

If outside antenna is being used, check for broken wire.

•

Adjust “COLOR” control.

•

Try a new channel, if OK, then possible station trouble.

•

Is antenna connected to jack on the back of the set?

•

If outside antenna is being used, check for broken wire.

•

Check for local interference.

•

Try a new channel, if OK, then possible station trouble.

•

Is antenna connected to jack on the back of the set?

•

If outside antenna is being used, check for broken wire.

•

Adjust “CONTRAST” & “BRIGHT” control.

•

Try a new channel, if OK, then possible station trouble.

•

Is antenna connected to jack on the back of the set?

•

If outside antenna is being used, check for broken wire.

•

Check for local interference.

•

Adjust “CONTRAST” & “BRIGHT” control.

•

–45–

PROBLEM CORRECTIVE ACTION

Picture OK, Sound Poor

Timer recording is not possible

Cannot go into the recording mode

Playback picture is partially noisy

No picture but the audio is OK in playback • CLEANING” on page 48.

No operation by infrared Remote Control

Video or color fades in and out when making a copy of a video tape•copy guard protection.

Different color marks on screen

Try a new channel, if OK, then possible station trouble.

•

Check for local interference.

•

Make sure the timer recording is set correctly.

•

Make sure the power is off.

•

Make sure the unit’s clock is set correctly.

•

Make sure the tape has an erase-prevention tab. If need, cover the

•

hole with plastic tape.

•

Adjust tracking control for a better picture using

•

on the unit.

•

Head cleaning may be necessary. Refer to “AUTO HEAD

•

Make sure the AC cord is connected to an AC outlet.

•

Check batteries in remote control.

•

You can not copy a copyrighted video tape. You are experiencing

•

Magnetism from nearby appliances and geomagnetism might affect

•

the color of the TV picture. Move the unit away from the appliances, the unit can repair itself automatically. If you want to repair immediately,

unplug the power cord, then plug it in again 30 minutes later or

so. This automatically resets the unit.

[CHANNEL K / L]

CLOSED CAPTION PROBLEM POSSIBLE REMEDY

Misspelling in captions • Error committed by the closed captioning production company.

• Possible in a live broadcast. Not in case of a prerecorded program.

Text is not shown in its entirety or • A few seconds of delay is common for live broadcast. a delay occurs from what is being • Display capacity may not exceed 220 words per minute. If a dialogue said. • exceeds that rate, selective editing is used to insure that the captions

• remain up-to-date with the current TV screen dialogue.

Captions scrambled with white • Caused by interferences of building, power lines, thunderstorms, etc. boxes

No captions in a program which must contain closed caption

No captions in a prerecorded videotape which indicated closed captions included.

Black box in the TV screen • You are in TEXT mode. Select a CAPTION mode (“C1”, “C2”) or

• The broadcast may use a time compression process to speed up the

• program. The decoder cannot read the compressed information and

• captions will be lost.

• Possibility of a illegal copy or an erroneous copying process

• accidentally performed by the fabricator.

• Caption “OFF”.

–46–

DVD Mode

PROBLEM CORRECTIVE ACTION

No picture • Insert a correct video disc that plays on this unit.

• Hit [SELECT] to select DVD mode, then try other DVD feature.

Disc cannot be played

No sound

No DTS audio is output Distorted picture

Audio or subtitle language • The selected language is not available for audio or subtitles on the does not match the set up DVD. (This is not a malfunction.)

The camera angle cannot be changed • The DVD does not contain sequences recorded from different camera

Audio or subtitle language cannot be • The DVD does not contain audio source or subtitles in the selected changed language. (This is not a malfunction.) “Prohibited icon” appears on the • That operation is prohibited by the unit or the disc. screen, prohibiting an operation (This is not a malfunction.) CD sound dropout • Scratched disc. Replace the disc with an unscratched one. No CD reproduction DVD picture dropout DVD picture freeze DVD picture in mosaic No DVD reproduction

• Insert the disc.

• Clean the disc.

• Place the disc correctly, with the label side up.

• Cancel the parental lock or change the control level.

• Connect the audio cables firmly.

• Turn the power of the audio component on.

• Correct the audio output settings.

• Correct the input settings on the audio component.

• This unit does not support DTS audio. This is not a malfunction.

• There are some cases where pictures may be slightly distorted, which are not a sign of a malfunction.

• Although pictures may stop for a moment, this is not a malfunction.

angles. (This is not a malfunction.)

NOTES:

Some functions are not available in specific modes, but this is not a malfunction. Read the description in

•

this Owner’s Manual for details on correct operations. Playback from a desired track and random playback are not available during program playback.

•

–47–

MAINTENANCE

CABINET CLEANING

Wipe the front panel and other exterior surfaces of

•

the unit with a soft cloth immersed in lukewarm water and wrung dry.

Never use a solvent or alcohol. Do not spray insec-

•

ticide liquid near the unit. Such chemicals may cause damage and discoloration to the exposed surfaces.

1.Please visit your local Audio/Video store and purchase a good quality VHS Video Head Cleaner.

2.If a Video Head Cleaner does not solve the problem, please call our help line mentioned on the front page, to locate an Authorized Service Center.

NOTES:

Remember to read the instructions included with

•

the video head cleaner before use. Clean video heads only when problems occur.

•

AUTO HEAD CLEANING

Automatically cleans video heads as you insert or

•

remove a cassette, so you can see a clearer picture. Playback picture may become blurred or interrupt-

•

ed while the TV program reception is clear. Dirt accumulated on the video heads after long periods of use or the usage of rental or worn tapes can cause this problem. If a streaky or snowy picture appears during playback, the video heads in your unit may need to be cleaned.

SERVICING

Should your unit become inoperative, do not try to

•

correct the problem by yourself. There are no userserviceable parts inside. Turn off, unplug the power cord and the front page, to locate an Authorized Service Center.

please call our help line mentioned on

IF THE LASER OPTICAL PICKUP UNIT IS DIRTY

If the unit still does not perform properly when it is operated, while referring to the relevant sections and to

•

“TROUBLESHOOTING GUIDE” in this Owner’s Manual, the laser optical pickup unit may be dirty. Consult your dealer or an Authorized Service Center for inspection and cleaning of the laser optical pickup unit.

DISC HANDLING

Handle the discs so that fingerprints and dust do

•

not adhere to the surfaces of the discs.

Always store the disc in its protective case when it

•

is not used.

To clean-off, use a soft cloth.

•

Do not use a hard cloth since this will mar the disc.

•

Wipe the disc in a straight line from center to edge.

•

Never wipe with a circular motion.

•

Do not use detergent or abrasive cleaning agents.

•

–48–

ENEN

SPECIFICATIONS

GENERAL SPECIFICATIONS ELECTRICAL SPECIFICATIONS

TV/VCR

Sound output: 2 speakers, 1W, 8 ohm

CRT 19 inch in-line gun,

90˚ deflection tube Television system : NTSC-M Closed caption system :§15.119/FCC Video Heads : Rotary four-head Tape width : 1/2 inch Tape speed

SP : 33.40mm/sec. LP : 16.67mm/sec. SLP : 11.12mm/sec.

Tuner channel

TV VHF Low : #2~#6 TV VHF High : #7~#13 TV UHF : #14~#69 CATV VHF : 5A MID band : A5~A1, A~I SUPER band : J~W HYPER band : W+1~W+84

DVD

Product type: DVD Player Discs: DVD video, Audio CD Output signal format: NTSC color

OTHER SPECIFICATIONS

Terminals

Antenna input: VHF/UHF/CATV

75 ohm unbalanced (F-type) Video input: RCA connector [ 1 Audio L/R input: RCA connector [ 2 Headphone: 1/8” stereo (3.5 mm) Coaxial digital audio output: One pin jack,

500m Vpp (75 ohm)

Remote control: Digital encoded

infrared light system

Operating temperature: 5˚C to 40˚C

(41˚F~104˚F)

Power requirements: AC 120V, 60Hz Power consumption (Maximum): 90W Picture tube: 19" Dimensions: H:19-11/16" (500mm)

W:21-7/8" (556mm)

D:18-3/4" (477mm)

Weight: 45.2 lbs. (20.5kg)

Designs and specifications are subject to change without notice.

•

If there is a discrepancy between languages, the default language will be English.

•

–49–

INDICE

■ INDICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

■ CONTROLES DE OPERACIÓN Y FUNCIONES . . . . . 50

PARA INSERTAR LAS PILAS . . . . . . . . . . . . . . . . . . . . 51

■ PREPARACIÓN PARA LA UTILIZACIÓN . . . . . . . . . . 51

CONEXIONES DE ANTENA/CABLE . . . . . . . . . . . . . . 51

CONEXIÓN A TOMAS DE ENTRADA DELANTERAS 52 CONEXIÓN A UN AMPLIFICADOR ESTÉREO EQUIPADO CON TOMAS DE ENTRADA DIGITAL.

(para DVD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

CONEXIÓN A UN DECODIFICADOR DOLBY DIGITAL

(para DVD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

SECCIÓN DE TV/VCR

■ FUNCIONES Y AJUSTES DE TV. . . . . . . . . . . . . . . . . 53

PARA MIRAR UN PROGRAMA DE TV . . . . . . . . . . . . 53

IDIOMA DEL MENÚ . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

AJUSTE DEL RELOJ . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

■ GRABACIÓN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

GRABACIÓN NORMAL . . . . . . . . . . . . . . . . . . . . . . . . 54

SECCIÓN DE DVD

REPRODUCCIÓN BÁSICA . . . . . . . . . . . . . . . . . . . . . . 55

MENÚ DE DISCO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

REANUDACIÓN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

CONTROLES DE

OPERACIÓN Y FUNCIONES

• Consulte la figura 1 de la página 9 para el panel frontal de la unidad

• Consulte la figura 2 de la página 9 para el mando a distancia

• Consulte la figura 3 de la página 10 para la vista posterior

1. Botón POWER

Presione para encender y apagar la unidad.

2. Botones VOLUME (VOL.) K / L

Presione para controlar el nivel de volumen del DVD y el televisor.

3. Botones SKIP H / G (para DVD)

Presione una vez para omitir capítulos o pistas y desplazarse a un punto específico.

Botones SEARCH E / D (para DVD)

Mantenga el botón presionado para cambiar la velocidad de reproducción en avance o retroceso.

4. Botón B PLAY

Inicia la reproducción del contenido del disco o cinta.

5. Botón C STOP

(Panel frontal) Detiene la operación del disco. (Mando a distancia) Detiene la operación del disco o el casete.

6. Botón A OPEN/CLOSE

Presione para insertar un disco en la bandeja o retirarlo de ella.

7. Bandeja de carga del disco

8. Indicador DVD

Se ilumina durante el modo DVD.

9. Botón SELECT

Presione para cambiar al modo TV/VCR, modo de entrada externa o modo de DVD. El modo seleccionado (TV/VCR o DVD) se visualiza en el indicador del panel delantero.

10. Indicador TV/VCR

Se ilumina durante el modo TV/VCR.

11. Botones CHANNEL (CH.) K / L

Utilice para seleccionar canales memorizados.

12. Indicador de grabación

Parpadea durante la grabación. Se ilumina durante el modo de espera de grabación controlada por temporizador.

13. Botón REC/OTR (Panel frontal)

Presione para empezar la grabación manual. Presione repetidamente para empezar la grabación instantánea (OTR).

Botón RECORD (Mando a distancia)

Presione para empezar la grabación manual.

14. Botón E REW (para TV/VCR)

Presione para rebobinar la cinta o para ver la imagen rápidamente en dirección de retroceso durante el modo de reproducción. (Búsqueda en dirección de retroceso)

15. Botón F.FWD D (para TV/VCR)

Presione para adelantar rápidamente la cinta o para ver la imagen rápidamente en dirección de avance durante el modo de reproducción. (Búsqueda en dirección de avance)

16. Botón CASTOP/EJECT

Presione para detener la cinta. Presione en el modo de parada para retirar la cinta de la unidad.

17. Ventanilla del sensor de mando a distancia

18. Toma HEADPHONE

Para conectar auriculares (no suministrados) y escuchar en privado.

19. To ma de entrada VIDEO

Conecte aquí la toma de salida de video de una videocámara o de una videograbadora.

20. Tomas de entrada AUDIO L/R

Conecte aquí las tomas de salida de audio de una videocámara o de una videograbadora.

21. Compartimiento del cassette

22. Botón PICTURE

Presione para ajustar la imagen.

23. Botones numéricos Modo TV/VCR:

Presione dos cifras para acceder directamente al canal deseado. No olvide presionar [0] antes de elegir un canal de una sola cifra.

Botón +100

Presione para seleccionar canales de televisión por cable cuyo número sea superior a 99.

Modo DVD:

Presione para introducir el número deseado.

Botón +10

Presione para introducir números superiors a 9.

24. Botón PAUSE F

Hace una pausa en la reproducción del disco o cinta.

25. Botón SPEED

Presione para seleccionar la velocidad de grabación deseada: SP/SLP.

26. Botón C.RESET

Presione para poner el contador en 0:00:00. Presione también para cancelar un ajuste de programa de temporizador.

27. Botón DISPLAY Modo TV/VCR:

Indica el contador o el número del canal y la fecha actual en la pantalla del televisor.

Modo DVD:

Indica el estado actual en la pantalla del televisor.

28. Botón SETUP

Presione para entrar o salir del menú de configración de televisor o DVD.

29. Botón TITLE

Para visualizar el menú de títulos.

30. Botón CLEAR

Presione para cancelar o borrar un ajuste entrado actualmente.

31. Botón MODE

Presione para llamar la pantalla de la reproducción programada o la de reproducción aleatoria en el modo de parada. Presione para llamar la pantalla de ajuste del nivel del negro o la pantalla de sonido ambiental durante la reproducción.

–50–

32. Botón SEARCH MODE

Presione para localizar un punto deseado.

33. Botón AUDIO Modo DVD

Presione para seleccionar un modo de sonido o idioma de audio deseado.

34. Botón SUBTITLE

Presione para seleccionar el idioma de subtítulos deseado.

35. Botón REPEAT

Repite la reproducción del disco, título, capítulo o pista actual.

36. Botón ANGLE

Presione para cambiar el ángulo de la cámara y ver la secuencia que se está reproduciendo desde un ángulo diferente (si existe).

37. Botón A-B (modo DVD)

Repite la reproducción de una sección seleccionada.

38. Botón RETURN

Permite volver a la pantalla anterior en el menú de configuración.

39. Botón ENTER

Presione para establecer un ajuste.

40. Botones K / L / { / B Modo TV/VCR:

Presione para seleccionar un modo de ajuste en el menú que aparece en la pantalla del televisor. Presione también para seleccionar o establecer ajustes en un menú en particular.

Modo DVD:

Presione para seleccionar un ítem de menú.

41. Botón DISC MENU

Muestra menú del DVD.

42. Botón ZOOM

Amplía parte de la imagen reproducida de un DVD.

43. Botón MUTE

Suprime la salida de sonido. Presione de nuevo para restablecer el sonido.

44. Botón SLEEP

Utilice para ajustar el temporizador de dormir.

45. Toma ANT.

Conecte a una antena, sistema de televisión por cable o sistema de satélite.

46. Cable de alimentación

Conecte a un toma de CA estándar (120 V, /60 Hz).

NOTA:

Antes de conectar el cable de alimentación de una

•

toma de CA estándar, retírelo del gancho para evitar dañarlo.

47. To ma AUDIO OUT COAXIAL

Conecte solamente a la entrada digital de un amplificador externo o decodificador (para audio de DVD solamente).

PREPARACIÓN PARA LA

UTILIZACIÓN

CONEXIONES DE ANTENA/CABLE

Consulte la figura 4 de la página 12

ANTENA COMBINADA DE VHF/UHF

La antena combinada de VHF/UHF de 75 ohmios puede conectarse a la toma ANT.

ANTENAS SEPARADAS DE VHF/UHF

En algunas zonas será necesario utilizar una antena exterior.

TELEVISIÓN POR CABLE SIN CAJA DE CONVERTIDOR/DECODIFICADOR

Utilice esta conexión si su sistema de televisión por cable se conecta directamente a la unidad, sin una caja de convertidor.

TELEVISIÓN POR CABLE CON CAJA DE CONVERTIDOR/DECODIFICADOR O CAJA DE SATÉLITE

Si su compañía de televisión por cable le suministra una caja de convertidor o si utiliza un sistema de satélite, podrá utilizar la conexión básica que se muestra en la ilustración. La selección de los canales deberá hacerse con la caja de convertidor o con la caja de satélite. Esto significa que no es posible cambiar de canal utilizando el mando a distancia de la unidad.

Nota para el instalador de sistemas CATV

Esta nota tiene la finalidad de llamar la atención del instalador de sistemas CATV para que tenga en cuenta el Artículo 820-40 de la NEC, que proporciona recomendaciones para hacer una conexión a tierra apropiada y, en particular, especifica que la tierra del cable debe conectarse al sistema de puesta a tierra del edificio, tan cerca del punto de entrada del cable como sea posible.

NOTA:

Antes de enchufar la antena a la toma ANT. de la unidad, compruebe que la clavija no esté doblada. Si esta doblada, póngala derecha como se muestra en la ilustración, y luego conéctela en la toma ANT. de la unidad.

Clavija doblada

PARA INSERTAR LAS PILAS

1) Abra la cubierta del compartimiento de las pilas empujando la cubierta del mando a distancia en el sentido de la flecha.

2) Inserte 2 pilas “AA” en el compartimiento de las pilas, en el sentido indicado por las marcas de polaridad (+/-).

3) Vuelva a poner la cubierta.

–51–

Cable

(Necesita enderezarse)

Clavija

(Clavija derecha)

NOTA:

Para su seguridad y para evitar que se dañe

•

la unidad, desenchufe el cable de antena de la toma ANT. antes de mover la unidad.

CONEXIÓN A TOMAS DE

ENTRADA DELANTERAS

CONEXIÓN A UN DECODIFICADOR

DOLBY DIGITAL (para DVD)

Cuando vea un programa grabado en otra fuente (videograbadora o videocámara), utilice las tomas de entrada AUDIO/VIDEO de la parte delantera de la unidad. Conecte las tomas de salida de audio/vídeo de otra fuente a las tomas AUDIO L/R y VIDEO de esta unidad.

Después, presione [SELECT] o [CH. KK/ LL] hasta que aparezca “AUX” en la pantalla.

Consulte la figura 5 de la página 13

NOTA:

Cuando conecte una videograbadora monofónica

•

(otra fuente) a esta unidad, conecte la toma de salida de audio de la videograbadora monofónica (otra fuente) a la toma AUDIO L de esta unidad. El audio saldrá igualmente por los canales izquierdo y derecho.

CONEXIÓN A UN AMPLIFICADOR

ESTÉREO EQUIPADO CON TOMAS

DE ENTRADA DIGITAL (para DVD)

Utilice un cable digital coaxial de audio (disponible en el comercio) para hacer las conexiones de audio. Conexión a un amplificador equipado con tomas de entrada digital, platina MD o platina DAT.

Si utiliza esta unidad para reproducir un disco DVD grabado en formato de sonido envolvente Dolby Digital de 5,1 canales, la unidad emitirá un flujo de datos DOLBY DIGITAL desde su toma AUDIO OUT COAXIAL. Si conecta la unidad a un decodificador Dolby Digital, podrá disfrutar de una tonalidad más convincente y real, con un sonido envolvente potente y de alta calidad similar al de los cines.

Utilice cables digitales coaxiales de audio (disponibles en el comercio) para hacer las conexiones de audio.

Consulte la figura 7 de la página 14

NOTAS:

Asegúrese de apagar todos los componentes del

•

sistema antes de conectar otro componente. Consulte los manuales de instrucciones de los

•

componentes que va a conectar a la unidad. Si conecta un decodificador Dolby Digital, ajuste

•

la función “DOLBY DIGITAL” a “BITSTREAM” para salida de audio en el modo de configuración. A menos que se haga la conexión a un

•

decodificador Dolby Digital, ajuste la función “DOLBY DIGITAL” a “PCM” para salida de audio en el modo de configuración. La reproducción en una unidad utilizando ajustes incorrectos puede generar ruido y distorsión, y también puede provocar daños a los altavoces.

Consulte la figura 6 de la página 13

NOTAS:

• La fuente de audio de un disco grabado en formato

de sonido envolvente Dolby Digital de 5,1 canales no se puede grabar como sonido digital mediante una platina MD o DAT.

• Asegúrese de apagar todos los componentes del

sistema antes de conectar otro componente.

• Consulte los manuales de instrucciones de los

componentes que va a conectar a la unidad.

• Ajuste la función “DOLBY DIGITAL” a “PCM”

para salida de audio en el modo de configuración. La reproducción en una unidad utilizando ajustes incorrectos puede generar ruido y distorsión, y también puede provocar daños a los altavoces.

Fabricado bajo licencia de Dolby Laboratories. “Dolby” y el símbolo de la D doble son marcas de fábrica de Dolby Laboratories.

–52–

SECCIÓN DE TV/VCR

FUNCIONES Y AJUSTES

DE TV

PARA MIRAR UN PROGRAMA DE TV

IDIOMA DEL MENÚ

1 Seleccione “LANGUAGE”

Presione [SETUP]. Presione

[K / L] para apuntar al “LANGUAGE”.

TV/VCR

1 Enchufe el cable eléctrico

Enchufe el cable eléctrico de la unidad en un tomacorriente de CA del hogar.

NOTA:

Si aparecen números en la esquina de la pantalla,

•

presione [POWER] sin desenchufar el cable eléctrico.

2 Encienda la unidad

Presione [POWER] para encender la unidad.

3 Seleccione el número de canal

Presione [CH. K / L] o los botones numéricos para seleccionar su número de canal deseado.

Nota para el uso de los botones numéricos:

¡Debe colocar un cero antes de los números de canal

de una sola cifra (por ejemplo: 02, 03, 04, etc.).

Cuando seleccione canales de cable de más de 99, presione primero [+100] y después las dos últimas cifras. (Ejemplo: para seleccionar el canal 125, primero presione [+100] y después presione [2] y [5].)

4 Ajuste el sonido

Presione [VOL. XX/ YY] para ajustar el volumen. Presione

sonido. Presione nuevamente para recuperar el nivel de

sonido anterior.

NOTA:

•

[MUTE] para silenciar instantáneamente el

Si presiona [CH. K / L] en el modo DVD, puede cambiar los canales de TV. Incluso si desconecta la unidad en el modo DVD, cuando vuelva a conectar, volverá al modo TV/VCR.

2 Seleccione “ENGLISH”, “ESPAÑOL” o

“FRANÇAIS”

Presione [ENTER] repetidamente para seleccionar “ENGLISH” = inglés, “ESPAÑOL” o “FRANÇAIS” = francés.

3 Salga del modo de idioma

Presione [SETUP] para salir del menú. NOTAS:

Esta función afecta sólo el idioma en el menú de la

•

pantalla y no la fuente de audio. Si por alguna razón, el menú está en francés,

•

presione [SETUP], presione [K / L] para apuntar al “LANGAGE [FRANÇAIS]” y presione [ENTER] repetidamente para seleccionar el idioma deseado y presione [SETUP].

AJUSTE DEL RELOJ

TV/VCR

AJUSTE MANUAL DEL RELOJ

Asegúrese ...

La unidad debe estar encendida.

•

En el siguiente ejemplo, el reloj debe estar en:

FECHA 6 de mayo, 2005 HORA DE AJUSTE 5:40PM

1 Seleccione “AJUSTE RELOJ”

Presione [SETUP]. Presione

y presione [ENTER].

[K / L]

para selecciona “AJUSTE RELOJ”

PARA VER CANALES DE CABLE O SATELITE

Si la unidad está conectada a una caja de cable o

•

caja de satélite, presione [CH. K / L] para seleccionar CH3 o CH4 de acuerdo con el ajuste de canal de salida del dispositivo y seleccione el canal deseado en el dispositivo.

PARA VER UNA ENTRADA EXTERNA

Cuando se conecta un equipo externo en las tomas

•

de entrada AUDIO/VIDEO frontales, presione [SELECT] o [CH. K / L] repetidamente hasta que aparezca “AUX” en la pantalla.

2 Seleccione “AJUSTE MANUAL RELOJ”

Presione MANUAL RELOJ” y presione [ENTER].

[K / L]

para seleccionar “AJUSTE

3 Seleccione el mes

Presione (Ejemplo: Mayo

Presione

[K / L]

[B]. (O presione [s] para volver un paso.)

hasta que aparezca el mes deseado. → “05”)

4 Seleccione el día

Presione (Ejemplo: 6

Presione

–53–

[K / L]

º → “06”)

[B].

hasta que aparezca el día deseado.

5 Seleccione el año

Presione [K / L] hasta que aparezca el año deseado. (Ejemplo: “2005”)

Presione

[B].

6 Seleccione la hora

Presione [K / L] hasta que aparezca la hora deseada. (Ejemplo: “5”, “PM”) Presione

[B].

7 Seleccione los minutos

Presione [K / L] hasta que aparezcan los minutos deseados.

(Ejemplo: “40”)

GRABACIÓN

GRABACIÓN NORMAL

TV/VCR

SOLO puede ver el mismo programa que se está grabando.

1 Seleccione el canal a grabar

Presione los botones numéricos o [CH. K / L]. NOTA:

Si la unidad está conectada a una caja de cable o

•

caja de satélite, la unidad debe estar en CH3 o CH4 y debe seleccionarse el canal a grabar en la caja de cable o caja de satélite.

8 Haga funcionar el reloj

Presione [SETUP]. Aunque no aparezcan los segundos, empezará a

contar desde 00 cuando presione esta característica para sincronizar el reloj con la hora real.

[SETUP]. Utilice

2 Seleccione la velocidad de la cinta

Presione [SPEED] para seleccionar la velocidad de cinta deseada (SP/SLP).

3 Empiece a grabar

Presione [RECORD].

4 Pare la grabación

Presione [STOP C].

–54–

SECCIÓN DE DVD

REANUDACIÓN

REPRODUCCIÓN BÁSICA

DVD-V

Para empezar

¡Conecte la alimentación del amplificador y otros

componentes, si es necesario.

1 Presione [POWER].

¡La alimentación se conectará.

2 Presione [A OPEN/CLOSE] para abrir la

bandeja de carga del disco.

3 Ponga el disco deseado en la bandeja, con

la etiqueta hacia arriba.

4 Presione [PLAY O].

La bandeja se cerrará automáticamente y la reproducción comenzará desde el primer capítulo o pista del disco.

La reproducción también empieza cerrando manualmente la bandeja del disco o presionando [AOPEN/CLOSE]

¡Si la reproducción no comienza automáticamente,

presione [PLAY O].

Cuando reproduzca un DVD que tenga grabado un menú de títulos, el menú podrá aparecer en la pantalla.

Presione [STOP C] para detener la reproducción.

DVD-V

1 Durante la reproducción, presione

[STOP

Aparecerá el mensaje de continuación en la pantalla de TV.

C].

2 Presione [PLAY O], la reproducción continuará

desde el punto donde se paró la reproducción.

¡Para cancelar la continuación, presione dos veces

[STOP C].

¡La información de continuación permanece activada

incluso cuando apaga el interruptor principal.

MENÚ DE DISCO

DVD-V

1 Presione [DISC MENU].

¡Aparecerá el menú principal de DVD. ¡Si no existe la función, puede aparecer el símbolo

en la pantalla de TV.

¡Si el menú de disco existe en el disco, aparecerán el

idioma de audio, opciones de subtítulo, capítulos para el título y otras opciones para su selección.

2 Presione [K / L / s / B] para seleccionar

un ítem y presione [ENTER] para confirmar la selección.

–55–

LIMITED WARRANTY

FUNAI CORP. will repair this product, free of charge in the USA in the event of defect in materials or workmanship as follows:

DURATION: PARTS:

LABOR: FUNAI CORP. will provide the labor without charge for a period of ninety (90) days from the date

LIMITS AND EXCLUSIONS:

This warranty is extended only to the original retail purchaser. A purchase receipt or other proof of original retail purchase will be required together with the product to obtain service under this warranty.

This warranty shall not be extended to any other person or transferee.

This warranty is void and of no effect if any serial numbers on the product are altered, replaced, defaced, missing or if service was attempted by an unauthorized service center. This FUNAI CORPORATION Limited warranty does not apply to any product not purchased and used in the United States.

This warranty only covers failures due to defects in material or workmanship which occurs during normal use. It does not cover damage which occurs in shipment, or failures which are caused by repairs, alterations or product not supplied by FUNAI CORP., or damage which results from accident, misuse, abuse, mishandling, misapplication, alteration, faulty installation, improper maintenance, commercial use such as hotel, rental or office use of this product or damage which results from fire, flood, lightning or other acts of God.

THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE CONTROL), ANY COSMETIC PARTS, COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS.

FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from the date of original retail purchase. Two (2) years for Picture Tube. Certain parts are excluded from this warranty.

of original retail purchase.

FUNAI CORP. AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY GENERAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE USE OF OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND OF ALL OTHER LIABILITIES ON THE PART OF FUNAI, ALL OTHER WARRANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED BY FUNAI AND ITS REPRESENTATIVES IN THE UNITED STATES. ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY A FUNAI AUTHORIZED SERVICE CENTER. THIS WARRANTY IS ONLY VALID WHEN THE UNIT IS CARRIED-IN TO A FUNAI AUTHORIZED SERVICE FACILITY.

IMPORTANT:

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE. IF, AT ANY TIME DURING THE WARRANTY PERIOD, YOU ARE UNABLE TO OBTAIN SATISFACTION WITH THE REPAIR OF THIS PRODUCT, PLEASE CONTACT FUNAI CORP.

ATTENTION:

FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THIS PRODUCT WITHOUT PRIOR NOTICE.

To locate your nearest FUNAI Authorized Service Center or for general service procedure, please call or write to the following:

FUNAI CORPORATION, INC.

SERVICE CENTER

19900 Van Ness Avenue, Torrance, CA 90501

http://www.EmersonAudioVideo.com

Head Office: 100 North Street, Teterboro, NJ 07608

PLEASE DO NOT SHIP YOUR UNIT TO THE TETERBORO ADDRESS.

Tel :1-800-256-2487

Printed in Malaysia 1EMN20210

T0101UB ★★★★★

Emerson EWC19T5 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
