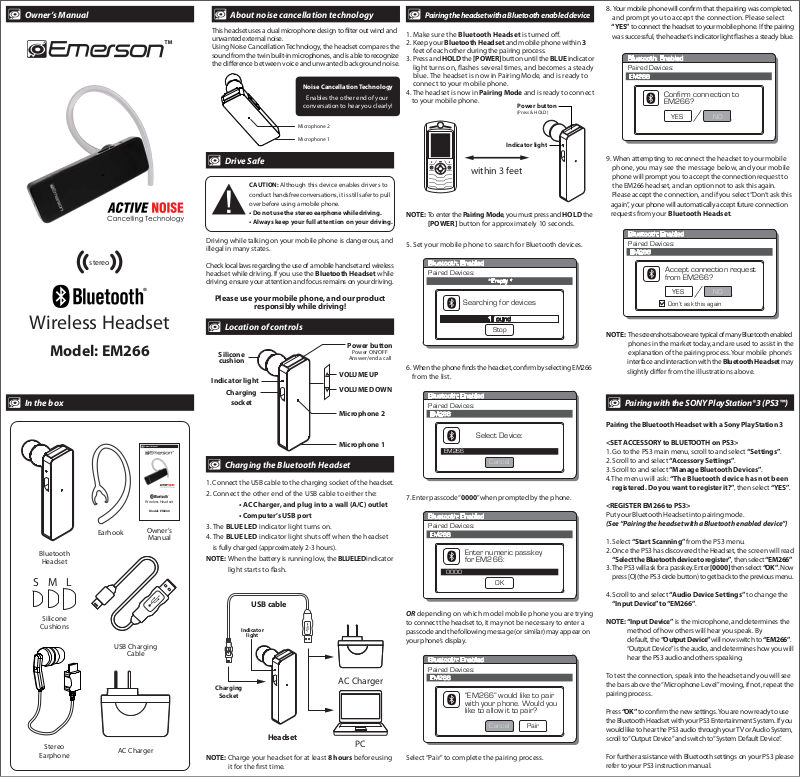

Emerson EM266 User Manual
Owner’s Manual About noise cancellation technology
This headset uses a dual microphone design to lter out wind and
unwanted external noise.
Using Noise Cancellation Technology, the headset compares the
sound from the twin built-in microphones, and is able to recognize
the dierence between voice and unwanted background noise.
Noise Cancellation Technology
Enables the other end of your
conversation to hear you clearly!
Microphone 2
Microphone 1
Drive Safe
CAUTION: Although this device enables drivers to
conduct handsfree conversations, it is still safer to pull
over before using a mobile phone.
• Do not use the stereo earphone while driving.
• Always keep your full attention on your driving.
Driving while talking on your mobile phone is dangerous, and
illegal in many states.
stereo
Check local laws regarding the use of a mobile handset and wireless
headset while driving. If you use the Bluetooth Headset while
driving, ensure your attention and focus remains on your driving.
Please use your mobile phone, and our product
responsibly while driving!
Wireless Headset
Model: EM266
In the box
Owner’s Manual
Location of controls
Silicone
cushion
Indicator light
Charging
socket
Power button
Power ON/OFF
Answer/end a call
VOLUME UP
VOLUME DOWN
Microphone 2
Microphone 1
Charging the Bluetooth Headset
1. Connect the USB cable to the charging socket of the headset.
2. Connect the other end of the USB cable to either the:
• AC Charger, and plug into a wall (A/C) outlet
• Computer’s USB port
3. The BLUE LED indicator light turns on.
4. The BLUE LED indicator light shuts o when the headset
is fully charged (approximately 2-3 hours).
NOTE: When the battery is running low, the BLUE LED indicator
light starts to ash.
Bluetooth
Headset
Earhook
Wireless Headset
Model: EM266
Owner’s
Manual
S M L
USB cable
Silicone
Cushions
Stereo
Earphone
USB Charging
Cable
AC Charger
Charging
NOTE: Charge your headset for at least 8 hours before using
it for the rst time.
Socket
Indicator
light
AC Charger
Headset
PC
Pairing the headset with a Bluetooth enabled device
1. Make sure the Bluetooth Headset is turned o.
2. Keep your Bluetooth Headset and mobile phone within 3
feet of each other during the pairing process.
3. Press and HOLD the
light turns on, ashes several times, and becomes a steady
blue. The headset is now in Pairing Mode, and is ready to
connect to your mobile phone.
4. The headset is now in Pairing Mode and is ready to connect
to your mobile phone.
[POWER]
button until the BLUE indicator
Power button
(Press & HOLD)
Indicator light
within 3 feet
NOTE: To enter the Pairing Mode, you must press and HOLD the
[POWER] button for approximately 10 seconds.
5. Set your mobile phone to search for Bluetooth devices.
Bluetooth: Enabled
Paired Devices:
6. When the phone nds the headset, conrm by selecting EM266
from the list.
Bluetooth: Enabled
Paired Devices:
EM266
EM266
7. Enter passcode “0000” when prompted by the phone.
Bluetooth: Enabled
Paired Devices:
EM266
0000
OR depending on which model mobile phone you are trying
to connect the headset to, it may not be necessary to enter a
passcode and the following message (or similar) may appear on
your phone’s display.
Bluetooth: Enabled
Paired Devices:
EM266
Select “Pair” to complete the pairing process.
*Empty *
Searching for devices
ound
1 f
Stop
Select Device:
Cancel
Enter numeric passkey
for EM266:
OK
“EM266” would like to pair
with your phone. Would you
like to allow it to pair?
Cancel Pair
8. Your mobile phone will conrm that the pairing was completed,
and prompt you to accept the connection. Please select
“YES” to connect the headset to your mobile phone. If the pairing
was successful, the headset’s indicator light ashes a steady blue.
Bluetooth: Enabled
Paired Devices:
EM266
Confirm connection to
EM266?
YES NO
/
9. When attempting to reconnect the headset to your mobile
phone, you may see the message below, and your mobile
phone will prompt you to accept the connection request to
the EM266 headset, and an option not to ask this again.
Please accept the connection, and if you select “Don’t ask this
again”, your phone will automatically accept future connection
requests from your Bluetooth Headset.
Bluetooth: Enabled
Paired Devices:
EM266
Accept connection request
from EM266?
YES NO
/
Don’t ask this again
NOTE: The screenshots above are typical of many Bluetooth enabled
phones in the market today, and are used to assist in the
explanation of the pairing process. Your mobile phone’s
interface and interaction with the Bluetooth Headset may
slightly dier from the illustrations above.
Pairing with the SONY PlayStation®3 (PS3™)
Pairing the Bluetooth Headset with a Sony PlayStation 3
<SET ACCESSORY to BLUETOOTH on PS3>
1. Go to the PS3 main menu, scroll to and select “Settings”.
2. Scroll to and select “Accessory Settings”.
3. Scroll to and select “Manage Bluetooth Devices”.
4. The menu will ask: “The Bluetooth device has not been
registered. Do you want to register it?”, then select “YES”.
<REGISTER EM266 to PS3>
Put your Bluetooth Headset into pairing mode.
(See “Pairing the headset with a Bluetooth enabled device”)
1. Select “Start Scanning” from the PS3 menu.
2. Once the PS3 has discovered the Headset, the screen will read
“Select the Bluetooth device to register”, then select “EM266”
3. The PS3 will ask for a passkey. Enter [0000] then select “OK”. Now
press [O] (the PS3 circle button) to get back to the previous menu.
4. Scroll to and select “Audio Device Settings” to change the
“Input Device” to “EM266”.
NOTE: “Input Device” is the microphone, and determines the
method of how others will hear you speak. By
default, the “Output Device” will now switch to “EM266”.
“Output Device” is the audio, and determines how you will
hear the PS3 audio and others speaking.
To test the connection, speak into the headset and you will see
the bars above the “Microphone Level” moving, if not, repeat the
pairing process.
Press “OK” to conrm the new settings. You are now ready to use
the Bluetooth Headset with your PS3 Entertainment System. If you
would like to hear the PS3 audio through your TV or Audio System,
scroll to “Output Device” and switch to “System Default Device”.
For further assistance with Bluetooth settings on your PS3 please
refer to your PS3 instruction manual.
Wearing your Bluetooth Headset
Stereo Bluetooth Troubleshooting tips Warranty information
For added comfort and noise suppression, 3 silicone cushions
are included with your Bluetooth Headset. Choose the silicone
cushion (S) (M) (L), which ts most comfortably in your ear, and
insert it on the Bluetooth Headset as shown in the diagram below.
S M L
Silicone cushions
You may wear your headset with or without the provided
earhook. If you choose to wear your headset with the earhook,
connect it to the headset as shown in the diagrams below.
Fits either ear
comfortably
Left earRight ear
NOTE: For the best audio quality, always wear your Bluetooth
Headset on the same side of the body as your mobile phone
Using your Bluetooth Headset
Powering ON/OFF
• To turn ON, press and hold the [POWER] button until the
BLUE LED indicator light turns on.
• To turn OFF, press and hold the [POWER] button until the
BLUE LED indicator light ashes quickly several times, and
then shuts o.
Answering/Ending a call
• To answer a call, press and release
the [POWER] button.
• To end a call, press and release the
[POWER] button.
Rejecting an incoming call
During an incoming call, press and
HOLD the
you hear the conrmation tone.
[POWER]
button until
Indicator
To make a call
Dial the number and press the send
button on your mobile phone, the
call is automatically transferred to
the headset.
Redialing the last number called (Dependent
on your phone supporting this feature)
Double press the [POWER] button and release. The headset
will emit a conrmation tone, and the last number called will
be redialed.
Adjusting the volume
Press the [VOLUME UP] or [VOLUME
DOWN] button to adjust the volume
to the desired level.
NOTE: You may also adjust the volume
from your mobile phone’s
volume control.
VOLUME
DOWN
Power button
Answer/end a call
light
VOLUME UP
Connect the Stereo Earphone to the Bluetooth Headset’s
charging socket as shown below.
Charging
Stereo
Earphone
Insert the Bluetooth Headset in one ear, and wrap the Stereo
Earphone behind your neck and insert it into your other ear.
This headset allows you to listen (in full stereo) and control* the
music on your Bluetooth enabled mobile phone, gaming
console, computer or mp3 player and supports the following
Bluetooth proles:
•
•
•
•
To use the headset to listen/control music, your Bluetooth enabled
device must support the A2DP and AVRCP proles. Please refer to the
user guide of your Bluetooth enabled device for more information.
A2DP - Advanced Audio Distribution Prole
AVRCP - Audio/Video Remote Control Prole
HSP - Headset Prole
HFP - Handsfree Prole
socket
Playing music
To enjoy wireless music on your Bluetooth Headset, press the
[PLAY] button of your Bluetooth enabled device to begin music
playback. Once playback has begun, you can control the music or
answer phone calls from the control buttons of the headset (Not
all mobile phones support the control of music using Bluetooth).
Adjusting the volume
Press the [VOLUME UP] or [VOLUME DOWN] button to adjust
the volume to the desired level.
NOTE: You may also adjust the volume from your mobile
phone’s volume control.
Play/Pause* (music)
While the music is playing, press the [POWER] button to pause the
music. To resume music playback, press the [POWER] button again.
Skipping or searching songs*
(Dependent on your phone supporting this feature)
While the music is playing, press the [ VOLUME UP] button
to go to the previous song, or press the [ VOLUME DOWN]
button to go to the next song.
Answering a call while listening to music
During an incoming call, press the [POWER] button to answer.
Press the [POWER] button again to end the call and return to
the music.
PLAY/PAUSE (music)
ANSWER/END (calls)
*Certain Bluetooth features including those listed may not
be supported by all compatible Bluetooth-enabled devices,
and/or the functionality of such features may be limited in
certain devices.
Previous song
VOLUME UP
Next song
VOLUME DOWN
I Can pair the Bluetooth Headset with my Bluetooth
device, but I cannot hear any music?
• Make sure your Bluetooth device supports A2DP prole.
• When playing music on some mobile phones, the music will be
transmitted to the phone’s speaker instead of the headset. Select
“Transmit sound via Bluetooth” in the phone’s Bluetooth settings,
then select “EM266” as the speaker device.
My iPhone is paired correctly and I hear music but I cannot
control (play, pause, next song, previous song) the music
using the controls on the Bluetooth Headset.
• At the time of this User’s Guide publication, the iPhone only
supports the playback of music using Bluetooth, and does not
support the control of the music using Bluetooth.
I cannot get the Bluetooth Headset into Pairing Mode.
Make sure the Bluetooth Headset are turned o before
•
beginning the pairing process.
Press and HOLD the
•
light turns on, ashes several times, and becomes a steady
blue. The headset is now in Pairing Mode, and is ready to
connect to your mobile phone.
My mobile phone is not able to pair with the Bluetooth
Headset.
Make sure that you fully charged the headset before pairing.
•
Keep your headset and mobile phone within 3 feet of each
•
other during the pairing process.
Check that your phone’s Bluetooth feature is turned ON.
•
Try repeating the pairing process, see “Pairing the headset
•
with a Bluetooth enabled device.”
After successfully pairing my mobile phone and Bluetooth
Headset, when I shut my phone and turn it on again, my
headset did not automatically connect.
Try turning the headset OFF, and then turning them ON again.
•
Many mobile phones have an auto reconnect option when rst
•
attempting to reconnect to a newly paired Bluetooth device.
Make sure you accept this option, so that the headset
automatically reconnects to your mobile phone; check the
user guide of your mobile phone for more information regarding
this option.
Try unpairing the headset from your phone, and repeat the
•
pairing procedure.
The sound is very low.
Try adjusting the volume by using the [Volume] button on your
•
headset; make sure the volume on your mobile phone is
turned up as well.
[POWER]
button until the BLUE indicator
FCC and telephone company information
FCC Part 15
This equipment has been tested and found to comply with the
requirements for a Class B digital device under Part 15 of the
Federal Communications Commission (FCC) rules. These
requirements are intended to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Do not attempt to repair or modify this equipment.
Warning: Changes or modications to this equipment not
expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Limited Warranty
In the unlikely event that this product is defective, or does
not perform properly, you may within one (1) year from your
original date of purchase return it to the authorized service
center for repair or exchange.
TO OBTAIN WARRANTY SERVICE:
• Provide proof of the date of purchase within the package
(Dated bill of sale).
• Prepay all shipping costs to the authorized service center,
and remember to insure your return.
• Include a return shipping address (no P.O. Boxes),
a telephone contact number, and the defective unit within
the package.
• Describe the defect or reason you are returning the product.
Your product will be repaired or replaced, at our option, for the same
or similar model of equal value if examination by the service center
determines this product is defective. Products received damaged
as a result of shipping will require you to le a claim with the carrier.
The shipping address of the authorized service center is:
Southern Telecom, Inc.
ATTN: Returns Department
14-C 53rd Street
Brooklyn, NY 11232
Should you have any questions or problems concerning this
product, please contact our customer service department at:
1-877-768-8483 (Toll Free)
Monday - Thursday: 9AM - 5PM (EST)
Friday: 9AM - 3PM (EST)
or
via e-mail at
cs@southerntelecom.com
Warranty service not provided
This warranty does not cover damage resulting from accident,
misuse, abuse, improper installation or operation, lack of reasonable
care, and unauthorized modication. This warranty is voided in
the event any unauthorized person opens, alters or repairs this
product. All products being returned to the authorized service
center for repair must be suitably packaged.
Limitation of Warranty:
• THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY
APPLICABLE TO THIS PRODUCT. ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED (INCLUDING ALL IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE) ARE
HEREBY DISCLAIMED. NO VERBAL OR WRITTEN INFORMATION
GIVEN BY SOUTHERN TELECOM INC. IT’S AGENTS, OR EMPLOYEES
SHALL CREATE A GUARANTY OR IN ANY WAY INCREASE THE
SCOPE OF THIS WARRANTY.
• REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY
IS THE EXCLUSIVE REMEDY OF THE CONSUMER. SOUTHERN
TELECOM INC. SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS
PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS
OR IMPLIED WARRANTY ON THIS PRODUCT. THIS DISCLAIMER
OF WARRANTIES AND LIMITED WARRANTY ARE GOVERNED
BY THE LAWS OF THE STATE OF NEW YORK. EXCEPT TO THE
EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED TO
THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE.
Some states do not allow the exclusion nor limitation of incidental
or consequential damages, or limitations on how long an implied
warranty lasts so the above limitations or exclusions may not apply
to you. This warranty gives you specic legal rights, and you
also may have other rights that vary from state to state.
www.emersonphones.com
Distributed by Southern Telecom Inc. Brooklyn, NY 11232
© 2010 Southern Telecom Inc. All rights reserved.
Emerson and the G-Clef logo are registered trademarks of
Emerson Radio Corp. Parsippany, New Jersey USA.
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc.
SONY PlayStatiion® & PS3™ are either trademarks or registered
trademarks of SONY.
All other trademarks are trademarks of their respective owners.
Loading...
