Part No. F40BP72650000 Form No. BP7265
READ AND SAVE THESE INSTRUCTIONS
Model No.
CF945WB 00
CF945HTW 00
CF945AB 00
CF945PW 00
CHATEAU ROYALE
Series Ceiling Fan Owner's Manual
®
Net Weight: 33.0 Lbs.
LIMITED WARRANTY
What The Warranty Covers:
This warranty covers the motor and the other components and accessories of your Emerson ceiling fan against all defects in workmanship and materials.
You must be the original purchaser or user of the product to be covered.
What The Period Of Coverage Is:
As it applies to the motor, this warranty will last for thirty years from the date you purchased your ceiling fan. All other components and accessories are
covered by this warranty for one year from the date you purchased your ceiling fan. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, MADE WITH RESPECT TO COMPONENTS AND ACCESSORIES IS ALSO LIMITED TO ONE YEAR.
What Will Emerson Company Do To Correct Problems:
Emerson will replace a defective Emerson Air Comfort Ceiling Fan motor, blade, component or other accessory at no charge to you. If repair of the motor or
blades is not practical or possible within a reasonable time and no replacement can be provided, Emerson will refund the actual purchase price of your fan.
WE WILL SHIP THE REPAIRED PRODUCT OR REPLACEMENT TO YOU AT NO CHARGE, BUT YOU ARE RESPONSIBLE FOR ALL COSTS OF REMOVAL,
REINSTALLATION AND SHIPPING OF THE PRODUCT TO EMERSON.
How Can You Get Service:
YOU MUST HAVE PROOF OF YOUR PURCHASE OF THE CEILING FAN TO OBTAIN LIMITED WARRANTY SERVICE. KEEP YOUR RECEIPT OR OTHER PROOF
OF PURCHASE. You can return the product to our factory or to your nearest authorized service center.
• To return the product to the factory, obtain a return authorization and service identification tag by writing to Air Comfort Products, Division of Emerson
Company, 8100 W. Florissant Ave., St. Louis, MO 63136. Include all model numbers shown on the product with your request.
• To return the product to an authorized service center, call 1-800-654-3545 for the address of the nearest authorized service center. You will be
responsible for all insurance, freight or other transportation charges to our factory or authorized service center. Your Emerson Air Comfort Ceiling Fan
should be properly packed to avoid damage in transit since we will not be responsible for any such damage.
What Is Not Covered:
The glass globes and light bulbs of your ceiling fan are not covered by this warranty. This warranty also does not cover any defects, malfunctions or failures
caused by:
• Repairs by persons not authorized by Emerson Company,
• Use of parts or accessories not authorized by Emerson Company,
• Mishandling, improper installation, modifications or damage to your ceiling fan while in your possession, or
• Unreasonable use, misuse, abuse, including failing to do reasonable and necessary maintenance, and normal wear and tear.
Additionally, this warranty and any implied warranty of merchantability or fitness for a particular purpose are voided when:
• The original purchaser or user ceases to own the product, or
• The fan is moved from its original point of installation.
This warranty is only valid within the 50 states of the United States and the District of Columbia. No other written or oral warranties apply, and no employee,
agent, dealer or other person is authorized to give any warranties on behalf of Emerson Company.
REPAIR, REPLACEMENT OR A REFUND ARE THE EXCLUSIVE REMEDIES AVAILABLE UNDER THIS WARRANTY AND EMERSON IS NOT RESPONSIBLE
FOR DAMAGES OF ANY KIND, INCLUDING INCIDENTAL AND CONSEQUENTIAL DAMAGES. Incidental damages include but are not limited to such damages
as loss of time and loss of use. Consequential damages include but are not limited to the cost of repairing or replacing other property which was
damaged if this product does not work properly.
How State Law Relates To The Warranty:
Some states do not allow the exclusion or limitation of incidental or consequential damages so the above exclusion or limitation may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
2
WARNING
!
WARNING: To avoid fire, shock, and serious personal injury, follow these instructions.
Safety Instructions
1. Read your owner’s manual carefully and keep it for future reference.
2. Before servicing or cleaning unit, switch power off at service panel and lock service panel
disconnecting means to prevent power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a warning device, such as a tag, to the
service panel.
3. Be careful of the fan and blades when cleaning, painting, or working near the fan. Always turn off
the power to the ceiling fan before servicing.
4. Do not put anything into the fan blades while they are turning.
5. Do not operate reversing switch until fan blades have come to a complete stop.
Additional Safety Instructions for Installation
1. To avoid possible shock, be sure electricity is turned off at the fuse box before wiring, and do not
operate fan without blades.
2. All wiring must satisfy National and Local Electrical Codes. Use the National Electrical Code if
Local Codes do not exist. The ceiling fan must be grounded as a precaution against possible
electrical shock. Electrical installation should be made or approved by a licensed electrician.
3. The outlet box and joist must be securely mounted and capable of reliably supporting at least 50
pounds. Use only U.L. outlet boxes listed as acceptable for fan support, and use the mounting
screws provided with the outlet box. Most outlet boxes commonly used for support of light
fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified
electrician if in doubt.
4. The 4-1/2” downrod furnished with the fan provides the minimum recommended floor to fan blade
clearance for an 8 foot ceiling. The 18” downrod furnished with the fan must be used with a 9 foot
(minimum) ceiling or a cathedral ceiling. The 18” downrod must be installed when using the
decorative rods.
5. The fan must be mounted with the fan blades at least 7 feet from the floor to prevent accidental
contact with the fan blades.
6. Follow the recommended instructions for the proper method of wiring your ceiling fan. If you do
not know enough about electrical wiring, have your fan installed by a licensed electrician.
WARNING: To avoid fire, shock or injury, do not use an Emerson or any other brand of control not
specifically approved for this fan.
WARNING: This product is designed to use only those parts supplied with this product and/or any
accessories designated specifically for use with this product by Emerson. Substitution of parts or
accessories not designated for use with this product by Emerson could result in personal injury or
property damage.
WARNING: To reduce the risk of personal injury, do not bend the blade flange when installing the
blade flanges, balancing the blades or cleaning the fan. Do not insert foreign objects in between
rotating fan blades.
DATE CODE:
The date code of this fan may be found on
the box, stamped in ink on a white label.
You should record this data above and keep
it in a safe place for future use.
1. Check to see that you have received the following
parts:

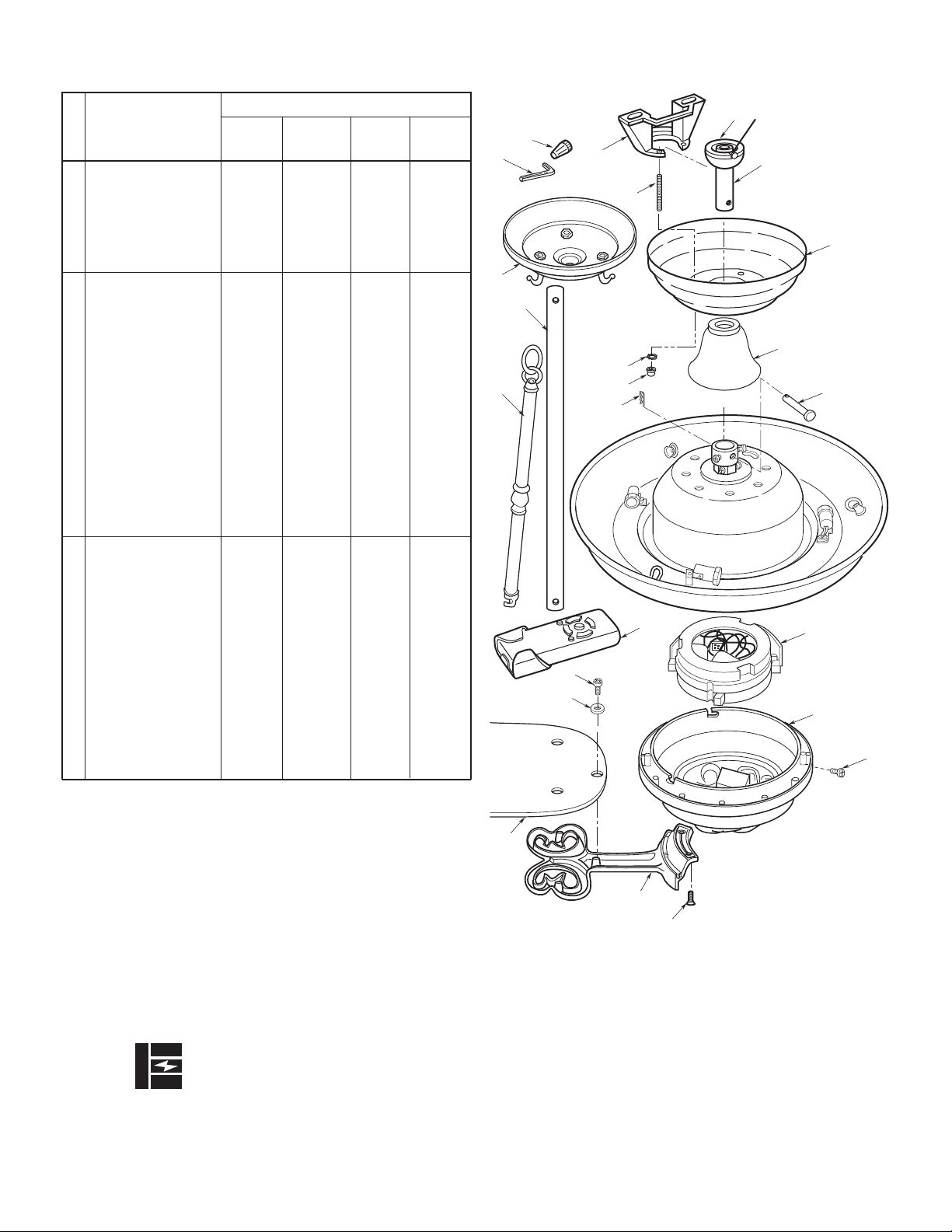

NOTE: If you are uncertain of part description,
refer to exploded view illustration.
a. Fan motor assembly
b. One switch housing
c. Five fan blades
d. One ceiling cover
e. Five blade flanges
f. One remote control transmitter
g. One remote control receiver
h. One hanger ball/downrod assembly
i. One hanger bracket
j. One coupling cover
k. Three rod assemblies
l. One rod support assembly
m.One 18” downrod
n. One loose parts bag containing:
1. Sixteen 3/16-24 x 3/8” slotted washer
head blade screws
2. Sixteen plastic washers
3. Eleven 1/4-20 x 1/2” flange screws
4. Three wire connectors
5. Two threaded studs
6. Two knurled knobs
7. Two lockwashers
This Manual Is Designed to Make it as Easy as Possible for You to Assemble,
Install, Operate and Maintain Your Ceiling Fan
T ools Needed for Assembly
One Phillips head screwdriver One stepladder
One 1/4” blade screwdriver One wire stripper
Three wire connectors (supplied)
MA TERIALS
1. Wiring outlet box and box connectors must be of
type required by the local code. The minimum wire
would be a 3-conductor (2-wire with ground) of the
following size:
3
Installed Wire Length Wire Size A.W.G.
Up to 50 ft. 14
50-100 ft. 12
2. A 9-volt alkaline battery is required for operating
the remote control.
3. Four 40-watt (maximum) candelabra base lamps
are required for the uplights.
Unpacking Instructions
For your convenience, check-off boxes are provided next to each step. As each step is completed, place a
check mark in the box. This will insure that all steps have been completed and will be helpful in finding
your place should you be interrupted.
Before assembly your ceiling fan, refer to instructions
on proper method of wiring your fan (page 6). If you feel
you do not have enough wiring knowledge or experience, have your fan installed by a licensed electrician.
Do not install or use fan if any part is damaged or
missing. Call Toll-Free:
1-800-654-3545
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product by
Emerson Company. Substitution of parts or accessories not designated for use with this product by
Emerson Company could result in personal injury or
property damage.
8. One clevis pin
9. One hairpin clip
10. One 5/64” hex wrench
NOTE: Place the parts from the loose parts bags
in a small container to keep them from being lost.
If any parts are missing, contact your local retailer or catalog outlet for replacement before
proceeding.
2. Remove the fan motor assembly from the
protective plastic bag and place it into the lower
foam pad with the top of the fan motor assembly
facing up.
The lower foam pad serves as a holder for the fan
during assembly.
WARNING
!
WARNING
!
WARNING
!
FAN MOTOR
ASSEMBLY
HANGER BALL/
DOWNROD
LOOSE
PARTS
BAG
BLADE
FLANGES
ROD SUPPORT
ASSEMBLY
REMOTE
CONTROL
TRANSMITTER
COUPLING
COVER
ASSEMBLY
HANGER
BRACKET
CEILING
COVER
SWITCH
HOUSING
REMOTE
CONTROL
RECEIVER
18" DOWNROD
ROD ASSEMBLY (3)
FAN
BLADES
IMPORTANT
This Owner’s Manual is divided into two sections.
The first section, REMOTE CONTROL
PROCEDURES, describes how to install the 9-volt
alkaline battery (not included) in the remote
control transmitter, and how to set the operating
frequency of the transmitter and receiver. These
instructions must be performed prior to
installation of the ceiling fan as described in the
second section, CEILING FAN PROCEDURES.
REMOTE CONTROL
PROCEDURES
General
The remote control supplied with your Emerson
ceiling fan consists of a hand-held transmitter and a
receiver which is mounted in the switch housing. The
remote control is designed to separately control your
ceiling fan and light intensities. There are four push
buttons (HI, MED, LOW, OFF) to set the fan speed
and turn the fan off. The REV push button changes
the airflow direction of the fan blades. The U/L
(uplight) and D/L (downlight) pushbuttons turn the
lights on and off and control the light intensities. The
red indicator light will illuminate while any button is
pressed, indicating that the battery is good.
The remote control transmitter is powered by a 9-volt
alkaline battery (not included). To prevent possible
damage if the battery should leak, be sure to remove
the battery when the control is not to be used for an
extended period of time.
Code switches in the transmitter and receiver may be
set in 16 different positions. If your fan and light go on
and off without using your control, you may be getting
interference from other remote units such as garage
door openers, car alarms or security systems. To
remedy this situation, simply change the combination
code in your transmitter and receiver.
Preset Memory Feature
Your Emerson remote control receiver is equipped
with a preset memory feature. If the electrical supply
to the receiver is controlled through a wall switch,
when the switch is turned off, the control will
remember the light intensities and fan speed. When
the switch is turned back on, the lights and fan will
resume operation as they were prior to the switch
being turned off.

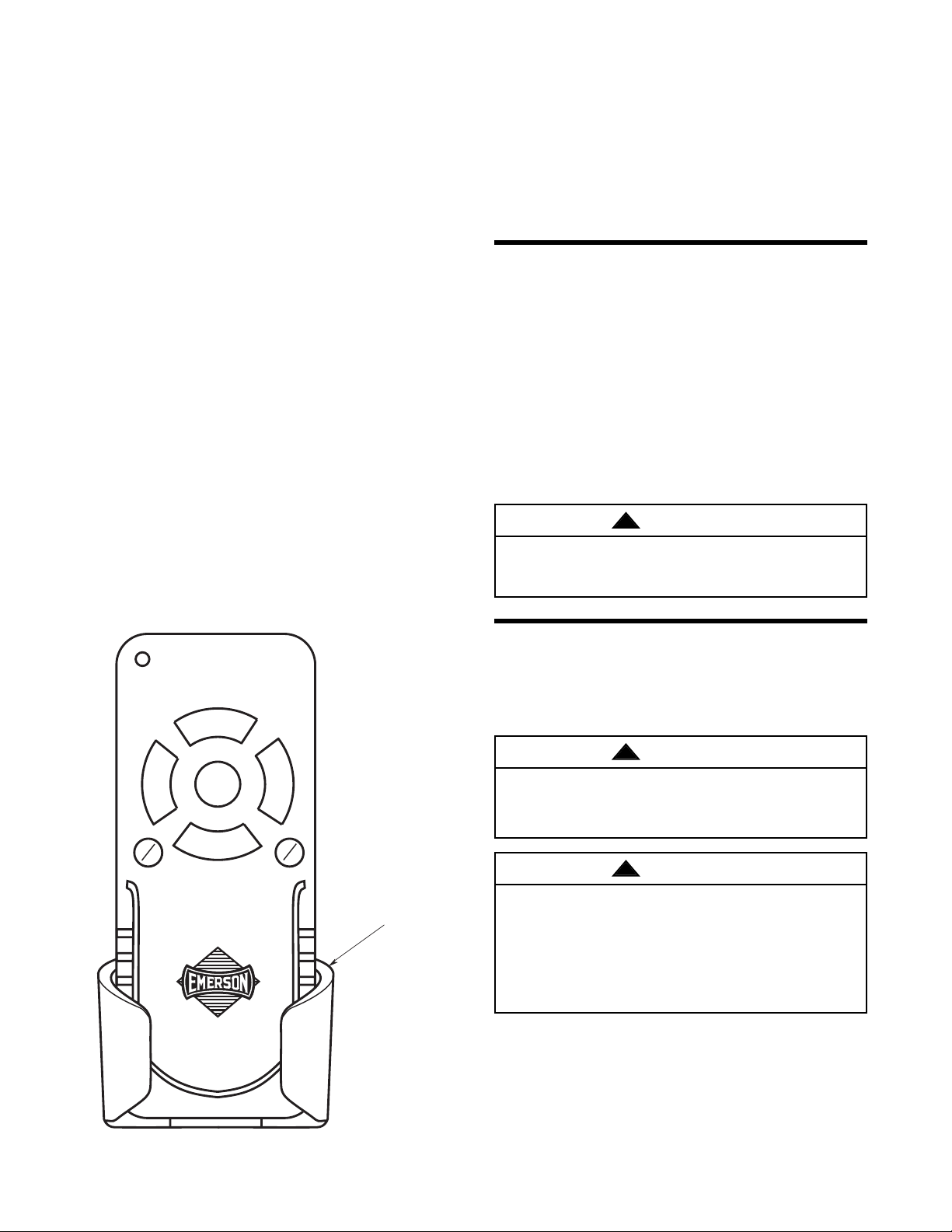

Installation of Battery
1. Remove the battery cover by pressing firmly below
the arrow and sliding the cover off the control
(Figure 1).
2. Remove the connector from the battery
compartment and attach it to the 9-volt alkaline
battery (not included).
4
Electrical Requirements
If your fan is to replace an existing ceiling light fixture,
turn electricity off at the main fuse box at this time and
remove the existing light fixture.
Your new ceiling fan will require a grounded electrical
supply line of 120 volts AC, 60 Hz, 15 amp circuit.
The outlet box must be securely anchored and capable of withstanding a load of at least 50 pounds.
To reduce the risk of fire, electric shock, or personal
injury, mount fan to outlet box marked acceptable for
fan support, and use screws supplied with outlet
box. Most outlet boxes commonly used for support
of light fixtures are not acceptable for fan support
and may need to be replaced. Consult a qualified
electrician if in doubt.
To avoid fire or shock, follow all wiring instructions
carefully. Any electrical work not described in these
instructions should be done or approved by a
licensed electrician.
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is
turned off at the main fuse box before wiring. All
wiring must be in accordance with National and
Local codes and the ceiling fan must be properly
grounded as a precaution against possible electrical
shock.
WARNING
!
WARNING
!
WARNING
!
Figure 1
REMOTE CONTROL
RECEIVER
REMOTE CONTROL
TRANSMITTER
CODE SWITCH
1 2 3 4
BATTERY
CONNECTOR
ON
1 2 3 4
ON
BATTERY
CODE
SWITCH
SWITCH
LEVERS
CODE
SWITCH
BATTERY
COVER
Setting Operating
Frequency of Transmitter
and Receiver
Your remote control transmitter and receiver have
code switches which must be set on one of 16
possible code combinations. The four levers
(numbered 1, 2, 3, and 4) on the switches are factoryset in the ON (up) position. Do not use this setting.
Change the switch settings as follows:
1. Slide the four switch levers (Figure 1) in the remote
control transmitter to your choice of ON (up) or
down positions. Use a ball-point pen or small
screwdriver and slide the levers firmly up or down.
2. In the receiver, slide the four switch levers in the
same positions as set in the transmitter. Make sure
the levers on both switches are in the same
positions; otherwise the fan will not operate.
3. Position the battery in the transmitter battery
compartment and replace the battery cover.
CEILING FAN
PROCEDURES
How to Put Your Ceiling
Fan Together
1. Remove the hanger ball by loosening the setscrew
in the hanger ball until the ball falls freely down the
downrod (Figure 2). Remove the pin from the
downrod, then remove the hanger ball. Retain the
pin and hanger ball for reinstallation in Step 5.
2. Separate, untwist and unkink the two 80” motor
leads. Route the motor lead wires through either
the 4-1/2” or the 18” downrod. Remove the two
upper setscrews from the motor coupling. Align the
clevis pin holes in the downrod with the holes in the
motor coupling. Install the clevis pin and secure
with the hairpin clip (Figure 3). The clevis pin must
go through the holes in the motor coupling and the
holes in the downrod. Be sure to push the straight
leg of the hairpin clip through the hole near the end
of the clevis pin until the curved portion of the
hairpin clip snaps around the clevis pin. The hairpin
clip must be properly installed to prevent the clevis
pin from working loose. Pull on the downrod to
make sure the clevis pin is properly installed.
Reinstall the upper setscrews in the motor
coupling. Check that the lower setscrews are
tightened securely (Figure 3).
NOTE: The setscrews must be properly installed
as described above, or fan wobble could result.
4. Position the ceiling cover over the downrod. Be
sure the cover is oriented correctly, with the large
opening at the top (Figure 5).
5
Figure 2
3. Make sure the grommet is properly installed in the
coupling cover, then slide the coupling cover on the
downrod until it rests on the motor housing
(Figure 4).
It is critical that the clevis pin in the motor coupling
is properly installed and the setscrews securely
tightened. Failure to verify that the pin and setscrews
are properly installed could result in the fan falling.
WARNING
!
Figure 3
Figure 4
IMPORTANT
A. If you have installed an 18” or longer
downrod and are planning to install the
decorative support rods assembly, proceed
to “INSTALLATION OF DECORATIVE
SUPPORT RODS ASSEMBLY” on page 9.
After you have installed the decorative
support rods assembly, continue with the
following installation procedures.
B. If you have installed the 4-1/2” downrod,
continue now with the following
procedures.
DOWNROD
HAIRPIN
CLIP
LOWER
SETSCREW (2)
UPPER SETSCREW (2)
MOTOR
COUPLING
CLEVIS PIN
HANGER
BALL
SETSCREW
PIN
DOWNROD
DOWNROD
COUPLING COVER
5. Reinstall the hanger ball (Figure 5) on the downrod as
follows. Route the two 80” motor leads through the
hanger ball. Position the pin through the two holes in
the downrod and align the hanger ball so the pin is
captured in the groove in the top of the hanger ball.
Pull the hanger ball up tight against the pin. Securely
tighten the setscrew in the hanger ball.
A loose setscrew could create fan wobble.
6.Screw in four 40-watt (maximum) candelabra base
lamps in the housing sockets (Figure 6). Grasp the
sockets and pivot them until the lamp bulbs are
even with the outer edge of the housing as shown.
This will provide the optimum lighting effect.
7.The fan comes with black and white leads that are
80” long. Before installing fan, measure up approximately 6 to 9-inches above top of hanger ball/downrod assembly. Cut off excess leads and strip back
insulation 1/2-inch from end of leads.
6
Figure 5
It is critical that the pin in the hanger ball is properly
installed and the setscrew securely tightened.
Failure to verify that the pin and setscrew are properly installed could result in the fan falling.
WARNING
!
Figure 6
CEILING
Figure 7
To reduce the risk of fire, electric shock, or personal
injury, mount fan to outlet box marked acceptable for
fan support, and use screws supplied with outlet
box. Most outlet boxes commonly used for support
of light fixtures are not acceptable for fan support
and may need to be replaced. Consult a qualified
electrician in in doubt.
The outlet box must be securely anchored and capable
of withstanding a load of at least 50 lbs.
WARNING
!
WARNING
!
The fan must be hung with at least 7' of clearance
from floor to blades (Figure 7).
WARNING
!
Hanger bracket must seat firmly against outlet box. If
the outlet box is recessed, remove wall board until
bracket contacts box. If bracket and/or outlet box are
not securely attached, the fan could wobble or fall.
TWO SCREWS
SUPPLIED WITH
OUTLET BOX
HANGER
BRACKET
TAB
OUTLET
BOX
Figure 2
Figure 8
9. Carefully lift the fan and seat the hanger ball/downrod assembly on the hanger bracket that was just
attached to the outlet box (Figure 9). Be sure the
groove in the ball is lined up with tab on the hanger
bracket (Figure 8).
WARNING
!
8.Securely attach the hanger bracket to the outlet box
using the two screws supplied with the outlet box.
(Figure 8.)
To avoid possible fire or shock, do not pinch wires
between the hanger ball/downrod assembly and
hanger bracket.
WARNING
!
Failure to seat tab in groove could cause damage to
electrical wires and possible shock or fire hazard.
WARNING
!
HANGER
BALL
SETSCREW
PIN
DOWNROD
CEILING COVER
AT LEAST
7'
FLOOR
TOP ALIGN WITH
OUTER EDGE OF
THE HOUSING
SOCKET
CANDELABRA
BASE LAMP
7
If you feel that you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
10.Connect the green grounding lead from the hanger
ball and the green grounding lead from the hanger
bracket to the grounding conductor of supply (this
may be a bare wire or wire with green colored
insulation). Securely connect wires with wire
connector supplied. (Figure 10).
11.Securely connect the fan motor white wire to the
supply white (neutral) wire using wire connector
supplied (Figure 10). Securely connect the fan
motor black wire to the supply black (hot) wire
using wire connector supplied (Figure 10). After
connections have been made, turn leads upward
and carefully push leads into the outlet box.
To avoid possible electrical shock, be sure electricity
is turned off at the main fuse box before wiring.
NOTE: If you are not sure if the outlet box is grounded, contact a licensed electrician for advice, as it
must be grounded for safe operation.
WARNING
!
NOTE: CEILING COVER,
Figure 9
Figure 10
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not
operate fan until blades are in place. Noise and fan
damage could result.
WARNING
!
12. Screw the two threaded studs (supplied) into the
tapped holes in the hanger bracket (Figure 10).
13. Lift the ceiling cover up to the threaded studs and
turn until studs protrude through the holes in the
ceiling cover (Figure 11).
14. Secure the ceiling cover in place by sliding lockwashers over the threaded studs and installing the two
knurled knobs (supplied) (Figure 11). Tighten the
knurled knobs securely until the ceiling cover fits
snugly against the ceiling.
Figure 11
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the outlet box
and not pinched between the ceiling cover and the
ceiling.
WARNING
!
15. Mount blade flanges to fan blades using three
3/16-24 x 3/8” slotted washer head blade screws,
three plastic washers (Figure 12).
NOTE: Take care not to scratch fan housing when
installing blades.
NOTE: Remove and discard the four shipping
spacers and screws from the motor hub.
Figure 12
SUPPLY WIRES AND
FAN WIRES OMITTED
FOR CLARITY.
OUTLET
BOX
HANGER
BRACKET
HANGER BALL/
DOWNROD ASSEMBLY
CEILING COVER
WHITE SUPPLY
(NEUTRAL)
BLACK SUPPLY
(HOT)
BLACK FAN
WIRE
WHITE
FAN WIRE
THREADED STUD
KNURLED KNOB
LOCKWASHERS (2)
3/16-24 X 3/8" WASHER
HEAD BLADE SCREW (3)
PLASTIC WASHER (3)
FAN BLADE
SUPPLY
GROUND WIRE
GREEN WIRE
(GROUND) FROM
HANGERBALL
GREEN WIRE
(GROUND) FROM
HANGER BRACKET
LISTED WIRE
CONNECTOR (3)
HANGER
BRACKET
THREADED
STUD (2)
BLADE
FLANGE
8
17. The blade flanges have an interlocking feature
that must be fully engaged before tightening the
screws. Make sure all the flanges are properly
engaged and then tighten the flange screws.
If one of the flanges does not seat properly on
the motor hub, loosen the adjacent flange
screws, re-engage and reseat the flanges, then
tighten the screws again.
18. Engage the motor connector with the connector
in the remote control receiver (Figure 14). The
two connectors are keyed and must be mated
correctly before they can be engaged.
Figure 13
Figure 14

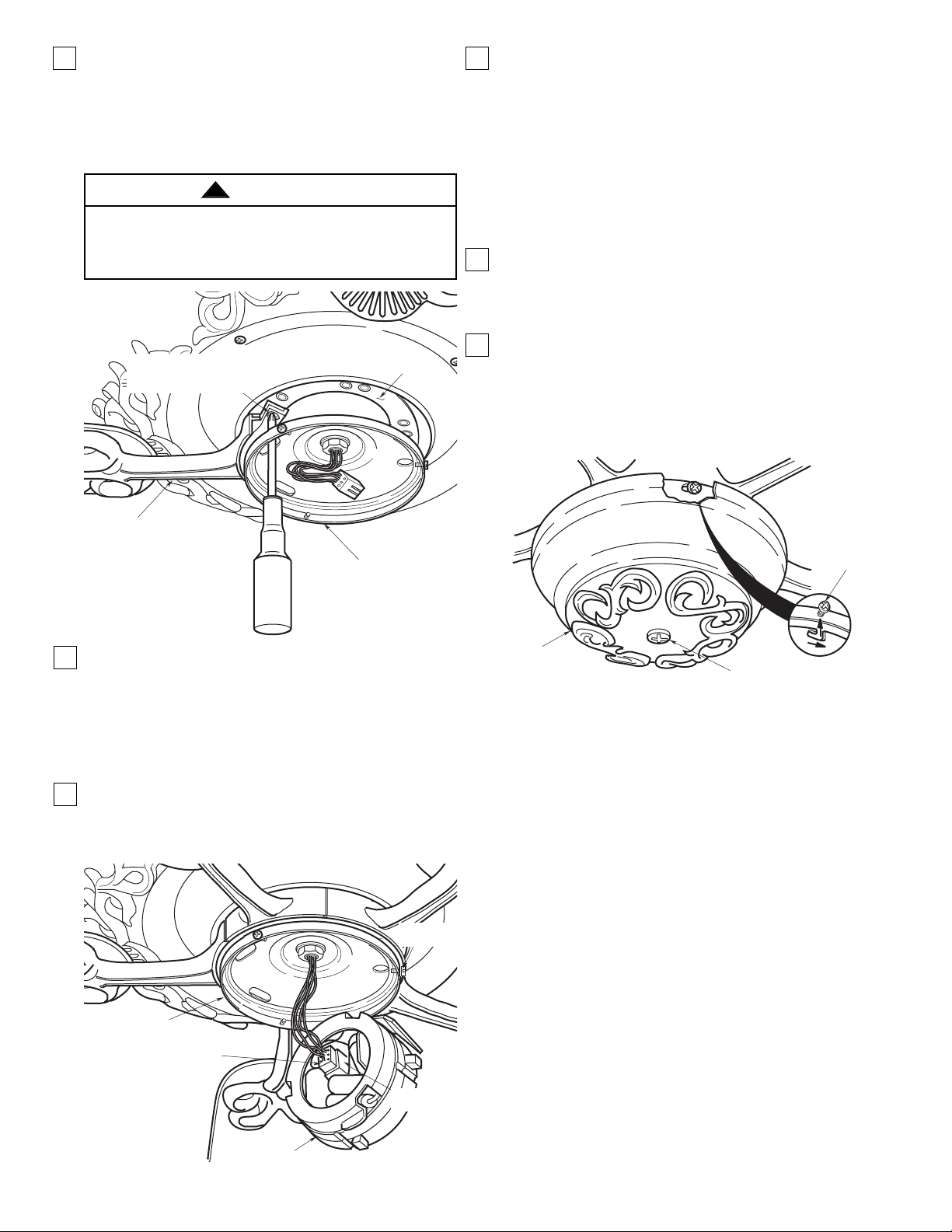

16. Rotate the motor hub until the flange screw holes
are visible through the slots in the switch housing
plate. Loosely attach one blade assembly to the
motor hub using two 1/4-20 x 1/2” flange screws
(Figure 13). Make sure the screws are NOT
tightened. Repeat this procedure for the other
four blade assemblies.
19. Remove one of the mounting screws from the
switch housing plate (Figure 14) and loosen the
other two screws several turns.
NOTE: If you are installing an Emerson Light
Fixture with your fan, refer to the Light Fixture
Owner’s Manual and proceed as follows. Remove
the center screw from the switch housing and
install the light fitter in the threaded hole.
Connect the blue wire from the light fitter to the
receiver blue wire, and the white wire from the
light fitter to the receiver white wire.
20. Remove the protective paper from the three
adhesive blocks in the switch housing.Then position the remote control receiver securely onto the
three adhesive blocks, making sure the antenna
wire is uncoiled in the switch housing.
21. Engage the two slots in the switch housing with
the two loosened mounting screws in the switch
housing plate (Figure 15). Rotate the switch
housing to the right, then tighten the two mounting screws and install the other mounting screw
previously removed in Step 19.
Figure 15
To reduce the risk of personal injury, do not bend the
blade flange when installing the blade flanges,
balancing the blades or cleaning the fan. Do not
insert foreign objects in between rotating fan blades.
WARNING
!
1/4-20 x 1/2" FLANGE SCREWS
(INSTALL THROUGH SLOTS
IN SWITCH HOUSING PLATE)
MOTOR
HUB
BLADE
FLANGE
SWITCH HOUSING
PLATE
MOUNTING
SCREW (3)
SWITCH
HOUSING
CENTER
SCREW
MOUNTING
SCREW (3)
SWITCH HOUSING
PLATE
MOTOR CONNECTOR
REMOTE CONTROL
RECEIVER
RECEIVER
CONNECTOR
9
Installation of the Decorative Support Rods Assembly
NOTE: The following procedures are to be
performed only if you have installed the 18” (or
longer) downrod.
1. Loosen the setscrew in the collar of the rod
support assembly using the 5/64” hex wrench
(supplied) and slide the support assembly over the
downrod (Figure 16).
2. Verify that one or two threads are visible between
the decorative turnbuckle and the rod segments
(Figure 17). If necessary, turn rod segments to
expose more threads. Repeat for all rod
assemblies.
3. Engage the rod hook with the ring in the housing
assembly (Figure 17).
Figure 16
Figure 17
4. Raise the rod support assembly and loosely
engage the rod ring with one of the hooks on the
rod support assembly (Figure 18). Then tighten the
setscrew using the 5/64” hex wrench (supplied).
5. Engage the other two support rods in the same
manner as above. Loosen the setscrew and raise
the rod support assembly until the support rods are
taut and in line with the downrod (Figure 19). Then
securely tighten the setscrew using the 5/64” hex
wrench.
6. Tighten (rotate) the turnbuckles (Figure 17) of the
rod assemblies to take up any slack, thereby
reducing the chance of noise due to vibration when
the fan is operating.
NOTE: The decorative support rods are now
installed and the fan is ready for further
installation. Continue with Step 4 in CEILING FAN
PROCEDURES, Page 5.
Figure 18
Figure 19
ROD SUPPORT
ASSEMBLY
SETSCREW
DOWNROD
ROD SUPPORT
ASSEMBLY
SETSCREW
ROD
ASSEMBLY
HOOK
LOOSELY
ENGAGE
ROD RING
WITH
HOOK
ROD SEGMENT
DECORATIVE TURNBUCKLE
(ROTATE THE TURNBUCKLE
TO REMOVE SLACK IN ROD
ASSEMBLY; SEE STEP 6)
HOUSING
ASSEMBLY
RING
HOOK
SETSCREW
DOWNROD
SUPPORT RODS
SHOULD BE
IN LINE WITH
DOWNROD
10
Operation
IMPORTANT
Fan installation must be completed, including the
installation of the fan blades, before testing of the
remote control.
Your remote control has full control of your fan and
lights.
NOTE: Prior to operation of the down light from
the remote control, make sure the switch on the
light is ON.
1. To set the desired fan speed, press the HI, MED,
or LOW button to operate your fan on high,
medium, or low speed.
2. To turn your fan off, press the OFF button.
3. To change the airflow direction of the fan blades,
press the REV button.
4. To turn the downlight on, press and release the D/L
button. The light will turn on at the light intensity
previously selected.
5. To turn the uplight on, press and release the U/L
button. The light will turn on at the light intensity
previously selected.
6. To vary the intensity of the light, hold the U/L or D/L
button down until the desired light intensity is
reached, then release the button.
Accessories
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product by
Emerson Company. Substitution of parts or accessories not designated for use with this product by
Emerson Company could result in personal injury or
property damage.
The use of any other control not specifically
approved for this fan could result in fire, shock and
personal injury.
1. Ceiling Fan Light Kits (see store or catalog).
2. Downrod Extension Kits (see store or catalog).
WARNING
!
WARNING
!
IMPORTANT CARE INSTRUCTIONS
for your Ceiling Fan
Periodic cleaning of your new ceiling fan is the only
maintenance that is needed.
When cleaning, use only a soft brush or lint free cloth
to avoid scratching the finish.
Abrasive cleaning agents are not required and should
be avoided to prevent damage to finish.
Maintenance
Do not use water when cleaning your ceiling fan. It
could damage the motor or the blades and create the
possibility of an electrical shock.
WARNING
!
Installation of
Storage Bracket
A storage bracket is supplied with the remote control
for holding the control unit when not in use. If you
desire to use the bracket, use the two screws
(supplied) and install it on a wall that is away from
excess heat or humidity.
MED
LOW
REV
HI
U
L
OFF
D
L
STORAGE
BRACKET
®
Trouble Shooting
TROUBLE PROBABLE CAUSE SUGGESTED REMEDY
1. Fan will not start. 1. Fuse or circuit breaker blown. 1. Check main and branch circuit fuses or circuit
breakers.
2. Loose power line connections to the fan 2. Check line wire connections to fan in the
in the ceiling cover. ceiling cover.
WARNING: Make sure main power is
turned OFF.
3. Dead battery in Remote Control 3. Replace battery (red indicator light on
transmitter. transmitter should light when any button is
pressed).
4. Code switches in Remote Control 4. Check that code switches are in same positions.
receiver and transmitter are not in Reset if necessary.
same positions.
2. Fan sounds noisy. 1. Blades not attached to fan. 1. Attach blades to fan before operating.
2. Loose screws in motor housing. 2. Check to make sure all screws in motor
housing are snug (not over-tight).
3. Screws securing fan blade flanges to 3. Check to make sure the screws which attach
motor are loose. the fan blade flanges to the motor are tight.
4. Wire connectors inside the switch 4. Check to make sure wire connectors in the
housing are rattling. switch housing are not rattling against each
other or against the interior wall of the switch
housing.
WARNING: Make sure main power is
turned OFF.
5. Screws holding blades to flanges 5. Tighten screws securely.
are loose.
3. Fan wobbles 1. Setscrews in motor coupling are loose. 1. Tighten setscrews securely in the motor
excessively. coupling.
2. Setscrew in hanger ball/downrod 2. Tighten the setscrew in the hanger ball/
assembly is loose. downrod assembly.
3. Screws securing fan blade flanges to 3. Check to be sure screws which attach the fan
motor are loose. blade flanges to the motor are tight.
4. Fan blade flanges not seated properly. 4. Check to be sure the fan blade flanges seat
firmly and uniformly to the surface of the motor.
If flanges are seated incorrectly, loosen the
flange screws and retighten according to the
procedure in the section on "CEILING FAN
PROCEDURES".
5. Hanger bracket and/or ceiling outlet 5. Tighten the hanger bracket screws to the outlet
box is not securely fastened. box, and/or secure outlet box.
6. Fan blades out of balance. 6. Interchanging an adjacent (side-by-side) blade
pair can redistribute the weight and result in
smoother operation.
4. Short range for 1. The Remote Control operates the fan 1. Try placing the antenna wire outside the
Remote Control. when close in, but does not operate switch housing.
at a distance of 30 feet. 2. Try a different frequency setting on the
transmitter/receiver (both MUST be set
the same).
11
WARNING: For your own safety, turn off power at fuse box or circuit breaker before trouble shooting your fan.
!
!
!
Model No.
Key
No . Description CF945WB00 CF945HTW00 CF945AB00 CF945PW00
Hanger Ball Assembly, 761655-20 761655-12 761655-3 761655-22
Consisting of:
1 Hanger Bracket — — — —
2 Hanger Ball — — — —
3 Downrod — — — —
Parts Bag Containing: 762292 762292-1 762292 762292
4 Wire Connector (3) — — — —
5 Wrench, Hex , 5/64 — — — —
6 Threaded Stud (2) — — — —
7 Lockwasher (2) — — — —
8 Knurled Knob (2) — — — —
9 Pin, Clevis — — — —
10 Clip, Hairpin — — — —
11 Screw, 1/4-20 x 1/2” (11) — — — —
12 Screw, 3/16-24 x 3/8” (16) — — — —
13 Washer, Plastic (16) — — — —
14 Screw, 5/32-32 x 3/8” (3) — — — —
15 Ceiling Cover 761939-3 761939-1 761939-6 761939-7
16 Coupling Cover 761860-6 761860-5 761860-7 761860-12
17 Remote Control Transmitter 762281 762281 762281 762281
18 Switch Housing 762257 762257-1 762257-2 762257-3
19 Flange (Set of 5) 762288 762288-1 762288-2 762288-3
20 Blade (Set of 5) 761859-24 761859-6 761859-8 761859-17
21 Remote Control Receiver 762291 762291 762291 762291
22 Downrod, 18” 760239-146 760239-183 760239-40 760239-161
23 Rod Assembly (3) 762290 762290-1 762290-2 762290-3
24 Rod Support Assembly 762289 762289-1 762289-2 762289-3
—
Owner's Manual BP7265 BP7265 BP7265 BP7265
Before discarding packaging material, be certain all parts
have been removed.
HOW TO ORDER REPAIR PARTS
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION:
• PART NUMBER • PART DESCRIPTION
• NAME OF ITEM • MODEL NUMBER
For repair parts, phone 1-800-654-3545.
Part No. F40BP72650000 Printed in Taiwan 03/02 Form No. BP7265
EMERSON
Air Comfort Products
DIVISION OF EMERSON COMPANY
8100 W. Florissant, St. Louis, MO 63136
19
16
9
20
13
12
21
18
14
8
7
5
10
1
2
3
6
4
23
11
15
24
22
17
Repair Parts
Loading...
