Part No. F40BP72380003 Form No. BP7238-3
READ AND SAVE THESE INSTRUCTIONS
Model No.
CF770AW01
CF770BC01
CF770BS01
CF770OB01
CF770ORB01
CF770TG01
CF770WW01
MONTEREY
Net Weight: 19.8 Lbs.
Ceiling Fan
Owner's Manual
LIMITED WARRANTY
What The Warranty Covers:
This warranty covers the motor and the other components and accessories of your Emerson ceiling fan against all defects in workmanship and materials.
You must be the original purchaser or user of the product to be covered.
What The Period Of Coverage Is:
As it applies to the motor, this warranty will last for thirty years from the date you purchased your ceiling fan. All other components and accessories are
covered by this warranty for one year from the date you purchased your ceiling fan. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, MADE WITH RESPECT TO COMPONENTS AND ACCESSORIES IS ALSO LIMITED TO ONE YEAR.
What Will Emerson Electric Co. Do To Correct Problems:
Emerson Electric Co. will replace a defective Emerson Air Comfort Ceiling Fan motor, blade, component or other accessory at no charge to you. If repair of
the motor or blades is not practical or possible within a reasonable time and no replacement can be provided, Emerson will refund the actual purchase price
of your fan. WE WILL SHIP THE REPAIRED PRODUCT OR REPLACEMENT TO YOU AT NO CHARGE, BUT YOU ARE RESPONSIBLE FOR ALL COSTS OF
REMOVAL, REINSTALLATION AND SHIPPING OF THE PRODUCT TO EMERSON ELECTRIC CO.
How Can You Get Service:
YOU MUST HAVE PROOF OF YOUR PURCHASE OF THE CEILING FAN TO OBTAIN LIMITED WARRANTY SERVICE. KEEP YOUR RECEIPT OR OTHER PROOF
OF PURCHASE. You can return the product to our factory or to your nearest authorized service center.
• To return the product to the factory, obtain a return authorization and service identification tag by writing to Air Comfort Products, Division of Emerson
Electric Co., 8100 W. Florissant Ave., St. Louis, MO 63136. Include all model numbers shown on the product with your request.
• To return the product to an authorized service center, call 1-800-654-3545 for the address of the nearest authorized service center. You will be
responsible for all insurance, freight or other transportation charges to our factory or authorized service center. Your Emerson Air Comfort Ceiling Fan
should be properly packed to avoid damage in transit since we will not be responsible for any such damage.
What Is Not Covered:
The glass globes and light bulbs of your ceiling fan are not covered by this warranty. This warranty also does not cover any defects, malfunctions or failures
caused by:
• Repairs by persons not authorized by Emerson Electric Co.,
• Use of parts or accessories not authorized by Emerson Electric Co.,
• Mishandling, improper installation, modifications or damage to your ceiling fan while in your possession, or
• Unreasonable use, misuse, abuse, including failing to do reasonable and necessary maintenance, and normal wear and tear.
Additionally, this warranty and any implied warranty of merchantability or fitness for a particular purpose are voided when:
• The original purchaser or user ceases to own the product, or
• The fan is moved from its original point of installation.
This warranty is only valid within the 50 states of the United States and the District of Columbia. No other written or oral warranties apply, and no employee,
agent, dealer or other person is authorized to give any warranties on behalf of Emerson Electric Co.
REPAIR, REPLACEMENT OR A REFUND ARE THE EXCLUSIVE REMEDIES AVAILABLE UNDER THIS WARRANTY AND EMERSON IS NOT RESPONSIBLE
FOR DAMAGES OF ANY KIND, INCLUDING INCIDENTAL AND CONSEQUENTIAL DAMAGES. Incidental damages include but are not limited to such damages
as loss of time and loss of use. Consequential damages include but are not limited to the cost of repairing or replacing other property which was
damaged if this product does not work properly.
How State Law Relates To The Warranty:
Some states do not allow the exclusion or limitation of incidental or consequential damages so the above exclusion or limitation may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
®
2
WARNING
!
WARNING: To avoid fire, shock, and serious personal injury, follow these instructions.
Safety Instructions
1. Read your owner’s manual carefully and keep it for future reference.
2. Before servicing or cleaning unit, switch power off at service panel and lock service panel
disconnecting means to prevent power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a warning device, such as a tag, to the
service panel.
3. Be careful of the fan and blades when cleaning, painting, or working near the fan. Always turn off
the power to the ceiling fan before servicing.
4. Do not put anything into the fan blades while they are turning.
5. Do not operate reversing switch until fan blades have come to a complete stop.
Additional Safety Instructions for Installation
1. To avoid possible shock, be sure electricity is turned off at the fuse box before wiring, and do not
operate fan without blades.
2. All wiring must satisfy National and Local Electrical Codes. Use the National Electrical Code if
Local Codes do not exist. The ceiling fan must be grounded as a precaution against possible
electrical shock. Electrical installation should be made or approved by a licensed electrician.
3. The outlet box and joist must be securely mounted and capable of reliably supporting at least 50
pounds. Use only U.L. outlet boxes listed as “Acceptable for Fan Support”, and use the mounting
screws provided with the outlet box. Most outlet boxes commonly used for support of light fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt.
4. The downrod furnished with the fan provides the minimum recommended floor to fan blade
clearance for an 8 foot ceiling.
5. The fan must be mounted with the fan blades at least 7 feet from the floor to prevent accidental
contact with the fan blades.
6. Follow the recommended instructions for the proper method of wiring your ceiling fan. If you do
not know enough about electrical wiring, have your fan installed by a licensed electrician.
WARNING: To avoid fire, shock or injury, do not use an Emerson or any other brand of control not
specifically approved for this fan.
WARNING: This product is designed to use only those parts supplied with this product and/or any
accessories designated specifically for use with this product by Emerson Electric Co. Substitution
of parts or accessories not designated for use with this product by Emerson Electric Co. could
result in personal injury or property damage.
WARNING: To Reduce the risk of personal injury, do not bend the blade flange when installing the
blade flanges, balancing the blades or cleaning the fan. Do not insert foreign objects in between
rotating fan blades.
DATE CODE:
The date code of this fan may be found on
the box, stamped in ink on a white label.
You should record this data above and keep
it in a safe place for future use.
1. Check to see that you have received the following
parts:
NOTE: If you are uncertain of part description,
refer to exploded view illustration.
a. Fan motor assembly
b. One switch housing assembly
c. Five fan blades
d. One ceiling cover
e. Five blade flanges
f. One hanger ball/downrod assembly
g. One hanger bracket
h. One coupling cover
i. One loose parts bag containing:
1. Sixteen 3/16-24 x 1/4” slotted Phillips
washer head blade screws
2. Eleven 1/4-20 x 1/2” Phillips oval head
flange screws
3. One wood ball
4. Three wire connectors
5. Two threaded studs
6. Two lockwashers
7. Two knurled knobs
8. One clevis pin
This Manual Is Designed to Make it as Easy as
Possible for You to Assemble, Install,
Operate and Maintain Your Ceiling Fan
Tools Needed for Assembly
One Phillips head screwdriver One stepladder
One 1/4” blade screwdriver One wire stripper
One 5/16” open end wrench, or pliers
Three wire connectors (supplied).
MATERIALS
Wiring outlet box and box connectors must be of type
required by the local code. The minimum wire would
be a 3-conductor (2-wire with ground) of following size
:
3
Installed Wire Length Wire Size A.W.G.
Up to 50 ft. 14
50-100 ft. 12
Unpacking Instructions
For your convenience, check-off boxes are provided next to each step. As each step is completed, place a check mark in the box. This will insure that all steps have been completed
and will be helpful in finding your place should you be interrupted.
9. One hairpin clip
10. One coupling
11. Sixteen blade washers
NOTE: Place the parts from the loose parts bags
in a small container to keep them from being lost.
If any parts are missing, contact your local
retailer or catalog outlet for replacement before
proceeding.
2. Remove the fan assembly from the protective
plastic bag. Place the fan assembly into the upper
foam pad with the top of the motor facing up.
The upper foam pad serves as a holder for the fan
during the first stages of assembly.
Before assembly your ceiling fan, refer to section on
proper method of wiring your fan (page 6). If you feel
you do not have enough wiring knowledge or experience, have your fan installed by a licensed electrician.
WARNING
!
Do not install or use fan if any part is damaged or
missing. Call Toll-Free:
1-800-654-3545
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product by
Emerson Electric Co. Substitution of parts or
accessories not designated for use with this product
by Emerson could result in personal injury or
property damage.
WARNING
!
WARNING
!
FAN BLADES
UPPER
FOAM PAD
PROTECTIVE
PLASTIC BAG
SWITCH
HOUSING
ASSEMBLY
CARTON
FAN MOTOR
ASSEMBLY
BLADE
FLANGES
HANGER
BRACKET
CEILING
COVER
HANGER BALL/
DOWNROD ASSEMBLY
LOOSE PARTS
BAG
LOWER
FOAM PAD
COUPLING
COVER

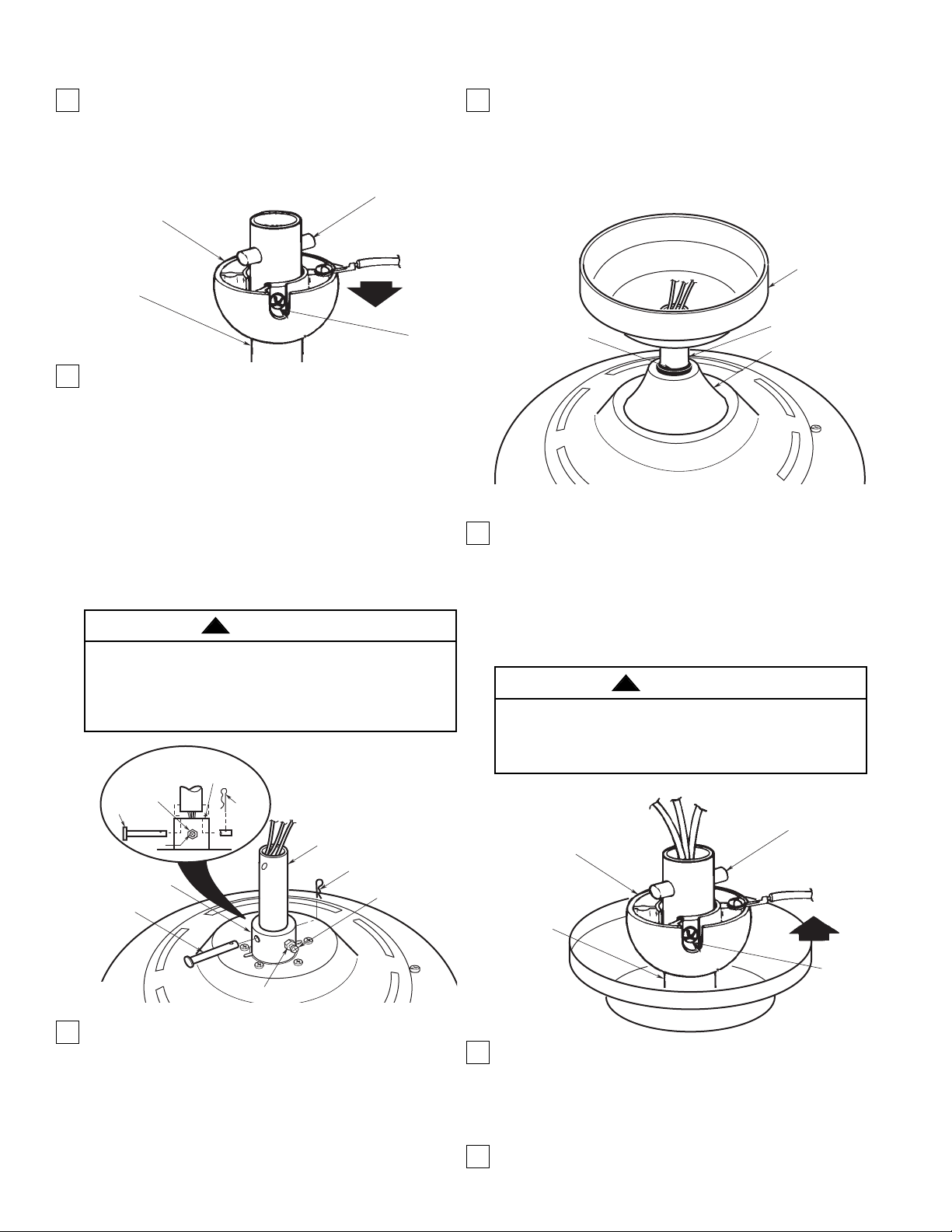

1. Remove the hanger ball by loosening the setscrew
in the hanger ball until the ball falls freely down the
downrod (Figure 1). Remove the pin from the
downrod, then remove the hanger ball. Retain the
pin and hanger ball for reinstallation in step 5.
2. Separate, untwist and unkink the three 80” motor
leads. Route the motor lead wires through the
downrod. Align the clevis pin holes in the downrod
with the holes in the motor coupling. Install the clevis pin and secure with the hairpin clip (Figure 2).
The clevis pin must go through the holes in the
motor coupling and the holes in the downrod. Be
sure to push the straight leg of the hairpin clip
through the hole near the end of the clevis pin until
the curved portion of the hairpin clip snaps around
the clevis pin. The hairpin clip must be properly
installed to prevent the clevis pin from working
loose. Pull on the downrod to make sure the clevis
pin is properly installed.
3. Back off the jam nut until it rests loosely against the
setscrew head. Install the setscrew in the motor
coupling (Figure 2) and tighten securely while
pulling up on the downrod. Using a 5/16-inch open
end wrench or pliers, tighten the jam nut securely
against the motor coupling.
NOTE: The setscrew and jam nut must be properly
installed as described above, or fan wobble could
result.
4. Make sure the grommet is properly installed in the
coupling cover, then slide the coupling cover on the
downrod until it rests on the motor housing. Place
the ceiling cover over the downrod. Be sure that
the ceiling cover and the coupling cover are both
oriented correctly (Figure 3).
5. Reinstall the hanger ball (Figure 4) on the downrod
as follows. Route the three 80” motor leads through
the hanger ball. Position the pin through the two
holes in the downrod and align the hanger ball so
the pin is captured in the groove in the top of the
hanger ball. Pull the hanger ball up tight against the
pin and securely tighten the setscrew in the hanger
ball. A loose setscrew could create fan wobble.
6. The fan comes with blue, black and white leads
that are 80-inches long. Before installing the fan,
measure up approximately 6 to 9-inches above top
of hanger ball/downrod assembly. Cut off excess
leads and strip back insulation 1/2-inch from end of
leads.
7. Mount blade flanges to fan blades using three
3/16-24 x 1/4” slotted Phillips screws and three
blade washers (Figure 5).
4
How to Put Your Ceiling Fan Together
Figure 1
Figure 4
Figure 3
Figure 2
It is critical that the pin in the hanger ball is properly
installed and the setscrew securely tightened.
Failure to verify that the pin and setscrew are properly installed could result in the fan falling.
WARNING
!
It is critical that the clevis pin in the motor coupling
is properly installed and the setscrew securely tightened. Failure to verify that the pin and setscrew are
properly installed (as shown in Figure 2) could result
in the fan falling.
WARNING
!
PIN
SETSCREW
DOWNROD
HANGER
BALL
MOTOR
3/16-24 x 1/2"
SETSCREW
CLEVIS PIN
JAM NUT
MOTOR
COUPLING
CLEVIS
PIN
COUPLING
HAIRPIN
CLIP
DOWNROD
HAIRPIN CLIP
3/16-24 x 1/2"
SETSCREW
CEILING
COVER
GROMMET
DOWNROD
COUPLING COVER
PIN
DOWNROD
HANGER
BALL
JAM NUT
SETSCREW
5
8. Turn the fan assembly upside down in preparation
for mounting the fan blade assemblies.
NOTE: Take care not to scratch fan housing when
installing blades.
9. Rotate the motor hub until the flange screw hole is
visible through the slot in the switch housing plate.
Attach the blade assembly to the motor hub using
two 1/4-20 x 1/2” Phillips oval head flange screws.
Make sure the screws are tightened securely
(Figure 6). Repeat this procedure for the other four
blade assemblies.
Figure 5
1/4-20 x 1/2" FLANGE
SCREWS (2) (INSTALL
THROUGH SLOT IN
SWITCH HOUSING
PLATE)
BLADE FLANGE
SWITCH HOUSING
PLATE
MOTOR HUB
Figure 6
Figure 8
10. Engage the connector of the switch housing
assembly with the motor connector (Figure 7).
The two connectors are keyed and color-coded
and must be mated correctly (color-to-color)
before they can be engaged. Make sure the connector latch closes properly.
11.Remove the three switch housing screws from the
switch housing plate. Position the switch housing
assembly on the switch housing plate and align
the holes in the switch housing assembly with the
holes in the plate. Secure the switch housing
assembly by installing the three screws (Figure 8).
NOTE: Do not pinch wires between the switch
housing assembly and the switch housing plate.
12. You have now completed the assembly of your
new ceiling fan. You can now proceed with hanging and wiring your fan.
Figure 7
Electrical Requirements
The outlet box must be securely anchored and capable of withstanding a load of at least 50 pounds.
If your fan is to replace an existing ceiling light fixture,
turn electricity off at the main fuse box at this time and
remove the existing light fixture.
Your new ceiling fan will require a grounded electrical
supply line of 120 volts AC, 60 Hz, 15 amp circuit.
To avoid fire or shock, follow all wiring instructions
carefully.
Any electrical work not described in these
instructions should be done or approved by a
licensed electrician.
WARNING
!
To reduce the risk of personal injury, do not bend the
blade flange when installing the blade flanges,
balancing the blades or cleaning the fan. Do not
insert foreign objects in between rotating fan blades.
WARNING
!
To reduce the risk of fire, electric shock, or personal
injury, mount fan to outlet box marked “Acceptable
for Fan Support”, and use screws supplied with
outlet box. Most outlet boxes commonly used for
support of light fixtures are not acceptable for fan
support and may need to be replaced. Consult a
qualified electrician if in doubt.
WARNING
!
3/16-24 x 1/4" SLOTTED
PHILLIP HEAD SCREW (3)
BLADE WASHER (3)
BLADE FLANGE
FAN BLADE
SWITCH
HOUSING
ASSEMBLY
SWITCH HOUSING
CONNECTOR
MOTOR CONNECTOR
SWITCH
HOUSING
ASSEMBLY
MOUNTING
SCREWS (3)
6
1. Securely attach the hanger bracket to the outlet
box using the two screws supplied with the outlet
box. (Figure 10.)
How to Wire Your
Ceiling Fan
How to Hang Your
Ceiling Fan
TWO SCREWS
SUPPLIED WITH
OUTLET BOX
HANGER
BRACKET
TAB
OUTLET
BOX
Figure 9
Figure 10
Figure 11
2. Carefully lift the fan and seat the hanger ball/
downrod assembly on the hanger bracket that was
just attached to the outlet box (Figure 11). Be sure
the groove in the ball is lined up with tab on the
hanger bracket (Figure 10).
If you feel that you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
1. Connect the green grounding lead from the hanger
ball and the green grounding lead from the hanger
bracket to the grounding conductor of supply (this
may be a bare wire or wire with green colored
insulation). Securely connect wires with wire connectors supplied. (Figure 12.)
NOTE: If you are using an Emerson Light Fixture
with your fan, see Light Fixture Owner’s Manual
for wiring.
2. Securely connect the fan motor white wire to the
supply white (neutral) wire using wire connector
supplied (Figure 12). Securely connect the fan
motor black wire and blue wire to the supply black
(hot) wire using wire connector supplied (Figure
12). After connections have been made, turn leads
upward and carefully push leads into the outlet
box, with the white and green leads on one side of
the outlet box and the black and blue leads on the
other side of the outlet box.
To avoid possible electrical shock, be sure electricity
is turned off at the main fuse box before wiring.
NOTE: If you are not sure if the outlet box is grounded, contact a licensed electrician for advice, as it
must be grounded for safe operation.
WARNING
!
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product by
Emerson Electric Co. Substitution of parts or accessories not designated for use with this product by
Emerson Electric Co. could result in personal injury
or property damage.
WARNING
!
Failure to seat tab in groove could cause damage to
electrical wires and possible shock or fire hazard.
WARNING
!
To avoid possible fire or shock, do not pinch wires
between the hanger ball/downrod assembly and
hanger bracket.
WARNING
!
Hanger bracket must seat firmly against outlet box. If
the outlet box is recessed, remove wall board until
bracket contacts box. If bracket and/or outlet box are
not securely attached, the fan could wobble or fall.
WARNING
!
The fan must be hung with at least 7' of clearance
from floor to blades (Figure 9).
WARNING
!
To reduce the risk of fire, electric shock, or personal
injury, mount fan to outlet box marked “Acceptable
for Fan Support”, and use screws supplied with
outlet box. Most outlet boxes commonly used for
support of light fixtures are not acceptable for fan
support and may need to be replaced. Consult a
qualified electrician if in doubt.
WARNING
!
The outlet box and joist must be securely mounted
and capable of supporting at least 50 lbs. Use only a
U.L. outlet box listed as “Acceptable for Fan
Support”.
WARNING
!
CEILING
NOTE: CEILING COVER,
SUPPLY WIRES AND
FAN WIRES OMITTED
FOR CLARITY.
OUTLET
BOX
HANGER
BRACKET
HANGER BALL/
DOWNROD ASSEMBLY
AT LEAST
7'
FLOOR
5. Secure the ceiling cover in place by sliding lockwashers over the threaded studs and installing the
two knurled knobs (supplied). (Figure 13.) Tighten
the knurled knobs securely until the ceiling cover
fits snugly against the ceiling and the hole in the
ceiling cover is clear of the downrod. Your fan is
now wired to be turned on and off from the fan
switch.
6. Connect the wood ball with chain to the 3-speed
switch pull chain.
Your fan model is equipped with a 4-position,
3-speed pull chain switch. The operating sequence
is as follows:
THREE-SPEED
1st Pull—HIGH
2nd Pull—Medium
3rd Pull—Low
4th Pull—OFF
7

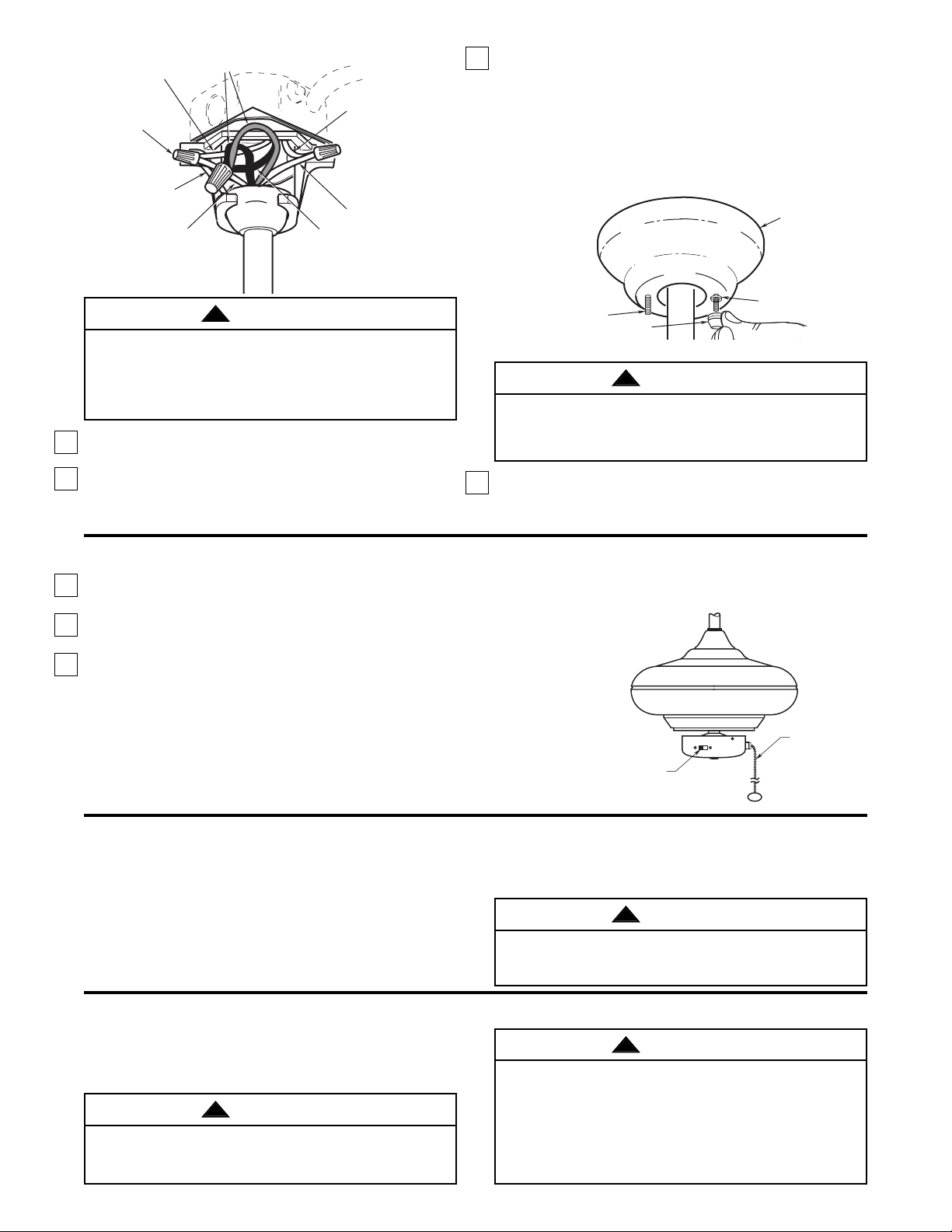

1. Restore electrical power to the outlet box by turning
the electricity on at the main fuse box.
2. Check the operation of the fan by gently pulling on
the pull chain switch.
3. All fans are shipped from the factory with the
reversing switch positioned to circulate air downward. If airflow is desired in opposite direction, turn
your fan off and wait for the blades to stop turning,
then slide the reversing switch to opposite position,
and turn fan on again. The fan blades will turn in
the opposite direction and reverse the airflow.
Using Your Ceiling Fan
BLACK AND BLUE
Figure 12
IMPORTANT CARE INSTRUCTIONS
for your Ceiling Fan
Periodic cleaning of your new ceiling fan is the only
maintenance that is needed.
When cleaning, use only a soft brush or lint free cloth
to avoid scratching the finish.
Abrasive cleaning agents are not required and should
be avoided to prevent damage to finish.
Maintenance
Accessories
1. Ceiling Fan Light Kits (see store or catalog).
2. Ceiling Fan/Light Controls (see store or catalog).
3. Downrod Extension Kits (see store or catalog).
3. Screw the two threaded studs (supplied) into the
tapped holes in the hanger bracket.
4. Lift the ceiling cover up to the threaded studs and
turn until studs protrude through the holes in the
ceiling cover (Figure 13).
Figure 13
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product by
Emerson Electric Co. Substitution of parts or accessories not designated for use with this product by
Emerson Electric Co. could result in personal injury
or property damage.
The use of any other control not specifically
approved for this fan could result in fire, shock and
personal injury.
WARNING
!
WARNING
!
Do not use water when cleaning your ceiling fan. It
could damage the motor or the blades and create the
possibility of an electrical shock.
WARNING
!
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the outlet box and
not pinched between the ceiling cover and the ceiling.
WARNING
!
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not
operate fan until blades are in place. Noise and fan
damage could result.
WARNING
!
GROUND
WIRE
LISTED
WIRE
CONNECTOR (3)
GREEN WIRE
(GROUND) FROM
HANGER BRACKET
GREEN WIRE
(GROUND) FROM
HANGER BALL
FAN WIRES
WHITE SUPPLY
(NEUTRAL)
WHITE FAN
WIRE
BLACK SUPPLY
(HOT)
NOTE: CEILING COVER
OMITTED FOR CLARITY.
CEILING COVER
THREADED STUD
KNURLED KNOB
LOCKWASHERS (2)
REVERSING
SWITCH
SPEED CONTROL
SWITCH PULL
CHAIN
Repair Parts Listing
Model No.
Key
No. Description CF770WW01 CF770TG01 CF770BS01 CF770OB01 CF770AW01 CF770BC01 CF770ORB01
* Hanger Ball Assembly, 760750-3 760750-37 760750-24 760750-36 760750-41 760750-44 760750-48
Consisting of:
1 Hanger Bracket — — — — — — —
2 Hanger Ball — — — — — — —
3 Downrod — — — — — — —
* Parts Bag Containing: 761856 761856-1 761856-3 761856-1 761856-4 761856-1 761856-1
4 Wire Connector (3) — — — — — — —
6 Threaded Stud (2) — — — — — — —
7 Lockwasher (2) — — — — — — —
8 Knurled Knob (2) — — — — — — —
10 Pin, Clevis — — — — — — —
11 Clip, Hairpin — — — — — — —
13 Wood Ball — — — — — — —
15 Screw, 1/4-20 x 1/2” (11) — — — — — — —
18 Screw, 3/16-24 x 1/4” (16) — — — — — — —
19 Blade Washer (16) — — — — — — —
20 Coupling — — — — — — —
6 Ceiling Canopy 761504-3 761504-13 761504-12 761504-11 761504-16 761504-18 761504-20
9 Coupling Cover 761860 761860-1 761860-3 761860-4 761860-11 761860-19 761860-20
12 Wiring Harness 762006-3 762006-1 762006-2 762006-1 762006 762006-1 762006-1
14 Switch Housing 761855 761855-3 761855-1 761855-4 761855-5 761855-7 761855-10
16 Flange (set of 5) 761858 761858-3 761858-1 761858-4 761858-5 761858-7 761858-8
17 Blade (set of 5) 761859 761859-3 761859-2 761859-4 761859-26 761859-8 761859-29
—
Owner's Manual BP7238-3 BP7238-3 BP7238-3 BP7238-3 BP7238-3 BP7238-3 BP7238-3
Before discarding packaging material, be certain all parts have been removed.
HOW TO ORDER REPAIR PARTS
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING
INFORMATION:
• PART NUMBER • NAME OF ITEM
• PART DESCRIPTION • MODEL NUMBER
The model number of your Fan will be found on a label attached to the top housing.
For repair parts, phone 1-800-654-3545.
Part No. F40BP72380003 Printed in Taiwan 10/04 Form No. BP7238-3
Trouble Shooting
TROUBLE PROBABLE CAUSE SUGGESTED REMEDY
1. Fan will not start. 1. Fuse or circuit breaker blown. 1. Check main and branch circuit fuses or circuit breakers.
2. Loose power line connections to the fan, or loose 2. Check line wire connections to fan and switch switch wire
switch wire connections in the switch housing. connections in the switch housing.wire connections in the switch
housing.
WARNING: Make sure main power is turned off.
3. Reversing switch in neutral position. 3. Make sure reversing switch position is all the way to one side.
2. Fan sounds noisy. 1. Blades not attached to fan. 1. Attach blades to fan before operating.
2. Screws securing fan blade flanges to motor 2. Check to make sure the screws which attach the fan flanges to the
are loose. motor are tight.
3. Wire connectors inside switch housing rattling. 3. Check to make sure wire connectors in switch housing are not
rattling against each other or against the interior wall of the switch
housing.
WARNING: Make sure main power is turned off.
4. Motor noise caused by solid-state variable 4. Some fan motors are sensitive to signals from Solid-State variable
speed control. speed controls. If Solid-State Control is used and motor noise
results choose an alternative control method.
5. Screws holding blades to flanges are loose. 5. Tighten screws securely.
3. Fan wobbles 1. Setscrew and jam nut in motor coupling are not 1. Raise coupling cover and tighten setscrew and jam nut securely.
excessively. tightened securely.
2. Setscrew in the hangerball/downrod assembly is 2. Tighten the setscrew in the hangerball/downrod assembly.
loose.
3. Screws securing fan blade flanges to motor are loose. 3. Check to be sure screws which attach the fan blade flanges to the
motor are tight.
4. Fan blade flanges not seated properly. 4. Check to be sure the fan blade flanges seat firmly and uniformly to
the surface of the motor. If flanges are seated incorrectly, loosen
the flange screws and retighten according to the procedure in the
section on "How to Put Your Ceiling Fan Together".
5. Hanger bracket and/or ceiling outlet box is not 5. Tighten the hanger bracket screws to the outlet box, and/or secure
securely fastened outlet box.
6. Fan blades out of balance. 6. Interchanging an adjacent (side-by-side) blade pair can redistribute
the weight and result in smoother operation.
WARNING: FOR YOUR OWN SAFETY TURN OFF POWER AT FUSE BOX OR CIRCUIT BREAKER
BEFORE TROUBLE SHOOTING YOUR FAN.
!
!
!
Air Comfort Products
DIVISION OF EMERSON ELECTRIC CO.
8100 W. Florissant ¥ St. Louis, MO 63136
2
1
5
4
7
8
11
18
19
17
16
14
15
3
6
9
10
12
13
20
Loading...
