READ AND SAVE THESE INSTRUCTIONS
ASHLAND
™
52” Ceiling Fan Owner's Manual
Model Numbers
CF717BS00
Brushed Steel
CF717ORB00
Oil Rubbed Bronze
CF717SW00
Satin White
Net Weight: 18.8 Lbs.
Questions, problems, missing parts: Before returning to the store call
Emerson Electric Customer Service
8 a.m. - 6 p.m., Eastern, Monday-Friday
• Español - página 25
Part No. F40BP74830001 Form No. BP7483-1
Revision: 150415 ETL Model No.: CF717
1-800-654-3545
www.emersonfans.com
• Français - page 49
Page 2
Table of Contents
Section Page
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
1. Unpacking Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
2. Electrical Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3. Installing Hanger Ball/Downrod Assembly . . . . . . . . . . . . .5-7
4. Installing Ceiling Cover on Fan Motor Housing . . . . . . . . . . .8
5. Installation of Hanger Bracket . . . . . . . . . . . . . . . . . . . . . .9-10
6. Hanging the Ceiling Fan (Standard) . . . . . . . . . . . . . . . . . . . .11
. Hanging the Ceiling Fan (Close-to-the-Ceiling) . . . . . . . . . .11
7
8. How to Wire Your Ceiling Fan . . . . . . . . . . . . . . . . . . . . . . . .12
9. Installation of Ceiling Cover . . . . . . . . . . . . . . . . . . . . . . . . .13
READ AND SAVE THESE INSTRUCTIONS
Safety Instructions
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a. Use this u nit only in a mann er inte nded by the
manufacturer. If you have questions, contact the
manufacturer.
b. Before servicing or cleaning unit, switch power off at
service panel and lock service panel disconnecting
means to prevent power from being switched on
accidentally. When the service disconnecting means
cannot be locked, securely fasten a warning device,
such as a tag, to the service panel.
1. Read your owner’s manual carefully and keep it for future
reference.
2. Be careful of the fan and blades when cleaning, painting,
or working near the fan. Always turn off the power to the
ceiling fan before servicing.
3. Do not put anything into the fan blades while they are
turning.
4. Do not operate reversing switch until fan blades have
come to a complete stop.
Additional Safety Instructions for Installation
1. To avoid possible shock, be sure electricity is turned off
at the fuse box before wiring, and do not operate fan
without blades.
2. All wiring must be in accordance with the National
El ect rical Co de “ANSI/NF PA 70-2 014” and Loc al
Electrical Codes. Use the National Electrical Code if
Local Codes do not exist. The ceiling fan must be
grounded as a precaution against possible electrical
sh ock . El ect rical i nstalla tio n sh oul d be ma de o r
approved by a licensed electrician.
!
Section Page
10. Installation of Ceiling Fan Blades . . . . . . . . . . . . . . . . . . . .14
11. Installation of Light Kit Assembly . . . . . . . . . . . . . . . . . .15-17
12. Using Your Ceiling Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
13. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
14. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
15. Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
16. Repair Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20-21
eiling Fan Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . .23
C
Spanish . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
French . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
3. The outlet box and joist must be securely mounted and
capable of reliably supporting at least 50 pounds. Use
only U.L. outlet boxes listed as “Acceptable for Fan
Support of 22.7 kg. (50 lbs.) or less”, and use the
mounting screws provided with the outlet box. Most
outlet boxes commonly used for support of light fixtures
are not acceptable for fan support and may need to be
replaced. Consult a qualified electrician if in doubt.
4. The down rod furnis hed wit h the fan p rovides the
minimum recommended floor to fan blade clearance for
an 8 foot ceiling.
5. The fan must be mounted with the fan blades at least
7 feet from the floor to prevent accidental contact with
the fan blades.
6. Follow the recommended instructions for the proper
method of wiring your ceiling fan. If you do not know
enough about electrical wiring, have your fan installed by
a licensed electrician.
WARNING: To reduce the risk of electrical shock, this fan
must be installed with an isolating wall control/ switch.
NOTE: This fan is suitable for use with solid-state speed
controls.
WARNING: This product is designed to use only those
parts supplied with this product and/or any accessories
designated specifically for use this product by Emerson
Electric Co. Substitution of parts or accessories not
designated for use with this product by Emerson could
result in personal injury or property damage.
WARNING: To reduce the risk of personal injury, do not
bend the blade flange when installing the blade flanges,
balancing the blades or cleaning the fan. Do not insert
foreign objects in between rotating fan blades.
WARNING: To avoid fire, shock or injury, do not use an
Emerson or any other brand of control not specifically
approved for this fan.
NOTE: All setscrews must be checked and re-tightened
where necessary before installation.
SERIAL NUMBER: DATE CODE:
The serial number of this fan can be found on the nameplate on top of the fan housing. The date code can be
found on the carton and on top of the fan housing, stamped in ink on a white label. You should record this data
above and keep it in a safe place for future use.
ETL Model No.: CF717
2
Page 3
1. Unpacking Instructions
2
8
54
1
3
109 11
6 7
A
B
C
D
E
F
L
K
J
I
H
G
WARNING
Do not install or use fan if any part is damaged or
missing. Call Toll-Free:
!
1-800-654-3545
WARNING
This product is designed to use only those parts supplied
with this product and/or any accessories designated
specifically for use with this product by Emerson Electric
Co. Substitution of parts or accessories not designated
for use with this product by Emerson Electric Co. could
result in personal injury or property damage.
!
1.1
Check to see that you have received the following parts:
NOTE: If you are uncertain of part description, refer to
exploded view illustration.
HARDWARE CONTENTS
Part Description Quantity
1 Wire Connectors, 12 ga. 5
2 Clevis Pin 1
3 Hairpin Clip 1
4 #8-32 x 8mm Washer Head Screws 16
5 1/4-20 x 1/2” Oval Head Screws 11
6 M5 Screw (spare) 1
7 5/32” Truss Screw (spare) 1
8 Rubber Gasket 1
9 Small Wood Pendant w/Coupling 1
10 Large Wood Pendant w/Coupling 1
11 Blade Balance Kit 1
PACKAGE CONTENTS
Part Description Quantity
A Fan Motor Assembly 1
B Ceiling Cover with Decorative Cap 1
C Coupler Cover 1
D Glass Shade 1
E Fan Blade Flanges 5
F Fan Blades 5
G Hanger Bracket, Dual Mount 1
H Hanger Ball/4.5” Downrod Assembly 1
I Light Kit Assembly 1
J Bowl Cap 1
K Finial Nut 1
L 60 Watt Candelabra Bulbs 3
NOTE: Place the parts from the loose parts bags in a
sm all container to keep th em from being lo st.
If any p arts are missin g, ca ll 1-800-6 54-3545
for replacement parts before proceeding.
1.2
Remove the fan motor assembly from the protective
plastic bag.
emersonfans.com
Please contact 1-800-654-3545 for further assistance
3
ETL Model No.: CF717
Page 4
1. Unpacking Instructions (continued)
This Manual Is Designed to Make it as Easy as Possible for You to Assemble,
Install, Operate and Maintain Your Ceiling Fan
1.3
Place the fan assembly into the upper foam pad with the
top of the motor facing up.
The upper foam pad serves as a holder for the fan during
assembly.
Tools Needed for Assembly
One Phillips head screwdriver One stepladder
One 1/4” blade screwdriver One wire stripper
Materials
Wiring outlet box and box connectors must be of type
required by the local code. The minimum wire would be a
3-conductor (2-wire with ground) of following size:
2. Electrical Requirements
Installed Wire Length Wire Size A.W.G.
Up to 50 ft. 14
50-100 ft. 12
WARNING
Before assembling your ceiling fan, refer to section on
proper method of wiring your fan (page 12). If you feel
you do not have enough wiring knowledge or experience,
have your fan installed by a licensed electrician.
!
Controls Sold Separately
SW90 Wall Control (sold separately) may be used with
this 52” Ashland Ceiling Fan. Controls are recommended
for indoor use only.
Your new ceiling fan will require a grounded electrical
supply line of 120 volts AC, 60 Hz, 15 amp circuit.
WARNING
To reduce the risk of fire, electric shock, or personal
injury, mount fan to outlet box marked “Acceptable for
Fan Support of 22.7 kg. (50 lbs.) or less”, and use screws
supplied with outlet box. Most outlet boxes commonly
used for support of light fixtures are not acceptable for
fan support and may need to be replaced. Consult a
qualified electrician if in doubt.
WARNING
Turning off wall switch is not sufficient. To avoid possible
electrical shock, be sure electricity is turned off at the
main fuse box before wiring. All wiring must be in
accordance with National and Local codes and the ceiling
fan must be properly grounded as a precaution against
possible electrical shock.
!
!
The outlet box must be securely anchored and capable of
withstanding a load of at least 50 pounds.
If your fan is to replace an existing ceiling light fixture, turn
electricity off at the main fuse box at this time and remove
the existing light fixture.
WARNING
To avoid fire or shock, follow all wiring instructions
carefully.
An y el ect rical work not desc rib ed in th ese
instructions should be done or approved by a licensed
electrician.
Pl ease ca ll Emer son tec hnical support at
1- 800-654-3 545 if you have a ny questi ons about
installation and operation of this ceiling fan.
!
ETL Model No.: CF717
4
Page 5
IMPORTANT
DOWNROD
PIN
SETSCREW
HANGER BALL
SETSCREW
CLEVIS PIN
MOTOR
COUPLING
DOWNROD
HAIRPIN
CLIP
Yo ur cei ling fa n is des igned to be install ed eit her in th e stan dard ma nner, or in the
lose-to-the-ceiling manner. Using the standard method, the hanger ball/downrod assembly will suspend the
c
fan several inches below the ceiling cover. Using the close-to-the-ceiling method, the ceiling cover installs
directly on the fan motor housing, thus mounting the fan 3-1/2 inches closer to the ceiling than the standard
method. In no case should the fan blades be lower than seven feet above the floor. Depending on your desired
mounting method, proceed to “3. INSTALLING HANGER BALL/DOWNROD ASSEMBLY” for standard
ou nting, or to “4. INSTALLING CEIL ING COVER ON FAN MOTOR HOUSING” for
m
close-to-the-ceiling mounting.
3. Installing Hanger Ball/Downrod Assembly
(For Standard Mounting)
3.1
Remove the hanger ball by loosening the setscrew in the
hanger ball until the ball falls freely down the downrod
(Figure 1).
Remove the pin from the downrod, then remove the
ha nger ball . Retain the pin and hanger bal l for
reinstallation in Step 3.6.
3.2
Separate, untwist and unkink the three 80” motor leads.
Route the motor lead wires through the downrod.
Loosen the two setscrews preinstalled on the motor
coupling.
Align the clevis pin holes in the downrod with the holes in
the motor coupling. Install the clevis pin and secure with
the hairpin clip (Figure 2).
The clevis pin must go through the holes in the motor
coupling and the holes in the downrod. Be sure to push the
straight leg of the hairpin clip through the hole near the end
of the clevis pin until the curved portion of the hairpin clip
snaps around the clevis pin.
The hairpin clip must be properly installed to prevent the
clevis pin from working loose. Pull on the downrod to make
sure the clevis pin is properly installed.
Figure 1
DOWNROD
HAIRPIN
CLIP
SETSCREW(2)
CLEVIS PIN
MOTOR
COUPLING
Figure 2
emersonfans.com
Please contact 1-800-654-3545 for further assistance
5
ETL Model No.: CF717
Page 6
3. Installing Hanger Ball/Downrod Assembly
MOTOR
COUPLER
SETSCREWS (2)
DOWNROD
GROMMET
COUPLER COVER
MOTOR HOUSING
DOWNROD
DOWNROD
CEILING
COVER
(For Standard Mounting) (continued)
3.3
Securely tighten the two setscrews into the motor coupler
until they rest against the downrod.
Pull up on the downrod to make sure the setscrews are
firmly installed against the downrod (Figure 3).
NOTE: The setscrew must be properly installed as
described above, or fan wobble could result.
WARNING
It is critical that the clevis pin in the motor coupler is
properly installed and the setscrews securely tightened.
Failure to verify that the pin and setscrews are properly
installed could result in the fan falling.
!
3.4
Make sure the grommet is properly installed in the motor
coupler cover then slide the motor coupler cover on the
downrod until it rests on the motor housing. Be sure the
motor coupler cover is oriented correctly (Figure 4).
Figure 3
Figure 4
3.5
Pass the 80-inch long motor leads through the opening in
the ceiling cover.
Place the ceiling cover over the downrod. Be sure the
ceiling cover is oriented correctly (Figure 5).
ETL Model No.: CF717
Figure 5
6
Page 7
3. Installing Hanger Ball/Downrod Assembly
HANGER BALL
DOWNROD
PIN
SETSCREW
HANGER BALL
6 TO 9
INCHES
1/2-INCH
WHITE WIRE
BLUE WIRE
BLACK WIRE
(For Standard Mounting) (continued)
3.6
einstall the hanger ball (Figure 6) on the downrod as
R
follows. Route the 80-inch motor leads through the hanger
ball. Position the pin through the two holes in the downrod
and align the ball so the pin is captured in the groove in
the top of the hanger ball. Pull the hanger ball up tight
against the pin and securely tighten the setscrew in the
hanger ball. A loose setscrew could create fan wobble.
WARNING
It is critical that the pin in the hanger ball is properly
installed and the setscrew securely tightened. Failure to
verify that the pin and setscrew are properly installed
could result in the fan falling.
!
3.7
The fan comes with blue, black and white leads that are
80-inches long. Before installing the fan, measure up
ap proximate ly 6 to 9-i nches ab ove top of hanger
ball/downrod assembly (Figure 7). Cut off excess leads
and strip back insulation 1/2-inch from end of leads.
Figure 6
7
Figure 7
emersonfans.com
Please contact 1-800-654-3545 for further assistance
ETL Model No.: CF717
Page 8
CEILING COVER
CEILING COVER HOLES (6)
DECORATIVE CAP
CEILING COVER HOLES (6)
CEILING COVER
CEILING COVER
CEILING COVER
HOLES (6)
MOTOR HOUSING
ASSEMBLY HOLES (6)
CUT-AWAY
SCREWS AND
LOCKWASHERS (6)
4. Installing Ceiling Cover on Fan Motor Housing
REMOVE SCREWS (6)
I
NSTALL GASKET
(For Close-to-the-Ceiling Mounting)
4.1
Remove and retain six screws and lockwashers from the
op of the motor housing (Figure 8A).
t
4.2
Remove the paper backing off the rubber gasket (supplied
in parts bag) to expose the adhesive.
Position the rubber gasket on the motor housing (small
holes in gasket centered over the screw holes in the
housing and the notched area of the rubber gasket over
the notched area of the housing).
Press the rubber gasket (adhesive side down) onto the
motor housing to secure gasket (Figure 8B).
4.3
Gently pry the decorative cap from the ceiling cover to
expose the six holes in the ceiling cover (Figure 9).
Figure 8A
Figure 9
Figure 8B
4.4
Place the ceiling cover onto the motor housing assembly
by aligning the holes in the ceiling cover with the holes in
the motor housing (Figure 10).
Secure the ceiling cover to the motor housing assembly by
reinstalling the previously removed six screws and
lockwashers (Figure 10).
ETL Model No.: CF717
Figure 10
8
Page 9
HANGER
BRACKET
LOOSEN TWO
SCREWS (SUPPLIED
WITH OUTLET BOX)
OUTLET BOX
SLIDE THE HANGER
BRACKET ONTO
THE OUTLET BOX
SCREWS, THROUGH
THE T-SLOT
T-SLOT
5. Installation of Hanger Bracket
HANGER BRACKET
HOOK
SECURELY
TIGHTEN
SCREWS
The fan must be hung with at least 7' of clearance from
floor to blades (Figure 11).
WARNING
Turning off wall switch is not sufficient. To avoid possible
electrical shock, be sure electricity is turned off at the
main fuse box before wiring. All wiring must be in
accordance with National and Local codes and the ceiling
an must be properly grounded as a precaution against
f
possible electrical shock.
WARNING
The outlet box and joist must be securely mounted and
capable of supporting at least 50 lbs. Use only a U.L.
outlet box listed as “Acceptable for Fan Support of 22.7
kg. (50 lbs.) or less”.
!
WARNING
!
!
Figure 11
WARNING
To reduce the risk of fire, electric shock, or personal
injury, mount fan to outlet box marked “Acceptable for
Fan Support of 22.7 kg. (50 lbs.) or less”, and use screws
supplied with outlet box. Most outlet boxes commonly
used for support of light fixtures are not acceptable for
fan support and may need to be replaced. Consult a
qualified electrician if in doubt.
!
5.1
Unscrew (but do not remove) the two mounting screws in
the outlet box (Figure 12). Position the hanger bracket on
the outlet box so that the T-slots in the hanger bracket are
aligned with the outlet box screws.
NOTE: The hanger bracket must be mounted flush
with the ceiling in order for the ceiling cover to install
properly. If necessary, use leveling washers (not
supplied) between the outlet box and the hanger
bracket.
9
Figure 12
emersonfans.com
Please contact 1-800-654-3545 for further assistance
ETL Model No.: CF717
Page 10
5. Installation of Hanger Bracket (continued)
HANGER BRACKET
SECURELY
TIGHTEN
SCREWS
5.2
Slide the hanger bracket onto the outlet box screws.
Center the bracket over the outlet box and then securely
tighten the screws (Figure 13).
WARNING
Hanger bracket must seat firmly against outlet box. If the
outlet box is recessed, use leveling washers between the
hanger bracket and the outlet box until the bracket is
flush with the ceiling. If bracket and/or outlet box are not
ecurely attached, the fan could wobble or fall.
s
!
Figure 13
ETL Model No.: CF717
10
Page 11
6. Hanging the Ceiling Fan
HANGER
BRACKET
HOOK
TAB
GROOVE
HANGER
BALL
NOTE: CEILING COVER,
SUPPLY WIRES AND
FAN WIRES OMITTED
FOR CLARITY.
HOOK ON HANGER BRACKET
MUST PASS THROUGH SCREW
HOLE IN CEILING COVER, INSIDE
OF BRACKET TO OUTSIDE OF
BRACKET
HANGER
BRACKET
HOOK
CEILING
COVER
(Standard Method Using Hanger Ball/Downrod)
6.1
Carefully lift the fan assembly and seat the hanger ball in
he hanger bracket (Figure 14). The tab on the hanger
t
bracket must seat in the groove in the hanger ball.
WARNING
Failure to seat tab in groove could cause damage to
electrical wires and possible shock or fire hazard.
WARNING
To avoid possible fire or shock, do not pinch wires
between the hanger ball/downrod assembly and hanger
bracket.
!
!
7. Hanging the Ceiling Fan
(Close-to-the-Ceiling Method with
Ceiling Cover Installed on the Motor Housing)
7.1
Figure 14
Carefully lift the fan assembly up to the hanger bracket.
Pass the hook on the hanger bracket (Figure 15) through
one of the screw holes (not the slots) in the ceiling cover
(Figure 15). The hook must pass from the inside of the
ceiling cover to the outside. The hook will hold the fan
assembly while connecting the wiring.
WARNING
The hook must pass through the screw hole in the ceiling
cover from the inside to the outside. Any other hanging
method may cause the hook to break and the fan to fall.
!
11
Figure 15
emersonfans.com
Please contact 1-800-654-3545 for further assistance
ETL Model No.: CF717
Page 12
8. How to Wire Your Ceiling Fan
SUPPLY
GROUND WIRE
GREEN GROUND
WIRE FROM
HANGER BRACKET
GREEN GROUND
WIRE FROM
HANGER BALL
BLACK
FAN WIRE
BLUE
FAN WIRE
BLACK
SUPPLY (HOT)
WIRE CONNECTOR
WHITE SUPPLY
NEUTRAL)
WHITE FAN WIRE
If you feel that you do not have enough electrical
wiring knowledge or experience, have your fan
nstalled by a licensed electrician.
i
WARNING
To avoid possible electrical shock, be sure electricity is
turned off at the main fuse box before wiring.
NOTE: If you are not sure if the outlet box is grounded,
contact a licensed electrician for advice, as it must be
grounded for safe operation.
WARNING
Turning off wall switch is not sufficient. To avoid possible
electrical shock, be sure electricity is turned off at the
main fuse box before wiring. All wiring must be in
accordance with National and Local codes and the ceiling
fan must be properly grounded as a precaution against
possible electrical shock.
!
!
8.1
Connect the green grounding lead from the hanger ball
and the green grounding lead from the hanger bracket to
the grounding conductor of supply (this may be a bare
wi re or wire with gree n col ored insulatio n)
(Figure 16). Securely connect wires using wire connectors
supplied.
Figure 16
NOTE: When wiring the ceiling fan for close-to-theceiling mounting, there will be no green grounding
lead from the hanger ball.
WARNING
This product is designed to use only those parts supplied
with this product and/or any accessories designated
specifically for use with this product by Emerson Electric
Co. Substitution of parts or accessories not designated
for use with this product by Emerson Electric Co. could
result in personal injury or property damage.
!
8.2
Securely connect the fan motor white wire to the supply
white (neutral) wire using wire connector supplied
(Figure 17).
Securely connect the fan motor black wire and blue wire to
the supply black (hot) wire using wire connector supplied
(Figure 17).
After connections have been made, turn leads upward and
carefully push leads into the outlet box, with the white and
green leads on one side of the outlet box and the black
and blue leads on the other side of the outlet box.
WARNING
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
co nne ctors, exc ept fo r the ground wir e. Do not
operate fan until blades are in place. Noise and fan
damage could result.
ETL Model No.: CF717
!
Figure 17
12
Page 13
CEILING
COVER
TIGHTEN
SCREW
INSTALL SCREW
AND WASHER
9. Installation of Ceiling Cover
REMOVE THIS
SCREW AND
LOCKWASHER
LOOSEN
THIS SCREW
9.1

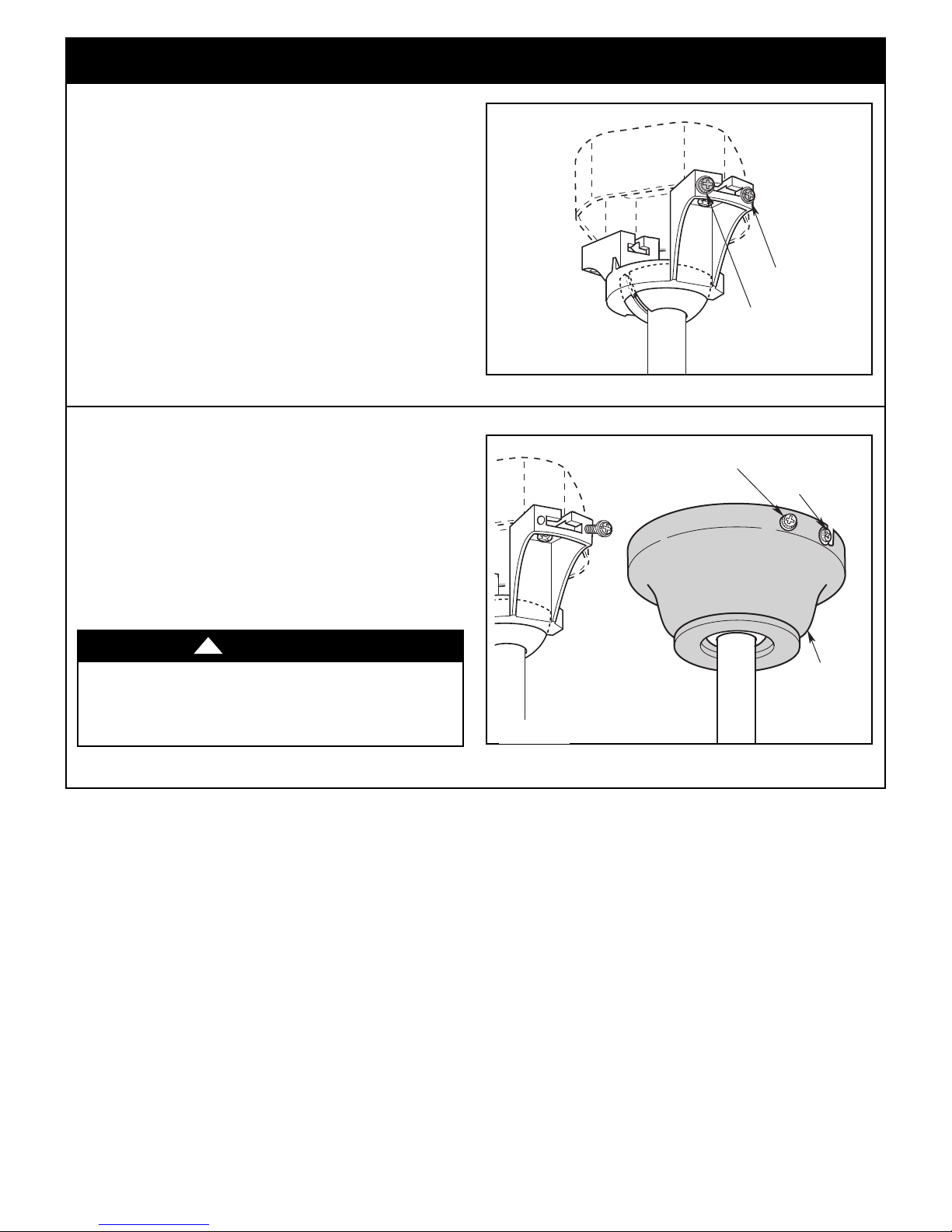

Remove the left screw and lockwasher from each side of
the hanger bracket (Figure 18) and loosen the other two
screws.
NOTE: When installing the ceiling fan using the closeto-the-ceiling method, carefully lift the fan assembly
from the hook on the hanger bracket and proceed as
follows.
9.2
Lift the ceiling cover up to the hanger bracket. Engage the
slots in the ceiling cover with the loosened screws in the
bracket and turn the cover counterclockwise (Figure 19).
Be sure that the lockwashers are between the screw
heads and the ceiling cover.
Figure 18
Install the other two screws and lockwashers; tighten all
screws securely
WARNING
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the outlet box and
not pinched between the ceiling cover and the ceiling.
!
Figure 19
13
emersonfans.com
Please contact 1-800-654-3545 for further assistance
ETL Model No.: CF717
Page 14
10. Installation of Ceiling Fan Blades
BLADE / FLANGE
ASSEMBY (5)
1/4-20 x 1/2" OVAL HEAD
SCREWS (2 per blade /
flange assembly)
SWITCH CUP
PLATE
BLADE FLANGE (5)
#8-32 x 8mm
WASHER
HEAD SCREW
(3 per blade)
FAN BLADE (5)
MOTOR HUB
SPACERS (5)
MOTOR HUB
10.1
Remove and discard the five motor hub spacers to free the
motor for installation of ceiling fan blades (Figure 20).
10.2
Mount the blade flanges to the fan blades using three
#8-32 x 8mm washer head screws (supplied) per blade
(Figure 21).
Repeat this procedure for remaining four fan blades and
blade flanges.
igure 20
F
WARNING
To reduce the risk of personal injury, do not bend the
blade flanges when installing the flanges, balancing the
blades, or cleaning the fan. Do not insert foreign objects
between rotating fan blades.
!
10.3
Rotate the motor hub to expose the motor flange holes
through the switch cup plate.
Attach a blade/flange assembly to the motor hub using two
1/4-20 x 1/2” oval head screws (supplied) (Figure 22).
Do not tighten completely at this time.
Install remaining blade assemblies in the same way.
Gently snug all flange screws to the motor hub, working
around the hub in a clockwise sequence.
NOTE: Take care not to scratch fan housing assembly
when installing blades.
Figure 21
Figure 22
ETL Model No.: CF717
14
Page 15
11. Installation of Light Kit Assembly
SWITCH
CUP PLATE
SCREW (3)
LIGHT KIT
ASSEMBLY
ROTATE LIGHT KIT ASSEMBLY CLOCKWISE
MOTOR
CONNECTOR
LIGHT KIT
ASSEMBLY
CONNECTOR
LIGHT KIT
ASSEMBLY
LIGHT KIT
ASSEMBLY
SOCKETS (3)
60-WATT
(maximum)
CANDELABRA
BASE BULBS (3)
11.1
ngage the connector of the light kit assembly with the
E
motor connector (Figure 23).
he two connectors are keyed and color-coded and must
T
be mated correctly (color-to-color) before they can be
engaged.
Make sure the connector latch closes properly.
Figure 23
WARNING
To avoid possible fire or shock, do not pinch wires
between the light kit assembly and the switch cup plate.
!
11.2
Remove one switch cup plate screw and retain for future
use. (Figure 24). Loosen the two switch cup plate screws.
Position the light kit assembly notched holes onto the
switch cup plate’s two loosened screws.
Rotate the light kit assembly clockwise to engage the two
screws (Figure 24).
Secure the light kit assembly by installing the previous
removed screw (Figure 24).
11.3
Screw the three 60-watt (maximum) candelabra base
bulbs in the light kit assembly sockets (Figure 25).
Figure 24
WARNING
Over lamping the fan will result in the lamps being
automatically shut off. Use only 60 watt maximum
candelabra base bulbs. Turn off the electricity before
replacing the bulbs.
WARNING
To avoid risk of burns or other injuries, turn power off
and allow lamps to fully cool before attempting to replace
the candelabra base bulbs.
!
!
15
Figure 25
emersonfans.com
Please contact 1-800-654-3545 for further assistance
ETL Model No.: CF717
Page 16
11. Installation of Light Kit Assembly (continued)
SPEED CONTROL
PULL CHAIN
LIGHT KIT
FITTER PLATE
SPEED
CONTROL
PULL CHAIN
LIGHT SWITCH
PULL CHAIN
GLASS
SHADE
THREADED NIPPLE
BOWL CAP
FINIAL NUT
GLASS
SHADE
11.4
Position the fan speed control switch pull chain through the
side hole of the light kit fitter plate (Figure 26).
NOTE: Be sure that the fan switch chain does not
make contact with the light bulbs. If necessary
reposition the light fitter to avoid the fan switch chain
from touching the light bulbs.
11.5
Position the light switch pull chain through the center hole
of the glass shade.
Position the speed control switch pull chain through the
center hole of the glass shade.
Figure 26
NOTE: Be sure that the fan switch chain does not
make contact with the light bulbs. If necessary
reposition the light fitter to avoid the fan switch chain
from touching the light bulbs.
Place the glass shade onto the light kit assembly threaded
nipple (Figure 27).
11.6
Pass the light pull chain through the center bushing in the
bowl cap.
Pass the speed control switch pull chain through the offset
hole of the bowl cap.
Place the bowl cap on the threaded nipple and against the
glass shade (Figure 28).
Install finial nut finger tight to secure the bowl cap to the
glass shade (Figure 28).
Figure 27
ETL Model No.: CF717
Figure 28
16
Page 17
11. Installation of Light Kit Assembly (continued)
SPEED CONTROL
SWITCH PULL CHAIN
LIGHT CONTROL
SWITCH PULL CHAIN
COUPLING
SMALL WOOD
PENDANT
COUPLING
LARGE WOOD
PENDANT
SPEED CONTROL
SWITCH PULL CHAIN
LIGHT CONTROL
SWITCH PULL
CHAIN
REVERSING
SWITCH
11.7
Cut the speed control switch pull chain and the light switch
pull chain to the desired lengths.
Attach each pendant/coupling assembly (supplied) to the
ends of each pull chain using the attached coupling
(Figure 29).
Pl ease call Emer son techn ical support at
1- 800-654-3 545 if you have any quest ions
about installation and operation of this ceiling fan.
Figure 29
12. Using Your Ceiling Fan
12.1
Restore electrical power to the outlet box by turning the
electricity on at the main fuse box.
Check the operation of the light by gently pulling on the
light switch pull chain (Figure 30).
Check the operation of the fan by gently pulling on the
sp eed contr ol switch pul l chain (Figure 30).
The operation sequence is as follows:
1st pull - High
2nd pull - Medium
Your fan is shipped from the factory with the reversing
switch positioned to circulate air downward. If airflow is
desired in opposite direction, turn the fan off and wait for
the blades to stop turning, then slide the reversing switch
to the opposite position, and turn the fan on again
(Figure 30). The fan blades will turn in the opposite
direction and reverse the airflow.
3rd pull - Low
4th pull - OFF
Figure 30
17
emersonfans.com
Please contact 1-800-654-3545 for further assistance
ETL Model No.: CF717
Page 18
13. Maintenance
MPORTANT CARE INSTRUCTIONS
I
for your Ceiling Fan
Periodic cleaning of your new ceiling fan is the only
maintenance that is needed.
When cleaning, use only a soft brush or lint free cloth to
avoid scratching the finish.
Abrasive cleaning agents are not required and should be
avoided to prevent damage to finish.
14. Accessories
Do not use water when cleaning your ceiling fan. It could
amage the motor or the blades and create the possibility
d
of an electrical shock.
!
WARNING
See your local Emerson dealer, www.emersonfans.com or
the Emerson Ceiling Fan catalog for these accessories:
· Ceiling Fan/Light Controls
· Downrod Extension Kits (see store or catalog).
WARNING
The use of any other control not specifically approved for
this fan could result in fire, shock and personal injury.
!
WARNING
This product is designed to use only those parts supplied
with this product and/or any accessories designated
specifically for use with this product by Emerson Electric
Co. Substitution of parts or accessories not designated
for use with this product by Emerson Electric Co. could
result in personal injury or property damage.
!
ETL Model No.: CF717
18
Page 19
15. Trouble Shooting
WARNING: FOR YOUR OWN SAFETY TURN OFF POWER AT FUSE BOX OR CIRCUIT BREAKER BEFORE
!
ROUBLE SHOOTING YOUR FAN.
T
TROUBLE PROBABLE CAUSE SUGGESTED REMEDY
1. Fan will not start. 1. Fuse or circuit breaker blown. 1. Check main and branch circuit fuses or circuit
breakers.
2. Loose power line connections to the fan, 2. Check line wire connections to fan and switch
or loose switch wire connections in the wire connections in the switch housing.
switch housing.
WARNING: Make sure main power is turned OFF.
3. Reversing switch in neutral position. 3. Make sure reversing switch position is all the
way to one side.
2. Fan sounds noisy. 1. Blades not attached to fan. 1. Attach blades to fan before operating.
2. Loose screws in motor housing. 2. Check to make sure all screws in motor housing
are snug (not over-tight).
3. Wire connectors inside switch housing 3. Check to make sure wire connectors in switch
rattling. housing are not rattling against each other or
against the interior wall of the switch housing.
WARNING: Make sure main power is turned OFF.
!
!
4. Screws holding blades to flywheel 4. Tighten screws securely.
are loose.
3. Fan wobbles 1. Setscrews in motor coupling are loose. 1. Tighten both setscrews securely in the motor
excessively. coupling.
2. Setscrew in hanger ball/downrod 2. Tighten the setscrew in the hanger ball/
assembly is loose. downrod assembly.
3. Screws securing fan blades to 3. Check to be sure screws which attach the fan
flywheel are loose. blades to the motor are tight.
4. Hanger bracket and/or ceiling outlet 4. Tighten the hanger bracket screws to the outlet
box is not securely fastened. box, and/or secure outlet box.
5. Fan blades out of balance. 5. Interchanging an adjacent (side-by-side) blade
pair can redistribute the weight and result in
smoother operation.
4. Lamps will not 1. Loose electrical connectors. 1. Shut off the branch circuit electricity at the fuse box or breaker.
illuminate. panel and check the receiver electrical connectors for proper
installation.
2. The lamps are burnt out. 2. Turn the electricity off and replace the lamp with a new 60W
maximum lamp.
3. Lamps turns on and then turns off. 3. The build in circuit breaker is tripping. Check that each lamp is
60W maximum.
19
emersonfans.com
Please contact 1-800-654-3545 for further assistance
ETL Model No.: CF717
Page 20
5
4
2
3
1
14
13
17
16
15
7
6
20
22
21
20
15
19
17
16
18
14
13
23
9
18
10
11
12
8
21
22
16. Repair Parts
PARTS BAG
ETL Model No.: CF717
20
Page 21
16. Repair Parts Listing
Model Numbers
Key
No. Description CF717BS00 CF717ORB00 CF717SW00
* Hanger Ball Assembly, Consisting of: 762231-4 762231-8 762231-9
1 Hanger Bracket, Dual Mount — — —
2 Hanger Ball — — —
3 Downrod (4.5”) — — —
4 Ceiling Cover (1) 764482-BS 764482-ORB 764482-SW
5 Coupler Cover (1) 764483-BS 764483-ORB 764483-SW
6 Fan Blades (set of 5) 764489-DCWA 764489-DCWA 764489-SWMP
7 Fan Blade Flanges (set of 5) 764487-BS 764487-ORB 764487-SW
8 Harness, Wiring 764492 764492-1 764492-2
9 Light Kit Assembly (1) 764493-BS 764493-ORB 764493-SW
10 Glass Shade (1) 764494-OM 764494-OM 764494-OM
11 Bowl Cap (1) 764495-BS 764495-ORB 764495-SW
12 Finial Nut (1) 764496-BS 764496-ORB 764496-SW
* Parts Bag Containing: 764497 764497-1 764497-2
13 Pin, Clevis (1) — — —
14 Clip, Hairpin (1) — — —
15 Screw, #8-32 x 8mm Washer Head (16) — — —
16 Screw, 1/4-20 x 1/2” Oval Head (11) — — —
17 Screw, M5 (spare) — — —
18 Screw, 5/32” Truss (spare) — — —
19 Wire Connector (5) — — —
20 Gasket, Rubber (1) — — —
21 Large Wood Pendant w/Coupling (1) — — —
22 Small Wood Pendant w/Coupling (1) — — —
23 Blade Balance Kit (1) — — —
— Owner's Manual BP7483-1 BP7483-1 BP7483-1
Before discarding packaging material, be certain all parts have been removed.
HOW TO ORDER REPAIR PARTS
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:
• PART NUMBER • NAME OF ITEM
• PART DESCRIPTION • MODEL NUMBER
The model number of your Fan will be found on a label attached to the top housing.
For repair parts, phone 1-800-654-3545.
emersonfans.com
Please contact 1-800-654-3545 for further assistance
21
ETL Model No.: CF717
Page 22
Notes
ETL Model No.: CF717
22
Page 23
Emerson Air Comfort Ceiling Fan Limited Warranty
What The Limited Warranty Covers:
This limited warranty is offered by Air Comfort Products division of Emerson Electric Co. ("Emerson" "we" or "us") located at the address stated below to the original
retail purchaser ("you" or "your") of an Emerson Air Comfort Ceiling Fan product ("Emerson Ceiling Fan") and covers the motor and the other components and
accessories of the Emerson Ceiling Fan against all defects in workmanship and materials.
What The Period Of Coverage Is:
This limited warranty will cover the Emerson Ceiling Fan motor for the expected lifetime of your Emerson Ceiling Fan (when operated in accordance with your Owner's
Manual or other instructions provided by Emerson to you with the Emerson Ceiling Fan). All other components and accessories of the Emerson Ceiling Fan are covered
by this limited warranty for a period of one (1) year from its date of original retail purchase. ANY IMPLIED WARRANTY, INCLUDING WITHOUT LIMITATION, ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE THAT IS AVAILABLE TO YOU UNDER THE LAWS OF YOUR STATE OR
PROVINCE SHALL COVER THE MOTOR FOR THE EXPECTED LIFETIME OF THE MOTOR (SUBJECT TO PROPER USE), AND FOR ONE YEAR WITH RESPECT TO
COMPONENTS AND ACCESSORIES.
No Other Express or Implied Warranty Applies:
THE LIMITED WARRANTIES PROVIDED ABOVE ARE THE SOLE AND EXCLUSIVE WARRANTIES PROVIDED BY EMERSON TO YOU FOR YOUR EMERSON CEILING
FAN, AND ARE IN LIEU OF ALL OTHER WARRANTIES, WRITTEN OR ORAL, EXPRESS OR IMPLIED, WHETHER ARISING BY OPERATION OF LAW OR OTHERWISE,
WHETHER OR NOT THE PURPOSE HAS BEEN DISCLOSED AND WHETHER OR NOT THE EMERSON CEILING FAN HAS BEEN SPECIFICALLY DESIGNED OR
MANUFACTURED FOR YOUR USE OR PURPOSE. EMERSON HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION,
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE FOR COMPONENTS AND ACCESSORIES AS OF THE EXPIRATION OF
THE ONE YEAR WARRANTY PERIOD FOR SUCH COMPONENTS AND ACCESSORIES. IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE FOR THE MOTOR PORTION OF THE EMERSON CEILING FAN ARE LIKEWISE DISCLAIMED BY EMERSON AT SUCH TIME THAT THE
EXPECTED LIFETIME OF THE EMERSON CEILING FAN UNDER NORMAL USAGE HAS BEEN REACHED. EXCLUSIONS OR LIMITATIONS OF IMPLIED WARRANTIES
MAY VARY FROM STATE TO STATE AND PROVINCE TO PROVINCE SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
What We Will Do To Correct Problems:
If during the one (1) year warranty period the motor or any component or accessory of your Emerson Ceiling Fan is defective in materials or workmanship, or if during
the expected lifetime of the Emerson Ceiling Fan (when used in accordance with the User Manual or other instructions) the motor is defective in materials or
workmanship, you must contact Emerson during the applicable warranty period. If the defect is covered by warranty, Emerson will repair or replace the defective
motor, component or other accessory at no charge to you. If repair of the motor, component or accessory is not practical or possible within a reasonable time and no
replacement Emerson Ceiling Fan can be provided, Emerson will refund to you the actual purchase price of your Emerson Ceiling Fan. We will ship the repaired or the
replacement Emerson Ceiling Fan to you at no charge, but you are responsible for all costs of removal and reinstallation of your Emerson Ceiling Fan.
How You Can Receive Warranty Service:
You must be the original retail purchaser and have proof of your purchase of the Emerson Ceiling Fan to obtain your remedy under this limited warranty. You can
return your Emerson Ceiling Fan to your place of purchase, or you can call Emerson Customer Service at 1-800-237-6511 to obtain a return authorization and service
identification tag. In order for us to confirm that your Emerson Ceiling Fan is still under warranty, please retain your receipt or other proof of purchase and have that
information readily available when returning your Emerson Ceiling Fan to your place of purchase, or upon calling Emerson Customer Service. If you call Emerson
Customer Service, prior to your call please be prepared to provide all model numbers shown on your Emerson Ceiling Fan. Once we have processed your return
authorization request, we will provide you with a postage paid return label which should be affixed to the Emerson Ceiling Fan package you ship to the address listed at
the end of this limited warranty. The return label will be sent to the mailing address you provide to us by phone.
What Is Not Covered:
This limited warranty does not extend to and expressly excludes:
• The glass globes and light bulbs of your Emerson Ceiling Fan,
• Loss or damage to the motor or any component or accessory caused by normal wear and tear, rather than due to defects in materials or workmanship,
• Loss or damage resulting from conditions beyond our reasonable control, including without limitation, repairs not made at our factory or authorized service center,
use of parts or accessories not provided to you as part of this warranty by our factory or authorized service center, mishandling, unreasonable use, misuse, abuse,
modifications or other damage caused by you or a third party to your Emerson Ceiling Fan while not in our possession,
• Loss or damage resulting from improper installation, or other failure to comply with instructions in your Owner's Manual.
This limited warranty is deemed null and void upon the occurrence of either of the following events:
• You cease to own the Emerson Ceiling Fan product, or
• The Emerson Ceiling Fan is moved from its original point of installation.
This limited warranty is only valid within the 50 United States, the District of Columbia, and Canada. No other written or oral warranties apply, and no employee, agent,
dealer or other person is authorized to give any warranties on behalf of Air Comfort Products or Emerson Electric Co.
Limitation of Liability
REPAIR, REPLACEMENT OR A REFUND ARE THE EXCLUSIVE REMEDIES AVAILABLE TO YOU UNDER THIS LIMITED WARRANTY. TO THE EXTENT PERMITTED BY
LAW, IN NO EVENT SHALL EMERSON OR ANY EMERSON AUTHORIZED DEALER BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL
DAMAGES, INCLUDING ANY ECONOMIC LOSS, WHETHER RESULTING FROM NONPERFORMANCE, USE, MISUSE OR INABILITY TO USE THE EMERSON CEILING
FAN OR FOR THE NEGLIGENCE OF EMERSON OR AN EMERSON AUTHORIZED DEALER. EMERSON SHALL NOT BE LIABLE FOR DAMAGES CAUSED BY DELAY IN
PERFORMANCE AND IN NO EVENT, REGARDLESS OF THE FORM OF THE CLAIM OR CAUSE OF ACTION (WHETHER BASED IN CONTRACT, INFRINGEMENT,
NEGLIGENCE, STRICT LIABILITY, OTHER TORT OR OTHERWISE), SHALL EMERSON'S OR ANY EMERSON AUTHORIZED AGENT'S LIABILITY TO YOU OR ANY
INDIVIDUAL USING THE EMERSON CEILING FAN EXCEED THE PRICE PAID BY THE ORIGINAL OWNER FOR THE EMERSON CEILING FAN. The term "consequential
damages" shall include, but not be limited to, loss of anticipated profits, business interruption, loss of use or revenue, cost of capital or loss or damage to property or
equipment.
How State and Provincial Law Relates To The Warranty:
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages so the above exclusion or limitation may not apply to you.
This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province.
23
emersonfans.com
Please contact 1-800-654-3545 for further assistance
ETL Model No.: CF717
Page 24
Air Comfort Products
DIVISION OF EMERSON ELECTRIC CO.
8100 W. Florissant • St. Louis, MO63136
Questions, problems, missing parts: Before returning to the store call
Emerson Electric Customer Service
8 a.m. - 6 p.m., Eastern, Monday-Friday
1-800-654-3545
www.emersonfans.com
Retain this manual for future use.
Part No. F40BP74830001 Form No. BP7483-1
Revision: 150415 ETL Model No.: CF717
Printed in China
04/15
Loading...
