READ AND SAVE THESE INSTRUCTIONS
SNUGGER Ceiling Fan
Owner's Manual
Part No. F40BP70800008 Form No. BP7080-8
Model No.
Net Weight:
13.9 Lbs.
Net Weight:
1 1.2 Lbs.
Model No.
Net Weight: 13.9 Lbs. Net Weight: 1 1.2 Lbs.
DATE CODE:
The date code of this fan may be found on the
box, stamped in ink on a white label.
You should record this data above and keep it in
a safe place for future use.
CF805SBS01
CF805SORB01
CF805SWW01
CF804SBS01
CF804SORB01
CF804SWW01
CF705SAB03
CF705SAW03
CF705SORB03
CF705SPB03
CF705SWW03
CF704SAB03
CF704SAW03
CF704SORB03
CF704SPB03
CF704SWW03
WARNING: To avoid fire, shock, and serious personal injury, follow these instructions.
Safety Instructions
1. Read your owner’s manual carefully and keep it for future reference.
2. Before servicing or cleaning unit, switch power off at service panel and lock service panel disconnecting means
to prevent power from being switched on accidentally. When the service disconnecting means cannot be
locked, securely fasten a warning device, such as a tag, to the service panel.
3. Be careful of the fan and blades when cleaning, painting, or working near the fan. Always turn off the power to
the ceiling fan before servicing.
4. Do not put anything into the fan blades while they are turning.
5. Do not operate reversing switch until fan blades have come to a complete stop.
Additional Safety Instructions for Installation
1. To avoid possible shock, be sure electricity is turned off at the fuse box before wiring, and do not operate fan
without blades.
2. All wiring must be in accordance with the National Electrical Codes “ANSI/NFPA 70-1999” and Local
Electrical Codes. Use the National Electrical Code if Local Codes do not exist. The ceiling fan must
be grounded as a precaution against possible electrical shock. Electrical installation should be made
or approved by a licensed electrician.
3. The outlet box and joist must be securely mounted and capable of reliably supporting at least 50 pounds. Use
only U.L. outlet boxes marked as “Acceptable for Fan Support”, and use the mounting screws provided with the
outlet box. Most outlet boxes commonly used for support of light fixtures are not acceptable for fan support and
may need to be replaced. Consult a qualified electrician if in doubt.
4. The fan must be mounted with the fan blades at least 7 feet from the floor to prevent accidental contact with the
fan blades.
5. Follow the recommended instructions for the proper method of wiring your ceiling fan. If you do not know
enough about electrical wiring, have your fan installed by a licensed electrician.
WARNING: To avoid fire, shock or injury, do not use an Emerson or any other brand of control not specifically
approved for this fan.
WARNING: This product is designed to use only those parts supplied with this product and/or any accessories
designated specifically for use this product by Emerson Electric Co. Substitution of parts or accessories not
designated for use with this product by Emerson Electric Co. could result in personal injury or property damage.
WARNING: To Reduce the risk of personal injury, do not bend the blade flange when installing the blade flanges,
balancing the blades or cleaning the fan. Do not insert foreign objects in between rotating fan blades.
2
WARNING
!
This Manual Is Designed to Make it as Easy as Possible for You to
Assemble, Install, Operate and Maintain Your Ceiling Fan
T ools Needed for Assembly
One Phillips head screwdriver
One 1/4" blade screwdriver
One stepladder
One wire stripper
Three wire connectors (supplied)
Materials
Wiring electrical box and box connectors must be of
type required by local code. The minimum wire would
be a 3-conductor (2-wire with ground) of size shown at
right.
Installed Wire Length Wire Size A.W.G.
Up to 50 ft. 14
50 - 100 ft. 12
Before assembling your ceiling fan, refer to section
on proper method of wiring your fan (page 5). If you
feel you do not have enough wiring knowledge or
experience, have your fan installed by a licensed
electrician.
WARNING
!
1.Check to see that you have received the following
parts:
NOTE: If you are uncertain of part description,
refer to exploded view illustration.
a. Fan housing
b. Mounting plate
c. Fan motor assembly
d. Five fan blades
e. Five blade flanges with captive screws
f. One loose parts bag containing:
1. Sixteen M5 x 6mm Phillips washer
head screws
2. One M5 x 13mm Phillips pan head screw
with lockwasher
3. Four M5 x 10mm Phillips pan head screws
with internal tooth washers
4. Three 1/4” hex locknuts
5. One wood pendant
6. One chain coupling
7. Three wire connectors
NOTE: Place the parts from the loose parts bag in
a small container to keep them from being lost. If
any parts are missing, contact your local retailer
or catalog outlet for replacement before
proceeding.
2. Remove the fan assembly from the protective
plastic bag. Place the fan assembly into the upper
foam pad with the lead wires up.
Unpacking Instructions
For your convenience, check-off boxes are provide next to each step. As each step is completed, place a
check mark in the box. This will insure that all steps have been completed and will be helpful in finding
your place should you be interrupted.
3
Do not install or use fan if any part is damaged or
missing. Call Toll-Free:
1-800-654-3545
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product by
Emerson Electric Co. Substitution of parts or
accessories not designated for use with this product
by Emerson Electric Co. could result in personal
injury or property damage.
WARNING
!
WARNING
!
Electrical Requirements
Your new ceiling fan will require a grounded electrical
supply line of 120 volts AC, 60 Hz, 15 amp circuit.
The outlet box must be securely anchored and
capable of withstanding a load of at least 50 pounds.
If your fan is to replace an existing ceiling light fixture,
turn electricity off at the main fuse box at this time and
remove the existing light fixture.
To reduce the risk of fire, electric shock, or personal
injury, mount fan to outlet box marked “Acceptable
for Fan Support”, and use screws supplied with
outlet box. Most outlet boxes commonly used for
support of light fixtures are not acceptable for fan
support and may need to be replaced. Consult a
qualified electrician if in doubt.
WARNING
!
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is
turned off at the main fuse box before wiring. All
wiring must be in accordance with National and
Local Codes and the ceiling fan must be properly
grounded as a precaution against possible
electrical shock.
WARNING
!
To avoid fire or shock, follow all wiring instructions
carefully.
Any electrical work not described in these
instructions should be done or approved by a
licensed electrician.
WARNING
!
FAN
BLADES
UPPER
FOAM PAD
MOUNTING
PLATE
FAN
HOUSING
BLADE FLANGES WITH
CAPTIVE SCREWS
LOWER
FOAM PAD
CARTON
FAN
MOTOR
ASSEMBLY
1. Securely attach the mounting plate to the outlet box
(Figure 2) using two screws (supplied with outlet
box). Pull the black, white and ground wires out of
the outlet box through the hole in the mounting
plate and lay them to the side as shown in Figure 3.
NOTE: For better fan performance make sure the
mounting plate is level. Additional washers (not
included) may be needed to insert between the
electrical box and mounting plate (Figure 2).
2. Slide the three rubber washers over the three
threaded studs on the bottom surface of the
mounting plate.
3. Carefully lift the fan motor assembly and engage
the slot in the motor bracket with the hook on the
mounting plate so that it is securely suspended
(Figure 3). Then connect wiring to your fan
according to section "HOW TO WIRE YOUR
CEILING FAN".
4. Once wiring is completed, lift the motor bracket so
that the four threaded studs on the mounting plate
protrude through the four slots in the motor bracket.
(See Figure 4.)
Securely tighten the three 1/4” locknuts (supplied)
onto the threaded studs, then try to shake the
motor bracket to ensure that the assembly is tight.
Proceed to section "HOW TO PUT YOUR CEILING
FAN TOGETHER".
To reduce the risk of fire, electric shock, or personal
injury, mount fan to outlet box marked “Acceptable
for Fan Support”, and use screws supplied with
outlet box. Most outlet boxes commonly used for
support of light fixtures are not acceptable for fan
support and may need to be replaced. Consult a
qualified electrician if in doubt.
How to Hang Your Ceiling Fan
Figure 1
4
Figure 2
Figure 3
The fan must be hung with at least 7' of clearance
from floor to blades (Figure 1).
WARNING
!
The outlet box and joist must be securely anchored
and capable of supporting at least 50 lbs. Use only a
U.L. outlet box marked as “Acceptable for Fan
Support”.
WARNING
!
Figure 4
WARNING
!
To avoid possible fire or shock, do not pinch wires
between the motor bracket and mounting plate.
WARNING
!
CEILING
AT LEAST
7'
FLOOR
MOUNTING
PLATE
RUBBER
WASHER
THREADED
STUDS
SUPPLY WIRE
LEADS
BRACKET
MOTOR
MOTOR
OUTLET BOX
MOUNTING
PLATE
1/4" LOCKNUTS
(3) (SUPPLIED)
MOTOR BRACKET
OUTLET BOX
MOUNTING
PLATE
LEVELING WASHER
(IF REQUIRED)
HOOK
MOUNTING SCREWS
(SUPPLIED WITH
OUTLET BOX)
PLAIN WASHER
(SUPPLIED)
FAN MOTOR
SWITCH HOUSING
If you feel that you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
1. Connect the green grounding wires from the motor
bracket and the mounting plate to the grounding
conductor of supply (this may be a bare wire or wire
with green colored insulation). Securely connect
wires with wire connectors (supplied).
NOTE: If you are using an Emerson Light Fixture
with your fan, see the Light Fixture Owner’s
Manual for wiring.
2. Connect the fan motor white wire to the supply
white (neutral) wire using a supplied wire connector
(Figure 5).
3. Connect the fan motor black wire and blue wire to
the supply black (hot) wire using a supplied wire
connector (Figure 5). Your fan is now wired to be
turned on and off from the fan switch. After
connections have been made, turn leads upward
and carefully push leads into the outlet box, with
the white and green leads on one side of the outlet
box and the black and blue leads on the other side
of the outlet box.
4. Cut the 3-speed switch pull chain to a desired
length (optional). Connect the wood pendant
(supplied) to the 3-speed switch pull chain by
sliding the wooden pendant (small hole first) onto
the pull chain. Attach the chain coupler to the end
of the chain and allow the wooden pendant to fall
down over the coupling.
5. Return to step 4 of section "HOW TO HANG YOUR
CEILING FAN".
How To Wire Your Ceiling Fan
Figure 5
5
To avoid possible electrical shock, be sure electricity
is turned off at the main fuse box before wiring.
NOTE: If you are not sure if the outlet box is
grounded, contact a licensed electrician for advice,
as it must be grounded for safe operation.
WARNING
!
To avoid risk of fire or shock, check to see that all
connections are tight, including ground, and that no
bare wire is visible at the wire connectors, except for
the ground wire. Do not operate fan until blades are
in place. Noise and fan damage could result.
WARNING
!
How To Put Your Ceiling Fan Together
1. Align the four holes in the fan housing with the four
holes in the mounting plate and install four
M5 X 10mm Phillips pan head screws with internal
tooth washers (supplied) (Figure 6).
2. Mount the blade flanges to the fan blades using
three M5 X 6mm Phillips washer head screws per
blade (supplied) (Figure 7). Repeat for four
remaining blades.
3. Attach one blade assembly to the motor using the
captive screws provided on each flange (Figure 8).
Make sure the screws are tightened securely.
Repeat this procedure for the other four blade
assemblies.
Figure 7
Figure 6
To reduce the risk of personal injury, do not bend the
blade flange when installing the blade flanges,
balancing the blades or cleaning the fan. Do not
insert foreign objects in between rotating fan blades.
WARNING
!
SUPPLY GROUNDING
BLACK SUPPLY (HOT)
WIRE
CONNECTORS
BLUE FAN WIRE
GREEN GROUND WIRE
WHITE FAN WIRE
CONDUCTOR WIRE
WHITE SUPPLY (NEUTRAL)
BLACK FAN WIRE
M5 x 10MM PHILLIPS PAN HEAD SCREWS
WITH INTERNAL TOOTH WASHERS (4)
FAN HOUSING
M5 x 6mm PHILLIPS WASHER
HEAD SCREWS (3)
CAPTIVE SCREW
BLADE
FLANGE
FAN BLADE
IMPORTANT CARE INSTRUCTIONS
For Your Ceiling Fan
Periodic cleaning of your new ceiling fan is the only
maintenance that is needed.
When cleaning, use only a soft brush or lint free cloth
to avoid scratching the finish.
Abrasive cleaning agents are not required and should
be avoided to prevent damage to finish.
Using Your Ceiling Fan
1. Restore electrical power to the electrical box by
turning the electricity on at the main fuse box or
circuit breaker panel.
2. Check the operation of the fan by gently pulling on
the pull chain switch.
3. All fans are shipped from the factory with the reversing switch positioned to circulate air downward.
If airflow is desired in opposite direction, turn your
fan off and wait for the blades to stop turning, then
slide the reversing switch to opposite position, and
turn fan on again. The fan blades will turn in the
opposite direction and reverse the airflow.
Your fan model is equipped with a 4-position,
3-speed pull chain switch. The operating sequence
is as follows:
6
THREE SPEED:
1st Pull – High
2nd Pull – Medium
To reduce the risk of fire or electrical shock, do not
use this fan with any solid-state speed control
device.
WARNING
!
NOTE: Take care not to scratch the fan housing
when installing the blade assemblies.
4. You have now completed the assembly of your new
ceiling fan.
Figure 8
Maintenance
Do not use water when cleaning your ceiling fan. It
could damage the motor or the blades and create the
possibility of an electrical shock.
WARNING
!
To reduce the risk of fire or electrical shock, do not
use this fan with any solid-state speed control
device.
WARNING
!
Accessories
1. Ceiling Fan Light Kits (see store or catalog).
2. Emerson SW-95 Speed Control (see store or
catalog).
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product by
Emerson Electric Co. Substitution of parts or
accessories not designated for use with this product
by Emerson Electric Co. could result in personal
injury or property damage.
The use of any other control not specifically
approved for this fan could result in fire, shock and
personal injury.
WARNING
!
WARNING
!
3rd Pull – Low
4th Pull – OFF
BLADE
CAPTIVE SCREW
(2 PER FLANGE)
BLADE FLANGE
SPEED CONTROL
SWITCH
REVERSING
SWITCH
WARNING: FOR YOUR OWN SAFETY TURN OFF POWER AT FUSE BOX OR CIRCUIT BREAKER
BEFORE TROUBLE SHOOTING YOUR FAN.
Trouble Shooting
TROUBLE PROBABLE CAUSE SUGGESTED REMEDY
1. Fan will not 1. Reversing switch in neutral position. 1. Make sure reversing switch position is all the way to
start. one side.
2. Fuse or circuit breaker blown. 2. Check main and branch circuit fuses or circuit
breakers.
3. Loose power line connections to the fan, or 3. Check line wire connections to fan and switch
loose switch wire connections in switch housing. wire connections in the switch housing.
2. Fan sounds 1. Blades not attached to fan. 1. Attach blades to fan before operating.
noisy. 2. Loose screws in motor housing. 2. Check to make sure all screws in motor housing are
snug (not over-tight).
3. Screws securing fan blade flanges to motor are 3. Check to make sure the screws which attach the fan
loose. blade flanges to the motor are tight.
4. Wire connectors inside switch housing 4. Check to make sure wire connectors in switch housing
rattling. are not rattling against each other or against the
interior wall of the switch housing.
5. Screws holding flanges to blades are loose. 5. Tighten securely.
3. Fan wobbles 1. Screws securing fan blade flanges to motor are 1. Check to be sure screws which attach the fan blade
or shakes. loose. flanges to the motor are tight.
2. Fan blade flanges not seated properly. 2. Check to be sure the fan blade flanges seat firmly and
uniformly to the surface of the motor. If flanges are
seated incorrectly, loosen the flange screws and
retighten according to the procedure in the section on
"How to Put Your Ceiling Fan Together".
3. Mounting plate and/or ceiling outlet box is not 3. Tighten the mounting plate screws to the outlet box,
securely fastened. and/or secure outlet box.
4. Fan blades out of balance. 4. Interchanging an adjacent (side-by-side) blade pair can
redistribute the weight and result in smoother operation.
7
LIMITED WARRANTY
What The Warranty Covers:
This warranty covers the motor and the other components and accessories of your Emerson ceiling fan against all defects in workmanship and materials.
You must be the original purchaser or user of the product to be covered.
What The Period Of Coverage Is:
As it applies to the motor, this warranty will last for the lifetime of your ceiling fan. All other components and accessories are covered by this warranty for
one year from the date you purchased your ceiling fan. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
MADE WITH RESPECT TO COMPONENTS AND ACCESSORIES IS ALSO LIMITED TO ONE YEAR.
What Will Emerson Electric Co. Do To Correct Problems:
Emerson Electric Co. will replace a defective Emerson Air Comfort Ceiling Fan motor, blade, component or other accessory at no charge to you. If repair of the
motor or blades is not practical or possible within a reasonable time and no replacement can be provided, Emerson Electric Co. will refund the actual purchase
price of your fan. WE WILL SHIP THE REPAIRED PRODUCT OR REPLACEMENT TO YOU AT NO CHARGE, BUT YOU ARE RESPONSIBLE FOR ALL COSTS OR
REMOVAL, REINSTALLATION AND SHIPPING OF THE PRODUCT TO EMERSON ELECTRIC CO.
How Can You Get Service:
YOU MUST HAVE PROOF OF YOUR PURCHASE OF THE CEILING FAN TO OBTAIN LIMITED WARRANTY SERVICE. KEEP YOUR RECEIPT OR OTHER PROOF
OF PURCHASE. You can return the product to our factory or to your nearest authorized service center.
• To return the product to the factory, obtain a return authorization and service identification tag by writing to Air Comfort Products, Division of Emerson
Electric Co., 8100 W. Florissant Ave., St. Louis, MO 63136. Include all model numbers shown on the product with your request.
• To return the product to an authorized service center, call 1-800-654-3545 for the address of the nearest authorized service center.
You will be responsible for all insurance, freight or other transportation charges to our factory or authorized service center. Your Emerson Air Comfort
Ceiling Fan should be properly packed to avoid damage in transit since we will not be responsible for any such damage.
What Is Not Covered:
The glass globes and light bulbs of your ceiling fan are not covered by this warranty. This warranty also does not cover any defects, malfunctions or failures
caused by:
• Repairs by persons not authorized by Emerson Electric Co.,
• Use of parts or accessories not authorized by Emerson Electric Co.,
• Mishandling, improper installation, modifications or damage to your ceiling fan while in your possession, or
• Unreasonable use, misuse, abuse, including failing to do reasonable and necessary maintenance, and normal wear and tear.
Additionally, this warranty and any implied warranty of merchantability or fitness for a particular purpose are voided when:
• The original purchaser or user ceases to own the product, or
• The fan is moved from its original point of installation.
This warranty is only valid within the 50 states of the United States and the District of Columbia. No other written or oral warranties apply, and no employee,
agent, dealer or other person is authorized to give any warranties on behalf of Emerson Electric Co.
REPAIR, REPLACEMENT OR A REFUND ARE THE EXCLUSIVE REMEDIES AVAILABLE UNDER THIS WARRANTY AND EMERSON IS NOT RESPONSIBLE
FOR DAMAGES OF ANY KIND, INCLUDING INCIDENTAL AND CONSEQUENTIAL DAMAGES. Incidental damages include but are not limited to such damages
as loss of time and loss of use. Consequential damages include but are not limited to the cost of repairing or replacing other property which was damaged if
this product does not work properly.
How State Law Relates To The Warranty:
Some states do not allow the exclusion or limitation of incidental or consequential damages so the above exclusion or limitation may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
!

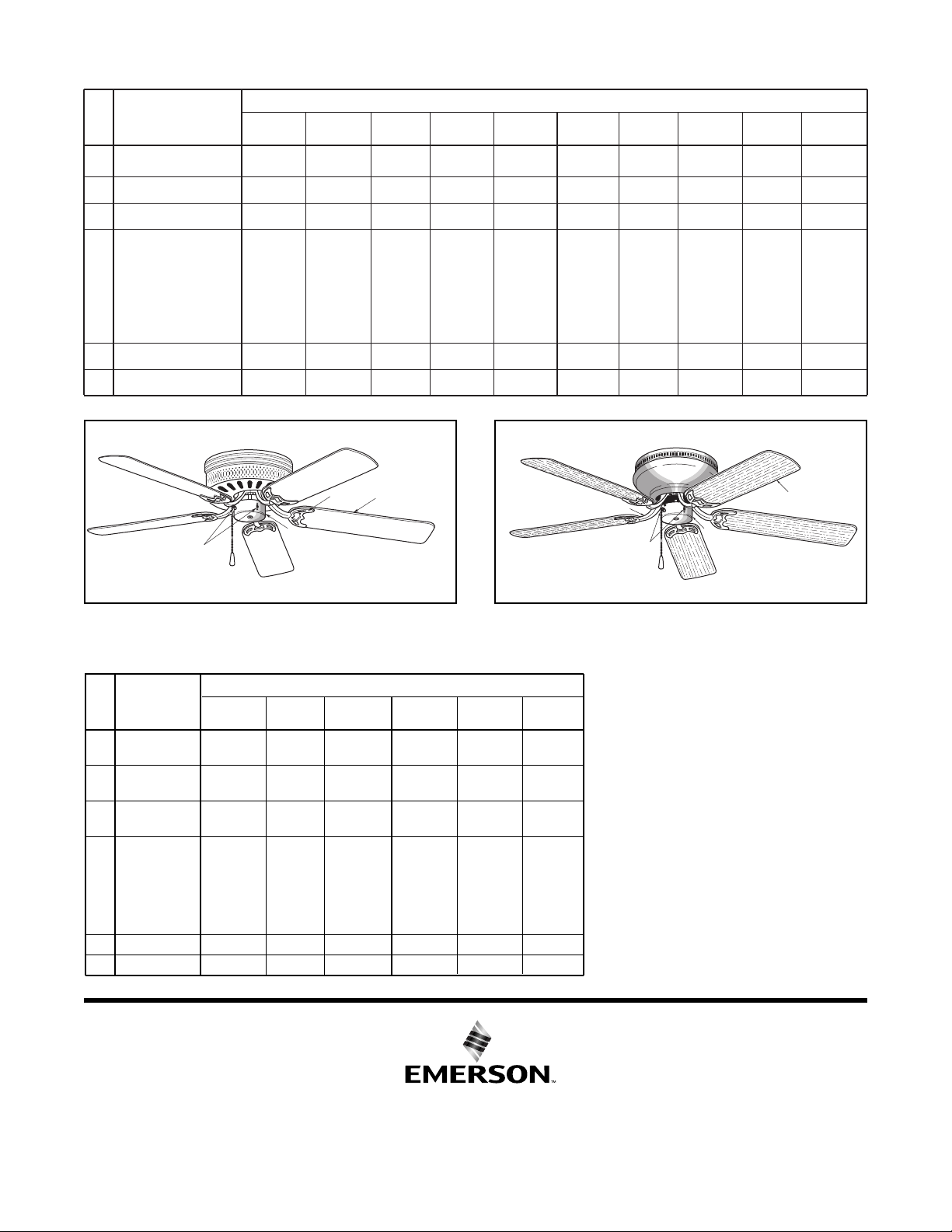

Repair Parts List
Model Numbers
Key Model No. Model No. Model No. Model No. Model No. Model No. Model No. Model No. Model No. Model No.
No. Description CF705SORB03 CF705SWW03 CF705SPB03 CF705SAB03 CF705SAW03 CF704SWW03 CF704SPB03 CF704SAB03 CF704SAW03 CF704SORB03
1 Switch HousingAssembly 762577-9 762577-2 762577-1 762577 762577-4 762575 762575-1 762575-2 762575-3 762575-4
2 Flange Assembly (set of 5) 762573-6 762573 762573-1 762573-2 762573-4 762571 762571-1 762571-2 762571-3 762571-4
3 Blade Assembly (set of 5) 762566-5 762566 762566-1 762566-1 762566-4 762564 762564-1 762564-1 762564-2 762564-4
4 Loose Parts Bag Containing: 762567-1 762567-2 762567 762567-1 762567 762567-2 76267 762567-1 762567 762567-1
Blade Hardware — — — — — — — — — —
Hanging Hardware — — — — — — — — — —
Wood Pendant — — — — — — — — — —
Coupling — — — — — — — — — —
5 Harness, Wiring 762569-2 762569-4 762569 762569-2 762569-1 762568 762568-1 762568-1 762568 762568-2
– Owner’s Manual BP7080-8 BP7080-8 BP7080-8 BP7080-8 BP7080-8 BP7080-8 BP7080-8 BP7080-8 BP7080-8 BP7080-8
Printed in China
Part No. F40BP70800008 06/07 Form No. BP7080-8
Before discarding packaging
material, be certain all parts have
been removed.
HOW TO ORDER REPAIR PARTS
WHEN ORDERING REPAIR
PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION:
• PART NUMBER
• PART DESCRIPTION
• NAME OF ITEM
• MODEL NUMBER
For repair parts, phone
1-800-654-3545.
Air Comfort Products
DIVISION OF EMERSON ELECTRIC CO.
8100 W. Florissant ¥ St. Louis, MO 63136
Repair Parts List
Model Numbers
Key
No. Description CF805SWW01 CF805SBS01 CF805SORB01 CF804SWW01 CF804SORB01 CF804SBS01
1 Switch Housing
Assembly 762577-2 762577-3 762577-9 762575 762575-4 762575-5
2 Flange Assembly
(set of 5) 762573 762573-3 762573-6 762571 762571-4 762571-5
3 Blade Assembly
(set of 5) 762566 762566-2 762566-5 762564 762564-4 762564-5
4 Loose Parts Bag
Containing:
Blade Hardware 762567-2 762567-3 762567-1 762567-2 762567-1 762567-4
Hanging Hardware
Wood Pendant
Coupling
5 Harness, Wiring 762569-4 762569-3 762569-2 762568 762568-2 762568-3
– Owner’s Manual BP7080-8 BP7080-8 BP7080-8 BP7080-8 BP7080-8 BP7080-8
4 HARDWARE BAG NOT SHOWN
CF805S/CF804S
CF705S/CF704S
2
3
1
5
4 HARDWARE BAG NOT SHOWN
3
2
1
5
Loading...
