Emerson CF3400ORH, CF3400AP User Manual

Part No. F40BP73860000 Form No. BP7386

Model No.: CF3400

READ AND SAVE THESE INSTRUCTIONS

Net Weight: Lbs.

CORSAIR

™

44” or 52” Ceiling Fan

Owner's Manual

CF3400AP

Antique Pewter

CF3400ORH

Oil Rubbed Bronze

with Highlights

Model Numbers

24” - 21.4 36” - 22.9 48” - 24.5

BP7386, CF3400 Corsair 11/25/09 6:20 AM Page 1

WARNING: To avoid fire, shock, and serious personal injury, follow these instructions.

Safety Instructions

1. Read your owner’s manual carefully and keep it for future reference.

2. Before servicing or cleaning unit, switch power off at service panel and lock service panel disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a warning device, such as a tag, to the service panel.

3. Be careful of the fan and blades when cleaning, painting, or working near the fan. Always turn off the power to the ceiling fan before servicing.

4. Do not put anything into the fan blades while they are turning.

5. Do not operate reversing switch until fan blades have come to a complete stop.

Additional Safety Instructions for Installation

1. To avoid possible shock, be sure electricity is turned off at the fuse box before wiring, and do not operate fan without blades.

2. The installation is to be in accordance with the National Electrical Code, ANSI/NFPA 70-2008 and Local Codes. Use the National Electrical Code if Local Codes do not exist. The ceiling fan must be grounded as a precaution against possible electrical shock. Electrical installation should be made or approved by a licensed electrician.

3. The outlet box and joist must be securely mounted and capable of reliably supporting at least 50 pounds. Use only U.L. outlet boxes listed as “Acceptable for Fan Support”, and use the mounting screws provided with the outlet box. Most outlet boxes commonly used for support of light fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt.

4. The fan must be mounted with the fan blades at least 7 feet from the floor to prevent accidental contact with the fan blades.

5. Follow the recommended instructions for the proper method of wiring your ceiling fan. If you do not know enough about electrical wiring, have your fan installed by a licensed electrician.

NOTE: This fan is suitable for use with solid-state speed controls.

WARNING: To reduce the risk of fire or electric shock, this fan should only be used

with fan speed control UC9020 (SW46), manufactured by Rhine Electric Co, Ltd.

WARNING: This product is designed to use only those parts supplied with this product and/or any accessories designated specifically for use with this product by Emerson Electric Co. Substitution of parts or accessories not designated for use with this product by Emerson Electric Co. could result in personal injury or property damage.

WARNING: To reduce the risk of personal injury, do not bend the blade flange when installing the blade flanges, balancing the blades or cleaning the fan. Do not insert foreign objects in between rotating fan blades.

WARNING

DATE CODE:

The date code of this fan may be found on the box, stamped in ink on a white label. You should record this data above and keep it in a safe place for future use.

Model No.: CF3400

BP7386, CF3400 Corsair 11/25/09 6:20 AM Page 2

This Manual is Designed to Make it as Easy as Possible for You to

Assemble, Install, Operate and Maintain Your Ceiling Fan

Do not install or use fan if any part is damaged or missing. Call Toll-Free:

1-800-654-3545

WARNING

This product is designed to use only those parts supplied with this product and/or any accessories designated specifically for use with this product by Emerson Electric Co. Substitution of parts or accessories not designated for use with this product by Emerson Electric Co. could result in personal injury or property damage.

WARNING

Tools Needed for Assembly

One Phillips head screwdriver One wire stripper One stepladder

Materials

Wiring, outlet box and box connectors must be of type required by the local code. The minimum wire shall be a 3-conductor (2-wire with ground) of the following sizes:

Installed Wire Length Wire Size A.W.G.

Up to 50 ft. 14 50-100 ft. 12

Before assembling your ceiling fan, refer to section on proper method of wiring your fan (Page 5). If you feel you do not have enough wiring knowledge or experience, have your fan installed by a licensed electrician.

WARNING

Unpacking Instructions

For your convenience, check-off boxes are provided next to each step. As each step is completed, place a check mark in the box. This will insure that all steps have been completed and will be helpful in finding your place should you be interrupted.

A. Ceiling Fan Assembly B. One Ceiling Cover C. One Medallion Set (2 pieces) D. One Hanger Bracket E. One SW46 Wall Control F. One Loose Parts Bag Containing:

1. Seven #10-32 x .75” Oval Head Screws

2. Four #8-32 x .25 Flat Head Screws

3. Four Wire Connectors

1. Open carton containing fan. Remove

top half of styrofoam unit. Remove parts, placing all carton contents on a soft protective surface to prevent scratching the painted or plated finishes, and check to see that you have received the following parts:

Model No.: CF3400

NOTE: Place the parts from the loose parts bags in a small container to keep them from being lost.

BP7386, CF3400 Corsair 11/25/09 6:20 AM Page 3

A. CEILING FAN ASSEMBLY

B. CEILING COVER

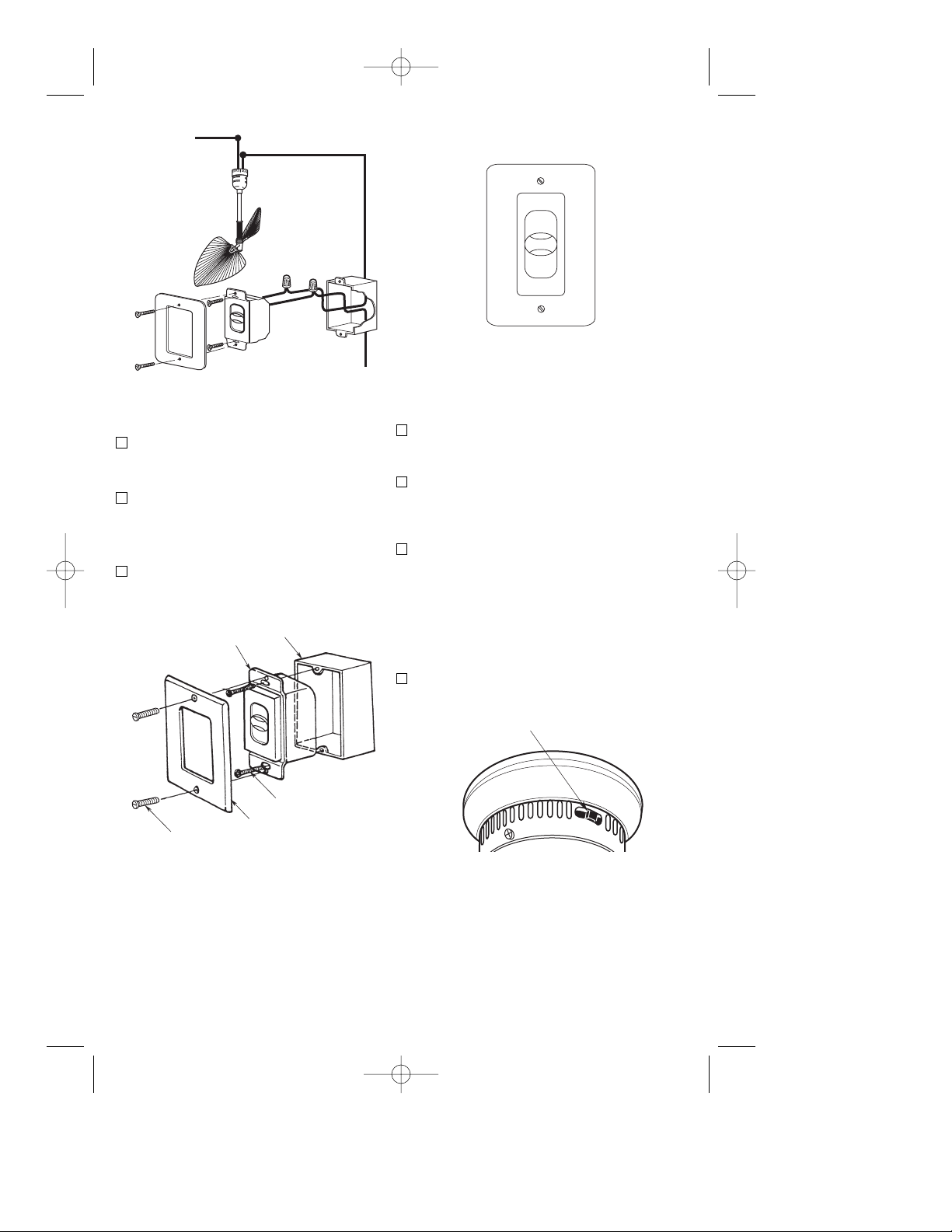

E. SW46 WALL CONTROL

D. HANGER BRACKET

C. MEDALLION SET (2)

F. LOOSE PARTS BAG

Your new ceiling fan will require a grounded electrical supply line of 120 volts AC, 60 Hz, 15 amp circuit.

The outlet box must be securely anchored and capable of withstanding a load of at least 50 pounds.

To reduce the risk of fire, electric shock, or personal injury, mount fan to outlet box marked “Acceptable for Fan Support”, and use screws supplied with outlet box. Most outlet boxes commonly used for support of light fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt.

WARNING

If your fan is to replace an existing ceiling light fixture, turn electricity off at the main fuse or circuit breaker box at this time and remove the existing light fixture.

Electrical Requirements How to Hang

Your Ceiling Fan

Turning off wall switch is not sufficient. To avoid possible electrical shock, be sure electricity is turned off at the main fuse or circuit breaker box before wiring. All wiring must be in accordance with National and Local codes and the ceiling fan must be properly grounded as a precaution against possible electrical shock.

WARNING

To avoid possible fire or shock, follow all wiring instructions carefully. Any Electrical work not described in these instructions should be done or approved by a licensed electrician.

WARNING

Model No.: CF3400

The fan must be hung with at least 7' of clearance from floor to blades (Figure 1).

WARNING

The outlet box and joist must be securely mounted and capable of supporting at least 50 lbs. Use only a U.L. outlet box listed as “Acceptable for Fan Support”.

WARNING

Figure 1

BP7386, CF3400 Corsair 11/25/09 6:20 AM Page 4

LEAST

CEILING

FLOOR

3. Pull the electrical supply wires through

the opening on the back side of the hanger bracket for installation of the fan’s hanger ball.

4. To prevent scratching the fan assembly,

secure the upper motor cover onto a blade flange with masking tape.

5. Carefully lift the fan assembly and

install the fan’s hanger ball into the hanger bracket. For added clearance, position the fan’s reverse switch to the side of the hanger bracket during installation.

6. Carefully rotate the fan assembly to

engage the hanger ball groove onto the hanger bracket locking tab. When locked in position, the fan will not rotate on the hanger bracket.

Model No.: CF3400

Figure 2

Figure 3

1. Pull the electrical supply wires through

the center opening of the ceiling cover.

2. Install the ceiling cover and hanger

bracket together onto the outlet box using the two screws supplied with the outlet box. The hanger bracket will nest into the ceiling cover between the raised guides on the bottom surface of the cover. The center hole of the ceiling cover provides visual access to view installation of the outlet box screws into the threaded mounting holes of the box (Figure 2).

WARNING

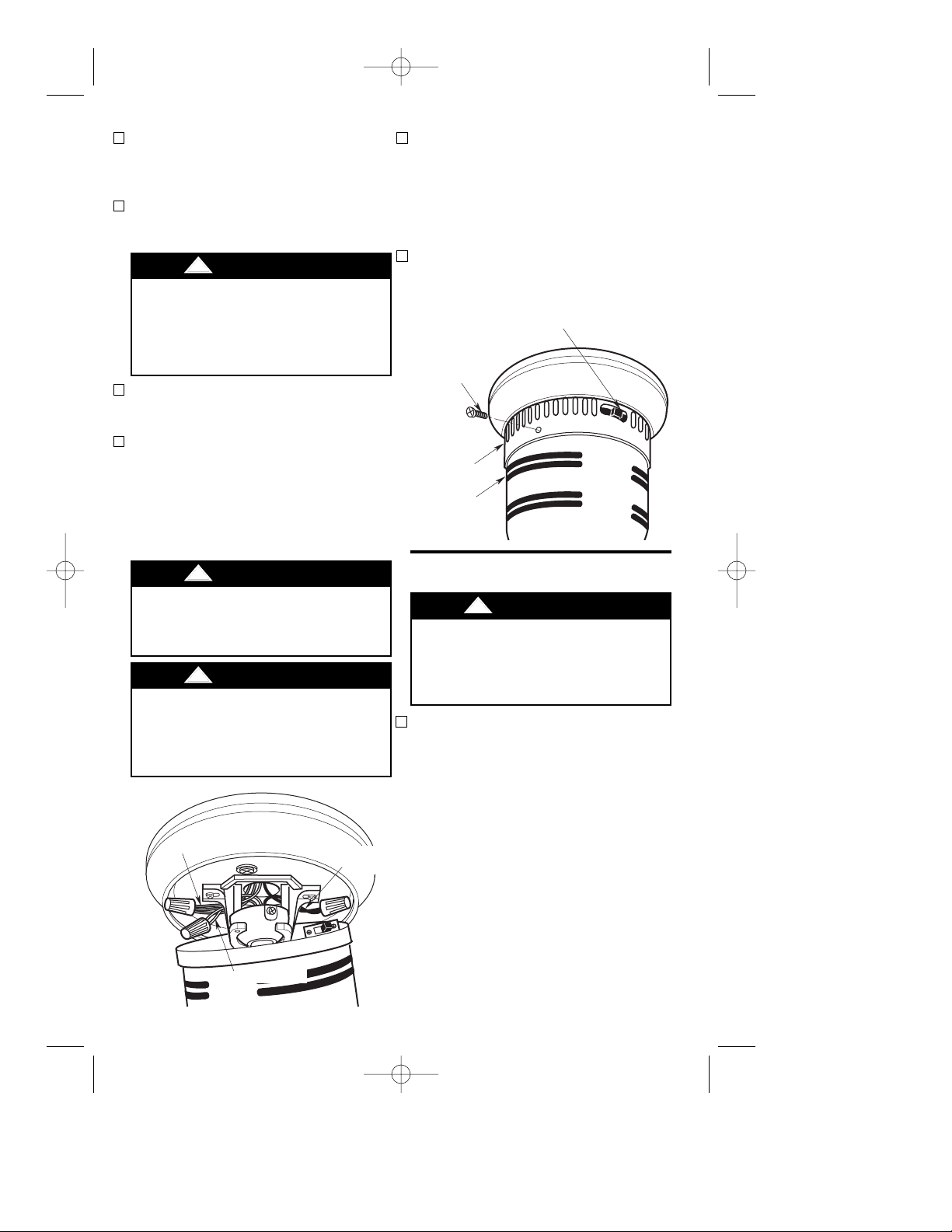

1. Connect the green grounding lead from

the hanger ball and the green grounding lead from the hanger bracket to the grounding conductor of supply (this may be a bare wire or wire with green colored insulation) with wire connector supplied. (Figure 3.)

Failure to seat tab in groove could cause damage to electrical wires and possible shock or fire hazard.

WARNING

To avoid possible fire or shock, do not pinch wires between the hanger ball/downrod assembly and hanger bracket.

WARNING

To avoid possible fire or shock, do not pinch electrical wires between the ceiling cover and hanger bracket, or the electrical box and the ceiling cover.

WARNING

If you feel that you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician.

NOTE: Pivot the fan on its mounting ball to improve access to the top of the motor when making electrical connections with supply wires (Figure 3).

How to Wire

Your Ceiling Fan

BP7386, CF3400 Corsair 11/25/09 6:20 AM Page 5

TAB

MOUNTING SCREW (2)

CEILING COVER

HANGER BRACKET

GREEN GROUNDING LEAD FROM THE HANGER BRACKET

HANGER BRACKET

HANGER BALL

GREEN GROUNDING LEAD FROM THE HANGER BALL
