THE ODYSSEY Series Ceiling Fan Owner's Manual

Part No. F40BP72110008 Form No. BP7211-8

Net Weight: 26.0 Lbs.

WARNING: To avoid fire, shock, and serious personal injury, follow these instructions.

Safety Instructions

1. Read your owner’s manual carefully and keep it for future reference

2. Before servicing or cleaning unit, switch power off at service panel and lock service panel disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a warning device, such as a tag, to the service panel.

3. Be careful of the fan and blades when cleaning, painting, or working near the fan. Always turn off the power to the ceiling fan before servicing.

4. Do not put anything into the fan blades while they are turning.

5. Do not operate reversing switch until fan blades have come to a complete stop.

Additional Safety Instructions for Installation

1. To avoid possible shock, be sure electricity is turned off at the fuse box before wiring, and do not operate fan without blades.

2. All wiring must satisfy National and Local Electrical Codes. Use the National Electrical Code if Local Codes do not exist. The ceiling fan must be grounded as a precaution against possible electrical shock. Electrical installation should be made or approved by a licensed electrician.

3. The outlet box and joist must be securely mounted an capable of reliably supporting a least 50 pounds. Use only U.L. outlet boxes listed as acceptable for fan support, and use the mounting screws provided with the outlet box. Most outlet boxes commonly used for support of light fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt.

4. The downrod furnished with the fan proves the minimum recommended floor to fan blade clearance for an 8 foot ceiling.

5. The fan must be mounted with the fan blades at least 7 feet from the floor to prevent accidental contact with th fan blades.

6. Follow the recommended instructions for the proper method of wiring your ceiling fan. If you do not know enough about electrical wiring, have your fan installed by a licensed electrician.

WARNING: To avoid fire, shock or injury, do not use an Emerson or any other brand of control not specifically approved for this fan.

WARNING: This product is designed to use only those parts supplied with this product and/or any accessories designated specifically for use this product by Emerson Company could result in personal injury or property damage.

WARNING: To Reduce the risk of personal injury, do not bend the blade flange when installing the blade flanges, balancing the blades or cleaning the fan. Do not insert foreign objects in between rotating fan blades.

WARNING

1. Open styrofoam unit containing fan. Remove upper and center sections of styrofoam unit. Remove parts and check to see that you have received the following:

a. One fan motor and housing assembly b. One motor coupling cover c. One ceiling cover d. Five fan blades e. Five blade holder caps (left) f. Five blade holder caps (right) g. One hanger ball/downrod assembly h. One hanger bracket i. One light kit adapter assembly j. One light kit plate assembly k. One light kit glass l. Two die cast light kit glass holders m.One uplight lead assembly n. One loose parts bag containing:

1. One setscrew

2. One 5/32" hex wrench

3. One 3/16” hex wrench

4. Four 8-32 x 1-1/4” threaded studs

5. Four knurled knobs

6. Four lockwashers

7. Seven wire connectors

8. Three 8-32 x 3/8" phillips head screws

9. One hairpin clip

10. One clevis pin

11. Twenty-one 10-32 x 3/8" pan head screws

12. One flatwasher

This Manual Is Designed to Make it as Easy as Possible for You to

Assemble, Install, Operate and Maintain Your Ceiling Fan

Tools Needed for Assembly

One six-inch blade screwdriver One stepladder One Phillips head screwdriver One wire stripper Seven wire connectors(supplied.)

MATERIALS

Wiring outlet box and box connectors must be of type required by the local code. The minimum wire would be a 3-conductor (2-wire with ground) of the wire size, to right:

Installed Wire Length Wire Size A.W.G.

Up to 50 ft. 14

50-100 ft. 12

Unpacking Instructions

For your convenience, check-off boxes are provided next to each step. As each step is completed, place a check mark in the box. This will insure that all steps have been completed and will be helpful in finding your place should you be interrupted.

If you feel you do not have enough wiring knowledge or experience, have your fan installed by a licensed electrician.

NOTE: Place the parts from the loose parts bags in small containers to keep them from being lost. If any parts are missing, contact your local retailer or catalog outlet for replacement before proceeding.

Do not install or use fan if any part is damaged or missing. Call Toll-Free:

1-800-654-3545

This product is designed to use only those parts supplied with this product and/or any accessories designated specifically for use with this product by Emerson Company. Substitution of parts or accessories not designated for use with this product by Emerson Company could result in personal injury or property damage.

WARNING

FAN BLADES

MOTOR COUPLING COVER

UPPER STYROFOAM SECTION

BLADE HOLDER CAPS (LEFT)

BLADE HOLDER

CAPS (RIGHT) DIE CAST GLASS HOLDERS

LIGHT KIT GLASS

CEILING COVER

LIGHT KIT PLATE ASSEMBLY

LOWER STYROFOAM SECTION

FAN MOTOR AND HOUSING ASSEMBLY

UPLIGHT LEAD ASSEMBLY

HANGER BALL/ DOWNROD ASSEMBLY

HANGER BRACKET

LOOSE PARTS BAG

CENTER STYROFOAM SECTION

LIGHT KIT ADAPTER ASSEMBLY

Your new ceiling fan will require a grounded electrical supply line of 120 volts AC, 60 Hz, 15 amp circuit.

The outlet box must be securely anchored and capable of withstanding a load of at least 50 pounds.

If you feel that you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician.

SECTION A

Assembly Instructions

for Installing the CF2454

Ceiling Fan with a

SW375 Receiver and

a SR330 Remote Control or

with a SW350 Wall Control

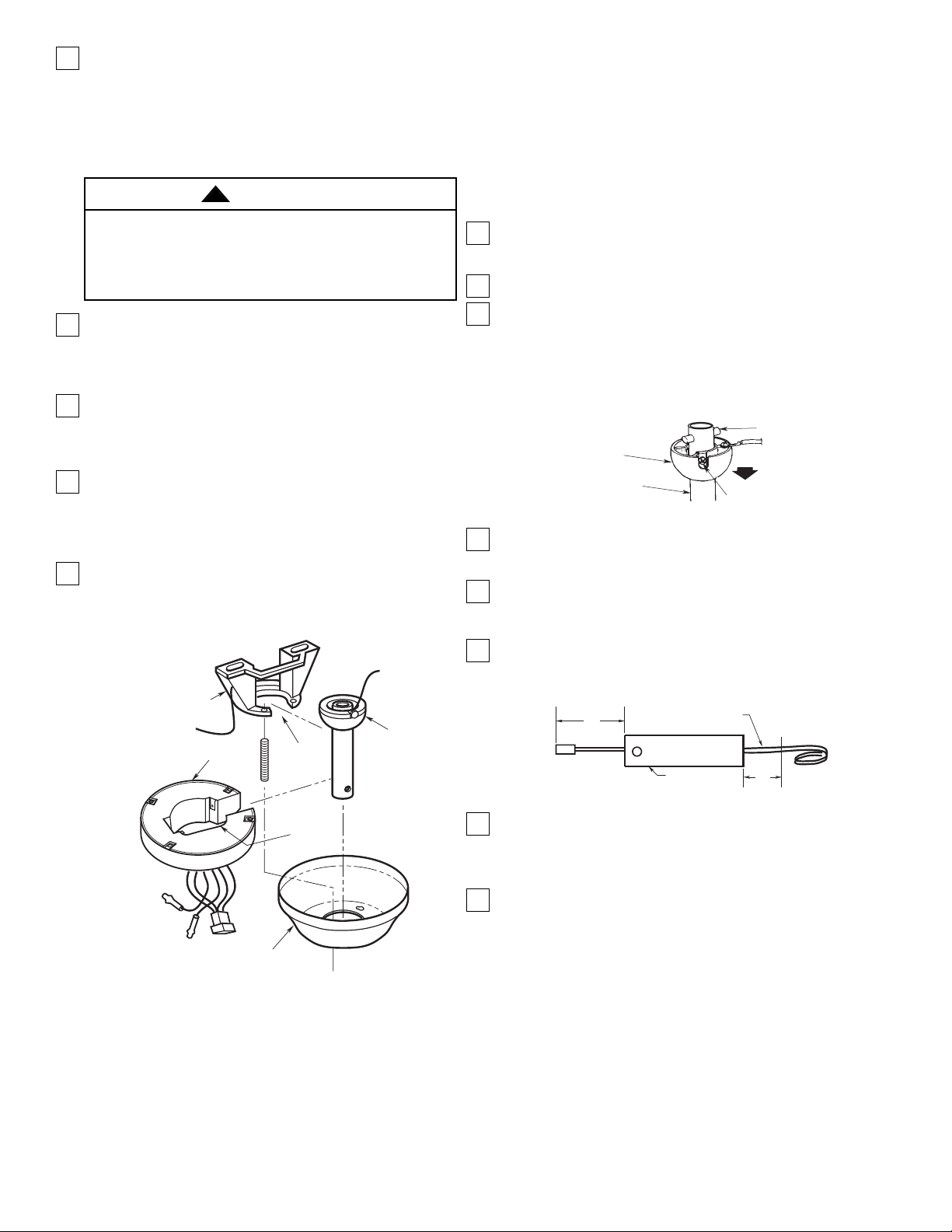

1. Cut the white, blue, and black wires about 3" above the motor coupling (Figure 1). Strip insulation 1/2" from end of wires and install a wire connector on the black wire; this wire will not be used. Remove the wire connectors from the red and brown wires.

2. Loosen the setscrew in the hanger ball, slide the ball down the downrod , and remove the clevis pin. Then slide the hanger ball off the downrod (Figure 2). Retain all parts for reinstallation in step 11.

3. Push the wiring harness connector (supplied with the remote control) and the connector on the blue wire (supplied with the SW375 Receiver) and the uplight yellow lead assembly (supplied with the fan) through the downrod until they extend about 4" out of the downrod. (Figure 3).

4. Cut all wires approximately 3" from the end of the downrod’. Strip insulation 1/2" from end of wires.

Figure 1

Figure 2

Figure 3

IF THE CF2454 CEILING FAN IS BEING INSTALLED WITH ANY OTHER CONTROL METHOD, SKIP SECTION A AND GO TO SECTION B TO BEGIN ASSEMBLY INSTRUCTIONS.

Electrical Requirements

If your fan is to replace an existing ceiling light fixture, turn electricity off at the main fuse box at this time and remove the existing light fixture.

The Emerson CF2454 Ceiling Fan is designed to be operated from a SR330 Remote Control, from a SW350 Wall Control with a SW375 Receiver, or from other fan/light controls. There are not controls supplied with the ceiling fan. If you are going to control your ceiling fan with a SR330 Remote Control or with a SW350 Wall Control, proceed to “SECTION A”. If you are to control your ceiling fan in any other manner, proceed to “SECTION B”.

To reduce the risk of fire, electric shock, or personal injury, mount fan to outlet box marked acceptable for fan support, and use screws supplied with outlet box. Most outlet boxes commonly used for support of light fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt.

To avoid fire or shock, follow all wiring instructions carefully.

Any electrical work not described in these instructions should be done or approved by a licensed electrician.

Turning off wall switch is not sufficient. To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. All wiring must be in accordance with National and Local codes and the ceiling fan must be properly grounded as a precaution against possible electrical shock.

WARNING

INSULATE BLACK WIRE USING WIRE CONNECTOR

WHITE WIRE

YELLOW WIRE

MOTOR COUPLING

BLACK WIRE

BLUE WIRE

REMOVE WIRE CONNECTORS FROM RED AND BROWN WIRES

MOTOR COUPLING SLOT

CLEVIS PIN

HANGER BALL

DOWNROD

SETSCREW

WIRING HARNESS

UPLIGHT YELLOW LEAD ASSEMBLY

BLUE WIRE

DOWNROD

CUT HERE

9. Screw two 1-1/4” threaded studs (supplied) into the motor (Figure 6). Leave approximately 7/8” of the stud extending above the motor. Slide the motor cover over the downrod and rotate the cover until the threaded studs protrude; install two knurled knobs (supplied) to secure the cover.

NOTE: Make sure the unused black motor lead is capped with a wire connector. Make sure all wire connectors are completely inside motor coupling cover and not pinched between the motor coupling cover and motor.

10. Position the ceiling cover over the downrod . Be

sure the cover is oriented correctly, with the large opening at the top (Figure 7).

Figure 6

Figure 5

5. Using wiring connectors (supplied), connect the white, red, blue, brown, and yellow wires from the downrod to the white, red, blue, brown and yellow wires of the ceiling fan (Figure 4). Wires must be connected color-to-color.

6. Fold all wires from the downrod into the slot in the motor coupling, slide the downrod down the wires and seat the downrod in the motor coupling. All wires and wire connectors should be placed through the motor coupling slot beneath the downrod (See Figure 5).

7. Align the clevis pin holes in the downrod with the holes in the motor coupling. Install the clevis pin and secure with the hairpin clip. The clevis pin must go through the holes in the motor coupling and the holes in the downrod (Figure 5). Push the straight leg of the hairpin clip through the hole near the end of the clevis pin until the curved portion of the hairpin clip snaps around the clevis pin. The hairpin clip must be properly installed to prevent the clevis pin from working loose.

8. Install the setscrew (supplied in the loose parts bag) in the motor coupling and tighten using the 5/32” setscrew wrench (supplied) (Figure 5).

Figure 4

It is critical that the clevis pin in the motor coupling is properly installed and the setscrew securely tightened. Failure to verify that the pin and setscrew are properly installed could result in the fan falling.

WARNING

SW375 RECEIVER

WHITE WIRE

YELLOW WIRE TO YELLOW WIRE

BLUE WIRE TO BLUE WIRE

BLACK WIRE (NOT USED)

FAN BLADES REMOVED FOR CLARITY

RECEIVER

CONNECTOR WIRING HARNESS CONNECTOR

WHITE WIRE

DOWNROD

RED WIRE TO RED WIRE

BROWN WIRE TO BROWN WIRE

BLUE WIRE TO BLUE WIRE

WHITE WIRE TO WHITE WIRE

YELLOW WIRE TO YELLOW WIRE

LIGHT FIXTURE

BLACK WIRE

FAN HOUSING

BLACK WIRE

120V SUPPLY

BLACK

WHITE WIRE

WHITE

LISTED GENERAL USE ON/OFF WALL SWITCH (MUST BE USED WITH SR330 REMOTE CONTROL)

SW350 WALL CONTROL

YELLOW LEADS TO BE POSITIONED IN SLOT IN MOTOR COUPLING

SETSCREW

CLEVIS PIN

HAIRPIN CLIP

CLEVIS PIN

DOWNROD

HAIRPIN CLIP

MOTOR COUPLING

DOWNROD

MOTOR COUPLING

CLEVIS PIN

KNURLED KNOB

MOTOR COUPLING COVER

WIRE CONNECTOR

YELLOW LEADS

1-1/4" THREADED STUD

7/8"

RED LEAD

BROWN LEAD

MOTOR BRACKET

WIRE CONNECTORS

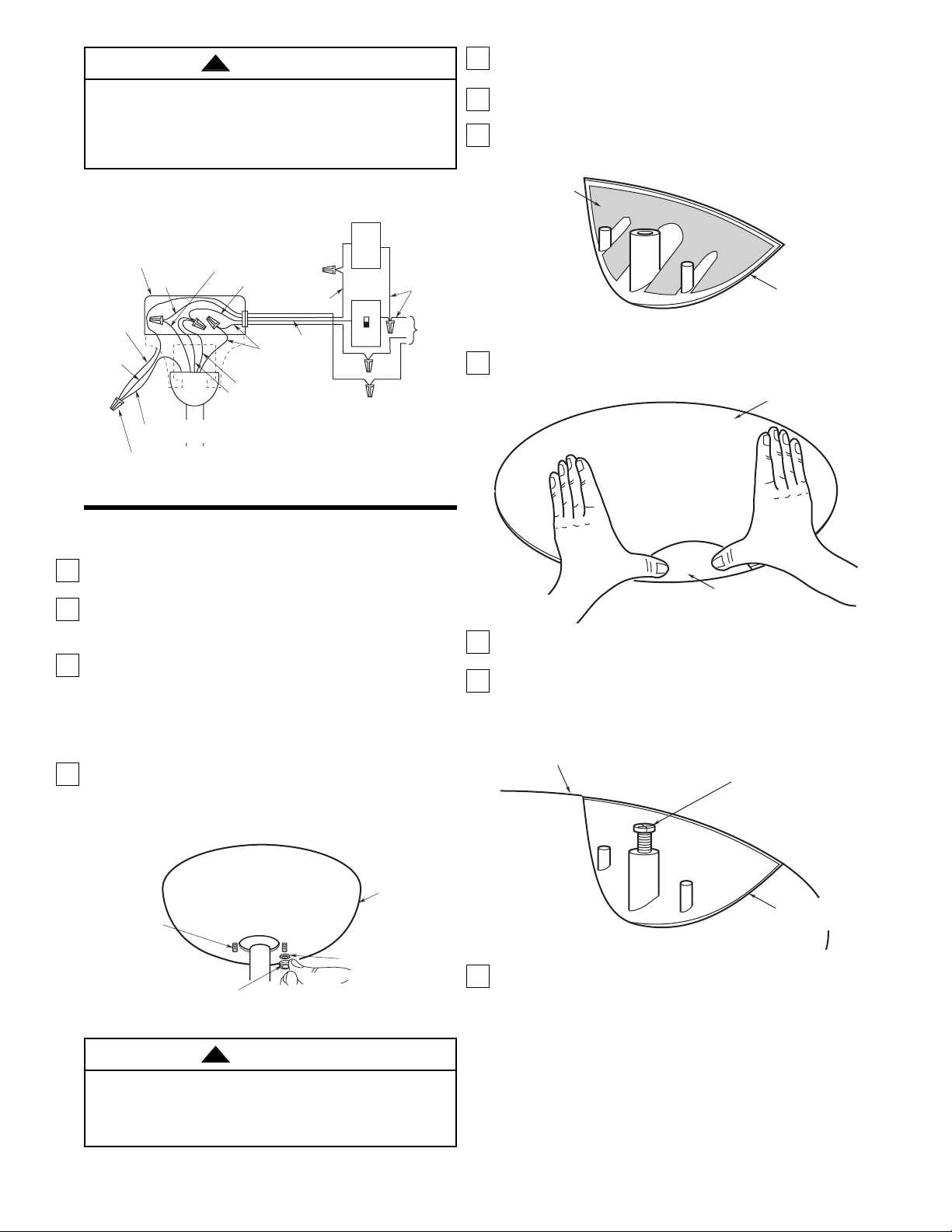

15. Securely connect the black wire from the light kit plate assembly to the blue wire from the motor shaft using a wire connector (supplied) (Figure

10). Connect the white wire from the plate assembly to the white wire from the motor shaft using a wire connector (supplied).

16. Secure the light kit plate assembly to the light kit adapter assembly by threading three 8-32 x 3/8” phillips head screws (supplied) into the threaded holes in the adapter assembly. (Figure 11).

NOTE: Do not pinch wires between the light kit plate assembly and the adapter assembly.

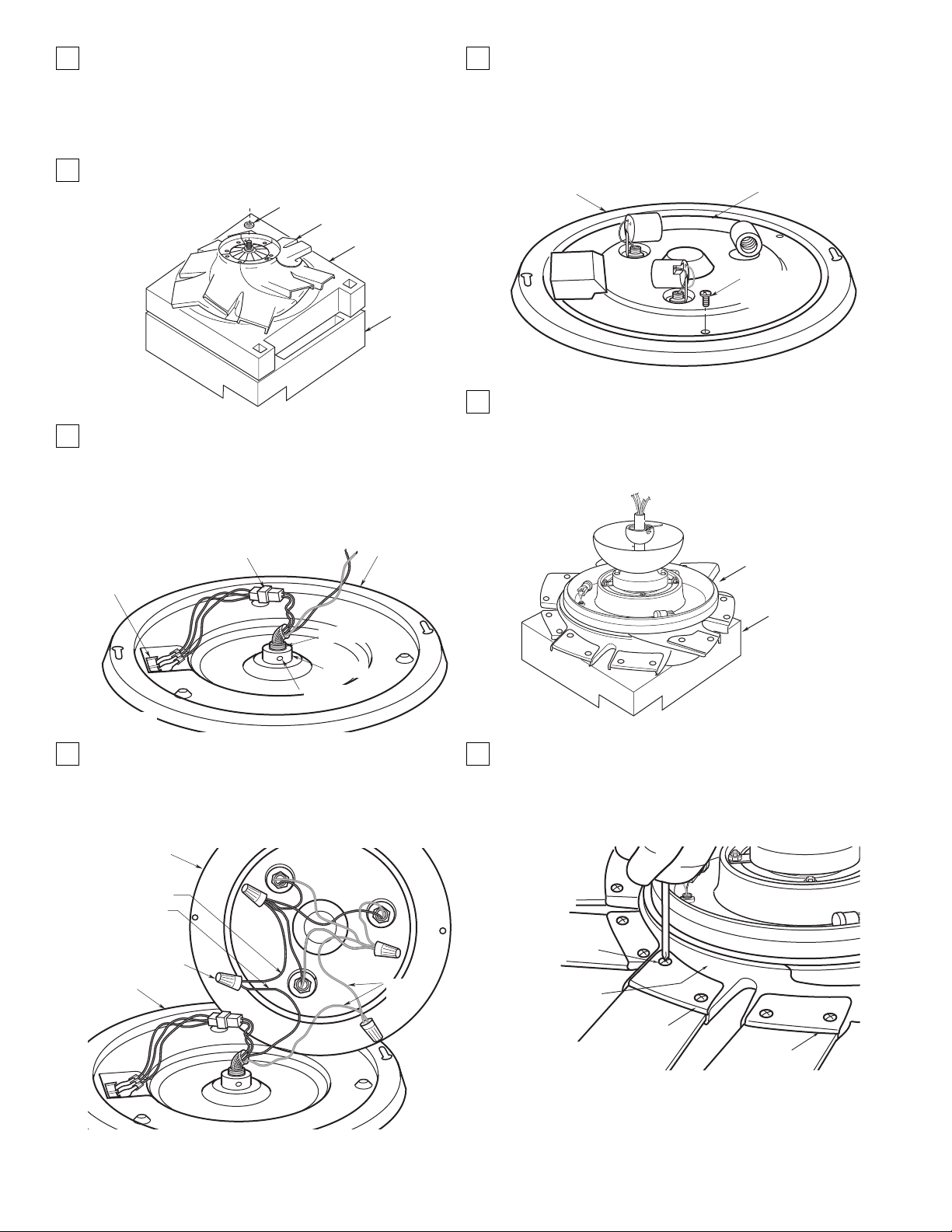

17. Lift the fan assembly from the styrofoam and

remove the center styrofoam section. Turn the fan assembly over and carefully position it on the upper styrofoam section so that the hanger ball/downrod assembly is at the top (Figure 12).

Figure 10

Figure 11

11. Reinstall the hanger ball on the downrod as follows. Route the motor leads through the hanger ball and slide the hanger ball over the downrod (Figure 7). Install the pin through the holes at the top of the downrod and slide the hanger ball up the downrod, aligning the ball so the pin is captured in the groove in the top of the hanger ball. Pull the hanger ball up tight against the pin and securely tighten the setscrew in the hanger ball. A loose setscrew could create fan wobble.

12. Position the center styrofoam section on the upper section, and then position the fan motor and housing on the center section so that the bottom of the motor is facing you (Figure 8). The styrofoam sections will hold the assembly while you perform the following steps.

13. Position the flatwasher (supplied in parts bag) on the motor shaft (Figure 8).

14.Using the 3/16” setscrew wrench (supplied),

loosen the setscrew in the collar, then screw the light kit adapter assembly onto the motor shaft (Figure 9). Tighten the setscrew to secure the adapter assembly to the shaft. Securely engage the connector from the reversing switch to the connector from the motor shaft.

Figure 7

Figure 9

Figure 8

It is critical that the pin in the hanger ball is properly installed and the setscrew securely tightened. Failure to verify that the pin and setscrew are properly installed could result in the fan falling.

WARNING

REVERSING SWITCH

CONNECTORS

MOTOR SHAFT

LIGHT KIT ADAPTER ASSEMBLY

HANGER BALL

DOWNROD

CEILING COVER

SETSCREW

COLLAR

SETSCREW

LIGHT KIT PLATE ASSEMBLY

BLACK WIRE

BLUE WIRE

WIRE CONNECTORS

LIGHT KIT ADAPTER ASSEMBLY

WHITE WIRES

FLATWASHER

FAN MOTOR AND HOUSING ASSEMBLY

CENTER STYROFOAM SECTION

UPPER STYROFOAM SECTION

LIGHT KIT ADAPTER ASSEMBLY

LIGHT KIT PLATE ASSEMBLY

8-32 X 3/8" PHILLIPS HEAD SCREWS (3)

FAN MOTOR AND

Figure 12

18. Position one fan blade on the flange assembly and secure by installing the left and right blade holder caps using two 10-32 x 3/8” pan head screws (supplied) for each holder cap (Figure 13). Install the remaining four fan blades using the same procedure.

19. Securely attach the hanger bracket to the outlet box using the two screws supplied with the outlet box. (Figure 15.)

20. Carefully lift the fan and seat the hanger ball/downrod assembly on the hanger bracket that was just attached to the outlet box (Figure 16). Be sure the groove in the ball is lined up with tab on the hanger bracket (Figure 15).

Figure 13

Figure 15

Figure 14

Figure 16

21. Position the receiver (supplied with the SR330 Remote Control or SW350 Wall Control) by passing the opening in the receiver over the downrod (Figure 17).

The fan must be hung with at least 7' of clearance from floor to blades (Figure 14).

WARNING

The outlet box must be securely anchored and capable of withstanding a load of at least 50 lbs.

WARNING

Hanger bracket must seat firmly against outlet box. If the outlet box is recessed, remove wall board until bracket contacts box. If bracket and/or outlet box are not securely attached, the fan could wobble or fall.

WARNING

Failure to seat tab in groove could cause damage to electrical wires and possible shock or fire hazard.

WARNING

To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring.

NOTE: If you are not sure if the outlet box is grounded, contact a licensed electrician for advice, as it must be grounded for safe operation.

To avoid possible fire or shock, do not pinch wires between the hanger ball/downrod assembly and hanger bracket.

WARNING

HOUSING ASSEMBLY

UPPER STYROFOAM SECTION

OUTLET BOX

HANGER

TWO SCREWS SUPPLIED WITH OUTLET BOX

BRACKET

TAB

10-32 X 3/8" PAN HEAD SCREW (2 PER HOLDER CAP)

FLANGE ASSEMBLY

RIGHT BLADE HOLDER CAP

LEFT BLADE HOLDER CAP

CEILING

AT LEAST

FLOOR

NOTE: CEILING COVER, SUPPLY WIRES AND FAN WIRES OMITTED FOR CLARITY.

OUTLET BOX

HANGER BRACKET

HANGER BALL/ DOWNROD ASSEMBLY

22. Connect the black wire from the wiring harness to the black (hot) supply wire (Figure 4). Connect the white wire from the wiring harness to the white (neutral) supply wiring. Connect the green ground wires from the hanger bracket and the hanger ball to the supply ground wire. Use wire connectors supplied with your ceiling fan.

23. Securely connect the wiring harness connector to the receiver connector, and connect the blue and yellow wires to the blue and yellow wires from the receiver (Figure 4).

24. Turn the receiver so that the flat side aligns with the open side of the hanger bracket (Figure 17). Fold and position the wires into the space above the hanger ball and into the outlet box.

25. Feed the wires and connectors around the outside of the receiver, through the open side of the hanger bracket, and into the outlet box. Slide the receiver up and over the hanger bracket. Press the receiver against the ceiling.

26. To complete the ceiling fan assembly, skip to the “FINAL ASSEMBLY” section of this Owner’s Manual.

Figure 17

SECTION B

Assembly Instructions for

Installing the CF2454 Ceiling Fan

with Any Other Control Method

(excluding the SW375 Receiver,

SR330 Remote Control or the

SW350 Wall Control)

1. Remove the fan motor and housing assembly from the lower styrofoam section and position it in the lower section so that the top of the motor is facing you.

2. Separate, untwist and unkink the four motor leads.

3. Obtain the hanger ball/downrod assembly and

remove the hanger ball by loosening the setscrew in the hanger ball until the ball falls freely down the downrod (Figure 18). Remove the pin from the downrod , then remove the hanger ball. Retain the pin and hanger ball for reinstallation in step 9.

4. Push the uplight yellow lead assembly connector through the downrod (Figure 19) until it extends about 4”.

5. Cut the yellow lead approximately 3” from the end of the pipe. Strip insulation 1/2” from end of the wires.

6. Using the wire connector supplied, connect the uplight yellow lead assembly to the yellow lead from the fan motor and housing assembly.

7. Route the white, blue, and black motor leads through the downrod. Fold the yellow wire into the slot in the motor coupling, slide the downrod down the wires and seat the downrod in the motor coupling (Figure 20).

8. Align the clevis pin holes in the downrod with the holes in the motor coupling. Install the clevis pin and secure with the hairpin clip (Figure 20). The clevis pin must go through the holes in the motor coupling and the holes in the downrod . Push the straight leg of the hairpin clip through the hole near the end of the clevis pin until the curved portion of the hairpin clip snaps around the clevis pin. The hairpin clip must be properly installed to prevent the clevis pin from working loose. Pull on the hanger ball to make sure the clevis pin is properly installed.

Figure 18

Figure 19

Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire connectors, except for the ground wire. Do not operate fan until blades are in place. Noise and fan damage could result.

WARNING

HANGER BRACKET

HANGER

SW375 RECEIVER

OPEN SIDE

BALL

HANGER BALL

DOWNROD

SETSCREW

UPLIGHT YELLOW LEAD ASSEMBLY

DOWNROD

CUT

HERE

CEILING COVER

FLAT SIDE

9. Install the setscrew (supplied in loose parts bag) in the motor coupling and tighten using the 5/32" setscrew wrench (supplied) (Figure 21).

10.Screw two 1-1/4” threaded studs (provided) into

the motor (Figure 22). Leave approximately 7/8” of the stud extending above the motor. Slide the motor cover over the downrod and rotate the cover until the threaded studs protrude; install two knurled knobs (supplied) to secure the cover.

NOTE: Make sure the red and brown leads are capped with wire connectors. Make sure red, brown, and yellow wire connectors are completely inside motor coupling cover and not pinched between the motor coupling cover and motor.

11.Position the ceiling cover over the downrod. Be

sure the cover is oriented correctly, with the large opening at the top (Figure 23).

12.Reinstall the hanger ball on the downrod as follows. Route the motor leads through the hanger ball and slide the hanger ball over the downrod (Figure 23). Install the pin through the holes at the top of the downrod and slide the hanger ball up the downrod, aligning the ball so the pin is captured in the groove in the top of the hanger ball. Pull the hanger ball up tight against the pin and securely tighten the setscrew in the hanger ball. A loose setscrew could create fan wobble.

13.The blue, black, yellow and white leads exiting the downrod are 80-inches long. Before installing fan, measure up approximately 6 to 9-inches above the ball/downrod assembly. Cut off excess leads and strip back insulation 1/2-inch from end of leads.

NOTE: If you are installing your fan with a SR330 Remote Control or SW350 Wall Control, Do Not Cut Terminal Off of the Yellow Lead. (See Section A.)

Figure 20

Figure 21

Figure 22

Figure 23

WARNING

YELLOW LEADS TO BE POSITIONED IN SLOT IN MOTOR COUPLING

SETSCREW

CLEVIS PIN

DOWNROD

HAIRPIN CLIP

MOTOR COUPLING

KNURLED KNOB

MOTOR COUPLING COVER

WIRE CONNECTOR

YELLOW LEADS

1-1/4" THREADED STUD

7/8"

RED LEAD

BROWN LEAD

MOTOR BRACKET

WIRE CONNECTORS

DOWNROD

HAIRPIN CLIP

CLEVIS PIN

MOTOR COUPLING

DOWNROD

SETSCREW

HANGER BALL

DOWNROD

CEILING COVER

SETSCREW

14. Position the center styrofoam section on the upper section, and then position the fan motor and housing on the center section so that the bottom of the motor is facing you (Figure 24). The styrofoam sections will hold the assembly while you perform the following steps.

15. Position the flatwasher (supplied in parts bag) on the motor shaft (Figure 24).

16. Using the 3/16” setscrew wrench (supplied), loosen the setscrew in the collar, then screw the light kit adapter assembly onto the motor shaft (Figure 25). Tighten the setscrew to secure the adapter assembly to the shaft. Securely engage the connector from the reversing switch to the connector from the motor shaft.

17. Securely connect the black wire from the light kit plate assembly to the blue wire from the motor shaft using a wire connector (supplied) (Figure 26). Connect the white wire from the plate assembly to the white wire from the motor shaft using a wire connector (supplied).

18. Secure the light kit plate assembly to the light kit adapter assembly by threading three 8-32 x 3/8” phillips head screws (supplied) into the threaded holes in the adapter assembly. (Figure 27).

NOTE: Do not pinch wires between the light kit plate assembly and the adapter assembly.

19. Lift the fan assembly from the styrofoam and

remove the center styrofoam section. Turn the fan assembly over and carefully position it on the upper styrofoam section so that the hanger ball/downrod assembly is at the top (Figure 28).

20. Position one fan blade on the flange assembly and secure by installing the left and right blade holder caps using two 10-32 x 3/8” pan head screws (supplied) for each holder cap (Figure 29). Install the remaining four fan blades using the same procedure.

Figure 25

Figure 26

Figure 27

Figure 24

Figure 29

Figure 28

FLATWASHER

FAN MOTOR AND HOUSING ASSEMBLY

CENTER STYROFOAM SECTION

UPPER STYROFOAM SECTION

LIGHT KIT ADAPTER ASSEMBLY

LIGHT KIT PLATE ASSEMBLY

8-32 X 3/8" PHILLIPS HEAD SCREWS (3)

LIGHT KIT ADAPTER ASSEMBLY

REVERSING SWITCH

CONNECTORS

MOTOR SHAFT

COLLAR

SETSCREW

LIGHT KIT PLATE ASSEMBLY

BLACK WIRE

BLUE WIRE

WIRE CONNECTORS

LIGHT KIT ADAPTER ASSEMBLY

WHITE WIRES

FAN MOTOR AND HOUSING ASSEMBLY

UPPER STYROFOAM SECTION

10-32 X 3/8" PAN HEAD SCREW (2 PER HOLDER CAP)

FLANGE ASSEMBLY

RIGHT BLADE HOLDER CAP

LEFT BLADE HOLDER CAP

21. Securely attach the hanger bracket to the outlet box using the two screws supplied with the outlet box. (Figure 31.)

22. Carefully lift the fan and seat the hanger ball/downrod assembly on the hanger bracket that was just attached to the outlet box (Figure

32). Be sure the groove in the ball is lined up with tab on the hanger bracket (Figure 31).

Figure 32

Figure 31

Figure 30

NOTE: If you are installing a SR330 Remote Control or a SW350 Wall Control to operate the fan and light, refer to the installation instructions and wiring diagrams shown in Section A of this Owner’s Manual.

23. For a wall control installation you will need a

three-wire (with ground) conductor cable between the ceiling and wall outlet boxes. This will allow you to control the fan separately from the lights. Figure 33 is a basic wiring diagram that will control the uplight and downlight on a switch and the fan on a separate control. Refer to the installation instructions and wiring diagrams supplied with the Emerson Fan Control Owner’s Manual.

a. Connect the green grounding lead from the

hanger ball and the green grounding lead from the hanger bracket to the grounding conductor of supply (this may be a bare wire or a wire with green colored insulation). Securely connect wires with wire connector supplied.

b. Securely connect the white wire from the

downrod to the supply white (neutral) wire using wire connector supplied. Securely connect the black wire from the downrod to the supply black (hot) wire using wire connector supplied.

c. Cut terminal off of the yellow lead wire and

strip insulation 1/2” from end of wire.

d. Securely connect the blue wire and yellow wire

from the downrod to the supply red (hot) wire using wire connector (supplied). After connections have been made, turn leads upward and carefully push leads into the outlet box, with the white and green leads on one side of the outlet box and the black, blue and yellow leads on the other side of the outlet box.

24. To complete the ceiling fan assembly, proceed to the “FINAL ASSEMBLY” section.

The fan must be hung with at least 7' of clearance from floor to blades (Figure 30).

WARNING

The outlet box must be securely anchored and capable of withstanding a load of at least 50 lbs.

WARNING

Failure to seat tab in groove could cause damage to electrical wires and possible shock or fire hazard.

WARNING

To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring.

NOTE: If you are not sure if the outlet box is grounded, contact a licensed electrician for advice, as it must be grounded for safe operation.

To avoid possible fire or shock, do not pinch wires between the hanger ball/downrod assembly and hanger bracket.

WARNING

CEILING

AT LEAST

FLOOR

NOTE: CEILING COVER, SUPPLY WIRES AND FAN WIRES OMITTED FOR CLARITY.

OUTLET BOX

HANGER BRACKET

HANGER BALL/ DOWNROD ASSEMBLY

OUTLET BOX

HANGER

TWO SCREWS SUPPLIED WITH OUTLET BOX

BRACKET

TAB

5. Obtain the die cast glass holders and light kit glass

from the protective bag.

6. Position light kit glass carefully on a convenient

surface with the open side face down.

7. Remove the protective cover from the adhesive

backed material on the glass holders (Figure 35).

8. Firmly press the die cast glass holders into position

on the light kit glass (Figure 36).

9. Repeat these procedures for the second die cast holder.

10. Carefully turn the light kit glass assembly over and thread the two screws (supplied) into the die cast glass holder. Leave approximately 3/16” of the thread revealed (Figure 37).

11. Raise the light kit glass assembly and insert the two screws in the two keyholes in the light kit adapter. Turn the light kit glass assembly counterclockwise to engage the screws in the slots; tighten the screws using a 6-inch blade screwdriver or a 90-degree angled screwdriver (Figure 38).

Figure 35

Figure 36

Figure 37

FINAL ASSEMBLY

1. Screw the two 1-1/4” threaded studs (supplied) into the tapped holes in the hanger bracket.

2. Lift the ceiling cover up to the threaded studs and turn until studs protrude through the holes in the ceiling cover (Figure 34).

3. Secure the ceiling cover in place by installing two lockwashers and two knurled knobs (supplied) (Figure 34). Tighten the knurled knobs securely until the ceiling cover fits snugly against the ceiling and the hole in the ceiling cover is clear of the downrod.

4. Screw in three 40-watt (maximum) candelabra base lamps in the uplight assembly sockets and three 60-watt (maximum) candelabra base lamps in the light kit plate sockets for the lower light.

Figure 34

Figure 33

WARNING

To avoid possible fire or shock, make sure that the electrical wires are completely inside the outlet box and not pinched between the ceiling cover and the ceiling.

WARNING

EMERSON FAN CONTROL

LISTED OUTLET BOX

GREEN WIRE (GROUND) FROM HANGER BRACKET

GROUND WIRE

BLACK

GREEN WIRE (GROUND) FROM HANGER BALL

LISTED WIRE CONNECTOR (4)

BLACK FAN WIRE

RED

GROUND

WHITE

YELLOW

BLUE

BLACK

RED

LIGHT CONTROL

WHT.

GROUND

BLACK (HOT)

TO 120 VOLT SUPPLY

PROTECTIVE COVER ON ADHESIVE BACKED MATERIAL

DIE CAST GLASS HOLDER

LIGHT KIT GLASS

DIE CAST GLASS HOLDER

LIGHT KIT GLASS ASSEMBLY

INSERT SCREW (SUPPLIED) WITH APPROXIMATELY 3/16" GAP BETWEEN SCREW HEAD AND DIE CAST GLASS HOLDER

CEILING COVER

1-1/4" THREADED STUD

LOCKWASHER

KNURLED KNOB

DIE CAST GLASS HOLDER

Using Your Ceiling Fan

1. Restore electrical power to the outlet box by turning the electricity on at the main fuse box.

2. Check the operation of the fan and lights by using the wall control or the remote control.

3. If airflow is desired in the opposite direction, turn your fan off and wait for the blades to stop turning, then press the rocker switch located on top of the light kit adapter, and turn the fan on again. The fan blades will turn in the opposite direction and reverse airflow.

SCREW

GLASS ASSEMBLY

TOP VIEW

BOTTOM VIEW

KEYHOLE

LIGHT KIT ADAPTER

Figure 38

Maintenance

IMPORTANT CARE INSTRUCTIONS

for your Ceiling Fan

Periodic cleaning of your new ceiling fan is the only maintenance that is needed.

When cleaning, use only a soft brush or lint free cloth to avoid scratching the finish.

Abrasive cleaning agents are not required and should be avoided to prevent damage to finish.

Trouble Shooting

TROUBLE PROBABLE CAUSE SUGGESTED REMEDY

1.Fan will not start. 1.Fuse or circuit breaker blown. 1.Check main and branch circuit fuses or

circuit breakers.

2.Loose power line connections to the fan. 2.Check line wire connections to fan.

WARNING: Make sure main power is turned off.

2.Fan sounds noisy. 1.Blades not attached to fan. 1.Attach blades to fan before operating.

2.Screws holding blades to flange assemblies 2.Tighten screws securely. are loose.

3.Fan wobbles 1.Setscrew in motor coupling is loose. 1.Raise motor cover and tighten setscrew excessively. securely.

2.Setscrew in hanger ball/downrod assembly 2.Tighten the setscrew in the hanger ball/ is loose. downrod assembly.

3.Hanger bracket and/or ceiling outlet box is not 3.Tighten the hanger bracket screws to the securely fastened. outlet box, and/or secure outlet box.

4.Fan blades out of balance. 4.Interchanging an adjacent (side-by-side)

blade pair can redistribute the weight and result in smoother operation. Or use supplied balancing kit to balance blades.

Accessories

1. Ceiling Fan Controls (see store or catalog).

2. Downrod Extension Kits (see store or catalog).

WARNING: FOR YOUR OWN SAFETY TURN OFF POWER AT FUSE BOX OR CIRCUIT BREAKER BEFORE

TROUBLE SHOOTING YOUR FAN.

Do not use water when cleaning your ceiling fan. It could damage the motor or the blades and create the possibility of an electrical shock.

WARNING

The use of any other control not specifically approved for this fan could result in fire, shock and personal injury.

WARNING

Repair Parts

13 14

Repair Parts Listing

Key

Model No.

No. Description CF2454BS02 CF2454WW02 CF2454BQ02 CF2454PW02

1 Bracket Assembly, Hanger 760732 760732 760732 760732 2 Hanger ball/downrod Assembly 761632-17 761632 761632-21 761632-23 4 Cover, Ceiling 761795-3 761795 761795-5 761795-6

9 Capacitor, Auxiliary 761453 761453 761453 761453 10 Cover, Motor Coupling 761621-15 761621 761621-19 761621-21 14 Motor Assembly 762304 762304 762304 762304 15 Flange Assembly with Hub 761940-3 761940 761940-5 761940-6 16 Blade Assembly (Full set for one fan) 761807-3 761807 761807-6 761807-7 18 Cap, Blade Holder (Left) 761783-3 761783 761783-5 761783-6 19 Cap, Blade Holder (Right) 761784-3 761784 761784-5 761784-6 20 Light Kit Adapter Assembly

(with Reversing Switch) 761802-3 761802 761802-5 761802-6 21 Light Kit Plate Assembly 761810 761810 761810 761810 22 Light Kit Glass 761745 761745 761745 761745 23 Die Cast Glass Holder 761864-3 761864 761864-5 761864-6 26 Uplight Lead Assembly 761790 761790 761790 761790

Loose Parts Bag, containing: 761798-2 761798 761798-1 761798-1 3 Threaded Stud, 8-32 x 1-1/4” (4) — — — — 5 Wire Connector (7) — — — — 6 Setscrew Wrench, 5/32” — — — — 7 Lockwasher (4) — — — — 8 Knurled Knob (4) — — — —

11 Clip, Hairpin — — — — 12 Pin, Clevis — — — — 13 Setscrew — — — — 17 Blade Screw, 10-32 x 3/8” (21) — — — — 24 Phillips Head Screw, 8-32 x 3/8” (3) — — — — 25 Setscrew Wrench, 3/16” — — — —

27 Flatwasher 761265-1 761265-1 761265-1 761265-1

– Owners Manual BP7211-8 BP7211-8 BP7211-8 BP7211-8

Before discarding packaging material, be certain all

parts have been removed.

HOW TO ORDER REPAIR PARTS

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:

• PART NUMBER • PART DESCRIPTION

• NAME OF ITEM • MODEL NUMBER The model number of your Fan will be found on a label

attached to the top housing. For repair parts, phone 1-800-654-3545.

Printed in Taiwan 04/03 Part No. F40BP72110008 Form No. BP7211-8

LIMITED WARRANTY

What The Warranty Covers:

This warranty covers the motor and the other components and accessories of your Emerson ceiling fan against all defects in workmanship and materials. You must be the original purchaser or user of the product to be covered.

What The Period Of Coverage Is:

As it applies to the motor, this warranty will last for the lifetime of your ceiling fan. All other components and accessories are covered by this warranty for one year from the date you purchased your ceiling fan. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, MADE WITH RESPECT TO COMPONENTS AND ACCESSORIES IS ALSO LIMITED TO ONE YEAR.

What Will Emerson Company Do To Correct Problems:

Emerson will replace a defective Emerson Air Comfort Ceiling Fan motor, blade, component or other accessory at no charge to you. If repair of the motor or blades is not practical or possible within a reasonable time and no replacement can be provided, Emerson will refund the actual purchase price of your fan. WE WILL SHIP THE REPAIRED PRODUCT

OR REPLACEMENT TO YOU AT NO CHARGE, BUT YOU ARE RESPONSIBLE FOR ALL COSTS OF REMOVAL, REINSTALLATION AND SHIPPING OF THE PRODUCT TO EMERSON.

How Can You Get Service:

YOU MUST HAVE PROOF OF YOUR PURCHASE OF THE CEILING FAN TO OBTAIN LIMITED WARRANTY SERVICE. KEEP YOUR RECEIPT OR OTHER PROOF OF PURCHASE. You can return the product to our factory or to your nearest authorized service center.

• To return the product to the factory, obtain a return authorization and service identification tag by writing to Air Comfort Products, Division of Emerson Company, 8100 W. Florissant Ave., St. Louis, MO 63136. Include all model numbers shown on the product with your request.

• To return the product to an authorized service center, call 1-800-654-3545 for the address of the nearest authorized service center.

You will be responsible for all insurance, freight or other transportation charges to our factory or authorized service center. Your Emerson Air Comfort Ceiling Fan should be properly packed to avoid damage in transit since we will not be responsible for any such damage.

What Is Not Covered:

The glass globes and light bulbs of your ceiling fan are not covered by this warranty. This warranty also does not cover any defects, malfunctions or failures caused by:

• Repairs by persons not authorized by Emerson Company,

• Use of parts or accessories not authorized by Emerson Company,

• Mishandling, improper installation, modifications or damage to your ceiling fan while in your possession, or

• Unreasonable use, misuse, abuse, including failing to do reasonable and necessary maintenance, and normal wear and tear.

Additionally, this warranty and any implied warranty of merchantability or fitness for a particular purpose are voided when:

• The original purchaser or user ceases to own the product, or

• The fan is moved from its original point of installation.

This warranty is only valid within the 50 states of the United States and the District of Columbia. No other written or oral warranties apply, and no employee, agent, dealer or other person is authorized to give any warranties on behalf of Emerson Company.

REPAIR, REPLACEMENT OR A REFUND ARE THE EXCLUSIVE REMEDIES AVAILABLE UNDER THIS WARRANTY AND EMERSON IS NOT RESPONSIBLE FOR DAMAGES OF ANY KIND, INCLUDING INCIDENTAL AND CONSEQUENTIAL DAMAGES. Incidental damages include but are not limited to such damages as loss of time and loss of use. Consequential damages include but are not limited to the cost of repairing or replacing other property which was damaged if this product does not work properly.

How State Law Relates To The Warranty:

Some states do not allow the exclusion or limitation of incidental or consequential damages so the above exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Air Comfort Products

DIVISION OF EMERSON COMPANY

8100 W. Florissant ¥ St. Louis, MO 63136

Emerson CF2454WW02, CF2454BS02, CF2454PW02, CF2454BQ02 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
