ASCO 7000 Series
Power Transfer Switches
Protecting:
Healthcare Facilities
Web Hosting, Internet Data Centers
Commercial Buildings / Industrial Buildings
Telecom Central Offices
Process Manufacturing
Distributed Power / Load Management
Critical Loads Demand ASCO
As we become more dependent on the quality and
reliability of electrical power,
interruption or complete loss
of power can create serious
and even crippling financial
losses, or impose dangers to
life and safety.
ASCO Power Technologies
(ASCO) provides the solutions to handle the transfer
of critical loads to emergency sources reliably and
with state of the art products. Using ASCO products
can mean the difference
between a minor inconvenience and a major catastrophe. You’ll find ASCO Power
Transfer Switches wherever
there is a critical load to be
protected.
When flexibility in power
switching is a must, ASCO
offers a variety of product
solutions to meet virtually
every application requirement, including distributed
generation applications.
That’s why the 7000 SerieS
is available in open, delayed,
closed and closed soft load
configurations. Additionally,
switched or overlapping
neutral options provide for
reliable operation of ground
fault protection systems and
reduction of voltage transients from unbalanced load
switching.
ASCO Power Transfer
Switches are the first CE
Marked, IEC 60947-6-1
compliant Transfer Switches
in the world.
2
The Recognized Leader in Power Transfer
Switch Technology Offers the Most
Advanced Transfer Switches in the World.
7000 series
ASCO Power Transfer Switches are the standard of the
industry. High speed transfer of loads between alternate sources of power, regardless of ampacity size, is
achieved by a reliable, field proven solenoid operating
mechanism. When combined with a programmable
microprocessor controller with keypad and LCD display,
they offer the most advanced method of transferring
all types of loads, such as motors, electronic drives,
UPS’s and microprocessor based systems. 7000 SerieS
Power Transfer Switches are available open or enclosed,
in ampacity sizes from 30 through 4000 Amperes with
the largest selection of optional accessories offered anywhere. All switching configurations are available with an
integrally mounted bypass-isolation switch and/or rated
for use in service entrance applications.
Fig. 1: Three Pole 7000 SerieS Automatic Transfer Switch
rated 1600 Amperes (shown with optional front
connected terminals and Power Manager).
7000 series Power Transfer Switches Product Features
• Conventional two-position transfer configuration,
plus closed and delayed transition modes of operation.
All configurations available with either automatic or
non-automatic control.
• UL listed to 1008 Transfer Switch Equipment &
CSA certified to CSA 22.2 No.178-1978 Automatic
Transfer Switches.
• Qualified and certified to IEC 60947-6-1, CE marked
(optional). (Limited to certain accessories.)
• Rated up to 600 VAC, 30 through 4000 Amperes.
• Reliable and field proven solenoid operating mechanism.
• High withstand and close-on ratings including short time
withstand current rating for optimum flexibility in circuit
breaker coordination (600-4000 Amperes).
• Solid, switched, or overlapping neutral conductor options.
• Front replaceable main and arcing contacts (800-4000 Amperes).
• Programmable microprocessor controller with keypad and
LCD display.
• Centrally located terminal block for customer control
connections (260-4000 Amperes).
• 16mm, industrial grade control switches and indicating lights.
• Switch position LED indicators and source acceptability lights.
• Standard ground conductor connections.
• Four auxiliary contacts, two contacts closed when switch
is in normal position and two contacts closed when switch
is in emergency position.
• Local/remote communications capability for interfacing
with ASCO POWERQUEST® communication products.
3
7000 series Power Switching Solutions
Closed Transition Transfer Switching
ASCO Automatic Closed Transition Transfer Switches feature
main contacts that overlap, permitting the transfer of electrical
loads without power interruption. The switch transfers in a
make-before-break mode if both sources are within acceptable
parameters. Control logic continuously monitors source
conditions and automatically determines whether the load
transfer should be open (conventional non-overlap mode) or
closed transition. Available 150 through 4000 Amperes.
Closed Transition Transfer within 5 electrical degrees is achieved
passively, without control of engine generator set. Therefore,
no additional control wire runs are required between the ATS and
engine generator set governor. Plus, protective relaying may
not be required under normal operation since the contact overlap time is less than 100 milliseconds (consult your local utility
on protective relay requirements).
Failure to synchronize indication and extended parallel time
protection is built-in to all 7000 SerieS closed transition
controls to prevent abnormal operation.
Fig. 2: Four pole, Closed Transition Transfer Switch
rated 1000 Amperes in Type 1 enclosure.
Delayed Transition Transfer Switching
ASCO Delayed Transition Transfer Switches are designed
to provide transfer of loads between power sources with a
timed load disconnect position for an adjustable period of
time. Applications include older style variable frequency
drives, rectifier banks, and load management applications.
• Available in 150 through 4000 Amperes.
• Utilizes reliable, field proven solenoid operating
mechanisms.
• Mechanical interlocks to prevent direct connection
of both sources.
• Indicator light (16mm, industrial grade
type LED) for load disconnect position.
• Adjustable time delay for load disconnect position.
Fig. 3: Four pole, Delayed Transition
Transfer Switch rated 2000 Amperes.
4
7000 series Power Switching Solutions
Non-Automatic Transfer Switching
ASCO Non-Automatic Transfer Switches are electrically operated
units which are operated with manual control switches mounted
locally or at remote locations.
• Sizes from 30 through 4000 Amperes.
• Microprocessor based controller provides for addition of
optional accessories.
• Controller prevents inadvertent operation under low
voltage conditions.
• Low control circuit operating currents allow for long line runs
between remotely mounted manual control switches and the
transfer switch.
• Source acceptability lights inform operator if sources
are available to accept load.
• Standard inphase monitor can be activated for
transferring motor loads.
Fig. 4: Three pole Non-Automatic,
electrically operated 400 ampere switch
shown in Type 1 enclosure.
Withstand and Close-On Ratings for all 7000 series Products
(RMS Symmetrical Amps)
1,2
5
7000 series Power Switching Solutions
Automatic Transfer Bypass-Isolation Switches
Fig. 5: Rated
150-600 Amps
ASCO Automatic Transfer & Bypass-Isolation Switches are
available in open transition, closed transition and delayed
transition designs. The bypass and isolation features allow
the primary automatic transfer switch to be inspected, tested,
and maintained without any interruption of power to the load.
They also provide redundant power transfer in the event the
ATS is disabled or removed from service.
• Available 150 to 4000 Amperes.
• Allows bypass-isolation without load interruption.
• Bypass switch and transfer switch have identical electrical
ratings.
• Heavy duty mechanical interlocks prevent undesirable
operation.
• Bypass contacts carry current only during bypass mode.
Fig. 6: Rated
600- 1200 Amps
Fig. 7: Rated
800-3000 Amps
• Transfer switch is drawout design for ease of maintenance.
• Bypass and isolation handles are permanently mounted.
The bypass switch has dead front quick-make, quick-break
operation for transferring of loads between live sources.
• Bypass switch is fully rated for use as a manual 3-position
transfer switch.
• Bypass and isolation functions are simple, requiring a total
of two operating handles.
• No toggle switches, push buttons, selector switches or
levers are required for bypass-isolation operation.
• Mechanical indicators show bypass and transfer switch
positions.
• 800 -1200 ampere available in shallow depth, front
connected or rear connected designs.
Transfer Switch Drawout Features (150-4000 Amperes)
• Automatic secondary disconnects
Automatic
Secondary
Disconnects
Automatic
Shutters
(optional on
1600-4000amps)
Fig. 9: Bypass-Isolation Transfer
Switch secondary disconnects and
optional automatic shutters.
6
remove all control power as switch is
withdrawn.
• Drawout carriage provides for easy
transfer switch maintenance and/or
removal via commercially available
breaker hoists.
• Optional transfer switch lifting yoke
kit available
• Optional automatic shutters which
close when the transfer switch is
withdrawn to provide bus isolation,
specify accessory 82C.(1600-4000A
only)
Fig. 8: Rated
4000 Amps
Self
Aligning
Jaws
Fig. 10: Bypass-Isolation
Transfer Switch self
aligning power jaws.
7000 series Power Switching Solutions
Bypass and Isolation Handles - Simple as 1, 2, 3
LED Indicators
Bypass
switch
position
Transfer
switch
position
Fig. 11: Transfer Bypass
Status Panel*
*Standard on switches up through H 1200A.
Specify ACC 82E for G frame 1600-4000A
Source
availability
Isolation
handle
position
Not in
“auto”
flashing
LED
Bypass to Normal
1
Push in bypass
handle and turn
it counter
clockwise
Bypass Handle
Isolation Handle
Test Position
2
Bypass Switch
Automatic Transfer Switch
Bypass Switch
E
L
N
E
L
Mechanical
bypass
switch position
flags
Isolation
handle
Padlocking
provisions
Isolation Handle
Turn isolation
handle counter
clockwise until
window shows
“Test”
Isolation Position
3
Isolation Handle
Turn isolation
handle counter
clockwise
until window
shows “Isolate”
Automatic Transfer Switch
Bypass Switch
Automatic Transfer Switch
N
E
L
N
Mechanical isolation handle position
window (connected/test/isolate)
Fig. 12: Bypass-Isolation
Switch user interface
Key:
Represents Current Flow
In test position control panel remains
energized to allow for electrical
operation of a transfer switch.
7
7000 series Service Entrance Power Transfer Switches
The ASCO Service Entrance Power Transfer Switch
combines automatic power switching with a disconnect and overcurrent protective device on the utility
source. The power transfer switch meets all National
Electric Code requirements for installation at a facility’s main utility service entrance. Service entrance
rated transfer switches generally are installed at
facilities that have a single utility feed and a single
emergency power source. A circuit breaker serves
as the utility disconnect and links are provided to
dis-connect both neutral and ground connections.
This product is either UL 1008 or UL 891 listed and is
available up to 600V and 4000A in Standard, Delayed,
Closed Transition, Soft Load, and Bypass Isolation
Configurations.
Standard Features
Fig. 13: Ground and neutral
disconnect links
• Available from 150 to 4000 Amperes
• ASCO 7000 SerieS Power Transfer Switch is
UL 1008 Listed
• Standard UL Type 1 Enclosure
• Disconnect and overcurrent protective device on
the utility source: molded case circuit breaker 150
to 2000 Amp; insulated case 3000 to 4000 Amp
• Disconnect link on Neutral
• Disconnect link on Ground
• Ground and Neutral Bus, all silver-plated copper
• Solderless screw type terminals for External
Power Connections
• Meets all NEC requirements for use as
service entrance
• Internet enabled monitoring and control
• Service entrance breakers are rated: -
100% for 1000 Amps and above; 80% below 1000
Amps for all bypass switches - 100% for 2500
Amps and above; 80% below 2500 Amps for all
standard transfer switches
Optional Features
Enclosures - Secure Double Door
•
-
UL Type 3R w/strip heater & thermostat
-
UL Type 4 or 4X
-
UL Type 12
Connections
•
-
Crimp lugs
-
Bus Riser on Normal, Emergency or Load
Protective Relays/Metering
•
-
Accessory
85L , see page 15
Ground Disconnect
Link
Neutral
Disconnect
Link
N
Load
Ø
Ground Fault
Current
Transformer*
N
Utility
Switched
Neutral
Emergency
Ø
Circuit
Breaker
ATS
GFCT Ground Fault
Current
Transformer
ATS - Automatic
Transfer Switch
One line diagram of a typical service entrance rated transfer switch
available in Solid, Switched or Overlapping Neutral
* Ground fault trip protection provided on sizes of 1000 Amperes
and above
Surge Suppression
•
- Accessory 73, Surge protector (see pg. 14)
ASCO POWERQUEST
•
®
products (see pages 16-21)
- A SCO 72E Ethernet Connectivit y module, page 17
- ASCO 5310/5350 Remote annunciators, page 17
- ASCO 5400 Power Quality Meters, page 17
Additional Breaker(s)
•
- Circuit Breaker on Emergency
- Load Distribution Panel
Optional high AIC ratings on breakers
•
Consult ASCO for additional features
8
7000 series Service Entrance Power Transfer Switches
Ordering Information
To order an ASCO 7000 SerieS Service Entrance Power Transfer Switch, complete the following catalog number.
7 A US + A + 3 + 400 + N + 5X + C
A Automatic
N Non-
Automatic
Product
US Conventional
2-Position
UB Open Transition
Bypass
CUS Closed Transition
CUB Closed Transition
Bypass
DUS Delayed Transition
DUB Delayed Transition
Bypass
Neutral
Code*
A Solid Neutral
(standard)
B Switched
Neutral
C Overlapping
Neutral
Phase
Poles
2
3
70, 100
150, 200
225, 250
400, 600
800,1000
1200,1600,
2000,2500,
3000
4000
Voltage
Code
C 208
D 220
E 230
F 240
H 380
J 400
K 415
L 440
M 460
N 480
P 550
Q 575
Grp
Code
5
5X-
optional
acces-
sories
EnclosureAmperes
C Type 1 enclosure
M Type 3R secure
double door
N Type 4 secure
double door
P Type 4X secure
double door
(316 SS)
Q Type 12 secure
double door
R 600
*Note. Switches rated 150, 600-3000 amps available with 2, 3 or either conventional switched neutral (4 poles) or overlapping neutral (optional). For 4 pole
applications on switches rates 150 to 400 amps (bypass switches only) and 4000 amps specify overlapping switched neutral (optional). Conventional switched neutral
is provided on delayed transition transfer products when specified.
The Example Catalog Number above is 7AUSA3400N5XC (X is used to specify optional accessories).
Dimensions and Weights for non-bypass configurations
Type 1 and 3R Enclosures4
Switch Rating
amps
70, 100 ,150,
200, 225
250, 400
6001, 800
1
10001, 1200
16001, 2000
25001, 3000
Switch Rating
amps
70, 100 ,150,
200, 225
250, 400
6001, 800
1
10001, 1200
16001, 2000
25001, 3000
1
1
1
1
1
1
Phase
Poles
2
2
3
3
2
2
3
3
2
2
3
3
2
2
3
3
3
3
3
3
Phase
Poles
2
2
3
3
2
2
3
3
2
2
3
3
2
2
3
3
3
3
3
3
Neutral
Code
STD
B, C
STD
B, C
STD
C
STD
C
STD
B, C
STD
B, C
STD
B, C
STD
B, C
STD
B, C
STD
B, C
Neutral
Code
STD
B, C
STD
B, C
STD
C
STD
C
STD
B, C
STD
B, C
STD
B, C
STD
B, C
STD
B, C
STD
B, C
Type 1 Dimensions, In. (mm)
Width Height Depth
36.5 (927)
36.5 (927)
36.5 (927)
36.5 (927)
36.5 (927)
36.5 (927)
36.5 (927)
36.5 (927)
38 (965)
38 (965)
38 (965)
38 (965)
38 (965)
38 (965)
38 (965)
38 (965)
38 (965)
38 (965)
38 (965)
38 (965)
48.5 (1232)
48.5 (1232)
48.5 (1232)
48.5 (1232)
48.5 (1232)
48.5 (1232)
48.5 (1232)
48.5 (1232)
91 (2311)
91 (2311)
91 (2311)
91 (2311)
91 (2311)
91 (2311)
91 (2311)
91 (2311)
91 (2311)
91 (2311)
91 (2311)
91 (2311)
13.25 (337)
13.25 (337)
13.25 (337)
13.25 (337)
13.25 (337)
13.25 (337)
13.25 (337)
13.25 (337)
28 (711)
28 (711)
28 (711)
28 (711)
48 (1218)
48 (1218)
48 (1218)
48 (1218)
48 (1218)
48 (1218)
72 (1829)
72 (1829)
Type 3R Dimensions, In. (mm)
Width Height Depth
36(914)
36(914)
36(914)
36(914)
36(914)
36(914)
36(914)
36(914)
41(1041)
41(1041)
41(1041)
41(1041)
41(1041)
41(1041)
41(1041)
41(1041)
41(1041)
41(1041)
41(1041)
41(1041)
48(1219)
48(1219)
48(1219)
48(1219)
48(1219)
48(1219)
48(1219)
48(1219)
95.5(2426)
95.5(2426)
95.5(2426)
95.5(2426)
95.5(2426)
95.5(2426)
95.5(2426)
95.5(2426)
95.5(2426)
95.5(2426)
96(2438)
96(2438)
16 (406)
16 (406)
16 (406)
16 (406)
16 (406)
16 (406)
16 (406)
16 (406)
34(864)
34(864)
34(864)
34(864)
62(1575)
62(1575)
62(1575)
62(1575)
62(1575)
62(1575)
85(2159)
85(2159)
Approx. Shipping
Weight Lb. (kg)
400 (185)
408 (188)
408 (188)
416 (192)
400 (185)
408 (188)
408 (188)
416 (192)
800 (370)
820 (378)
865 (393)
846 (390)
1085 (501)
1105 (510)
1105 (510)
1134 (523)
2590 (1198)
2640 (1218)
4590 (2118)
4655 (2148)
Approx. Shipping
Weight Lb. (kg)
520 (236)
530 (240)
530 (240)
548 (249)
520 (236)
530 (240)
530 (240)
548 (249)
990 (458)
1010 (467)
1010 (467)
1036 (479)
1305 (604)
1325 (613)
1325 (613)
1354 (626)
2890 (1337)
2940 (1360)
5350 (2474)
5415 (2504)
Ampere Interrupting
Capacity (AIC) Ratings
Switch Rating
amps
70 - 225 25 35
250 25 35
400 35 35
600, 800 65 N/A
1000,1200 65 N/A
1600, 2000 65 100
2500, 3000 100 N/A
4000 100 N/A
Notes: 1. Unit is designed for top and bottom cable
2. Enclosures for 600 – 3000 amps are free
standing.
3. When temperatures below 32° F can be
4. Dimensional data is approximate and
subject to change. Certified dimensions
available upon request.
Type 3R enclosures are not suitable for
installations conducive to
windblown snow or rain conditions.
5. Contact ASCO for extended
warranty options.
entry for all services
and load.
experienced, special precautions should
be taken, such as the inclusion of strip
heaters, to prevent condensation and
freezing of this condensation. This is particularly important when environmental
enclosures (Type 3R, 4 & 12) are ordered
for installation outdoors. Type 3R
enclosures are not suitable for installations conducive to windblown snow
or rain conditions.
AIC Rating (kA)
Standard
Optional
9
7000 series Microprocessor Controller
Fig. 14: 7000 SerieS
Microprocessor Controller.
The 7000 SerieS Microprocessor Based Controller is used with all sizes of Power
Transfer Switches from 30 through 4000 Amperes. It represents the most advanced
digital controller in the industry and includes, as standard, all of the voltage,
frequency, control, timing and diagnostic functions required for most emergency
and standby power applications.
Because of severe voltage transients frequently encountered with industrial
distribution systems, the microprocessor logic board is separated and isolated from
the power board as shown below. This improves electrical noise immunity performance and helps assure compliance with the rigorous transient suppression standards highlighted below.
10
Fig.15: Microprocessor Power and Logic PC Boards.
7000 series Microprocessor Based Controller
Emission Standard - Group 1, Class A EN 55011:1991
Generic Immunity Standard, from which: EN 50082-2:1995
Electrostatic Discharge (ESD) Immunity EN 61000-4-2:1995
Radiated Electromagnetic Field Immunity ENV 50140:1993
Electrical Fast Transient (EFT) Immunity EN 61000-4-4:1995
Surge Transient Immunity EN 61000-4-5:1995
Conducted Radio-Frequency Field Immunity EN 61000-4-6:1996
Voltage Dips, Interruptions and Variations Immunity EN 61000-4-11:1994
Features
7000 series Microprocessor Controller
• Digital microprocessor.
•
Touch pad programming of features and settings
without the need for meters, or variable power supplies.
• Sixteen (16) selectable operating voltages available in a
single Controller.
• On-board diagnostics provide control panel and ATS status information to analyze system performance.
• Displays and counts down active timing functions.
• Selectable multi-language display
(English, German, Portuguese, Spanish, or French. For
others contact ASCO).
Voltage and Frequency Sensing
• 3-Phase under and over voltage settings on normal
and emergency sources.
• Under and over frequency settings on normal and
emergency.
• True RMS Voltage Sensing with +/- 1% accuracy;
Frequency Sensing Accuracy is +/- 0.2%.
• Selectable settings: single or three phase voltage
sensing on normal and emergency; 50 or 60Hz.
• Phase sequence sensing for phase sensitive loads.
• Voltage unbalance detection between phases.
Status and Control Features
• Output contact (N/O or N/C) for engine-start signals.
• Selection between “commit/no-commit” on transfer
to emergency after engine start and normal restores
before transfer.
• Advanced inphase algorithm which automatically
measures the frequency difference between the two sources
and initiates transfer at appropriate phase angles to minimize disturbances when transferring motor loads.
• Event log displays 99 logged events with the time and
date of the event, event type and event reason.
• Output signals for remote indication of normal and emergency source acceptability
• Statistical ATS/System monitoring data screens which provide:
• Total number of ATS transfers.
• Number of ATS transfers caused by power source failure.
• Total number of days ATS has been in operation.
• Total number of hours that the normal and emergency
sources have been available.
• Password protection to prevent unauthorized tampering
of settings.
• Remote monitoring and control with ASCO
POWERQUEST® communications
products. Specify optional accessory 72E.
• Load shed option for bus optimization applications.
Specify optional accessory 30B.
• Historical event log
• Statistical ATS systems monitoring information
Time Delays
• Engine start time delay - delays engine starting signal to
override momentary normal source outages - adjustable
0 to 6 seconds.
• Transfer to emergency time delay - adjustable 0 to 60
minutes.
• Emergency source stabilization time delay to ignore
momentary transients during initial generator set
loading - adjustable 0 to 6 seconds.
• Retransfer to normal time delay with two settings:
• Power failure mode - 0 to 60 minutes.
• Test mode - 0 to 10 hours.
• Unloaded running time delay for engine cooldown -
adjustable 0 to 60 minutes.
• Pre and post transfer signal time delay for selective
load disconnect with a programmable bypass on source
failures - adjustable 0 to 5 minutes. This signal can be
used to drive a customer furnished relay, or for (2) sets of
double throw contacts rated 3 amps at 480 volts AC, specify ASCO optional accessory 31Z.
• Fully programmable engine exerciser with seven
independent routines to exercise the engine generator,
with or without loads, on a daily, weekly, bi-weekly or
monthly basis.
• Contains all alarm signals, logic and time delays for
use with closed transition switches.
• In synch time delay - 0 to 3 seconds.
• Failure to synchronize - 1 to 5 minutes.
• Extended parallel - 0.1 to 1.0 seconds.
• Delayed transition load disconnect time delay -
adjustable 0 to 5 minutes.
11
7000 series User Controls and Indicators
Control Switches and Indicating Lights for Conventional 2-Position Switches
• Switch position indicating lights (16 mm, industrial grade LEDs).
• Source acceptability indicating lights with true indication of the
acceptability of each source, as determined by the voltage, frequency,
voltage unbalance, and phase sequence settings of the control panel
(16mm, industrial grade LEDs).
• Three position (16mm, industrial grade type) selector switch:
• Automatic: Normal maintained position.
• Test: Momentary position to simulate normal source failure for
system test function.
• Reset Delay Bypass: Momentary position to bypass transfer and
re-transfer time delay.
Fig. 16: 7000 SerieS User Controls and Indicators.
Control Switches and Indicating Lights for Closed Transition Switches
• Extended Parallel Time - Provides visual indication when the
pre-set extended parallel time has been exceeded. The controls
automatically open the emergency or normal main contacts.
Separate contact also available to shunt trip external breaker.
• Failure To Synchronize - Visually displays a failure to synchronize
alarm if the time delay settings is exceeded, during closed
transition transfer operation.
• TS Locked Out - Prevents transfer in either direction if the
extended parallel time is exceeded.
Fig. 17: 7000 SerieS User Controls and Indicators.
• Alarm Reset - Resets extended parallel and failure to
synchronize alarms.
• Closed Transition Bypass - Pushbutton allows transfer between
sources in an open transition mode.
7000 series Power Control Center
Fig. 18: 7000 SerieS
Power Control Center.
12
The 7000 SerieS microprocessor controller is a Power Control Center which
allows the user to easily access detailed information on: system status; power
source parameters; voltage, frequency and time delay settings; optional
feature settings; historical event log; and system diagnostics. A four line,
(20) character LCD has a backlit display which enables easy viewing under all
conditions. The user can navigate through all screens using only six buttons,
which also allows selection of: (18) different source parameter settings; (16)
standard time delays; (12) standard feature settings; up to seven independent
engine exercise routines; and even the language (English, German, Spanish,
French, etc.) which appears on the display.
Since the Power Control Center must be visible and operable through
the enclosure door, it has been qualified for use in industrial and outdoor
applications. This includes installation in Type 3R (outdoor/rainproof),
4 (weatherproof) and 12 (indoor/industrial) enclosures. For applications with
regular exposure to direct sunlight a double door for UV protection is recommended.
Status
7000 series Power Control Center Screens
System Status
Normal OK
Load on Normal
Displays system status in clear, concise language.
Message shown indicates normal source is acceptable
and the load is connected to the normal source.
Time Delay Status
Normal OK
TD.Engine.Cooldown:
4min15s
Active time delay status displays time
remaining until next control event.
Settings
Voltage and Frequency Settings
Normal Voltage
Dropout.............85%.408V
Pickup...............90%.432V
O.V. Trip.........110%.528V
Source Status
Normal Source
Vab=480V....................ABC
Vbc=480V.........Vunbal=1%
Vca=480V................60.0Hz
Displays voltage for each phase, frequency,
phase rotation and voltage unbalance for both
normal and emergency sources.
Inphase Transfer Mode
Emerg OK
Waiting for In-Sync
-45o 0.02Hz
Displays the relative phase angle between
sources and frequency differential to indicate
the controller is awaiting an inphase condition.
Time Delay Settings
TD N>E Xfer Signal
Bypass if N Fail: No
Pre Xfer: 0 min 20S
Post Xfer: 0 min 20S
Provides voltage and frequency setting values for
normal and emergency sources. Voltage pick-up,
dropout and trip settings are set in percentage of nominal
voltage and are also displayed in rms voltage values.
Engine Exerciser
P1..................Engine.Exerciser
Enable:.....Yes....WLoad:....Yes
Start:19h30. ALL MON
Run.Time:...............2h15min
Seven independent programs, load/no load
selection, flexible run times and daily, weekly,
bi-weekly and monthly exercise routines.
Data Logging
ATS Statistics
ATS Statistics
ATS Total Xfers: 46
SRC Fail Tot Xfers: 20
Days Energized: 36.5
Instant availability of statistical information on total number of
ATS transfers, number of transfers caused by power failures and
total days controller has been energized, plus more.
Provides direct reading display for setting time delays.
Feature Settings
Shed Load
Direction: From E
Inphase: No TD/0.25
Standard features can be activated with the keypad. As an
example, when enabled, the “shed load” option causes the
transfer switch to transfer the load off of the specified source.
If desired, the load shed transfer can be made inphase.
Historical Event Log
16.AUG02/95..........13h10:17
Eng.Start...............NormFail.
15.AUG02/95...........13h10:25
Xfer.N>E................................
Displays detailed information for last 99 events,
including time of occurrence, length of event,
date and reason for event.
13
7000 series Optional Accessories
Time Delays
2C Provides an extended time delay on engine starting.
The standard feature one time delay is adjustable
from zero to six seconds. Accessory 2C allows this
time delay to be adjustable from zero to sixty minutes
in one second intervals factory set at five minutes.
1G Similar to accessory 2C except using 24 volt DC
external input signal. 7000 SerieS controller remains
active when both power sources are de-energized*
1GB Same as accessory 1G except using 120 volt AC
external input*
* add suffix 1 to include external power to power manager or
power meter when applicable
Manual Controls for Automatic
Transfer Switches
6C Reset switch for manual retransfer to normal with
automatic retransfer in the event of emergency
source failure.
6D Selector switch for automatic/manual retransfer to
normal. Automatic bypass if emergency fails.
Extension Harness
37B
Six foot (6’) extension harness to increase distance between
transfer switch and control panel on open-type units.
Communications
72E 5150 Ethernet Connectivity Module offers
communication to transfer switch and metering
with embedded webpages.
72SW An Industrial Ethernet Switch mounted in the
enclosure used in conjunction with 5150
Connectivity Module (acc. 72E) metering device.
Includes 2 available Ethernet ports and 2
multimode ST Fiber connectors.
Surge Protection
ASCO Pulsar 450 rated 65KA
73AC1 Normal source protection. (3Ø, 4wire WYE)
73AC2 Emergency source protection. (3Ø, 4wire WYE)
73AC3 Load side protection. (3Ø, 4wire WYE)
Note: Other distribution voltages available (Contact ASCO).
Indicators
14A/14B Additional auxiliary contact sets to indicate switch
position. Two sets are standard. Specify total num-
ber of sets if more are required.
18B Two-pole, double-throw contacts operate when
emergency source voltage is present at transfer
switch terminals.
18G Two-pole, double-throw contacts operate when normal
source voltage is present at transfer switch terminals.
99 “Push-to-Test” feature on all pilot light indicators.
Customer Control Circuits
30A Load-shedding circuit initiated by opening of a
customer-supplied contact.
30B* Load-shedding circuit initiated by removal of
customer-supplied control voltage. *(Specify voltage).
31Z Selective load disconnect control contacts (two
provided) which operate with time delay prior to and/
or after load transfer and retransfer.
43R Terminal block for all customer control connections
on 30-150 amp only (standard on all other sizes).
Note: An externally operable quick-make, quick-break (QMQB), manual handle is avail-
able on some 7000 SerieS product configurations. (Consult ASCO for guidance.)
Neutral Conductor Options
• Solid neutral, with fully-rated terminals. (AL-CU) UL Listed.
• Conventional neutral switching pole.
• Overlapping neutral transfer contacts. Allows for proper
ground-fault sensing and avoids generator voltage
transients during transfer.
Note: Specify neutral option in catalog number, see page 22 for instructions.
Special Applications
45 Custom Alphanumeric nameplate mounted on the front
of the switch
111A Generator - to - Generator for Standby Applications
111B Generator - to - Generator for Prime Power
Applications
125 Seismic Certification to the requirements of the
international building code for electrical equipment
131 Certification of compliance with the American
Recovery & Reinvestment ACT (Buy American Provision)
- Must be specified at time of order placement
Bypass-Isolation Switch Options
14A1 Auxiliary contact to close in “Bypass to Normal”
position.
14B1
14T Auxiliary contact to close when transfer switch is in
14U Auxiliary contact to close when transfer switch is in
14V Auxiliary; contact to close when transfer switch is in
82C Automatic shutters for bus isolation when transfer
switch is withdrawn. (see page 6 for details)
82E LED Bypass status indicator, optional on G frame
1600A-4000A only. Standard for all other size switches
Auxiliary contact to close in “Bypass to Emergency” position.
“Automatic” position.
“Isolate” position.
“Test” position.
14
7000 series Optional Accessories
ASCO 5200 series Metering
Power Manager
The ASCO 5200 SerieS Power Meters are microprocessor
based metering devices that provides real-time measurement of single and three phase power systems. The 5200
SerieS uses digital signal processing technology to measure
voltage and current per phase; real, reactive and apparent
power, and bi-directional energy. All measurements can be
viewed locally with a backlit liquid crystal display and/or
displayed remotely with ASCO POWERQUEST® products.
Direct voltage input for systems up to 600 Volts AC
can be monitored without the use of external potential
transformers (PTs). Measures three phase currents and a
fourth current input is available for measuring current
in the neutral conductor. The 5200 SerieS includes one
discrete input for transfer switch position.
Power Metering
• Voltage:
Line - Line: VAB, VBC, VCA, VAVERAGE
Line - Neutral: VAN, VBN, VCN, VAVERAGE
• Frequency: 45.0 to 66.0 Hertz
• Current: IA, IB, IC, IAVERAGE
• Unbalance %: Voltage, Amps
• Real Power: KWA, KWB, KWC, KWNET
• Reactive Power: KVARA, KVARB, KVARC, KVARNET
• Apparent Power: KVAA, KVAB, KVAC, KVANET
• Real Energy: KWHIMPORT, KWHEXPORT, KWHNET
• Reactive Energy: KVARHIMPORT, KVARHEXPORT,
KVARHNET
• Power Factor: PFA, PFB, PFC, PFNET
Fig. 19: ASCO 5210 SerieS
Power Meter.
Fig. 20: ASCO 5220 SerieS
Power Manager.
Configurable Designations
• Local - A four line, 20 character LCD backlit display.
• 5220 Power Manager provides user programmable setpoints
based on twelve metering and I/O parameters. Each setpoint
allows the user to select the parameter, the trip & reset levels,
the trip & reset time delays and the alarm type or relay output
to trigger. This can be used for protective relaying and peak
shaving applications.
• 100 event data logging feature.
Integrated ATS Features
When configured on load of ATS:
• Displays ATS position.
• Displays power data as a function of ATS position
(normal/emergency).
• Accumulates energy data separately for normal and
emergency sources.
5220 Power Manager Data Access
• Eight digital inputs, four relay outputs.
• Input/Output 15-character, user definable screen
display for identification of input/output signals.
Communications
• Modbus RTU and TCP/IP capability
• Ethernet compatible when combined with
5150 Connectivity Module (72E).
Note: The ASCO Power Manager is also available as a separate unit for monitoring electrical parameters anywhere in the power distribution system.
Optional Configurations and
Connection Arrangements
Connected To: 5210 5220
Load Acc. 135L Acc. 85L
Normal Acc. 135L Acc. 85N
Emergency Acc. 135E Acc. 85M
Load (BPS only) N/A Acc. 85SB
Add suffix A1 to above metering designation if neutral conductor monitoring is required
Note: Accessory 85L and 135L includes component mounting, CTs, shorting
blocks and all necessary interwiring.
*Bypass & isolation switch contacts wired to discrete Power Manager inputs.
*
15
PowerQuest® Power Monitoring and Control Systems
UPS
y
g
C
Internet
It’s the new ASCO PowerQuest®
Power Monitoring and Control
family.
The PowerQuest® family is the
most comprehensive communication, monitoring and control
solution ever offered by ASCO.
It empowers you. It fulfills your
need to test, manage loads,
optimize the bus bar, remotely
monitor and otherwise be aware
of the status of your facility’s
utility source and on-site power.
You have both the Power to
Know and the Power to Do.
Whether you require standard monitoring and control,
or a comprehensive Critical
Power Management System,
PowerQuest can satisfy your
needs.
Hardware. Software. Installation
and testing. Service. And
upgrades and technology
refreshes. A truly complete solution for all your communication,
monitoring and control needs.
The following PowerQuest®
pages can help you determine—
easily— the type of PowerQuest
system you need for your ASCO
power switching and controls,
and third-party equipment.
FULFILL YOUR NEED
Drill down for a closer look - Each transfer
switch, generator, breaker and any other
power equipment has its own dedicated
screens.
Critical Power Management System (CPMS)
HVA
Securit
Fire Alarm
Monitorin
Static
Transfer
Switches
Management
System (BMS)
Transfer
Switches
Generators
Building
PowerQuest® provides monitoring, alarming and control of Critical Power
Management Systems, which comprise transfer switches, paralleling control
switchgear, gensets, circuit breakers, distribution and other gear. It also
integrates with building management systems.
BE EMPOWERED
PowerQuest® can enable you to:
• Monitor and control power transfer switches, paralleling control
switchgear, gensets, breakers, bus bars and other equipment
• Monitor normal and emergency voltages and frequency and their settings
• Know transfer switch position and source availability
• Transfer and re-transfer loads for system testing
• View and adjust transfer switch time-delay settings
• Know each transfer switch’s rating and identification
• Receive automatic alerts on system operation via e-mail, pager,
or selected system alarms
• View current, power and power factor
• View transfer switch event log and know the transfer switch test schedule
Paralleling
Control
Switchgear
CPMS
Display
Terminal
Remote
Display
Terminal
16

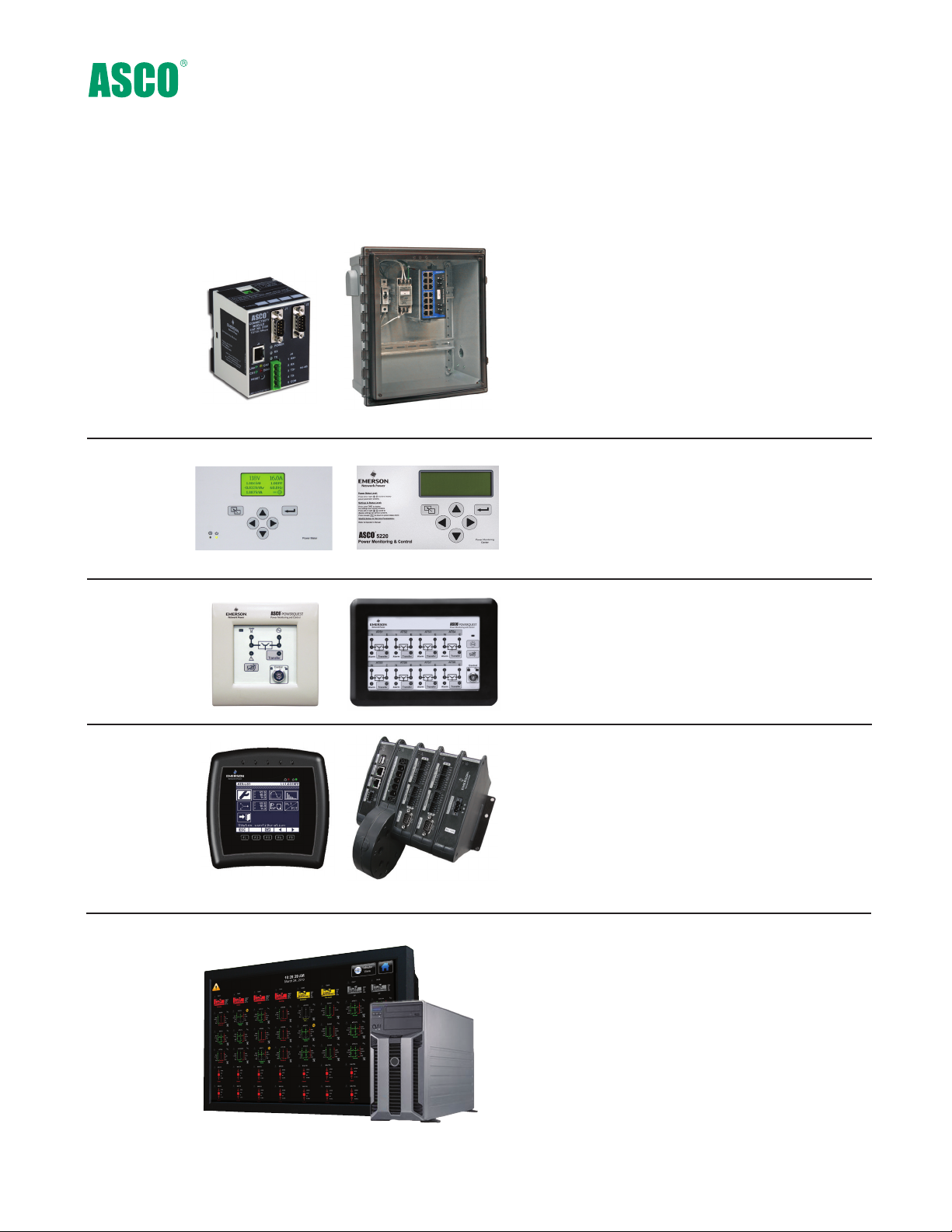

7000 series PowerQuest® Monitoring & Control Components
Building-block components can be configured easily to provide
exactly the degree of monitoring, control and communication you
want for your on-site power system.
An ASCO 5150 Connectivity Module (left) provides 100 Mbps Ethernet Connectivity for ASCO
Transfer Switches and Power Meters and includes
5150, 5160
Connectivity
Modules
AES 128-bit Encryption, as per NIST, for enhanced
security.
The ASCO 5160 Remote Connectivity Unit (RCU)
(right) provides 10 Ethernet and Dual-Fiber Optic
connections in a NEMA 3R enclosure.
5210, 5220
Power
Meters
5310, 5350
Annunciators
5010 Remote
Display Unit,(left)
5490 Critical
Power Quality
Meter, (right)
ASCO 5210 (left) and 5220 (right) Power
Meters measure, displays and provides single-
or 3-phase Energy and Power information with
Ethernet via the ASCO 5150 Communication
Module.
ASCO 5310(left) and 5350(right) ATS Remote
Annunciators provide distributed monitoring of
transfer switch position and source availability as
well as transfer test and re-transfer control.
ASCO 5400 Series Power Quality Meters
The ASCO Power Quality Meters provide intelligent power analysis, energy measurement and
event recording for critical and sensitive loads.
Its unique continuous waveform and harmonic
recording capabilities ensure all events are captured, improves response time, and helps identify
corrective action to power quality related issues.
Enterprise
Critical Power
Management
System
5700 Series provide various levels of monitoring,
control and management capability of power
equipment. It seamlessly monitors ASCO transfer switches as well as generators, breakers,
paralleling bus, panel boards and other power
equipment via a 5221 PMU. It consists of servers and touch screen interfaces.
17
7000 series PowerQuest Monitoring & Control
The Power To Know
Selecting the system that provides your level of need-to-know
information and control...
You Need... Your Application Is... Desired Capabilities
Basic monitoring, remote
alarming and control, or, if
you simply want to know
transfer switch status or perform monthly transfer testing
A ‘specify-your-own’ Critical
Power Management System
(CPMS) that includes gensets,
circuit breakers, and reports
on energy, trending, power
demand, bypass status,
diagnostics, alarming, and
component-level monitoring
and control.
Residential, light commercial
and retail establishments
Commercial, retail,
telecom, agriculture,
municipal, such as waste
water treatment, light industrial plants, educational campuses and healthcare facilities
requiring distributed power
and load management
Local or remote, floor-level
monitoring and control, or as
part of a larger, facility-wide
monitoring and control system
Local, floor-level, or facility-level monitoring and
control; 5700 systems can be
configured in three capability
levels:
• Essential (single building)
• Professional (multiple
buildings, single campus)
• Enterprise (multiple
campuses)
18
A Critical Power Management
System providing system-wide monitoring, alarming and control of transfer
switches, paralleling control
switchgear, gensets and
distribution, both on and off
site; also integrates PLCs,
building management systems and on-site, simulator
training. Power quality and a
range of other information is
provided.
Regional and global networks
of data centers, financial
institutions, Web hosting
companies and healthcare
campuses that operate
expansive and sophisticated
on-site power systems that
are essential for providing
24/7 power reliability
Local floor-level monitoring
and control, and remote
system-wide monitoring and
control seamlessly integrated
with building management
systems; communication
paths can be Ethernet, Webbased PC’s and monitors;
simulator training that mimics the live system allows
conducting ‘what if’ scenarios, without risking system
operation.

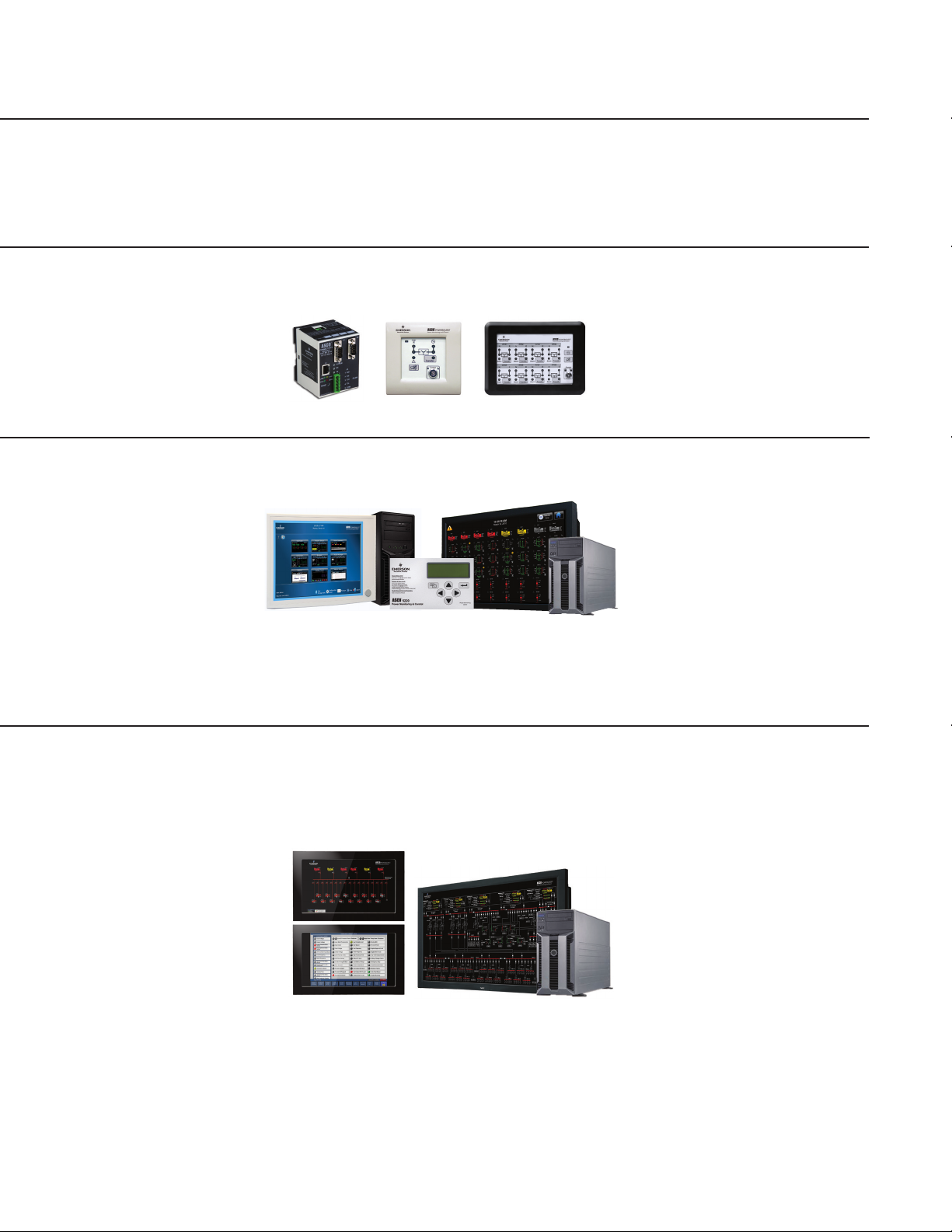

Identifies the ASCO products and components required to provide the functionality you need.
Products Required Components Functionality
ASCO Series 185 and Series
300 Automatic Transfer
Switches
ASCO 4000 Series and 7000
Series Automatic Transfer
Switches, including 7000
Series Bypass-Isolation
Connectivity Modules and Annunciators Locally monitor switch position,
source availability and the status
of on-site power system devices via customized Web page.
Initiate tests and push-button
remote transfer. Aural, visual
alarms.
Standard components, plus Power Control System
Management and Operator Interface Terminals
Monitor voltage and phase
currents. Capture/store more
data points. Display data on
screen up to 42” inches.
Interface with power control
system, BMS. Integrate with
Group 5 Controller. Get email
alerts. For single buildings,
single campuses and global
facilities. Provides Energy,
Alarm, and Outage/Test Reports
that can be used to fulfill Joint
Commission Requirements.
ASCO 7000 Series Automatic
Transfer Switches, including
Bypass-Isolation and 7000
Series Generator Paralleling
Control Switchgear
Standard and Configurable components, plus
higher performance Power Control System and
Data Management Screens, and an on-site
Simulator Training System
Interact fully with incoming
utility service boards, mission
critical paralleling gear, transfer
switches, UPSs, STSs and PDUs...
and interface with Building
Management Systems. Capture,
store and analyze quantities of
data to optimize on-site power
operation. Use your display
devices and/or ASCO 42” LCD
screen. Highly customize your
GUI with sophisticated HMI/
SCADA software.
19
PowerQuest® 5700 Critical Power Management System
Utility Generator Generator
QTY 4, 14 Awg
3P Volts/Amps
5221
Power
Manager
Units
7000 ATS
24VDC
24 VDC
300 ATS
24VDC
24 VDC
QTY 8, 14 Awg
3P Volts/Amps
19” 5702 Operator
Touch Panel
(up to 100 with
5790 Server)
24 VDC
QTY 8, 14 Awg
3P Volts/Amps
5160 RCU
24VDC or 120 VAC
(Requires UPS)
5160 RCU
24VDC or 120 VAC
(Requires UPS)
5350 Annunciator
To RCU and
Additional
Networked
Devices
19” 5702 Operator
Touch Panel
(up to 100 with
5790 Server)
Tx/Rx (pair of Fiber)
5160 RCU
24VDC or 120 VAC
(Requires UPS)
20
Breaker
UPS/Distribution
7000 ATS
24 VDC
QTY 4, 14 Awg
3P Volts/Amps
19” 5702 Operator
Touch Panel
(up to 100 with
5790 Server)
5350 Annunciator
ATS Status Annunciation
Transfer Test
Supports 8 ATS’s
24VDC/120VAC/220VAC
5710 CPMS Server
• Drives 3 Remote 5702
•Supports 32 Power Devices
•Basic Monitoring and Control
•Standard Performance
Panels
24 VDC
QTY 8, 14 Awg
3P Volts/Amps
5700 CPMS Servers
Note - Select One Server to install
in Centralized Office
50° to 95°F (10°C to 35°C)
To RCU and
Additional
Networked
Devices
5750 CPMS Server
Essential Features PLUS:
• Drives 10 Remote
5702 Panels
• Supports 64 Power
Devices
• Historical Trending
5790 CPMS Server
Professional Features
PLUS:
•Drives 100 5702 Touch
Panels
•Redundant Power
•Redundant Storage
AWG Wire Size and Distance by others
Category 6 Ethernet (300 Feet Max)
Multi-Mode Fiber, 1300nm, 50/125um,
ST Connectors (6500) Feet Max
• 5 Reporting Packages
• BMS Modbus Support
•Remote E-Mail
Alarming
•Redundant Processors
•Ultimate Performance
•128 Power Devices
•Expanded Storage
•Inter-facility Messaging
NOTES -
1. This Drawing is to be used as a Model only;
Actual network architecture will depend on
equipment placement, cable length and type.
2. 5700 Series Products Operating Temperature is
50° to 95°F (10°C to 35°C) For altitudes above 2950 feet,
the maximum operating temperature is
derated 1°F/550 ft.
21
7000 series Ordering Information
To order an ASCO 7000 series Power Transfer Switch, complete the following catalog number:
7
TSA A 3
Product
+ +
Neutral
Code*
Automatic
A
Non-
N
Automatic
Manually
M
Operated
*Notes: Conventional switch neutral is provided on closed and delayed
transition transfer products when specified.
TS
TB
CTS
CTB
DTS
DTB
Conventional
2-Position
Open
Transition
Bypass
Closed
Transition
Closed
Transition
Bypass
Delayed
Transition
Delayed
Transition
Bypass
---
A
B
C
No Neutral
Solid Neutral
Switched
Neutral
Overlapping
Neutral
Phase
Poles
2
3
400
+ +
Amperes
30
70
100
150
200
*
230
*
260
400
600
800
1000
1200
1600
2000
2600
3000
4000
**Type 3R enclosures are not suitable for installations conducive
to windblown snow or rain conditions.
N
Voltage
Code
115
A
120
B
208
C
220
D
230
E
240
F
380
H
400
J
415
K
440
L
460
M
480
N
550
P
575
Q
600
R
5X
+ +
Grp
Code
5
5X-
optional
accesso-
ries
---
C
F**
G
H
L
M
N
P
Q
R
C
Enclosure
No enclosure
Type 1 enclosure
Type 3R
enclosure
Type 4 enclosure
Type 4X
enclosure
(stainless steel)
Type 12
enclosure
Type 3R secure
double door
Type 4 secure
double door
Type 4X secure
double door
Type 12 secure
double door
Type 3RX secure
double door
(Stainless Steel)
The Example Catalog Number above is 7ATSA3400N5XC
(X is used to specify optional accessories).
Transfer Switch Configurations
7A TS, 7N TS, 7A DTS, 7A CTS, 7N DTS, 7N CTS
Sizes of UL-Listed Solderless Screw-Type
Terminals for External Power Connections
Switch Rating
amps
3
30 -230
150*, 260, 400
*150 for CTS and DTS Only
600
800-1200
1600-2000
2600, 3000
Notes: 1. Unit is designed for top cable entry of emergency and load and bottom entry
2. All main terminals are rear connected.
1
2
2
2
4000
of normal. Optionally, the switch may be supplied with reverse source and/or
bottom entry load, when specified.
22
Max # of Conductors
per Terminal
One
One
Two
Two
Four
Six
Twelve
Twelve
Range of AL-CU
Conductor Sizes
#14 to 4/0 AWG
#4 AWG to 600 MCM
#1/0 AWG to 250 MCM
#1/0 AWG to 600 MCM
#1/0 AWG to 600 MCM
#1/0 AWG to 600 MCM
#1/0 AWG to 600 MCM
#2/0 AWG to 600 MCM
Transfer/Bypass Configurations
7A TB, 7N TB, 7A DTB, 7A CTB, 7N DTB, 7N CTB
Sizes of UL-Listed Solderless Screw-Type
Terminal for Power Connections
Switch Rating
amps
150, 200, 230
260,400
4
600
800,1000,1200
1600-2000
2600, 3000
4000
3. 200 and 230 amp rating for copper conductors only for transfer switch
configurations only.
4. All main terminals are rear connected. A front connected version is
available in 600 and 1200 amp ratings only with top cable entry only.
See pages 25-27 for dimensional data and additional information.
5.Type 304 stainless steel standard. Specify 316 ST. Steel for installations
subject to salt water and corrosive environments
Max # of Conductors
4
4
4
4
per Terminal
One
Two
Two
Four
Six
Ten
Twelve
Range of AL-CU
Conductor Sizes
# 4 AWG to 600 MCM
# 1/0 AWG to 250 MCM
# 2 AWG to 600 MCM
# 1/0 AWG to 600 MCM
# 1/0 AWG to 600 MCM
# 2 AWG to 600 MCM
# 2 AWG to 600 MCM
7000 series Designed to Fit Anywhere*
2-Position Transfer Switching 7A TS, 7N TS (Non-Bypass)
Switch Rating
Amps
Enclosed UL Type 1
30, 70, 100, 125, 150, 200, 230 2, 3 or 3 with neutral A/B/C 18 (457) 48 (1219) 13 (330)
260, 400 2, 3 or 3 with neutral A/B/C 24 (610) 56 (1422) 14 (356)
600 2, 3 or 3 with neutral A/B/C 24 (610) 63 (1600) 17 (432)
800, 1000 2, 3 or 3 with neutral A/B/C 34 (864) 72 (1829) 20 (508)
1200 2, 3 or 3 with neutral A/B/C 38 (965) 87 (2210) 23 (584)
1600, 20001 2, 3 or 3 with neutral A/B/C 38 (965) 91 (2311) 48 (1219)
1600, 20003 (front connected) 2, 3 or 3 with neutral A/B/C 38 (965) 87 (2210) 23 (584)
2600, 30001 2, 3 or 3 with neutral A/B/C 38 (965) 91 (2311) 60 (1524)
40001 2, 3 or 3 with neutral A/C 60 (1524)
2
Poles
Width
inches (mm)
Open Configuration
30, 70, 100, 125,150, 200, 230 2, 3 or 3 with neutral B/C 10-1/4 (260) 10-1/4 (260) 5-1/2 (140)
260, 400 2, 3 or 3 with neutral B/C 18-1/2 (470) 25 (635) 8 (203)
600 2, 3 or 3 with neutral B/C 19 (483) 30 (762) 9-7/8 (251)
800, 1000, 1200 2, 3 or 3 with neutral B/C 27 (686) 31 (787) 12-7/8 (327)
1600, 2000 2, 3 or 3 with neutral B/C 33-1/4 (845) 28 (711) 26-1/4 (667)
2600, 3000 2, 3 or 3 with neutral B/C 33-1/4 (845) 28 (711) 30-3/4 (781)
4000 2, 3 or 3 with neutral C
60 (1524)
70 (1778) 53 (1272)
Height
inches (mm)
91 (2311)
72 (1829)
Depth
inches (mm)
Notes:
1. Enclosures are free-standing
with removable top, sides, and
back.
2. Consult ASCO for dimensions on
enclosures other than UL type 1.
3. Order accessory 40MY for
1600A and 40NY for 2000A F/C
design.
*All dimensions and weights
shown are approximate and
should not be used for construction
purposes. Certified dimensions can
be furnished upon request.
Shipping Weights
2-Position Transfer Switching 7A TS, 7N TS
Switch Rating
Amps
30, 70, 100, 125 2 125 (57) 45(20)
30, 70, 100, 125 2 125 (57) 45(20)
30, 70, 100, 125 3 with B/C 130 (59) 50(23)
150, 200, 230 2 125 (57) 70(32)
150, 200, 230 2 125 (57) 70(32)
150, 200, 230 3 with B/C 130 (59) 75(34)
260, 400 2 250(114) 135(61)
260, 400 3 255(116) 140(64)
260, 400 3 with B/C 270(123) 150(68)
600 2 320(145) 210(95)
600 3 325(148) 210(95)
600 3 with B/C 340(154) 220(100)
800, 1000 2 480(218) 275(125)
800, 1000 3 485(220) 280(127)
800, 1000 3 with B/C 500(227) 290 (132)
1200 2 670(304) 305 (138)
1200 3 675(306) 310 (141)
1200 3 with B/C 690 (313) 320 (145)
1600, 2000 2 1280(581) 520 (236)
1600, 2000 3 1300(590) 520 (236)
1600, 2000 3 with B/C 1320(599) 540 (245)
2600, 3000 2 1440(654) 620 (281)
2600, 3000 3 1460(663) 620 (281)
2600, 3000 3 with B/C 1480(672) 640 (291)
4000 2 2690(1221) 1620 (735)
4000 3 2710(1230) 1640 (745)
4000 3 with B/C 2730(1239) 1660 (754)
Poles
Enclosed*
lb (kg)
Open*
lb (kg)
*All dimensions and weights
shown are approximate and
should not be used for construction
purposes. Certified dimensions can
be furnished upon request.
23
7000 series Designed to Fit Anywhere*
Closed Transition and Delayed Transition Transfer Switching
7A DTS, 7A CTS, 7N DTS, 7N CTS
Switch Rating
Amps
Enclosed UL Type 1
150, 260, 400 2, 3 or 3 with neutral A/B 24 (610) 56 (1422) 14 (356)
600 2, 3 or 3 with neutral A/B 24(610) 63 (1600) 17(432)
800, 1000 2, 3 or 3 with neutral A/B 34 (864) 72 (1829) 20 (508)
1200 2, 3 or 3 with neutral A/B 38 (965) 87 (2210) 23 (584)
1600, 20001 2, 3 or 3 with neutral A/B 38 (965) 91 (2311) 48 (1219)
1600, 20003 (front connected) 2, 3 or 3 with neutral A/B 38 (965) 87 (2210) 23 (584)
30001 2, 3 or 3 with neutral A/B 38 (965) 91 (2311) 60 (1524)
40001 2, 3 or 3 with neutral A/C
2
Poles
Width
inches (mm)
60 (1524)
91 (2311) 72 (1829)
Height
inches (mm)
Open Configuration
150, 260, 400 2, 3 or 3 with neutral B 18-1/2 (470) 25 (635) 8 (203)
600 2, 3 or 3 with neutral B 19 (483) 30 (762) 9-7/8 (251)
800, 1000, 1200 2, 3 or 3 with neutral B 27 (686) 31 (787) 12-7/8 (327)
1600, 2000 2, 3 or 3 with neutral B 33-1/4 (845) 28 (711) 26-1/4 (667)
2600, 3000 2, 3 or 3 with neutral B 33-1/4 (845) 28 (711) 30-3/4 (781)
4000 2, 3 or 3 with neutral C 60 (1524) 70 (1778) 53 (1272)
Depth
inches (mm)
Notes:
1. Enclosures are freestanding with removable top,
sides, and back.
2. Consult ASCO for dimensions on enclosures other
than UL type 1.
3. Order accessory 40MY for
1600A and 40NY for 2000A
front connected design.
*All dimensions and weights
shown are approximate and
should not be used for
construction purposes.
Certified dimensions can be
furnished upon request.
Shipping Weights
Closed Transition and Delayed Transition Transfer Switching
7A DTS, 7A CTS, 7N DTS, 7N CTS
Switch Rating
Amps
150, 260, 400 2 275 (125) 160 (73)
150, 260, 400 3 280 (127) 165 (75)
150, 260, 400 3 with B 295 (134) 175 (79)
600 2 345 (157) 235 (107)
600 3 350 (159) 235 (107)
600 3 with B 365 (166) 245 (111)
800, 1000 2 505 (229) 300 (136)
800, 1000 3 510 (232) 305 (138)
800, 1000 3 with B 525 (238) 315 (143)
1200 2 695 (316) 330 (150)
1200 3 700 (318) 335 (152)
1200 3 with B 715 (325) 345 (157)
1600, 2000 2 1305 (592) 545 (247)
1600, 2000 3 1325 (602) 545 (247)
1600, 2000 3 with B 1345 (611) 565 (257)
2600, 3000 2 1465 (665) 645 (293)
2600, 3000 3 1485 (674) 645 (293)
2600, 3000 3 with B 1505 (683) 665 (302)
4000 2 2715 (1233) 1645 (747)
4000 3 2735 (1242) 1665 (756)
4000 3 with B 2755 (1251) 1685 (765)
Poles
Enclosed*
lb (kg)
Open*
lb (kg)
Notes:
1. Open weights include
transfer switch and control
panel. 1200-4000 amp
enclosures require ventilation
openings, refer to drawings
for details. Export shipments
may require a wooden box,
contact ASCO for weights and
dimensions.
*All dimensions and weights
shown are approximate and
should not be used for
construction purposes.
Certified dimensions can be
furnished upon request.
24
7000 series Designed to Fit Anywhere*
Automatic Transfer Bypass-Isolation Switching
with Transfer Switch Engaged 7A TB, 7N TB
Switch Rating
amps
Power Connection
Configuration
Poles
Width
inches (mm)
Height
inches (mm)
Enclosed UL Type 1
150, 200, 230, 260, 400
800
1000, 1200 Front Connected 2, 3 or 3 with neutral A/B/C 38 (965) 91 (2311) 34 (864)
800, 1000, 1200
1600, 2000
2600, 3000
4000
1,
1, 3
1,2
600 Front Connected 2, 3 or 3 with neutral A/B/C 34 (864) 85 (2159) 28 (711)
Front Connected 2, 3 or 3 with neutral A/B/C 38 (965) 91 (2311) 32 (813)
1, 2
Side/Rear Connected 2, 3 or 3 with neutral A/B/C 38 (965) 91 (2311) 48 (1219)
1,2
Side/Rear Connected 2, 3 or 3 with neutral A/B/C 38 (965) 91 (2311) 60 (1524)
1, 2
Side/Rear Connected 3 or 3 with neutral A/B/C 38 (965) 91 (2311) 72 (1829)
Rear Connected 3 or 3 with neutral A/C 60(1524) 91 (2311) 96 (2438)
Open Configuration
150, 200, 230, 260, 4001 Front Connected 2, 3 or 3 with neutral B/C 19-3/4 (500)4 61-1/2 (1553)4 28(711)
600, 800, 1000, 1200
1600, 2000, 2600, 3000
4000
Notes: 1. Handles extend 6-1/4 inches (159mm).
2. Recommended clearance to enclosure: 3 feet (914mm) from rear, 4 feet (1219mm) from front (25 inches required for transfer switch drawout).
Side or rear access required.
3. Specify optional accessory 40J Y for 800 Amp front, 40KY for 1000 Amp, and 40LY for 1200 Amp - connected arrangement. All service and load
cables limited to top entry only.
4. Contact ASCO for details.
*All dimensions and weights shown are approximate and should not be used for construction purposes.
Certified dimensions can be furnished upon request.
1, 2
Rear Connected 2, 3 or 3 with neutral B/C 38 (965) 72 (1829) 38 (965)
1, 2
1,2
Rear Connected 3 or 3 with neutral A/C 60(1524) 91 (2311) 96 (2438)
Rear Connected 2, 3 or 3 with neutral B/C 38 (965) 72 (1829) 38 (965)
Depth
inches (mm)
4
Shipping Weights
Automatic Transfer Bypass-Isolation Switching
with Transfer Switch Engaged 7A TB, 7N TB
Switch Rating
amps
Poles
150, 200, 230, 260, 400, 600 2 990 (449) Contact ASCO
150, 200, 230, 260, 400, 600 3 1050 (477) Contact ASCO
150, 200, 230, 260, 400, 600 3 with B/C 1110 (504) Contact ASCO
800, 1000, 1200 2 1510 (686) 920 (418)
800, 1000, 1200 3 1580 (717) 990 (449)
800, 1000, 1200 3 with B/C 1650 (749) 1060 (481)
1600, 2000 2 2180 (990) 1300 (590)
1600, 2000 3 2360 (1071) 1550 (704)
1600, 2000 3 with B/C 2540 (1153) 1800 (817)
2600, 3000 3 2730 (1239) 1690 (767)
2600, 3000 3 with B/C 3360 (1525) 1980 (899)
4000 3 6300 (2860) Contact ASCO
4000 3 with B/C 6900 (3133) Contact ASCO
Notes: 1.Open weights include transfer switch, bypass-isolation switch and controller.
1600-4000 amp enclosures require ventilation openings, refer to drawings for details.
Export shipments may require a wooden box, contact ASCO for weights and dimensions.
*All dimensions and weights shown are approximate and should not be used for construction purposes.
Certified dimensions can be furnished upon request.
Enclosed*
lb (kg)
Open*
lb (kg)
25
7000 series Designed to Fit Anywhere*
Automatic Transfer Bypass-Isolation in Closed Transition and Delayed
Transition Switching. 7A DTB6, 7A CTB, 7N DTB6, 7N CTB
Switch Rating
amps
Power Connection
Configuration
Poles
Width
inches (mm)
Height
inches (mm)
Enclosed UL Type 1
150, 200, 230, 260, 400
800
1000, 1200 Front Connected 2, 3 or 3 with neutral A/B/C 38 (965) 91 (2311) 34 (864)
800, 1000, 1200
1600, 2000
2600, 3000
4000
1, 3
1,
600 Front Connected 2, 3 or 3 with neutral A/B/C 34 (864) 85 (2159) 28 (711)
Front Connected 2, 3 or 3 with neutral A/B/C 38 (965) 91 (2311) 32 (813)
1, 2
Side/Rear Connected 2, 3 or 3 with neutral A/B/C 38 (965) 91 (2311) 48 (1219)
1,2
Side/Rear Connected 2, 3 or 3 with neutral A/B/C 38 (965) 91 (2311) 60 (1524)
1, 2
Side/Rear Connected 3 or 3 with neutral A/B/C 38 (965) 91 (2311) 72 (1829)
1,2
Rear Connected 3 or 3 with neutral A/C 60(1524) 91 (2311) 96 (2438)
Open Configuration
150, 200, 230, 260, 4001 Front Connected 2, 3 or 3 with neutral B/C 19-3/4 (500)4 61-1/2 (1553)4 22-1/4 (565)
600, 800, 1000, 1200
1600, 2000, 2600, 3000
4000
Notes: 1. Handles extend 6-1/4 inches (159mm).
2. Recommended clearance to enclosure: 3 feet (914mm) from rear, 4 feet (1219mm) from front (25 inches required for transfer switch drawout).
Side or rear access required.
3. Specify optional accessory 40J Y for 800 Amp front, 40KY for 1000 Amp, and 40LY for 1200 Amp - connected arrangement. All service and load
cables limited to top entry only.
4. Contact ASCO for details.
*All dimensions and weights shown are approximate and should not be used for construction purposes.
Certified dimensions can be furnished upon request.
1, 2
Rear Connected 2, 3 or 3 with neutral B/C 38 (965) 72 (1829) 38 (965)
1, 2
1,2
Rear Connected 3 or 3 with neutral A/C 60(1524) 91 (2311) 96 (2438)
Rear Connected 2, 3 or 3 with neutral B/C 38 (965) 72 (1829) 38 (965)
Depth
Depth
inches (mm)
inches (mm)
4
Shipping Weights
Automatic Transfer Bypass-Isolation in Closed Transition and Delayed
Transition Switching. 7A DTB, 7A CTB, 7N DTB, 7N CTB
Switch Rating
amps
150, 200, 230, 260, 400, 600 2 1015 461 Contact ASCO
150, 200, 230, 260, 400, 600 3 1075 (488) Contact ASCO
150, 200, 230, 260, 400, 600 3 with A/B 1135 (515) Contact ASCO
800, 1000, 1200 2 1535 (697) 945 (429)
800, 1000, 1200 3 1605 (729) 1015 (461)
800, 1000, 1200 3 with A/B 1675 (760) 1085 (493)
1600, 2000 2 2205 (1001) 1325 (602)
1600, 2000 3 2385 (1083) 1575 (715)
1600, 2000 3 with A/B 2565 (1165) 1825 (829)
2600, 3000 3 2755 (1251) 1715 (779)
2600, 3000 3 with A/B 3385 (1537) 2005 (910)
4000 3 6325 (2872) 4000 3 with C 6925 (3144) -
Notes: 1. Open weights include transfer switch, bypass-isolation switch and controller.
1600-4000 amp enclosures require ventilation openings, refer to drawings for details.
Export shipments may require a wooden box, contact ASCO for weights and dimensions.
*All dimensions and weights shown are approximate and should not be used for construction purposes.
Certified dimensions can be furnished upon request.
Poles
Enclosed*
lb (kg)
Open*
lb (kg)
26
7000 series Designed to Fit Anywhere*
Optional Front Connected Design Saves Valuable Space
800 Amp Optional Front Connected Design
17.00
Field Wiring
Terminal Block
(TB)
Bypass
Switch
38.76
Manual
Operation
Handle
Bypass Handle
32.00
Cable
Compartment
Ground Bus
Load Lugs
Normal Lugs
Emergency Lugs
Group 5
91.00
35.24
Isolation
Handle
Controller
User
Interface
Controls and
Indication
Transfer Switch
Compartment
Front Views (Covers Installed) Right Side Views (Covers Removed)
1000-1200 Amp Optional Front Connected Design
38.00
Cable Access
Hinge Cover
Field Wiring
Terminal Block
(TB)
Bypass Switch
Manual Operation
59.05
REF
Isolation
Handle
39.00
CG
Handle
12.42 REF
Ground Bus
34.00
Emergency Lugs
*All dimensions and weights
shown are approximate and
should not be used for construction purposes. Certified
dimensions can be furnished
upon request.
Load Lugs
Normal Lugs
91.00
Isolation
Handle
Group 5
Controller
User
Interface
Controls and
Indication
Transfer Switch
Compartment
Isolation Handle
59.05
REF
6.22
REF
27
Emerson Network Power - Global Headquarters
1050 Dearborn Drive
Columbus, OH 43085
Tel: +1 614 888 0246
ASCO Power Technologies - Global Headquarters
50 Hanover Road
Florham Park, NJ 07932
800-800-ASCO
www.EmersonNetworkPower.com/ASCO
Emerson. Consider it Solved., Emerson Network Power and the Emerson Network Power logo are trademarks and service marks of Emerson Electric Co. ©2014 Emerson Electric Co. All rights reserved.
Publication 3040 R14 © July 2014 Printed in the U.S.A.
www.ascoapu.com
Loading...
