The Power to Know

It’s all about the need to know...

Your need to know what’s
happening with your facil­ity’s on-site power and
distribution system. That
includes automatic transfer
switches, generator paral­leling control switchgear,
gensets, circuit breakers,
paralleling bus, protective
relays and other gear.

It’s not only to know, but
to understand. To act. To
solve issues when seconds
count.

Your need to know about
equipment condition,
operation and status is
more critical than ever.
Essentially, to make sure
that all equipment and

components are healthy
and “playing nice.” That’s
especially important as
system complexity and
sophistication increase.

Knowing can help ensure
power reliability for criti­cal operations, and thus
continuity of those opera-

tions. To make sure when
questions are asked, you
have answers.

Now there’s a way to get
exactly the amount of
communication, monitor­ing and control capabilities
you want for your utility
source and on-site power
system.

2

FULFILL YOUR NEED

UPS

Security

Fire Alarm

Monitoring

HVAC

Internet

Drill down for a closer look - Each transfer switch,
generator, breaker and any other power equip­ment has its own dedicated screens.

ASCO PowerQuest® Power Monitoring and Control Systems

It’s the new ASCO Power-

Quest® Power Monitoring

and Control family.

The PowerQuest

®

family is
the most comprehensive
communication, monitor­ing and control solution
ever offered by Emerson
Network Power.
It empowers you. It fullls
your need to test, man­age loads, optimize the
bus bar, remotely monitor
and otherwise be aware of
the status of your facility's
utility source and on-site
power. You have both the
Power to Know and the
Power to Do.

Critical Power Management System (CPMS)

Static

Transfer

Switches

Building

Management

System (BMS)

Transfer

Switches

Paralleling Control

Switchgear

Generators

CPMS

Display

Terminal

Remote

Display

Terminal

Whether you require
standard monitoring and
control, or a comprehen­sive Critical Power Manage­ment System, PowerQuest
can satisfy your needs.

Hardware. Software. Instal­lation and testing. Service.
And upgrades and technol­ogy refreshes. A truly com­plete solution for all your
communication, monitor­ing and control needs.

This brochure can help
you determine—easily—
the type of PowerQuest
system you need for your
ASCO power switching and
controls, and third-party
equipment.

PowerQuest provides monitoring, alarming and control of Critical Power Management
Systems, which comprise transfer switches, paralleling control switchgear, gensets, circuit
breakers, distribution and other gear. It also integrates with building management systems.

BE EMPOWERED

PowerQuest can enable you to:

• Monitor and control power transfer switches, paralleling control switch­gear, gensets, breakers, bus bars and other equipment

• Monitor normal and emergency voltages and frequency and their settings

• Know transfer switch position and source availability

• Transfer and re-transfer loads for system testing

• View and adjust transfer switch time-delay settings

• Know each transfer switch’s rating and identification

• Receive automatic alerts on system operation via e-mail, pager, or selected
system alarms

• View current, power and power factor

• View transfer switch event log and know the transfer switch test schedule

3

Monitoring and Control Continuum

Selecting the system that provides your level of need-to-know information and control...

PowerQuest

Standard Capabilities

PowerQuest

Congurable Flexibility

Essential

Professional

You Need...

Basic monitoring, remote
alarming and control, or, if
you simply want to know
transfer switch status or
perform monthly transfer
testing

A ‘specify-your-own’
Critical Power Manage­ment System (CPMS) that
includes gensets, circuit
breakers, and reports on
energy, trending, power
demand, bypass status,
diagnostics, alarming, and

Enterprise

component-level monitor­ing and control.

Your Application Is...

Residential, light
commercial and retail
establishments

Commercial, retail,
telecom, agriculture,
municipal, such as waste
water treatment, light in­dustrial plants, educational
campuses and healthcare
facilities requiring dis­tributed power and load
management

Desired Capabilities

Local or remote, oor-level
monitoring and control, or
as part of a larger, facility­wide monitoring and
control system

Local, oor-level, or
facility-level monitoring
and control; 5700 systems
can be congured in three
capability levels:

• Essential

• Professional (multiple

buildings, single campus)

• Enterprise (multiple

campuses)

(single building)

PowerQuest

Ultimate Customization

4

A Critical Power Manage­ment System providing
system-wide monitoring,
alarming and control of
transfer switches, paral­leling control switchgear,
gensets and distribution,
both on and off site; also
integrates PLCs, building
management systems and
on-site, simulator training.
Power quality and a range
of other information is
provided.

Regional and global
networks of data centers,
nancial institutions, Web
hosting companies and
healthcare campuses that
operate expansive and so­phisticated on-site power
systems that are essential
for providing 24/7 power
reliability

Local oor-level monitoring
and control, and remote
system-wide monitoring
and control seamlessly
integrated with building
management systems;
communication paths can
be Ethernet, Web-based
PC’s and monitors; simula­tor training that mimics the
live system allows conduct­ing ‘what if’ scenarios,
without risking system
operation.

Identies the ASCO products and components required to provide the functionality you need.

Products

ASCO Series 185 and Series
300 Automatic Transfer
Switches

ASCO 4000 Series and
7000 Series Automatic
Transfer Switches,
including 7000 Series
Bypass-Isolation.

Required Components

Connectivity Modules and Annunciators

Standard components, plus Power Control System
Management and Operator Interface Terminals

Functionality

Locally monitor switch
position, source availability
and the status of on-site power
system devices via customized
Web page. Initiate tests and
push-button remote transfer.
Aural, visual alarms.

Monitor voltage and phase
currents. Capture/store more
data points. Display data on 19”
screen. Interface with power
control system, BMS. Integrate
with Group 5 Controller. Get
email alerts. For single build­ings, single campuses and
global facilities.

ASCO 7000 Series Auto­matic Transfer Switches,
including Bypass-Isolation
and 7000 Series Generator
Paralleling Control
Switchgear.

Standard and Congurable components, plus higher per­formance Power Control System and Data Management
Screens, and an on-site Simulator Training System

Interact fully with incoming
utility service boards, mis­sion critical paralleling gear,
transfer switches, UPSs, STSs
and PDUs...and interface with
Building Management Systems.
Capture, store and analyze
quantities of data to optimize
on-site power operation. Use
your display devices and/or
ASCO 42” LCD screen. Highly
customize your GUI with sophis­ticated HMI/SCADA software.

5

Power Monitoring and Control Compatibility Matrix

PowerQuest Specied Components

Power Quest

Product

Number

5150

5160

ASCO Transfer

Switches

300 4000 7000 300 4000 7000

  

      

5210

5220

5221

5400

PowerQuest Specied Packaged Approach

   



ASCO Power

Control Systems

  



Other Power Equipment

Generators, Breakers, Uninterrupted

Power Supplies, Load Banks and more









Standard CapabilitiesCongurable FlexibilityUltimate Customization

5310

5350

5710

5750

5790

5900

   

   

  

  

  

  



5221 PMU Required



5221 PMU Required



5221 PMU Required





6

Power Monitoring Made Easy

The Power Monitoring
and Control Compat­ibility Matrix (left) shows
components that can be
congured for a range of
ASCO Automatic Transfer
Switches and Generator
Paralleling Control Switch­gear. Some components
also can monitor third-par-

ty devices, such as gensets,
paralleling bus, circuit
breakers and other gear.

Consider including remote
monitoring capability.
Remote capabilities can
minimize the need for
personnel to be near
equipment and perhaps
avoid suiting up in arc ash

protective gear.
The following pages
illustrate the components
and monitoring servers for
PowerQuest 5300, 5700
or 5900 systems, based
on the equipment at your
facility and the monitoring
and control capabilities you
want.

PowerQuest 5300 Standard Capabilities

PowerQuest 5300 moni­tors and controls ASCO
Power Transfer Switches in
all amperages and these
congurations:

• Manual or Automatic

• Closed Transition

• Open Transition

• Delayed Transition

• Bypass-Isolation

• Indoor or Outdoor

• Service Entrance Rated

PowerQuest 5300 provides
standard monitoring and
control capabilities—status,
auditory and visual alarm­ing, and local and remote
control.

One connectivity module
is required to connect each
transfer switch to monitor­ing servers.

For example, if you want
browser independence (IE,
Safari, Firefox, Chrome,
Opera), multilingual sup­port, Modbus and BacNet
BMS support, NTP device
time synchronization and
test reports for complying
with JCAHO requirements,
consider PowerQuest 5700
or 5900 systems.

Annunciators monitor
one, or up to eight transfer
switches. Multiple annun­ciators can accommodate
larger numbers of transfer
switches.

Series 185

Series
300

4000
Series

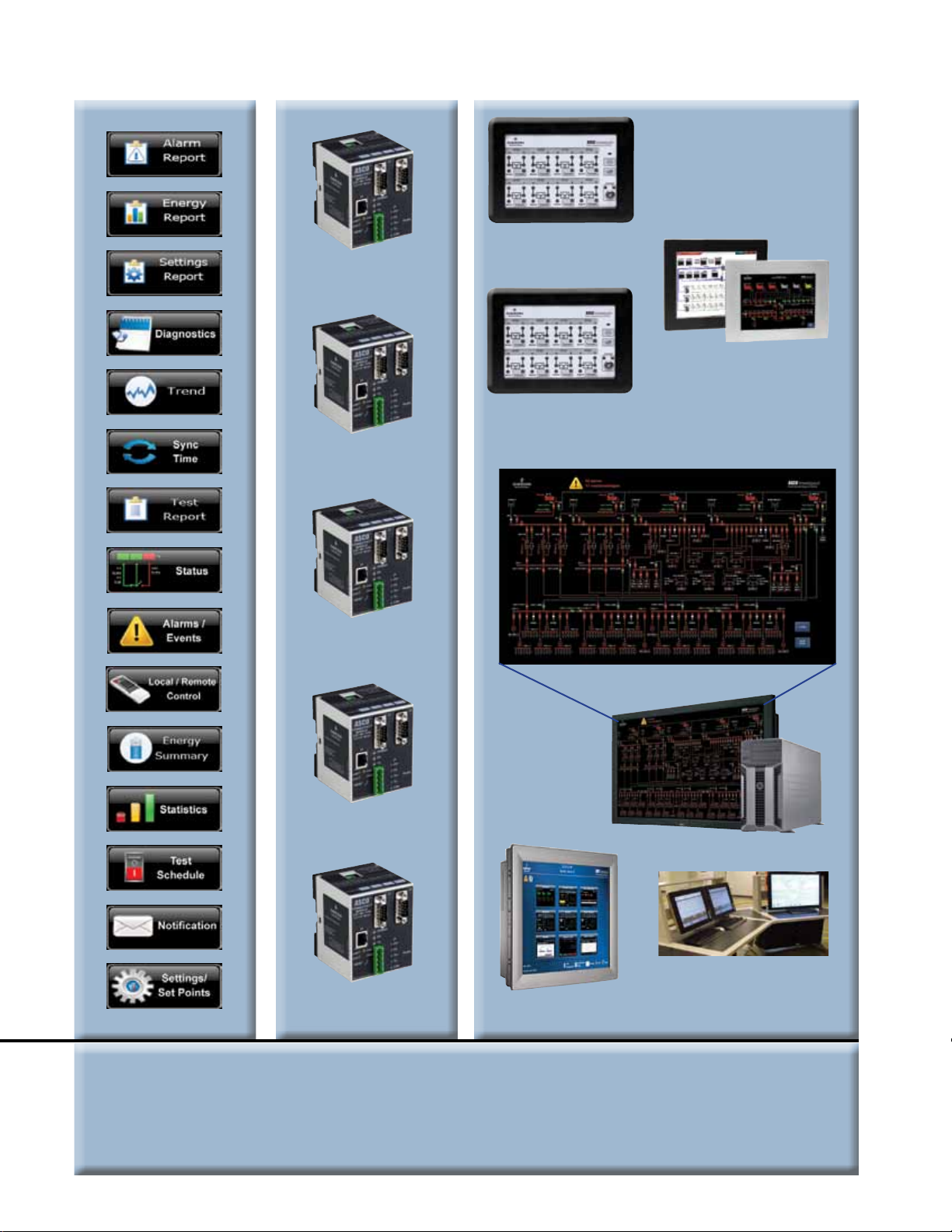

If You Want to
Monitor and Control
ASCO Power Transfer
Switches

And You Want These
‘Power to Know’
Capabilities...

ASCO 5150
Connectivity
Module

Specify This
Connectivity
Component...

ASCO 5310

Annunciator

ASCO 5350

ATS Annunciator

And These
Monitoring Servers.

79 12

PowerQuest 5700 CPMS: Congurable Flexibility

5710

Essential

Features

Display 15" 19" 42"HD

Performance

Database Storage

Number of Devices 32 64 128

Number of Clients 3 10 100

Real time Monitoring
and Control

Historical Events

Historical Trending

PowerQuest Reports

BMS Modbus Server

Facility Messaging

Redundant Power Supply

Hot Swappable Hard Drives

CPMS

None



5750

Professional

CPMS











5790

Enterprise

CPMS















3 Critical Power Management Systems (CPMS) Optimize Flexibility,
Set Up/Operation, Performance, Access and Data Security

PowerQuest 5700 is a
feature-rich system.

It offers unsurpassed
flexibility for conguring
a range of functionalities
tailored specically to your
monitoring, control and
reporting requirements.

Once congured, it is ex­ceptionally easy to set up
and operate day to day.

Functionalities include:

• Alarms/Events

• Notication

• Status

• Remote Control

• Power/Energy

• Statistics

• Settings/Set Points

• Test Scheduling

• Diagnostics

• Time Synchronization

• Reporting

• Trending

• Browser Independence

• Resolution
Independence

(800 x 600 to 1920 x 1080)

• Windows® Support

• Apple® Mac OS®
Support

Superior performance is
a hallmark of PowerQuest
5700, as it is with the 5300
and 5900 families of power
monitoring and control
systems.

System performance char­acteristics encompass:

• Distributed Processing

• Dynamic Data Update

• 1000 Mbps Ethernet

• Prioritized Data Update

• Dynamic Throttling

• Diagnostic Logging

Ease of access and strong
data security often can
seem a contradiction
in terms, but the 5700
enhances access, while
maintaining data security.

Login and data security
features include:

• Login Security

• 3-Level Security Access

• AES 128-bit Encryption

• Firewall Network
Security

• Auto Log Out

Which 5700 package is right for you?

The 5700 line offers versa­tile options with a range of
capabilities starting with
the Essential package and
building up through the

Professional and Enterprise

packages.

The Essential package
offers a value solution
for your monitoring needs.
Control up to 32 devices,
with basic ‘Power to Know’

capabilities such as energy
summary, notication and
site statistic, along with
standard power moni­toring devices, remote
annunciators and 15 inch
monitoring servers.

The 5700 Professional
package offers richer
features to your monitor­ing needs. Control up to 64
devices, with even more
‘Power to Know’ capa­bilities such as reports,
trending and diagnos-

PowerQuest 5710 CPMS Essential
A Value of Standard Features

tics, along with standard
power monitoring devices,
remote annunciators and
additional 19 inch monitor­ing servers.

The Enterprise package
offers full redundancy
features with control of up
to 128 devices, all ‘Power
to Know’ capabilities,
standard power monitor­ing devices, remote an­nunciators and additional
42 inch monitoring servers.

Engine-Generators

Series
300

4000
Series

7000
Series

ASCO 5221 Power

Manager Unit

ASCO 5210

Power Meter

ASCO 5150
Connectivity
Module

ASCO 5710

CPMS Server

ASCO 5350

ATS Annunciator

If You Want to
Monitor and Control
Up to 32 of These
Types of On-Site

And You Want These
'Power to Know'
Capabilities...

Power Equipment...

8

Specify These
Connectivity and
Power Monitoring
Components...

And These
Monitoring Servers.

PowerQuest 5750 CPMS Professional
Feature Rich with Comprehensive and Diagnostic Reporting

Engine-Generators

Bus Bar

Circuit
Breakers

4000
Series

ASCO 5221 Power

Manager Unit

ASCO 5210

Power Meter

ASCO 5750

CPMS Server

ASCO 5710

CPMS Server

ASCO 5350

ATS Annunciator

7000
Series

If You Want to
Monitor and Control
Up to 64 of These
Types of On-Site
Power Equipment...

And You Want These
‘Power to Know’
Capabilities...

ASCO 5150
Connectivity
Module

Specify These
Connectivity and
Power Monitoring
Components...

ASCO 5350

ATS Annunciator

And These
Monitoring Servers.

10

PowerQuest 5790 CPMS Enterprise
Full Redundancy and Scalability

Panel

Board

Engine-Generators

ASCO 5790

CPMS Server

ASCO 5750

CPMS Server

Bus Bar

Circuit
Breakers

4000
Series

7000
Series

If You Want to
Monitor and Control
Up to 128 of These
Types of On-Site
Power Equipment...

And You Want These
‘Power to Know’
Capabilities...

ASCO 5221 Power

Manager Unit

ASCO 5210

Power Meter

ASCO 5150
Connectivity
Module

Specify These
Connectivity and
Power Monitoring
Components...

ASCO 5710

CPMS Server

ASCO 5350

ATS Annunciator

ASCO 5350

ATS Annunciator

And These
Monitoring Servers.

11

PowerQuest 5900 CPMS Offers
Unlimited Customization

Unlimited Number of On-Site Power Devices

If you want the ultimate
in monitoring and control
customization, redundancy
and scalability, consider
the ASCO PowerQuest
5900 Critical Power Man­agement System.

It’s ideal for complex
on-site power systems
that support ultra-critical
applications such as data
centers, large hospitals,
nancial centers and
other operations where the
stakes are high.
Where 24/7 power reliabil­ity is absolutely essential.
When you must know
what’s happening all the
time, especially when sys­tem operation is outside of
established parameters.

The PowerQuest 5900 can
be tailor made to your
on-site power system. It
includes an on-site simula­tor that allows convenient
staff training and re-train­ing, and the ability to test
‘what if’ scenarios that can
prepare staff for practically
any eventuality.

The schematic on the right
illustrates the PowerQuest
5900, including

• 5990 Simulator

• 5950 Power Control
System Management

• 5910 Operator Interface
Terminal

• 5220 Power Managers

• 5310 and 5350
Annunciators, and

• 5110 and 5150
Connectivity Modules.

The PowerQuest 5900 can
provide all the Power to
Know and Power to Do
needed for even the most
complex on-site power
systems with multiple, par­alleled gensets, ATS’s and a
range of power distribution
equipment.

Power

Transfer

Switch

UPS

Circuit

Breakers

Low Voltage Paralleling

Control Switchgear

Medium Voltage

Paralleling Control Switchgear

Static Transfer

Switch

Power

Distribution Unit

Mission-critical data centers rely on comprehensive power
monitoring and control of on-site power systems to help
operate, test and diagnose equipment, thus helping ensure
long-term power reliability.

Engine-Generators

Panel

Board

Protective

Relay

Power Quality

Meter

Load Bank

If You Want to
Monitor and Control an Unlimited Number
of These Types of On-Site Power Devices...

ASCO 5150

Connectivity Module

ASCO 5150

Connectivity Module

ASCO 5150

Connectivity Module

ASCO 5350

Annunciator

ASCO 5900

SCADA

ASCO 5350

Annunciator

And You Want These
‘Power to Know’
Capabilities...

ASCO 5150

Connectivity Module

ASCO 5150

Connectivity Module

Specify These
Connectivity and
Power Monitoring
Components...

ASCO 5790

CPMS Server

Controls

Simulator

ASCO 5750

CPMS Server

And These
Monitoring Servers.

13

A typical PowerQuest

monitoring overview screen

PowerQuest Facilitates Effective Connectivity
With Multiple Communications Modalities

14

SELECT ETHERNET,
MODBUS OR FIBER OPTIC
CABLE. ASCO SUGGESTS
ETHERNET FOR NEW
CONSTRUCTION.

Designing a communica­tions pathway between a
PowerQuest system and
on-site power equipment is
straightforward.

ASCO 5150 and 5160 con­nectivity devices and
ASCO 5210 and 5220
Power Managers connect
directly to equipment via
Modbus, Ethernet or ber
optic cable.

Modules and power man­agers typically are installed
on or near the equipment
to which they are con­nected.

The modules and power
managers connect to
ASCO Monitoring Servers
and building management
systems via Ethernet or
ber optic cable.

Monitoring servers can be
installed near the equip­ment or remotely. Remote
locations range from
nearby engineering ofces
to sites around a single
campus, multiple campus-

Only PowerQuest Employs AES 128-bit
Encryption to Protect On-site Power Systems
Against Unauthorized Data Access and Control

Securing and protecting your on-site
power system from unauthorized moni­toring and control is paramount.

PowerQuest Power Monitoring and
Control systems employ Advanced En­cryption Standard (AES 128-bit Encryp­tion) It's the same advanced encryption
standard used by the National Security
Agency to protect top secret informa­tion. In fact, AES 128-bit Encryption is
the encryption standard adopted by the
entire Federal government.

es in a region, or buildings
spread nationally, or even
globally.

The distances between
modules and power man­agers and the monitoring
servers they connect to are
important considerations
in designing a power com­munication, monitoring
and control system.

For example, to maintain
good communication, the
distance for an ethernet
over category 6 cable
connection should be no
longer than 300 ft. For ber
optic cable, it's 6,500 ft.

PowerQuest is the only on-site power
monitoring and control system outfit­ted with AES 128-bit Encryption. The
standard is based on a cryptographic
algorithm that securely protects elec­tronic data. It's encryption and decryp­tion process is fast in both hardware
and software.

Trust PowerQuest to secure and protect
your on-site power equipment from
unauthorized access.

When distances for those
ASCO 5160 RCUs (Remote
Connecitvity Units) exceed
their respective limits,
ASCO Remote Connectivity
Units effectively extend the
distance.

An example: A facility
manager wants to connect
PowerQuest to on-site pow­er equipment using the
facility's legacy Ethernet
communications network.
But, the distances be­tween modules and power
managers and monitoring
servers is 900 ft. Remote
connectivity units daisy­chained at the 300 ft. and
600 ft. marks will permit
the use of the legacy Ether­net network.

Remote connectivity units
effectively extend the dis­tances for ber optic cable
networks as well.

Web-based communica­tion satises connectivity
requirements regionally,
nationally and globally.

Sample schematics show
typical connectivity con­gurations.

Type Medium Performance Distance

Internet

Connection

Ethernet

Types

Typical Remote Annunciator Conguration

Ethernet

Cat 6

Fiber

lll

lllll

300 Feet

6,500 Feet

Power Transfer

Switch

300 ft.

Remote

Annunciator

5160

RCU

Power Transfer

Switch

Typical Ethernet Cat 6 Connection

Power Transfer

Switch

300 ft.

Engine-

Generators

5160

RCU

300 ft.

300 ft.

Circuit

Breakers

300 ft.

To Additional
Equipment

6,500 ft.

300 ft.

Power Transfer

Switch

300 ft.

Remote

Annunciator

Monitoring

Server

Power Transfer

Switch

300 ft.

Remote

Annunciator

300 ft.

This conguration Ethernet over
Category 6 Cable:

-Equipment within 300 Feet of a
central location can be connected
together via an ASCO 5160 Remote
Connectivity Unit (RCU) using
Ethernet over Category 6 cable.

Building

Management

System

Typical Ethernet Fiber Connection

Power Transfer

Switch

300 ft.

Engine-

Generators

5160

RCU

300 ft.

Circuit

Breakers

300 ft.

6,500 ft.

To Additional
Equipment

This conguration Ethernet over
Fiber Optic Cable:

-Equipment within 300 Feet of a central location
can be connected to an ASCO 5160 using
Ethernet over Category 6 cable.

-ASCO 5160 Remote Connectivity units can all
be connected together using Ethernet over
Category 6 cable (300 Feet Max) or Ethernet
over Fiber Optic cable (6500 Feet Max).

Remote

Annunciator

5160 RCU

6,500 ft.

Monitoring

Server

300 ft.

To Additional
Equipment

15

Building-block components can be congured
easily to provide exactly the degree of monitor­ing, control and communication you want for
your on-site power system.

The Component Approach : Built on Proven Technology

5150, 5160
Connectivity
Modules

5210, 5220
Power
Manager

ASCO 5221
Power Manager
Unit

5310, 5350
Annunciators

5400
Power Quality
Meter

An ASCO 5150 Connectivity Module (left) provides 100 Mbps Ethernet
Connectivity for ASCO Transfer Switches and Power Meters and includes AES
128-bit Encryption, as per NIST, for enhanced security.

The ASCO 5160 Remote Connectivity Unit (RCU) (right) provides 10 Ethernet
and Dual-Fiber Optic connections in a NEMA 3R enclosure.

ASCO 5210 (left) and 5220 (right) Power Meters

measure, displays and provides single- or 3-phase Energy and Power information
with Ethernet via the ASCO 5150 Communication Module.

ASCO 5221 Power Manager Unit (PMU) is used to enable power measure­ment, discrete inputs for status and output relays for control of generators,
breakers and other power equipment via 5700 Series CPMS solutions.

ASCO 5310(left) and 5350(right) ATS Remote Annunciators

provide distributed monitoring of transfer switch position and source
availability as well as transfer test and re-transfer control.

ASCO 5400 Power Quality Meters

The ASCO Power Quality Meters provides intelligent power analysis, energy
measurement and event recording for critical and sensitive loads. Its unique
continuous waveform and harmonic recording capabilities ensure all events are
captured, improves response time, and helps identify corrective action to power
quality related issues.

5710,
5750, 5790
Display
Terminals

5900
Custom
Terminals

5990 Training
Simulator

16

ASCO 5710(center), 5750(left) and 5790(right)
Critical Power Management System provides various levels of monitoring,

control and management capability of power equipment. It seamlessly monitors
ASCO transfer switches as well as generators, breakers, paralleling buss, panel
boards and other power equipment via a 5221 PMU. It consists of servers and
touch screen interfaces.

The ASCO 5900 Series provides a Customized Critical Power Management
System with support of just paralleling switchgear to the most advanced critical
power system with a wide-array of critical power components, such as, UPSs,
STSs, Load Banks, Panel Boards, etc.

An ASCO 5990 Simulator allows convenient, on-site staff training and testing
of ‘what if’ scenarios. It is not connected to live power monitoring and control
devices.

Congure ASCO Test Reports
To Your On-Site Power System

ASCO Test Reports is
available with PowerQuest
Power Monitoring and Con­trol Systems.

Healthcare facilities can more
easily comply with JCAHO* and
NFPA** reporting requirements
with a PowerQuest power
monitoring and control system
and ASCO Test Reports.

* Joint Commission on the Accreditation of

Healthcare Organizations

** National Fire Protection Association

Test Reports create ac­curate, precise reports
formatted according to
NFPA monthly exercis­ing logs, which facilitates
compliance with NFPA 99
and 110.

It can trigger event log­ging, respond to spontane­ous events and produce
a complete report. It also
initiates tests through au­tomatic transfer switches
and gets data directly from
generators and transfer
switches.

Now’s the Time
To Know

JCAHO/Outage Reports sum­marize generator loading
and electrical parameters
during tests.

Setting Reports provides all
communications settings,
equipment setpoints and
statistics.

Alarms Reports graph alarm
statistics for all configured
transfer switches and other
equipment via Power Man­ager Units.

Historical Log Reports
provide time-stamped event
logs for a variety of events
by devices and severity level.

Energy Reports provides
Normal, Emergency and
Total Energy consumption

ASCO Services technicians
can produce diagnostic re­ports on equipment during
service calls.

Your need to know critical
information about your
facility’s on-site power
system can mean the dif­ference between ensuring
power reliability…and not.

With the stakes so high, be
sure you have the com­munication, monitoring
and control capabilities you
need to optimize power
reliability for your facility’s
critical operations.

Have the peace of mind
knowing the information
you want will be there
when you need it.

Call 1-800-800-ASCO
(2726) or email ASCO at
[e-mail].

For more information about
ASCO PowerQuest Power Monitor-
ing and Control capabilities,
visit EmersonNetworkPower.com/
ASCO, or ascoapu.com.

17
