USER’S MANUAL

00375-0047-0001, Rev. C February 2004

375 FIELD COMMUNICATOR

NOTICE

Read this User’s Manual before working with the Model 375 Field Communicator. For personal and system safety, and for optimum product performance, thoroughly understand the contents before using or servicing this product.

For equipment service needs, contact the nearest product representative.

AMS Suite is a trademark of Emerson Electric Co. Rosemount and SMART FAMILY registered trademark s of Rosemount Inc. Windows is a registered trademark of Microsoft Corporation in the United States and other countries. IrDA is a registered trademark of the Infrared Data Association. FOUNDATION is a trademark of the Fieldbus Foundation. HART is a registered trademark of the HART Communication Foundation. Hitachi is a registered trademark of Hitachi America, Ltd. All other marks are the property of their respective owners.

U.S. and foreign patent numbers are pending.

www.fieldcommunicator.com

Page 4

Page 5

USER’S MANUAL

00375-0047-0001, Rev. C February 2004

375 FIELD COMMUNICATOR

TABLE OF CONTENTS

SECTION 1 Introduction

Using this Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

SECTION 2 Learning the Basics

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Installing the System Card and the battery pack . . . . . . . . . 2-2

Starting Up and Shutting Down . . . . . . . . . . . . . . . . . . . . . . . 2-3

Starting the 375 Field Communicator . . . . . . . . . . . . . . . . . . 2-4

Shutting down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Basic Features and Functions . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Using the keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

On/off key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Arrow navigation keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Enter key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Tab key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Alphanumeric keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Backlight adjustment key . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Function key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Multifunction LED. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Using the touch screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Using the Soft Input Panel (SIP) keyboard . . . . . . . . . . . 2-9

Viewing The 375 Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Starting the HART application. . . . . . . . . . . . . . . . . . . . . . . 2-10

Starting the fieldbus application . . . . . . . . . . . . . . . . . . . . . 2-10

www.fieldcommunicator.com

Page 6

TOC-2

Table of Contents

Running the Settings menu . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

About 375. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Backlight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Clock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Event capture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12

License. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13

Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13

Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13

Touch screen alignment. . . . . . . . . . . . . . . . . . . . . . . . . 2-14

Exit to the 375 Main Menu . . . . . . . . . . . . . . . . . . . . . . . 2-14

Communicating with a PC . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14

IrDA communication with PCs . . . . . . . . . . . . . . . . . . . . 2-14

Listen For PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15

Transferring HART configurations using AMS Suite: Intelligent

Device Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16

Easy Upgrade Programming Utility . . . . . . . . . . . . . . . . 2-16

Using the ScratchPad application . . . . . . . . . . . . . . . . . . . . 2-17

Create a new document . . . . . . . . . . . . . . . . . . . . . . . . . 2-18

Open an existing document . . . . . . . . . . . . . . . . . . . . . . 2-18

Enter text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18

Select text. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18

Cut text. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19

Copy text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19

Paste text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19

Undo text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19

Save a document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19

Save a copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20

Delete a document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20

Exiting ScratchPad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20

Managing Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21

Types of storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22

Battery Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22

Checking the charge remaining . . . . . . . . . . . . . . . . . . . 2-22

Charging the battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23

Removing the System Card and battery pack . . . . . . . . 2-23

Running a self test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-24

Working in an Intrinsically Safe (IS) area. . . . . . . . . . . . . . . 2-24

Page 7

Table of Contents

TOC-3

Waste disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-24

SECTION 3 HART Functionality

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Basic Features and Functions . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Interpreting the HART icon . . . . . . . . . . . . . . . . . . . . . . . 3-2

Starting the HART Application . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Using Fast Key sequences . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Setting up Hot Key options . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Executing Hot Key options . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Removing Hot Key options one at a time . . . . . . . . . . . . . . . 3-4

Removing all Hot Key options. . . . . . . . . . . . . . . . . . . . . . . . 3-4

Working Offline. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Creating new configurations Offline . . . . . . . . . . . . . . . . . . . 3-5

Opening saved configurations Offline. . . . . . . . . . . . . . . . . . 3-7

Edit a saved configuration Offline . . . . . . . . . . . . . . . . . . 3-8

Copy a saved configuration Offline . . . . . . . . . . . . . . . . . 3-9

Send a saved configuration Offline . . . . . . . . . . . . . . . . . 3-9

Delete a saved configuration Offline . . . . . . . . . . . . . . . . 3-9

Rename a saved configuration Offline. . . . . . . . . . . . . . 3-10

Compare two saved configurations Offline . . . . . . . . . . 3-10

Working Online. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11

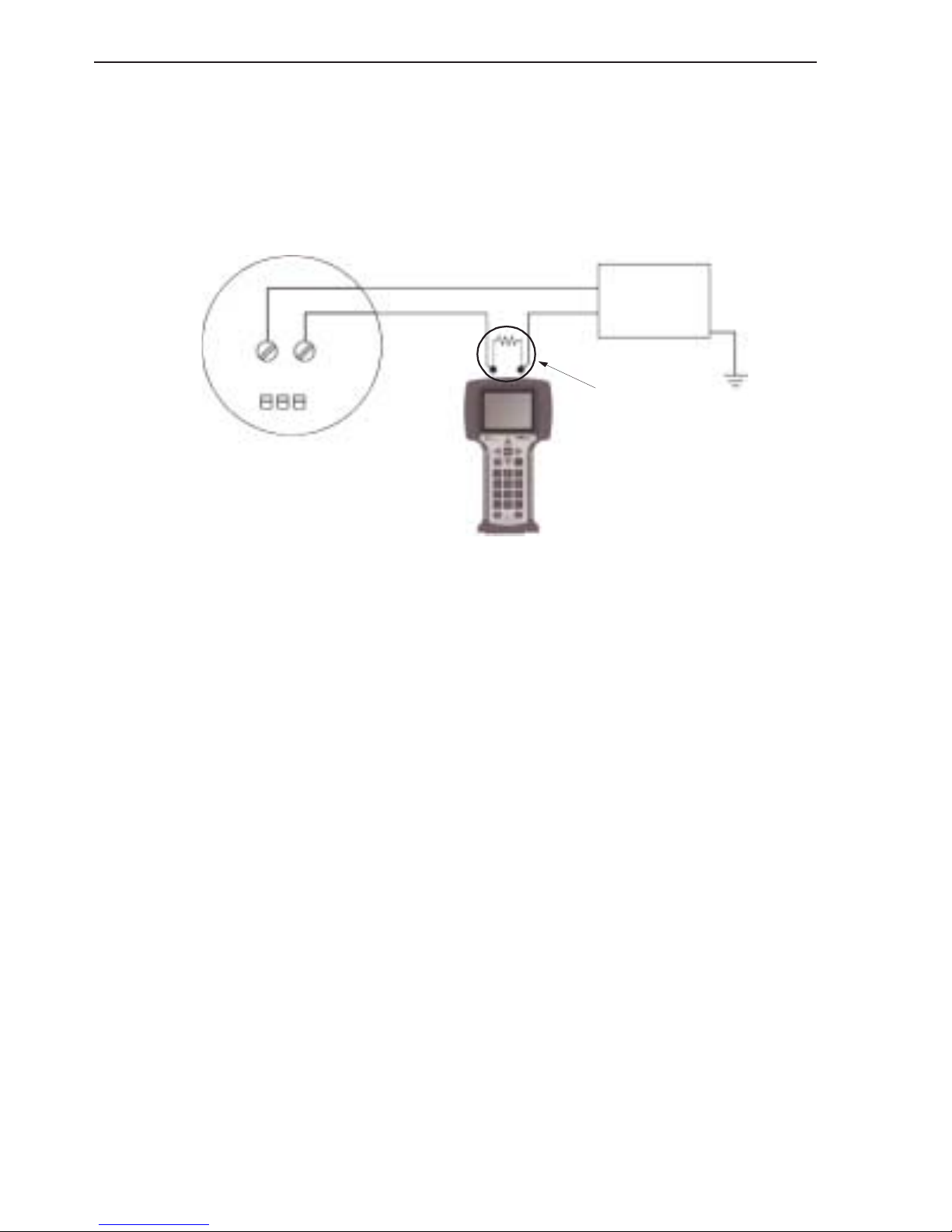

Connecting to a HART loop . . . . . . . . . . . . . . . . . . . . . . . . 3-11

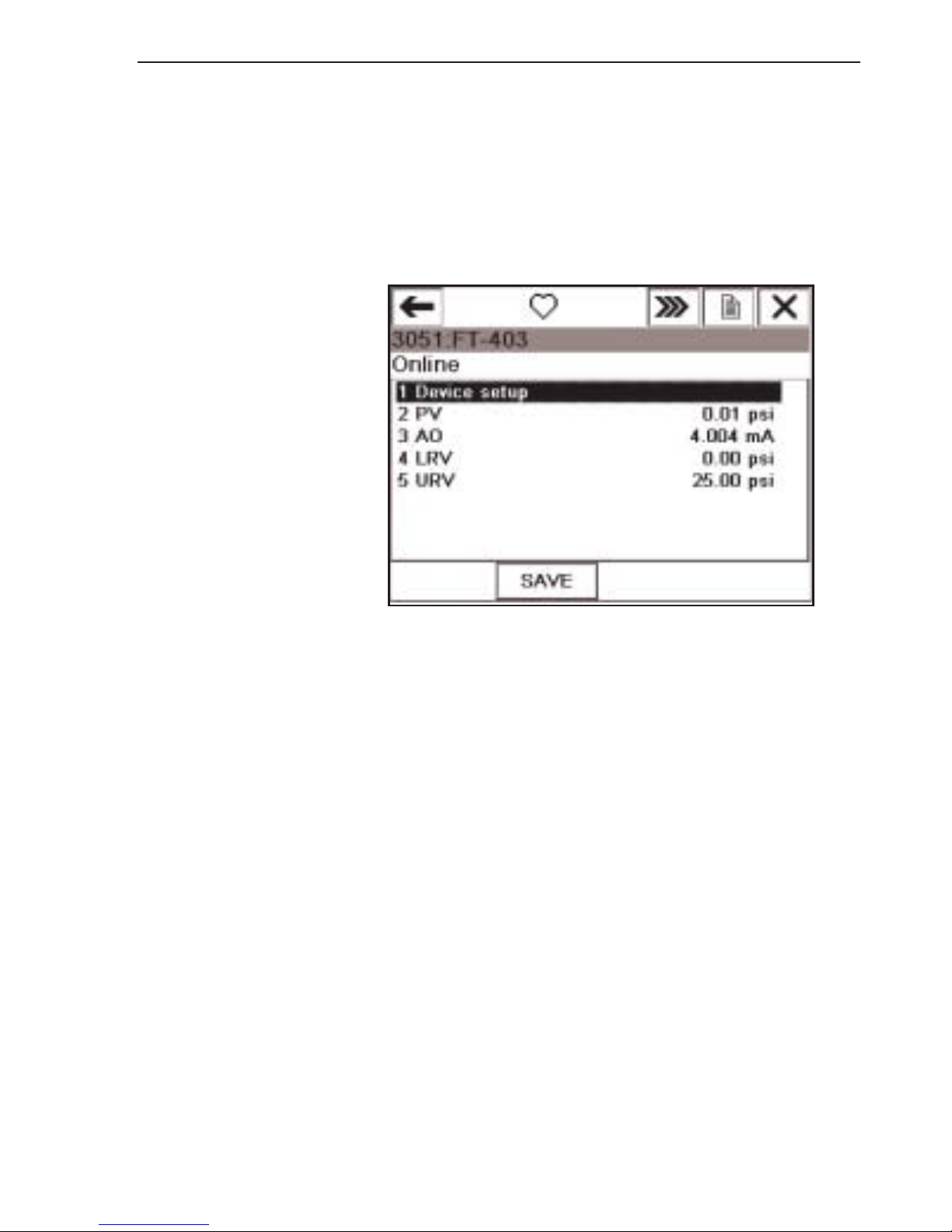

Viewing the Online menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14

Viewing the Device Setup submenu . . . . . . . . . . . . . . . . . . 3-16

Process Variables (PV) . . . . . . . . . . . . . . . . . . . . . . . . . 3-16

Diagnostics and service. . . . . . . . . . . . . . . . . . . . . . . . . 3-16

Basic setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Detailed setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Review . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Primary Variable (PV) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18

Analog Output (AO). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18

Lower Range Value (LRV) . . . . . . . . . . . . . . . . . . . . . . . . . 3-18

Upper Range Value (URV) . . . . . . . . . . . . . . . . . . . . . . . . . 3-18

Viewing the Utility Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18

Page 8

TOC-4

Table of Contents

Configuring the HART application . . . . . . . . . . . . . . . . . . . . 3-18

Changing the HART polling option . . . . . . . . . . . . . . . . . 3-18

Changing ignored status messages. . . . . . . . . . . . . . . . 3-20

Storage Cleanup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20

Viewing available Device Descriptions . . . . . . . . . . . . . . . . 3-21

Simulating an online connection to a HART device. . . . . . . 3-21

Viewing HART diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . 3-22

DC voltage measurement (HART terminals) . . . . . . . . . 3-22

Disconnecting from a HART device. . . . . . . . . . . . . . . . . . . 3-22

SECTION 4 Fieldbus Functionality

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Safety Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Basic Features and Functions. . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Link Active Scheduler (LAS) . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Interoperability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

375 operation with other hosts. . . . . . . . . . . . . . . . . . . . . . . . 4-3

ST_REV. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Types of Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Locating Mode Parameters . . . . . . . . . . . . . . . . . . . . . . . 4-5

Changing Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Permitted Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

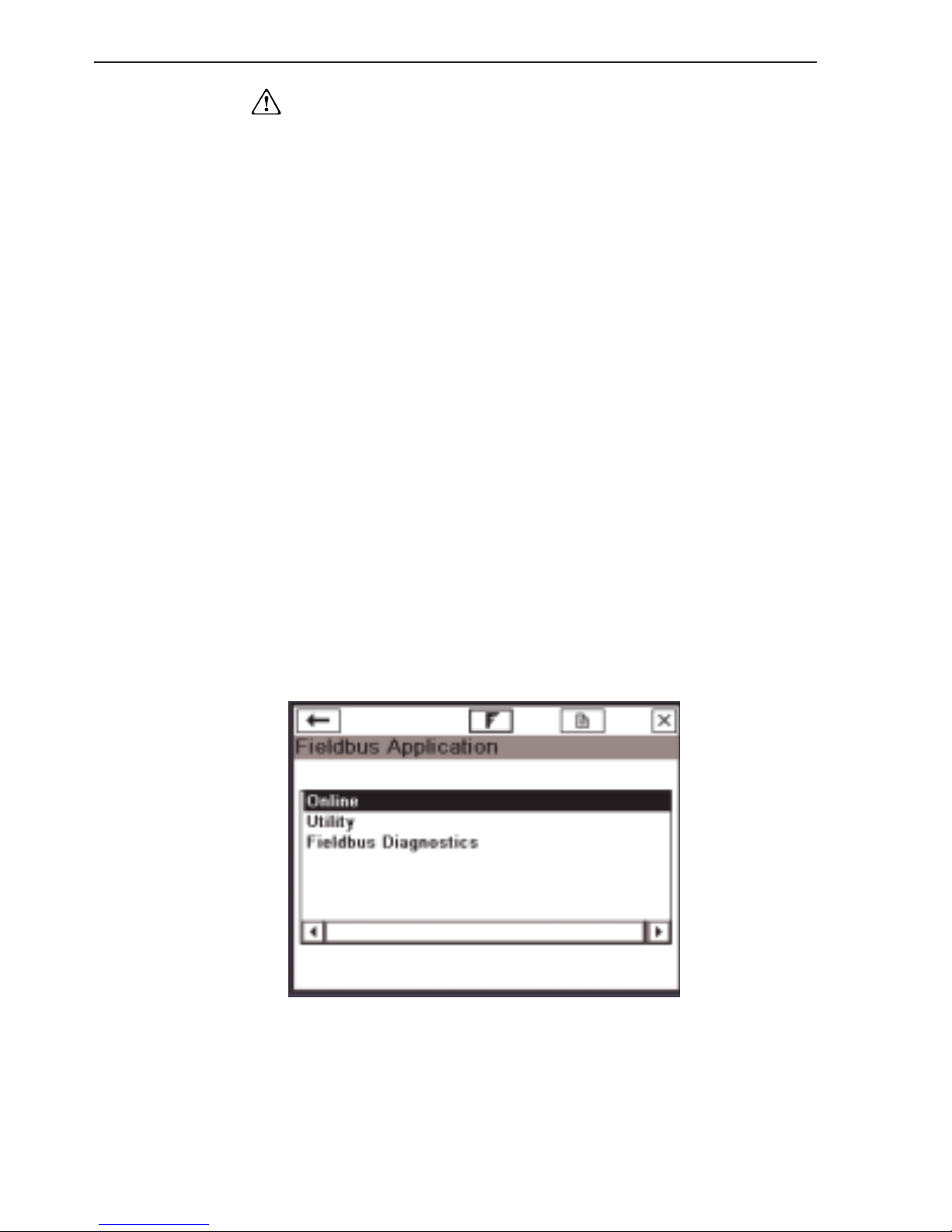

Starting the Fieldbus Application . . . . . . . . . . . . . . . . . . . . . . 4-6

Working Online . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

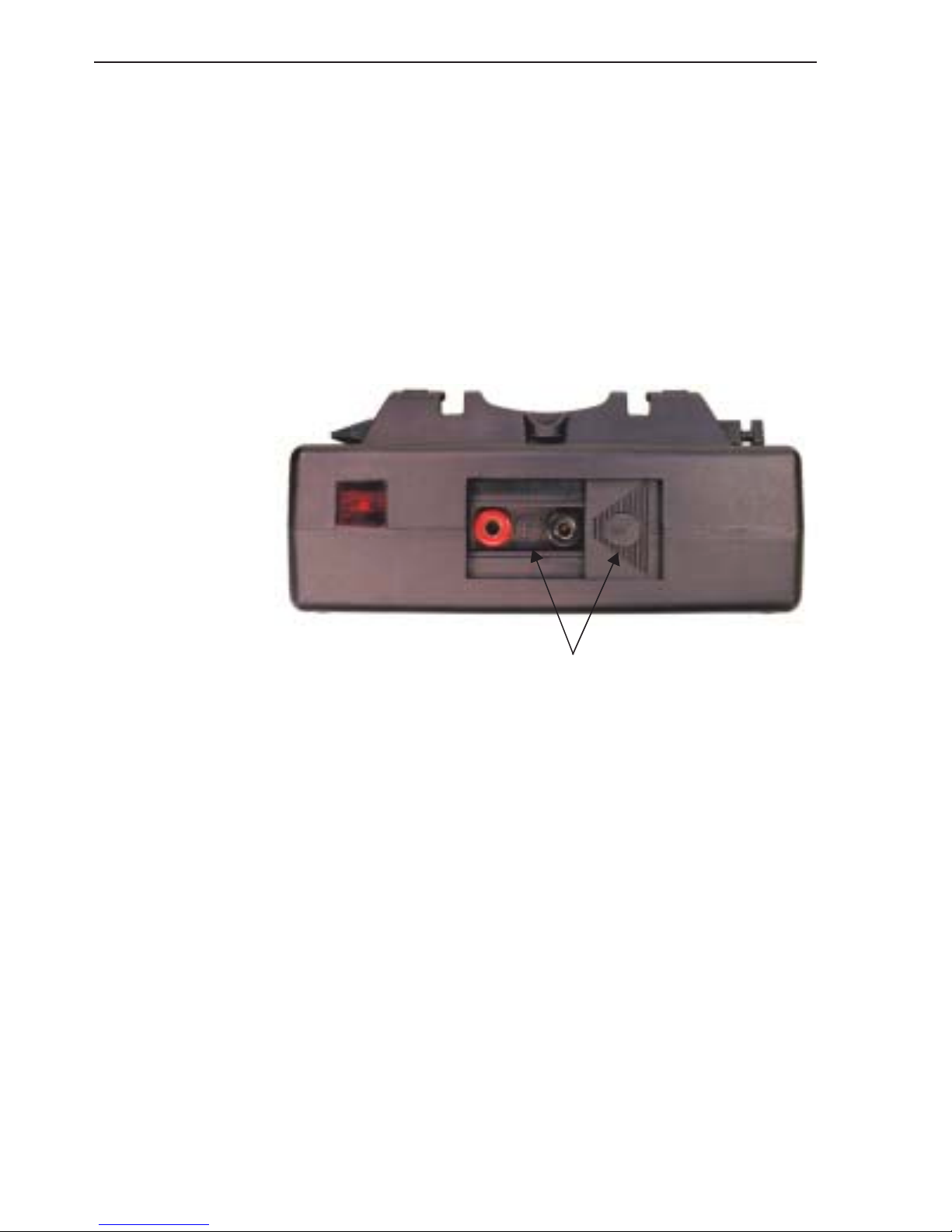

Connecting to a fieldbus loop . . . . . . . . . . . . . . . . . . . . . . . . 4-7

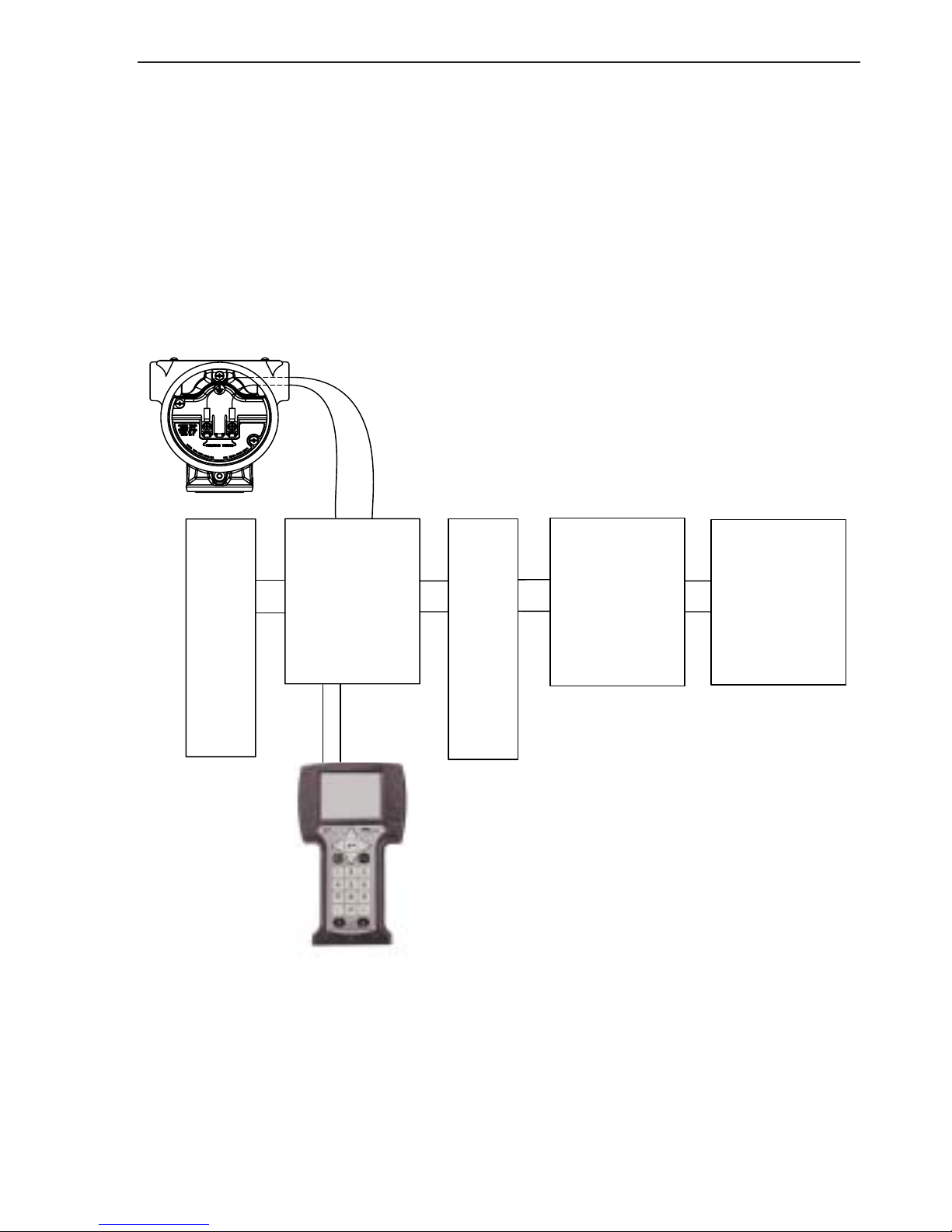

Bench hook-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

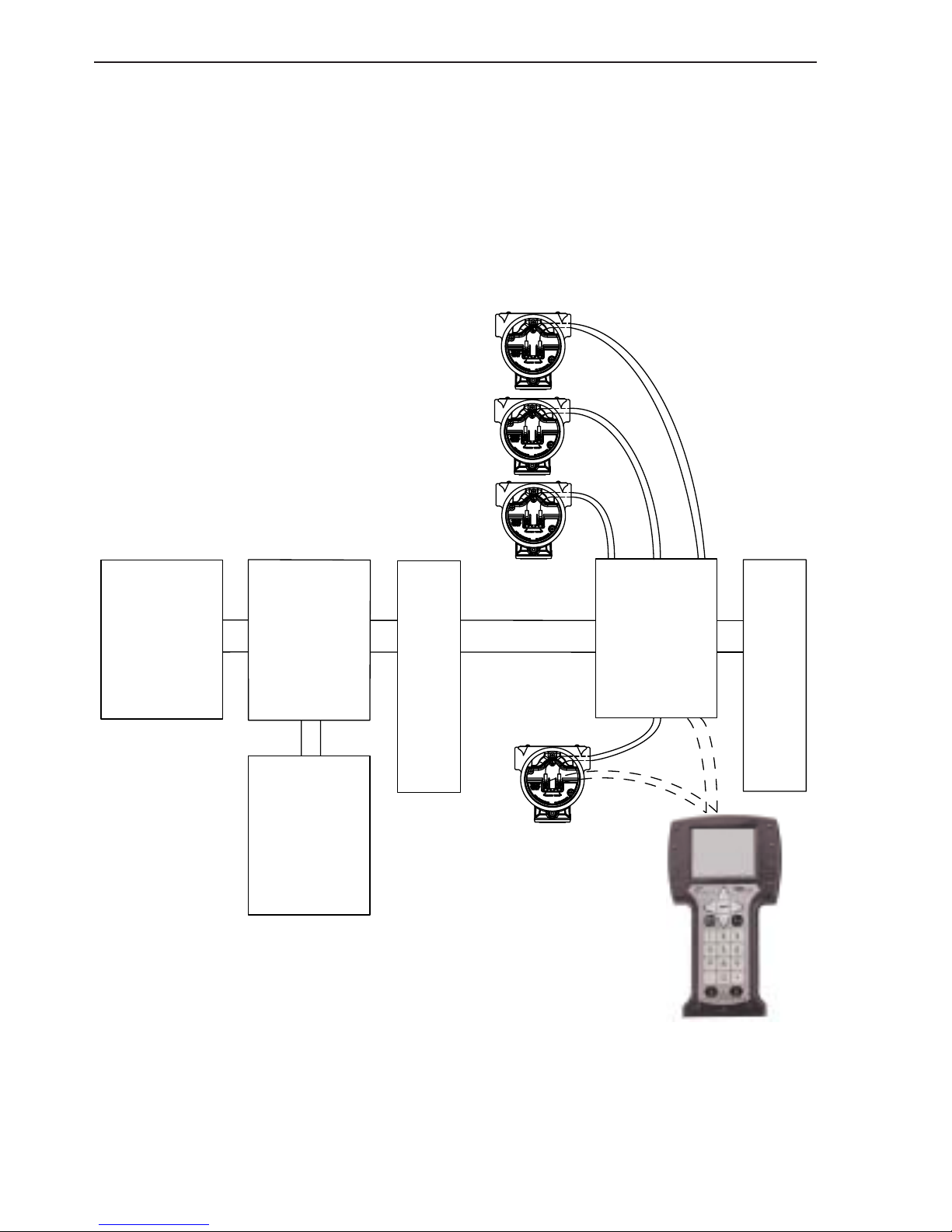

Field hook-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

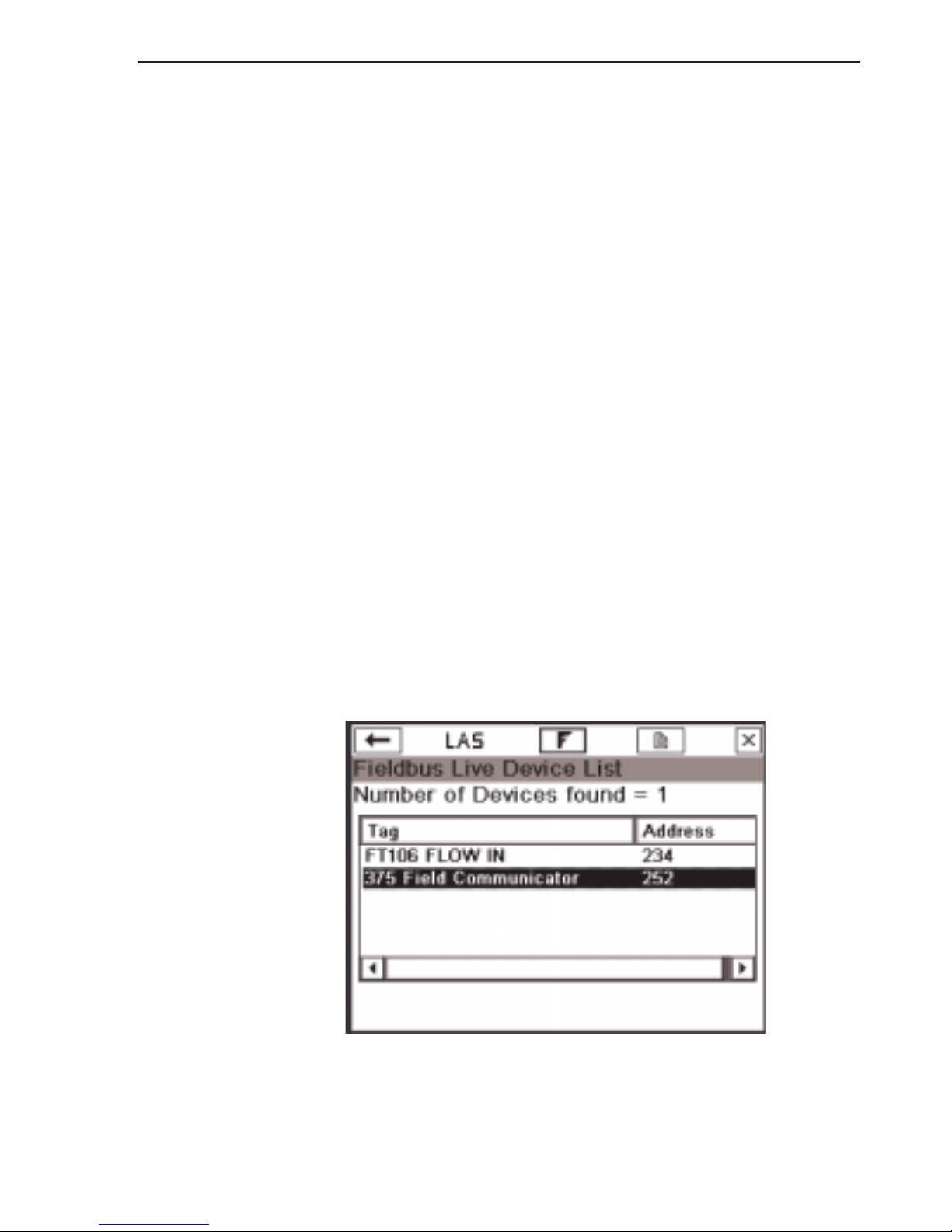

Displaying the Live Device List . . . . . . . . . . . . . . . . . . . . . . 4-11

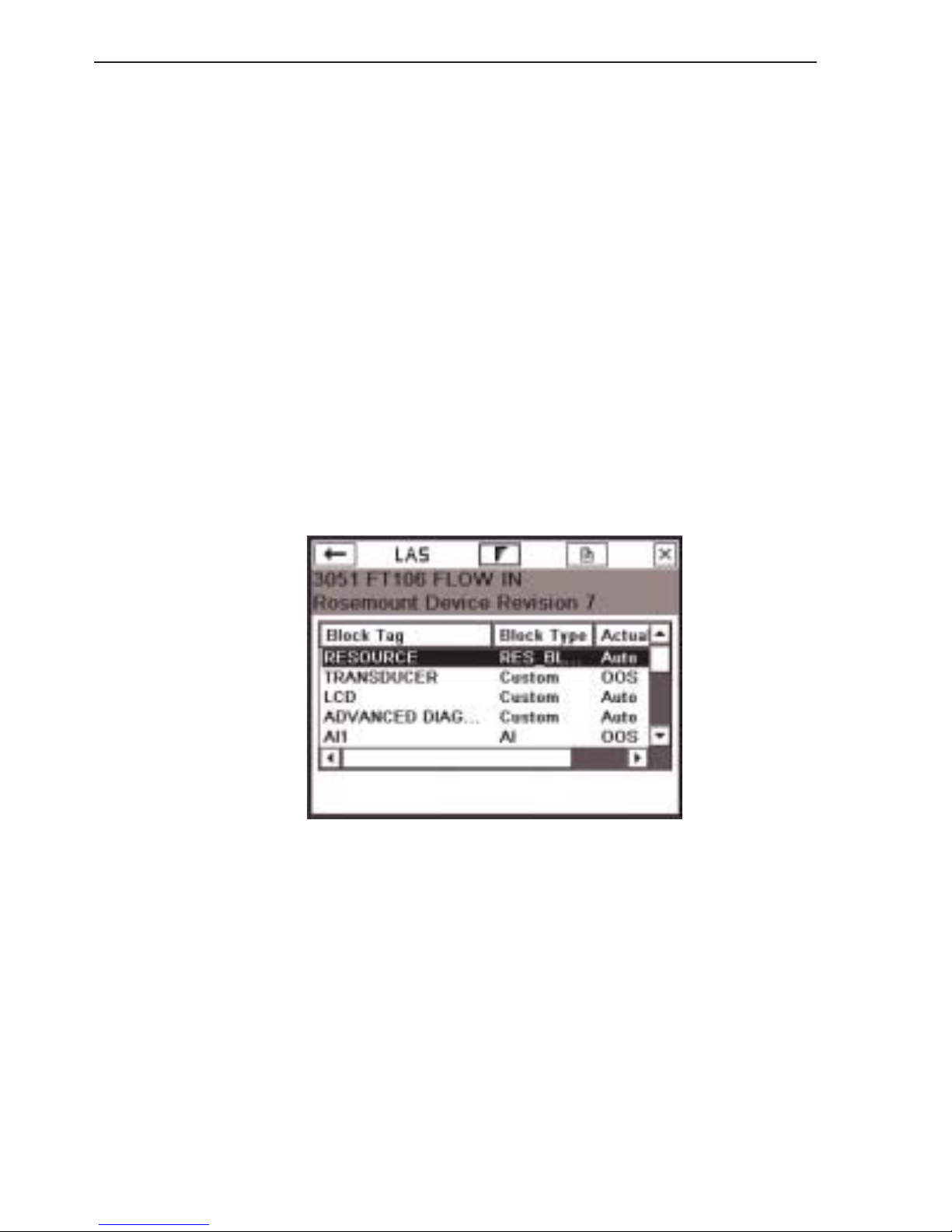

Displaying the Block List . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12

Working with Device Blocks. . . . . . . . . . . . . . . . . . . . . . . . . 4-13

Parameter Functionality . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

Changing and sending parameter data . . . . . . . . . . . . . 4-14

Running methods (e.g. calibrations, sensor trim, diagnostic

etc.). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

Displaying Device status . . . . . . . . . . . . . . . . . . . . . . . . 4-15

Page 9

Table of Contents

TOC-5

Other Block List selections . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

Detail Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

Changing the I/O block schedule. . . . . . . . . . . . . . . . . . 4-16

Displaying advanced features . . . . . . . . . . . . . . . . . . . . 4-17

Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17

Polling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17

Viewing Installed Fieldbus Device Descriptions. . . . . . . 4-18

Fieldbus Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18

Disconnecting from a Fieldbus Device . . . . . . . . . . . . . . . . 4-19

SECTION 5 Troubleshooting

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Troubleshooting suggestions . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Loops. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Sample values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

Error and Status Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Required information for technical assistance . . . . . . . . . . . 5-9

Contacting Technical Support Personnel. . . . . . . . . . . . 5-10

APPENDIX A Reference Information

Processor and Memory Specifications . . . . . . . . . . . . . . . . . A-1

Microprocessor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Internal Flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

System Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

RAM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Expansion Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Physical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Power Supply Specifications . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Power supply voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Battery operating time . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Power Supply/Charger. . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Page 10

TOC-6

Table of Contents

Connection Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Battery Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

HART and Fieldbus Communication . . . . . . . . . . . . . . . . A-2

Personal Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . A-3

Usage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

Charge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-3

Storage without batteries . . . . . . . . . . . . . . . . . . . . . . . . . A-3

Enclosure rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

Shock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-4

Spare Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5

APPENDIX B Approval Information

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-1

Approved Manufacturing locations. . . . . . . . . . . . . . . . . . . . .B-1

European Directive Information . . . . . . . . . . . . . . . . . . . . . . .B-1

Electro Magnetic Compatibility (89/336/EWG) . . . . . . . . . B-1

ATEX Directive (94/9/EC) (KL option only). . . . . . . . . . . . B-1

Other important guidelines . . . . . . . . . . . . . . . . . . . . . . . . B-1

Hazardous Locations Certifications (KL option only). . . . . .B-2

North American Certifications . . . . . . . . . . . . . . . . . . . . . . . . B-2

Factory Mutual (FM). . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2

Canadian Standards Association (CSA). . . . . . . . . . . . . . B-2

European Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3

ATEX Intrinsic Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3

HART Intrinsically Safe electrical parameters . . . . . . . . . B-3

Foundation fieldbus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3

Label Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-4

Approval Drawing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-6

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .G-i

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I-1

Page 11

USER’S MANUAL

00375-0047-0001, Rev. C February 2004

SECTION 1INTRODUCTION

375 FIELD COMMUNICATOR

USING THIS MANUAL

The sections in this manual provide information on connecting and operating the 375 Field Communicator.

Section 2: Learning the Basics contains information on settings, types of storage, IrDA® communication, using ScratchPad, maintenance, managing files and storage.

Section 3: HART Functionality contains information on starting the HART® application, establishing communication with connected HART devices, and configuring the HART application.

Section 4: Fieldbus Functionality contains information on starting the fieldbus application, establishing communication with connected fieldbus devices, viewing the live list, block lists, and configuring the fieldbus application.

Section 5: Troubleshooting provides solutions to the most common 375 Field Communicator operating problems.

Appendix A: Reference Information provides physical, functional, and performance specifications.

Appendix B: Approval Information contains Hazardous Locati on Certif ic ati ons , Europe an directive information, and approval drawings.

www.fieldcommunicator.com

Page 12

1-2

Introduction

Page 13

USER’S MANUAL

00375-0047-0001, Rev. C February 2004

375 FIELD COMMUNICATOR

SECTION 2LEARNING THE BASICS

OVERVIEW This section provides instructions on basic features

and functions of the 375 Field Communicator. It also provides instructions on starting, configuring the settings, using ScratchPad, maintaining, and shutting down the 375 Field Communicator.

SAFETY MESSAGES

Procedures and instructions in this section may require special precautions to ensure the safety of the personnel performi ng the operatio n. Information that raises potential safety issues is indicated by a warning symbol (

). Refer to the following safety messages before performing an operation preceded by this symbol. Other warning messages can be found in the Troubleshooting section of this manual.

IMPORTANT NOTICE

Ensure the battery pack and the 375 Field Communicator are properly aligned during assembly to prevent damage to the connector pins.

IMPORTANT NOTICE

During assembly/disassembly: Do not pull up on the battery pack as this could damage the power supply connector. Do not pull up on the System Card as this could damage the card or the System Card socket.

www.fieldcommunicator.com

Page 14

2-2

Learning the Basics

WARNING

Contact with the touch screen should be made by blunt items only , preferably the stylus included with the 375 Field Communicator. The use of sharp instruments, such as screwdrivers, can cause failure of the touch screen interface.

WARNING

Initiating a Re-Flash initiates reinstallation of the system software from the System Card. This should only be performe d unde r the d i rec tion of t ech nical s upp ort perso nne l.

INSTALLING THE SYSTEM CARD AND THE BATTERY PACK

Figure 2-1. Back side of the 375 Field Communicator

1.Place the 375 Field Communicator face down on a level, secure surface; see

2.Lock the stand into the hanger position. To pivot past the stand position, squeeze the stand together near the hinge.

Battery pack retaining screws

Figure 2-1.

Stand Assembly

Battery pack charge indicator button

System Card

Battery pack

Page 15

Learning the Basics

2-3

3.With the battery pack removed, place the System Card, with the card contacts facing up, on the main unit System Card guide ribs (located directly below the battery pack connector). Insert the System Card until it is firmly in place.

4.With the main unit still face down, ensure the top s of t he tw o ba tte ry p ack ret a ini ng sc rews ar e flush with the top of the battery pack.

5.Install the battery pack by aligning the sides of the battery pack and main unit and carefully sliding the battery pack forward until it is secure. If the battery pack and main unit are not properly aligned, the connector pins can be damaged.

6.Tighten the two battery pack retaining screws until they are secure (do not overtighten). The

STARTING UP AND SHUTTING DOWN

tops of the screws should now be close to flush with the stand groove.

Prior to using the 375 Field Communicator without the charger/power supply, fully charge the battery pack. A full charge is indicated by a solid green light on the charger/pow er suppl y. Charging may take up to two hours. The 375 Field Communicator may be used while charging. Before operating the 375 Field Communicator, ensure:

• The 375 Field Communicator is not damaged.

• The battery pack is fully seated.

• All screws are sufficiently tightened.

• An Expansion Module (EM) or Expansion Port Plug is in place.

• The communication terminal recess is free of dirt and debris.

Page 16

2-4

Learning the Basics

Starting the 375 Field Communicator

Press and hold the on/off key until the Multifunction LED flashes to indicate the unit is powering (approximately two seconds). See

Figure 2-2 for

on/off key location. During start-up, the 375 Field Communicator will

automatically install any software upgrades availab le o n t he System Card. On ce co m pl e te, t h e 375 Main Menu will be displayed. After starting the 375 Field Communicator, you can choose to:

• Launch the HART or FOUNDATION fieldbus Applications (if licensed)

• Configure/view Settings

• Enter Listen for PC

• Launch the Scratc hPa d appl icati on

Shutting down While applicat ion s ar e open, the on/o ff key is

disabled. You must exit to the 375 Main Menu before using the on/off key. To shut down the 375 Field Communicator press and hold the on/off key until the display turns off (approximately three seconds).

Page 17

Learning the Basics

)

BASIC FEATURES AND FUNCTIONS

Figure 2-2. 375 Field Communicator diagram

IrDA interface

(top)

2-5

HART and fieldbus communication terminals (top)

Stylus (back)

To uch screen

display

Navigation keys

(four arrow keys)

Tab key

Expans ion po (side)

Enter key

Function key (for multiple-key combinati on functionalit y

Alphanumeric keypad

Power supply/ c ha rge connection (s ide)

On/off key

Multifunction LED

Backlight adjustment key

Page 18

2-6

Learning the Basics

Using the keypad

The 375 Field Communicator keypad and touch screen have nearly total functional redundancy.

On/off key

The on/off ( ) key is used to power on an d off the 375 Field Communicator.

You can also power the 375 Field Communicator off by simultaneously pressing the backlight adjustment key and the function key until the display turns off. This is a mechanism by which the power down is accomplished in the hardware (similar to removing the power to a PC using a switch). This is not the recommended way of shutting off the 375 Field Communicator.

Arrow navigation keys

Four arrow navigation keys allow you to move through the menu structure of the applications. Press the right arrow navigation key (

) to

navigate further into the menu.

Enter key

The enter ( ) key allows you to perform the focused item or to complete an editing action and does not navigate you through the menu structure. For example, if you have the Cancel button in focus (highlighted) when you push the enter key, you will be choosing to cancel out of that particular window.

Tab key

The tab ( ) key allows you to move between selectable controls.

Page 19

Learning the Basics

2-7

Alphanumeric keypad

The alphanumeric keypad allows you select to both letters, digits, and other characters, such as punctuation marks. It can perform a selection of options and data entry in either numeric or alphanumeric modes. The 375 Field Communicator will automatically determine the mode depending upon the input necessary for the particular field.

When in alphanumeric mode, to enter text press the desired keypad button in quick repetition to scroll through the options to achieve the appropriate letter or number. For example, to type the letter Z, press the 9 key quickly four times; see Figure 2-3.

Figure 2-3. Keypad button functionality example

Backlight adjustment key

The backlight adjustment ( ) key allows y ou to adjust the intensity of the display. There are four different settings. Intensity impacts the battery life of the 375 Field Communicator. Expect a shorter battery life for higher intensities; see page 2-11 for settings.

“Backlight” on

Page 20

2-8

Learning the Basics

Function key

The function ( ) key allows you to enable alternate functionality on select keys. The grey characters on the keys indicate the alternate functionality. When enabled, the orange multifunction LED light will appear and an indication button can be found on the Soft Input Panel (SIP). If the function key is enabled, press the key again to disable the functionality.

The alternate function on the Tab and alphanumeric 5 key (insert) will be activated in future releases of the 375 Field Communicator software.

Multifunction LED

The multifunction LED allows you to recognize when the 375 Field Communicator is in various states; see

Table 2-1. Multifunction LED

Multifunct ion LED Processing indication

Green The 375 Field Communicator is on. Flashing Green The 375 Field Communicator is in

Green and Orange The Function key is enabled. Flash green and orange The on/off button has been held down

Using the touch screen

The touch screen display allows you to select and enter text by touching the window . Tap the window

Table 2-1.

power saving mode. The display is off.

long enough for power up.

once to select a menu item or to activate a control. Double-tap to move further into the menu level.

NOTE

All instructions in this manual are written for the touch screen.

Page 21

Learning the Basics

2-9

The touch screen should be contacted by blunt items only, preferably the stylus included with the 375 Field Communicator. The use of sharp instruments, such as screwdrivers, can cause failure of the touch screen interface. Repair of the touch screen requires replacement of the entire 375 Field Communicator display assembly, which is possible only at an authorized service center.

Use the back arrow button ( ) to return to the previous menu. Use the terminate button ( ) in the upper right corner of the touch screen to end the application.

Using the Soft Input Panel (SIP) keyboard

The SIP keyboard allows for alphanumeric input using the touch screen. The SIP keyboard detects when you need to enter characters and will appear automaticall y as requi red.

VIEWING THE 375 MAIN MENU

Figure 2-4. 375 Main Menu example

The 375 Main Menu allows you to run the HART application, run the Settings menu, communicate with a PC, and launch the ScratchPad application.

Page 22

2-10

Learning the Basics

Starting the HART application

Starting the fieldbus application

Running the Settings menu

From the 375 Main Menu double-tap HART Application to run the HART application. On

startup, the HART Application will automatically poll for devices.

From the 375 Main Menu double-tap Foundation Fieldbus Application to run the fieldbus application.

From the 375 Main Menu double-tap Settings to view the Settings menu.The Settings menu allows you to set preferences for the 375 Field Communicator . The Settings menu also allows you to view system properties and license information. To access the 375 Field Communicator settings:

1.From the 375 Main Menu select Settings.

2.Select the desired setting from the Settings menu.

About 375

About 375 allows you to view the software property revisions of your particular 375 Field Communicator. If you need to call technical support personnel, have the System Software version, Communication and Diagnostic Circuitry (CDC) version, and the Operating System version on hand.

Launching the RE-FLASH initiates the reinstallation of the system software from the System Card. This should only be performed under the direction of technical support personnel.

Page 23

Learning the Basics

2-11

Backlight

The backlight setting allows you to adjust the intensity of the display. To adjust the backlight, drag the slider left to right. When you find an appropriate backlight setting select OK for this session only, SET DEFAULT to retain this setting upon start up, or CANCEL to exit without changes.

Clock

The clock setting allows you to set the date and time on the 375 Field Communicator. Configure the date by using the drop down menu. To configure the time, highlight the appropriate time field and use the a rrows to scroll through values until you find the correct time. Select OK to close.

Contrast

The contrast setting allows you to adjust the lightest and darkest areas on a display screen.

To adjust the contrast, drag the slider left or right. The window will automatically adjust the contrast as you move the slider. When you find an appropriate contrast setting select OK for this use only, SET DEFAULT to retain this setting upon start up, or CANCEL to exit without changes.

NOTE

Temperature can affect contrast.

Page 24

2-12

Learning the Basics

Event capture

The event capture setting allows you to turn on and off the event captures and also allows you to delete event capture (.rec) files. An event capture is a log of communication, input, and screen output that occurs between the 375 Field Communicator and a device.

1.Activate event capture in the settings menu by tapping the desired radio button. The radio button will be highlighted white when selected. To delete an event capture tap the DELETE EVENT FILE button.

With event capture enabled, starting the HART application will activate an event capture dialog box for you to enter a file name. Enter the name and tap OK. The file will be saved to a default location.

NOTE

While event capture is enabled, device warning messages will not appear.

Event captures are helpful in troubleshooting.

1.Create an event capture.

2.Transfer the event capture to a PC with the Programming Utility; see Programming Utility online Help for more information.

3.E-mail the event capture to technical support personnel who will then be able to view the specific communication.

Page 25

Learning the Basics

2-13

License

Licensing can be viewed when you turn on the 375 Field Communicator and in the license settings menu. The license setting allows you to view the license on the System Card. The HART application license is standard in every 375 Field Communicator. Other licenses available include the F

OUNDATION fieldbus application and Easy

Upgrade option. Unlicensed features cannot be accessed.

Memory

The memory setting allows you to view available free space in the System Card, Internal Flash, RAM, and Expansion Module (if installed).

Power

The power setting allows you to specify power management and to view battery/charge status.To specify the power management settings select the time interval from the drop down menus.

The power saving mode will turn off the backlight, the display and reduce power consumption to a minimum. The green multifunction LED light will flash while in power saving mode. To exit out of the power saving mode press any key or tap the touch screen. The 375 Field Communicator will return to the previously running mode.

The auto-off will turn off the 375 Field Communicator after the specified duration of inactivity.

NOTE

The auto-off functionality will be disabled automatically during certain operations to prevent the unintentional loss of data.

Page 26

2-14

Learning the Basics

When you determine an appropriate power management setting select OK for this session only, Set Default to retain this setting upon start up, or Cancel to exit without changes.

Power supply is indicated at the bottom of the screen. When on battery power, a percent charge remaining bar will be present. A message will appear when on external power.

Touch screen alignment

The touch screen alignment setting allows you to calibrate the touch screen with the display. Tap the cross hairs firmly and accurately at each location on the window. The target will continue to move

Communicating with a PC

until the touch screen is aligned. Touch screen alignment will be retained upon start up.

Exit to the 375 Main Menu

Double-tap Exit to 375 Main Menu if you want to return to the 375 Main Menu.

IrDA

communication

with PCs

The 375 Field Communicator communicates with PCs using infrared technology. IrDA is the only PC interface supported for the transfer of device descriptions, software updates, configurations, event captures, and ScratchPad files.

IrDA communication can either be built into the PC or provided through an adapter such as a USB to IrDA adapter or a serial to IrDA adapter. Refer to your IrDA manual for operating instructions.

Throughput for infrared communications with the 375 Field Communicator is approximately 4 kilobytes/second. Maximum recommended distance between the IrDA and PC is 18 inches.

Page 27

Learning the Basics

2-15

Listen For PC

In Listen for PC, the 375 Field Communicator is under the control of a PC application for transferring data and managing device configurations. The PC application could be one of the following:

• AMS™ Suite: Intellige nt Devi ce Manage r (version 6.2 or higher), software for managing instrumentation and valves in a process plant. Currently, AMS only supports HART configurations. In the future, it will also support F

OUNDATION fieldbus configurations.

• 375 Field Communicator Easy Upgrade Programming Utility

To ente r Listen for PC:

1.From the 375 Main Menu, select Listen for PC.

2.Align the 375 Field Communicator IrDA interface with the PC IrDA interface.

3.Complete the necessary transfer(s) using the Programming Utility or AMS Suite: Intelligent Device Manager; see the Programming Utility online Help for more informatio n.

4.Tap EXIT to close the Listen for PC application.

If new system software was downloaded to the 375 Field Communicator System Card, an update of the Internal Flash will occur.

Page 28

2-16

Learning the Basics

Transferring HART configurations using AMS Suite: Intelligent Device Manager

A Handheld Communicator Interface kit of the Intelligent Device Manager (version 6.2 or higher) option lets you use the 375 Field Communicator with AMS.

1.Align the 375 Field Communicator IrDA interface with the PC IrDA interface and then enter Listen for PC. A 375 Field Communicator icon will appear in the AMS Suite: Intelligent Device Manager to indicate that all configurations from the 375 Field Communicator can be accessed.

2.In the AMS Suite: Intelligent Device Manager double-click the 375 Field Communicator icon. The Expansion Module and Internal Flash folders are displayed. On ce all of the configuration files are displayed, perform your tasks with the AMS Suite: Intelligent Device Manager.

Easy Upgrade Programming Utility

To add Device Descriptions (DDs) or system software upgrades you will need to have a System Card with the Easy Upgrade option. For more details see the Programming Utility online Help.

All 375 Field Communicators come with the basic ability to transfer event captures and text files.

Page 29

Learning the Basics

2-17

Using the ScratchPad application

From the 375 Main Menu double-tap ScratchPad to run the ScratchPad application. ScratchPad is a text editor that you can use to create, open, edit and save simple text (.txt) documents. You are able to transfer .txt files between a PC and the 375 Field Communicator using the Programming Utility. ScratchPad only supports very basic formatting. You can also launch the ScratchPad application from within the HART application by tapping the ScratchPad (

) icon in the upper right corner of the display. This will automatically open the ScratchPad application.

Once ScratchPad is launched you can perform the following ope ra tio ns.

Figure 2-5. Open blank document in ScratchPad

Page 30

2-18

Learning the Basics

Create a new document

From the Main Page in the ScratchPad application, tap the NEW button. An empty text window and SIP keyp ad wil l appear. You are now read y to ente r text into your new document.

A new document can also be created within ScratchPad by tapping the New (

) icon in the

toolbar or by selecting File > New from the menu.

Open an existing document

1.From the Main Page in the ScratchPad application, select the desired file located under File Name.

2.Tap the OPEN button. A text window and the SIP keypad will appear. You are now ready to edit your document.

You can also open a document by selecting

File

| Open from the menu bar or by tapping the

Open (

) icon in the toolbar .

Enter text

Using the stylus, tap the desired letters from the SIP keyboard. Using the keypad, press the desired keypad button in quick repetitions to display the appropriate letter or number.

Select text

Drag the stylus over the desired text to highlight, or to select all of the text in the document tap

Edit

| Select All....

Page 31

Learning the Basics

2-19

Cut text

1.Select the text to be cut.

2.Tap Edit from the menu bar.

3.Tap Cut from the Edit menu. You can also cut text by selecting text and tapping

the Cut (

) icon in the toolbar .

Copy text

1.Select the text to be copied.

2.Tap Edit from the menu bar.

3.Tap Copy from the Edit menu. You can also copy text by selecting text and

tapping the Copy (

) icon in the toolbar .

Paste te xt

1.Copy the text to be pasted.

2.Tap Edit from the menu bar.

3.Tap Paste from the Edit menu. You can also paste text by copying the text to be

pasted and tapping the Paste (

) icon in the

toolbar.

Undo text

1.In your document, tap Edit from the menu bar.

2.Tap Undo from the Edit menu.

Save a document

1.In your document, tap File from the menu bar.

2.Tap Save from the File menu.

3.Type the file name in the dialog box if your document is new.

4.Tap OK.

You can also save a document by tapping the Save (

)icon in the toolbar.

Page 32

2-20

Learning the Basics

Save a copy

To save a copy of the current document under another name:

1.In your document, tap File from the menu bar.

2.Tap Save As... from the File menu.

3.Type the copy file name in the dialog box.

Delete a document

There are three options for deleting a ScratchPad document:

Option 1

1.From the Main Page in ScratchPad, select the file to be deleted.

2.Tap DELETE.

3.A warning will appear telling you that the selected file will be permanently deleted. If you are sure you want to delete this file tap Yes.

Option 2

1.To delete from your document, tap File > Delete.

2.From the Delete File Page, tap the desired file to be deleted.

3.Tap OK.

4.A warning will appear telling you that the selected file will be permanently deleted. If you are sure you want to delete this file tap Yes.

5.Tap EXIT when you are finished deleting files.

Option 3 Delete the .txt file from the Programming Utility.

See the Programming Utility online Help for more information.

Exiting ScratchPad

1.In your document, tap File from the menu bar.

2.Tap Exit from the File menu.

3.Tap the EXIT button from the Main Page.

Page 33

Learning the Basics

2-21

MANAGING STORAGE

Types of storage

The 375 Field Communicator system management and storage allows you to view the types of storage, run IrDA communication, transfer configurations, and operate the Programming Utility.

The 375 Field Communicator memory consists of four components:

1.Internal Flash—32MB non-volatile RAM. The Internal Flash memory can store:

• The optional Configuration Expansion Module (spare part number 00375-0043-0001) will allow you to store more configurations if needed.

• HART event captures, FOUNDATION fieldbus statistics, and user generated text files

• 375 Field Communicator system software

2.System Card (SC)—an internal Secure Digital Card with non-volatile Flash memory. A copy of installable 375 Field Communicator application software exists on every System Card. The System Card also stores all HART and F

OUNDATION fieldbus Device Descriptions.

3.RAM—32MB used only for program execution

4.Expansion Module (EM)— an optional removable memory card that snaps into the Expansion Port on the side of the 375 Field Communicator. The Configuration Expansion Module can store HART device configurations.

Page 34

2-22

Learning the Basics

MAINTENANCE

Any maintenance, repair, or replacement of components not listed below must be performed by specially trained personnel at authorized service centers. Y ou can perform common maintenance procedures on the 375 Field Communicator, as described below:

• Cleaning the exterior. Use only a dry lint-free towel or dampen the towel with a mild soap and water solution.

• Charging, removing, and replacing the battery pack

• Removing and replacing the System Card

• Removing and replacing the Expansion Module or Expansion Port Plug

• Removing and replacing the stand assembly

Battery Information

• Ensuring that all exterior screws are sufficiently tightened

• Ensuring that the Communication Terminal recess is free of dirt and debris (does not require disassembly).

Checking the charge remaining

Use the Settings menu to check the charge remaining; see

“Power” on page 2-13.

You can also check the battery charge remaining before you insert a spare battery pack.

1.Remove the battery pack from the 375 Field Communicator; see

“Removing the System Card

and battery pack” on page 2-23.

2.T urn the battery pack over and press the battery pack charge indicator button. The indication lights will illuminate based upon the amount of charge remaining in the battery. Each light represents 20 percent of charge remaining. The battery is fully charged when all of the indicator lights are illuminated.

Page 35

Learning the Basics

2-23

Charging the battery

The battery can be charged while attached to the 375 Field Communicator or charged separately. The indication light on the charger will be green when fully charged, amber when charging, cycle between amber and green when pulse charging, and red if it is unable to charge.

Do not attempt to charge the battery pack in hazardous areas. To charge the 375 Field Communicator battery:

1.Plug the recharger/power supply into a power outlet.

2.Plug the power supply/charger connection into the 375 Field Communicator. The 375 Field Communicator is fully operable while the battery is recharging.

Removing the System Card and battery pack

Remove the System Card and battery pack:

1.Place the 375 Field Communicator face down on a level, secure surface.

2.Loosen the two battery pack retaining screws until the top of each screw is flush with the top of the battery pack.

3.Slide the battery off the main unit. Do not pull up on the battery pack as this could damage the power supply connector.

4.Grasp the System Card and slide it straight out of the main unit. Do not pull up on the System Card as this could damage the card or the

System Card socket.

Page 36

2-24

Learning the Basics

Running a self test

Working in an Intrinsically Safe (IS) area

Waste disposal

There is no need, nor is it possible, to perform a manual self test with the 375 Field Communicator. Testing features are done automatically. A warning message will occur if a fault condition is found during these tests.

The battery pack can be replaced in Intrinsically Safe areas. The Expansion Module can be installed in hazardous locations while the 375 Field Communicator is still running.

If it ever becomes necessary to discard any part(s) of the 375 Field Communicator, adhere to the waste-disposal regulations applicable in your locality.

Page 37

USER’S MANUAL

00375-0047-0001, Rev. C February 2004

375 FIELD COMMUNICATOR

SECTION 3 HART FUNCTIONALITY

OVERVIEW This section provides instruction on basic HART

functionality of the Model 375 Field Communicator. As they become available, the HART Field Communicator menu trees will be located online at www.fieldcommunicator.com.

SAFETY MESSAGES

). Refer to the following safety messages before performing an operation preceded by this symbol. Other warning messages can be found in the Troubleshooting section of this manual.

WARNING

If you choose to ignore all field device status messages, every message from nuisance to critical will be ignored.

WARNING

Voltage measurements are for reference purposes only. Do not make critical process control decisions based upon this voltage.

www.fieldcommunicator.com

Page 38

3-2

HART Functionality

BASIC FEATURES AND FUNCTIONS

STARTING THE HART APPLICATION

Interpreting the HART icon

A beating hollow heart icon is displayed when the 375 Field Communicator is communicating with a live HART device (

). A solid beating heart will replace the hollow heart icon when communicating to a HART loop with a device in burst mode. The HART logo is displayed during periods when communication is not occurring.

NOTE

This is common when only static parameters are listed.

To start the HART application:

1.Turn on the 375 Field Communicator. The 375

Main Menu is displayed with HART as the

Using Fast Key

default application.

2.Double-tap HART Application. If a live HART

device is connected to the 375 Field Communicator, the HART Application main menu will be displayed automatically with key parameters from the connected device. If a device is not connected, the HART Application main menu is displa yed after a few seconds. To navigate back to the 375 Main Menu press the back arrow button. From the HART Application main menu you can choose Offline, Online, or Utility f unctions. The rest of this section will guide you through the HART Application menus and functions.

The Fast Key sequence is a sequence of

sequences

numerical button presses, corresponding to the menu options that lead you to a given task. The Fast Key sequences are identical to the 275 HART Communicator. See your field device documentation for fast key sequence options.

Page 39

HART Functionality

3-3

Setting up Hot Key options

The Hot Key menu is a user-definable menu that can store shortcuts for up to 20 of your most frequently performed tasks. For example, if you change device tags and damping often, you can add options for these functions to the Hot Key menu. Once you are Online the Hot Key will automatically appear in the toolbar. To add a custom option to the Hot Key menu:

1.With the Online menu or any of the submenus open, select the option you want to add to the Hot Key menu.

2.Tap and hold the Hot Key ( ). The Hot Key Configuration window shows the new option you are adding.

3.Tap ADD.

4.Tap ALL to add the Hot Key option for all devices supported by the Communicator, or tap ONE to add the Hot Key option only for the device type to which you are currently connected.

5.If the message “Mark as read only variable on Hot Key menu” displays, choose one of the following:

• YES: The variable for this option is read-only, meaning users can view but not change its value.

• NO: You can view as well as change the value for this variable.

6.Respond to the message “Display value of variable on Hot Key menu?” by choosing one of the following:

• YES: The value of this variable will appear on the Hot Key menu.

• NO: The Hot Key menu will show the name of the variable but not its value.

Page 40

3-4

HART Functionality

7.Tap the EXIT button on the Hot Key Configuration window to return to the original menu. The new option is added to the Hot Key menu.

Executing Hot Key options

Removing Hot Key options one at a time

To use a Hot Key option, you must first properly connect the 375 Field Communicator to a device. You can access the Hot Key menu from any online window. To use a Hot Key option:

1.Connect the 375 Field Communicator to a HART loop or device.

2.Tap the Hot Key. The Hot Key menu is displayed.

3.Double-tap the desired option.

To remove individual Hot Key options:

1.Tap and hold the Hot Key ( ). The Hot Key Configuration window will appear.

2.Select the menu option you want to remove.

NOTE

Removing all Hot Key options

Range Values is a predefined option and cannot be removed. It provides quick access for viewing or changing the range for a device.

3.Tap the DEL button.

4.When you are done, tap EXIT to close the Hot Key Configuration window.

To remove all Hot Key options currently defined:

1.From the HART main menu, double-tap Utility.

2.From the HART Utility menu, double-tap Configure HART Application.

3.From the Configure HART Application menu, double-tap Storage Cleanup.

4.From the Storage Cleanup menu, double-tap Hot Key Menu.

5.Tap YES if you are sure you want to delete all the items from the Hot Key menu.

Page 41

HART Functionality

3-5

WORKING OFFLINE

The Offline menu allows you to create offline configurations, view and change device configurations stored on the 375 Field Communicator.

There are two types of configurations: device configuration and user configuration. A HART configuration created from a HART device will initially be saved as a device configuration. A HART configuration created Offline will be saved as a user configuration. A HART configuration transferred to a 375 Field communicator from another program will be saved as a user configuration. Editing a device configuration within the 375 Field Communicator will change it to a user configuration.

The concept of partial or standard configurations

Creating new configurations Offline

does not apply to the 375 Field Communicator. All configurations are full configurations.

Creating a new configuration allows you to create a user configuration for a specific device type and revision. To create a new HART device configuration while working offline:

1.From the HART Application main menu, double-tap Offline.

2.From the Offline menu, double-tap New Configuration. The manufacturer names of the installed Device Descriptions are listed.

3.Double-tap the desired manufacturer to expand the list. The models available for the manufacturer are listed.

4.Double-tap the desired model to expand the list.

The device revisions available for the selected model are listed.

5.Double-tap the desired device revision.

Page 42

3-6

HART Functionality

6.If a warning appears, thoroughly read the warning, tap CONT. to accept the warning and procee d , or tap EXIT to e n d c r ea ting a new user configuration.

7.Mark the configurable variables you want sent to the HART device. Double-tap Mark all > OK to have all variables marked. Double-tap Unmark all > OK to clear the marks from all variables. A “+” symbol indicates a mark to send. A “*” symbol indicates a parameter has been edited.To mark and edit variables individually:

a.Double-tap Edit individually to configure

specific variables before sending them to a device.

b.Scroll through the list of variables and select

the variable you want to mark or edit.

c.To change the value for the selected variable,

tap EDIT, change the value, and tap ENTER.

d.To mark the selected variable, tap MARK. A

“+” symbol indicates a mark to send. A “*” symbol indicates a parameter has been edited.

e.Repeat steps b through d for other variables as

necessary and tap EXIT when you are finished.

8.To save a new configuration, double-tap Save as... (The SAVE button will automatically bring you to the Save as... menu.)

a.To change the location where the configuration

is saved, double-tap Location, select an option, and tap ENTER.

b.To specify a name for the configuration,

double-tap Name, enter the name, and tap ENTER.

c.Tap SAVE.

Page 43

HART Functionality

3-7

Opening saved configurations Offline

Once opened, a saved configuration allows you to edit, copy to, send, delete, rename, and compare to other saved configurations. To open a saved configuration:

1.From the HART Application main menu, double-tap Offline.

2.From the Offline menu, double-tap Saved Configuration.

3.Double-tap the storage location from where you saved the configuration—Internal Flash Contents or Configuration Expansion Module Contents.

4.Double-tap the desired configuration to open the menu selection.

The FILTR button opens a menu that provides both sort and tag filter options. These options allow you to customiz e your view of saved device configurations.

Sort allows you to group and display device configurations according to your choice of name, tag, or descriptor.

Tag Filter allows you to customize your group for viewing according to what you entered with Sort by picking characters from the device name, tag, or descriptor.

When setting up a filter , you can use two special charac ters: the period (.) and the asterisk (*). The period replaces a single character of any

value. The asterisk is used to represent a string of alphanumeric characters of any value.

For example, if you want to list all configurations that have a tag or name of P - 001 to P - 300. You would enter “P - *” in the filter. If you want to

Page 44

3-8

HART Functionality

list configurations that have a tag or name that begins P-

0 and ends with a 7, set the filter to

P - 0.7. The XPAND button allows you to view the tag,

manufacturer, device type, descriptor, and the configuration type. Tap CMPRS to return to the previous compressed screen.

Choose from the following menu options:

Edit a saved configuration Offline

Edit a saved configuration while working offline:

1.From the Saved Configuration menu, double-tap Edit.

2.If a warning appears, thoroughly read the warning, tap CONT. to accept the warning and proceed, or tap EXIT to end creating a new unit configuration.

3.Mark the configurable variables you want saved in the HART configuration. Double-tap Mark all > OK to have all variables marked. Double-tap Unmark all > OK to clear the marks from all variables. To mark and edit variables individually:

a.Double-tap Edit individually to configure

specific variables before sending them to a device.

b.Scroll through the list of variables and select

the variable you want to mark or edit.

c.To change the value for the selected variable,

tap EDIT, change the value, and tap ENTER.

d.To mark the selected variable, tap MARK. A

“+” symbol indicates a mark to send. A “*” symbol indicates a parameter has been edited.

e.Repeat steps b through d for other variables as

4.Tap SAVE to return to the Contents menu.

necessary.

Page 45

HART Functionality

3-9

Copy a saved configuration Offline

Copy to... allows you to copy a saved configuration to a new storage location.

1.From the Saved Configuration menu, double-tap

Copy to....

2.Choose the storage locati on from whic h you want to open the configurati on— Inte rn al Flas h or Configuration Expansion Module and tap ENTER.

3.Double-tap Name and enter the name of the configuration.

4.Tap SAVE to copy to a new location.

Send a saved configuration Offline

Send allows you to send the selected configuration to a connected device. From the Saved Configuration menu, double-tap Send. The 375 Field Communicator will then send the configuration to a connected device that is compatible with the configuration.

Delete a saved configuration Offline

Delete allows you to remove configurations one at a time. To delete a configuration from the 375 Field Communicator storage:

1.From the Saved Configuration menu, double-tap Delete.

2.Tap Yes to confirm the deletion.

Page 46

3-10

HART Functionality

Rename a saved configuration Offline

Rename allows you to change the name of a saved configuration. To rename a saved HART configuration:

1.From the Saved Configuration menu, double-tap Rename.

2.Double-tap the file you want to rename.

3.Enter the new file name and tap ENTER.

4.Tap SAVE.

Compare two saved configurations Offline

Any two configurations can be compared. However, in order to compare two configurations of the same field device, the following conditions must be met:

• Device type (including manufacturer), device revision, and DD revision must match exactly. A dialog box will appear if the configuration is different, however, you will not be told the differences.

• Configurations can only be compared against other configurations containing the same set of variables. The 375 Field Communicator notifies you if this condition is not met.

The format of data storage must match exactly. The 375 Field Communicator notifies you if this condition is not met.

1.From the Saved Configuration menu, double-tap Compare.

2.Choose the storage location—Internal Flash or Configuration Expansion Module and tap ENTER.

3.Double-tap Name to select the configuration file.

4.Double-tap the desired file to compare.

5.Tap COMP to compare the configurations.

6.Tap OK when you are finished reading the window.

Page 47

HART Functionality

3-11

WORKING ONLINE

The online mode displays data for the HART device to which you are connected. The Online menu displays critical, up-to-date process information that is continuously updated, including device setup, primary variable (PV), analog output (AO), lower range value (LRV), and upper range value (URV). For information about intrinsically safe connections see

Appendix B “Approval

Information”. A HART configuration created from a connected

HART device will initially be saved as a 375 device configuration. Editing a device configuration within the 375 Field Communicator will change it to a 375 user configuration.

The 375 Field Communicator can communicate with a transmitter from the control room, the

Connecting to a HART loop

instrument site, or any wiring termination point in the loop.

Connect the 375 Field Communicator with the appropriate connectors in parallel with the instrument or load resistor. The HART connections are not polarity sensitive.

In order for the 375 Field Communicator to function properly, a minimum of 250 ohms resistance must be present in the HART loop.

NOTE

Dynamic variables shown while online represent the digital data being sent from the device.

Page 48

3-12

HART Functionality

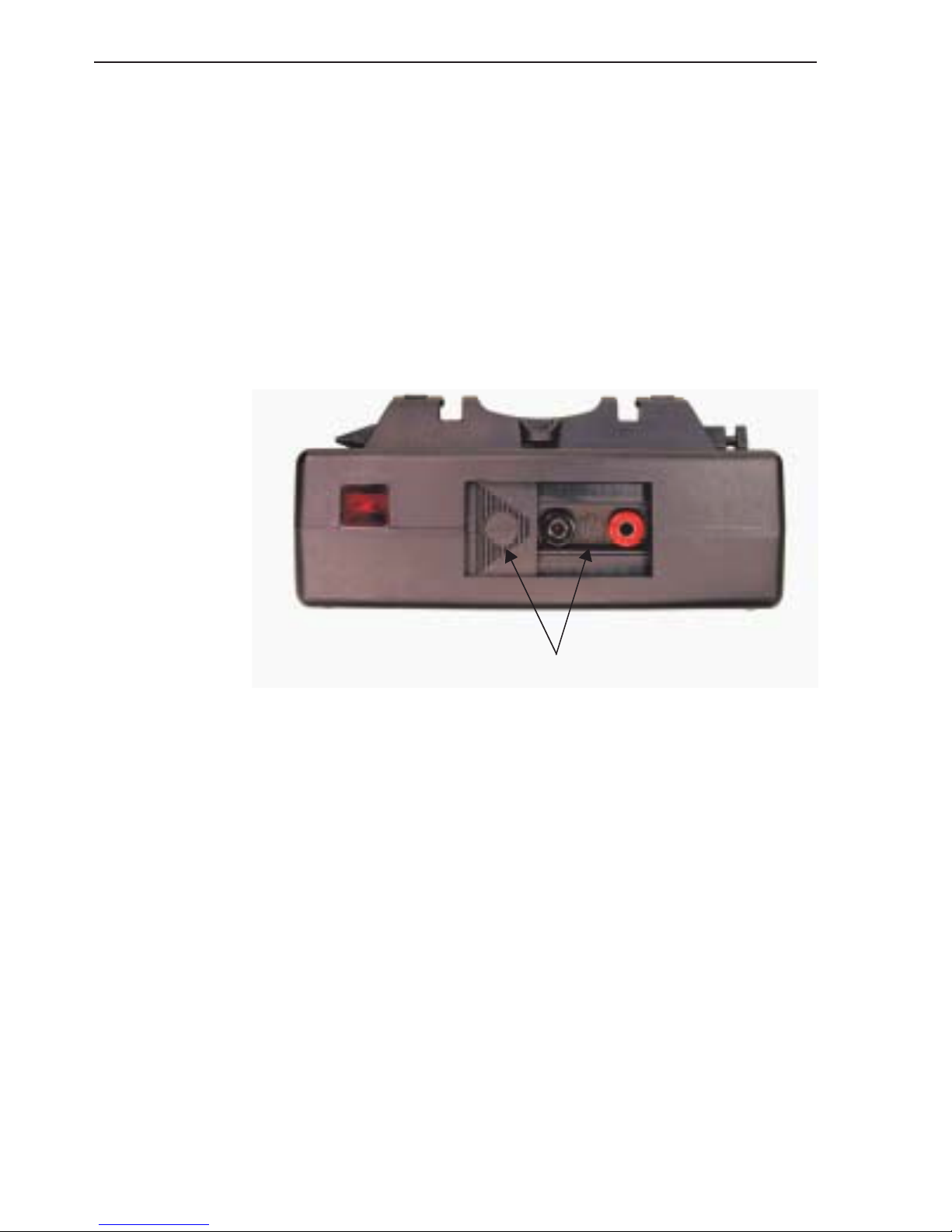

There are three terminals on the top of the 375 Field Communicator. Two of them are red and one of them is black. Each red terminal is a positive connection for its protocol. The black terminal is a common shared by both protocols. There is an access door to ensure that only one pair of terminals is exp os ed at any one tim e; see 3-1. There are several markings to indicate which pair of terminals is for which protocol.

Figure 3-1. HART terminal access door

Figure

HART Terminal Markings

Page 49

HART Functionality

Figure 3-2 illustrates how to connect the 375 Field Communicator to a HART loop:

Figure 3-2. Connecting to a HART loop

HART compatible

device

RL≥250Ω

3-13

Figure 3-3 illustrates how to connect the 375 Field Communicator directly to terminals of a HART device:

Figure 3-3. Connecting directly to a HART device

Current

meter

Power

supply

HART compatible

device

RL≥250Ω

Current

meter

Power

supply

Page 50

3-14

The following diagram illustrates how to connect the optional 250-ohm resistor. Attaching a resistor is necessary if less than 250 ohms resistance is present in the HART loop.

HART compatible

device

–

HART Functionality

Power

Supply

–

Optional 250-Ohm Load Resistor

VIEWING THE ONLINE MENU

To temporarily install the optional 250-ohm load resistor:

1.Insert the load resistor into the lead set jacks.

2.Open the loop to allow connection of the resistor in series in the loop.

3.Close the loop using the lead set connectors.

The Online menu is the first menu to appear when connecting to a HART compatible device. It is structured to provide important information about the connected devic e. This menu dis pl ay s crit ic al , up-to-date device information including primary variable, analog output, lower range value, and upper range value. See your field device user’s manual for more information.

Page 51

HART Functionality

Because of the important information provided in the Online menu, some menus provide instant access to this window. When access is available, the HOME button appears to return you to the Online menu.

Figure 3-4. Online menu example

3-15

Once you have made changes to the parameters, you may send them to the device. An asterisk will appear next to the parameter name of any un-sent item.

The configuration parameters for devices vary widely from device to device and are defined in the device description. Refer to your field device user’s manual for more information. To view process information for a connected device:

1.Connect the 375 Field Communicator to a HART loop or directly to the device.

2.Push the on/off button to turn on the 375 Field Communicator.

3.Double tap HART Application. The Online main menu will be displayed automatically.

4.You can view more information about these

parameters by choosing the following Online menu options:

Page 52

3-16

HART Functionality

Viewing the Device Setup submenu

The Device Setup menu accesses every configurable parameter of the connected device. Double-tap Device setup to view the process variables, diagnostics and service, basic setup, detailed setup, and review:

Process Variables (PV)

The PV menu lists all process variables and their values. Process variables are continuously updated when this screen is displayed.

Diagnostics and service

The Diagnostics and Service menu offers device and loop tests as well as calibration options. The diagnostics and service operations that are available vary widely from device to device and are defined in the device des crip tio n.

Test device menu lists the status as well as self and master test of the device. Test device initiates a diagnostic routine at the device and can report an electronics failure, as well as other failures that can affect performance.

Loop test is used to set the output of the device at a specified analog value, and may be used to test the integrity of the loop and the operation of indicators, recorders, or similar devices in the loop.

Calibration is used to perform such operations as performing a sensor trim, D/A trim, and scaled D/A trim.

Page 53

HART Functionality

3-17

Basic setup

The Basi c setup menu provides quick access to a number of configurable parameters including tag, unit, range values, and damping.

The options available in the Basic setup menu are the most fundamental tasks that can be performed with a given device. These tasks are a subset of the options available under the Detailed setup menu.

The Tag alphanumeric identifies a specific device. Changing units affects the engineering units that are displayed. Reranging changes the analog output scaling. Changing damping effects the response time of the transmitter and is often used to smooth the output when there are rapid input variations.

Detailed setup

The Detailed setup menu provides access to every editable device parameter and all device functions. The Detailed setup menu varies widely from one HART compatible device to another. Functions in this menu can include tasks such as characterization, configuration, and sensor and output trims.

Review

The Review menu lists all of the static parameters read from the connected device, including

information about the device and sensor setup and limitations. It also includes information about the connected device such as tag, materials of construction, and device software revision.

Page 54

3-18

HART Functionality

Primary Variable (PV)

Analog Output (AO)

Lower Range Value (LRV)

The Online menu displays critical process information that is continuously updated. If the primary variable and related engineering units are too long, they will not appear on the Online menu. Double-tap PV to view when the primary variable and the related engineering units truncated on the Online menu.

The analog output is the signal on the 4–20 mA scale that corresponds to the primary variable. This is a digital value sent from the field device. Double-tap PV AO to view when the analog output and its related engineering units are truncated on the Online menu.

Double-tap PV LRV to view when the lower range value and its related engineering units are

Upper Range Value (URV)

VIEWING THE UTILITY MENU

Configuring the HART application

truncated on the Online menu. Double-tap PV URV to view when the upper range

value and its related engineering units are truncated on the Online menu.

The Utility menu allows you to set the polling option, change the number of ignored status messages, view the available Device Descriptions, perform a simulation, and view HART diagnostics.

Changing the HART polling option

Use the HART polling option to configure your 375 Field Communicator to automatically search for all or specific connected devices. Most HART device installations contain one device per loop and the device address equals zero.

To have more than one device per loop, wire the devices in parallel and placed into “Multidrop” mode. This mode is enabled by changing the address from zero to any address between 1 — 15. After the mode is enabled, the analog

Page 55

HART Functionality

3-19

output of each device is fixed and no longer repres ents any variable.

To change the polling option:

1.From the HART main menu, double-tap Utility.

2.Double-tap Configure HART Application.

3.Double-tap Polling.

4.Select one of the following polling options:

• Never Poll - Connects to a device at address 0 and if not found, it will not poll.

• Ask Before Polling - Connects to a device at address 0 and if not found, you will be asked if you want the communicator to poll for devices at addresses 1–15.

• Always Poll - Connects to a device at address 0 and if not found, the communicator will automatically poll for devices at addresses 1–15.

• Digital Poll - Polls addresses 0–15, regardless if a device is found at address 0. To find individual device addresses, use this option to find each connected device in the loop and list them by tag number.

• Poll Using Tag - Allows you to enter the tag of the device. You will be prompted to enter a tag name upon starting the HART Application.

• Poll Using Long Tag - Allows you to enter the long tag of the device. You will be prompted to enter a tag name upon starting the HART Application. (Only supported in HART Universal revision 6 devices.) Double-tap when the tag is truncated to display the full tag.

5.Tap Enter.

Refer to your device-specific manual for information about changing a device polling address.

Page 56

3-20

HART Functionality

Changing ignored status messages

The 375 Field Communicator displays status messages from all connected HART devices. The Ignore Status option lets you specify the number of field device status messages that are ignored, extending the time between displayed messages. The default is 50 messages. If you choose to ignore all field device status messages, every message from nuisance to critical will be ignored.

To change the number of ignored status messages:

1.From the HART main menu, double-tap Utility.

2.Double-tap Configure HART Application.

3.Double-tap Ignore Status.

4.Enter the number of status messages you want ignored before the next message is displayed. You can specify a number from 50 to 500.

5.Tap ENTER. All field device status messages will be ignored until the quantity specified has been reached.

Storage Cleanup

The Storage Cleanup menu lets you delete the following items:

• Internal Flash - By selecting YES you will remove all config ur ati ons saved in the Inter na l Flash.

• Configuration Expansion Module - By selecting YES you will remove all configurations saved in the Configura tio n Expansion Modul e.

• Hot Key Menu - By selecting YES you will delete all items from the Hot Key menu.

Page 57

HART Functionality

3-21

Viewing available Device Descriptions

Simulating an

HART Device Descriptions enable the 375 Field Communicator to recognize and configure specific HART-compatible devices. To view t he currently installed HART Device Descriptions:

1.From the HART main menu, double-tap Utility.

2.Double-tap Available Device Descriptions. The manufacturer names of the installed Device Descriptions are listed.

3.Double-tap the desired manufacturer to expand the list. The models available for the manufacturer are listed.

4.Double-tap the desired model to expand the list. The device revisions available for the selected model are listed.

The 375 Field Communicator has a simulation

online connec tion to a HART device

mode that allows you to simulate an online connection to a HART-compatible device without actually connecting to a device. Simulation mode is a training tool that helps you become familiar with devices before configuring them in a critical environment. A simulated configuration cannot be saved.

To simulate a connection to a HART device:

1.From the HART main menu, double-tap Utility.

2.Double-tap Simulation. The manufacturers with device descriptions installed on the 375 Field Communicator are listed.

3.Double-tap the desired manufacturer to expand the list. The models available for the manufacturer are listed.

4.Double-tap the desired model to expand the list.

The device revisions available for the selected model are listed.

5.Double-tap the desired device revision. Refer to the device manual to determine the device revision.

Page 58

3-22

HART Functionality

6.If a warning appears, thoroughly read the warning, tap CONT. to accept the warning and proceed, or tap EXIT to end creating a new unit configuration. (This warning will not appear if your device is tested.) The online menu for the simulated device is displayed. You can now use the 375 Field Communicator as if it were connected to the selected device and perform any online task.

Viewing HART diagnostics

Disconnecting from a HART device

DC voltage measurement (HART terminals)

To check the device voltage:

1.From the HART main menu, double-tap Utility.

2.Double-tap HART Diagnostics.

3.Double-tap DC Voltage Measurement. The DC voltage measurement is displayed. Tap OK when done viewing the measurement. Exit the HART Terminal Voltage menu and re-enter to refresh the screen. Voltage measurements are for reference purpo se s o nly.

Prior to disconnecting be sure to check the following items:

• Determine if you want to save as a configuration.

• Verify methods (e.g. calibration, loop test) are complete.

• Resolve any un-sent data to the device.

Page 59

USER’S MANUAL

00375-0047-0001, Rev. C February 2004

375 FIELD COMMUNICATOR

SECTION 4FIELDBUS FUNCTIONALITY

OVERVIEW This section provides instruction on basic fieldbus

functionality for the 375 Field Communicator.

SAFETY MESSAGES

). Refer to the following safety messages before performing an operation preceded by this symbol.

WARNING

There c ould be a Database Mismatch. Changes made with the 375 may not be recorded in the Host System database. Ensure all safety precautions and work procedures have been followed.

If this segment is connected to a Host System, the changes made with the 375 may not be recorded in the Host System’s permanent data base. Verify the changes in the database. Otherwise, this could cause unpredictable results and, depending upon your application, process disruption leading to property damage, serious injury, or death.

Process control could be affected. Changing device parameters could adversely affect the control of your process.

Ensure all safety precautions and work procedures have been followed. Put control loop in Manual/Out of service before applying changes. Verify output before returning control loop to Auto. Failure to do so could result in property damage, death or serious injury.

www.fieldcommunicator.com

WARNING

Page 60

4-2

BASIC FEATURES AND FUNCTIONS

Fieldbus Functionality

Link Active Scheduler (LAS)

All segments have one and only one Link Active Scheduler (LAS). The LAS operates as the bus arbiter for the segment. The 375 Field Communicator is set up to always be the last node to become the LAS on a segment.

The devices that are capable of becoming the LAS are called link master devices. All other devices are referred to as basic devices. When a segment first starts up, or upon failure of the existing LAS, the link master devices on the segment bid to become the LAS. The link master that wins the bid (i.e. the one with the lowest address) begins operating as the LAS immedi atel y upo n completion of the bidding process. Link masters that do not become the LAS can act as LAS backups by monitoring the segment for failure of the LAS and then bidding to become the LAS when a LAS failure is detected.

Only one device can communicate at a time. Permission to communicate on the bus is controlled by a centralized token passed between devices by the LAS. Only the device with the token can communicate. The LAS maintains a list of all devices that need access to the bus. This list is called the “Live List”; see

“Displaying the Live

Device List” on page 4-11.

Page 61

Fieldbus Functionality

4-3

Interoperability

375 operation with other hosts

The 375 Field Communicator is designed to operate with a wide range of F

OUNDATION fieldbus

devices independent of device manufacturer. Interoperability is achieved through the use of Device Description Language (DDL) technology supported by the Fieldbus Foundation.

Basic testing is performed on all DDs. In addition, each device manufacturer is asked to certify that they have thoroughly tested their device(s) with the 375 Field Communicator. If certification is not received, a warning message will display when you attempt to access an untested device.

When a 375 Field Communicator is connected to a live fieldbus segment and a host system, it joins the fieldbus segment but not as the LAS. This means that, although the 375 Field Communicator can view and edit device parameters, the control of the segment is still handled by the node that is designated the LAS for the segment. You can also read and write if there is another LAS. Prior to connecting to a host system review the 375 Field Communicator Host Testing Summary on www.fieldcommunicator.com.

ST_REV ST_REV is a block parameter that increments

each time a block configuration has changed. While a list of parameters is displayed, the 375 Field communicator will continuously read the ST_REV of that particular block. If it sees the ST_REV counter has incremented, it knows that there has been a change to the block, and it will automatically refresh (reread) all of the block

parameters. Thus, there would only be a very short period of time before a change made by another host would appear on the 375 display.

Page 62

4-4

Fieldbus Functionality

Modes The Resource, Transducer, and all function blocks

in the device have modes of operation. These modes govern the operation of the block. Every block supports both automatic (AUTO) and out of service (OOS) modes. Other modes may also be supported.

Types of Modes

For the procedures described in this manual, it will be helpful to understand the following modes:

AUTO

The functions performed by the block will execute. If the block has any outputs, these will continue to update. This is typically the normal operating mode.

Out of Service (OOS)

The functions performed by the block will not execute. If the block has any outputs, these will typically not update and the status of any values passed to downstream blocks will be “BAD”. Before you make changes to the configuration of the block, change the mode of the block to OOS. When the changes are complete, change the mode back to AUTO.

MAN

In this mode, the output of the block can be manually overwritten for testing purposes.

Other Types of Modes

Other ty pes of modes are Ca s, RCas , ROut, IMan and LO. For more information; see the Emerson Process Management, Rosemount Division Func tion Block ma nual, document 00809-0100-4783.

Page 63

Fieldbus Functionality

4-5

Locating Mode Parameters

In the Resource and Transducer blocks, the mode parameters are normally found in the Process menu. In all other Function blocks, they are found in the Common Config. menu. The Mode parameters will also be included in the All parameter list; see

“Working with Device Blocks”

on page 4-13.

Changing Modes

A warning message may appear whenever the mode of any block is included in a list of parameter changes to be sent to a device. Press YES to send the change, or NO to not send the change.

To change the operating mode, set the MODE_BLK.TARGET to the desired mode. After a short delay, the parameter MODE_BLOCK.ACTUAL should reflect the mode change if the block is operating properly.

Permitted Modes

It is possible to prevent unauthorized changes to the operating mode of a block. To do this, configure MODE_BLOCK.PERMITTED to allow only the desired operating modes. It is recommended to always select OOS as one of the permitted mode s.

Page 64

4-6

Fieldbus Functionality

STARTING THE FIELDBUS APPLICATION

A general warning message may appear upon starting the Fieldbus Application when an LAS is detected on the segment. Select YES to proceed to the live list, NO to return to the 375 Main Menu, or HELP to get more information on the warning.

To start the fieldbus application:

1.Turn on the 375 Field Communicator. The 375 Main Menu is displayed; see

Figure 4-1.

2.Double-tap FOUNDATION Fieldbus Application. If a live fieldbus device is connected to the 375 Field Communicator, the Fieldbus Application main menu will briefly display followed by the Live Display List.

If insufficient voltage is detected, a warning will appear saying “No FF Segment Voltage Detected. Press OK to go to the FF Main Menu.” Press OK to navigate to the Fieldbus Application main menu.

Figure 4-1. Fieldbus Application menu screen example

A connection warning message may appear if no communication is detected. This means that an LAS is not recognized by the segment and typically occurs when connecting to a single device.

Page 65

Fieldbus Functionality

4-7

To navigate back to the 375 Main Menu, press the back arrow button. From the Fieldbus Application main menu you can choose Online, Utility or Fieldbus Diagnostic functions. The rest of this section will guide you through the Fieldbus Application menus and functions.

Digital communication is susceptible to electrical noise; follow proper wiring instructions.

WORKING ONLINE

Connecting to a fieldbus loop

The online menu displays data for the device to which you are connected. The Online menu displays critical, up-to-date process information, including the segment live list, block lists, and parameter functionality. For information about intrinsically safe connections see

Appendix B

“Approval Information”.

NOTE

It is normal for processes to take longer the greater the amount of scheduled communication. This is influenced by the number of devices and the control methods in place.

Connect the 375 Field Communicator with the appropriate connectors in parallel with the

instrument. Due to measurement circuitry the 375 Field Communicator fieldbus connections are polarity sensitive. If connected incorrectly, an error message will displa y.

NOTE

Dynamic variables shown while online represent the digital data being sent from the device.

Page 66

4-8

Fieldbus Functionality

There are three terminals on the top of the 375 Field Communicator. Two of them are red and one of them is black. Each red terminal is a positive connection for its protocol. The black terminal is a common shared by both protocols. There is an access door to ensure that only one pair of terminals is exp os ed at any one tim e; see 4-2. There are several markings to indicate which pair of terminals is for which protocol.

Figure 4-2. Fieldbus terminal access door

Figure

Fieldbus Terminal Marking

Page 67

Fieldbus Functionality

4-9

Bench hook-up

The following diagram illustrates one method of connecting the 375 Field Communicator on a bench.

For segments that are limited in size, the power conditioner and terminators can be contained in a single wiring block.

T e

n a

t r

Connection

Block

n a

t r

Fieldbus

Power

Conditioner

24 Vdc

Power

supply

Page 68

4-10

Fieldbus Functionality

Field hook-up

The following diagram illustrates one method of connecting the 375 Field Communicator to a fieldbus segment. The 375 Field Communicator can be connected at any convenient place along the bus (segment). In the field, this is typically done at the device or at the fieldbus junction box.

Fieldbus

Host Control System

Fieldbus

Power

Conditioner

---

24 Vdc

Power

supply

i n a

t o

Fieldbus Junction

Box

T e

i n a

Page 69

Fieldbus Functionality

4-11

Displ aying the Live Device List

To display the active devices on a Fieldbus segment (live list):

1.Connect the 375 Field Communicator to a Fieldbus segment.

2.Turn on the 375 Field Communicator.

3.On the main menu, double tap FOUNDATION

Fieldbus Application.

4.On the Fieldbus Application menu, choose Online. The Fieldbus Live Device List displays. If a live fieldbus device is connected to a host acting as the LAS, the Live Device List will be displayed automatically with key parameters from the connected device. If an existing host control system or a device capable of being the LAS is not connected, the 375 Field Communicator will act as a temporary LAS on the segment and produce a warning message. After reading and following the message instruction s, press OK to di splay the Live De vice List.

Figure 4-3. Live Device List screen example

Page 70

4-12

Fieldbus Functionality

Displaying the Block List

The Block List view lists the block tag, block type, and actual mode of the device blocks, as well as Schedule, Advanced, and Detail information contained in a particular device. Consult your device manual or the Fieldbus Foundation for more information on blocks. F trees will be on www.fieldcommunicator.com as they become available. To view the Block List:

1.From the Fieldbus Application menu, choose Online. The Fieldbus Live Device List will appear.

2.Double tap the device you want to work with. A status line appears on the bottom of the screen to indicate connection progress.

Figure 4-4. Block list screen example

OUNDATION fieldbus menu

Page 71

Fieldbus Functionality

4-13

Working with Device Blocks

The block menu is a submenu of the block list. Block menus display block information for the fieldbus device to which you are connected.

If the DD is not installed in your 375 Field Communicator a DD error will appear. New DDs will be made available on a regular basis; see “Easy Upgrade Programming Utility” on page 2-16.

Devices that do not support transducer block menus within the DD will have the following selections: All, Process, Status, Other. If Methods are incorporated into the transducer block they will be displayed as either Diagnostic Methods or Calibration Meth ods . Tap All to display all of the parameters for the desired block. ALL display call up times may take several minutes. It is recommended you use this only if you are unable to find your desired selection elsewhere.

If the device DD supports menus, you can display the block menu by performing the following steps:

1.Display the block list; see page 4-12.

2.Double tap the desired block tag and the block menu will appear.

3.From the block menu double tap the desired parameter group label category.

Parameter Functionality

Shaded areas indicate values that cannot be changed. In initial versions of the Fieldbus Application you will be able to edit only the resource, transducer, and I/O blocks. You will be able to open and view all other blocks, however, you will not be able to edit them.

Modified Parameters

An asterisk will appear next to a modified parameter which has not yet been sent to the device.

Page 72

4-14

Fieldbus Functionality

Displaying block parameters for fieldbus devices

To display the parameters for fieldbus devices:

1.Display the live list; see page 4-11.

2.Double tap a device on the live list to view the blocks in that device.

3.Double tap the desired block.

4.Double tap the desired parameter group. The parameters and their current values are displayed. Shaded areas indicate values that cannot be edited.

Changing and sending parameter data

To change the values for parameters:

1.Display the parameters for fieldbus devices; see

page 4-14.

2.Double tap the desired parameter.

3.Change the value for the parameter. (Tap HELP to view a description of the parameter.)

4.Tap OK to acknowledge the parame ter change. Repeat these steps for other parameters as necessary. A “*” symbol indicates a parameter has been edited.

5.Tap SEND to commit your changes to the connected fieldbus device.

NOTE

The Block mode must be in the appropriate state to accept parameter changes. Typically the mode is MAN or OOS.

Page 73

Fieldbus Functionality

4-15

Running methods (e.g. calibrations, sensor trim, diagnostic etc.)

Select submenu choices as appropriate. Different devices h ave different methods associated with them. The selections on these menus vary accordingly.

1.Display the li ve li st; see page 4-11.

2.Double tap a device from the live list.

3.Double tap the desired block (typically methods are run in the Transducer block).

4.Double tap Methods.

5.Double tap the type of method you want to run, e.g. calibration, diagnostic. Follow the navigation screens to run the method.

Other Block List selections

Displaying Device status

To display device status:

1.Display the li ve li st; see page 4-11.

2.Double tap a device from the live list.

3.Double tap the desired block.

4.Double tap Status. Status parameter(s) will be displayed.

Detail Menu

To view the Detail menu:

1.Display the li ve li st; see page 4-11.

2.Double tap the device you want to work with.

3.Scroll down the block list and double tap Detail. Double tap one of the following options:

• Physical Device Tag designates a field device’s

role in the system.

It is not recommended to change the device tag when the device is connected to a control system. Changing the Physical Device Tag on a device which is on an active segment could have unpredictable results.

Page 74

4-16

Fieldbus Functionality

• Address is the data link layer node address of the device. The LAS automatically assigns an address to a device when it is connected to a segment.

If an LAS other than the 375 Field Communicator is on the segment, changing the address could have unpredictable results. It is not recommended to change the addr e ss when the device is connected to a control system.

• Device ID is the unique number identifier for each device. It is set by the device manufacturer and cannot be changed.

• Device Revision is the manufacturer revision number. It is used by an interface device to locate the DD file for the resource and cannot be changed.

4.Using the SIP keyboard, enter the new

information. Tap OK.

Changing the I/O block schedule

To change the schedule:

1.Display the live list; see page 4-11.

2.Double tap the device you want to work with.

3.Scroll down the block list and double tap

Schedule. The I/O Block Schedule window will appear. Changing the I/O block schedule on a device which is on an active segment could have unpredictable results.

4.Using the drop down menu, select the

appropriate MacroCycle (1, 2, 5, or 10 seconds).

5.Tap to check the box next to the I/O blocks that

are to be scheduled.

6.Tap OK. This will schedule the blocks and set

the mode on these blocks to Auto.

7.After reading the note, tap OK to acknowledge

that the I/O Block(s) were successfully scheduled.

Page 75

Fieldbus Functionality

Displaying advanced features

To view the advanced features, including Network Parameters:

1.Display the li ve li st; see page 4-11.

2.Double tap the device you want to work with.

3.Scroll down the block list and double tap Advanced. Double tap the desired Label to view label values.

You can save these values to an electronic file to better facilitate network troubleshooting. These files can be transferred to a PC using the Easy Programming Utility.

UTILITY The Utility menu displays polling as well as

4-17

fieldbus Device Descriptions installed on the 375 Field Communicator .

Polling

The V(FUN) is the first unpolled node address. V(NUN) is the number of node addresses not to poll. The addresses between V(FUN) and V(NUN) are polled. The DeltaV System checkbox instructs the 375 Field Communicator to use the same polling scheme as DeltaV.

Enter the desired polling addresses in the appropriate field. Narrowing the range of devices being polled provides a quicker live list refresh.

Page 76

4-18

Fieldbus Functionality

Viewing Installed Fieldbus Device Descriptions

To view the Fieldbus device descriptions installed on the 375 Field Communicator:

1.On the Fieldbus Appli cat ion menu, select and double tap Utility.

2.Select and double tap Dev ice Desc rip tio ns List. Fieldbus device manufacturers installed on the 375 Field Communicator are listed.

3.Select and double tap the manufacturer of the device you want to view. The models available for the manufacturer are list ed.

4.Select and double tap the model of the device descriptio n you want to view. The device revisions available for the selected model are

FIELDBUS DIAGNOSTICS

listed.

Fieldbus diagnostics run diagnostics for troubleshooting fieldbus networks. To view the Fieldbus Diagnostics menu:

1.From the Fieldbus Application menu, double tap Fieldbus Diagnostics.

2.If a warning appears, read it and tap OK to acknowledge.

3.To perform a measurement, tap the check box beside your desired option(s). Tap START to view the Diagnostic Results.

If Auto Re-test was not selected on the Fieldbus Diagnostics screen, tap RETEST to perform a single re-test.

Page 77

Fieldbus Functionality

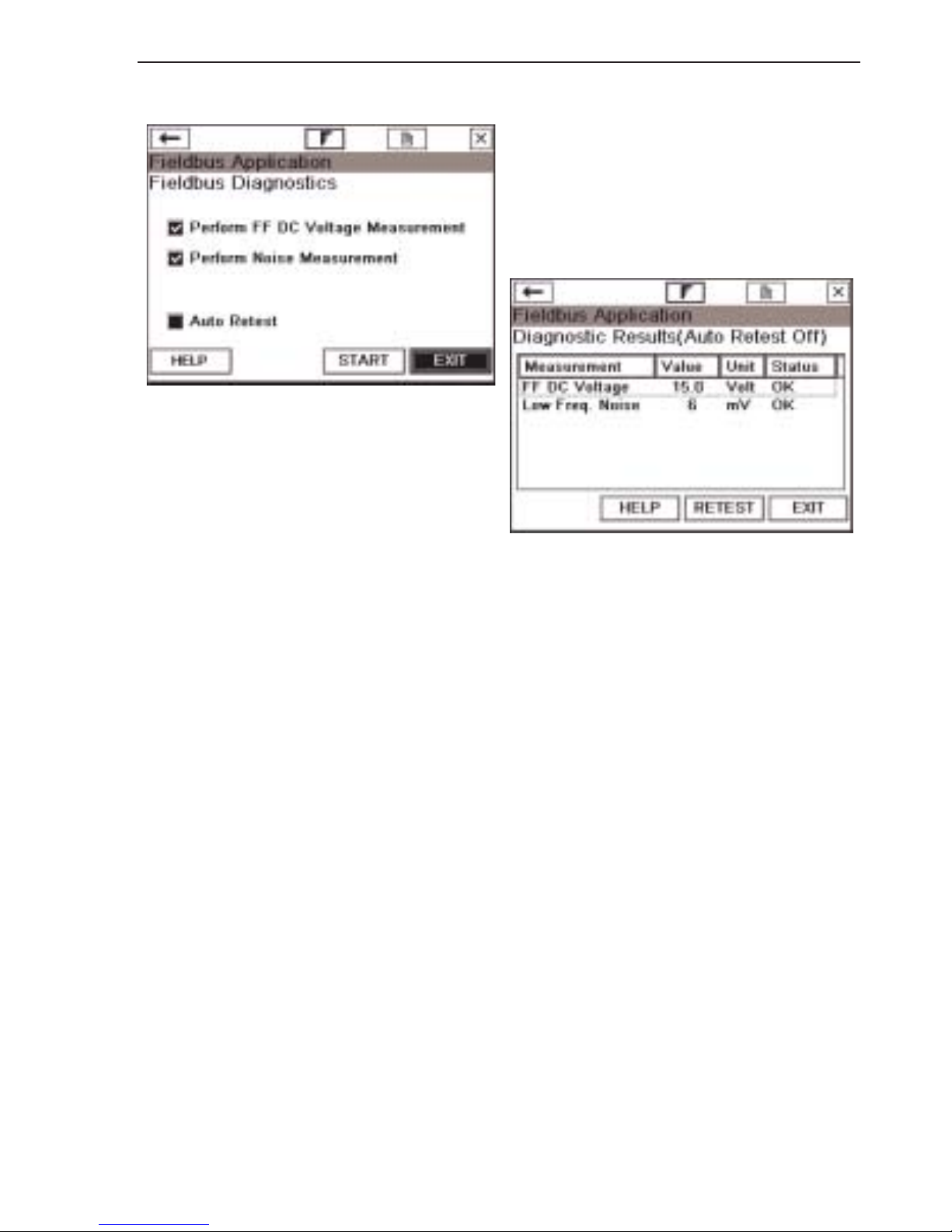

Figure 4-5. Fieldbus Diagnostics screen examples

4-19

Disconnecting from a Fieldbus Device

Prior to disconnecting or turning off the 375 Field Communicator be sure to check the following items:

• Verify methods (e.g. calibration) are complete.

• Resolve any un-sent data to the device.

Page 78

4-20

Fieldbus Functionality

Page 79

USER’S MANUAL

00375-0047-0001, Rev. C February 2004

375 FIELD COMMUNICATOR

SECTION 5TROUBLESHOOTING

OVERVIEW This section provides basic troubleshooting

techniques for the Model 375 Field Communicator. Below are methods for troubleshooting HART

Networks that are experiencing problems communicating between a field device and the 375 Field Communicator.

Troubleshooting suggestions

Answer the questions below and use the troubleshooting table,

Table 5-4,before calling

technical suppor t per sonnel.

• Does the control system have HART communication capabilities?

• Is it configured to communicate HART currently? If so, is it reporting communication problems? If not, stop HART communications on the control system and test communication with the 375 Field Communicator again.

• Is there a barrier installed?

• Is the barrier capable of passing along the HART signal?

www.fieldcommunicator.com

Page 80

5-2

Troubleshooting

Loops

Verify the HART loop current and voltage on the field device. Almost all field devices need at least 4mA and 12VDC to operate properly.

If there are multiple field devices on a multidrop loop then set the 375 Field Communicator to digital polling mode.

Inspection of the loop wiring can often times reveal problems. The shield is normally grounded at one end only, which is usually the control system.

Verify that the loop has a minimum of 250 ohms resistance. If there is not an external resistor, then normally, the total resistance is the resistance of the process-indicating device monitoring the loop. Check the manuals for the process-indicating device to determine it's loop resistance. If the resistance of the process-indicating device is unknown it can be determined by knowing the current flow in the loop and the voltage across the process-indicating device.

The resistance can be calculated using the formula, Resistance = Voltage / Current. The 375 Field Communicator can be used to measure the voltage; see

“DC voltage measurement (HART

terminals) ” on page 3-22.

Page 81

Troubleshooting

5-3

Sample values

Loop Current Flow Minimum voltage for 250 ohms. 4 ma 1 Volt

8 ma 2 Volts 12 ma 3 Volts 16 ma 4 Volts 20 ma 5 Volts

If the voltage across the process-indicating device is greater than the value listed for a given current flow then the device has at least 250 of internal resistance. If the voltage is less than the value listed on the table for the given current flow, then more resistance needs to be added to the loop.

If an oscilloscope is available for use then use it to look for noise on the loop. It is necessary to use a a scope with differential mode capability or a battery powered/isolated scope to avoid grounding one side of the loop. Noise with a frequency of 500 Hz to 10,000 Hz is of particular interest, as this represents frequencies near the HART frequencies of 1200 and 2200 Hz.

Page 82

5-4 Table 5-1. Troubleshooting table for HART protocol

Symptom Possible Causes Solution

Troubleshooting

Intermittent communication Insufficient loop

current and voltage at the field device terminals.

Noise on the field loop Noise or signal

distortion from the control system (i.e. noise from the power supply powering field devices or front end analog circuitry inside of control system may be distorting the HART signal.

Poor wiring Check wiring terminations and exposed

No communication with field device

Insufficient loop resistance at the HART frequencies.

Insufficient loop current and voltage at the field device terminals.

Verify that there is at least 4mA and 12V DC at the field device terminals; see voltage measurement (HART terminals)” on page 3-22.

signal wire for damage. Add an add it ional 250 ohm res ist or i n ser ies

in the loop. Place the leads across the resistor and verify if communication has been restored.

Verify that there is at least 4mA and 12V DC at the field device terminals; see voltage measurement (HART terminals)” on page 3-22.

“DC

Control system is communicating HART, but the 375 is not communicating properly.

Field device may be set to HART address other than zero (multi-drop mode).

HART communication is being prevented by the control system.

Change Polling mode to something other than never poll, e.g. Digital Poll.

Stop HART communications on the control system and verify if communication between the field devices and the communicator is restored.

Page 83

Troubleshooting

ERROR AND STATUS MESSAGES

General Error Messages Description

5-5

License file check failed - error code x. Please contact service center to resolve this problem. Press OK to turn off. (Where x indicates the test that failed.)

Battery power is less than 5%. You must recharge the 375 battery, switch to a spare battery pack, or use external power. Press OK to turn off.

Battery power is less than 20%. You may need to recharge the 375 battery, switch to a spare battery pack, or use external power.

Communication circuit is not responding. CDC is not responding during the

Warning: System incompatibility detected - error code x. You may start Listen for PC and use the 375 Programming Utility to resolve this. Or You may turn off your 375 and contact service center to resolve this. (Where x is an error code indicating what the incompatibility detected was or related errors.)

Installation file is corrupt - error code x. Please call service center to resolve this problem. Press OK to turn off. (Where x is an error code indicating which cab file size is bad, getting file size failure (which means file is missing), TAZrev.xml file checksum failure, or other related errors.)

License file check failed during power- up

The power-up battery check detects the battery charge is below five percent while on battery .

The power-up battery check detects the ba tte r y c har ge i s be l o w 2 0%, an d more than or equal to 5% while on battery.

power-up Hardware vers ion or O per ati n g

System is not compatible.

The .cab files size check or TAZrev.xml checksum check failed before it attempted to launch the program loader.

The 375 needs to update its software. Battery power must be more than 20% to allow for this update. You must recharge the 375 battery, switch to a spare battery pack, or use external power. Press OK to turn off.

This 375 is not licensed for HART. You are not licensed for HART

This 375 is not licensed for FOUNDATION Fieldbus. You are not licensed for FOUNDATION

The 375 does not detect a System Card. Please make sure your System Card is properly installed in its slot. Press OK to turn off.

This message occurs when on battery, and the battery percentage is less than 20% before attempting to launch program loader:

functionality.

fieldbus functionality. This message occurs when the

System Card is not properly installed in its slot.

Page 84

5-6

HART Error and Help Messages Description

Troubleshooting

"Poll Using Long Tag" allows the user to enter the long tag of the device they want to connect to

"Poll Using Tag" allows you to enter the tag of the device you want to connect to

Enter Device Long Tag This is a help message. Enter the long tag that corresponds to the device you want

to connect to Hart Application Error... “hc.ddl device revision x not

found.”...Refresh System Card...See User's Manual and Programming Interface for details

Hart Application Error ... “registry failure”...Reinstall System Files...See User's Manual for details

Voltage is currently detected at the Fieldbus Terminals. Reconfigure unit and try again.

CDC Error...“failure while switching to HART”...Reinstall System Files...See Users’s Manual for details

This is a help message.

This error message appears when an expected version of hc.ddl is not found.

This error message appears when the information describing the location of the DD's is not found in the registry.

This error message appears when the HART app found voltage on the FF connector during initialization and during reconnection to a device.

This error message appears when the HART app fails to put the CDC in HART mode for talking to a HART device.

DD Error…"tokenizer mismatch"…DD version

<manufacture name, device name, dev. rev. #, and DD rev. #>; HART application <version x.y>; HART app

version x.y...Reinstall DD…See Programming Interface for details

DD Error…"linker mismatch"...DD version x.y; HART app version x.y...Reinstall DD…See Programming Interface for details

DD Error…"developed-to mismatch"…DD version

<manufacture name, device name, dev. rev. #, and DD rev. #>; HART application <version x.y> …See

Programming Interface for solution. Warning: this DD is untested with the current Hart App ver

<manufacture name, device name, dev. rev. #, and DD rev. #>…you may experience unexpected or

inappropriate results…See Programming Interface for details on DD updates…Do you want to accept these risks and proceed?

DD Error…"tested-to sequence mismatch"…DD version

<manufacture name, device name, dev. rev. #, and DD rev. #>; HART application <version x.y>; HART app

version x.y…See Programming Interface for solution

This error message appears when the version of the tokenizer used to tokenize the DD is not what the HART app expects.

This error message appears when the version of the linker used to link the DD is not what the HART app expects.

This error message appears when the DD was developed and tested using a later HART app revision.

This error message appears when the DD was not tested and verified with the HART app.

This error message appears when the DD was tested with a previous version but not with this version of the HART app

Page 85

Troubleshooting

5-7

DD Error…"developed-to mismatch"...DD version

<manufacture name, device name, dev. rev. #, and DD rev . #>; HART ap plication <version x.y>; HART app

version x.y...Reinstall DD…See Programming Interface for details

DD Error…"DD header file corrupted"...Reinstall Device version <manufa ctur e name , dev ice name, dev. rev. #, and DD rev . #>; HART ap plication <version x.y> …See Programming Interface for details

Hart Application Error…"data compression dll is missing"…Reinstall System Files...See User's Manual for details

Hart Application Error…"data compression dll is corrupted"…Reinstall System Files...See User's Manual for details

Memory Error…"data compression memory allocation error"…Restart Unit...See User's Manual for further details

DD Error…"failure while opening DD"...Reinstall Device Type x Device Rev x dd Rev x…See Programming Interface for details

This error message appears when the DD was developed using a later HART app revision.

This error message appears when there is a check sum error in the DD header file.

This error message appears when the data compression component can not be located.

This error message appears when a required functionality is missing from the data compression component.

This error message appears when HART app is unable to acquire enough memory for data compression.

This error message appears when the system can not open the DD file.

DD Error…"failure while uncompressing DD"...Reinstall Device revision <manufacture name, devic e name , dev. rev. #, and DD rev. #> …See Program ming Interface for details

Communication Error…"unexpected return value"…See User's Manual for solution

DD Error…"DD file corrupted"...Reinstall Device revision

<manufacture name, device name, dev. rev. #, and DD rev . #>…See Programming Interface for details

Forward Compatibility Blocked…DD Device Type x Device Rev x dd Rev x cannot be used in forward compatibility mode…x… Do you wish to proceed in forward compatibility mode?

DD Not Installed…DD device type x device rev x is not installed on the System Card…See Programming Interface for details on DD updates…Do you wish to proceed in forward compatibility mode?

This error message appears when an error is detected while uncompressing the DD.

This error message appears when an expec ted value returned from a function call.

This error message appears when the checksum of the DD does not match with that described in the DD header file.

This error message appears when the HART app attempts to use a DD to run in forward compatibility mode and finds that the DD is prevented from running in forward compatibility mode

This error message appears when the DD for the connected device is not in the unit.

Page 86

5-8

Fieldbus Error and Help Messages Description

Troubleshooting

DDP Error 1: Unable to load DD. Press OK to return to Block List

There has been a loss of communication with one or more devices on the segment. Press OK to return to the live list.

The 375 has been disconnected from the segment. Press RETRY to attempt to reconnect to the segment." Press CANCEL to return to the FF app main menu. Press EXIT to exit the FF App."

_T("SM ERROR: FAILED RESPONDER IDENTIFY") There is a problem sustaining

_T("FFLIB: Incompatible DD Static Description") The Device Description (DD) does

_T("FBLIB: Device Upload aborted Communications with a device has

Using Easy Upgrade, check to see if this DD is available to load into your 375 unit. If not, contact the device manufacturer.

Check connection to fieldbus devices.

V erify that the 375 lead set is still securely connected to the FF Segment and press RETRY.

communications w ith the devi ce . Contact 375 Field Communicator customer support personnel.

not match the actual device correctly. Use the 375 Easy Upgrade to see if a new DD is available for that device. Contact 375 Field Communicator customer support personnel.

timed out. This should normally not happen. Contact 375 Field Communicator custo me r suppo rt personnel.

_T("FMS OTHER: Parameter Check") The parameter being entered is

invalid for this device. Check with the device supplier . Make sure the value entered is valid for that specific device parameter.

_T("FMS OTHER: Exceeds Parameter Limits") The parameter being entered is

outside the range of valid values for the device parameter. Check with the device supplier . Make sure the value entered is in the correct range for that device parameter

_T("FMS OTHER: Wrong Mode For Request") The block is in the wrong mode to

accept the parameter change being requested. on how to change block modes .

_T("SM ERROR: REMOTE ERROR INVALID STATE") An attempt to change the addre ss of

the device serving as the LAS on the segment is being made. Changing the device address of the LAS is not recommended.

See “Modes” on page 4-4

Page 87

Troubleshooting

5-9

REQUIRED INFORMATION FOR TECHNICAL ASSISTANCE

Before you call for technical support personnel, have a detailed description of the issue including the following (if applicable) information:

• Manufacturer and model of control system (if applicable)

• 375 Field Communicator system software revision

• Manufacturer ID number or name and model revision of field device (As displayed on the 375, exact spelling if possible.)

• Have the User’s Manual for the field device available.

• Does HART communication work when certain devices or processes are not running?

• What is the total cable length run from the termination panel to the field device?

• What is the message on the 375 Field Communicator when attempting to communicate with a field device (i.e., device not found)?

• What is the serial number of the 375 having the communic ati on is su e?

• Is the device in burst mode?

• What is the loop impedance in the device loop? (Resistance value)

• Can the 375 talk to the Field Device?

• Can the AMS Suite: Intelligent Device Manager talk to the Field Device?

• Is the Field Device address set to "0"?

• Is there more than (1) Field Device on the loop?

• Is there another HART master (primary or secondary) on the loop? (i.e. Control system, Multiplexer etc.)

Page 88

5-10

Troubleshooting

• Does the Control system support HART communications?

• If a HART multiplexer is being used, what is the manufacture and model?

• What is the approximate Field Device loop length? (Length of the wire)

• Are there any error messages being displayed?

• What task is being performed when the communication problem occurs?

• Are you having communication problems with multiple Field Devices?

Contacting Technical Support Personnel

Contact your supplier or go to the website, www.fieldcommunicator.com, for a list of technical support locations.

Page 89

USER’S MANUAL

00375-0047-0001, Rev. C February 2004

375 FIELD COMMUNICATOR

APPENDIX AREFERENCE INFORMATION

PROCESSOR AND MEMORY SPEC IFICATIONS

Microprocessor Memory

133 Mhz Hitachi® SH3

Internal Flash

32 MB

System Card

128 MB (or higher) Secu re Digital card

RAM

32 MB

Expansion Module

32 MB (or higher) Secure Digital card

PHYSICAL SPEC IFICATIONS

Weight Display

Approximately 2 lb. (950 grams) includes battery 1/4 VGA (240 by 320 pixels) monochrome touch

screen with a viewing area of approximately 6 cm by 8 cm (10 cm diagonal)

Base glas s thickness 1.1 mm anti-glare Dimensions 92 mm x 71.1 mm x 10 mm

www.fieldcommunicator.com

Page 90

A-2

Reference Information

Keypad

POWER SUPPLY SPECIFICATIONS

Twenty-five keys including four action keys, twelve alphanumeric keys, four alternate functionality keys, on/off, and 4 navigation (arrow) keys; membrane design with tactile feedback

Power supply voltage

6.0 V

Battery

Five rechargeable NiMh AA batteries Not serviceable.

Battery operating time

Ten hours typical use

Power Supply/Charger

CONNECTION SPECIFICATIONS

90-240 VAC, 50/60Hz, US/UK/EU connection types included

Battery Charger

2.5 mm jack

HART and Fieldbus Communication

Three 4mm banana plugs (one common terminal to both HART and F

OUNDATION fieldbus.)

Personal Computer

IrDA port supporting up to 115 Kb/s ± 15 degrees recommended maximum angle from

center line. 18 in. recommended maximum distance from

center line. Requires Windo ws® 2000 or Windows XP

Page 91

Reference Information

A-3

ENVIRONMENTA L SPEC IFICATIONS

Usage

-10°C to +50°C (14°F to 122°F) 0% to 95%RH (non-condensing) for 0°C to +50°C

(32°F to 122°F)

Charge

0°C to +40°C (32°F to 104°F)

Storage

-20°C to +55°C (-4°F to 131°F) with batteries (less than one month)

Storage without batteries

-20°C to +60°C (-4°F to 140°F)

Enclosure rating

IP51 (front)

Shock

Passes the 1-meter drop test onto concrete

Page 92

A-4

ORDERING INFORMATION

Reference Information

Model

375 Field Communicator

Code

Product Description

(1)

Communication Protocol

H HART F HART and FOUNDATION fieldbus

Code

Battery Type

R Rechargeable NiMH Battery Pack

Code

Power Supply/Charger

1 Power Supply/Charger (90-240 VAC, 50/60Hz, US/UK/EU

connection types included)

9 Not Included

Code

Language

(2)

E English

Code

Product Certifications

KL CENELEC/ATEX, FM, CSA Intrinsically Safe

(includes FISCO as applicable)

NA No Approval

Code

Easy Upgrade

(3)

U Easy Upgrade Option (includes unlimited upgrades to System Card for 3

year period)

9 Not Included

Code

Options

Spare Battery Pack

B Spare Rechargeable NiMH Battery Pack

(4)

Expansion Module

C Configuration Expansion Module

(5)

(1) Base Model 375 includes Field Communicator unit, System Card, Leadset with

connectors, Carrying case, Getting St arted Guide, User's Manual, 375 Resource CD, stylus and straps.

(2) This option should only be considered if the user already has a 375 Power

Supply/Charger. Note: Only 375 Power Supply/Chargers are to be used with the 375 battery pack.

(3) The Easy Upgrade capability allows the user to add new System Application

software and Device Descriptions (DDs) to the 375. To upgrade without this feature, the System Card would have to be sent a Service Center.

(4) A fully charged battery pack is capable of delivering power for 8 hours of typical

field use. If requirements exceed this specification, a second battery pack is recommended.

(5) The 375 is capable of storing a total of 25 configurations. For increased

storage capacity , use the Configuration Expansion Module which is capable of storing in excess of 500 configurations.

Page 93

Reference Information

Spare Parts List

A-5

Description

Part Number

Ruggedized 250 Ohm Load Resistor 00275-0096-0001 Rechargeable NiMH Battery Pack with Accessory Case 00375-0002-0011 Power Supply/Charger

00375-0003-0011

(90-240 VAC, 50/60Hz, US/UK/EU connection types included) Lead Set with connectors 00375-0004-0001 Mounting Straps 00375-0005-0002 Carrying Case (with straps) 00375-0005-0003 Accessory Case (clips to Carry ing Case) 00375-0005-0004 Stylus (pack of 5) 00375-0006-0001 IRDA to USB Adapter

(1)

00375-0015-0002 Expansion Port Plug 00375-0035-0001 System Card - HART® and FOUNDATION fieldbus 00375-0042-0002 System Card - HART with Easy Upgrade Option System Card -

HART and FOUNDATION fieldbus with Easy Upgrade Option

(2)

00375-0042-0003

00375-0042-0004 Configuration Expansion Module 00375-0043-0001

Stand and Utility Plate 00375-0044-0001 Getting St arted Guide 00375-0045-0001 User's Manual 00375-0047-0001 Resource CD

(3)

00375-0049-0001

(1) For use with AMS/375 Interface or 375 Programming Utility. (2) Includes unlimited upgrades to System Card for 3 year period. (3) Contains Programming Utility and System Software/DD database. This CD is

updated on a quarterly basis.

Page 94

A-6

Reference Information

Page 95

USER’S MANUAL

00375-0047-0001, Rev. C February 2004

375 FIELD COMMUNICATOR

APPENDIX BAPPROVAL INFORMATION

OVERVIEW This Appendix contains information on approved

manufacturing locations, the European Directive, Hazardous Locations Certifications, and approval drawings for HART protocol.

APPROVED MANUFACTURING LOCATIONS

EUROPEAN DIRECTIVE INFORMATION

Cologne, Germany

Electro Magnetic Compatibility (89/336/EWG)

Tested to specifications EN 61000-6-3 and EN 61000-6-2

ATEX Dire ct ive (94/9/ EC) (KL optio n only)

Emerson Process Management complies with the ATEX Directive.

Specific ATEX Directive Information is located within this document and the 375 Field Communicator Getting Started guide.

CE Compliance per EN 50014, EN 50020, and EN 50284

www.fieldcommunicator.com

Other important guidelines

Only use new, original parts. Do not charge the battery in hazardous areas. Have repairs done only by qualified personnel. Only charge or power using the 375 Power Supply.

Page 96

B-2

Approval Information

HAZARDOUS LOCATIONS CERTIFICATIONS (KL OPTION ONLY)

North American Certifications

All 375 Field Communicators come with the main unit label; see

Figure B - 1. Intrinsically Safe (KL option) 375 Field Communicators also have an additional label opposite the main unit label; see Figure B - 2. If the 375 Field Communicator does not contain this label (NA option) then it should be considered non-IS approved.

Factory Mutual (FM)

Intrinsically Safe for Class I, Division 1, Groups A, B, C, and D and Class I, Zone 0, AEx ia IIC T4 (Ta = 50 °C) hazardous locations when connected as indicated in the control drawing 00375-1130. See the control drawi ng for input and outp u t parameters.

Canadian Standards Association (CSA)

Intrinsically safe for use in Class 1, Zone 0, Ex ia IIC T4 hazardous locati on s when co nnec te d as indicated in the control drawing 00375-1130. See the control drawi ng for input and outp u t parameters.

Page 97

Approval Information

B-3

European Certifications

ATEX Intrin s ic Safety

Certification No.: DMT 03 ATEX E 031

II 2 G (1 GD)

EEx ia IIC T4 (-10 °C ≤ Ta ≤ +50 °C)

0158

HART Intrinsically Safe electrical parameters

Input Parameters

U I P L C

Output Parameters

U I

= 30 Volt DC

= 200 mA

= 1.0 Watt

= 0

= 1.9 Volt DC

= 32 µA

Foundation fieldbus

Intrinsically safe FISCO

U U U

Intrinsically safe Non-FISCO

U U L

= 17.5 Volt DC I

iIIC

= 17.5 Volt DC I

iIIB

= 1.9 Volt DC I

= 30 Volt DC Ii = 380 mA Pi = 1.3 Watt

= 1.9 Volt DC I

= 0 Ci = 0

iIIC iIIB 0

= 215 mA P = 380 mA P

= 32 µA

= 1.9 Watt

iIIC

= 5.3 Watt

iIIB

Page 98

B-4

Approval Information

LABEL DRAWINGS

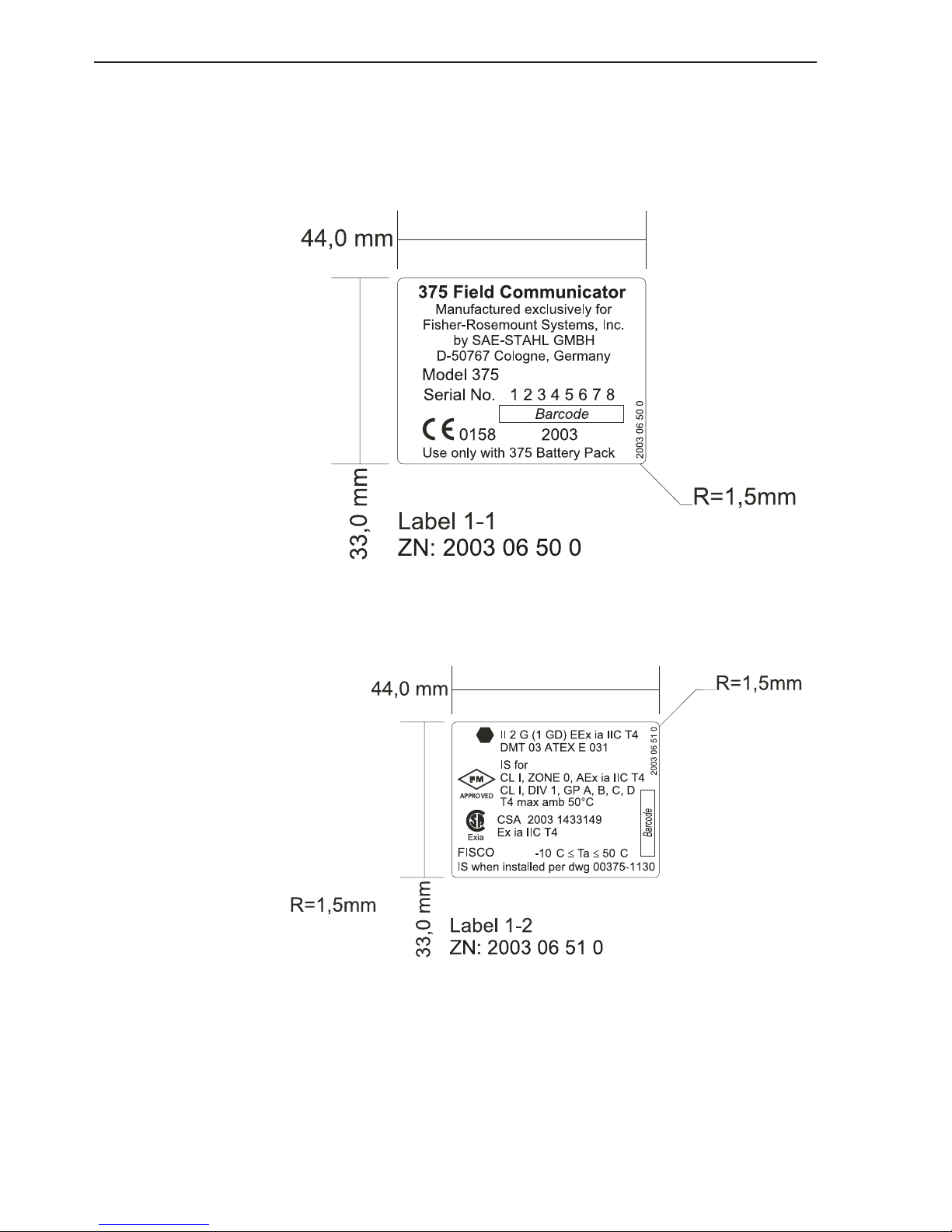

Figure B - 1. All 375 Field Communicators will have a similar label to the one below.

Figure B - 2. Approval Ex label example (KL option only)

Page 99

Approval Information

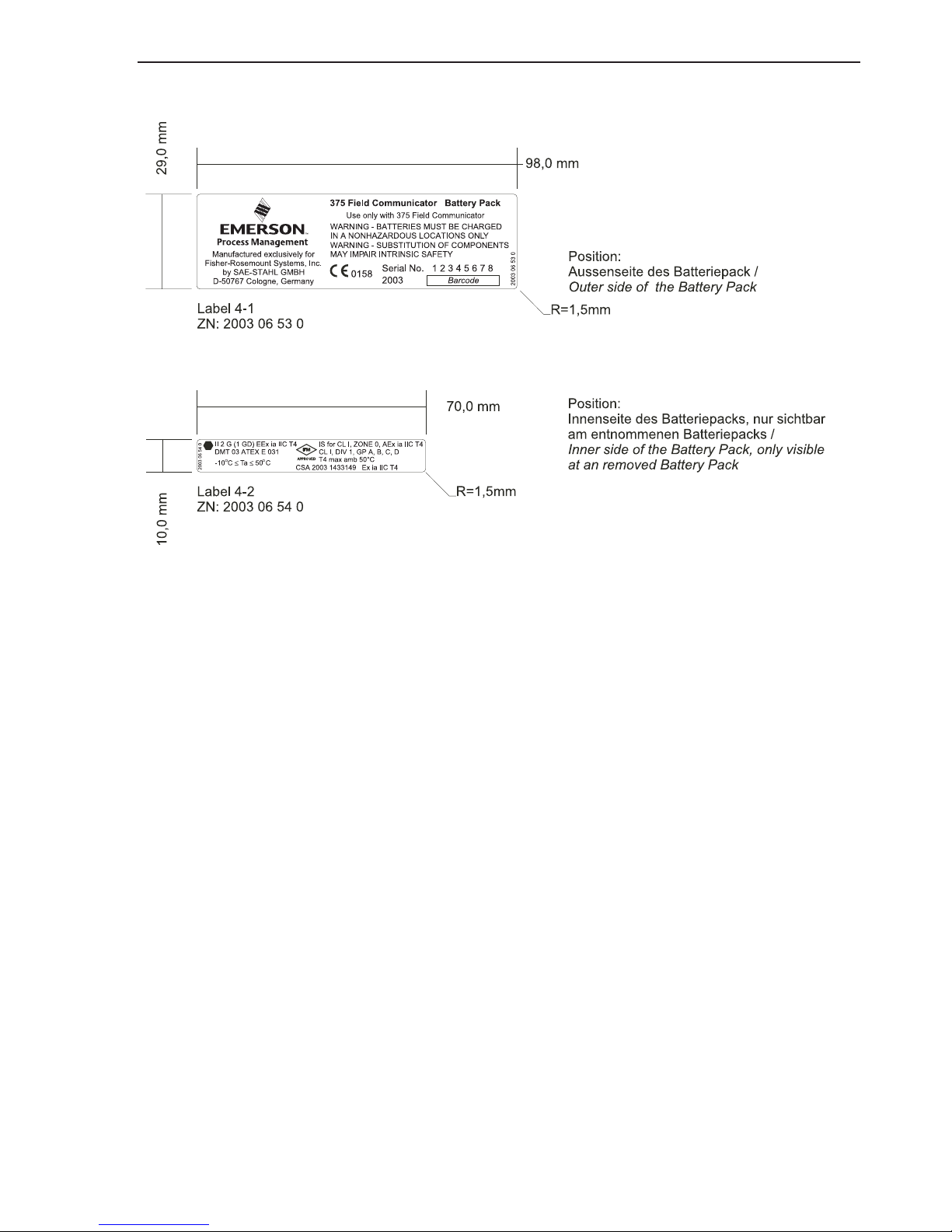

Figure B - 3. Battery Pack Label example (all)

B-5

Page 100

B-6

Approval Information

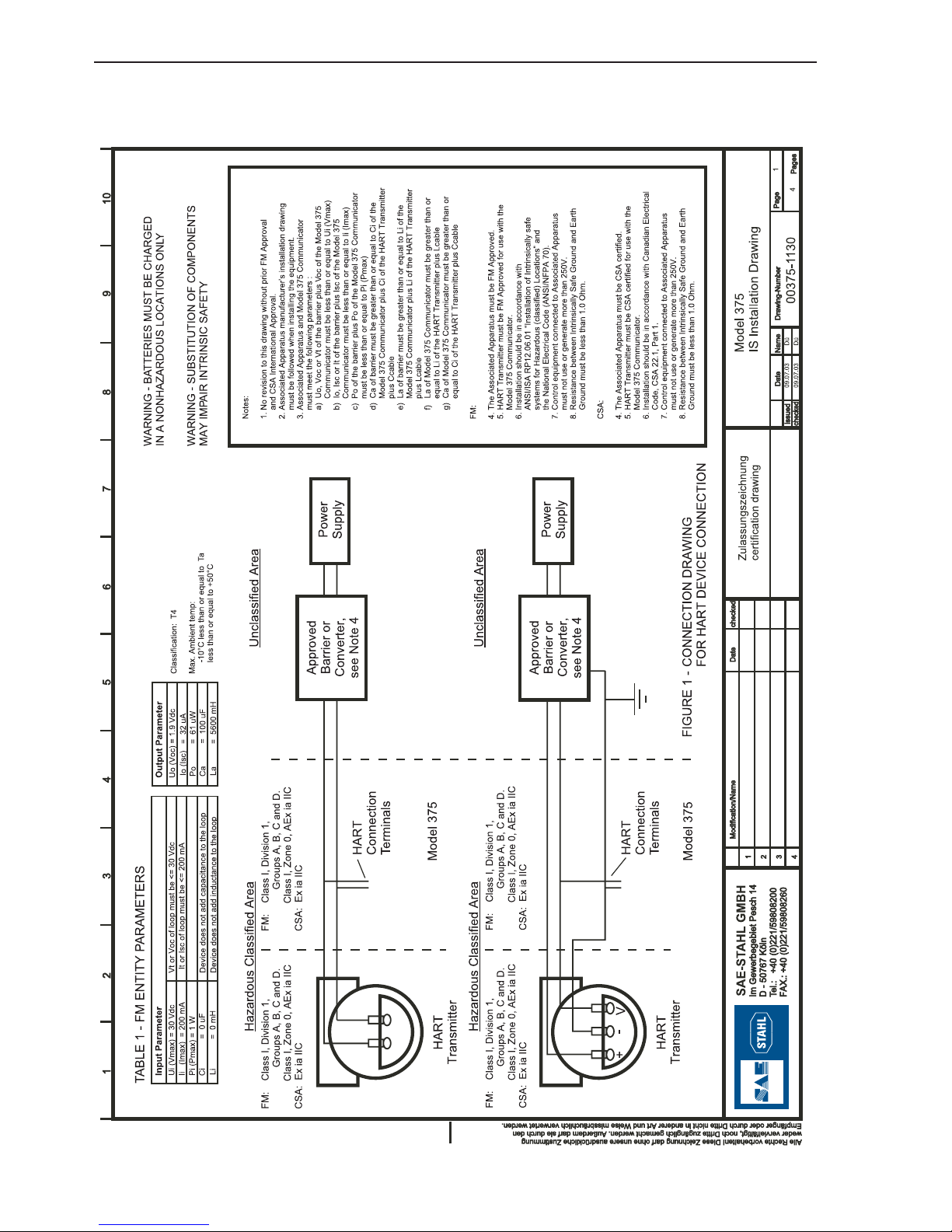

APPROVAL DRAWING

This approval drawing can also be found on the www.fieldcommunicator.com website.
